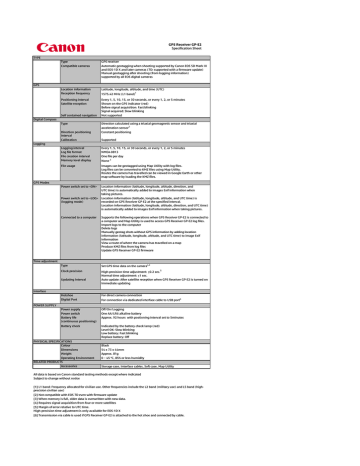

GPS Receiver GP-E2
Specification Sheet
TYPE
Type
Compatible cameras
GPS receiver
Automatic geotagging when shooting supported by Canon EOS 5D Mark III
and EOS-1D X and later cameras (7D: supported with a firmware update)
Manual geotagging after shooting (from logging information)
supported by all EOS digital cameras
Location information
Reception frequency
Latitude, longitude, altitude, and time (UTC)
Positioning interval
Satellite reception
Every 1, 5, 10, 15, or 30 seconds, or every 1, 2, or 5 minutes
Shown on the GPS indicator (red)
Before signal acquisition: Fast blinking
Signal acquired: Slow blinking
Not supported
GPS
Self contained navigation
1575.42 MHz (L1 band)1
Digital Compass
Type
Direction positioning
interval
Calibration
Direction calculated using a triaxial geomagnetic sensor and triaxial
acceleration sensor2
Constant positioning
Supported
Logging
Logging interval
Log file format
File creation interval
Memory level display
Every 1, 5, 10, 15, or 30 seconds, or every 1, 2, or 5 minutes
NMEA-0813
One file per day
File usage
Images can be geotagged using Map Utility with log files.
Log files can be converted to KMZ files using Map Utility.
Routes the camera has travelled can be viewed in Google Earth or other
map software by loading the KMZ files.
None 3
GPS Modes
Power switch set to <ON>
Location information (latitude, longitude, altitude, direction, and
UTC time) is automatically added to images Exif information when
taking pictures.
Power switch set to <LOG> Location information (latitude, longitude, altitude, and UTC time) is
(logging mode)
recorded on GPS Receiver GP-E2 at the specified interval.
Location information (latitude, longitude, altitude, direction, and UTC time)
is automatically added to images Exif information when taking pictures.
Connected to a computer
Supports the following operations when GPS Receiver GP-E2 is connected to
a computer and Map Utility is used to access GPS Receiver GP-E2 log files.
Import logs to the computer
Delete logs
Manually geotag shots without GPS information by adding location
information (latitude, longitude, altitude, and UTC time) to image Exif
information
View a route of where the camera has travelled on a map
Produce KMZ files from log files
Update GPS Receiver GP-E2 firmware
Time adjustment
Type
Set GPS time data on the camera4,2
Clock precision
High-precision time adjustment: ±0.2 sec.
Normal time adjustment: ±1 sec.
Auto update: After satellite reception when GPS Receiver GP-E2 is turned on
Immediate updating
Updating Interval
5
Interface
Hotshoe
Digital Port
For direct camera connection
Power supply
Power switch
Battery life
(continuous positioning)
Off/On/Logging
One AA/LR6 alkaline battery
Approx. 92 hours with postioning interval set to 5minutes
Battery check
Indicated by the battery check lamp (red)
Level OK: Slow blinking
Low battery: Fast blinking
Replace battery: Off
For connection via dedicated interface cable to USB port6
POWER SUPPLY
PHYSICAL SPECIFICATIONS
Colour
Dimensions
Weight
Operating Environment
RELATED PRODUCTS
Accessories
Black
54 x 73 x 44mm
Approx. 81g
0 – 45 °C, 85% or less humidity
Storage case, Interface cables, Soft case, Map Utility
All data is based on Canon standard testing methods except where indicated
Subject to change without notice
[1] L1 band: Frequency allocated for civilian use. Other frequencies include the L2 band (military use) and L5 band (highprecision civilian use)
[2] Not compatible with EOS 7D even with firmware update
[3] When memory is full, older data is overwritten with new data.
[4] Requires signal acquisition from four or more satellites
[5] Margin of error relative to UTC time.
High-precision time adjustment is only available for EOS-1D X
[6] Transmission via cable is used if GPS Receiver GP-E2 is attached to the hot shoe and connected by cable.
