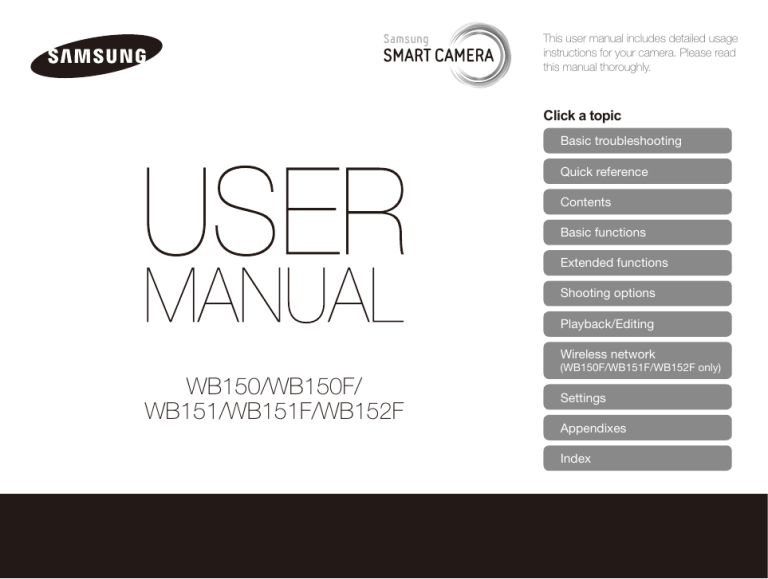

This user manual includes detailed usage
instructions for your camera. Please read
this manual thoroughly.
Click a topic
Basic troubleshooting
Quick reference
Contents
Basic functions
Extended functions
Shooting options
Playback/Editing
Wireless network
(WB150F/WB151F/WB152F only)
WB150/WB150F/
WB151/WB151F/WB152F
Settings
Appendixes
Index
Health and safety information
Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera.
Prevent damage to subjects’ eyesight.
Do not use the flash in close proximity (closer than 1 m/3 ft) to
people or animals. If you use the flash too close to your subject’s
eyes, this can cause temporary or permanent eyesight damage.
Warning—situations that could cause injury to yourself or
others
Do not disassemble or attempt to repair your camera.
This may result in electric shock or damage to the camera.
Keep your camera away from small children and pets.
Keep your camera and all accessories out of the reach of small
children and animals. Small parts may cause choking or serious
injury if swallowed. Moving parts and accessories may present
physical dangers as well.
Do not use your camera near flammable or explosive gases and
liquids.
This may cause a fire or explosion.
Do not insert flammable materials into the camera or store these
materials near the camera.
This may cause a fire or electric shock.
Do not expose the camera to direct sunlight or high
temperatures for an extended period of time.
Prolonged exposure to sunlight or extreme temperatures can
cause permanent damage to your camera’s internal components.
Do not handle your camera with wet hands.
This may result in electric shock.
1
Health and safety information
Avoid covering the camera or charger with blankets or clothes.
The camera may overheat, which may distort the camera or
cause a fire.
Avoid interference with pacemakers.
Maintain a minimum of 15 cm (6 inches) between this
camera and all pacemakers to avoid potential interference,
as recommended by the manufacturer and the independent
research group, Wireless Technology Research. If you have
any reason to suspect that your camera is interfering with
a pacemaker or other medical device, turn off the camera
immediately and contact the manufacturer of the pacemaker or
medical device for guidance.
Do not handle the power supply cord or go near the charger
during a thunderstorm.
This may result in electric shock.
If liquid or foreign objects enter your camera, immediately
disconnect all power sources, such as the battery or charger,
and then contact a Samsung service center.
Comply with any regulations that restrict the use of a camera in
a certain area.
• Avoid interference with other electronic devices.
• Turn off the camera when in an aircraft. Your camera can cause
interference with aircraft equipment. Follow all airline regulations
and turn off your camera when directed by airline personnel.
• Turn off the camera near medical equipment. Your camera can
interfere with medical equipment in hospitals or health care
facilities. Follow all regulations, posted warnings, and directions
from medical personnel.
2
Health and safety information
Use the battery only for its intended purpose.
Misusing the battery may cause a fire or electric shock.
Caution—situations that could cause damage to your camera
or other equipment
Do not touch the flash while it fires.
The flash is very hot when fired and may burn your skin.
Remove the batteries from your camera when storing it for an
extended period of time.
Installed batteries may leak or corrode over time and cause
serious damage to your camera.
When you use the AC charger, turn off the camera before you
disconnect the power to the AC charger.
Failing to do so may result in fire or electric shock.
Use only authentic, manufacturer-recommended, Lithium-ion
replacement batteries. Do not damage or heat the battery.
Inauthentic, damaged, or heated batteries may cause a fire or
personal injury.
Disconnect the charger from the wall socket when not in use.
Failing to do so may result in fire or electric shock.
Do not use a damaged power supply cord, plug, or loose outlet
when you charge batteries.
This may cause a fire or electric shock.
Use only Samsung-approved batteries, chargers, cables and
accessories.
• Using unauthorized batteries, chargers, cables or accessories
can cause batteries to explode, damage your camera, or cause
injury.
• Samsung is not responsible for damage or injuries caused by
unapproved batteries, chargers, cables or accessories.
Do not allow the AC charger to come in contact with the +/terminals on the battery.
This may cause a fire or electric shock.
3
Health and safety information
Do not force the camera’s parts or apply pressure to the
camera.
This may cause your camera to malfunction.
Avoid interference with other electronic devices.
Your camera emits radio frequency (RF) signals that may interfere
with unshielded or improperly shielded electronic equipment,
such as pacemakers, hearing aids, medical devices, and
other electronic devices in homes or vehicles. Consult the
manufacturers of your electronic devices to solve any interference
problems you experience. To prevent unwanted interference, use
only Samsung-approved devices or accessories.
Exercise caution when you connect cables or adapters and
install batteries and memory cards.
If you force the connectors, improperly connect cables, or
improperly install batteries and memory cards, you can damage
ports, connectors, and accessories.
Use your camera in the normal position.
Avoid contact with your camera’s internal antenna.
Keep cards with magnetic strips away from the camera case.
Information stored on the card may be damaged or erased.
Data transference and your responsibilities
Never use a damaged charger, battery, or memory card.
This may result in electric shock or camera malfunction or cause
a fire.
• Data transferred via WLAN could be leaked, so avoid
transferring sensitive data in public areas or on open networks.
• The camera manufacturer is not liable for any data transfers that
infringe on copyrights, trademarks, intellectual property laws, or
public decency ordinances.
Check that the camera is operating properly before use.
The manufacturer takes no responsibility for any loss of files or
damage that may result from camera malfunction or improper
use.
You must plug the small end of the USB cable into your camera.
If the cable is reversed, it may damage your files. The
manufacturer is not responsible for any loss of data.
4
Outline of the User Manual
Basic functions
Copyright information
• Microsoft Windows and the Windows logo are
registered trademarks of the Microsoft Corporation.
• Mac is a registered trademark of the Apple Corporation.
• microSD™, microSDHC™, and microSDXC™ are
registered trademarks of the SD Association.
• Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are
registered trademarks of the Wi-Fi Alliance.
• Trademarks and trade names used in this manual are
the property of their respective owners.
Extended functions
Shooting options
•
•
53
Learn how to set the options in Shooting mode.
Playback/Editing
•
34
Learn how to capture a photo and record a video by
selecting a mode.
76
Learn how to play back photos or videos, and edit
photos or videos. Also, learn how to connect your
camera to your computer, photo printer, or TV.
• Camera specifications or contents of this manual may
•
14
Learn about your camera’s layout, icons, and basic
functions for shooting.
be changed without prior notice due to upgrade of
camera functions.
We recommend using your camera within the country
where you purchased it.
Use this camera responsibly and adhere to all laws
and regulations concerning its use.
You are not allowed to reuse or distribute any part of
this manual without prior permission.
For Open Source License information, refer to the
‘OpenSourceInfo.pdf’ in the provided CD-ROM.
Wireless network
(WB150F/WB151F/WB152F only)
99
Learn how to connect to wireless local area networks
(WLANs) and use functions.
Settings
120
Refer to options to configure your camera’s settings.
Appendixes
Get information about error messages, specifications,
and maintenance.
5
126
Icons used in this manual
Indicators used in this manual
Shooting mode
Indicator
Smart Auto
T
Icon
Function
Program
p
Aperture Priority, Shutter Priority, Manual
G
Scene
s
[ ]
Camera buttons. For example, [Shutter] represents the
shutter button.
Magic Plus
g
( )
Page number of related information
Wi-Fi (WB150F/WB151F/WB152F only)
w
Live Panorama (WB150/WB151 only)
R
“
Settings
n
Movie
v
The order of options or menus you must select to
perform a step; for example: Select Face Detection “
Normal (represents Select Face Detection, and then
select Normal).
*
Annotation
Additional information
Safety warnings and precautions
Shooting mode icons
These icons appear in the text when a function is available in a
mode. See the example below.
Note: The s or g mode may not support functions for all
scenes or modes.
For example:
Available in Program,
Aperture Priority,
Shutter Priority, and
Movie modes
6
Expressions used in this manual
Exposure (Brightness)
The amount of light that enters your camera determines the
exposure. You can alter the exposure by changing the shutter
speed, aperture value, or ISO sensitivity. By altering the exposure,
your photos will be darker or lighter.
Pressing the shutter
• Half-press [Shutter]: Press the shutter halfway down
• Press [Shutter]: Press the shutter all the way down
Half-press [Shutter]
S Normal exposure
Press [Shutter]
Subject, background, and composition
• Subject: The main object in a scene, such as a person,
animal, or still life
• Background: The objects around the subject
• Composition: The combination of a subject and background
Background
Composition
Subject
7
S Overexposure (too bright)
Basic troubleshooting
Learn to solve common problems by setting shooting options.
The subject’s eyes
appear red.
• Set the flash option to
Photos have dust
spots.
• Turn off the flash or avoid capturing photos in a dusty place.
Red eye occurs when the subject's eyes reflect light from the camera flash.
Red-eye or
Red-eye Fix. (p. 57)
• If the photo has already been captured, select
Red-eye Fix in the edit menu. (p. 90)
If dust particles are present in the air, you may capture them in photos when you use the flash.
• Set ISO sensitivity options. (p. 59)
Photos are blurred.
Blurring can occur if you capture photos in low light conditions or hold the camera incorrectly.
Use the OIS function or half-press [Shutter] to ensure the subject is focused. (p. 32)
Photos are blurred
when shooting at
night.
As the camera tries to let in more light, the shutter speed slows. This can make it difficult to hold the
camera steady long enough to capture a clear photo and may result in camera shake.
• Select
Night in s mode. (p. 37)
• Turn on the flash. (p. 57)
• Set ISO sensitivity options. (p. 59)
• Use a tripod to prevent your camera from shaking.
Subjects come out
too dark because of
backlighting.
When the light source is behind the subject or when there is a high contrast between light and dark
areas, the subject may appear too dark.
• Avoid shooting toward the sun.
• Select
Backlight in s mode. (p. 37)
• Set the flash option to Fill in. (p. 57)
• Adjust the exposure. (p. 69)
• Set the Auto Contrast Balance (ACB) option. (p. 70)
• Set the metering option to
Spot if a subject is in the center of the frame. (p. 70)
8
Quick reference
Capturing photos of people
• s mode > Beauty Shot f 38
• g mode > Picture in Picture f 46
• Red-eye/Red-eye Fix (to prevent or correct
red-eye) f 57
• Face Detection f 64
• Self-Portrait f 65
Capturing photos at night or in
the dark
• s mode > Night, Sunset, Dawn f 37
• Flash options f 57
• ISO sensitivity (to adjust the sensitivity to light)
f 59
Adjusting the exposure
(brightness)
• ISO sensitivity (to adjust the sensitivity to light)
f 59
• EV (to adjust exposure) f 69
• ACB (to compensate for subjects against bright
backgrounds) f 70
• Metering f 70
• AEB (to capture 3 photos of the same scene
with different exposures) f 73
Capturing photos of scenery
• s mode > Landscape f 37
• g mode > Live Panorama f 44
Applying effects to photos
Capturing action photos
• h mode f 42
• Continuous, Motion Capture f 73
Capturing photos of text,
insects, or flowers
• s mode > Text f 37
• Macro f 60
•
•
•
•
•
g mode > Magic Frame f 45
g mode > Split Shot f 46
g mode > Artistic Brush f 48
g mode > Photo Filter f 49
Image Adjust (to adjust Sharpness, Contrast,
or Saturation) f 74
Applying effects to videos
• g mode > Movie Filter f 50
9
Reducing camera shake
• Optical Image Stabilization (OIS) f 31
• Viewing files by category in Smart Album
f 79
• Viewing files as thumbnails f 80
• Deleting all files on the memory f 82
• Viewing files as a slide show f 84
• Viewing files on a TV f 91
• Connecting your camera to a computer
f 92
• Using photo or video sharing websites
(WB150F/WB151F/WB152F only) f 104
• Sending photos or videos via email
(WB150F/WB151F/WB152F only) f 107
• Adjusting sound and volume f 122
• Adjusting the brightness of the display
f 123
• Changing the display language f 124
• Setting the date and time f 124
• Before contacting a service center f 138
Contents
Basic functions ................................................................. 14
Extended functions .......................................................... 34
Unpacking ...................................................................
Camera layout .............................................................
Inserting the battery and memory card .......................
Charging the battery and turning on your camera ......
Charging the battery ...................................................
Turning on your camera ..............................................
Performing the initial setup .........................................
Learning icons .............................................................
Selecting options or menus ........................................
Setting the display and sound ....................................
Setting the display type ...............................................
Setting the sound .......................................................
Capturing photos .........................................................
Zooming ....................................................................
Reducing camera shake (OIS) .....................................
Tips for getting a clearer photo ...................................
Using the Smart Auto mode ........................................
Using the Scene mode ................................................
Using the Beauty Shot mode .......................................
Using the Program mode ............................................
Using the Aperture Priority, Shutter Priority,
or Manual mode ..........................................................
Using the Aperture Priority mode ..................................
Using the Shutter Priority mode ....................................
Using the Manual mode ..............................................
Using the Magic Plus mode ........................................
Using the Live Panorama mode ...................................
Using the Magic Frame mode .....................................
Using the Split Shot mode ..........................................
Using the Picture-in-Picture mode ................................
Using the Artistic Brush mode .....................................
Using the Photo Filter mode ........................................
Using the Movie Filter mode .......................................
Using the Movie mode ................................................
Using the Smart Scene Detection mode ......................
15
16
19
20
20
20
21
23
24
26
26
27
28
29
31
32
10
35
37
38
39
40
41
42
43
44
44
45
46
46
48
49
50
51
52
Contents
Using Face Detection ..................................................
Detecting faces ..........................................................
Capturing a self portrait shot ........................................
Capturing a smile shot ................................................
Detecting eye blinking .................................................
Using Smart Face Recognition ....................................
Registering faces as your favorites (My Star) .................
Adjusting brightness and color ...................................
Adjusting the exposure manually (EV) ...........................
Compensating for backlighting (ACB) ...........................
Changing the metering option ......................................
Selecting a White Balance setting ................................
Using burst modes ......................................................
Adjusting images .........................................................
Reducing the sound of the zoom ................................
Shooting options .............................................................. 53
Selecting a resolution and quality ...............................
Selecting a resolution ..................................................
Selecting an image quality ...........................................
Using the timer ............................................................
Shooting in the dark ....................................................
Preventing red-eye .....................................................
Using the flash ...........................................................
Adjusting the ISO sensitivity .........................................
Changing the camera’s focus .....................................
Using macro ..............................................................
Using auto focus ........................................................
Focusing on a selected area .......................................
Using tracking auto focus ............................................
Adjusting the focus area ..............................................
54
54
55
56
57
57
57
59
60
60
60
62
62
63
11
64
64
65
65
66
66
67
69
69
70
70
71
73
74
75
Contents
Playback/Editing............................................................... 76
Viewing photos or videos in Playback mode ..............
Starting Playback mode ..............................................
Viewing photos ..........................................................
Playing a video ...........................................................
Editing a photo ............................................................
Resizing photos .........................................................
Rotating a photo .........................................................
Applying Smart Filter effects ........................................
Adjusting your photos .................................................
Creating a print order (DPOF) .......................................
Viewing files on a TV ...................................................
Transferring files to your Windows computer .............
Transferring files with Intelli-studio .................................
Transferring files by connecting the camera
as a removable disk ....................................................
Disconnecting the camera (for Windows XP) .................
Transferring files to your Mac computer .....................
Printing photos with a PictBridge photo printer .........
Wireless network (WB150F/WB151F/WB152F only) .... 99
77
77
83
85
87
87
87
88
89
90
91
92
93
Connecting to a WLAN and configuring
network settings ........................................................
Connecting to a WLAN .............................................
Using the login browser ............................................
Network connection tips ...........................................
Entering text .............................................................
Using photo or video sharing websites ....................
Accessing a website ................................................
Uploading photos or videos .......................................
Sending photos or videos via email ..........................
Changing email settings ............................................
Sending photos or videos via email ............................
Sending photos or videos to a smart phone ............
Using a smart phone as a remote shutter release ....
Uploading photos to a cloud server ..........................
Using Auto Backup to send photos or videos .........
Installing the program for Auto Backup on your PC ......
Sending photos or videos to a PC .............................
Viewing photos or videos on a
TV Link-enabled TV ...................................................
Sending photos using Wi-Fi Direct ...........................
About the Wake on LAN (WOL) feature ....................
95
96
97
98
12
100
100
101
102
103
104
104
104
106
106
107
109
110
112
113
113
113
115
117
118
Contents
Settings ........................................................................... 120
Settings menu ...........................................................
Accessing the settings menu ....................................
Sound .....................................................................
Display ....................................................................
Connectivity .............................................................
General ...................................................................
121
121
122
122
123
124
Appendixes ..................................................................... 126
Error messages .........................................................
Camera maintenance ................................................
Cleaning your camera ...............................................
Using or storing the camera ......................................
About memory cards ................................................
About the battery ......................................................
Before contacting a service center ...........................
Camera specifications ...............................................
Glossary .....................................................................
FCC notice .................................................................
Declaration sentence in official languages ...............
Index ..........................................................................
127
129
129
130
131
134
138
141
145
150
153
155
13
Basic functions
Learn about your camera’s layout, icons, and basic functions for shooting.
Unpacking
………………………………… 15
Selecting options or menus ……………… 24
Camera layout ……………………………… 16
Setting the display and sound …………… 26
Inserting the battery and memory card … 19
Setting the display type …………………… 26
Setting the sound ………………………… 27
Charging the battery and turning on
your camera ………………………………… 20
Charging the battery ……………………… 20
Turning on your camera ………………… 20
Performing the initial setup
……………… 21
Learning icons ……………………………… 23
Capturing photos
………………………… 28
Zooming ………………………………… 29
Reducing camera shake (OIS) …………… 31
Tips for getting a clearer photo …………… 32
Unpacking
The following items are included in your product box.
Optional accessories
Camera
Rechargeable battery
User Manual CD-ROM
AC adapter/
USB cable
Camera case
A/V cable
Battery charger
Memory card
Strap
Quick Start Guide
Memory card/Memory card adapter
• The illustrations may differ slightly from the items shipped with your
product.
• The items included in the box may differ depending on the model.
• You can purchase optional accessories at a retailer or a Samsung
service center. Samsung is not responsible for any problems
caused by using unauthorized accessories.
Basic functions 15
Camera layout
Before you start, familiarize yourself with your camera’s parts and their functions.
POWER button
Shutter button
Microphone
Speaker
Flash
AF-assist light/Timer lamp
Internal antenna*
* Avoid contact with the internal antenna
while using the wireless network.
(WB150F/WB151F/WB152F only)
Lens
USB and A/V port
Accepts USB cable and A/V cable
Tripod mount
Battery chamber cover
Insert a memory card and battery
Basic functions 16
Camera layout
Zoom button
• In Shooting mode: Zoom in or out
• In Playback mode: Zoom in on part
of a photo or view files as thumbnails,
or adjust the volume
Status lamp
• Blinking: When the camera is
saving a photo or video, being
read by a computer or printer,
when the image is out of focus,
or there is a problem charging the
battery (On WB150F/WB151F/
WB152F, when the camera is
connecting to WLAN or sending
a photo)
• Steady: When the camera
is connected to a computer,
charging the battery, or when the
image is in focus
Mode dial
(p. 18)
Attaching the strap
x
y
Display
Buttons
(p. 18)
Basic functions 17
Camera layout
Mode dial
Icon
Buttons
Description
Button
Smart Auto: Capture a photo with a scene mode selected
T
automatically by the camera.
p
Program: Capture a photo by setting options except the
shutter speed and aperture value which the camera sets
automatically.
A
G
Aperture Priority: The camera selects a shutter
speed based on the aperture value you have
set manually.
h
Shutter Priority: The camera selects an
aperture value based on the shutter speed you
have set manually.
M
Manual: Adjust various camera settings
including shutter speed and aperture value.
Description
Start recording a video.
Access options or menus.
Move back.
Basic functions
D Change the display option.
c Change the macro option.
F
Change the flash option.
Move left
Change the timer option.
Move right
Enter Playback mode.
s
g
Magic Plus: Capture a photo, record a video, or edit an
image with various effects.
w
Wi-Fi: Connect to wireless local area networks and use
functions. (WB150F/WB151F/WB152F only)
R
Live Panorama: Capture and combine a series of
photos to create a panoramic image.
(WB150/WB151 only)
n
Settings: Configure your camera’s settings.
v
Movie: Customize settings to record a video.
Basic functions 18
Move up
Move down
t
Confirm the highlighted option or menu.
Scene: Capture a photo with options preset for a specific
scene.
Other functions
Delete files in Playback mode.
Inserting the battery and memory card
Learn how to insert the battery and an optional memory card into the camera.
Removing the battery and memory card
Push the card gently until it
disengages from the camera,
and then pull it out of the slot.
Memory card
Insert a memory card with the
gold-colored contacts facing
up.
Battery lock
Memory card
Slide the lock down to release
the battery.
Insert the battery with the
Samsung logo facing up.
Rechargeable battery
Rechargeable battery
Using the memory card adapter
To use micro memory cards with this product, a PC,
or a memory card reader, insert the card into an
adapter.
You can use the internal memory for temporary storage if a memory card is
not inserted.
Basic functions 19
Charging the battery and turning on your camera
Charging the battery
Turning on your camera
Before you use the camera for the first time, you must charge the
battery. Plug the small end of the USB cable into your camera,
and then plug the other end of the USB cable into the AC
adapter.
Press [POWER] to turn your camera on or off.
• The initial setup screen appears when you turn on the camera
for the first time. (p. 21)
Status lamp
• Red light on: Charging
• Red light off: Fully charged
• Red light blinking: Error
Turning on your camera in Playback mode
Press [P]. The camera turns on and immediately accesses
Playback mode.
Use only the AC adapter and USB cable supplied with your camera. If you
use another AC adapter (such as SAC-48), the camera battery may not
charge or work properly.
If you turn on your camera by pressing and holding [P] until the status lamp
blinks, the camera does not emit any sounds.
Basic functions 20
Performing the initial setup
When you turn on your camera for the first time, the initial setup screen appears. Follow the steps below to configure the camera’s basic
settings.
1
Verify that Language is highlighted, and then press
[t] or [o].
4
Press [D/c] to select Home, and then press [o].
• When you travel to another country, select Visit, and then
select a new time zone.
5
Press [F/t] to select a time zone, and then press
[o] “ [b].
Time Zone : Home
2
3
London
Press [D/c] to select a language, and then
press [o].
Cancel
Press [c] to select Time Zone, and then press
[t] or [o].
Basic functions 21
Set
Performing the initial setup
6
Press [c] to select Date/Time Set, and then press
[t] or [o].
Date/Time Set
Year Month Day
Cancel
Hr
Min
9
Press [c] to select Date Type, and then press
[t] or [o].
10
Press [D/c] to select a date type, and then
press [o].
11
Press [b] to finish the initial setup.
DST
Set
• The screen may differ depending on the language selected.
7
8
Press [F/t] to select an item.
Press [D/c] to set the date, time, and daylightsaving time, and then press [o].
Basic functions 22
Learning icons
The icons the camera displays on the screen change according to the mode you select or the options you set.
1
2 Shooting options (right)
Icon
Description
Intelli zoom on
2
3
1 Shooting options (left)
Icon
Description
Available recording time
Exposure value
Photo resolution
Current date
Video resolution
Current time
Metering
Available number of photos
Frame rate
Memory card inserted
Flash
•
Sound Alive on
Description
Icon
•
•
: Fully charged
: Partially charged
: Empty (Recharge)
Optical Image Stabilization (OIS)
Auto focus frame
Auto focus option
Camera shake
White balance
Image adjustment (sharpness,
contrast, and saturation)
Zoom indicator
Face detection
Timer
Photo resolution when the
Intelli zoom is on
Shooting mode
ISO sensitivity
Face retouch
Face tone
Burst option
Focus area
Zoom ratio
3 Shooting information
Icon
Description
Aperture value
Shutter speed
Basic functions 23
Histogram (p. 26)
Selecting options or menus
To select an option or a menu, press [m], and then press [D/c/F/t] or [o].
1
2
Going back to the previous menu
In Shooting mode, press [m].
Select an option or a menu.
Press [b] to go back to the previous menu.
• To move up or down, press [D] or [c].
• To move left or right, press [F] or [t].
3
Half-press [Shutter] to return to Shooting mode.
Press [o] to confirm the highlighted option or menu.
Basic functions 24
Selecting options or menus
For example, to select a White Balance option in Program
mode:
1
3
Press [D/c] to select White Balance, and then
press [t] or [o].
Rotate the mode dial to p.
EV
White Balance
ISO
Flash
Focus
Focus Area
S WB150F/WB151F/
WB152F
2
S WB150/WB151
Exit
4
Press [m].
Select
Press [F/t] to select a White Balance option.
EV
White Balance
ISO
Flash
White Balance : Daylight
Focus
Focus Area
Exit
Back
Select
Select
5
Press [o] to save your settings.
Basic functions 25
Setting the display and sound
Learn how to change the basic display information and sound settings.
About histograms
Setting the display type
You can select a display type for the Shooting or Playback mode.
Each type displays different shooting or playback information.
See the table below.
A histogram is a graph that illustrates how light is distributed
in your photo. If the histogram has a high peak on the left, the
photo is underexposed and will appear dark. A peak on the
right of the graph means that the photo is overexposed and will
appear washed out. The height of the peaks is related to color
information. The more of a particular color, the taller the peak.
S Under-exposed
Press [D] repeatedly to change the display type.
Mode
Display type
• Hide all information about shooting options.
Shooting
• Show all information about shooting options.
• Show a histogram.
• Hide all information about the current file.
Playback
• Show information about the current file (excluding
the shooting settings and histogram).
• Show all information about the current file.
Basic functions 26
S Well-exposed
S Over-exposed
Setting the display and sound
Setting the option display view
Setting the sound
You can hide or show the option display appearing in some
modes.
Turn the sound your camera emits when you perform functions
on or off.
Press [o] repeatedly.
1
2
3
• Hide the option display.
• Show the option display.
Beauty Shot
Rotate the mode dial to n.
Select Sound “ Beep Sound.
Select an option.
Option
Description
Off
The camera does not emit any sounds.
On
The camera emits sounds.
Option display
Panel off
S For example, in Scene mode
Basic functions 27
Capturing photos
Learn how to capture photos easily and quickly in Smart Auto mode.
1
Rotate the mode dial to T.
3
Half-press [Shutter] to focus.
• A green frame means the subject is in focus.
• A red frame means the subject is out of focus.
S WB150F/WB151F/
WB152F
2
S WB150/WB151
Align your subject in the frame.
4
5
Press [Shutter] to capture a photo.
Press [P] to view the captured photo.
• To delete the photo, press [f], and then select Yes.
6
Press [P] to return to Shooting mode.
See page 32 for tips to get clearer photos.
Basic functions 28
Capturing photos
Digital zoom
Zooming
pAhMs
The Digital zoom is supported by default in Shooting mode. If you
zoom in on a subject in Shooting mode and the zoom indicator
is in the digital range, your camera is using the Digital zoom. By
using both the 18X Optical zoom and 5X Digital zoom, you can
zoom in up to 90 times.
You can capture close-up photos by adjusting the zoom.
Optical range
Zoom indicator
Zoom ratio
Zoom out
Digital range
• The Digital zoom is not available with the Selection AF option, Tracking
Zoom in
AF option, or Manual Focus.
• If you capture a photo with the Digital zoom, the photo quality may be
lower than normal.
• The farther you rotate the zoom button, the faster the camera zooms
in or out.
• When you rotate the zoom button, the zoom ratio shown on the
screen may change inconsistently.
Basic functions 29
Capturing photos
Intelli zoom
pAhMs
Setting Intelli zoom
If the zoom indicator is in the Intelli range, your camera is using
the Intelli zoom. Photo resolution varies according to the zoom
rate if you use the Intelli zoom. By using both the Optical zoom
and Intelli zoom, you can zoom in up to 36 times.
Optical range
Photo resolution when
the Intelli zoom is on
1
2
3
In Shooting mode, press [m].
Select Intelli Zoom.
Select an option.
Icon
Description
Off: The Intelli zoom is deactivated.
Zoom
indicator
On: The Intelli zoom is activated.
Intelli range
• Intelli zoom is not available with the Selection AF option, Tracking AF
option, or Manual Focus.
• The Intelli zoom helps you capture a photo with less quality
deterioration than the Digital zoom. However, the photo quality may be
lower than when you use the Optical zoom.
• The Intelli zoom is available only when you set a 4:3 resolution ratio. If
you set another resolution ratio with Intelli zoom on, the Intelli zoom will
be turned off automatically.
Basic functions 30
Capturing photos
Reducing camera shake (OIS)
pAhMv
• OIS may not function properly when:
-
you move your camera to follow a moving subject
you use the Digital zoom
there is too much camera shake
the shutter speed is slow (for example, when you capture night
scenes)
- the battery is low
- you capture a close-up shot
• If you use the OIS function with a tripod, your images may be blurred
by the vibration of the OIS sensor. Deactivate the OIS function when
you use a tripod.
• If the camera is hit or dropped, the display will be blurry. If this occurs,
turn off the camera, and then turn it on again.
Reduce camera shake optically in Shooting mode.
S Before correction
1
2
3
S After correction
In Shooting mode, press [m].
Select OIS.
Select an option.
Icon
Description
Off: OIS is deactivated.
On: OIS is activated.
Basic functions 31
Tips for getting a clearer photo
Holding your camera correctly
Reducing camera shake
Ensure nothing is
blocking the lens,
flash, or microphone.
Set the Optical Image Stabilization option to reduce
camera shake optically. (p. 31)
When
is displayed
Half-pressing the shutter button
Half-press [Shutter] and adjust the
focus. The camera adjusts the focus and
exposure automatically.
The camera sets the aperture value
and shutter speed automatically.
Focus frame
• Press [Shutter] to capture the photo
if the focus frame appears in green.
• Change the composition and half-
Camera shake
When you shoot in the dark, avoid setting the flash option to
Slow Sync or Off. The aperture remains open longer and it may be
harder to hold the camera steady long enough to capture a clear
photo.
• Use a tripod or set the flash option to Fill in. (p. 57)
• Set ISO sensitivity options. (p. 59)
press [Shutter] again if the focus
frame appears in red.
Basic functions 32
Preventing your subject from being out of focus
It may be difficult to get your subject in focus when:
- there is little contrast between the subject and background (for
example, when your subject is wearing clothing that is similar in color
to the background)
- the light source behind the subject is too bright
- the subject is shiny or reflective
- the subject includes horizontal patterns, such as blinds
- the subject is not positioned in the center of the frame
• When you capture photos in low light
Turn on the flash.
(p. 57)
• When subjects are moving rapidly
Use the Continuous
or Motion Capture
function. (p. 73)
Using the focus lock
Half-press [Shutter] to focus. When the subject is in focus,
you can reposition the frame to change the composition.
When you are ready, press [Shutter] to capture your photo.
Basic functions 33
Extended functions
Learn how to capture a photo and record a video by selecting a mode.
Using the Smart Auto mode ……………… 35
Using the Magic Plus mode ……………… 44
Using the Scene mode …………………… 37
Using the Live Panorama mode …………
Using the Magic Frame mode ……………
Using the Split Shot mode ………………
Using the Picture-in-Picture mode ………
Using the Artistic Brush mode ……………
Using the Photo Filter mode ………………
Using the Movie Filter mode ………………
Using the Beauty Shot mode
…………… 38
Using the Program mode ………………… 39
Using the Aperture Priority, Shutter
Priority, or Manual mode ………………… 40
Using the Aperture Priority mode ………… 41
Using the Shutter Priority mode ………… 42
Using the Manual mode ………………… 43
44
45
46
46
48
49
50
Using the Movie mode …………………… 51
Using the Smart Scene Detection mode … 52
Using the Smart Auto mode
In Smart Auto mode, your camera automatically chooses the appropriate camera settings based on the type of scene it detects. The Smart
Auto mode is helpful if you are not familiar with the camera settings for various scenes.
1
2
Rotate the mode dial to T.
Icon
Description
Align your subject in the frame.
Portraits with backlighting
• The camera automatically selects a scene. An appropriate
Portraits
scene icon appears at the top left of the screen. The icons are
listed below.
Close-up photos of objects
Close-up photos of text
Sunsets
Blue skies
Forested areas
Close-up photos of colorful subjects
Icon
Description
Camera is stabilized or on a tripod (when shooting in
the dark)
Landscapes
Actively moving subjects
Scenes with bright white backgrounds
Fireworks (when using a tripod)
Landscapes at night
Portraits at night
Landscapes with backlighting
3
4
Half-press [Shutter] to focus.
Press [Shutter] to capture the photo.
Extended functions 35
Using the Smart Auto mode
• If the camera does not recognize an appropriate scene mode, it uses
the default settings for the T mode.
• Even if it detects a face, the camera may not select a portrait mode
depending on the subject's position or lighting.
• The camera may not select the correct scene depending on the
shooting conditions, such as camera shake, lighting, or distance to
the subject.
• Even if you use a tripod, the camera may not detect the
mode if
the subject is moving.
• In T mode, the camera consumes more battery power, because
it changes settings often to select appropriate scenes.
Extended functions 36
Using the Scene mode
In Scene mode, you can capture a photo with options that are preset for a specific scene.
1
2
Rotate the mode dial to s.
Option
Description
Select a scene.
Sunset
Capture scenes at sunset, with natural-looking
reds and yellows.
Dawn
Capture scenes at sunrise.
Backlight
Capture backlit subjects.
Beach & Snow
Reduce underexposure of subjects caused by
sunlight reflected from sand or snow.
Beauty Shot
3
Align your subject in the frame, and then half-press
[Shutter] to focus.
4
Press [Shutter] to capture the photo.
Panel off
Option
Description
Beauty Shot
Capture a portrait with options to hide facial
imperfections.
Night
Capture scenes at night or in low lighting (using
a tripod is recommended).
Landscape
Capture still-life scenes and landscapes.
Text
Clearly capture text from printed or electronic
documents.
Extended functions 37
Using the Scene mode
Using the Beauty Shot mode
In Beauty Shot mode, you can capture a portrait with options to
hide facial imperfections.
1
2
3
4
5
Rotate the mode dial to s.
6
7
8
Press [m].
Select Face Retouch.
Select an option.
• For example, increase the face retouch setting to hide more
imperfections.
Select Beauty Shot.
Face Retouch
Off
Press [m].
Level 1
Select Face Tone.
Level 2
Select an option.
Level 3
• For example, increase the face tone setting to make skin
appear lighter.
Back
Face Tone
Off
Level 1
9
Align your subject in the frame, and then half-press
[Shutter] to focus.
10
Press [Shutter] to capture the photo.
Level 2
Level 3
Back
Select
When you use the Beauty Shot mode, the focus distance will be set to
Auto Macro.
Select
Extended functions 38
Using the Program mode
In Program mode, you can set most options, except the shutter speed and aperture value, which the camera sets automatically.
1
2
Rotate the mode dial to p.
Set the desired options.
• For a list of options, refer to "Shooting options". (p. 53)
3
Align your subject in the frame, and then half-press
[Shutter] to focus.
4
Press [Shutter] to capture the photo.
Extended functions 39
Using the Aperture Priority, Shutter Priority, or Manual mode
Adjust the aperture value or shutter speed to control the exposure of your photos. You can use these options in the Aperture Priority,
Shutter Priority, and Manual modes.
Aperture value
The aperture is a hole that lets light into the camera. The aperture
housing contains thin, metal plates that open and close, widening
or narrowing the aperture, and controlling the amount of light that
enters the camera. The size of the aperture is closely related to
the brightness of a photo: the larger the aperture, the brighter the
photo; the smaller the aperture, the darker the photo. Note that
the larger the aperture value, the smaller the aperture size. For
example, an aperture set to 5.6 is larger than an aperture set to 11.
S Small aperture value (The size
of the aperture is large.)
S Large aperture value (The size
of the aperture is small.)
Shutter speed
Shutter speed, which is an important factor in the brightness of a
photo, refers to the amount of time it takes to open and close the
shutter. A slow shutter speed allows more time to let light in. All
things being equal, photos are brighter, but fast moving objects
tend to blur. On the other hand, a fast shutter speed allows less
time to let light in. Photos are darker, but objects in motion are
captured more clearly.
S Slow shutter speed
Extended functions 40
S Fast shutter speed
Using the Aperture Priority, Shutter Priority, or Manual mode
Using the Aperture Priority mode
The Aperture Priority mode allows you to set the aperture value
manually while the camera automatically selects an appropriate
shutter speed.
1
2
Rotate the mode dial to G.
Select
.
• To select another mode when the mode dial is set to G,
4
5
Press [o] to save the setting.
Set options.
• For a list of options, refer to "Shooting options". (p. 53)
6
Align your subject in the frame, and then half-press
[Shutter] to focus.
7
Press [Shutter] to capture the photo.
press [b], and then select a mode.
3
Press [o] “ [D/c] to adjust the aperture value.
• See page 40 for more information about the aperture value.
Aperture
Set
Extended functions 41
When you set the ISO option to Auto, the shutter speed may not change
automatically to match the aperture value. In this case, the camera finds an
appropriate exposure value by changing the ISO option automatically when
you capture a photo. To set the ISO option manually, press [m], and then
select ISO “ an option.
Using the Aperture Priority, Shutter Priority, or Manual mode
Using the Shutter Priority mode
The Shutter Priority mode allows you to set the shutter speed
manually while the camera automatically selects an appropriate
aperture value.
1
2
Rotate the mode dial to G.
Select
.
• To select another mode when the mode dial is set to G,
4
5
Press [o] to save the setting.
Set options.
• For a list of options, refer to "Shooting options". (p. 53)
6
Align your subject in the frame, and then half-press
[Shutter] to focus.
7
Press [Shutter] to capture the photo.
press [b], and then select a mode.
3
Press [o] “ [D/c] to adjust the shutter speed.
• See page 40 for more information about the shutter speed.
Shutter Speed
Set
Extended functions 42
When you set the ISO option to Auto, the aperture value may not change
automatically to match the shutter speed. In this case, the camera finds an
appropriate exposure value by changing the ISO option automatically when
you capture a photo. To set the ISO option manually, press [m], and then
select ISO “ an option.
Using the Aperture Priority, Shutter Priority, or Manual mode
Using the Manual mode
The Manual mode allows you to adjust both the aperture value
and the shutter speed manually.
1
2
Rotate the mode dial to G.
Select
5
6
Press [o] to save the setting.
Set options.
• For a list of options, refer to "Shooting options". (p. 53)
• To select another mode when the mode dial is set to G,
Press [o] “ [F/t] to select the aperture value or
shutter speed.
Aperture
Press [D/c] to adjust the aperture value or shutter
speed.
.
press [b], and then select a mode.
3
4
7
Align your subject in the frame, and then half-press
[Shutter] to focus.
8
Press [Shutter] to capture the photo.
Move
Extended functions 43
Using the Magic Plus mode
In the Magic Plus mode, you can capture a photo or record a video with various effects.
5
Using the Live Panorama mode
In Live Panorama mode, you can capture a wide panoramic
scene in a single photo. Capture and combine a series of photos
to create a panoramic image.
With [Shutter] pressed, slowly move the camera in the
direction that will let it capture the rest of the panorama.
• When the viewfinder is aligned with the next scene, the
camera captures the next photo automatically.
S Shooting example
1
Rotate the mode dial to g.
2
3
Select
• On WB150/WB151 model, rotate the mode dial to R, and
then skip to step 3.
6
.
When you are finished, release [Shutter].
• When you have captured all the necessary shots, the camera
combines them into one panoramic photo.
Align your subject in the frame, and then half-press
[Shutter] to focus.
• Align the camera with the far left or the far right, or very top or
bottom, of the scene you want to capture.
4
Press and hold [Shutter] to start shooting.
Extended functions 44
Using the Magic Plus mode
Using the Magic Frame mode
• For best results when capturing panoramic photos, avoid the
•
•
•
•
following:
- moving the camera too quickly or too slowly
- moving the camera too little to capture the next image
- moving the camera at irregular speeds
- shaking the camera
- changing the camera direction while capturing a photo
- shooting in dark places
- capturing moving subjects nearby
- shooting conditions where the brightness or color of light is
changing
Selecting Live Panorama mode will disable the digital and optical zoom
functions. If you select Live Panorama mode while the lens is zoomed
in, the camera automatically zooms out to the default position.
In Live Panorama mode, some shooting options are not available.
The camera may stop shooting due to the shooting composition or
movement within the scene.
In Live Panorama mode, your camera may not capture the last scene
in its entirety if you stop moving the camera exactly where you want
the scene to end. To capture the entire scene, move your camera
slightly beyond the point where you want the scene to end.
In Magic Frame mode, you can apply various frame effects to
your photos. The shape and the feel of the photos will change
according to the frame you select.
1
2
3
Rotate the mode dial to g.
Select
.
Select an option.
Mural
Panel off
4
Align your subject in the frame, and then half-press
[Shutter] to focus.
5
Press [Shutter] to capture the photo.
In Magic Frame mode, the resolution is automatically set to
Extended functions 45
.
Using the Magic Plus mode
Using the Split Shot mode
In Split Shot mode, you can capture several photos and arrange
them with preset layouts.
1
2
3
Rotate the mode dial to g.
Select
4
Align your subject in the frame, and then half-press
[Shutter] to focus.
5
Press [Shutter] to capture a photo.
• Repeat steps 4 and 5 to capture the rest of the photos.
• To recapture a photo, press [b].
.
• In Split Shot mode, the resolution is automatically set to
or smaller.
• In Split Shot mode, the available zoom range may be less than in other
Select a split style.
• To adjust the sharpness of the dividing line, press [m],
and then select Line Blur “ a desired value.
• To apply a Smart Filter effect to part of the shot, press
[m], and then select Smart Filter “ a desired option.
You can apply different Smart Filter effects to each part of the
shot.
shooting modes.
Using the Picture-in-Picture mode
In Picture-in-Picture mode, you can capture or select a full-sized
background photo, and then insert a smaller photo or video into
the foreground.
1
2
Panel off
Rotate the mode dial to g.
Select
.
• To set the final video size when inserting a video, press
[m], and then select Movie Size “ a desired video size.
Extended functions 46
Using the Magic Plus mode
3
4
Half-press [Shutter] to focus, and then press [Shutter]
to capture a background photo.
8
Half-press [Shutter] to focus, and then press [Shutter]
to capture and insert a photo.
• To select a background photo from your saved photos, press
• The insertion window appears larger when you half-press
[m], and then select Open Image “ a desired photo.
You cannot select a video file or a photo captured in Live
Panorama mode.
[Shutter], so that you can determine whether or not the
subject is in focus.
• To record a video, press
(Video recording). To stop
recording and insert the video, press
(Video recording)
again.
Press [o] to set the photo as the background image.
• To recapture a background photo, press [b].
• When capturing background photos, the resolution is automatically set
to
and all photos captured are saved.
• The final Picture-in-picture photos or videos are saved as one
•
•
Retake
5
Move Frame
•
Press [o], and then press [D/c/F/t] to change
the insertion point.
6
Press [o], and then press [D/c/F/t] to change
the insertion size.
7
Press [o] to save the setting.
Extended functions 47
•
•
•
•
•
combined file and the inserted photos or videos are not saved
separately.
When inserting an image, the resolution for the combined file is
automatically set to
.
When inserting a video, the resolution for the combined file is
automatically set to
or smaller.
When capturing a background photo, a vertical photo captured in the
vertical position is displayed horizontally without auto rotate.
The maximum size of the insertion window is 1/4 of the screen, and
the aspect ratio stays the same when changing the size.
The maximum length of video that can be inserted is 20 minutes.
In Picture-in-Picture mode, the available zoom range may be less than
in other shooting modes.
In Picture-in-Picture mode, you cannot set the Sound Alive options.
When you select a background photo from your saved photos, black
bars may appear at the edges of the image, depending on the aspect
ratio.
Using the Magic Plus mode
Using the Artistic Brush mode
In Artistic Brush mode, you can capture a photo, and then view a
video that shows how to apply the filter effect.
1
2
3
Rotate the mode dial to g.
4
Align your subject in the frame, and then half-press
[Shutter] to focus.
5
Press [Shutter] to capture a photo.
• After capturing the photo, the video that shows how to apply
the filter will begin automatically.
Select
.
• In Artistic Brush mode, the resolution is automatically set to
Select a filter.
•
•
•
•
Ink Painting
Panel off
Option
Description
Ink Painting
Apply a watercolor painting effect.
Cartoon
Apply a cartoon painting effect.
Sketch
Apply a pen sketch effect.
Extended functions 48
or
smaller.
In Artistic Brush mode, both the photo with the filter effect and the
video that shows how to apply the filter effect are saved.
In Artistic Brush mode, the available zoom range may be less than in
other shooting modes.
In Artistic Brush mode, it may take longer to save files.
You cannot upload a video captured in Artistic Brush mode via the
wireless networking feature on your camera. (WB150F/WB151F/
WB152F)
Using the Magic Plus mode
Using the Photo Filter mode
Option
Description
Miniature
Apply a tilt-shift effect to make the subject appear
in miniature.
Vignetting
Apply the retro-looking colors, high contrast, and
strong vignette effect of Lomo cameras.
Ink Painting
Apply a watercolor painting effect.
Oil Painting
Apply an oil painting effect.
Cartoon
Apply a cartoon painting effect.
Cross Filter
Add lines that radiate outward from bright objects to
imitate the visual effect of a cross filter.
Sketch
Apply a pen sketch effect.
Soft Focus
Hide facial imperfections or apply dreamy effects.
Fish-eye
Blacken the edges of the frame and distort objects
to imitate the visual effect of a fisheye lens.
Old Film
Apply a vintage film effect.
Rotate the mode dial to g.
Half Tone Dot
Apply a halftone effect.
Classic
Apply a black and white effect.
Select
Retro
Apply a sepia tone effect.
Zooming Shot
Blur the edges of a photo to emphasize the subjects
in the center.
Apply various filter effects to your photos to create unique images.
Miniature
Vignetting
Fish-eye
1
2
3
Sketch
.
Select an effect.
Extended functions 49
Using the Magic Plus mode
4
5
Align your subject in the frame, and then half-press
[Shutter] to focus.
Press [Shutter] to capture a photo.
Depending on the option you select, the resolution may change to
smaller automatically.
or
Option
Description
Fish-eye
Distort close objects to imitate the visual effect of a
fisheye lens.
Classic
Apply a black and white effect.
Retro
Apply a sepia tone effect.
Palette Effect 1
Create a vivid look with sharp contrast and strong
color.
Palette Effect 2 Make scenes clean and clear.
Palette Effect 3 Apply a soft brown tone.
Palette Effect 4 Create a cold and monotone effect.
Using the Movie Filter mode
Apply various filter effects to your videos to create unique images.
1
2
3
Rotate the mode dial to g.
Select
.
4
5
Press
(Video recording) to start recording.
Press
(Video recording) again to stop recording.
• If you select Miniature, the miniature recording time is also displayed
Select an effect.
and is shorter than the real recording time.
• If you select Miniature, you cannot record the video sound.
• Depending on the option you select, the recording speed may change
Option
Description
Miniature
Apply a tilt-shift effect to make the subject appear
in miniature.
Vignetting
Apply the retro-looking colors, high contrast, and
strong vignette effect of Lomo cameras.
Half Tone Dot
Apply a halftone effect.
Sketch
Apply a pen sketch effect.
Extended functions 50
to
and the recording resolution may change to
automatically.
or smaller
Using the Movie mode
In Movie mode, you can customize settings to record HD videos of up to 20 minutes in length. The camera saves recorded videos as
MP4 (H.264) files.
•
•
•
•
•
1
2
H.264 (MPEG-4 part10/AVC) is a high-compression video format established by the international standards organizations ISO-IEC and ITU-T.
Some memory cards may not support high definition recording. If your card does not, set a lower resolution.
Memory cards with slow writing speeds will not support high-resolution videos. To record high-resolution videos, use memory cards with faster write speeds.
If you activate the OIS function while recording a video, the camera may record the operating sound of the OIS function.
If you use the zoom function when recording a video, the camera may record the noise of the zoom operating. To decrease zoom noise, use the Sound Alive
function. (p. 75)
Rotate the mode dial to v.
Pause recording
The camera allows you to temporarily pause a video while
recording. With this function, you can record separate scenes as
a single video.
Set desired options.
• For a list of options, refer to "Shooting options". (p. 53)
3
4
Press
(Video recording) to start recording.
Press
(Video recording) again to stop recording.
You can start recording a video in some modes by pressing
(Video recording) without having to rotate the mode dial to v.
• Press [o] to pause while recording.
• Press [o] to resume.
Extended functions 51
Using the Movie mode
Using the Smart Scene Detection mode
Icon
Description
In Smart Scene Detection mode, your camera automatically
chooses the appropriate camera settings based on the scene it
has detected.
Landscapes
1
2
3
4
Rotate the mode dial to v.
Blue skies
Press [m].
Forested areas
Select Smart Scene Detection “ On.
Align your subject in the frame.
• The camera automatically selects a scene. An appropriate
Sunsets
5
6
Press
(Video recording) to start recording.
Press
(Video recording) again to stop recording.
scene icon will appear at the top left of the screen.
• If the camera does not recognize an appropriate scene mode, it uses
the default settings for the Smart Scene Detection mode.
• The camera may not select the correct scene depending on the
shooting conditions, such as camera shake, lighting, and distance to
the subject.
Extended functions 52
Shooting options
Learn how to set the options in Shooting mode.
Selecting a resolution and quality ………… 54
Selecting a resolution …………………… 54
Selecting an image quality ………………… 55
Using the timer ……………………………… 56
Shooting in the dark ……………………… 57
Preventing red-eye ……………………… 57
Using the flash …………………………… 57
Adjusting the ISO sensitivity ……………… 59
Changing the camera’s focus …………… 60
Using macro ………………………………
Using auto focus …………………………
Focusing on a selected area ………………
Using tracking auto focus …………………
Adjusting the focus area …………………
60
60
62
62
63
Using Face Detection ……………………… 64
Detecting faces ……………………………
Capturing a self portrait shot ………………
Capturing a smile shot ……………………
Detecting eye blinking ……………………
Using Smart Face Recognition ……………
Registering faces as your favorites
(My Star) …………………………………
64
65
65
66
66
67
Adjusting brightness and color …………… 69
Adjusting the exposure manually (EV) ……
Compensating for backlighting (ACB) ……
Changing the metering option ……………
Selecting a White Balance setting …………
69
70
70
71
Using burst modes ………………………… 73
Adjusting images …………………………… 74
Reducing the sound of the zoom ………… 75
Selecting a resolution and quality
Learn how to change the image resolution and quality settings.
Setting the video resolution
Selecting a resolution
As you increase the resolution, your photo or video will include
more pixels, so it can be printed on larger paper or displayed on
a larger screen. When you use a high resolution, the file size will
also increase.
Setting the photo resolution
TpAhMsg
1
2
3
In Shooting mode, press [m].
Select Movie Size.
Select an option.
Icon
1
2
3
TpAhMsgv
Description
In Shooting mode, press [m].
1280 X 720: HD files to play back on an HDTV.
Select Photo Size.
640 X 480: SD files to play back on an analog TV.
Select an option.
320 X 240: Post on a web page.
Icon
For Sharing (WB150F/WB151F/WB152F only): Post
on a website using the wireless network (30 seconds
maximum).
Description
4320 X 3240: Print on A1 paper.
4320 X 2880: Print on A1 paper in wide ratio (3:2).
4320 X 2432: Print on A2 paper in panorama ratio (16:9)
or play back on an HDTV.
3648 X 2736: Print on A2 paper.
2832 X 2832: Print on A3 paper in 1:1 ratio.
2592 X 1944: Print on A4 paper.
1984 X 1488: Print on A5 paper.
1920 X 1080: Print on A5 paper in panorama ratio (16:9)
or play back on an HDTV.
1024 X 768: Attach to an email.
Shooting options 54
Selecting a resolution and quality
Setting the video quality
Selecting an image quality
Set the photo and video quality settings. Higher image quality
settings will result in larger file sizes.
Setting the photo quality
pAhMsg
The camera compresses and saves the photos you capture in
the JPEG format.
1
2
3
In Shooting mode, press [m].
gv
The camera compresses and saves the videos you record in
MP4 (H.264) format.
1
2
3
In Shooting mode, press [m].
Select Frame Rate.
Select an option.
Icon
Description
Select Quality.
30 FPS: Record 30 frames per second.
Select an option.
15 FPS: Record 15 frames per second.
Icon
Description
Super Fine: Capture photos in super high quality.
Fine: Capture photos in high quality.
Normal: Capture photos in normal quality.
Shooting options 55
Using the timer
TpAhMsgv
Learn how to set the timer to delay shooting.
1
3
In Shooting mode, press [t].
Press [Shutter] to start the timer.
• The AF-assist light/timer lamp blinks. The camera will
automatically capture a photo after the specified time has
elapsed.
Timer
Off
• Press [Shutter] or [t] to cancel the timer.
• Depending on the Face Detection options you selected, the timer
10 Sec
2 Sec
function may not be available.
Double
Back
2
• In some modes, you can also set the timer option by pressing
[m], and then selecting Timer.
Select
Select an option.
Icon
Description
Off: The timer is not active.
10 Sec: Capture a photo after a 10-second delay.
2 Sec: Capture a photo after a 2-second delay.
Double: Capture one photo after a 10-second delay
and another photo after a 2-second delay.
Available options may differ depending on the shooting conditions.
Shooting options 56
Shooting in the dark
Learn how to capture photos at night or in low light conditions.
Preventing red-eye
Using the flash
ps
If the flash fires when you capture a photo of a person in the dark,
a red glow may appear in the person’s eyes. To prevent this,
select Red-eye or Red-eye Fix. Refer to flash options in
“Using the flash.”
TpAhMsg
Use the flash when you capture photos in the dark or when you
need more light in your photos.
1
In Shooting mode, press [F].
Flash
S Before correction
Off
Auto
Red-eye
Fill in
Slow Sync
Red-eye Fix
Back
S After correction
2
Select
Select an option.
Icon
Description
Off:
• The flash will not fire.
• The camera will display the shake warning
you are shooting in low light.
when
Auto: The flash will fire automatically when the subject or
background is dark.
Shooting options 57
Shooting in the dark
Icon
Description
• Flash options are not available if you set Burst options or select
Red-eye:
• The flash will fire twice when the subject or
background is dark to reduce the red-eye effect.
• There is an interval between the 2 bursts of the flash.
Do not move until the flash fires a second time.
Fill in:
• The flash always fires.
• The camera automatically adjusts light intensity.
Self-Portrait or Blink Detection.
• Make sure that your subjects are within the recommended distance
from the flash. (p. 142)
• If light from the flash is reflected or there is a substantial amount of
dust in the air, tiny spots may appear in your photo.
• In some modes, you can also set the flash option by pressing [m],
and then selecting Flash.
Slow Sync:
• The flash fires and the shutter stays open longer.
• This option is recommended when you want to
capture more ambient light to reveal more details in
the background.
• Use a tripod to prevent your photos from blurring.
• The camera will display the shake warning
when
you are shooting in low light.
Red-eye Fix:
• The flash fires twice when the subject or background
is dark. The camera corrects red-eyes through its
advanced software analysis.
• There is an interval between the 2 bursts of the flash.
Do not move until the flash fires a second time.
Available options may differ depending on the shooting conditions.
Shooting options 58
Shooting in the dark
Adjusting the ISO sensitivity
pAhM
The ISO sensitivity is the measure of a film’s sensitivity to light as
defined by the International Organization for Standardization (ISO).
The higher ISO sensitivity you select, the more sensitive to light
your camera becomes. Use a higher ISO sensitivity to capture
better photos and reduce camera shake when not using the
flash.
1
2
3
In Shooting mode, press [m].
Select ISO.
Select an option.
• Select
to use an appropriate ISO sensitivity based on the
brightness of the subject and lighting.
Higher ISO sensitivities may result in more image noise.
Shooting options 59
Changing the camera’s focus
Learn how to adjust the camera’s focus to suit the subject and the shooting conditions.
Using macro
pAhMsv
Use macro to capture close-up photos of subjects, such as
flowers or insects.
Using auto focus
TpAhMsv
To capture sharp photos, select the appropriate focus option
according to your distance from the subject.
1
In Shooting mode, press [c].
Focus
Normal (AF)
Manual Focus
Macro
Back
• Try to hold the camera firmly to prevent blurry photos.
• Turn off the flash if the distance to the subject is less than 15.7 in.
(40 cm).
Shooting options 60
Select
Changing the camera’s focus
2
Adjusting the focus distance manually
Select an option.
Icon
Description
Normal (AF): Focus on a subject farther than
31 in. (80 cm) away. Farther than 138 in. (350 cm) away
when you use the zoom.
Manual Focus: Focus on a subject by adjusting the
focus distance manually. (p. 61)
1
2
3
pAhM
In Shooting mode, press [c].
Select Manual Focus.
Press [F/t] to adjust the focus distance.
Macro: Focus on a subject that is 2-31 in. (5-80 cm)
from the camera. 71-138 in. (180-350 cm) when you
use the zoom.
Auto Macro:
• Focus on a subject farther than 2 in. (5 cm) away.
Farther than 71 in. (180 cm) away when you use the
zoom.
• It is set automatically in some shooting modes.
Available options may differ depending on the shooting conditions.
Manual Focus
Cancel
4
Set
Press [o] to save your settings.
In some modes, you can also set the focus option by pressing [m], and
then selecting Focus.
• When you adjust the focus distance manually and the subject is out of
focus, the photo may be blurry.
• If you use this function, you cannot set focus area options and Face
Detection options.
Shooting options 61
Changing the camera’s focus
Focusing on a selected area
Using tracking auto focus
pAhM
You can focus on an area that you have selected.
1
2
3
pAhM
Tracking AF allows you to track and auto focus on your subject,
even when you are moving.
In Shooting mode, press [m].
Select Focus Area “ Selection AF.
Press [o], and then press [D/c/F/t] to move
the frame to a desired area.
1
2
3
In Shooting mode, press [m].
Select Focus Area “ Tracking AF.
Focus on the subject you want to track, and then
press [o].
• A focus frame appears on the subject and follows the subject
as you move the camera.
Move
4
5
Select
Press [o].
Press [Shutter] to capture the photo.
• The white frame means that your camera is tracking the
• Press [o] to change the focus area.
subject.
• When you half-press [Shutter], the green frame means that
If you use this function, you cannot set Face Detection options, Timer options,
and Intelli zoom.
your subject is in focus.
4
Press [Shutter] to capture the photo.
Shooting options 62
Changing the camera’s focus
• If you do not select a focus area, the focus frame will appear in the
•
•
•
•
•
center of the screen.
Tracking a subject may fail when:
- the subject is too small
- the subject moves excessively
- the subject is backlit or you are shooting in a dark place
- colors or patterns on the subject and the background are the same
- the subject includes horizontal patterns, such as blinds
- the camera shakes excessively
When tracking a subject fails, the focus frame will appear as a white
single-line frame ( ).
If the camera fails to track the subject, you must reselect the subject
to track.
If the camera fails to focus, the focus frame will change to a red
single-line frame ( ).
If you use this function, you cannot set Face Detection options, Timer
options, Burst options, and Intelli zoom.
Adjusting the focus area
pAhM
You can get clearer photos by selecting an appropriate focus
area according to your subject's location in the scene.
1
2
3
In Shooting mode, press [m].
Select Focus Area.
Select an option.
Icon
Description
Center AF: Focus on the center of the frame (suitable
when subjects are located at or near the center).
Multi AF: Focus on one or more of 9 possible areas.
Selection AF: Focus on the area that you select. (p. 62)
Tracking AF: Focus on and track the subject. (p. 62)
Available shooting options may differ depending on the shooting mode.
Shooting options 63
Using Face Detection
pAhMs
If you use Face Detection options, your camera can automatically detect a human face. When you focus on a human face, the camera
adjusts the exposure automatically. Use Blink Detection to detect closed eyes or Smile Shot to capture a smiling face. You can also use
Smart Face Recognition to register faces and prioritize the focus on them.
Detecting faces
• When your camera detects a face, it tracks the detected face
•
•
•
•
•
•
•
•
•
automatically.
Face Detection may not be effective when:
- the subject is far from the camera (The focus frame will appear
orange for Smile Shot and Blink Detection.)
- it is too bright or too dark
- the subject is not facing the camera
- the subject is wearing sunglasses or a mask
- the subject’s facial expression changes drastically
- the subject is backlit or the lighting conditions are unstable
Face Detection is not available when you set the Selection AF,
Tracking AF, or Manual Focus.
Depending on the shooting options you selected, available Face
Detection options may differ.
Depending on the Face Detection options you selected, the timer
function may not be available.
When you set Face Detection options, the AF area is automatically
set to Multi AF.
Depending on the Face Detection options you selected, Burst options
may not be available.
When you set Smart Face Recognition option and capture photos of
detected faces, they will be registered in the face list.
You can view registered faces in order of priority in Playback mode.
(p. 79) Even though faces are registered successfully, they may not be
classified in Playback mode.
A face detected with Smart Face Recognition option may not appear
in the face list or Smart Album.
Your camera automatically detects up to 10 human faces in one
scene.
1
2
In Shooting mode, press [m].
Select Face Detection “ Normal.
Shooting options 64
The face nearest the camera
or nearest the center of the
scene appears in a white
focus frame and the rest
of the faces appear in gray
focus frames.
The closer you are to the subjects, the quicker your camera will detect faces.
Using Face Detection
Capturing a self portrait shot
Capturing a smile shot
Capture photos of yourself. The camera sets the focus distance
to close-up, and then emits a beep when ready.
The camera automatically releases the shutter when it detects a
smiling face.
1
2
3
4
1
2
3
In Shooting mode, press [m].
Select Face Detection “ Self-Portrait.
Compose your shot with the lens facing you.
In Shooting mode, press [m].
Select Face Detection “ Smile Shot.
Compose your shot.
• The camera automatically releases the shutter when it detects
When you hear a quick beep, press [Shutter].
a smiling face.
When your subject smiles
broadly, your camera can detect
the smile more easily.
When faces are located in the center,
the camera beeps rapidly.
If you turn Volume off in the sound settings, the camera will not emit a beep.
(p. 122)
Shooting options 65
Using Face Detection
Detecting eye blinking
Using Smart Face Recognition
If your camera detects closed eyes, it will automatically capture
2 photos in succession.
The camera automatically registers faces that you frequently
photograph. The Smart Face Recognition feature will
automatically prioritize the focus on those faces and on favorite
faces. The Smart Face Recognition feature is available only when
you use a memory card.
1
2
In Shooting mode, press [m].
Select Face Detection “ Blink Detection.
1
2
In Shooting mode, press [m].
Select Face Detection “ Smart Face Recognition.
•
: Faces that you have registered as favorites.
(To register faces as favorites, refer to page 67.)
•
: Faces that the camera has automatically registered.
Shooting options 66
Using Face Detection
• The camera may recognize and register faces incorrectly depending
Registering faces as your favorites (My Star)
on lighting conditions, drastic changes in the subject's pose or face,
and whether or not the subject is wearing glasses.
• The camera can automatically register up to 12 faces. If the camera
recognizes a new face when 12 faces have already been registered, it
will replace the lowest priority face with the new one.
You can register your favorite faces to prioritize the focus and
exposure on those faces. This feature is available only when you
use a memory card.
1
2
3
In Shooting mode, press [m].
Select Smart FR Edit “ My Star.
Align your subject’s face with the oval guideline, and then
press [Shutter] to register the face.
Cancel
Set
• Capture photos of one person at a time when registering faces.
• Capture 5 photos of the subject’s face for best results: one each
from the front, left, right, above, and below.
• When capturing photos from the left, right, above, and below,
instruct the subject not to turn his or her face more than
30 degrees.
• You can register a face even if you capture only one photo of the
subject's face.
Shooting options 67
Using Face Detection
4
When you are finished capturing the photos, the face list
appears.
• Your favorite faces are indicated with a
on the face list.
• You can register up to 8 favorite faces.
• The flash will not fire when you register a favorite face.
• If you register the same face twice, you can delete one of the faces
in the face list.
Viewing your favorite faces
1
2
In Shooting mode, press [m].
Select Smart FR Edit “ Face List.
• To change the ranking of your favorite faces, press [m], and then
select Edit Ranking. (p. 78)
• To delete a favorite face, press [m], and then select Cancel My
Star. (p. 79)
Shooting options 68
Adjusting brightness and color
Learn how to adjust the brightness and color for better image quality.
3
Adjusting the exposure manually (EV)
Select a value to adjust the exposure.
• The photo will be brighter as the exposure value increases.
pAhv
Depending on the intensity of the ambient light, your photos
may be too bright or dark. In these cases, you can adjust the
exposure to get a better photo.
EV : 1
Cancel
S Darker (-)
1
2
S Neutral (0)
S Brighter (+)
4
Set
Press [o] to save your settings.
• Once you adjust the exposure, the setting will be stored automatically.
In Shooting mode, press [m].
You may need to change the exposure value later to avoid
overexposure or underexposure.
• If you cannot decide on an appropriate exposure, select the
AEB (Auto Exposure Bracket) option. The camera will capture
3 consecutive photos, each with a different exposure: normal,
underexposed, and overexposed. (p. 73)
Select EV.
Shooting options 69
Adjusting brightness and color
Compensating for backlighting (ACB)
pAhM
When the light source is behind your subject or there is high
contrast between your subject and the background, your subject
is likely to appear dark in the photo. In this case, set the Auto
Contrast Balance (ACB) option.
Changing the metering option
1
2
3
In Shooting mode, press [m].
Select Metering.
Select an option.
Icon
S Without ACB
1
2
3
Description
Multi:
• Your camera divides the frame into several areas,
and then measures the light intensity of each area.
• Suitable for general photos.
S With ACB
In Shooting mode, press [m].
Spot:
• Your camera measures only the light intensity at the
very center of the frame.
• If a subject is not in the center of the frame, your
photo may be improperly exposed.
• Suitable for a subject with backlighting.
Select ACB.
Select an option.
Icon
pAhMv
The metering mode refers to the way in which a camera
measures the quantity of light. The brightness and lighting of your
photos will vary depending on the metering mode you select.
Description
Center-weighted:
• Your camera averages the meter reading of the entire
frame with emphasis placed on the center.
• Suitable for photos with subjects in the center of the
frame.
Off: ACB (Auto Contrast Balance) is deactivated.
On: ACB (Auto Contrast Balance) is activated.
• The ACB feature is always on in Smart Auto mode.
• The ACB feature is not available when you set Burst options.
Shooting options 70
Adjusting brightness and color
Selecting a White Balance setting
pAhMv
The color of your photo depends on the type and quality of the
light source. If you want the color of your photo to be realistic,
select a White Balance setting that is appropriate for the lighting
conditions, such as Auto WB, Daylight, Cloudy, or Tungsten.
1
2
3
In Shooting mode, press [m].
Select White Balance.
Select an option.
Icon
Description
Auto WB: Automatically set the White Balance based
on the lighting conditions.
Daylight: For outdoor photos on a sunny day.
Auto WB
Cloudy: For outdoor photos on a cloudy day or in
shadows.
Daylight
Fluorescent_H: For shooting under a daylight
fluorescent or 3-way fluorescent light.
Fluorescent_L: For shooting under white fluorescent
light.
Tungsten: For shooting indoor photos under
incandescent bulbs or halogen lamps.
Cloudy
Custom Set: To use White Balance settings that you
define. (p. 72)
Tungsten
Color Temp.: To adjust the color temperature of the
light source. (p. 72)
Shooting options 71
Adjusting brightness and color
Defining your own White Balance
Adjusting color temperature
You can customize the White Balance by capturing a photo of
a white surface, such as a piece of paper, under the lighting
conditions in which you intend to capture a photo. The White
Balance feature will help you to match the colors in your photo
with the actual scene.
1
2
3
1
2
3
In Shooting mode, press [m].
In Shooting mode, press [m].
Select White Balance “ Color Temp.
Press [F/t] to adjust the color temperature to match
your light source.
• You can capture a warmer photo with a higher color
Select White Balance “ Custom Set.
temperature setting (more yellow/red), and a cooler photo with
a lower color temperature setting (more blue).
Aim the lens at a piece of white paper, and then press
[Shutter].
Color Temp. : 6500 K
4
Press [o] to save your settings.
Shooting options 72
Using burst modes
pAhM
It can be difficult to capture photos of fast-moving subjects or capture natural facial expressions and gestures of your subjects in photos.
Also, it can be difficult to adjust the exposure correctly and select a proper light source. In these cases, select one of the burst modes.
Icon
Description
Motion Capture: While you are pressing [Shutter], the
camera captures
photos (5 photos per second;
maximum of 30 photos).
1
2
3
AEB:
• Capture 3 consecutive photos, each with a different
exposure: normal, underexposed, and overexposed.
• Use a tripod to prevent blurry photos.
In Shooting mode, press [m].
Select Drive.
• You can use the flash and timer only when you select Single.
• When you select Motion Capture, your camera will set the resolution
Select an option.
Icon
to
and set the ISO sensitivity to Auto.
• Depending on the Face Detection option you selected, some Burst
Description
options may not be available.
Single: Capture a single photo.
Continuous:
• While you are pressing [Shutter], the camera
continuously captures photos.
• The maximum number of photos depends on the
capacity of your memory card.
Shooting options 73
Adjusting images
pAhM
Adjust the sharpness, contrast, or saturation of your photos.
1
2
3
In Shooting mode, press [m].
4
Press [F/t] to adjust each value.
Sharpness
Select Image Adjust.
Description
Select an option.
-
Soften the edges on your photos (suitable for
editing the photos on your computer).
• Sharpness
• Contrast
• Saturation
+
Sharpen the edges to improve the clarity of your
photos. This may also increase the noise in your
photos.
Contrast
Image Adjust
Sharpness
Description
-
Decrease the color and brightness.
+
Increase the color and brightness.
Contrast
Saturation
Saturation
Cancel
Set
5
Description
-
Decrease the saturation.
+
Increase the saturation.
Press [o] to save your settings.
Select 0 if you do not want to apply any effects (suitable for printing).
Shooting options 74
Reducing the sound of the zoom
pAhMsgv
When you use the zoom while recording videos, the camera can record the sound of the zoom. Use the Sound Alive function to reduce the
zoom noise.
1
2
3
In Shooting mode, press [m].
Select Voice.
Select an option.
Icon
Description
Sound Alive On: Turn on the Sound Alive function to
reduce the zoom noise.
Sound Alive Off: Turn off the Sound Alive function. The
camera can record the zoom noise.
Mute: Do not record sounds.
• Do not block the microphone when you use the Sound Alive
function.
• Recordings made with Sound Alive may differ from actual
sounds.
• In Picture-in-Picture mode, you cannot set the Sound Alive
options.
Shooting options 75
Playback/Editing
Learn how to play back photos or videos, and edit photos or videos. Also, learn how to
connect your camera to your computer, photo printer, or TV.
Viewing photos or videos in Playback
mode ………………………………………… 77
Transferring files to your Windows
computer …………………………………… 92
Starting Playback mode ………………… 77
Viewing photos …………………………… 83
Playing a video …………………………… 85
Transferring files with Intelli-studio ………… 93
Transferring files by connecting the
camera as a removable disk ……………… 95
Disconnecting the camera
(for Windows XP) ………………………… 96
Editing a photo ……………………………… 87
Resizing photos ……………………………
Rotating a photo …………………………
Applying Smart Filter effects ………………
Adjusting your photos ……………………
Creating a print order (DPOF) ……………
87
87
88
89
90
Viewing files on a TV ……………………… 91
Transferring files to your Mac computer … 97
Printing photos with a PictBridge photo
printer ……………………………………… 98
Viewing photos or videos in Playback mode
Learn how to play back photos or videos and how to manage files.
Photo file information
Starting Playback mode
View photos or play videos stored in your camera.
1
Press [P].
Memory in use
• The most recent file will be displayed.
• If the camera is off, it will turn on and display the most recent
File Information
file.
2
Histogram
Press [F/t] to scroll through files.
Album/Zoom In
• Press and hold [F/t] to scroll through files quickly.
• If you want to view files stored in the internal memory, remove your
Icon
memory card.
• You may not be able to edit or play back files that were captured with
other cameras, due to unsupported sizes (image size, etc) or codecs.
Use a computer or another device to edit or play back these files.
Description
Current file/Total files
Folder name–File name
Protected file
Print order has been set (DPOF)
To display file information on the screen, press [D].
Playback/Editing 77
Viewing photos or videos in Playback mode
Video file information
Ranking your favorite faces
You can rank your favorite faces. The favorite face feature is
available only when you insert a memory card into the camera.
File Information
1
2
In Playback mode, press [m].
Select Face List.
Face List
Album
Play
Icon
Capture
Description
Current file/Total files
Folder name-File name
Back
Edit
Current playback time
Video length
Protected file
To display file information on the screen, press [D].
3
4
5
6
Press [m].
Select Edit Ranking.
Select a face, and then press [o].
Press [F/t] to change the ranking of the face, and then
press [b].
Playback/Editing 78
Viewing photos or videos in Playback mode
Deleting favorite faces
Viewing files by category in Smart Album
You can delete your favorite faces. The favorite face feature is
available only when you insert a memory card into the camera.
1
2
3
4
5
6
7
In Playback mode, press [m].
Select Face List.
Press [m].
View files by category, such as date, face, or file type.
1
2
3
In Playback mode, rotate [Zoom] to the left.
Press [m].
Select Filter “ a category.
Filter
Select Cancel My Star.
All
Date
Select a face, and then press [o].
Face List
File Type
Press [f].
When the pop-up message appears, select Yes.
Back
Icon
Select
Description
All: View files normally.
Date: View files by the date they were saved.
Face List: View files by recognized faces and favorite
faces. (Up to 20 people)
File Type: View files by the file type.
Playback/Editing 79
Viewing photos or videos in Playback mode
4
Viewing files as thumbnails
Scroll to a desired list, and then press [o] to
open the list.
Scan thumbnails of files.
5
Scroll to a desired file, and then press [o] to
view the file.
6
Rotate [Zoom] to the left to return to the previous view.
In Playback mode, rotate [Zoom] to the left to view
thumbnails (12 at a time). Rotate [Zoom] to the left
once more to display more thumbnails
(24 at a time). Rotate [Zoom] to the right to return to
the previous view.
It may take some time for the camera to open Smart Album, change the
category, or reorganize files.
Menu
Press [D/c/F/t] to scroll through files.
Playback/Editing 80
Viewing photos or videos in Playback mode
Protecting files
Deleting files
Protect your files from accidental deletion.
Select files to delete in Playback mode.
1
2
Deleting a single file
You can select one file, and then delete it.
In Playback mode, press [m].
Select Protect “ On.
You cannot delete or rotate a protected file.
1
2
In Playback mode, select a file, and then press [f].
When the pop-up message appears, select Yes.
You can also delete files in Playback mode by pressing [m], and then
selecting Delete “ Delete “ Yes.
Playback/Editing 81
Viewing photos or videos in Playback mode
Deleting multiple files
You can select multiple files, and then delete them at once.
Deleting all files
You can select all files, and then delete them at once.
1
1
In Playback mode, press [f].
• When in thumbnails view, press [m], select
In Playback mode, press [m].
• When in thumbnails view, press [m], select
Delete “ Select, and then skip to step 3, or press [f],
select Select, and then skip to step 3.
Delete “ Delete All, and then skip to step 3, or press [f],
select Delete All, and then skip to step 3.
2
When the pop-up message appears, select Multiple
Delete.
3
Scroll to each file you want to delete, and then
press [o].
• Press [o] again to cancel your selection.
4
5
2
3
Select Delete “ Delete All.
When the pop-up message appears, select Yes.
• All unprotected files are deleted.
Copying files to a memory card
Press [f].
Copy files from the internal memory to a memory card.
When the pop-up message appears, select Yes.
1
2
In Playback mode, press [m].
Select Copy to Card.
Playback/Editing 82
Viewing photos or videos in Playback mode
Viewing photos
To
Description
Enlarge part of a photo or view photos as a slide show.
Move the enlarged area
Press [D/c/F/t].
Trim the enlarged photo
Press [o], and then select Yes. (The
trimmed photo will be saved as a new file.
The original photo is retained in its original
form.)
Enlarging a photo
In Playback mode, rotate [Zoom] to the right to
enlarge a portion of the photo. Rotate [Zoom] to the
left to zoom out.
Enlarged area
Crop
Playback/Editing 83
When you view photos that were captured by another camera, the zoom
ratio may differ.
Viewing photos or videos in Playback mode
Viewing panoramic photos
Playing a slide show
View photos captured in Live Panorama mode.
1
Apply effects and audio to a slide show of your photos. The slide
show function does not work for videos.
In Playback mode, press [F/t] to scroll to a desired
panoramic photo.
• The entire panoramic photo appears on the screen.
2
Press [o].
• The camera automatically scrolls through the photo from left to
right for a horizontal panoramic photo and from top to bottom
for a vertical panoramic photo. The camera then switches to
Playback mode.
• While playing back a panoramic photo, press [o] to pause
or resume.
• After you have paused the playback of a panoramic photo,
press [D/c/F/t] to move the photo horizontally or
vertically, depending on the direction you moved when
capturing the photo.
3
1
2
3
In Playback mode, press [m].
Select Slide Show Options.
Select a slide show effect option.
• Skip to step 4 to start a slide show with no effects.
* Default
Option
Description
Play Mode
Set whether or not to repeat the slide show.
(One Play*, Repeat)
• Set the interval between photos.
Interval
interval.
Music
Press [b] to return to Playback mode.
(1 sec*, 3 sec, 5 sec, 10 sec)
• You must set the Effect option to Off to set the
Set background audio.
• Set a scene change effect between photos.
The camera automatically scrolls through the panoramic photo only if the
longest side of the photo is two or more times longer than the shortest side.
(Off, Calm*, Shine, Relax, Lively, Sweet)
Effect
• Select Off to cancel effects.
• When you use the Effect option, the interval
between photos will be set to 1 second.
Playback/Editing 84
Viewing photos or videos in Playback mode
4
5
6
Press [b].
Playing a video
Select Start Slide Show.
In Playback mode, you can view a video, and then capture or trim
parts of the playing video. You can save the captured or trimmed
segments as new files.
View the slide show.
• Press [o] to pause the slide show.
• Press [o] again to resume the slide show.
• Press [o], and then press [F/t] to stop the slide show and return
1
2
In Playback mode, select a video, and then press [o].
View the video.
to Playback mode.
• Rotate [Zoom] to the left or right to adjust the volume level.
Current playback time/
Video length
Pause
Stop
To
Description
Scan backward
Press [F]. Each time you press [F],
you change the scan speed in this
order: 2X, 4X, 8X.
Pause or resume
playback
Press [o].
Scan forward
Press [t]. Each time you press [t],
you change the scan speed in this
order: 2X, 4X, 8X.
Adjust the volume level
Rotate [Zoom] to the left or right.
Playback/Editing 85
Viewing photos or videos in Playback mode
Trimming a video
Capturing an image from video
1
In Playback mode, select a video, and then press
[m].
1
While viewing a video, press [o] at the point where you
want to capture an image.
2
3
4
Select Trim Movie.
2
Press [c].
5
6
Press [o] to resume playing the video.
7
8
Press [c] to trim.
Press [o] to start playing the video.
• The resolution of the captured image will be the same as the original
Press [o] “ [c] at the point where you want the
trimming to begin.
• The captured image is saved as a new file.
video.
Press [o] “ [c] at the point where you want the
trimming to end.
When the pop-up message appears, select Yes.
• The original video should be at least 10 seconds long.
• The camera will save the edited video as a new file and leave the
original video intact.
Playback/Editing 86
Editing a photo
Learn how to edit photos.
• The camera will save edited photos as new files.
• When you edit photos, the camera will automatically convert them to a lower resolution. Photos that you rotate or resize manually are not automatically converted to
a lower resolution.
Resizing photos
Rotating a photo
Change the size of a photo and save it as a new file.
1
In Playback mode, select a photo, and then
press [m].
2
3
Select Resize.
Select an option.
Resize
1
2
3
4
5
Rotate the mode dial to g.
Select
.
Rotate [Zoom] to the left, and then select a photo.
Select Rotate “ an option.
Press [c] to save.
2592 X 1944
1984 X 1488
1024 X 768
Rotate : Right 90˚
Back
Select
Cancel
Save
Available resize options differ depending on the original size of the photo.
• The camera will overwrite the original file.
• In Playback mode, press [m], and then select Rotate to rotate
a photo.
Playback/Editing 87
Editing a photo
Applying Smart Filter effects
Option
Description
Apply special effects to your photos.
Ink Painting
Apply a watercolor painting effect.
1
2
3
4
Oil Painting
Apply an oil painting effect.
Cartoon
Apply a cartoon painting effect.
Cross Filter
Add lines that radiate outward from bright
objects to imitate the visual effect of a cross
filter.
Sketch
Apply a pen sketch effect.
Soft Focus
Hide facial imperfections or apply dreamy
effects.
Fish-eye
Distort close objects to imitate the visual effect
of a fisheye lens.
Old Film
Apply a vintage film effect.
Half Tone Dot
Apply a halftone effect.
Classic
Apply a black and white effect.
Retro
Apply a sepia tone effect.
Zooming Shot
Blur the edges of a photo to emphasize the
subjects in the center.
Rotate the mode dial to g.
Select
.
Rotate [Zoom] to the left, and then select a photo.
Select Smart Filter “ an option.
Smart Filter : Miniature
Back
Set
Option
Description
Normal
No effect
Miniature
Apply a tilt-shift effect to make the subject
appear in miniature.
Vignetting
Apply the retro-looking colors, high contrast, and
strong vignette effect of Lomo cameras.
5
Press [c] to save.
Playback/Editing 88
Editing a photo
4
Adjusting your photos
Learn how to adjust the brightness, contrast, or saturation or how
to correct the red-eye effect. If the center of a photo is dark, you
can adjust it to be brighter. The camera will save an edited photo
as a new file, but may convert it to a lower resolution.
Select an adjusting option.
Icon
Brightness
Contrast
Saturation
• You can adjust brightness, contrast, and saturation and apply Smart
Filter effects at the same time.
• You cannot apply the ACB, Face Retouch, and Red-eye Fix effects
at the same time.
Adjusting brightness, contrast, or saturation
1
2
3
Description
5
6
7
Press [F/t] to adjust the option.
Press [o].
Press [c] to save.
Rotate the mode dial to g.
Select
.
Rotate [Zoom] to the left, and then select a photo.
Adjusting dark subjects (ACB)
1
2
3
4
5
Rotate the mode dial to g.
Select
.
Rotate [Zoom] to the left, and then select a photo.
Select ACB.
Press [c] to save.
Playback/Editing 89
Editing a photo
Retouching faces
1
2
3
4
5
Creating a print order (DPOF)
Select photos to print and save print options in the Digital Print
Order Format (DPOF). This information is saved in the MISC folder
on your memory card for convenient printing on
DPOF-compatible printers.
Rotate the mode dial to g.
Select
.
Rotate [Zoom] to the left, and then select a photo.
Press [F/t] to adjust the option.
• As the number increases, the skin tone becomes brighter and
smoother.
6
1
In Playback mode, select a photo you want to print, and
then press [m].
2
3
Select DPOF.
Select Face Retouch.
Press [D/c] to select the number of copies, and
then press [o].
Press [c] to save.
• You can take the memory card to a print shop that supports DPOF
(Digital Print Order Format) or you can print photos directly through a
DPOF-compatible printer at home.
• Photos with dimensions that are wider than the paper may be cut off
on the left and right edges. Ensure that your photo dimensions are
compatible with the paper you select.
• You cannot set DPOF options for photos stored in the internal
memory.
• If you specify the print size, you can print photos only with
DPOF 1.1-compatible printers.
Removing red-eye
1
2
3
4
5
Rotate the mode dial to g.
Select
.
Rotate [Zoom] to the left, and then select a photo.
Select Red-eye Fix.
Press [c] to save.
Playback/Editing 90
Viewing files on a TV
Play back photos or videos by connecting your camera to a TV with the A/V cable.
1
2
3
Rotate the mode dial to n.
4
5
Turn off your camera and TV.
Select Connectivity “ Video Out.
Select the video signal output for your country or region.
(p. 123)
6
Turn on your TV, and then select the A/V video source
with the TV remote control.
7
Turn on your camera.
• The camera automatically enters into Playback mode when
you connect it to a TV.
8
View photos or play videos using the camera buttons.
Connect your camera to your TV with the A/V cable.
• Depending on the TV model, you may see some digital noise or part
of an image may not appear.
Audio
• Images may not be centered on the TV screen depending on your
Video
TV settings.
Playback/Editing 91
Transferring files to your Windows computer
Transfer files to your Windows computer, edit them with Intelli-studio, and upload them to the web.
Requirements
Item
• The requirements are recommendation only. Intelli-studio may not work
Requirements
®
®
CPU
Intel Pentium 4 3.2 GHz or higher/
AMD Athlon™ FX 2.6 GHz or higher
RAM
Minimum 512 MB RAM (1 GB or more recommended)
OS*
Windows XP SP2, Windows Vista, or Windows 7
Hard disk
capacity
250 MB or more (1 GB and above recommended)
• CD-ROM drive
• 1024 X 768 pixels, 16-bit color display compatible
Others
monitor (1280 X 1024 pixels, 32-bit color display
recommended)
• USB 2.0 port
• nVIDIA Geforce 7600GT or higher/
ATI X1600 series or higher
• Microsoft DirectX 9.0c or higher
* A 32-bit version of Intelli-studio will be installed—even on 64-bit editions of
Windows XP, Windows Vista, and Windows 7.
Playback/Editing 92
properly even when the computer meets the requirements, depending
on the condition of your computer.
• If your computer does not meet the requirements, videos may not play
correctly or it may take longer to edit videos.
• Install DirectX 9.0c or later before you use Intelli-studio.
• Your computer must be running Windows XP, Windows Vista, or
Windows 7 for you to connect the camera as a removable disk.
The manufacturer is not responsible for any damage that results from using
unqualified computers such as a computer you assembled yourself.
Transferring files to your Windows computer
5
Transferring files with Intelli-studio
Turn on the camera.
• When the Intelli-studio installation pop-up appears on the
You can download Intelli-studio from the linked webpage and
install it on your computer. When you connect the camera to
a computer with Intelli-studio installed, the program will launch
automatically.
computer screen, follow the on-screen instructions to
complete the installation.
• Once the Intelli-studio is installed on your computer, the
computer recognizes the camera and launches the
Intelli-studio automatically.
The battery will charge while the camera is connected to a computer with the
USB cable.
If you set the USB option to Select Mode, select Computer in the
pop-up window.
1
2
3
4
Rotate the mode dial to n.
6
Select Connectivity “ PC Software “ On.
Turn off the camera.
Select a destination folder on your computer, and then
select Yes.
• New files stored on the camera will automatically transfer to
the selected folder.
Connect the camera to your computer with the USB
cable.
• If your camera has no new files, the pop-up window for saving
new files will not appear.
You must plug the small end of the USB cable into your camera. If the
cable is reversed, it may damage your files. The manufacturer is not
responsible for any loss of data.
Playback/Editing 93
For Windows Vista and Windows 7, select Run iLinker.exe from the Auto
Play window to start Intelli-studio. If Run iLinker.exe does not appear on
the computer, click
“ Computer “ Intelli-studio, and then follow the
on-screen instructions to complete the Intelli-studio installation.
Transferring files to your Windows computer
Using Intelli-studio
Intelli-studio allows you to play back and edit files. For details, select Help “ Help from the program toolbar.
• You can update the firmware of your camera by selecting Web Support “ Upgrade firmware for the connected device from the program toolbar.
• You cannot edit files directly on the camera. Transfer files to a folder on your computer before editing.
• Intelli-studio supports the following formats:
- Videos: MP4 (Video: H.264, Audio: AAC), WMV (WMV 7/8/9), AVI (MJPEG)
- Photos: JPG, GIF, BMP, PNG, TIFF
1
2
3
4
5
:
$
6
7
#
8
9
@
0
!
Playback/Editing 94
Transferring files to your Windows computer
1
Open menus.
Transferring files by connecting the camera
as a removable disk
2
Display files in the selected folder.
Connect the camera to your computer as a removable disk.
3
Switch to the Photo edit mode.
4
Switch to the Video edit mode.
5
Switch to the Sharing mode (to send files by email or
upload files to websites, such as Flickr or YouTube).
6
Enlarge or reduce the thumbnails in the list.
7
Select a file type.
1
2
3
4
8
View files in the selected folder on your computer.
9
Show or hide files on the connected camera.
0
View files in the selected folder on the camera.
!
View files as thumbnails or on a map.
@
Browse folders stored on the camera.
#
Browse folders stored on your computer.
$
Move to the previous or next folder.
:
Print files, view files on a map, store files in My Folder, or
register faces.
No.
Description
Rotate the mode dial to n.
Select Connectivity “ PC Software “ Off.
Turn off the camera.
Connect the camera to your computer with the USB
cable.
You must plug the small end of the USB cable into your camera. If the
cable is reversed, it may damage your files. The manufacturer is not
responsible for any loss of data.
Playback/Editing 95
Transferring files to your Windows computer
5
Turn on the camera.
Disconnecting the camera (for Windows XP)
• The computer recognizes the camera automatically.
With Windows Vista and Windows 7, the methods for
disconnecting the camera are similar.
If you set the USB option to Select Mode, select Computer in the
pop-up window.
1
Verify that the status lamp is not blinking.
• The status lamp blinks when transferring files. Wait until it
6
7
On your computer, select My Computer “ Removable
Disk “ DCIM “ 100PHOTO.
stops.
2
Click
on the tool bar at the bottom right of your
computer screen.
3
4
Click the pop-up message.
5
Remove the USB cable.
Drag or save files to your computer.
Click the message box that indicates the camera can be
removed safely.
The camera may not disconnect safely while Intelli-studio is running. End the
program before disconnecting the camera.
Playback/Editing 96
Transferring files to your Mac computer
When you connect the camera to a Macintosh computer, the computer will automatically recognize the device. You can transfer files directly
from the camera to the computer without installing any programs.
Mac OS 10.4 or later is supported.
1
Connect your camera to a Macintosh computer with the
USB cable.
2
Turn on the camera.
• The computer recognizes the camera automatically and
displays a removable disk icon.
You must plug the small end of the USB cable into your camera. If the
cable is reversed, it may damage your files. The manufacturer is not
responsible for any loss of data.
If you set the USB option to Select Mode, select Computer in the
pop-up window.
3
4
Double-click the removable disk icon.
Drag or save files to your computer.
Playback/Editing 97
Printing photos with a PictBridge photo printer
Print photos with a PictBridge-compatible printer by connecting your camera directly to the printer.
1
2
3
Rotate the mode dial to n.
Configuring print settings
Select Connectivity “ USB “ Printer.
Press [m] to configure print settings.
Turn on the printer, and then connect your camera to the
printer with the USB cable.
Images
Size
Layout
Type
Quality
Date Print
Exit
4
If the camera is off, press [POWER] or [P] to turn it on.
• The printer recognizes the camera automatically.
5
Press [F/t] to select a file to print.
• Press [m] to set printing options.
See “Configuring print settings.”
6
Select
Option
Description
Images
Select whether to print the current photo or all photos.
Size
Set the print size.
Layout
Set the number of photos to be printed on a single
sheet of paper.
Type
Set the type of paper.
Press [o] to print.
Quality
Set the print quality.
• Printing starts. Press [o] to cancel printing.
Date Print
Set to print the date.
File Name
Set to print the file name.
Reset
Reset settings to their default values.
Some options may not be supported by some printers.
Playback/Editing 98
Wireless network (WB150F/WB151F/WB152F only)
Learn how to connect to wireless local area networks (WLANs) and use functions.
Connecting to a WLAN and configuring
network settings ………………………… 100
Connecting to a WLAN …………………
Using the login browser …………………
Network connection tips ………………
Entering text ……………………………
100
101
102
103
Using photo or video sharing
websites ………………………………… 104
Accessing a website …………………… 104
Uploading photos or videos …………… 104
Sending photos or videos via email …… 106
Changing email settings ……………… 106
Sending photos or videos via email …… 107
Sending photos or videos to a
smart phone ……………………………… 109
Using a smart phone as a remote
shutter release …………………………… 110
Uploading photos to a cloud server …… 112
Using Auto Backup to send photos
or videos ………………………………… 113
Installing the program for Auto Backup
on your PC …………………………… 113
Sending photos or videos to a PC …… 113
Viewing photos or videos on a
TV Link-enabled TV ……………………… 115
Sending photos using Wi-Fi Direct …… 117
About the Wake on LAN (WOL)
feature …………………………………… 118
Connecting to a WLAN and configuring network settings
Learn to connect via an access point (AP) when you are in a range of a WLAN. You can also configure network settings.
Connecting to a WLAN
1
2
3
Icon
Ad hoc AP
Rotate the mode dial to w.
Select
,
,
,
, or
Secured AP
.
WPS AP
Press [m], and then select AP Setting.
Signal strength
• In some modes, press [m] or follow the on-screen
Press [t] to open AP setting options
instructions until the AP Setting screen appears.
• The camera automatically searches for available AP devices.
4
Description
Enter the required passwords to connect to the WLAN. For
information about entering text, refer to "Entering text".
(p. 103)
• When a login page appears, refer to "Using the login browser".
(p. 101)
• When you select an unsecured AP, the camera will connect
to the WLAN.
• If you select a WPS profile supported AP, select WPS PIN,
and then enter a PIN on the AP device. You can also connect
to a WPS profile supported AP by selecting WPS PBC on the
camera, and then pushing the WPS button on the AP device.
Select an AP.
AP Setting
Samsung 1
Samsung 2
Samsung 3
Samsung 4
Samsung 5
Back
• When you select a secured AP, a pop-up window appears.
Select
• Select WPS PBC to connect to a WPS AP.
• Select Refresh to refresh connectable APs.
• Select Add wireless network to add an AP manually.
Wireless network (WB150F/WB151F/WB152F only) 100
Connecting to a WLAN and configuring network settings
Setting network options
Using the login browser
1
In the AP Setting screen, move to an AP, and then
press [t].
2
Select each option, and then enter the required
information.
Option
Description
Authentication
Select a network authentication type.
Data Encryption
Select an encryption type.
You can enter your login information via the login browser when
connecting to some APs, sharing sites, or cloud servers.
Button
Description
[D/c/F/t]
Move to an item or scroll the page.
[o]
Select an item.
[m]
Access the following options:
• Previous Page: Move to the previous page.
• Next Page: Move to the next page.
• Reload: Reload the page.
• Stop: Stop loading the page.
• Exit: Close the login browser.
[b]
Close the login browser.
Network Password Enter the network password.
IP Setting
Set the IP address manually.
Manually setting the IP address
1
2
3
In the AP Setting screen, move to an AP, and then
press [t].
Select IP Setting “ Manual.
Select each option, and then enter the required
information.
Option
Description
IP
Enter the static IP address.
Subnet Mask
Enter the subnet mask.
Gateway
Enter the gateway.
DNS Server
Enter the DNS address.
• You cannot select some items depending on the page you connected
to. This does not indicate a malfunction.
• The login browser may not close automatically after you log into some
pages. If this occurs, close the login browser by pressing [b], and
then proceed with the desired operation.
• It may take longer to load the login page due to the page size or
network speed. If this occurs, wait until the login information input
window appears.
Wireless network (WB150F/WB151F/WB152F only) 101
Connecting to a WLAN and configuring network settings
• If you cannot connect to a WLAN, try another AP from the
Network connection tips
• The quality of the network connection will be determined by
•
•
•
•
•
•
•
•
•
•
the AP.
The further the distance between your camera and the AP, the
longer it will take to connect to the network.
If a nearby device is using the same radio frequency signal as
your camera, it may interrupt your connection.
If your AP name is not in English, the camera may not be able
to locate the device or the name may appear incorrectly.
For network settings or a password, contact your network
administrator or network service provider.
If a WLAN requires authentication from the service provider,
you may not be able to connect to it. To connect the WLAN,
contact your network service provider.
Depending on the encryption type, the number of digits in the
password may differ.
A WLAN connection may not be possible in all surroundings.
The camera may display a WLAN enabled printer on the AP
List. You cannot connect to a network via a printer.
You cannot connect your camera to a network and a TV
simultaneously. Also, you cannot view photos or videos on a TV
while connected to a network.
Connecting to a network may incur additional charges. Costs
will vary based on the conditions of your contract.
available AP list.
• You can also connect to free WLANs in some foreign countries.
• A login page may appear when you select free WLANs
•
•
•
•
•
•
•
provided by some network service providers. Enter your ID
and password to connect to the WLAN. For information about
registering or the service, contact the network service providers.
Be cautious when you enter personal information for an AP
connection. Do not enter any payment or credit card information
on your camera. The manufacturer is not liable for any problem
caused by entering such information.
Available network connections may differ by country.
The WLAN feature of your camera must comply with radio
transmission laws in your region. To ensure compliance, use
the WLAN feature only in the country where you purchased the
camera.
The process for adjusting network settings may differ,
depending on network conditions.
Do not access a network that you are not authorized to use.
Before you connect to a network, ensure your battery is fully
charged.
When a DHCP server is not available you must make an autoip.
txt file and copy it to the inserted memory card to connect to
the network using Auto IP.
Wireless network (WB150F/WB151F/WB152F only) 102
Connecting to a WLAN and configuring network settings
Entering text
Icon
Learn how to enter text. The icons in the table below let you move
the cursor, change the case, etc. Press [D/c/F/t] to move
to a desired key, and then press [o] to enter the key.
Description
Switch to ABC mode.
Enter a space.
o
Save the displayed text.
View the entering text guide.
• You can use only the English alphabet, regardless of the display
language.
• To move to o directly, press [P].
• You can enter up to 64 characters.
Back
Icon
Backspace
Description
Delete the last letter.
Move the cursor.
In ABC mode, change the case.
Enter ".com".
Switch to Symbol mode.
Wireless network (WB150F/WB151F/WB152F only) 103
Using photo or video sharing websites
Upload your photos or videos to file sharing websites. Available websites will be displayed on your camera.
Accessing a website
Uploading photos or videos
1
2
3
1
2
Rotate the mode dial to w.
Select
.
Select a website.
4
Enter your ID and password, and then select Login.
• For information about entering text, refer to "Entering text".
(p. 103)
• To select an ID from the list, select
“ an ID.
• If you have previously logged in to the website, you may be
logged in automatically.
Scroll to the files you want to upload, and then press
[o].
• You can select up to 20 files. The total size must be 10 MB
• The camera will automatically attempt to connect to a WLAN
via the most recently connected AP device.
• If the camera has not previously been connected to a WLAN,
it will search for available AP devices. (p. 100)
Access the website with your camera.
or less.
3
Select o.
• If you connected to the Facebook, select o “ Send.
• If you connected to the Facebook, you can enter your
comments by selecting the Comment box. For information
about entering text, refer to "Entering text". (p. 103)
You must have an existing account on the file sharing website to use this
feature.
Wireless network (WB150F/WB151F/WB152F only) 104
Using photo or video sharing websites
• The maximum photo resolution you can upload is 2M, and the longest
•
•
•
•
•
•
video you can upload is 30 seconds at
resolution or a video
recorded using
. If the selected photo resolution is higher than
2M, it will be automatically resized to a lower resolution.
The method of uploading photos or videos may differ depending on
the selected website.
If you cannot access a website because of firewall or user
authentication settings, contact your network administrator or network
service provider.
Uploaded photos or videos may be automatically titled with the date
they were captured.
The speed of your internet connection may affect how quickly photos
upload or web pages open.
When there are no files in the camera memory, you cannot use this
feature.
You can also upload photos or videos to file sharing websites in
Playback mode by pressing [m], and then selecting Share(Wi-Fi)
“ a desired website.
Wireless network (WB150F/WB151F/WB152F only) 105
Sending photos or videos via email
You can change settings in the email menu, and send photos or videos stored on the camera via email.
Changing email settings
6
In the email menu, you can change settings for storing your
information. You can also set or change the email password. For
information about entering text, refer to "Entering text". (p. 103)
Select the Email box, enter your email address, and
then select o.
7
Select OK to save your changes.
• To delete your information, select Reset.
Storing your information
1
2
3
4
5
Setting an email password
Rotate the mode dial to w.
Select
.
Press [m].
Select Sender Setting.
Select the Name box, enter your name, and then
select o.
1
2
3
4
Select
.
Press [m].
Select Setting Password “ On.
• To deactivate the password, select Off.
5
Sender Setting
Rotate the mode dial to w.
When the pop-up appears, press [o].
• The pop-up disappears automatically even if you do not
Name
press [o].
Email
OK
Back
Reset
6
7
8
Enter a 4-digit password.
Enter the password again.
When the pop-up appears, press [o].
• The pop-up disappears automatically even if you do not
press [o].
Wireless network (WB150F/WB151F/WB152F only) 106
Sending photos or videos via email
If you lost your password, you can reset it by selecting Reset on the
password setting screen. When you reset the information, previously saved
user’s setting information, email address, and recently sent email list will be
deleted.
Changing the email password
1
2
3
4
5
6
7
8
Sending photos or videos via email
You can send photos or videos stored on the camera via email.
For information about entering text, refer to "Entering text". (p. 103)
1
2
3
Rotate the mode dial to w.
Select
Rotate the mode dial to w.
Select
.
Select the Name(Email) box, enter your email address,
and then select o.
• If you have previously saved your information, it will be inserted
automatically. (p. 106)
.
4
Press [m].
Select Change Password.
Select the Receiver box, enter an email address, and
then select o.
• To use an address from the list of previous recipients, select
“ an address.
to add additional recipients. You can input up to
30 recipients.
• Select
to delete an address from the list.
Enter your current 4-digit password.
• Select
Enter a new 4-digit password.
Enter the new password again.
When the pop-up appears, press [o].
5
Select o.
• The pop-up disappears automatically even if you do not
press [o].
Wireless network (WB150F/WB151F/WB152F only) 107
Sending photos or videos via email
6
Scroll to files to send, and then press [o].
• Even if a photo appears to have transferred successfully, errors with
• You can select up to 20 files. The total size must be 10 MB
or less.
7
8
Select o.
9
Select Send.
•
•
Select the Comment box, enter your comments, and
then select o.
•
• The camera will automatically attempt to connect to a WLAN
via the most recently connected AP device and send the
email.
• If the camera has not previously been connected to a WLAN,
it will search for available AP devices. (p. 100)
•
•
the recipient’s email account may cause the photo to be rejected or
recognized as spam.
You may not be able to send an email if no network connection is
available or if your email account settings are incorrect.
The maximum photo resolution you can send is 2M and the longest
video you can upload is 30 seconds at
resolution or a video
recorded using
. If the selected photo resolution is higher than
2M, it will be automatically resized to a lower resolution.
If you cannot send an email because of firewall or user authentication
settings, contact your network administrator or network service
provider.
When there are no files in the camera memory, you cannot use this
feature.
You can also send an email in Playback mode by pressing [m],
and then selecting Share(Wi-Fi) “ Email.
Wireless network (WB150F/WB151F/WB152F only) 108
Sending photos or videos to a smart phone
The camera connects to a smart phone that supports the MobileLink feature via a WLAN. You can easily send photos or videos to your
smart phone.
• The MobileLink feature is supported by Galaxy S smart phones with the Android 2.2 OS or higher. If your smart phone uses the Android 2.1 OS, upgrade your
smart phone to Android 2.2 or higher. This feature is also supported by the 7 and 10.1 inch Galaxy Tab. This feature may be supported by other devices with
Android 2.2 or higher, but Samsung makes no guarantee of its functionality.
• You should install the Samsung MobileLink application on your phone or device before using this feature. You can download the application from Samsung Apps or
Android market.
• When there are no files in the camera memory, you cannot use this feature.
• You can view up to 1,000 files and send up to 100 files at a time.
1
2
On the camera, rotate the mode dial to w.
On the camera, select
.
4
5
On the camera, select OK.
6
On the smart phone, select Copy.
• If the pop-up message that prompts you to download the
application appears, select OK.
3
On the smart phone, turn on the Samsung MobileLink
application.
On the smart phone, select files to send from the camera
to the smart phone.
• The camera will send the files.
• Read the on-screen instructions carefully to select and
connect to your camera.
• The smart phone can connect to only one camera at a time.
Wireless network (WB150F/WB151F/WB152F only) 109
Using a smart phone as a remote shutter release
The camera connects to a smart phone via a WLAN. Use the smart phone as a remote shutter release with the Remote Viewfinder feature.
The captured photo will display on the smart phone.
• The Remote Viewfinder feature is supported by Galaxy S smart phones with the Android 2.2 OS or higher. If your smart phone uses the Android 2.1 OS, upgrade
your smart phone to Android 2.2 or higher. This feature is also supported by the 7 and 10.1 inch Galaxy Tab. This feature may be supported by other devices with
Android 2.2 or higher, but Samsung makes no guarantee of its functionality.
• You should install the Remote Viewfinder application on your phone or device before using this feature. You can download the application from Samsung Apps or
Android market.
1
2
On the camera, rotate the mode dial to w.
On the camera, select
On the smart phone, set the following shooting options.
Icon
.
• If the pop-up message that prompts you to download the
application appears, select OK.
3
4
Description
Flash option
Timer option
On the smart phone, turn on the Remote Viewfinder
application.
Photo size
• Read the on-screen instructions carefully to select and
• While using this feature, some buttons are not available on
connect to your camera.
• The smart phone can connect to only one camera at a time.
• The zoom button and the shutter button on your smart phone
your camera.
will not function when using this feature.
• Remote Viewfinder mode supports the
sizes only.
Wireless network (WB150F/WB151F/WB152F only) 110
and
Using a smart phone as a remote shutter release
5
On the smart phone, touch and hold
to focus.
• The focus is automatically set to multi-AF.
6
Release
to capture the photo.
• The photo will be saved in your camera.
• Touch the photo in the bottom of the screen to save it to the
smart phone. The photo will be resized to 640 X 360.
• When you use this feature, the ideal distance between the camera
and the smart phone may vary, depending on your surroundings.
• The smart phone must be within 23 ft/7 m of the camera to use this
feature.
• It will take some time to capture the photo after you release
on the
smart phone.
• The Remote Viewfinder function will deactivate when:
- there is an incoming call on the smart phone
- either the camera or the smart phone turn off
- the memory is full
- either device loses its connection to the WLAN
- the Wi-Fi connection is poor or unstable
Wireless network (WB150F/WB151F/WB152F only) 111
Uploading photos to a cloud server
You can upload your photos to SkyDrive. To upload photos, you must visit the Microsoft website and register before connecting your
camera.
1
2
4
Rotate the mode dial to w.
Select
.
Select SkyDrive.
• If the pop-up message that prompts you to create an account
appears, select OK.
• The camera will attempt to connect to a WLAN via the most
recently connected AP.
• If the camera has not previously been connected to a WLAN,
it will search for available AP devices. (p. 100)
• For information about entering text, refer to "Entering text".
(p. 103)
• You can change the uploading photo size by pressing
• If you connected to SkyDrive, refer to
[m], and then selecting Upload Image Size.
3
Login with your ID and password.
"Using the login browser". (p. 101)
5
Scroll to the photos you want to upload, and then
press [o].
6
Select o.
• You can also upload photos to a cloud server in Playback mode by
pressing [m], and then selectig Share(Wi-Fi) → a cloud server.
• When there are no photos in the camera memory, you cannot use this
feature.
• When you upload photos to SkyDrive, they will be resized to 2M while
maintaining its aspect ratio.
Wireless network (WB150F/WB151F/WB152F only) 112
Using Auto Backup to send photos or videos
You can send photos or videos that you captured with the camera to a PC wirelessly. The Auto Backup feature works only with the
Windows OS.
Installing the program for Auto Backup on
your PC
1
2
3
Install Intelli-studio on the PC. (p. 93)
Sending photos or videos to a PC
1
2
3
4
Connect the camera to the PC again with the USB
cable.
• The camera stores information about the PC, so that the
camera can send files to the PC.
Before installing the program, ensure that the PC is connected to a network.
If no internet connection is available, you must install the program from the
provided CD.
Press [m] to set options.
select Shut down PC after backup “ On.
on-screen instructions to complete the installation.
Remove the USB cable.
.
• To turn off your PC automatically after the transfer is complete,
• The Auto Backup program is installed on the PC. Follow the
4
5
Select
• If the guide message appears, press [o].
Connect the camera to the PC with the USB cable.
Click OK on the pop-up window.
Rotate the mode dial to w.
Press [o] to start the backup.
• To cancel sending, press [o].
• You cannot select individual files to backup. This function
backs up only new files on the camera.
• The backup's progress will be shown on the PC monitor.
• When the transfer is completed, the camera will turn off
automatically in approximately 30 seconds. Select Cancel
to return to the previous screen and prevent the camera from
turning off automatically.
Wireless network (WB150F/WB151F/WB152F only) 113
Using Auto Backup to send photos or videos
• If the PC supports the Wake on LAN (WOL) feature, you can turn on
•
•
•
•
•
•
•
•
•
•
•
the PC automatically by searching for the PC from your camera.
(p. 118)
When you connect the camera to the WLAN, select the AP that is
connected to the PC.
The camera will search for available access points even if you are
connecting to the same access point again.
If you turn off the camera or remove the battery while sending files, the
file transfer will be interrupted.
While you are using this feature, only [POWER] is available on your
camera.
You can connect only one camera to the PC at a time for sending
files.
The backup may be canceled due to network conditions.
Photos or videos can be sent to a PC one time only. Files cannot be
sent again even if you reconnect your camera to another PC.
When there are no files in the camera memory, you cannot use this
feature.
You must turn off Windows Firewall and any other firewalls before
using this feature.
You can send up to 1,000 files.
On the PC software, the server name must be entered in the Latin
alphabet and can contain no more than 48 characters.
Wireless network (WB150F/WB151F/WB152F only) 114
Viewing photos or videos on a TV Link-enabled TV
TV Link is a technology for sharing media files between a camera and TV connected to the same AP device. With this technology, you can
view your photos or videos on a widescreen TV.
1
2
4
Rotate the mode dial to w.
Select
.
• If the guide message appears, press [o].
• The camera will automatically attempt to connect to a WLAN
via the most recently connected AP device.
• If the camera has not previously been connected to a WLAN,
it will search for available AP devices. (p. 100)
3
Connect your TV to a wireless network via an AP device.
On the TV, search for the camera and browse the shared
photos or videos.
• For information about searching for the camera and browsing
the photos or videos on the TV, refer to the TV user manual.
• Videos may not play smoothly depending on the type of TV
or network condition. If this happens, re-record the video
in
or
quality and play it again. If videos do not
play smoothly on your TV over the wireless connection, try
connecting the camera to the TV with an A/V cable.
• Refer to your TV’s user manual for more information.
AP
Wireless network (WB150F/WB151F/WB152F only) 115
Viewing photos or videos on a TV Link-enabled TV
• You can share up to 1,000 photos or videos.
• On a TV screen, you can view only photos or videos captured with
your camera.
• The range of the wireless connection between your camera and a TV
•
•
•
•
•
•
•
•
•
•
•
may vary depending on the specifications of the AP.
If the camera is connected to 2 TVs, playback may be slower.
Photos or videos will be shared in their original sizes.
You can use this feature only with TV Link-enabled TVs.
Shared photos or videos will not be stored on the TV, but they can be
stored in the camera to meet the TV's specifications.
Transferring photos or videos to the TV may take some time
depending on the network connection, the number of files to be
shared, or sizes of the files.
If you power off the camera abnormally while viewing photos or videos
on a TV (for example, by removing the battery), the TV considers the
camera to still be connected.
The order of photos or videos on the camera may be different than
on the TV.
Depending on the number of photos or videos you want to share, it
may take some time to load your photos or videos and complete the
initial set-up process.
While viewing photos or videos on the TV, continuously using the TV
remote or performing additional operations on the TV may prevent this
feature from working properly.
If you reorder or sort files on the camera while viewing them on a TV,
you must repeat the initial set-up process to update the list of files
on the TV.
When there are no files in the camera memory, you cannot use this
feature.
Wireless network (WB150F/WB151F/WB152F only) 116
Sending photos using Wi-Fi Direct
When the camera connects via a WLAN to a device that supports the Wi-Fi Direct function, you can send photos to the device. This feature
may not be supported on some devices.
1
2
3
On the device, turn on the Wi-Fi Direct option.
On the camera, in Playback mode, scroll to a photo.
5
On the device, allow the camera to connect to the
device.
• The photo will be sent to the device.
Press [m], and then select Share(Wi-Fi) “
Wi-Fi Direct.
• When there are no photos in the camera memory, you cannot use
• When in the single image view, you can send only one photo
• If you cancel the connection attempt before it is complete, the camera
at a time.
• When in thumbnails view, you can select multiple photos by
this feature.
may not be able to reconnect to the device. In this case, update your
device with the latest firmware.
scrolling to thumbnails, and then pressing [o]. Select o
when you are finished selecting photos.
4
Select the device from the camera’s list of Wi-Fi Direct
devices.
• Ensure that the device's Wi-Fi Direct option is turned on.
• You can also select your camera from the device's list of Wi-Fi
Direct devices.
Wireless network (WB150F/WB151F/WB152F only) 117
About the Wake on LAN (WOL) feature
With the WOL feature, you can automatically turn on or wake up a PC with your camera. This feature has been available for Samsung
desktop PCs for the last 5 years (not available for all-in-one PCs).
Any changes to your PC’s BIOS settings other than the ones described below may damage your PC. The manufacturer is not responsible for damage caused by your changing
your PC’s BIOS settings.
Setting the PC to wake up from sleep mode
1
2
Click Start, and then open the Control Panel.
Configure the network connection.
3
4
Right click Local Area, and then click Properties.
5
6
Click OK.
• Windows 7:
Click Network and Internet “ Network and Sharing
Center “ Change adapter settings.
• Windows Vista:
Click Network and Internet “ Network and Sharing
Center “ Manage network connections.
• Windows XP:
Click Network and Internet Connection “ Network
Connection.
Click Configure “ the Power manage tab “ Allow this
device to wake the computer.
Restart the PC.
Wireless network (WB150F/WB151F/WB152F only) 118
About the Wake on LAN (WOL) feature
Setting the PC to turn on
1
Turn on the PC, and then press F2 while the PC is
booting.
• The BIOS setting menu will appear.
2
3
4
Select Advanced tab “ Power management Setup.
5
6
Click Start, and then open the Control Panel.
7
8
Select the drivers for the network adapter.
Click the Advanced tab, and then set the WOL menus.
• You cannot use this feature across a firewall or if a security program has
been installed.
• To turn on the PC with the WOL feature, the PC must have an active
Select Resume on PME “ Enabled.
Press F10 to save your changes, and then continue
booting.
Configure the network connection.
connection to the LAN. Ensure that the indicator light on the PC’s LAN
port is on indicating that the LAN connection is active.
• Depending on your PC model, the camera may only be able to wake
the PC.
• Depending on your PC’s OS or drivers, the names of the WOL setting
menu may vary.
- examples of setting menu names: Enable PME, Wake on LAN, etc.
- examples of setting menu values: Enable, Magic packet, etc.
• Windows 7:
Click Network and Internet “ Network and Sharing
Center “ Change adapter settings.
• Windows Vista:
Click Network and Internet “ Network and Sharing
Center “ Manage network connections.
• Windows XP:
Click Network and Internet Connection “ Network
Connection.
Wireless network (WB150F/WB151F/WB152F only) 119
Settings
Refer to options to configure your camera’s settings.
Settings menu ………………………………………… 121
Accessing the settings menu ……………………… 121
Sound ……………………………………………… 122
Display ……………………………………………… 122
Connectivity ………………………………………… 123
General ……………………………………………… 124
Settings menu
Learn to configure your camera's settings.
3
Accessing the settings menu
1
2
Rotate the mode dial to n.
Select an item.
Sound
Volume
Select a menu.
Medium
Beep Sound
Shutter Sound
Settings
Sound
Display
On
Sound 1
Start Sound
Off
AF Sound
On
Back
Select
Connectivity
General
4
Select an option.
Volume
Description
Off
U
Sound: Set various camera sounds and the volume.
(p. 122)
Low
Y
Display: Customize the display settings. (p. 122)
High
Option
Medium
Connectivity: Set the connection options. (p. 123)
Back
General: Change the settings for the camera system
such as memory format and default file name. (p. 124)
5
Settings 121
Select
Press [b] to return to the previous screen.
Settings menu
Sound
Display
* Default
Item
Description
Volume
Set the volume of all sounds.
(Off, Low, Medium*, High)
Beep Sound
Set to emit a sound when you press the buttons
or switch modes. (Off, On*)
Shutter Sound
Set the sound the camera emits when you press
the shutter button.
(Off, Sound 1*, Sound 2, Sound 3)
Start Sound
Set the sound the camera emits when you turn on
your camera.
(Off*, Star Flight, Laser Show, Cloud)
AF Sound
* Default
Item
Start Image
Description
Set a start image to display when the camera
turns on.
• Off*: Display no start image.
• Logo: Display a default image stored in the
internal memory.
• User Image: Select User Image from the
photos you captured in the memory.
• The camera will save only one User Image in
the internal memory at a time.
• If you select a new photo as a User Image or
reset your camera, the camera will delete the
current image.
Set to emit a sound when you half-press the
shutter button. (Off, On*)
Guide Line
Select a guide to help you compose a scene.
(Off*, 3 X 3, 2 X 2, Cross, Diagonal)
Date/Time
Display
Set whether or not to display the date and time on
the camera's display. (Off*, On)
Help Display
Display a brief description of an option or menu.
(Off, On*)
Settings 122
Settings menu
* Default
Item
Display
Brightness
Quick View
Connectivity
Description
* Default
Adjust the brightness of the screen.
(Auto*, Dark, Normal, Bright)
Item
Description
Video Out
Set the video signal output for your region.
• NTSC: USA, Canada, Japan, Korea, Taiwan,
Mexico
• PAL (supports only BDGHI): Australia, Austria,
Belgium, China, Denmark, England, Finland,
France, Germany, Italy, Kuwait, Malaysia,
Netherlands, New Zealand, Norway, Singapore,
Spain, Sweden, Switzerland, Thailand
USB
Select the mode to use when you connect the
camera to a computer or printer with a USB cable.
• Computer*: Connect your camera to a
computer for transferring files.
• Printer: Connect your camera to a printer for
printing files.
• Select Mode: Manually select the USB mode
when you connect your camera to a device.
PC Software
Set Intelli-studio to launch automatically when you
connect your camera to your computer. (Off, On*)
Normal is fixed in Playback mode even if you have
selected Auto.
Set whether or not to review a captured image
before returning to the Shooting mode. (Off, On*)
If you perform no operations for 30 seconds, the
camera automatically switches to Power save
mode. (Off*, On)
Power Save
• In Power save mode, press any button other
than [POWER] to resume using the camera.
• Even if you do not set the Power save mode,
the screen will dim 30 seconds after the last
operation to save power.
Settings 123
Settings menu
* Default
General
* Default
Item
Description
Device Information
(WB150F/WB151F/
WB152F only)
See the Mac address and serial number of your
camera.
Language
Set a language for the display text.
Time Zone
Set the time zone for your location. When you
travel to another country, select Visit, and then
select the appropriate time zone. (Home*, Visit)
Date/Time Set
Set the date and time.
Date Type
Set a date format. (YYYY/MM/DD,
MM/DD/YYYY, DD/MM/YYYY)
Item
Description
Specify how to name files.
• Reset: Set the file number to start from 0001
when you insert a new memory card, format a
memory card, or delete all files.
• Series*: Set the file number to resume from
the previous file number when you insert a
new memory card, format a memory card, or
delete all files.
• The default name of the first folder is
File No.
The default date type may differ depending on the
language selected.
•
•
•
•
Settings 124
100PHOTO and the default name of the first
file is SAM_0001.
The file number increases by one, from
SAM_0001 to SAM_9999, each time you
take a picture.
The folder number increases by one, from
100PHOTO to 999PHOTO, each time a
folder is full.
The maximum number of files that can be
stored in one folder is 9,999.
The camera defines file names according
to the Design rule for Camera File system
(DCF) standard. If you intentionally change
file names, the camera may not play back
the files.
Settings menu
* Default
Item
* Default
Description
Item
Description
Set whether or not to display the date and time
on captured photos. (Off*, Date, Date & Time)
AF Lamp
Set a light to automatically turn on in dark places
to help you focus. (Off, On*)
• The date and time will be displayed on the
Imprint
bottom right corner of the photo.
• Some printer models may not print the date
and time properly.
• The photo will not display the date and time if:
- you select Text in s mode
- you select Live Panorama in g mode
(WB150F/WB151F/WB152F only)
- you select R mode (WB150/WB151 only)
- you select Picture in Picture in g mode
Set the camera to automatically turn off when
you perform no operations for a specified period.
(Off, 1 min, 3 min*, 5 min, 10 min)
Format the internal memory and the memory
card. Formatting will delete all files, including
protected files. (Yes, No)
Format
Reset
• Your settings will not change when you
Auto Power Off
replace the battery.
• The camera will not automatically turn
off when the camera is connected to a
computer, printer, or WLAN, and when you
are playing a slide show or videos.
Settings 125
Errors can occur if you use a memory card
formatted by another brand of camera, a memory
card reader, or a computer. Please format memory
cards in the camera before using them to capture
photos.
Reset menus and shooting options. Date and
time, language, and video output settings will
not be reset. (Yes, No)
Appendixes
Get information about error messages, specifications, and
maintenance.
Error messages ……………………………………… 127
Camera maintenance ………………………………… 129
Cleaning your camera ……………………………… 129
Using or storing the camera ………………………… 130
About memory cards ……………………………… 131
About the battery …………………………………… 134
Before contacting a service center ………………… 138
Camera specifications ……………………………… 141
Glossary ……………………………………………… 145
FCC notice …………………………………………… 150
Declaration sentence in official languages ………… 153
Index …………………………………………………… 155
Error messages
When the following error messages appear, try these remedies.
Error message
Suggested remedies
Error message
Suggested remedies
DCF Full Error
File names do not match the DCF standard.
Transfer the files from the memory card to your
computer and format the card. Then, open the
Settings menu and select File No. “ Reset.
(p. 124)
Device
disconnected.
Network connection disconnected while
transferring photos. Select a TV Link device
again.
File Error
Delete the damaged file or contact a service
center.
File system not
supported.
Your camera does not support the FAT file
structure of the inserted memory card. Format
the memory card on the camera.
• Turn off your camera, and then turn it on
Card Error
again.
• Remove your memory card, and then insert
it again.
• Format your memory card.
You can lock an SD, SDHC, or SDXC card to
prevent files from being deleted. Unlock the card
when shooting.
Card Locked
Card not
supported.
The inserted memory card is not supported
by your camera. Insert a SD, SDHC, or SDXC
memory card.
• Turn on TV Link enabled devices on the
Initialization failed.
• The camera cannot connect to the network
Connection failed.
using the selected access point. Select
another AP and try again.
• The camera has failed to connect to the other
camera. Try connecting again.
network.
• The camera has failed to locate a TV Link-
enabled device.
Invalid password.
The password for transferring files to another
camera is wrong. Enter the correct password
again.
Low Battery
Insert a charged battery or recharge the battery.
Appendixes 127
Error messages
Error message
Suggested remedies
Memory Full
Delete unnecessary files or insert a new memory
card.
No Image File
Capture photos or insert a memory card that
contains some photos.
Photo transfer
failed.
Network connection disconnected while
transferring photos. Try turning on the TV Link
feature again.
Photo reception
failed.
The camera has failed to receive a photo from
the sending camera. Ask the other person to
send the file again.
• The camera has failed to send a photo to the
other camera. Try sending again.
Transfer failed.
• The camera has failed to send an email or
transfer a photo to a TV Link device. Check
the network connection and try again.
Appendixes 128
Camera maintenance
Camera body
Cleaning your camera
Wipe gently with a soft, dry cloth.
Camera lens and display
Use a blower brush to remove dust and wipe the lens gently with
a soft cloth. If any dust remains, apply lens cleaning liquid to a
piece of lens cleaning paper and wipe gently.
• Never use benzene, thinners, or alcohol to clean the device. These
solutions can damage the camera or cause it to malfunction.
• Do not press on the lens cover or use a blower brush on the lens
cover.
Appendixes 129
Camera maintenance
Storing for extended period of time
Using or storing the camera
• When you store the camera for an extended period, place it in a
sealed container with an absorbent material, such as silica gel.
Inappropriate places to use or store the camera
• Remove the batteries from your camera when storing it for an
• Avoid exposing the camera to very cold or very hot
temperatures.
• Avoid using your camera in areas with extremely high humidity,
or where the humidity changes drastically.
• Avoid exposing the camera to direct sunlight and storing it in
•
•
•
•
hot, poorly-ventilated areas, such as in a car during summer
time.
Protect your camera and the display from impact, rough
handling, and excessive vibration to avoid serious damage.
Avoid using or storing your camera in dusty, dirty, humid, or
poorly-ventilated areas to prevent damage to moving parts and
internal components.
Do not use your camera near fuels, combustibles, or flammable
chemicals. Do not store or carry flammable liquids, gases, or
explosive materials in the same compartment as the camera or
its accessories.
Do not store the camera where there are mothballs.
extended period. Installed batteries may leak or corrode over
time and cause serious damage to your camera.
• Over time, unused batteries will discharge and must be
recharged before use.
• The present date and time can be initialized when the camera
is turned on after the camera and battery have been separated
for over 40 hours.
Using the camera with caution in humid environments
When you transfer the camera from a cold environment to a warm
one, condensation can form on the lens or internal components
of the camera. In this situation, turn off the camera and wait for at
least 1 hour. If condensation forms on the memory card, remove
the memory card from the camera and wait until all moisture has
evaporated before reinserting it.
Other cautions
Using on beaches or shores
• Do not swing your camera by the strap. This may cause injury
• Protect your camera from sand and dirt when you use it on
beaches or in similar areas.
• Your camera is not waterproof. Do not handle the battery,
adapter, or memory card with wet hands. Operating the camera
with wet hands may cause damage to your camera.
to yourself or others or damage to your camera.
• Do not paint your camera, as paint can clog moving parts and
prevent proper operation.
• Turn off the camera when not using it.
Appendixes 130
Camera maintenance
• Your camera contains delicate parts. Avoid impacts to the
•
•
•
•
•
•
•
•
• Paint or metal on the outside of the camera may cause
camera.
Protect the display from external force by keeping it in the case
when not in use. Protect the camera from scratches by keeping
it away from sand, sharp implements, or loose change.
Do not use the camera if the screen is cracked or broken.
Broken glass or acrylic could cause injury to your hands and
face. Take the camera to a Samsung service center to have it
repaired.
Never place cameras, batteries, chargers, or accessories near,
on, or in heating devices, such as microwave ovens, stoves, or
radiators. These devices may be deformed and can overheat
and cause a fire or explosion.
Do not expose the lens to direct sunlight, as this may discolor
the image sensor or cause it to malfunction.
Protect the lens from fingerprints and scratches. Clean the lens
with a soft, clean, debris-free lens cloth.
The camera may turn off if struck or dropped. This is to protect
the memory card. Turn on the camera to use it again.
While you use the camera, it may heat up. This is normal and
should not affect your camera’s lifespan or performance.
When you use the camera in low temperatures, it may take
some time to turn on, the color of the display may be changed
temporarily, or after-images may appear. These conditions are
not malfunctions and they will correct themselves when the
camera is returned to milder temperatures.
allergies, itchy skin, eczema, or swelling for people with
sensitive skin. If you experience any of these symptoms, stop
using the camera immediately and consult a doctor.
• Do not insert foreign objects into any of your camera’s
compartments, slots, or access points. Damage due to
improper use may not be covered by your warranty.
• Do not allow unqualified personnel to service the camera or
attempt to service the camera yourself. Any damage that results
from unqualified service is not covered by your warranty.
About memory cards
Supported memory cards
This product supports SD (Secure Digital), SDHC (Secure Digital
High Capacity), SDXC (Secure Digital eXtended Capacity),
microSD, microSDHC, or microSDXC memory cards.
Terminal
Write-protect switch
Label (front)
You can prevent files from being deleted by using the writeprotect switch on an SD, SDHC, or SDXC card. Slide the switch
down to lock or slide it up to unlock. Unlock the card when
capturing photos and videos.
Appendixes 131
Camera maintenance
Size
Super Fine
Fine
Normal
624
1,065
1,404
846
1,373
1,993
1,817
2,809
3,433
Memory card adapter
Memory card
To use micro memory cards with this product, a PC, or a memory
card reader, insert the card into an adapter.
Video
Size
30fps
15fps
Approx.
29' 42"
1280 X 720
Approx.
15' 20"
The memory capacity may differ depending on shooting scenes
or shooting conditions. These capacities are based on a
1 GB SD card:
640 X 480
Approx.
35' 54"
Approx.
67' 30"
320 X 240
Approx.
138' 19"
Approx.
237' 41"
Approx.
138' 19"
Approx.
237' 41"
Memory card capacity
Size
Super Fine
Fine
Normal
144
259
381
For Sharing
(WB150F/WB151F/
WB152F only)
162
287
423
190
343
498
201
353
519
246
435
630
386
686
950
* The figures above are measured without using the zoom function. Available
recording time may vary if you use the zoom. Several videos were recorded
in succession to determine the total recording time.
Appendixes 132
Camera maintenance
• Prevent memory cards from making contact with liquids, dirt, or
Cautions when using memory cards
• Avoid exposing memory cards to very cold or very hot
•
•
•
•
•
•
•
•
temperatures (below 0 °C/32 °F or above 40 °C/104 °F).
Extreme temperatures can cause memory cards to malfunction.
Insert a memory card in the correct direction. Inserting a
memory card in the wrong direction may damage your camera
and memory card.
Do not use memory cards that have been formatted by other
cameras or by a computer. Reformat the memory card with
your camera.
Turn off the camera before you insert or remove the memory
card.
Do not remove the memory card or turn off your camera while
the lamp is blinking, as this may damage your data.
When the lifespan of a memory card has expired, you cannot
store any more photos on the card. Use a new memory card.
Do not bend, drop, or subject memory cards to heavy impact
or pressure.
Avoid using or storing memory cards near strong magnetic
fields.
Avoid using or keeping memory cards in areas with high
temperature, high humidity, or corrosive substances.
•
•
•
•
foreign substances. If dirty, wipe the memory card clean with a
soft cloth before you insert the memory card into your camera.
Do not allow liquids, dirt, or foreign substances to come in
contact with memory cards or the memory card slot. Doing so
may cause memory cards or the camera to malfunction.
When you carry a memory card, use a case to protect the card
from electrostatic discharges.
Transfer important data to other media, such as a hard disk,
CD, or DVD.
When you use the camera for an extended period, the memory
card may become warm. This is normal and does not indicate
a malfunction.
Appendixes 133
The manufacturer is not responsible for any loss of data.
Camera maintenance
Battery life
About the battery
Use only Samsung-approved batteries.
Average shooting time/
Number of photos
Battery specifications
Specification
Description
Model
SLB-10A
Type
Lithium-ion battery
Cell capacity
1,030 mAh
Voltage
3.7 V
Charging time* (when the camera is
switched off)
Approximately 240 min
Test conditions
(when the battery is fully charged)
The battery life was measured under
the following conditions: in p mode, in
darkness,
resolution, Fine quality,
OIS on.
Approximately
150 min/
Photos
Approximately
300 photos
* Charging the battery by connecting it to a computer may take longer.
1. Set the flash option to Fill in, take a
single shot, and zoom in or out.
2. Set the flash option to Off, take a
single shot, and zoom in or out.
3. Perform steps 1 and 2, waiting
30 seconds between each step.
Repeat the process for 5 minutes,
and then turn off the camera for
1 minute.
4. Repeat steps 1 to 3.
Videos
Approximately
120 min
Record videos at
30 FPS.
resolution and
• The figures above are measured by Samsung’s standards. Your results may
differ, depending on your actual usage.
• Several videos were recorded in succession to determine the total recording
time.
• When using network functions, the battery will be depleted more quickly.
Appendixes 134
Camera maintenance
Low battery message
Cautions about using the battery
When the battery has fully discharged, the battery icon will turn
red and the "Low Battery" message will appear.
Notes about using the battery
• Avoid exposing batteries to very cold or very hot temperatures
•
•
•
•
(below 0 °C/32 °F or above 40 °C/104 °F). Extreme
temperatures can reduce the charging capacity of your
batteries.
When you use the camera for an extended period, the area
around the battery chamber may become warm. This does not
affect the normal use of the camera.
Do not pull the power supply cord to disconnect the plug from
the power outlet, as this may cause a fire or electric shock.
In temperatures below 0 °C/32 °F, battery capacity and battery
life may decrease.
Battery capacity may decrease in low temperatures but will
return to normal in milder temperatures.
Protect batteries, chargers, and memory cards from
damage
Prevent batteries from making contact with metal objects, as this
can create a connection between the + and – terminals of your
battery and lead to temporary or permanent battery damage and
may cause a fire or electric shock.
Notes about charging the battery
• If the status lamp is off, make sure that the battery is inserted
correctly.
• If the camera is on while charging, the battery may not fully
charge. Turn off the camera before charging the battery.
• Do not use your camera when you are charging the battery.
This may cause a fire or electric shock.
• Do not pull the power supply cord to disconnect the plug from
the power outlet, as this may cause a fire or electric shock.
• Let the battery charge for at least 10 minutes before turning on
the camera.
• If you connect the camera to an external power source when
the battery is depleted, using high energy-consuming functions
will cause the camera to turn off. To use the camera normally,
recharge the battery.
Appendixes 135
Camera maintenance
• If you reconnect the power cable when the battery is fully
•
•
•
•
•
charged, the status lamp turns on for approximately 30 minutes.
Using the flash or recording videos depletes the battery quickly.
Charge the battery until the red status lamp turns off.
If the status lamp blinks in red, reconnect the cable, or remove
the battery and insert it again.
If you charge the battery when the cable is overheated or
the temperature is too high, the status lamp may blink in red.
Charging will start when the battery cools down.
Overcharging batteries may shorten battery life. After charging is
finished, disconnect the cable from your camera.
Do not bend or place heavy objects on the AC cable. Doing so
may damage the cable.
Handling and disposing of batteries and chargers
with care
• Never dispose of batteries in a fire. Follow all local regulations
when you dispose of used batteries.
• Never place batteries or cameras on or in heating devices,
such as microwave ovens, stoves, or radiators. Batteries may
explode when they are overheated.
Notes about charging with a computer connected
• Use only the provided USB cable.
• The battery may not charge when:
- you use a USB hub
- other USB devices are connected to your computer
- you connect the cable to the port on the front side of your
computer
- the USB port of your computer does not support the power output
standard (5 V, 500 mA)
Appendixes 136
Camera maintenance
Personal injury or death can occur if the battery is
handled carelessly or improperly. For your safety,
follow these instructions for proper battery handling:
• The battery can ignite or explode if not handled properly.
If you notice any deformities, cracks, or other
abnormalities in the battery, immediately discontinue use
of the battery and contact a service center.
• Use only authentic, manufacturer-recommend battery
chargers and adapters and charge the battery only by the
methods described in this user manual.
• Do not place the battery near heating devices or expose
it to excessively warm environments, such as the inside
of an enclosed car in the summertime.
• Do not place the battery in a microwave oven.
• Avoid storing or using the battery in hot, humid places,
such as spas or shower enclosures.
• Do not rest the camera on flammable surfaces, such as
bedding, carpets, or electric blankets for a prolonged
period.
• When the camera is switched on, do not leave it in any
confined space for a prolonged period.
• Do not allow battery terminals to come in contact with
metallic objects, such as necklaces, coins, keys, or
watches.
• Use only authentic, manufacturer-recommended,
Lithium-ion replacement batteries.
Appendixes 137
• Do not disassemble or puncture the battery with any
sharp object.
• Avoid exposing the battery to high pressure or crushing
forces.
• Avoid exposing the battery to major impacts, such as
dropping it from high places.
• Do not expose the battery to temperatures of
60 °C (140 °F) or above.
• Do not allow the battery to come in contact with moisture
or liquids.
• Do not expose the battery to sources of excessive heat
such as sunshine, fire or the like.
Disposal guidelines
• Dispose of the battery with care.
• Do not dispose of the battery in a fire.
• Disposal regulations may differ by country or region.
Dispose of the battery in accordance with all local and
federal regulations.
Guidelines for charging the battery
Charge the battery only by the method described in
this user manual. The battery can ignite or explode if
not charged properly.
Before contacting a service center
If you are having trouble with your camera, try these troubleshooting procedures before you contact a service center. If you have attempted
the suggested remedy and are still having problems with your device, contact your local dealer or service center.
When you leave your camera at a service center, be sure to also leave the other components that may have contributed to the malfunction, such as the memory card and battery.
Situation
Suggested remedies
Situation
• Ensure that the battery is inserted.
Cannot turn on the
camera
• Ensure that the battery is inserted
correctly. (p. 19)
• Charge the battery.
•
•
• Charge the battery.
• Your camera may be in Auto Power Off
The power turns off
suddenly
Cannot capture photos
•
mode. (p. 125)
• The camera may turn off to prevent the
•
memory card from being damaged due
to an impact. Turn on your camera again.
•
• The battery may lose power more quickly
The camera is losing
battery power quickly
Suggested remedies
• There is no space on the memory card.
in low temperatures (below 0 °C/32 °F).
Keep the battery warm by putting it into
your pocket.
• Using the flash or recording videos
depletes the battery quickly. Recharge
if needed.
• Batteries are consumable parts that must
be replaced over time. Get a new battery
if the battery life is diminishing quickly.
Delete unnecessary files or insert a new
card.
Format the memory card.
The memory card is defective. Get a new
memory card.
Make sure that the camera is switched
on.
Charge the battery.
Make sure that the battery is inserted
correctly.
The camera freezes
Remove the battery and insert it again.
The camera heats up
While you use the camera, it may heat up.
This is normal and should not affect your
camera’s lifespan or performance.
The flash does not
work
Appendixes 138
• The flash option may be set to Off.
(p. 57)
• You cannot use the flash in some modes.
Before contacting a service center
Situation
Suggested remedies
The flash fires
unexpectedly
The flash may fire due to static electricity.
The camera is not malfunctioning.
Situation
The date and time are
incorrect
Set the date and time in the display settings.
(p. 124)
is suitable for close-up shots. (p. 60)
The display or buttons
do not work
Remove the battery, and then insert it again.
The camera display
responds poorly
If you use your camera at very low
temperatures, it may cause the camera
screen to malfunction or discolor. For better
performance of your camera screen, use
your camera in moderate temperatures.
• Turn off your camera, and then turn it
on again.
The memory card has
an error
The photo is blurry
• Make sure that the lens is clean. If not,
clean the lens. (p. 129)
• Make sure that the subject is within range
of the flash. (p. 142)
An incorrect White Balance can create
The colors in the photo
unrealistic color. Select the proper White
do not match the actual
Balance option to suit the light source.
scene
(p. 71)
The photo is too bright
Your photo is overexposed.
• Turn off the flash. (p. 57)
• Adjust the ISO sensitivity. (p. 59)
• Adjust the exposure value. (p. 69)
The photo is too dark
Your photo is underexposed.
• Turn on the flash. (p. 57)
• Adjust the ISO sensitivity. (p. 59)
• Adjust the exposure value. (p. 69)
• Remove your memory card, and then
insert it again.
• Format your memory card.
See “Cautions when using memory cards”
for more detail. (p. 133)
Cannot play back files
Suggested remedies
• Make sure that the focus option you set
If you change the name of a file, your
camera may not play the file (the name of
the file should meet the DCF standard). If
you encounter this situation, play back the
files on your computer.
Appendixes 139
Before contacting a service center
Situation
Suggested remedies
Situation
• Make sure that the camera is correctly
The TV does not
display your photos
connected to the TV with the A/V cable.
• You cannot use Intelli-studio on
• Make sure that your memory card
Macintosh computers.
contains photos.
• Make sure that PC Software is set to
• Make sure that the USB cable is
Your computer does
not recognize your
camera
Suggested remedies
• End Intelli-studio and restart the program.
connected correctly.
• Make sure that your camera is switched
on.
• Make sure that you are using a supported
operating system.
Your computer
disconnects the
camera while
transferring files
The file transmission may be interrupted by
static electricity. Disconnect the USB cable
and connect it again.
Your computer cannot
play videos
Videos may not play on some video player
programs. To play video files captured with
your camera, install and use the Intelli-studio
program on your computer. (p. 93)
Intelli-studio is not
functioning properly
On in the settings menu. (p. 123)
• Depending on your computer's
specifications and environment, the
program may not launch automatically. In
this case, click Start “ All Programs “
SAMSUNG “ Intelli-studio “
Intelli-studio on your computer.
Your TV or computer
cannot display photos
and videos that are
stored on an SDXC
memory card.
SDXC memory cards use the exFAT file
system. Ensure that the external device is
compatible with the exFAT file system before
connecting the camera to the device.
SDXC memory cards use the exFAT file
system. To use SDXC memory cards on
Your computer does
not recognize an SDXC a Windows XP computer, download and
memory card.
update the exFAT file system driver from the
Microsoft website.
Appendixes 140
Camera specifications
Image sensor
Type
1/2.3" (Approximately 7.76 mm) CCD
Effective pixels
Approximately 14.2 mega-pixels
Total pixels
Normal (AF)
Range
Approximately 16.4 mega-pixels
Wide (W)
Tele (T)
80 cm-infinity
350 cm-infinity
Macro
5-80 cm
180-350 cm
Auto Macro
5 cm-infinity
180 cm-infinity
Manual Focus
5 cm-infinity
180 cm-infinity
Lens
Focal length
Schneider-KREUZNACH Lens f = 4.0–72.0 mm
(35 mm film equivalent: 24–432 mm)
F-stop range
F3.2 (W)–F5.8 (T)
Zoom
• Still image mode: 1.0–18.0X
(Optical zoom X Digital zoom: 90.0X,
Optical zoom X Intelli zoom: 36.0X)
• Playback mode: 1.0–14.4X
(depending on image size)
Display
Type
TFT LCD
Feature
3.0" (7.62 cm) 460K
Shutter speed
•
•
•
•
Auto: 1/8-1/2,000 sec.
Program: 1-1/2,000 sec.
Manual: 16-1/2,000 sec.
Night: 8-1/2,000 sec.
Exposure
Control
Metering
Multi, Spot, Center-weighted, Face Detection
Compensation
±2EV (1/3 EV Step)
ISO equivalent
Auto, ISO 80, ISO 100, ISO 200, ISO 400, ISO 800,
ISO 1600, ISO 3200
Focusing
Type
Program AE, Aperture Priority AE, Shutter Priority AE,
Manual Exposure
TTL auto focus (Center AF, Multi AF,
Selection AF, Tracking AF, Face Detection AF,
Smart Face Recognition AF), Manual Focus
Appendixes 141
Camera specifications
Flash
Date Imprinting
Mode
Auto, Red-eye, Fill in, Slow Sync, Off, Red-eye Fix
Date & Time, Date, Off
Range
• Wide: 0.3–3.5 m (ISO Auto)
• Tele: 0.5–1.9 m (ISO Auto)
Shooting
Recharging time
Approximately 4 sec.
Photos
• Modes: Smart Auto (Portrait, Night Portrait,
Backlight Portrait, Night, Backlight, Landscape,
White, Natural Green, Blue Sky, Sunset, Macro,
Macro text, Macro Color, Tripod, Action, Fireworks),
Program, Aperture Priority, Shutter Priority, Manual,
Scene (Beauty Shot, Night, Landscape, Text,
Sunset, Dawn, Backlight, Beach & Snow),
Magic Plus (Live Panorama, Magic Frame,
Split Shot, Picture in Picture, Artistic Brush,
Photo Filter)
• Burst: Single, Continuous, Motion Capture, AEB
• Timer: Off, 10 Sec, 2 Sec, Double (10 Sec, 2 Sec)
Videos
• Modes: Smart Scene Detection (Landscape,
Blue Sky, Natural Green, Sunset), Movie,
Magic Plus (Picture in Picture, Movie Filter)
• Format: MP4 (H.264) (Max recording time: 20 min)
• Size: 1280 X 720, 640 X 480, 320 X 240,
For Sharing (WB150F/WB151F/WB152F only)
• Frame Rate: 30fps, 15fps
• Sound Alive: Sound Alive On, Sound Alive Off,
Mute
• OIS: On, Off
• Video editing (embedded): Pause during recording
Shake reduction
Optical Image Stabilization (OIS)
Effect
Photo Shooting
mode
• Photo Filter (Smart Filter): Miniature, Vignetting,
Ink Painting, Oil Painting, Cartoon, Cross Filter,
Sketch, Soft Focus, Fish-eye, Old Film,
Half Tone Dot, Classic, Retro, Zooming Shot
• Image Adjust: Sharpness, Contrast, Saturation
Video Shooting
mode
Movie Filter (Smart Filter): Miniature, Vignetting,
Half Tone Dot, Sketch, Fish-eye, Classic, Retro,
Palette Effect 1, Palette Effect 2, Palette Effect 3,
Palette Effect 4
White Balance
Auto WB, Daylight, Cloudy, Fluorescent_H, Fluorescent_L, Tungsten,
Custom Set, Color Temp.
Appendixes 142
Camera specifications
Playback
Photos
Videos
For 1 GB SD: Number of photos
• Type: Single image, Thumbnails, Multi Slide Show
with Music and Effect, Movie clip, Smart Album*
* Smart Album category: All, Date, Face List,
File Type
• Edit: Resize, Rotate, Image Adjust, Smart Filter,
Crop
• Effect: Image Adjust (Brightness, Contrast,
Saturation, ACB, Face Retouch, Red-eye Fix),
Smart Filter (Normal, Miniature, Vignetting,
Ink Painting, Oil Painting, Cartoon, Cross Filter,
Sketch, Soft Focus, Fish-eye, Old Film,
Half Tone Dot, Classic, Retro, Zooming Shot)
Image size
Edit: Still image capture, Time trimming
Storage
Media
• Internal memory: Approximately 18 MB
• External memory (Optional):
SD card (1–2 GB guaranteed),
SDHC card (up to 32 GB guaranteed),
SDXC card (up to 64 GB guaranteed)
Internal memory capacity may not match these
specifications.
File format
• Still Image: JPEG (DCF), EXIF 2.21, DPOF 1.1,
PictBridge 1.0
• Movie Clip: MP4 (Video: MPEG-4.AVC/H.264,
Audio: AAC)
Super Fine
Fine
Normal
4320 X 3240
144
259
381
4320 X 2880
162
287
423
4320 X 2432
190
343
498
3648 X 2736
201
353
519
2832 X 2832
246
435
630
2592 X 1944
386
686
950
1984 X 1488
624
1,065
1,404
1920 X 1080
846
1,373
1,993
1024 X 768
1,817
2,809
3,433
These figures are measured under Samsung’s
standard conditions. Your results may vary depending
on the shooting conditions and camera settings.
Appendixes 143
Camera specifications
Wireless network (WB150F/WB151F/WB152F only)
Dimensions (W X H X D)
Social Sharing, Email, MobileLink, Remote Viewfinder, Cloud,
Auto Backup, TV Link, Authentication Browser, Wi-Fi Direct
106.5 X 59.9 X 23.4 mm (4.19 X 2.36 X 0.92 in.) (without protrusions)
Weight
Interface
Audio input/output Internal speaker (Mono), Microphone (Mono)
• WB150/WB151: 187.9 g (6.628 oz.)
(without battery and memory card)
• WB150F/WB151F/WB152F: 188.2 g (6.639 oz.)
(without battery and memory card)
Video output
A/V: NTSC, PAL (selectable)
Operating Temperature
DC power input
connector
5V
Digital output
connector
USB 2.0
0–40 °C (32-104 °F)
Power source
Operating Humidity
5–85 %
Rechargeable
battery
Lithium-ion battery (SLB-10A, 1,030 mAh)
Connector type
Micro USB (5 pin)
Software
Intelli-studio
Specifications may change without notice to improve performance.
The power source may differ depending on your region.
Appendixes 144
Glossary
ACB (Auto Contrast Balance)
This feature automatically improves the contrast of your images
when the subject is backlit or when there is a high contrast
between your subject and the background.
Composition
Composition in photography means arranging objects in a photo.
Usually, abiding by the rule of thirds leads to a good composition.
DCF (Design rule for Camera File system)
A specification to define a file format and file system for digital
cameras created by the Japan Electronics and Information
Technology Industries Association (JEITA).
AEB (Auto Exposure Bracket)
This feature automatically captures several images at different
exposures to help you capture a properly-exposed image.
AF (Auto Focus)
A system that automatically focuses the camera lens on the
subject. Your camera uses the contrast to focus automatically.
Aperture
The aperture controls the amount of light that reaches the
camera’s sensor.
Camera shake (Blur)
If the camera is moved while the shutter is open, the entire image
may appear blurred. This occurs more often when the shutter
speed is slow. Prevent camera shake by raising the sensitivity,
using the flash, or using a faster shutter speed. Alternately, use a
tripod, the DIS or OIS function to stabilize the camera.
Depth of field
The distance between the nearest and farthest points that can
be acceptably focused in a photograph. Depth of field varies with
lens aperture, focal length, and distance from the camera to the
subject. Selecting a smaller aperture, for example, will increase
the depth of field and blur the background of a composition.
Digital zoom
A feature that artificially increases the amount of zoom available
with a zoom lens (Optical zoom). When using the Digital zoom,
the image quality will deteriorate as the magnification increases.
Appendixes 145
Glossary
DPOF (Digital Print Order Format)
A format for writing printing information, such as selected images
and number of prints, on a memory card. DPOF-compatible
printers, sometimes available at photo shops, can read the
information from the card for convenient printing.
Exposure
The amount of light allowed to reach the camera’s sensor.
Exposure is controlled by a combination of the shutter speed, the
aperture value, and ISO sensitivity.
Flash
A speed light that helps to create adequate exposure in low-light
conditions.
EV (Exposure Value)
All the combinations of the camera’s shutter speed and lens
aperture that result in the same exposure.
EV Compensation
This feature allows you to quickly adjust the exposure value
measured by the camera, in limited increments, to improve the
exposure of your photos. Set the EV compensation to -1.0 EV to
adjust the value one step darker and 1.0 EV to one step brighter.
Exif (Exchangeable Image File Format)
A specification to define an image file format for digital cameras
created by the Japan Electronic Industries Development
Association (JEIDA).
Focal length
The distance from the middle of the lens to its focal point (in
millimeters). Longer focal lengths result in narrower angles of view
and the subject is magnified. Shorter focal lengths result in wider
angles of view.
Histogram
A graphical representation of the brightness of an image. The
horizontal axis represents the brightness and the vertical axis
represents the number of pixels. High points at the left (too dark)
and right (too bright) on the histogram indicate a photo that is
improperly exposed.
Appendixes 146
Glossary
H.264/MPEG-4
A high-compression video format established by international
standard organizations ISO-IEC and ITU-T and developed by the
Joint Video Team (JVT). This codec is capable of providing good
video quality at low bit rates.
Image sensor
The physical part of a digital camera that contains a photosite for
each pixel in the image. Each photosite records the brightness of
the light that strikes it during an exposure. Common sensor types
are CCD (Charge-coupled Device) and CMOS (Complementary
Metal Oxide Semiconductor).
ISO sensitivity
The sensitivity of the camera to light, based on the equivalent film
speed used in a film camera. At higher ISO sensitivity settings,
the camera uses a higher shutter speed, which can reduce blur
caused by camera shake and low light. However, images with
high sensitivity are more susceptible to noise.
JPEG (Joint Photographic Experts Group)
A lossy method of compression for digital images. JPEG images
are compressed to reduce their overall file size with minimal
deterioration of the image resolution.
LCD (Liquid Crystal Display)
A visual display commonly used in consumer electronics. This
display needs a separate backlight, such as CCFL or LED, to
reproduce colors.
Macro
This feature allows you to capture close-up photos of very small
objects. When using the macro feature, the camera can maintain
a sharp focus on small objects at a near life-size ratio (1:1).
Metering
The metering refers to the way in which the camera measures the
quantity of light to set the exposure.
MJPEG (Motion JPEG)
A video format which is compressed as a JPEG image.
Noise
Misinterpreted pixels in a digital image that may appear as
misplaced or random, bright pixels. Noise usually occurs when
photos are shot with a high sensitivity or when a sensitivity is
automatically set in a dark place.
Appendixes 147
Glossary
OIS (Optical Image Stabilization)
This feature compensates in real-time for shaking and vibrating
while shooting. There is no image degradation compared to
Digital Image Stabilization feature.
Optical zoom
This is a general zoom which can enlarge images with a lens and
does not deteriorate quality of images.
Quality
An expression of the rate of compression used in a digital image.
Higher quality images have a lower rate of compression, which
usually results in a larger file size.
Vignetting
A reduction of an image’s brightness or saturation at the periphery
(outer edges) compared to the center of the image. Vignetting
can draw interest to subjects positioned in the center of an
image.
White balance (color balance)
An adjustment of the intensities of colors (typically the primary
colors red, green, and blue), in an image. The goal of adjusting
the white balance, or color balance, is to correctly render the
colors in an image.
Resolution
The number of pixels present in a digital image. High resolution
images contain more pixels and typically show more detail than
low resolution images.
Shutter speed
Shutter speed refers to the amount of time it takes to open and
close the shutter, and it is an important factor in the brightness of
a photo, as it controls the amount of light which passes through
the aperture before it reaches the image sensor. A fast shutter
speed allows less time to let light in and the photo becomes
darker and more easily freezes subjects in motion.
Appendixes 148
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European
countries with separate collection systems)
Correct disposal of batteries in this product
(Applicable in the European Union and other European
countries with separate battery return systems)
This marking on the product, accessories or literature indicates that
the product and its electronic accessories (e.g. charger, headset, USB
cable) should not be disposed of with other household waste at the
end of their working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate
these items from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources. Household users
should contact either the retailer where they purchased this product,
or their local government office, for details of where and how they can
take these items for environmentally safe recycling. Business users
should contact their supplier and check the terms and conditions of the
purchase contract. This product and its electronic accessories should
not be mixed with other commercial wastes for disposal.
This marking on the battery, manual or packaging indicates that
the batteries in this product should not be disposed of with other
household waste at the end of their working life. Where marked, the
chemical symbols Hg, Cd or Pb indicate that the battery contains
mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances
can cause harm to human health or the environment.
To protect natural resources and to promote material reuse, please
separate batteries from other types of waste and recycle them through
your local, free battery return system.
CAN ICES-3 (B)/NMB-3(B)
PlanetFirst represents Samsung Electronics'
commitment to sustainable development and social
responsibility through eco-driven business and
management activities.
Dispose unwanted electronics through an approved recycler.
To find the nearest recycling location, go to our website:
www.samsung.com/recyclingdirect Or call, (877) 278 - 0799
Appendixes 149
FCC notice
Caution:
Any changes or modifications in construction of this device which are not
expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorientate, or relocate, the receiving antenna.
- Increase the distance between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
• Declaration of Conformity
Trade Name
: Samsung Electronics America, Inc.
Model No.
: Samsung WB150/WB150F/
WB151/WB151F/WB152F
Responsible Party
: Samsung Electronics America, Inc.
Address
: 85 Challenger Road, Ridgefield Park,
NJ 07660
Telephone No.
: 1-800-SAMSUNG (726-7864)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including
interference that may cause undesired operation.
FCC ID:A3LWB150F
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
RF exposure statements:
This device is for handheld operation only. The antenna(s) used for this
transmitter must be installed to provide a separation distance of at least 20 cm
from all persons and must not be co-located or operating in conjunction with any
other antenna or transmitter.
Appendixes 150
Complies with
IDA Standards
DA100790
RISK OF EXPLOSION IF BATTERY IS REPLACED BY
AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS.
Approved by PTA,
year 2011
938
CAUTION
TA-2011/1257
APPROVED
No.: ESD-1105767C
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired operation.
Caution:
Any changes or modifications to the equipment not expressly
approved by the party responsible for compliance could void
user’s authority to operate the equipment.
IC: 649E-WB150F
NO-L-14041/01/2011/ETA/2011
1577/2011/WRLO
This equipment may be operated in all EU countries.
In France, this equipment may only be used indoors.
Appendixes 151
Declaration of Conformity
and the Eco-Design Directive (2009/125/EC) implemented by
Regulations (EC) No 278/2009 for external power supplies.
Product details
For the following
Product : DIGITAL CAMERA
Representative in the EU
Model(s) : WB150F, WB151F, WB152F
Declaration & Applicable standards
We hereby declare that the product(s) above is(are) in
compliance with the essential requirements and other provisions
of the R&TTE Directive (1999/5/EC), the Low Voltage Directive
(2006/95/EC) and the Electromagnetic Compatibility Directive
(2004/108/EC) by application of:
EN 60950-1:2006+A1:2010
EN 55024:1998+A1:2001+A2:2003
EN 55022:2006+A1 :2007
EN 61000-3-2:2006 +A1:2009 +A2:2009
EN 61000-3-3:2008
EN 300 328 v1.7.1
EN 301 489-1 v1.8.1
EN 301 489-17 V2.1.1
Samsung Electronics Euro QA Lab.
Blackbushe Business Park
Saxony Way, Yateley, Hampshire
GU46 6GG, UK
(YEAR TO BEGIN AFFIXING CE MARKING 2011)
21 October, 2011
Joong-Hoon Choi / Lab. Manager
(Place and date of issue)
(Name and signature of authorized person)
* This is not the address of Samsung Service Centre. For the
address or the phone number of Samsung Service Centre, see
the warranty card or contact the retailer where you purchased
your product.
EN62311 :2008
Appendixes 152
Declaration sentence in official languages
Nation
Declaration
Cesky
Samsung Electronics tímto prohlašuje, že tento digitální fotoaparát je ve shodě se základními požadavky a dalšími
příslušnými ustanoveními směrnice 1999/5/ES.
Dansk
Samsung Electronics erklærer herved, at digitale kameraer overholder de væsentlige krav og øvrige relevante krav i direktiv 1999/5/
EF.
Deutsch
Hiermit erklärt Samsung Electronic, dass sich die Digitalkamera in Übereinstimmung mit den grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.
Eesti
Käesolevaga kinnitab Samsung Electronics digitaalkaamera vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
English
Hereby, Samsung Electronics declares that this digital camera is in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.
Español
Por medio de la presente Samsung Electronics declara que la cámara digital cumple con los requisitos esenciales y cualesquiera
otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Ελληνική
ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ η Samsung Electronics ΔΗΛΩΝΕΙ ΟΤΙ η ψηφιακή φωτογραφική μηχανή ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ
ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ.
Français
Par la présente Samsung Electronic déclare que l'appareil photo numérique est conforme aux exigences essentielles et aux autres
dispositions pertinentes de la directive 1999/5/CE.
Italiano
Con la presente Samsung Electronicsdichiara che questa fotocamera digitale è conforme ai requisiti essenziali e alle altre disposizioni
stabilite dalla Direttiva 1999/5/CE.
Latviski
Ar šo Samsung Electronics deklarē, ka digitālā kamera atbilst Direktīvas 1999/5/EK būtiskajām prasībām un citiem ar to saistītajiem
noteikumiem.
Lietuvių
Šiuo Samsung Electronics deklaruoja, kad šis skaitmeninis fotoaparatas, atitinka esminius reikalavimus ir kitas 1999/5/EB Direktyvos
nuostatas.
Nederlands
Hierbij verklaart Samsung Electronics dat de digitale camera in overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.
Appendixes 153
Declaration sentence in official languages
Nation
Declaration
Malti
Hawnhekk, Samsung Electronics, tiddikjara li din il-kamera diġitali hi konformi mar-rekwiżiti essenzjali u ma' dispożizzjonijiet rilevanti
oħrajn ta' Direttiva 1999/5/KE.
Magyar
A Samsung Electronics kijelenti, hogy ez a digitális fényképezőgép megfelel az 1999/5/EK irányelv alapvetõ követelményeinek és
egyéb vonatkozó elõírásainak.
Polski
Niniejszym firma Samsung Electronics oświadcza, że ten aparat cyfrowy jest zgodny z zasadniczymi wymogami oraz pozostałymi
stosownymi postanowieniami Dyrektywy 1999/5/WE.
Português
Samsung Electronics declara que esta câmera digital está conforme os requisitos essenciais e outras disposições da Directiva
1999/5/CE.
Slovensko
Samsung Electronics izjavlja, da je ta digitalni fotoaparat v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive
1999/5/ES.
Slovensky
Samsung Electronics týmto vyhlasuje, že tento digitálny fotoaparát spĺňa základné požiadavky a všetky príslušné ustanovenia
Smernice 1999/5/ES.
Suomi
Samsung Electronics vakuuttaa täten että tämä digitaalikamera on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.
Svenska
Härmed intygar Samsung Electronicsatt dessa digitalkameror står i överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Български
С настоящото Samsung Electronics декларира, че този цифров фотоапарат е в съответствие със съществените изисквания и
другите приложими разпоредби на Директива 1999/5/ЕК.
Română
Prin prezenta, Samsung Electronics, declară că această cameră foto digitală este în conformitate cu cerinţele esenţiale şi alte
prevederi relevante ale Directivei 1999/5/CE.
Norsk
Samsung Electronicserklærer herved at dette digitalkameraet er i samsvar med de grunnleggende krav og øvrige relevante krav i
direktiv 1999/5/EF.
Türkiye
Bu belge ile, Samsung Electronics bu dijital kameranın 1999/5/EC Yönetmeliginin temel gerekliliklerine ve ilgili hükümlerine uygun
olduğunu beyan eder.
Íslenska
Hér með lýsir Samsung Electronics því yfir að þessi stafræna myndavél sé í samræmi við grunnkröfur og önnur ákvæði tilskipunar
1999/5/EB.
Appendixes 154
Index
A
B
AF-assist light
Battery
Location 16
Settings 125
AF Lamp 125
AF Sound 122
Aperture Priority mode 41
Aperture value 40
Auto Backup 113
Capturing an image from
video 86
Charging 20
Caution 135
Charging 20
Inserting 19
Cleaning
Camera body 129
Display 129
Lens 129
Beauty Shot mode 38
Blink Detection 66
Connecting to a computer
Brightness
Mac 97
Windows 92
Playback mode 89
Shooting mode 69
Contrast
Auto Contrast Balance (ACB)
Playback mode 89
Shooting mode 70
Auto Exposure Bracket
(AEB) 73
A/V port 16
Burst modes
Playback mode 89
Shooting mode 74
Auto Exposure Bracket
(AEB) 73
Continuous 73
Motion Capture 73
Digital zoom 29
Disconnecting the camera 96
Display brightness 123
Display type 26
E
Editing photos 87
Editing videos
Capturing 86
Trimming 86
Enlarging 83
Error messages 127
D
Date/Time Set 124
C
Deleting files 81
Camera maintenance 129
Camera specifications 141
Digital Print Order Format
(DPOF) 90
Appendixes 155
Exposure 69
Index
F
H
Image quality 55
Face Detection 64
Half-press shutter 32
Imprint 125
Intelli-studio 94
Flash
Auto 57
Fill in 58
Off 57
Red-eye 58
Red-eye Fix 58
Slow Sync 58
Focus area
Center AF 63
Multi AF 63
Selection AF 63
Tracking AF 63
Formatting 125
I
Intelli zoom 30
Icons
ISO sensitivity 59
Playback mode 77
Shooting mode 23
Image Adjustment
ACB 89
Brightness
Playback mode 89
Shooting mode 69
Contrast
Playback mode 89
Shooting mode 74
Function button 18
Red-eye 90
Saturation
G
Sharpness 74
Playback mode 89
Shooting mode 74
Magic Plus mode
Artistic Brush 48
Live Panorama 44
Magic Frame 45
Movie Filter 50
Photo Filter 49
Picture in Picture 46
Split Shot 46
L
Manual mode 43
Language settings 124
Memory card
Live Panorama mode 44
M
Macro
Auto Macro 61
Macro 61
Manual Focus 61
Magic Frame mode 45
Guide Line 122
Appendixes 156
Caution 133
Insert 19
Menu button 18
Metering
Center-weighted 70
Multi 70
Spot 70
Mode dial 17
Index
Motion Capture 73
Power button 16
Movie mode 51
Power save mode 123
My star
Printing photos 98
Cancelling 79
Ranking 78
Registering 67
Program mode 39
Protecting files 81
Resolution
Playback mode 87
Shooting mode 54
Retouching faces
Playback mode 90
Shooting mode 38
Rotating 87
O
Q
Optical Image Stabilization
(OIS) 31
Quick view 123
Optional accessories 15
R
Red-eye
P
PictBridge 98
Playback mode 90
Shooting mode 57
Shooting portraits
Beauty Shot mode 38
Blink Detection 66
Face Detection 64
Red-eye 58
Red-eye fix 58
Self portrait 65
Smart Face Recognition 66
Smile Shot 65
S
Shutter button 16
Saturation
Shutter Priority mode 42
Playback mode 89
Shooting mode 74
Scene mode 37
Self portrait 65
Playback button 18
Remote Viewfinder 110
Service center 138
Playback mode 77
Reset 125
Settings 124
Sharpness 74
Slide show 84
Smart Album 79
Smart Auto mode 35
Smart Face Recognition 66
Smart Filter
Photo shooting mode 49
Playback mode 88
Video recording mode 50
Smart Scene Detection
mode 52
Appendixes 157
Index
Smile Shot 65
U
White Balance 71
Sound settings 27
Unpacking 15
Wireless network 100
Start Image 122
USB port 16
Z
Status lamp 17
Zoom
V
T
Video
Thumbnails 80
Timer
Shooting mode 56
Timer lamp 16
Time settings 21
Time zone settings 21, 124
Transferring files
Auto Backup 113
Email 106
Mac 97
Windows 92
Playback mode 85
Shooting mode 51
Using the zoom 29
Zoom button 17
Zoom sound settings 75
Video out 123
Viewing files
Panoramic photos 84
Slide show 84
Smart Album 79
Thumbnails 80
TV 91
W
Website
Tripod mount 16
TV Link 115
Accessing 104
Uploading photos or
videos 104
Appendixes 158
Please refer to the warranty that came with your product or
visit our website, www.samsung.com, for after-sales service
or inquiries.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
