Panasonic SC-HTB770 Owner's manual

Panasonic SC-HTB770 Owner's manual
SC-HTB770PPC_RQT9778-1P_mst.book
Page 1
Tuesday, January 29, 2013
11:33 AM

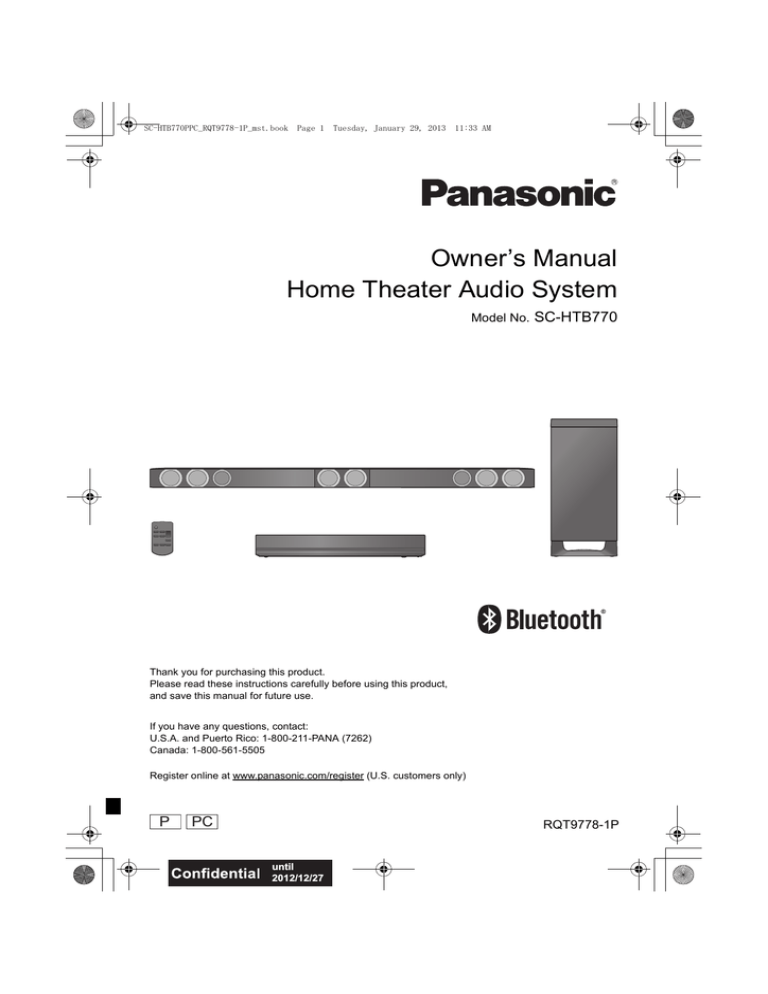

Owner’s Manual
Home Theater Audio System
Model No.
SC-HTB770
Thank you for purchasing this product.
Please read these instructions carefully before using this product,
and save this manual for future use.
If you have any questions, contact:
U.S.A. and Puerto Rico: 1-800-211-PANA (7262)
Canada: 1-800-561-5505
Register online at www.panasonic.com/register (U.S. customers only)
P
PC
RQT9778-1P
until
2012/12/27
SC-HTB770PPC_RQT9778-1P_mst.book
Page 2
Tuesday, January 29, 2013
11:33 AM
IMPORTANT SAFETY INSTRUCTIONS
Read these operating instructions carefully before using the unit. Follow the safety instructions on the
unit and the applicable safety instructions listed below. Keep these operating instructions handy for
future reference.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
2
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other.
A grounding-type plug has two blades and a third
grounding prong. The wide blade or the third prong
are provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
Only use attachments/accessories specified by the
manufacturer.
Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the cart/
apparatus combination to avoid injury
from tip-over.
Unplug this apparatus during lightning storms or
when unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
RQT9778
WARNING
Unit
≥ To reduce the risk of fire, electric shock or product
damage,
j Do not expose this unit to rain, moisture, dripping or
splashing.
j Do not place objects filled with liquids, such as vases,
on this unit.
j Use only the recommended accessories.
j Do not remove covers.
j Do not repair this unit by yourself. Refer servicing to
qualified service personnel.
AC power supply cord
≥ The power plug is the disconnecting device.
Install this unit so that the power plug can be unplugged
from the socket outlet immediately.
Button-type battery (Lithium battery)
≥ Risk of fire, explosion and burns. Do not disassemble,
heat above 60 oC (140 oF) or incinerate.
DO NOT INGEST BATTERY,
CHEMICAL BURN HAZARD
This product contains a coin/button cell battery. If the
coin/button cell battery is swallowed, it can cause
severe internal burns in just 2 hours and can lead to
death. Keep new and used batteries away from
children. If the battery compartment does not close
securely, stop using the product and keep it away from
children. If you think batteries might have been
swallowed or placed inside any part of the body, seek
immediate medical attention.
If any electrolyte should come into contact with your
hands or clothes, wash it off thoroughly with water.
If any electrolyte should come into contact with your
eyes, never rub the eyes. Rinse eyes thoroughly with
water, and then consult a doctor.
<For USA-California only>
This product contains a CR Coin Cell Lithium Battery
which contains Perchlorate Material s special handling
may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate.
Page 3
Tuesday, January 29, 2013
CAUTION
THE FOLLOWING APPLIES ONLY IN THE
U.S.A.
FCC Note:
Unit
≥ Do not place sources of naked flames, such as lighted
candles, on this unit.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the
interference by one or more of the following measures:
≥ Reorient or relocate the receiving antenna.
≥ Increase the separation between the equipment and
receiver.
≥ Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
≥ Consult the dealer or an experienced radio/TV
technician for help.
Any unauthorized changes or modifications to this
equipment would void the user’s authority to operate this
device.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation.
Responsible Party:
Panasonic Corporation of North America
One Panasonic Way,
Secaucus, NJ 07094
Support Contact:
Panasonic Consumer Marketing Company of
North America
Telephone No.: 1-800-211-PANA (7262)
Placement
≥ To reduce the risk of fire, electric shock or product
damage,
j Do not install or place this unit in a bookcase, built-in
cabinet or in another confined space. Ensure this unit
is well ventilated.
j Do not obstruct this unit’s ventilation openings with
newspapers, tablecloths, curtains, and similar items.
Button-type battery (Lithium battery)
≥ Danger of explosion if battery is incorrectly replaced.
Replace only with the type recommended by the
manufacturer.
≥ Keep out of reach of children.
≥ Insert with poles aligned.
≥ Mishandling of batteries can cause electrolyte leakage
and may cause a fire.
j Remove the battery if you do not intend to use the
remote control for a long period of time. Store in a
cool, dark place.
j Do not heat or expose to flame.
j Do not leave the battery(ies) in a car exposed to
direct sunlight for a long period of time with doors and
windows closed.
j Do not touch the terminals (i and j) with metal
objects.
j Do not recharge, disassemble, remodel, heat or
throw into fire.
≥ When disposing the batteries, please contact your local
authorities or dealer and ask for the correct method of
disposal.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS.
NO USER-SERVICEABLE PARTS
INSIDE.
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of sufficient
magnitude to constitute a risk of
electric shock to persons.
The exclamation point within an
equilateral triangle is intended to alert
the user to the presence of important
operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
11:33 AM
THE FOLLOWING APPLIES ONLY IN
CANADA.
This device complies with RSS-GEN, RSS-210 of the IC
Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
(2) This device must accept any interference received,
including interference that may cause undesired operation
of the device.
‘
THE FOLLOWING APPLIES IN THE U.S.A.
AND CANADA
This transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter.
This equipment complies with FCC/IC radiation exposure
limits set forth for an uncontrolled environment and meets
the FCC radio frequency (RF) Exposure Guidelines in
Supplement C to OET65 and RSS-102 of the IC radio
frequency (RF) Exposure rules. This equipment has very
low levels of RF energy that is deemed to comply without
maximum permissive exposure evaluation (MPE). But it is
desirable that it should be installed and operated keeping
the radiator at least 20 cm (7 7/8q) or more away from
person’s body (excluding extremities: hands, wrists, feet
and ankles).
RQT9778
3
Precautions
SC-HTB770PPC_RQT9778-1P_mst.book
SC-HTB770PPC_RQT9778-1P_mst.book
Page 4
Tuesday, January 29, 2013
Unit care
∫ Clean this system with a soft, dry cloth
≥ When dirt is heavy, wring a cloth moistened in water
tightly to wipe the dirt, and then wipe it with a dry cloth.
≥ When cleaning the speakers, use a fine cloth. Do not
use tissues or other materials (towels, etc.) that can fall
apart. Small grains may get stuck inside the speaker
cover.
≥ Never use alcohol, paint thinner or benzine to clean this
system.
≥ Before using chemically-treated cloth, carefully read the
instructions that came with the cloth.
∫ To dispose or transfer this system
This system may keep the user settings information in the
main unit. If you discard the main unit either by disposal or
transfer, then follow the procedure to return all the settings
to the factory presets to delete the user settings. (> 36,
“To return to the factory preset.”)
≥ The operation history may be recorded in the memory
of the main unit.
Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks
of Dolby Laboratories.
Manufactured under license under U.S. Patent Nos:
5,956,674; 5,974,380; 6,487,535 & other U.S. and
worldwide patents issued & pending.
DTS, the Symbol, & DTS and the Symbol together are
registered trademarks & DTS Digital Surround and the DTS
logos are trademarks of DTS, Inc. Product includes
software.
© DTS, Inc. All Rights Reserved.
HDMI, the HDMI Logo, and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.
11:33 AM
About Bluetooth®
Panasonic bears no responsibility for data
and/or information that is compromised
during a wireless transmission.
∫ Frequency band used
This system uses the 2.4 GHz frequency band.
∫ Certification of this device
≥ This system conforms to frequency restrictions and has
received certification based on frequency laws. Thus, a
wireless permit is not necessary.
≥ The action below are punishable by law in some
countries:
j Taking apart or modifying the unit.
j Removing specification indications.
∫ Restrictions of use
≥ Wireless transmission and/or usage with all Bluetooth®
equipped devices is not guaranteed.
≥ All devices must conform to standards set by Bluetooth
SIG, Inc.
≥ Depending on the specifications and settings of a
device, it can fail to connect or some operations can be
different.
≥ This system supports Bluetooth® security features. But
depending on the operating environment and/or
settings, this security is possibly not sufficient. Transmit
data wirelessly to this system with caution.
≥ This system cannot transmit data to a Bluetooth®
device.
∫ Range of use
Use this device at a maximum range of 10 m (33 ft).
The range can decrease depending on the environment,
obstacles or interference.
HDAVI Control™ is a trademark of Panasonic Corporation.
∫ Interference from other devices
VIERA Link™ is a trademark of Panasonic Corporation.
≥ This system may not function properly and troubles
such as noise and sound jumps may arise due to radio
wave interference if the main unit is located too close to
other Bluetooth® devices or the devices that use the 2.4
GHz band.
≥ This system may not function properly if radio waves
from a nearby broadcasting station, etc. are too strong.
EZ Sync™ is a trademark of Panasonic Corporation.
The Bluetooth® word mark and logos are owned by the
Bluetooth SIG, Inc. and any use of such marks by
Panasonic Corporation is under license. Other trademarks
and trade names are those of their respective owners.
∫ Intended usage
≥ This system is for normal, general use only.
≥ Do not use this system near equipment or in an
environment that is sensitive to radio frequency
interference (example: airports, hospitals, laboratories,
etc).
4
RQT9778
SC-HTB770PPC_RQT9778-1P_mst.book
Page 5
Tuesday, January 29, 2013
11:33 AM
Table of contents
Before use
Supplied items ................................................................................................................. 6
This system (SC-HTB770) ......................................................................................................... 6
Accessories ................................................................................................................................ 6
Control reference guide .................................................................................................. 7
Precautions
IMPORTANT SAFETY INSTRUCTIONS .......................................................................... 2
Unit care ........................................................................................................................... 4
About Bluetooth® ............................................................................................................. 4
Getting started
Step 1 Selecting the placement method ..................................................................... 10
The speaker system ................................................................................................................. 11
The active subwoofer ............................................................................................................... 11
Wireless interference ............................................................................................................... 11
Before use
This system (Front) .................................................................................................................... 7
This system (Rear) ..................................................................................................................... 8
Remote control ........................................................................................................................... 9
When attaching the speakers to a wall .................................................................................... 12
When placing the speakers on a table ..................................................................................... 19
Additional speaker fall prevention measures ........................................................................... 24
Step 3 Connections ...................................................................................................... 26
Connection with the TV ............................................................................................................
Connection with other devices .................................................................................................
Speaker cable connection ........................................................................................................
AC power supply cord connection............................................................................................
Active subwoofer wireless connection .....................................................................................
Bluetooth® connection..............................................................................................................
26
27
28
28
29
29
Getting started
Step 2 Assembling the speakers................................................................................. 12
Using this system .......................................................................................................... 30
3D sound ........................................................................................................................ 31
Sound modes ........................................................................................................................... 31
Linked operations with the TV
(VIERA LinkTM “HDAVI ControlTM”).......................................................................... 32
Advanced operations .................................................................................................... 33
Operations
Operations
Troubleshooting.............................................................................................................
Specifications ................................................................................................................
Indicator illumination.....................................................................................................
Limited Warranty
(ONLY FOR U.S.A. AND PUERTO RICO) .................................................................
Limited Warranty (ONLY FOR CANADA) .....................................................................
RQT9778
36
38
40
42
43
5
Reference
Reference
SC-HTB770PPC_RQT9778-1P_mst.book
Page 6
Tuesday, January 29, 2013
11:33 AM
Before use
≥ The illustrations shown may differ from your unit.
≥ Operations in this Owner’s Manual are described mainly with the remote control, but you can
perform the operations on the main unit if the controls are the same.
Supplied items
This system (SC-HTB770)
∏ 1 Main unit
(SU-HTB770)
∏ 1 Active
subwoofer
(SB-HWA770)
∏ 1 Center speaker
(SB-HTB770)
∏ 2 Front speakers
(SB-HTB570)
Accessories
Check the supplied accessories before using this system.
∏ 1 Remote control
(with a battery)
(N2QAYC000083)
∏ 2 AC power supply ∏ 3 Speaker cables
(REE1789: RED)
cords
(REE1790: WHITE)
(K2CB2CB00022)
Length: 3 m (9.8 ft)
(REE1791: GREEN)
Length: 2 m (6 1/2 ft)
∏ 1 Metal bracket
(RML0760A)
∏ 6 Screws
(XYN5+J14FJK)
∏ 2 Hook brackets
(RML0763)
∏ 2 Stand necks
(RGK2444)
∏ 2 Side caps
(RGK2445: R)
(RGK2446: L)
∏ 2 Leg stands
(RGK2463)
∏ 2 Support legs
(RGK2464)
∏ 2 Speaker bases
(RGK2465)
∏ 2 Speaker feet
(RKAX0042-K)
(ONLY FOR CANADA)
The enclosed Canadian French label sheet corresponds to the English display on the remote control and
the top and rear of the main unit and active subwoofer.
≥ Product numbers are correct as of December 2012. These may be subject to change.
≥ For U.S.A. and Puerto Rico:
To order accessories, refer to “Accessory Purchases (United States and Puerto Rico)” on page 42.
For Canada: To order accessories, call the dealer from whom you have made your purchase.
≥ The supplied AC power supply cord is for use with this system only.
Do not use it with other equipment. Also, do not use cords from other equipment with this system.
6
RQT9778
SC-HTB770PPC_RQT9778-1P_mst.book
Page 7
Tuesday, January 29, 2013
11:33 AM
Control reference guide
This system (Front)
4
5
6
1
2
3
Main unit
1
Standby/on switch (Í/I)
Press to switch the unit from on to standby
mode or vice versa. In standby mode, the unit
is still consuming a small amount of power.
2
3
Adjust the volume of this system
Select the input source
“TV”---------#“BD/DVD”---------#“AUX1”
4
Input selector indicators§1
A Bluetooth® indicator
Lights blue when the Bluetooth® device is
the audio source
B TV indicator
Lights green when the TV is the audio
source
C BD/DVD indicator
Lights amber when the device connected
to the BD/DVD terminal is the audio
source
D AUX1 indicator
Lights amber when the device connected
to the AUX1 terminal is the audio source
E AUX2 indicator
Lights amber when the device connected
to the AUX2 terminal is the audio source
F AUX3 indicator
Lights amber when the device connected
to the AUX3 terminal is the audio source
^-- “
5
”(- “AUX3”(- “AUX2”(}
6
7
Active subwoofer
Sound mode indicators
G STANDARD indicator
Lights when STANDARD is the current
sound mode
H STADIUM indicator§2
Lights when STADIUM is the current
sound mode
I MUSIC indicator§2
Lights when MUSIC is the current sound
mode
J CINEMA indicator
Lights when CINEMA is the current sound
mode
K NEWS indicator
Lights when NEWS is the current sound
mode
L STEREO indicator
Lights when STEREO is the current sound
mode
Remote control signal sensor (> 9)
WIRELESS LINK indicator (> 29)
§1
§1 The indicators will also blink in various conditions. (> 40)
§2 The indicator blinks for 5 sec when the main unit detects an audio format.
To manually verify the current audio format and the corresponding indicators, refer to page 33
(Audio format indicator).
RQT9778
7
Before use
7
SC-HTB770PPC_RQT9778-1P_mst.book
Page 8
Tuesday, January 29, 2013
11:33 AM
This system (Rear)
AUX2
(HDMI3)
BD/DVD
(HDMI1)
AUX1
(HDMI2)
AV IN
AUX2
(HDMI3)
TV
(ARC)
AV OUT
BD/DVD
(HDMI1)
AUX1
(HDMI2)
AV IN
1
2
3
4
5
AC IN terminal (> 28)
Speaker terminals (> 28)
TV terminal (> 26)
AUX3 terminal (> 27)
USB port (for service use only)
6
7
8
9
10
TV
(ARC)
AV OUT
AUX2 terminal (> 27)
AUX1 terminal (> 27)
BD/DVD terminal (> 27)
HDMI OUT terminal (ARC compatible) (> 26)
Active subwoofer on/off button (> 29)
§ The I/D SET button is only used when the main unit is not paired with the active subwoofer. (> 37)
8
RQT9778
SC-HTB770PPC_RQT9778-1P_mst.book
Page 9
Tuesday, January 29, 2013
11:33 AM
Remote control
∫ Before using for the first time
Remove the insulation sheet A.
3
1
2
4
DIALOG LEVEL
∫ To replace a button-type battery
5
6
INPUT
SELECTOR
Battery type: CR2025 (Lithium battery)
LINK MODE
SOUND
----PAIRING
8

1
2
3
4
5
6
7
8
Turn the main unit on or off (> 30)
Adjust the dialog effect level (> 30)
Adjust the output level of the active subwoofer
(bass sound) (> 30)
Adjust the volume of this system(> 30)
Mute the sound (> 30)
Select the input source (> 30)
“TV”---------#“BD/DVD”---------#“AUX1”
^--- “ ”( “AUX3”( “AUX2”(}
Select the Bluetooth® device as the source
(> 30)
Select the sound mode (> 31)
“STANDARD” -----#“STADIUM” -----#“MUSIC”
^- “STEREO”( “NEWS”( “CINEMA”(}
Before use
7

≥ Set the button-type battery with its (i) mark
facing upward.
≥ Keep the button-type battery out of reach of
children to prevent swallowing.
∫ Remote control operation range
The remote control signal sensor is located on the main unit.
≥ Use the remote control within the correct operation range.
B Remote control signal sensor
≥ Operation range
Distance: Within approx. 7 m
(23 ft) directly in front
Angle: Approx. 30o left and right

RQT9778
9
SC-HTB770PPC_RQT9778-1P_mst.book
Page 10
Tuesday, January 29, 2013
11:33 AM
Step 1 Selecting the placement method
Getting started
≥Choose a placement method that suits you best.
When attaching the speakers to a wall
Place the speakers
horizontally
Page 12
Place the front speakers
vertically
Page 15
When placing the speakers on a table
Place the speakers using
the leg stands
Page 19
Place the speakers
using the support legs
and speaker feet
Page 20
Place the front speakers
using the speaker bases
Page 21
10
RQT9778
SC-HTB770PPC_RQT9778-1P_mst.book
Page 11
Tuesday, January 29, 2013
11:33 AM
Caution
≥ This system is to be used only as indicated in these instructions. Failure to do so may lead to damage to the
amplifier and/or the speakers, and may result in the risk of fire. Consult a qualified service person if damage
has occurred or if you experience a sudden change in performance.
≥ Do not attempt to attach the speakers to a wall using methods other than those described in this manual.
The speaker system
≥Use a screwdriver (i) for assembling the speakers.
≥Do not hold the speakers in one hand to avoid injury, you may drop the speakers when carrying them.
∫ When attaching the speakers to a wall
The wall or pillar on which the speakers are to be attached should be capable of supporting 33 kg (72.8 lbs) per screw.
Consultation with a qualified installation specialist is recommended when attaching the speakers to a wall. Improper attachment
may result in damage to the wall and speakers, and personal injury.
∫ When placing the speakers in front of the TV
The speakers may block or interfere with the TV’s various sensors (C.A.T.S. (Contrast Automatic Tracking System) sensor,
remote control sensor, etc.) and the 3D Eyewear transmitters on a 3D compatible TV.
≥ If the leg stands are being used
Change the height of the leg stands and/or move the speakers further away from the TV. If the TV still does not function
correctly, try removing the leg stands.
≥ If the leg stands are not used
Move the speakers further away from the TV. If the TV still does not function properly, try placing them beside the TV (> 10).
The active subwoofer
A Do not hold the active subwoofer from this
opening.
The parts inside may get damaged.
B Always hold the bottom of the active subwoofer when
moving it.
A
B
Wireless interference
To avoid interference, maintain the following distances between the main unit/active subwoofer
and other electronic devices that use the same radio frequency (2.4 GHz band).
C
D
C Main unit/active subwoofer
D Wireless router, cordless phone and other
electronic devices:
approx. 2 m (6 1/2 ft)
≥ Place the active subwoofer within a few meters of the main unit and in a horizontal position with the top panel facing upward.
≥ Do not use the main unit or the active subwoofer in a metal cabinet.
≥ Placing the active subwoofer too close to the walls and corners can result in excessive bass. Cover walls and windows with
thick curtains.
≥ If irregular coloring occurs on your TV, turn the TV off for about 30 minutes. If it persists, move the speakers further away from
the TV.
≥ Keep magnetized items away. Magnetized cards, watches, etc., can be damaged if placed too close to the active subwoofer
and the speakers.
RQT9778
11
Getting started
When carrying the active subwoofer
SC-HTB770PPC_RQT9778-1P_mst.book
Page 12
Tuesday, January 29, 2013
11:33 AM
Step 2 Assembling the speakers
When attaching the speakers to a wall
Place the speakers horizontally
The speakers can be wall mounted by drilling screws into the wall, etc.
Make sure that the screw used and the wall are strong enough to support the weight of at least 33 kg (72.8 lbs).
The screws and other items are not supplied as the type and size will vary with each installation.
≥For details about the required screws, refer to the diagram below the step “Drive a screw into the wall.”
(> 13).
∏ 2 Front
speakers
∏ 1 Center speaker
∏ 1 Metal bracket
∏ 4 Screws
∏ 3 Speaker cables
WHITE: Left
RED: Right
GREEN: Center
≥For a safety measure to prevent the speakers from falling, refer to page 24.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the speakers.
≥ There is no left and right for the center speaker.
≥ The two front speakers are interchangeable.
≥ Keep the screws out of reach of children to prevent swallowing.

A Screw (supplied)
≥ Tighten securely.
12
RQT9778
SC-HTB770PPC_RQT9778-1P_mst.book
Page 13
Tuesday, January 29, 2013
11:33 AM
Connect the speaker cables.

45

Push
 White
 Red
 Green
A Right speaker connector
B Center speaker connector
C Left speaker connector
1 Insert the wire fully.
r: White
s: Blue line
≥ Insert the wire fully, taking care not to insert
beyond the wire insulation.
2 Press into the groove.
Drive a screw into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 20 mm (25/32q) of space above and on each side of the speaker to allow enough space for fitting the speaker.
≥ Keep the screws out of reach of children to prevent swallowing.





A
B
C
D
E
At least 30 mm (1 3/16q)
‰4.0 mm (5/32q)
‰7.0 mm to ‰9.4 mm (9/32q to 3/8q)
Wall or pillar
5.5 mm to 6.5 mm (7/32q to 1/4q)
Front view (semi-transparent image)



F 238 mm (9 3/8q)
J Wall mounting hole




G 745 mm (29 11/32q)


H 248 mm (9 3/4q)
I 20 mm (25/32q)
RQT9778
13
Getting started
§ If you have difficulty inserting the cable, try straightening the speaker cable and then bending the
cable about 20 mm (25/32q) from the tip, at an angle of approx. 45o (as illustrated above).
SC-HTB770PPC_RQT9778-1P_mst.book
Page 14
Tuesday, January 29, 2013
11:33 AM
Wall mount the speakers:
Fit the speaker securely onto the screw(s).
Red connector: The speaker attached to the red connector cable is to be placed on the right side.
White connector: The speaker attached to the white connector cable is to be placed on the left side.
 White
 Red
A Right speaker connector
B Left speaker connector
DO
≥ Move the speaker so
that the screw is in this
position.
14
RQT9778
DO NOT
≥ In this position, the
speaker will likely fall if
moved to the left or
right.
SC-HTB770PPC_RQT9778-1P_mst.book
Page 15
Tuesday, January 29, 2013
11:33 AM
Place the front speakers vertically
The speakers can be wall mounted by drilling screws into the wall, etc.
Make sure that the screw used and the wall are strong enough to support the weight of at least 33 kg (72.8 lbs).
The screws and other items are not supplied as the type and size will vary with each installation.
≥For details about the required screws, refer to the diagram below the step “Drive a screw into the wall.”
(> 17).
∏ 2 Front
speakers
∏ 1 Center speaker
∏ 3 Speaker cables
WHITE: Left
RED: Right
GREEN: Center
∏ 2 Stand necks
∏ 2 Side caps
∏ 4 Screws
∏ 2 Hook brackets
≥For a safety measure to prevent the speakers from falling, refer to page 24.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Getting started
Assemble the center speaker:
Attach the side caps and hook brackets to the speaker.
≥ There is no left and right for the center speaker.
≥ Keep the screws out of reach of children to prevent swallowing.

A Hook bracket (supplied)
B Screw (supplied)
≥ Tighten securely.
RQT9778
15
SC-HTB770PPC_RQT9778-1P_mst.book
Page 16
Tuesday, January 29, 2013
11:33 AM
Assemble the center speaker:
Connect the speaker cable.
≥ Insert the wire fully, taking care not to insert beyond the wire insulation.
A Center speaker
connector
1 Insert the wire fully.
r: White
s: Blue line
Green
Push
Assemble the front speakers:
Attach the stand neck.
≥ The two front speakers are interchangeable.
≥ Keep the screws out of reach of children to prevent swallowing.

A Screw (supplied)
≥ Tighten securely.
Assemble the front speakers:
Connect the speaker cables.
1 Insert the wire fully.
r: White
s: Blue line
≥ Insert the wire fully, taking
care not to insert beyond
the wire insulation.
Push
45

2 Press into the groove.

§ If you have difficulty inserting the cable, try straightening the speaker cable and then bending the
cable about 20 mm (25/32q) from the tip, at an angle of approx. 45o (as illustrated above).
16
RQT9778
SC-HTB770PPC_RQT9778-1P_mst.book
Page 17
Tuesday, January 29, 2013
11:33 AM
Drive a screw into the wall.
≥ Use the measurements indicated below to identify the screwing positions on the wall.
≥ Leave at least 20 mm (25/32q) of space above and on each side of the speaker to allow enough space for fitting the speaker.
≥ Keep the screws out of reach of children to prevent swallowing.
Front speakers








A At least 30 mm
(1 3/16q)
B ‰4.0 mm (5/32q)
C ‰7.0 mm to
‰9.4 mm
(9/32q to 3/8q)
D Wall or pillar
E 5.5 mm to 6.5 mm
(7/32q to 1/4q)
F Front speaker
(Rear view)
G 100 mm (3 15/16q)
H 436 mm (17 5/32q)
I 34 mm (1 11/32q)
J Wall mounting hole







K At least 30 mm
(1 3/16q)
L ‰4.0 mm (5/32q)
M ‰7.0 mm to
‰9.4 mm
(9/32q to 3/8q)
N Wall or pillar
O 1.6 mm to 2.5 mm
(1/16q to 3/32q)
P Max. 3.5 mm
(9/64q)






Q Center speaker
(Rear view)
R 18 mm (23/32q)
S 147 mm (5 25/32q)
T 13 mm (1/2q)
U 19.6 mm (25/32q)
V 50.2 mm (1 31/32q)
RQT9778
17
Getting started

Center speaker
SC-HTB770PPC_RQT9778-1P_mst.book
Page 18
Tuesday, January 29, 2013
11:33 AM
Fit the speaker(s) securely onto the screw(s).
Red connector: The speaker attached to the red connector cable is to be placed on the right side.
White connector: The speaker attached to the white connector cable is to be placed on the left side.
 White
Red
A Left speaker connector
B Right speaker connector
DO
Front speaker
DO NOT
Center speaker
≥ Move the speaker so that the screw is in this position.
18
RQT9778

Front speaker
Center speaker
≥ In this position, the speaker will likely fall if moved to
the left or right.
SC-HTB770PPC_RQT9778-1P_mst.book
Page 19
Tuesday, January 29, 2013
11:33 AM
When placing the speakers on a table
Place the speakers using the leg stands
∏ 2 Front
speakers
∏ 1 Center speaker
∏ 3 Speaker cables
WHITE: Left
RED: Right
GREEN: Center
∏ 1 Metal
bracket
∏ 2 Leg stands
∏ 6 Screws
≥For a safety measure to prevent the speakers from falling, refer to page 24.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the speakers following steps 1 and 2 of “Place the speakers
horizontally” (> 12, 13).
Red connector:
With the speaker facing down, the speaker attached to the red connector cable is
to be placed on the left side.
White connector:
With the speaker facing down, the speaker attached to the white connector cable is
to be placed on the right side.
≥ Keep the screws out of reach of children to prevent swallowing.

 White
 Red

A Screw (supplied)
≥ Tighten securely.
B Screw hole
Align the higher or lower holes with the projecting parts on the
speaker.
≥ By changing the position that the stand is attached to the
projecting parts, the height can be adjusted by 9 mm (11/32q).
C Right speaker connector
D Left speaker connector
RQT9778
19
Getting started
Attach the leg stands.
SC-HTB770PPC_RQT9778-1P_mst.book
Page 20
Tuesday, January 29, 2013
11:33 AM
Place the speakers using the support legs and
speaker feet
∏ 2 Front
speakers
∏ 1 Center speaker
∏ 3 Speaker cables
WHITE: Left
RED: Right
GREEN: Center
∏ 1 Metal bracket
∏ 2 Support legs
∏ 6 Screws
∏ 2 Speaker feet
≥For a safety measure to prevent the speakers from falling, refer to page 24.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the speakers following steps 1 and 2 of “Place the speakers
horizontally” (> 12, 13).
Attach the support legs and speaker feet.
Red connector:
With the speaker facing down, the speaker attached to the red connector cable is
to be placed on the left side.
White connector:
With the speaker facing down, the speaker attached to the white connector cable is
to be placed on the right side.
≥ Keep the screws and the speaker feet out of reach of children to prevent swallowing.




Align the projecting
parts on the speaker
with support leg.
 White
Red 
A Screw (supplied)
≥ Tighten securely.
B Screw hole
C Speaker foot (supplied)
20
RQT9778
D Right speaker connector
E Left speaker connector
SC-HTB770PPC_RQT9778-1P_mst.book
Page 21
Tuesday, January 29, 2013
11:33 AM
Place the front speakers using the speaker
bases
∏ 2 Front
speakers
∏ 1 Center speaker
∏ 3 Speaker cables
WHITE: Left
RED: Right
GREEN: Center
∏ 2 Stand necks
∏ 2 Speaker bases
∏ 2 Side caps
∏ 6 Screws
∏ 2 Speaker feet
≥For a safety measure to prevent the speakers from falling, refer to page 24.
≥To prevent damage or scratches, lay down a soft cloth and perform the assembly on it.
Assemble the center speaker:
Attach the side caps and speaker feet to the speaker and connect the
speaker cable.
Getting started
≥ There is no left and right for the center speaker.
≥ Insert the wire fully, taking care not to insert beyond the wire insulation.
≥ Keep the screws and the speaker feet out of reach of children to prevent swallowing.
Green
Push
A Screw (supplied)
≥ Tighten securely.
B Speaker foot (supplied)
C Center speaker connector
1 Insert the wire fully.
r: White
s: Blue line
RQT9778
21
SC-HTB770PPC_RQT9778-1P_mst.book
Page 22
Tuesday, January 29, 2013
11:33 AM
Assemble the front speakers:
Attach the stand neck.
≥ The two front speakers are interchangeable.
≥ Keep the screws out of reach of children to prevent swallowing.

A Screw (supplied)
≥ Tighten securely.
Assemble the front speakers:
Insert the speaker cable through the speaker base and connect the
speaker cables.
≥ Be sure to insert the speaker cable through the threading hole as indicated in the illustration.
1 Insert the wire fully.
r: White
s: Blue line

≥ Insert the wire fully, taking
care not to insert beyond
the wire insulation.
Push

2 Press into the groove.
45
§ If you have difficulty inserting the cable, try straightening the speaker cable and then bending the
cable about 20 mm (25/32q) from the tip, at an angle of approx. 45o (as illustrated above).
22
RQT9778
SC-HTB770PPC_RQT9778-1P_mst.book
Page 23
Tuesday, January 29, 2013
11:33 AM
Assemble the front speakers:
Attach the speaker base.
≥ The two front speakers are interchangeable.
≥ Keep the screws out of reach of children to prevent swallowing.
Screw (supplied)
≥ Tighten securely.
Press into the groove.
Red connector: The speaker attached to the red connector cable is to be placed on the right side.
White connector: The speaker attached to the white connector cable is to be placed on the left side.
RQT9778
23
Getting started
Align the projecting
parts with the holes
on the speaker.
SC-HTB770PPC_RQT9778-1P_mst.book
Page 24
Tuesday, January 29, 2013
11:33 AM
Additional speaker fall prevention measures
To prevent the speakers from falling, it is recommended, as an additional
protection measure, to attach the speakers to the wall or table with a fall
prevention cord (hereafter “cord”).
≥ Consultation with a qualified installation specialist concerning the appropriate procedure when attaching to a concrete wall or a
surface that may not have strong enough support is recommended (> 13, 17). Improper attachment may result in damage to
the wall and speakers, and personal injury.
≥ Use a cord that is capable of supporting over 10 kg (22.05 lbs) (with a diameter of about 1.5 mm (1/16q)).
≥ The speaker fall prevention measure is to minimize the possibility of damage and harm, but it does not completely guarantee
this effect.
≥ Keep the screws out of reach of children to prevent swallowing.
≥ Make sure that the slack of the cord is minimal.
≥ Depending on the placement of the speakers, the screwing position of the screw eye may differ.
When attaching the speakers horizontally
Wall mounting





On a table


A Cord§
B Screw eye
C Wall
§ If the cord cannot be threaded through the holes, try bending the cord in 2 locations,
about 10 mm (13/32q) apart from the tip, at an angle of 45o (as illustrated above).
24
RQT9778
SC-HTB770PPC_RQT9778-1P_mst.book
Page 25
Tuesday, January 29, 2013
11:33 AM
When attaching the speakers vertically
Wall mounting









On a table






A Cord§1, 2
B Screw eye
C Wall
D Approx. 150 mm (5 29/32q)
§1 If the cord cannot be threaded through the holes, try bending the cord in 2 locations,
about 10 mm (13/32q) apart from the tip, at an angle of 45o (as illustrated above).
§2 When attaching the cord to the center speaker, make sure that the cord does not touch the speaker
cable lead wire.
RQT9778
25
Getting started

SC-HTB770PPC_RQT9778-1P_mst.book
Page 26
Tuesday, January 29, 2013
11:33 AM
Step 3 Connections
≥Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC power supply cord until all other connections are completed.
∫ HDMI
≥ The HDMI connection supports VIERA Link “HDAVI Control” (> 32) when used with a compatible Panasonic TV.
≥ Use the ARC compatible High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized.
≥ It is recommended that you use Panasonic’s HDMI cable.
Connection with the TV
Verify if the TV’s HDMI terminal is labeled “HDMI (ARC)”.
Connection differs depending on the label printed next to the HDMI terminal.
Labeled “HDMI (ARC)”: Connection [A]
Not Labeled “HDMI (ARC)”: Connection [B]
∫ What is ARC?
ARC is an abbreviation of Audio Return Channel, also known as HDMI ARC. It refers to one of the HDMI functions. When you
connect the main unit to the terminal labeled “HDMI (ARC)” on the TV, the optical digital audio cable that is usually required in
order to listen to sound from a TV is no longer required, and TV pictures and sound can be enjoyed with a single HDMI cable.
Make the connection.
[A] Labeled “HDMI (ARC)”
HDMI IN (ARC)
TV

Be sure to connect to
the TV’s ARC
compatible terminal.
(Refer to the operating
instructions for the TV.)
TV
(ARC)
AV OUT
DIGITAL
AUDIO
IN
TV
(ARC)
SPEAKERS/HAUT-PARLEURS
AC IN
AV OUT
A HDMI cable
[B] Not labeled “HDMI (ARC)”
HDMI IN

DIGITAL
AUDIO
IN
TV
(ARC)
TV
(OPT1)
TV
OPTICAL
OUT
AV OUT

DIGITAL
AUDIO
IN
TV
(ARC)
SPEAKERS/HAUT-PARLEURS
AC IN
A HDMI cable
TV
(OPT1)
AV OUT
B Optical digital audio cable
≥ When you use the optical digital audio cable, insert the tip correctly into the terminal.
26
RQT9778
SC-HTB770PPC_RQT9778-1P_mst.book
Page 27
Tuesday, January 29, 2013
11:33 AM
Connection with other devices
You can direct the audio signal from the connected Blu-ray Disc player, DVD player, Set Top Box, etc. to
this system.
When the device has an HDMI terminal
Preparation
≥Connect the main unit to the TV (> 26).
HDMI OUT
e.g., Blu-ray Disc player
HDMI OUT

e.g., Set top box
AUX2
(HDMI3)
BD/DVD
(HDMI1)
AUX1
(HDMI2)
AV IN
HDMI OUT
e.g., Video game console
DIGITAL
AUDIO
IN
AUX2
(HDMI3)
BD/DVD
(HDMI1)
AUX1
(HDMI2)
SPEAKERS/HAUT-PARLEURS
AC IN
AV IN
A HDMI cable
Even if the main unit is in standby mode, the audio and/or video signal from the device connected to the BD/DVD, AUX1 or AUX2
terminal will be sent to the TV connected to the HDMI OUT terminal (the sound will not be output from this system). When
devices are connected to all BD/DVD, AUX1 and AUX2 terminals, audio and/or video signal of the device whose input is lastly
selected is output.
∫ 3D compatibility
Compatible with FULL HD 3D TV and Blu-ray Disc player.
≥ The main unit can pass-through the 3D video signal from a 3D compatible Blu-ray Disc player to a FULL HD 3D TV.
When the device has an optical digital audio output terminal
e.g., Set top box
TV


OPTICAL OUT
DIGITAL
AUDIO
IN
AUX3
(OPT2)
DIGITAL
AUDIO
IN
SPEAKERS/HAUT-PARLEURS
AC IN
AUX3
(OPT2)
B Refer to the operating instructions of the respective devices for the optimal connection.
C Optical digital audio cable
RQT9778
27
Getting started
∫ HDMI standby pass-through
SC-HTB770PPC_RQT9778-1P_mst.book
Page 28
Tuesday, January 29, 2013
11:33 AM
Speaker cable connection
Match the connector shape and connect to the terminals of the same color.
6
R
6
CENTER
6
L
DIGITAL
AUDIO
IN
SPEAKERS/HAUT-PARLEURS
6
R
AC IN
6
CEN
TER
6
L

A RED
Right speaker connector

SPE
AK
ERS
/HA
UTPAR
LEU
RS

B GREEN
Center speaker connector
C WHITE
Left speaker connector
AC power supply cord connection
≥ Connect only after all other connections are completed.



AC IN
DIGITAL
AUDIO
IN
SPEAKERS/HAUT-PARLEURS
AC IN
D To a household AC outlet
E AC power supply cord (supplied)
≥This system consumes a small amount of AC power (> 39) even when it is turned off. In the interest of
power conservation, if you will not be using this system for a long time, unplug it from the household
AC outlet.
Saving energy
The main unit is designed to conserve its power consumption and save energy.
≥ The main unit will automatically switch to standby
no signal is input and no operation is performed for approx. 30 minutes.
28
RQT9778
mode when
SC-HTB770PPC_RQT9778-1P_mst.book
Page 29
Tuesday, January 29, 2013
Active subwoofer wireless
connection
Preparation
≥ Turn on the main unit.
Press [BÍ CI].
11:33 AM
Bluetooth® connection
By using the Bluetooth® connection, you can listen
to the sound from the Bluetooth® audio device
from this system wirelessly.
Preparation
≥ Turn on the Bluetooth® feature of the device and
place the device near the main unit.
Bluetooth® pairing
Press [ ] to select “ ”.
≥ If the “
” indicator flashes quickly, go to step 3.
Press and hold [ ] until the “ ”
indicator flashes quickly.
≥ If the “
” indicator flashes slowly, repeat step 2.
Select “SC-HTB770” from the
Bluetooth® device’s Bluetooth®
menu.
≥ If prompted for the passkey on the Bluetooth® device, enter
“0000”.
≥ Once the Bluetooth® device is connected, the “ ” indicator
stops flashing and lights up.
Connecting a Bluetooth®
device
Check that the wireless link is
activated.
Press [ ] to select “ ”.
≥ If the “ ” indicator lights, a Bluetooth® device is already
connected with this system. Disconnect it. (> below)
Select “SC-HTB770” from the
Bluetooth® device’s Bluetooth®
menu.
∫ Disconnecting a Bluetooth® device
Press and hold [
slowly.
WIRELESS LINK indicator
Lights red:
The wireless link is not activated.
Lights green:
The wireless link is activated.
Blinks green:
The active subwoofer is trying to activate the
wireless link with the main unit.
The wireless link will be activated when the main unit and the
active subwoofer are both turned on.
] until the “
” indicator flashes
≥ When “ ” is selected as the source, this system will
automatically try and connect to the last connected
Bluetooth® device.
≥ The Bluetooth® device will be disconnected if a different
audio source (e.g. “TV“) is selected.
≥ Refer to the operating instructions of the Bluetooth® device
for further instruction on how to connect a Bluetooth®
device.
≥ This system can only be connected to one device at a time.
≥ You can register up to 8 devices with this system. If a 9th
device is paired, the device that has not been used for the
longest time will be replaced.
≥ To change the sound quality, refer to “Bluetooth®
communication mode” on page 34.
RQT9778
29
Getting started
Active subwoofer on/off button [B Í C I]
Use this button to turn the active subwoofer on and
off.
C I:
The active subwoofer is on.
B Í:
The active subwoofer is off.
The active subwoofer will still consume a small
amount of power even when it is turned off (B, Í).
SC-HTB770PPC_RQT9778-1P_mst.book
Page 30
Tuesday, January 29, 2013
Using this system
11:33 AM
Operations
Adjust the volume and sound effect
level.
Preparation
≥ Turn on the active subwoofer.
≥ Turn on the TV and/or connected device.
∫ To adjust the volume of this system
Press [i VOL j].
≥ Volume range: 0 to 100§
∫ To adjust the dialog effect level
DIALOG LEVEL
INPUT
SELECTOR
LINK MODE
SOUND
----PAIRING
This setting will change the level of the Clearmode dialog effect. (> 31)
1 Press [i DIALOG LEVEL j] to display the
current level.
2 While the level is displayed:
Press [i DIALOG LEVEL j] to adjust the
level.
Indication
4
Press [Í] to turn on the main unit.
Select the source.
Press
To select
[INPUT
SELECTOR]
“TV”--------#“BD/DVD”--------#“AUX1”
[
“
]
^- “
Effect level
Highest
3
”(- “AUX3”(- “AUX2”(}
2
” (Bluetooth®)
≥ This remote control cannot be used to control the operations
of the connected devices.
1
Lowest
∫ When “ ” is selected as the source
On the Bluetooth® device:
Select this system as the output source of the connected
Bluetooth® device and start the playback.
∫ When “BD/DVD”, “AUX1” or “AUX2” is
selected as the source
On the TV and the connected device:
Select the TV’s input for this system and start the
playback on the connected device.
∫ When “AUX3” is selected as the
source
On the TV and the connected device:
Select the TV’s input for the device connected to “AUX3”
terminal and start the playback on the connected device.
∫ To adjust the subwoofer level
1
2
Press [i SUBWOOFER j] to display the
current level.
While the level is displayed:
Press [i SUBWOOFER j] to adjust the level.
≥ The level indication pattern is the same as dialog effect
level.
∫ To mute the sound
Press [MUTE].
≥ While muting, the sound mode indicators blink
simultaneously.
≥ To cancel, press the button again or adjust the volume.
≥ Muting is canceled if the main unit is turned off.
If this system does not operate as expected or sound is unusual, returning the settings to the
factory preset may solve the problem. (> 36)
§ The sound mode indicators blink from left to right (i) or from right to left (s) while adjusting.
The indicators will not blink when it has reached the maximum or minimum.
≥ If there is sound coming out of the TV’s speakers, reduce the volume of the TV to its minimum.
≥ If the main unit is turned off with the volume setting in the greater half (above 50), the main unit will automatically lower the
volume to the middle (50) when the main unit is turned on (Volume limitation).
To turn this function off, refer to page 35.
30
RQT9778
SC-HTB770PPC_RQT9778-1P_mst.book
Page 31
Tuesday, January 29, 2013
11:33 AM
3D sound
This system provides a feeling that the sound and the
image are as one.
≥ To change the applied effect, refer to “Sound modes”.
(> right)
e.g., Image of 3D sound field
Sound modes
By changing the sound mode, it is possible to enjoy the
sound that is suitable to the TV program or image from the
connected device.
∫ To select the sound mode
Press [SOUND].
“STANDARD” -----#“STADIUM” -----#“MUSIC”
^- “STEREO”( “NEWS”( “CINEMA”(}
≥ The indicator for the selected sound mode lights.
e.g., “STANDARD”
Sound mode
3D sound
3D surround
effect
Clear-mode
dialog
With this effect you can enjoy a
surround sound effect similar to
5.1ch.
Adding to the Dolby Virtual
Speaker effect, Panasonic has
applied its own sound field
controlling technology to expand
the sound field forwards,
backwards, upwards, and
downwards, providing a sound
with depth and force that better
matches 3D images.
Sports commentary and dialogs
from TV dramas are heard as if the
sound is coming from the TV,
giving the feeling that the sound
and the image are one.
Also, the dialog will stand out from
the other sounds during normal
volume playback and when the
volume is lowered for night time
viewing.
“STANDARD”
(Factory preset)
“STADIUM”
“MUSIC”
“CINEMA”
“NEWS”
“STEREO”
Produces a sound best suited for
dramas and comedy shows.
Produces a highly realistic sound
for live broadcasts of sports.
Re-creates the sound of musical
instruments and songs with an
expansive sound.
Produces a powerful, threedimensional sound unique to
movies.
Enhances the voices of news and
sports commentaries for clearer
hearing.
You can play any source in stereo.
Dolby Virtual Speaker and 3D
surround effects are turned off.
Operations
Dolby Virtual
Speaker
®
The setting is maintained until it is changed again.
≥ To turn off Dolby Virtual Speaker and the 3D surround
effects, select “STEREO” as the sound mode. (> right)
≥ To turn off the 3D surround and the Clear-mode dialog
effects, refer to “Using the Dolby Virtual Speaker effect”.
(> 34)
RQT9778
31
SC-HTB770PPC_RQT9778-1P_mst.book
Page 32
Tuesday, January 29, 2013
11:33 AM
Linked operations with the TV
(VIERA LinkTM “HDAVI ControlTM”)
What is VIERA Link “HDAVI
Control”?
VIERA LinkTM is a new name for EZ SyncTM.
VIERA Link “HDAVI Control” is a convenient
function that offers linked operations of this
system, and a Panasonic TV (VIERA) under
“HDAVI Control”.
You can use this function by connecting the
equipment with an HDMI cable. See the
operating instructions for connected
equipment for operational details.
Preparation
1
2
3
4
5
Confirm that the HDMI connection has been made.
(> 26, 27)
Set the “HDAVI Control” operations on the connected
equipment (e.g., TV).
For the optimal “HDAVI Control” operations change
the following settings on the connected TV§1.
≥ Set the default speaker settings to this system.§2
≥ Set the speaker selection settings to this system.
Turn on all “HDAVI Control” compatible equipment
and select the TV’s input for this system so that the
“HDAVI Control” function works properly.
If a device is connected to the HDMI IN terminal, start
play to check that the picture is displayed on the TV
correctly.
When the connection or settings are changed,
repeat this procedure.
§1 The availability and function of the settings may vary
depending on the TV. Refer to the operating instructions
for the TV for details.
§2 If the TV has a default speaker setting within the VIERA
Link setting items, choosing this system as the default
speaker will automatically change the speaker selection to
this system.
What you can do with
VIERA Link “HDAVI
Control”
To make sure that the audio is output from this system,
turn the main unit on by using the TV’s remote control and
selecting home theater from the speaker menu of VIERA
Link menu. The availability and function of the settings
may vary depending on the TV. Refer to the operating
instructions for the TV for details.
∫ Speaker control
You can select whether audio output is from this system or
the TV speakers by using the TV menu settings.
Home theater
This system is active.
≥ When the main unit is in standby mode, changing the TV
speakers to this system in the VIERA Link menu will
automatically turn the main unit on.
≥ You can control the volume setting of this system using the
volume or mute button on the TV remote control.
≥ If you turn off the main unit, the TV speakers will be
automatically activated.
≥ Audio will automatically be output from this system if the TV
is compatible to VIERA Link “HDAVI Control 4” or later.
TV
TV speakers are active.
≥ The volume of this system is set to its minimum.
∫ Automatic input switching
When the following operations are performed, the main
unit will automatically change the input to the
corresponding source.
jWhen play starts on an HDMI connected device.§3
jWhen the TV input or the TV channel is changed.
§3 If the speaker output setting on the TV is set to this
system, the TV and the main unit turn on automatically
(Power on link).
∫ Power off link
≥ VIERA Link “HDAVI Control”, based on the control functions
provided by HDMI which is an industry standard known as
HDMI CEC (Consumer Electronics Control), is a unique
function that we have developed and added. As such, its
operation with other manufacturers’ equipment that
supports HDMI CEC cannot be guaranteed.
≥ This unit supports “HDAVI Control 5” function.
“HDAVI Control 5” is the standard for Panasonic’s HDAVI
Control compatible equipment. This standard is compatible
with Panasonic’s conventional HDAVI equipment.
≥ Please refer to individual manuals for other manufacturers’
equipment supporting VIERA Link function.
When the TV is turned off, the main unit also turns off
automatically. (This function does not work when
Bluetooth® is the source.)
∫ Automatic lip-sync function
(for HDAVI Control 3 or later)
Delay between audio and video is automatically adjusted
by adding time-lag to the audio output, enabling you to
enjoy smooth audio for the picture.
The delay information is automatically set if the TV is
compatible to VIERA Link “HDAVI Control 3” or later and the
VIERA Link is set to on.
32
RQT9778
SC-HTB770PPC_RQT9778-1P_mst.book
Page 33
Tuesday, January 29, 2013
11:33 AM
Advanced operations
Audio format indicator
To display the current audio format.
Press and hold [SOUND] for more than
4 sec.
≥ The current audio format is indicated for 5 sec.
“STADIUM” indicator blinks:
Dolby Digital is the audio format.
“MUSIC” indicator blinks:
DTS is the audio format.
“CINEMA” indicator blinks:
PCM is the audio format.
Audio format is not indicated when “
source.
” is selected as the
Changing the dual audio
Auto gain control
With this function, you can prevent sudden loud sounds.
The output will be reduced automatically when the input
exceeds a certain level.
Press and hold [INPUT SELECTOR]
on the remote control for more than
4 sec.
“STANDARD” indicator blinks:
Auto gain control is on.
“STEREO” indicator blinks:
Auto gain control is off.
(Factory preset)
While the setting is displayed, press
[INPUT SELECTOR] on the remote
control to change the setting.
≥ The setting changes each time [INPUT SELECTOR] is
pressed.
≥ The indicator for the selected setting blinks for 20 sec and
then exits the setting mode.
≥ The setting is maintained until it is changed again.
Change the dual audio from main to secondary.
≥ This setting will only work if the audio output setting on
the connected TV or player, etc. is set to "Bitstream"
and dual audio is available in the audio source.
Press and hold [MUTE] for more than
4 sec.
“STANDARD” indicator blinks (A):
Main (Factory preset)
Operations
“STEREO” indicator blinks (B):
Secondary
(SAP: Secondary Audio Program)
When A and B both blink: Main and secondary
While the setting is displayed, press
[MUTE] to change the setting.
≥ The setting changes each time [MUTE] is pressed.
≥ The indicator for the selected setting blinks for 20 sec and
then exits the setting mode.
≥ The setting is maintained until it is changed again.
RQT9778
33
SC-HTB770PPC_RQT9778-1P_mst.book
Page 34
Tuesday, January 29, 2013
Bluetooth® communication
mode
You can select different modes to suit the type of
connections with emphasis on connectivity or high quality
audio.
≥ Make sure that a Bluetooth® device is already paired
with this system. (> 29)
Using the Dolby Virtual
Speaker effect
Depending on your preference, It is possible to turn off the
3D surround effect and the clear-mode dialog effect.
While pressing and holding [SOUND]
on the remote control, press and
hold [VOL i] on the main unit for
more than 4 sec.
Press [ ] to select “ ”.
≥
“
” indicator will blink slowly. If the indicator lights, a
Bluetooth® device is already connected with this system.
Disconnect it. (> 29)
“STANDARD” indicator blinks:
3D surround effect and clear-mode
dialog effect is on.
Press [ ] to display the current
mode.
“STEREO” indicator blinks:
3D surround effect and clear-mode
dialog effect is off.
“STANDARD” indicator blinks:
MODE1 (Factory preset)
Emphasis on connectivity
“STEREO” indicator blinks:
MODE2
Emphasis on audio quality
While the mode is displayed, press
[ ] to select the mode.
≥ The setting changes each time [ ] is pressed.
≥ The indicator for the selected setting blinks for 10 sec and
then exits the setting mode.
≥ The setting is maintained until it is changed again.
11:33 AM
While the setting is displayed, press
[SOUND] to change the setting.
≥ The setting changes each time [SOUND] is pressed.
≥ The indicator for the selected setting blinks for 20 sec and
then exits the setting mode.
≥ This setting will be reset to on when the main unit is turned
off.
≥ When off is selected, the dialog effect level cannot be
adjusted.
Dimmer mode
You can turn off dimmer mode and keep the LED
indicators bright.
While pressing and holding [INPUT
SELECTOR] on the remote control, press
and hold [s VOL] on the main unit for
more than 4 sec to turn off Dimmer mode.
≥ The indicator for the current condition will turn brighter.
≥ The setting is maintained until it is changed again.
≥ Default setting of this function is on.
To turn on dimmer mode, repeat the operation above.
After performing the operation, the indicator for the current
condition will be dim.
34
RQT9778
SC-HTB770PPC_RQT9778-1P_mst.book
Page 35
Tuesday, January 29, 2013
11:33 AM
Others
∫ Remote control code
When other Panasonic devices respond to this system’s
remote control, change the remote control code on this
system and the remote control.
Preparation
≥ Turn off all other Panasonic products.
≥ Turn on the main unit.
Change the remote control code to code 2:
1 Aim the remote control at the main unit’s
remote control sensor.
2 Press and hold [MUTE] and [ ] on the remote
control for more than 4 sec.
≥ All the indicators will blink for 10 sec when the code of
this system is changed.
∫ To turn off VIERA Link “HDAVI
Control”
When “HDAVI Control” compatible equipment does not
work well with this system, for example, it is possible to
turn off this function as follows:
≥ When VIERA Link is turned off, the ARC function is not
available. Be sure to connect the optical digital audio
cable. (> 26)
1
2
While pressing and holding [MUTE] on the
remote control, press and hold [s VOL] on the
main unit for more than 4 sec.
After the setting has changed, turn off all the
connected devices and then turn them on
again.
≥ All the indicators will blink once when VIERA Link “HDAVI
Control” is turned off.
≥ The setting is maintained until it is changed again.
≥ If the main unit does not operate after changing the code,
repeat steps 1 and 2.
≥ To change the remote control code to code 1, repeat the
steps above, but replace [ ] with [INPUT SELECTOR].
∫ To reduce the clear-mode dialog effect
When the dialog does not sound natural while the volume
is set low, it is possible to reduce the dialog enhancing
effect as follows:
While pressing and holding [SOUND] on the
remote control, press and hold [s VOL] on the
main unit for more than 4 sec.
To reset the setting, return to the factory preset. (> 36)
∫ To turn off the volume limitation
If a state of the lowered volume disturbs you every time
the main unit turns on, for example, it is possible to turn off
this function as follows:
While pressing and holding [MUTE] on the remote
control, press and hold [VOL i] on the main unit
for more than 4 sec.
≥ All the indicators will blink once when the volume limitation
is turned off.
≥ All the indicators will blink once when the clear-mode dialog
effect is reduced.
Operations
To reset the setting, return to the factory preset. (> 36)
≥ Even if clear-mode dialog effect is reduced, dialog effect
level is still adjustable.
To reset the setting, return to the factory preset. (> 36)
RQT9778
35
SC-HTB770PPC_RQT9778-1P_mst.book
Page 36
Tuesday, January 29, 2013
Troubleshooting
Before requesting service, make the following checks. If
you are in doubt about some of the check points, or if the
solutions indicated in the following guide do not solve the
problem, refer to “Customer Services Directory (United
States and Puerto Rico)” on page 42 if you reside in the
U.S.A. or Puerto Rico, or refer to “WARRANTY SERVICE”
on page 43 if you reside in Canada.
11:33 AM
Reference
HDMI
This system does not operate correctly.
If the HDMI cable is connected to the wrong terminal
(HDMI IN or HDMI OUT), this system will not operate
correctly. Turn the main unit off, disconnect the AC power
supply cord and reconnect the HDMI cable(s). (> 26, 27)
To return to the factory preset.
While the main unit is on, press [Í/I] on the main
unit for more than 4 sec.
(All the indicators will blink twice when this
system is reset.)
VIERA Link related operations no longer
function properly.
No power.
≥ Check the VIERA Link setting on the connected
devices.
≥ Have you turned the VIERA Link settings off? (> 35)
≥ When the HDMI connections are changed, after a
power failure or after the AC power supply cord has
been removed, VIERA Link operations may not function
properly.
j Turn on all the devices that are connected to the TV
with an HDMI cable and then turn the TV on.
j Turn off the VIERA Link settings of the TV and turn it
on again. For details refer to the operating
instructions for the TV.
j While the main unit and the TV are connected with
the HDMI cable, turn on the TV and then remove the
main unit’s AC power supply cord and reconnect it
again.
≥ Insert the AC power supply cord securely. (> 28)
≥ After turning the main unit on, if the indicators blink and
the main unit immediately turns off, unplug the AC
power supply cord and consult your dealer.
The first few seconds of audio cannot be heard
when using the HDMI connection.
If this system does not operate as expected,
returning the settings to the factory preset
may solve the problem.
≥ The remote control code will return to “1” when
this system is returned to the factory preset. To
change the remote control code, refer to page
35.
General operation
The remote control does not work properly.
≥ The battery is depleted. Replace it with a new one.
(> 9)
≥ It is possible that the insulation sheet has not been
removed. Remove the insulation sheet. (> 9)
≥ It may be necessary to set the code of the remote
control again after changing the battery of the remote
control. (> 35)
≥ Use the remote control within the correct operation
range. (> 9)
The “TV” indicator blinks.
Remove the AC power supply cord and consult your
dealer. If there are any other indicators blinking, be sure to
inform your dealer about the blinking indicators.
The main unit is automatically switched to
standby mode.
The main unit will automatically switch to standby mode
when no signal is input and no operation is performed for
approx. 30 minutes. (> 28)
The main unit is turned off when the TV’s
speakers are selected in the speaker control.
This is a normal feature when using VIERA Link (HDAVI
Control 4 or later). Please read the operating instructions
for the TV for details about its power save feature. (> 32)
36
RQT9778
This may occur during DVD-Video chapter playback.
Change the digital audio output setting on the connected
device from “Bitstream” to “PCM”.
When operating an HDMI compatible device of
a different brand, the main unit reacts in an
unwanted manner.
HDAVI Control commands may use a different signal
depending on the brand of the device. In this case, turn
VIERA Link off. (> 35)
Bluetooth®
Pairing cannot be done.
Check the Bluetooth® device condition.
The device cannot be connected.
≥ The pairing of the device was unsuccessful or the
registration has been replaced. Try pairing the device
again. (> 29)
≥ This system might be connected to a different device.
Disconnect the other device and try pairing the device
again.
The device is connected but audio cannot be
heard through this system.
For some built-in Bluetooth® devices, you have to set the
audio output to “SC-HTB770” manually. Read the
operating instructions for the device for details.
Page 37
Tuesday, January 29, 2013
The sound is interrupted.
≥ The device is out of the 10 m (33 ft) communication
range. Bring the Bluetooth® device closer to the main
unit.
≥ Remove any obstacle between the main unit and the
device.
≥ Other devices that use the 2.4 GHz frequency band
(wireless router, microwaves, cordless phones, etc.) are
interfering. Bring the Bluetooth® device closer to the
main unit and distance it from the other devices.
≥ Select “MODE1” for stable communication. (> 34)
Sound
No sound (or image).
≥ Turn muting off. (> 30)
≥ Check the connections to the other devices. (> 26, 27)
≥ Make sure that the received audio signal is compatible
with this system. (> 38)
≥ Turn this system off and then on again.
≥ If the main unit is connected to the TV with only an
HDMI cable, make sure that the TV’s HDMI terminal is
labeled “HDMI (ARC)”. If not, connect using the optical
digital audio cable. (> 26)
≥ If the main unit is connected to a Panasonic TV and
turned on using the button on the main unit or the
remote control, sound might not be output from this
system. In this case, turn the main unit on using the
TV’s remote control. (> 32)
≥ If the connections are correct, there might be a problem
with the cables. Redo the connections with different
cables.
≥ Check the audio output settings on the connected
device.
≥ If the BD/DVD indicator flashes and there is no audio
output, try the following.
1 Turn the connected device off and then on.
2 Turn off the main unit, remove the HDMI cable, then
reconnect the HDMI cable and turn the main unit
back on.
The dual audio cannot be changed from main
to secondary.
If the audio received from the connected device is not
“Dolby Dual Mono” or the output setting is not “Bitstream”,
the setting cannot be changed from this system. Change
the setting on the connected device.
The volume is lowered when the main unit is
turned on.
If the main unit is turned off with the volume setting in the
greater half (above 50), the main unit will automatically
lower the volume to the middle (50) when the main unit is
turned on. (> 35)
The dialog is too persistent or the dialog does
not sound natural.
This system has a function to make the dialog stand out
when the volume is low. (> 35)
11:33 AM
There is no audio.
The power of the main unit turns off
automatically.
(When the main unit detects a problem, a safety measure
is activated and the main unit automatically switches to
standby mode.)
≥ There is a problem with the amplifier.
≥ Is the volume extremely high?
If so, lower the volume.
≥ Is this system placed in an extremely hot place?
If so, move this system to a cooler place and wait a few
moments and then try to turn it on again.
If the problem persists, confirm the TV indicator and
BD/DVD indicator blink, turn this system off, remove the
AC power supply cord and consult your dealer. Please be
sure to remember the indicators that were blinking and
inform the dealer.
Active Subwoofer
No power.
Ensure the AC power supply cord of the active subwoofer
is connected properly.
After turning the subwoofer on, it immediately
turns off.
Unplug the AC power supply cord and consult your dealer.
No sound from the subwoofer.
≥ Check that the active subwoofer is turned on.
≥ Check that the WIRELESS LINK indicator lights green.
(> 29)
The WIRELESS LINK indicator lights red.
≥ There is no link between the main unit and the active
subwoofer.
j Check that the main unit is turned on.
j Turn the active subwoofer off and then back on.
Alternatively, turn the active subwoofer off,
disconnect the AC power supply cord and then
reconnect it.
≥ The active subwoofer and the main unit may not be
paired correctly. Try the following operation. (Wireless
pairing)
1 Turn on the main unit and active subwoofer.
2 Press [ID SET] on the rear of the active subwoofer
for more than 3 sec.
(The WIRELESS LINK indicator will blink in red.)
3 While pressing and holding [INPUT SELECTOR] on
remote control, press and hold [VOL i] on the main
unit for more than 4 sec. (The BD/DVD indicator will
blink and sound mode indicators light up in
sequence.)
≥ When the wireless pairing is successful, BD/DVD
indicator will stop flashing and WIRELESS LINK
indicator lights green.
4 Turn the main unit off and on.
≥ Consult your dealer if the problem persists.
RQT9778
37
Reference
SC-HTB770PPC_RQT9778-1P_mst.book
SC-HTB770PPC_RQT9778-1P_mst.book
Page 38
Tuesday, January 29, 2013
11:33 AM
Specifications
AMPLIFIER SECTION
RMS output power: Dolby Digital Mode
Front ch (L, R ch)
60 W per channel (6 ≠), 1 kHz, 10 % THD
Center ch (C ch)
60 W per channel (6 ≠), 1 kHz, 10 % THD
Subwoofer ch
120 W per channel (8 ≠), 100 Hz, 10 % THD
Total RMS Dolby Digital mode power
300 W
FTC output power: Dolby Digital Mode
Front ch (L, R ch)
25 W per channel (6 ≠),
120 Hz to 20 kHz, 1.0 % THD
Center ch (C ch)
25 W per channel (6 ≠),
120 Hz to 20 kHz, 1.0 % THD
Subwoofer ch
40 W per channel (8 ≠),
60 Hz to 120 Hz, 1.0 % THD
Total FTC Dolby Digital mode power
115 W
TERMINAL SECTION
HDAVI Control
This unit supports “HDAVI Control 5” function.
HDMI AV input (BD/DVD, AUX1, AUX2)
3
Input connector
Type A (19 pin)
HDMI AV output (TV (ARC))
1
Output connector
Type A (19 pin)
Digital audio input
Optical digital input (TV, AUX3)
2
Sampling frequency
32 kHz, 44.1 kHz, 48 kHz
88.2 kHz, 96 kHz (only LPCM)
Audio format
LPCM, Dolby Digital, DTS Digital Surround
USB Port
For service use only.
38
RQT9778
SPEAKER SECTION
Front speakers
3 way, 3 speaker system (Bass reflex type)
Speaker unit(s)
Impedance 6 ≠
Woofer
5.7 cm (2 1/4q) cone type
Tweeter
2.5 cm (1q) semi-dome type
Super tweeter
Piezo type
Output sound pressure
78 dB/W (1 m)
Frequency range 90 Hz to 32 kHz (`16 dB)
100 Hz to 23 kHz (`10 dB)
Center speaker
2 way, 2 speaker system (Bass reflex type)
Speaker unit(s)
Impedance 6 ≠
Woofer
5.7 cm (2 1/4q) cone type
Super tweeter
Piezo type
Output sound pressure
78 dB/W (1 m)
Frequency range 110 Hz to 20 kHz (`16 dB)
150 Hz to 16 kHz (`10 dB)
Active subwoofer
1 way, 1 speaker system (Bass reflex type)
Woofer
16 cm (6 1/2q) cone type
Output sound pressure
80 dB/W (1 m)
Frequency range 30 Hz to 180 Hz (`16 dB)
35 Hz to 160 Hz (`10 dB)
WIRELESS SECTION
Wireless module
Frequency Range
2.40335 GHz to 2.47735 GHz
No. of channels
38
SC-HTB770PPC_RQT9778-1P_mst.book
Page 39
Tuesday, January 29, 2013
GENERAL
SPEAKER GENERAL
Main unit: 37 W
Active subwoofer: 20 W
In standby condition
Main unit (When the other connected devices
are turned off):
Approx. 0.25 W
Active subwoofer
(Power switch release):
Approx. 0.2 W
Power supply
AC 120 V, 60 Hz
Dimensions (WkHkD)
Main unit
310 mmk45 mmk188 mm
(12 3/16qk1 12/16qk7 6/16q)
Active subwoofer
180 mmk408 mmk306 mm
(7 3/32qk16 1/16qk12 1/16q)
Mass (Weight)
Main unit
Approx. 1.15 kg (2.54 lbs)
Active subwoofer
4.76 kg (10.5 lbs)
Operating temperature range
0 oC to r40 oC (r32 oF to r104 oF)
Operating humidity range
20 % to 80 % RH (no condensation)
Bluetooth® SECTION
Bluetooth® system specification
Version 3.0
Wireless equipment classification
Supported profiles
Frequency band
Class 2
A2DP
2402 MHz to 2480 MHz
(Adaptive Frequency Hopping)
Operating distance
10 m (33 ft) Line of Sight
For wall mounting layout
Horizontal placement
Dimensions
1230 mmk68 mmk41 mm
(48 7/16qk2 11/16qk1 10/16q)
(WkHkD)
Mass (Weight)
1.98 kg (4.37 lbs)
Vertical placement of front speakers
Front Speaker
68 mmk541 mmk41 mm
Dimensions
(2 11/16qk21 5/16qk1 10/16q)
(WkHkD)
Mass (Weight)
0.78 kg (1.72 lbs)
Center Speaker
Dimensions
178 mmk70 mmk45 mm
(7qk2 3/4qk1 12/16q)
(WkHkD)
Mass (Weight)
0.37 kg (0.82 lbs)
For table top layout
Horizontal placement using the leg stands (High)
Dimensions
1230 mmk96 mmk68 mm
(48 7/16qk3 12/16qk2 11/16q)
(WkHkD)
Mass (Weight)
2.04 kg (4.50 lbs)
Horizontal placement using the leg stands (Low)
Dimensions
1230 mmk87 mmk68 mm
(48 7/16qk3 7/16qk2 11/16q)
(WkHkD)
Mass (Weight)
2.04 kg (4.50 lbs)
Horizontal placement using the support legs
and the speaker feet
Dimensions
1230 mmk71 mmk60 mm
(48 7/16qk2 13/16qk2 6/16q)
(WkHkD)
Mass (Weight)
2 kg (4.41 lbs)
Vertical placement of front speakers
Front Speaker
Dimensions
148 mmk552 mmk148 mm
(5 13/16qk21 12/16qk5 13/16q)
(WkHkD)
Mass (Weight)
0.89 kg (1.96 lbs)
Center Speaker
Dimensions
178 mmk71 mmk44 mm
(7qk2 13/16qk1 12/16q)
(WkHkD)
Mass (Weight)
0.37 kg (0.82 lbs)
1 Specifications are subject to change without notice.
2 Weight and dimensions are approximate.
3 Total harmonic distortion is measured by a digital spectrum
analyzer.
RQT9778
39
Reference
Power consumption
11:33 AM
SC-HTB770PPC_RQT9778-1P_mst.book
Page 40
Tuesday, January 29, 2013
11:33 AM
Indicator illumination
The indicators display the condition of this system by flashing. The indicator patterns illustrated below
are displayed during normal operational conditions. They do not refer to the indications of a problem.
Indicator
Description
The BD/DVD indicator blinks§2 and sound mode
indicators light up in sequence for 1 minute.
≥ When the main unit is in wireless pairing mode with the
active subwoofer (> 37)
The indicator blinks for 10 sec.
≥ When the Bluetooth® communication is mode 1 (> 34)
The indicator blinks for 20 sec.
≥ When 3D surround effect and clear-mode dialog effect
are on (> 34)
≥ When the dual audio setting is Main (> 33)
≥ When the auto gain control is on (> 33)
1
The indicator blinks for 5 sec.
≥ When the audio format is Dolby Digital (> 33)
1
The indicator blinks for 5 sec.
≥ When the audio format is DTS (> 33)
1
The indicator blinks for 5 sec.
≥ When the audio format is PCM§3 (> 33)
The indicator blinks for 10 sec.
≥ When the Bluetooth® communication is mode 2 (> 34)
The indicator blinks for 20 sec.
≥ When 3D surround effect and clear-mode dialog effect
are off (> 34)
≥ When the dual audio setting is Secondary (SAP:
Secondary Audio Program) (> 33)
≥ When the auto gain control is off (> 33)
The indicators blink for 20 sec.
≥ When the dual audio setting is Main and Secondary
(> 33)
The indicators blink for 10 sec.
≥ When the remote control code is changed (> 35)
The indicators blink once.
≥ When changing the setting (“To reduce the clear-mode
dialog effect”, “To turn off VIERA Link “HDAVI Control””,
and “To turn off the volume limitation”) (> 35)
The indicators blink twice.
≥ When the main unit is reset (> 36)
1
Bluetooth® indicator blinks quickly.
≥ When the main unit is ready for pairing
Bluetooth® indicator blinks slowly.
≥ When the main unit is waiting to connect
Bluetooth® indicator turns on.
≥ When the main unit is connected with a Bluetooth®
device
§1 The indicator for the current status remains lit.
§2 The BD/DVD indicator stops blinking and lights once the wireless pairing is successful.
§3 The indicator blinks only when [SOUND] is pressed for more than 4 sec and the audio format is PCM.
40
RQT9778
Page 41
Tuesday, January 29, 2013
11:33 AM
Reference
SC-HTB770PPC_RQT9778-1P_mst.book
RQT9778
41
SC-HTB770PPC_RQT9778-1P_mst.book
Page 42
Tuesday, January 29, 2013
11:33 AM
Limited Warranty
(ONLY FOR U.S.A. AND PUERTO RICO)
Panasonic Consumer Marketing Company of North America,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, New Jersey 07094
Panasonic Products Limited Warranty
Limited Warranty Coverage
(For USA and Puerto Rico Only)
If your product does not work properly because of a defect in materials or
workmanship, Panasonic Consumer Marketing Company of North America
(referred to as “the warrantor”) will, for the length of the period indicated on
the chart below, which starts with the date of original purchase (“warranty
period”), at its option either (a) repair your product with new or refurbished
parts, (b) replace it with a new or a refurbished equivalent value product, or
(c) refund your purchase price. The decision to repair, replace or refund will
be made by the warrantor.
Product or Part Name
Parts
Labor
Home Theater Audio System
1 Year
1 Year
All included Accessories
(Except Non-Rechargeable Batteries)
90 Days
Not
Applicable
Only Non-Rechargeable Batteries
10 Days
Not
Applicable
During the “Labor” warranty period there will be no charge for labor. During
the “Parts” warranty period, there will be no charge for parts. This Limited
Warranty excludes both parts and labor for non-rechargeable batteries,
antennas, and cosmetic parts (cabinet). This warranty only applies to
products purchased and serviced in the United States or Puerto Rico. This
warranty is extended only to the original purchaser of a new product which
was not sold “as is”.
Mail-In Service
For assistance in the U.S.A. and Puerto Rico in obtaining repairs, please
ship the product prepaid to:
Panasonic Exchange Center
4900 George McVay Drive
Suite B
McAllen, TX 78503
[email protected]
Online Repair Request
To submit a new repair request and for quick repair status visit our Web Site
at www.panasonic.com/repair.
When shipping the unit, carefully pack, include all supplied accessories listed
in the Owner’s Manual, and send it prepaid, adequately insured and packed
well in a carton box. When shipping Lithium Ion batteries please visit our
Web Site at www.panasonic.com/BatteryHandling as Panasonic is
committed to providing the most up to date information. Include a letter
detailing the complaint, a return address and provide a daytime phone
number where you can be reached. A valid registered receipt is required
under the Limited Warranty.
IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE
PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/
PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT
PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED
FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF
OF PURCHASE.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic
damage. The warranty ALSO DOES NOT COVER damages which occurred
in shipment, or failures which are caused by products not supplied by the
warrantor, or failures which result from accidents, misuse, abuse, neglect,
mishandling, misapplication, alteration, faulty installation,
set-up adjustments, misadjustment of consumer controls, improper
maintenance, power line surge, lightning damage, modification, introduction
of sand, humidity or liquids, commercial use such as hotel, office, restaurant,
or other business or rental use of the product, or service by anyone other
than a Factory Service Center or other Authorized Servicer, or damage that
is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED
UNDER “LIMITED WARRANTY COVERAGE”.
THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS
PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS
WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the
servicer, loss of or damage to media or images, data or other memory or
recorded content. The items listed are not exclusive, but for illustration only.)
ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD
OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or
consequential damages, or limitations on how long an implied warranty lasts,
so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have other
rights which vary from state to state. If a problem with this product develops
during or after the warranty period, you may contact your dealer or Service
Center. If the problem is not handled to your satisfaction, then write to the
warrantor’s Consumer Affairs Department at the addresses listed for the
warrantor.
PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS
LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
Customer Services Directory (United States and Puerto Rico)
Obtain Product Information and Operating Assistance; locate
your nearest Dealer or Service Center; purchase Parts and
Accessories; or make Customer Service and Literature requests
by visiting our Web Site at:
http://www.panasonic.com/help
or, contact us via the web at:
http://www.panasonic.com/contactinfo
You may also contact us directly at:
1-800-211-PANA (7262)
Monday-Friday 9am-9pm,
Saturday-Sunday 10am-7pm EST
For hearing or speech impaired TTY users, TTY: 1-877-833-8855
Accessory Purchases (United States and Puerto Rico)
Purchase Parts, Accessories and Instruction Books online for all
Panasonic Products by visiting our Web Site at:
http://www.pstc.panasonic.com
Or, send your request by E-mail to:
[email protected]
You may also contact us directly at:
1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only)
(Monday-Friday 9am-9pm EST)
Panasonic National Parts Center
20421 84th Ave S., Kent, WA 98032
(We accept Visa, MasterCard, Discover Card, American Express)
For hearing or speech impaired TTY users, TTY: 1-866-605-1277
As of October 2012
The model number and serial number of this product can be
found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for
future reference.
MODEL NUMBER
SERIAL NUMBER
42
RQT9778
SC-HTB770
User memo:
DATE OF PURCHASE ______________________________
DEALER NAME ___________________________________
DEALER ADDRESS________________________________
_________________________________________________
TELEPHONE NUMBER _____________________________
SC-HTB770PPC_RQT9778-1P_mst.book
Page 43
Tuesday, January 29, 2013
11:33 AM
Limited Warranty (ONLY FOR CANADA)
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT - LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use
and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product
with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your
purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.
Technics Audio Product - One (1) year, parts and labour
Panasonic BD/DVD Product - One (1) year, parts and labour
Panasonic Audio Receivers - One (1) year, parts and labour
Home Theater Systems Product - One (1) year, parts and labour
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic
brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in
Canada, which product was not sold “as is”, and which product was delivered to you in new condition in the original
packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR
OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS
REQUIRED
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal
wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or
failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents,
misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or
service by anyone other than an Authorized Servicer, or damage that is attributable to acts of God.
Dry cell batteries are also excluded from coverage under this warranty.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from
the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of
items is not exhaustive, but for illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages,
or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty
gives you specific legal rights and you may have other rights which vary depending on your province or territory.
WARRANTY SERVICE
For product operation and information assistance, please contact:
PRODUCT OPERATION ASSISTANCE
Customer Care Centre:
Telephone #: 1-800-561-5505
Fax #: (905) 238-2360
Reference
PRODUCT REPAIRS
Please locate your nearest Authorized Servicentre.
Link: “Support # Panasonic Servicentre® locator” on www.panasonic.ca
IF YOU SHIP THE PRODUCT TO A SERVICENTRE
Carefully pack and send prepaid, adequately insured and preferably in the original carton.
Include details of the defect claimed, and proof of date of original purchase.
RQT9778
43
