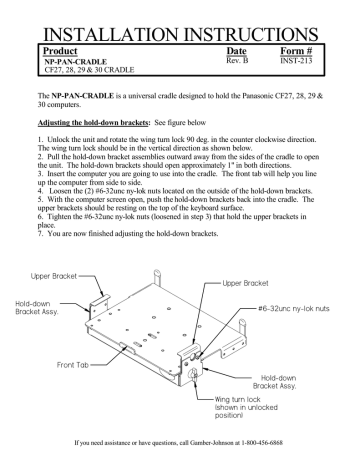

INSTALLATION INSTRUCTIONS
Product
Date
Form #
NP-PAN-CRADLE
CF27, 28, 29 & 30 CRADLE
Rev. B
INST-213
The NP-PAN-CRADLE is a universal cradle designed to hold the Panasonic CF27, 28, 29 &
30 computers.
Adjusting the hold-down brackets: See figure below
1. Unlock the unit and rotate the wing turn lock 90 deg. in the counter clockwise direction.
The wing turn lock should be in the vertical direction as shown below.
2. Pull the hold-down bracket assemblies outward away from the sides of the cradle to open
the unit. The hold-down brackets should open approximately 1" in both directions.
3. Insert the computer you are going to use into the cradle. The front tab will help you line
up the computer from side to side.
4. Loosen the (2) #6-32unc ny-lok nuts located on the outside of the hold-down brackets.
5. With the computer screen open, push the hold-down brackets back into the cradle. The
upper brackets should be resting on the top of the keyboard surface.
6. Tighten the #6-32unc ny-lok nuts (loosened in step 3) that hold the upper brackets in
place.
7. You are now finished adjusting the hold-down brackets.
Upper Bracket
Hold-down
Bracket Assy.
Upper Bracket
#6-32unc ny-lok nuts
Front Tab
Hold-down
Bracket Assy.
Wing turn lock
(shown in unlocked
position)
If you need assistance or have questions, call Gamber-Johnson at 1-800-456-6868
Accessories:
1 The LED Light 7160-0095 will attach directly to either side of the cradle with the
machine screws and flat washers provided in the hardware bag that comes with the light. See
Figure 2.
2. The Screen Support 7110-0643 will attach directly to either side of of the cradle with the
machine screws and flat washers provided in the hardware bag that comes with the screen
support. See Figure 3.
7160-0095
LED Light
Figure 2
7110-0643
Screen Support
Figure 3
Product Mounting Disclaimer
Gamber-Johnson is not liable under any theory of contract or tort law for any loss, damage, personal injury, special, incidental or consequential damages for personal injury or other damage
of any nature arising directly or indirectly as a result of the improper installation or use of its products in vehicle or any other application. In order to safely install and use Gamber-Johnson
products full consideration of vehicle occupants, vehicle systems (i.e., the location of fuel lines, brakes lines, electrical, drive train or other systems), air-bags and other safety equipment is
required. Gamber-Johnson specifically disclaims any responsibility for the improper use or installation of its products not consistent with the original vehicle manufactures specifications
and recommendations, Gamber-Johnson product instruction sheets, or workmanship standards as endorsed through the Gamber-Johnson Certified Installer Program.
