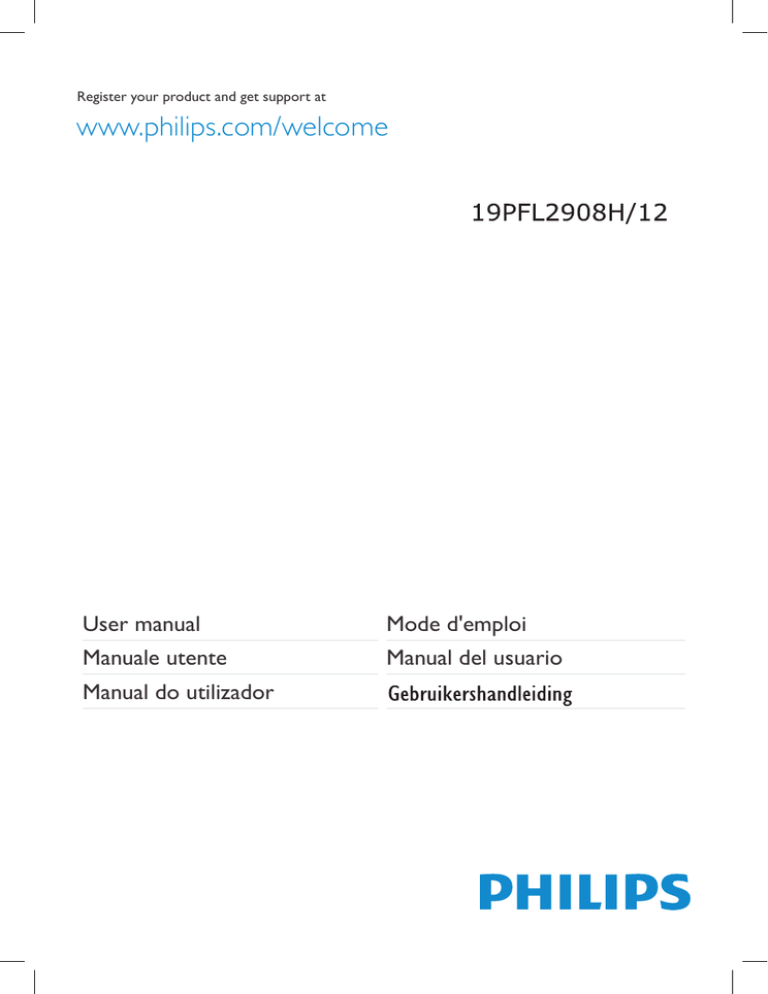

Philips 19PFL2908H/12 User manual

Philips 19PFL2908H/12 User manual
Register your product and get support at
www.philips.com/welcome
User manual
Mode d'emploi
Manuale utente
Manual del usuario
Manual do utilizador
General Operation
Contents
TV Control switch & Operation................................ 1
General Operation................................................... 1
TV Menu Features and Functions........................... 7
Specifications...............................................................14
Installing the Batteries to the Remote
Lift the cover on the back of the remote upward gently.
Install two AAA batteries. Make sure to match the +
and - ends of the batteries in the battery compartment
(observe the correct polarity. Replace the cover.
TV Control switch & Operation
Connect Power & Antenna/Cable
1. Up direction
2. Down direction
3. Programme/Volume / AV / Standby-On
selection switch
Note:You can move the switch, upward or downward to
change the volume. If you want to change channels, press
the middle of the switch once (Position 3) and then move
upward or downward. If you press the middle of the switch
once more, source OSD will be displayed. If you press the
middle of the switch and hold about a few seconds, the TV
will switch to standby mode. Main menu OSD cannot be
displayed via control buttons.
HDMI 1
IMPORTANT: The TV set is designed to operate on
220-240V AC, 50 Hz socket. After unpacking, allow
the TV set to reach the ambient room temperature
before you connect the set to the mains. Plug the
power cable to the mains socket outlet.
SPDIF
Coax.OUT
Operation with the Remote Control
•Press “ ” button on your remote control to display
main menu screen. Use Left or Right button to
select a menu tab and press OK to enter. Use Left
/ Right / Up / Down to select or set an item. Press
“
” or “
” button to quit a menu screen.
•Once you have connected external systems to
your TV, you can switch to different input sources.
Press SOURCE button on your remote control
consecutively to select the different sources.
•You can change the channel and adjust the volume
by using the +/- and CH+/- buttons on the remote. .
Accessories included
•Remote Control
•Batteries: 2 x AAA
•Instruction Book
•Quick Start Guide
•Side AV Connection Cable
English - 1 -
English - 2 -
Viewing remote control
1. Standby
2. Stop (in Media Browser mode)
3. Play (in Media Browser mode) / Play-Slideshow
(in Media Browser)
4. Rapid reverse (in Media Browser mode)
5. AV / Source selection
6. TV
7. Electronic programme guide(in DVB channels)
8. Navigation buttons (Up/Down/Left/Right)
9. Programme recording
10. Programme Down / Page up
11. Mute
12. Volume Down
13. Green button / List Schedule (in EPG) / Tag/
Untag All (in favourite list)
14. Red button
15. Numeric buttons
16. Subtitle on-off (in DVB channels)
17. Teletext / Mix (in TXT mode)
18. Blue button/Edit Channel List/Filter (in Favourite
List&EPG)
19. Yellow button/Timeline Schedule(in EPG)
20. Volume Up
21. Programme Up / Page down
22. Back/ Return / Index page (in TXT mode)
23. Mono/Stereo - Dual I-II / Current Language (*)
(in DVB channels)
24. Okay (Confi rm) / Hold (in TXT mode) / Channel
List
25. Info / Reveal (in TXT mode)
26. Menu on-off / Exit (in Media Browser mode)
27. Picture zoom
28. Rapid advance (in Media Browser mode)
29. Pause (in Media Browser mode) / Timeshift
recording
Teletext
Press TEXT button to enter. Press again to activate
mix mode. Press once more to exit. Follow the
instructions displayed on digital teletext screen.
Digital Teletext (for UK only)
Press TEXT button to view digital teletext information.
Operate it with the coloured buttons, cursor buttons
and OK button. The operation method may differ
depending on the contents of the digital teletext. Follow
the instructions displayed on digital teletext screen.
English - 3 -
Viewing the Connections
Connector
Type
Cables
Device
Scart
Connection
(back)
VGA
Connection
(back)
SIDE AV
PC/YPbPr
Audio
Connection
(side)
Side Audio/Video
Connection Cable
(Supplied)
PC Audio Cable
(Not supplied)
HDMI
Connection
(back)
SPDIFF
Connection
(back)
SIDE AV
Side AV
Connection
(side)
AV Connection Cable
(supplied)
HEADPHONE
Headphone
Connection
(side)
USB
Connection
(side)
CI
Connection
CAM
module
(side)
NOTE: When connecting a device via the Side AV input, you must use the supplied connection cables to enable
connection. See the illustrations above. | To enable PC audio, you will need to use the supplied SIDE AV CONNECTION
cable’s WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to
AV mode.| When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via
the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of
the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer
to the module instruction manual for details of the settings.
Note: You can use YPbPr to VGA cable (not supplied) to enable YPbPr signal via VGA input.
WARNING: You cannot use VGA and YPbPr at the same time.
English - 4 -
Aerial Installation
Switching On/Off
To Switch the TV On
•Connect the power cord to the 220-240V AC, 50 Hz.
•Then the standby LED lights up.
•To switch on the TV from standby mode either:
•Press the “ ” button, CH- or CH+ or a numeric
button on the remote control.
•Press the control switch left side of the TV. The TV
will then switch on.
Note: If you switch on your TV via CH- or CH+ buttons on
the remote control or on the TV set, the programme that you
were watching last will be reselected.
By either method the TV will switch on.
If you select AERIAL option from the Search Type
screen, the television will search for digital terrestrial
TV broadcasts.
NOTE: You can press “
”button to cancel.
After all the available stations are stored, Channel
List will be displayed on the screen. If you like the
sort channels, according to the LCN (*), please select
“Yes” and than press OK.
Press “ ” button to quit channel list and watch TV.
(*) LCN is the Logical Channel Number system that
organizes available broadcasts in accordance with a
recognizable channel sequence (if available).
Cable Installation
To Switch the TV Off
•Press the “ ” button on the remote control or hold
the control switch on the TV until shut down , so
the TV will switch to standby mode.
•To power down the TV completely, unplug the power
cord from the mains socket.
Note: When the TV is switched to standby mode, the standby
LED can blink to indicate that features such as Standby
Search, Over Air Download or Timer is active.
First Time Installation
When turned on for the first time, language selection
screen is displayed in all language options listed
alphabetically. Press the “ ” or “ ” button to
highlight the required language, press OK button to
select. “First Time Installation” appears. Use “ ” or
“ ” button to set the required country, and press “ ”
button to select Search Type. Use “ ” or “ ” to set
the desired search type. Available search types are
Digital and analog, digital only and analog only. When
set, press “ ” to select Teletext Language. Use “ ”
or “ ” to select the desired Teletext Language. Next,
select Scan Encrypted and set as Yes if you want to
scan coded stations. Press OK button on the remote
control to continue and the search type screen will be
displayed. You must select a search type to search
and store broadcasts from the desired source.
If you select CABLE option and press OK button on the
remote control to continue. To continue, please select
YES and press OK. To cancel operation, select NO and
press OK. You can select frequency ranges from this
screen. For highlighting lines you see, use “ ” or “ ”
button. You can enter the frequency range manually by
using the numeric buttons on the remote control. Set
Start and Stop Frequency as desired by using numeric
buttons on the remote control. After this operation, you
can set Search Step as 8000 KHz or 1000 KHz. If you
select 1000 KHz, the TV will perform search process in
a detailed way. Searching duration will thus increase
accordingly. Depending on your Country selection in
the first time installation, 250KHz search step option
might be available on Network Channel Scan screen.
Note that if you perform the search with 250KHz option,
search process could take a longer time.
Additionally, for some countries, Network ID option
will be available. Network ID feature gets the Network
Information Table. This table provides information on
the selected network. It may change according to the
operator and the region where that operator actively
broadcasts.When finished, press OK button to start
automatic search. The TV will search and store available
broadcasts.
IMPORTANT: When you select Country option as
France or Italy, you will be asked to set and confirm
a PIN number. Selected PIN number cannot be 0000.
Enter a PIN number and confirm it by entering once
more. Press OK button to continue. If the two PIN
numbers match, your master PIN number will be set.
WARNING: When you are required to enter a PIN
number for any menu operation you should use the
PIN that you have previously defined during the first
time installation. If you have forgotten the PIN number
you have set during the first time installation, you
should use the master PIN code, 4725.
English - 5 -
Media Playback via USB Input
You can connect a USB hard disk drive or USB memory stick
to your TV by using the USB inputs of the TV. This feature
allows you to play files stored in a USB drive. 2.5” and 3.5”
inch (hdd with external power supply) external hard disk
drives are supported.
IMPORTANT! You should back up your files before
making any connections to the TV set in order to
avoid any possible data loss. Manufacturer will not
be responsible for any file damage or data loss. It is
possible that certain types of USB devices (e.g. MP3
Players) or USB hard disk drives/memory sticks may
not be compatible with this TV. The TV supports FAT32
and NTFS disk formatting but recording will not be
available with NTFS formatted disks. Note: While
formatting a USB hard disk that has 1TB (Tera Byte) or
more file capacity, you can experience problems with
the formatting process. Quickly plugging and unplugging
USB devices, is a very hazardous operation. Do not
repeatedly quickly plug and unplug the drive. This
may cause physical damage to the USB player and
USB device itself. Do not pull out USB module while
playing a file.
Media Browser Menu
You can play photo, music, and movie files stored
on a USB disk by connecting it to your TV and using
the Media Browser screen. To do this, perform the
following: Connect a USB disk to one of the USB
”
inputs located on the side of the TV. Press “
button and select Media Browser tab by using Left/
Right and OK buttons. Main media browser screen
will be displayed. You can display the related content
by selecting the Video, Music or Picture tab. Follow the
button indications under each on screen menu for media
playback features. You can set your Media Browser
preferences by using the Settings dialogue.
Loop/Shuffle Mode Operation
and
TV plays next file and loop
the list.
Start playback with OK and
the same file will be played in a
loop (repeat).
Start playback with
activate
activate
Start playback with OK/
and
activate
Start playback with OK/
activate
and
the file will be played in a shuffle.
the file playback will continue
randomly and random playback
will continue.
English - 6 -
TV Menu Features and Functions
Picture Menu Contents
Mode
For your viewing requirements, you can set the related mode option. Picture mode
can be set to one of these options: Cinema,Game,Dynamic and Natural.
Contrast
Sets the lightness and darkness values of the screen.
Brightness
Sets the brightness value for the screen.
Sharpness
Sets the sharpness value for the objects displayed on the screen.
Colour
Sets the colour value, adjusting the colors.
Power Save
Mode
To set Power Save Mode as Eco, Picture Off and Disabled. .
Backlight
(optional)
This setting controls the backlight level and it can be set to Auto, Maximum, Minimum
and Eco Mode. Backlight function will be inactive if Power Save Mode is set to On.
Backlight cannot be activated in VGA, Media Browser mode or while the picture
mode is set to Game.
Noise
Reduction
If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting
to reduce the noise amount. Noise Reduction can be set to one of these options:
Low, Medium, High or Off.
Colour Temp
Sets the desired colour tone.
Picture Zoom
Sets the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom, 4:3 or Cinema.
HDMI True
Black
While watching from HDMI source, this feature will be visible in the Picture Settings
menu. You can use this feature to enhance blackness in the picture.
Film Mode
(optional)
Films are recorded at a different number of frames per second to normal television
programmes. Turn this feature on when you are watching films to see the fast motion
scenes clearly.
Colour Shift
Adjust the desired colour tone.
Reset
Resets the picture settings to factory default settings.
Autoposition
(in PC mode)
Automatically optimizes the display. Press OK to optimize.
H Position (in
PC mode)
This item shifts the image horizontally to right hand side or left hand side of the screen.
V Position (in
PC mode)
This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock (in
PC mode)
Dot Clock adjustments correct the interference that appear as vertical banding in
dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase (in PC
mode)
Depending on the resolution and scan frequency that you input to the TV set, you
may see a hazy or noisy picture on the screen. In such a case you can use this item
to get a clear picture by trial and error method.
Advanced Settings
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings
will be added to the Picture Settings while in PC mode.
English - 7 -
TV Menu Features and Functions
Sound Menu Contents
Volume
Adjusts volume level.
Equalizer:
Classic and User. Press the “ ” button to return to the previous menu. Equalizer
menu settings can be changed manually only when the Equalizer Mode is in User.
Balance
This setting is used for emphasizing left or right speaker balance.
Headphone
Sets headphone volume.
Sound Mode
You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel
supports that mode.
AVL
Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output
level between programmes (For instance, volume level of advertisements tend
to be louder than programmes).
Dynamic Bass:
Press “ ” or “ ” button to set Dynamic Bass as on or off.
Digital Out
Sets digital out audio type.
In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat,
Using the Channel List
Configuring Parental Settings
The TV sorts all stored stations in the Channel List. You
can edit this channel list, set favourites or set active
stations to be listed by using the Channel List options.
To prohibit viewing of certain programmes, channels and menus
can be locked by using the parental control system.
•Select Edit Channel List to manage all stored
channels. You can move, delete, edit name and
lock channels using this screen.
Highlight Parental in the Settings menu and press OK
to continue. To display parental lock menu options, the
PIN number should be entered. The factory default PIN
number is 0000. After coding the correct PIN number,
parental settings menu will be displayed.
•Select Favourites to create a list of favourite
programmes.
Menu Lock: Menu lock setting enables or disables the
menu access.
•Select Active Channel List to sort channel list.
You can select a broadcast type option from the
displayed list by using “ ” /“ ” and OK buttons.
Maturity Lock: When set, this option gets the maturity
information from the broadcast and if this maturity level
is disabled, disables access to the broadcast.
•Select Channel List from the main menu.
Child Lock: When Child Lock is set, the TV can only
be controlled by the remote control. In this case the
control panel buttons will not work.
Set PIN: Defines a new PIN number.
IMPORTANT: The factory default pin number is 0000,
if you change the pin number make sure you write it
down and keep it safe.
Note: If the Country option is set to France or Italy, you
can use 4725 as the default code.
English - 8 -
TV Menu Features and Functions
Settings Menu Contents
Conditional Access
Controls conditional access modules when available.
Language
Configures language settings (-may change depending on the country selected)
Preferred and current settings will be available. Current settings can be changed
only if the broadcaster supports.
Parental
Configures parental settings.
Timers
Sets timers for selected programmes. / Sets sleep timer to turn off the TV after
a certain time.
Recording Configuration
Displays recording configuration menu.
Date/Time
Sets date and time.
Note:
* The TV takes the time info via the broadcast. Correct time will be available on
Date/Time Settings, if the time info is provided in the broadcast.
If the TV is in no channel mode, Date/Time settings can be changed. However,
if there is a channel preset, only “Time Settings Mode” can be changed and if
this is set to Manual, Time Zone will be enabled.
* If the TV is switched to standby mode and switched on later and there is no
broadcast available, time information will not be updated. If there is a present
broadcast; however, time information will be taken via the broadcast. In other words,
time information will be available according to these priorities: The TV first looks for
the time info in the broadcast, then to the user preference, and lastly to the teletext
time information.
Sources
Enables or disables selected source options.
Install and Retune Menu Contents
Displays automatic tuning options.
Digital Aerial: Searches and stores aerial DVB stations.
Automatic Channel
Scan (Retune)
Digital Cable: Searches and stores cable DVB stations.
Analogue: Searches and stores analogue stations.
Digital Aerial & Analogue: Searches and stores aerial DVB and analogue
stations.
Digital Cable & Analogue: Searches and stores cable DVB and analogue
stations.
Manual Channel Scan
This feature can be used for direct broadcast entry.
Network Channel Scan
Searches for the linked channels in the broadcast system..
Analogue Fine Tune
You can use this setting for fine tuning analogue channels. This feature is not
available if no analogue channels are stored.
First Time Installation
Deletes all stored channels and settings, resets TV to factory settings and starts
first time installation. You can follow the instructions in the Initial Installation
section for more information on this process.
Clear Service List
(*) Visible for Denmark, Sweden, Norway or Finland. Clear Service List and then
press OK. The following OSD will be displayed on the screen. Select YES and
press OK to continue or select NO and press OK button to cancel.
Other Settings: Displays other setting options of the TV set:
Menu Timeout
Changes timeout duration for menu screens.
Scan Encrypted
When this setting is on, search process will locate the encrypted channels as well.
If it is set as Off, encrypted channels will not be located in automatic search or
manual search.
English - 9 -
TV Menu Features and Functions
Blue Background
(optional)
Activates or deactivates blue background system when the signal is weak or
absent.
Software Upgrade
To ensure that your TV always has the most update information, you can use this
setting. In order for the proper operation, please ensure that the TV is set to standby
mode.
Application Version
Displays application version.
Hard of Hearing
If the broadcaster enables any special signal concerning the audio, you can set
this setting as On to receive such signals.
Audio Description
Audio description refers to an additional narration track for blind and visually
impaired viewers of visual media, including television and movies. You can
use this feature, only if the broadcaster supports that additional narration track.
Auto TV Off
You can set the timeout value of auto off feature. When the timeout value is reached
and the Tv is not operated for selected time, the TV will go off.
Broadcast Type
Selects the desired broadcast type.
Standby Search
(optional)
If you change Standby Search to Off, this function will be unavailable. To use
Standby search please make sure that you select Standby Search as On. If
the Standby Search is set to On, when the TV is in standby mode, available
broadcasts will be searched. If the TV locates any new or missing broadcasts,
a menu screen will be displayed, asking you whether or not to execute these
changes. Channel list will be updated and changed after this process. Please
activate Standby Search setting in order to enable your TV for automatically
updating the broadcast frequency of the broadcaster, broadcast definition and
similar changes.
English - 10 -
Electronic Programme Guide (EPG)
Some, but not all channels send information about the
current and next programmes. Press the “
to view the EPG menu.
” button
Up/Down/Left/Right: Navigate EPG.
OK: Displays programme options.
INFO: Displays, in detail information on programme
selected.
GREEN: Switches to List Schedule EPG.
YELLOW: Switches to Timeline Schedule EPG.
BLUE: displays filtering options.
: The TV will start to record the selected
programme. You can press again to stop the recording.
IMPORTANT: To record a programme, you should first
connect a USB disk to your TV while the TV is switched off.
You should then switch on the TV to enable recording feature.
Otherwise, recording feature will not be available.
Note: Switching to a different broadcast or source is not
available during the recording.
Programme Options
In EPG menu, press the OK button to enter the Event
Options menu.
Select Channel
In EPG menu, using this option, you can switch to the
selected channel.
Record / Delete Record Timer
After you have selected a programme in EPG menu,
press the OK button and Options screen will be
displayed. Select “Record” option and press the OK
button. After this operation, a recording becomes set
to the selected programme.
To cancel an already set recording, highlight that
programme and press the OK button and select the
option “Delete Rec. Timer”. The recording will be
cancelled.
Set Timer / Delete Timer
After you have selected a programme in EPG menu,
press the OK button and Options screen will be
displayed. Select “Set Timer on Event” option and
press OK button. You can set a timer for future
programmes. To cancel an already set timer, highlight
that programme and press the OK button. Then select
“Delete Timer” option. The timer will be cancelled.
Recording a Programme
IMPORTANT: When using a new USB hard disk drive, it is
recommended that you first format the disk using your TV’s
“Format Disk” option.
To record a programme, you should first connect a
USB disk to your TV while the TV is switched off.
You should then switch on the TV to enable recording
feature.
For using recording function, you should connect a
USB disk or an external hard disk drive to the TV
and connected USB disk should have at least 1 GB
capacity and should have 2.0 speed compatibility.
If the connected USB device does not support 2.0
speed, an error message will be displayed.
Note: Recorded programmes are saved into the connected
USB disk. If desired, you can store/copy recordings on a
computer; however, these files will not be available to be
played on a computer. You can play the recordings only
via your TV.
Note: Lip Sync delay may occur during the timeshifting.
Radio record is not supported. The TV can record
programmes up to ten hours.
Recorded programmes are split into 4GB partitions.
If the writing speed of the connected USB disk is not
sufficient, recording may fail and timeshifting feature
may not be available.
Recordings of HD programmes can occupy bigger
size on the USB disk depending on the broadcast’s
resolution. For this reason it is recommended to use
USB hard disk drives for recording HD programmes.
Do not plug out the USB/HDD during the recording.
This may harm the connected USB/HDD.
Multipartition support is available. Maximum two
different partitions are supported. If the disk have more
than two partitions, crash may occur. First partition of
the usb disk is used for PVR ready features. It also
must be formatted as primary partition to be used for
PVR ready features.
Some stream packets may not be recorded because
of signal problems, so sometimes video may freezes
during playback.
Record, Play, Pause, Display (for PlayListDialog) keys
could not be used when teletext is ON. If a recording
starts from timer when teletext is ON, teletext is
automatically turned off. Also teletext usage is
disabled when there is ongoing recording or playback.
Note: It is not possible to record or set timer for two or more
individual events at the same time interval.
English - 11 -
Timeshift Recording
Press (PAUSE) button while watching a broadcast
for switching to timeshifting mode. In timeshifting
mode, the programme is paused and simultaneously
recorded to the connected USB disk. Press (PLAY)
button again to watch the paused programme from
the stopped moment. You will see the timeshift gap
between the real and the timeshifted programme in
the info bar.
Instant Recording
Press
button to start recording an event instantly
while watching a programme. You can press
button on the remote control again to record the next
event on the EPG. In this case, an OSD will be
displayed, indicating the programmed events for
recording. Press
(STOP) button to cancel instant
recording.
Note: Switching to a different broadcast or source; and
viewing Media Browser are not available during the recording.
While recording a programme or during the timeshifting, a
warning message appears on the screen if your USB device
speed is not sufficient.
Watching Recorded Programmes
In the main menu, use “ ” or “ ” buttons to select
Media Browser and press OK. Highlight Recordings
Library item by using “ ” or “ ” button and press
OK button to enter. Recordings Library will then be
displayed. Select a recorded item from the list (if
previously recorded) by using “ ” / “ ” button. Press
OK button to view Play Options. Select an option by
using “ ” / “ ” or OK buttons.
Note: Viewing main menu and menu items will not be available
during the playback.
Press (STOP) button to stop a playback and return
to Recordings Library.
Slow Forward
If you press
(PAUSE) button while watching
recorded programmes, slow forward feature will be
button to slow forward.
available. You can use
button consecutively will change slow
Pressing
forwarding speed.
Recording Configuration
Select Recording Configuration item in the Settings
menu to configure recording settings.
will restore normal operation; however, ALL the data
stored on the USB disk will be lost in such a case.
Note: If “USB is too slow” message is displayed on the
screen while starting a recording, try restarting the recording.
If you still get the same error, it is possible that your USB
disk does not meet the speed requirements. Try connecting
another USB disk.
Software Upgrade
Your TV is capable of finding and updating new
software upgrades over broadcast channels (if
available). For broadcast channels search, TV looks
the available channels stored in your settings. So
before software upgrade search, it is advised to auto
search and update all available channels.
1) Software Update via the USB Input
Before starting..
Ensure that you have a USB flash disk with
appropriate free space. Do not use a USB hard disk
drive for the software update process.
Get software updates from your dealer or www.
philips.com/support.
Check the current software version of your TV
using the MENU>Settings>Other Settings>Software
Upgrade item. If the version you have found is not
newer than the current version on your TV, it is not
necessary to update your product. Do not install a
lower version of the software since this may cause
problems.
•After obtaining the most recent software, copy the
BIN file to the USB flash disk.
•Now connect the USB flash disk to the USB input
of your TV.
•Switch off your TV using the main control switch of
the TV and unplug the power cord.
•Hold the remote control towards the TV. Now press
the OK button and keep pressing the OK button (Do
not release the OK button now).
•Plug the TV to the mains and switch on the TV.
•Keep pressing the OK button five seconds more
after the TV switches on and release it afterwards.
Software update process should now start.
•The TV will switch on in First Time Installation mode
after the software update finishes.
IMPORTANT
Format Disk: You can use Format Disk feature for
formatting the connected USB disk.
Do not press any other buttons on the TV or on the
remote control during the software update.
IMPORTANT: Note that ALL the data stored on the
USB disk will be lost and then the disk format will
be converted to FAT32 if you activate this feature. If
your USB disk malfunctions, you can try formatting
the USB disk. In most cases formatting the USB disk
Do not remove the USB flash disk from the TV during
the process.
To prevent accidental updates, please use your
computer to delete the BIN file on your USB flash
disk after the software update is successfully finished.
English - 12 -
2) 3 AM search and upgrade mode
2. Is the antenna connected properly?
•If Automatic scanning in Upgrade Options menu
is enabled, TV wakes up at 03:00 and searches
broadcast channels for new software upgrade. If new
software is found and downloaded successfully, with
next power up TV opens with new software version.
3. Are the plugs connected tightly to the antenna socket?
Note on reboot operation: Reboot is the last step in software
upgrade operation if download of new software is finished
successfully. During reboot TV makes final initialization. In reboot
sequence panel power is closed and front led indicates the activity
with blinking. Around 5 minutes later TV restarts with new software
activated. The TV may start in first time installation mode.
No sound
•If your TV fails to restart in 10 minutes, unplug power
for 10 minutes and re-plug again. TV should open
with new software safely. If you still can not get
TV working, please kindly repeat unplug and plug
sequence a few times more. If your set still can not
operate, please call the service personnel to fix the
problem for you.
Caution: While led is blinking during reboot do not unplug
your TV’s power. Doing this may cause your TV not to
re-open again and can only be fixed by service personnel.
Troubleshooting & Tips
4. Is the antenna cable damaged?
5. Are suitable plugs used to connect the antenna?
6. If you are in doubt, consult your dealer.
1. Has the TV been set to mute? To cancel mute, press
the “ ” button, or increase the volume level.
2. Sound is coming from only one speaker. Is the balance
set to one extreme? See Sound Menu section.
Remote control - does not operate
Your TV no longer responds to the remote control.
The batteries may be exhausted, if so you can still
use the control buttons on the TV. (* Is only possible
if they are not blocked by parental control and if they
are available with your model.)
Input sources - can not be selected
1. If you cannot select an input source, it is possible
that no device is connected.
2. Check the AV cables and connections if you have
tried to connect a device.
Image persistence - ghosting
Please note that ghosting may occur while displaying
a persistent image (still or paused image). LED TV’s
image persistence may disappear after a short time.
Try turning off the TV for a while. To avoid this, do not
leave the screen in still picture mode for extended periods.
No power
If your TV has no power, please check the power cord
plug is connect to the mains power socket.
Poor picture
1. Have you selected the correct TV system?
2. Is your TV or house aerial located too close to a
non-earthed audio equipment or neon lights, etc.?
3. Mountains or high buildings can cause double
pictures or ghost images. Sometimes you can
improve the picture quality by changing the
direction of the aerial. Is the picture or teletext
unrecognisable?
4. Check if you have entered the correct frequency.
5. Please retune the channels.
Recording Unavailable
To record a programme, you should first connect
a USB disk to your TV while the TV is switched
off. You should then switch on the TV to enable
recording feature. Otherwise, recording feature will
not be available. If you cannot perform recording, try
switching off the TV and then re-inserting the USB
device while the TV is switched off.
USB Is too Slow
If “USB is too slow” message is displayed on the
screen while starting a recording, try restarting
the recording. If you still get the same error, it is
possible that your USB disk does not meet the speed
requirements. Try connecting another USB disk.
Manufactured under license from Dolby
Laboratories.
TRADEMARK ACKNOWLEDGMENT
“Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
6. The picture quality may degrade when two devices
are connected to the TV at the same time. In such
a case, disconnect one of the devices.
No picture
1. No Picture means that your TV is not receiving a
transmission. Have you selected the correct button
on the remote control? Try once more. Also make
sure the correct input source has been selected.
English - 13 -
Information for Users on Disposal of Old
Equipment and Batteries
[European Union only]
These symbols indicate that equipment with these
symbols should not be disposed of as general
household waste. If you want to dispose of the product
or battery, please consider the collection systems or
facilities for appropriate recycling.
Notice: The sign Pb below the symbol for batteries indicates
that this battery contains lead.
Specifications
TV BROADCASTING
PAL/SECAM B/G D/K K’ I/I’ L/L’
DIGITAL RECEPTION
DVB-T MPEG2 DVB-T MPEG4 HD
DVB-T MHEG-5 Engine (for UK only)
DVB-C MPEG2 DVB-C MPEG4 HD
RECEIVING CHANNELS
VHF (BAND I/III) UHF (BAND U) HYPERBAND
NUMBER OF PRESET CHANNELS 1000
(800 DVB-T / 200 Analogue)
Battery
Products
CHANNEL INDICATOR
On Screen Display
RF AERIAL INPUT
75 Ohm (unbalanced)
OPERATING VOLTAGE
220-240V AC, 50 Hz.
AUDIO German + Nicam Stereo
AUDIO OUTPUT POWER (WRMS) (10% THD)
2x2,5
POWER CONSUMPTION (W)
45 W (max)
PANEL
16:9 display, 19” Screen Size
DIMENSIONS (mm)
DxLxH (With foot): 134 x 451 x 331
Weight (Kg): 3,20
DxLxH (Without foot):35 x 451 x 296
Weight (Kg): 3,00
English - 14 -
Supported DVI Resolutions
When connecting devices to your TV’s connectors by using DVI to HDMI
cables (not supplied), you can refer to the following resolution information.
Index
Resolution
Frequency
1
640x400
70Hz
2
640x480
60Hz-66Hz-72Hz -75Hz
3
800x600
56Hz-60Hz-70Hz-72Hz -75Hz
4
832x624
75 Hz
5
1024x768
60Hz-66Hz-70Hz-72Hz -75Hz
6
1152x864
60Hz-70Hz-75Hz
7
1152x870
75Hz
8
1280x768
60 Hz - 75Hz
9
1280x960
60Hz-75Hz
10
1280x1024
60Hz-75Hz
11
1360x768
PC Typical Display Modes
The following table is an illustration of some of the typical video display modes.
Your TV may not support all resolutions. Your TV supports up to 1920x1080.
Index
Resolution
Frequency
1
640x350p
60 Hz
2
640x400p
60 Hz
3
1024x768
60 Hz
4
1280x768
60 Hz
5
1360x768
60 Hz
6
720x400
60 Hz
7
800x600
56 Hz
8
800x600
60 Hz
9
1024x768
60 Hz
60 Hz
10
1024x768
66 Hz
1280x768
60 Hz
12
1400x1050
60Hz-75Hz
11
13
1400x900
65Hz-75Hz
12
1360x768
60 Hz
14
1600x1200
60 Hz
13
1280x1024
60 Hz
15
1680x1050
60 Hz
14
1280x960
60 Hz
16
1920x1080
60 Hz
15
1280x1024
60 Hz
17
1920x1200
60Hz
16
1400x1050
60 Hz
18
480i-480p
60Hz
19
576i-576p
50Hz
17
1600x1200
60 Hz
18
1920x1080
60 Hz
Supported File Formats for USB Mode
Media
File Extension
Format
Video
Audio
.mpg .mpeg
MPEG1,2
MPEG Layer
1/2/3
.dat
MPEG1,2
.vob
MPEG2
.mkv
H.264, MPEG1,2,4
Remarks
(Maximum resolution/Bit rate etc.)
MPEG2
EAC3/ AC3
MPEG4
Xvid 1.00,
Movie
.mp4
Xvid 1.01, Xvid 1.02, Xvid 1.03,
Xvid 1.10-beta1/2
PCM/MP3
MAX 1920x1080 @ 30P 20Mbit/sec
H.264
MPEG2, MPEG4
.avi
Xvid 1.00,
Xvid 1.01, Xvid 1.02, Xvid 1.03,
Xvid 1.10-beta1/2
PCM
H.264
Music
Subtitle
32Kbps ~ 320Kbps(Bit rate)
.mp3
-
MPEG 1 Layer 1
/ 2 (MP3)
32KHz ~ 48KHz(Sampling rate)
.jpg .jpeg
Baseline JPEG
-
max WxH = 15360x8640 4147200bytes
.
Progressive JPEG
-
max WxH = 9600x6400 3840000bytes
.bmp
-
-
max WxH = 9600x6400 3840000bytes
.sub .srt
-
-
-
English - 15 -
AV and HDMI Signal Compatibility
Source
Supported Signals
Available
PAL 50/60
O
EXT
NTSC 60
O
(SCART)
RGB 50
O
RGB 60
O
PAL 50/60
O
NTSC 60
O
Side AV
YPbPr
HDMI1
480I
60Hz
O
480P
60Hz
O
576I
50Hz
O
576P
50Hz
O
720P
50Hz
O
720P
60Hz
O
1080I
50Hz
O
1080I
60Hz
O
1080P
50Hz
O
1080P
60Hz
O
480I
60Hz
O
480P
60Hz
O
576I
50Hz
O
576P
50Hz
O
720P
50Hz
O
720P
60Hz
O
1080I
50Hz
O
1080I
60Hz
O
1080P
24Hz
O
1080P
25Hz
O
1080P
30Hz
O
1080P
50Hz
O
1080P
60Hz
O
(X: Not Available, O: Available)
In some cases a signal on the LED TV may not be displayed properly. The problem may be an inconsistency with standards
from the source equipment . If you do experience such a problem please contact your dealer and also the manufacturer of
the source equipment.
English - 16 -
All registered and unregistered trademarks are the property of their respective owners.
Specifications are subject to change without notice.
Philips and the Philips’ shield emblem are registered trademarks of Koninklijke Philips Electronics N.V. and are used
under license from Koninklijke Philips Electronics N.V.
2012 © TP Vision Netherlands B.V. All rights reserved.
www.philips.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
