User Guide T300, R1A American English

User Guide T300, R1A American English

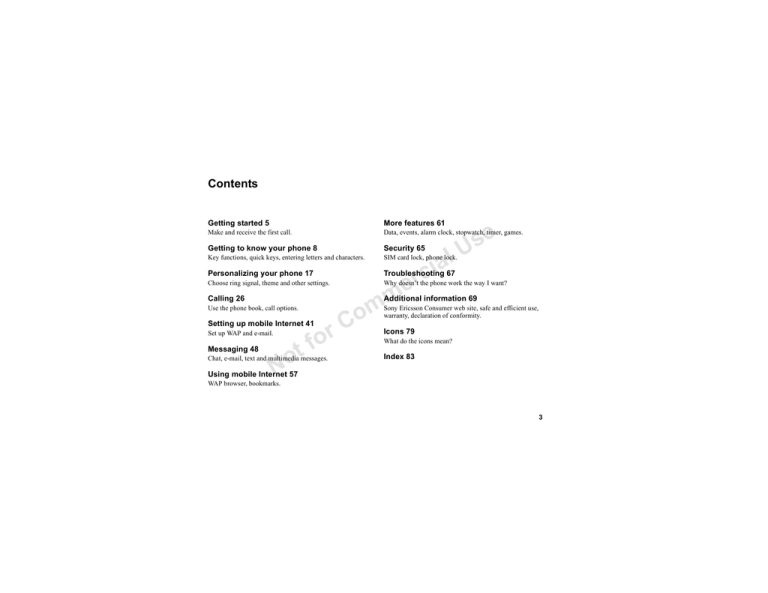

Contents
Getting started 5
More features 61
Make and receive the first call.
Data, events, alarm clock, stopwatch, timer, games.
Getting to know your phone 8
Security 65
Key functions, quick keys, entering letters and characters.
SIM card lock, phone lock.
Personalizing your phone 17
Troubleshooting 67
Choose ring signal, theme and other settings.
Why doesn’t the phone work the way I want?
Calling 26
Additional information 69
Use the phone book, call options.
or
f
t
o
N
Setting up mobile Internet 41
Set up WAP and e-mail.
Messaging 48
m
o
C
e
s
U
l
a
ci
r
me
Chat, e-mail, text and multimedia messages.
Sony Ericsson Consumer web site, safe and efficient use,
warranty, declaration of conformity.
Icons 79
What do the icons mean?
Index 83
Using mobile Internet 57
WAP browser, bookmarks.
3
Sony Ericsson
First edition (May 2002)
This manual is published by Sony Ericsson Mobile
Communications AB, without any warranty.
Improvements and changes to this manual
necessitated by typographical errors, inaccuracies
of current information, or improvements to
programs and/or equipment, may be made by Sony
Ericsson Mobile Communications AB at any time
and without notice. Such changes will, however, be
incorporated into new editions of this manual.
All rights reserved.
©Sony Ericsson Mobile Communications AB, 2002
Publication number: AE/LZT 108 5754 R1A
Please note:
m
o
C
Some of the services in this manual are not
supported by all networks. This also applies to the
GSM International Emergency Number 112.
or
f
t
o
N
4
Please contact your network operator or service
provider if you are not sure whether you can use a
particular service or not.
Please read the Guidelines for safe and efficient
use and the Limited warranty chapters before you
use your mobile phone.
e
s
U
l
a
ci
r
me
T9™ Text Input is a registered trademark of Tegic
Communications.
T9™ Text Input is licensed under one or more of
the following: U.S. Pat. Nos. 5,818,437, 5,953,541,
5,187,480, 5,945,928, and 6,011,554; Canadian
Pat. No. 1,331,057, United Kingdom Pat. No.
2238414B; Hong Kong Standard Pat. No.
HK0940329; Republic of Singapore Pat. No.
51383; Euro.Pat. No. 0 842 463(96927260.8) DE/
DK, FI, FR, IT, NL, PT, ES, SE, GB; and additional
patents are pending worldwide.
Getting started
The SIM card
When you register as a subscriber with a network
operator, you get a SIM (Subscriber Identity Module)
card. The SIM card contains a computer chip that
keeps track of your phone number, the services
included in your subscription, and your phone book
information, among other things.
About this user’s guide
For ease of reference, the “Getting to know your
phone” chapter gives a quick overview of the main
functions of the phone, shortcuts and general
information.
More information and downloads are available at
www.SonyEricsson.com/ or wap.SonyEricsson.com/.
Available services
Some services and functions described in this user’s
guide are network- or subscription-dependent. Because
of this, some menus may not be available in your
phone.
This symbol indicates that a service or
function is network or subscriptiondependent.
Please consult your network operator for
more information about your subscription.
or
f
t
o
N
e
s
U
l
a
ci
r
me
Tip: Check if your information is saved to the SIM
card before you remove it from another phone. For
example, phone book entries may be saved in the
phone memory.
Assembly
Before you can use your phone you need to:
• Insert the SIM card.
• Attach and charge the battery. See “SIM card and
battery information” on page 6.
m
o
C
Note: Always turn off the phone and detach the
charger before you insert or remove a SIM card.
Getting started
5
SIM card and battery information
1.
2.
3.
4.
5.
6.
7.
It may take up to 30 minutes before an icon
appears when charging.
Insert the SIM card. Make sure the SIM card is placed
under the silvery holders.
Place the battery on the back of the phone with the
connectors facing each other.
Place the back cover into the bottom of the phone and
push the top until it clicks into place.
Connect the charger to the phone at the flash symbol.
The flash symbol on the charger plug must face
upwards.
It may take up to 30 minutes before the battery
charging icon appears in the display.
Wait approximately 4 hours or until the icon indicates
that the battery is fully charged. If you do not see the
battery icon after this time, press any key or the
joystick to activate the display.
Remove the charger by tilting the plug upwards.
or
f
t
o
N
m
o
C
Note: You have to insert the SIM card and charge the
battery before you can use the phone.
6
Getting started
e
s
U
l
a
ci
r
me
≈ 30 min.
≈ 4 h.
Making and receiving calls
Welcome
If your PIN starts with the same digits as an
emergency number, for example 911, the digits are
not hidden with an * when you enter them. This is
so that you can see and call an emergency number
without entering a PIN. See “Emergency calls” on
page 27 for more information.
On/off
PIN:
e
s
U
l
a
ci
r
me
Note: If you enter the wrong PIN three times in a row,
the SIM card is blocked and the message PIN blocked
appears. To unblock it, you need to enter your PUK
(Personal Unblocking Key). Your PUK is provided by
your network operator.
My Network
12:18
m
o
C
To turn on the phone
• Press and hold NO until you hear a tone.
• Enter your PIN (Personal Identity Number), if you
have one for your SIM card.
Your PIN is provided by your network operator.
or
f
t
o
N
To make and receive calls
• Enter the area code and phone number, and press YES
to make the call.
• Press NO to end the call.
• When the phone rings, press YES to answer the call.
If you make a mistake while entering your PIN, delete
the wrong number by pressing
.
Getting started
7
Getting to know your phone
Key functions
Volume Increase/decrease the earpiece
key
volume during a call. Scroll
through menus, lists and text.
Enter the Status menu in
standby. Slide twice to reject
an incoming call. Slide once to
turn off the ring signal when
receiving a call.
Make and answer calls. Select
a menu, submenu or an option.
Press for options, help.
Press and hold for WAP.
1–9, 0
or
f
t
o
N
Enter digits, 0–9, and letters.
Press and hold
to enter
the international prefix +.
Move through menus using
shortcuts.
Enter *. Shift between lower/
upper case.
8
Getting to know your phone
Press the joystick up, down,
left or right to move through
the menus, lists and texts.
Press the joystick as an
alternative to
.
m
o
C
e
s
U
l
a
ci
r
me
Press and hold to turn the
phone on or off (in standby)
or to go back to standby mode
from menus. Press to end or
reject a call, go back one level
in the menus or leave an
option unchanged.
(clear)
Delete numbers, letters or
an item from a list. Press
and hold to turn off the
microphone (during calls)
or turn off sound or lock
the keypad (standby menu).
Enter # or a space.
Quick keys
Useful key combinations are described below.
To...
When in standby:
make an emergency call
enter the international
emergency number and
press YES
enter and move through
the main menus
press
or
enter Call contact
press
or
enter Call list
press YES
call your voice mail
press and hold
enter the + sign
press and hold
or
f
t
o
N
turn off the ring signal
when receiving a call
set the phone to silent or
lock the keypad
To...
When in standby:
reach a phone number at a press the position number
specific position.
and
speed dial
press any of the number
keys
and YES
find a contact in the Call
contact list
press and hold
e
s
U
l
a
ci
r
me
enter the first submenu of press and hold
the My shortcuts menu
m
o
C
press
, or slide the
volume key up or down
once
press and hold
reach a contact beginning press and hold any of the
with a specific letter
keys
-
enter the Status menu to slide the volume key up
or down
see today’s date, the
profile in use and the
model name of the phone
change the language to
Automatic
press
8888
change the language to
English
press
0000
reject a call
quickly slide the volume
key up or down twice
when receiving a call or
press NO
Getting to know your phone
9
To...
During a call:
put a call on hold
press YES
answer a call
turn off the microphone
press YES again
press and hold
To...
When in the menus:
move through menus or
lists
slide (and hold) the
volume key up or down
or use the joystick
enter a quick options menu press
or help, if available.
press and hold
when
delete an item
in lists
go back to standby
press and hold NO
To...
or
f
t
o
N
m
o
C
When entering letters
using multitap text input:
reach the second letter or slide the volume key up
character of a key
and press any of the
number keys
reach the third letter or
character of a key
10
slide the volume key down
and press any of the
number keys
Getting to know your phone
To...
When entering letters
using multitap text input:
shift between capital and
lower-case letters
press
e
s
U
l
a
ci
r
me
, then the letter
enter numbers
press and hold any of the
number keys
enter a question mark
slide the volume key up
and press
enter the @-sign
slide the volume key down
and press
press
enter a space
delete letters and numbers press
shift between multitap or press and hold
T9 Text input methods
press and hold
shift between input
languages and other
character or numeric input
methods
To...
When entering letters
using T9 Text Input:
view alternative words
press
accept a word and add
a space
press
enter a period
press
view alternative
punctuation marks
press
, then
repeatedly
shift between capital and
lower-case letters
press
or
or
press and hold any of the
number keys
delete letters and numbers press
shift between multitap or press and hold
T9 Text input methods
press and hold
shift between input
languages and other
character or numeric
input methods
or
f
t
o
N
When entering numbers:
enter a p (pause)
press and hold
when
entering numbers or
saving codes
e
s
U
l
a
ci
r
me
Using shortcuts
A quicker way to move through the menus is to use
shortcuts. Enter the menus by pressing
or
and
then simply enter the number of the menu to which you
want to go. To get back to standby, press and hold NO.
, then the letter
enter numbers
To...
m
o
C
You can quickly and easily reach the settings you use
most by placing them in the menu My shortcuts. See
“My shortcuts” on page 25.
Help texts
More information, explanations or tips about selected
menus or functions are available in your phone.
To get help
1. Select the menu or function and press
2. Select Help (if available), YES .
.
Getting to know your phone
11
Delete, edit and rename
If you add items, for example, a contact, an event or a
WAP bookmark, it can be deleted, edited or renamed.
There are two ways to delete items:
• Select an item and press
.
• Select an item, press
, select Delete or Delete all.
There are two ways to edit items:
• Select an item, press
, select Edit.
• Scroll to the item you want to edit and press YES twice,
select Edit.
Tip: You can rename an item in the same way.
m
o
C
Online services
Online services are customized services
offered by network operators, independently
of mobile phones and mobile phone
manufacturers.
A SIM card which supports Online services works
in the same way as a normal SIM card. When you have
inserted your SIM card and turned on your phone, your
network operator can download data to your SIM card.
When you restart your phone after the first data
download, a new submenu appears under the Connect
menu.
or
f
t
o
N
12
Getting to know your phone
To enter your new menu system
• Scroll to Connect/Online services.
Note: This menu only appears if your SIM card
supports this service. Some operators may not use the
name “Online services”. Your phone may not support
all of the services offered.
e
s
U
l
a
ci
r
me
Menu overview
(1) Phone book
(2) Messages
(3) Calls
1 Call contact
2 Add contact
3 Manage contact
4 Pictures
5 Personal rings
6 Special numbers
7 Advanced
8 Options
Find and send*
1 Text
2 Multimedia
3 Call voice mail
4 E-mail
5 Chat
6 Area info
7 Options
1 Missed calls
2 Call list
3 Manage calls
4 Time & cost
5 Next call
6 Options
Calling local**
Switch to line 1**
Switch to line 2**
(4) Fun & Games
(5) Settings
(6) WAP Services
1 Games
2 My pictures
3 My sounds
4 Themes
5 Composer
6 Sound recorder
7 CommuniCam
or
f
t
o
N
1 Sounds & alerts
2 Profiles
3 Display
4 Language
5 Time & date
6 Locks
7 Handsfree
8 Master reset
or Ongoing call*
1 Record*
2 Turn off tones*
3 Hold call*
4 Switch calls*
5 Release active*
6 Join calls*
7 Transfer call*
8 Release all*
Extract part*
Release part*
Parties in conf.*
Calls*
m
o
C
1 Mobile Internet
2 Bookmarks
3 Push inbox
4 Enter address
5 Resume
6 Select profile
7 Advanced
8 Options
Note:
(1) Main menu numbering
does not appear.
1 Menu numbering may
change with certain functions
or services.
*Only available during a call
or conference call.
**Network- and subscriptiondependent.
e
s
U
l
a
ci
r
me
(7) Organizer
1 Events
2 Alarms
3 Timer
4 Stopwatch
5 Calculator
(8) Connect
(9) My shortcuts
1 Infrared port
2 GSM Networks
3 Data comm.
4 Accessories
Online services**
1 Select profile
2 Ring volume
3 Switch to line 1**
4 My numbers
5 Edit shortcuts
Getting to know your phone
13
Entering letters and characters
You can enter letters, for example, when you add names
to the phone book, write text messages or enter WAP
addresses.
In addition to the way you normally enter letters in
your phone, using multitap text input, you can use
T9™ Text Input to enter text messages and
e-mail, for example, if the input language you select
supports this. T9 Text Input is a predictive input
method and is a quicker way to write texts.
Input languages
Before you start entering letters, you need to select the
input languages that you want to use when writing.
m
o
C
To select input languages
1. Scroll to Settings, YES , Language, YES , Input, YES.
2. Scroll to the language or alphabet that you want to use
for entering letters and press
for each language
you want.
3. Press YES to exit the menu.
When writing, you can switch to one of your selected
input languages by pressing
and then selecting
Language. See “The list of options” on page 16.
or
f
t
o
N
Multitap text input
When saving names in the phone book or when writing
WAP addresses, you enter letters using multitap text
input. You press each key as many times as needed to
show the letter you want. The following example shows
how to write a name in the Phone book.
e
s
U
l
a
ci
r
me
To enter letters using multitap text input
1. Scroll to Phone book, YES, Add contact, YES, YES again.
2. Press the appropriate key,
–
,
or
,
repeatedly until the character you want appears.
You can view the characters in the row that appears
briefly at the top of the display when you press a key.
Note: Your selection of input languages and character
or numeric input methods determines what you can see
or enter.
See the Latin alphabet, abc, table below:
Press…
to see/enter…
-?!‚.:;"’<=>()_1
ABCÅÄÆàÇ2Γ
DEFèÉ3∆Φ
GHIì4
14
Getting to know your phone
Press…
To enter a ‘B’, slide the volume key up and press
To enter a ‘C’, slide down and press
.
to see/enter…
JKL5Λ
T9™ Text Input
You can use T9 Text Input when writing, for example,
text messages and e-mail. The T9 Text Input method
uses a built-in dictionary to recognize the most commonly
used word for each sequence of key presses. This way,
you press each key only once, even if the letter you
want is not the first letter on the key.
MNOÑÖØò6
PQRSß7ΠΣ
TUVÜù8
WXYZ9
+&@/¤%$€£¥\§¿¡0Θ Ξ Ψ Ω
Space # * ↵ ¶
to shift between capital and lower-case
letters
m
o
C
press and hold to enter numbers
or
f
t
o
N
e
s
U
l
a
ci
r
me
Note: A language must be selected to be able to use
the T9 Text Input method.
to delete letters and numbers
-
.
Example:
• To enter an ‘A’, press
once.
• To enter a ‘B’, quickly press
twice.
• To shift between capital and lower-case letters, press
, then enter the letter.
Tip: You can also use the volume key as a shortcut to
certain letters:
The following example shows how to start writing a
text message:
To enter letters using T9 Text Input
1. Scroll to Messages, YES, Text, YES, Write new, YES.
2. For example, if you want to write “Jane”, press
,
,
,
.
or
repeatedly to view alternative words
3. Press
(candidates).
4. If the word shown is the one you want:
• press
to accept and add a space
Getting to know your phone
15
• press
or YES to accept without a space.
If the candidates do not include a word you want,
you can add a new word to the list during selection.
To add a word to candidates
1. Scroll to a similar candidate to the word you want to
add, press
, select Edit word, YES.
2. Press
repeatedly to delete one letter at a time.
Write the new word using multitap text input, YES .
The word is added to the dictionary. The next time
you enter the word you just added to the dictionary,
it appears as one of the alternative words.
3. Continue writing your message. See also “Sending text
messages” on page 49.
or
f
t
o
N
m
o
C
Tip: Press
to enter a period. To enter other
or
punctuation marks, press
and then
repeatedly. Press
to accept and add a space.
Press and hold
to select an input method for
the text you are currently writing.
The list of options
Press
when writing to enter a list of options:
16
Getting to know your phone
• Add symbol – Symbols and punctuation marks such as
? and , are shown. Move between the symbols by using
the joystick.
• Insert item – Add a picture, sound effect, melody or
animation to a message.
• Edit word – For T9 Text Input only
Edit the suggested word by using multitap text input.
• Text format – Edit size, style, alignment or start a new
paragraph.
• Language – Show the input language selected earlier.
• Input method – A list of input methods available for
the current input language is shown.
• Candidates – For T9 Text Input only
A list of alternative words is shown.
• Help.
e
s
U
l
a
ci
r
me
To turn T9 Text Input on or off
• Scroll to Settings/Language/T9 input or press and hold
when writing.
Note: Changing Settings/Language/T9 input is valid
for all input of texts – not only for the text you are
currently writing.
Personalizing your phone
You can adjust the phone settings to suit your own
requirements.
Note: If you change a setting which is included in
a profile, the active profile is also changed. See
“Profiles” on page 25.
Master reset
You can reset all the settings in the phone to the way
they were when you bought your phone by selecting
Reset settings.
If you also want to delete all contacts, messages and
other personal data, select Reset all instead.
or
f
t
o
N
The infrared (IR) port
The infrared port can be used to transfer and exchange
information with another device equipped with an
infrared port. When used with certain functions, such
as sending a picture, it is automatically activated for
10 minutes. Infrared can be activated in the following
ways:
• Press
from standby, scroll to Activate IR, YES.
• Scroll to Connect, YES, Infrared port, YES, select an
option, YES.
• When selecting a transfer method, for example when
sending a picture.
m
o
C
Note: If you select Reset all, some pictures, melodies
and templates which came with your phone are
deleted.
To reset the phone
1. Scroll to Settings, YES , Master reset, YES.
2. Select Reset settings or Reset all, YES.
3. Enter the phone lock code (0000 or the new code if you
have changed it) and press YES.
e
s
U
l
a
ci
r
me
Note: Infrared ports must face each other at a distance
of up to 7.5 in. when used.
To turn infrared off
• Scroll to Connect, YES, Infrared port, YES, Off, YES.
Themes
You can change the appearance of the display, for
example, the colors and background picture, by using
themes. Your phone comes with some pre-set themes.
You cannot delete these, but you can create new themes
on Sony Ericsson Mobile Internet and download them
to your phone. For more information, visit
wap.SonyEricsson.com/.
Personalizing your phone
17
To select a theme
• Scroll to Fun & Games/Themes.
Note: If you need to adjust the display contrast, scroll
to Settings/Display/Contrast.
Exchanging themes
You can send and receive a theme via IR and MMS or
download it via WAP. For more information on sending
themes in messages, see “Messaging” on page 48.
1.
2.
3.
4.
To send a theme
Scroll to Fun & Games, YES, Themes, YES.
Select a theme, press
.
Select Send, YES.
Select a transfer method, YES.
or
f
t
o
N
m
o
C
Note: You are not allowed to exchange copyrightprotected material.
To receive and save a theme
1. From standby, press
, scroll to Activate IR, YES.
2. When you receive the theme, press YES to save it in
Themes.
18
Personalizing your phone
•
•
•
Pictures
Your phone comes with a number of pictures. You can:
Set a picture as background when in standby mode.
Set a picture as a screen saver.
Assign a picture to a contact in the phone book. When
that person calls, the picture appears in the display
(provided your subscription supports the Calling Line
Identification service). See “To add a picture to a
phone book contact” on page 29.
Enclose a picture in a text message.
Send a picture via IR, MMS or e-mail.
e
s
U
l
a
ci
r
me
•
•
All pictures and are saved in Fun & Games/My pictures.
Handling pictures
You can also add, delete or rename pictures in My
pictures. The number of pictures that can be saved
depends on the size of the pictures. File types supported
are GIF, JPEG and WBMP.
To view your pictures
• Scroll to Fun & Games, YES , My pictures, YES.
The pictures are shown in thumbnail view. To get a full
view, press YES.
Note: Animations for multimedia messages can be
viewed in My pictures. Animations for text messages
can only be viewed when inserting an item in a text
message. See “To insert an item in a text message” on
page 49.
Note: You are not allowed to exchange copyrightprotected material.
To view your camera pictures (if connected)
• Scroll to Fun & Games, YES, CommuniCam, YES or
• Scroll to Connect, YES , Accessories, YES.
To send a picture
1. Scroll to Fun & Games, YES, My pictures or
CommuniCam, YES .
.
2. Select a picture, YES. Press
3. Select Send, YES .
4. Select a transfer method.
To select a picture as background
1. Scroll to Settings, YES , Display, YES, Background, YES.
2. Select Select picture, YES .
3. Select a picture, YES.
To receive and save a picture
1. From standby, press
, scroll to Activate IR, YES .
2. When you receive the picture, press YES to save it in
My pictures.
m
o
C
Tip: When viewing your pictures, you can set a
background by pressing
.
or
f
t
o
N
To turn the background picture On or Off
• Scroll to Settings/Display/Background/Activate.
Exchanging pictures
You can send pictures via IR, MMS or e-mail and
receive via IR or MMS. For more information on
sending pictures in messages, see “Messaging” on
page 48.
e
s
U
l
a
ci
r
me
• When you receive a picture via a text message or a
multimedia message, a new message appears in your
Inbox. Highlight the picture in the message, press
and select Save to save in My pictures.
Screen saver
The phone has a screen saver, which is activated
automatically when the phone has been in idle mode
for a few seconds. After a short period of time the
screen saver changes to sleep mode, to save power.
Personalizing your phone
19
To turn the screen saver On or Off
• Scroll to Settings/Display/Screen saver/Activate.
1.
2.
3.
4.
To use a picture as the screen saver
You can select a picture, saved in the phone, and use it
as the screen saver.
Scroll to Settings, YES , Display, YES , Screen saver, YES.
Scroll to Select picture, YES .
Scroll to the picture you want to use as the screen
saver, YES.
Press YES to save.
Ring signals and melodies
Your phone comes with a number of standard and
polyphonic melodies which can be used as ring
signals. See “Icons” on page 79 for more information.
You can create and edit standard melodies, and send
them to a friend in a text or multimedia message. You
can also exchange standard melodies via IR or download
them via WAP.
or
f
t
o
N
m
o
C
Note: You are not allowed to exchange copyrightprotected material.
20
Personalizing your phone
To select a ring signal
• Scroll to Settings/Sounds & alerts/Ring signals.
To set the ring signal volume
1. Scroll to Settings, YES, Sounds & alerts, YES, Ring
volume, YES.
2. Press
or
to increase or decrease the volume.
3. Press YES to save the setting.
e
s
U
l
a
ci
r
me
Warning! Exposure to excessive ring volume may
damage hearing. Answer the call or lower the volume
before placing the phone at your ear.
To turn the ring signal on or off
• Press and hold
from standby and select Turn on
silent or Turn off silent.
All signals except the alarm and timer signals are
turned off.
To compose a ring signal or melody
1. Scroll to Fun & Games, YES , Composer, YES.
• Press a key to enter a note.
• Press
or
to make
the note shorter or longer.
There are six different lengths
of notes.
• Press
to change octave.
• Press
once to raise the
note one semitone.
• Press
twice to lower the note one semitone.
• Press
to add a melody effect, and to set the
tempo, volume, style and duration.
• Press
to remove notes.
2. To listen to your melody, press YES .
3. Press YES again to save and name it, or press NO to
continue composing.
or
f
t
o
N
To use the piano
1. In the Composer, slide the
volume key up to activate
the piano.
2. Use the joystick to move
between the keys.
3. Press YES to select a note. See “Icons” on page 79.
4. Slide the volume key
down to deactivate the piano.
e
s
U
l
a
ci
r
me
Exchanging melodies
You can send and receive a sound or melody via IR,
SMS or MMS, or download it via WAP.
m
o
C
Note: To edit a melody, scroll to Fun & Games/My
sounds, select the melody and press
.
1.
2.
3.
4.
Note: You cannot exchange a polyphonic melody
via SMS.
To send a melody
Scroll to Fun & Games, YES, My sounds, YES.
Select a melody and press
.
Select Send, YES .
Select a transfer method.
Personalizing your phone
21
Note: To send a ring signal or melody in a text
message, see “To insert an item in a text message” on
page 49.
To receive a sound or melody
1. From standby, press
, scroll to Activate IR, YES.
2. When you receive the sound or melody, press YES to
save it in My sounds.
Increasing ring
You can choose a ring signal that rises in steps from
the lowest volume to the highest.
To turn increasing ring On or Off
• Scroll to Settings/Sounds & alerts/Increasing ring.
or
f
t
o
N
m
o
C
Specific ring signals for personal calls
If you subscribe to the Two Line Service, you
can set different ring signals for the two voice
lines. Line 1 and Line 2 are displayed instead
of Voice calls.
If your subscription includes the Calling Line
Identification (CLI) service, you can assign a personal
ring signal to numerous callers.
22
Personalizing your phone
To set a specific ring signal for a caller
1. Scroll to Phone book, YES, Personal rings, YES,
Add new?, YES.
2. Enter the first letter of the contact name, YES.
3. Select a contact, YES.
4. Select a ring signal, YES .
e
s
U
l
a
ci
r
me
Sounds & alerts
You can choose to be notified of an incoming call by
the buzzing of the vibrating alert. You can set the
phone’s vibrating alert to one of the following:
• On – all the time.
• On if silent – on when the ring volume is turned off or
when you have set the phone to silent.
• Off – all the time.
To set the vibrating alert
1. Scroll to Settings, YES , Sounds & alerts, YES , Vibrating
alert, YES .
2. Select the setting you want, YES .
From Settings/Sounds & alerts, you can also select:
• Message alert when messages are received.
• Key sound when using the keypad.
• Minute minder to beep after every minute during calls.
Menu language
Most SIM cards automatically set the menu language
to the language of the country where you bought your
SIM card. If this is not the case, the preset language is
English.
To change the menu language
1. Scroll to Settings, YES , Language, YES , Menus, YES.
2. Select a language, YES.
To set the display contrast
• Scroll to Settings/Display/Contrast.
Time settings
The time is always displayed in standby.
e
s
U
l
a
ci
r
me
To set the time
• Scroll to Settings/Time & date/Set time.
You can choose a 12-hour clock or a 24-hour clock.
Note: You can always choose Automatic by pressing
8888
in standby.
You can always choose English by pressing
0000
in standby.
m
o
C
Display light
The display light can be set to automatic, off, or on. In
automatic mode, the display light is turned off a few
seconds after you press the last key.
or
f
t
o
N
Note: The display light, if set to On, consumes extra
battery power and reduces standby time.
To set the display light
• Scroll to Settings/Display/Light.
To set the time format
• Scroll to Settings/Time & date/Time format.
Note: If you select the 12-hour clock, you can
alternate between am and pm by pressing
when setting the time.
Date
When the phone is in standby mode, you can slide
the volume key up or down to see today’s date in the
Status menu.
To set the date and/or date format
• Scroll to Settings/Time & date.
Personalizing your phone
23
Advanced time settings
Under Advanced in the Settings/Time & date
menu, you can set time zone and daylight
savings time. Changing these changes the time
accordingly, if your network operator supports this
service.
When your phone changes networks, and the time
sent out from the network operator deviates from the
time in your phone, you are asked whether you want to
update the time, if you have turned on Auto time zone.
If you press YES, the time is updated automatically.
Note: Contact your network operator for more
information.
m
o
C
Answering mode
When using a portable handsfree kit, you can choose to
answer a call by pressing any key (except the NO key)
or set the phone to answer the call automatically.
or
f
t
o
N
To select answering mode
• Scroll to Settings/Handsfree/Answering mode.
24
Personalizing your phone
User greeting
When you turn your phone on or off, the Sony Ericsson
greeting appears. Your network operator’s own greeting
may be shown instead.
e
s
U
l
a
ci
r
me
To select a greeting
1. Scroll to Settings, YES, Display, YES, User greeting,
YES.
2. Select a greeting, YES .
My phone numbers
You can check your own phone number(s).
To check your phone number
• Scroll to Phone book/Special numbers/My numbers.
If your number is not saved on your SIM card, you can
enter it yourself.
Keypad lock
You can lock the keypad to avoid dialing a number by
accident.
Note: Calls to the international emergency number
112 can still be made, even when the keypad is locked.
Automatic keylock
Automatic keylock means the keypad is locked
25 seconds after you last press a key.
3. Enter the position number you want for this function in
your menu and press YES.
4. Press YES to exit the list.
Profiles
Your phone has a number of pre-set profiles which
are set to suit a certain environment. You can add
accessories to, rename or change these profiles. For
example, when you go to a meeting, you can simply
choose the Meeting profile and a number of settings
such as the ring signal is turned off.
To turn automatic keylock On or Off
• Scroll to Settings/Locks/Auto keylock.
To lock the keypad manually
• Press and hold
in standby, and select Lock
keypad, YES.
The keypad remains locked until you answer an
incoming call or until you unlock the keypad manually.
or
f
t
o
N
To select a profile
• Scroll to Settings/Profiles/Select profile.
m
o
C
To unlock the keypad
• Press
and select Turn off keylock?, YES .
My shortcuts
You can place your favourite functions that you want
to reach quickly and easily in the My shortcuts menu.
To add a function to my shortcuts
1. Scroll to My shortcuts, YES , Edit shortcuts, YES.
2. Select a function from the list by pressing
.
e
s
U
l
a
ci
r
me
To change a profile setting
1. Scroll to Settings, YES, Profiles, YES , Edit profile, YES .
2. Select a setting, YES.
3. Change the profile settings and press YES to confirm.
To rename a profile
• Scroll to Settings/Profiles/Edit profile/Profile name:.
You can reset all profile settings to the way they were
set when you bought your phone.
Personalizing your phone
25
Calling
To reset all profiles
• Scroll to Settings/Profiles/Reset profiles.
Automatic activation
Some profiles, for example In car, are automatically
activated when used with a specific accessory. When
disconnected, the profile is changed back.
or
f
t
o
N
26
Calling
m
o
C
Before you can make or receive any calls, you must
turn on the phone and be within range of a network.
See “Making and receiving calls” on page 7.
e
s
U
l
a
ci
r
me
Making calls
1. Enter the area code and the phone number.
2. Press YES to make the call.
3. Press NO to end the call.
Tip: You can call numbers from the call list and the
phone book. See “Call list” on page 28 and “Phone
book” on page 28.
To change the earpiece volume during a call
• Slide the volume key on the side of the phone up or
down to increase or decrease the earpiece volume.
To turn off the microphone during a call
• Press and hold
until the display shows Muted.
Press
again to resume the conversation.
Automatic redialing
If the connection of the call failed and the display
shows Retry?, press YES .
Note: Do not hold the phone to your ear while waiting.
When the call is connected, the phone gives a loud
signal.
The phone redials the number (up to ten times) or until:
• The call is connected.
• You press a key or receive a call.
Note: Automatic redialing is not available for data
calls.
To make an emergency call
• Enter 112 (the international emergency number), YES.
Your phone supports the international emergency
numbers, 112, 911 and 08. This means that these
numbers can normally be used to make an emergency
call in any country, with or without a SIM card
inserted, if a GSM network is within range.
e
s
U
l
a
ci
r
me
Note: Some network operators may require that a
SIM card be inserted, and in some cases that the PIN
has been entered as well.
m
o
C
Making international calls
1. Press and hold
until a + sign appears in the display.
The + replaces the international prefix number of the
country from which you are calling.
2. Enter the country code, area code (without the leading
zero) and phone number, YES.
or
f
t
o
N
Emergency calls
In some countries, other emergency numbers may also
be promoted. Your operator may therefore have saved
additional local emergency numbers on the SIM card.
To view your local emergency numbers
• Scroll to Phone book/Special numbers/Emergency
nos..
Tip: It is useful to enter the + sign and country code
for all numbers in the phone book as they can then
be easily used whether home or abroad.
Calling
27
Receiving calls
When you receive a call, the phone rings and Answer?
appears. If the number is a restricted number, Withheld
appears.
To answer a call
• Press YES.
Missed calls
If you have missed a call, Missed calls:1 appears in
standby, indicating the number of missed calls.
m
o
C
To check your missed calls
1. When Missed calls:1 is displayed, press YES to display
the missed calls.
2. To call a number from the list, scroll to the number, YES.
or
f
t
o
N
Call list
The numbers of the last calls that you have made or
received are saved in the call list. If your subscription
includes the Calling Line Identification service, and
Calling
To call a number from the call list
1. To enter the call list, press YES from standby.
2. Scroll to the number you want to call, YES .
e
s
U
l
a
ci
r
me
To clear the call list
• Scroll to Calls, YES , Options, YES, Clear call list, YES .
To reject a call
• Press NO.
28
the caller’s number is identified, you will also find the
numbers of answered and missed calls in the call list.
To turn the call list on or off
• Scroll to Calls, YES , Options, YES, Call listing, YES.
Phone book
In the Phone book you can save all the information
needed to contact people.
1.
2.
3.
4.
To add a contact
Scroll to Phone book, YES, Add contact, YES.
Scroll to the field you want to fill in, press YES.
Enter the information, YES.
When you have entered the information, scroll to Save
and exit?, YES .
Tip: To enter an unsaved number, when you are in a
and select a number from
number field, press YES ,
the unsaved numbers list.
Pictures and personal rings
You can add a picture and personal ring signal to a
contact.
To add a picture to a phone book contact
1. Scroll to Phone book, YES, Pictures, YES .
2. Enter the first letters of the contact, YES.
3. When the contact is highlighted, press YES.
This takes you to My pictures. Select a picture and
press YES twice.
To call a contact
1. From standby, press and hold one of the number keys
2-9 to find a contact beginning with the first letter on
that key (or closest following).
• For example, press and hold 5 to go to the first
contact beginning with “J”. To go to a contact
beginning with “L” press 5 three times after you
have entered the list of contacts.
e
s
U
l
a
ci
r
me
Tip: You can also use the Call contact option in
the Phone book menu to call a contact.
Updating the phone book
When needed, you can easily update or delete any
contact information.
To edit a contact
1. Scroll to Phone book, YES, Manage contact, YES,
Edit contact, YES.
2. Enter the first letters of the contact, YES .
3. When the contact is highlighted, press YES .
4. Select Edit info, YES.
5. Scroll to the field you want to fill in, YES.
6. Enter the information, YES.
7. When you have entered the information, scroll down to
Save and exit?, YES.
m
o
C
• Select Personal rings to add a personal ring signal.
or
f
t
o
N
2. When the contact you want to call is highlighted,
press YES .
3. Select the number you want to call, YES.
If only one number is linked to the contact, press
and hold YES at step 2.
Calling
29
To delete a contact
• Scroll to Phone book/Manage contact/Delete contact.
Then select the contact and press YES twice.
To delete all contacts
• Scroll to Phone book/Advanced/Delete all?.
Note: Contacts that are saved on the SIM card are not
deleted.
Default (standard) number
Each contact has a default phone number. The first
phone number you link to a contact automatically
becomes the default number. If you scroll to a certain
contact in the Call contact list and then press and hold
YES, the default number is dialed.
1.
2.
3.
4.
30
or
f
t
o
N
m
o
C
To set the default number
Scroll to Phone book, YES, Manage contact, YES,
Edit contact, YES.
Enter the first letter of the contact, YES .
When the contact is highlighted, press YES .
Select Default number, YES. Select the number you
want as default, YES .
Calling
Groups
You can create a group of contacts. By doing so you
can send text messages to several recipients at the
same time. See “Sending text messages” on page 49.
e
s
U
l
a
ci
r
me
To create a group of contacts
1. Scroll to Phone book, YES, Manage contact, YES,
Groups, YES, Add group?, YES .
2. Enter a name for the group, YES .
3. Select Add member?, YES.
4. Enter the first letters of the contact you want to add,
press YES.
5. Press YES to select the contact.
6. Select a phone number, press YES.
7. Repeat steps 3-6 to add more members.
Business cards
You can add your own business card to the phone book.
To add your own business card
• Scroll to Phone book, YES, Manage contact, YES,
My card, YES. Select Add, YES .
Exchanging business cards
You can exchange business cards via IR, SMS or MMS.
To send your business card
1. Scroll to Phone book, YES, Manage contact, YES ,
My card, YES , Send, YES .
2. Select a transfer method, YES.
Copy contacts
You can copy the names and numbers in your phone
book between your phone’s memory and the SIM card.
The number of phone numbers that can be saved
depends on the type of SIM card.
To receive a business card via IR
1. From standby, press
, scroll to Activate IR, YES.
When you receive the business card, press YES.
2. Press YES again to save the card in the phone book.
To save a business card in a multimedia message
1. Scroll to Messages, YES , Multimedia, YES.
2. Scroll to Inbox, YES, select the message, YES.
3. Scroll to the business card item, press YES to accept it.
or
f
t
o
N
To copy names and phone numbers to the
SIM card
• Scroll to Phone book/Advanced/Copy to SIM.
m
o
C
To send a contact
1. Scroll to Phone book, YES, Manage contact, YES , Send
contact, YES,
2. Enter the first letters of the contact you want to send, YES.
3. Press YES to select the contact.
4. Select transfer method, YES .
To send all contacts (via IR only)
• Scroll to Phone book/Advanced/Send all, YES.
e
s
U
l
a
ci
r
me
Note: Be careful not to replace details by mistake
when copying contacts.
If you insert a SIM card with saved names and phone
numbers in your phone, you can call a person by
selecting Phone book/Advanced/Call from SIM. If you
want to edit a name or phone number saved on the SIM
card, you first need to copy it to the phone.
To copy names and phone numbers to the phone
• Scroll to Phone book/Advanced/Copy from SIM.
Tip: When you have selected a name in the Call from
SIM menu, you can copy name and phone number to
Calling
31
the phone by pressing
phone.
and then selecting Copy to
Speed dialing
You can save the phone numbers that you want to
reach easily in positions 1-9 on your SIM card.
To call any of these phone numbers from standby
• Enter the position number and press YES.
To change position numbers
1. Scroll to Phone book, YES, Advanced, YES, Position
list, YES .
2. Select the phone number you want to move, YES.
3. Select the position to which you want to move the
phone number, press YES.
4. When finished press NO to exit, YES to save to SIM.
or
f
t
o
N
m
o
C
Voice mail
If your subscription includes an answering
service, callers can leave a voice mail
message when you cannot answer a call.
32
Calling
Receiving a voice mail message
Depending on your network operator, you are
informed that someone has left a message by a text
message (SMS) or by a voice mail indication. Press
YES to listen to the message.
e
s
U
l
a
ci
r
me
Calling your voice mail service
You can easily call your voice mail service by pressing
and holding
, if you have saved your voice mail
number in the phone. You get the number from your
service provider.
To enter a voice mail number
• Scroll to Messages/Options/Voice mail no.
Call time
During a call, the duration of the call is shown in the
display.
You can check the duration of your last call, outgoing
calls and the total time.
To check the call time and reset
• Scroll to Calls/Time & cost/Call timers and select
an option.
• Select Reset timers to reset the call time meter.
Call cost
For cost information you need to check with
your network operator or service provider if
you can subscribe to such a service, where
call cost (or the number of call units) is
displayed.
To enter the price per call unit
1. Scroll to Calls, YES , Time & cost, YES, Call costs, YES ,
Set rate, YES.
2. Enter your PIN2, YES.
3. Select Change, YES.
4. Enter the code for the currency you want, (for example
USD for US Dollars), YES.
5. Enter the price per call unit, YES .
To enter a decimal point, press
.
If you have a subscription with a cost information
service, you can check the cost of your last call and
the total cost of your calls.
To check the call cost and reset
• Scroll to Calls/Time & cost/Call costs and select
an option.
• Select Clear total cost to reset the call cost meter.
or
f
t
o
N
m
o
C
Note: If you subscribe to cost information, you must
enter your PIN2 to clear the cost or time counter.
Setting the call cost
You can use the Rate function to specify the price per
call unit. If you do not specify a price per call unit, the
number of call units is displayed.
e
s
U
l
a
ci
r
me
Credit limit for calls
You can enter a total amount of money that
can be used for making calls. When the
amount reaches zero, no more calls can be
made. Please note that the credit limit is only an
estimated value.
To set a credit limit
1. Scroll to Calls, YES , Time & cost, YES, Call costs, YES ,
Set credit, YES .
2. Enter your PIN2, YES.
3. Select Change, YES.
4. Enter an amount, YES.
See “Security” on page 65 for more information about
PIN2.
Calling
33
Forwarding calls
If you cannot answer incoming voice or data
calls, you can forward them to another
number: for example, your answering service.
For voice calls, you can choose between the
following forward alternatives:
• Always forward – forward all voice calls.
• When busy – forward calls if you are already on
the phone.
• Not reachable – forward calls if your phone is
turned off or if you are unreachable.
• No reply – forward calls that you do not answer
within a specified time limit (operator-dependent).
m
o
C
Note: When the Restrict calls function is on, some
Forward calls options cannot be activated.
or
f
t
o
N
To turn on call forwarding
1. Scroll to Calls, YES, Manage calls, YES, Forward calls,
YES.
2. Select a call category and then a forward alternative,
YES.
3. Select Activate, YES.
4. Enter the phone number to which you want your calls
to be forwarded and press YES, or retrieve it from the
phone book.
34
Calling
To turn off a call forwarding option
• Select a forwarding option and select Cancel.
To check status
1. Scroll to Calls, YES, Manage calls, YES , Forward calls,
YES.
2. Select a call type, YES.
3. Scroll to the forwarding you want to check, YES . Select
Get status, YES.
e
s
U
l
a
ci
r
me
To check the status of all call forwarding
• Select Check all in the Forward calls menu.
More than one call
You can handle more than one call
simultaneously. For example, you can put an
ongoing call on hold, while you make or answer
a second call, and then switch between the two calls.
Note: During a call, the Ongoing call menu replaces
the Calls menu.
Call waiting service
If the call waiting service is activated, you hear a beep
in the earpiece if you receive a second call during an
ongoing call.
To activate or deactivate the call waiting service
• Scroll to Calls/Manage calls/Call waiting.
• Press
, then select Join calls to join the two calls
into a conference call.
• Press
, then select Transfer call, to connect the
two calls. You are disconnected from both calls.
• Press NO to end the ongoing call, then press YES to
retrieve the held call.
• Press NO twice to end both calls.
To make a second call
1. Press YES to put the ongoing call on hold.
2. Enter the number you want to call and press YES , or
retrieve a number from the phone book.
You can also reach different options by pressing
.
Receiving a second call
• To answer the second call and put the ongoing call on
hold, press YES.
• To reject the second call and continue the ongoing call,
press
, select Busy.
• To answer the second call and to end the ongoing call,
press
, select Release&answer.
or
f
t
o
N
e
s
U
l
a
ci
r
me
Note: You cannot answer a third call without ending
one of the first two calls.
Note: You can only put one call on hold.
m
o
C
Handling two calls
When you have one ongoing call and one call on hold,
you can do the following:
• Press YES to switch between the two calls.
Conference calls
In a conference call, you can have a joint
conversation with up to four other people.
You can also put a conference on hold and
make another call.
Creating a conference call
To create a conference call, you must first have one
ongoing call and one call on hold.
To join the two calls into a conference call
• Scroll to Ongoing call, YES , Join calls, YES .
Calling
35
To add a new participant
1. Press YES to put the conference call on hold.
2. Call the next person you wish to include in the
conference call.
3. Press
, select Join calls, YES.
Repeat steps 1 to 3 to include more participants.
To end the conference call
• Press NO.
m
o
C
Having a private conversation
You can have a private conversation with one of the
participants and put the other participants on hold.
• Press
, then select Extract part to select the
participant that you want to talk with.
• Select Join calls to resume the conference call, again.
Two voice lines
Your phone may have two voice lines with
different phone numbers. This may be useful
36
Calling
To select a line
• Scroll to Calls/Next call.
e
s
U
l
a
ci
r
me
All outgoing calls are made on this line until you change
it. Incoming calls can still be received on either line.
You can change the names of the lines, and have
different settings for each line, for example, different
ring signals.
To release a participant
1. Press
, select Release part, YES.
2. Select the participant, YES.
or
f
t
o
N
if, for example, you want to keep business calls and
private calls on separate lines.
To change the name of a line
• Scroll to Settings/ Display/Edit line tags.
Calling card calls
You can use the calling card service to
redirect the cost of a call to a credit card or a
calling card account, instead of your normal
account. This may be useful, for example, when
making long distance calls.
You can save two separate calling card numbers.
The numbers and the codes associated with them are
protected by the code.
Before making a calling card call, you need to select
and activate a card.
Note: You cannot use the calling card service for
data calls.
To turn the calling card service on or off
1. Scroll to Calls, YES, Time & cost, YES, Calling cards,
YES, Use callingcards, YES.
2. Enter your phone lock code, YES .
3. Select On or Off, YES.
See “Security” on page 65 for more information.
To save a card number
1. Scroll to Calls, YES, Time & cost, YES, Calling cards,
YES, My cards, YES .
2. Enter your phone lock code, YES .
3. Select Add new?, YES.
Enter the card settings (the access number and name of
the calling card server, and the verification code). You
get this information from your card provider. Select
which you want to send first – the number that you
want to call, or the verification code. Press YES to
confirm your choice.
or
f
t
o
N
To select a card
1. Scroll to Calls, YES , Time & cost, YES, Calling cards,
YES, My cards, YES.
2. Enter your phone lock code, YES.
3. Select a card, YES.
4. Select Activate card, YES .
See “Security” on page 65 for more information.
e
s
U
l
a
ci
r
me
To make a calling card call
1. Enter the phone number of the person you want to call,
or retrieve the number from the phone book.
2. Press and hold YES .
The access number of the calling card server is called.
3. During the connecting phase, you are asked:
• Send called number? Press YES to send the phone
number you want to call.
• Send verification number? Press YES to send the
verification code.
Alternatively, if you wait a few seconds, the number
and code are sent automatically.
m
o
C
Restricted dialing
You can use the restrict calls service to restrict
outgoing and incoming calls. This may be
useful, for example, when you are abroad. To
Calling
37
use this service, you need a password which you get
from your service provider.
Note: If you forward incoming calls, you cannot
activate some Restrict calls options.
The following calls can be restricted:
• All outgoing calls – All outgoing.
• All outgoing international calls – Outgoing Intl.
• All outgoing international calls except to your home
country – Outg. intl roam.
• All incoming calls – All incoming.
• All incoming calls when you are abroad (when
roaming) – Inc. when roam.
m
o
C
To turn a call restriction on or off
1. Scroll to Calls, YES, Manage calls, YES, Restrict calls,
YES.
2. Select an option, YES .
3. Select Activate or Cancel, YES .
4. Enter your password, YES .
• To turn off all call restrictions, select Cancel all.
• To change the password, select Change passwd.
or
f
t
o
N
38
Calling
Fixed dialing
The fixed dialing function allows calls to be
made only to certain numbers saved on the
SIM card. Fixed dialing requires a SIM card
that allows fixed numbers to be saved. The fixed
numbers are protected by your PIN2.
e
s
U
l
a
ci
r
me
Note: Calls to the international emergency number
112 can still be made, even when the fixed dialing
function is on.
• Partial numbers can be saved. For example, saving
0123456 allows calls to be made to all numbers
starting with 0123456.
• Numbers with question marks can be saved. For
example, saving 01234567?0, allows calls to be made
to numbers from 0123456700 to 0123456790. To enter
a question mark, press and hold
.
To turn fixed dialing on or off
1. Scroll to Phone book, YES, Options, YES, Fixed dialing,
YES.
2. Enter your PIN2, YES.
3. Select On or Off, YES .
To save a fixed number
• Scroll to Phone book/Special numbers/Fixed numbers.
Select Add new? and enter the number.
To call outside a Closed User Group
• Select Open calls and then select On.
Accept calls
With the accept calls service, you can choose to
receive calls only from certain numbers. Other calls
are automatically rejected by a busy tone. The phone
numbers of calls you have rejected are saved in the
Call List.
Closed user groups
The Closed User Group function is a way of lowering
call costs. On some networks it is cheaper to make
calls within a call group. You can save ten groups.
To add a group
1. Scroll to Calls, YES , Manage calls, YES , Closed groups,
YES, Edit list, YES .
2. Scroll to Add new?, YES.
3. Enter the name of the user group, YES .
4. Enter the index number, YES.
You get the index number from your operator.
or
f
t
o
N
To add numbers to the accepted callers list
1. Scroll to Calls, YES , Manage calls, YES, Accept calls,
YES, Accepted list, YES.
2. Scroll to Add new?, YES .
This takes you to the phone book.
3. Select an entry, YES.
m
o
C
To activate a group
1. Scroll to Calls, YES , Manage calls, YES , Closed groups,
YES, Edit list, YES .
2. Select a group, YES.
3. Select Activate, YES.
Calls can only be made within the selected group.
e
s
U
l
a
ci
r
me
To select an accept option
• Scroll to Calls/Manage calls/Accept calls/Accept
options.
Networks
When you turn on the phone, it automatically
selects your home network if this is within
range. If it is not within range, you may use
Calling
39
another network, provided your network operator has
an agreement that allows you to do so. This is called
roaming.
You can select the network you want to use, or you
can add a network to your list of preferred networks.
You can also change the order in which networks are
selected during an automatic search. For all such
options, scroll to Connect, YES, GSM Networks, YES.
Additional calling functions
Tone signals
You can use telephone banking services or
control an answering machine by sending
tone signals (also known as DTMF tones or
touch tones) during a call.
or
f
t
o
N
m
o
C
To send and clear tones
• Press the number keys 0-9,
and
.
• To clear the display after a call, press NO .
Notepad
You can use the phone to make a note of a phone
number during a call. When you press the number
keys, the person you are talking to hears tone signals.
40
Calling
To turn these tone signals off during the call, press
, select Turn off tones, YES. When you end the
call, the number remains in the display. You can then
call the number by pressing YES .
e
s
U
l
a
ci
r
me
Showing or hiding your number
If your subscription supports the Calling Line
Identification Restriction (CLIR) service, you
can hide your phone number when making
a call.
To show or hide your phone number
1. Enter the phone number you want to call.
2. Scroll to Calls, YES , Next call, YES.
3. Select Hide my number or Show my numb. and press
YES to make the call.
Setting up mobile Internet
In order to use the Internet, browse via WAP
services or send and receive multimedia and
e-mail messages, the following are required:
1. A phone subscription that supports data
transmission.
2. Settings entered in your phone.
• Settings may already be entered when you buy your
phone.
• You can receive settings in a text message from your
network operator or service provider.
• Settings are also available at www.SonyEricsson.com/
3. You may also have to register as a WAP/e-mail user
with your service provider or network operator.
m
o
C
Receiving settings in a text message
Your GSM network operator or Internet service
provider may be able to send the required data account,
WAP and e-mail settings direct to your phone in a text
message (SMS).
or
f
t
o
N
2. When the message arrives, New settings received.
Install? appears.
• Press YES to install the new settings
Note: If settings already exist in your phone you can
either keep or replace them. See “Advanced setting
information” on page 42 for more information.
• Press NO to cancel installation. A new request for
settings is then required, as in step 1.
3. After installation, see “Using mobile Internet” on
page 57.
To request settings from Sony Ericsson
1. Use a PC to go to http://www.SonyEricsson.com/.
Select your region and then use the Configurators to
request that a text message be sent to your phone with
the settings you need.
e
s
U
l
a
ci
r
me
Set up with the wizard
If your phone is not set up for WAP, you can ask your
network operator or service provider to provide you
with WAP settings information. Then you can simply
use the wizard in your phone to help guide you through
the relevant settings.
To use the wizard for setting up WAP
1. Scroll to WAP Services, YES , homepage (for example
Mobile Internet), YES. The wizard now starts if no
WAP settings exist.
2. Enter and save settings when asked, press YES to
confirm.
Setting up mobile Internet
41
Advanced setting information
To use the WAP browser, via a WAP service provider,
you need settings for:
• a specific data account for WAP, and a WAP profile.
To use e-mail messaging, via an Internet service
provider, you need settings for:
• a specific data account for e-mail, and an e-mail
account.
To send a text message (SMS) to an e-mail address via
your network operator, you need to set:
• an e-mail gateway phone number.
m
o
C
Note: Some advanced settings that are described in the
following texts are not necessarily mandatory, please
consult your network operator or service provider for
more information.
or
f
t
o
N
A data account includes connection settings for
access to a server at your service provider, for example
via WAP (Mobile Internet) or via e-mail (Internet).
A WAP profile includes user settings that allow WAP
browsing and multimedia messaging.
42
Setting up mobile Internet
An e-mail account includes user settings that allow
e-mail messaging direct from your phone, such as
those provided by your Internet service provider.
Alternatively, E-mail via WAP includes user settings
that also allow e-mail messaging, such as those
provided by your Internet service provider. However
this is set up on your service provider’s WAP site.
e
s
U
l
a
ci
r
me
Note: Check with your WAP service provider if their
site supports e-mail.
Data account settings
You can have several data accounts saved in
your phone, with different settings for
different purposes. The main setting for a data
account is the Account type (connection method).
Tip: If there are no data account or WAP profile
settings in your phone, you can enter data account
settings when you enter WAP profile settings. See WAP
Services/Options/WAP profiles/Add profile?/Enter a
name/ Connect using:/Add account?/.
You can choose from GPRS data or GSM data account
types.
Note: Please contact your network operator for
charging details.
• DNS address – if the network does not provide the
IP address to the DNS server automatically, you
may enter it here.
• Advan. settings (Advanced settings) – these are
optional. Consult your network operator.
GPRS (General Packet Radio Service) allows
fast and efficient access where you can
always be online.
Note: You need a subscription that supports GPRS.
GPRS settings that are available:
• APN (Access point name address) – the address of
the external data network you want to connect to,
either an IP address or a text string.
• User id – your user id to log on to the external data
network.
• Password – your password to log on to the external
data network.
• Passwd. request (Password request) – if this setting
is on, you are asked for a password each time you
log on to the external data network.
• Allow calls (Preferred service) – if you want to be
able to accept incoming calls during a GPRS
session, select Automatic. If not, select GPRS only.
• IP address – the IP address that the phone uses
when communicating with the network. If you do
not enter an address, the network provides you with
a temporary IP address.
or
f
t
o
N
m
o
C
e
s
U
l
a
ci
r
me
GSM settings include some settings that are
similar to GPRS settings and some that are
GSM-specific as follows:
• Phone number – the phone number of your
Internet service provider.
• Data rate – select the speed you want for the
connection.
• Dial type – select analog or ISDN connection.
Note: If you want to change access type, you have to
create a new data account and select the access type
you want to use.
To create a data account manually
1. Scroll to Connect, YES, Data comm., YES, Data
accounts, YES, Add account?, YES.
2. Select an account type for access.
3. Enter a name for the data account.
Setting up mobile Internet
43
4. Enter the settings that you have received from your
network operator or service provider.
Confirm each setting by pressing YES .
5. Scroll to Save?, YES .
To edit a data account
1. Scroll to Connect, YES , Data comm., YES, Data
accounts, YES.
2. Select a data account, YES.
3. Select Edit.
4. Select the setting you want to edit, YES . Edit the
setting, YES.
5. Repeat step 4 for other settings you want to edit.
m
o
C
Preferred service
You can set GPRS or GSM as the preferred service.
or
f
t
o
N
To select preferred mode
• Scroll to Connect/Data comm./Pref. service and select
GPRS and GSM or GSM only.
Note: To see the status of GPRS coverage and
connection, slide the volume key up or down from
standby to enter the Status menu and then scroll to
GPRS.
44
Setting up mobile Internet
WAP profile settings
The WAP settings are stored in a WAP profile. In most
cases you only need to use one profile to access the
Internet.
You set up and use additional WAP profiles, for
example, when accessing secure Internet sites, such as
a banking site or a corporate intranet. You then simply
switch between profiles when you need to change the
network connection.
e
s
U
l
a
ci
r
me
Tip: If there are no data account or WAP profile
settings in your phone, you can enter data account
settings when you enter WAP profile settings. See WAP
Services/Options/WAP profiles/Add profile?/Enter a
name/ Connect using:/Add account?/.
To enter WAP profile settings manually
1. Make sure you have a data account set up between
your phone and the Internet server, as described in
“Data account settings” on page 42.
2. Scroll to WAP Services, YES, Options, YES , WAP
profiles, YES .
3. Select Add profile? to add a new profile or select an
existing profile that you want to edit, YES.
WAP security settings
Your phone has support for WAP secure
browsing. When you turn on security, the
connection between your phone and the WAP
gateway is secure.
When selecting Add profile? enter a name for the
profile, YES , Connect using:, YES , select the data
account to be used, YES and enter the IP address:, YES.
A list appears. Scroll to Save?, YES.
When selecting an existing profile, you can do the
following:
• Rename – Change the name of the profile.
• Connect using – Select data account.
• IP address – WAP gateway server address.
• Advanced – More profile settings, see below.
• Delete – Remove the profile.
If you select Advanced you can also do the following:
• Chg homepage – Enter the address of the WAP site
you want as the homepage.
• Second account – Select an alternative data account,
if the first in Connect using fails.
• User id – Enter your user id for the WAP gateway.
• Password – Enter your password for the WAP
gateway.
• Security – See WAP security settings.
• Show pictures – View pictures while browsing.
or
f
t
o
N
e
s
U
l
a
ci
r
me
Note: Security for a connection between a WAP
gateway and a WAP service provider is the
responsibility of the WAP service provider.
To turn on a secure connection
1. Scroll to WAP Services, YES , Options, YES, WAP
profiles, YES .
2. Select the profile to be used, YES .
3. Select Advanced, YES , Security, YES .
4. Select On, YES.
m
o
C
Security module (Locks)
The security module is located on the SIM card, if your
network operator or service provider supplies such a
service. It can contain both certificates and your
private keys. The security module is protected by a
special access PIN and your phone asks you for it
when establishing a secure connection.
Setting up mobile Internet
45
To enter the access PIN (for the security module)
and the signature PIN
• Scroll to WAP Services, YES , Options, YES, Common,
YES, Security, YES, Locks.
Digital signatures
You can sign a contract with your phone by entering a
digital signature PIN as if signing with a pen on paper.
Digital signature records can be traced back to your
private key through a certificate that is used for signing
a contract.
All transactions (signed contracts) made with your
phone when browsing are stored in your phone.
m
o
C
To check your contracts
• Scroll to WAP Services/Options/Common/Security/
Contracts.
or
f
t
o
N
Trusted certificates and Client certificates
To establish a secure connection when using certain
WAP services, for example banking or WAP shopping,
you need certificates in your phone.
46
Setting up mobile Internet
The different types of certificates are as follows:
1. Server certificates are used to identify a WAP
gateway to the phone and to show that it is certified
by a trusted authority. The server certificate is checked
against trusted certificates that are stored in the phone
or in a security module. If the phone cannot verify the
identity of a server, you are given the options to
terminate or continue the connection.
2. Trusted certificates are used to verify the WAP
gateway that you are trying to connect to. Your phone
may already contain trusted certificates when you buy
it. If you have a security module, it may also contain
trusted certificates. You can also download trusted
certificates from Sony Ericsson Mobile Internet or
other WAP pages.
3. Client certificates are located in a security module
together with your private keys. Client certificates can
be used to present your identity to a bank or other
services. They can also be used for digital signatures.
e
s
U
l
a
ci
r
me
To check the certificates in your phone
1. Scroll to WAP Services, YES, Options, YES , Common,
YES, Security, YES .
2. Select Trusted certif. or Client certif.
E-mail account settings
An e-mail account specifies, for example, the server
that is used for your e-mail messages.
1.
2.
3.
4.
5.
6.
7.
•
•
To create an e-mail account
Scroll to Messages, YES , E-mail, YES , Options, YES.
Select Edit account, YES.
Select Add new?, YES.
Enter a name for the account, for example Home or
Office.
Select Connect using, YES .
A list appears with the data accounts that you have
saved in your phone.
Select the data account you want to use with this email account, YES .
Enter the rest of the settings in the list, some of which
are optional. To enter the settings, scroll to the setting,
press YES and enter the information. Press YES to
confirm. Repeat this for each required setting. You use
the same e-mail settings in your phone as in your PC
e-mail program. If you do not have an e-mail service,
contact your operator to get all the necessary settings.
Protocol – select POP3 or IMAP4.
Incoming serv. (Incoming server)– enter the name or IP
address of the service provider for incoming e-mail
messages. For example, mail.server.com or 10.1.1.1.
or
f
t
o
N
• Incoming port – if needed, change the number of the
port used by the protocol you are using.
• Mailbox – enter a user name for your e-mail account.
• Password – enter a password for your e-mail account.
Your service provider may alternatively request a
password on connection.
• Outgoing server – enter the name or IP address of the
SMTP server to be able to send e-mail messages.
• Outgoing port – if needed, change the number of the
port used by the SMTP protocol.
• Email address – enter your e-mail address.
• Download – select whether to receive headers and text
or headers only.
• From name – enter your name.
• Signature – select if you want to add your business
card to your e-mail messages.
• Copy outgoing – Select On, if you want e-mail
messages sent from your phone also to be sent to an
e-mail address of your choice. This way, your sent
messages are copied and can be saved for future
reference.
• Check interval – Select how often you want the phone
to connect to your e-mail server and check for
incoming e-mail messages.
m
o
C
e
s
U
l
a
ci
r
me
Setting up mobile Internet
47
If you have both an office and a home e-mail account,
you can set one of them as default:
• Select Set account from the Messages/E-mail/Options
menu and select the account.
See “E-mail” on page 55 for information about how to
use e-mail.
or
f
t
o
N
48
Messaging
m
o
C
Messaging
Your phone supports various messaging
services - text messages, chat messages,
multimedia messages and e-mail. Please
contact your service provider for details on
which services you can use.
e
s
U
l
a
ci
r
me
Text messages
Text messages are sent via SMS (Short Message
Service). They can be sent to one person or to a
number of recipients, for example, that you may have
saved in the phone book.
You can add pictures, animations, melodies, and
sound effects to a text message, and format the text,
using EMS (Enhanced Messaging Service). You can
also send picture messages.
Note: Text messages with EMS functionality can
only be sent to other compatible phones supporting
the EMS standard.
Before you start
First make sure that the number of your service center
is set. The number is supplied by your service provider
and is usually saved on the SIM card.
To set the service centre number
1. Scroll to Messages, YES , Text, YES , Options, YES,
Service centers, YES.
The service center number appears if it is saved on the
SIM card.
2. If there is no number in the list, select Add new?, YES.
3. Enter the number, including the international “+” sign
and country code, YES.
Sending text messages
For information about entering letters, see “Entering
letters and characters” on page 14.
To write and send a text message
1. Scroll to Messages, YES , Text, YES , Write new, YES .
2. Write your message, YES.
3. Enter a recipient or more as follows:
• Enter a recipient’s phone number, YES.
• For more recipients, scroll to Add recipient, YES,
enter the number, YES.
• Press
to retrieve a number from the phone book
or other options.
4. Select Send, YES .
or
f
t
o
N
Note: If you send a text message to more than one
recipient, you are charged per recipient.
To insert an item in a text message
Scroll to Messages, YES, Text, YES, Write new, YES.
While writing your message press
.
Select Insert item, YES.
Select Picture, Sound effect, Melody, Animation or
My anim. or Picture msg, YES .
5. Select an item, YES. Then press YES again to confirm.
After inserting an item, press
to select, delete or
replace options.
1.
2.
3.
4.
m
o
C
e
s
U
l
a
ci
r
me
Note: Options to insert other items such as sounds and
melodies are available only for Sony Ericsson picture
formats, not for picture messages.
E-mail gateway
Your network operator may have a phone number to an
e-mail gateway that allows you to send a text message
to an e-mail address.
Messaging
49
To set up an e-mail gateway
1. Scroll to Messages, YES, Text, YES , Options, YES,
E-mail gateways, YES.
2. If there is no number in the list, select Add new?, YES.
3. Enter the number, including the international “+” sign
and country code, YES.
You can activate, edit or delete e-mail gateways.
Text formatting
You can change the style, size and alignment of the
text, and create new paragraphs, in a text message.
To format the text in a text message
1. Scroll to Messages, YES , Text, YES, Write new, YES.
2. Write the text message. Highlight the text you want to
format by sliding the volume key down while scrolling
back with the joystick.
3. Press
.
4. Select Text format, YES . Then select Text style, Text
size, Alignment or New paragr., YES .
5. Select a text format, YES.
or
f
t
o
N
m
o
C
Tip: You can also select text formats before you start
writing the text message.
50
Messaging
Receiving text messages
When you receive a text message, the phone beeps and
the message New messages Read now? appears in the
display. If you receive a text message from someone
you have saved as a contact in your phone book, the
name of that contact appears in the display along with
the text message.
e
s
U
l
a
ci
r
me
To read the text message
Press YES to read the text message, or NO if you want to
read the message later. The message is saved in Inbox
in the Text menu. You may not receive all parts of a
long message at the same time.
While reading the text message you can, for example,
start a chat session with the sender or go to a WAP
address found in the text message.
When you have read the text message, press YES to
select one of the following options, for example, Reply,
Forward or Delete the text message. Press NO to close
the text message.
Saving incoming text messages
Incoming text messages are saved in the phone
memory. When the phone memory is full, incoming
text messages are saved on the SIM card. Messages
that you have saved on the SIM card remain there until
you delete them.
To save from a text message
When the melody, phone number, WAP address,
picture or animation is highlighted, press YES. Then
select to save the item and press
.
• A melody is saved in My sounds.
• A phone number is saved in Phone book.
• A WAP address is saved in Bookmarks.
• All pictures are saved in My pictures.
Note: Animations can only be viewed when inserting
an item in a text message. See “To insert an item in a
text message” on page 49.
or
f
t
o
N
To turn long messages off
• Scroll to Messages, YES, Text, YES, Options, YES , Long
messages, YES, select Off, YES.
Templates
If you have one or more messages that you send often,
you can save these as templates. Your service provider
may also have saved some templates in your phone.
To create a template
1. Scroll to Messages, YES, Text, YES, Templates, YES ,
Add new?, YES.
2. Write the message, YES.
3. Press YES if you want to send the message now. Press
NO to save the template.
m
o
C
Long messages
A single text message can contain up to 160 characters.
You can send a longer message where two or more
messages are linked together.
Note: You are charged for the number of linked
messages.
e
s
U
l
a
ci
r
me
Message options
You can set a default value for message options or you
can choose the settings each time you send a message.
• SMS type – The phone supports different types of
messages. Your service provider may offer the facility
of converting a text message into a format (e-mail, for
example) that suits the equipment that is going to receive
the message.
Messaging
51
• Validity period – If your message cannot be delivered,
for example, if the recipient has turned off the phone,
your service center can save the message to send it later.
• Request reply – Include a reply request if you want the
recipient of your message to reply.
• Status request – Check if a message has been delivered.
To set a message option
1. Scroll to Messages, YES , Text, YES, Options, YES .
2. Select a message option, YES .
3. Select an option or Set on send, YES.
To check the status of a sent message
• Scroll to Messages, YES , Text, YES, Sent items, YES ,
select a text message, press
, View status, YES .
m
o
C
Mobile chat
The mobile chat function works in the same way as a
chat on the Internet. You can choose a nickname that
appears in the recipient’s display each time you send a
chat message.
or
f
t
o
N
To enter a chat nickname
1. Scroll to Messages, YES , Chat, YES.
2. Select Nickname, YES.
3. Enter your nickname (maximum of 6 characters), YES.
52
Messaging
To start a chat session
1. Scroll to Messages, YES, Chat, YES Start new, YES .
2. Enter the recipient’s phone number, or retrieve it from
the phone book by pressing .
3. Write your message, YES.
e
s
U
l
a
ci
r
me
•
•
•
•
•
•
•
Receiving a chat session invitation
When you receive a chat session invitation, the phone
beeps and Chat Message Chat now? appears.
To read the chat message, press YES.
Write your chat message reply and press YES.
To suspend a chat session, press NO.
To resume a chat session, scroll to Messages/Chat/
Resume.
To end a chat session, press and hold NO .
To reject a chat message, press NO . The rejected chat
message is saved in Inbox in the Messages menu.
To end an ongoing session and start another one from
a new chat message, press YES .
Area information
Area information is a type of text message that is sent
to all subscribers in a certain network area, for
example, a local traffic report. When you receive an
area information message, the message automatically
appears. You cannot save area messages. Please
consult your service provider for more information
about area information codes.
Before you start
Make sure you have the following settings:
• An address to your service center.
• A specific WAP profile for multimedia messages.
To turn area information on or off
• Scroll to Messages/ Area info/Reception.
To enter an area information code
• Scroll to Messages/ Area info/Message list/Add new?.
Cell information
The cell information channel is used by some network
operators to send messages to their subscribers within
a certain network area.
To enter the service centre address
• Scroll to Messages/Multimedia/Options/Message
server.
To select or enter settings for MMS
• Scroll to Messages/Multimedia/Options/WAP profile
and select Select or Create new. See “To enter WAP
profile settings manually” on page 44 for information
how to create a WAP profile.
m
o
C
To turn on the channel
• Scroll to Messages/Area info/Cell information.
or
f
t
o
N
e
s
U
l
a
ci
r
me
Note: Contact your network operator to automatically
download settings or for more information.
Multimedia messages
Multimedia messages can be sent to a mobile phone
and an e-mail account via MMS (Multimedia
Messaging Service). A multimedia message can
contain text, pictures, animations, melodies and sound.
You can also send contacts, event entries and sound
recordings as attachments.
More Options
You can set different options for sending and receiving
multimedia messages.
To edit an option
• Scroll to Messages/Multimedia/Options.
Messaging
53
1.
2.
3.
4.
5.
6.
7.
To compose and send a new multimedia
message
Scroll to Messages YES, Multimedia, YES, Write new,
YES.
Select from the submenus, press YES.
Enter the information you want to send, press YES .
Press YES again to continue.
Select
, YES to add other items or more options.
Scroll to Send message, YES.
Enter the recipients phone number or press
to
retrieve a phone number or e-mail address from the
phone book.
Press YES to send the message.
m
o
C
Tip: Highlight a part of the message and press
if you are not satisfied and want to delete a part while
writing.
or
f
t
o
N
To use a pre-defined template for a multimedia
message
• Scroll to Messages, YES , Multimedia, YES , Templates,
YES.
To edit the message before sending it
• To edit an item, select it and press YES .
54
Messaging
• Pictures – Add or replace an existing picture with
one from My pictures.
• Text – Add or edit existing text. To change text size,
select the text and press
. Select Text size, YES .
• Sound – Add or replace an existing sound with an
alternative from My sounds.
• Page – Insert a new page.
• Timing – To set how many seconds you want an item
to be displayed, select the item and press
.
Select Item timing, YES. To set the timing for the
page, select the cursor icon in the message, press
YES and select Page timing, YES.
• Delete page – Remove a page.
• Preview page – View a page before sending.
• Preview – View the message.
e
s
U
l
a
ci
r
me
Receiving multimedia messages
When you receive a multimedia message, the phone
beeps and the message Read now? appears. Press YES
to read the message.
Note: Memory capacity is limited. You may have to
delete old messages before you can receive new ones.
Automatic download options
From the Messages/Multimedia/Options/Auto
download menu select one of the following:
• On – Messages are automatically downloaded to your
phone by default.
• Confirm – Press YES to download or NO to save it on
your network operator’s server.
• Off – A new message icon appears in the inbox. Select
the message and press YES to download.
Note: Check with your network operator regarding
how many messages can be saved or the space
available on the network server.
E-mail
You can use your phone to send and receive e-mail
messages via the Internet, as you would from a PC.
When you have viewed a multimedia message, you can
use the joystick to scroll through the message again.
When an item is highlighted, press
to save it in
your phone.
When you have read the message, select Proceed
to select one of the following options such as: Reply,
Forward, Save template or Delete the message. Press
NO to close the message.
e
s
U
l
a
ci
r
me
Before you start
First make sure that you have:
• A subscription that supports data transmission. For
more information, consult your service provider.
• Set up a data account. See “Data account settings” on
page 42.
• Set up and selected an e-mail account. See “E-mail
account settings” on page 47.
m
o
C
To view a multimedia message
1. Press YES. The message is automatically played.
2. Press any key to stop.
or
f
t
o
N
Tip: You can also select a message from the list of
messages and press
to delete the entire message.
Sending and receiving e-mail messages
The Send & receive option offers the fastest way to
send e-mail messages saved in the Outbox and check
for new e-mail messages.
To write and send an e-mail message
1. Scroll to Messages, YES, E-mail, YES, Write new, YES.
2. Select:
• To: – Then add name, enter an e-mail address, or
retrieve an e-mail address from the phone book. You
can also retrieve a saved address from received
messages in your inbox.
Messaging
55
• Cc: – If you want to send a copy of the message
to someone.
• Priority: – Set the message priority.
• Subject: – Write a title, YES .
• Text: – Write your message, YES.
• Attachments – Add up to five pictures to a message.
3. Select one of the following:
• Send now – The e-mail message is sent.
• Send w/attach. – You can attach a picture from
My pictures or from a digital camera connected via
IR. Select a picture and press YES to send.
• Save to outbox – The e-mail message is saved in
the Outbox.
• Save to drafts – The e-mail message is saved in the
Drafts folder
4. Send & receive in the E-mail menu – All e-mail
messages in the Outbox are sent and any new e-mail
messages are received in the Inbox.
or
f
t
o
N
m
o
C
To receive and read e-mail messages
1. Scroll to Messages, YES , E-mail, YES , Send & receive,
YES.
2. When the e-mail messages have been downloaded to the
phone, scroll to Messages/E-mail/Inbox to read them.
56
Messaging
Note: The phone can save up to six complete e-mail
messages depending on the size. You can modify
settings to download headers only, see “E-mail
account settings” on page 47. All e-mail messages are
also saved on your e-mail server.
e
s
U
l
a
ci
r
me
More messages on the server are indicated by:
• Arrows in the top or bottom left corners.
• Numbers in brackets for the previous and following
messages in the list.
Note: If you select a WAP address when reading an
e-mail message, e-mail disconnects and WAP starts.
To retrieve more messages
• Scroll to the arrow and press YES.
To reply to an e-mail message
Open the e-mail message.
Place the cursor in the text and press
.
Select Reply or Reply all, YES.
Select Write new or Include this msg to include the
message you received, press YES.
5. Write a message, YES.
1.
2.
3.
4.
To save an e-mail address or a phone number
• When the e-mail address or phone number is
highlighted, press YES . Select Save, YES .
Using mobile Internet
Archiving
You can archive an e-mail message in order to read it
later, or if you want to save important information. You
can archive only as much text as the display shows.
To archive an e-mail message
1. Open the e-mail message.
2. Make sure that the text you want to archive is visible in
the display.
3. Place the cursor in the text and press
.
4. Select Copy to arch., YES. The text can be found in
Archive in the E-mail menu.
To delete an e-mail message (POP3 users)
1. Scroll to Messages, YES , E-mail, YES , Inbox, YES.
2. Scroll to the message and press
.
3. Select Mark f.deletion, YES .
The message is deleted the next time you connect to
your e-mail server by selecting Send & receive.
or
f
t
o
N
Your phone has a WAP (Wireless Application
Protocol) browser and e-mail messaging which
are designed to bring a modified Internet to your
mobile phone. A wide range of services are available,
including news, entertainment, timetables,
reservations, banking, e-commerce, positioning and
e-mail.
Before you start
First make sure that you have:
• A phone subscription that supports data transmission.
• Correct settings in your phone for mobile Internet,
WAP and/or e-mail messaging. See “Setting up mobile
Internet” on page 41.
• Registered as a WAP/E-mail user with your network
operator or service provider.
m
o
C
To delete e-mail messages (IMAP4 users)
1. Scroll to Messages, YES , E-mail, YES , Options, YES .
2. Select Purge inbox, YES .
3. Select whether to delete with Send & receive or not.
e
s
U
l
a
ci
r
me
Note: See “E-mail account settings” on page 47 or
“E-mail” on page 55 for more information about email set-up and messaging.
Using mobile Internet
57
Using the WAP browser
To start browsing
1. First select the WAP profile you want to use. Scroll to
WAP Services, YES, Select profile, YES.
2. Then select one of the following:
• Open your homepage (Sony Ericsson Mobile Internet
is default).
• Go to one of your bookmarks. Select Bookmarks, YES.
• Enter the address of a WAP site. Select Enter address,
YES, New address? to enter a new WAP address or
select one of the 10 latest entered addresses.
Tip: When you enter a WAP address, the normal
http:// prefix is not needed.
or
f
t
o
N
To exit WAP and disconnect
• Press and hold NO or
• Press
, select Exit WAP.
m
o
C
Options when browsing
When you have started browsing, you can reach
different browsing options by pressing
.
The options menu is dynamic. Its content may vary
depending on which WAP site you are visiting.
58
Using mobile Internet
The options menu always contains the following:
• Go to the homepage set for the current WAP profile.
• Bookmarks – Add the site you are currently browsing
to your list of bookmarks, or see the list of bookmarks
for the current profile.
• Enter address – Enter the WAP address of a site you
want to visit.
• Save picture – Save a picture from the site.
• Send via SMS – Send a text message with a link to the
current WAP page to another phone.
• Send link – Send a link to the current site to another
phone via infrared.
• Reload – Refresh the contents of the WAP page.
• Exit WAP – Disconnect and go to standby.
• Status – Display current status information, for
example, profile, access type, connection time, data
rate, security, address.
• Set as homepg – Set the current site as the homepage
of the WAP profile you are using.
e
s
U
l
a
ci
r
me
Note: If you select an e-mail address when browsing
a WAP site, you can reply with a text message.
Using bookmarks
You use bookmarks in your mobile phone just as you
do with a PC Internet browser. You can have up to a
maximum of 25 bookmarks.
To work with bookmarks
1. Scroll to WAP Services, YES, Bookmarks, YES .
2. Select the bookmark you want to work with,
.
3. Select one of the following options and press YES :
• Go to – Go to the marked WAP address.
• Edit – Edit the name and/or the WAP address of
the bookmark. See “Options when browsing” on
page 58 for more information.
• Delete – Delete the bookmark.
• Send via SMS – Send a link to the WAP address in
a text message.
• Send – Send a link to the current WAP address via
infrared.
• Set as homepg – Set the WAP address as the
homepage.
or
f
t
o
N
To download from wap.sonyericsson.com
1. Scroll to WAP Services, YES , Bookmarks, YES , Mobile
Internet, YES.
2. Select what you want to download and follow the
instructions that appear, YES.
m
o
C
Downloading
You can download, for example, pictures, themes,
games and ring signals, from WAP sites directly to
your phone.
e
s
U
l
a
ci
r
me
Note: Make sure the file sizes do not exceed the free
memory in your phone, see “Memory status” on
page 69 for more information.
WAP push messages
You can receive push messages via WAP Services.
This means that a service provider sends WAP content
(information) to your phone without you having to do
anything. You can, for example, get updated news or
new WAP settings from your service provider.
There are two kinds of push messages:
• Text messages that inform you about WAP services,
by sending a link. To go to the WAP service, click the
link and select Load.
• Updated information from a WAP service is sent to
appear in the WAP browser.
Using mobile Internet
59
Receiving a push message
You can set your phone to either accept or reject push
messages. This is valid for all your WAP profiles.
To set push message acceptance
1. Scroll to WAP Services, YES , Options, YES, Common,
YES, Push access, YES.
2. Select one of the following settings:
• On – You allow push messages to be automatically
loaded.
• Prompt – You allow push messages, but only when
you confirm.
• Off – You do not allow push messages.
m
o
C
To respond to a push message
• Scroll to WAP Services, YES, Push inbox, YES, scroll to
any push message, YES and select one of the following:
• Load – The browser starts and loads the WAP site so
that you can see the push content.
• Delete – Deletes the push message.
• Postpone – Save the message, to be loaded later.
or
f
t
o
N
60
Using mobile Internet
Stored information
The following information can be saved in your phone:
• Cache – improves memory efficiency.
• Passwords – improves server access efficiency.
• Cookies – improves site access efficiency.
e
s
U
l
a
ci
r
me
To allow mobile Internet information in your phone
1. Scroll to WAP Services, YES, Options, YES , Common,
YES.
2. Select the information to allow, YES .
Note: See “WAP security settings” on page 45 for
more information regarding security and certificates.
It is advisable to clear any sensitive information about
previously visited WAP services. This is to avoid a
security risk if your phone is misplaced, lost or stolen.
To clear cache, password list, cookies or
push inbox
1. Scroll to WAP Services, YES, Advanced, YES.
2. Select the information to be cleared.
3. Press YES to confirm.
More features
One number
If you have a SIM card that does not support a separate
data number, the phone does not recognize the type of
incoming call.
If you want to receive a data call, you have to set the
phone to this option. Once you have set your phone
for a specific incoming call, it stays like this until you
change it.
Data calls
Data calls
To make data calls you need to connect your
phone to a computer, and then start the appropriate
software program.
Receive data calls
The procedure of receiving data calls depends on your
network and subscription. If you have separate numbers
for voice and data calls, your phone will recognize the
type of call.
or
f
t
o
N
To select the next incoming call type
• Scroll to Calls/Next call/Next incoming.
m
o
C
To receive a data call (separate numbers)
1. Connect your phone to a computer.
2. Answer the call from within the software program (if it
does not answer automatically).
You cannot answer a data call by pressing the YES key
on the phone.
e
s
U
l
a
ci
r
me
Alarm clock
The alarm can be set to ring at a specific time within
24 hours, or recurrently at a specific time on several
days. You can have both these alarms set at the same
time. Even if you have set your phone to silent, the alarm
and timer signals ring. The alarm clock also rings if the
phone is turned off.
To set an alarm
1. Scroll to Organizer, YES, Alarms, YES, Alarm or
Recurrent alarm, YES.
2. Enter the time, YES and day, if recurrent, by scrolling
, YES.
and pressing
More features
61
• To change the alarm time, scroll to Organizer/Alarms/
Alarm/New time.
• Press any key to turn the alarm signal off when it rings.
If you do not want the alarm to be repeated, press YES.
• To cancel the alarm, scroll to Organizer/Alarms/Alarm
or Recurrent alarm/Cancel.
• To select an alarm signal, scroll to Settings/Sounds &
alerts/Alarm signal.
•
•
•
•
Stopwatch
Scroll to Organizer, YES, Stopwatch, YES.
To start, stop or re-start the stopwatch, press YES .
To save up to nine lap times, press
.
To check saved lap times, scroll using the joystick.
To reset the stopwatch, press
or NO.
or
f
t
o
N
m
o
C
Note: The stopwatch is turned off when you answer an
incoming call or when you exit the stopwatch menu.
Timer
The phone has a built-in 24-hour timer.
To set the timer
• Scroll to Organizer/Timer. When the signal rings,
press any key to turn it off.
62
More features
Calculator
The phone has a built-in calculator, which can add,
subtract, divide and multiply.
To use the calculator
• Scroll to Organizer, YES, Calculator, YES .
You can enter digits with the keypad and the following:
• Press
to get +, -, x, /.
• Press
to delete the figure.
• Press
to enter a decimal point or %.
• Press YES to calculate a result, equals to (=).
• Press
to save to memory.
• Press to retrieve from memory.
e
s
U
l
a
ci
r
me
Events
Keep track of important things that you need to do.
You can choose to add, reschedule, edit, send or delete
events.
To add a new event
1. Scroll to Organizer, YES, Events, YES , New?, YES.
2. Enter the appropriate information: date, time, subject,
icon, reminder.
Confirm each entry with YES.
Sound recorder
With the Sound recorder function, you can record
either your own memos or calls. All participants in the
call are automatically recorded. The recording is
terminated if any party hangs up.
The recordings are saved in your mobile phone and
can be accessed even if you change your SIM card.
To view or edit your events
• Scroll to Organizer, YES, Events, YES and then select an
event, YES :
Events options
• Scroll to an event, press
and then select one of the
options to reschedule, edit, send, delete or delete all.
To send an event
1. Scroll to the item you want to send and press
2. Scroll to Send, YES.
3. Align the receiving device.
To receive an event
1. From standby, press
2. Press YES to save.
or
f
t
o
N
e
s
U
l
a
ci
r
me
Note: In some countries or states it is required by
law that you inform the other person before recording
the call.
Exchanging events
You can send and receive an event via IR.
.
To start a sound recording
• Scroll to Fun & Games, YES, Sound recorder, YES.
Recording starts and the display shows Recording
together with the time of the current recording
(increasing).
m
o
C
, scroll to Activate IR, YES.
Note: If the events list is full, you must remove events
before you can save any new ones.
Note: Recordings are saved in Fun & Games/My
sounds.
To end the recording
• Press NO .
The recording stops automatically if you receive an
incoming call or when the call ends. You hear a tone
a few seconds before the memory is full.
More features
63
Games
Your phone has games and you can download games.
Listening to recordings
You can listen to your recordings at any time, even
during a call, and both persons will hear them.
To listen to your recordings
1. Scroll to Fun & Games, YES, My sounds, YES .
2. Scroll to Recording or go to next or previous by
moving the joystick up or down, respectively.
3. Press NO to stop playback.
1.
2.
3.
4.
To start a game
Scroll to Fun & Games, YES , Games, YES.
Select a game, YES .
Select New game or Resume game, YES .
Start the game.
e
s
U
l
a
ci
r
me
Note: Press
Note: You can also send, delete, rename, check sound
information and memory status.
To send a recording
1. Scroll to Fun & Games, YES, My sounds, YES .
2. Scroll to the recording you wish to send.
3. Press
and select the transfer method.
1.
2.
3.
4.
64
or
f
t
o
N
m
o
C
To erase or rename a sound recording
Scroll to Fun & Games, YES, My sounds, YES .
Scroll to the recording you wish to erase or rename.
Press
when the recording is highlighted.
Select Delete or Rename, YES.
More features
to manage downloaded games.
Game controls:
Use the joystick to move up, down, left or right and to
select an item, or use the keys as follows:
= confirm/re-start
= up
= left
= select/deselect
= reset
= save and quit
= down
= right
= pause
= undo
Security
To download a new game
1. Make sure you have entered WAP settings, see
“Setting up mobile Internet” on page 41.
2. Scroll to Fun & Games, YES, Games, YES, New games,
YES.
3. Press YES to download a new game via WAP.
A WAP session starts.
4. Select a game from the WAP site, YES.
The game is downloaded and saved in Fun & Games/
Games.
Note: See “To download from wap.sonyericsson.com”
on page 59 for more information.
or
f
t
o
N
m
o
C
SIM card lock
The SIM card lock protects your subscription, but not
your phone itself, from unauthorized use. If you
change SIM cards, the phone still works with the new
SIM card.
Most SIM cards are locked at the time of purchase.
If the SIM card lock is on, you have to enter a “PIN”
(Personal Identity Number) every time you turn on
your phone.
If you enter your PIN incorrectly three times in a
row, the SIM card is blocked. This is indicated by the
message PIN blocked. To unblock it you need to enter
your “PUK” (Personal Unblocking Key). Your PIN
and PUK are supplied by your operator.
e
s
U
l
a
ci
r
me
1.
2.
3.
4.
To unblock your SIM card
PIN blocked appears.
Enter your PUK and press YES.
Enter a new four- to eight-digit PIN and press YES.
Re-enter the new PIN to confirm and press YES .
To edit your PIN
• Scroll to Settings/Locks/SIM lock/Change PIN.
Security
65
Note: If the message “Codes do not match” appears,
you entered the new PIN incorrectly. If the message
“Wrong PIN” appears, followed by “Old PIN:”, you
entered your old PIN incorrectly.
PIN2
Certain services are protected by a second PIN.
To edit your PIN2
• Scroll to Settings/Locks/SIM lock/Change PIN2.
To turn the SIM card lock on or off
1. Scroll to Settings, YES , Locks, YES , SIM lock,
YES, Protection, YES.
2. Select On or Off, and press YES .
3. Enter your PIN and press YES.
or
f
t
o
N
m
o
C
Phone lock
The phone lock protects the phone against
unauthorized use if it is stolen and the SIM card is
exchanged. It is not on when you buy the phone. You
can change the phone lock code (0000) to any four- to
eight-digit personal code. The phone lock can be set to
on, automatic or off.
66
Security
Phone lock on
If the phone lock is on, the message Phone locked
appears each time you turn on the phone. You have to
enter your code followed by YES to use your phone.
e
s
U
l
a
ci
r
me
Automatic
If the phone lock is set to automatic, you do not need to
enter your phone lock code until a different SIM card
is inserted in the phone.
To edit your phone lock code
• Scroll to Settings/Locks/Phone lock/Change code.
Note: It is important that you remember your new
code. If you should forget it, you will have to hand in
your phone to your local Sony Ericsson retailer.
To set the phone lock
1. Scroll to Settings, YES, Locks, YES, Phone lock, YES ,
Protection, YES.
2. Select an alternative and press YES .
3. Enter the phone lock code and press YES.
Troubleshooting
This chapter lists some problems that you might
encounter while using your phone. Some problems
require that you call your service provider, but most
of the problems you can easily correct yourself.
The phone cannot be switched on
Recharge or replace the battery. See “SIM card and
battery information” on page 6.
No indication of charging
When you start charging a battery that is empty or a
battery that has not been used for a long time, it may
take up to 30 minutes before the battery icon appears
in the display.
or
f
t
o
N
m
o
C
Menu language
If the display shows a language that you do not
understand, you can always set the following from
standby:
• Press
0000
for English menus.
• Press
8888
for automatic, local menus.
Note: Themes are also set to factory default.
Grey menu options
Grey text indicates a function that is temporarily
unavailable, for example, due to your
subscription or due to a certain setting which
has not been turned on.
Since you cannot send themes, pictures and sounds
that are copyright-protected, the Send menu is
sometimes unavailable.
e
s
U
l
a
ci
r
me
Error messages
Insert SIM
There is no SIM card in the phone or you may have
inserted it incorrectly. See “SIM card and battery
information” on page 6.
Insert correct SIM card
The phone is set to work only with certain SIM cards.
Insert the correct SIM card.
Emergency only
You are within range of a network, but you are not
allowed to use it. However, in an emergency, some
operators allow you to call the international emergency
number 112. See “Emergency calls” on page 27.
Troubleshooting
67
No network
There is no network within range or the received signal
is too weak. You have to move to get a signal that is
strong enough.
Wrong PIN/Wrong PIN2
You have entered your PIN or PIN2 incorrectly.
• Enter the correct PIN or PIN2, and press YES. See
“SIM card lock” on page 65.
Codes do not match
When you want to change a security code (for example
your PIN) you have to confirm the new code by
entering it again. The two codes that you have entered
do not match. See “SIM card lock” on page 65.
or
f
t
o
N
m
o
C
PIN blocked/PIN2 blocked
You have entered your PIN or PIN2 incorrectly three
times in a row. To unblock, see “SIM card lock” on
page 65.
PUK blocked- contact operator
You entered your personal unblocking key code (PUK)
incorrectly 10 times in a row. Contact your network
operator or service provider.
68
Troubleshooting
Phone locked
The phone is locked. To unlock the phone, see “Phone
lock” on page 66.
Phone lock code:
Your phone comes with the phone lock code, 0000.
You can change it to any four- to eight-digit code. See
“Phone lock” on page 66.
e
s
U
l
a
ci
r
me
Number not permitted
The Fixed Dialing function is on and the number you
have dialed is not on your fixed numbers list. See
“Fixed dialing” on page 38.
Charging, alien battery
The battery you are using is not a Sony Ericssonapproved battery and is charging slowly for safety
reasons.
Cannot connect to server
If your settings have previously worked, try again later
as the network server may be temporarily busy or
experiencing problems.
Memory status
Check for example, how many positions are left in
your phone book or how much memory is used.
To check the memory for the phone book
• Scroll to Phone book/Advanced/Memory status.
To check the memory for themes, pictures,
sounds, games (and multimedia messages)
• Scroll to Fun & Games, YES, select one of the menus,
YES,
, select Memory status, YES.
To check memory for text/multimedia messages
• Scroll to Messages, YES, select one of the menus, YES ,
Memory status, YES.
or
f
t
o
N
m
o
C
Additional information
Sony Ericsson Consumer web site
On www.SonyEricsson.com/ there is a support section
where help and tips are only a few clicks away. Here
you find the latest software updates, tips on how to use
your product more efficiently, function guides for some
of the products and additional help when you require it.
e
s
U
l
a
ci
r
me
Exchangeable front covers
You can replace the front cover with an accessory.
Memory full
Free memory by deleting unused files or information.
To delete saved files or information
• Select a file or information, press
, YES .
• Select a submenu option or advanced option to delete.
Note: Some factory default files and information
cannot be deleted.
Additional information
69
To replace the front cover
1. Press and hold the release button on the top of the
phone.
2. Pull the front cover away at the sides.
3. Put the keypad in place.
4. Place the bottom of the new front cover on the phone
and push the top until it clicks into place.
Note: See “Guidelines for Safe and Efficient Use” on
page 71 for more information.
or
f
t
o
N
70
Additional information
m
o
C
e
s
U
l
a
ci
r
me
Guidelines for Safe and Efficient Use
• Do not use your product near medical equipment without
requesting permission.
Please read this information before using
your mobile phone.
• Do not use your product when in, or around aircraft,
or areas posted “turn off two-way radio”.
When exchanging the cover please note
that the product may contain substances
that could create an allergic reaction.
RECOMMENDATIONS
• Always treat your product with care and keep it in a clean
and dust-free place.
• Do not expose your product to liquid or moisture or
humidity.
• Do not expose your product to extreme high
or low temperatures.
or
f
t
o
N
• Do not expose your product to open flames
or lit tobacco products.
e
s
U
l
a
ci
r
me
• Do not use your product in an area where a
potentially explosive atmosphere exists.
• Do not place your product or install wireless
equipment in the area above your car’s air
bag.
• Do not attempt to disassemble your
product. Only Sony Ericsson authorized
personnel should perform service.
m
o
C
• Do not direct the infrared ray at anyone's
eye and make sure that it does not disturb
any other infrared units.
• To avoid hearing impairment, accept the call before
holding your product (or portable handsfree device)
to your ear.
• Do not drop, throw or try to bend your
product.
• Do not paint your product.
Additional information
71
ANTENNA
Only use an antenna that has been specifically designed
by Sony Ericsson for your mobile phone. Use of
unauthorized or modified antennas could damage your
mobile phone and may violate regulations, causing loss
of performance and SAR levels above the recommended
limits (see below).
EFFICIENT USE
Hold your mobile phone as you would any other phone.
Do not cover the top of the phone when in use, as this
affects call quality and may cause the phone to operate
at a higher power level than needed, thus shortening talk
and standby times.
m
o
C
RADIO FREQUENCY (RF) EXPOSURE AND SAR
Your mobile phone is a low-power radio transmitter and
receiver. When it is turned on, it emits low levels of radio
frequency energy (also known as radio waves or radio
frequency fields).
Governments around the world have adopted
comprehensive international safety guidelines,
developed by scientific organizations, e.g. ICNIRP
(International Commission on Non-Ionizing Radiation
Protection), through periodic and thorough evaluation of
scientific studies. These guidelines establish permitted
levels of radio wave exposure for the general population.
All Sony Ericsson mobile phone models are designed to
operate within these stringent levels. The levels include a
or
f
t
o
N
72
Additional information
safety margin designed to assure the safety of all
persons, regardless of age and health, and to account for
any variations in measurements.
Accessories can significantly affect a mobile phone's
compliance with the radio frequency exposure
guidelines. To avoid causing loss of performance or radio
frequency exposure levels above the permissible limits, it
is recommended that you only use Sony Ericsson or
Ericsson original accessories intended for use with the
mobile phone. If you wear the mobile phone on your
body while it is transmitting, and you do not use a Sony
Ericsson or Ericsson original body-worn accessory,
please ensure that the mobile phone is positioned a
minimum of 1.5 cm (0.6 in.) from your body and that you
are not using an accessory that contains any metal.
Specific Absorption Rate (SAR) is the unit of
measurement for the amount of radio frequency energy
absorbed by the body when using a mobile phone. The
SAR value is determined at the highest certified power
level in laboratory conditions, but the actual SAR level of
the mobile phone while operating can be well below this
value.
This is because the mobile phone is designed to use
the minimum power required to reach the network.
Therefore, the closer you are to a base station, the more
likely it is that the actual SAR level will decrease.
Variations in SAR below the radio frequency exposure
guidelines do not mean that there are variations in safety.
While there may be differences in SAR levels among
e
s
U
l
a
ci
r
me
various mobile phones, all Sony Ericsson mobile phone
models are designed to meet radio frequency exposure
guidelines.
A separate leaflet with SAR information for this mobile
phone model is included with the material that comes
with this mobile phone. This information can also be
found, together with more information on radio frequency
exposure and SAR, on www.SonyEricsson.com/.
DRIVING
Please check if local laws and regulations restrict the use
of mobile phones while driving or require drivers to use
handsfree solutions. We recommend that you use only
Ericsson or Sony Ericsson handsfree solutions intended
for use with your product. Please note that because of
possible interference to electronic equipment, some
vehicle manufacturers forbid the use of mobile phones in
their vehicles unless a handsfree kit with an external
antenna supports the installation.
or
f
t
o
N
m
o
C
Always give full attention to driving and pull off the road
and park before making or answering a call if driving
conditions so require.
PERSONAL MEDICAL DEVICES
Mobile phones may affect the operation of cardiac
pacemakers and other implanted equipment. Please
avoid placing the mobile phone over the pacemaker, for
example, in your breast pocket. When using the mobile
phone, place it at the ear opposite the pacemaker. If a
minimum distance of 6 inches (15 cm) is kept between
the mobile phone and the pacemaker, the risk of
interference is limited. If you have any reason to suspect
that interference is taking place, immediately turn off your
mobile phone. Contact your cardiologist for more
information.
For other medical devices, please consult the
manufacturer of the device.
e
s
U
l
a
ci
r
me
CHILDREN
DO NOT ALLOW CHILDREN TO PLAY
WITH YOUR MOBILE PHONE OR ITS
ACCESSORIES. THEY COULD HURT
THEMSELVES OR OTHERS, OR COULD
ACCIDENTALLY DAMAGE THE MOBILE PHONE OR
ACCESSORY. YOUR MOBILE PHONE OR ITS
ACCESSORY MAY CONTAIN SMALL PARTS THAT
COULD BE DETACHED AND CREATE A CHOKING
HAZARD.
DISPOSING OF THE PRODUCT
Your mobile phone should not be placed
in municipal waste. Please check local
regulations for disposal of electronic
products.
Additional information
73
POWER SUPPLY
Connect the AC power adapter only to designated power
sources as marked on the product. Make sure the cord is
positioned so that it will not be subjected to damage or
stress. To reduce risk of electric shock, unplug the unit
from any power source before attempting to clean it. The
AC power adapter must not be used outdoors or in damp
areas. Never alter the cord or plug. If the plug will not fit
into the outlet, have a proper outlet installed by a
qualified electrician.
EMERGENCY CALLS
Mobile phones operate using radio signals, which cannot
guarantee connection under all conditions. Therefore you
should never rely solely upon any mobile phone for
essential communications (for example, medical
emergencies).
Emergency calls may not be possible on all cellular
networks or when certain network services and/or mobile
phone features are in use. Check with your local service
provider.
or
f
t
o
N
BATTERY USE AND CARE
m
o
C
We recommend that you fully charge the battery before
you use your mobile phone for the first time. The battery
can only be charged in temperatures between +41°F
(+5°C) and +113°F (+45°C).
74
Additional information
A new battery or one that has not been used for a long
time could have reduced capacity the first few times it is
used.
The talk and standby times depend on the actual
transmission conditions when using the mobile phone. If
the mobile phone is used near a base station, less power
is required and talk and standby times are prolonged.
e
s
U
l
a
ci
r
me
• Warning! May explode if disposed of in fire.
• Use only Ericsson or Sony Ericsson branded original
batteries and chargers intended for use with your mobile
phone. Other chargers may not charge sufficiently or
may produce excessive heat. Using other batteries and
chargers could be dangerous.
• Do not expose the battery to liquid.
• Do not let the metal contacts on the battery touch another
metal object. This could short-circuit and damage the
battery.
• Do not disassemble or modify the battery.
• Do not expose the battery to extreme
temperatures, never above +140°F (+60°C).
For maximum battery capacity, use the
battery at room temperature.
• Turn off your mobile phone before removing the battery.
Subject to the conditions of this Limited Warranty, Sony
Ericsson warrants this Product to be free from defects in
design, material and workmanship at the time of its
original purchase by a consumer, and for a subsequent
period of one (1) year.
• Keep out of children’s reach.
• Use the battery for the intended purpose
only.
• Do not allow the battery to be put into the
mouth. Battery electrolytes may be toxic if swallowed.
DISPOSING OF THE BATTERY
Please check local regulations for disposal
of batteries or call your local Sony Ericsson
Customer Care Center for information.
The battery should never be placed in
municipal waste. Use a battery disposal
facility if available.
Limited Warranty
or
f
t
o
N
OUR WARRANTY
m
o
C
e
s
U
l
a
ci
r
me
WHAT WE WILL DO
If, during the warranty period, this Product fails to
operate under normal use and service, due to defects in
design, materials or workmanship, Sony Ericsson
authorized distributors or service partners, in the country/
region* where you purchased the Product, will, at their
option, either repair or replace the Product in accordance
with the terms and conditions stipulated herein.
Sony Ericsson Mobile Communications AB, S-221 88
Lund, Sweden, (Sony Ericsson), provides this Limited
Warranty for your mobile phone and original accessory
delivered with your mobile phone (hereinafter referred to
as “Product”).
Should your Product need warranty service, please
return it to the dealer from whom it was purchased, or
contact your local Sony Ericsson Customer Care Center
(national rates may apply) or visit
www.SonyEricsson.com to get further information.
Additional information
75
Sony Ericsson and its service partners reserve the
right to charge a handling fee if a returned Product is
found not to be under warranty according to the
conditions below.
CONDITIONS
1. The warranty is valid only if the original proof of purchase
issued to the original purchaser by the dealer, specifying
the date of purchase and serial number**, is presented
with the Product to be repaired or replaced. Sony
Ericsson reserves the right to refuse warranty service if
this information has been removed or changed after the
original purchase of the Product from the dealer.
2. If Sony Ericsson repairs or replaces the Product, the
repaired or replaced Product shall be warranted for the
remaining time of the original warranty period or for
ninety (90) days from the date of repair, whichever is
longer. Repair or replacement may involve the use of
functionally equivalent reconditioned units. Replaced
parts or components will become the property of Sony
Ericsson.
3. This warranty does not cover any failure of the Product
due to normal wear and tear, or due to misuse, including
but not limited to use in other than the normal and
customary manner, in accordance with the Sony
Ericsson instructions for use and maintenance of the
Product. Nor does this warranty cover any failure of the
Product due to accident, modification or adjustment, acts
of God or damage resulting from liquid.
or
f
t
o
N
76
Additional information
m
o
C
4. Since the cellular system on which the Product is to
operate is provided by a carrier independent from Sony
Ericsson, Sony Ericsson will not be responsible for the
operation, availability, coverage, services or range of that
system.
5. This warranty does not cover Product failures caused by
installations, modifications, or repair or opening of the
Product performed by a non-Sony Ericsson authorized
person.
6. The warranty does not cover Product failures which have
been caused by use of accessories or other peripheral
devices which are not Ericsson or Sony Ericsson
branded original accessories intended for use with the
Product.
7. Tampering with any of the seals on the Product will void
the warranty.
8. THERE ARE NO EXPRESS WARRANTIES, WHETHER
WRITTEN OR ORAL, OTHER THAN THIS PRINTED
LIMITED WARRANTY. ALL IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED
WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, ARE LIMITED TO
THE DURATION OF THIS LIMITED WARRANTY. IN NO
EVENT SHALL SONY ERICSSON OR ITS LICENSORS
BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES OF ANY NATURE WHATSOEVER,
INCLUDING BUT NOT LIMITED TO LOST PROFITS OR
COMMERCIAL LOSS, TO THE FULL EXTENT THOSE
DAMAGES CAN BE DISCLAIMED BY LAW.
e
s
U
l
a
ci
r
me
Some countries/states do not allow the exclusion or
limitation of incidental or consequential damages, or
limitation of the duration of implied warranties, so the
preceding limitations or exclusions may not apply to you.
The warranty provided does not affect the consumer's
statutory rights under applicable legislation in force, nor
the consumer's rights against the dealer arising from
their sales/ purchase contract.
Declaration of Conformity
We, Sony Ericsson Mobile Communications AB of
Nya Vattentornet
S-221 88 Lund, Sweden.
e
s
U
l
a
ci
r
me
declare under our sole responsibility that our product
Sony Ericsson type 113 0601-BV
* EUROPEAN UNION (EU)
If you have purchased your Product in an EU country you
can have your Product serviced, under the conditions set
out above, within the warranty period in any EU country
where an identical Product is sold by an authorized Sony
Ericsson distributor. To find out if your Product is sold in
the EU country you are in, please call the local Sony
Ericsson Customer Care Center. Please observe that
certain services may not be possible elsewhere than in
the country of original purchase, for example due to the
fact that your Product may have an interior or exterior
which is different from equivalent models sold in other
EU countries. It may not be possible to repair SIM-locked
Products.
** In some countries/regions additional information is
requested. If so, this is clearly shown on the valid proof of
purchase.
or
f
t
o
N
m
o
C
and in combination with our accessories, to which this
declaration relates is in conformity with the appropriate
standards 3GPP TS 51.010-1, EN 301489-7,
EN 300328, EN 300826 and EN 60950, following the
provisions of, Radio Equipment and Telecommunication
Terminal Equipment directive 99/5/EC with requirements
covering EMC directive 89/336/EEC, and Low Voltage
directive 73/23/EEC.
Lund, May 2002
Place & date of issue
0682
Kentaro Odaka, Head of Product Business Unit GSM/UMTS
We fulfil the requirements of the R&TTE Directive
(99/5/EC).
Additional information
77
FCC Statement
Before a phone model is available for sale to
the public, it must be tested and certified to
the FCC that it does not exceed the limit
established by the government-adopted requirement for
safe exposure. The tests are performed in positions and
locations (that is, at the ear and worn on the body) as
required by the FCC for each model. Body worn
measurements are made while the phone is in use and
worn on the body with an Ericsson or Sony Ericsson
branded original accessory intended for use with the
phone. The design and composition of an accessory can
affect the body worn SAR (Specific Absorption Rate)
levels for the phone. Sony Ericsson has not measured,
and makes no representation about, the body worn SAR
levels when the phone is used with non-Ericsson or nonSony Ericsson branded original accessories intended for
use with the phone.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received,
including interference that may cause undesired
operation.
or
f
t
o
N
78
Additional information
m
o
C
For Canadian customers
The term “IC” before the radio certification number
signifies that industry Canada technical specifications
were met.
e
s
U
l
a
ci
r
me
Icons
Icon
The table below shows icons which may appear in
standby or in the menus.
Icon
Description
Create your own menu for the functions you
use most often.
Standby
Tells you the strength of the GSM network
signal.
Description
Main menus
Your personal phone book.
Handling of text (SMS), multimedia (MMS),
e-mail and voice messages.
Handling of outgoing/incoming calls, call time
and cost information.
Handling of ongoing calls. Alternates with the
Calls menu, that is only available during calls.
Handling of pictures, sounds and themes. Play
games.
Personal settings including profiles, display,
language, time and locks.
Gives you access to WAP services on the
Internet.
or
f
t
o
N
e
s
U
l
a
ci
r
me
GPRS is within range.
m
o
C
Events, alarm clock and other extras.
Receive items via infrared, networks, data
communications settings and accessories.
GPRS is within range and can be used.
Tells you the status of the battery.
You cannot receive any incoming calls.
You have missed an incoming call.
All incoming calls are forwarded to a defined
number.
No calls or only certain calls from numbers in
a list are received.
All signals are off, except the alarm and timer.
The alarm clock has been set and is on.
Icons
79
Icon
Description
Icon
Line 2 is in use for outgoing calls.
A profile other than Normal has been chosen.
Encoding is currently not being provided by
the network.
The keypad is locked.
You have received a text message.
You have received an e-mail message.
You have received a multimedia message.
m
o
C
You have received a voice message.
or
f
t
o
N
e
s
U
l
a
ci
r
me
The network is preferred and can be used.
The card lock or phone lock is on.
A secure WAP connection is established.
80
Description
The timer has been set and is on.
The network is forbidden and cannot be used.
Your home network is within range and can
be used.
An ongoing call.
A chat session is in progress.
Phone book
You have received a WAP push message.
A group of contacts in the phone book.
The infrared port is on.
You can enter the phone book by pressing
Infrared communication is in progress.
A home number in the phone book.
A GPRS session is in progress.
A work number in the phone book.
Line 1 is in use for outgoing calls.
A mobile number in the phone book.
Icons
.
Icon
Icon
Description
Description
An e-mail address in the phone book.
An unread picture message.
A picture is connected to the contact.
The message has not been sent.
e
s
U
l
a
ci
r
me
The message has been sent.
Messages
A text message is saved on the SIM card.
A voice message has not been checked.
A message has not been read.
A message has been read.
Pre-defined message template (not editable).
m
o
C
Only part of a read e-mail or a multimedia
message is saved in the phone.
Only part of an unread e-mail or a multimedia
message is saved in the phone.
A read message will be deleted the next time
you connect to the server.
An unread message will be deleted the next
time you connect to the server.
or
f
t
o
N
A damaged message.
A message has been delivered or read by the
recipient.
A sent message that has expired or been
rejected by the recipient.
User-defined message template.
A multimedia message is playing.
A multimedia message has been stopped.
A multimedia message has been paused.
Picture could not be shown.
A business card is attached to a multimedia
message.
A read picture message.
Icons
81
Icon
Description
Icon
An event is attached to a multimedia message.
A theme is attached to a multimedia message.
A multimedia message contains a melody.
A multimedia message contains a recorded
sound.
Cursor in a multimedia message.
More message options.
Chat message prompt.
Calls
or
f
t
o
N
A missed call in the call list.
82
Description
Fun & Games
A standard melody saved in My sounds.
A polyphonic melody saved in My sounds.
e
s
U
l
a
ci
r
me
Fun & Games/Composer
Turns the indicator light on and off.
Turns backlight on and off.
Turns vibrating alert on and off.
m
o
C
Starts and stops a melody loop.
Increases and decreases the volume one step.
A volume between 0 and 15 has been selected.
An answered call in the call list.
Whole note, half note, 1/4 note.
A dialed number in the call list.
1/8 note, 1/16 note, 1/32 note.
Icons
Index
A
Alarm clock 61
Animations 19
Answering mode 24
Area information 52
B
Battery 6
Business cards 30
C
Calculator 62
Call costs 32
calling card 36
credit limit 33
minute minder 22
Call time 32
Calls
accept 39
answer 7,28
automatic redialing 27
call list 28
emergency 27
fixed dialing 38
forward 34
groups 30
international 27
make 7,26
missed 28
put on hold 34
receive 7,28
reject 28
restrict 37
speed dialing 32
Cell information 53
Charging (battery) 6
Chat 52
Conference calls 35
Contacts 28
Contrast (display) 23
or
f
t
o
N
m
o
C
Downloading 59
E
E-mail 55
gateway 42,49
settings 42,47
Emergency calls 27
Error messages 67
Events 62
e
s
U
l
a
ci
r
me
D
Data calls 61
Declaration of conformity 77
Display
contrast 23
greeting 24
help texts 11
icons 79
light 23
F
Fixed dialing 38
Forwarding calls 34
Front cover replacement 69
G
Games 64
memory status 69
GPRS 43
Greeting 24
Groups 30
closed user groups 39
conference calls 35
H
Handsfree 24
Help texts 11
83
I
Icons (display) 79
Infrared port 17
International
calls 27
emergency number 27
K
Key functions 8
Key sound 22
Keypad lock 24
L
Language (display) 23
Locks
keypad 24
phone 66
SIM card 65
Missed calls 28
MMS, see Multimedia messages 53
Mobile Internet 57
bookmarks 58
downloading 59
e-mail settings 42,47
options 58
security 45
settings 41
Multimedia messages 53
memory status 69
Multitap text input 14
My numbers 24
My shortcuts 25
or
f
t
o
N
M
Melodies, see Ring signals 20
Memory
full 69
status 69
Menu language 23
Menu overview 13
Minute Minder 22
84
m
o
C
N
Networks 7,39
Phone lock 66
Picture messages 49
Pictures 18
animations 19
background picture 19
exchange 19
memory status 69
PIN
change 65
enter 7
PIN2 66
Profiles 25
PUK 65
e
s
U
l
a
ci
r
me
Q
Quick keys 9
O
Online services 12
Own number 24
R
Redialing 27
Reset 17
Ring signals 20
P
Pause 11
Personal ring signal 22
Phone book 28
memory status 69
S
Screen saver 19
Security
Mobile Internet 45
phone lock 66
SIM card 65
Shortcuts 9,11,25
Silent ring signal 20
SIM card 6,12
copy contacts 31
lock 65
unblock 65
SMS, see Text messages 48
Sony Ericsson
Mobile Internet 17
web site 69
Sound recorder 63
Sounds
memory status 69
Speed dialing 32
Stopwatch 62
T
T9 Text input 15
Text messages 48
E-mail gateway 42,49
memory status 69
Themes 17
memory status 69
Time settings 23
Timer 62
Turning the phone on/off 7
Two voice lines 36
V
Vibrating alert 22
Voice mail 32
e
s
U
l
a
ci
r
me
W
WAP, see Mobile Internet 57
Warranty 75
or
f
t
o
N
m
o
C
85
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
