Panasonic C-HDM-101 Installation Instructions

Panasonic C-HDM-101 Installation Instructions
5.385
4.635
19.088
5
1
4
3
7.126
15.375
1

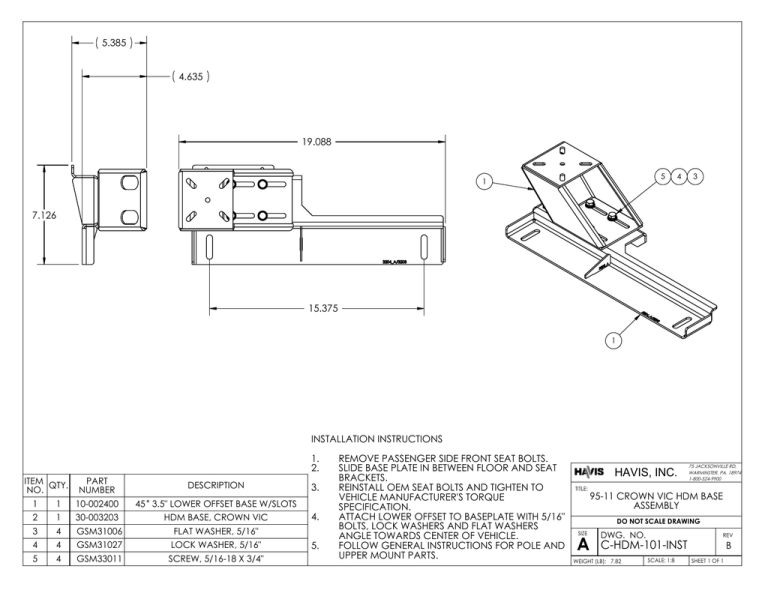

INSTALLATION INSTRUCTIONS
1.
2.
ITEM QTY.
NO.
PART
NUMBER
DESCRIPTION
1
1
10-002400
45 3.5" LOWER OFFSET BASE W/SLOTS
2
1
30-003203
HDM BASE, CROWN VIC
3
4
GSM31006
FLAT WASHER, 5/16"
4
4
GSM31027
LOCK WASHER, 5/16"
5
4
GSM33011
SCREW, 5/16-18 X 3/4"
3.
4.
5.
REMOVE PASSENGER SIDE FRONT SEAT BOLTS.
SLIDE BASE PLATE IN BETWEEN FLOOR AND SEAT
BRACKETS.
REINSTALL OEM SEAT BOLTS AND TIGHTEN TO
VEHICLE MANUFACTURER'S TORQUE
SPECIFICATION.
ATTACH LOWER OFFSET TO BASEPLATE WITH 5/16"
BOLTS, LOCK WASHERS AND FLAT WASHERS
ANGLE TOWARDS CENTER OF VEHICLE.
FOLLOW GENERAL INSTRUCTIONS FOR POLE AND
UPPER MOUNT PARTS.
HAVIS, INC.
TITLE:
75 JACKSONVILLE RD,
WARMINSTER, PA. 18974
1-800-524-9900
95-11 CROWN VIC HDM BASE
ASSEMBLY
DO NOT SCALE DRAWING
SIZE
A
DWG. NO.
C-HDM-101-INST
WEIGHT (LB): 7.82
SCALE: 1:8
REV
B
SHEET 1 OF 1
