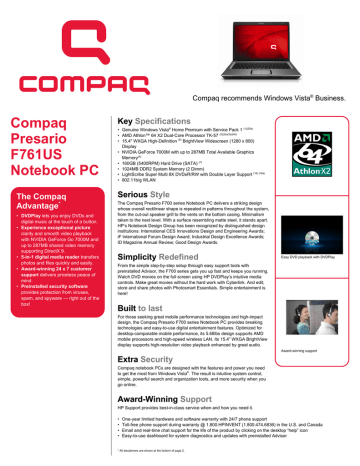

Compaq Presario Data Sheet

Compaq Presario Data Sheet
mpaq recommends Windows Vista® Business.
Compaq
Presario
F761US
Notebook PC
The Compaq
Advantage*
• DVDPlay lets you enjoy DVDs and
digital music at the touch of a button.
• Experience exceptional picture
clarity and smooth video playback
with NVIDIA GeForce Go 7000M and
up to 287MB shared video memory
supporting DirectX 9.
• 5-in-1 digital media reader transfers
photos and files quickly and easily.
• Award-winning 24 x 7 customer
support delivers priceless peace of
mind.
• Preinstalled security software
provides protection from viruses,
spam, and spyware — right out of the
box!
Compaq recommends Windows Vista® Business.
Key Specifications
• Genuine Windows Vista® Home Premium with Service Pack 1 (1)(20a)
• AMD Athlon™ 64 X2 Dual-Core Processor TK-57 (2)(2a)(3a)(4b)
• 15.4" WXGA High-Definition (8) BrightView Widescreen (1280 x 800)
Display
• NVIDIA GeForce 7000M with up to 287MB Total Available Graphics
Memory(6)
• 160GB (5400RPM) Hard Drive (SATA) (7)
• 1024MB DDR2 System Memory (2 Dimm)
• LightScribe Super Multi 8X DVD±R/RW with Double Layer Support (16) (16a)
• 802.11b/g WLAN
Serious Style
The Compaq Presario F700 series Notebook PC delivers a striking design
whose overall rectilinear shape is repeated in patterns throughout the system,
from the cut-out speaker grill to the vents on the bottom casing. Minimalism
taken to the next level. With a surface resembling matte steel, it stands apart.
HP’s Notebook Design Group has been recognized by distinguished design
institutions: International CES Innovations Design and Engineering Awards;
iF International Forum Design Award; Industrial Design Excellence Awards;
ID Magazine Annual Review; Good Design Awards.
Simplicity Redefined
Easy DVD playback with DVDPlay
From the simple step-by-step setup through easy support tools with
preinstalled Advisor, the F700 series gets you up fast and keeps you running.
Watch DVD movies on the full screen using HP DVDPlay’s intuitive media
controls. Make great movies without the hard work with Cyberlink. And edit,
store and share photos with Photosmart Essentials. Simple entertainment is
here!
Built to last
For those seeking great mobile performance technologies and high-impact
design, the Compaq Presario F700 series Notebook PC provides breaking
technologies and easy-to-use digital entertainment features. Optimized for
desktop-comparable mobile performance, its 5.68lbs design supports AMD
mobile processors and high-speed wireless LAN. Its 15.4” WXGA BrightView
display supports high-resolution video playback enhanced by great audio.
Award-winning support
Extra Security
Compaq notebook PCs are designed with the features and power you need
to get the most from Windows Vista®. The result is intuitive system control,
simple, powerful search and organization tools, and more security when you
go online.
Award-Winning Support
HP Support provides best-in-class service when and how you need it.
•
•
•
•
One-year limited hardware and software warranty with 24/7 phone support
Toll-free phone support during warranty @ 1.800.HPINVENT (1.800.474.6836) in the U.S. and Canada
Email and real-time chat support for the life of the product by clicking on the desktop “help” icon
Easy-to-use dashboard for system diagnostics and updates with preinstalled Advisor
* All disclaimers are shown at the bottom of page 2.
Compaq Presario F761US Notebook PC
Specifications
Specifications
Operating System
• Genuine Windows Vista® Home Premium with Service
Pack 1 (1)(20a)
Power
Datasheet
• 65W AC Adapter
• 6-Cell Lithium-Ion battery
Processor
• AMD Athlon™ 64 X2 Dual-Core Processor TK-57
Processor Speed
• 1.90 GHz(4)
Bus Speed
• Up to 1600MHz system bus running at AC/DC mode
35 watt(4a)
Processor Cache
• 512KB L2 Cache
Memory
• 1024MB DDR2 System Memory (2 Dimm)
• Max supported =3072MB(6a)
Accessible Memory
Slots
• 2
Video Graphics
• NVIDIA GeForce 7000M with up to 287MB Total
Available Graphics Memory(6)
Hard Drive
• 160GB (5400RPM) Hard Drive (SATA) (7)
Multimedia Drive
• LightScribe Super Multi 8X DVD±R/RW with Double
Layer Support (16) (16a)
Display
• 15.4" WXGA High-Definition (8) BrightView Widescreen
(1280 x 800) Display
Network Card
• Integrated 10/100BASE-T Ethernet LAN (RJ-45
connector) (9)
Wireless Option
• 802.11b/g WLAN
Digital Media
• 5-in-1 integrated Digital Media Reader for Secure
Digital cards, MultiMedia cards, Memory Stick,
Memory Stick Pro, or xD Picture cards(17a)
Audio
• Altec Lansing
Fax/Modem
• High speed 56k modem(11)
Keyboard
• 101-key compatible
Service and Support
Pointing Device
• Touch Pad with dedicated vertical and horizontal
Scroll Up/Down pad
External Notebook
Ports
•
•
•
•
•
•
•
Warranty and Support • 1-Year Limited Hardware Warranty Toll Free Support
(NA)
• 1-Year Free Hardware Technical Support
• 30-Days Free Limited Software Support (1 Year* Free
Limited Software Support with Product Registration)
*from date of purchase
Dimensions
• 14.06" (L) x 10.12" (W) x 1.2" (min H)/1.55" (max H)
Weight
• 5.68lbs (12)
Security
• Kensington® MicroSaver lock slot
• Power-on password
• Accepts 3rd party security lock devices
Power
• 65W AC Adapter
• 6-Cell Lithium-Ion battery
(1)
(2)(2a)(3a)(4b)
3 Universal Serial Bus USB 2.0
1 VGA (15-pin)
1 RJ-11 (modem)
1 TV-Out (S-video)
1 RJ -45 (LAN)
1 headphone-out
1 microphone-in
Certain Windows Vista product features require advanced or additional hardware. See
www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade Advisor can help you
determine which features of Windows Vista will run on your computer. To download the tool, visit
www.windowsvista.com/upgradeadvisor.
(2)
Speeds listed for AMD Turion™ or Athlon™ 64 Processors are maximum performance levels on AC power. The
processor speed is reduced up to approximately 80% on battery power to optimize battery life. Please go to <www.hp.com>
for more details on battery life conservation. (2a) This system requires a separately purchased 64-bit operating system and
64-bit software products to take advantage of the 64-bit processing capabilities of AMD Turion™ 64 X2 Dual-Core & Athlon™
64 X2 Dual-Core technology. Dual-core processing available with AMD Turion™ 64 X2 Dual-Core & Athlon™ 64 X2
Dual-Core technology is a recent technology innovation designed to improve performance of this system. Give the wide
range of software applications available, performance of a system including a 64-bit operating system and a dual-core
processor will vary. (3a) AMD's numbering is not a measurement of higher performance. (4) GHz refers to internal clock speed
of the processor. Other factors besides clock speed may impact system and application performance. (4a) Actual bus speed is
less. Listed bus speed represents the equivalent effective throughput for data. (4b) Dual Core is a new technology designed to
improve performance of certain software products. Check with the software provider to determine suitability. Not all
customers or software applications will necessarily benefit from use of this technology. (6) Shared video memory (UMA) uses
part of the total system memory for video performance. System memory dedicated to video performance is not available for
other use by other programs. Note- this disclaimer affects system memory and Graphics. (6a) 4 GB Memory: Up to 1 GB may
not be available due to 32-bit operating system resource requirements. (7) 1 GB = 1 billion bytes. Actual formatted capacity is
less. (8) High-Definition content (e.g. WMV HD files) is required to view high-definition images. Most current DVDs do not
provide high-definition images. (9) Actual data transfer rates will vary. (11) Maximum achievable download speeds are currently
unknown, may not reach 56Kbps and will vary with line conditions. Upload speeds are less and also will vary. (12) Weight will
vary by configuration. (13) Internet access requires payment of additional fees or subscription for use. Special Offers do not
include local telephone company charges, if any, or applicable taxes. Any long distance charges incurred will be the
responsibility of the customer. Please make sure your access number is local. A valid credit card is required to initiate the
service. This offer is valid in the U.S.A. only. Additional terms and conditions may apply; see particular offers for details.
Certain state specific restrictions and exclusions apply. (15) Internet access required and sold separately.
Software
Security and Support
• Symantec® Norton Internet Security 2008 (including
60 days complimentary live update) (15)
• HP Help & Support Center
• HP PC Recovery (Softthinks Restore Solution)
• HP Wireless Home Network Setup
• HP Total Care Advisor
Multimedia
•
•
•
•
•
•
Productivity and
Finance
• Microsoft® Works
• Microsoft® Office 2007 Student and Teacher Edition:
60 Day Trial Version(19)
Internet Solutions
• HP Easy Internet Signup (part of HP Easy Setup)(13)
• Microsoft® Internet Explorer
• AOL Instant Messaging Service
HP PhotoSmart Essentials
HP DVD Play
Muvee autoProducer
Cyberlink DVD Suite
Adobe® Acrobat Reader
HP Games Powered by Wild Tangent
Optional Accessories
Sold Separately
• HP 90W AC Adapter- EH642AA#ABA
• HP 90W Auto/Truck Adapter- ER691AA#ABA
• HP 1.3MP Webcam for Notebook PC- RD345AA#ABA
Compaq recommends Windows
Vista® Business.
(16)
Actual speeds may vary. Does not permit copying of commercially available DVD movies or other copyright-protected
materials. Intended only for creation and storage of original material and other lawful uses. Double Layer discs can store
more data than single layer discs. However, double-layer discs burned with this drive may not be compatible with many
existing single-layer DVD drives and players. (16a) LightScribe creates a grayscale image similar to a black and white
photograph. LightScribe media required and sold separately. (17a) Digital Media Slot supports MS, MSP, MMC, SD, XD
formats. To avoid damaging the card or computer do not insert any type of adapter, or mini format memory card, into the
Digital Media Slot. Mini/Reduced flash memory cards require separately purchased adapter.(19) The Microsoft® Office Student
and Teacher Edition 2008 is a trial version; functionality is reduced after 60 days. The full version is sold separately. (20a) Up
to 12GB of the hard drive is reserved for the system recovery software.
Actual product may vary from image shown on datasheet. All hardware and software specifications are subject to change
without notice. HP and the invent signature are trademarks of the Hewlett-Packard Company. All other products names
mentioned herein may be trademarks of their respective companies. ©2008 Hewlett-Packard Company. All rights reserved.
02/22/08_r1 rk Product Number: KP029UA#ABA
