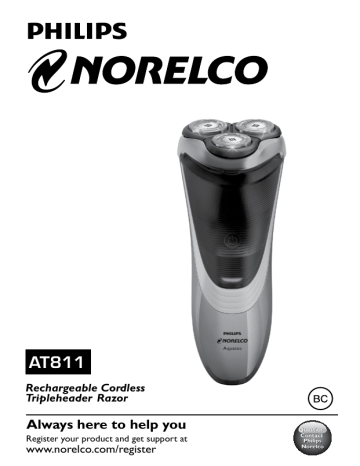

AT811
Rechargeable Cordless
Tripleheader Razor
Always here to help you
Register your product and get support at
www.norelco.com/register
Question?
Contact
Philips
Norelco
2
ENGLISH 4
Congratulations on your purchase and
welcome to Philips Norelco!
AT811
To fully benefit from the support that Philips
Norelco offers, register your product at
www.norelco.com/register
4
ENGLISH
IMPORTANT SAFETY
INSTRUCTIONS
When using an electric appliance, basic precautions should always
be followed, including the following:
Read all instructions before using this appliance.
DANGER
To reduce the risk of electric shock:
1. Do not reach for a corded razor that has fallen into water.
Unplug immediately.
2. Power plug is not for immersion or for use in shower.
3. Do not use an extension cord with this appliance.
4.Always unplug this razor from the electrical outlet immediately
after use, except when razor is (re)charging.
5. Unplug and remove power supply cord from razor before
cleaning.
6. The batteries used in this device may present a fire or chemical
burn hazard if mistreated. Do not disassemble, heat above
100ºC (212ºF) or incinerate.
WARNING
To reduce the risk of burns, fire, electric shock, or injury
to persons:
1. Close supervision is necessary when this razor is used by, on,
or near children or invalids.
2. U
se this razor for its intended household use as described in
this manual. Do not use attachments not recommended by
Philips Electronics North America Corporation.
3. Never operate this razor if it has a damaged cord or charging
plug, if it is not working properly, if it has been dropped or
damaged, or dropped into water while plugged in. For assistance
call 1-800-243-3050.
ENGLISH
5
4. Keep the razor, cord and charging plug away from heated
surfaces.
5. Never drop or insert any object into any opening.
6.Do not charge or plug in razor outdoors or operate where
aerosol (spray) products are being used or where oxygen is
being administered.
7.Do not use this razor with a damaged or broken comb, as
facial injury may occur.
8. Always attach plug to razor first, then plug into outlet. Be
certain plug is inserted firmly into razor up to mark indicated
on plug. To disconnect, remove charging plug from outlet.
9. Never put the razor in direct sunlight or store at a temperature
above 140°F (60ºC).
10.Keep the cord dry at all times. Do not handle with wet hands.
11.To prevent possible damage to the cord, do not wrap cord
around the razor.
12.Only use the power plug supplied with the razor.
SAVE THESE
INSTRUCTIONS
IMPORTANT: The power plug contains a transformer. Do not
cut off the power plug to replace it with another plug, as this will
cause a hazardous condition.
6
ENGLISH
ENGLISH
Table of Contents
45 - DAY MONEY-BACK GUARANTEE
To enjoy the closest and most comfortable shave from your new Philips Norelco
Men’s Razor, the razor should be used exclusively for 3 weeks. This allows your
hair and skin enough time to adapt to the Philips Norelco Shaving System. If, after
that period of time, you are not fully satisfied with your Philips Norelco Men’s
Razor, send the product back along with dated sales receipt and we’ll refund you
the full purchase price. The razor must be shipped prepaid by insured mail,
insurance prepaid, have the original sales receipt, indicating purchase
price, the date of purchase, and the money-back guarantee return
authorization form enclosed. We cannot be responsible for lost mail. The
razor must be postmarked no later than 45 days from the date of purchase. Philips
Norelco reserves the right to verify the purchase price of the razor and limit
refunds not to exceed suggested retail price.
To obtain money-back guarantee return authorization form,
call 1-800-243-3050 for assistance. Delivery of refund check will
occur 6–8 weeks AFTER receipt of refund product.
Features......................................................... 8-9
LED Multi-Purpose Display........................10
Before First Use............................................11
Charging....................................................11-12
Recharging......................................................12
Quick Charge................................................13
Put It To The Test & Shaving Tips...............13
How to Shave
With An Electric Razor.........................14-15
Trimming.........................................................16
Cleaning.....................................................16-21
Replacing the Razor Heads..................21-23
Storage.......................................................23-24
Assistance.......................................................24
Battery Removal.....................................24-25
Accessories....................................................26
Warranty.........................................................27
7
8
ENGLISH
ENGLISH
9
Features
Pop-up Trimmer
Lift and Cut System
Automatic
Worldwide Voltage
100V to 240V AC
Razor Head
Assembly
Protective Cap
Cleaning Brush
Individually
Floating
Heads
Rechargeable 1-hour Full Charge
for up to 50 minutes
cordless use
Razor Head
Release Button
• Hair Chamber
captures shaven
hair
Cordless - To shave
without a cord
Full 2-Year Warranty
45-Day Money-Back
Guarantee
Electronic
On/Off Button
Razor Head
Replacement Indicator
LED Charge
Indicators
•Battery Charge, Full,
Low & Quick Charge
Indicators
How the Unique Philips Norelco
Lift and Cut
Shaving System Makes Close Comfortable:
Groove channels
beard closer to
cutting system
Lifter raises hair
Slots to cut long
hairs
Holes to cut short
hairs even closer
10
ENGLISH
ENGLISH
LED Multi-Purpose Display
The display provides the following information:
◗ Charging Indicator
Before First Use
the razor is charging, the charging light
C -When
blinks green.
◗ Full Charge Indicator
-When the battery is fully charged, the charging
light lights up green continuously. After
approximately 30 minutes the charging light goes
off to save energy.
C
◗ Low Battery Indicator
-When the battery is almost empty (5 or less
shaving minutes left), the charging light blinks
orange. When you turn the razor OFF the
charging light continues to blink orange for a few
seconds.
C
w Quick Charge Indicator
-When you charge the empty battery, the
charging light alternately blinks orange and green.
After approximately 3 minutes, the charging light
continues to blink green.
- The razor now contains enough energy for a 5-minute shave.
Razor Head Replacement Indicator
C w-Once
a year, depending on your shaving behavior,
the razor head replacement symbol will light up
orange continuously, as a reminder to replace the
razor heads.
11
◗ Charge the razor before you start using
it (see ‘Charging’). Make sure the razor is
switched off before you start charging it.
Important
◗ Only use the power cord provided to charge
the razor.
◗ The power plug transforms 100-240V AC to
less than 24V DC.
Charging
◗ Charging or recharging at temperatures below
40ºF or higher than 95ºF adversely affects
lifetime of batteries.
◗ If the razor is subjected to a major change
in temperature, pressure or humidity, let it
acclimatize for 30 minutes before using.
◗ Charging or recharging requires one full hour.
◗ A fully charged razor has a cordless shaving
time of up to 50 minutes.
◗ When charging razor for the first time or
after a long period of non-use, charge until
the charging light lights up green continuously.
◗ Do not charge razor in a pouch.
12
ENGLISH
ENGLISH
C 1
Connect cord directly to razor and
connect the charging plug into any 100V to
240V AC outlet. Use only the power cord
provided.
◗ An adaptor plug may be necessary for charging plug usage in some foreign countries. Use an attachment plug adaptor of the proper configuration for the power outlet.
The charging plug will automatically convert to
work on 100V to 240V AC systems.
display on the razor will indicate razor is
C◗ The
charging.
2
Charging and recharging requires a full 1
hour. A fully charged razor has a cordless
shaving time of up to 50 minutes.
the battery is fully charged, the
C w When
charging light lights up continuously.
After approximately 30 minutes, the charging light
goes out to save energy.
Recharging
1 Recharging requires 1 hour.
Recharge when the charging light on the razor
display blinks orange.
13
Quick Charge
When you charge the empty battery, the charging
light alternately blinks orange and green. After
approximately 3 minutes, the charging light
continues to blink green. The razor now contains
enough energy for a 5-minute shave.
Put It To The Test & Shaving Tips
◗ 21 Day Trial and Conversion Process. It is a fact that your skin and beard need time to adjust to a new shaving system.
◗Use your new razor exclusively for 3 weeks to
fully enjoy the closeness of a Philips Norelco
shave.
◗ At first you may not get as close a shave as you
expect, or your face may even become slightly irritated. This is normal since your beard and
skin will need time to adjust. Invest 3 weeks and
you’ll soon experience the full joy of your new
razor.
◗Stick with it! If you alternate shaving methods
during the adjustment period, it may make it
more difficult to adapt to the Philips Norelco
shaving system.
◗If you are still not convinced after 21 days,
Philips Norelco will refund you the full
purchase price as long as the request is
received within 45 days of purchase.
14
ENGLISH
ENGLISH
How To Shave With An Electric Razor
Wet Shaving
You can also use the razor on a wet face with
shaving foam or gel.
C ◗This symbol on the razor indicates that
the razor can be used in both the bath and
shower.
◗The razor will not operate while power cord
is connected to an electrical outlet.
◗Use this razor for its intended household use
as described in this manual.
◗Shaving with a clean face gives the best results.
Shaving
C 1
2
Turn razor ON by pressing the on/off
button once. Shave against the direction of
beard growth using circular movements.
Stretch your skin with your free hand so
blades can lift and cut whiskers. Gently
press razor to skin so the floating heads
can follow the contours of your face. DO NOT press too hard. Too much pressure can pinch the skin into the combs.
3
Turn razor OFF by pressing the on/off
button once.
4
Clean the razor after each use (see
chapter ‘Cleaning’).
C 5
Put the Protective Cap on the razor to
protect razor heads.
15
C 1
Apply some water to your skin.
C 2
Apply shaving foam or gel to your skin.
3
Rinse the shaving unit under the tap
to ensure that the shaving unit glides
smoothly over your skin.
4
Press the on/off button once to switch on
the razor.
C 5
Move the shaving heads in circular
movements over your skin.
NOTE: Rinse the razor under the tap regularly to
ensure that it continues to glide smoothly over
your skin.
6
Turn razor OFF. Dry your face and
thoroughly clean the razor after each use
(see chapter ‘Cleaning’).
NOTE: Make sure you rinse all foam or gel off the
razor.
C 7
When razor is thoroughly dry, put the
Protective Cap on the razor to protect
heads.
16
ENGLISH
ENGLISH
Trimming
To groom sideburns and moustache:
1
Turn razor ON.
running.
C 4
Close trimmer by pressing trimmer down.
Turn razor OFF.
5
Cleaning
◗Always clean your razor after each use.
◗Always switch razor OFF, unplug and remove
power cord before cleaning.
◗Never clean, remove or replace head
assembly while motor is on.
◗Do not apply pressure to combs. Do not
touch razor heads with hard objects as this
may dent or damage precision-made slotted
combs.
◗Do not use razor if combs are damaged or
broken. Facial injury may occur.
◗Do not use compressed air, abrasives,
scourers or aggressive liquids such as gasoline
or acetone to clean the razor.
Cleaning the Shaving Unit
2 Push down spring-release trimmer switch.
C The
trimmer can be activated while the razor is
trimmer as shown and move in
C 3Hold
downward strokes with gentle pressure.
17
The razor heads may be quickly cleaned after
each use by rinsing with hot water: Water from
the tap should be on a hot setting, BUT BE
CAREFUL TO TEST WATER FIRST SO AS NOT
TO BURN OR SCALD HANDS.
◗Regular cleaning guarantees better shaving
results.
w Do not immerse razor in water.
w While rinsing razor heads, water may drip
out of the base of razor. This is a normal
occurrence.
1
Always turn razor OFF, unplug from outlet
and remove power cord from razor.
C 2
ress the Razor Head Release Button to
P
open the Razor Head Assembly.
C 3
Clean inside razor heads and hair chamber
by running under hot water.
18
ENGLISH
ENGLISH
C 2
outside of Razor Head Assembly by
C 4Clean
running under hot water.
5Close the Razor Head Assembly and shake
off excess water.
Be careful not to hit the shaving unit against
anything while shaking off excess water.
C 4
B
A
◗ If you used foam or gel to shave, make sure to
rinse all of it off to prevent residue build-up
from clogging shaving heads.
◗If the shaving unit becomes detached from the
razor, you can easily reattach it.
◗ You may also clean the hair chamber without
water by using the supplied brush.
C 5
Extra-thorough Cleaning Method
C 6
Do not mix up the cutters and combs as the
shaving performance may be adversely affected
for several weeks before optimal shaving
performance is restored.
Press the Razor Head Release Button to
open the Razor Head Assembly.
Pull the shaving unit off the razor.
6Open Razor Head Assembly again and
leave open to air dry.
NOTE: Do not wipe or dry the shaving heads
with a towel or tissue. This could damage the
shaving heads.
C 3
19
1
Turn razor OFF, remove the charging plug
from the outlet and power cord from the
razor.
Turn the lock counterclockwise to unlock
(A) and remove the retaining frame (B).
Remove and clean one set of cutters and
combs at a time.
Separate the cutter from the comb and
clean it with the brush supplied. Use the
short bristled side of the brush.
Do not clean more than one cutter and comb
at a time, since they are all matching sets. If you
accidentally interchange the cutters and combs, it
could take several weeks before optimal shaving
performance is restored.
ENGLISH
20
ENGLISH
C 7
Clean the inside and outside of the comb
with the brush supplied.
For optimum performance, razor cutters and
combs should be cleaned in a degreasing liquid
(e.g. Philips Norelco Shaving Head Cleaning Spray,
Model HQ110 or alcohol) and lubricated with
one drop of mineral oil (in the center of the
head). This helps prevent wear of the shaving
heads.
C 8
9
After Each Use:Trimmer
C 2
C 3
C 4
Repeat the process for the other two sets
of cutters and combs.
10 Replace the frame and turn the lock
clockwise until it locks into place.
C 11
1
2
1
Replace the set back into the Razor Head
Assembly.
Make sure that the two pointy edges of the
head fit exactly into the recesses.
Insert the notch of the shaving unit into
the slot in the top of the razor (1) and
then close the shaving unit (2).
NOTE: If the shaving unit does not close smoothly,
make sure you inserted the shaving heads
properly and that the retaining frame is locked.
12 Put the Protective Cap on razor to protect
heads.
21
5
Turn razor OFF.
Push down spring-release trimmer switch.
Clean trimmer with the short-bristled side
of the brush every time you use it. Brush
up and down along the trimmer teeth.
Lubricate the trimmer teeth with one
drop of mineral oil every 6 months.
Close trimmer by pressing trimmer down.
Replacing the Razor Heads
◗ Replace the razor heads once a year for optimal shaving results.
w Replace damaged or worn razor heads with
model HQ8 Philips Norelco razor heads only.
22
ENGLISH
ENGLISH
Razor Head Replacement Indicator
C w The razor head replacement indicator symbol
will light up orange continuously to remind
you to replace your razor heads.
6
C 7
1
2
1
C 2
C 3
Turn razor OFF, remove the charging plug
from the outlet and power cord from the
razor.
Press the Razor Head Release Button to
open the Razor Head Assembly.
C 8
5 sec.
23
Replace the frame and turn the lock
clockwise until it locks into place.
Insert the notch of the shaving unit into
the slot in the top of the razor (1) and
then close the shaving unit (2).
Press and hold the on/off button for at
least 5 seconds to reset. The orange razor
head replacement indicator symbol will go
out.
NOTE: If the shaving unit does not close smoothly,
make sure you inserted the shaving heads
properly and that the retaining frame is locked.
Pull the shaving unit off the razor.
This razor has no other user-serviceable parts.
For assistance call 1-800-243-3050.
C 4
B
A
C 5
Turn the lock counterclockwise to unlock
(A) and remove the retaining frame (B).
Remove the razor heads and place the
new razor heads in the shaving unit.
Make sure that the two pointy edges of the head
fit exactly into the recesses.
Storage
w Be sure razor is turned off. Remove cord from
outlet and razor before storing in a safe, dry
location where it will not be crushed, banged,
or subject to damage.
w Do not wrap power cord around razor when
storing.
w Store cord in a safe location where it will not
be cut or damaged.
24
ENGLISH
ENGLISH
w Do not place or store razor where it can fall
or be pulled into a tub or sink, water or other
liquid while plugged in.
w Put the Protective Cap on razor to protect
heads.
C
Assistance
◗For assistance, visit our website:
www.philips.com/support or
call toll free 1-800-243-3050
◗ Online information is available 24 hours a day,
7 days a week.
Battery Removal
Philips Norelco razor contains a
C w This
rechargeable Lithium-Ion battery which must be disposed of properly.
w Battery should only be removed when
razor is to be discarded.
w For assistance, visit our website,
www.philips.com/support or call toll free: 1-800-243-3050.
1
Turn razor ON.
2
Allow razor to run until the battery is
empty/depleted.
3
Turn razor OFF.
4
Use a screwdriver to remove the screws
in the back of the razor and in the hair
chamber.
5
Remove the front and back panels with a
screwdriver.
6
Bend the 6 hooks aside and take out the
power unit.
Be careful, the hooks are sharp.
7 Remove the rechargeable battery.
Be careful, the battery strips are very sharp.
25
8
Do not attempt to replace battery.
Insulate battery ends by covering with tape
and/or place battery in a small plastic bag.
9
Discard your razor. Do not attempt to
plug power cord into the outlet or recharge the razor after the battery has
been removed.
10 Contact your local town or city officials
for battery disposal information or call
1-800-8-BATTERY or www.rbrc.com for
battery drop-off locations.
26
ENGLISH
ENGLISH
Accessories
C
◗ Replacement Heads
Model HQ8 - For maximum razor
performance, replace your Philips Norelco
razor heads once a year.
w Shaving Head Cleaning Spray
HQ110 - Philips Norelco Shaving Head
Cleaning Spray
w Philips Norelco Razor Accessories may be
purchased at a store near you, or on our
website www.philips.com/store
FULL TWO YEAR WARRANTY
Philips Electronics North America Corporation warrants each new Philips Norelco Product,
Model AT811 (except cutters and combs) against defects in materials or workmanship for a
period of two years from the date of purchase, and agrees to repair or replace any defective
product without charge.
IMPORTANT: This warranty does not cover damage resulting from accident, misuse or abuse,
lack of reasonable care, the affixing of any attachment not provided with the product or loss of
parts or subjecting the product to any but the specified voltage.* Use of unauthorized replacement parts will void this warranty.
PHILIPS ELECTRONICS NORTH AMERICA CORPORATION WILL NOT PAY
FOR WARRANTY SERVICE PERFORMED BY A NON-AUTHORIZED REPAIR
SERVICE AND WILL NOT REIMBURSE THE CONSUMER FOR DAMAGE RESULTING FROM WARRANTY SERVICE PERFORMED BY A NON-AUTHORIZED
REPAIR SERVICE. NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL,
INCIDENTAL OR CONSEQUENTIAL DAMAGES.
In order to obtain warranty service, simply go to www.philips.com/norelco or call 1-800-2433050 for assistance. It is suggested that for your protection you return shipments of product
by insured mail, insurance prepaid. Damage occurring during shipment is not covered by this
warranty.
NOTE: No other warranty, written or oral, is authorized by Philips Electronics North America
Corporation.
This warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion and limitations may not apply to you.
* Read enclosed instructions carefully.
Manufactured for:
Philips Consumer Lifestyle
A Division of Philips Electronics North America Corporation
P.O.Box 10313, Stamford, CT 06904
This symbol on the product’s nameplate means it is
listed by Underwriters’ Laboratories, Inc.
Norelco, Tripleheader, Lift and Cut, and
North America Corporation.
are Registered Trademarks of Philips Electronics
is a Trademark of Philips Electronics North America Corporation.
PHILIPS is a Registered Trademark of Koninklijke Philips N.V.
© 2013 Philips Electronics North America Corporation. All Rights Reserved.
27
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
