G

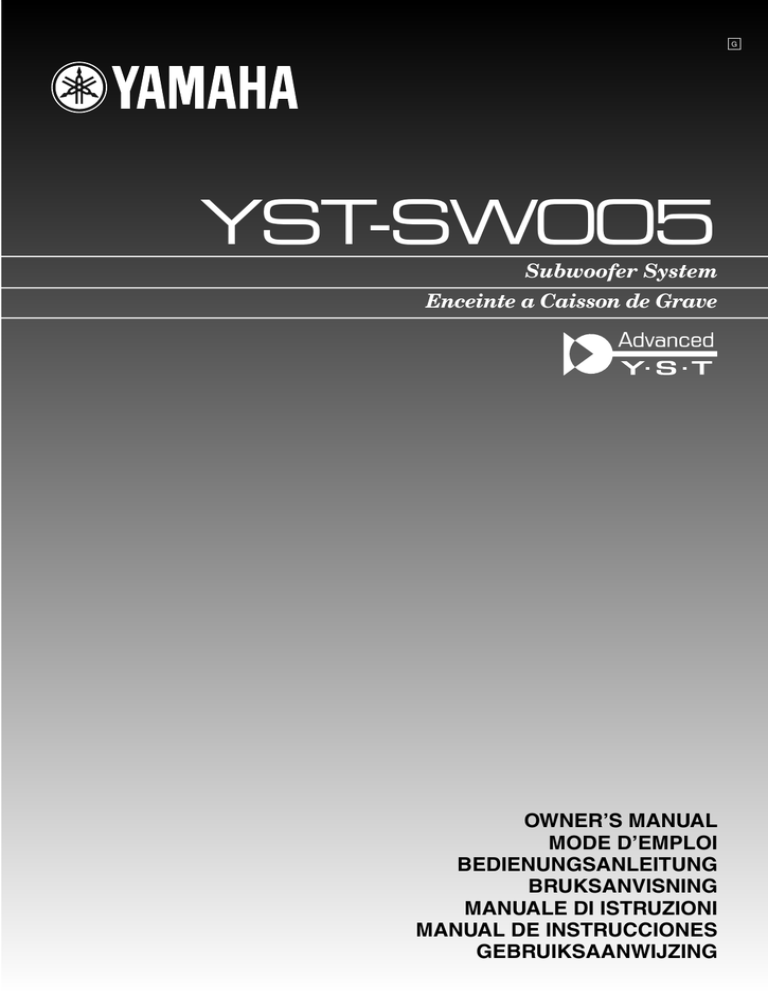

YST-SW005
Subwoofer System
Enceinte a Caisson de Grave
OWNER’S MANUAL
MODE D’EMPLOI
BEDIENUNGSANLEITUNG
BRUKSANVISNING
MANUALE DI ISTRUZIONI
MANUAL DE INSTRUCCIONES
GEBRUIKSAANWIJZING
UNPACKING
DEBALLAGE
AUSPACKEN
UPPACKNING
DISIMBALLAGGIO
DESEMBALAJE
UITPAKKEN
After unpacking, check that the following item is contained.
Après le déballage, vérifier que la pièce suivante est incluse.
Nach dem Auspacken überprüfen, ob das folgende Teil vorhanden ist.
Kontrollera efter det apparaten packats upp att följande del finns med.
Verificare che l’accessorio sotto sia contenuto nell’imballaggio dell’apparecchio.
Desembale el aparato y verifique que el siguiente accesorio está en la caja.
Controleer na het uitpakken of de volgende onderdelen voorhanden zijn.
Nonskid pads
Patins anti-dérapages
Rutschfeste Auflagen
Glidskyddsdynor
Piedini antisdrucciolevoli
Almohadillas antideslizantes
Niet-glijdende steunen
English
Thank you for selecting this YAMAHA subwoofer system.
CAUTION: Read this before operating your unit.
● To assure the finest performance, please read this manual
carefully. Keep it in a safe place for future reference.
● If you hear distorted noise (i.e., unnatural, intermittent “rapping”
or “hammering” sounds) coming from this unit, reduce the
volume level. Extremely loud playing of a movie soundtrack’s low
frequency, bass-heavy sounds or similarly loud popular music
passages can damage this speaker system.
● Install this unit in a cool, dry, clean place – away from windows,
heat sources, sources of excessive vibration, dust, moisture and
cold. Avoid sources of humming (transformers, motors). To
prevent fire or electrical shock, do not expose this unit to rain or
water.
● Vibration generated by super-bass frequencies may distort images
on a TV. In such a case, move this unit away from the TV set
● Never open the cabinet. If something drops into the set, contact
your dealer.
● Do not attempt to clean this unit with chemical solvents as this
might damage the finish. Use a clean, dry cloth.
● To reduce the risk or fire or electric shock, do not expose this unit
to rain or moisture.
● Be sure to read the “TROUBLESHOOTING” section regarding
common operating errors before concluding that the unit is faulty.
● Do not use force on switches, controls or connection wires.
When moving the unit, first disconnect the power plug and the
wires connected to other equipments. Never pull the wires
themselves.
● Secure placement or installation is the owner’s responsibility.
YAMAHA shall not be liable for any accident caused by
improper placement or installation of speakers.
● When not planning to use this unit for a long period (ie., vacation,
etc.), disconnect the AC power plug from the wall outlet.
● To prevent lightning damage, disconnect the AC power plug
when there is an electrical storm.
● Since this unit has a built-in power amplifier, heat will radiate
from the rear panel. Place the unit apart from the walls, allowing
enough space above, behind and on both sides of the unit to
prevent fire or damage. Furthermore, do not position with the
rear panel facing down on the floor or other surfaces.
<For U.K., Europe and China models only>
Be sure to allow space of at least 20 cm above, behind and on
both sides of the unit.
● Do not cover the rear panel of this unit with a newspaper, a
tablecloth, a curtain, etc. in order not to obstruct heat radiation. If
the temperature inside the unit rises, it may cause fire, damage
to the unit and/or personal injury.
● Do not place small metallic objects on this unit. Otherwise, the
object may fall, possibly causing an injury.
● Do not place the following objects on this unit:
Glass, china, etc.
If glass etc. falls by vibrations and breaks, it may cause
personal injury.
A burning candle etc.
If the candle falls by vibrations, it may cause fire and personal
injury.
A vessel with water in it
If the vessel falls by vibrations and water spills, it may cause
damage to the unit, and/or you may get an electric shock.
● Do not place this unit where foreign objects such as water drips
might fall. It might cause a fire, damage to this unit, and/or
personal injury.
● VOLTAGE SELECTOR
(China and General models only)
The VOLTAGE SELECTOR on the
110V-120V
rear panel of this unit must be set
220V-240V
for your local main voltage BEFORE
plugging into the AC main supply.
Voltages are 110-120/220-240 V AC, 50/60 Hz.
VOLTAGE
SELECTOR
For U.K. customers
If the socket outlets in the home are not suitable for the plug
supplied with this appliance, it should be cut off and an appropriate 3
pin plug fitted. For details, refer to the instructions described below.
Note: The plug severed from the mains lead must be destroyed, as a
plug with bared flexible cord is hazardous if engaged in a live socket
outlet.
SPECIAL INSTRUCTIONS FOR U.K. MODEL
IMPORTANT:
THE WIRES IN MAINS LEAD ARE COLOURED IN
ACCORDANCE WITH THE FOLLOWING CODE:
Blue: NEUTRAL
Brown: LIVE
As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows: The wire which is
coloured BLUE must be connected to the terminal which is
marked with the letter N or coloured BLACK. The wire which is
coloured BROWN must be connected to the terminal which is
marked with the letter L or coloured RED. Making sure that neither
core is connected to the earth terminal of the three pin plug.
● Never put a hand or a foreign object into the YST port. When
moving this unit, do not hold the port as it might cause personal
injury and/or damage to this unit.
For Canadian Customers
● Never open the cabinet. It might cause an electric shock since
this unit uses a high voltage. It might also cause personal injury
and/or damage to this unit.
This Class B digital apparatus complies with Canadian ICES-003.
● When using a humidifier, be sure to avoid condensation inside
this unit by allowing enough spaces around this unit or avoiding
excess humidification. Condensation might cause a fire, damage
to this unit, and/or electric shock.
● Super-bass frequencies reproduced by this unit may cause a
turntable to generate a howling sound. In such a case, move this
unit away from the turntable.
● This unit may be damaged by using at high volume level when
20 Hz–50 Hz sine waves from a test disc, bass sounds from
electronic instruments, etc. are continuously inputted to this unit,
or when the stylus of a turntable touches the surface of a disc.
Reduce the volume level to prevent this unit from being
damaged.
To prevent electric shock, match wide blade of plug to wide slot
and fully insert.
Standby mode
If the POWER switch is set to the ON position and the AUTO
STANDBY switch is set to the HIGH or LOW position, this unit
turns into the standby mode when no signal is received by this
unit for 7 to 8 minutes.
In this state, this unit is designed to consume a very small
quantity of power.
This unit features a magnetically shielded design, but there is still
a chance that placing it too close to a TV set might impair picture
color. Should this happen, move this unit away from the TV set.
E-1
FEATURES
● This subwoofer system employs Advanced YAMAHA
Active Servo Technology which YAMAHA has developed
for reproducing higher quality super-bass sound. (Refer
to page 12 for details on Advanced YAMAHA Active
Servo Technology.) This super-bass sound adds a more
realistic, theater-in-the-home effect to your stereo
system.
● This subwoofer can be easily added to your existing
audio system by connecting to either the speaker
terminals or the line output (pin jack) terminals of the
amplifier.
● The HIGH CUT switch provides you with two positions
(HIGH and LOW) to adjust the tone balance between the
subwoofer and the main speakers.
● The AUTO STANDBY switch saves you the trouble of
setting the POWER switch to the ON or OFF position.
CONTENTS
UNPACKING .................... Inside of Front Cover
CAUTION ......................................................... 1
FEATURES ..................................................... 2
PLACEMENT .................................................. 3
CONNECTIONS .............................................. 4
Connecting to line output (pin jack)
terminals of the amplifier .............................. 4
Connecting to speaker output terminals
of the amplifier ............................................. 6
CONTROLS AND THEIR FUNCTIONS .......... 8
E-2
AUTOMATIC POWER-SWITCHING
FUNCTION ....................................................... 9
ADJUSTING THE SUBWOOFER
BEFORE USE ............................................... 10
Frequency characteristics .......................... 11
ADVANCED YAMAHA ACTIVE SERVO
TECHNOLOGY ............................................. 12
TROUBLESHOOTING .................................. 13
SPECIFICATIONS ......................................... 14
Å
(
ı
: subwoofer,
Ç
English
PLACEMENT
: main speaker)
One subwoofer will have a good effect on your audio
system, however, the use of two subwoofers is
recommended to obtain more effect.
If using one subwoofer, it is recommended to place it on the
outside of either the right or the left main speaker. (See fig.
Å.) If using two subwoofers, it is recommended to place
them on the outside of each main speaker. (See fig. ı.) The
placement shown in fig. Ç is also possible, however, if the
subwoofer system is placed directly facing the wall, the
bass effect may die because the sound from it and the
sound reflected by the wall may cancel out each other. To
prevent this from happening, face the subwoofer system at
an angle as in fig. Å or ı.
Note
There may be a case that you cannot obtain enough superbass sounds from the subwoofer when listening at the
middle of the room. This is because “standing waves” have
been developed between two parallel walls and they cancel
the bass sounds.
In such a case, face the subwoofer obliquely to the wall. It
also may be necessary to break up the parallel surfaces by
placing bookshelves etc. along the walls.
Use the nonskid pads
Put the provided nonskid pads at the four corners on the
bottom of the subwoofer to prevent the subwoofer from
moving by vibrations etc.
E-3
CONNECTIONS
Caution: Plug in the subwoofer and other components after all connections are completed.
● All connections must be correct, that is to say L (left) to L, R (right) to R, “+” to “+” and “–” to “–”. Also refer to the owner’s
manual for each of your components.
● Basically, connect the subwoofer to the line output (pin jack) terminal(s) of the amplifier. (Refer to pages 4 and 5 for details.)
If your amplifier does not have any line output terminal, connect the subwoofer to the speaker output terminals of the
amplifier. (Refer to pages 6 and 7 for details.)
Connecting to line output (pin jack) terminals of the amplifier
Connect the main speakers to the speaker output terminals of the amplifier.
● To connect with a YAMAHA DSP amplifier (or AV
receiver), connect the SUBWOOFER (or LOW PASS etc.)
terminal on the rear of the DSP amplifier (or AV receiver)
to the L/MONO INPUT2 terminal of the subwoofer.
● When connecting the subwoofer to the SPLIT
SUBWOOFER terminals on the rear of the DSP amplifier,
be sure to connect the L/MONO INPUT2 terminal to the
“L” side and the R INPUT2 terminal to the “R” side of the
SPLIT SUBWOOFER terminals.
Using one subwoofer
Left main
speaker
Right main
speaker
Subwoofer
VOLUME
0
AUTO
STANDBY
10
HIGH
HIGH CUT
LOW
HIGH
LOW
OFF
INPUT2
/MONO
INPUT2
/MONO
INPUT1
FROM AMPLIFIER
OUTPUT
TO SPEAKERS
POWER
ON
OFF
To AC outlet
SUBWOOFER
(LOW PASS)
Amplifier
SPLIT SUBWOOFER
E-4
English
Using two subwoofers
Left main
speaker
Right main
speaker
INPUT2
INPUT2
/MONO
Right subwoofer
/MONO
Left subwoofer
VOLUME
VOLUME
0
0
AUTO
STANDBY
AUTO
STANDBY
HIGH CUT
HIGH
HIGH CUT
LOW
HIGH
LOW
OFF
LOW
INPUT2
INPUT2
10
10
HIGH
HIGH
LOW
OFF
/MONO
/MONO
INPUT1
FROM AMPLIFIER
INPUT1
FROM AMPLIFIER
OUTPUT
TO SPEAKERS
OUTPUT
TO SPEAKERS
SPLIT SUBWOOFER
POWER
POWER
ON
ON
OFF
OFF
Amplifier
To AC outlet
To AC outlet
Notes
● If your amplifier has two sets of PRE OUT terminals, you
can connect the subwoofer to one of those PRE OUT
terminals.
● When connecting to a monaural line output terminal of
the amplifier, connect the L/MONO INPUT2 terminal.
E-5
Connecting to speaker output terminals of the amplifier
Using one subwoofer
If your amplifier has only one set of main speaker output terminals
Connect the speaker output terminals of the amplifier to the INPUT1 terminals of the subwoofer, and connect the OUTPUT
terminals of the subwoofer to the main speakers.
Left main
speaker
Right main
speaker
Subwoofer
VOLUME
0
AUTO
STANDBY
10
HIGH
HIGH CUT
LOW
HIGH
LOW
OFF
INPUT2
Speaker
output
terminals
/MONO
INPUT1
FROM AMPLIFIER
INPUT1
OUTPUT
FROM AMPLIFIER
TO SPEAKERS
POWER
ON
OFF
OUTPUT
TO SPEAKERS
Amplifier
To AC outlet
If your amplifier has two sets of speaker output terminals
Subwoofer
Right main
speaker
Left main
speaker
VOLUME
0
AUTO
STANDBY
10
HIGH
HIGH CUT
LOW
HIGH
LOW
OFF
INPUT2
/MONO
INPUT1
FROM AMPLIFIER
OUTPUT
INPUT1
TO SPEAKERS
FROM AMPLIFIER
POWER
ON
OFF
OUTPUT
TO SPEAKERS
To AC outlet
A
B
Speaker output terminals
E-6
Amplifier
(Both A and B speaker outputs
must be ON.)
English
Using two subwoofers
Connect the speaker output terminals of the amplifier to the INPUT1 terminals of the subwoofer, and connect the OUTPUT
terminals of the subwoofer to the main speakers.
Left main
speaker
Right main
speaker
Left subwoofer
Right subwoofer
VOLUME
VOLUME
0
AUTO
STANDBY
0
10
HIGH
AUTO
STANDBY
HIGH CUT
LOW
HIGH
LOW
OFF
INPUT2
INPUT2
10
HIGH
HIGH CUT
LOW
HIGH
LOW
OFF
/MONO
/MONO
INPUT1
INPUT1
FROM AMPLIFIER
FROM AMPLIFIER
OUTPUT
TO SPEAKERS
INPUT1
INPUT1
FROM AMPLIFIER
FROM AMPLIFIER
OUTPUT
TO SPEAKERS
POWER
POWER
ON
ON
OFF
OFF
OUTPUT
OUTPUT
TO SPEAKERS
TO SPEAKERS
To AC outlet
To AC outlet
Amplifier
Speaker output
terminals
Connecting to the INPUT1/OUTPUT terminals of the subwoofer
For connections, keep the speaker cables as short as
possible. Do not bundle or roll up the excess part of the
cables. If the connections are faulty, no sound will be heard
from the subwoofer or the speakers, or both of them. Make
sure that the + and – polarity markings of the speaker
cables are observed and set correctly. If these cables are
reversed, the sound will be unnatural and lack bass.
Caution
Do not let the bare speaker wires touch each other as
this could damage the subwoofer or the amplifier, or
both of them.
How to Connect:
Red: positive (+)
Black: negative (–)
➀
➁
➂
1 Press and hold the terminal’s tab, as shown in the figure.
2 Insert the bare wire end properly into the terminal hole.
[Remove approx. 10 mm (3/8”) insulation from the
speaker cable.]
3 Release your finger from the tab to allow it to lock
securely on the cable’s wire end.
4 Test the firmness of the connection by pulling lightly on
the cable at the terminal.
E-7
CONTROLS AND THEIR FUNCTIONS
Front panel
SUBWOOFER SYSTEM YST-SW005
YST SW005
1
Port
Rear panel
VOLUME
8
VOLUME
0
AUTO
STANDBY
POWER
2
10
HIGH
0
ON
INPUT2
OFF
10
HIGH CUT
LOW
HIGH
LOW
OFF
/MONO
AUTO
STANDBY
4
HIGH
LOW
OFF
HIGH
HIGH CUT
LOW
9
INPUT1
FROM AMPLIFIER
5
OUTPUT
TO SPEAKERS
3
220V-240V
POWER
110V-120V
2
3
E-8
6
INPUT1
FROM AMPLIFIER
VOLTAGE
SELECTOR
220V-240V
1
/MONO
ON
OFF
110V-120V
INPUT2
VOLTAGE
SELECTOR
Power indicator
Lights up GREEN when the POWER switch (2) is
pressed in to the ON position and goes off when set to
the OFF position.
* Standby mode
If the POWER switch (2) is pressed in to the ON
position and the AUTO STANDBY switch (4) is set
to the HIGH or LOW position, this indicator lights up
RED when no signal is received by the subwoofer.
POWER switch
Press this switch to the ON position to turn on the
power of the subwoofer. When the power of the
subwoofer is on, the power indicator (1) on the front
panel lights up GREEN. Press this switch again to set
to the OFF position to turn off the power of the
subwoofer.
VOLTAGE SELECTOR switch
(China and General model only)
If the preset setting of the switch is incorrect, set the
switch to the proper voltage range (220V-240V or
110V-120V) of your area.
Consult your dealer if you are unsure of the correct
setting.
WARNING
Be sure to unplug the subwoofer before setting the
VOLTAGE SELECTOR switch correctly.
7
4
5
6
7
8
9
OUTPUT
TO SPEAKERS
AUTO STANDBY (HIGH/LOW/OFF) switch
This switch is originally set to the OFF position. By
setting this switch to the HIGH or LOW position, the
subwoofer’s automatic power-switching function
operates as explained on page 9. If you do not need
this function, set to the OFF position.
* Make sure to change the setting of this switch only
when the POWER switch (2) is in the OFF position.
INPUT2 terminals
Used to input line level signals from the amplifier.
INPUT1 (FROM AMPLIFIER) terminals
Used to connect the subwoofer with the speaker
terminals of the amplifier.
OUTPUT (TO SPEAKERS) terminals
Can be used for connecting to the main speakers.
Signals from the INPUT1 terminals (6) are sent to
these terminals.
VOLUME control
Adjusts the volume level. Turn the control clockwise to
increase the volume, and counterclockwise to
decrease the volume.
HIGH CUT (HIGH/LOW) switch
Selects the high frequency cut off point.
Normally, it is set to LOW, however, you may set to
HIGH if necessary. Refer to page 10.
If the source being played is stopped and the input signal is
cut off for 7 to 8 minutes, the subwoofer automatically
switches to the standby mode. (When the subwoofer
switches to the standby mode by the automatic powerswitching function, the power indicator lights up in red.)
When you play a source again, the power of the subwoofer
turns on automatically by sensing audio signals input to the
subwoofer.
This function will operate by sensing a certain level of low
frequency input signal. Usually set the AUTO STANDBY
switch to the LOW position. However, if the power is not
switched to ON or STANDBY smoothly, set the switch to the
HIGH position. In the HIGH position, the power will turn on
even with a low level of input signal. But please be aware
that the subwoofer may not switch to the standby mode
when there is an extremely low input signal.
* The power might turn on unexpectedly by sensing noise
from other appliances. If that occurs, set the AUTO
STANDBY switch to the OFF position and use the
POWER switch to switch the power between ON and OFF
manually.
* This function detects the low-frequency components
below 200 Hz of the input signals (i.e., the explosion in
the action movie, the sound of the bass guitar or the bass
drum, etc.).
* The minutes required to switch the subwoofer to the
standby mode might change by sensing noise from other
appliances.
English
AUTOMATIC POWER-SWITCHING FUNCTION
This function is available only when the power of the
subwoofer is on (by pressing the POWER switch).
E-9
ADJUSTING THE SUBWOOFER BEFORE USE
Before using the subwoofer, adjust the subwoofer to obtain the optimum volume and tone balance between the subwoofer and
the main speakers by following the procedures described below.
Rear panel
VOLUME
1, 6
VOLUME
0
AUTO
STANDBY
10
HIGH
0
10
HIGH CUT
LOW
HIGH
LOW
OFF
AUTO
STANDBY
INPUT2
HIGH
LOW
OFF
/MONO
HIGH
HIGH CUT
LOW
5
INPUT1
FROM AMPLIFIER
OUTPUT
TO SPEAKERS
INPUT2
/MONO
POWER
3
ON
POWER
ON
OFF
INPUT1
FROM AMPLIFIER
OFF
OUTPUT
TO SPEAKERS
1
2
Set the VOLUME control to minimum (0).
3
Press the POWER switch to the ON position.
Turn on the power of all the other
components.
* The power indicator on the front panel lights
up in green.
4
Play a source containing low-frequency
components and adjust the amplifier’s
volume control to the desired listening level.
5
Set the HIGH CUT switch to the LOW or
HIGH position.
This subwoofer is designed so that the
optimum tone balance between the subwoofer
and the main speakers is obtained when this
switch is set to the LOW position. The tone
balance may change, however, depending on
the room size, the distance from the subwoofer
to the main speakers, and so on. If necessary,
switch it to the HIGH position.
E-10
6
Increase the volume gradually to adjust the
volume balance between the subwoofer and
the main speakers.
Normally, set the control to the level where you
can obtain a little more bass effect than when
this unit is not used. If the desired response
cannot be obtained, adjust the HIGH CUT
switch and the VOLUME control again.
Notes
● Once the volume balance between the subwoofer and the
main speakers is adjusted, you can adjust the volume of
your whole sound system by using the amplifier’s volume
control.
However, if you change the main speakers to others, you
must make this adjustment again.
● For adjusting the VOLUME control and the HIGH CUT
switch, refer to “Frequency characteristics” on page 11.
English
Frequency characteristics
100
Fig. 1 shows the frequency characteristics of the subwoofer
with each position (HIGH/LOW) of the HIGH CUT switch.
HIGH CUT
HIGH
90
80
70
HIGH CUT
LOW
60
50
40
20
50
100
200
500Hz
Fig. 1
Fig. 2 shows the optimum volume level with the HIGH CUT
switch at the HIGH position, and the frequency
characteristics when the subwoofer is combined with a
typical 3.5” or 4” (8 cm or 10 cm) acoustic suspension, 2
way system main speakers.
100
VOLUME
90
80
70
0
YST-SW005
I0
60
HIGH
LOW
50
HIGH CUT
40
20
Main
speaker’s
response
50
100
200
500Hz
Fig. 2
E-11
ADVANCED YAMAHA ACTIVE SERVO TECHNOLOGY
The theory of Yamaha Active Servo Technology has been
based upon two major factors, the Helmholtz resonator and
negative-impedance drive. Active Servo Processing
speakers reproduce the bass frequencies through an “air
woofer”, which is a port or opening in the speaker’s cabinet.
This opening is used instead of, and performs the functions
of, a woofer in a conventionally designed speaker system.
Thus, signals of low amplitude within the cabinet can,
according to the Helmholtz resonance theory, be outputted
from this opening as waves of great amplitude if the size of
the opening and the volume of the cabinet are in the correct
proportion to satisfy a certain ratio.
In order to accomplish this, moreover, the amplitudes within
the cabinet must be both precise and of sufficient power
because these amplitudes must overcome the “load”
presented by the air that exists within the cabinet.
Thus it is this problem that is resolved through the
employment of a new design in which the amplifier supplies
special signals. If the electrical resistance of the voice coil
could be reduced to zero, the movement of the speaker unit
would become linear with respect to signal voltage. To
accomplish this, a special negative-impedance output-drive
amplifier for subtracting output impedance of the amplifier is
used.
By employing negative-impedance drive circuits, the
amplifier is able to generate precise, low-amplitude, lowfrequency waves with superior damping characteristics.
These waves are then radiated from the cabinet opening as
high-amplitude signals. The system can, therefore, by
employing the negative-impedance output drive amplifier
and a speaker cabinet with the Helmholtz resonator,
reproduce an extremely wide range of frequencies with
amazing sound quality and less distortion.
The features described above, then, are combined to be the
fundamental structure of the conventional Yamaha Active
Servo Technology.
Our new Active Servo Technology — Advanced Yamaha
Active Servo Technology — adopted Advanced Negative
Impedance Converter (ANIC) circuits, which allows the
conventional negative impedance converter to dynamically
vary in order to select an optimum value for speaker
impedance variation. With this new ANIC circuits, Advanced
Yamaha Active Servo Technology can provide more stable
performance and improved sound pressure compared with
the conventional Yamaha Active Servo Technology, resulting
in more natural and dynamic bass reproduction.
Air woofer
(Helmholtz resonator)
Cabinet
High-amplitude
bass sound
Port
Advanced Negativeimpedance Converter
Active Servo
Processing
Amplifier
Signals of low amplitude
E-12
Signals
English
TROUBLESHOOTING
Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if
the instructions given below do not help, disconnect the power cord and contact your authorized YAMAHA dealer or service
center.
Problem
Cause
What to Do
Power is not supplied even
though the POWER switch is set
to the ON position.
The power plug is not securely
connected.
Connect it securely.
No sound.
The VOLUME control is set to 0.
Turn the VOLUME control to the right
(clockwise).
Speaker cables are not connected
securely.
Connect them securely.
Speaker cables are not connected
correctly.
Connect them correctly, that is L (left) to
L, R (right) to R, “+” to “+” and “–” to “–”.
A source sound with few bass
frequencies is played.
Play a source sound with bass
frequencies.
Set the HIGH CUT switch to the “HIGH”
position.
It is influenced by standing waves.
Reposition the subwoofer or break up
the parallel surface by placing
bookshelves etc. along the walls.
The POWER switch is set to the OFF
position.
Set the POWER switch to the ON
position.
The AUTO STANDBY switch is set to
the OFF position.
Set the AUTO STANDBY switch to the
“HIGH” or “LOW” position.
The level of input signal is too low.
Set the AUTO STANDBY switch to the
“HIGH” position.
There is an influence of noise
generated from external appliances etc.
Move the subwoofer farther away from
such appliances and/or reposition the
connected speaker cables.
Otherwise, set the AUTO STANDBY
switch to the “OFF” position.
The AUTO STANDBY switch is set to
the OFF position.
Set the AUTO STANDBY switch to the
“HIGH” position.
The subwoofer turns into the
standby mode unexpectedly.
The level of input signal is too low.
Set the AUTO STANDBY switch to the
“HIGH” position.
The subwoofer turns on
unexpectedly.
There is an influence of noise
generated from external appliances etc.
Move the subwoofer farther away from
such appliances and/or reposition the
connected speaker cables.
Otherwise, set the AUTO STANDBY
switch to the “OFF” position.
Sound level is too low.
The subwoofer does not turn on
automatically.
The subwoofer does not turn into
the standby mode automatically.
E-13
SPECIFICATIONS
Type .............. Advanced Yamaha Active Servo Technology
Driver ....................................... 16 cm (6-1/2”) cone woofer
Magnetic shielding type
Amplifier Output
USA and Canada models .................................. 55 W/5Ω
Other models ..................................................... 50 W/5Ω
Frequency Response .............................. 30 Hz to 200 Hz
Power Supply
USA and Canada models ....................... AC 120V, 60 Hz
U.K. and Europe models ........................ AC 230V, 50 Hz
Australia model ....................................... AC 240V, 50 Hz
China and General models
....................................... AC 110-120/220-240V, 50/60 Hz
YAMAHA
YAMAHA
YAMAHA
YAMAHA
YAMAHA
YAMAHA
YAMAHA
Power Consumption ................................................. 60 W
(In the standby mode: 0.8 W)
Dimensions (W x H x D) ..... 200 mm x 365 mm x 375 mm
(7-7/8” x 14-7/20” x 14-3/4”)
Weight ............................................. 8.5 kg (18 lbs. 11 oz.)
Accessories .............................................. Nonskid pad x 4
* Please note that all specifications are subject to change
without notice.
ELECTRONICS CORPORATION, USA 6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A.
CANADA MUSIC LTD. 135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA
ELECTRONIK EUROPA G.m.b.H. SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, F.R. OF GERMANY
ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE
ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND
SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN
MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA
Printed in China
V848120

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
