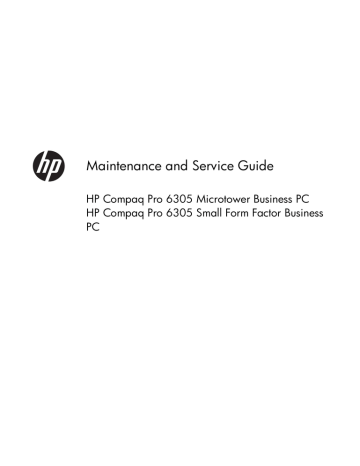

Maintenance and Service Guide

Maintenance and Service Guide

Maintenance and Service Guide

HP Compaq Pro 6305 Microtower Business PC

HP Compaq Pro 6305 Small Form Factor Business

PC

© Copyright 2012, 2013 Hewlett-Packard

Development Company, L.P. The information contained herein is subject to change without notice.

Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the

United States and/or other countries.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

This document contains proprietary information that is protected by copyright.

No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

Fourth Edition (August 2013)

First Edition (October 2012)

Document Part Number: 706894-004

About This Book

WARNING!

Text set off in this manner indicates that failure to follow directions could result in bodily harm or loss of life.

CAUTION:

Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of information.

NOTE:

Text set off in this manner provides important supplemental information.

iii

iv About This Book

Table of contents

1 Product Features ............................................................................................................... 1

Standard Configuration Features ................................................................................................ 1

Microtower (MT) Front Panel Components ................................................................................... 2

Small Form Factor (SFF) Front Panel Components ......................................................................... 3

Microtower (MT) Rear Panel Components .................................................................................... 4

Small Form Factor (SFF) Rear Panel Components .......................................................................... 5

Serial Number Location ............................................................................................................ 6

2 Activating and Customizing the Software .......................................................................... 7

Activating and customizing the software in Windows 7 ................................................................ 7

Activating the Windows operating system .................................................................... 7

Downloading Windows 7 updates .............................................................................. 8

Installing or upgrading device drivers .......................................................................... 8

Customizing the monitor display ................................................................................. 8

Activating and customizing the software in Windows 8 ................................................................ 8

Activating the Windows Operating System ................................................................... 8

Downloading Windows 8 updates .............................................................................. 9

Customizing the monitor display ................................................................................. 9

3 Computer Setup (F10) Utility ........................................................................................... 10

Computer Setup (F10) Utilities ................................................................................................. 10

Using Computer Setup (F10) Utilities .......................................................................... 11

Computer Setup—File .............................................................................................. 12

Computer Setup—Storage ........................................................................................ 13

Computer Setup—Security ........................................................................................ 16

Computer Setup—Power .......................................................................................... 21

Computer Setup—Advanced .................................................................................... 22

Recovering the Configuration Settings ....................................................................................... 24

4 Illustrated parts catalog .................................................................................................. 25

Microtower (MT) chassis spare parts ......................................................................................... 25

Computer major components .................................................................................... 25

Cables ................................................................................................................... 27

Misc parts .............................................................................................................. 28

Drives .................................................................................................................... 30

Misc boards ........................................................................................................... 30

v

vi

Sequential part number listing ................................................................................... 31

Small Form Factor (SFF) chassis spare parts ............................................................................... 35

Computer major components .................................................................................... 35

Cables ................................................................................................................... 37

Misc parts .............................................................................................................. 38

Drives .................................................................................................................... 40

Misc boards ........................................................................................................... 40

Sequential part number listing ................................................................................... 41

5 Routine Care, SATA Drive Guidelines, and Disassembly Preparation ................................ 45

Electrostatic Discharge Information ........................................................................................... 45

Generating Static .................................................................................................... 45

Preventing Electrostatic Damage to Equipment ............................................................ 46

Personal Grounding Methods and Equipment ............................................................. 46

Grounding the Work Area ....................................................................................... 47

Recommended Materials and Equipment .................................................................... 47

Operating Guidelines ............................................................................................................. 48

Routine Care ......................................................................................................................... 48

General Cleaning Safety Precautions ......................................................................... 48

Cleaning the Computer Case .................................................................................... 49

Cleaning the Keyboard ............................................................................................ 49

Cleaning the Monitor ............................................................................................... 49

Cleaning the Mouse ................................................................................................ 50

Service Considerations ........................................................................................................... 50

Power Supply Fan ................................................................................................... 50

Tools and Software Requirements .............................................................................. 50

Screws ................................................................................................................... 50

Cables and Connectors ........................................................................................... 51

Hard Drives ............................................................................................................ 51

Lithium Coin Cell Battery .......................................................................................... 51

SATA Hard Drives .................................................................................................................. 52

SATA Hard Drive Cables ........................................................................................................ 52

SATA Data Cable ................................................................................................... 52

SMART ATA Drives ................................................................................................................ 52

Cable Management ............................................................................................................... 52

Hard Drive Capacities ............................................................................................................ 53

6 Removal and Replacement Procedures Microtower (MT) Chassis ..................................... 54

Preparation for Disassembly .................................................................................................... 54

Computer Access Panel .......................................................................................................... 55

Front Bezel ............................................................................................................................ 56

Front Bezel Security ................................................................................................................ 57

Bezel Blanks .......................................................................................................................... 59

Memory ................................................................................................................................ 60

DIMMs .................................................................................................................. 60

DDR3-SDRAM DIMMs .............................................................................................. 60

Populating DIMM Sockets ........................................................................................ 61

Installing DIMMs ..................................................................................................... 62

Expansion Cards .................................................................................................................... 64

WLAN module ...................................................................................................................... 67

System Board Connections ...................................................................................................... 69

Drives ................................................................................................................................... 70

Drive Positions ........................................................................................................ 72

Removing a 5.25-inch or 3.5-inch Drive from a Drive Bay ............................................ 73

Installing a 5.25-inch or 3.5-inch Drive into a Drive Bay .............................................. 75

Removing a Hard Drive from a Drive Bay ................................................................... 77

Installing a Hard Drive into an Internal Drive Bay ........................................................ 78

Removing and Replacing a Removable 3.5-inch SATA Hard Drive ................................ 80

Front Fan Assembly ................................................................................................................ 85

Front I/O Assembly ................................................................................................................ 86

Power Switch/LED Assembly ................................................................................................... 87

Heat sink .............................................................................................................................. 89

Processor .............................................................................................................................. 90

Speaker ................................................................................................................................ 91

Rear Chassis Fan ................................................................................................................... 93

Power Supply ........................................................................................................................ 95

System Board ........................................................................................................................ 96

7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis ........................... 99

Preparation for Disassembly .................................................................................................... 99

Access Panel ....................................................................................................................... 100

Front Bezel .......................................................................................................................... 101

Front Bezel Security .............................................................................................................. 102

Bezel Blanks ........................................................................................................................ 104

Memory .............................................................................................................................. 105

DIMMs ................................................................................................................ 105

DDR3-SDRAM DIMMs ............................................................................................ 105

Populating DIMM Sockets ...................................................................................... 106

Installing DIMMs ................................................................................................... 107

Expansion Card ................................................................................................................... 109

WLAN module .................................................................................................................... 113

System Board Connections .................................................................................................... 115

vii

viii

Drives ................................................................................................................................. 116

Drive Positions ...................................................................................................... 117

Installing and Removing Drives ............................................................................... 117

Removing a 5.25-inch Drive from a Drive Bay ........................................... 119

Installing a 5.25-inch Drive into a Drive Bay .............................................. 119

Removing a 3.5-inch Drive from a Drive Bay ............................................. 121

Installing a 3.5-inch Drive into a Drive Bay ................................................ 123

Removing and Replacing the Primary 3.5-inch Internal Hard Drive ............... 125

Removing and Replacing a Removable 3.5-inch SATA Hard Drive ............... 127

Fan duct ............................................................................................................................. 132

Front Fan Assembly .............................................................................................................. 133

Hood Sensor ....................................................................................................................... 135

Front I/O, Power Switch Assembly ......................................................................................... 136

Speaker .............................................................................................................................. 138

Heat sink ............................................................................................................................ 139

Processor ............................................................................................................................ 141

Power Supply ...................................................................................................................... 142

System Board ...................................................................................................................... 143

Using the Small Form Factor Computer in a Tower Orientation .................................................. 145

8 Troubleshooting Without Diagnostics ............................................................................ 146

Safety and Comfort .............................................................................................................. 146

Before You Call for Technical Support .................................................................................... 146

Helpful Hints ........................................................................................................................ 147

Solving General Problems ..................................................................................................... 148

Solving Power Problems ........................................................................................................ 152

Solving Hard Drive Problems ................................................................................................. 154

Solving Media Card Reader Problems .................................................................................... 156

Solving Display Problems ...................................................................................................... 158

Solving Audio Problems ........................................................................................................ 163

Solving Printer Problems ........................................................................................................ 165

Solving Keyboard and Mouse Problems .................................................................................. 166

Solving Hardware Installation Problems .................................................................................. 169

Solving Network Problems .................................................................................................... 171

Solving Memory Problems ..................................................................................................... 175

Solving Processor Problems ................................................................................................... 176

Solving CD-ROM and DVD Problems ...................................................................................... 177

Solving USB Flash Drive Problems .......................................................................................... 179

Solving Front Panel Component Problems ................................................................................ 180

Solving Internet Access Problems ............................................................................................ 181

Solving Software Problems .................................................................................................... 182

Contacting Customer Support ................................................................................................ 184

9 HP PC Hardware Diagnostics ........................................................................................ 185

Why run HP PC Hardware Diagnostics – UEFI ......................................................................... 185

How to access and run HP PC Hardware Diagnostics - UEFI ...................................................... 185

Downloading HP PC Hardware Diagnostics to a USB device ..................................................... 186

10 POST Error Messages .................................................................................................. 187

POST Numeric Codes and Text Messages ............................................................................... 187

Interpreting POST Diagnostic Front Panel LEDs and Audible Codes ............................................. 195

11 Password Security and Resetting CMOS ...................................................................... 199

Resetting the Password Jumper ............................................................................................... 199

Clearing and Resetting the CMOS ......................................................................................... 200

12 Backup and Recovery ................................................................................................. 203

Restoring and recovering in Windows 7 ................................................................................. 203

System Restore ...................................................................................................... 203

System Recovery ................................................................................................... 203

System Recovery when Windows is responding ......................................... 204

System Recovery when Windows is not responding .................................... 205

System recovery using recovery media ...................................................... 205

Creating recovery media .......................................................... 206

Using recovery media .............................................................. 207

Backup and recovery in Windows 8 ....................................................................................... 207

Backing up your information ................................................................................... 208

Performing a system recovery ................................................................................. 208

Using the Windows recovery tools ........................................................... 209

Using f11 recovery tools ......................................................................... 209

Using Windows 8 operating system media (purchased separately) ............... 210

Appendix A Battery Replacement .................................................................................... 211

Appendix B Power Cord Set Requirements ....................................................................... 214

General Requirements .......................................................................................................... 214

Japanese Power Cord Requirements ....................................................................................... 214

Country-Specific Requirements ............................................................................................... 215

Appendix C Specifications ................................................................................................ 216

MT Specifications ................................................................................................................. 216

ix

x

SFF Specifications ................................................................................................................ 217

Index ............................................................................................................................... 218

1 Product Features

Standard Configuration Features

Features may vary depending on the model. For a complete listing of the hardware and software installed in the computer, run the diagnostic utility (included on some computer models only).

Figure 1-1

Microtower Configuration

Figure 1-2

Small Form Factor Configuration

NOTE:

The Small Form Factor computer can also be used in a tower orientation. For more information, see

Using the Small Form Factor Computer in a Tower Orientation on page 145

in this guide.

Standard Configuration Features 1

Microtower (MT) Front Panel Components

Drive configuration may vary by model. Some models have a bezel blank covering one or more drive bays.

Table 1-1 Front Panel Components

1

2

5.25-inch Optical Drives

Hard Drive Activity Light

5

6

3.5-inch Media Card Reader (optional)

Dual-State Power Button

3

4

Microphone/Headphone Connector

USB (Universal Serial Bus) 2.0 Ports

7

8

Power On Light

Headphone Connector

NOTE:

When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if you want to use the connector for a microphone Line-In device or a headphone. You can reconfigure the connector at any time in the Realtek HD Audio Manager.

NOTE:

The Power On Light is normally green when the power is on. If it is flashing red, there is a problem with the computer and it is displaying a diagnostic code.

2 Chapter 1 Product Features

Small Form Factor (SFF) Front Panel Components

Drive configuration may vary by model. Some models have a bezel blank covering one or more drive bays.

Figure 1-3

Front Panel Components

Table 1-2 Front Panel Components

1

2

5.25-inch Optical Drive

Dual-State Power Button

5

6

Microphone/Headphone Connector

3.5-inch Media Card Reader (optional)

3

4

Power On Light

USB (Universal Serial Bus) Ports

7

8

Hard Drive Activity Light

Headphone Connector

NOTE:

When a device is plugged into the Microphone/Headphone Connector, a dialog box will pop up asking if you want to use the connector for a microphone Line-In device or a headphone. You can reconfigure the connector at any time in the Realtek HD Audio Manager.

NOTE:

The Power On Light is normally green when the power is on. If it is flashing red, there is a problem with the computer and it is displaying a diagnostic code.

Small Form Factor (SFF) Front Panel Components 3

Microtower (MT) Rear Panel Components

Figure 1-4

Rear Panel Components

Table 1-3 Rear Panel Components

1

2

3

Power Cord Connector

Line-In Audio Connector (blue)

PS/2 Mouse Connector (green)

6

7

8

Line-Out Connector for powered audio devices (green)

PS/2 Keyboard Connector (purple)

VGA Monitor Connector

4

5

Serial Connector

RJ-45 Network Connector

9

10

DisplayPort Monitor Connector

USB 3.0 ports (blue)

11 USB 2.0 ports (black)

NOTE:

An optional second serial port and an optional parallel port are available from HP.

When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use the connector for a line-in device or a microphone. You can reconfigure the connector at any time in the Realtek HD

Audio Manager.

For AMD/ATI graphic cards installed in one of the system board slots, the video connectors on the graphics card and the integrated graphics on the system board may be used at the same time. However, for other non-AMD/ATI graphics cards, the video connectors will only be functional on the graphics card.

If inserting a wireless receiver, use a USB 2.0 port that is separated from USB 3.0 devices.

4 Chapter 1 Product Features

Small Form Factor (SFF) Rear Panel Components

Figure 1-5

Rear Panel Components

Table 1-4 Rear Panel Components

1

2

RJ-45 Network Connector

Serial Connector

7

8

DisplayPort Monitor Connector

VGA Monitor Connector

3

4

PS/2 Mouse Connector (green)

Power Cord Connector

9

10

PS/2 Keyboard Connector (purple)

Line-Out Connector for powered audio devices (green)

Line-In Audio Connector (blue) 5 USB 2.0 ports (black) 11

6 USB 3.0 ports (blue)

NOTE:

An optional second serial port and an optional parallel port are available from HP.

When a device is plugged into the blue Line-In Audio Connector, a dialog box will pop up asking if you want to use the connector for a line-in device or a microphone. You can reconfigure the connector at any time in the Realtek HD

Audio Manager.

For AMD/ATI graphic cards installed in one of the system board slots, the video connectors on the graphics card and the integrated graphics on the system board may be used at the same time. However, for other non-AMD/ATI graphics cards, the video connectors will only be functional on the graphics card.

If inserting a wireless receiver, use a USB 2.0 port that is separated from USB 3.0 devices.

Small Form Factor (SFF) Rear Panel Components 5

Serial Number Location

Each computer has a unique serial number and a product ID number that are located on the top cover of the computer. Keep these numbers available for use when contacting customer service for assistance.

Figure 1-6

Microtower Serial Number and Product ID Location

Figure 1-7

Small Form Factor Serial Number and Product ID Location

6 Chapter 1 Product Features

2 Activating and Customizing the

Software

NOTE:

This chapter provides information for both Windows 7 and Windows 8.

Activating and customizing the software in

Windows 7

If your computer was not shipped with a Windows® operating system, some portions of this documentation do not apply. Additional information is available in online help after you activate the operating system.

CAUTION:

Do not add optional hardware or third-party devices to the computer until the operating system is successfully activated. Doing so may cause errors and prevent the operating system from installing properly.

NOTE:

Be sure there is a 10.2 cm (4 inch) clearance at the back of the unit and above the monitor to permit the required airflow.

Activating the Windows operating system

The first time you turn on the computer, the operating system is set up and activated automatically. This process takes about 5 to 10 minutes. Carefully read and follow the instructions on the screen to complete the activation.

We recommend that you register your computer with HP during operating system setup so you can receive important software updates, facilitate support questions, and sign up for special offers.

CAUTION:

After the activation process has begun, DO NOT TURN OFF THE COMPUTER UNTIL THE

PROCESS IS COMPLETE. Turning off the computer during the activation process may damage the software that runs the computer or prevent its proper installation.

NOTE:

If the computer shipped with more than one operating system language on the hard drive, the activation process could take up to 60 minutes.

Activating and customizing the software in Windows 7 7

Downloading Windows 7 updates

Microsoft may release updates to the operating system. To help keep the computer running optimally,

HP recommends checking for the latest updates during the initial installation and periodically throughout the life of the computer.

1.

To set up your Internet connection, click Start > Internet Explorer and follow the instructions on the screen.

2.

After an Internet connection has been established, click the Start > All Programs > Windows

Update.

3.

Run Windows Update monthly thereafter.

Installing or upgrading device drivers

When installing optional hardware devices after the operating system installation is complete, you must also install the drivers for each of the devices.

In Windows 7, if prompted for the i386 directory, replace the path specification with C:\i386, or use the Browse button in the dialog box to locate the i386 folder. This action points the operating system to the appropriate drivers.

Obtain the latest support software, including support software for the operating system, from http://www.hp.com/support . Select your country and language, select Download drivers and

software (and firmware), enter the model number of the computer, and press Enter .

Customizing the monitor display

If you wish, you can select or change the monitor refresh rates, screen resolution, color settings, font sizes, and power management settings.

For more information, refer to the online documentation provided with the graphics controller utility or the documentation that came with your monitor.

Right-click on the Windows desktop, then click Personalize to change display settings.

Activating and customizing the software in

Windows 8

Additional information is available in online help after you activate the operating system.

NOTE:

Be sure there is a 10.2 cm (4 inch) clearance at the back of the unit and above the monitor to permit the required airflow.

Activating the Windows Operating System

The first time you turn on the computer, the operating system is set up and activated automatically. This process takes about 5 to 10 minutes. Carefully read and follow the instructions on the screen to complete the activation.

8 Chapter 2 Activating and Customizing the Software

We recommend that you register your computer with HP during operating system set up so you can receive important software updates, facilitate support questions, and sign up for special offers. You can also register your computer with HP using the Register with HP app on the Start screen.

CAUTION:

After the activation process has begun, DO NOT TURN OFF THE COMPUTER UNTIL THE

PROCESS IS COMPLETE. Turning off the computer during the activation process may damage the software that runs the computer or prevent its proper installation.

Downloading Windows 8 updates

Microsoft may release updates to the operating system. To help keep the computer running optimally,

HP recommends checking for the latest updates during the initial installation and periodically throughout the life of the computer.

Run Windows Update as soon as possible after you set up your computer.

1.

Point to the upper-right or lower-right corner of the Start screen to display the charms.

2.

Click Settings > Change PC Settings > Windows Update.

3.

Run Windows Update monthly thereafter.

Customizing the monitor display

You can customize display settings for Windows 8 separately for the Start screen and the Desktop.

To customize the Start screen:

1.

Point to the upper-right or lower-right corner of the Start screen to display the charms.

2.

Click Settings > Change PC Settings.

3.

Click Personalize to change the display settings.

To customize the Desktop:

1.

Click the Desktop app on the Start screen.

2.

Right-click on the desktop, and then click Personalize to change display settings.

Activating and customizing the software in Windows 8 9

3 Computer Setup (F10) Utility

Computer Setup (F10) Utilities

Use Computer Setup (F10) Utility to do the following:

Change factory default settings.

Set the system date and time.

Set, view, change, or verify the system configuration, including settings for processor, graphics, memory, audio, storage, communications, and input devices.

Modify the boot order of bootable devices such as hard drives, optical drives, or USB flash media devices.

Enable Quick Boot, which is faster than Full Boot but does not run all of the diagnostic tests run during a Full Boot. You can set the system to:

❑ always Quick Boot (default);

❑ periodically Full Boot (from every 1 to 30 days); or

❑ always Full Boot.

Select Post Messages Enabled or Disabled to change the display status of Power-On Self-Test

(POST) messages. Post Messages Disabled suppresses most POST messages, such as memory count, product name, and other non-error text messages. If a POST error occurs, the error is displayed regardless of the mode selected. To manually switch to Post Messages Enabled during

POST, press any key (except F1 through F12 ).

Establish an Ownership Tag, the text of which is displayed each time the system is turned on or restarted.

Enter the Asset Tag or property identification number assigned by the company to this computer.

Enable the power-on password prompt during system restarts (warm boots) as well as during power-on.

Establish a setup password that controls access to the Computer Setup (F10) Utility and the settings described in this section.

Secure integrated I/O functionality, including the serial, USB, or parallel ports, audio, or embedded NIC, so that they cannot be used until they are unsecured.

Enable or disable removable media boot ability.

Solve system configuration errors detected but not automatically fixed during the Power-On Self-

Test (POST).

Replicate the system setup by saving system configuration information on a USB device and restoring it on one or more computers.

10 Chapter 3 Computer Setup (F10) Utility

Execute self-tests on a specified ATA hard drive (when supported by drive).

Enable or disable DriveLock security (when supported by drive).

Using Computer Setup (F10) Utilities

Computer Setup can be accessed only by turning the computer on or restarting the system. To access the Computer Setup Utilities menu, complete the following steps:

1.

Turn on or restart the computer.

2.

Repeatedly press F10 when the monitor light turns green to access the utility.

You can also press Esc to a menu that allows you to access different options available at startup, including the Computer Setup utility.

NOTE:

If you do not press F10 at the appropriate time, you must restart the computer and again repeatedly press F10 when the monitor light turns green to access the utility.

3.

A choice of five headings appears in the Computer Setup Utilities menu: File, Storage, Security,

Power, and Advanced.

4.

Use the arrow (left and right) keys to select the appropriate heading. Use the arrow (up and down) keys to select the option you want, then press Enter . To return to the Computer Setup Utilities menu, press Esc .

5.

To apply and save changes, select File > Save Changes and Exit.

If you have made changes that you do not want applied, select Ignore Changes and

Exit.

To reset to factory settings or previously saved default settings (some models), select Apply

Defaults and Exit. This option will restore the original factory system defaults.

NOTE:

Not all settings shown in the following sections are available for all models

CAUTION:

Do NOT turn the computer power OFF while the BIOS is saving the Computer Setup

(F10) changes because the CMOS could become corrupted. It is safe to turn off the computer only after exiting the F10 Setup screen.

Table 3-1 Computer Setup (F10) Utility

Heading

File

Storage

Security

Power

Advanced

Table

Computer Setup—File on page 12

Computer Setup—Storage on page 13

Computer Setup—Security on page 16

Computer Setup—Power on page 21

Computer Setup—Advanced on page 22

Computer Setup (F10) Utilities 11

Computer Setup—File

NOTE:

Support for specific Computer Setup options may vary depending on the hardware configuration.

Table 3-2 Computer Setup—File

Option

System Information

Lists:

Product name

SKU number

Processor type/speed/stepping

Cache size (L1/L2/L3) (dual core processors have this listed twice)

Installed memory size/speed, number of channels (single or dual) (if applicable)

Integrated MAC address for embedded, enabled NIC (if applicable)

System BIOS (includes family name and version)

Chassis serial number

Asset tracking number

ME firmware version

ME Management mode

About

Set Time and Date

Flash System ROM

Replicated Setup

Description

Displays copyright notice.

Allows you to set system time and date.

Allows you to update the system ROM with a BIOS image file located on removable media.

Default Setup

Save to Removable Media

Saves system configuration to a formatted USB flash media device.

Restore from Removable Media

Restores system configuration from a USB flash media device.

Save Current Settings as Default

Saves the current system configuration settings as the default.

Restore Factory Settings as Default

Restores the factory system configuration settings as the default.

Apply Defaults and

Exit

Ignore Changes and Exit

Save Changes and

Exit

Applies the currently selected default settings and clears any established passwords.

Exits Computer Setup without applying or saving any changes.

Saves changes to system configuration or default settings and exits Computer Setup.

12 Chapter 3 Computer Setup (F10) Utility

Computer Setup—Storage

NOTE:

Support for specific Computer Setup options may vary depending on the hardware configuration.

Table 3-3 Computer Setup—Storage

Option

Device

Configuration

Description

Lists all installed BIOS-controlled storage devices.

When a device is selected, detailed information and options are displayed. The following options may be presented:

Hard Disk: Size, model, firmware version, serial number, connector color.

Translation mode (ATA disks only)

Lets you select the translation mode to be used for the device. This enables the BIOS to access disks partitioned and formatted on other systems and may be necessary for users of older versions of UNIX (e.g., SCO UNIX version 3.2). Options are Automatic, Bit-Shift, LBA Assisted,

User, and Off.

Available only when the drive translation mode is set to User, allows you to specify the parameters (logical cylinders, heads, and sectors per track) used by the BIOS to translate disk

I/O requests (from the operating system or an application) into terms the hard drive can accept. Logical cylinders may not exceed 1024. The number of heads may not exceed 256.

The number of sectors per track may not exceed 63.

CAUTION:

Ordinarily, the translation mode selected automatically by the BIOS should not be changed. If the selected translation mode is not compatible with the translation mode that was active when the disk was partitioned and formatted, the data on the disk will be inaccessible.

CD-ROM: Model, firmware version, serial number, connector color (not included for USB CD-

ROM).

SSD Life Used

NOTE:

Displays for solid-state drives.

SMART (ATA disks only)

Diskette: Model and firmware version.

NOTE:

Displays for USB diskette drives.

Default Values (ATA disks only)

See Translation Mode above for details.

SATA Defaults

Computer Setup (F10) Utilities 13

Table 3-3 Computer Setup—Storage (continued)

Storage Options eSATA Port

Allows you to set a SATA port as an eSATA port for use with an external drive. Default is enabled.

This setting affects only the port with the black connector, labeled as eSATA on the system board.

This port should have the eSATA back panel connector attached to use eSATA drives. For more information, see the eSATA white paper at www.hp.com

.

SATA Emulation

Allows you to choose how the SATA controller and devices are accessed by the operating system.

There are three supported options: IDE, RAID, and AHCI (default).

CAUTION:

SATA emulation changes may prevent access to existing hard drive data and degrade or corrupt established volumes.

IDE - This is the most backwards-compatible setting of the three options. Operating systems usually do not require additional driver support in IDE mode.

RAID - Allows DOS and boot access to RAID volumes. Use this mode with the RAID device driver loaded in the operating system to take advantage of RAID features.

AHCI (default option) - Allows operating systems with AHCI device drivers loaded to take advantage of more advanced features of the SATA controller.

NOTE:

The RAID/AHCI device driver must be installed prior to attempting to boot from a RAID/

AHCI volume. If you attempt to boot from a RAID/AHCI volume without the required device driver installed, the system will crash (blue screen). RAID volumes may become corrupted if they are booted to after disabling RAID.

Removable Media Boot

Enables/disables ability to boot the system from removable media. Default is enabled.

Max eSATA Speed

Allows you to choose 1.5 Gbps or 3.0 Gpbs as the maximum eSATA speed. By default, the speed is limited to 1.5 Gbps for maximum reliability.

CAUTION:

Consult your eSATA drive and cable manufacturer before enabling 3.0 Gpbs speed.

Some drive and cable combinations may not run reliably at 3.0 Gpbs.

14 Chapter 3 Computer Setup (F10) Utility

Table 3-3 Computer Setup—Storage (continued)

DPS Self-Test

Boot Order

Allows you to execute self-tests on ATA hard drives capable of performing the Drive Protection

System (DPS) self-tests.

NOTE:

This selection will only appear when at least one drive capable of performing the DPS selftests is attached to the system.

Allows you to:

EFI Boot Sources: Specify the order in which EFI boot sources (such as a internal hard drive,

USB hard drive, USB optical drive, or internal optical drive) are checked for a bootable operating system image. Each device on the list may be individually excluded from or included for consideration as a bootable operating system source.

EFI boot sources always have precedence over legacy boot sources.

Legacy Boot Sources: Specify the order in which legacy boot sources (such as a network interface card, internal hard drive, USB optical drive, or internal optical drive) are checked for a bootable operating system image. Each device on the list may be individually excluded from or included for consideration as a bootable operating system source.

Specify the order of attached hard drives. The first hard drive in the order will have priority in the boot sequence and will be recognized as drive C (if any devices are attached).

NOTE:

To drag a device to a preferred place, press Enter . To remove the device from consideration as a bootable device, press F5.

You can use F5 to disable individual boot items, as well as disable EFI boot and/or legacy boot.

NOTE:

MS-DOS drive lettering assignments may not apply after a non-MS-DOS operating system has started.

Shortcut to Temporarily Override Boot Order

To boot one time from a device other than the default device specified in Boot Order, restart the computer and press Esc (to access the boot menu) and then F9 (Boot Order), or only F9 (skipping the boot menu) when the monitor light turns green. After POST is completed, a list of bootable devices is displayed. Use the arrow keys to select the preferred bootable device and press Enter .

The computer then boots from the selected non-default device for this one time.

Computer Setup (F10) Utilities 15

Computer Setup—Security

NOTE:

Support for specific Computer Setup options may vary depending on the hardware configuration.

Table 3-4 Computer Setup—Security

Option

Setup Password

Power-On

Password

Password Options

(This selection appears only if a power-on password or setup password is set.)

Smart Cover

Description

Allows you to set and enable a setup (administrator) password.

NOTE:

If the setup password is set, it is required to change Computer Setup options, flash the

ROM, and make changes to certain plug and play settings under Windows.

Allows you to set and enable a power-on password. The power-on password prompt appears after a power cycle or reboot. If the user does not enter the correct power-on password, the unit will not boot.

Allows you to enable/disable:

Lock Legacy Resources (determines whether or not Windows Device Manager is allowed to change resource settings for serial and parallel ports).

Stringent security (enabling the stringent password disables the ability to reset the password by moving the jumper on the system board). Default is disabled.

CAUTION:

If you enable the stringent security feature and you forget the setup password or the power-on password, the computer is inaccessible and can no longer be used.

If you lose or forget the password, the system board must be replaced. This scenario is not covered under warranty.

To prevent the computer from becoming permanently unusable, record your configured setup password or power-on password in a safe place away from your computer. Without these passwords, the computer cannot be unlocked.

Setup Browse Mode (appears if a setup password is set) (allows viewing, but not changing, the F10 Setup Options without entering setup password). Default is enabled.

Password prompt on F9 & F12 (requires setup password to use these boot functions). Default is enabled.

Network Server Mode. Default is disabled.

Allows you to:

Lock/unlock the Cover Lock.

Set the Cover Removal Sensor to Disable/Notify User/Setup Password.

NOTE:

Notify User alerts the user that the sensor has detected that the cover has been removed.

Setup Password requires that the setup password be entered to boot the computer if the sensor detects that the cover has been removed.

16 Chapter 3 Computer Setup (F10) Utility

Table 3-4 Computer Setup—Security (continued)

Device Security

USB Security

Slot Security

Network Boot

System IDs

Allows you to set Device Available/Device Hidden (default is Device Available) for:

Embedded security device

System audio

USB controller (varies by model)

Network controller

NOTE:

You must disable AMT before trying to hide the network controller.

Serial port

Parallel port

SATA ports (varies by model)

Allows you to set Enabled/Disabled (default is Enabled) for:

Front USB Ports

Rear USB Ports

Accessory USB Ports

Allows you to disable any PCI or PCI Express slot. Default is enabled.

Enables/disables the computer’s ability to boot from an operating system installed on a network server. (Feature available on NIC models only; the network controller must be either a PCI expansion card or embedded on the system board.) Default is enabled.

Allows you to set:

Asset tag (18-byte identifier), a property identification number assigned by the company to the computer.

Ownership tag (80-byte identifier) displayed during POST.

Universal Unique Identifier (UUID) number. The UUID can only be updated if the current chassis serial number is invalid. (These ID numbers are normally set in the factory and are used to uniquely identify the system.)

Keyboard locale setting for System ID entry.

Computer Setup (F10) Utilities 17

Table 3-4 Computer Setup—Security (continued)

Master Boot Record

Security

Enables/disables Master Boot Record (MBR) security.

The MBR contains information needed to successfully boot from a disk and to access the data stored on the disk. Master Boot Record Security may prevent unintentional or malicious changes to the

MBR, such as those caused by some viruses or by the incorrect use of certain disk utilities. It also allows you to recover the "last known good" MBR, should changes to the MBR be detected when the system is restarted.

When MBR Security is enabled, the BIOS prevents any changes being made to the MBR of the current bootable disk while in MS-DOS or Windows Safe Mode.

NOTE:

Most operating systems control access to the MBR of the current bootable disk; the BIOS cannot prevent changes that may occur while the operating system is running.

Restores the backup Master Boot Record to the current bootable disk. Default is disabled.

Only appears if all of the following conditions are true:

MBR security is enabled

A backup copy of the MBR has been previously saved

The current bootable disk is the same disk from which the backup copy was saved

CAUTION:

Restoring a previously saved MBR after a disk utility or operating system has modified the MBR, may cause the data on the disk to become inaccessible. Only restore a previously saved

MBR if you are confident that the current bootable disk's MBR has been corrupted or infected with a virus.

18 Chapter 3 Computer Setup (F10) Utility

Table 3-4 Computer Setup—Security (continued)

System Security

(these options are hardware dependent)

System Security

(continued)

Data Execution Prevention (enable/disable) - Helps prevent operating system security breaches.

Default is enabled.

SVM CPU Virtualization (enable/disable). Controls the virtualization features of the processor.

Changing this setting requires turning the computer off and then back on. Default is disabled.

Virtualization Technology (VTx) (enable/disable) - Controls the virtualization features of the processor. Changing this setting requires turning the computer off and then back on. Default is disabled.

Virtualization Technology Directed I/O (VTd) (enable/disable) - Controls virtualization DMA remapping features of the chipset. Changing this setting requires turning the computer off and then back on. Default is disabled.

Trusted Execution Technology (enable/disable) - Controls the underlying processor and chipset features needed to support a virtual appliance. Changing this setting requires turning the computer off and then back on. Default is disabled. To enable this feature you must enable the following features:

Embedded Security Device Support

Virtualization Technology

Virtualization Technology Directed I/O

Embedded Security Device (enable/disable) - Permits activation and deactivation of the Embedded

Security Device.

NOTE:

To configure the Embedded Security Device, a Setup password must be set.

Reset to Factory Settings (Do not reset/Reset) - Resetting to factory defaults will erase all security keys and leave the device in a disabled state. Changing this setting requires that you restart the computer. Default is Do not reset.

CAUTION:

The embedded security device is a critical component of many security schemes.

Erasing the security keys will prevent access to data protected by the Embedded Security

Device. Choosing Reset to Factory Settings may result in significant data loss.

Measure boot variables/devices to PCR1 - Typically, the computer measures the boot path and saves collected metrics to PCR5 (a register in the Embedded Security Device). Bitlocker tracks changes to any of these metrics, and forces the user to re-authenticate if it detects any changes. Enabling this feature lets you set Bitlocker to ignore detected changes to boot path metrics, thereby avoiding re-authentication issues associated with USB keys inserted in a port.

Default is enabled.

OS management of Embedded Security Device (enable/disable) - This option allows the user to limit

OS control of the Embedded Security Device. Default is enabled. This option is automatically disabled if Trusted Execution Technology is enabled.

Reset of Embedded Security Device through OS (enable/disable) - This option allows the user to limit the operating system ability to request a Reset to Factory Settings of the Embedded

Security Device. Default is disabled.

NOTE:

To enable this option, a Setup password must be set.

No PPI provisioning (Windows 8 only) - This option lets you set Windows 8 to bypass the PPI

(Physical Presence Interface) requirement and directly enable and take ownership of the TPM on first boot. You cannot change this setting after TPM is owned/initialized, unless the TPM is reset. Default is disabled for non-Windows 8 systems, and enabled for Windows 8.

Allow PPI policy to be changed by OS. Enabling this option allows the operating system to execute TPM operations without Physical Presence Interface. Default is disabled.

NOTE:

To enable this option, a Setup password must be set.

Computer Setup (F10) Utilities 19

Table 3-4 Computer Setup—Security (continued)

DriveLock Security

Secure Boot

Configuration

Allows you to assign or modify a master or user password for hard drives. When this feature is enabled, the user is prompted to provide one of the DriveLock passwords during POST. If neither is successfully entered, the hard drive will remain inaccessible until one of the passwords is successfully provided during a subsequent cold-boot sequence.

NOTE:

This selection will only appear when at least one drive that supports the DriveLock feature is attached to the system.

This is a feature of Windows 8.

Legacy Support—Enable/Disable. Allows you to turn off all legacy support on the computer, including booting to DOS, running legacy graphics cards, booting to legacy devices, and so on. If set to disable, legacy boot options in Storage > Boot Order are not displayed.

Default is enabled.

Secure Boot—Enable/Disable. Allows you to make sure an operating system is legitimate before booting to it, making Windows resistant to malicious modification from preboot to full

OS booting, preventing firmware attacks. UEFI and Windows Secure Boot only allow code signed by pre-approved digital certificates to run during the firmware and OS boot process.

Default is disabled, except for Windows 8 systems which have this setting enabled. Secure

Boot enabled also sets Legacy Support to disabled.

Key Management—This option lets you manage the custom key settings.

Clear Secure Boot Keys—Don't Clear/Clear. Allows you to delete any previously loaded custom boot keys. Default is Don't Clear.

Key Ownership—HP Keys/Custom Keys. Selecting Custom Mode allows you to modify the contents of the secure boot signature databases and the platform key (PK) that verifies kernels during system start up, allowing you to use alternative operating systems.

Selecting HP Keys causes the computer boot using the preloaded HP-specific boot keys.

Default is HP Keys.

Fast Boot—Enable/Disable. Fast boot disables the ability to interrupt boot, such as pressing f keys to access items before the operating system loads. Default is disabled.

NOTE:

If Windows 8 detects a serious error, it will interrupt the boot process automatically and display advanced boot options.

From Windows 8, you can press Shift and select Restart to access the screen that lets you boot to a device or troubleshoot your computer.

20 Chapter 3 Computer Setup (F10) Utility

Computer Setup—Power

NOTE:

Support for specific Computer Setup options may vary depending on the hardware configuration.

Table 3-5 Computer Setup—Power

Option

OS Power

Management

Hardware Power

Management

Thermal

Description

Idle Power Savings—Extended/Normal. Allows certain operating systems to decrease the processors power consumption when the processor is idle. Default is extended.

Runtime Power Management— Enable/Disable. Allows certain operating systems to reduce processor voltage and frequency when the current software load does not require the full capabilities of the processor. Default is enabled.

Unique Sleep State Blink Rates—Enable/Disable. This feature is designed to provide a visual indication of what sleep state the system is in. Each sleep state has a unique blink pattern.

Default is disabled.

NOTE:

For Windows 8 systems with Fast Boot support, a normal shutdown goes to the S4 state, not the S5 state.

S0 (On) = Solid green LED.

S3 (Stand By)= 3 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds

(green LED) — repeated cycles of 3 blinks and a pause.

S4 (Hibernation)= 4 blinks at 1Hz (50% duty cycle) followed by a pause of 2 seconds

(green LED) — repeated cycles of 4 blinks and a pause.

S5 (Soft Off) = LED is off.

SATA Power Management – Enables or disables SATA bus and/or device power management.

Default is enabled.

S5 Maximum Power Savings – Turns off power to all nonessential hardware when system is off to meet EUP Lot 6 requirement of less than 0.5 Watt power usage. Default is disabled.

PCI Express x16 Slot 1 – Sets Active State Power Management (ASPM) of the bus. ASPM lets you set lower power modes that activate when the bus is not being used. Options are Disabled, LOs,

L1, LOs and L1. Default is ASPM Disabled.

PCI Express x1 Slot 1 – Sets Active State Power Management (ASPM) of the bus. ASPM lets you set lower power modes that activate when the bus is not being used. Options are Disabled, LOs, L1,

LOs and L1. Default is ASPM Disabled.

Network Controller – Sets ASPM of the bus. ASPM lets you set lower power modes that activate when the bus is not being used. Options are Disabled, LOs, L1, LOs and L1. Default is ASPM

Disabled.

USB 3.0 Controller – Sets ASPM of the bus. ASPM lets you set lower power modes that activate when the bus is not being used. Options are Disabled, LOs, L1, LOs and L1. Default is ASPM

Disabled.

Fan idle mode—This bar graph controls the minimum permitted fan speed.

NOTE:

This setting only changes the minimum fan speed. The fans are still automatically controlled.

Computer Setup (F10) Utilities 21

Computer Setup—Advanced

NOTE:

Support for specific Computer Setup options may vary depending on the hardware configuration.

Table 3-6 Computer Setup—Advanced (for advanced users)

Option

Power-On Options

BIOS Power-On

Heading

Allows you to set:

POST mode (QuickBoot, Clear Memory, FullBoot, or FullBoot Every x Days).

QuickBoot (default) = Do not clear memory or perform a memory test.

FullBoot = Memory test (count) on cold boot. Clears memory on all boots.

Clear Memory = No memory count on cold boot. Clears memory on all boots.

FullBoot Every x Days = Memory count on 1st cold boot on or after the xth day. No more memory counts until 1st cold boot on or after x days. Clears memory on all boots.

POST messages (enable/disable). Enabling this feature will cause the system to display POST error messages, which are error messages displayed on the monitor during the Power On Self

Test if the BIOS encounters some kind of problem while starting the PC. A POST error message will only display on screen if the computer is capable of booting this far. If the POST detects an error before this point, a beep code is generated instead. Default is disabled.

Press the ESC key for Startup Menu (Enable/Disable). This feature controls the display of the text “Press the ESC key for Startup Menu” during POST. This text does not display on

Windows 8 systems with Fast Boot support. Other text also will not display (for example,

Ownership Tag). Default is enabled.

Option ROM Prompt (enable/disable). Enabling this feature will cause the system to display a message before loading option ROMs. Default is enabled.

After Power Loss (off/on/previous state). Default is Power off. Setting this option to:

Power off—causes the computer to remain powered off when power is restored.

Power on—causes the computer to power on automatically as soon as power is restored.

Previous state—causes the computer to power on automatically as soon as power is restored, if it was on when power was lost.

NOTE:

If you turn off power to the computer using the switch on a power strip, you will not be able to use the suspend/sleep feature or the Remote Management features.

POST Delay (in seconds). Enabling this feature will add a user-specified delay to the POST process. This delay is sometimes needed for hard disks on some PCI cards that spin up very slowly, so slowly that they are not ready to boot by the time POST is finished. The POST delay also gives you more time to select F10 to enter Computer (F10) Setup. Default is None.

Remote Wakeup Boot Source (remote server/local hard drive). Default is Local hard drive.

Factory Recovery Boot Support (Enable/Disable). Provides the ability for the BIOS to redirect the boot to the recovery partition on the user hard drive, if present. Some versions of the recovery software honor the F11 key press even when this feature is disabled by the BIOS.

Default is disabled.

Bypass F1 Prompt on Configuration Changes (Enable/Disable). Allows you to set the computer not to confirm when changes were made. Default is disabled.

Allows you to set the computer to turn on automatically at a time you specify.

22 Chapter 3 Computer Setup (F10) Utility

Table 3-6 Computer Setup—Advanced (for advanced users) (continued)

Onboard Devices

Bus Options

Device Options

Allows you to set resources for or disable Legacy devices.

Select the Legacy device's IRQ, DMA, and I/O Range. The settings may not take effect for all operating systems. To hide a device from the operating system, see Security > Device Security.

Allows you to enable or disable:

PCI SERR# Generation. Default is enabled.

PCI VGA Palette Snooping, which sets the VGA palette snooping bit in PCI configuration space; only needed when more than one graphics controller is installed. Default is disabled.

Allows you to set:

Printer mode (Bi-Directional, EPP + ECP, Output Only). ECP = Enhanced Capabilities Port, EPP

= Enhanced Parallel Port. Default is EPP+ECP.

Num Lock State at Power-On (off/on). Default is off.

Integrated Video (enable/disable). Use this option to disable the integrated video controller when another video controller is present in the system. Default is enabled.

Integrated Graphics (Auto/Disable/Force) Use this option to manage integrated (UMA) graphics memory allocation. The value you choose is allocated permanently to graphics and is unavailable to the operating system. For example, if you set this value to 512M on a system with 2 GB of RAM, the system always allocates 512 MB for graphics and the other 1.5 GB for use by the BIOS and operating system. Default is Auto which sets memory allocation to 512

MB.

If you select Force, the UMA Frame Buffer Size option displays, which lets you set the UMA memory size allocation between 32 MB and 1 GB.

Internal Speaker (does not affect external speakers). Default is enabled.

NIC PXE Option ROM Download (PXE, iSCSI, disabled). The BIOS contains an embedded

NIC option ROM to allow the unit to boot through the network to a PXE server. This is typically used to download a corporate image to a hard drive. The NIC option ROM takes up memory space below 1MB commonly referred to as DOS Compatibility Hole (DCH) space. This space is limited. This F10 option will allow users to disable the downloading of this embedded NIC option ROM thus giving more DCH space for additional PCI cards which may need option

ROM space. The default will be to have the NIC option-ROM-enabled. Default is PXE.

SATA RAID Option ROM Download (enable/disable). The BIOS contains an embedded SATA

RAID option ROM for RAID support. This can be temporarily disabled to save DCH space.

Note that with the option ROM disabled, users will be unable to boot to hard drives in the system while running in RAID mode. Default is disabled.

Multi-Processor (enable/disable). Use this option to disable multi-processor support under the

OS. Default is enabled.

Hyper threading (enable/disable). Use this option to disable processor hyper-threading.

Turbo Mode (enable/disable). Allows you to enable and disable the Intel Turbo Mode feature, which allows one core of the system to run at a higher than standard frequency and power if other cores are idle. Default is enabled.

Computer Setup (F10) Utilities 23

Table 3-6 Computer Setup—Advanced (for advanced users) (continued)

VGA Configuration

AMT Configuration

Displayed only if there is an add-in video card in the system. Allows you to specify which VGA controller will be the “boot” or primary VGA controller.

Allows you to set:

AMT (enable/disable). Allows you to enable or disable functions of the embedded

Management Engine (ME) such as Active Management Technology (AMT). If set to disable, the

Management Engine is set to a temporarily disabled state and will not provide functions beyond necessary system configuration. Default is enabled.

Unconfigure AMT/ME (enable/disable). Allows you to unconfigure any provisioned management settings for AMT. The AMT settings are restored to factory defaults. This feature should be used with caution as AMT will not be able to provide any set AMT management functions once unconfigured. Default is disabled.

Hide Unconfigure ME Confirmation Prompt (enable/disable). Allows you to set the system to not display the confirmation to unconfigure ME.

Watchdog Timer (enable/disable). Allows you to set amount of time for a operating system and BIOS watchdog alert to be sent if the timers are not deactivated. BIOS watchdog is deactivated by BIOS and would indicate that a halt occurred during execution if the alert is sent to the management console. An operating system alert is deactivated by the operating system image and would indicate that a hang occurred during its initialization. Default is enabled.

Recovering the Configuration Settings

This method of recovery requires that you first perform the Save to Removable Media command with the Computer Setup (F10) Utility before Restore is needed. (See

Computer Setup—File on page 12 in the Computer Setup—File table.)

NOTE:

It is recommended that you save any modified computer configuration settings to a USB flash media device and save the device for possible future use.

To restore the configuration, insert the USB flash media device with the saved configuration and perform the Restore from Removable Media command with the Computer Setup (F10) Utility.

(See

Computer Setup—File on page 12

in the Computer Setup—File table.)

24 Chapter 3 Computer Setup (F10) Utility

4 Illustrated parts catalog

Microtower (MT) chassis spare parts

Computer major components

Item Description

(1) Front bezel

For use in all countries and regions except China

5.25-inch bezel blank (optical drive; not illustrated)

Spare part number

689377-001

570838-001

Microtower (MT) chassis spare parts 25

Item

(2)

(3)

Description

3.5-inch bezel blank (not illustrated)

Access panel

Power supply

320W, 90% efficient

(4)

System board (includes replacement thermal material)

For use in Windows 7 models

For use in Windows 8 Standard models

For use in Windows 8 Professional models

* Memory modules (PC3-12800, 1600-MHz)

8-GB

*

4-GB

2-GB

Processors (include replacement thermal material)

AMD A10-5800B, 3.8 GHz, 4-MB L2 cache (100-W), HD 7660D

AMD A8-5500B, 3.2 GHz, 4-MB L2 cache (65-W), HD 7560D

AMD A6-5400B, 3.6 GHz, 4-MB L2 cache (65-W), HD 7540D

AMD A4-5300B, 3.4 GHz, 4-MB L2 cache (65-W), HD 7480D

* not illustrated

Spare part number

583653-001

646825-001

613764-001

613765-001

703596-001

703596-501

703596-601

689375-001

671613-001

671612-001

703598-001

703601-001

703600-001

703599-001

26 Chapter 4 Illustrated parts catalog

Cables

Item Description

*

*

(5)

(1)

(2)

(3)

(4)

Front I/O assembly

SATA optical drive power cable

SATA hard drive power cable

Power switch/LED assembly

HP USB 3.0 Front Port Adapter

SATA cable, 18 inch, 1 straight end, 1 angled end (labeled; not illustrated)

SATA cable, 17.7 inch, 2 straight ends

DMS-59 to dual VGA cable

Adapter, DisplayPort to VGA

Spare part number

646827-001

646834-001

646833-001

646828-001

716391-001

646830-001

639959-001

463023-001

603250-001

Microtower (MT) chassis spare parts 27

Item Description

*

*

*

*

*

*

*

Adapter, DisplayPort to DVI

Adapter, DVI-I to VGA

Adapter, DVI-D to VGA

Adapter, USB 3.0 to USB 2.0

DMS-59 to dual DVI cable

Adapter, DisplayPort to HDMI

DisplayPort cable

* not illustrated

Misc parts

Spare part number

662723-001

202997-001

657401-001

736835-001

463024-001

617450-001

487562-001

Item

(1)

(2)

Description

Heat sink (includes replacement thermal material)

Fan with guard

28 Chapter 4 Illustrated parts catalog

Spare part number

645326-001

585884-001

Item Description Spare part number

*

*

(6)

(7)

(3)

(4)

(5)

Hood sensor

Speaker

Solenoid lock

638816-001

645330-001

641498-001

Printer port, PCI card 638817-001

Clamp lock, includes universal cable (plate not included) 508987-001

Rear chassis fan

Fan duct assembly

643908-001

646824-001

*

*

*

*

*

*

*

*

*

*

Serial port, PCI card

638815-001

2.5-in drive adapter 586721-001

Hard drive conversion bracket

Grommet, hard drive isolation, blue

397117-001

450712-001

Card reader, 22-in-1 636166-001

698877-001

Card reader, 14-in-1, USB 2.0/3.0, 3.5-inch

USB powered speakers 636917-001

Mouse

PS2, optical, jack black (non-ECO)

USB, optical, jack black

Washable

Wireless

Wireless (not for use in APJ region)

716390-001

609250-001

537749-001

619580-001

674317-001

eSATA port assembly, PCI card

Antenna for use with WLAN card

608150-001

570580-001

645558-001

583345-001

*

*

*

*

HP Business Digital Headset

External USB Webcam

Foot

Keyboards

PS/2

USB

Wireless

Washable

642738-001

609252-001

336445-001

537745-xx1

537746-xx1

674314-xx1

613125-xx1

Microtower (MT) chassis spare parts 29

Item Description

* not illustrated

Drives

Description

Hard drives

1-TB hybrid hard drive (8-GB SSD)

1-TB, 7200-rpm

500-GB hybrid hard drive (8-GB SSD)

500-GB, 7200-rpm

500 GB, 7200 rpm, 2.5-inch, self-encrypting (SED)

320-GB, 7200-rpm, 2.5-inch

250-GB, 7200-rpm

256-GB Solid-state Drive (SSD), self-encrypting (SED)

160-GB Solid-state Drive (SSD)

128-GB Solid-state Drive (SSD)

120-GB Solid-state Drive (SSD)

Optical drives

Blu-ray BD-Writer XL Drive

16X SATA DVD±RW drive

16X SATA DVD-ROM drive

Grommet, hard drive isolation, blue

Misc boards

Description

GeForce GT630 PCIe x16 graphics card, 2 GB (for use with Windows 8) nVidia Quadro NVS315 PCIe x16 graphics card, 1 GB (for use with Windows 8) nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB (for use only with Windows 8) nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB (for use with Windows 8)

30 Chapter 4 Illustrated parts catalog

Spare part number

631411-xx1

701671-xx1

Spare part number

724937-001

636930-001

724938-001

636929-001

696442-001

634824-001

636927-001

680020-001

646809-001

665961-001

661841-001

682219-001

660408-001

690418-001

682550-001

450712-001

Spare part number

702084-001

720837-001

707252-001

700578-001

Description

AMD Radeon HD8490 PCIe x16 graphics card, 1 GB (for use with Windows 8)

AMD Radeon HD8470 PCIe x16 graphics card, 2 GB (for use with Windows 8)

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use with Windows 8)

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use only in China)

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (includes adapter; not for use with Windows

8)

AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (for use with Windows 8)

AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (not for use with Windows 8)

HP WLAN 802.11 g/n 1x2 PCIe NIC

Intel PRO/1000, single port, GbE, NIC

Intel Centrino Advanced-N 6205, 802.11a/b/g/n WLAN module

HP USB 3.0 SuperSpeed PCIe x1 card

HP USB 3.0 SuperSpeed power extension cable (for use with 663213-001)

Spare part number

717219-001

729085-001

702647-001

702646-001

682411-001

697246-001

637995-001

538048-001

728562-001

695915-001

663213-001

663214-001

Sequential part number listing

Spare part number

202997-001

336445-001

397117-001

450712-001

463023-001

463024-001

487562-001

508987-001

537745-xx1

537746-xx1

537749-001

538048-001

570580-001

570838-001

682550-001

Description

Adapter, DVI-I to VGA

Feet

Hard drive conversion bracket

Grommet, hard drive isolation, blue

DMS-59 to dual VGA cable

DMS-59 to dual VGA DVI

DisplayPort cable

Clamp lock, includes universal cable (plate not included)

PS/2 basic keyboard

USB basic keyboard

Mouse, USB, optical, jack black

HP WLAN 802.11b/g/n card

Mouse, USB, laser (non-ECO)

Bezel blank, optical drive, 5.25-inch

16X SATA DVD-ROM drive

Microtower (MT) chassis spare parts 31

613764-001

613765-001

617450-001

619580-001

631411-xx4

634824-001

636166-001

636917-001

636927-001

636929-001

636930-001

637995-001

638815-001

638816-001

638817-001

639959-001

Spare part number

583345-001

583653-001

585884-001

586721-001

603250-001

608150-001

609250-001

609252-001

613125-xx1

641498-001

642738-001

643908-001

645326-001

645330-001

645558-001

646809-001

Description

Antenna for use with 538048-001

Bezel blank, 3.5-inch

Chassis fan with guard

2.5-in drive adapter

Adapter, DisplayPort to VGA

Mouse, wireless (not for use in APJ region)

Mouse, PS2, optical, jack black (non-ECO)

External USB webcam

Washable keyboard

320W, 90% efficient

320W, standard

Adapter, DisplayPort to HDMI

Mouse, washable

Smart card keyboard

320-GB, 7200-rpm hard drive, 2.5 inch, SED

Card reader, 22-in-1

USB powered speakers

250-GB, 7200-rpm hard drive

500-GB, 7200-rpm hard drive

1-TB, 7200-rpm hard drive

AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (not for use with Windows 8)

Serial port PCI card

Hood sensor

Printer port, PCI card

SATA cable, 17.7 inch, 2 straight ends

Solenoid lock

HP Business Digital Headset

Chassis fan

Heat sink (includes replacement thermal material)

Speaker eSATA port assembly, PCI card

160-GB Solid-state drive

32 Chapter 4 Illustrated parts catalog

661841-001

662723-001

663213-001

663214-001

665961-001

671612-001

671613-001

674314-xx1

674317-001

680020-001

682219-001

682411-001

689375-001

689377-001

690418-001

695915-001

Spare part number

646824-001

646825-001

646827-001

646828-001

646830-001

646833-001

646834-001

657401-001

660408-001

696442-001

697246-001

698877-001

700578-001

701671-xx1

702084-001

702646-001

Description

Fan duct assembly

Access panel

Front I/O assembly

Power switch/LED with holder

SATA cable, 18 inch, 1 straight end, 1 angled end

Hard drive power cable

Optical drive power cable

Adapter, DVI-D to VGA

DVD±RW drive

120-GB Solid-state drive, SATA 2.0

Adapter, DisplayPort to DVI

HP USB 3.0 SuperSpeed PCIe x1 card

HP USB 3.0 SuperSpeed power extension cable (for use with 663213-001)

128-GB Solid-state drive, SATA 2.0

Memory module, 2-GB, PC3 12800, CL11)

Memory module, 4-GB, PC3 10600, 1333-MH

Keyboard, wireless

Mouse, wireless

256-GB Solid-state drive, self-encrypting (SED), SATA 6.0

Blu-ray BD-Writer XL Drive

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (includes adapter; not for use with Windows 8)

Memory module, 8-GB, PC3 12800, CL11

Front bezel

16X SATA DVD±RW drive

Intel Centrino Advanced-N 6205, 802.11a/b/g/n WLAN module

500-GB hard drive, 7200-rpm, 2.5-inch, SED

AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (for use only with Windows 8)

USB powered speakers nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB (for use only with Windows 8)

Keyboard, USB, Smartcard, CCID

GeForce GT630 PCIe x16 graphics card, 2 GB (for use only with Windows 8)

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use only in China)

Microtower (MT) chassis spare parts 33

Spare part number

702647-001

703596-001

703596-501

703596-601

703598-001

703599-001

703600-001

703601-001

707252-001

716390-001

716391-001

717219-001

720837-001

724937-001

724938-001

728562-001

729085-001

736835-001

Description

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use only with Windows 8)

System board for use in Windows 7 models (includes replacement thermal material)

System board for use in Windows 8 Standard models (includes replacement thermal material)

System board for use in Windows 8 Professional models (includes replacement thermal material)

AMD A10-5800B, 3.8 GHz processor , 4-MB L2 cache (100-W), HD 7660D

AMD A4-5300B processor, 3.4 GHz, 4-MB L2 cache (65-W), HD 7480D

AMD A6-5400B, 3.6 GHz processor, 4-MB L2 cache (65-W), HD 7540D

AMD A8-5500B, 3.2 GHz processor , 4-MB L2 cache (65-W), HD 7560D nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB (for use only with Windows 8)

Card reader, 14-in-1, USB2.0/3.0, 3.5-inch

HP USB 3.0 Front Port Adapter

AMD Radeon HD8490 PCIe x16 graphics card, 1 GB (for use with Windows 8) nVidia Quadro NVS315 PCIe x16 graphics card, 1 GB (for use with Windows 8)

1 TB hybrid hard drive (8-GB SSD)

500 GB hybrid hard drive (8-GB SSD)

Intel PRO/1000, single port, GbE, NIC

AMD Radeon HD8470 PCIe x16 graphics card, 2 GB (for use with Windows 8)

Adapter, USB 3.0 to USB 2.0

34 Chapter 4 Illustrated parts catalog

Small Form Factor (SFF) chassis spare parts

Computer major components

Item Description

(1)

(2)

Front bezel

Bezel blank (optical drive; not illustrated)

Bezel blank (card reader; not illustrated)

Power supply

240W, 90% efficient

(3)

(4)

System board (includes replacement thermal material)

For use in Windows 7 models

For use in Windows 8 Standard models

For use in Windows 8 Professional models

Access panel

Spare part number

687950-001

570838-001

583653-001

613762-001

613763-001

703596-001

703596-501

703596-601

646815-001

Small Form Factor (SFF) chassis spare parts 35

Item Description

* Memory modules (PC3-12800, 1600-MHz)

8-GB

4-GB

2-GB

* Processors (include replacement thermal material)

AMD A10-5800B, 3.8 GHz, 4-MB L2 cache (100-W), HD 7660D

AMD A8-5500B, 3.2 GHz, 4-MB L2 cache (65-W), HD 7560D

AMD A6-5400B, 3.6 GHz, 4-MB L2 cache (65-W), HD 7540D

AMD A4-5300B, 3.4 GHz, 4-MB L2 cache (65-W), HD 7480D

* not illustrated

Spare part number

689375-001

671613-001

671612-001

703598-001

703601-001

703600-001

703599-001

36 Chapter 4 Illustrated parts catalog

Cables

*

*

*

*

*

*

(3)

*

*

*

*

Item Description

(1)

(2)

Front I/O and power switch assembly

HP USB 3.0 Front Port Adapter

SATA drive power cable

SATA cable, 19.5 inch, 2 straight ends

SATA cable, 25.2 inch, 1 straight end, 1 angled end (not illustrated)

DMS-59 to dual VGA cable

DMS-59 to dual DVI cable

Adapter, DisplayPort to VGA

Adapter, DisplayPort to DVI

Adapter, DVI-I to VGA

Adapter, DVI-D to VGA

Adapter, USB 3.0 to USB 2.0

Adapter, DisplayPort to HDMI

Spare part number

636926-001

716391-001

636923-001

638813-001

638814-001

463023-001

463024-001

603250-001

662723-001

202997-001

657401-001

736835-001

617450-001

Small Form Factor (SFF) chassis spare parts 37

Item Description

*

DisplayPort cable

* not illustrated

Misc parts

Spare part number

487562-001

Item

(1)

(2)

Description

Chassis fan

Fan duct (not illustrated)

38 Chapter 4 Illustrated parts catalog

Spare part number

645327-001

636921-001

Item Description

*

*

*

*

*

*

*

*

(6)

(7)

(8)

*

(3)

(4)

(5)

Heat sink (includes replacement thermal material)

Speaker

Solenoid lock

Printer port, PCI card

Hood sensor

Clamp lock, includes universal cable (plate not included)

Rubber feet

Chassis stand

Serial port, PCI card (not illustrated)

2.5-in drive adapter (not illustrated)

Hard drive conversion bracket

Grommet, hard drive isolation, blue (not illustrated)

Card reader, 22-in-1 (not illustrated)

Card reader, 14-in-1, USB 2.0/3.0, 3.5-inch

USB powered speakers (not illustrated)

* Mouse (not illustrated)

USB, optical, jack black

Washable

Wireless

Wireless (not for use in APJ region)

*

*

*

*

*

PS2, optical, jack black (non-ECO)

eSATA port assembly, PCI card (not illustrated)

Antenna for use with 538048-001 (not illustrated)

HP Business Digital Headset (not illustrated)

External USB webcam (not illustrated)

Keyboard (not illustrated)

PS/2

USB

Washable

Spare part number

645326-001

636925-001

641471-001

638817-001

638816-001

508987-001

583654-001

688952-001

638815-001

586721-001

397117-001

450712-001

636166-001

716390-001

636917-001

698877-001

537749-001

619580-001

674317-001

608150-001

570580-001

609250-001

645558-001

583345-001

642738-001

609252-001

537745-xx1

537746-xx1

674314-xx1

613125-xx1

Small Form Factor (SFF) chassis spare parts 39

Item Description

* not illustrated

Drives

Description

Hard drive

1-TB hybrid hard drive (8-GB SSD)

1-TB, 7200-rpm

500-GB hybrid hard drive (8-GB SSD)

500-GB, 7200-rpm, 2.5-inch, SED

500-GB, 7200-rpm

320-GB, 7200-rpm, 2.5-inch

250-GB, 7200-rpm

256-GB Solid-state Drive (SSD), self-encrypting (SED)

160-GB Solid-state Drive (SSD)

128-GB Solid-state Drive (SSD)

120-GB Solid-state Drive (SSD)

Optical drive

Blu-ray BD-Writer XL Drive

16X SATA DVD±RW drive

16X SATA DVD-ROM drive

Grommet, hard drive isolation, blue

Misc boards

Description

GeForce GT630 PCIe x16 graphics card, 2 GB (for use with Windows 8) nVidia Quadro NVS315 PCIe x16 graphics card, 1 GB (for use with Windows 8) nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB (for use only with Windows 8) nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB (for use with Windows 8)

40 Chapter 4 Illustrated parts catalog

Spare part number

631411-xx1

701671-xx1

Spare part number

724937-001

636930-001

724938-001

696442-001

636929-001

634824-001

636927-001

680020-001

646809-001

665961-001

661841-001

682219-001

660408-001

690418-001

682550-001

450712-001

Spare part number

702084-001

720837-001

707252-001

700578-001

Description

AMD Radeon HD8490 PCIe x16 graphics card, 1 GB (for use with Windows 8)

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use only in China)

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use with Windows 8)

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (includes adapter; not for use with Windows

8)

AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (for use with Windows 8)

AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (not for use with Windows 8)

Intel Centrino Advanced-N 6205, 802.11a/b/g/n WLAN module

HP WLAN 802.11 g/n 1x2 PCIe NIC

Intel PRO/1000, single port, GbE, NIC

HP USB 3.0 SuperSpeed PCIe x1 card

HP USB 3.0 SuperSpeed power extension cable (for use with 663213-001)

Spare part number

717219-001

702646-001

705647-001

682411-001

697246-001

637995-001

695915-001

538048-001

728562-001

663213-001

663214-001

Sequential part number listing

Spare part number

202997-001

397117-001

450712-001

463023-001

463024-001

487562-001

508987-001

537745-xx1

537746-xx1

537749-001

538048-001

570580-001

570838-001

682550-001

583345-001

583653-001

Description

Adapter, DVI-I to VGA

Hard drive conversion bracket

Grommet, hard drive isolation, blue

DMS-59 to dual VGA cable

DMS-59 to dual DVI cable

DisplayPort cable

Clamp lock, includes universal cable (plate not included)

PS/2 basic keyboard

USB basic keyboard

Mouse, USB, optical, jack black

HP WLAN 802.11b/g/n card

Mouse, USB, laser (non-ECO)

Bezel blank, optical drive, 5.25-inch

DVD-ROM drive

Antenna for use with 538048-001

Bezel blank, 3.5-inch

Small Form Factor (SFF) chassis spare parts 41

617450-001

619580-001

631411-xx4

603250-001

634824-001

636166-001

636917-001

636921-001

636923-001

636925-001

636926-001

636927-001

636929-001

636930-001

637995-001

638813-001

Spare part number

583654-001

586721-001

688952-001

608150-001

609250-001

609252-001

613125-xx1

613762-001

613763-001

638814-001

638815-001

638816-001

638817-001

641471-001

642738-001

645326-001

Description

Rubber foot

Drive adapter, 2.5-inch

Chassis stand

Mouse, wireless (not for use in APJ region)

Mouse, PS2, optical, jack black (non-ECO)

External USB webcam

Washable keyboard

320W, 90% efficient

320W, standard

Adapter, DisplayPort to HDMI

Mouse, washable

Smart card keyboard

Adapter, DisplayPort to VGA

320-GB, 7200-rpm hard drive, 2.5 inch, SED

Card reader, 22-in-1

USB powered speakers

Fan duct

SATA power cable

Speaker

Front I/O cable and power switch assembly

250-GB, 7200-rpm hard drive

500-GB, 7200-rpm hard drive

1-TB, 7200-rpm hard drive

AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (not for use with Windows 8)

SATA cable, 19.5 inch, 2 straight ends

SATA cable, 25.2 inch, 1 straight end, 1 angled end

Serial port PCI card

Hood sensor

Printer port, PCI card

Solenoid lock

HP Business Digital Headset

Heat sink

42 Chapter 4 Illustrated parts catalog

671612-001

671613-001

674314-xx1

674317-001

680020-001

682219-001

682411-001

687950-001

689375-001

690418-001

695915-001

696422-001

697246-001

698877-001

700578-001

701671-xx1

Spare part number

645327-001

645558-001

646809-001

646815-001

657401-001

660408-001

661841-001

662723-001

665961-001

702084-001

702647-001

703598-001

703599-001

703600-001

703601-001

707252-001

Description

Chassis fan eSATA port assembly, PCI card

160-GB Solid-state drive

Access panel

Adapter, DVI-D to VGA

16X SATA DVD±RW drive

120-GB Solid-state drive, SATA 2.0

Adapter, DisplayPort to DVI

128-GB Solid-state drive, SATA 2.0

Memory module, 2-GB, PC3 12800, CL11)

Memory module, 4-GB, PC3 10600, 1333-MH

Keyboard, wireless

Mouse, wireless

256-GB Solid-state drive, self-encrypting (SED), SATA 6.0

Blu-ray BD-Writer XL Drive

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (includes adapter; not for use with Windows 8)

Front bezel

Memory module, 8-GB, PC3 12800, CL11

16X SATA DVD±RW drive

Intel Centrino Advanced-N 6205, 802.11a/b/g/n WLAN module

500-GB hard drive, 7200-rpm, 2.5-inch, SED

AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (for use only with Windows 8)

USB powered speakers nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB (for use only with Windows 8)

Keyboard, USB, Smartcard, CCID

GeForce GT630 PCIe x16 graphics card, 2 GB (for use only with Windows 8)

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use only with Windows 8)

AMD A10-5800B processor, 3.8 GHz, 4-MB L2 cache (100-W), HD 7660D

AMD A4-5300B processor, 3.4 GHz, 4-MB L2 cache (65-W), HD 7480D

AMD A6-5400B processor, 3.6 GHz, 4-MB L2 cache (65-W), HD 7540D

AMD A8-5500B processor, 3.2 GHz, 4-MB L2 cache (65-W), HD 7560D nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB (for use only with Windows 8)

Small Form Factor (SFF) chassis spare parts 43

Spare part number

703596-001

703596-501

703596-601

716390-001

716391-001

717219-001

720837-001

724937-001

724938-001

728562-001

736835-001

Description

System board for use in Windows 7 models (includes replacement thermal material)

System board for use in Windows 8 Standard models

System board for use in Windows 8 Professional models

Card reader, 14-in-1, USB 2.0/3.0, 3.5-inch

HP USB 3.0 Front Port Adapter

AMD Radeon HD8490 PCIe x16 graphics card, 1 GB (for use with Windows 8) nVidia Quadro NVS315 PCIe x16 graphics card, 1 GB (for use with Windows 8)

1 TB hybrid hard drive (8-GB SSD)

500 GB hybrid hard drive (8-GB SSD)

Intel PRO/1000, single port, GbE, NIC

Adapter, USB 3.0 to USB 2.0

44 Chapter 4 Illustrated parts catalog

5 Routine Care, SATA Drive

Guidelines, and Disassembly

Preparation

This chapter provides general service information for the computer. Adherence to the procedures and precautions described in this chapter is essential for proper service.

CAUTION:

When the computer is plugged into an AC power source, voltage is always applied to the system board. You must disconnect the power cord from the power source before opening the computer to prevent system board or component damage.

Electrostatic Discharge Information

A sudden discharge of static electricity from your finger or other conductor can destroy static-sensitive devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic device exposed to electrostatic discharge (ESD) may not appear to be affected at all and can work perfectly throughout a normal cycle. The device may function normally for a while, but it has been degraded in the internal layers, reducing its life expectancy.

Networks built into many integrated circuits provide some protection, but in many cases, the discharge contains enough power to alter device parameters or melt silicon junctions.

Generating Static

The following table shows that:

Different activities generate different amounts of static electricity.

Static electricity increases as humidity decreases.

Event

Walking across carpet

Walking across vinyl floor

Motions of bench worker

Removing DIPs from plastic tube

55%

7,500 V

3,000 V

400 V

400 V

Relative Humidity

40%

15,000 V

5,000 V

800 V

700 V

10%

35,000 V

12,000 V

6,000 V

2,000 V

Electrostatic Discharge Information 45

Removing DIPs from vinyl tray

Removing DIPs from Styrofoam

Removing bubble pack from PCB

Packing PCBs in foam-lined box

These are then multi-packaged inside plastic tubes, trays, or Styrofoam.

2,000 V

3,500 V

7,000 V

5,000 V

4,000 V

5,000 V

20,000 V

11,000 V

11,500 V

14,500 V

26,500 V

21,000 V

NOTE:

700 volts can degrade a product.

Preventing Electrostatic Damage to Equipment

Many electronic components are sensitive to ESD. Circuitry design and structure determine the degree of sensitivity. The following packaging and grounding precautions are necessary to prevent damage to electric components and accessories.

To avoid hand contact, transport products in static-safe containers such as tubes, bags, or boxes.

Protect all electrostatic parts and assemblies with conductive or approved containers or packaging.

Keep electrostatic sensitive parts in their containers until they arrive at static-free stations.

Place items on a grounded surface before removing them from their container.

Always be properly grounded when touching a sensitive component or assembly.

Avoid contact with pins, leads, or circuitry.

Place reusable electrostatic-sensitive parts from assemblies in protective packaging or conductive foam.

Personal Grounding Methods and Equipment

Use the following equipment to prevent static electricity damage to equipment:

Wrist straps are flexible straps with a maximum of one-megohm ± 10% resistance in the ground cords. To provide proper ground, a strap must be worn snug against bare skin. The ground cord must be connected and fit snugly into the banana plug connector on the grounding mat or workstation.

Heel straps/Toe straps/Boot straps can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use them on both feet with a maximum of one-megohm ± 10% resistance between the operator and ground.

Static Shielding Protection Levels

46 Chapter 5 Routine Care, SATA Drive Guidelines, and Disassembly Preparation

Method

Antistatic plastic

Carbon-loaded plastic

Metallized laminate

Voltage

1,500

7,500

15,000

Grounding the Work Area

To prevent static damage at the work area, use the following precautions:

Cover the work surface with approved static-dissipative material. Provide a wrist strap connected to the work surface and properly grounded tools and equipment.

Use static-dissipative mats, foot straps, or air ionizers to give added protection.

Handle electrostatic sensitive components, parts, and assemblies by the case or PCB laminate.

Handle them only at static-free work areas.

Turn off power and input signals before inserting and removing connectors or test equipment.

Use fixtures made of static-safe materials when fixtures must directly contact dissipative surfaces.

Keep work area free of nonconductive materials such as ordinary plastic assembly aids and

Styrofoam.

Use field service tools, such as cutters, screwdrivers, and vacuums, that are conductive.

Recommended Materials and Equipment

Materials and equipment that are recommended for use in preventing static electricity include:

Antistatic tape

Antistatic smocks, aprons, or sleeve protectors

Conductive bins and other assembly or soldering aids

Conductive foam

Conductive tabletop workstations with ground cord of one-megohm +/- 10% resistance

Static-dissipative table or floor mats with hard tie to ground

Field service kits

Static awareness labels

Wrist straps and footwear straps providing one-megohm +/- 10% resistance

Material handling packages

Conductive plastic bags

Conductive plastic tubes

Conductive tote boxes

Opaque shielding bags

Electrostatic Discharge Information 47

Transparent metallized shielding bags

Transparent shielding tubes

Operating Guidelines

To prevent overheating and to help prolong the life of the computer:

Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and cold.

Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all vented sides of the computer and above the monitor to permit the required airflow.

Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place the keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also restricts airflow.

Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other foreign matter can block the vents and limit the airflow. Be sure to unplug the computer before cleaning the air vents.

Never operate the computer with the cover or side panel removed.

Do not stack computers on top of each other or place computers so near each other that they are subject to each other’s re-circulated or preheated air.

If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the enclosure, and the same operating guidelines listed above will still apply.

Keep liquids away from the computer and keyboard.

Never cover the ventilation slots on the monitor with any type of material.

Install or enable power management functions of the operating system or other software, including sleep states.

Routine Care

General Cleaning Safety Precautions

1.

Never use solvents or flammable solutions to clean the computer.

2.

Never immerse any parts in water or cleaning solutions; apply any liquids to a clean cloth and then use the cloth on the component.

3.

Always unplug the computer when cleaning with liquids or damp cloths.

4.

Always unplug the computer before cleaning the keyboard, mouse, or air vents.

5.

Disconnect the keyboard before cleaning it.

6.

Wear safety glasses equipped with side shields when cleaning the keyboard.

48 Chapter 5 Routine Care, SATA Drive Guidelines, and Disassembly Preparation

Cleaning the Computer Case

Follow all safety precautions in

General Cleaning Safety Precautions on page 48

before cleaning the computer.

To clean the computer case, follow the procedures described below:

To remove light stains or dirt, use plain water with a clean, lint-free cloth or swab.

For stronger stains, use a mild dishwashing liquid diluted with water. Rinse well by wiping it with a cloth or swab dampened with clear water.

For stubborn stains, use isopropyl (rubbing) alcohol. No rinsing is needed as the alcohol will evaporate quickly and not leave a residue.

After cleaning, always wipe the unit with a clean, lint-free cloth.

Occasionally clean the air vents on the computer. Lint and other foreign matter can block the vents and limit the airflow.

Cleaning the Keyboard

Follow all safety precautions in

General Cleaning Safety Precautions on page 48

before cleaning the keyboard.

To clean the tops of the keys or the keyboard body, follow the procedures described in

Cleaning the

Computer Case on page 49

.

When cleaning debris from under the keys, review all rules in

General Cleaning Safety Precautions on page 48 before following these procedures:

CAUTION:

Use safety glasses equipped with side shields before attempting to clean debris from under the keys.

Visible debris underneath or between the keys may be removed by vacuuming or shaking.

Canned, pressurized air may be used to clean debris from under the keys. Caution should be used as too much air pressure can dislodge lubricants applied under the wide keys.

If you remove a key, use a specially designed key puller to prevent damage to the keys. This tool is available through many electronic supply outlets.

CAUTION:

Never remove a wide leveled key (like the space bar) from the keyboard. If these keys are improperly removed or installed, the keyboard may not function properly.

Cleaning under a key may be done with a swab moistened with isopropyl alcohol and squeezed out. Be careful not to wipe away lubricants necessary for proper key functions. Use tweezers to remove any fibers or dirt in confined areas. Allow the parts to air dry before reassembly.

Cleaning the Monitor

Wipe the monitor screen with a clean cloth moistened with water or with a towelette designed for cleaning monitors. Do not use sprays or aerosols directly on the screen; the liquid may seep into the housing and damage a component. Never use solvents or flammable liquids on the monitor.

To clean the monitor body follow the procedures in

Cleaning the Computer Case on page 49 .

Routine Care 49

Cleaning the Mouse

Before cleaning the mouse, ensure that the power to the computer is turned off.

Clean the mouse ball by first removing the retaining plate and the ball from the housing. Pull out any debris from the ball socket and wipe the ball with a clean, dry cloth before reassembly.

To clean the mouse body, follow the procedures in

Cleaning the Computer Case on page 49 .

Service Considerations

Listed below are some of the considerations that you should keep in mind during the disassembly and assembly of the computer.

Power Supply Fan

The power supply fan is a variable-speed fan based on the temperature in the power supply.

CAUTION:

The cooling fan is always on when the computer is in the “On” mode. The cooling fan is off when the computer is in “Standby,” “Suspend,” or “Off” modes.

You must disconnect the power cord from the power source before opening the computer to prevent system board or component damage.

Tools and Software Requirements

To service the computer, you need the following:

Torx T-15 screwdriver (HP screwdriver with bits, PN 161946-001)

Torx T-15 screwdriver with small diameter shank (for certain front bezel removal)

Flat-bladed screwdriver (may sometimes be used in place of the Torx screwdriver)

Phillips #2 screwdriver

Diagnostics software

HP tamper-resistant T-15 wrench (Smart Cover FailSafe Key, PN 166527-001) or HP tamperresistant bits (Smart Cover FailSafe Key, PN 166527-002)

Screws

The screws used in the computer are not interchangeable. They may have standard or metric threads and may be of different lengths. If an incorrect screw is used during the reassembly process, it can damage the unit. HP strongly recommends that all screws removed during disassembly be kept with the part that was removed, then returned to their proper locations.

CAUTION:

Metric screws have a black finish. U.S. screws have a silver finish and are used on hard drives only.

CAUTION:

As each subassembly is removed from the computer, it should be placed away from the work area to prevent damage.

50 Chapter 5 Routine Care, SATA Drive Guidelines, and Disassembly Preparation

Cables and Connectors

Most cables used throughout the unit are flat, flexible cables. These cables must be handled with care to avoid damage. Apply only the tension required to seat or unseat the cables during insertion or removal from the connector. Handle cables by the connector whenever possible. In all cases, avoid bending or twisting the cables, and ensure that the cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced.

CAUTION:

When servicing this computer, ensure that cables are placed in their proper location during the reassembly process. Improper cable placement can damage the computer.

Hard Drives

Handle hard drives as delicate, precision components, avoiding all physical shock and vibration. This applies to failed drives as well as replacement spares.

If a drive must be mailed, place the drive in a bubble-pack mailer or other suitable protective packaging and label the package “Fragile: Handle With Care.”

Do not remove hard drives from the shipping package for storage. Keep hard drives in their protective packaging until they are actually mounted in the CPU.

Avoid dropping drives from any height onto any surface.

If you are inserting or removing a hard drive, turn off the computer. Do not remove a hard drive while the computer is on or in standby mode.

Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid touching the connector. For more information about preventing electrostatic damage, refer to

Electrostatic Discharge Information on page 45

Do not use excessive force when inserting a drive.

Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields such as monitors or speakers.

Lithium Coin Cell Battery

The battery that comes with the computer provides power to the real-time clock and has a minimum lifetime of about three years.

See the appropriate removal and replacement chapter for the chassis you are working on in this guide for instructions on the replacement procedures.

WARNING!

This computer contains a lithium battery. There is a risk of fire and chemical burn if the battery is handled improperly. Do not disassemble, crush, puncture, short external contacts, dispose in water or fire, or expose it to temperatures higher than 140ºF (60ºC). Do not attempt to recharge the battery.

NOTE:

Batteries, battery packs, and accumulators should not be disposed of together with the general household waste. In order to forward them to recycling or proper disposal, please use the public collection system or return them to HP, their authorized partners, or their agents.

Service Considerations 51

SATA Hard Drives

Serial ATA Hard Drive Characteristics

Number of pins/conductors in data cable

Number of pins in power cable

Maximum data cable length

Data interface voltage differential

Drive voltages

Jumpers for configuring drive

Data transfer rate

7/7

15

39.37 in (100 cm)

400-700 mV

3.3 V, 5 V, 12 V

N/A

3.0 Gb/s

SATA Hard Drive Cables

SATA Data Cable

Always use an HP approved SATA 3.0 Gb/s cable as it is fully backwards compatible with the SATA

1.5 Gb/s drives.

Current HP desktop products ship with SATA 3.0 Gb/s hard drives.

SATA data cables are susceptible to damage if overflexed. Never crease a SATA data cable and never bend it tighter than a 30 mm (1.18 in) radius.

The SATA data cable is a thin, 7-pin cable designed to transmit data for only a single drive.

SMART ATA Drives

The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP Personal

Computers have built-in drive failure prediction that warns the user or network administrator of an impending failure or crash of the hard drive. The SMART drive tracks fault prediction and failure indication parameters such as reallocated sector count, spin retry count, and calibration retry count. If the drive determines that a failure is imminent, it generates a fault alert.

Cable Management

Always follow good cable management practices when working inside the computer.

Keep cables away from major heat sources like the heat sink.

Do not jam cables on top of expansion cards or memory modules. Printed circuit cards like these are not designed to take excessive pressure on them.

Keep cables clear of sliding or moveable parts to prevent them from being cut or crimped when the parts are moved.

52 Chapter 5 Routine Care, SATA Drive Guidelines, and Disassembly Preparation

When folding a flat ribbon cable, never fold to a sharp crease. Sharp creases may damage the wires.

Some flat ribbon cables come prefolded. Never change the folds on these cables.

Do not bend any cable sharply. A sharp bend can break the internal wires.

Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.

Never crease a SATA data cable.

Do not rely on components like the drive cage, power supply, or computer cover to push cables down into the chassis. Always position the cables to lay properly by themselves.

Hard Drive Capacities

The combination of the file system and the operating system used in the computer determines the maximum usable size of a drive partition. A drive partition is the largest segment of a drive that may be properly accessed by the operating system. A single hard drive may therefore be subdivided into a number of unique drive partitions in order to make use of all of its space.

Because of the differences in the way that drive sizes are calculated, the size reported by the operating system may differ from that marked on the hard drive or listed in the computer specification. Drive size calculations by drive manufacturers are bytes to the base 10 while calculations by Microsoft are bytes to the base 2.

Drive/Partition Capacity Limits

File System

FAT 32

NTFS

Controller Type

ATA

ATA

Operating System

Windows 7

Windows 7

Partition

Maximum Size

Drive

32 GB

2 TB

2 TB

2 TB

Hard Drive Capacities 53

6 Removal and Replacement

Procedures Microtower (MT)

Chassis

Adherence to the procedures and precautions described in this chapter is essential for proper service.

After completing all necessary removal and replacement procedures, run the Diagnostics utility to verify that all components operate properly.

NOTE:

Not all features listed in this guide are available on all computers.

Preparation for Disassembly

See Routine Care, SATA Drive Guidelines, and Disassembly Preparation on page 45 for initial safety

procedures.

1.

Remove/disengage any security devices that prohibit opening the computer.

2.

Close any open software applications.

3.

Exit the operating system.

4.

Remove any compact disc or media card from the computer.

5.

Turn off the computer and any peripheral devices that are connected to it.

CAUTION:

Turn off the computer before disconnecting any cables.

Regardless of the power-on state, voltage is always present on the system board as long as the system is plugged into an active AC outlet. In some systems the cooling fan is on even when the computer is in the “Standby,” or “Suspend” modes. The power cord should always be disconnected before servicing a unit.

6.

Disconnect the power cord from the electrical outlet and then from the computer.

7.

Disconnect all peripheral device cables from the computer.

8.

As applicable, lay the computer down on its side to achieve a safe working position.

NOTE:

During disassembly, label each cable as you remove it, noting its position and routing.

Keep all screws with the units removed.

CAUTION:

The screws used in the computer are of different thread sizes and lengths; using the wrong screw in an application may damage the unit.

54 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

Computer Access Panel

Description

Access panel

Spare part number

646825-001

To access internal components, you must remove the access panel:

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 )

2.

Loosen the two captive thumbscrews (1) that secure the access panel to the computer chassis.

3.

Use the handle located between the thumbscrews to lift the access panel off the unit (2).

NOTE:

You may want to lay the computer on its side to install internal parts. Be sure the side with the access panel is facing up.

Figure 6-1

Removing the Computer Access Panel

Computer Access Panel 55

Front Bezel

Description

Front bezel

Spare part number

689377-001

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 )

2.

Remove the access panel (

Computer Access Panel on page 55

)

3.

Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).

Figure 6-2

Removing the Front Bezel

56 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

Front Bezel Security

The front bezel can be locked in place by installing a security screw provided by HP. To install the security screw:

1.

Remove/disengage any security devices that prohibit opening the computer.

2.

Remove all removable media, such as compact discs or USB flash drives, from the computer.

3.

Turn off the computer properly through the operating system, then turn off any external devices.

4.

Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION:

Regardless of the power-on state, voltage is always present on the system board as long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.

5.

Remove the access panel and front bezel.

6.

Remove the security screw from the inside of the front bezel.

Figure 6-3

Retrieving the Front Bezel Security Screw

7.

Replace the front bezel.

Front Bezel Security 57

8.

Install the screw through the interior of the front of the chassis into the front bezel. The screw hole is located toward the middle of the right edge of the chassis between the hard drive bay and speaker.

Figure 6-4

Installing the Front Bezel Security Screw

9.

Replace the access panel.

10.

Reconnect the power cord and turn on the computer.

11.

Lock any security devices that were disengaged when the access panel was removed.

58 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

Bezel Blanks

Description

3.5-inch bezel blank

5.25-inch bezel blank, optical drive

Spare part number

583653-001

570838-001

On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch drive bays that need to be removed before installing a drive. To remove a bezel blank:

1.

Remove the access panel (

Computer Access Panel on page 55 )

2.

Remove the front bezel (

Front Bezel on page 56 )

3.

To remove a bezel blank, push the two retaining tabs that hold the bezel blank in place towards the outer right edge of the bezel (1) and slide the bezel blank back and to the right to remove it

(2).

Figure 6-5

Removing a Bezel Blank

Bezel Blanks 59

Memory

Description

8-GB, PC3-12800

4-GB, PC3-12800

2-GB, PC3-12800

Spare part number

689375-001

671613-001

671612-001

The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3-

SDRAM) dual inline memory modules (DIMMs).

DIMMs

The memory sockets on the system board can be populated with up to four industry-standard DIMMs.

These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum memory support, you can populate the system board with up to 32-GB of memory configured in a highperforming dual channel mode.

DDR3-SDRAM DIMMs

CAUTION:

This product DOES NOT support DDR3 Ultra Low Voltage (DDR3U) memory. The processor is not compatible with DDR3U memory and if you plug DDR3U memory into the system board, it can cause the physical damage to the DIMM or invoke system malfunction.

For proper system operation, the DDR3-SDRAM DIMMs must be:

● industry-standard 240-pin

● unbuffered non-ECC PC3-PC12800 DDR3-1600 MHz-compliant

1.35 volt or 1.5 volt DDR3/DDR3L-SDRAM DIMMs

The DDR3-SDRAM DIMMs must also:

● support CAS latency 11 DDR3 1600 MHz (11-11-11 timing)

● contain the mandatory JEDEC SPD information

In addition, the computer supports:

512-Mbit, 1-Gbit, 2-Gbit, 4-Gbit, and 8-Gbit non-ECC memory technologies

● single-sided and double-sided DIMMs

DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not supported

NOTE:

The system will not operate properly if you install unsupported DIMMs.

60 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

Populating DIMM Sockets

There are four DIMM sockets on the system board, with two sockets per channel. The sockets are labeled DIMM1, DIMM2, DIMM3, and DIMM4. Sockets DIMM1 and DIMM2 operate in memory channel B. Sockets DIMM3 and DIMM4 operate in memory channel A.

The system will automatically operate in single channel mode, dual channel mode, or flex mode, depending on how the DIMMs are installed.

NOTE:

Single channel and unbalanced dual channel memory configurations will result in inferior graphics performance.

The system will operate in single channel mode if the DIMM sockets are populated in one channel only.

The system will operate in a higher-performing dual channel mode if the total memory capacity of the DIMMs in Channel A is equal to the total memory capacity of the DIMMs in Channel B. The technology and device width can vary between the channels. For example, if Channel A is populated with two 1-GB DIMMs and Channel B is populated with one 2-GB DIMM, the system will operate in dual channel mode.

The system will operate in flex mode if the total memory capacity of the DIMMs in Channel A is not equal to the total memory capacity of the DIMMs in Channel B. In flex mode, the channel populated with the least amount of memory describes the total amount of memory assigned to dual channel and the remainder is assigned to single channel. For optimal speed, the channels should be balanced so that the largest amount of memory is spread between the two channels. If one channel will have more memory than the other, the larger amount should be assigned to Channel

A. For example, if you are populating the sockets with one 2-GB DIMM, and three 1-GB DIMMs,

Channel A should be populated with the 2-GB DIMM and one 1-GB DIMM, and Channel B should be populated with the other two 1-GB DIMMs. With this configuration, 4-GB will run as dual channel and 1-GB will run as single channel.

In any mode, the maximum operational speed is determined by the slowest DIMM in the system.

Memory 61

Installing DIMMs

CAUTION:

You must disconnect the power cord and wait approximately 30 seconds for the power to drain before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged into an active AC outlet.

Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.

The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is important to use memory modules with gold-plated metal contacts to prevent corrosion and/or oxidation resulting from having incompatible metals in contact with each other.

Static electricity can damage the electronic components of the computer or optional cards. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object. For more information, refer to

Electrostatic Discharge Information on page 45

.

When handling a memory module, be careful not to touch any of the contacts. Doing so may damage the module.

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 )

2.

Remove the access panel (

Computer Access Panel on page 55

)

3.

Open both latches of the memory module socket (1), and insert the memory module into the socket (2).

Figure 6-6

Installing a DIMM

NOTE:

A memory module can be installed in only one way. Match the notch on the module with the tab on the memory socket.

Populate the black DIMM sockets before the white DIMM sockets.

For maximum performance, populate the sockets so that the memory capacity is spread as equally

as possible between Channel A and Channel B. Refer to Populating DIMM Sockets on page 61

for more information.

62 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

4.

Push the module down into the socket, ensuring that the module is fully inserted and properly seated. Make sure the latches are in the closed position (3).

5.

Repeat steps 3 and 4 to install any additional modules.

6.

Replace the computer access panel.

7.

Reconnect the power cord and turn on the computer.

8.

Lock any security devices that were disengaged when the access panel was removed.

The computer should automatically recognize the additional memory the next time you turn on the computer.

Memory 63

Expansion Cards

Description

GeForce GT630 PCIe x16 graphics card, 2 GB (for use only with Windows 8) nVidia Quadro NVS315 PCIe x16 graphics card, 1 GB (for use with Windows 8) nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB (for use only with Windows 8) nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB (for use only with Windows 8)

AMD Radeon HD8490 PCIe x16 graphics card, 1 GB (for use with Windows 8)

AMD Radeon HD8470 PCIe x16 graphics card, 2 GB (for use with Windows 8)

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use only in China)

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (includes adapter; for use only with

Windows 8)

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (includes adapter; not for use with Windows

8)

AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (for use only with Windows 8)

AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (not for use with Windows 8)

HP WLAN 802.11 g/n 1x2 PCIe NIC

Intel PRO/1000, single port, GbE, NIC

HP USB 3.0 SuperSpeed PCIe x1 card

HP USB 3.0 SuperSpeed power extension cable (for use with 663213-001)

682411-001

697246-001

637995-001

538048-001

728562-001

663213-001

663214-001

Spare part number

702084-001

720837-001

707252-001

700578-001

717219-001

729085-001

702646-001

702647-001

The computer has one PCI expansion slot, one PCI Express x1 expansion slot, one PCI Express x16 expansion slot, and one PCI Express x16 expansion slot that is downshifted to a x4 slot.

NOTE:

You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16 slot.

To remove, replace, or add an expansion card:

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 )

2.

Remove the access panel (

Computer Access Panel on page 55

)

3.

Locate the correct vacant expansion socket on the system board and the corresponding expansion slot on the back of the computer chassis.

64 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

4.

Release the slot cover retention latch that secures the PCI slot covers by lifting the green tab on the latch and rotating the latch to the open position.

Figure 6-7

Opening the Expansion Slot Retainer

5.

Before installing an expansion card, remove the expansion slot cover or the existing expansion card.

NOTE:

Before removing an installed expansion card, disconnect any cables that may be attached to the expansion card.

a. If you are installing an expansion card in a vacant socket, remove the appropriate expansion slot cover on the back of the chassis. Pull the slot cover straight up then away from the inside of the chassis.

Figure 6-8

Removing an Expansion Slot Cover

Expansion Cards 65

b. If you are removing a standard PCI card or PCI Express x1 card, hold the card at each end, and carefully rock it back and forth until the connectors pull free from the socket. Pull the expansion card straight up from the socket then away from the inside of the chassis to release it from the chassis frame. Be sure not to scrape the card against the other components.

Figure 6-9

Removing a Standard PCI Expansion Card

c.

If you are removing a PCI Express x16 card, pull the retention arm on the back of the expansion socket away from the card and carefully rock the card back and forth until the connectors pull free from the socket. Pull the expansion card straight up from the socket then away from the inside of the chassis to release it from the chassis frame. Be sure not to scrape the card against the other components.

Figure 6-10

Removing a PCI Express x16 Expansion Card

6.

Store the removed card in anti-static packaging.

66 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

7.

If you are not installing a new expansion card, install an expansion slot cover to close the open slot.

CAUTION:

After removing an expansion card, you must replace it with a new card or expansion slot cover for proper cooling of internal components during operation.

8.

To install a new expansion card, hold the card just above the expansion socket on the system board then move the card toward the rear of the chassis so that the bracket on the card is aligned with the open slot on the rear of the chassis. Press the card straight down into the expansion socket on the system board.

Figure 6-11

Installing an Expansion Card

NOTE:

When installing an expansion card, press firmly on the card so that the whole connector seats properly in the expansion card slot.

9.

Rotate the slot cover retention latch back in place to secure the expansion card.

10.

Connect external cables to the installed card, if needed. Connect internal cables to the system board, if needed.

11.

Replace the computer access panel.

12.

Reconnect the power cord and turn on the computer.

13.

Lock any security devices that were disengaged when the access panel was removed.

14.

Reconfigure the computer, if necessary.

WLAN module

Description

Intel® Centrino™ Advanced-N 6205, 802.11a/b/g/n WLAN module

Spare part number

695915-001

WLAN module 67

CAUTION:

To prevent an unresponsive system, replace the wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore device functionality, and then contact technical support.

Before removing the WLAN module, follow these steps:

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 )

2.

Remove the access panel (

Computer Access Panel on page 55

)

Remove the WLAN module:

1.

Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE:

The WLAN antenna cable labeled “1” connects to the WLAN module “Main” terminal labeled “1”. The WLAN antenna cable labeled “2” connects to the WLAN module “Aux” terminal labeled “2”. If the computer is equipped with an 802.11a/b/g/n WLAN module, the yellow

WLAN antenna cable connects to the middle terminal on the WLAN module.

2.

Remove the two Phillips PM2.0×3.0 screws (2) that secure the WLAN module to the system board. (The WLAN module tilts up.)

3.

Remove the WLAN module (3) by pulling the module away from the slot at an angle.

NOTE:

WLAN modules are designed with a notch to prevent incorrect insertion of the WLAN module into the WLAN module slot.

Reverse this procedure to install the WLAN module.

68 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

System Board Connections

Refer to the following illustrations and tables to identify the system board connectors for your model.

Figure 6-12

System Board Connections

1

4

5

2

3

Table 6-1 System Board Connections

No. System Board Connector System Board Label Color

DIMM4 (Channel A)

DIMM3 (Channel A)

DIMM2 (Channel B)

DIMM1 (Channel B) eSATA

DIMM4

DIMM3

DIMM2

DIMM1

ESATA white black white black black

8

9

6

7

SATA 2.0

Power

Power

SATA 3.0

SATA2

SATAS_PWR2

SATAS_PWR1

SATA1 white black black light blue

10

11

12

13

14

SATA 3.0

Serial Port

Parallel Port

USB

Hood Lock

15 Hood Sensor

SATA0

COMB

PAR

MEDIA2

HLCK

HSENSE dark blue black black black black white

Component

Memory Module

Memory Module

Memory Module

Memory Module eSATA Adapter Cable, or 2nd

Optical Drive

1st Optical Drive

SATA Hard Drives

SATA Optical Drives

2nd Hard Drive, or 2nd Optical

Drive if an ESATA Adapter Cable exists

1st Hard Drive

Serial Port

Parallel Port

Second Media Card Reader

USB Device, such as a Media Card

Reader

Hood Sensor

System Board Connections 69

Table 6-1 System Board Connections (continued)

No. System Board Connector System Board Label Color

16 USB MEDIA black

17

18

19

20

PCI Express x1

PCI Express x16 downshifted to a x4

PCI Express x16

PCI

X1PCIEXP1

X4PCIEXP

X16PCIEXP

PCI1 black white black white

Drives

Description

DVD±RW drive

DVD-ROM drive

Blu-ray BD-Writer XL Drive

1 TB hybrid hard drive (8-GB SSD)

1 TB, 7200 rpm SATA hard drive

500 GB hybrid hard drive (8-GB SSD)

500 GB, 7200 rpm, 2.5 inch, SED, SATA hard drive

500 GB, 7200 rpm SATA hard drive

320 GB, 7200 rpm SATA hard drive, 2.5-inch

250 GB, 7200 rpm SATA hard drive

256 GB Solid State Drive (SSD), self-encrypting (SED)

160 GB Solid State Drive (SSD)

128 GB Solid State Drive (SSD)

120 GB Solid State Drive (SSD)

Component

USB Device, such as a Media Card

Reader

Expansion Card

Expansion Card

Expansion Card

Expansion Card

Spare part number

660408-001

690418-001

682550-001

682219-001

724937-001

636930-001

724938-001

696422-001

636929-001

634824-001

636927-001

680020-001

646809-001

665961-001

661841-001

70 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

When installing drives, follow these guidelines:

The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA connector on the system board labeled SATA0. If you are adding a second hard drive, connect it to the light blue connector on the system board labeled SATA1.

Connect the first SATA optical drive to the white SATA connector on the system board labeled

SATA2. If you are adding a second optical drive connect it to the black SATA connector on the system board labeled ESATA. If the ESATA connector is already populated, connect the second optical drive to the light blue connector on the system board labeled SATA1.

Connect an optional eSATA adapter cable to the black SATA connector on the system board labeled ESATA.

Connect a media card reader USB cable to the USB connector on the system board labeled

MEDIA.

The power cable for the SATA optical drives is a two-headed cable this is plugged into the system board with the first connector routed to the top 5.25-inch bay and the second connector routed to the bottom 5.25-inch bay.

The power cable for the SATA hard drives is a two-headed cable this is plugged into the system board with the first connector routed to the bottom 3.5-inch bay and the second connector routed to the top 3.5-inch bay.

The system does not support Parallel ATA (PATA) optical drives or PATA hard drives.

You must install guide screws to ensure the drive will line up correctly in the drive cage and lock in place. HP has provided extra guide screws for the drive bays (four 6-32 isolation mounting guide screws and eight M3 metric guide screws), installed on the side of the drive bays. The 6-32 isolation mounting screws are required for a secondary hard drive. All other drives (except the primary hard drive) use M3 metric screws. The HP-supplied metric screws are black and the HPsupplied isolation mounting screws are silver and blue. If you are replacing the primary hard drive, you must remove the four silver and blue 6-32 isolation mounting guide screws from the old hard drive and install them in the new hard drive.

Figure 6-13

Extra Guide Screw Locations

Drives 71

No.

1

2

Guide Screw

Black M3 Metric Screws

Silver and Blue 6-32 Isolation Mounting Screws

Device

All Drives (except hard drives)

Secondary Hard Drive

CAUTION:

To prevent loss of work and damage to the computer or drive:

If you are inserting or removing a drive, shut down the operating system properly, turn off the computer, and unplug the power cord. Do not remove a drive while the computer is on or in standby mode.

Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Handle a drive carefully; do not drop it.

Do not use excessive force when inserting a drive.

Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields such as monitors or speakers.

If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and label the package “Fragile: Handle With Care.”

Drive Positions

Figure 6-14

Drive Positions

Table 6-2 Drive Positions

1

2

Two 5.25-inch drive bays for optional drives (optical drives shown)

One 3.5-inch drive bay for optional drive (media card reader shown)

72 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

Table 6-2 Drive Positions (continued)

3

4

Secondary 3.5-inch internal hard drive bay for optional hard drive

Primary 3.5-inch internal hard drive bay

NOTE:

The drive configuration on your computer may be different than the drive configuration shown above.

To verify the type and size of the storage devices installed in the computer, run Computer Setup.

Removing a 5.25-inch or 3.5-inch Drive from a Drive Bay

CAUTION:

All removable media should be taken out of a drive before removing the drive from the computer.

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 )

2.

Remove the access panel (

Computer Access Panel on page 55 )

3.

Remove the front bezel (

Front Bezel on page 56 )

4.

Disconnect the drive cables, as indicated in the following illustrations.

CAUTION:

When removing the cables, pull the tab or connector instead of the cable itself to avoid damaging the cable.

a. If you are removing an optical drive, disconnect the power cable (1) and data cable (2) from the back of the drive.

Figure 6-15

Disconnecting the Optical Drive Cables

Drives 73

b. If you are removing a media card reader, disconnect the USB cable from the system board.

Figure 6-16

Disconnecting the Media Card Reader USB Cable

5.

A latch drive bracket with release tabs secures the drives in the drive bay. Lift the release tab on the latch drive bracket (1) for the drive you want to remove, then slide the drive from its drive bay

(2).

Figure 6-17

Removing the Drives

74 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

Installing a 5.25-inch or 3.5-inch Drive into a Drive Bay

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 )

2.

Remove the access panel (

Computer Access Panel on page 55 )

3.

Remove the front bezel (

Front Bezel on page 56 )

4.

If you are installing a drive in a bay covered by a bezel blank, remove the bezel blank. See

Bezel

Blanks on page 59 for more information.

5.

Install four M3 metric guide screws in the lower holes on each side of the drive. HP has provided eight extra M3 metric guide screws on the front of the chassis, under the front bezel. The M3 metric guide screws are black. Refer to

Drives on page 70 for an illustration of the extra M3

metric guide screws location.

NOTE:

When replacing the drive, transfer the four M3 metric guide screws from the old drive to the new one.

CAUTION:

Use only 5-mm long screws as guide screws. Longer screws can damage the internal components of the drive.

Figure 6-18

Installing Guide Screws (Optical Drive Shown)

6.

Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until the drive snaps into place.

Figure 6-19

Sliding the Drives into the Drive Cage

Drives 75

7.

Connect the power and data cables to the drive as indicated in the following illustrations.

a. If you are installing an optical drive, connect the power cable (1) and data cable (2) to the back of the drive.

NOTE:

The power cable for the optical drives is a two-headed cable that is routed from the system board to the rear of the optical drive bays.

Figure 6-20

Connecting the Optical Drive Cables

b. If your are installing a media card reader, connect the USB cable to the USB system board connector labeled MEDIA.

Figure 6-21

Connecting the Media Card Reader USB Cable

76 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

8.

If installing a new drive, connect the opposite end of the data cable to the appropriate system board connector.

NOTE:

If you are installing a new SATA optical drive, connect the data cable for the first optical drive to the white SATA connector on the system board labeled SATA2. Connect the data cable for a second optical drive to the black SATA connector on the system board labeled ESATA. If the

ESATA connector is already populated, connect the second optical drive to the light blue connector labeled SATA1.

Refer to System Board Connections on page 69 for an illustration of the system board drive

connectors.

9.

Replace the front bezel and computer access panel.

10.

Reconnect the power cord and any external devices, then turn on the computer.

11.

Lock any security devices that were disengaged when the access panel was removed.

Removing a Hard Drive from a Drive Bay

NOTE:

Before you remove the old hard drive, be sure to back up the data from the old hard drive so that you can transfer the data to the new hard drive.

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 )

2.

Remove the access panel (

Computer Access Panel on page 55 )

3.

Disconnect the power cable and data cable from the back of the hard drive.

4.

Release the drive by pulling the release tab away from the drive (1) and sliding the drive out of the bay (2).

Figure 6-22

Removing a Hard Drive

5.

Remove the four guide screws (two on each side) from the old drive. You will need these screws to install a new drive.

Drives 77

Installing a Hard Drive into an Internal Drive Bay

NOTE:

The system does not support Parallel ATA (PATA) hard drives.

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 )

2.

Remove the access panel (

Computer Access Panel on page 55

)

3.

Install guide screws on the sides of the drive. If you are installing a 2.5-inch drive, you must install the drive in an adapter bracket.

NOTE:

The hard drive uses 6-32 isolation mounting guide screws. Four extra guide screws are installed on the exterior of the hard drive bays. The HP-supplied isolation mounting guide screws

are silver and blue. Refer to Drives on page 70 for an illustration of the extra 6-32 isolation

mounting guide screws location.

If you are replacing a drive, transfer the guides screws from the old drive to the new one.

If you are installing a 3.5-inch hard drive, install four isolation mounting guide screws (two on each side of the drive).

Figure 6-23

Installing Isolation Mounting Guide Screws in a 3.5-inch Drive

If you are installing a 2.5-inch hard drive:

Slide the drive into the bay adapter bracket, ensuring the connector on the drive is fully inserted into the connector on the adapter bracket.

Figure 6-24

Sliding the 2.5-inch Drive in the Adapter Bracket

78 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

Secure the drive to the bay adapter bracket by installing four black M3 adapter bracket screws through the sides of the bracket into the drive.

Figure 6-25

Securing the Drive in the Adapter Bracket

Install four 6-32 silver and blue isolation mounting guide screws in the adapter bracket

(two on each side of the bracket).

Figure 6-26

Installing Isolation Mounting Guide Screws in the Adapter Bracket

Drives 79

4.

Slide the drive into the drive bay, making sure to align the guide screws with the guide slots, until the drive snaps into place. The bottom bay is for the primary hard drive. The upper bay is for an optional secondary hard drive.

Figure 6-27

Sliding a Hard Drive into the Drive Bay

5.

Connect the power cable and data cable to the back of the hard drive.

NOTE:

The power cable for the hard drives is a two-headed cable that is routed from the system board to the rear of the hard drive bays.

6.

If installing a new drive, connect the opposite end of the data cable to the appropriate system board connector.

NOTE:

If your system has only one SATA hard drive, you must connect the hard drive data cable to the dark blue connector labeled SATA0 to avoid any hard drive performance problems. If you are adding a second hard drive, connect the data cable to the light blue connector labeled

SATA1.

7.

Route the power and data cables in their cable retainers.

8.

Replace the computer access panel.

9.

Reconnect the power cord and any external devices, then turn on the computer.

10.

Lock any security devices that were disengaged when the access panel was removed.

Removing and Replacing a Removable 3.5-inch SATA Hard Drive

Some models are equipped with a Removable SATA Hard Drive Enclosure in the 5.25-inch internal drive bay. The hard drive is housed in a carrier that can be quickly and easily removed from the drive bay. To remove and replace a drive in the carrier:

NOTE:

Before you remove the old hard drive, be sure to back up the data from the old hard drive so that you can transfer the data to the new hard drive.

1.

Unlock the hard drive carrier with the key provided and slide the carrier out of the enclosure.

80 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

2.

Remove the screw from the rear of the carrier (1) and slide the top cover off the carrier (2).

Figure 6-28

Removing the Carrier Cover

3.

Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) and move the thermal sensor away from the carrier (2).

Figure 6-29

Removing the Thermal Sensor

Drives 81

4.

Remove the four screws from the bottom of the hard drive carrier.

Figure 6-30

Removing the Security Screws

5.

Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier.

Figure 6-31

Removing the Hard Drive

82 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

6.

Place the new hard drive in the carrier then slide the hard drive back so that it seats in the SATA connector on the carrier's circuit board. Be sure the connector on the hard drive is pressed all the way into the connector on the carrier's circuit board.

Figure 6-32

Replacing the Hard Drive

7.

Replace the four screws in the bottom of the carrier to hold the drive securely in place.

Figure 6-33

Replacing the Security Screws

Drives 83

8.

Place the thermal sensor on top of the hard drive in a position that does not cover the label (1) and attach the thermal sensor to the top of the hard drive with the adhesive strip (2).

Figure 6-34

Replacing the Thermal Sensor

9.

Slide the cover on the carrier (1) and replace the screw on the rear of the carrier to secure the cover in place (2).

Figure 6-35

Replacing the Carrier Cover

10.

Slide the hard drive carrier into the enclosure on the computer and lock it with the key provided.

NOTE:

The carrier must be locked for power to be supplied to the hard drive.

84 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

Front Fan Assembly

Description

Front fan assembly

Spare part number

585884-001

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 ).

2.

Remove the access panel (

Computer Access Panel on page 55 ).

3.

Remove the cables from the clip on the top of the fan assembly.

Figure 6-36

Removing the cables from atop the front fan assembly

4.

Unplug the fan cable from the system board connector labeled CHFAN.

Front Fan Assembly 85

5.

Press the lever that secures the assembly to the chassis (1), pivot the assembly forward toward the front of the computer (2), and then lift the assembly straight up and out of the computer (3).

Figure 6-37

Removing the front fan assembly

To reinstall the front fan, reverse the removal procedure.

Front I/O Assembly

Description

Front I/O assembly

Spare part number

646827-001

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 ).

2.

Remove the computer access panel (

Computer Access Panel on page 55 ).

3.

Remove the front bezel (

Front Bezel on page 56 ).

4.

Remove the front fan ( Front Fan Assembly on page 85 ).

5.

Disconnect the three front I/O cables (yellow, green, and blue) from the system board connectors

(FRONT USB, FRONT USB2, and FRONT AUD).

86 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

6.

Remove the Torx T15 screw that secures the assembly to the chassis.

Figure 6-38

Removing the front I/O assembly screw

7.

Rotate the left side of the assembly to the right .

Figure 6-39

Removing the front I/O assembly

8.

Pull the assembly away from the computer while threading the wires through the hole in the front of the chassis.

To reinstall the assembly, reverse the removal procedure.

Power Switch/LED Assembly

Description

Power switch/LED assembly

Spare part number

646828-001

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 ).

2.

Remove the access panel (

Computer Access Panel on page 55 ).

3.

Remove the front bezel (

Front Bezel on page 56 ).

4.

Remove the front fan (

Front Fan Assembly on page 85

).

5.

Disconnect the cable from the system board connector labeled PB/LED.

Power Switch/LED Assembly 87

6.

With the computer on its side, press on the tabs on the bottom of the assembly (1) to disengage the assembly from the chassis, and then rotate the bottom of the assembly upward (2) to remove it from the chassis.

Figure 6-40

Removing the power switch/LED

7.

Pull the assembly away from the chassis while threading the cable through the hole in front of the chassis.

88 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

Heat sink

Description

Heat sink

Spare part number

645326-001

CAUTION:

The bond between the heat sink and the processor may be very tight.

If the computer will power on, before removing the heat sink, turn on the computer until it warms the heat sink. Warming the heat sink lessens the bond between the heat sink and the processor, thereby making separating them easier.

Make sure not to pull the processor out of the socket when you lift the heat sink, especially if you cannot warm the heat sink prior to removal. Inadvertently removing the processor can damage the pins.

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 ).

2.

Remove the computer access panel (

Computer Access Panel on page 55

).

3.

Remove the front fan (

Front Fan Assembly on page 85

).

4.

Loosen the four silver captive Torx T15 screws that secure the heat sink to the system board.

CAUTION:

Remove heat sink retaining screws in diagonally opposite pairs (as in an X) to even the downward forces on the processor. The pins on the socket are very fragile and any damage to them may require replacing the system board.

Heat sink 89

5.

Lift the heat sink from atop the processor.

When reinstalling the heat sink, make sure that its bottom has been cleaned with an alcohol wipe and fresh thermal grease has been applied to the top of the processor.

CAUTION:

Heat sink retaining screws should be tightened in diagonally opposite pairs (as in an X) to evenly seat the heat sink on the processor. This is especially important as the pins on the socket are very fragile and any damage to them may require replacing the system board.

Processor

Description

AMD A10-5800B, 3.8 GHz, 4-MB L2 cache (100-W), HD 7660D

AMD A8-5500B, 3.2 GHz, 4-MB L2 cache (65-W), HD 7560D

AMD A6-5400B, 3.6 GHz, 4-MB L2 cache (65-W), HD 7540D

AMD A4-5300B, 3.4 GHz, 4-MB L2 cache (65-W), HD 7480D

Spare part number

703598-001

703601-001

703600-001

703599-001

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 ).

2.

Remove the access panel (

Computer Access Panel on page 55

).

3.

Remove the heat sink ( Heat sink on page 89 ).

4.

Rotate the locking lever to its full open position (1).

90 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

5.

Carefully lift the processor from the socket (2).

CAUTION:

Do NOT handle the pins in the processor socket. These pins are very fragile and handling them could cause irreparable damage. Once pins are damaged it may be necessary to replace the system board.

The heat sink must be installed within 24 hours of installing the processor to prevent damage to the processor’s solder connections.

Reverse the removal procedure to install a new processor.

NOTE:

After installing a new processor onto the system board, update the system ROM to ensure that the latest version of the BIOS is being used on the computer. The latest system BIOS can be found on the Web at: http://h18000.www1.hp.com/support/files .

Speaker

Description

Speaker

Spare part number

645330-001

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 ).

2.

Remove the access panel (

Computer Access Panel on page 55 ).

3.

Remove the front fan assembly (

Front Fan Assembly on page 85 ).

4.

Disconnect the speaker wire from the system board connector labeled SPKR.

5.

From the inside of the chassis, remove the two silver Torx T15 screws (1) that secure the speaker to the chassis.

Speaker 91

6.

Rotate the top of the speaker downward (2), and then remove it from the chassis.

Figure 6-41

Removing the speaker

To replace the speaker, reverse the removal procedures.

92 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

Rear Chassis Fan

Description

Rear chassis fan

Spare part number

643908-001

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 ).

2.

Remove the access panel (

Computer Access Panel on page 55 ).

3.

Remove the four silver Phillips screws that secure the fan to the chassis.

Figure 6-42

Rear fan screws

4.

Disconnect the fan control cable (1) from the system board connector labeled CHFAN2.

Rear Chassis Fan 93

5.

Lift the fan out of the chassis (2).

Figure 6-43

Removing the rear fan

To install the fan assembly, reverse the removal procedure. Be sure to orient the air flow out of the unit.

94 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

Power Supply

Description

Power supply, 320W, 90% efficient

Power supply, 320W

Spare part number

613764-001

613765-001

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 ).

2.

Remove the access panel (

Computer Access Panel on page 55 ).

3.

Disconnect the power cables from the white system board connector labeled PWR and the white system board connector labeled PWRCMD.

4.

Remove the power cables from the clip on the base pan.

5.

Remove the four silver Torx T15 screws that connect the power supply to the chassis.

Figure 6-44

Power supply screws

6.

Press the tab (1) on the base pan in front of the power supply that holds it in place.

Power Supply 95

7.

Slide the power supply toward the front of the computer (2), rotate toward the fan so the power supply clears the lip on the top of the chassis, and then lift the power supply out of the chassis (3).

Figure 6-45

Removing the power supply

To install the power supply, reverse the removal procedure.

System Board

Description

System board for use in Windows 7 models (includes thermal material)

System board for use in Windows 8 Standard models

System board for use in Windows 8 Professional models

Spare part number

703596-001

703596-501

703596-601

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 ).

2.

Remove the access panel (

Computer Access Panel on page 55

).

3.

Remove the front fan assembly (

Front Fan Assembly on page 85 ).

4.

When replacing the system board, make sure the following components are removed from the defective system board and installed on the replacement system board:

Memory modules ( Memory on page 60

)

Expansion cards ( Expansion Cards on page 64 )

Heat sink (

Heat sink on page 89

).

96 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

Processor (

Processor on page 90 )

WLAN module (

WLAN module on page 67

)

5.

Disconnect all cables connected to the system board, noting their location for reinstallation.

6.

Remove the eight Torx T15 screws that secure the system board to the chassis.

Figure 6-46

System board screws

7.

Slide the system board toward the front of the computer to disengage the I/O panel, lift the rear of the system board up at an angle, and then lift the system board out of the computer.

Figure 6-47

Removing the system board

System Board 97

When reinstalling the system board, first insert the I/O panel back into the slots in the rear of the chassis, and then align the board with the chassis screw holes.

NOTE:

When replacing the system board, you must change the chassis serial number in the BIOS.

98 Chapter 6 Removal and Replacement Procedures Microtower (MT) Chassis

7 Removal and Replacement

Procedures Small Form Factor (SFF)

Chassis

Adherence to the procedures and precautions described in this chapter is essential for proper service.

After completing all necessary removal and replacement procedures, run the Diagnostics utility to verify that all components operate properly.

NOTE:

Not all features listed in this guide are available on all computers.

Preparation for Disassembly

See

Routine Care, SATA Drive Guidelines, and Disassembly Preparation on page 45

for initial safety procedures.

1.

Remove/disengage any security devices that prohibit opening the computer.

2.

Close any open software applications.

3.

Exit the operating system.

4.

Remove any compact disc or media card from the computer.

5.

Turn off the computer and any peripheral devices that are connected to it.

CAUTION:

Turn off the computer before disconnecting any cables.

Regardless of the power-on state, voltage is always present on the system board as long as the system is plugged into an active AC outlet. In some systems the cooling fan is on even when the computer is in the “Standby,” or “Suspend” modes. The power cord should always be disconnected before servicing a unit.

6.

Disconnect the power cord from the electrical outlet and then from the computer.

7.

Disconnect all peripheral device cables from the computer.

NOTE:

During disassembly, label each cable as you remove it, noting its position and routing.

Keep all screws with the units removed.

CAUTION:

The screws used in the computer are of different thread sizes and lengths; using the wrong screw in an application may damage the unit.

Preparation for Disassembly 99

Access Panel

Description

Access panel

Spare part number

646815-001

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

If the computer is on a stand, remove the computer from the stand.

3.

Lift up on the access panel handle (1) then lift the access panel off the computer (2).

Figure 7-1

Removing the access panel

To install the access panel, reverse the removal procedure.

100 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

Front Bezel

Description

Front bezel

Spare part number

687950-001

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Remove the access panel (

Access Panel on page 100 ).

3.

Lift up the three tabs on the side of the bezel (1), then rotate the bezel off the chassis (2).

Figure 7-2

Removing the front bezel

To install the front bezel, reverse the removal procedure.

Front Bezel 101

Front Bezel Security

The front bezel can be locked in place by installing a security screw provided by HP. To install the security screw:

1.

Remove/disengage any security devices that prohibit opening the computer.

2.

Remove all removable media, such as compact discs or USB flash drives, from the computer.

3.

Turn off the computer properly through the operating system, then turn off any external devices.

4.

Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION:

Regardless of the power-on state, voltage is always present on the system board as long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.

5.

If the computer is on a stand, remove the computer from the stand.

6.

Remove the access panel and front bezel.

7.

Remove one of the five silver 6-32 standard screws located on the front of the chassis behind the bezel.

Figure 7-3

Retrieving the Front Bezel Security Screw

8.

Replace the front bezel.

102 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

9.

Install the security screw next to the middle front bezel release tab to secure the front bezel in place.

Figure 7-4

Installing the Front Bezel Security Screw

10.

Replace the access panel.

11.

If the computer was on a stand, replace the stand.

12.

Reconnect the power cord and turn on the computer.

13.

Lock any security devices that were disengaged when the access panel was removed.

Front Bezel Security 103

Bezel Blanks

Description

3.5-inch bezel blank

5.25-inch bezel blank, optical drive

Spare part number

583653-001

570838-001

On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch external drive bays that need to be removed before installing a drive. To remove a bezel blank:

1.

Remove the access panel (

Access Panel on page 100 ).

2.

Remove the front bezel (

Front Bezel on page 101 )..

3.

To remove a bezel blank, push the two retaining tabs that hold the bezel blank in place towards the outer right edge of the bezel (1) and slide the bezel blank back and to the right to remove it

(2).

Figure 7-5

Removing a bezel blank

4.

Replace the front bezel.

104 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

Memory

Description

8-GB, PC3-12800

4-GB, PC3-12800

2-GB, PC3-12800

Spare part number

689375-001

671613-001

671612-001

The computer comes with double data rate 3 synchronous dynamic random access memory (DDR3-

SDRAM) dual inline memory modules (DIMMs).

DIMMs

The memory sockets on the system board can be populated with up to four industry-standard DIMMs.

These memory sockets are populated with at least one preinstalled DIMM. To achieve the maximum memory support, you can populate the system board with up to 32-GB of memory configured in a highperforming dual channel mode.

DDR3-SDRAM DIMMs

CAUTION:

This product DOES NOT support DDR3 Ultra Low Voltage (DDR3U) memory. The processor is not compatible with DDR3U memory and if you plug DDR3U memory into the system board, it can cause the physical damage to the DIMM or invoke system malfunction.

For proper system operation, the DDR3-SDRAM DIMMs must be:

● industry-standard 240-pin

● unbuffered non-ECC PC3-PC12800 DDR3-1600 MHz-compliant

1.35 volt or 1.5 volt DDR3/DDR3L-SDRAM DIMMs

The DDR3-SDRAM DIMMs must also:

● support CAS latency 11 DDR3 1600 MHz (11-11-11 timing)

● contain the mandatory JEDEC SPD information

In addition, the computer supports:

512-Mbit, 1-Gbit, 2-Gbit, 4-Gbit, and 8-Gbit non-ECC memory technologies

● single-sided and double-sided DIMMs

DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not supported

NOTE:

The system will not operate properly if you install unsupported DIMMs.

Memory 105

Populating DIMM Sockets

There are four DIMM sockets on the system board, with two sockets per channel. The sockets are labeled DIMM1, DIMM2, DIMM3, and DIMM4. Sockets DIMM1 and DIMM2 operate in memory channel B. Sockets DIMM3 and DIMM4 operate in memory channel A.

The system will automatically operate in single channel mode, dual channel mode, or flex mode, depending on how the DIMMs are installed.

NOTE:

Single channel and unbalanced dual channel memory configurations will result in inferior graphics performance.

The system will operate in single channel mode if the DIMM sockets are populated in one channel only.

The system will operate in a higher-performing dual channel mode if the total memory capacity of the DIMMs in Channel A is equal to the total memory capacity of the DIMMs in Channel B. The technology and device width can vary between the channels. For example, if Channel A is populated with two 1-GB DIMMs and Channel B is populated with one 2-GB DIMM, the system will operate in dual channel mode.

The system will operate in flex mode if the total memory capacity of the DIMMs in Channel A is not equal to the total memory capacity of the DIMMs in Channel B. In flex mode, the channel populated with the least amount of memory describes the total amount of memory assigned to dual channel and the remainder is assigned to single channel. For optimal speed, the channels should be balanced so that the largest amount of memory is spread between the two channels. If one channel will have more memory than the other, the larger amount should be assigned to Channel

A. For example, if you are populating the sockets with one 2-GB DIMM, and three 1-GB DIMMs,

Channel A should be populated with the 2-GB DIMM and one 1-GB DIMM, and Channel B should be populated with the other two 1-GB DIMMs. With this configuration, 4-GB will run as dual channel and 1-GB will run as single channel.

In any mode, the maximum operational speed is determined by the slowest DIMM in the system.

106 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

Installing DIMMs

CAUTION:

You must disconnect the power cord and wait approximately 30 seconds for the power to drain before adding or removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory modules as long as the computer is plugged into an active AC outlet.

Adding or removing memory modules while voltage is present may cause irreparable damage to the memory modules or system board.

The memory module sockets have gold-plated metal contacts. When upgrading the memory, it is important to use memory modules with gold-plated metal contacts to prevent corrosion and/or oxidation resulting from having incompatible metals in contact with each other.

Static electricity can damage the electronic components of the computer or optional cards. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object. For more information, refer to

Electrostatic Discharge Information on page 45 .

When handling a memory module, be careful not to touch any of the contacts. Doing so may damage the module.

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Remove the access panel (

Access Panel on page 100 ).

3.

Rotate up the internal drive bay housing to access the memory module sockets on the system board.

Memory 107

4.

Open both latches of the memory module socket (1), and insert the memory module into the socket (2).

Figure 7-6

Installing a DIMM

NOTE:

A memory module can be installed in only one way. Match the notch on the module with the tab on the memory socket.

Populate the black DIMM sockets before the white DIMM sockets.

For maximum performance, populate the sockets so that the memory capacity is spread as equally

as possible between Channel A and Channel B. Refer to Populating DIMM Sockets on page 106

for more information.

5.

Push the module down into the socket, ensuring that the module is fully inserted and properly seated. Make sure the latches are in the closed position (3).

6.

Repeat steps 4 and 5 to install any additional modules.

7.

Replace the access panel.

8.

If the computer was on a stand, replace the stand.

9.

Reconnect the power cord and turn on the computer.

10.

Lock any security devices that were disengaged when the access panel was removed.

The computer should automatically recognize the additional memory the next time you turn on the computer.

108 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

Expansion Card

Description

AMD HD8490 PCIe x16 graphics card, 1 GB (for use with Windows 8) nVidia Quadro NVS315 PCIe x16 graphics card, 1 GB (for use with Windows 8)

GeForce GT630 PCIe x16 graphics card, 2 GB (for use only with Windows 8) nVidia Quadro NVS310 PCIe x16 graphics card, 512 MB (for use only with Windows 8) nVidia Quadro NVS300 PCIe x16 graphics card, 512 MB (for use only with Windows 8)

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use only in China)

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (for use only with Windows 8)

AMD Radeon HD7450 PCIe x16 graphics card, 1 GB (includes adapter; not for use with Windows

8)

AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (for use only with Windows 8)

AMD Radeon HD6350 PCIe x16 graphics card, 512 MB (not for use with Windows 8)

HP WLAN 802.11 g/n 1x2 PCIe NIC

Intel PRO/1000, single port, GbE, NIC

HP USB 3.0 SuperSpeed PCIe x1 card

HP USB 3.0 SuperSpeed power extension cable (for use with 663213-001)

697246-001

637995-001

538048-001

728562-001

663213-001

663214-001

Spare part number

717219-001

720837-001

702084-001

707252-001

700578-001

702646-001

702647-001

682411-001

The computer has one PCI expansion slot, one PCI Express x1 expansion slot, one PCI Express x16 expansion slot, and one PCI Express x16 expansion slot that is downshifted to a x4 slot.

NOTE:

The PCI and PCI Express slots support only low profile cards.

You can install a PCI Express x1, x4, x8, or x16 expansion card in the PCI Express x16 slot.

For dual graphics card configurations, the first (primary) card must be installed in the PCI Express x16 slot that is NOT downshifted to a x4.

To remove, replace, or add an expansion card:

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Remove the access panel (

Access Panel on page 100 ).

3.

Locate the correct vacant expansion socket on the system board and the corresponding expansion slot on the back of the computer chassis.

Expansion Card 109

4.

Release the slot cover retention latch that secures the PCI slot covers by lifting the green tab on the latch and rotating the latch to the open position.

Figure 7-7

Opening the Expansion Slot Retainer

5.

Before installing an expansion card, remove the expansion slot cover or the existing expansion card.

NOTE:

Before removing an installed expansion card, disconnect any cables that may be attached to the expansion card.

a. If you are installing an expansion card in a vacant socket, remove the appropriate expansion slot cover on the back of the chassis. Pull the slot cover straight up then away from the inside of the chassis.

Figure 7-8

Removing an Expansion Slot Cover

110 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

b. If you are removing a standard PCI card or PCI Express x1 card, hold the card at each end, and carefully rock it back and forth until the connectors pull free from the socket. Pull the expansion card straight up from the socket (1) then away from the inside of the chassis to release it from the chassis frame (2). Be sure not to scrape the card against the other components.

Figure 7-9

Removing a Standard PCI Expansion Card

c.

If you are removing a PCI Express x16 card, pull the retention arm on the back of the expansion socket away from the card and carefully rock the card back and forth until the connectors pull free from the socket. Pull the expansion card straight up from the socket then away from the inside of the chassis to release it from the chassis frame. Be sure not to scrape the card against the other components.

Figure 7-10

Removing a PCI Express x16 Expansion Card

6.

Store the removed card in anti-static packaging.

Expansion Card 111

7.

If you are not installing a new expansion card, install an expansion slot cover to close the open slot.

CAUTION:

After removing an expansion card, you must replace it with a new card or expansion slot cover for proper cooling of internal components during operation.

8.

To install a new expansion card, hold the card just above the expansion socket on the system board then move the card toward the rear of the chassis (1) so that the bracket on the card is aligned with the open slot on the rear of the chassis. Press the card straight down into the expansion socket on the system board (2).

Figure 7-11

Installing an Expansion Card

NOTE:

When installing an expansion card, press firmly on the card so that the whole connector seats properly in the expansion card slot.

9.

Rotate the slot cover retention latch back in place to secure the expansion card.

Figure 7-12

Closing the Expansion Slot Retainer

112 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

10.

Connect external cables to the installed card, if needed. Connect internal cables to the system board, if needed.

11.

Replace the computer access panel.

12.

If the computer was on a stand, replace the stand.

13.

Reconnect the power cord and turn on the computer.

14.

Lock any security devices that were disengaged when the access panel was removed.

15.

Reconfigure the computer, if necessary.

WLAN module

Description

Intel® Centrino™ Advanced-N 6205, 802.11a/b/g/n WLAN module

Spare part number

695915-001

CAUTION:

To prevent an unresponsive system, replace the wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore device functionality, and then contact technical support.

Before removing the WLAN module, follow these steps:

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 54 )

2.

Remove the access panel (

Access Panel on page 100 )

Remove the WLAN module:

1.

Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE:

The WLAN antenna cable labeled “1” connects to the WLAN module “Main” terminal labeled “1”. The WLAN antenna cable labeled “2” connects to the WLAN module “Aux” terminal labeled “2”. If the computer is equipped with an 802.11a/b/g/n WLAN module, the yellow

WLAN antenna cable connects to the middle terminal on the WLAN module.

2.

Remove the two Phillips PM2.0×3.0 screws (2) that secure the WLAN module to the system board. (The WLAN module tilts up.)

WLAN module 113

3.

Remove the WLAN module (3) by pulling the module away from the slot at an angle.

NOTE:

WLAN modules are designed with a notch to prevent incorrect insertion of the WLAN module into the WLAN module slot.

Reverse this procedure to install the WLAN module.

114 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

System Board Connections

Refer to the following illustration and table to identify the system board connectors for your model.

Figure 7-13

System Board Connections

Table 7-1 System Board Connections

No. System Board Connector System Board Label Color

10

11

12

13

8

9

6

7

14

1

4

5

2

3

DIMM4 (Channel A)

DIMM3 (Channel A)

DIMM2 (Channel B)

DIMM1 (Channel B) eSATA

SATA 2.0

Power

Power

SATA 3.0

SATA 3.0

Serial Port

Parallel Port

USB

Hood Lock

DIMM4

DIMM3

DIMM2

DIMM1

ESATA

SATA2

SATAS_PWR2

SATAS_PWR1

SATA1

SATA0

COMB

PAR

MEDIA2

HLCK white black white black black white black black light blue dark blue black black black black

15

16

Hood Sensor

USB

HSENSE

MEDIA white black

Component

Memory Module

Memory Module

Memory Module

Memory Module eSATA Adapter Cable

1st Optical Drive

(unused)

SATA Optical and Hard Drives

2nd Hard Drive

1st Hard Drive

Serial Port

Parallel Port

Second Media Card Reader

USB Device, such as a Media Card

Reader

Hood Sensor

USB Device, such as a Media Card

Reader

System Board Connections 115

Table 7-1 System Board Connections (continued)

No. System Board Connector System Board Label Color

17

18

19

20

PCI Express x1

PCI Express x16 downshifted to a x4

PCI Express x16

PCI

X1PCIEXP1

X4PCIEXP

X16PCIEXP

PCI1 black white black white

Drives

Description

DVD±RW drive

DVD-ROM drive

Blu-ray BD-Writer XL Drive

1 TB hybrid hard drive (8-GB SSD)

1 TB, 7200 rpm SATA hard drive

500 GB hybrid hard drive (8-GB SSD)

500 GB, 7200 rpm, 2.5 inch, SED, SATA hard drive

500 GB, 7200 rpm SATA hard drive

320 GB, 7200 rpm SATA hard drive, 2.5-inch

250 GB, 7200 rpm SATA hard drive

256 GB Solid State Drive (SSD), self-encrypting (SED)

160 GB Solid State Drive (SSD)

128 GB Solid State Drive (SSD)

120 GB Solid State Drive (SSD)

Component

Expansion Card

Expansion Card

Expansion Card

Expansion Card

Spare part number

660408-001

690418-001

682550-001

682219-001

724937-001

636930-001

724938-001

696442-001

636929-001

634824-001

636927-001

680020-001

646809-001

665961-001

661841-001

116 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

Drive Positions

Figure 7-14

Drive Positions

Table 7-2 Drive Positions

1 3.5-inch internal hard drive bay

2

3

3.5-inch drive bay for optional drives (media card reader shown)

5.25-inch drive bay for optional drives (optical drive shown)

NOTE:

The drive configuration on your computer may be different than the drive configuration shown above.

To verify the type and size of the storage devices installed in the computer, run Computer Setup.

Installing and Removing Drives

When installing drives, follow these guidelines:

The primary Serial ATA (SATA) hard drive must be connected to the dark blue primary SATA connector on the system board labeled SATA0. If you are adding a second hard drive, connect it to the light blue connector on the system board labeled SATA1.

Connect a SATA optical drive to the white SATA connector on the system board labeled SATA2.

Connect an optional eSATA adapter cable to the black SATA connector on the system board labeled ESATA.

Connect a media card reader USB cable to the USB connector on the system board labeled

MEDIA.

The power cable for the SATA drives is a three-headed cable that is plugged into the system board with the first connector routed to the rear of the hard drive, the second connector routed to the rear of the 3.5” drive, and the third connector routed to the rear of the 5.25” optical drive.

The system does not support Parallel ATA (PATA) optical drives or PATA hard drives.

You must install guide screws to ensure the drive will line up correctly in the drive cage and lock in place. HP has provided extra guide screws for the drive bays (five 6-32 standard screws and four

M3 metric screws), installed in the front of the chassis, under the front bezel. The 6-32 standard screws are required for a secondary hard drive. All other drives (except the primary hard drive)

Drives 117

use M3 metric screws. The HP-supplied metric screws are black and the HP-supplied standard screws are silver. If you are replacing the primary hard drive, you must remove the four silver and blue 6-32 isolation mounting guide screws from the old hard drive and install them in the new hard drive.

Figure 7-15

Extra Guide Screw Locations

No.

Guide Screw Device

1

2

Black M3 Metric Screws

Silver 6-32 Standard Screws

All Drives (except primary and secondary hard drives)

Secondary Hard Drive

There are at total of five extra silver 6-32 standard screws. Four are used as guide screws for a secondary hard drive. The fifth is used for bezel security (see

Front Bezel Security on page 102 for more information).

CAUTION:

To prevent loss of work and damage to the computer or drive:

If you are inserting or removing a drive, shut down the operating system properly, turn off the computer, and unplug the power cord. Do not remove a drive while the computer is on or in standby mode.

Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Handle a drive carefully; do not drop it.

Do not use excessive force when inserting a drive.

Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields such as monitors or speakers.

If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and label the package “Fragile: Handle With Care.”

118 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

Removing a 5.25-inch Drive from a Drive Bay

CAUTION:

All removable media should be taken out of a drive before removing the drive from the computer.

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Remove the access panel (

Access Panel on page 100 ).

3.

Rotate the drive cage to its upright position.

4.

If removing an optical drive, disconnect the power cable and data cable from the rear of the optical drive.

CAUTION:

When removing the cables, pull the tab or connector instead of the cable itself to avoid damaging the cable.

5.

Rotate the drive cage back down to its normal position.

CAUTION:

Be careful not to pinch any cables or wires when rotating the drive cage down.

6.

Press down on the green drive retainer button located on the left side of the drive to disengage the drive from the drive cage (1). While pressing the drive retainer button, slide the drive back until it stops, then lift it up and out of the drive cage (2).

Figure 7-16

Removing the 5.25-inch Drive

Installing a 5.25-inch Drive into a Drive Bay

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Remove the access panel (

Access Panel on page 100 ).

3.

If you are installing a drive in a bay covered by a bezel blank, remove the front bezel then

remove the bezel blank. See Bezel Blanks on page 104 for more information.

Drives 119

4.

Install four M3 metric guide screws in the lower holes on each side of the drive. HP has provided four extra M3 metric guide screws on the front of the chassis, under the front bezel. The M3 metric

guide screws are black. Refer to Installing and Removing Drives on page 117 for an illustration of

the extra M3 metric guide screws location.

NOTE:

When replacing the drive, transfer the four M3 metric guide screws from the old drive to the new one.

CAUTION:

Use only 5-mm long screws as guide screws. Longer screws can damage the internal components of the drive.

Figure 7-17

Installing Guide Screws in the Optical Drive

5.

Position the guide screws on the drive into the J-slots in the drive bay. Then slide the drive toward the front of the computer until it locks into place.

Figure 7-18

Installing the Optical Drive

6.

Rotate the drive cage to its upright position.

7.

Connect the SATA data cable to the white SATA system board connector labeled SATA2.

8.

Route the data cable through the cable guides.

CAUTION:

There are two cable guides that keep the data cable from being pinched by the drive cage when raising or lowering it. One is located on the bottom side of the drive cage. The other is located on the chassis frame under the drive cage. Ensure that the data cable is routed through these guides before connecting it to the optical drive.

120 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

9.

Connect the power cable and data cable to the rear of the optical drive.

NOTE:

The power cable for the optical drive is a three-headed cable that is routed from the system board to the hard drive, then to the rear of the optical drive.

10.

Rotate the drive cage back down to its normal position.

CAUTION:

Be careful not to pinch any cables or wires when rotating the drive cage down.

11.

Replace the front bezel (if removed) and access panel.

12.

If the computer was on a stand, replace the stand.

13.

Reconnect the power cord and turn on the computer.

14.

Lock any security devices that were disengaged when the access panel was removed.

Removing a 3.5-inch Drive from a Drive Bay

CAUTION:

All removable media should be taken out of a drive before removing the drive from the computer.

The 3.5-inch drive is located underneath the 5.25-inch drive. You must remove the 5.25-inch drive before removing the 3.5-inch drive.

1.

Follow the procedure in Removing a 5.25-inch Drive from a Drive Bay on page 119

to remove the

5.25-inch drive and access the 3.5-inch drive.

CAUTION:

Ensure that the computer is turned off and that the power cord is disconnected from the electrical outlet before proceeding.

2.

Disconnect the drive cables from the rear of the drive, or, if you are removing a media card reader, disconnect the USB cable from the system board as indicated in the following illustration.

Figure 7-19

Disconnecting the Media Card Reader USB Cable

Drives 121

3.

Press down on the green drive retainer button located on the left side of the drive to disengage the drive from the drive cage (1). While pressing the drive retainer button, slide the drive back until it stops, then lift it up and out of the drive cage (2).

Figure 7-20

Removing a 3.5-inch Drive (Media Card Reader Shown)

122 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

Installing a 3.5-inch Drive into a Drive Bay

The 3.5-inch bay is located underneath the 5.25-inch drive. To install a drive into the 3.5-inch bay:

NOTE:

Install guide screws to ensure the drive will line up correctly in the drive cage and lock in place. HP has provided extra guide screws for the drive bays (four 6-32 standard screws and four M3 metric screws), installed in the front of the chassis, under the front bezel. A secondary hard drive uses

6-32 standard screws. All other drives (except the primary hard drive) use M3 metric screws. The HPsupplied M3 metric screws are black and the HP-supplied 6-32 standard screws are silver. Refer to

Installing and Removing Drives on page 117

for illustrations of the guide screw locations.

1.

Follow the procedure in Removing a 5.25-inch Drive from a Drive Bay on page 119

to remove the

5.25-inch drive and access the 3.5-inch drive bay.

CAUTION:

Ensure that the computer is turned off and that the power cord is disconnected from the electrical outlet before proceeding.

2.

If you are installing a drive in a bay covered by a bezel blank, remove the front bezel then

remove the bezel blank. See Bezel Blanks on page 104 for more information.

3.

Install guide screws in the holes on each side of the drive.

Figure 7-21

Installing Guide Screws (Media Card Reader Shown)

4.

Position the guide screws on the drive into the J-slots in the drive bay. Then slide the drive toward the front of the computer until it locks into place.

Figure 7-22

Installing a Drive into the 3.5-inch Drive Bay (Media Card Reader Shown)

Drives 123

5.

Connect the appropriate drive cables:

a. If installing a second hard drive, connect the power cable (1) and data cable (2) to the rear of the drive and connect the other end of the data cable to the light blue connector on the system board labeled SATA1.

Figure 7-23

Connecting the Secondary Hard Drive Power Cable and Data Cable

b. If installing a media card reader, connect the USB cable from the media card reader to the

USB connector on the system board labeled MEDIA.

Figure 7-24

Connecting the Media Card Reader USB Cable

NOTE:

Refer to

System Board Connections on page 115 for an illustration of the system

board drive connectors.

6.

Replace the 5.25-inch drive.

7.

Replace the front bezel (if removed) and access panel.

8.

If the computer was on a stand, replace the stand.

124 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

9.

Reconnect the power cord and turn on the computer.

10.

Lock any security devices that were disengaged when the access panel was removed.

Removing and Replacing the Primary 3.5-inch Internal Hard Drive

NOTE:

Before you remove the old hard drive, be sure to back up the data from the old hard drive so that you can transfer the data to the new hard drive.

The preinstalled 3.5-inch hard drive is located under the power supply. To remove and replace the hard drive:

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Remove the access panel (

Access Panel on page 100 ).

3.

Rotate the drive cage for internal drives to its upright position.

4.

Rotate the power supply to its upright position. The hard drive is located beneath the power supply.

Figure 7-25

Raising the Power Supply

5.

Disconnect the power cable and data cable from the back of the hard drive.

Drives 125

6.

Press down on the green release latch next to the hard drive (1). While holding the latch down, slide the drive forward until it stops, then lift the drive up and out of the bay (2).

Figure 7-26

Removing the Hard Drive

7.

To install a hard drive, you must transfer the silver and blue isolation mounting guide screws from the old hard drive to the new hard drive.

Figure 7-27

Installing Hard Drive Guide Screws

126 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

8.

Align the guide screws with the slots on the chassis drive cage, press the hard drive down into the bay, then slide it back until it stops and locks in place.

Figure 7-28

Installing the Hard Drive

9.

Connect the power cable and data cable to the back of the hard drive.

NOTE:

If the system has only one SATA hard drive, the data cable must be connected to the dark blue connector labeled SATA0 on the system board to avoid any hard drive performance problems.

10.

Rotate the drive cage for internal drives and the power supply down to their normal positions.

11.

Replace the access panel.

12.

If the computer was on a stand, replace the stand.

13.

Reconnect the power cord and turn on the computer.

14.

Lock any security devices that were disengaged when the access panel was removed.

Removing and Replacing a Removable 3.5-inch SATA Hard Drive

Some models are equipped with a Removable SATA Hard Drive Enclosure in the 5.25-inch internal drive bay. The hard drive is housed in a carrier that can be quickly and easily removed from the drive bay. To remove and replace a drive in the carrier:

NOTE:

Before you remove the old hard drive, be sure to back up the data from the old hard drive so that you can transfer the data to the new hard drive.

1.

Unlock the hard drive carrier with the key provided and slide the carrier out of the enclosure.

Drives 127

2.

Remove the screw from the rear of the carrier (1) and slide the top cover off the carrier (2).

Figure 7-29

Removing the Carrier Cover

3.

Remove the adhesive strip that secures the thermal sensor to the top of the hard drive (1) and move the thermal sensor away from the carrier (2).

Figure 7-30

Removing the Thermal Sensor

128 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

4.

Remove the four screws from the bottom of the hard drive carrier.

Figure 7-31

Removing the Security Screws

5.

Slide the hard drive back to disconnect it from the carrier then lift it up and out of the carrier.

Figure 7-32

Removing the Hard Drive

Drives 129

6.

Place the new hard drive in the carrier then slide the hard drive back so that it seats in the SATA connector on the carrier's circuit board. Be sure the connector on the hard drive is pressed all the way into the connector on the carrier's circuit board.

Figure 7-33

Replacing the Hard Drive

7.

Replace the four screws in the bottom of the carrier to hold the drive securely in place.

Figure 7-34

Replacing the Security Screws

130 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

8.

Place the thermal sensor on top of the hard drive in a position that does not cover the label (1) and attach the thermal sensor to the top of the hard drive with the adhesive strip (2).

Figure 7-35

Replacing the Thermal Sensor

9.

Slide the cover on the carrier (1) and replace the screw on the rear of the carrier to secure the cover in place (2).

Figure 7-36

Replacing the Carrier Cover

10.

Slide the hard drive carrier into the enclosure on the computer and lock it with the key provided.

NOTE:

The carrier must be locked for power to be supplied to the hard drive.

Drives 131

Fan duct

Description

Fan duct

Spare part number

636921-001

The fan duct sits between the front fan and the heat sink.

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Remove the access panel (

Access Panel on page 100 ).

3.

Remove the cables from the hook on the duct (1).

4.

Lift the fan duct straight up out of the chassis (2).

Figure 7-37

Removing the fan duct

To install the fan duct, reverse the removal procedure.

132 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

Front Fan Assembly

Description

Front fan

Spare part number

645327-001

The front fan assembly is attached to the front of the chassis.

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Remove the access panel (

Access Panel on page 100 ).

3.

Remove the front bezel (

Front Bezel on page 101 ).

4.

Remove the baffle (

Fan duct on page 132

).

5.

Disconnect the fan cable from the red/brown system board connector labeled CHFAN.

Figure 7-38

Disconnecting the front fan cable

6.

Press the tabs that secure the fan assembly to the front of the chassis (1).

Front Fan Assembly 133

7.

Pull the assembly toward the rear of the unit (2), and then lift it out of the chassis.

Figure 7-39

Removing the front fan

To install the front fan, reverse the removal procedure. Be sure to orient the air flow into the unit.

134 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

Hood Sensor

Description

Hood sensor

Spare part number

638816-001

The hood sensor is attached in a slot in the rear of the chassis.

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Remove the access panel (

Access Panel on page 100 ).

3.

Unplug the sensor cable from the system board connector labeled HSENSE (1).

4.

Slide the hood sensor straight out of the notch in the chassis (2).

NOTE:

A flat blade screwdriver can be used to push the hood sensor out of the slot.

Figure 7-40

Removing the hood sensor from the chassis fan

To install the hood sensor, reverse the removal procedure.

Hood Sensor 135

Front I/O, Power Switch Assembly

Description

Front I/O and power switch assembly

Spare part number

636926-001

The front I/O and power switch/LEDs is one assembly, attached to the front of the chassis. Push the assembly into the chassis to remove.

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Remove the access panel (

Access Panel on page 100 ).

3.

Remove the front bezel (

Front Bezel on page 101 ).

4.

Remove the chassis fan (

Front Fan Assembly on page 133

).

5.

Rotate the drive cage to its upright position.

6.

Disconnect the four cables from the system board as follows:

Yellow connector labeled FRONT_USB

Green connector labeled FRONT_USB2

Blue connector labeled FRONT AUD

Black connector labeled PB/LED

Figure 7-41

Disconnecting the front I/O, power switch/LED assembly cables

7.

Remove the Torx T15 screw (1) that secures the assembly to the front of the chassis.

136 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

8.

Route the cables through the slots beneath the drive cage, rotate the assembly into the chassis (2), and then remove the assembly from the computer.

Figure 7-42

Removing the front I/O, power switch/LED assembly screw

To install the front I/O and power switch assembly, reverse the removal procedure.

NOTE:

Be sure to correctly route the cables beneath the drive cage when reinstalling the assembly.

Proper cable routing prevents damage to the cables and allows the drive cage to close properly.

Front I/O, Power Switch Assembly 137

Speaker

Description

Speaker

Spare part number

636925-001

The speaker is attached to the front of the chassis under the rotating drive cage.

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Remove the access panel (

Access Panel on page 100 ).

3.

Remove the front bezel (

Front Bezel on page 101 ).

4.

Rotate the drive cage to its upright position.

5.

Disconnect the speaker wire from the white system board labeled SPKR (1).

6.

Remove the Torx screw that secures the speaker to the chassis (2).

7.

Lift the speaker from the inside of the chassis to remove it (3).

Figure 7-43

Removing the speaker

To install the speaker, reverse the removal procedures.

138 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

Heat sink

Description

Heat sink

Spare part number

645326-001

CAUTION:

The bond between the heat sink and the processor may be very tight.

If the computer will power on, before removing the heat sink, turn on the computer until it warms the heat sink. Warming the heat sink lessens the bond between the heat sink and the processor, thereby making separating them easier.

Make sure not to pull the processor out of the socket when you lift the heat sink, especially if you cannot warm the heat sink prior to removal. Inadvertently removing the processor can damage the pins.

The heat sink is secured atop the processor with four captive Torx screws. The heat sink does not include a fan.

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Remove the access panel (

Access Panel on page 100 ).

3.

Remove the fan duct (

Fan duct on page 132 ).

4.

Remove the front fan (

Front Fan Assembly on page 133

).

5.

Loosen the four captive screws that secure the heat sink to the system board tray.

CAUTION:

Heat sink retaining screws should be removed in diagonally opposite pairs (as in an

X) to even the downward forces on the processor. This is especially important as the pins on the socket are very fragile and any damage to them may require replacing the system board.

Figure 7-44

Loosening the heat sink screws

Heat sink 139

6.

Lift the heat sink from atop the processor and set it on its side to keep from contaminating the work area with thermal grease.

Figure 7-45

Removing the heat sink

When reinstalling the heat sink, make sure that its bottom has been cleaned with an alcohol wipe and fresh thermal grease has been applied to the top of the processor.

CAUTION:

Heat sink retaining screws should be tightened in diagonally opposite pairs (as in an X) to evenly seat the heat sink on the processor to avoid damage that could require replacing the system board.

Failure to install the fan duct may cause the computer to overheat.

140 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

Processor

Description

AMD A10-5800B, 3.8 GHz, 4-MB L2 cache (100-W), HD 7660D

AMD A8-5500B, 3.2 GHz, 4-MB L2 cache (65-W), HD 7560D

AMD A6-5400B, 3.6 GHz, 4-MB L2 cache (65-W), HD 7540D

AMD A4-5300B, 3.4 GHz, 4-MB L2 cache (65-W), HD 7480D

Spare part number

703598-001

703601-001

703600-001

703599-001

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Remove the access panel (

Access Panel on page 100 ).

3.

Remove the fan duct (

Fan duct on page 132 ).

4.

Remove the front fan assembly (

Front Fan Assembly on page 133 ).

5.

Remove the heat sink (

Heat sink on page 139

).

6.

Rotate the locking lever to its full open position (1).

7.

Carefully lift the processor from the socket (2).

CAUTION:

Do NOT handle the pins in the processor socket. These pins are very fragile and handling them could cause irreparable damage. Once pins are damaged it may be necessary to replace the system board.

The heat sink must be installed within 24 hours of installing the processor to prevent damage to the processor’s solder connections.

Figure 7-46

Removing the processor

To replace the processor, reverse the removal procedures.

Processor 141

NOTE:

After installing a new processor onto the system board, always update the system ROM to ensure that the latest version of the BIOS is being used on the computer. The latest system BIOS can be found on the Web at: http://h18000.www1.hp.com/support/files .

Power Supply

Description

Power supply, 90% efficient

Power supply, standard

Spare part number

613762-001

613763-001

WARNING!

To reduce potential safety issues, only the power supply provided with the computer, a replacement power supply provided by HP, or a power supply purchased as an accessory from HP should be used with the computer.

The rotating power supply is located at the rear of the chassis. It is held in place by a bracket – no screws are used.

WARNING!

Voltage is always present on the system board when the computer is plugged into an active AC outlet. To avoid possible personal injury and damage to the equipment the power cord should be disconnected from the computer and/or the AC outlet before opening the computer.

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Remove the access panel (

Access Panel on page 100 ).

3.

Rotate the drive cage up and disconnect the power cables from all of the drives.

4.

Disconnect all power cables from the system board as follows:

4-pin PWRCPU

6-pin PWR

6-pin PWRCMD

5.

Rotate the power supply to its full upright position.

6.

Release the power supply cables from the cable retaining clip under the drive cage.

142 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

7.

Pull the power supply forward until the posts on the power supply move forward in the power supply bracket, and then lift the power supply straight up and out of the chassis.

Figure 7-47

Removing the power supply

To install the power supply, reverse the removal procedure.

CAUTION:

When installing the power supply cables, make sure they are properly positioned so they are not cut by the drive cage and are not pinched by the rotating power supply.

System Board

Description

System board for use in Windows 7 models (includes thermal material)

System board for use in Windows 8 Standard models

System board for use in Windows 8 Professional models

Spare part number

703596-001

703596-501

703596-601

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Remove the access panel (

Access Panel on page 100 ).

3.

When replacing the system board, make sure the following components are removed from the defective system board and installed on the replacement system board:

Memory modules ( Memory on page 105

)

Expansion cards (

Expansion Card on page 109

)

System Board 143

Heat sink (

Heat sink on page 139

)

Processor (

Processor on page 141 )

WLAN module (

WLAN module on page 113 )

4.

Remove the baffle from the chassis ( Fan duct on page 132

).

5.

Remove the fan from the chassis ( Front Fan Assembly on page 133 ).

6.

Rotate the drive cage to its upright position.

7.

Rotate the power supply to its full upright position.

8.

Disconnect all data and power cables from the system board.

9.

Disconnect the balance of the cables from the system board.

10.

Remove the eight Torx T15 screws (1) that secure the system board to the chassis.

11.

Lift up the front of the system board, and then pull the system board forward, up, and out of the chassis (2).

Figure 7-48

Removing the system board

To install the system board, reverse the removal procedure.

NOTE:

When replacing the system board, you must also change the chassis serial number in the

BIOS.

CAUTION:

Before reinstalling the heat sink you must clean the top of the processor and the bottom of the heat sink with an alcohol pad supplied in the spares kit. After the alcohol has evaporated, apply thermal grease to the top of the processor from the syringe supplied in the spares kit.

CAUTION:

When reconnecting the cables it is important that they be positioned so they do not interfere with the rotation of the drive cage or power supply.

144 Chapter 7 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

Using the Small Form Factor Computer in a Tower

Orientation

The Small Form Factor computer can be used in a tower orientation. The HP logo plate on the front bezel is adjustable for either desktop or tower orientation.

1.

Prepare the computer for disassembly ( Preparation for Disassembly on page 99 ).

2.

Orient the computer so that its right side is facing down and place the computer in the optional stand.

Figure 7-49

Changing from Desktop to Tower Orientation

NOTE:

To stabilize the computer in a tower orientation, HP recommends the use of the optional tower stand.

3.

Lock any security devices that were disengaged when the access panel was removed.

NOTE:

Ensure at least 10.2 centimeters (4 inches) of space on all sides of the computer remains clear and free of obstructions.

Using the Small Form Factor Computer in a Tower Orientation 145

8 Troubleshooting Without

Diagnostics

This chapter provides information on how to identify and correct minor problems, such as USB devices, hard drive, optical drive, graphics, audio, memory, and software problems. If you encounter problems with the computer, refer to the tables in this chapter for probable causes and recommended solutions.

NOTE:

For information on specific error messages that may appear on the screen during Power-On

Self-Test (POST) at startup, refer to Appendix A,

POST Error Messages on page 187 .

Safety and Comfort

WARNING!

Misuse of the computer or failure to establish a safe and comfortable work environment may result in discomfort or serious injury. Refer to the Safety & Comfort Guide at http://www.hp.com/ ergo for more information on choosing a workspace and creating a safe and comfortable work environment. For more information, refer to the Safety & Regulatory Information guide.

Before You Call for Technical Support

If you are having problems with the computer, try the appropriate solutions below to try to isolate the exact problem before calling for technical support.

Run the HP diagnostic tool.

Run the hard drive self-test in Computer Setup. Refer to

Computer Setup (F10) Utility on page 10

for more information.

Check the Power LED on the front of the computer to see if it is flashing red. The flashing lights are

error codes that will help you diagnose the problem. Refer to Appendix A, POST Error Messages on page 187 for more information.

If the screen is blank, plug the monitor into a different video port on the computer if one is available. Or, replace the monitor with a monitor that you know is functioning properly.

If you are working on a network, plug another computer with a different cable into the network connection. There may be a problem with the network plug or cable.

If you recently added new hardware, remove the hardware and see if the computer functions properly.

If you recently installed new software, uninstall the software and see if the computer functions properly.

Boot the computer to the Safe Mode to see if it will boot without all of the drivers loaded. When booting the operating system, use “Last Known Configuration.”

146 Chapter 8 Troubleshooting Without Diagnostics

Refer to the comprehensive online technical support at http://www.hp.com/support .

Refer to Helpful Hints on page 147

in this guide.

To assist you in resolving problems online, HP Instant Support Professional Edition provides you with self-solve diagnostics. If you need to contact HP support, use HP Instant Support Professional Edition's online chat feature. Access HP Instant Support Professional Edition at: http://www.hp.com/go/ispe .

Access the Business Support Center (BSC) at http://www.hp.com/go/bizsupport for the latest online support information, software and drivers, proactive notification, and worldwide community of peers and HP experts.

If it becomes necessary to call for technical assistance, be prepared to do the following to ensure that your service call is handled properly:

Be in front of your computer when you call.

Write down the computer serial number, product ID number, and monitor serial number before calling.

Spend time troubleshooting the problem with the service technician.

Remove any hardware that was recently added to your system.

Remove any software that was recently installed.

Restore the system from the Recovery Disc Set that you created or restore the system to its original factory condition in System Software Requirement Disks (SSRD).

CAUTION:

Restoring the system will erase all data on the hard drive. Be sure to back up all data files before running the restore process.

NOTE:

For sales information and warranty upgrades (Care Packs), call your local authorized service provider or dealer.

Helpful Hints

If you encounter problems with the computer, monitor, or software, see the following list of general suggestions before taking further action:

Check that the computer and monitor are plugged into a working electrical outlet.

Check that the voltage select switch (some models) is set to the appropriate voltage for your region

(115V or 230V).

Check that the computer is turned on and the green power light is on.

Check that the monitor is turned on and the green monitor light is on.

Check the Power LED on the front of the computer to see if it is flashing red. The flashing lights are error codes that will help you diagnose the problem. Refer to Appendix A,

POST Error Messages on page 187

for more information.

Turn up the brightness and contrast controls of the monitor if the monitor is dim.

Press and hold any key. If the system beeps, then the keyboard should be operating correctly.

Check all cable connections for loose connections or incorrect connections.

Helpful Hints 147

Wake the computer by pressing any key on the keyboard or pressing the power button. If the system remains in suspend mode, shut down the computer by pressing and holding the power button for at least four seconds then press the power button again to restart the computer. If the system will not shut down, unplug the power cord, wait a few seconds, then plug it in again. The computer will restart if it is set to power on automatically as soon as power is restored in

Computer Setup. If it does not restart, press the power button to start the computer.

Reconfigure the computer after installing a non-plug and play expansion board or other option.

See Solving Hardware Installation Problems on page 169 for instructions.

Be sure that all the needed device drivers have been installed. For example, if you are using a printer, you need a driver for that model printer.

Remove all bootable media (CD/DVD or USB device) from the system before turning it on.

If you have installed an operating system other than the factory-installed operating system, check to be sure that it is supported on the system.

If the system has multiple video sources (embedded, PCI, or PCI-Express adapters) installed

(embedded video on some models only) and a single monitor, the monitor must be plugged into the monitor connector on the source selected as the primary VGA adapter. During boot, the other monitor connectors are disabled and if the monitor is connected into these ports, the monitor will not function. You can select which source will be the default VGA source in Computer Setup.

CAUTION:

When the computer is plugged into an AC power source, there is always voltage applied to the system board. You must disconnect the power cord from the power source before opening the computer to prevent system board or component damage.

Solving General Problems

You may be able to easily resolve the general problems described in this section. If a problem persists and you are unable to resolve it yourself or if you feel uncomfortable about performing the operation, contact an authorized dealer or reseller.

WARNING!

When the computer is plugged into an AC power source, voltage is always applied to the system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect the power cord from the wall outlet and allow the internal system components to cool before touching.

Table 8-1 Solving General Problems

Computer appears locked up and will not turn off when the power button is pressed.

Cause

Software control of the power switch is not functional.

Solution

1.

Press and hold the power button for at least four seconds until the computer turns off.

2.

Disconnect the power cord from the electrical outlet.

148 Chapter 8 Troubleshooting Without Diagnostics

Computer will not respond to keyboard or mouse.

Cause

Computer is in Sleep state.

System has locked up.

Solution

To resume from Sleep state, press the power button.

CAUTION:

When attempting to resume from Sleep state, do not hold down the power button for more than four seconds. Otherwise, the computer will shut down and you will lose any unsaved data.

Restart computer.

Computer date and time display is incorrect.

Cause

RTC (real-time clock) battery may need to be replaced.

NOTE:

Connecting the computer to a live AC outlet prolongs the life of the RTC battery.

Solution

Reset the date and time under Control Panel (Computer

Setup can also be used to update the RTC date and time). If the problem persists, replace the RTC battery. See the

Removal and Replacement section for instructions on installing a new battery, or contact an authorized dealer or reseller for

RTC battery replacement.

To access Control Panel in Windows 7, select Start, and then select Control Panel.

To access Control Panel in Windows 8, from the Start screen, type c, and then select Control Panel from the list of applications.

Cursor will not move using the arrow keys on the keypad.

Cause Solution

The Num Lock key is turned on.

Press the Num Lock key. The Num Lock light must be off if you want to use the arrow keys on the keypad. You can also disable or enable the Num Lock key in Computer Setup at

Advanced > Device Options.

There is no sound or sound volume is too low.

Cause

System volume may be set low or muted.

Solution

1.

Check the Computer Setup settings to make sure the internal system speaker is not muted (this setting does not affect the external speakers).

2.

Make sure the external speakers are properly connected and powered on and that the speakers' volume control is set correctly.

3.

Use the system volume control available in the operating system to make sure the speakers are not muted or to increase the volume.

Solving General Problems 149

Cannot remove computer cover or access panel.

Cause

Smart Cover Lock, featured on some computers, is locked.

Solution

Unlock the Smart Cover Lock using Computer Setup.

In case of forgotten password, power loss, or computer malfunction, you must manually disable the Smart Cover lock .

A key to unlock the Smart Cover Lock is not available from

HP. Keys are typically available from a hardware store.

Poor performance.

Cause Solution

Processor is too hot.

Hard drive is full.

1.

Make sure airflow to the computer is not blocked. Leave a 10.2-cm (4-inch) clearance on all vented sides of the computer and above the monitor to permit the required airflow.

2.

Make sure fans are connected and working properly

(some fans only operate when needed).

3.

Make sure the processor heat sink is installed properly.

Transfer data from the hard drive to create more space on the hard drive.

Add more memory.

Defragment hard drive.

Low on memory.

Hard drive fragmented.

Program previously accessed did not release reserved memory back to the system.

Virus resident on the hard drive.

Restart the computer.

Run virus protection program.

Too many applications running.

Windows 7:

1.

Close unnecessary applications to free up memory.

2.

Add more memory.

3.

Some applications run in the background and can be closed by right-clicking on their corresponding icons in the task tray. To prevent these applications from launching at startup:

In Windows 7:

a. Go to Start > All Programs > Accessories >

Run

b. Type msconfig, and then press Enter .

c.

On the Startup tab of the System Configuration

Utility, clear applications that you do not want to launch automatically, and the click OK.

150 Chapter 8 Troubleshooting Without Diagnostics

Table 8-1 Solving General Problems (continued)

Poor performance.

Cause Solution

In Windows 8:

a. On the Start screen, right-click, and then select the

All apps icon.

b. Under Windows System, click Run.

c.

Type msconfig, and then press Enter .

d. On the Startup tab of the System Configuration

Utility, clear applications that you do not want to launch automatically, and the click OK.

Some software applications, especially games, are stressful on the graphics subsystem.

1.

Lower the display resolution for the current application or consult the documentation that came with the application for suggestions on how to improve performance by adjusting parameters in the application.

2.

Add more memory.

3.

Upgrade the graphics solution.

Cause unknown.

Restart the computer.

Computer powered off automatically and the Power LED flashes Red two times, once every second, followed by a two second pause, and the computer beeps two times. (Beeps stop after fifth iteration but

LEDs continue flashing).

Cause

Processor thermal protection activated:

A fan may be blocked or not turning.

OR

The heat sink is not properly attached to the processor.

Solution

1.

Ensure that the computer air vents are not blocked and the processor cooling fan is running.

2.

Open the access panel, press the power button, and see if the processor fan (or other system fan) spins. If the fan does not spin, make sure the fan cable is plugged onto the system board header.

3.

If fan a plugged in and not spinning, replace it.

Solving General Problems 151

System does not power on and the LEDs on the front of the computer are not flashing.

Cause Solution

System unable to power on.

Press and hold the power button for less than 4 seconds. If the hard drive LED turns green, then:

1.

If equipped with a voltage selector, check that the voltage selector (located on the rear of the power supply) is set to the appropriate voltage. Proper voltage setting depends on your region.

2.

Remove the expansion cards one at a time until the

5V_aux light on the system board turns on.

3.

Replace the system board.

OR

Press and hold the power button for less than 4 seconds. If the hard drive LED does not turn on green then:

1.

Check that the unit is plugged into a working AC outlet.

2.

Open the access panel and check that the power button cable is properly connected to the system board.

3.

Check that the power supply cables are properly connected to the system board.

4.

Check to see if the 5V_aux light on the system board is turned on. If it is turned on, then replace the power button assembly.

5.

If the 5V_aux light on the system board is off, then replace the power supply.

6.

Replace the system board.

Solving Power Problems

Common causes and solutions for power problems are listed in the following table.

Table 8-2 Solving Power Problems

Power supply shuts down intermittently.

Cause

If equipped with a voltage selector, voltage selector switch on rear of computer chassis (some models) not switched to correct line voltage (115V or 230V).

Power supply will not turn on because of internal power supply fault.

Solution

Select the proper AC voltage using the selector switch.

Replace the power supply.

152 Chapter 8 Troubleshooting Without Diagnostics

Computer powered off automatically and the Power LED flashes Red two times, once every second, followed by a two second pause, and the computer beeps two times. (Beeps stop after fifth iteration but

LEDs continue flashing.)

Cause Solution

Processor thermal protection activated:

A fan may be blocked or not turning.

OR

The heat sink is not properly attached to the processor.

1.

Ensure that the computer air vents are not blocked and the processor cooling fan is running.

2.

Open the access panel, press the power button, and see if the processor fan (or other system fan) spins. If the fan does not spin, make sure the fan cable is plugged onto the system board header.

3.

If fan a plugged in and not spinning, replace it.

Power LED flashes Red four times, once every second, followed by a two second pause, and the computer beeps four times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause

Power failure (power supply is overloaded).

The incorrect external power supply adapter is being used on the All-in One or USDT.

Solution

1.

If equipped with a voltage selector, check that the voltage selector, located on the rear of the power supply

(some models), is set to the appropriate voltage. Proper voltage setting depends on your region.

2.

Open the access panel and ensure the power supply cable is seated into the connector on the system board.

3.

Check if a device is causing the problem by removing

ALL attached devices (such as hard drives or optical drives and expansion cards). Power on the system. If the system enters POST, then power off and replace one device at a time and repeat this procedure until failure occurs. Replace the device that is causing the failure.

Continue adding devices one at a time to ensure all devices are functioning properly.

4.

Replace the power supply.

5.

Replace the system board.

The power supply adapter must be at the correct power rating and use the Smart ID technology before the system will power up. Replace the power supply adapter with the HP-supplied power supply adapter.

Solving Power Problems 153

Solving Hard Drive Problems

Table 8-3 Solving Hard Drive Problems

Hard drive error occurs.

Cause

Hard disk has bad sectors or has failed.

Solution

1.

In Windows 7, click Start, click Computer, and rightclick on a drive. Select Properties, and then select the

Tools tab. Under Error-checking click Check Now.

In Windows 8, on the Start screen type e, and then select File Explorer from the list of applications. In the left column, expand Computer, right-click on a drive, select Properties, and then select the Tools tab. Under

Error checking click Check.

2.

Use a utility to locate and block usage of bad sectors. If necessary, reformat the hard disk.

Disk transaction problem.

Cause

Either the directory structure is bad or there is a problem with a file.

Solution

In Windows 7, click Start, expand Computer, and rightclick on a drive. Select Properties, and then select the

Tools tab. Under Error-checking click Check Now.

In Windows 8, on the Start screen type e, and then click File

Explorer from the list of applications. In the left column, expand Computer, right-click on a drive, select Properties, and then select the Tools tab. Under Error checking click

Check.

Drive not found (identified).

Cause

Cable could be loose.

The system may not have automatically recognized a newly installed device.

Solution

Check cable connections.

See reconfiguration directions in the

Solving Hardware

Installation Problems on page 169 section. If the system still

does not recognize the new device, check to see if the device is listed within Computer Setup. If it is listed, the probable cause is a driver problem. If it is not listed, the probable cause is a hardware problem.

If this is a newly installed drive, run the Computer Setup utility and try adding a POST delay under Advanced > Power-

On Options.

154 Chapter 8 Troubleshooting Without Diagnostics

Table 8-3 Solving Hard Drive Problems (continued)

Drive not found (identified).

Cause

The device is attached to a SATA port that has been hidden in

Computer Setup.

Solution

Run the Computer Setup utility and ensure Device Available is selected for the device's SATA port in Security > Device

Security.

Drive responds slowly immediately after power-up.

Run Computer Setup and increase the POST Delay in

Advanced > Power-On Options.

Nonsystem disk/NTLDR missing message.

Cause

The system is trying to start from the hard drive but the hard drive may have been damaged.

System files missing or not properly installed.

Hard drive boot has been disabled in Computer Setup.

Bootable hard drive is not attached as first in a multi-hard drive configuration.

Bootable hard drive is not listed first in the Boot Order.

Solution

1.

Perform Drive Protection System (DPS) testing in system

ROM.

1.

Insert bootable media and restart the computer.

2.

Boot to the windows installation media and select the recovery option. If only a restore kit is available, then select the File Backup Program option, and then restore the system.

3.

Install system files for the appropriate operating system.

Run the Computer Setup utility and enable the hard drive entry in the Storage > Boot Order list.

If attempting to boot from a hard drive, ensure it is attached to the system board dark blue SATA connector.

Run the Computer Setup utility and select Storage > Boot

Order and ensure the bootable hard drive is listed immediately under the Hard Drive entry.

Computer will not boot from hard drive.

Cause Solution

The device is attached to a SATA port that has been hidden in

Computer Setup.

Boot order is not correct.

1.

Check SATA cable connections.

2.

Run the Computer Setup utility and ensure Device

Available is selected for the device's SATA port in

Security > Device Security.

Run the Computer Setup utility and change boot sequence in

Storage > Boot Order.

Solving Hard Drive Problems 155

Table 8-3 Solving Hard Drive Problems (continued)

Computer will not boot from hard drive.

Cause

Hard Drive's “Emulation Type” is set to “None.” (some models)

Solution

Run the Computer Setup utility and change the “Emulation

Type” to “Hard Disk” in the device's details under Storage >

Device Configuration.

Hard drive is damaged.

Observe if the front panel Power LED is blinking RED and if any beeps are heard. See Appendix A,

POST Error Messages on page 187

to determine possible causes for the blinking red and beep codes.

See the Worldwide Limited Warranty for terms and conditions.

Computer seems to be locked up.

Cause

Program in use has stopped responding to commands.

Solution

1.

Use the task manager to close programs that do not respond.

2.

Attempt the normal Windows “Shut Down” procedure. If this fails, press the power button for four or more seconds to turn off the power. To restart the computer, press the power button again.

Solving Media Card Reader Problems

Table 8-4 Solving Media Card Reader Problems

Media card will not work in a digital camera after formatting it in Windows.

Cause

By default, Windows will format any media card with a capacity greater than 32MB with the FAT32 format. Some digital cameras use the FAT (FAT16 & FAT12) format and can not operate with a FAT32 formatted card.

Solution

Either format the media card in the digital camera or select

FAT file system to format the media card in a computer with

Windows.

A write-protected or locked error occurs when attempting to write to the media card.

Cause Solution

Media card is locked. Locking the media card is a safety feature that prevents writing to and deleting from an SD/

Memory Stick/PRO card.

If using an SD card, make sure that the lock tab located on the right of the SD card is not in the locked position. If using a

Memory Stick/PRO card, make sure that the lock tab located on the bottom of the Memory Stick/PRO card is not in the locked position.

156 Chapter 8 Troubleshooting Without Diagnostics

Can not write to the media card.

Cause

The media card is a read-only memory (ROM) card.

Media card is locked. Locking the media card is a safety feature that prevents writing to and deleting from an SD/

Memory Stick/PRO card.

Solution

Check the manufacturer’s documentation included with your card to see if it writable. Refer to the previous section for a list of compatible cards.

If using an SD card, make sure that the lock tab located on the right of the SD card is not in the locked position. If using a

Memory Stick/PRO card, make sure that the lock tab located on the bottom of the Memory Stick/PRO card is not in the locked position.

Unable to access data on the media card after inserting it into a slot.

Cause Solution

The media card is not inserted properly, is inserted in the wrong slot, or is not supported.

Ensure that the card is inserted properly with the gold contact on the correct side. The green LED will light if inserted properly.

Do not know how to remove a media card correctly.

Cause Solution

The computer’s software is used to safely eject the card.

In Windows 7, click Start, select Computer, right-click on the corresponding drive icon, and then select Eject. Pull the card out of the slot.

In Windows 8, on the Start screen, type e, and then click File

Explorer from the list of applications. Expand Computer, right-click on the corresponding drive icon, and then select

Eject. Pull the card out of the slot.

NOTE:

Never remove the card when the green LED is flashing

After installing the media card reader and booting to Windows, the reader and the inserted cards are not recognized by the computer.

Cause Solution

The operating system needs time to recognize the device if the reader was just installed into the computer and you are turning the PC on for the first time.

Wait a few seconds so that the operating system can recognize the reader and the available ports, and then recognize the media inserted in the reader.

Solving Media Card Reader Problems 157

After inserting a media card in the reader, the computer attempts to boot from the media card.

Cause Solution

The inserted media card has boot capability.

1.

If you do not want to boot from the media card, remove it during boot or do not select the option to boot from the inserted media card during the boot process.

2.

During POST (Power On Self-Test), press F9 to modify the boot menu.

3.

Change the boot sequence in F10 Computer Setup.

Solving Display Problems

If you encounter display problems, see the documentation that came with the monitor and to the common causes and solutions listed in the following table.

Table 8-5 Solving Display Problems

Blank screen (no video).

Cause

Monitor is not turned on and the monitor light is not on.

Bad monitor.

The cable connections are not correct.

You may have a screen blanking utility installed or energy saver features are enabled.

System ROM is corrupted; system is running in Boot Block

Emergency Recovery Mode (indicated by eight beeps).

You are using a fixed-sync monitor and it will not sync at the resolution chosen.

Computer is in Sleep state.

Monitor cable is plugged into the wrong connector.

Solution

Turn on the monitor and check that the monitor light is on.

Try a different monitor.

Check the cable connection from the monitor to the computer and to the electrical outlet.

Press any key or click the mouse button and type your password (if set).

Reflash the system ROM with the latest BIOS image.

Be sure that the monitor can accept the same horizontal scan rate as the resolution chosen.

Press the power button to resume from Sleep state.

CAUTION:

When attempting to resume from Sleep state, do not hold down the power button for more than four seconds. Otherwise, the computer will shut down and you will lose any unsaved data.

Systems may have a monitor connection on both the motherboard or an add-in card. Try moving the monitor connection to a different connector on the back of the computer

158 Chapter 8 Troubleshooting Without Diagnostics

Table 8-5 Solving Display Problems (continued)

Blank screen (no video).

Cause Solution

Monitor settings in the computer are not compatible with the monitor.

Monitor is configured to use an input that is not active.

1.

In Control Panel, select Category from the View by list, then under Appearance and Personalization, select Adjust screen resolution.

To access Control Panel in Windows 7, click Start, and then select Control Panel.

To access Control Panel in Windows 8, from the Start screen, type c, and then select Control Panel from the list of applications.

2.

Expand the Resolution box, and then use the sliding control to reset the resolution.

Use the monitor's on-screen menu controls to select the input that is being driven by the system. Refer to the monitor's user documentation for more information on the on-screen controls and settings.

Blank screen and the power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause

Pre-video memory error.

Solution

1.

Reseat DIMMs. Power on the system.

2.

Replace DIMMs one at a time to isolate the faulty module.

3.

Replace third-party memory with HP memory.

4.

Replace the system board.

Blank screen and the power LED flashes Red six times, once every second, followed by a two second pause, and the computer beeps six times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause

Pre-video graphics error.

Solution

For systems with a graphics card:

1.

Reseat the graphics card (if applicable). Power on the system.

2.

Replace the graphics card (if applicable).

3.

Replace the system board.

For systems with integrated graphics, replace the system board.

Solving Display Problems 159

Blank screen and the power LED flashes Red seven times, once every second, followed by a two second pause, and the computer beeps seven times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause

System board failure (ROM detected failure prior to video).

Solution

Replace the system board.

Monitor does not function properly when used with energy saver features.

Cause

Monitor without energy saver capabilities is being used with energy saver features enabled.

Solution

Disable monitor energy saver feature.

Dim characters.

Cause

The brightness and contrast controls are not set properly.

Cables are not properly connected.

Solution

Adjust the monitor brightness and contrast controls.

Check that the graphics cable is securely connected to the graphics card (if applicable) or video connector and the monitor.

Blurry video or requested resolution cannot be set.

Cause

If the graphics controller was upgraded, the correct graphics drivers may not be loaded.

Monitor is not capable of displaying requested resolution.

Graphics card is bad.

Solution

Install the video drivers included in the upgrade kit.

Change requested resolution.

Replace the graphics card.

The picture is broken up, rolls, jitters, or flashes.

Cause

The monitor connections may be incomplete or the monitor may be incorrectly adjusted.

Monitor needs to be degaussed.

Solution

1.

Be sure the monitor cable is securely connected to the computer.

2.

In a two-monitor system or if another monitor is in close proximity, be sure the monitors are not interfering with each other’s electromagnetic field by moving them apart.

3.

Fluorescent lights or fans may be too close to the monitor.

Degauss the monitor. Refer to the documentation that came with the monitor for instructions.

160 Chapter 8 Troubleshooting Without Diagnostics

Image is not centered.

Cause

Position may need adjustment.

Solution

Press the monitor's Menu button to access the OSD menu.

Select ImageControl/ Horizontal Position or Vertical

Position to adjust the horizontal or vertical position of the image.

“No Connection, Check Signal Cable” displays on screen.

Cause

Monitor video cable is disconnected.

Solution

Connect the video cable between the monitor and computer.

CAUTION:

Ensure that the computer power is off while connecting the video cable.

Solving Display Problems 161

“Out of Range” displays on screen.

Cause

Video resolution and refresh rate are set higher than what the monitor supports.

Solution

Restart the computer and enter Safe Mode. Change the settings to a supported setting then restart the computer so that the new settings take effect.

To enter Safe Mode in Windows 7:

1.

Restart the computer.

2.

Press and hold the F8 key as your computer restarts, before the Windows logo appears. If the Windows logo appears, you must restart the computer and try again.

3.

On the Advanced Boot Options screen, use the arrow keys to highlight the safe mode option you want, and then press Enter .

4.

Log on to your computer with a user account that has administrator rights.

When your computer is in safe mode, Safe Mode displays in the corners of your monitor. To exit safe mode, restart your computer and let Windows start normally.

To enter Safe Mode in Windows 8:

1.

Press the Windows logo + l to open the Settings charm.

2.

Select Change PC Settings, select General, and then under Advanced startup, click Restart now.

3.

Select Troubleshoot, select Advanced options, select Startup Settings, and then click Restart.

4.

Use the function keys or number keys to select the safe mode option you want.

When your computer is in safe mode, Safe Mode displays in the corners of your monitor. To exit safe mode, restart your computer and let Windows start normally.

High pitched noise coming from inside a flat panel monitor.

Cause Solution

Brightness and/or contrast settings are too high.

Lower brightness and/or contrast settings.

162 Chapter 8 Troubleshooting Without Diagnostics

Fuzzy focus; streaking, ghosting, or shadowing effects; horizontal scrolling lines; faint vertical bars; or unable to center the picture on the screen (flat panel monitors using an analog VGA input connection only).

Cause Solution

Flat panel monitor’s internal digital conversion circuits may be unable to correctly interpret the output synchronization of the graphics card.

1.

Select the monitor’s Auto-Adjustment option in the monitor’s on-screen display menu.

2.

Manually synchronize the Clock and Clock Phase onscreen display functions. To download a SoftPaq that will assist you with the synchronization, go to the following

Web site, select the appropriate monitor, and download either SP32347 or SP32202: http://www.hp.com/ support

Graphics card is not seated properly or is bad (some models).

1.

Reseat the graphics card.

2.

Replace the graphics card.

Certain typed symbols do not appear correct.

Cause

The font you are using does not support that particular symbol.

Solution

Use the Character Map to locate and select the appropriate symbol. You can copy the symbol from the Character Map into a document.

In Windows 7, click Start, select All Programs, select

Accessories, select System Tools, and then select

Character Map.

In Windows 8, on the Start screen, type ch, and then select

Character Map from the list of applications.

Solving Audio Problems

If the computer has audio features and you encounter audio problems, see the common causes and solutions listed in the following table.

Table 8-6 Solving Audio Problems

Sound cuts in and out.

Cause

Processor resources are being used by other open applications.

Solution

Shut down all open processor-intensive applications.

Solving Audio Problems 163

Sound does not come out of the speaker or headphones.

Cause Solution

Software volume control is turned down or muted.

Audio is hidden in Computer Setup.

The external speakers are not turned on.

The audio device may be connected to the wrong jack.

External speakers plugged into the wrong audio jack on a recently installed sound card.

Headphones or devices connected to the line-out connector mute the internal speaker.

Computer is in Sleep state.

Internal speaker is disabled in Computer Setup.

The application is set to use a different audio device than speakers.

Some applications can select which audio output device is used.

The operating system controls may be set to use a different audio device as the default output device than what is expected.

Double-click the Speaker icon on the taskbar, then make sure that Mute is not selected and use the volume slider to adjust the volume.

NOTE:

In Windows 8, the taskbar is available at the bottom of the Desktop screen.

Enable the audio in Computer Setup: Security >

Device Security > System Audio.

Turn on the external speakers.

Ensure that the device is connected to the correct jack on the computer. The rear audio jack output is the green receptacle.

The speakers should be plugged into the line-out jack and the headphones should be plugged into the headphone jack.

See the sound card documentation for proper speaker connection. The rear audio jack output is the green receptacle.

Turn on and use headphones or external speakers, if connected, or disconnect headphones or external speakers.

Press the power button to resume from Sleep state.

CAUTION:

When attempting to resume from Sleep state, do not hold down the power button for more than four seconds. Otherwise, the computer will shut down and you will lose any unsaved data.

Enable the internal speaker in Computer Setup. Select

Advanced > Device Options > Internal Speaker.

Some graphics cards support audio over the DisplayPort connection (if applicable), so multiple audio devices may be listed in Device Manager. Make sure the correct device is being used.

To access Device Manager in Windows 7, click Start, select

Control Panel, and then select Device Manager.

To access Device Manager in Windows 8, from the Start screen, type c , select Control Panel from the list of applications, and then select Device Manager.

Make sure the application has selected the correct audio device.

Set the operating system to use the correct audio device.

164 Chapter 8 Troubleshooting Without Diagnostics

Sound from headphones is not clear or muffled.

Cause

Headphones are plugged into the rear audio output connector. The rear audio output connector is for powered audio devices and is not designed for headphone use.

Solution

Plug the headphones into the headphone connector on the front of the computer.

Computer appears to be locked up while recording audio.

Cause Solution

The hard disk may be full.

Before recording, make sure there is enough free space on the hard disk. You can also try recording the audio file in a compressed format.

Line-in jack is not functioning properly.

Cause

Jack has been reconfigured in the audio driver or application software.

Solution

In the audio driver or application software, reconfigure the jack or set the jack to its default value.

There is no sound or sound volume is too low.

Cause

The application is set to use a different audio device than speakers.

Some applications can select which audio output device is used.

The operating system controls may be set to use a different audio device as the default output device than what is expected.

Solution

Some graphics cards support audio over the DisplayPort connection (if applicable), so multiple audio devices may be listed in Device Manager. Make sure the correct device is being used.

To access Device Manager in Windows 7, click Start, select

Control Panel, and then select Device Manager.

To access Device Manager in Windows 8, from the Start screen, type c , select Control Panel from the list of applications, and then select Device Manager.

Make sure the application has selected the correct audio device.

Set the operating system to use the correct audio device.

Solving Printer Problems

If you encounter printer problems, see the documentation that came with the printer and to the common causes and solutions listed in the following table.

Solving Printer Problems 165

Table 8-7 Solving Printer Problems

Printer will not print.

Cause Solution

Printer is not turned on and online.

Turn the printer on and make sure it is online.

The correct printer drivers for the application are not installed.

1.

Install the correct printer driver for the application.

2.

Try printing using the MS-DOS command:

DIR C:\ > [printer port] where [printer port] is the address of the printer being used. If the printer works, reload the printer driver.

To run MS-DOS commands, press the Windows key + r , type cmd in the Open box, and then click OK.

Make the proper network connections to the printer.

If you are on a network, you may not have made the connection to the printer.

Printer may have failed.

Run printer self-test.

Printer will not turn on.

Cause

The cables may not be connected properly.

Solution

Reconnect all cables and check the power cord and electrical outlet.

Printer prints garbled information.

Cause

The correct printer driver for the application is not installed.

The cables may not be connected properly.

Printer memory may be overloaded.

Solution

Install the correct printer driver for the application.

Reconnect all cables.

Reset the printer by turning it off for one minute, then turn it back on.

Printer will not print.

Cause

The printer may be out of paper.

Solution

Check the paper tray and refill it if it is empty.

Solving Keyboard and Mouse Problems

If you encounter keyboard or mouse problems, see the documentation that came with the equipment and to the common causes and solutions listed in the following table.

166 Chapter 8 Troubleshooting Without Diagnostics

Table 8-8 Solving Keyboard Problems

A wireless keyboard/mouse is not working correctly. Symptoms include lagging mouse movement, jumpy mouse/keyboard, or no function of mouse/keyboard and external drive.

Cause

If your computer is equipped with USB 3.0 ports, connected

USB 3.0 devices can interfere with the wireless keyboard USB receiver.

Solution

Connect the wireless keyboard USB receiver to a USB 2.0

port that is separated from ports with USB 3.0 devices. If you still experience interference, you may have to place the connectors farther apart using an external USB hub.

Keyboard commands and typing are not recognized by the computer.

Cause Solution

Keyboard connector is not properly connected.

Program in use has stopped responding to commands.

Keyboard needs repairs.

Computer is in Sleep state.

Shut down the computer, reconnect the keyboard to the back of the computer, and then restart the computer.

Shut down your computer using the mouse and then restart the computer.

See the Worldwide Limited Warranty for terms and conditions.

Press the power button to resume from Sleep state.

CAUTION:

When attempting to resume from Sleep date, do not hold down the power button for more than four seconds.

Otherwise, the computer will shut down and you will lose any unsaved data.

Cursor will not move using the arrow keys on the keypad.

Cause

The Num Lock key is on.

Solution

Press the Num Lock key. The Num Lock light should be off if you want to use the arrow keys on the keypad. You can disable or enable the Num Lock key in Computer Setup at

Advanced > Device Options.

Solving Keyboard and Mouse Problems 167

Table 8-9 Solving Mouse Problems

Mouse does not respond to movement or is too slow.

Cause Solution

Mouse connector is not properly plugged into the back of the computer.

Program in use has stopped responding to commands.

Mouse may need cleaning.

Mouse may need repair.

Computer is in Sleep state.

Shut down the computer using the keyboard.

Windows 7:

1.

Press the Ctrl and Esc keys at the same time (or press the

Windows logo key) to display the Start menu.

2.

Use the arrow keys to select Shut Down and then press

Enter .

3.

After the shutdown is complete, plug the mouse connector into the back of the computer (or the keyboard) and restart.

Windows 8:

1.

Press the Windows logo + l to open the Settings charm.

2.

Use the arrow keys to select Power, and then press

Enter .

3.

Use the arrow keys to select Shut Down, and then press Enter .

4.

After the shutdown is complete, plug the mouse connector into the back of the computer (or the keyboard) and restart.

Shut down the computer using the keyboard then restart the computer.

Remove the roller ball cover on the mouse and clean the internal components.

See the Worldwide Limited Warranty for terms and conditions.

Press the power button to resume from Sleep state.

CAUTION:

When attempting to resume from Sleep state, do not hold down the power button for more than four seconds. Otherwise, the computer will shut down and you will lose any unsaved data.

Mouse will only move vertically, horizontally, or movement is jerky.

Cause Solution

Mouse roller ball or the rotating encoder shafts that make contact with the ball are dirty.

Remove roller ball cover from the bottom of the mouse and clean the internal components with a mouse cleaning kit available from most computer stores.

168 Chapter 8 Troubleshooting Without Diagnostics

Solving Hardware Installation Problems

You may need to reconfigure the computer when you add or remove hardware, such as an additional drive or expansion card. If you install a plug and play device, Windows automatically recognizes the device and configures the computer. If you install a non-plug and play device, you must reconfigure the computer after completing installation of the new hardware. In Windows, use the Add Hardware

Wizard and follow the instructions that appear on the screen.

To open the Add Hardware Wizard, open a Command Prompt and open hdwwiz.exe.

WARNING!

When the computer is plugged into an AC power source, voltage is always applied to the system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect the power cord from the wall outlet and allow the internal system components to cool before touching.

Table 8-10 Solving Hardware Installation Problems

A new device is not recognized as part of the system.

Cause Solution

Device is not seated or connected properly.

Cable(s) of new external device are loose or power cables are unplugged.

Power switch of new external device is not turned on.

When the system advised you of changes to the configuration, you did not accept them.

A plug and play board may not automatically configure when added if the default configuration conflicts with other devices.

Ensure that all cables are properly and securely connected and that pins in the cable or connector are not bent down.

Turn off the computer, turn on the external device, then turn on the computer to integrate the device with the computer system.

Reboot the computer and follow the instructions for accepting the changes.

Use Windows Device Manager to deselect the automatic settings for the board and choose a basic configuration that does not cause a resource conflict. You can also use

Computer Setup to reconfigure or disable devices to resolve the resource conflict.

To access Device Manager in Windows 7, click Start, select

Control Panel, and then select Device Manager.

To access Device Manager in Windows 8, from the Start screen, type c , select Control Panel from the list of applications, and then select Device Manager.

USB ports on the computer are disabled in Computer Setup.

Ensure that the device is properly and securely connected and that pins in the connector are not bent down.

Run the Computer Setup utility and ensure that Device

available is selected for appropriate USB ports under

Security > USB Security.

Solving Hardware Installation Problems 169

Computer will not start.

Cause

Wrong memory modules were used in the upgrade or memory modules were installed in the wrong location.

Solution

1.

Review the documentation that came with the system to determine if you are using the correct memory modules and to verify the proper installation.

NOTE:

DIMM1 or XMM1 must always be installed. On all computers except the USDT, DIMM1 must be installed before DIMM2, and DIMM3 must be installed before

DIMM4.

2.

Observe the beeps and LED lights on the front of the computer. Beeps and flashing LEDs are codes for specific problems.

3.

If you still cannot resolve the issue, contact Customer

Support.

Power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause

Memory is installed incorrectly or is bad.

Solution

CAUTION:

To avoid damage to the DIMMs or the system board, you must unplug the computer power cord before attempting to reseat, install, or remove a DIMM module.

1.

Reseat DIMMs. Power on the system.

2.

Replace DIMMs one at a time to isolate the faulty module.

NOTE:

DIMM1 or XMM1 must always be installed. On all computers except the USDT, DIMM1 must be installed before DIMM2, and DIMM3 must be installed before

DIMM4

3.

Replace third-party memory with HP memory.

4.

Replace the system board.

Power LED flashes Red six times, once every second, followed by a two second pause, and the computer beeps six times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause

Graphics card (some models) is not seated properly or is bad, or system board is bad.

Solution

For systems with a graphics card:

1.

Reseat the graphics card. Power on the system.

2.

Replace the graphics card.

3.

Replace the system board.

For systems with integrated graphics, replace the system board.

170 Chapter 8 Troubleshooting Without Diagnostics

Power LED flashes Red ten times, once every second, followed by a two second pause, and the computer beeps ten times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause

Bad option card.

Solution

1.

Check each option card by removing the cards one at time (if multiple cards), then power on the system to see if fault goes away.

2.

Once bad card is identified, remove and replace bad option card.

3.

Replace the system board.

Solving Network Problems

Some common causes and solutions for network problems are listed in the following table. These guidelines do not discuss the process of debugging the network cabling.

Table 8-11 Solving Network Problems

Wake-on-LAN feature is not functioning.

Cause

S5 Maximum Power Saving feature is enabled.

Solution

Disable the S5 Maximum Power Saving option in Computer

Setup. Select Power > Hardware Power Management

> S5 Maximum Power Savings.

Solving Network Problems 171

Table 8-11 Solving Network Problems (continued)

Wake-on-LAN feature is not functioning.

Cause Solution

S5 Wake on LAN is disabled (some models).

Enable the S5 Wake on LAN option in Computer Setup.

Select Advanced > Device Options > S5 Wake on

LAN.

Wake-on-LAN is not enabled.

To enable Wake-on-LAN in Windows 7:

1.

Select Start > Control Panel > Network and

Sharing Center.

2.

Under Tasks, select Manage network

connections.

3.

Click Local Area Connection.

4.

Click the Properties button.

5.

Click the Configure button.

6.

Click the Power Management tab, then select

Allow this device to wake the computer.

To enable Wake-on-LAN in Windows 8:

1.

From the Start screen, type c , and then select Control

Panel from the list of applications.

2.

Select Network and Sharing Center, and then click the Ethernet link next to the connection.

3.

Click the Properties button.

4.

Click the Configure button.

5.

Click the Power Management tab, then enable the appropriate Wake-on LAN option.

Network driver does not detect network controller.

Cause

Network controller is disabled.

Incorrect network driver.

Solution

1.

Run Computer Setup and enable network controller.

2.

Enable the network controller in the operating system using Device Manager.

To access Device Manager in Windows 7, click Start, select Control Panel, and then select Device

Manager.

To access Device Manager in Windows 8, from the Start screen, type c , select Control Panel from the list of applications, and then select Device Manager.

Check the network controller documentation for the correct driver or obtain the latest driver from the manufacturer’s Web site.

172 Chapter 8 Troubleshooting Without Diagnostics

Network status link light never flashes.

NOTE: The network status light is supposed to flash when there is network activity.

Cause Solution

No active network is detected.

Network controller is not set up properly.

Network controller is disabled.

Network driver is not properly loaded.

System cannot autosense the network.

Check cabling and network equipment for proper connection.

Check for the device status within Windows, such as Device

Manager for driver load and the Network Connections applet within Windows for link status.

To access Device Manager in Windows 7, click Start, select

Control Panel, and then select Device Manager.

To access Device Manager in Windows 8, from the Start screen, type c , select Control Panel from the list of applications, and then select Device Manager.

1.

Run Computer Setup and enable network controller.

2.

Enable the network controller in the operating system using Device Manager.

To access Device Manager in Windows 7, click Start, select Control Panel, and then select Device

Manager.

To access Device Manager in Windows 8, from the Start screen, type c , select Control Panel from the list of applications, and then select Device Manager.

Reinstall network drivers.

Disable auto-sensing capabilities and force the system into the correct operating mode.

Diagnostics reports a failure.

Cause

The cable is not securely connected.

The cable is attached to the incorrect connector.

There is a problem with the cable or a device at the other end of the cable.

Network controller interrupt is shared with an expansion board.

The network controller is defective.

Solution

Ensure that the cable is securely attached to the network connector and that the other end of the cable is securely attached to the correct device.

Ensure that the cable is attached to the correct connector.

Ensure that the cable and device at the other end are operating correctly.

Under the Computer Setup Advanced menu, change the resource settings for the board.

Contact an authorized service provider.

Solving Network Problems 173

Diagnostics passes, but the computer does not communicate with the network.

Cause Solution

Network drivers are not loaded, or driver parameters do not match current configuration.

The network controller is not configured for this computer.

Make sure the network drivers are loaded and that the driver parameters match the configuration of the network controller.

Make sure the correct network client and protocol is installed.

Select the Network and Sharing Center icon in the

Control Panel and configure the network controller.

To access Control Panel in Windows 7, click Start, and then select Control Panel.

To access Control Panel in Windows 8, from the Start screen, type c , and then select Control Panel.

Network controller stopped working when an expansion board was added to the computer.

Cause Solution

Network controller interrupt is shared with an expansion board.

The network controller requires drivers.

The expansion board installed is a network card (NIC) and conflicts with the embedded NIC.

Under the Computer Setup Advanced menu, change the resource settings for the board.

Verify that the drivers were not accidentally deleted when the drivers for a new expansion board were installed.

Under the Computer Setup Advanced menu, change the resource settings for the board.

Network controller stops working without apparent cause.

Cause Solution

The files containing the network drivers are corrupted.

The cable is not securely connected.

The network controller is defective.

Reinstall the network drivers using the Recovery Disc Set in

Windows 7 or Windows recovery tools in Windows 8.

If necessary, download the softpaq from the web (from a different computer).

Ensure that the cable is securely attached to the network connector and that the other end of the cable is securely attached to the correct device.

Contact an authorized service provider.

New network card will not boot.

Cause

New network card may be defective or may not meet industrystandard specifications.

Solution

Install a working, industry-standard NIC, or change the boot sequence to boot from another source.

174 Chapter 8 Troubleshooting Without Diagnostics

Cannot connect to network server when attempting Remote System Installation.

Cause Solution

The network controller is not configured properly.

Verify Network Connectivity, that a DHCP Server is present, and that the Remote System Installation Server contains the

NIC drivers for your NIC.

System setup utility reports unprogrammed EEPROM.

Cause Solution

Unprogrammed EEPROM.

Contact an authorized service provider.

Solving Memory Problems

If you encounter memory problems, some common causes and solutions are listed in the following table.

CAUTION:

Power may still be supplied to the DIMMs when the computer is turned off (depending on the Management Engine (ME) settings). To avoid damage to the DIMMs or the system board, you must unplug the computer power cord before attempting to reseat, install, or remove a memory module.

For those systems that support ECC memory, HP does not support mixing ECC and non-ECC memory.

Otherwise, the computer will not boot the operating system.

NOTE:

The memory count will be affected by configurations with the Management Engine (ME) enabled. The ME uses 8MB of system memory in single channel mode or 16MB of memory in dualchannel mode to download, decompress, and execute the ME firmware for Out-of-Band (OOB), thirdparty data storage, and other management functions.

Table 8-12 Solving Memory Problems

System will not boot or does not function properly after installing additional memory modules.

Cause Solution

A memory module is not installed in the DIMM1 or XMM1 socket.

Memory module is not the correct type or speed grade for the system or the new memory module is not seated properly.

Ensure that a memory module is installed in the DIMM1 or

XMM1 socket on the system board. This socket must be populated with a memory module.

Replace module with the correct industry-standard device for the computer. On some models, ECC and non-ECC memory modules cannot be mixed.

Out of memory error.

Cause

You have run out of memory to run the application.

Solution

Check the application documentation to determine the memory requirements.

Solving Memory Problems 175

Memory count during POST is wrong.

Cause

The memory modules may not be installed correctly.

Integrated graphics may use system memory.

Solution

Check that the memory modules have been installed correctly and that proper modules are used.

No action required.

Insufficient memory error during operation.

Cause

Too many Terminate and Stay Resident programs (TSRs) are installed.

You have run out of memory for the application.

Solution

Delete any TSRs that you do not need.

Check the memory requirements for the application or add more memory to the computer.

Power LED flashes Red five times, once every second, followed by a two second pause, and the computer beeps five times. (Beeps stop after fifth iteration but LEDs continue flashing.)

Cause Solution

Memory is installed incorrectly or is bad.

1.

Reseat DIMMs. Power on the system.

2.

Replace DIMMs one at a time to isolate the faulty module.

3.

Replace third-party memory with HP memory.

4.

Replace the system board.

Solving Processor Problems

If you encounter processor problems, common causes and solutions are listed in the following table.

Table 8-13 Solving Processor Problems

Poor performance is experienced.

Cause

Processor is hot.

Solution

1.

Make sure the airflow to the computer is not blocked.

2.

Make sure the fans are connected and working properly

(some fans only operate when needed).

3.

Make sure the processor heat sink is installed properly.

176 Chapter 8 Troubleshooting Without Diagnostics

Power LED flashes Red three times, once every second, followed by a two second pause.

Cause Solution

Processor is not seated properly or not installed.

1.

Check to see that the processor is present.

2.

Reseat the processor.

Power LED flashes Red eleven times, once every second, followed by a two second pause.

Cause Solution

The current processor does not support a feature previously enabled on this system.

1.

Install a TXT (Trusted Execution Technology) capable processor.

2.

Disable TXT in the Computer Setup (F10) utility.

3.

Reinstall the original processor.

Solving CD-ROM and DVD Problems

If you encounter CD-ROM or DVD problems, see the common causes and solutions listed in the following table or to the documentation that came with the optional device.

Table 8-14 Solving CD-ROM and DVD Problems

System will not boot from CD-ROM or DVD drive.

Cause

The device is attached to a SATA port that has been hidden in the Computer Setup utility.

Solution

Run the Computer Setup utility and ensure Device Available is selected for the device's SATA port in Security > Device

Security.

Removable Media Boot is disabled in the Computer Setup utility.

Network Boot is enabled in Computer Setup.

Non-bootable CD in drive.

Boot order not correct.

Run the Computer Setup utility and enable booting to removable media in Storage > Storage Options. Ensure

CD-ROM is enabled in Storage > Boot Order.

Run the Computer Setup utility and disable Network Boot in

Security > Network Boot.

Try a bootable CD in the drive.

Run the Computer Setup utility and change boot sequence in

Storage > Boot Order.

Drive not found (identified).

Cause

Cable could be loose.

Solution

Check cable connections.

Solving CD-ROM and DVD Problems 177

Table 8-14 Solving CD-ROM and DVD Problems (continued)

Drive not found (identified).

Cause

The system may not have automatically recognized a newly installed device.

The device is attached to a SATA port that has been hidden in

Computer Setup.

Drive responds slowly immediately after power-up.

Solution

See reconfiguration directions in the

Solving Hardware

Installation Problems on page 169 section. If the system still

does not recognize the new device, check to see if the device is listed within Computer Setup. If it is listed, the probable cause is a driver problem. If it is not listed, the probable cause is a hardware problem.

If this is a newly installed drive, run the Computer Setup utility and try adding a POST delay under Advanced > Power-

On Options.

Run the Computer Setup utility and ensure Device Available is selected for the device's SATA port in Security > Device

Security.

Run Computer Setup and increase the POST Delay in

Advanced > Power-On Options.

CD-ROM or DVD devices are not detected or driver is not loaded.

Cause Solution

Drive is not connected properly or not properly configured.

See the documentation that came with the optional device.

Movie will not play in the DVD drive.

Cause

Movie may be regionalized for a different country.

Decoder software is not installed.

Damaged media.

Movie rating locked out by parental lock.

Media installed upside down.

Solution

See the documentation that came with the DVD drive.

Install decoder software.

Replace media.

Use DVD software to remove parental lock.

Reinstall media.

Cannot eject compact disc (tray-load unit).

Cause

Disc not properly seated in the drive.

Solution

Turn off the computer and insert a thin metal rod into the emergency eject hole and push firmly. Slowly pull the tray out from the drive until the tray is fully extended, then remove the disc.

178 Chapter 8 Troubleshooting Without Diagnostics

CD-ROM, CD-RW, DVD-ROM, or DVD-R/RW drive cannot read a disc or takes too long to start.

Cause Solution

Media is corrupt.

Media has been inserted upside down.

The DVD-ROM drive takes longer to start because it has to determine the type of media played, such as audio or video.

CD or DVD disc is dirty.

Windows does not detect the CD-ROM or DVD-ROM drive.

Try different media to confirm whether media is valid.

Re-insert the media with the label facing up.

Wait at least 30 seconds to let the DVD-ROM drive determine the type of media being played. If the disc still does not start, read the other solutions listed for this topic.

Clean CD or DVD with a CD cleaning kit, available from most computer stores.

1.

Use Device Manager to remove or uninstall the device.

To access Device Manager in Windows 7, click Start, select Control Panel, and then select Device

Manager.

To access Device Manager in Windows 8, from the Start screen, type c , select Control Panel from the list of applications, and then select Device Manager.

2.

Restart the computer and let Windows detect the CD or

DVD driver.

Recording or copying CDs is difficult or impossible.

Cause

Wrong or poor quality media type.

Solution

1.

Try using a slower speed when recording.

2.

Verify that you are using the correct media for the drive.

3.

Try a different brand of media. Quality varies widely between manufacturers.

Solving USB Flash Drive Problems

If you encounter USB flash drive problems, common causes and solutions are listed in the following table.

Table 8-15 Solving USB Flash Drive Problems

USB flash drive is not seen as a drive letter in Windows.

Cause

The drive letter after the last physical drive is not available.

Solution

Change the default drive letter for the flash drive in Windows.

Solving USB Flash Drive Problems 179

USB flash drive not found (identified).

Cause

The device is attached to a USB port that has been hidden in

Computer Setup.

The device was not properly seated before power-up.

Solution

Run the Computer Setup utility and enable USB ports in

Security > USB Security.

Ensure the device is fully inserted into the USB port before applying power to the system

System will not boot from USB flash drive.

Cause

Boot order is not correct.

Removable Media Boot is disabled in the Computer Setup utility.

Solution

Run the Computer Setup utility and change boot sequence in

Storage > Boot Order.

Run the Computer Setup utility and enable booting to removable media in Storage > Storage Options. Ensure

USB is enabled in Storage > Boot Order.

The computer boots to DOS after making a bootable flash drive.

Cause Solution

Flash drive is bootable.

Flash drive is defective.

Install the flash drive only after the operating system boots.

Try a different flash drive.

Solving Front Panel Component Problems

If you encounter problems with devices connected to the front panel, refer to the common causes and solutions listed in the following table.

A USB device, headphone, or microphone is not recognized by the computer.

Cause Solution

Device is not properly connected.

The device does not have power.

The correct device driver is not installed.

The cable from the device to the computer does not work.

1.

Turn off the computer.

2.

Reconnect the device to the front of the computer and restart the computer.

If the USB device requires AC power, be sure one end is connected to the device and one end is connected to a live outlet.

1.

Install the correct driver for the device.

2.

You might need to reboot the computer.

1.

If possible, replace the cable.

2.

Restart the computer.

180 Chapter 8 Troubleshooting Without Diagnostics

A USB device, headphone, or microphone is not recognized by the computer.

Cause Solution

The device is not working.

USB ports on the computer are disabled in Computer Setup.

1.

Replace the device.

2.

Restart the computer.

Run the Computer Setup utility and ensure that the USB ports are set to Enabled in Security > USB Security.

Solving Internet Access Problems

If you encounter Internet access problems, consult your Internet Service Provider (ISP) or refer to the common causes and solutions listed in the following table.

Unable to connect to the Internet.

Cause

Internet Service Provider (ISP) account is not set up properly.

Web browser is not set up properly.

Cable/DSL modem is not plugged in.

Cable/DSL service is not available or has been interrupted due to bad weather.

The CAT5 UTP cable is disconnected.

Solution

Verify Internet settings or contact your ISP for assistance.

Verify that the Web browser is installed and set up to work with your ISP.

Plug in cable/DSL modem. You should see a “power” LED light on the front of the cable/DSL modem.

Try connecting to the Internet at a later time or contact your

ISP. (If the cable/DSL service is connected, the “cable” LED light on the front of the cable/DSL modem will be on.)

Connect the CAT5 UTP cable between the cable modem and the computers’s RJ-45 connector. (If the connection is good, the “PC” LED light on the front of the cable/DSL modem will be on.)

Solving Internet Access Problems 181

Unable to connect to the Internet.

Cause

IP address is not configured properly.

Cookies are corrupted. (A “cookie” is a small piece of information that a Web server can store temporarily with the

Web browser. This is useful for having the browser remember some specific information that the Web server can later retrieve.)

Solution

Contact your ISP for the correct IP address.

Windows 7:

1.

Select Start > Control Panel.

2.

Click Internet Options.

3.

In the Browsing history section on the General tab, click the Delete button.

4.

Select the Cookies check box and click the Delete button.

Windows 8:

1.

From the Start screen, type c , and then select Control

Panel from the list of applications..

2.

Click Internet Options.

3.

In the Browsing history section on the General tab, click the Delete button.

4.

Select the Cookies check box and click the Delete button.

Cannot automatically launch Internet programs.

Cause

You must log on to your ISP before some programs will start.

Solution

Log on to your ISP and launch the desired program.

Solving Software Problems

Most software problems occur as a result of the following:

The application was not installed or configured correctly.

There is insufficient memory available to run the application.

There is a conflict between applications.

Be sure that all the needed device drivers have been installed.

If you have installed an operating system other than the factory-installed operating system, check to be sure it is supported on the system.

If you encounter software problems, see the applicable solutions listed in the following table.

182 Chapter 8 Troubleshooting Without Diagnostics

Computer will not continue and the HP logo does not display.

Cause Solution

ROM issue - POST error has occurred.

Observe the beeps and LED lights on the front of the computer. See Appendix A,

POST Error Messages on page 187 to determine possible causes.

See the Worldwide Limited Warranty for terms and conditions.

Computer will not continue after HP logo screen displays.

Cause

System files may be damaged.

Solution

In Windows 7, use recovery media to scan hard drive for errors, or use Windows Startup Repair to fix problems that might prevent Windows from starting correctly. Windows

Startup Repair is one of the recovery tools in the System

Recovery Options menu. You can also create a system repair disc that contains the System Recovery Options menu. If the problem is severe enough that Startup Repair doesn't start on its own and you can't access the System Recovery Options menu on your computer's hard disk, you can get to the menu and start Startup Repair by using the Windows installation disc or a system repair disc that you created earlier.

In Windows 8, use Automatic Repair to fix problems that might prevent Windows from starting correctly.

To access Automatic Repair:

1.

Press the Windows logo + l to open the Settings charm.

2.

Select Change PC Settings, select General, and then under Advanced startup, click Restart now.

3.

Select Troubleshoot, select Advanced options, and then select Automatic Repair.

Windows starts Automatic Repair.

4.

Select the account to use to begin Automatic Repair, and type the password for the account.

Windows diagnoses the computer and attempts the repair it.

“Illegal Operation has Occurred” error message is displayed.

Cause Solution

Software being used is not Microsoft-certified for your version of Windows.

Configuration files are corrupt.

Verify that the software is certified by Microsoft for your version of Windows (see program packaging for this information).

If possible, save all data, close all programs, and restart the computer.

Solving Software Problems 183

Contacting Customer Support

For help and service, contact an authorized reseller or dealer. To locate a reseller or dealer near you, visit http://www.hp.com

.

NOTE:

If you take the computer to an authorized reseller, dealer, or service provider for service, remember to provide the setup and power-on passwords if they are set.

Refer to the number listed in the warranty or in the Support Telephone Numbers guide for technical assistance.

184 Chapter 8 Troubleshooting Without Diagnostics

9 HP PC Hardware Diagnostics

To help troubleshoot and diagnose failures, use the UEFI-based hardware diagnostic solution that HP includes on all products. This tool can even be used if the computer will not boot to the operating system.

Why run HP PC Hardware Diagnostics – UEFI

The HP PC Hardware Diagnostic tools simplify the process of diagnosing hardware issues and expedite the support process when issues are found. The tools save time by pinpointing the component that needs to be replaced.

Isolate true hardware failures: The diagnostics run outside of the operating system so they effectively isolate hardware failures from issues that may be caused by the operating system or other software components.

Failure ID: When a failure is detected that requires hardware replacement, a 24-digit Failure ID is generated. This ID can then be provided to the call agent, who will either schedule support or provide replacement parts.

How to access and run HP PC Hardware Diagnostics

- UEFI

To access the UEFI diagnostics:

1.

Restart or turn on the computer and press Esc repeatedly until the BIOS boot menu appears.

2.

Press F2 or select Diagnostics (F2).

Why run HP PC Hardware Diagnostics – UEFI 185

After pressing F2 , the BIOS sequentially searches three places for the system diagnostics:

a. First – a connected USB drive (to download the diagnostics tools to a USB drive, see the instructions in

Downloading HP PC Hardware Diagnostics to a USB device on page 186 ).

b. Second – the hard disk drive.

c.

Third – in the BIOS, a core set of diagnostics (for memory and hard disk drive) that are accessible only if the USB or hard disk drive versions are not detected.

Downloading HP PC Hardware Diagnostics to a USB device

1.

Go to http://www.hp.com

.

2.

Click the Support & Drivers link.

3.

Select the Drivers & Software tab.

4.

Enter the product name in the text box and click Search.

5.

Select your specific computer model.

6.

Select your operating system.

7.

In the Diagnostic section, click the HP UEFI Support Environment link. This link provides additional information.

- or -

Click the Download button and select Run. The download includes instructions (in English) on how to install the tools on the USB device.

NOTE:

HP diagnostic solutions are developed to test components typically included on HP products.

They may not diagnose all third-party accessories that can be added to the system.

186 Chapter 9 HP PC Hardware Diagnostics

10 POST Error Messages

This appendix lists the error codes, error messages, and the various indicator light and audible sequences that you may encounter during Power-On Self-Test (POST) or computer restart, the probable source of the problem, and steps you can take to resolve the error condition.

POST Message Disabled suppresses most system messages during POST, such as memory count and non-error text messages. If a POST error occurs, the screen will display the error message. To manually switch to the POST Messages Enabled mode during POST, press any key (except F10 , F11 , or F12 ).

The default mode is POST Message Disabled.

The speed at which the computer loads the operating system and the extent to which it is tested are determined by the POST mode selection.

Quick Boot is a fast startup process that does not run all of the system level tests, such as the memory test. Full Boot runs all of the ROM-based system tests and takes longer to complete.

Full Boot may also be enabled to run every 1 to 30 days on a regularly scheduled basis. To establish the schedule, reconfigure the computer to the Full Boot Every x Days mode, using Computer Setup.

NOTE:

For more information on Computer Setup, see

Computer Setup (F10) Utility on page 10

.

POST Numeric Codes and Text Messages

This section covers those POST errors that have numeric codes associated with them. The section also includes some text messages that may be encountered during POST.

NOTE:

The computer will beep once after a POST text message is displayed on the screen.

Table 10-1 Numeric Codes and Text Messages

Control panel message Description

101-Option ROM Checksum Error System ROM or expansion board option

ROM checksum.

Recommended action

1.

Verify the correct ROM.

2.

Flash the ROM if needed.

3.

If an expansion board was recently added, remove it to see if the problem remains.

4.

Clear CMOS. (See Appendix B,

Password Security and Resetting CMOS on page 199 .)

5.

If the message disappears, there may be a problem with the expansion card.

6.

Replace the system board.

POST Numeric Codes and Text Messages 187

Table 10-1 Numeric Codes and Text Messages (continued)

Control panel message Description Recommended action

103-System Board Failure

110-Out of Memory Space for Option ROMs Recently added PCI expansion card contains

162-System Options Not Set

163-Time & Date Not Set

163-Time & Date Not Set

164-MemorySize Error

164-MemorySize Error

DMA or timers.

an option ROM too large to download during POST.

Configuration incorrect.

RTC (real-time clock) battery may need to be replaced.

1.

Clear CMOS. (See Appendix B,

Password Security and Resetting CMOS on page 199 .)

2.

Remove expansion boards.

3.

Replace the system board.

1.

If a PCI expansion card was recently added, remove it to see if the problem remains.

2.

In Computer Setup, set Advanced >

Device Options > NIC PXE Option

ROM Download to DISABLE to prevent PXE option ROM for the internal

NIC from being downloaded during

POST to free more memory for an expansion card's option ROM. Internal

PXE option ROM is used for booting from the NIC to a PXE server.

Run Computer Setup and check the configuration in Advanced > Onboard

Devices.

Reset the date and time under Control

Panel. If the problem persists, replace the

RTC battery. See the Removal and

Replacement section for instructions on installing a new battery, or contact an authorized dealer or reseller for RTC battery replacement.

Invalid time or date in configuration memory.

RTC (real-time clock) battery may need to be replaced.

Reset the date and time under Control

Panel (Computer Setup can also be used). If the problem persists, replace the RTC battery. See the Removal and Replacement section for instructions on installing a new battery, or contact an authorized dealer or reseller for RTC battery replacement.

CMOS jumper may not be properly installed. Check for proper placement of the CMOS jumper if applicable.

Memory amount has changed since the last boot (memory added or removed).

Memory configuration incorrect.

Press the changes.

F1 key to save the memory

1.

Run Computer Setup or Windows utilities.

2.

Make sure the memory module(s) are installed properly.

3.

If third-party memory has been added, test using HP-only memory.

4.

Verify proper memory module type.

188 Chapter 10 POST Error Messages

Table 10-1 Numeric Codes and Text Messages (continued)

Control panel message

201-Memory Error

213-Incompatible Memory Module in

Memory Socket(s) X, X, ...

214-DIMM Configuration Warning

219-ECC Memory Module Detected ECC

Modules not supported on this Platform

301-Keyboard Error

303-Keyboard Controller Error

304-Keyboard or System Unit Error

Description

RAM failure.

A memory module in memory socket identified in the error message is missing critical SPD information, or is incompatible with the chipset.

Populated DIMM Configuration is not optimized.

Recently added memory module(s) support

ECC memory error correction.

Keyboard failure.

I/O board keyboard controller.

Keyboard failure.

Recommended action

1.

Ensure memory modules are correctly installed.

2.

Verify proper memory module type.

3.

Remove and replace the identified faulty memory module(s).

4.

If the error persists after replacing memory modules, replace the system board.

1.

Verify proper memory module type.

2.

Try another memory socket.

3.

Replace DIMM with a module conforming to the SPD standard.

Rearrange the DIMMs so that each channel has the same amount of memory.

1.

If additional memory was recently added, remove it to see if the problem remains.

2.

Check product documentation for memory support information.

1.

Reconnect keyboard with computer turned off.

2.

Check connector for bent or missing pins.

3.

Ensure that none of the keys are depressed.

4.

Replace keyboard.

1.

Reconnect keyboard with computer turned off.

2.

Replace the system board.

1.

Reconnect the keyboard with computer turned off.

2.

Ensure that none of the keys are depressed.

3.

Replace the keyboard.

4.

Replace the system board.

POST Numeric Codes and Text Messages 189

Table 10-1 Numeric Codes and Text Messages (continued)

Control panel message Description Recommended action

501-Display Adapter Failure

510-Flash Screen Image Corrupted

511-CPU, CPUA, or CPUB Fan not Detected

512-Chassis, Rear Chassis, or Front Chassis

Fan not Detected

513-Front Chassis fan not detected

514-CPU or Chassis Fan not Detected

515-Power Supply fan not detected

601-Diskette Controller Error

605-Diskette Drive Type Error

660-Display cache is detected unreliable

Graphics display controller.

Flash Screen image has errors.

CPU fan is not connected or may have malfunctioned.

Chassis, rear chassis, or front chassis fan is not connected or may have malfunctioned.

Front chassis fan is not connected or may have malfunctioned.

CPU or chassis fan is not connected or may have malfunctioned.

Power supply fan is not connected or may have malfunctioned.

1.

Reseat the graphics card (if applicable).

2.

Clear CMOS. (See Appendix B,

Password Security and Resetting CMOS on page 199 .)

3.

Verify monitor is attached and turned on.

4.

Replace the graphics card (if possible).

Reflash the system ROM with the latest BIOS image.

1.

Reseat CPU fan.

2.

Reseat fan cable.

3.

Replace CPU fan.

1.

Reseat chassis, rear chassis, or front chassis fan.

2.

Reseat fan cable.

3.

Replace chassis, rear chassis, or front chassis fan.

1.

Reseat front chassis fan.

2.

Reseat fan cable.

3.

Replace front chassis fan.

1.

Reseat CPU or chassis fan.

2.

Reseat fan cable.

3.

Replace CPU or chassis fan.

1.

Reseat power supply fan.

2.

Reseat fan cable.

3.

Replace power supply fan.

Diskette controller circuitry or floppy drive circuitry incorrect.

Mismatch in drive type.

1.

Check and/or replace cables.

2.

Clear CMOS. (See Appendix B,

Password Security and Resetting CMOS on page 199 .)

3.

Replace the system board.

1.

Disconnect any other diskette controller devices (tape drives).

2.

Clear CMOS. (See Appendix B,

Password Security and Resetting CMOS on page 199 .)

Integrated graphics controller display cache is not working properly and will be disabled.

Replace system board if minimal graphics degrading is an issue.

190 Chapter 10 POST Error Messages

Table 10-1 Numeric Codes and Text Messages (continued)

Control panel message Description

912-Computer Cover Has Been Removed

Since Last System Startup

Computer cover was removed since last system startup.

917-Front Audio Not Connected

918-Front USB Not Connected

Front audio harness has been detached or unseated from motherboard.

Front USB harness has been detached or unseated from motherboard.

921-Device in PCI Express slot failed to initialize

There is an incompatibility/problem with this device and the system or PCI Express Link could not be retrained to an x1.

1151-Serial Port A Address Conflict Detected Both external and internal serial ports are assigned to COM1.

1152-Serial Port B Address Conflict Detected Both external and internal serial ports are

1155-Serial Port Address Conflict Detected

1720-SMART Hard Drive Detects Imminent

Failure

1796-SATA Cabling Error assigned to COM2.

Both external and internal serial ports are assigned to same IRQ.

Hard drive is about to fail. (Some hard drives have a hard drive firmware patch that will fix an erroneous error message.)

One or more SATA devices are improperly attached. For optimal performance, the

SATA 0 and SATA 1 connectors must be used before SATA 2 and SATA 3.

Recommended action

No action required.

Reconnect or replace front audio harness.

Reconnect or replace front USB harness.

Try rebooting the system. If the error reoccurs, the device may not work with this system

1.

Remove any serial port expansion cards.

2.

Clear CMOS. (See Appendix B,

Password Security and Resetting CMOS on page 199 .)

3.

Reconfigure card resources and/or run

Computer Setup or Windows utilities.

1.

Remove any serial port expansion cards.

2.

Clear CMOS. (See Appendix B,

Password Security and Resetting CMOS on page 199 .)

3.

Reconfigure card resources and/or run

Computer Setup or Windows utilities.

1.

Remove any serial port expansion cards.

2.

Clear CMOS. (See Appendix B,

Password Security and Resetting CMOS on page 199 .)

3.

Reconfigure card resources and/or run

Computer Setup or Windows utilities.

1.

Determine if hard drive is giving correct error message. Enter Computer Setup and run the Drive Protection System test under Storage > DPS Self-test.

2.

Apply hard drive firmware patch if applicable. (Available at http://www.hp.com/support .)

3.

Back up contents and replace hard drive.

Ensure SATA connectors are used in ascending order. For one device, use SATA

0. For two devices, use SATA 0 and SATA

1. For three devices, use SATA 0, SATA 1, and SATA 2.

POST Numeric Codes and Text Messages 191

Table 10-1 Numeric Codes and Text Messages (continued)

Control panel message

1797-SATA Drivelock is not supported in

RAID mode.

1801-Microcode Patch Error

2200-PMM Allocation Error during MEBx

Download

2201-MEBx Module did not checksum correctly

2202-PMM Deallocation Error during MEBx cleanup

Description

Drivelock is enabled on one or more SATA hard drives, and they cannot be accessed while the system is configured for RAID mode.

Processor is not supported by ROM BIOS.

Memory error during POST execution of the

Management Engine (ME) BIOS Extensions option ROM.

Memory error during POST execution of the

Management Engine (ME) BIOS Extensions option ROM.

Memory error during POST execution of the

Management Engine (ME) BIOS Extensions option ROM.

Recommended action

Either remove the Drivelocked SATA device or disable the Drivelock feature. To disable the Drivelock feature, enter Computer Setup, change Storage > Storage Options >

SATA Emulation to IDE, and select File >

Save Changes and Exit. Reenter

Computer Setup and select Security >

Drivelock Security. For each listed

Drivelock-capable SATA device, ensure

Drivelock is Disabled. Lastly, change

Storage > Storage Options > SATA

Emulation back to RAID and select File >

Save Changes and Exit.

1.

Upgrade BIOS to proper version.

2.

Change the processor.

1.

Reboot the computer.

2.

Unplug the power cord, re-seat the memory modules, and reboot the computer.

3.

If the memory configuration was recently changed, unplug the computer, restore the original memory configuration, and reboot the computer.

4.

If the error persists, replace the system board.

1.

Reboot the computer.

2.

Unplug the power cord, re-seat the memory modules, and reboot the computer.

3.

If the memory configuration was recently changed, unplug the power cord, restore the original memory configuration, and reboot the computer.

4.

If the error persists, replace the system board.

1.

Reboot the computer.

2.

Unplug the power cord, re-seat the memory modules, and reboot the computer.

3.

If the memory configuration was recently changed, unplug the power cord, restore the original memory configuration, and reboot the computer.

4.

If the error persists, replace the system board.

192 Chapter 10 POST Error Messages

Table 10-1 Numeric Codes and Text Messages (continued)

Control panel message

2203-Setup error during MEBx execution

2204-Inventory error during MEBx execution

2205-Interface error during MEBx execution

2211-Memory not configured correctly for proper MEBx execution.

2212-USB Key Provisioning failure writing to device

2217-ME Firmware Version request failure

2218-ME Firmware Version should be updated

Description

MEBx selection or exit resulted in a setup failure.

BIOS information passed to the MEBx resulted in a failure.

MEBx operation experienced a hardware error during communication with ME.

DIMM1 or XMM1 is not installed.

USB device used for USB key provisioning will not allow BIOS to update provision file properly.

ME firmware is not properly responding to

BIOS query for version information.

ME firmware must be updated to match current functionality contained in the system

BIOS.

Recommended action

1.

Reboot the computer.

2.

Unplug the power cord, re-seat the memory modules, and reboot the computer.

3.

If the memory configuration was recently changed, unplug the power cord, restore the original memory configuration, and reboot the computer.

4.

If the error persists, replace the system board.

1.

Reboot the computer.

2.

If the error persists, update to the latest

BIOS version.

3.

If the error still persists, replace the system board.

1.

Reboot the computer.

2.

If the error persists, update to the latest

BIOS version.

3.

If the error still persists, replace the system board.

Make sure there is a memory module in the black DIMM1 socket and that it is properly seated.

1.

Try a different USB key device for provisioning.

2.

If the error persists, update to the latest

BIOS version and ME firmware version.

3.

If the error still persists, replace the system board.

1.

Reboot the computer.

2.

If the error persists, update to the latest

BIOS version and ME firmware version.

3.

If the error still persists, replace the system board.

1.

Update to the latest ME firmware version.

2.

If the error persists and system BIOS has been recently updated, restore previous system BIOS version.

3.

If the error still persists, replace the system board.

POST Numeric Codes and Text Messages 193

Table 10-1 Numeric Codes and Text Messages (continued)

Control panel message

2219-USB Key Provisioning file has invalid header identifier

2220-USB Key Provisioning file has mismatch version

2231-ME error during MEBx execution

2232-AMT error during MEBx execution

2233-HECI error during MEBx execution

2239-ME image lock failure

Description

Provisioning file contained on the USB key has been corrupted or is not a valid version for the current ME firmware.

Provisioning file contained on the USB key is not a valid version for the current ME firmware.

2230-General error during MEBx execution Error occurred during MEBx execution which fails into the “General” grouping. Status information displayed along with the error provides further clarity into the failure. MEBx handles transference of information between the system BIOS and ME firmware.

Error occurred during MEBx execution which fails into “ME” grouping.

Error occurred during MEBx execution which fails into “AMT” grouping.

Error occurred during MEBx execution which fails into “MEI or HECI” grouping.

Special system configurations with reduced

ME firmware image require BIOS control of

ME firmware upgrading. A failure has occurred after the ME firmware update process in which the BIOS could not relock the ME firmware region.

Recommended action

1.

Recreate the provisioning file using third party management console software.

2.

If the error persists and system BIOS has been recently updated, restore previous system BIOS version.

Otherwise, update the ME firmware version.

3.

If the error still persists, replace the system board.

1.

Reboot the computer.

2.

If the error persists and system BIOS has been recently updated, restore previous system BIOS version.

Otherwise, update the ME firmware version.

3.

If the error still persists, replace the system board.

1.

Reboot the computer.

2.

If the error persists, update to the latest

BIOS version and ME firmware version.

3.

If the error still persists, replace the system board.

1.

Reboot the computer.

2.

If the error persists, update to the latest

BIOS version and ME firmware version.

3.

If the error still persists, replace the system board.

1.

Reboot the computer.

2.

If the error persists, update to the latest

BIOS version and ME firmware version.

3.

If the error still persists, replace the system board.

1.

Reboot the computer.

2.

If the error persists, update to the latest

BIOS version and ME firmware version.

3.

If the error still persists, replace the system board.

1.

Reboot the computer.

2.

If the error persists, update to the latest

BIOS version and ME firmware version.

3.

If the error still persists, replace the system board.

194 Chapter 10 POST Error Messages

Table 10-1 Numeric Codes and Text Messages (continued)

Control panel message Description

2240-ME image unlock failure Special system configurations with reduced

ME firmware image require BIOS control of

ME firmware upgrading. A failure has occurred prior to the ME firmware update process in which the BIOS could not unlock the ME firmware region.

Invalid Electronic Serial Number Electronic serial number is missing.

Network Server Mode Active and No

Keyboard Attached

Parity Check 2

Keyboard failure while Network Server

Mode enabled.

Parity RAM failure.

Recommended action

1.

Reboot the computer.

2.

If the error persists, update to the latest

BIOS version and ME firmware version.

3.

If the error still persists, replace the system board.

Enter the correct serial number in Computer

Setup.

1.

Reconnect keyboard with computer turned off.

2.

Check connector for bent or missing pins.

3.

Ensure that none of the keys are depressed.

4.

Replace keyboard.

Run Computer Setup and Diagnostic utilities.

Interpreting POST Diagnostic Front Panel LEDs and

Audible Codes

This section covers the front panel LED codes as well as the audible codes that may occur before or during POST that do not necessarily have an error code or text message associated with them.

WARNING!

When the computer is plugged into an AC power source, voltage is always applied to the system board. To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect the power cord from the wall outlet and allow the internal system components to cool before touching.

NOTE:

If you see flashing LEDs on a PS/2 keyboard, look for flashing LEDs on the front panel of the computer and refer to the following table to determine the front panel LED codes.

Recommended actions in the following table are listed in the order in which they should be performed.

Not all diagnostic lights and audible codes are available on all models.

Table 10-2 Diagnostic Front Panel LEDs and Audible Codes

Activity Beeps Possible Cause Recommended Action

Green Power LED On.

None

Green Power LED flashes every two seconds.

None

Computer on.

Computer in Suspend to

RAM mode (some models only) or normal Suspend mode.

None

None required. Press any key or move the mouse to wake the computer.

Interpreting POST Diagnostic Front Panel LEDs and Audible Codes 195

Table 10-2 Diagnostic Front Panel LEDs and Audible Codes (continued)

Activity Beeps Possible Cause Recommended Action

Red Power LED flashes two times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

2 Processor thermal protection activated:

A fan may be blocked or not turning.

OR

The heat sink/fan assembly is not properly attached to the processor.

1.

Ensure that the computer air vents are not blocked and the processor cooling fan is running.

2.

Open hood, press power button, and see if the processor fan spins. If the processor fan is not spinning, make sure the fan's cable is plugged onto the system board header.

3.

If fan is plugged in, but is not spinning, then replace heat sink/fan assembly.

4.

Contact an authorized reseller or service provider.

Processor not installed (not an indicator of bad processor).

1.

Check to see that the processor is present.

2.

Reseat the processor.

Red Power LED flashes three times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

3

Red Power LED flashes four times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

4 Power failure (power supply is overloaded).

Red Power LED flashes five times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

5 Pre-video memory error.

1.

Open the hood and ensure the 4 or 6-wire power supply cable is seated into the connector on the system board.

2.

Check if a device is causing the problem by removing ALL attached devices (such as hard or optical drives and expansion cards).

Power on the system. If the system enters the

POST, then power off and replace one device at a time and repeat this procedure until failure occurs. Replace the device that is causing the failure. Continue adding devices one at a time to ensure all devices are functioning properly.

3.

Replace the power supply.

4.

Replace the system board.

CAUTION:

To avoid damage to the DIMMs or the system board, you must unplug the computer power cord before attempting to reseat, install, or remove a DIMM module.

1.

Reseat DIMMs.

2.

Replace DIMMs one at a time to isolate the faulty module.

3.

Replace third-party memory with HP memory.

4.

Replace the system board.

196 Chapter 10 POST Error Messages

Table 10-2 Diagnostic Front Panel LEDs and Audible Codes (continued)

Activity Beeps Possible Cause Recommended Action

Red Power LED flashes six times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

6 Pre-video graphics error.

System board failure

(ROM detected failure prior to video).

For systems with a graphics card:

1.

Reseat the graphics card.

2.

Replace the graphics card.

3.

Replace the system board.

For systems with integrated graphics, replace the system board.

Replace the system board.

Red Power LED flashes seven times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

7

Red Power LED flashes eight times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

8

Red Power LED flashes nine times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

9

Red Power LED flashes ten times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

10

Invalid ROM based on bad checksum.

System powers on but is unable to boot.

Bad option card.

1.

Reflash the system ROM with the latest BIOS image.

2.

Replace the system board.

1.

Check that the voltage selector, located on the rear of the power supply (some models), is set to the appropriate voltage. Proper voltage setting depends on your region.

2.

Unplug the AC power cord from the computer, wait 30 seconds, then plug the power cord back in to the computer.

3.

Replace the system board.

4.

Replace the processor.

1.

Check each option card by removing the card (one at a time if multiple cards), then power on the system to see if fault goes away.

2.

Once a bad card is identified, remove and replace the bad option card.

3.

Replace the system board.

Interpreting POST Diagnostic Front Panel LEDs and Audible Codes 197

Table 10-2 Diagnostic Front Panel LEDs and Audible Codes (continued)

Activity Beeps Possible Cause Recommended Action

Red Power LED flashes eleven times, once every second, followed by a two second pause. Beeps stop after fifth iteration but LEDs continue until problem is solved.

11 The current processor does not support a feature previously enabled on this system.

1.

Install a TXT capable processor.

2.

Disable TXT in the Computer Setup (F10) utility.

3.

Reinstall the original processor.

System does not power on and

LEDs are not flashing.

None System unable to power on.

Press and hold the power button for less than 4 seconds. If the hard drive LED turns green, the power button is working correctly. Try the following:

1.

Check that the voltage selector (some models), located on the rear of the power supply, is set to the appropriate voltage.

Proper voltage setting depends on your region.

2.

Replace the system board.

OR

Press and hold the power button for less than 4 seconds. If the hard drive LED does not turn on green then:

1.

Check that the unit is plugged into a working AC outlet.

2.

Open hood and check that the power button harness is properly connected to the system board.

3.

Check that both power supply cables are properly connected to the system board.

4.

Check to see if the 5V_aux light on the system board is turned on. If it is turned on, then replace the power button harness. If the problem persists, replace the system board.

5.

If the 5V_aux light on the system board is not turned on, remove the expansion cards one at a time until the 5V_aux light on the system board turns on. It the problem persists, replace the power supply.

198 Chapter 10 POST Error Messages

11 Password Security and Resetting

CMOS

This computer supports security password features, which can be established through the Computer

Setup Utilities menu.

This computer supports two security password features that are established through the Computer Setup

Utilities menu: setup password and power-on password. When you establish only a setup password, any user can access all the information on the computer except Computer Setup. When you establish only a power-on password, the power-on password is required to access Computer Setup and any other information on the computer. When you establish both passwords, only the setup password will give you access to Computer Setup.

When both passwords are set, the setup password can also be used in place of the power-on password as an override to log in to the computer. This is a useful feature for a network administrator.

If you forget the password for the computer, you can clear that password so you can gain access to the information on the computer by resetting the password jumper.

CAUTION:

Pushing the CMOS button will reset CMOS values to factory defaults. It is important to back up the computer CMOS settings before resetting them in case they are needed later. Back up is

easily done through Computer Setup. See Computer Setup (F10) Utility on page 10 for information on

backing up the CMOS settings.

Resetting the Password Jumper

CAUTION:

If you enable the stringent security feature in Computer Setup and you forget the setup password or the power-on password, the computer is inaccessible and can no longer be used.

Enabling the stringent password disables the ability to reset the password by moving the jumper on the system board.

If you lose or forget the password, the system board must be replaced. This scenario is not covered under warranty.

To prevent the computer from becoming permanently unusable, record your configured setup password or power-on password in a safe place away from your computer. Without these passwords, the computer cannot be unlocked.

Resetting the Password Jumper 199

To disable the power-on or setup password features, or to clear the power-on or setup passwords, complete the following steps:

1.

Shut down the operating system properly, then turn off the computer and any external devices, and disconnect the power cord from the power outlet.

2.

With the power cord disconnected, press the power button again to drain the system of any residual power.

WARNING!

To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect the power cord from the wall outlet, and allow the internal system components to cool before touching.

CAUTION:

When the computer is plugged in, the power supply always has voltage applied to the system board even when the unit is turned off. Failure to disconnect the power cord can result in damage to the system.

Static electricity can damage the electronic components of the computer or optional equipment.

Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object. See the Safety & Regulatory Information guide for more information.

3.

Remove the access panel.

4.

Locate the header and jumper.

NOTE:

The password jumper is green so that it can be easily identified. For assistance locating the password jumper and other system board components, see the Illustrated Parts & Service Map

(IPSM). The IPSM can be downloaded from http://www.hp.com/support .

5.

Remove the jumper from pins 1 and 2. Place the jumper on either pin 1 or 2, but not both, so that it does not get lost.

6.

Replace the computer cover or access panel.

7.

Reconnect the external equipment.

8.

Plug in the computer and turn on power. Allow the operating system to start. This clears the current passwords and disables the password features.

9.

To establish new passwords, repeat steps 1 through 4, replace the password jumper on pins 1 and 2, then repeat steps 6 through 8. Establish the new passwords in Computer Setup.

Clearing and Resetting the CMOS

The computer’s configuration memory (CMOS) stores information about the computer’s configuration.

The CMOS button resets CMOS but does not clear the power-on and setup passwords.

Clearing CMOS will clear the Active Management Technology (AMT) settings in the Management

Engine BIOS Extension (MEBx), including the password. The password will default to “admin” and will

200 Chapter 11 Password Security and Resetting CMOS

need to be reset. The AMT settings will also need to be reset. To access the MEBx, press Ctrl + P during

POST.

1.

Turn off the computer and any external devices, and disconnect the power cord from the power outlet.

2.

Disconnect the keyboard, monitor, and any other external equipment connected to the computer.

WARNING!

To reduce the risk of personal injury from electrical shock and/or hot surfaces, be sure to disconnect the power cord from the wall outlet, and allow the internal system components to cool before touching.

CAUTION:

When the computer is plugged in, the power supply always has voltage applied to the system board even when the unit is turned off. Failure to disconnect the power cord can result in damage to the system.

Static electricity can damage the electronic components of the computer or optional equipment.

Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object. See the Safety & Regulatory Information guide for more information.

3.

Remove the computer cover or access panel.

CAUTION:

Pushing the CMOS button will reset CMOS values to factory defaults. It is important to back up the computer CMOS settings before resetting them in case they are needed later. Back up is easily done through Computer Setup. See

Computer Setup (F10) Utility on page 10 for

information on backing up the CMOS settings.

4.

Locate, press, and hold the CMOS button in for five seconds.

NOTE:

Make sure you have disconnected the AC power cord from the wall outlet. The CMOS button will not clear CMOS if the power cord is connected.

Figure 11-1

CMOS button

NOTE:

For assistance locating the CMOS button and other system board components, see the

Illustrated Parts & Service Map (IPSM).

Clearing and Resetting the CMOS 201

5.

Replace the computer cover or access panel.

6.

Reconnect the external devices.

7.

Plug in the computer and turn on power.

NOTE:

You will receive POST error messages after clearing CMOS and rebooting advising you that configuration changes have occurred. Use Computer Setup to reset any special system setups along with the date and time.

For instructions on Computer Setup, see Computer Setup (F10) Utility on page 10 .

202 Chapter 11 Password Security and Resetting CMOS

12 Backup and Recovery

Restoring and recovering in Windows 7

To protect from loss or damage, back up your personal data files. Refer to the operating system or backup utility documentation for instructions on making backup copies of your data files.

To protect the software from loss or damage, keep a backup copy of all system software, applications, and related files stored on the hard drive.

If you cannot create system recovery CDs or DVDs, you can order a recovery disk set from support. To obtain the support telephone number for your region, see http://www.hp.com/support/contactHP .

System Restore

If you have a problem that might be due to software that you installed on your computer, use System

Restore to return the computer to a previous restore point. You can also set restore points manually.

NOTE:

Always use this System Restore procedure before you use the System Recovery feature.

NOTE:

Some features might not be available on systems that are shipped without a Windows operating system.

To start System Restore:

1.

Close all open programs.

2.

Click the Start button, right-click Computer, and then click Properties.

3.

Click System protection, System Restore, click Next, and then follow the on-screen instructions.

To add restore points manually:

1.

Close all open programs.

2.

Click the Start button, right-click Computer, click Properties, and then click System

protection.

3.

Under Protection Settings, select the disk for which you want to create a restore point.

4.

Click Create, and then follow the on-screen instructions.

System Recovery

WARNING!

This procedure will delete all user information. To prevent loss of information, be sure to back up all user information so you can restore it after recovery.

System Recovery completely erases and reformats the hard disk drive, deleting all data files that you have created, and then reinstalls the operating system, programs, and drivers. However, you must reinstall any software that was not installed on the computer at the factory. This includes software that

Restoring and recovering in Windows 7 203

came on media included in the computer accessory box, and any software programs you installed after purchase.

NOTE:

Always use the System Restore procedure before you use the System Recovery program. See

System Restore on page 203

.

NOTE:

Some features might not be available on systems that are shipped without a Windows operating system.

You must choose one of the following methods to perform a System Recovery:

Recovery image — Run System Recovery from a recovery image stored on your hard disk drive.

The recovery image is a file that contains a copy of the original factory-shipped software. To perform a System Recovery from a recovery image, see

System Recovery when Windows is responding on page 204

or System Recovery when Windows is not responding on page 205

.

Recovery media — Run System Recovery from recovery media that you have created from files stored on your hard disk drive or purchased separately. To create recovery media, see

System recovery using recovery media on page 205

.

System Recovery when Windows is responding

CAUTION:

System Recovery deletes all data and programs you created or installed. Before you begin, back up any important data to a CD or DVD or to a USB flash drive.

NOTE:

In some cases, you must use recovery media for this procedure. To create this media, follow

the instructions in Creating recovery media on page 206 .

If the computer is working and Windows 7 is responding, use these steps to perform a System

Recovery.

1.

Turn off the computer.

2.

Disconnect all peripheral devices from the computer except the monitor, keyboard, and mouse.

3.

Turn on the computer.

4.

When Windows has loaded, click the Start button, click All Programs, click Security and

Protection, click Recovery Manager, and then click Recovery Manager. If prompted, click Yes to allow the program to continue.

5.

Under I need help immediately, click System Recovery.

6.

Select Yes, and then click Next. Your computer restarts.

NOTE:

If your system does not detect a recovery partition, it prompts you to insert recovery media that you have created. Insert the first disc or the USB flash drive, select Yes, and then click

Next to restart the computer. If you are using discs, insert the next disc when prompted.

7.

When the computer restarts, you will see the Recovery Manager welcome screen again. Under I

need help immediately, click System Recovery. If you are prompted to back up your files, and you have not done so, select Back up your files first (recommended), and then click

Next. Otherwise, select Recover without backing up your files, and then click Next.

8.

System Recovery begins. After System Recovery is complete, click Finish to restart the computer.

9.

When Windows has loaded, shut down the computer, reconnect all peripheral devices, and then turn the computer back on.

204 Chapter 12 Backup and Recovery

System Recovery when Windows is not responding

CAUTION:

System Recovery deletes all data and programs you created or installed.

If Windows is not responding, but the computer is working, follow these steps to perform a System

Recovery.

1.

Turn off the computer. If necessary, press and hold the power button until the computer turns off.

2.

Disconnect all peripheral devices from the computer, except the monitor, keyboard, and mouse.

3.

Press the power button to turn on the computer.

4.

As soon as you see the HP logo screen, repeatedly press the F11 key on your keyboard until the

Windows is Loading Files… message appears on the screen.

5.

Under I need help immediately, click System Recovery.

6.

If you are prompted to back up your files, and you have not done so, select Back up your files

first (recommended), and then click Next. Otherwise, select Recover without backing

up your files, and then click Next.

7.

System Recovery begins. After System Recovery is complete, click Finish to restart the computer.

8.

When Windows has loaded, shut down the computer, reconnect all peripheral devices, and then turn the computer back on.

System recovery using recovery media

You should create a set of recovery media, either a set of DVDs or a USB flash drive, from the recovery image stored on your hard disk drive. This image contains the operating system and software program files that were originally installed on your computer at the factory. You can create only one set of recovery media for your computer, and the media can be used only with this computer. Store the recovery media in a safe place.

NOTE:

Some features might not be available on systems that are shipped without a Windows operating system.

To create recovery discs, your computer must have a DVD writer, and you must use only highquality blank DVD+R or DVD-R discs.

NOTE:

You cannot use DVD+RW, DVD-RW, DVD+RW DL, DVD-RW DL, DVD+R DL, or DVD-R

DL discs to create recovery discs.

You have the option of creating a recovery USB flash drive instead, using a high-quality USB drive.

If you are creating recovery discs, be sure to use high-quality discs. It is normal for the system to reject defective discs. You will be prompted to insert a new blank disc to try again.

The number of discs in the recovery-disc set depends on your computer model (typically 3 to 6

DVDs). The Recovery Media Creation program tells you the specific number of blank discs needed to make the set. If you are using a USB flash drive, the program will tell you the size of the drive required to store all the data (minimum of 8 GB).

NOTE:

The process of creating recovery media is lengthy. You can quit the process at any time.

The next time you initiate the process, it resumes where it left off.

Restoring and recovering in Windows 7 205

Creating recovery media

To create recovery discs:

1.

Close all open programs.

2.

Click the Start button, click All Programs, click Security and Protection, and then click HP

Recovery Media Creation. If prompted, click Yes to allow the program to continue.

3.

Click Create recovery media using blank DVD(s), and then click Next.

4.

Follow the on-screen instructions. Label each disc as you make it (for example, Recovery 1,

Recovery 2), and then store the discs in a secure place.

To create a recovery USB flash drive:

NOTE:

You must use a flash drive with a capacity of at least 8 GB.

1.

Close all open programs.

2.

Insert the USB flash drive into a USB port on the computer.

3.

Click the Start button, click All Programs, click Security and Protection, and then click

Recovery Media Creation.

4.

Click Create recovery media with a USB flash drive, and then click Next.

5.

Select the USB flash drive from the list of media. The program will let you know how much storage is required to create the recovery drive. If the USB flash drive does not have enough storage capacity, it will appear grayed out, and you must replace it with a larger USB flash drive. Click

Next.

NOTE:

Recovery Media Creation formats the flash drive, deleting any files on it.

6.

Follow the on-screen instructions. When the process is complete, label the USB flash drive and store it in a secure place.

NOTE:

Do not use media cards for creating recovery media. The system may not be able to boot up from a media card and you may not be able to run system recovery.

206 Chapter 12 Backup and Recovery

Using recovery media

CAUTION:

System Recovery deletes all data and programs you have created or installed. Back up any important data to a CD or DVD or to a USB flash drive.

To create recovery media, see

System recovery using recovery media on page 205 .

To perform a System Recovery using recovery media:

1.

If using a set of DVDs, insert the first recovery disc into the DVD drive tray, and close the tray. If you are using a recovery USB flash drive, insert it into a USB port.

2.

If the computer is not responding, press and hold the power button for approximately 5 seconds or until the computer turns off.

or

Click the Start button, and then click Shut Down.

3.

Disconnect all peripheral devices from the computer except the monitor, keyboard, and mouse.

4.

Press the power button to turn on the computer.

5.

Press Esc as the computer is powering on to see the startup menu. Use the arrow keys to select the boot menu and press Enter . Use the arrow keys to select the location where the recovery media is inserted (USB or DVD). Press Enter to boot from that device.

6.

If Recovery Manager asks if you want to run System Recovery from Media or Hard Drive, select

Media. On the Welcome screen, under I need help immediately, click Factory Reset.

7.

If you are prompted to back up your files, and you have not done so, select Back up your files

first (recommended), and then click Next. Otherwise, select Recover without backing

up your files, and then click Next.

8.

If you are prompted to insert the next recovery disc, do so.

9.

When Recovery Manager is finished, remove the recovery disc or the recovery USB flash drive from the system.

10.

Click Finish to restart the computer.

Backup and recovery in Windows 8

To protect your information, use Windows Backup and Restore to back up individual files and folders, back up your entire hard drive, create system repair media, or create system restore points. In case of system failure, you can use the backup files to restore the contents of your computer.

From the Start screen, type restore, click Settings, and then select from the list of displayed options.

NOTE:

For detailed instructions on various backup and restore options, perform a search for these topics in Help and Support. From the Start screen, type h, and then select Help and Support.

In case of system instability, HP recommends that you print the recovery procedures and save them for later use.

Backup and recovery in Windows 8 207

NOTE:

Windows includes the User Account Control feature to improve the security of your computer.

You may be prompted for your permission or password for tasks such as installing software, running utilities, or changing Windows settings. Refer to Help and Support for more information. From the Start screen, type h, and then select Help and Support.

Backing up your information

Recovery after a system failure is as good as your most recent backup. You should create system repair media and your initial backup immediately after initial system setup. As you add new software and data files, you should continue to back up your system on a regular basis to maintain a reasonably current backup. The system repair media is used to start up (boot) the computer and repair the operating system in case of system instability or failure. Your initial and subsequent backups allow you to restore your data and settings if a failure occurs.

Type backup on the Start screen, click Settings, and then select Save backup copies of your

files with File History.

You can back up your information to an optional external hard drive, or a network drive.

Note the following when backing up:

Store personal files in the Documents library, and back it up regularly.

Back up templates that are stored in their associated programs.

Save customized settings that appear in a window, toolbar, or menu bar by taking a screen shot of your settings. The screen shot can be a time-saver if you have to reset your preferences.

To create a backup using Backup and Restore:

NOTE:

Be sure that the computer is connected to AC power before you start the backup process.

NOTE:

The backup process may take over an hour, depending on file size and the speed of the computer.

1.

From the Start screen, type backup, click Settings, and then select from the list of displayed options.

2.

Follow the on-screen instructions to set up your backup, create a system image, or create system repair media.

Performing a system recovery

In case of system failure or instability, the computer provides the following tools to recover your files:

Windows recovery tools: You can use Windows Backup and Restore to recover information you have previously backed up. You can also use Windows Automatic Repair to fix problems that might prevent Windows from starting correctly.

● f11 recovery tools: You can use the f11 recovery tools to recover your original hard drive image.

The image includes the Windows operating system and software programs installed at the factory.

NOTE:

If you are unable to boot (start up) your computer and you cannot use the system repair media you previously created, you must purchase Windows 8 operating system media to reboot the computer and repair the operating system. For additional information, see

Using Windows 8 operating system media (purchased separately) on page 210

.

208 Chapter 12 Backup and Recovery

Using the Windows recovery tools

To recover information you previously backed up:

From the Start screen, type h, and then select Help and Support.

To recover your information using Automatic Repair, follow these steps:

CAUTION:

Some Automatic Repair options will completely erase and reformat the hard drive. For additional information go to Help and Support. From the Start screen, type h, and then select Help

and Support.

1.

If possible, back up all personal files.

2.

If possible, check for the presence of the HP Recovery partition and the Windows partition:

From the Start screen, type e, and then click Windows Explorer.

– or –

From the Start screen, type c, and then select Computer.

NOTE:

If the Windows partition and the HP Recovery partition are not listed, you must recover your operating system and programs using the Windows 8 operating system media and the Driver

Recovery media (both purchased separately). For additional information, see

Using Windows 8 operating system media (purchased separately) on page 210

.

3.

If the Windows partition and the HP Recovery partition are listed, restart the computer after

Windows has loaded, and then press and hold Shift while clicking Restart.

NOTE:

If the computer fails to boot to Windows after several attempts, the system will boot to the Windows Recovery Environment by default.

4.

Select Troubleshoot, select Advanced Options, and then select Automatic Repair.

5.

Follow the on-screen instructions.

NOTE:

For additional information on recovering information using the Windows tools, perform a search for these topics in Help and Support. From the Start screen, type h, and then select Help and

Support.

Using f11 recovery tools

CAUTION:

Using f11 completely erases hard drive contents and reformats the hard drive. All files that you have created and any software that you have installed on the computer are permanently removed. The f11 recovery tool reinstalls the operating system and HP programs and drivers that were installed at the factory. Software not installed at the factory must be reinstalled.

Backup and recovery in Windows 8 209

To recover the original hard drive image using f11 :

1.

If possible, back up all personal files.

2.

If possible, check for the presence of the HP Recovery partition: From the Start screen, type C, and then select Computer.

NOTE:

If the HP Recovery partition is not listed, you must recover your operating system and programs using the Windows 8 operating system media, and the Driver Recovery media (both purchased separately). For additional information, see

Using Windows 8 operating system media

(purchased separately) on page 210 .

3.

If the HP Recovery partition is listed, restart the computer, and then press esc while the company logo is displayed. The computer Startup Menu displays.

4.

Press f11 to select the System Recovery option.

5.

Follow the on-screen instructions.

Using Windows 8 operating system media (purchased separately)

To order Windows 8 operating system media, go to http://www.hp.com/support , select your country or region, and follow the on-screen instructions. You can also order the media by calling support.

CAUTION:

Using Windows 8 operating system media completely erases hard drive contents and reformats the hard drive. All files that you have created and any software that you have installed on the computer are permanently removed. When reformatting is complete, the recovery process helps you restore the operating system, as well as drivers, software, and utilities.

To initiate recovery using Windows 8 operating system media:

NOTE:

This process takes several minutes.

1.

If possible, back up all personal files.

2.

Restart the computer, and then follow the instructions provided with the Windows 8 operating system media to install the operating system.

3.

When prompted, press any keyboard key.

4.

Follow the on-screen instructions.

After the repair is completed:

1.

Remove the Windows 8 operating system media, and then insert the Driver Recovery media.

2.

Install the Hardware Enabling Drivers first, and then install Recommended Applications.

210 Chapter 12 Backup and Recovery

A Battery Replacement

The battery that comes with the computer provides power to the real-time clock. When replacing the battery, use a battery equivalent to the battery originally installed in the computer. The computer comes with a 3-volt lithium coin cell battery.

WARNING!

The computer contains an internal lithium manganese dioxide battery. There is a risk of fire and burns if the battery is not handled properly. To reduce the risk of personal injury:

Do not attempt to recharge the battery.

Do not expose to temperatures higher than 60°C (140ºF).

Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water.

Replace the battery only with the HP spare designated for this product.

CAUTION:

Before replacing the battery, it is important to back up the computer CMOS settings.

When the battery is removed or replaced, the CMOS settings will be cleared.

Static electricity can damage the electronic components of the computer or optional equipment. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object.

NOTE:

The lifetime of the lithium battery can be extended by plugging the computer into a live AC wall socket. The lithium battery is only used when the computer is NOT connected to AC power.

HP encourages customers to recycle used electronic hardware, HP original print cartridges, and rechargeable batteries. For more information about recycling programs, go to http://www.hp.com/ recycle .

1.

Remove/disengage any security devices that prohibit opening the computer.

2.

Remove all removable media, such as compact discs or USB flash drives, from the computer.

3.

Turn off the computer properly through the operating system, then turn off any external devices.

4.

Disconnect the power cord from the power outlet and disconnect any external devices.

CAUTION:

Regardless of the power-on state, voltage is always present on the system board as long as the system is plugged into an active AC outlet. You must disconnect the power cord to avoid damage to the internal components of the computer.

5.

Remove the computer access panel.

6.

Locate the battery and battery holder on the system board.

NOTE:

On some computer models, it may be necessary to remove an internal component to gain access to the battery.

211

7.

Depending on the type of battery holder on the system board, complete the following instructions to replace the battery.

Type 1

a. Lift the battery out of its holder.

Figure A-1

Removing a Coin Cell Battery (Type 1)

b. Slide the replacement battery into position, positive side up. The battery holder automatically secures the battery in the proper position.

Type 2

a. To release the battery from its holder, squeeze the metal clamp that extends above one edge of the battery. When the battery pops up, lift it out (1).

b. To insert the new battery, slide one edge of the replacement battery under the holder’s lip with the positive side up. Push the other edge down until the clamp snaps over the other edge of the battery (2).

Figure A-2

Removing and Replacing a Coin Cell Battery (Type 2)

Type 3

a. Pull back on the clip (1) that is holding the battery in place, and remove the battery (2).

212 Appendix A Battery Replacement

b. Insert the new battery and position the clip back into place.

Figure A-3

Removing a Coin Cell Battery (Type 3)

Type 4

a. To release the battery from its holder, insert a pointed tool in the slot to loosen the battery (1).

When the battery pops up, slide it out from under the holder, and lift it out (2).

b. To insert the new battery, slide one edge of the replacement battery under the holder’s lip with the positive side up. Push the other edge down until the clamp snaps over the other edge of the battery.

Figure A-4

Removing and Replacing a Coin Cell Battery (Type 4)

NOTE:

After the battery has been replaced, use the following steps to complete this procedure.

8.

Replace the computer access panel.

9.

Plug in the computer and turn on power to the computer.

10.

Reset the date and time, your passwords, and any special system setups using Computer Setup.

11.

Lock any security devices that were disengaged when the computer access panel was removed.

213

B Power Cord Set Requirements

The power supplies on some computers have external power switches. The voltage select switch feature on the computer permits it to operate from any line voltage between 100-120 or 220-240 volts AC.

Power supplies on those computers that do not have external power switches are equipped with internal switches that sense the incoming voltage and automatically switch to the proper voltage.

The power cord set received with the computer meets the requirements for use in the country where you purchased the equipment.

Power cord sets for use in other countries must meet the requirements of the country where you use the computer.

General Requirements

The requirements listed below are applicable to all countries:

1.

The power cord must be approved by an acceptable accredited agency responsible for evaluation in the country where the power cord set will be installed.

2.

The power cord set must have a minimum current capacity of 10A (7A Japan only) and a nominal voltage rating of 125 or 250 volts AC, as required by each country’s power system.

3.

The diameter of the wire must be a minimum of 0.75 mm

2

or 18AWG, and the length of the cord must be between 1.8 m (6 feet) and 3.6 m (12 feet).

The power cord should be routed so that it is not likely to be walked on or pinched by items placed upon it or against it. Particular attention should be paid to the plug, electrical outlet, and the point where the cord exits from the product.

WARNING!

Do not operate this product with a damaged power cord set. If the power cord set is damaged in any manner, replace it immediately.

Japanese Power Cord Requirements

For use in Japan, use only the power cord received with this product.

CAUTION:

Do not use the power cord received with this product on any other products.

214 Appendix B Power Cord Set Requirements

Country-Specific Requirements

Additional requirements specific to a country are shown in parentheses and explained below.

Country Accrediting Agency Country Accrediting Agency

Australia (1)

Austria (1)

Belgium (1)

Canada (2)

Denmark (1)

Finland (1)

France (1)

Germany (1)

EANSW

OVE

CEBC

CSA

DEMKO

SETI

UTE

VDE

Japan (3)

Norway (1)

Sweden (1)

United Kingdom (1)

United States (2)

IMQ

METI

NEMKO

SEMKO

SEV

BSI

UL

1.

The flexible cord must be Type HO5VV-F, 3-conductor, 0.75mm

2

conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country where it will be used.

2.

The flexible cord must be Type SVT or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding type with a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A, 250V) configuration.

3.

Appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the

Japanese Dentori Law. Flexible cord must be Type VCT or VCTF, 3-conductor, 0.75 mm

2

conductor size. Wall plug must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7A, 125V) configuration.

Country-Specific Requirements 215

C Specifications

MT Specifications

Table C-1 Specifications

Chassis

Height

Width

Depth

14.9 in

7.0 in

17.0 in

37.7 cm

17.7 cm

43.1 cm

Approximate Weight

Temperature Range

Operating

Nonoperating

20.5 lb

50° to 95°F

-22° to 140°F

9.3 kg

10° to 35°C

-30° to 60°C

NOTE:

Operating temperature is derated 1.0° C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level; no direct sustained sunlight. Maximum rate of change is 10° C/Hr. The upper limit may be limited by the type and number of options installed.

Relative Humidity (noncondensing)

Operating

Nonoperating (38.7°C max wet bulb)

10-90%

5-95%

10-90%

5-95%

Maximum Altitude (unpressurized)

Operating

Nonoperating

Power Supply

Operating Voltage Range

Rated Voltage Range

1

Rated Line Frequency

Operating Line Frequency

10,000 ft

30,000 ft

90-264 VAC

100-240 VAC

50-60 Hz

47-63 Hz

3048 m

9144 m

Standard Efficiency

High Efficiency

320W

320W active PFC; 87/90/87% efficient at

20/50/100% load

1

Rated Input Current 5.5A

This system utilizes an active power factor corrected power supply. This allows the system to pass the CE mark requirements for use in the countries of the European Union. The active power factor corrected power supply also has the added benefit of not requiring an input voltage range select switch.

216 Appendix C Specifications

SFF Specifications

Table C-2 Specifications

Chassis (in the desktop position)

Height

Width

Depth

Approximate Weight

Weight Supported (maximum distributed load in desktop position)

Temperature Range

Operating

Nonoperating

4.0 in

13.3 in

14.9 in

16.7 lb

77 lb

50° to 95°F

-22° to 140°F

10.0 cm

33.8 cm

37.9 cm

7.6 kg

35 kg

10° to 35°C

-30° to 60°C

NOTE:

Operating temperature is derated 1.0° C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level; no direct sustained sunlight. Maximum rate of change is 10° C/Hr. The upper limit may be limited by the type and number of options installed.

Relative Humidity (noncondensing)

Operating

Nonoperating (38.7°C max wet bulb)

10-90%

5-95%

10-90%

5-95%

Maximum Altitude (unpressurized)

Operating

Nonoperating

Power Supply

Operating Voltage Range

Rated Voltage Range

1

Rated Line Frequency

Operating Line Frequency

Standard Efficiency

High Efficiency

10,000 ft

30,000 ft

90-264 VAC

100-240 VAC

50-60 Hz

47-63 Hz

240W active PFC

240W active PFC; 87/90/87% efficient at

20/50/100% load

3048 m

9144 m

1

Rated Input Current

4A

This system utilizes an active power factor corrected power supply. This allows the system to pass the CE mark requirements for use in the countries of the European Union. The active power factor corrected power supply also has the added benefit of not requiring an input voltage range select switch.

SFF Specifications 217

Index

Symbols/Numerics

2.5-in drive adapter, spare part

number 29, 39

A

access panel

MT removal 55

MT spare part number 55

SFF removal and replacement

100

SFF spare part number 100

access panel, locked 150

access panel, MT

spare part number 26, 33

access panel, SFF

spare part number 35, 43

adapter, DisplayPort to DVI

spare part number 28, 33,

37, 43

adapter, DisplayPort to HDMI

spare part number 28, 32,

37, 42

adapter, DisplayPort to VGA

spare part number 27, 32,

37, 42

antenna, spare part number 29,

39

audible codes 195

audio problems 163

B

Backup and Restore 208

battery

disposal 51

battery replacement 211

beep codes 195

bezel blank

spare part number 59, 104

booting options

Full Boot 187

Quick Boot 187

C

cable management 52

cable pinouts

SATA data 52

card reader, spare part number

29, 39

cautions

AC power 45

cables 51

cooling fan 50

electrostatic discharge 45

keyboard cleaning 49 keyboard keys 49

CD-ROM or DVD problems 177

chasis types, illustrated 45

chassis fan, MT

spare part number 32

chassis fan, SFF

spare part number 43

chassis stand

spare part number 39

clamp lock, spare part number

29, 31, 39, 41

cleaning

computer 49

mouse 50

safety precautions 48

CMOS

backing up 199

clearing and resetting 200

computer

specifications 217

computer cleaning 49

country power cord set

requirements 215

Customer Support 146, 184

D

DIMMs. See memory disassembly preparation

MT 54

SFF 99

DisplayPort cable

spare part number 28, 31,

38, 41

DMS-59 to dual DVI cable

spare part number 28, 31, 41

DMS-59 to dual VGA cable

spare part number 27, 31,

37, 41

drives

MT cable connections 70

MT installation 70

MT locations 72

SFF cable connections 117

SFF installation 117

SFF locations 117

E

electrostatic discharge (ESD) 45

preventing damage 46

error

codes 187, 195 messages 187

eSATA port (expansion), spare part

number 32, 43

eSATA port assembly, spare part

number 29, 39

expansion card

MT installation 64

MT removal 64

SFF installation 109

SFF removal 109

expansion slot cover

MT removal 65

SFF removal 110

external USB webcam, spare part

number 29, 39

F

f11 recovery 209

fan

MT spare part number 93

fan duct

SFF removal and replacement

132

SFF spare part number 132

fan duct, SFF

spare part number 38, 42

fan with guard, MT

spare part number 28

218 Index

fan, MT

spare part number 32

fan, power supply 50

fan, SFF

spare part number 38, 43

fan/baffle assembly

MT removal and replacement

85

flash drive problems 179

flashing LEDs 195

front bezel

MT blank removal 59

MT removal 56

MT security 57

MT spare part number 56

removing blanks 104

SFF removal and replacement

101

SFF security 102

SFF spare part number 101

front bezel, MT

spare part number 25, 33

front bezel, SFF

spare part number 35, 43

front fan

SFF removal and replacement

133

SFF spare part number 133

front fan assembly

MT spare part number 85

front I/O and power switch assembly

SFF spare part number 136

front I/O assembly

MT spare part number 86

front I/O assembly, MT

spare part number 27, 33

front I/O assembly, SFF

spare part number 37

Front I/O cable and power switch assembly, SFF

spare part number 42

front I/O, power switch assembly

SFF removal and replacement

136

front panel components

MT 2

SFF 3

front panel problems 180

front USB panel

MT removal and replacement

86

G

general problems 148

grommet (hard drive isolation),

spare part number 29, 39

grounding methods 46

guide screws

MT location 71

SFF location 118

H

hard drive

MT installation 78

MT removal 77

proper handling 51

SATA characteristics 52

SFF installation 125

SFF removal 125

spare part numbers 30, 40

hard drive problems 154

hard drive recovery 209

hardware installation problems

169

heat sink

MT removal and replacement

89

MT spare part number 89

SFF removal and replacement

139

SFF spare part number 139

heat sink, MT

spare part number 28, 32

heat sink, SFF

spare part number 39, 42

helpful hints 147

hood sensor

SFF removal and replacement

135

SFF spare part number 135

spare part number 29, 32,

39, 42

HP Business Digital Headset, spare

part number 29, 39

I

installing

battery 211

MT drive cables 70

MT expansion card 64

MT hard drive 78

MT media card reader 75

MT memory 60

MT optical drive 75

SFF drive cables 117

SFF expansion card 109

SFF hard drive 125

SFF media card reader 123

SFF memory 105

SFF optical drive 119

Internet access problems 181

K

keyboard

cleaning 49

spare part numbers 29, 31,

32, 39, 41, 42

keyboard problems 166

L

LEDs

blinking power 195 blinking PS/2 keyboard 195

locks

MT front bezel 57

SFF front bezel 102

M

media card reader

MT installation 75

MT removal 73

SFF installation 123

SFF removal 121

Media Card Reader problems

156

memory

MT installation 60

MT socket population 61

MT specifications 60

SFF installation 105

SFF socket population 106

SFF specifications 105

memory module

spare part number 60, 105

memory modules

spare part number 26, 33,

36, 43

memory problems 175

monitor problems 158

Index 219

mouse

cleaning 50

mouse problems 166

mouse, spare part number 29,

39

MT access panel, spare part

number 26, 33

disassembly preparation 54

fan with guard, spare part

number 28

fan, spare part number 32

fan/baffle assembly removal

and replacement 85

front bezel, spare part

number 25, 33

front I/O assembly, spare part

number 27, 33

front USB panel removal and

replacement 86

heat sink removal and

replacement 89

heat sink, spare part number

28, 32

power supply removal and

replacement 95

power supply, spare part

number 26, 32

power switch/LED assembly

removal and replacement 87

power switch/LED assembly,

spare part number 27, 33

preparation for disassembly

54

processor removal and

replacement 90

rear chassis fan removal and

replacement 93

SATA hard drive cable, spare

part number 27, 33

SATA optical drive cable, spare

part number 27, 33

speaker removal and

replacement 91

speaker, spare part number

29, 32

system board removal and

replacement 96

system board, spare part

number 26, 34

N

network problems 171

numeric error codes 187

O

operating guidelines 48

optical drive

MT installation 75

MT removal 73

SFF installation 119

SFF removal 119

spare part numbers 30, 33,

40, 43

optical drive problems 177

overheating, prevention 48

P

password

clearing 199 power-on 199 setup 199

POST error messages 187

power cord set requirements

country specific 215

power problems 152

power supply

fan 50

MT removal and replacement

95

MT spare part number 95

operating voltage range 216,

217

SFF removal and replacement

142

power supply, MT

spare part number 26, 32

power supply, SFF

spare part number 35, 42

power switch/LED assembly

MT removal and replacement

87

MT spare part number 87

power switch/LED assembly, MT

spare part number 27, 33

power-on password 199

printer port (expansion), spare part

number 32, 42

printer port, PCI card

spare part number 39

printer port, spare part number

29

printer problems 165

problems

audio 163

CD-ROM or DVD 177

flash drive 179

front panel 180

general 148

hard drive 154

hardware installation 169

Internet access 181

keyboard 166

Media Card Reader 156

memory 175

monitor 158

mouse 166

network 171

power 152

printer 165

processor 176

software 182

processor

MT removal and replacement

90

SFF removal and replacement

141

spare part number 26, 34,

36, 43

processor problems 176

product ID locations 6

R

rear chassis fan

MT removal and replacement

93

MT spare part number 93

rear panel components

MT 4

SFF 5

recovery partition 209

removal and replacement

MT fan/baffle assembly 85

MT front USB panel 86

MT heat sink 89

MT power supply 95

MT power switch/LED

assembly 87

MT processor 90

MT rear chassis fan 93

220 Index

MT speaker 91

MT system board 96

SFF fan duct 132

SFF front bezel 100, 101

SFF front fan 133

SFF front I/O, power switch

assembly 136

SFF heat sink 139

SFF hood sensor 135

SFF power supply 142

SFF processor 141

SFF speaker 138

SFF system board 143

removing

battery 211

bezel blanks 104

MT bezel blanks 59

MT computer access panel 55

MT expansion card 64

MT expansion slot cover 65

MT front bezel 56

MT hard drive 77

MT media card reader 73

MT optical drive 73

SFF expansion card 109

SFF expansion slot cover 110

SFF hard drive 125

SFF media card reader 121

SFF optical drive 119

resetting

CMOS 199 password jumper 199

restoring the hard drive 209

rubber foot

spare part number 39

S

safety and comfort 146

safety precautions

cleaning 48

SATA connectors on system board

52 data cable pinouts 52 hard drive characteristics 52

SATA cable, SFF

spare part number 37

SATA drive cable, SFF

spare part number 37

SATA hard drive cable, MT

spare part number 27, 33

SATA optical drive cable, MT

spare part number 27, 33

screws, correct size 50

security

MT front bezel 57

SFF front bezel 102

serial number locations 6

serial port (expansion), spare part

number 32, 42

serial port, spare part number 29,

39

service considerations 50

setup password 199

SFF access panel, spare part

number 35, 43

chassis fan, spare part

number 43

disassembly preparation 99

fan duct removal and

replacement 132

fan duct, spare part number

38, 42 fan, spare part number 38

front bezel removal and

replacement 100, 101

front bezel, spare part

number 35, 43

front fan removal and

replacement 133

front I/O assembly, spare part

number 37

Front I/O cable and power switch assembly, spare part

number 42

front I/O, power switch assembly removal and

replacement 136

heat sink removal and

replacement 139

heat sink, spare part number

39, 42

hood sensor removal and

replacement 135

power supply removal and

replacement 142

power supply, spare part

number 35, 42

preparation for disassembly

99

processor removal and

replacement 141

SATA cable, spare part

number 37

SATA drive cable, spare part

number 37

solenoid lock, spare part

number 39

speaker removal and

replacement 138

speaker, spare part number

39, 42

system board removal and

replacement 143

system board, spare part

number 35, 44

software

problems 182

servicing computer 50

solenoid lock

spare part number 29, 32, 42

solenoid lock, SFF

spare part number 39

solid-state drive, spare part

number 30, 40

spare part number

tamper-resistant wrench 50

Torx T-15 screwdriver 50

speaker

MT removal and replacement

91

MT spare part number 91

SFF removal and replacement

138

SFF spare part number 138

speaker, MT

spare part number 29, 32

speaker, SFF

spare part number 39, 42

specifications

computer 216, 217

MT memory 60

SFF memory 105

static electricity 45

system board

MT removal and replacement

96

MT spare part number 96

Index 221

SATA connectors 52

SFF removal and replacement

143

SFF spare part number 143

system board connections

MT 69

SFF 115

system board, MT

spare part number 26, 34

system board, SFF

spare part number 35, 44

T

tamper-proof screws

tool 50

temperature control 48

tools, servicing 50

Torx T15 screwdriver 50

tower orientation 145

U

USB powered speakers, spare part

number 29, 32, 39, 42

V

ventilation, proper 48

W

Wake-on-LAN feature 171

Windows 8 operating system

DVD 210

WLAN module

removal 67, 113

spare part numbers 67, 113

222 Index
