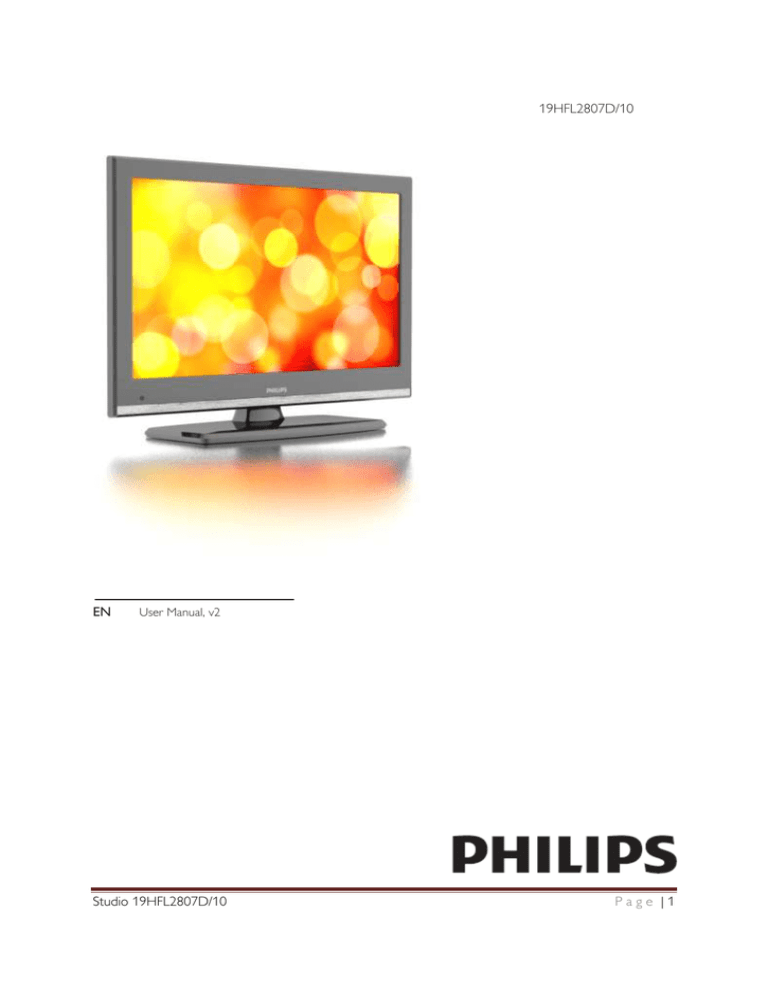

19HFL2807D/10
EN User Manual, v2
Studio 19HFL2807D/10 P a g e | 1
For support, please check your warranty card or www.philips.com/support.
Studio 19HFL2807D/10 P a g e | 2
Contents
1
2
3
4
5
6
Stand Installation/ Un-Installation
7
8
9
10
11
12
13
14
15
Supported File Formats for USB Mode
16
17
Studio 19HFL2807D/10 P a g e | 3
Safety
Read and understand all instructions before you use your TV. If damage is caused by failure to follow the instructions, the warranty does not apply.
Risk of electric shock or fire!
Never expose the TV to rain or water. Never place liquid containers, such as vases, near the
TV. If liquids are spilt on or into the TV, disconnect the TV from the power outlet immediately. Contact Philips Consumer Care to have the TV checked before use.
Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and batteries at all times.
Never insert objects into the ventilation slots or other openings on the TV.
Never expose the remote control or batteries to rain, water or excessive heat.
Avoid force coming onto power plugs. Ensure that the power plug is fully inserted into the power socket. Loose power plugs can cause arcing or fire.
When the TV is swiveled, ensure that no strain is exerted on the power cord. Strain on the power cord can loosen connections and cause arcing.
To disconnect the TV from the mains power, the power plug of the TV must be disconnected. When disconnecting the power, always pull the power plug, never the cord.
Ensure that you have full access to the power plug, power cord and outlet socket at all times.
Risk of damage to the TV!
Two people are required to lift and carry a TV that weighs more than 25kg or 55lbs.
When stand mounting the TV, use only the supplied stand. Secure the stand to the TV tightly. Place the TV on a flat, level surface that can support the combined weight of the TV and the stand.
Studio 19HFL2807D/10
When wall mounting the TV, use only a wall mount that can support the weight of the TV.
Secure the wall mount to a wall that can support the combined weight of the TV and wall mount. TP Vision Netherlands B.V. bears no responsibility for improper wall mounting that results in accident, injury or damage.
If you need to store the TV, disassemble the stand from the TV. Never lie the TV on its back with the stand installed.
Before you connect the TV to the power outlet, ensure that the power voltage matches the value printed on the back of the TV. Never connect the TV to the power outlet if the voltage is different.
Parts of this product can be made of glass.
Handle with care to avoid injury and damage.
Risk of injury to children!
Follow these precautions to prevent the TV from toppling over and causing injury to children:
Never place the TV on a surface covered by a cloth or other material that can be pulled away.
Ensure that no part of the TV hangs over the edge of the surface.
Never place the TV on tall furniture, such as a bookcase, without anchoring both the furniture and TV to the wall or a suitable support.
Educate children about the dangers of climbing on furniture to reach the TV.
Risk of swallowing batteries!
The product/remote control may contain a coin type battery, which can be swallowed.
Keep the battery out of reach of children at all times!
Risk of overheating!
Never install the TV in a confined space.
Always leave a space of at least 4 inches or 10 cm around the TV for ventilation. Ensure that curtains or other objects never cover the ventilation slots on the TV.
Risk of injury, fire or power cord damage!
Never place the TV or any objects on the power cord.
Disconnect the TV from the power outlet and aerial before lightning storms. During lightning storms, never touch any part of the TV, power cord or aerial cable.
Risk of hearing damage!
Avoid using earphones or headphones at high volumes or for prolonged periods of time.
P a g e | 4
Low temperatures
If the TV is transported in temperatures below
5°C or 41°F, unpack the TV and wait until the
TV temperature matches room temperature before connecting the TV to the power outlet.
Screen care
Risk of damage to the TV screen! Never touch, push, rub or strike the screen with any object.
Unplug the TV before cleaning.
Clean the TV and frame with a soft damp cloth. Never use substances such as alcohol, chemicals or household cleaners on the TV.
To avoid deformations and color fading, wipe off water drops as soon as possible.
Avoid stationary images as much as possible.
Stationary images are images that remain onscreen for extended periods of time.
Stationary images include onscreen menus, black bars, time displays, etc. If you must use stationary images, reduce screen contrast and brightness to avoid screen damage.
Notice
2012 © TPVision Netherlands B.V. All rights reserved. Specifications are subject to change without notice. Trademarks are the property of
Koninklijke Philips Electronics N.V or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.
The material in this manual is believed adequate for the intended use of the system. If the product, or its individual modules or procedures, are used for purposes other than those specified herein, confirmation of their validity and suitability must be obtained. TP Vision Netherlands B.V. warrants that the material itself does not infringe any United States patents. No further warranty is expressed or implied.
TP Vision Netherlands B.V. cannot be held responsible neither for any errors in the content of this document nor for any problems as a result of the content in this document. Errors reported to Philips will be adapted and published on the Philips support website as soon as possible.
Terms of warranty
Risk of injury, damage to TV or void of warranty! Never attempt to repair the TV yourself.
Use the TV and accessories only as intended by the manufacturer.
Studio 19HFL2807D/10
The caution sign printed on the back of the TV indicates risk of electric shock. Never remove the TV cover. Always contact Philips Customer
Care for service or repairs.
Any operation expressly prohibited in this manual, or any adjustments and assembly procedures not recommended or authorised in this manual shall void the warranty.
Pixel characteristics
This LCD/LED product has a high number of color pixels. Although it has effective pixels of 99.999% or more, black dots or bright points of light (red, green or blue) may appear constantly on the screen. This is a structural property of the display (within common industry standards) and is not a malfunction.
CE compliance
This product is in compliance with the essential requirements and other relevant provisions of
Directives 2006/95/EC (Low Voltage), 2004/108/EC
(EMC).
Compliance with EMF
TP Vision Netherlands B.V. manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals.
One of Philips’ leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the Electro
Magnetic Field (EMF) standards applicable at the time of producing the products.
Philips is committed to develop, produce and market products that cause no adverse health effects. TP
Vision confirms that if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.
Philips plays an active role in the development of international EMF and safety standards, enabling
Philips to anticipate further developments in standardisation for early integration in its products.
P a g e | 5
Trademarks and copyrights
Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United
States and/or other countries.
Manufactured under license from Dolby
Laboratories. Dolby and the double D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition
Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.
All other registered and unregistered trademarks are the property of their respective owners.
Sustainability
Energy efficiency
This TV is designed with energy-efficient features. To access these features, press the Green button on the remote control.
Energy saving picture settings: You can apply a combination of energy saving picture settings.
While you watch TV, press the Green button and select [Energy saving].
Screen off: If you only want to listen to audio from the TV, you can switch off the TV display.
Other functions continue to operate normally.
End of use
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the
European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.
Studio 19HFL2807D/10
Your product contains batteries covered by the European
Directive 2006/66/EC, which cannot be disposed with normal household waste.
Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.
EU energy label
The European Energy Label informs you on the energy efficiency class of the product. The greener the energy efficiency class of this product is, the lower the energy it consumes.
On the label, you can find the energy efficiency class, the average power consumption of the product in use and the average energy consumption for 1 year.
You can also find the power consumption values for the product on the Philips website for your country at www.philips.com/TV .
Help and support
Visit Philips website
Visit the Philips support website at www.philips.com/support .
At the Philips support website, you can also:
Find answers to Frequently Asked Questions
(FAQ)
Download a printable PDF version of this user manual
Email us a specific question
Chat online with our support personnel
(available in certain countries only)
Contact Philips
You can contact Philips Consumer Care in your country for support. The number is available in the leaflet accompanying this product, or online at www.philips.com/support .
Before you contact Philips, write down the model and serial number of your TV. You can find this information on the back of your TV or on the TV packaging.
P a g e | 6
Important information
TV Control switch & Operation
1. Up direction
2. Down direction
3. Program switch
Program switch can control:
Volume/ AV / Standby-On
General Operation
Installing the Batteries to the Remote
Lift the cover on the back of the remote upward gently. Install two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity). Replace the cover.
Note:
You can move the switch, upward or downward to change the volume. If you want to change channels, press the middle of the switch once (Position 3) and then move upward or downward. If you press the middle of the switch once more, source OSD will be displayed. If you press the middle of the switch and hold about a few seconds, the TV will switch to standby mode. Main menu OSD cannot be displayed via control buttons.
Connect Power & Antenna/Cable
IMPORTANT: The TV set is designed to operate on
220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.
Operation with the Remote Control
Press “MENU” button on your remote control to display main menu screen. Use Left or Right button to select a menu tab and press OK to enter. Use Left / Right / Up / Down to select or set an item. Press “MENU” or “MENU” button to quit a menu screen.
Once you have connected external systems to your TV, you can switch to different input sources. Press SOURCE button on your remote control consecutively to select the different sources.
You can change the channel and adjust the volume by using the +/- and P/CH +/- buttons on the remote.
Accessories included
Remote Control
Batteries: 2 x AAA
Studio 19HFL2807D/10 P a g e | 7
Detachable Stand Installation Method
1. Stand is placed on a flat surface.
2. The product is hold over the stand so that it coincides with the stand mounting point and then it is left to be mounted with its own weight.
Detachable Stand Un-Installation Method
1. TV is laid on a flat table.
2. Clamps on the stand are pushed.
3. Stand is pulled back.
4. Stand is detached.
Studio 19HFL2807D/10 P a g e | 8
Viewing remote control
15
16
17
18
19
20
8
9
10
11
12
13
14
4
5
6
7
1
2
3
Teletext / mix
Standby
Image Size
Sleep Timer
Info/ Reveal (in TXT mode)
Source selection
Yellow button/Current language (in DVB Channel) /
Mono-Stereo Dual I-II (in Analog Channel)
Blue button
Green button
Red button
Navigation buttons / Subpage (in TXT mode)
OK / Hold (in Text mod) /Channel List
Return /Back /Index page (in TXT mode)
Electronic Programme Guide
Menu on/off
Mute
Programme up/down
Previous Programme/ Now (in EPG mode)
Volume up/down
Numeric buttons
Studio 19HFL2807D/10
Digital Teletext (for UK only)
Press RED button to view digital teletext information.
Operate it with the coloured buttons, cursor button and
OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on digital teletext screen.
P a g e | 9
Connector
Viewing the connections
Cables (Not supplied) Type
Scart
Connection
(back)
VGA
Connection
(back)
Device
PC/YPbPr
Audio
Connection
(side)
HDMI
Connection
(back)
SPDIFF
Connection
(back)
Side AV
Connection
(side)
Headphone
Connection
(side)
USB
Connection
(side)
CI
Connection
(side)
NOTE:
When connecting a device via the Side AV input, you must use the supplied connection cables to enable connection. See the illustrations above. To enable
PC audio, you will need to use the supplied SIDE AV CONNECTION cable’s WHITE & RED inputs. If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. We recommend that you plug all your cables into the back of the TV before mounting on the wall. Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings.
Studio 19HFL2807D/10
WARNING: You cannot use VGA and YPbPr at the same time.
P a g e | 10
Switching On/Off
To Switch the TV On
Connect the power cord to the 220-240V
AC, 50 Hz.
Then the standby LED lights up.
To switch on the TV from standby mode either: o Press the “ ” button, P/CH- or
P/CH+ or a numeric button on the remote control. o Press the control switch left side of the TV. The TV will then switch on.
Note:
If you switch on your TV via CH- or CH+ buttons on the remote control or on the TV set, the program that you were watching last will be reselected.
By either method the TV will switch on.
To Switch the TV Off
Press the “ ” button on the remote control or hold the control switch on the
TV until shut down , so the TV will switch to standby mode.
To power down the TV completely, unplug the power cord from the mains socket.
Note:
When the TV is switched to standby mode, the standby
LED can blink to indicate that features such as Standby
Search, Over Air Download or Timer is active.
First Time Installation
When turned on for the first time, language selection screen is displayed in all language options listed alphabetically. Press the “
▼
“ or “
▲
” button to highlight the required language, press OK button to select. “First Time Installation” appears. Use “
◄
“ or
“
►
” button to set the required country, and press
“
▼
” button to select Search Type. Use “
◄
“ or
“
►
” to set the desired Search Type. Available search types are Digital and analog, digital only and analog only. When set, press “
▼
“ to select Teletext
Language. Use “
◄
“ or “
►
” to select Teletext
Language. Next, select Scan Encrypted and set as Yes if you want to scan coded stations. Press OK button on the remote control to continue and the search type screen will be displayed. You must select a
Studio 19HFL2807D/10 search type to search and store broadcasts from the desired source.
IMPORTANT:
When you select Country option as France or Italy, you will be asked to set and confirm a PIN number.
Selected PIN number cannot be 0000. Enter a PIN number and confirm it by entering once more. Press
OK button to continue. If the two PIN numbers match, your master PIN number will be set.
WARNING:
When you are required to enter a PIN number for any menu operation you should use the PIN that you have previously defined during the first time installation. If you have forgotten the PIN number you have set during the first time installation, you should use the master PIN code, 4725.
Aerial Installation
If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial
TV broadcasts.
NOTE: You can press “MENU”button to cancel.
After all the available stations are stored, Channel
List will be displayed on the screen. If you like the sort channels, according to the LCN (*), please select “Yes” and then press OK.
Press “MENU” button to quit channel list and watch TV.
(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence (if available).
Cable Installation
If you select CABLE option from the Search Screen, press OK button on the remote control to continue.
To continue, please select YES and press OK. To cancel operation, select NO and press OK. You can select frequency ranges from this screen. For highlighting lines you see, use “▼“ or “▲” button.
You can enter the frequency range manually by using the numeric buttons on the remote control. Set
Start and Stop Frequency as desired by using the numeric buttons on the remote control. After this operation, you can set Search Step as 8000 KHz or
1000 KHz. If you select 1000 KHz, the TV will perform search process in a detailed way. Searching duration will thus increase accordingly. Depending on your Country selection in the first time installation,
250KHz search step option might be available on
Network Channel Scan screen. Note that if you perform the search with 250KHz option,
P a g e | 11
search process could take a longer time.
Additionally, for some countries, Network ID option will be available. Network ID feature gets the
Network Information Table. This table provides information on the selected network. It may change according to the operator and the region where that operator actively broadcasts. When finished, press
OK button to start automatic search. The TV will search and store available broadcasts.
Media Playback via USB input
You can connect a USB hard disk drive or or USB memory stick to your TV by using the USB inputs of the TV. This feature allows you to play files stored in a USB drive. 2.5” and 3.5” inch (hdd with external power supply) external hard disk drives are supported.
IMPORTANT! You should back up your files before making any connections to the TV set in order to avoid any possible data loss. Manufacturer will not be responsible for any file damage or data loss. It is possible that certain types of USB devices (e.g. MP3
Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports
FAT32 and NTFS disk formatting. Note: While formatting a USB hard disk that has 1TB (TeraByte) or more file capacity, you can experience problems with the formatting process. Quickly plugging and unplugging USB devices, is a very hazardous operation. Do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the
USB player and USB device itself. Do not pull out
USB module while playing a file.
Media Browser Menu
You can play photo, music, and movie files stored on a USB disk by connecting it to your TV and using the
Media Browser screen. To do this, perform the following: Connect a USB disk to one of the USB inputs located on the side of the TV. Press “MENU” button and select Media Browser tab by using Left/
Right and OK buttons. Main media browser screen will be displayed. You can display the related content by selecting the Video, Music or Picture tab. Follow the button indications under each on screen menu for media playback features. You can set your Media
Browser preferences by using the Settings dialogue
Studio 19HFL2807D/10 P a g e | 12
TV Features and Functions
Picture Menu Contents
Mode
Contrast
Brightness
For your viewing requirements, you can set the related mode option. Picture mode can be set to one of these options: Cinema,Game,Dynamic and Natural.
Sets the lightness and darkness values of the screen.
Sets the brightness value for the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour
Power Save
Mode
Sets the colour value, adjusting the colors.
To set Power Save Mode as Eco, Picture Off and Disabled.
Backlight
(optional)
This setting controls the backlight level and it can be set to Auto, Maximum, Minimum and
Eco Mode. Backlight function will be inactive if Power Save Mode is set to On. Backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.
Noise
Reduction
If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.
Advanced Settings
Colour Temp
Sets the desired colour tone.
Picture Zoom Sets the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom, 4:3 or Cinema.
HDMI True
Black
Film Mode
(optional)
While watching from HDMI source, this feature will be visible in the Picture Settings menu.
You can use this feature to enhance blackness in the picture.
Films are recorded at a different number of frames per second to normal television programmes.Turnthisfeatureonwhenyouarewatchingfilmstoseethefastmotion scenes clearly.
Colour Shift Adjust the desired colour tone.
Reset Resets the picture settings to factory default settings.
Autoposition
(in PC mode)
Automatically optimizes the display. Press OK to optimize.
H Position (in
PC mode)
V Position (in
PC mode)
Dot Clock (in
PC mode)
This item shifts the image horizontally to right hand side or left hand side of the screen.
This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase (in PC mode)
Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.
Studio 19HFL2807D/10 P a g e | 13
TV Menu Features and Functions
Volume
Equalizer:
Sound Menu Contents
Adjusts volume level.
In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User.
Press the “MENU” button to return to the previous menu.
Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.
Balance This setting is used for emphasizing left or right speaker balance.
Headphone Sets headphone volume.
Sound Mode You can select Mono, Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.
AVL Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output level between programs (For instance, volume level of advertisements tend to be louder than programs).
Dynamic Bass Press “◄“ or “►” button to set Dynamic Bass as on or off.
Digital Out Sets digital out audio type.
Using the Channel List
The TV sorts all stored stations in the Channel List.
You can edit this channel list, set favorites or set active stations to be listed by using the Channel List options.
Select Channel List from the main menu.
Select Edit Channel List to manage all stored channels. You can move, delete, edit name and lock channels using this screen.
Select Favorites to create a list of favorite programs.
Select Active Channel List to sort channel list.
You can select a broadcast type option from the displayed list by using “▼“ or “▲” and OK buttons.
Note:
Broadcast type can be changed from other settings menu.
Configuring Parental Settings
To prohibit viewing of certain programs, channels and menus can be locked by using the parental control system.
Highlight Parental in the Settings menu and press
OK to continue. To display parental lock menu options, the PIN number should be entered. The factory default PIN number is 0000. After coding the correct PIN number, parental settings menu will be displayed.
Menu Lock: Menu lock setting enables or disables the menu access.
Maturity Lock: When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.
Child Lock: When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work.
Set PIN: Defines a new PIN number.
IMPORTANT: The factory default pin number is 0000, if you change the pin number make sure you write it down and keep it safe.
Note:
If the Country option is set to France or Italy, you can use 4725 as the default code.
Studio 19HFL2807D/10 P a g e | 14
TV Menu Features and Functions
Setting Menu Contents
Conditional Access Controls conditional access modules when available.
Language
Parental
Timers
Date/Time
Configures language settings(-may change depending on the country selected) Preferred and current settings will be available. Current settings can be changed only if the broadcaster supports.
Configures parental settings.
Sets timers for selected programs. / Sets sleep timer to turn off the TV after a certain time.
Sets date and time.
Note:
* The TV takes the time info via the broadcast. Correct time will be available on
Date/Time Settings, if the time info is provided in the broadcast.
If the TV is in no channel mode, Date/Time settings can be changed. However, if there is a channel preset, only “Time Settings Mode” can be changed and if this is set to Manual,
Time Zone will be enabled.
* If the TV is switched to standby mode and switched on later and there is no broadcast available, time information will not be updated. If there is a present broadcast; however, time information will be taken via the broadcast. In other words, time information will be available according to these priorities: The TV first looks for the time info in the broadcast, then to the user preference, and lastly to the teletext time information.
Sources Enables or disables selected source options.
Install and Retune Menu Contents
Automatic Channel
Scan (Retune)
Displays automatic tuning options.
Digital Aerial: Searches and stores aerial DVB stations.
Digital Cable: Searches and stores cable DVB stations.
Analogue: Searches and stores analogue stations.
Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations.
Digital Cable & Analogue: Searches and stores cable DVB and analogue stations.
Manual Channel
Scan
This feature can be used for direct broadcast entry.
Network Channel
Scan
Clear Service List
Searches for the linked channels in the broadcast system..
Analogue Fine Tune
First Time
Installation
You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
Deletes all stored channels and settings, resets TV to factory settings and starts first time installation. You can follow the instructions in the Initial Installation section for more information on this process.
(*) Visible for Denmark, Sweden, Norway or Finland. Clear Service List and then press
OK. The following OSD will be displayed on the screen. Select YES and press OK to continue or select NO and press OK button to cancel.
Other Settings: Displays other setting options of the TV set:
Menu Timeout
Scan Encrypted
Changes timeout duration for menu screens.
When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search.
Studio 19HFL2807D/10 P a g e | 15
TV Menu Features and Functions
Blue Background
(optional)
Activates or deactivates blue background system when the signal is weak or absent.
Software Upgrade
To ensure that your TV always has the most update information, you can use this setting.
In order for the proper operation, please ensure that the TV is set to standby mode.
Application Version Displays application version.
Hard of Hearing
Audio Description
Auto TV Off
If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.
Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports that additional narration track.
You can set the timeout value of auto off feature. When the timeout value is reached and the TV is not operated for selected time, the TV will go off.
Broadcast Type
Standby Search
(optional)
Selects the desired broadcast type.
If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On. If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. Channel list will be updated and changed after this process. Please activate Standby Search setting in order to enable your TV for automatically updating the broadcast frequency of the broadcaster, broadcast definition and similar changes.
Studio 19HFL2807D/10 P a g e | 16
Electronic Program Guide
Some, but not all channels send information about the current and next programs. Press the “EPG” button to view the EPG menu.
Up/Down/Left/Right: Navigate EPG.
OK: Displays program options.
INFO: Displays, in detail information on program selected.
GREEN: Switches to List Schedule EPG.
YELLOW: Switches to Timeline Schedule EPG.
BLUE: displays filtering options.
Program Options
In EPG menu, press the OK button to enter the
Event Options menu.
Select Channel
In EPG menu, using this option, you can switch to the selected channel.
Software Upgrade
Your TV is capable of finding and updating new software upgrades over broadcast channels (if available). For broadcast channels search, TV looks the available channels stored in your settings. So before software upgrade search, it is advised to auto search and update all available channels.
1. Software Update via USB Input
Before starting..
Ensure that you have a USB flash disk with appropriate free space. Do not use a USB hard disk drive for the software update process.
Get software updates from your dealer or www. philips.com/support.
Check the current software version of your TV using the MENU> Settings> Other Settings> Software
Upgrade item. If the version you have found is not newer than the current version on your TV, it is not necessary to update your product. Do not install a lower version of the software since this may cause problems.
After obtaining the most recent software, copy the BIN file to the USB flash disk.
Now connect the USB flash disk to the USB input of your TV.
Switch off your TV using the main control switch of the TV and unplug the power cord.
Studio 19HFL2807D/10
Hold the remote control towards the TV.
Now press the OK button and keep pressing the OK button (Do not release the OK button now).
Plug the TV to the mains and switch on the
TV.
Keep pressing the OK button five seconds more after the TV switches on and release it afterwards. Software update process should now start.
The TV will switch on in First Time Installation mode after the software update finishes.
IMPORTANT
Do not press any other buttons on the TV or on the remote control during the software update.
Do not remove the USB flash disk from the TV during the process.
To prevent accidental updates, please use your computer to delete the BIN file on your USB flash disk after the software update is successfully
finished.
2. 3 AM search and upgrade mode
If Automatic scanning in Upgrade Options menu is enabled, TV wakes up at 03:00 and searches broadcast channels for new software upgrade. If new software is found and downloaded successfully, with next power up
TV opens with new software version.
Note on reboot operation: Reboot is the last step in software upgrade operation if download of new software is finished successfully. During reboot TV makes final initialization. In reboot sequence panel power is closed and front led indicates the activity with blinking.
Around 5 minutes later TV restarts with new software activated. The TV may start in first time installation mode.
If your TV fails to restart in 10 minutes, unplug power for 10 minutes and re-plug again. TV should open with new software safely. If you still cannot get TV working, please kindly repeat unplug and plug sequence a few times more. If your set still cannot operate, please call the service personnel to fix the problem for you.
Caution: While led is blinking during reboot do not unplug your TV’s power. Doing this may cause your TV not to re-open again and can only be fixed by service personnel.
P a g e | 17
Troubleshooting & Tips
Image persistence – ghosting
Please note that ghosting may occur while displaying a persistent image (still or paused image). LED TV’s image persistence may disappear after a short time.
Try turning off the TV for a while. To avoid this, do not leave the screen in still picture mode for extended periods.
No power
If your TV has no power, please check the power cord plug is connect to the mains power socket.
Poor picture
1. Have you selected the correct TV system?
2. Is your TV or house aerial located too close to non-earthed audio equipment or neon lights, etc.?
3. Mountains or high buildings can cause double pictures or ghost images.
Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable?
4. Check if you have entered the correct frequency.
5. Please retune the channels.
6. The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.
No picture
1. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
2. Is the antenna connected properly?
3. Are the plugs connected tightly to the antenna socket?
4. Is the antenna cable damaged?
5. Are suitable plugs used to connect the antenna?
6. If you are in doubt, consult your dealer.
No sound
1. Has the TV been set to mute? To cancel mute, press button, or increase the volume level.
2. Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section.
Remote control - does not operate
Your TV no longer responds to the remote control.
The batteries may be exhausted, if so you can still use the control buttons on the TV. (* Is only possible if they are not blocked by parental control and if they are available with your model.)
Input sources - cannot be selected
1. If you cannot select an input source, it is possible that no device is connected.
2. Check the AV cables and connections if you have tried to connect a device.
Studio 19HFL2807D/10 P a g e | 18
Specifications
TV BROADCASTING
PAL/SECAM B/G D/K K’ I/I’ L/L’
DIGITAL RECEPTION
DVB-T MPEG2 DVB-T MPEG4 HD
DVB-T MHEG-5 Engine (for UK only)
DVB-C MPEG2 DVB-C MPEG4 HD
RECEIVING CHANNELS
VHF (BAND I/III) UHF (BAND U)
HYPERBAND
NUMBER OF PRESET CHANNELS
1000 (800 DVB-T / 200 Analogue)
CHANNEL INDICATOR
On Screen Display
RF AERIAL INPUT
75 Ohm (unbalanced)
OPERATING VOLTAGE
AUDIO
220-240V AC, 50 Hz.
German + Nicam Stereo
AUDIO OUTPUT POWER (WRMS) (10% THD)
2x2,5
19HFL2807D/10:
POWER CONSUMPTION
PANEL
EU energy label: 18W
16:9 display,
19” Screen Size
VESA Mounting
75mm x 75mm
Screw Type: M4
DIMENSIONS (mm)
With foot:
DxLxH (mm): 134 x 450 x 332
Weight (Kg): 2,9
Without foot:
DxLxH (mm): 35 x 450 x 296
Weight (Kg): 2,7
Studio 19HFL2807D/10 P a g e | 19
Supported DVI Resolutions PC Typical Display Modes
When connecting devices to your TV’s connectors by using DVI to HDMI cables (not supplied), you can refer to the following resolution information
10
11
12
13
14
15
16
17
18
19
4
5
6
7
8
9
Index Resolution
1
2
3
640x400
640x480
800x600
832x624
1024x768
1152x864
1152x870
1280x768
1280x960
1280x1024
1360x768
1400x1050
1400x900
1600x1200
1680x1050
1920x1080
1920x1200
480i-480p
576i-576p
Frequency
70Hz
60Hz-66Hz-72Hz-75Hz
56Hz-60Hz-70Hz-72Hz-75Hz
75Hz
60Hz-66Hz-70Hz-72Hz-75Hz
60Hz-70Hz-75Hz
75Hz
60Hz-75Hz
60Hz-75Hz
60Hz-75Hz
60Hz
60Hz-75Hz
65Hz-75Hz
60Hz
60Hz
60Hz
60Hz
60Hz
50Hz
The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1080.
8
9
10
11
12
13
14
15
16
17
18
Index
1
2
3
4
5
6
7
Resolution
640x350p
640x400p
1024x768
1280x768
1360x768
720x400
800x600
800x600
1024x768
1024x768
1280x768
1360x768
1280x1024
1280x960
1280x1024
1400x1050
1600x1200
1920x1080
Frequeuncy
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
56 Hz
60 Hz
60 Hz
66 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
60 Hz
Supported File Formats for USB Mode
Media
Movie
File Extension mpg .mpeg
.Dat
.Vob
.Mkv
.mp4
.avi
Format
Video Audio
MPEG1,2
MPEG1,2
MPEG Layer 1/2/3
MPEG2
MPEG2
H.264, MPEG1,2,4 EAC3/ AC3
MPEG4
Xvid 1.00,
PCM/MP3
Xvid 1.01, Xvid
1.02, Xvid 1.03,
Xvid 1.10-beta1/2
H.264
MPEG2, MPEG4
Xvid 1.00,
Xvid 1.01, Xvid
1.02, Xvid 1.03,
PCM
Xvid 1.10-beta1/2
H.264
Remarks
(Maximum resolution/Bit rate etc.)
MAX 1920x1080 @ 30P 20Mbit/sec
Music .mp3 -
MPEG 1 Layer 1/ 2
(MP3)
32Kbps ~ 320Kbps(Bit rate)
32KHz ~ 48KHz(Sampling rate
Subtitle
.jpg .jpeg
.
.bmp sub .srt
-
-
Baseline JPEG
Progressive JPEG
-
-
-
- max WxH = 15360x8640 4147200bytes max WxH = 9600x6400 3840000bytes max WxH = 9600x6400 3840000bytes
-
Studio 19HFL2807D/10 P a g e | 20
AV and HDMI Signal Compatibility
Source
EXT (SCART)
Side AV
YPbPr
HDMI1
480I
480P
576I
576P
720P
720P
1080I
1080I
1080P
1080P
1080P
1080P
1080P
Supported Signals
PAL 50/60
NTSC 60
RGB 50
RGB 60
PAL 50/60
NTSC 60
480I
480P
576I
576P
720P
720P
1080I
1080I
1080P
1080P
(X: Not Available, O: Available)
60Hz
60Hz
50Hz
50Hz
50Hz
60Hz
50Hz
60Hz
24Hz
25Hz
30Hz
50Hz
60Hz
60Hz
60Hz
50Hz
50Hz
50Hz
60Hz
50Hz
60Hz
50Hz
60Hz
O
O
O
O
O
O
O
O
O
O
O
O
Available
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
O
In some cases a signal on the LED TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment. If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.
Studio 19HFL2807D/10 P a g e | 21
TV Menu Professional Mode Features and Functions
Hotel Setup RC (22AV8573) Standard RC
Enter Hotel TV Menu
It is only possible to enter the Hotel TV Menu for the Professional Mode using the optional HotelTV
To exit the Hotel TV menu with standard RC:
press Menu key
SetUp Remote Control (22AV8573).
To enter the Hotel TV menu:
press RC5 Setup key
press Home/Menu key
Note:
Only the Home/Menu key on the HotelTV SetUp
RC (22AV8573) will control the TV. No other keys will function on this TV! To make changes use the
Remote Control that is included with the TV.
The RC 22AV8573 is optional and NO part of the standard accessories. This RC can be purchased at your dealer.
Exit Hotel TV Menu
Leaving the Hotel TV Menu after making the required settings can be done using the HotelTV
SetUp Remote Control (22AV8573) and the with the TV included standard Remote Control.
To exit the Hotel TV menu:
press RC5 Setup key
press Home/Menu key
Studio 19HFL2807D/10 P a g e | 22
Hotel TV Menu settings
Hotel Mode
Pin8
Last Status
Panel Lock
RCU Inhibit
[Off]
[On]
[On]
[Off]
[Off]
Feature to enable or disable the Hotel TV Menu features.
• When enabled the TV will follow configured feature settings
Note:
Access to the Hotel TV Menu is limited by the use of <Help/Menu> on the HTV Setup RC.
Below settings are only active while [Hotel Mode] is On.
Feature to enable or disable the auto SCART feature
• This feature allows a connected SCART device to turn the TV on or off.
Feature to enable or disable the last status feature
• This feature allows the TV to remember the last used configuration and restores when startup again. Otherwise default settings are used.
Feature to enable or disable the functionality of the side control TV button.
• Select [On] to lock the side control TV button.
• Select [Off] unlock the side control TV button.
Enable or disable the functionality Remote Control.
• Select [On] to block all RC commands
• Select [Off] and all RC commands are enabled.
19HFL2807D/10: Don’t set this feature to <On>
All configured settings will be lost!!
Recovery of TV to control with a RC is only possible after reinstall TV software.
Startup Position
[TV]
Select startup program/source when TV is switched on via Power On key or Digit keys.
• Auto TV wakes up in last used channel/source.
• TV TV wakes up with the channel specified in Startup Channel field
• SCART / Side AV / HDMI1/ YPbPr / VGA_PC
TV wakes up with the specified external source
Startup Channel
[1]
Volume Limit
[63]
Feature to select the channel to be used as Startup Position
Feature to set the maximum volume level.
• Range values 0-63.
Fixed Volume Enable
[Off]
Feature to set Volume to a set Fixed Volume
• Volume is fixed to the level set at Fixed Volume Value item
Fixed Volume Level
[20]
Headphone Direct
Volum
[Disabled]
Feature to set the Fixed Volume level.
• Range values 0-63.
Control Head Phone out volume instead of TV speakers.
TV speakers volume are set to Last Status before Hotel Mode is activated
Studio 19HFL2807D/10 P a g e | 23
Hotel TV Menu settings
OSD Disable
[Disable All
Menus]
Teletext
Copy To USB
<OK>
Copy From USB
<OK>
Wakeup Time
Channel
USB option
Digital Tuner
[Off]
[0]
Wakeup Time
Volume [40]
[Off]
Fixed Pic. Mode
[Off]
[On]
Multiple RC support
[Off]
Welcome Screen
[On]
Feature to hide menu items when the Remote Control Menu key is pressed.
•
Disable All Menus
○ all menu icons are hidden
•
Disable Setup Menus
○ picture, sound, settings and media browser menu icons are displayed.
When [Hotel Mode] is set to Off, all TV menu items will be displayed
(picture, sound, settings, install and retune, channel list, media browser)
Feature to hide Teletext display.
• On
• Off to enable Teletext activation. to hide Teletext.
Feature to copy configuration and channel settings
• Select [OK] to copy settings to a USB device (connected to side-I/O)
Feature to copy configuration and channel settings of a similar TV
• Select [OK] to copy settings from a USB device (connected to side-I/O)
Feature to set the channel to view when the TV wakes up.
• Use Digits button(s) to complete entry field
All timers and events are not possible to set once all menus are hidden. (Already set events must be cleared before hide all menus)
>>> OSD Disable [Disable All Menus]
Feature to set the wakeup time volume level.
Range values 0-63.
Feature to detect if a USB device is connected.
• On to enable USB device detection.
• Off to disable USB device detection.
When [Off] the Media Browser icon will be displayed but cannot be activated.
Feature to hide picture menu icon
• Off picture icon is displayed amongst all menu.
• On picture icon is hidden
• Off mixture of analog and digital channels
• On digital channels only
Feature to select a unique RC address (1 out of 4) // a.k.a. MultiRC
• Off feature is disabled
• On feature is enabled and shows what RC is set
Feature to show a welcome screen at startup
• On a welcome screen is shown
• Off a welcome screen is hidden
Studio 19HFL2807D/10 P a g e | 24
HotelTV Options
Service Menu
Enter Service Menu
It is only possible to enter the Service
Menu if the Hotel Mode is disabled,
Hotel Mode set to <Off>.
If enabled, open the Hotel TV Menu and set Hotel Mode to Off.
To enter the Service Menu:
press Menu key
press key sequence:
<1><2><3><6><5><4>
All items are unselectable under the Service Menu
The software version number will shown as
VES11E_x.y.z
MultiRC setup
Enter MultiRC Menu Feature to program a RC to pair to a TV
To enter the MultiRC Menu:
(press Menu key)
press key sequence:
<RETURN><1><2><3><4>
On the TV a menu will guides you to select desired
TV. Press relevant key and then press OK key to finish the programming.
Enter MultiRC Menu Feature to reset the
RC/TV
To enter the MultiRC Menu:
(press Menu key)
press key sequence:
<RETURN> <4><3><2><1>
On the TV you will see a dialog, “Reset OK?” Press
OK key to reset the system. After resetting, the system will return to the factory default.
Welcome Picture
Store in a welcome_image directory on a USB device a picture file with the name: hotel_wel.png.
<USB>:/welcome_image/hotel_wel.png
Picture characteristics:
Name + extension
Resolution
Note:
960h x 540v
For the welcome picture, there is a color lookup table used that is limiting the number of colors available to display. This can result in certain display color artifacts and using a limited number of different color values can improve this.
The picture can be loaded into the TV using the
Copy from USB command in the Hotel TV Menu.
In the Hotel TV Menu, set the entry: Welcome
Screen <On>
Once this feature is configured and set the welcome image will be displayed within 8 seconds after switch on. This page will remain until a key on the RC is pressed.
Studio 19HFL2807D/10 P a g e | 25
advertisement
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
Key Features
- 48.3 cm (19")
- HD 1366 x 768 pixels 16:9
- 250 cd/m²
- DVB-C, DVB-T NTSC, PAL, SECAM
- 18 W
Related manuals
advertisement
Table of contents
- 4 Important informatio
- 4 Safety
- 7 Important information
- 7 General Operation
- 7 TV Control switch & Operation
- 8 Detachable Stand Installation Method
- 8 Detachable Stand Un-Installation Method
- 9 Viewing remote control
- 10 Viewing the connections
- 11 Switching On/Off
- 11 First Time Installation
- 12 Media Playback via USB input
- 13 TV Features and Functions
- 14 TV Menu Features and Functions
- 14 Configuring Parental Settings
- 14 Using the Channel List
- 17 Electronic Program Guide
- 17 Software Upgrade
- 18 Troubleshooting & Tips
- 19 Specifications
- 20 Supported File Formats for USB Mode
- 21 AV and HDMI Signal Compatibility
- 22 TV Menu Professional Mode Features and Functions
- 23 Hotel TV Menu settings
- 25 HotelTV Options
