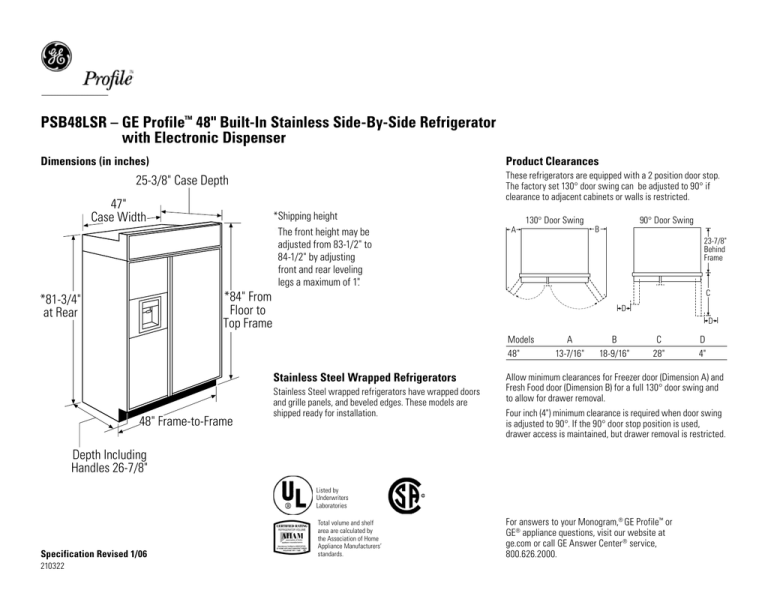

PSB48LSR – GE Profile™ 48" Built-In Stainless Side-By-Side Refrigerator
with Electronic Dispenser
Dimensions (in inches)
Product Clearances
These refrigerators are equipped with a 2 position door stop.
The factory set 130° door swing can be adjusted to 90° if
clearance to adjacent cabinets or walls is restricted.
25-3/8" Case Depth
47"
Case Width
*Shipping height
*The front height may be
adjusted from 83-1/2" to
84-1/2" by adjusting
front and rear leveling
legs a maximum of 1".
A
130° Door Swing
23-7/8"
Behind
Frame
C
*84" From
Floor to
Top Frame
*81-3/4"
at Rear
D
D
Models
48"
Stainless Steel Wrapped Refrigerators
48" Frame-to-Frame
90° Door Swing
B
Stainless Steel wrapped refrigerators have wrapped doors
and grille panels, and beveled edges. These models are
shipped ready for installation.
A
13-7/16"
B
18-9/16"
C
28"
Allow minimum clearances for Freezer door (Dimension A) and
Fresh Food door (Dimension B) for a full 130° door swing and
to allow for drawer removal.
Four inch (4") minimum clearance is required when door swing
is adjusted to 90°. If the 90° door stop position is used,
drawer access is maintained, but drawer removal is restricted.
Depth Including
Handles 26-7/8"
Listed by
Underwriters
Laboratories
Specification Revised 1/06
210322
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
D
4"
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center ® service,
800.626.2000.
PSB48LSR – GE Profile™ 48" Built-In Stainless Side-By-Side Refrigerator
with Electronic Dispenser
The Installation Space
Side Panels
Grounding the Refrigerator
Side panels (not
supplied) must be
used whenever
the sides of the
refrigerator will
be exposed.
*Depending on
installation height.
important—Please read carefully
for personal safety, this appliance must be
properly grounded.
The power supply cord of this appliance is equipped with a
three-prong (grounding) plug which mates with a standard
three-prong (grounding) wall receptacle to minimize the
possibility of electric shock hazard from this appliance.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
*The finished cutout width must be: 47-1/2" for 48" models
Water and Electrical Locations
The opening must be prepared with the electrical and water
supply located as shown.
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond adjacent
cabinets, depending on your installation.
Additional Specifications
• A 120 volt, 60Hz, 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded 3-prong
electrical receptacle recessed into the back wall. Electrical
must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
• Water line can enter the opening through the floor or rear
wall. The water line installed should be 1/4" O.D. copper
tubing or GE SmartConnect™ tubing between the cold water
line and water connection location. The line should be long
enough to extend to the front of the refrigerator. Installation
of an easily accessible shutoff valve in the water line
is required.
Specification Revised 1/06
210322
Where a standard 2-prong wall outlet is encountered, it is
your personal responsibility and obligation to have it replaced
with a properly grounded 3-prong wall outlet.
Flooring
For proper installation, this refrigerator must be placed on a
level surface of hard material that is at the same height as the
rest of the flooring. This surface should be strong enough to
support a fully loaded refrigerator, or approximately 1500 lbs.
NOTE: Protect the finish of the flooring. Cut a large section of
the cardboard carton and place under the refrigerator where
you are working.
do not, under any
circumstances, cut
or remove the third
(ground) prong from
the power cord.
do not use an adapter plug
to connect the refrigerator
to a 2-prong outlet.
do not use an extension cord
with this appliance.
Listed by
Underwriters
Laboratories
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center ® service,
800.626.2000.
PSB48LSR – GE Profile™ 48" Built-In Stainless Side-By-Side Refrigerator
with Electronic Dispenser
Features and Benefits
• Built-In Configuration – Enjoy a true, built-in appearance with the flexibility of a flush design that
blends into the decor
• ClimateKeeper™ System – The Best Temperature Management System You Can Buy!
• Electronic Dispenser with Actual Temperature Display – Located on the dispenser to provide easy
access and electronic accuracy in controlling fresh food and freezer temperatures
• Soft-Touch Dispenser with Child Lock and Door Alarm - Dispenses water and ice with gentle pressure,
complete with safety and convenience features
ADJUST TEMPERATURE
COLDER
WARMER
REFRIGERATOR
37° F IS RECOMMENDED
COLDER
DISPLAY
TEMP
FREEZER
DOOR ALARM
WATER
WARMER
HOLD FOR
3 SECS
TO ACTIVATE
LOCK
0° F IS RECOMMENDED
LIGHT
ICE DISPENSER
CRUSHED
CUBED
QUICK ICE
RESET FILTER
HOLD 3 SECS
• Adjustable Spillproof Glass Shelves – Help contain spills for ease of cleaning
• GE SmartWater™ Plus Filtration System – Delivers clean, great-tasting water and ice through the Softtouch dispenser with indicator light
• FrostGuard™ Technology – Reduces freezer burn, so foods retain their texture and flavor
• QuickIce™ Option – Makes ice up to 50% faster than normal settings—ideal for entertaining
• Slide ’n Store™ Full-Extension Freezer Baskets – Extends 12" to 16" beyond the cabinet, providing easy
access to contents
• Secure-Close Door System – Engineered with an advanced hinge system that automatically pulls the
door shut
• Model PSB48LSRBV – Stainless steel
Specification Revised 1/06
210322
PSB42LSR/PSB48LSR
