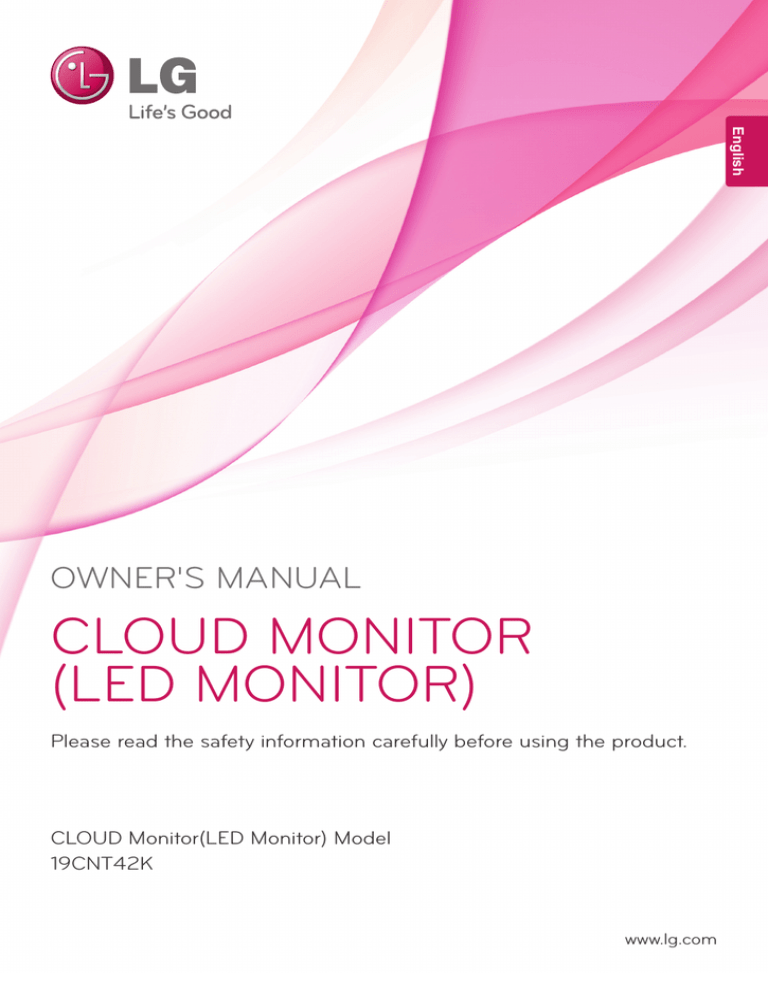

OWNER'S MANUAL
CLOUD MONITOR
(LED MONITOR)
Please read the safety information carefully before using the product.
CLOUD Monitor(LED Monitor) Model
19CNT42K
www.lg.com
2
Table of Contents
TABLE OF CONTENTS
English
ENG
3
ASSEMBLING AND
PREPARING
26 PRODUCT SPECIFICATION
27
Preset Mode
3
Unpacking
27
Power Indicator
4
Parts and buttons
5
Lifting and moving the Monitor
5
Setting Up the Monitor set
5
- Attaching the Stand Base
6
- Mounting on a table
6
- Adjusting the angle
7
- Adjusting the stand height
7
- Using the Kensington locking device
8
- Detaching the stand base
8
- Detaching the stand body
9
- Swivel stand
9
- Using the Pivot function
10
- Installing the wall mount plate
10
- Mounting on a wall
12 USING THE MONITOR SET
12
Connecting Input Signal Cable
12
- D-SUB IN connection - PC
13
- DVI connection
14
Connecting LAN/Peripherals
14
- LAN connection
15
- Peripheral device connection
16
- Self Image Adjustment
17 CUSTOMIZING SETTINGS
18
Customizing Settings
18
- Menu Settings
19
- PICTURE
20
- COLOR
21
- DISPLAY
22
- OTHERS
23
- VOLUME
24 TROUBLESHOOTING
28 PROPER POSTURE
28
Proper posture for using the monitor
29 USING CITRIX CLOUD
MONITOR
29
Login screen
29
Power Button
30
Settings button
35
Information button
ASSEMBLING AND PREPARING
3
ASSEMBLING AND PREPARING
ENG
English
Unpacking
Please check whether all the components are included in the box before using the product. If there are
missing components, contact the retail store where you purchased the product. Note that the product and
components may look different from those shown here.
User Manual/Card
Stand Base
Power Cord
Adaptor
15-pin D-SUB Signal Cable
(This cable is not included in all
counties)
CAUTION
Only use an approved LG power adapter.
yy
Damage caused by other power adapters is not covered by warranty.
yy
NOTE
Note that the components may look different from those shown here.
yy
Without prior notice, all information and specifications in this manual are subject to change to improve
yy
the performance of the product.
To purchase optional accessories, visit an electronics store or online shopping site or contact the retail
yy
store where you purchased the product.
4
ASSEMBLING AND PREPARING
Parts and buttons
English
ENG
Input Connectors
(See p.15 )
Power Indicator
yyLED On : Power is on
yyLED Off: Power is off
(Power Button)
Front Side Buttons
1
1
Input Connectors (See p.12 to 15)
ASSEMBLING AND PREPARING
Please heed the following information when
moving the monitor.
CAUTION
yyAvoid touching the screen at all times, as this
may result in damage to the screen or pixels .
Setting Up the Monitor set
Attaching the Stand Base
1 Place the monitor's screen face down.
CAUTION
To protect the screen from scratches, cover
yy
the surface with a soft cloth.
2 Check the position (at the front and rear) of
It is recommended to move the Monitor in
yy
the box or packing material that the Monitor
originally came in.
Before moving or lifting the Monitor,
yy
disconnect the power cord and all cables.
Hold the top and bottom of the Monitor frame
yy
firmly. Make sure not to hold the transparent
part area.
the stand body, then mount the stand base on
the stand body as shown in the figure.
Stand Body
Stand Base
When holding the Monitor, the screen should
yy
face away from you to prevent the screen
from scratches.
3 Using a coin, turn the screw clockwise to secure the stand base.
When transporting the Monitor, do not
yy
expose the Monitor to jolts or excessive
vibration.
When transporting the Monitor, keep the
yy
Monitor upright, never turn the Monitor on its
side, or tilt towards the left or right.
Stand Base
ENG
English
Lifting and moving the
Monitor
5
6
ASSEMBLING AND PREPARING
English
ENG
Mounting on a table
Adjusting the angle
1 Lift the monitor and place it on the table in an
1 Place the monitor mounted on the stand base
upright position.
Install at least 10 cm away from the wall to
ensure sufficient ventilation.
in an upright position.
2 Adjust the angle of the screen. The angle of
the screen can be adjusted up to 5° forwards
and 15° backwards for a comfortable viewing
experience.
10 cm
10 cm
10 cm
10 cm
Rear Side
Front Side
WARNING
2 Connect the adaptor to the monitor, then plug
the power cord into the wall outlet.
To avoid injury to the fingers when adjusting
yy
the screen, do not hold the lower part of the
monitor's frame as illustrated below.
Be careful not to touch or press the screen
yy
area when adjusting the angle of the monitor.
3 Press the
(Power) button on the front of the
monitor to turn on the monitor.
CAUTION
Unplug the power cord prior to moving or
yy
installing the monitor. There is risk of electric
shock.
ASSEMBLING AND PREPARING
Adjusting the stand height
in an upright position.
2 Remove the tape attached at the bottom rear
of the stand body, then pull out the locking
pin.
Using the Kensington locking
device
The connector for the Kensington lock is located
on the rear of the monitor.
For more information on installation and usage,
refer to the Kensington lock user manual or visit
the website at http://www.kensington.com.
Connect the monitor to the table with the Kensington lock cable.
Stand Body
‌‌
Tape
Locking Pin
3 The height can be adjusted up to 130 mm.
130.0mm
NOTE
CAUTION
Once the pin is removed, it is not necessary
yy
to re-insert it to adjust the height.
WARNING
Do not put your finger beyy
tween the screen and the
base (chassis) when adjusting the screen's height.
Using the Kensington lock is optional. The
yy
accessories can be purchased at your local
electronics store.
ENG
English
1 Place the monitor mounted on the stand base
7
8
ASSEMBLING AND PREPARING
English
ENG
Detaching the stand base
Detaching the stand body
1 Place the monitor's screen face down.
1 Place the monitor's screen face down. To
To protect the screen from scratches, cover the
surface with a soft cloth.
protect the screen from scratches, cover the
surface with a soft cloth.
2 Using a screwdriver, remove the four screws
and detach the stand from the monitor.
2 Using a coin, turn the screw in the stand base
counterclockwise. Detach the stand base from
the stand body.
Stand Body
Stand Base
CAUTION
The components appearing in the illustrayy
tions may look different from the actual product.
Do not carry the monitor upside-down as this
yy
may cause it to fall off its stand, resulting in
damage or injury.
To avoid damaging the screen when lifting
yy
or moving the monitor, only hold the stand or
the plastic cover. This avoids putting unnecessary pressure on the screen.
Only remove the tape and the locking pin
yy
when the monitor is mounted on the stand
base and is in an upright position. Otherwise,
the stand body may protrude, which may
lead to injury.
ASSEMBLING AND PREPARING
Swivel stand
1 Swivel 90 degrees and adjust the angle of the
Monitor set to suit your view.
Using the Pivot function
The pivot function allows you to rotate the screen
90 degrees clockwise.
1 Lift the monitor to its highest height to utilize
the Pivot function.
2 Landscape & Portrait : You can rotate the panel
90° clockwise. Please be cautious and avoid
contact between the monitor head and the
Stand Base when rotating the screen to access
the Pivot function. If the monitor head touches
the Stand Base, then the Stand Base could
crack.
Head
section
Stand
section
3 Be careful with the cables when rotating the
screen.
ENG
English
Image shown may differ from your Monitor
yy
set.
9
10
ASSEMBLING AND PREPARING
English
ENG
Installing the wall mount plate
Mounting on a wall
This monitor has a VESA compatible mount on the
back. Most mounts will require an LG mounting
plate.
Install the monitor at least 10 cm away from the
wall and leave about 10 cm of space at each side
of the monitor to ensure sufficient ventilation. Detailed installation instructions can be obtained from
your local retail store. Please refer to the manual
to install and set up a tilting wall mounting bracket.
1 Place the monitor's screen face down. To
protect the screen from scratches, cover the
surface with a soft cloth.
2 Place the wall mount plate on the monitor and
align it with the screw holes on the monitor.
10 cm
3 Using a screwdriver, tighten the four screws to
fix the plate onto the monitor.
10 cm
10 cm
10 cm
Wall Mount Plate
If you intend to mount the Monitor set to a wall,
attach Wall mounting interface (optional parts) to
the back of the set.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
1 Please, Use the screw and wall mount interface
in accordance with VESA Standards.
2 If you use screw longer than standard, the
monitor might be damaged internally.
3 If you use improper screw, the product might be
NOTE
The wall mount plate is sold separately.
yy
For more information on the installation, refer
yy
to the wall mount plate's installation guide.
damaged and drop from mounted position. In
this case, LG Electronics is not responsible for
it.
4 VESA compatible.
5 Please use VESA standard as below.
784.8 mm (30.9 inch) and under
yy
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x
Length 10 mm
787.4 mm (31.0 inch) and above
yy
* Please use VESA standard wall mount pad
and screws.
ASSEMBLING AND PREPARING
Model
11
19CNT42K
100 x 100
M4
4
RW120
CAUTION
Unplug the power cord before moving or inyy
stalling the monitor to avoid electric shocks.
Installing the monitor on the ceiling or on a
yy
slanted wall may result in the monitor falling
off, which could lead to injury. Please use
a LG wall mounting bracket when using a
VESA mount. For more information, contact
your local retail store or a qualified installer.
Applying excessive force when fastening
yy
screws may cause damage to the monitor. Damage caused in this way will not be
covered by the product warranty.
Use the wall mounting bracket and screws
yy
that conform to the VESA standard. Damage caused by the use or misuse of inappropriate components will not be covered
by the product warranty.
NOTE
Use the screws specified in the VESA stanyy
dard.
The wall mount kit includes the installation
yy
guide and necessary parts.
The wall mounting bracket is optional. The
yy
accessories can be purchased at your local
retail store.
The length of the screw may differ for each
yy
wall mounting bracket. Ensure the correct
length of the screw is used.
yyFor more information, please refer to the user
manual for the wall mounting bracket.
ENG
English
VESA (A x B)
Stand Screw
Required Screw
Wall Mount Plate
(Optional)
12
USING THE MONITOR SET
USING THE MONITOR SET
English
ENG
Connecting Input Signal Cable
This monitor supports the *Plug and Play
yy
feature.
*Plug and Play: A feature that allows you to
add a device to your computer, without having
to reconfigure anything or install any manual
drivers.
D-SUB IN connection - PC
D-SUB IN transfers analog video signals from the
PC to the monitor.
Connect the monitor to the PC using the provided
15-pin D-SUB signal cable as illustrated below.
NOTE
Apple Adapter
yy
An adapter may be needed for Apple
computers. This adapter can be purchased
from Apple.
USING THE MONITOR SET
DVI connection
CAUTION
Connect the input signal
yy
cable and tighten in the
direction of the arrow. To
prevent disconnection
secure the cable tightly.
Do not press on the screen for a prolonged
yy
time. This may cause image distortion.
Do not display a still image on the screen
yy
for a prolonged time. This may cause image
retention. If possible, use the screen saver.
NOTE
To connect the monitor to a computer, use
yy
the appropriate signal cable (LAN and DSUB).
A converter can be used to convert the DVIyy
D input signal to D-SUB input signal.
When connecting the power cord to the outyy
let, use a grounded (3-hole) multi-socket or a
grounded wall outlet.
The monitor may flicker when turned on in an
yy
area of low temperature. This is normal.
Sometimes red, green or blue spots may apyy
pear on the screen. This is normal.
ENG
English
Transfers digital video signals from the Cloud Monitor to an extended monitor.
Connect the Cloud Monitor to an extended monitor
using a DVI cable.
13
14
USING THE MONITOR SET
Connecting LAN/Peripherals
English
ENG
LAN connection
Connect the router or switch to the monitor using a
LAN cable as illustrated below.
NOTE
The LAN cable is sold separately.
yy
The following LAN cable type can be used:
yy
Standard: IEEE 802.3 ETHERNET
If a device is connected into the earphone
yy
out port via a LAN cable, you can adjust the
volume with the volume icon on PC taskbar.
Connect the LAN cable and the peripheral
yy
devices prior to booting up the PC.
USING THE MONITOR SET
Peripheral device connection
NOTE
Peripheral devices are sold separately.
yy
The USB ports on the left and bottom of the
yy
monitor can be used to connect the keyboard, mouse, and other USB devices.
Cables with angled plugs may have clearyy
ance issues, use straight plugs when possible.
Angle Type
Straight Type
Left
NOTE
1
Bottom
1
1
Headphones, speakers or microphone may
yy
not work normally, depending on the server
PC settings.
Virtual solutions may affect the functions or
yy
speed of the specific USB storage device.
ENG
English
Connect peripheral devices to the monitor using
USB, microphone and headphone ports.
1
15
16
USING THE MONITOR SET
Self Image Adjustment
English
ENG
Press the power button on the front to turn on
the monitor. When powered on, the "Self Image
Adjustment" function will run automatically (only
available for analog [D-SUB input] signals).
NOTE
What is "Self Image Adjustment"? This funcyy
tion runs when the monitor is connected for
the first time and performs automatic image
adjustment for each signal (only available for
analog [D-SUB input] signals) to provide an
optimal screen display.
CUSTOMIZING SETTINGS
17
CUSTOMIZING SETTINGS
2 Change the value of the menu item by pressing the buttons on the bottom of the Monitor set.
To return to the upper menu or set other menu items, use the up arrow (
) button.
3 Select EXIT to leave the OSD menu.
Monitor set Buttons
Button
MENU
Description
Activates the main menu.
OSD Lock/Unlock
Functions
Locks/unlocks the OSD screen.
yy To lock the OSD screen, press and hold the MENU button
for several seconds. The "OSD LOCKED" message will be
displayed and the screen will be locked.
yy To unlock the OSD screen, press and hold the MENU
button again for several seconds. The "OSD UNLOCKED"
message will be displayed and the screen will be unlocked.
VOL
Adjust the volume of the monitor.(only works in Cloud mode)/the left arrow key.
CLOUD
Disconnects the connection when the key is pressed for a few seconds while in Cloud
mode;the right arrow key.
AUTO
To adjust the monitor settings, press the AUTO button on the MONITOR SETUP OSD
menu (only supported for analog signal).
For optimal screen display, use the following resolution.
Optimal Resolution
1440 x 900
INPUT
Allows selection of the input signal.
yy If you connect the monitor to a computer using a D-SUB cable, select either the
CLOUD or D-SUB input signal.
yy The initial input signal is D-SUB.
EXIT
Exits the OSD menu.
(Power Button)
yy D-SUB Input: Power On/Off
yy CLOUD Input
Monitor Off: Press the power button once then the monitor will be turned off after 5
seconds.
CLOUD Off: Press the power button twice then the monitor and CLOUD connection
will be disabled.
CLOUD On: Press the power button.
Power Indicator
When the monitor is in operating mode, the power indicator
will turn Red (on mode).
When the monitor is in power saving mode, the power indicator will blink Red.
ENG
English
1 Press the desired button on the bottom of the Monitor set.
18
CUSTOMIZING SETTINGS
Customizing Settings
English
ENG
Menu Settings
1 Press MENU button on the bottom of the Monitor set
to display the MENU OSD.
2 Set the options by pressing the ◄ or ► or ▼
buttons.
3 Select the "NEXT MENU" button to enter the more
option settings.
4 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
MENU
D-SUB CLOUD
BRIGHTNESS
●
●
CONTRAST
●
●
WIDE/ORIGINAL
Description
To adjust the brightness, contrast of the screen
WIDE
Switch to full screen mode according to input image signal.
●
●
ORIGINAL
Change the input image signal ratio to original.
* This function works only if input resolution is lower than Monitor set ratio (16:9).
RESET
●
●
MENU > NEXT MENU
COLOR
Restore all factory default settings. Press the◄ , ► buttons to reset
immediately.
D-SUB CLOUD
SHARPNESS
GAMMA
COLOR TEMP
DISPLAY
HORIZONTAL
VERTICAL
CLOCK
PHASE
OTHERS
●
●
To adjust the clearness of the screen .
●
●
To customize the color of the screen
●
To adjust the position of the screen
●
To improve the clarity and stability of the screen
LANGUAGE
CLOUD
POWER INDICATOR
CLOUD: Using PC via a network.
yy
Description
●
●
To customize the screen status for a user's operating
environment
CUSTOMIZING SETTINGS
19
ENG
English
1 Press MENU button on the bottom of the Monitor set
to display the MENU OSD.
2 Select the "NEXT MENU" button to enter the more
option settings.
3 Enter to PICTURE by pressing the ▼ button.
4 Set the options by pressing the ◄ or ► buttons.
5 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
MENU > NEXT MENU > PICTURE
SHARPNESS
Description
To adjust the clearness of the screen.
20
CUSTOMIZING SETTINGS
COLOR
English
ENG
1 Press MENU button on the bottom of the Monitor set
to display the MENU OSD.
2 Select the "NEXT MENU" button to enter the more
option settings.
3 Select COLOR by pressing the ► button.
4 Enter to COLOR by pressing the ▼ button.
5 Set the options by pressing the ◄ or ► or ▼
buttons.
6 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
MENU > NEXT MENU > COLOR
Description
GAMMA
Set your own gamma value. : GAMMA 0, GAMMA 1, GAMMA 2 on the monitor,
high gamma values display whitish images and low gamma values display
blackish images.
COLOR TEMP
CUSTOM
• RED:Set your own red color levels.
• GREEN: Set your own green color levels.
• BLUE:Set your own blue color levels.
Select the screen color.
WARM: Set the screen to warm color temperature (more red).
MEDIUM: Set the screen to medium color temperature.
COOL: Set the screen to cool color temperature (more blue).
CUSTOMIZING SETTINGS
21
DISPLAY
ENG
English
1 Press MENU button on the bottom of the Monitor set
to display the MENU OSD.
2 Select the "NEXT MENU" button to enter the more
option settings.
3 Select DISPLAY by pressing the ► button.
4 Enter to DISPLAY by pressing the ▼ button.
5 Set the options by pressing the ◄ or ► or ▼
buttons.
yyOnly available in D-SUB input mode.
6 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
MENU > NEXT MENU > DISPLAY
Description
HORIZONTAL
To move image left and right.
VERTICAL
To move image up and down.
CLOCK
To minimize any vertical bars or stripes visible on the screen background.The
horizontal screen size will also change.
PHASE
To adjust the focus of the display. This item allows you to remove any horizontal
noise and clear or sharpen the image of characters.
22
CUSTOMIZING SETTINGS
OTHERS
English
ENG
1 Press MENU button on the bottom of the Monitor set
to display the MENU OSD.
2 Select the "NEXT MENU" button to enter the more
option settings.
3 Select OTHERS by pressing the ► button.
4 Enter to OTHERS by pressing the ▼ button.
5 Set the options by pressing the ◄ or ► or ▼
buttons.
6 Select EXIT to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
DUAL
WEB
MENU > NEXT MENU > OTHERS
Description
LANGUAGE
To choose the language in which the control names are displayed.
CLOUD
Off
CLOUD is disabled in D-SUB input mode.
On
CLOUD is enabled in D-SUB input mode.
POWER
INDICATOR
Use this function to set the power indicator on the bottom side of the monitor to
ON or OFF.If you set OFF, it will go off.
If you set ON at any time, the power indicator will automatically be turned on.
CUSTOMIZING SETTINGS
23
VOLUME
ENG
English
1 Press the VOL button at the bottom of the monitor to
display the VOL OSD menu.
2 Press the ◄ or ► button to adjust the volume.
3 Press the
button to enable or disable Mute.
4 Select EXIT to leave the OSD menu.
Each option is explained below.
DUAL
WEB
MENU > NEXT
MENU > VOLUME
VOLUME
Description
Adjusts the volume (only available in CLOUD input mode).
24
Troubleshooting
TROUBLESHOOTING
English
ENG
Nothing is displayed on the screen
Is the monitor's power cord plugged in? yy Check if the power cord is correctly plugged in to the outlet.
Is the power indicator on?
yy Check the power indicator.
Is the power indicator displaying as
red?
yy Adjust the brightness and the contrast.
Is the power indicator blinking?
yy If the monitor is in power saving mode, move the mouse or press any
key on the keyboard to switch the display on.
yy Check if the computer is turned on.
yy This occurs when signals transferred from the PC (video card) are out
of the horizontal or vertical frequency range of the monitor. Please see
the "Product Specification" section of this manual to set the appropriate frequency.
yy This is displayed when the signal cable between the PC and the monitor is missing or disconnected. Check the cable and reconnect.
Is the "OUT OF RANGE" message
displayed?
Is the "CHECK SIGNAL CABLE"
message is displayed?
The "OSD LOCKED" message is displayed.
Is the "OSD LOCKED" message
yy The OSD lock feature is enabled to prevent undesired modification
displayed when the MENU button is
of the OSD settings. Press and hold the MENU button for a couple of
pressed?
seconds to unlock the OSD. (The "OSD UNLOCKED" message will be
displayed.)
The screen retains an image.
Does image sticking occur even
when the monitor is turned off?
yy Displaying a still image for a prolonged time may cause damage to the
screen, resulting in the retention of the image.
yy Use a screen saver to protect the screen when using the monitor for a
prolonged period of time.
NOTE
Vertical Frequency: In order to display an image, the screen must be refreshed dozens of times per
yy
second like a fluorescent lamp. The number of times the screen is refreshed per second is called
vertical frequency or refresh rate and is represented by Hz.
Horizontal Frequency: The time it takes to display one horizontal line is called the horizontal cycle.
yy
The number of horizontal lines displayed in one second
can be calculated by dividing one by the horizontal cycle. This is called horizontal frequency and is
represented by kHz.
Troubleshooting
25
The image is displayed abnormally.
Pressing the AUTO button will automatically optimize the screen to the current
display mode.
Does the screen exhibit vertical
lines?
Pressing the AUTO button will automatically optimize the screen to the current
display mode.
Does the screen display horizontal Pressing the AUTO button will automatically optimize the screen to the current
frequencies, or does the text appear display mode.
blurred?
NOTE
Check if the video card's resolution or frequency is within the range allowed by the monitor and set to
yy
the recommended (optimal) resolution in Control Panel > Display > Settings.
Failing to set the video card to the recommended (optimal) resolution may result in blurred text, a
yy
dimmed screen, a truncated display area or misalignment of the display.
The configuration procedure may differ depending on your computer and/or operating system. Also,
yy
some video cards may not support certain resolutions. If this is the case, contact the computer or
video card manufacturer for assistance.
The AUTO option is only available for D-SUB (analog) signals.
yy
The display color is abnormal.
Does the display color appear discolored (16 color)?
Does the display color appear unstable or in monochrome?
Are there spots on the screen?
yy Set the color to 24 bit (true color) or higher. In Windows, go to Control
Panel > Display > Settings > Color Quality.
yy Check if the signal cable is connected properly. Re-connect the cable
or re-insert the PC's video card.
yy When using the monitor, pixilated spots (red, green, blue, white or
black) may appear on the screen. This is normal for the LCD screen.
It is not an error nor is it related to the monitor's performance.
ENG
English
Does the display area appear uncentered?
26
Product Specification
PRODUCT SPECIFICATION
English
ENG
19CNT42K
LCD Screen
Type
Resolution
Pixel Pitch
Maximum Resolution
Video Signal
Input Connector
AC/DC Adapter
Dimension/
Weight
Weight (Without
Packaging)
Stand Angle
Adjustment
Environment
Condition
Recommended Resolution
DVI-D output
Horizontal Frequency
Vertical Frequency
Synchronization
15-pin D-SUB (Analog)
Power
Power Consumption:
CLOUD/D-SUB
48.1 cm (19 inch) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Screen
Diagonal length of the screen: 48.1 cm
0.2835 mm x 0.2835 mm
1440 x 900 @ 60 Hz
1440 x 900 @ 60 Hz
1920 x 1200 @ 60 Hz
30 kHz to 66 kHz
57 Hz to 63 Hz
Separate Sync
19 V
2.3 A
On Mode: 17 W(D-sub)/24 W(CLOUD)
Power Saving Mode ≤ 0.5 W(CLOUD mode:8.5 W)
Off Mode ≤ 0.5 W
Type PA-1650-68, manufactured by LITE-ON TECHNOLOGY CORPORATION.
OUTPUT: 19 V
3.42 A
Monitor Size (Width x Height x Depth)
With Stand
440.2 mm x 370 mm x 225 mm
Without Stand
440.2 mm x 303.2 mm x 47 mm
4.64 kg
Forwards/Backwards: -5° to 15° (Monitor)
Operating Condition
Temperature: 10°C to 35°C; Humidity: 10% to 80%
Storing Condition
Temperature: -20°C to 60°C; Humidity: 5% to 90%
The specifications are subject to change without notice.
Product Specification
27
Preset Mode
Display Modes
(Resolution)
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
Polarity (H/V)
720 x 400
31.468
70.08
-/+
640 x 480
31.469
59.94
-/-
800 x 600
37.879
60.317
+/+
1024 x 768
48.363
60
-/-
1440 x 900
55.935
59.888
-/+
Power Indicator
Mode
LED Color
On Mode
Red
Power Saving
Blinking Red
Off Mode
Off
Remark
Recommended Mode
ENG
English
19CNT42K
28
Proper Posture
PROPER POSTURE
English
ENG
Proper posture for using the monitor
Adjust the angle so that the screen is slightly lower than your eyes.
Using the monitor for a prolonged period of time can cause eye fatigue. Take a 10-minute break every
yy
hour.
The stand is designed to best support the monitor when the optimal conditions are selected.
yy
Adjust the angle of the monitor from -5° to 15° to obtain the best view of the screen.
You should be
looking
slightly down at
the screen.
Adjust the angle
from -5° to 15°
so that there is no reflection
or glare from the
screen.
Place your hands gently
on the keyboard,
keeping your arms bent at
the elbows
and extended horizontally
in front of you.
USING CITRIX CLOUD MONITOR
29
USING CITRIX CLOUD MONITOR
Power Button
This screen is displayed when power is turned on.
Click the Power button to turn the system off or
restart it in the login screen.
Login Window
Enter a user name, password and domain to access the VDI server.
Power Off Menu
Select the Power Off menu and then press the OK
button in the Shutdown pop-up to terminate the
system.
Network status: If a network is connected,
yy
the text Connected appears with a green
circle button. If not, the text Disconnected appears with a red circle button. When you click
the Network status link, the network setting
screen is displayed.
If a network is being connected, the message 'Connecting...' is displayed with [Figure:
Red].
Remember me: If you select this button, the
yy
system saves your user name and domain
that you used to log in for future use.
Log in: When you click this button, the sysyy
tem starts to access a server.
NOTE
yyThe maximum number of characters allowed for a
user name, password and domain is 80.
ENG
English
Login screen
30
USING CITRIX CLOUD MONITOR
Restart Menu
English
ENG
Select the Restart menu and click the OK button in
the Restart pop-up to restart the system.
Settings button
You can set the network, server or language for
using a network monitor.
Language
Set a language to use on the network monitor
home screen. After setting the language, click the
'OK' button. The default is English.
Network
Set a wired/wireless network.
(Support for the wireless connection is planned to
begin in 2013.)
USING CITRIX CLOUD MONITOR
Wired connection setting
Wireless setting (support planned to begin
in 2013)
The AP list for wireless network connection is
yy
displayed. Click the Refresh button to update
the list of accessible APs.
Double click an AP or click the Connect butyy
ton after selecting an AP to access the AP.
When the connection is established, the AP
is marked as connected in the list.
When you select a connected AP and then
yy
click the right mouse button, the Disconnect
and Set-Up buttons are displayed. If you select an AP which is not connected and then
click the right mouse button, the Connect
button is displayed.
ENG
English
Ethernet speed setting: Set the network
yy
speed.
You can select Auto-Detect, 10Mbps,
100Mbps or 1000Mbps.
DHCP setting: Set the DHCP mode. If it is
yy
set to On, an IP is automatically fetched from
a DHCP server and used.
Static connection setting: If DHCP is set to
yy
Off, the input window is displayed for detailed
setting. Enter the IP Address, Subnet Mask,
Default Gateway and DNS Server fields and
then click the OK button.
31
32
USING CITRIX CLOUD MONITOR
Server
English
ENG
Set Citrix VDI server and eZ-CMS server address.
eZ-CMS is a cloud monitor management software
provided by LG Electronics.
VDI server setting
Enter a VDI server address to access.
yy
Connect Automatically: This option connects
yy
an IP automatically if it is disconnected.
DHCP setting: Set the DHCP mode. If it is
yy
set to On, an IP is automatically fetched from
a DHCP server and used.
Static connection setting: If DHCP is set to
yy
Off, the input window is displayed for detailed
setting. Enter the IP Address, Subnet Mask,
Default Gateway and DNS Server fields and
then click the OK button.
Activity setting: Set to turn on/off a wireless
yy
network.
Enable: Wireless network is used.
Disable: Wireless network is not used.
USING CITRIX CLOUD MONITOR
eZ-CMS setting
Screen Output Setting
Primary display setting
Resolution: Select the resolution of a moniyy
tor.
19CNT42K: The network monitor supports
2 resolutions including Auto, 1440x900,
1024x768.
When it is set to Auto, the monitor is automatically adjusted to the optimal resolution.
Rotation: Set the angle of a LCD screen to
yy
normal, 90 degree counter-clockwise or 90
degree clockwise.
ENG
English
Enter the address of eZ-CMS server to conyy
nect to.
33
34
USING CITRIX CLOUD MONITOR
Secondary display setting
English
ENG
Resolution: Select the resolution of a moniyy
tor.
Among the resolutions supported in the DVI
monitor, 1024x768 or higher resolutions and
Auto menu are displayed.
When it is set to Auto, the monitor is automatically adjusted to the optimal resolution.
Rotation: Set the angle of a LCD screen to
yy
normal, 90 degree counter-clockwise or 90
degree clockwise.
Dual Monitor: You can specify the extension
yy
mode.
- Span Mode allows to extend display.
- Mirror Mode allows to copy display.
In Mirror Mode, the resolution and rotation
menus are disabled.
When you click the OK button, the system is
restarted and the selected settings are applied.
Volume
You can adjust the system volume and mike volume. If you select the Mute checkbox, the volume
control bar is disabled.
NOTE
yyThe settings are enabled only when the DVI-D
monitor is connected.
Mouse
You can set the mouse speed by dragging the
"Cursor Speed" scroll bar. Select either "Right
Handed" or "Left Handed" in Button Type to customize the mouse buttons.
USING CITRIX CLOUD MONITOR
Factory reset
Information button
General Tab
Display the hardware and software information of
a network monitor.
Hardware Information: Network monitor modyy
el name and asset number.
The asset number can be set in eZ-CMS
Software information: Firmware version, softyy
ware file name and publisher information
Wake on LAN: Status of Wake on LAN
yy
NOTE
yyWake on LAN can only be set in the LGMC.
yyeZ-CMS is a cloud management software application provided by LG Electronics.
ENG
English
The system is reset to factory defaults and rebooted. All user settings are removed.
35
36
USING CITRIX CLOUD MONITOR
Network Tab
English
ENG
Display network related information.
Network Information: VDI/eZ-CMS server IP
yy
address information
Wired Connection: IP address and MAC adyy
dress of a wired network
Wireless Connection: IP address and MAC
yy
address of a wireless network
Ping Tab
By pinging, you check the network connection to a
specific IP or host from a local client and also local
network status.
NOTE
yyOnly IP or host name can be entered. The
parameters of ping can not be used.
Declaration of Conformity
Trade Name: LG
Model : 19CNT42KL
Responsible Party: LG Electronics Inc.
Address : 1000 Sylvan Ave. Englewood Cliffs
NJ 07632 U.S.A
TEL: 201-266-2534
*above information is only for USA FCC Regulatory
Make sure to read the Safety Precautions before
using the product.
Keep the Owner’s Manual (CD) in an accessible
place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
To obtain the source code under GPL, LGPL,
MPL and other open source licenses, that is
contained in this product, please visit http://
opensource.lge.com .
In addition to the source code, all referred
license terms, warranty disclaimers and
copyright notices are available for download.
LG Electronics will also provide open source
code to you on CD-ROM for a charge covering
the cost of performing such distribution (such
as the cost of media, shipping and handling)
upon email request to [email protected]
This offer is valid for three (3) years from the
date on which you purchased the product.
ENERGY STAR is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency(EPA).
As an ENERGY STAR Partner LGE
U. S. A.,Inc. has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
