HP Pavilion dv4-1120us Entertainment Notebook PC
The HP Difference*
• Get extra protection from data loss with HP ProtectSmart Hard Drive Protection.
• Make a statement with a streamlined design wrapped in onyx and chrome HP Mesh
Imprint finish.
• Experience the evolution of award-winning HP Imprint finish now in liquid-like metallics
with matching input devices.
• Get a clean frameless look with the 14.1” diagonal HP BrightView Infinity display.(8)
• Lose up to half a pound with the included weight saver and the HP SmartBay.
• Create personalized, silkscreen-quality DVD and CD labels with LightScribe.(16a)
• Chat face-to-face or capture video clips using the HP Webcam(15) and integrated
HP recommends Windows Vista® Home Premium.
Key Specifications
• Intel® Core™2 Duo Processor T5800 (2c) (3) (4) (4a) (4b)
• Genuine Windows Vista® Home Premium 64-bit with Service
Pack 1 (1)(20a)
• 14.1" Diagonal WXGA High-Definition*(8) HP BrightView Widescreen
Display (1280 x 800)
• Intel Graphics Media Accelerator 4500MHD (shared) with up to
1759MB Total Available Graphics Memory(6)
• 4096MB DDR2 System Memory (2 Dimm); Max supported =8192MB
• 250GB (5400RPM) Hard Drive (SATA) (7)
• LightScribe SuperMulti 8X DVD±R/RW with Double Layer
Support (6d) (16a) (16d)
• Wireless LAN 802.11a/b/g/n WLAN(10a)
Unsurpassed Style
Expanding on the sophisticated elegance of the current line, the new dv
series is defined by fluid, modern lines and metalized finishes with
surprising innovations inside and out. High-gloss HP Imprint finish in
onyx and chrome now encases all surfaces visible during normal use for
greater durability. The dv4 series Mesh Imprint features a grid-like
pattern for subtle contrast to the liquid appearance of the metallic finish.
The streamlined look is enhanced with a color-matched keyboard and
touchpad. And touch media controls light up and become visible only
when the system is powered on further enhancing the clean appearance.
HP’s mobile products have won coveted International Red Dot, iF and
CES Innovation design awards and been recognized by other leading
design institutions.
Mobile Entertainment
Providing more choices than ever, QuickPlay enables access to DVDs,
videos, photos, music, karaoke, games(25), Internet(15) TV, and streamed
or recorded TV (with an optional TV Tuner (24)) at the touch of a button.
Built-in demos show you how to add music to your slide shows or videos
with drag-and-drop functionality – and much more. An HDMI port
enables you to watch films on an HD TV. Muvee autoProducer makes
creating films complete with effects and transitions a snap! Extras include
dual headphone jacks and an HP Mobile Remote Control. It’s time to
World-Class Support
• One-year limited hardware and software warranty with 24/7 phone
• Toll-free phone support during warranty @ 1.800.HPINVENT
(1.800.474.6836) in the U.S. and Canada; online support for the life
of the product by clicking on the “?” icon
• Easy-to-use dashboard for system diagnostics and updates with
preinstalled HP Advisor
* All disclaimers shown on the bottom of page 2.
Designed for your life
For those who want digital entertainment features and the latest mobile
technologies in a stunning design that travels well, the HP Pavilion dv4
series Entertainment Notebook PC delivers! Its elegant Mesh Imprint finish
helps protect your system while on the go.
HP Pavilion notebook PCs help you work faster, connect in new ways and
play more.
• Connect with the HP Webcam. Turn your next instant message into a
live video chat with the integrated webcam, omni directional
microphone and an IM solution. Optimized for low-light environments,
it's great for capturing short videos to share on your favorite social
networking site. Personalize your videos with included YouCam
software from Cyberlink.(15)
• Enhanced security with hard drive protection. HP ProtectSmart Hard
Drive Protection locks your hard drive into place when it senses abrupt
motion to help prevent data loss. The built-in eSATA/USB Combo port
enables fast backup to an external hard drive.
• Personalized disc labels with LightScribe. Create custom laser-etched
disc labels right in the drive with LightScribe and preinstalled Cyberlink
DVD Suite. Just burn data on the disc, flip it over and burn the cover
image using any scanned image and/or text. Visit the LightScribe
Web site for more information.(16a)
• Photo-ready with 5-in-1 media card reader. Transfer photos from your
digital camera in seconds.
• Full-memory access. Windows® Vista®(1) 64-bit operating systems are
able to fully access system memory to support 3D games and complex
HP and the Environment
• Help conserve energy with this
ENERGY STAR® qualified and EPEAT
Silver registered PC.
• dv series packaging is 100%
• HP is a recognized leader in global
recycling since 1987 with a wide
range of convenient consumer
options, including trade-in, donation
and recycling. Find out more at
HP Pavilion dv4-1120us Entertainment Notebook PC
Operating System
• Genuine Windows Vista® Home Premium 64-bit with Service Pack 1 (1)(20a)
• Intel® Core™2 Duo Processor T5800
Processor Speed
• 2.00 GHz(4)
Processor Cache
• 2MB L2 Cache
Bus Speed
• 800MHz FSB
• 4096MB DDR2 System Memory (2 Dimm)
• Max supported =8192MB
Accessible Memory
• 2
Video Graphics
• Intel Graphics Media Accelerator 4500MHD (shared) with up to 1759MB
Total Available Graphics Memory (6)
Security and Support • Symantec® Norton Internet Security 2008 (including 60 days complimentary
live update)(15)
• HP Help & Support Center
• HP PC Recovery (Softthinks Restore Solution)
• HP Wireless Home Network Setup
• HP Total Care Advisor
• ProtectSmart Hard Drive Protection for Vista
Hard Drive
• 250GB (5400RPM) Hard Drive (SATA) (7)
Finish and Features
• HP Mesh Imprint finish & HP Pavilion WebCam with Integrated Digital
Multimedia Drive
• LightScribe SuperMulti 8X DVD±R/RW with Double Layer Support (6d) (16a) (16d)
• 14.1" Diagonal WXGA High-Definition* (8) HP BrightView Widescreen
Display (1280 x 800)
Network Card
• Integrated 10/100BASE-T Ethernet LAN (RJ-45 connector) (9)
Wireless Option
• Wireless LAN 802.11a/b/g/n WLAN (10a)
Digital Media
• 5-in-1 integrated Digital Media Reader* for Secure Digital cards, MultiMedia
cards, Memory Stick, Memory Stick Pro, or xD Picture cards(17a)
• High speed 56k modem(11)
• Altec Lansing
Additional Information
• 101-key compatible & 1 Quick Launch Button - HP Quick Play DVD
Product Number
Pointing Device
• Touch Pad with On/Off button and dedicated vertical scroll Up/Down pad
Ad Embargo Date
• 9/28/2008
PC Card Slots
• 1 ExpressCard/54 Slot (also supports ExpressCard/34)
UPC Code
• 884420402091
External Notebook
Country of Origin
Tariff Number
• 8471300000
Pallet Information
3 Universal Serial Bus (USB) 2.0, 3rd port shared with eSATA
2 Headphone out
1 microphone-in
1 VGA (15-pin)
eSATA + USB 2.0
1 RJ-11 (modem)
1 RJ -45 (LAN)
1 notebook expansion port 3
1 Consumer IR (Remote Receiver)
• Unpackaged: 13.15 in (L) x 9.45 in (D) x 1.34 in (min H) / 1.57 in (max H)
• Packaged: 17.9"(W) x 4.3"(D) x13.6"(H)
Warranty and
• 1-Year Limited Hardware Warranty Toll Free Support (NA)
• 1-Year Free Hardware Technical Support
• 30-Days Free Limited Software Support (1 Year* Free Limited Software
Support with Product Registration) *from date of purchase
Productivity and
• Microsoft® Works
• Microsoft® Office 2007 Student and Teacher Edition: 60 Day Trial Version(19)
• HP Smart Web Printing
Internet Solutions
• HP Easy Internet Signup (part of HP Easy Setup) (13)
• Microsoft® Internet Explorer
• AOL Instant Messaging Service
HP PhotoSmart Essentials
HP Quick Play
Muvee autoProducer
Cyberlink DVD Suite
Adobe® Acrobat Reader
HP Games Powered by Wild Tangent
Dimensions: 47.24"(L) x 39.37"(W) x 47.3"(H/D) approx.
Total weight: 608.2 lbs.
Layers: 3
Products per layer: 22
HP recommends Windows Vista® Home Premium.
• Unpackaged: 5.18lbs
• Packaged: 8.7 lbs
What's in the box
• HP Mobile Remote Control
• Kensington® MicroSaver lock slot
• Power-on password
• Accepts 3rd party security lock devices
• 65W AC Adapter
• 6-Cell Lithium-Ion battery
Visit www.hp.com for more details!
Certain Windows Vista product features require advanced or additional hardware.
See www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista
Upgrade Advisor can help you determine which features of Windows Vista will run on
your computer. To download the tool, visit www.windowsvista.com/upgradeadvisor.
64-bit computing on Intel architecture requires a computer system with a processor,
chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64
architecture. Processors will not operate (including 32-bit operation) without an Intel
64 architecture-enabled BIOS. Performance will vary depending on your hardware
and software configurations. See www.intel.com/info/em64t for more information.
Dual Core is designed to improve performance of certain software products. Not all
customers or software applications will necessarily benefit from use of this technology.
Intel's numbering is not a measurement of higher performance.(4) GHz refers to
internal clock speed of the processor. Other factors besides clock speed may impact
system and application performance.n (4a) Actual bus speed is less. Listed bus speed
represents the equivalent effective throughput for data.(4b) Dual Core is designed to
improve performance of certain software products. Not all customers or software
applications will necessarily benefit from use of this technology.(6) Shared video
memory (UMA) uses part of the total system memory for video performance. System
memory dedicated to video performance is not available for other use by other
programs. Note: this disclaimer affects system memory and graphics.(6d) Note that
DVD-RAM cannot read or write to 2.6GB Single Sided/5.2 GB Double Sided –
Version 1.0 media(7) 1 GB = 1 billion bytes. Actual formatted capacity is less. Up to
12GB of system disk is reserved for system recovery software.(8) High-Definition content
is required to view high-definition images. (9) Actual speeds may vary. (10a) The
specifications for the 802.11n WLAN are draft specifications and are not final. This
may affect the ability of the PC to communicate with other 802.11n WLAN devices(11)
Maximum achievable download speeds are currently unknown, may not reach 56Kbps
and will vary with line conditions. Upload speeds are less and also will vary. (12)
Weight will vary by configuration.(13) Internet access requires payment of additional
fees or subscription for use. Special Offers do not include local telephone company
charges, if any, or applicable taxes. Any long distance charges incurred will be the
responsibility of the customer. (15) Internet access required and sold separately.(16a)
Actual speeds may vary. Don’t copy copyright-protected materials. Double Layer is a
new technology. Double Layer media compatibility will widely vary with some home
DVD players and DVD-ROM drives. LightScribe creates a monochrome image.
LightScribe media required and sold separately.(16d) LightScribe creates a monochrome
image. LightScribe media required and sold separately.(17a) Digital Media Slot
supports MS, MSP, MMC, SD, XD formats. To avoid damaging the card or computer
do not insert any type of adapter, or mini format memory card, into the Digital Media
Slot. Mini/Reduced flash memory cards require separately purchased adapter.(19) The
Microsoft® Office Student and Teacher Edition 2008 is a trial version; functionality is
reduced after 60 days. The full version is sold separately. (20a) Up to 12GB of the hard
drive is reserved for the system recovery software. (24) Optional items sold separately or
as add on features(25) Games may be limited during trial period. Full version games
may be purchased at any time. Internet access required and sold separately.

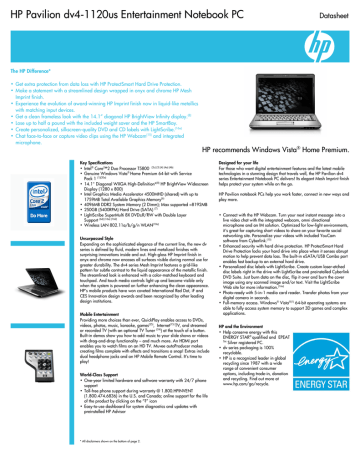

Actual product may vary from image shown on datasheet. ©2008 Hewlett-Packard
Development Company, L.P. The information contained herein is subject to change
without notice. The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services. Nothing shall
be construed as constituting an additional warranty. HP shall not be liable for technical
or editorial errors or omissions contained herein. 08 12 08 r1 rk
Product Number: FR921UA#ABA
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
