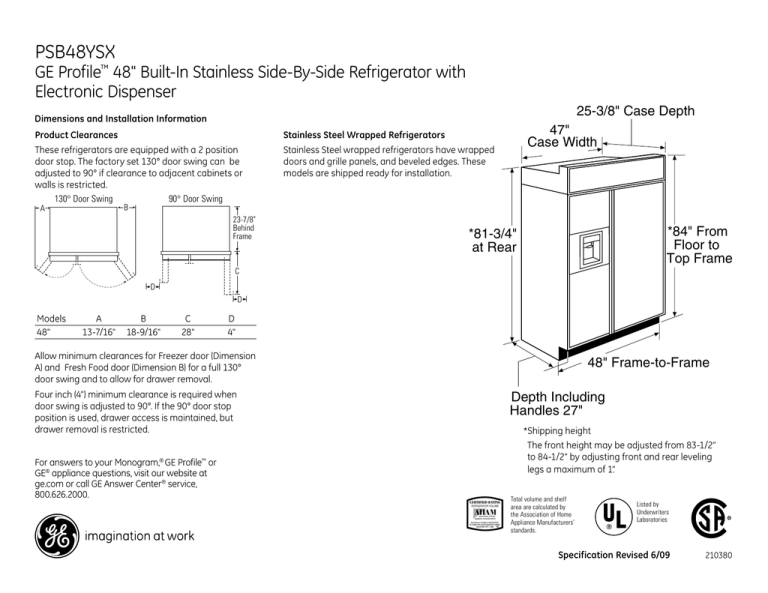

PSB48YSX
GE Profile™ 48" Built-In Stainless Side-By-Side Refrigerator with
Electronic Dispenser
25-3/8" Case Depth
Dimensions and Installation Information
Product Clearances
These refrigerators are equipped with a 2 position
door stop. The factory set 130° door swing can be
adjusted to 90° if clearance to adjacent cabinets or
walls is restricted.
130° Door Swing
90° Door Swing
A
47"
Case Width
Stainless Steel Wrapped Refrigerators
Stainless Steel wrapped refrigerators have wrapped
doors and grille panels, and beveled edges. These
models are shipped ready for installation.
B
23-7/8"
Behind
Frame
*84" From
Floor to
Top Frame
*81-3/4"
at Rear
C
D
D
Models
48"
A
B
13-7/16" 18-9/16"
C
28"
D
4"
Allow minimum clearances for Freezer door (Dimension
A) and Fresh Food door (Dimension B) for a full 130°
door swing and to allow for drawer removal.
Four inch (4") minimum clearance is required when
door swing is adjusted to 90°. If the 90° door stop
position is used, drawer access is maintained, but
drawer removal is restricted.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
48" Frame-to-Frame
Depth Including
Handles 27"
*Shipping height
*The front height may be adjusted from 83-1/2"
to 84-1/2" by adjusting front and rear leveling
legs a maximum of 1".
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
Specification Revised 6/09
210380
The Installation Space
PSB48YSX
GE Profile™ 48" Built-In Stainless Side-By-Side Refrigerator with
Electronic Dispenser
Grounding the Refrigerator
important—Please read carefully
for personal safety, this appliance must be
properly grounded.
The power supply cord of this appliance is equipped
with a three-prong (grounding) plug which mates with
a standard three-prong (grounding) wall receptacle to
minimize the possibility of electric shock hazard from
this appliance.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Where a standard 2-prong wall outlet is encountered, it
is your personal responsibility and obligation to have it
replaced with a properly grounded 3-prong wall outlet.
do not, under any
circumstances, cut
or remove the third
(ground) prong from
the power cord.
do not use an adapter plug
to connect the refrigerator
to a 2-prong outlet.
do not use an extension cord
with this appliance.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
7"
Electrical
Area
84 1/2" max
83 1/2" min
Finished
Opening
Dimensions and Installation Information
Side Panels
Side panels (not
supplied) must be
used whenever
the sides of the
refrigerator will
be exposed.
*Depending on
installation
height.
24"
3"
*Finished Width
7"
74"
From Floor
to Bottom
of Electrical
24"
5"
Water Supply 5"
3 1/2"
3 1/2"
*84"
*3" to 4"
1-1/2"
Flooring
For proper installation, this refrigerator must be placed
on a level surface of hard material that is at the same
height as the rest of the flooring. This surface should be
strong enough to support a fully loaded refrigerator, or
approximately 1500 lbs.
NOTE: Protect the finish of the flooring. Cut a large
section of the cardboard carton and place under the
refrigerator where you are working.
*The finished cutout width must be: 47-1/2" for 48" models
Water and Electrical Locations
The opening must be prepared with the electrical and
water supply located as shown.
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond
adjacent cabinets, depending on your installation.
Additional Specifications
• A 120 volt, 60Hz, 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded 3prong electrical receptacle recessed into the back wall.
Electrical must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
• Water line can enter the opening through the floor or
rear wall. The water line installed should be 1/4" O.D.
copper tubing or GE SmartConnect™ tubing between
the cold water line and water connection location. The
line should be long enough to extend to the front of the
refrigerator. Installation of an easily accessible shutoff
valve in the water line is required.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
Specification Revised 6/09
210380
PSB48YSX
GE Profile™ 48" Built-In Stainless Side-By-Side Refrigerator with
Electronic Dispenser
Features and Benefits
• B
uilt-In Configuration - Enjoy a true, built-in appearance with the flexibility of a flush design that
blends into the decor
• Stainless Steel - Provides stainless steel doors and side panels for a truly dramatic look
• Overhead Evaporator
• C
limateKeeper™ with Dual Evaporators - Two separate climates - one for the fresh food
compartment and a separate one for the freezer to help maintain freshness throughout
the refrigerator
• E
lectronic Dispenser with Actual Temperature Display - located on the dispenser to provide easyaccess and electronic accuracy in controlling fresh food and freezer temperatures
• S
oft-touch Dispenser with Child Lock and Door Alarm - Dispenses water and ice with gentle
pressure, complete with safety and convenience features
• GE Water Filtration System - Delivers clean great-tasting water and ice through the dispenser
• F rostGuard™ Technology - Protects frozen items from freezer burn by monitoring freezer door
openings and defrosting only when needed
• Q
uick Ice™ Option - Makes ice up to 50% faster than normal settings-ideal for entertaining
• Slide-Out Freezer Baskets - Provides ample, easy-access storage for frozen foods
• Model PSB48YSXSS - Stainless steel
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
PSB42LSR/PSB48LSR
Specification Revised 6/09
210380
