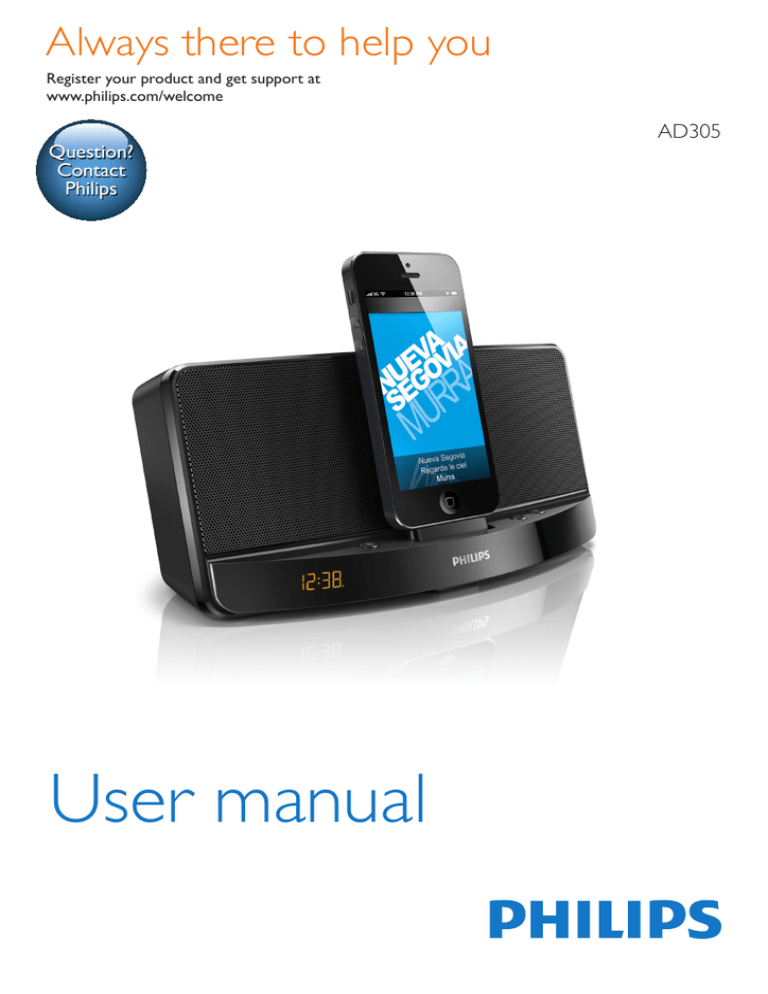

Philips AD305/37, AD305 User manual

Philips AD305/37, AD305 User manual
Always there to help you
Register your product and get support at
www.philips.com/welcome
Question?
Contact
Philips
User manual
AD305
Contents
1Important2
Safety2
Notice3
2 Your docking speaker4
Introduction4
What's in the box
4
Overview of the main unit
4
3Prepare5
Connect power
Adjust brightness
5
5
4Play6
Compatibility6
Listen to the iPod/iPhone
6
Adjust volume
6
5 Other features7
Charge the iPod/iPhone
Synchronize time
Play from an external device
7
7
7
6 Specifications8
Amplifier
General information
8
8
7Troubleshooting9
EN
1
1Important
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Safety
Know these safety symbols
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
h Do not install near any heat sources
such as radiators, heat registers, stoves,
or other apparatus (including amplifiers)
that produce heat.
i Protect the power cord from being
walked on or pinched, particularly at
plugs.
j Apparatus shall not be exposed to
dripping or splashing.
k Do not place any sources of danger on
the apparatus (e.g. liquid filled objects,
lighted candles).
l Only use attachments/accessories
specified by the manufacturer.
This 'bolt of lightning' indicates uninsulated
material within your unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove product
covering.
The 'exclamation point' calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.
WARNING: To reduce the risk of fire or electric
shock, this apparatus should not be exposed to
rain or moisture and objects filled with liquids,
such as vases, should not be placed on this
apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
2
EN
m Unplug this apparatus during lightning
storms or when unused for long periods
of time.
n Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
o Where the MAINS plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain
readily operable.
Notice
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Notice for the USA
This equipment has been tested and found
to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a
residential installation. This equipment generates,
uses, and can radiate radio frequency energy
and, if not installed and used in accordance
with the instruction manual, may cause harmful
interference to radio communications.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception,
which can be determined by turning the
equipment off and on, the user is encouraged
to try to correct the interference by one or
more of the following measures:
• Relocate the receiving antenna.
• Increase the separation between
equipment and receiver.
• Connect the equipment into an outlet on
a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced
radio/TV technician for help.
This Class B digital apparatus complies with
Canadian ICES-003.
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two
conditions:
• This device may not cause harmful
interference, and
• This device must accept any interference
received, including interference that may
cause undesired operation.
Disposal of your old product
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products. The correct
disposal of these products helps prevent
potentially negative consequences on the
environment and human health.
Please visit www.recycle.philips.com for
additional information on a recycling center in
your area.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has been
designed to connect specifically to iPod or
iPhone respectively, and has been certified by
the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone
may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Note
•• The type plate is located on the bottom of the
apparatus.
EN
3
2 Your docking
speaker
Overview of the main unit
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
If you contact Philips, you will be asked for the
model and serial number of this apparatus. The
model number and serial number are on the
bottom of the apparatus. Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
d
Introduction
a Dock for iPod/iPhone.
With this docking speaker, you can:
• listen to audio from your iPod/iPhone.
• synchronize time with that on your iPod/
iPhone.
• listen to audio from an external audio
player.
• charge your iPod/iPhone.
What's in the box
Check and identify the contents of your
package:
• Main unit
• AC power adaptor
• Printing materials
4
EN
a
f
b
c
b
e
• Adjust the brightness of LED screen.
• Select time display format.
c LED screen
• Display the clock after the clock is
automatically synchronized with a
connected compatible iPhone/iPod.
d Power socket
• Connect the power adaptor.
e AUDIO IN
• Connect an external audio player.
f +/• Adjust volume.
3Prepare
Always follow the instructions in this chapter
in sequence.
Adjust brightness
To adjust the brightness of display panel, press
repeatedly.
Connect power
Caution
•• Risk of product damage! Make sure that the power
supply voltage matches the voltage printed on the
bottom of the unit.
•• Risk of electric shock! When you unplug the AC
adaptor, always pull the plug from the socket. Never
pull the cord.
•• Before you connect the AC adaptor, make sure that you
have completed all the other connections.
Connect the AC power cord to
• the power socket on the back of the
unit.
• the wall power socket.
EN
5
4Play
Adjust volume
Press +/- repeatedly to increase/decrease
volume.
Compatibility
Made for Apple iPod/iPhone models with
lightning connector as follows:
• iPod touch (5th generation)
• iPod nano (7th generation)
• iPhone 5
Listen to the iPod/iPhone
1
2
6
Load your iPod/iPhone.
Play audio files from your iPod/iPhone.
»» The audio comes out through the unit.
EN
5 Other features
Play from an external device
You can also listen to an external audio player
through the unit.
Charge the iPod/iPhone
When the unit is connected to power, the
docked iPod/iPhone begins to charge.
Synchronize time
After docking your iPod/iPhone onto the unit,
the time on your iPod/iPhone is displayed on
the panel of the device automatically.
•
Connect a 3.5mm audio link cable (not
supplied) to:
• the AUDIO IN socket on the back of
unit.
• the headphone socket on an external
audio player.
Press and hold the button to switch
between 12 hour and 24 hour time format.
»» In 12 hour format, if a dot is displayed
behind the last minute digit, the current
time is in the afternoon or evening.
EN
7
6Specifications
Amplifier
Rated Output Power
Signal to Noise Ratio
AUX IN
2 X 2 W RMS
>65 dB
0.6 V RMS 10
kohm
General information
AC Power
Operation Power
Consumption
Standby Power
Consumption
Dimensions
- Main Unit (W x
H x D)
Weight
- Main Unit
8
EN
Model: OH1015A0592000U1-UL
Input: 100-240 V ~,
50/60Hz, 350mA;
Output: DC 5.9V
2.0 A
<10 W
<1 W
216 x 102 x 112 mm
0.68 kg
7Troubleshooting
Caution
•• Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the philips web site (www.
philips.com/support). When you contact philips,
ensure that your apparatus is nearby and the
model number and serial number are available.
No power
•• Make sure that the AC power adaptor of
the device is connected properly.
•• Make sure that there is power at the AC
outlet.
No response from the speaker
•• Disconnect and reconnect the AC power
cord, and then turn on the docking speaker
again.
•• If you are playing from an external audio
device, check if the device works properly.
No sound
•• Adjust the volume.
•• Check if the unit is properly connected to
power.
•• If you are listening to an audio from an
external audio device, adjust the volume
from the external audio device.
EN
9
Specifications are subject to change without notice
© 2013 Koninklijke Philips Electronics N.V.
All rights reserved.
AD305_37_UM_EN_V1.0
