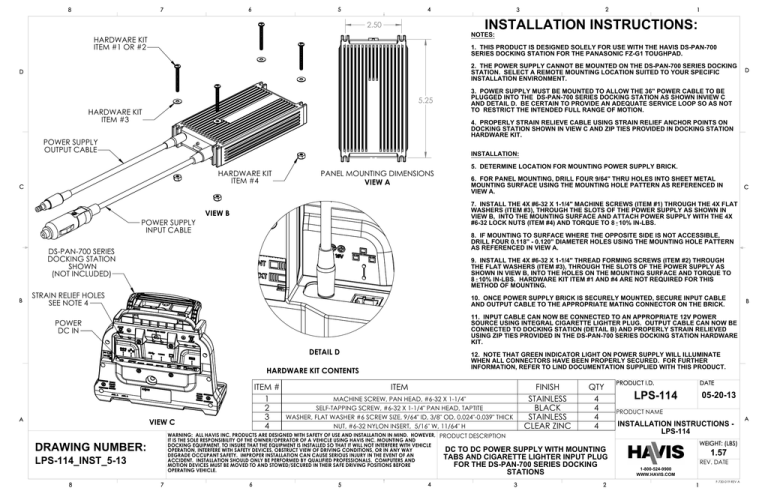

Panasonic LPS-114 Installation guide
8
5
6
7
4
1
INSTALLATION INSTRUCTIONS:
2.50
NOTES:
HARDWARE KIT
ITEM #1 OR #2
1. THIS PRODUCT IS DESIGNED SOLELY FOR USE WITH THE HAVIS DS-PAN-700
SERIES DOCKING STATION FOR THE PANASONIC FZ-G1 TOUGHPAD.
2. THE POWER SUPPLY CANNOT BE MOUNTED ON THE DS-PAN-700 SERIES DOCKING
STATION. SELECT A REMOTE MOUNTING LOCATION SUITED TO YOUR SPECIFIC
INSTALLATION ENVIRONMENT.
D
5.25
HARDWARE KIT
ITEM #3
3. POWER SUPPLY MUST BE MOUNTED TO ALLOW THE 36" POWER CABLE TO BE
PLUGGED INTO THE DS-PAN-700 SERIES DOCKING STATION AS SHOWN INVIEW C
AND DETAIL D. BE CERTAIN TO PROVIDE AN ADEQUATE SERVICE LOOP SO AS NOT
TO RESTRICT THE INTENDED FULL RANGE OF MOTION.
INSTALLATION:
HARDWARE KIT
ITEM #4
C
POWER SUPPLY
INPUT CABLE
PANEL MOUNTING DIMENSIONS
VIEW A
VIEW B
6. FOR PANEL MOUNTING, DRILL FOUR 9/64" THRU HOLES INTO SHEET METAL
MOUNTING SURFACE USING THE MOUNTING HOLE PATTERN AS REFERENCED IN
VIEW A.
C
8. IF MOUNTING TO SURFACE WHERE THE OPPOSITE SIDE IS NOT ACCESSIBLE,
DRILL FOUR 0.118" - 0.120" DIAMETER HOLES USING THE MOUNTING HOLE PATTERN
AS REFERENCED IN VIEW A.
9. INSTALL THE 4X #6-32 X 1-1/4" THREAD FORMING SCREWS (ITEM #2) THROUGH
THE FLAT WASHERS (ITEM #3), THROUGH THE SLOTS OF THE POWER SUPPLY AS
SHOWN IN VIEW B, INTO THE HOLES ON THE MOUNTING SURFACE AND TORQUE TO
8 10% IN-LBS. HARDWARE KIT ITEM #1 AND #4 ARE NOT REQUIRED FOR THIS
METHOD OF MOUNTING.
STRAIN RELIEF HOLES
SEE NOTE 4
10. ONCE POWER SUPPLY BRICK IS SECURELY MOUNTED, SECURE INPUT CABLE
AND OUTPUT CABLE TO THE APPROPRIATE MATING CONNECTOR ON THE BRICK.
DETAIL D
12. NOTE THAT GREEN INDICATOR LIGHT ON POWER SUPPLY WILL ILLUMINATE
WHEN ALL CONNECTORS HAVE BEEN PROPERLY SECURED. FOR FURTHER
INFORMATION, REFER TO LIND DOCUMENTATION SUPPLIED WITH THIS PRODUCT.
HARDWARE KIT CONTENTS
ITEM #
1
2
3
4
VIEW C
ITEM
FINISH
STAINLESS
BLACK
STAINLESS
CLEAR ZINC
MACHINE SCREW, PAN HEAD, #6-32 X 1-1/4"
SELF-TAPPING SCREW, #6-32 X 1-1/4" PAN HEAD, TAPTITE
WASHER, FLAT WASHER #6 SCREW SIZE, 9/64" ID, 3/8" OD, 0.024"-0.039" THICK
NUT, #6-32 NYLON INSERT, 5/16" W, 11/64" H
QTY
4
4
4
4
WARNING: ALL HAVIS INC. PRODUCTS ARE DESIGNED WITH SAFETY OF USE AND INSTALLATION IN MIND. HOWEVER, PRODUCT DESCRIPTION
IT IS THE SOLE RESPONSIBILITY OF THE OWNER/OPERATOR OF A VEHICLE USING HAVIS INC. MOUNTING AND
DOCKING EQUIPMENT, TO INSURE THAT THE EQUIPMENT IS INSTALLED SO THAT IT WILL NOT INTERFERE WITH VEHICLE
DC TO DC POWER SUPPLY WITH MOUNTING
OPERATION, INTERFERE WITH SAFETY DEVICES, OBSTRUCT VIEW OF DRIVING CONDITIONS, OR IN ANY WAY
DEGRADE OCCUPANT SAFETY. IMPROPER INSTALLATION CAN CAUSE SERIOUS INJURY IN THE EVENT OF AN
TABS
AND CIGARETTE LIGHTER INPUT PLUG
ACCIDENT. INSTALLATION SHOULD ONLY BE PERFORMED BY QUALIFIED PROFESSIONALS. COMPUTERS AND
FOR THE DS-PAN-700 SERIES DOCKING
MOTION DEVICES MUST BE MOVED TO AND STOWED/SECURED IN THEIR SAFE DRIVING POSITIONS BEFORE
OPERATING VEHICLE.
STATIONS
DRAWING NUMBER:
LPS-114_INST_5-13
7
6
5
B
11. INPUT CABLE CAN NOW BE CONNECTED TO AN APPROPRIATE 12V POWER
SOURCE USING INTEGRAL CIGARETTE LIGHTER PLUG. OUTPUT CABLE CAN NOW BE
CONNECTED TO DOCKING STATION (DETAIL B) AND PROPERLY STRAIN RELIEVED
USING ZIP TIES PROVIDED IN THE DS-PAN-700 SERIES DOCKING STATION HARDWARE
KIT.
POWER
DC IN
A
5. DETERMINE LOCATION FOR MOUNTING POWER SUPPLY BRICK.
7. INSTALL THE 4X #6-32 X 1-1/4" MACHINE SCREWS (ITEM #1) THROUGH THE 4X FLAT
WASHERS (ITEM #3), THROUGH THE SLOTS OF THE POWER SUPPLY AS SHOWN IN
VIEW B, INTO THE MOUNTING SURFACE AND ATTACH POWER SUPPLY WITH THE 4X
#6-32 LOCK NUTS (ITEM #4) AND TORQUE TO 8 10% IN-LBS.
DS-PAN-700 SERIES
DOCKING STATION
SHOWN
(NOT INCLUDED)
8
D
4. PROPERLY STRAIN RELIEVE CABLE USING STRAIN RELIEF ANCHOR POINTS ON
DOCKING STATION SHOWN IN VIEW C AND ZIP TIES PROVIDED IN DOCKING STATION
HARDWARE KIT.
POWER SUPPLY
OUTPUT CABLE
B
2
3
4
3
2
DATE
PRODUCT I.D.
LPS-114
05-20-13
PRODUCT NAME
INSTALLATION INSTRUCTIONS LPS-114
WEIGHT: (LBS)
1.57
REV. DATE
1-800-524-9900
WWW.HAVIS.COM
1
F-730-019 REV A
A
