Home Cinema
Short Throw

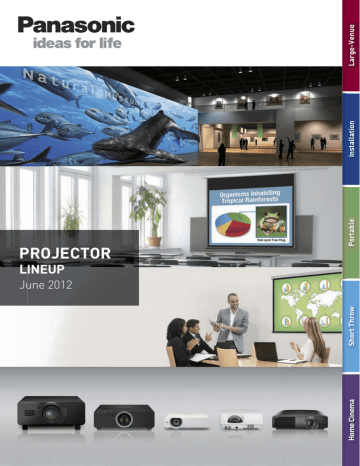

PROJECTOR
LINEUP
June 2012
Portable
Installation
Large-Venue
Large-Venue
Rental/Staging
Auditorium
PT-DZ21K
NEW
3-Chip DLP™
Museum/Exhibition
PT-DS20K
20,000 lm WUXGA
20,000 lm
• Geometric Adjustment
• Lens Memory
• Eco Filter
• Geometric Adjustment
• Lens Memory
• Eco Filter
Rental/Staging
SXGA+
Auditorium
PT-EX16K
Digital Signage
3-Chip DLP™
Houses of Worship/Churches
PT-DZ8700
PT-DZ110X
PT-DS8500
PT-DS100X
10,600 lm WUXGA
10,600 lm
WXGA
17,000 lm
• Lens Memory
• Eco Filter
SXGA+
PT-DW8300
PT-DW90X
9,600 lm
PT-EX12K
Pure
Color
Control
XGA
16,000 lm
XGA
13,000 lm
• Pure Color Control
• Corner Keystone
LCD
• Pure Color Control
• Corner Keystone
• Eco Filter
Installation
Museum/Exhibition
Simulation
Control Room
PT-DZ770K
PT-DZ770LK*1
NEW
7,000 lm
1-Chip DLP™
WUXGA
WXGA
7,000 lm
1-Chip DLP™
Museum/Exhibition
Digital Signage
PT-DW730S PT-DX800S
PT-DW730LS*1 PT-DX800LS*1
• RGB Booster
• Eco Filter
Simulation
• RGB Booster
• Eco Filter
6,000 lm
WUXGA
• Geometric Adjustment
• RGB Booster
• Auto Cleaning Filter
Control Room
Seminar Room/Lecture Room
Digital Signage
PT-DX500
option*2
WUXGA
• RGB Booster
• 2× Zoom lens
WUXGA
Seminar Room/Lecture Room
PT-FW430
option*2
3,500 lm
1
• 2× Zoom lens
• Eco Filter
4,000 lm
WXGA
• RGB Booster
• 2× Zoom lens
• Interchangeable Lens
• Intelligent Lamp Control
• Eco Filter
WXGA
• RGB Booster
• Auto Cleaning Filter
4,500 lm
XGA
• RGB Booster
• 2× Zoom lens
Boardroom
PT-EW630
PT-EW630L*1
5,500 lm
WXGA
• Interchangeable Lens
• Intelligent Lamp Control
• Eco Filter
Boardroom
PT-EX600
PT-EX600L*1
6,000 lm
XGA
• Interchangeable Lens
• Intelligent Lamp Control
• Eco Filter
PT-EW530
PT-EW530L*1
4,500 lm
WXGA
• Interchangeable Lens
• Intelligent Lamp Control
• Eco Filter
Meeting room
PT-FX400
PT-LZ370
option*2
WXGA
XGA
6,500 lm
• RGB Booster
• Auto Cleaning Filter
Boardroom
option*2
5,000 lm
LCD
6,000 lm
1-Chip DLP™
option*2
PT-EZ570
PT-EZ570L*1
LCD
WUXGA
PT-DW530
Seminar Room/Lecture Room
NEW
PT-DW6300S
PT-D6000S
PT-DW6300LS*1 PT-D6000LS*1
PT-DZ570
4,000 lm
1-Chip DLP™
6,000 lm
• RGB Booster
• Auto Cleaning Filter
XGA
• RGB Booster
• Eco Filter
PT-DZ6710
PT-DZ6700
PT-DZ6710L*1 PT-DZ6700L*1
1-Chip DLP™
8,000 lm
4,000 lm
• 2× Zoom lens
• Eco Filter
XGA
3,000 lm
LCD
WXGA
• Geometric Adjustment • Geometric Adjustment • Multi-Unit Brightness Control
• Multi-Unit Brightness Control • Multi-Unit Brightness Control • Auto Cleaning Filter
• Auto Cleaning Filter
• Auto Cleaning Filter
Houses of Worship/Churches
NEW
Pure
Color
Control
LCD
Control Room
PT-DW17K
Full HD
• Full HD (1,920 × 1,080)
• 2× Zoom lens
PT-EX500
PT-EX500L*1
5,000 lm
XGA
• Interchangeable Lens
• Intelligent Lamp Control
• Eco Filter
PT-D5000S
PT-D5000LS*1
5,000 lm
XGA
• RGB Booster
• Auto Cleaning Filter
Panasonic projectors address your needs. Whether you are looking for superior
image quality, flexible installation, easy maintenance, or wireless connectivity,
there is a projector that will work to achieve your ideal visual solution.
Portable
Medium to Small Classrooms
PT-VW435N
NEW
4,300 lm
WXGA
• 1.6× Zoom lens
• Built-in 10 W speaker
LCD
Small Classroom
Meeting Room
PT-VW430
4,300 lm
PT-VX505N
WXGA
3,000 lm
WXGA
PT-VX400NT
XGA
4,000 lm
• 1.6× Zoom lens
• Built-in 10 W speaker
PT-VX400
PT-VX41
NEW
4,000 lm
XGA
Small Classroom
XGA
4,000 lm
• 1.6× Zoom lens
• 1.6× Zoom lens
• Built-in 10 W speaker
• Built-in 10 W speaker
• Intelligent Lamp Control • Intelligent Lamp Control
PT-LB3
3,200 lm
• 1.6× Zoom lens
• 1.2× Zoom lens
• Built-in 10 W speaker
• Built-in 10 W speaker
• Intelligent Lamp Control • Intelligent Lamp Control
LCD
XGA
• Daylight View Basic
• Lightweight body
Meeting Room
PT-LW25H
2,500 lm
WXGA
• Lightweight body
LCD
XGA
5,000 lm
• 1.6× Zoom lens
• Built-in 10 W speaker
Meeting Room
PT-VW330
LCD
XGA
5,000 lm
• 1.6× Zoom lens
• Built-in 10 W speaker
PT-VX500
PT-LX30H
PT-LX26H
XGA
3,000 lm
2,600 lm
• Lightweight body
PT-LX26
XGA
• Lightweight body
2,600 lm
PT-LX22
XGA
• Lightweight body
2,200 lm
XGA
• Lightweight body
Short Throw
Small Classroom
Meeting Room
PT-CW230
NEW
2,500 lm
1-Chip DLP™
WXGA
• 3D Ready
• Built-in 10 W speaker
• HDMI
Small Classroom
2,000 lm
XGA
• 3D Ready
• Built-in 10 W speaker
• HDMI
Meeting Room
PT-TW231R
NEW
Museum/Exhibition
PT-CX200
PT-TW230
PT-ST10
Interactive
2,500 lm
LCD
WXGA
• Interactive
• Built-in 10 W speaker
• HDMI
2,500 lm
WXGA
2,800 lm
• Built-in 10 W speaker
• HDMI
LCD
XGA
• Daylight View Basic
Home Cinema
Home Theater Room
Living Room
PT-AE7000
PT-AT5000
PT-AR100
PT-AH1000
2,000 lm
LCD
• Full HD (1,920 × 1,080)
• Intelligent Lens Memory
2,800 lm
LCD
• Full HD (1,920 × 1,080)
• Light Harmonizer 3
*1: Lens-less model. *2: To operate wireless projection, the optional wireless module ET-WM200 is required.
2
PT-DZ21K
NEW
PT-DS20K
NEW
Large-Venue
3-Chip DLP™ Projector
20,000 lm
WUXGA
WIRED
LAN
Panel type
Aspect ratio
Lamp
Brightness
Contrast (full on/full off)
Resolution native/maximum*1
Screen size (diagonal)*2
Lens shift
Terminals
General
Features
Accessory
SXGA+
WIRED
LAN
* Lens sold separately.
24.4 mm (0.96 inches) DLP™ chip x 3
24.1 mm (0.95 inches) DLP™ chip x 3
16:10
4:3
465 W UHM x 4
465 W UHM x 4
20,000 lm
20,000 lm
10,000:1
10,000:1
WUXGA (1,920 x 1,200)
SXGA+ (1,400 x 1,050)/WUXGA (1,920 x 1,200)
1.78-15.24 m (70-600 inches)*4
1.78-15.24 m (70-600 inches)*4
Vertical: ±55%*5, horizontal: ±20%*5 (powered)
Vertical: ±50%*8, horizontal: ±30%*8 (powered)
SDI in [BNC x 2 (3G/HD/SD-SDI x 1, HD/SD-SDI x 1)]
3D SYNC in/out [BNC x 1 (3D timing signal)]
3D SYNC out [BNC x 1 (3D timing signal)]
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
HDMI in [HDMI 19-pin x 1 (HDCP compatible)]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Serial out [D-sub 9-pin x 1 (RS-232C)]
Remote 1 in/out [M3 x 2 (in x 1, out x 1)]
Remote 2 in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
SDI in [BNC x 2 (3G/HD/SD-SDI x 1, HD/SD-SDI x 1)]
3D SYNC in/out [BNC x 1 (3D timing signal)]
3D SYNC out [BNC x 1 (3D timing signal)]
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
HDMI in [HDMI 19-pin x 1 (HDCP compatible)]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Serial out [D-sub 9-pin x 1 (RS-232C)]
Remote 1 in/out [M3 x 2 (in x 1, out x 1)]
Remote 2 in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
200-240 V AC, 12 A, 50/60 Hz
2,300 W
620 x 291*6 x 800 mm*7
(24-7/16 x 11-15/32*6 x 31-1/2 inches)*7
Approx. 43 kg/94.8 lbs
Eco Filter
Yes
Yes (Optional upgrade kit available)
Yes
System Daylight View 2
Detail Clarity Processor 3
Yes
Yes
ET-LAD510/ET-LAD510F (4 units)
200-240 V AC, 12 A, 50/60 Hz
2,300 W
620 x 291*6 x 800 mm*7
(24-7/16 x 11-15/32*6 x 31-1/2 inches)*7
Approx. 43 kg/94.8 lbs
Eco Filter
Yes
Yes (Optional upgrade kit available)
Yes
System Daylight View 2
Detail Clarity Processor 3
Yes
Yes
ET-LAD510/ET-LAD510F (4 units)
ET-PKD510H (High ceiling mount bracket)
ET-PKD510S (Low ceiling mount bracket)
ET-PFD510 (Frame)
ET-EMF510 (Replacement filter unit)
ET-SFR510 (Smoke cut filter)
ET-UK20 (Upgrade kit with
Geometry Manager Pro)
ET-PKD510H (High ceiling mount bracket)
ET-PKD510S (Low ceiling mount bracket)
ET-PFD510 (Frame)
ET-EMF510 (Replacement filter unit)
ET-SFR510 (Smoke cut filter)
ET-UK20 (Upgrade kit with
Geometry Manager Pro)
Optional lens
ET-D75LE6 (Zoom lens, 0.9-1.1:1)
ET-D75LE10 (Zoom lens, 1.3-1.7:1)
ET-D75LE20 (Zoom lens, 1.7-2.4:1)
ET-D75LE30 (Zoom lens, 2.4-4.7:1)
ET-D75LE40 (Zoom lens, 4.6-7.4:1)
ET-D75LE8 (Zoom lens, 7.3-13.8:1)
ET-D75LE50 (Fixed-focus lens, 0.7:1)
ET-D75LE6 (Zoom lens, 1.0-1.2:1)
ET-D75LE10 (Zoom lens, 1.4-1.8:1)
ET-D75LE20 (Zoom lens, 1.8-2.6:1)
ET-D75LE30 (Zoom lens, 2.6-5.1:1)
ET-D75LE40 (Zoom lens, 5.0-8.0:1)
ET-D75LE8 (Zoom lens, 7.9-15.0:1)
ET-D75LE50 (Fixed-focus lens, 0.8:1)
Standard accessories
Power cord, wireless/wired remote
control unit, batteries for remote control
unit
Power cord, wireless/wired remote
control unit, batteries for remote control
unit
Interface
Optical
* Lens sold separately.
3-Chip DLP™ Projector
20,000 lm
Power supply
Power consumption
Dimensions (W x H x D)
Weight*3
Filter
Edge Blending
Geometric Adjustment
Multi-Unit Brightness Control
Emulation
Daylight View
Detail Clarity Processor
DICOM Simulation Mode
P-in-P
Replacement lamp
Optional accessories
*1: Input signals that exceed the native resolution will be converted to the native resolution. *2: The screen size is that of the original aspect ratio.
*3: Average value. Each product has an individual variable in weight. *4: 1.78-7.62 m (70-300 inches) with the ET-D75LE50.
3
NEW
PICK UP
Large-Venue
L
V
PT-DW17K
Highly Reliable Features
for Large Venues
17,000 lm
WXGA
Geometric Adjustment
WIRED
LAN
* Lens sold separately.
21.6 mm (0.85 inches) DLP™ chip x 3
16:9
465 W UHM x 4
17,000 lm
10,000:1
WXGA (1,366 x 768)/WUXGA (1,920 x 1,200)
1.78-15.24 m (70-600 inches)*4
Vertical: ±70%*9, horizontal: ±30%*9 (powered)
This function adjusts the image for projection onto spherical,
cylindrical and other specially shaped screens. You can easily
make the adjustment using only remote control, with no external
equipment needed. Optional upgrade kit featuring Geometry
Manager Pro is also available for the PT-DZ21K/DS20K.
Advantages
• Used together with the multi-screen support system, it lets you
IInstallation
ll i
3-Chip DLP™ Projector
create a wide range of image effects at concerts, performances
and other special events.
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
HDMI in [HDMI 19-pin x 1 (HDCP compatible)]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Serial out [D-sub 9-pin x 1 (RS-232C)]
Remote 1 in/out [M3 x 2 (in x 1, out x 1)]
Remote 2 in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Portable
P
bl
* Please refer to the “Features” column for models supporting the above functions.
New UHM Lamp and Multi Lamp System(PT-DZ21K/DS20K/DW17K)
ET-D75LE6 (Zoom lens, 1.0-1.2:1)
ET-D75LE10 (Zoom lens, 1.4-1.9:1)
ET-D75LE20 (Zoom lens, 1.8-2.7:1)
ET-D75LE30 (Zoom lens, 2.7-5.2:1)
ET-D75LE40 (Zoom lens, 5.1-8.2:1)
ET-D75LE8 (Zoom lens, 8.2-15.4:1)
ET-D75LE50 (Fixed-focus lens, 0.8:1)
Power cord, wireless/wired remote
control unit, batteries for remote control
unit
* For the PT-DZ21K/DS20K.
Advantages
• Splendid brightness from
a compact size body.
• A full 24 hours of
continuous operation is
possible in Lamp Relay
mode.
Sh
Short Th
Throw
ET-PKD510H (High ceiling mount bracket)
ET-PKD510S (Low ceiling mount bracket)
ET-PFD510 (Frame)
ET-EMF510 (Replacement filter unit)
ET-SFR510 (Smoke cut filter)
Panasonic's innovative 4-lamp optical system uses new highly efficient
465-watt UHM lamps to deliver an astounding 20,000 lm* of brightness.
Liquid Cooling System(PT-DZ21K/DS20K/DW17K)
The original, newly designed liquid cooling system directly cools
the DLP™ chips to improve performance and enable operation
up to 45°C (113°F).*
* The operating temperature range varies depending on the usage environment and the
projector settings.
Advantages
• No need to refill the
Reservoir tanks
liquid since the system is
hermetically sealed.
• Contributes to a compact
body and low noise level
(49 dB).
H
Home Ci
Cinema
200-240 V AC, 12 A, 50/60 Hz
2,300 W
620 x 291*6 x 800 mm*7
(24-7/16 x 11-15/32*6 x 31-1/2 inches)*7
Approx. 43 kg/94.8 lbs
Eco Filter
Yes
Yes
System Daylight View 2
Detail Clarity Processor 3
Yes
Yes
ET-LAD510/ET-LAD510F (4 units)
Embedded
pumps
Large radiator
*5: Vertical ±44% and horizontal ±15% with the ET-D75LE6. *6: Depth: lens not included. *7: Height:with legs at shortest position. *8: Vertical
±40% and horizontal ±20% with the ET-D75LE6. *9: Vertical ±60% and horizontal ±20% with the ET-D75LE6.
4
PT-DZ8700
PT-DZ110X
PT-DS8500
PT-DS100X
Large-Venue
3-Chip DLP™ Projector
10,600 lm
WUXGA
WIRED
LAN
Panel type
Aspect ratio
Lamp
Brightness
Contrast (full on/full off)
Resolution native/maximum*1
Screen size (diagonal)*2
Lens shift
Terminals
General
Features
Accessory
WIRED
LAN
* Lens sold separately.
24.1 mm (0.95 inches) DLP™ chip x 3
4:3
355 W UHM x 2
10,600 lm
10,000:1
SXGA+ (1,400 x 1,050)/WUXGA (1,920 x 1,200)
1.78-15.24 m (70-600 inches)*4
Vertical: ±50%*7, horizontal: ±30%*7 (powered)
SDI in [BNC x 1 (HD/SD-SDI x 1)]
HDMI in [HDMI 19-pin x 1 (HDCP compatible)]
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
S-Video in [Mini-DIN 4-pin x 1]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Serial out [D-sub 9-pin x 1 (RS-232C)]
Remote 1 in/out [M3 x 2 (in x 1, out x 1)]
Remote 2 in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
120 V AC, 9.0 A, 60 Hz (PT-DS8500)
220–240 V AC, 4.8 A, 50/60 Hz (PT-DS100X)
920 W (120 V AC) / 900 W (220–240 V AC)
530 x 200*6 x 548.5 mm*7
(20-7/8 x 7-7/8*6 x 21-19/32 inches)*7
Approx. 24 kg/52.9 lbs
Auto Cleaning Filter
Yes
Yes
Yes
Yes
System Daylight View 2
Detail Clarity Processor 3
Yes
Yes
ET-LAD310/ET-LAD310W (2 units)
ET-PKD310H (High ceiling mount bracket)
ET-PKD310S (Low ceiling mount bracket)
ET-PAD310 (Attachment for ceiling
mount bracket)
ET-PFD310 (Frame)
ET-SFD310 (Smoke cut filter)
ET-ACF310 (Replacement filter unit)
Optional lens
ET-D75LE6 (Zoom lens, 0.9–1.1:1)
ET-D75LE10 (Zoom lens, 1.3–1.7:1)
ET-D75LE20 (Zoom lens, 1.7–2.4:1)
ET-D75LE30 (Zoom lens, 2.4–4.7:1)
ET-D75LE4 (Zoom lens, 4.6–7.4:1)
ET-D75LE8 (Zoom lens, 7.3–13.8:1)
ET-D75LE50 (Fixed-focus lens, 0.7:1)
ET-D75MC1 (Lens motor cover)
ET-D75LE6 (Zoom lens, 1.0–1.2:1)
ET-D75LE10 (Zoom lens, 1.4–1.8:1)
ET-D75LE20 (Zoom lens, 1.8–2.6:1)
ET-D75LE30 (Zoom lens, 2.6–5.1:1)
ET-D75LE4 (Zoom lens, 5.0–8.0:1)
ET-D75LE8 (Zoom lens, 7.9–15.0:1)
ET-D75LE50 (Fixed-focus lens, 0.8:1)
ET-D75MC1 (Lens motor cover)
Standard accessories
Power cord, wireless/wired remote
control unit, batteries for remote control
unit, drop prevention kit
Power cord, wireless/wired remote
control unit, batteries for remote control
unit, drop prevention kit
Power supply
5
SXGA+
24.4 mm (0.96 inches) DLP™ chip x 3
16:10
355 W UHM x 2
10,600 lm
10,000:1
WUXGA (1,920 x 1,200)
1.78-15.24 m (70-600 inches)*4
Vertical: ±55%*5, horizontal: ±20%*5 (powered)
SDI in [BNC x 1 (HD/SD-SDI x 1)]
HDMI in [HDMI 19-pin x 1 (HDCP compatible)]
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
S-Video in [Mini-DIN 4-pin x 1]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Serial out [D-sub 9-pin x 1 (RS-232C)]
Remote 1 in/out [M3 x 2 (in x 1, out x 1)]
Remote 2 in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
120 V AC, 9.5 A, 60 Hz (PT-DZ8700)
220–240 V AC, 5 A, 50/60 Hz (PT-DZ110X)
970 W (120 V AC) / 920 W (220–240 V AC)
530 x 200*6 x 548.5 mm*7
(20-7/8 x 7-7/8*6 x 21-19/32 inches)*7
Approx. 24 kg/52.9 lbs
Auto Cleaning Filter
Yes
Yes
Yes
Yes
System Daylight View 2
Detail Clarity Processor 3
Yes
Yes
ET-LAD310/ET-LAD310W (2 units)
ET-PKD310H (High ceiling mount bracket)
ET-PKD310S (Low ceiling mount bracket)
ET-PAD310 (Attachment for ceiling
mount bracket)
ET-PFD310 (Frame)
ET-SFD310 (Smoke cut filter)
ET-ACF310 (Replacement filter unit)
Interface
Optical
* Lens sold separately.
3-Chip DLP™ Projector
10,600 lm
Power consumption
Dimensions (W x H x D)
Weight*3
Filter
Edge Blending
Geometric Adjustment
Multi-Unit Brightness Control
Emulation
Daylight View
Detail Clarity Processor
DICOM Simulation Mode
P-in-P
Replacement lamp
Optional accessories
*1: Input signals that exceed the native resolution will be converted to the native resolution. *2: The screen size is that of the original aspect ratio.
*3: Average value. Each product has an individual variable in weight. *4: 1.78-7.62 m (70-300 inches) with the ET-D75LE50. *5: Vertical ±44% and
horizontal ±15% with the ET-D75LE6. *6: Height:with legs at shortest position. *7: Depth: lens not included.
LAN
* Lens sold separately.
21.6 mm (0.85 inches) DLP™ chip x 3
16:9
355 W UHM x 2
9,600 lm
10,000:1
WXGA (1,366 x 768)/WUXGA (1,920 x 1,200)
1.78-15.24 m (70-600 inches)*4
Vertical: ±70%*9, horizontal: ±30%*9 (powered)
HDMI in [HDMI 19-pin x 1 (HDCP compatible)]
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
S-Video in [Mini-DIN 4-pin x 1]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Serial out [D-sub 9-pin x 1 (RS-232C)]
Remote 1 in/out [M3 x 2 (in x 1, out x 1)]
Remote 2 in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
120 V AC, 9.0 A, 60 Hz (PT-DW8300)
220–240 V AC, 4.8 A, 50/60 Hz (PT-DW90X)
920 W (120 V AC) / 900 W (220–240 V AC)
530 x 200*6 x 548.5 mm*7
(20-7/8 x 7-7/8*6 x 21-19/32 inches)*7
Approx. 24 kg/52.9 lbs
Auto Cleaning Filter
Yes
Yes
Yes
System Daylight View 2
Detail Clarity Processor 3
Yes
Yes
ET-LAD310/ET-LAD310W (2 units)
ET-PKD310H (High ceiling mount bracket)
ET-PKD310S (Low ceiling mount bracket)
ET-PAD310 (Attachment for ceiling
mount bracket)
ET-PFD310 (Frame)
ET-SFD310 (Smoke cut filter)
ET-ACF310 (Replacement filter unit)
LCD Projector
16,000 lm
XGA
WIRED
LAN
Pure
Color
Control
* Lens sold separately.
46 mm (1.8 inches) LCD x 3
4:3
380 W UHM × 4
16,000 lm
2,500:1
XGA (1,024 x 768)/WUXGA (1,920 x 1,200)
1.02–15.24 m (40–600 inches)*10
Vertical: ±39%*11, horizontal: ±10%*11 (powered)
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
HDMI in [HDMI 19-pin x 1 (HDCP compatible)]
RGB in [D-sub HD 15-pin x 1 (RGB x 1)]
RGB in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
S-Video in [Mini-DIN 4-pin x 1]
Serial in [D-sub 9-pin x 1 (RS-232C x 1)]
Serial out [D-sub 9-pin x 1 (RS-232C x 1)]
Remote 1 in [M3 x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
USB [USB type-B x 1]
Optional board slot [Slot x 2]
LCD Projector
13,000 lm
XGA
WIRED
LAN
Pure
Color
Control
* Lens sold separately.
46 mm (1.8 inches) LCD x 3
4:3
380 W UHM x 2
13,000 lm
4,000:1
XGA (1,024 x 768)/WUXGA (1,920 x 1,200)
1.02–15.24 m (40–600 inches)*10
Vertical: ±39%*11, horizontal: ±10%*11 (powered)
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
HDMI in [HDMI 19-pin x 1 (HDCP compatible)]
RGB in [D-sub HD 15-pin x 1 (RGB x 1)]
RGB in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
S-Video in [Mini-DIN 4-pin x 1]
Serial in [D-sub 9-pin x 1 (RS-232C x 1)]
Serial out [D-sub 9-pin x 1 (RS-232C x 1)]
Remote 1 in [M3 x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
USB [USB type-B x 1]
Optional board slot [Slot x 2]
200-240 V AC, 11 A, 50/60 Hz
100-240 V AC, 11 A, 50/60 Hz
1,850 W
650 × 349 × 815 mm*7
(25-5/8 × 13-3/4 × 32-1/8 inches)*7
Approx. 46.5 kg/102.5 lbs
Pleated Air Filter
Yes
ET-LAE16
940 W
538.5 x 268 x 757 mm*7
(21-1/4 x 10-1/2 x 29-3/4 inches)*7
Approx. 28 kg/61.7 lbs
Eco Filter
Yes
ET-LAE12
ET-PKE16H (High ceiling mount bracket)
ET-PKE16S (Low ceiling mount bracket)
ET-PKE12B (Bracket assembly)
ET-MD16SD1 (HD-SDI/SD-SDI board)
ET-RFE12 (Replacement filter unit)
ET-PKE16H (High ceiling mount bracket)
ET-PKE16S (Low ceiling mount bracket)
ET-PKE16B (Bracket assembly)
ET-MD16SD1 (HD-SDI/SD-SDI board)
ET-SFE16 (Smoke cut filter unit)
ET-SRE16 (Replacement smoke cut filter
for the ET-SFE16)
ET-RFE16 (Replacement filter unit)
Large-Venue
WIRED
ET-D75LE6 (Zoom lens, 1.0–1.2:1)
ET-D75LE10 (Zoom lens, 1.4–1.9:1)
ET-D75LE20 (Zoom lens, 1.8–2.7:1)
ET-D75LE30 (Zoom lens, 2.7–5.2:1)
ET-D75LE4 (Zoom lens, 5.2–8.2:1)
ET-D75LE8 (Zoom lens, 8.2–15.4:1)
ET-D75LE50 (Fixed-focus lens, 0.8:1)
ET-D75MC1 (Lens motor cover)
ET-ELW06 (Zoom lens, 1.2–1.5:1)
ET-ELW02 (Zoom lens, 1.4–1.8:1)
ET-ELW04 (Zoom lens, 1.5–2.0:1)
ET-ELS02 (Zoom lens, 2.0–2.6:1)
ET-ELS03 (Zoom lens, 2.6–3.5:1)
ET-ELM01 (Zoom lens, 3.5–4.5:1)
ET-ELT02 (Zoom lens, 4.4–6.2:1)
ET-ELT03 (Zoom lens, 6.3–9.0:1)
ET-ELW03 (Fixed-focus lens, 0.8:1)
ET-ELW06 (Zoom lens, 1.2–1.5:1)
ET-ELW02 (Zoom lens, 1.4–1.8:1)
ET-ELW04 (Zoom lens, 1.5–2.0:1)
ET-ELS02 (Zoom lens, 2.0–2.6:1)
ET-ELS03 (Zoom lens, 2.6–3.5:1)
ET-ELM01 (Zoom lens, 3.5–4.5:1)
ET-ELT02 (Zoom lens, 4.4–6.2:1)
ET-ELT03 (Zoom lens, 6.3–9.0:1)
ET-ELW03 (Fixed-focus lens, 0.8:1)
Power cord, wireless/wired remote
control unit, batteries for remote control
unit, drop prevention kit
Power cord, wireless/wired remote control unit,
batteries for remote control unit, VGA cable,
lens attachment, lens lock lever fixing bracket,
lightshielding plate, spacer, cable tie, CD-ROM*12
Power cord, wireless/wired remote control unit,
batteries for remote control unit, computer cable,
lens attachment, lens lock lever fixing bracket,
lightshielding plate, spacer, cable tie, CD-ROM*12
*8: Vertical ±40% and horizontal ±20% with the ET-D75LE6. *9: Vertical ±60% and horizontal ±20% with the ET-D75LE6.
*10: 2.54–15.24 m (100–600 inches) with the ET-ELS03. *11: Vertical ±39% with the ET-ELW06, and vertical ±50% and horizontal ±10% with ETELS02. *12: CD-ROM includes Logo Transfer Software, Multi Projector Monitoring & Control Software, Real Color Manager Pro.
Installation
WXGA
Portable
9,600 lm
NEW
Short Throw
3-Chip DLP™ Projector
PT-EX12K
Home Cinema
PT-EX16K
PT-DW8300
PT-DW90X
6
PT-DZ770K
PT-DZ770LK*4
PT-DW730S
PT-DW730LS*4
NEW
Installation
1-Chip DLP™ Projector
Panel type
Aspect ratio
Lamp
Brightness
Lens (throw ratio)
Contrast (full on/full off)
Resolution native/maximum*1
Screen size (diagonal)*2
Lens shift
Terminals
General
Features
LAN
7,000 lm
WXGA
WIRED
LAN
17.0 mm (0.67 inches) DLP™ chip x 1
16.5 mm (0.65 inches) DLP™ chip x 1
16:10
16:10
300 W (max 310 W) UHM x 2
300 W (max 310 W) UHM x 2
7,000 lm
7,000 lm
F 1.7–1.9, f 25.6 – 35.7 mm (1.7 – 2.4:1) (PT-DZ770K)
F 1.7–1.9, f 25.6–35.7 mm (1.8–2.5:1) (PT-DW730S)
2,500:1 (contrast mode: high)
2,500:1 (contrast mode: high)
WUXGA (1,920 x 1,200)
WXGA (1,280 x 800)/WUXGA (1,920 x 1,200)
1.27–15.24 m (50– 600 inches)*5
1.27–15.24 m (50–600 inches)*5
Vertical: +60%, horizontal: ±10% (powered)
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
S-Video in [Mini-DIN 4-pin x 1]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Serial out [D-sub 9-pin x 1 (RS-232C)]
Remote 1 in/out [M3 x 2 (in x 1, out x 1)]
Remote 2 in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Power consumption
830 W (120 V AC)
810 W (220–240 V AC)
790 W (120 V AC)
760 W (220–240 V AC)
Dimensions (W x H x D)
498 x 175*7 x 466 mm*8
(19-19/32 x 6-7/8*7 x 18-11/32 inches)*8
Approx. 16.3 kg/35.9 lbs
(PT-DZ770LK: approx. 15.4 kg/34.0 lbs)
498 × 175*7 × 466 mm*8
(19-19/32 × 6-7/8*7 × 18-11/32 inches)*8
Approx. 16.3 kg/35.9 lbs
(PT-DW730LS: approx. 15.4 kg/34.0 lbs)
Filter
Edge Blending
Geometric Adjustment
Emulation
RGB Booster
Daylight View
Detail Clarity Processor
DICOM Simulation Mode
Side-by-Side
Replacement lamp
Eco Filter
Eco Filter
Weight*3
Accessory
1-Chip DLP™ Projector
WIRED
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
HDMI in [HDMI 19-pin x 1 (HDCP compatible)]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
S-Video in [Mini-DIN 4-pin x 1]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Serial out [D-sub 9-pin x 1 (RS-232C)]
Remote 1 in/out [M3 x 2 (in x 1, out x 1)]
Remote 2 in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
120 V AC, 9.1 A, 60 Hz
220–240 V AC, 4.6 A, 50/60 Hz
Power supply
7
WUXGA
Vertical: +50%, horizontal: ±10%*6 (powered)
Interface
Optical
7,000 lm
120 V AC, 7.5 A, 60 Hz
220–240 V AC, 4.3 A, 50/60 Hz
Yes
Yes
-
-
-
-
Yes
Yes
System Daylight View 2
System Daylight View 2
Detail Clarity Processor
Detail Clarity Processor
Yes
-
Yes
Yes
ET-LAD60A
ET-LAD60AW (2 units)
ET-LAD60A
ET-LAD60AW (2 units)
Optional accessories
ET-PKD56H (High ceiling mount bracket)
ET-PKD55S (Low ceiling mount bracket)
ET-EMF300 (Replacement filter unit)
ET-PKD56H (High ceiling mount bracket)
ET-PKD55S (Low ceiling mount bracket)
ET-EMF300 (Replacement filter unit)
Optional lens
ET-DLE080 (Zoom lens, 0.8–1.0:1)
ET-DLE150 (Zoom lens, 1.3–1.9:1)
ET-DLE250 (Zoom lens, 2.3–3.6:1)
ET-DLE350 (Zoom lens, 3.6–5.4:1)
ET-DLE450 (Zoom lens, 5.4–8.6:1)
ET-DLE055 (Fixed-focus lens, 0.8:1)
ET-DLE080 (Zoom lens, 0.8–1.0:1)
ET-DLE150 (Zoom lens, 1.4–2.0:1)
ET-DLE250 (Zoom lens, 2.4–3.8:1)
ET-DLE350 (Zoom lens, 3.8–5.7:1)
ET-DLE450 (Zoom lens, 5.6–9.0:1)
ET-DLE055 (Fixed-focus lens, 0.8:1)
Standard accessories
Power cord, power cord secure lock,
wireless/wired remote control unit,
batteries for remote control unit
Power cord, power cord secure lock,
wireless/wired remote control unit,
batteries for remote control unit
*1: Input signals that exceed the native resolution will be converted to the native resolution.
*2: The screen size is that of the original aspect ratio. *3: Average value. Each product has an individual variable in weight.
*4: Lens-less model. *5: 1.27 – 5.08 m (50 – 200 inches) with the ET-DLE055.
PT-DX800S
PT-DX800LS*4
Large-Venue
PICK UP
Features for Superb Color Reproduction/
Detail Clarity
RGB Booster
1-Chip DLP™ Projector
8,000 lm
XGA
WIRED
LAN
17.8 mm (0.7 inches) DLP™ chip x 1
4:3
300 W (max 310 W) UHM x 2
8,000 lm
The RGB Booster achieves high image quality with levels of
color reproduction and brightness that make each color stand
out. It combines Panasonic’s proprietary Vivid Color Control
technology with a newly engineered Lamp Modulation Drive
System for a 1-chip DLP™ projector that produces bright and
vivid colors.
F 1.7–1.9, f 25.6–35.7 mm (1.8–2.5:1) (PT-DX800S)
1.27–15.24 m (50–600 inches)*5
Vertical: +50%, horizontal: ±10%*6 (powered)
Advantages
• Significantly improves color reproduction.
Conventional system
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
S-Video in [Mini-DIN 4-pin x 1]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Serial out [D-sub 9-pin x 1 (RS-232C)]
Remote 1 in/out [M3 x 2 (in x 1, out x 1)]
Remote 2 in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
120 V AC, 7.5 A, 60 Hz
220–240 V AC, 4.3 A, 50/60 Hz
790 W (120 V AC)
760 W (220–240 V AC)
498 × 175*7 × 466 mm*8
(19-19/32 × 6-7/8*7 × 18-11/32 inches)*8
Approx. 16.3 kg/35.9 lbs
(PT-D800LS: approx. 15.4 kg/34.0 lbs)
Installation
Installation
XGA (1,024 x 768)/WUXGA (1,920 x 1,200)
RGB Booster
Color wheel
Color wheel
Lamp power
Lamp power
Because the lamp power was fixed
in conventional projectors, color
reproduction was enhanced by
sacrificing brightness.
Portable
2,000:1 (contrast mode: high)
By modulating the lamp power,
we can maximize the color
reproduction of each color without
sacrificing brightness.
Light usage is optimized, and
color balance is obtained without
lowering the brightness.
Eco Filter
Yes
-
Detail Clarity Processor
System Daylight View 2
Detail Clarity Processor
ET-LAD60A
ET-LAD60AW (2 units)
ET-PKD56H (High ceiling mount bracket)
ET-PKD55S (Low ceiling mount bracket)
ET-EMF300 (Replacement filter unit)
Short Throw
Yes
This advanced image-processing circuit analyzes the video
signal frequency range for each scene by extracting data on the
distribution of high, mid, and low-frequency components, and
brings out fine details accordingly.
Advantages
• The resulting images have a more natural, three dimensional
appearance with crisp, clear detail.
Power cord, power cord secure lock,
wireless/wired remote control unit,
batteries for remote control unit
Without
Detail Clarity Processor
With
Home Cinema
ET-DLE080 (Zoom lens, 0.9–1.0:1)
ET-DLE150 (Zoom lens, 1.3–2.0:1)
ET-DLE250 (Zoom lens, 2.4–3.7:1)
ET-DLE350 (Zoom lens, 3.7–5.6:1)
ET-DLE450 (Zoom lens, 5.5–8.9:1)
ET-DLE055 (Fixed-focus lens, 0.8:1)
Detail Clarity Processor
* Please refer to the “Features” column for models supporting the above functions.
*6: Vertical +45% and horizontal ±10% with the ET-DLE080. *7: Height: with legs at shortest position.
*8: Depth: including the supplied lens. Depth: 432 mm (17 inches) for the lens-less models.
8
PT-DZ6710
PT-DZ6710L*4
PT-DZ6700
PT-DZ6700L*4
Installation
1-Chip DLP™ Projector
General
Features
WIRED
LAN
1-Chip DLP™ Projector
6,000 lm
WUXGA
WIRED
LAN
17.0 mm (0.67 inches) DLP™ chip x 1
16:10
300 W UHM x 2
6,000 lm
F 1.7−2.0, f 26.8−35.7 mm (1.8–2.4:1) (PT-DZ6710)
2,000:1 (contrast mode: high)
WUXGA (1,920 x 1,200)
1.27-15.24 m (50-600 inches)*5
Vertical: +50%, horizontal: ±10% (powered)
17.0 mm (0.67 inches) DLP™ chip x 1
16:10
300 W UHM x 2
6,000 lm
F 1.7−2.0, f 26.8−35.7 mm (1.8–2.4:1) (PT-DZ6700)
2,000:1 (contrast mode: high)
WUXGA (1,920 x 1,200)
1.27-15.24 m (50-600 inches)*5
Vertical: +50%, horizontal: ±10% (powered)
Terminals
SDI in [BNC x 1 (HD/SD SDI x 1)]
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
S-Video in [Mini-DIN 4-pin x 1]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Serial out [D-sub 9-pin x 1 (RS-232C)]
Remote 1 in/out [M3 x 2 (in x 1, out x 1)]
Remote 2 in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
S-Video in [Mini-DIN 4-pin x 1]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Serial out [D-sub 9-pin x 1 (RS-232C)]
Remote 1 in/out [M3 x 2 (in x 1, out x 1)]
Remote 2 in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Power supply
120 V AC, 8.0 A, 50/60 Hz
220–240 V AC, 4.3 A, 50/60 Hz
120 V AC, 8.0 A, 50/60 Hz
220–240 V AC, 4.3 A, 50/60 Hz
Power consumption
820 W (120 V AC)
800 W (220–240 V AC)
820 W (120 V AC)
800 W (220–240 V AC)
Dimensions (W x H x D)
498 x 175*6 x 440 mm*7*8
(19-19/32 x 6-7/8*6 x 17-5/16 inches)*7*8
498 x 175*6 x 440 mm*7*8
(19-19/32 x 6-7/8*6 x 17-5/16 inches)*7*8
Weight*3
Approx. 16.0 kg/35.3 lbs
(PT-DZ6710L: approx. 15.2 kg/33.5 lbs)
Approx. 16.0 kg/35.3 lbs
(PT-DZ6700L: approx. 15.2 kg/33.5 lbs)
Filter
Edge Blending
Geometric Adjustment
Emulation
RGB Booster
Daylight View
Detail Clarity Processor
DICOM Simulation Mode
Side-by-Side
Replacement lamp
Auto Cleaning Filter
Yes
Yes
Yes
System Daylight View 2
Detail Clarity Processor
Yes (Aspect ratio 16:10)
ET-LAD60A/ET-LAD60AW (2 units)
Auto Cleaning Filter
Yes
Yes
System Daylight View 2
Detail Clarity Processor
Yes (Aspect ratio 16:10)
ET-LAD60A/ET-LAD60AW (2 units)
Optional accessories
ET-PKD56H (High ceiling mount bracket)
ET-PKD55S (Low ceiling mount bracket)
ET-ACF100 (Replacement filter unit)
ET-PKD56H (High ceiling mount bracket)
ET-PKD55S (Low ceiling mount bracket)
ET-ACF100 (Replacement filter unit)
Optional lens
ET-DLE080 (Zoom lens, 0.8−0.9:1)
ET-DLE150 (Zoom lens, 1.3−1.9:1)
ET-DLE250 (Zoom lens, 2.3−3.6:1)
ET-DLE350 (Zoom lens, 3.6−5.4:1)
ET-DLE450 (Zoom lens, 5.4−8.6:1)
ET-DLE055 (Fixed-focus lens, 0.8:1)
ET-DLE080 (Zoom lens, 0.8−0.9:1)
ET-DLE150 (Zoom lens, 1.3−1.9:1)
ET-DLE250 (Zoom lens, 2.3−3.6:1)
ET-DLE350 (Zoom lens, 3.6−5.4:1)
ET-DLE450 (Zoom lens, 5.4−8.6:1)
ET-DLE055 (Fixed-focus lens, 0.8:1)
Standard accessories
Power cord, power cord secure lock,
wireless/wired remote control unit,
batteries for remote control unit, drop
prevention kit
Power cord, power cord secure lock,
wireless/wired remote control unit,
batteries for remote control unit, drop
prevention kit
Accessory
9
WUXGA
Panel type
Aspect ratio
Lamp
Brightness
Lens (throw ratio)
Contrast (full on/full off)
Resolution native/maximum*1
Screen size (diagonal)*2
Lens shift
Interface
Optical
6,000 lm
*1: Input signals that exceed the native resolution will be converted to the native resolution. *2: The screen size is that of the
original aspect ratio. *3: Average value. Each product has an individual variable in weight. *4: Lens-less model. *5: 1.27-5.08 m
(50-200 inches) with the ET-DLE055. *6: Height: with legs at shortest position. *7: Depth: including the supplied lens.
LAN
1-Chip DLP™ Projector
6,500 lm
XGA
WIRED
LAN
1-Chip DLP™ Projector
5,000 lm
XGA
Large-Venue
WIRED
WIRED
LAN
16.5 mm (0.65 inches) DLP™ chip x 1
16:10
300 W UHM x 2
6,000 lm
F 1.7−2.0, f 25.6−33.8 mm (1.8–2.4:1) (PT-DW6300S)
2,000:1 (contrast mode: high)
WXGA (1,280 x 800)/WUXGA (1,920 x 1,200)
1.27-15.24 m (50-600 inches)*5
Vertical: +60%, horizontal: ±10% (powered)
17.8 mm (0.7 inches) DLP™ chip x 1
4:3
300 W UHM x 2
6,500 lm
F 1.7−2.0, f 25.6−33.8 mm (1.8–2.4:1) (PT-D6000S)
2,000:1 (contrast mode: high)
XGA (1,024 × 768)/WUXGA (1,920 x 1,200)
1.27-15.24 m (50-600 inches)*5
Vertical: +50%, horizontal: ±10% (powered)
17.8 mm (0.7 inches) DLP™ chip x 1
4:3
240 W UHM x 2
5,000 lm
F 1.7−2.0, f 25.6−33.8 mm (1.8–2.4:1) (PT-D5000S)
1,000:1
XGA (1,024 × 768)/WUXGA (1,920 x 1,200)
1.27-15.24 m (50-600 inches)*5
Vertical: +50%, horizontal: ±10% (powered)
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
S-Video in [Mini-DIN 4-pin x 1]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Serial out [D-sub 9-pin x 1 (RS-232C)]
Remote 1 in/out [M3 x 2 (in x 1, out x 1)]
Remote 2 in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
S-Video in [Mini-DIN 4-pin x 1]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Serial out [D-sub 9-pin x 1 (RS-232C)]
Remote 1 in/out [M3 x 2 (in x 1, out x 1)]
Remote 2 in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
DVI-D in [DVI-D 24-pin x 1 (DVI-D x 1
(HDCP compatible))]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
S-Video in [Mini-DIN 4-pin x 1]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Serial out [D-sub 9-pin x 1 (RS-232C)]
Remote 1 in/out [M3 x 2 (in x 1, out x 1)]
Remote 2 in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
120 V AC, 7.2 A, 50/60 Hz
220–240 V AC, 3.8 A, 50/60 Hz
120 V AC, 7.2 A, 50/60 Hz
220–240 V AC, 3.8 A, 50/60 Hz
120 V AC, 5.5 A, 50/60 Hz
220–240 V AC, 3.3 A, 50/60 Hz
780 W (120 V AC)
750 W (220–240 V AC)
780 W (120 V AC)
750 W (220–240 V AC)
610 W (120 V AC)
600 W (220–240 V AC)
498 x 175*6 x 440 mm*7*8
(19-19/32 x 6-7/8*6 x 17-5/16 inches)*7*8
498 x 175*6 x 440 mm*7*8
(19-19/32 x 6-7/8*6 x 17-5/16 inches)*7*8
498 x 175*6 x 440 mm*7*8
(19-19/32 x 6-7/8*6 x 17-5/16 inches)*7*8
Approx. 16.0 kg/35.3 lbs
(PT-DW6300LS: approx. 15.2 kg/33.5 lbs)
Approx. 16.0 kg/35.3 lbs
(PT-D6000LS: approx. 15.2 kg/33.5 lbs)
Approx. 16.0 kg/35.3 lbs
(PT-D5000LS: approx. 15.2 kg/33.5 lbs)
Auto Cleaning Filter
Yes
Yes
System Daylight View 2
Detail Clarity Processor
Yes (Aspect ratio 16:10)
ET-LAD60A/ET-LAD60AW (2 units)
Auto Cleaning Filter
Yes
Yes
System Daylight View 2
Detail Clarity Processor
ET-LAD60A/ET-LAD60AW (2 units)
Auto Cleaning Filter
Yes
System Daylight View 2
Detail Clarity Processor
ET-LAD60A/ET-LAD60AW (2 units)
ET-PKD56H (High ceiling mount bracket)
ET-PKD55S (Low ceiling mount bracket)
ET-ACF100 (Replacement filter unit)
ET-PKD56H (High ceiling mount bracket)
ET-PKD55S (Low ceiling mount bracket)
ET-ACF100 (Replacement filter unit)
ET-PKD56H (High ceiling mount bracket)
ET-PKD55S (Low ceiling mount bracket)
ET-ACF100 (Replacement filter unit)
ET-DLE080 (Zoom lens, 0.9−1.0:1)
ET-DLE150 (Zoom lens, 1.4−2.0:1)
ET-DLE250 (Zoom lens, 2.4−3.8:1)
ET-DLE350 (Zoom lens, 3.8−5.7:1)
ET-DLE450 (Zoom lens, 5.6−9.0:1)
ET-DLE055 (Fixed-focus lens, 0.8:1)
ET-DLE080 (Zoom lens, 0.9−1.0:1)
ET-DLE150 (Zoom lens, 1.3−2.0:1)
ET-DLE250 (Zoom lens, 2.4−3.7:1)
ET-DLE350 (Zoom lens, 3.7−5.6:1)
ET-DLE450 (Zoom lens, 5.5−8.9:1)
ET-DLE055 (Fixed-focus lens, 0.8:1)
ET-DLE080 (Zoom lens, 0.9−1.0:1)
ET-DLE150 (Zoom lens, 1.3−2.0:1)
ET-DLE250 (Zoom lens, 2.4−3.7:1)
ET-DLE350 (Zoom lens, 3.7−5.6:1)
ET-DLE450 (Zoom lens, 5.5−8.9:1)
ET-DLE055 (Fixed-focus lens, 0.8:1)
Power cord, power cord secure lock,
wireless/wired remote control unit,
batteries for remote control unit, drop
prevention kit
Power cord, power cord secure lock,
wireless/wired remote control unit,
batteries for remote control unit, drop
prevention kit
Power cord, power cord secure lock,
wireless/wired remote control unit,
batteries for remote control unit, drop
prevention kit
Installation
Installation
WXGA
Portable
6,000 lm
PT-D5000S
PT-D5000LS*4
Short Throw
1-Chip DLP™ Projector
PT-D6000S
PT-D6000LS*4
Home Cinema
PT-DW6300S
PT-DW6300LS*4
*8: Depth: 432 mm (17 inches) for the lens-less models.
10
PT-DZ570
PT-DW530
Installation
option*4
1-Chip DLP™ Projector
General
Features
Accessory
11
WUXGA
LAN
option*4
1-Chip DLP™ Projector
4,000 lm
WXGA
WIRED
LAN
Panel type
17.0 mm (0.67 inches) DLP™ chip x 1
16.5 mm (0.65 inches) DLP™ chip x 1
Aspect ratio
16:10
16:10
Lamp
300 W (max 310 W) UHM
300 W (max 310 W) UHM
Brightness
4,000 lm
4,000 lm
Lens (throw ratio)
F 2.0−3.4, f 21.5−43.0 mm (1.45–2.94:1)
F 2.0−3.4, f 21.5−43.0 mm (1.53–3.09:1)
Contrast (full on/full off)
2,000:1
2,000:1
Resolution native/maximum*1
WUXGA (1,920 × 1,200)
WXGA (1,280 × 800)/WUXGA(1,920 × 1,200)
Screen size (diagonal)*2
1.02–7.62 m (40–300 inches)
1.02–7.62 m (40–300 inches)
Lens shift
Vertical: +60%, horizontal: ±10% (manual)
Vertical: +70%, horizontal: ±10% (manual)
Terminals
HDMI in [HDMI 19-pin × 1 (HDCP compatible)]
DVI-D in [DVI-D 24-pin × 1 (DVI-D x 1
(HDCP compatible))]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
S-Video in [Mini DIN 4-pin x 1]
Audio in 1 [RCA × 2 (L-R × 1)]
Audio in 2 [M3 × 1 (L-R × 1)]
Audio in 3 [M3 × 1 (L-R × 1)]
Audio out [M3 × 1 (L-R × 1)]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Remote in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Wireless module input terminal
[for optional ET-WM200 x 1]
HDMI in [HDMI 19-pin × 1 (HDCP compatible)]
DVI-D in [DVI-D 24-pin × 1 (DVI-D x 1
(HDCP compatible))]
RGB 1 in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
S-Video in [Mini DIN 4-pin x 1]
Audio in 1 [RCA × 2 (L-R × 1)]
Audio in 2 [M3 × 1 (L-R × 1)]
Audio in 3 [M3 × 1 (L-R × 1)]
Audio out [M3 × 1 (L-R × 1)]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Remote in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Wireless module input terminal
[for optional ET-WM200 x 1]
Power supply
100–240 V AC, 5.0–1.9 A, 50/60 Hz
100–240 V AC, 5.0–1.9 A, 50/60 Hz
Power consumption
415 W
415 W
Dimensions (W x H x D)
332 × 168*5 × 484.5 mm*6
(13-1/16 × 6-5/8*5 × 19-1/16 inches)*6
332 × 168*5 × 484.5 mm*6
(13-1/16 × 6-5/8*5 × 19-1/16 inches)*6
Weight*3
Approx. 8.5 kg/18.7 lbs.
Approx. 8.5 kg/18.7 lbs.
Emulation
Yes
Yes
RGB Booster
Yes
Yes
Daylight View
Daylight View Premium
Daylight View Premium
Detail Clarity Processor
Detail Clarity Processor 3
Detail Clarity Processor 3
DICOM Simulation Mode
Yes
Yes
Side-by-Side
Yes (Aspect ratio 16:10)
Yes (Aspect ratio 16:10)
Wireless Ready
Wireless Manager ME 5.5*4, iOS*4
Wireless Manager ME 5.5*4, iOS*4
Audio Out During Standby
Yes
Yes
Replacement lamp
ET-LAD60A
ET-LAD60AW (2 units)
ET-LAD60A
ET-LAD60AW (2 units)
Optional accessories
ET-PKD110H (High ceiling mount bracket)
ET-PKD110S (Low ceiling mount bracket)
ET-WM200 (Wireless module)
ET-PKD110H (High ceiling mount bracket)
ET-PKD110S (Low ceiling mount bracket)
ET-WM200 (Wireless module)
Standard accessories
Power cord, wireless remote control
unit, batteries for remote control unit,
safety wire rope, software CD-ROM
(Logo Transfer Software, Multi Projector
Monitoring and ontrol Software, Wireless
Manager ME 5.5)
Power cord, wireless remote control unit,
batteries for remote control unit, safety
wire rope, software CD-ROM (Logo
Transfer Software, Multi Projector
Monitoring and Control Software, Wireless
Manager ME 5.5)
Interface
Optical
4,000 lm
WIRED
*1: Input signals that exceed the native resolution will be converted to the native resolution.
*2: The screen size is that of the original aspect ratio.
*3: Average value. Each product has an individual variable in weight.
PT-DX500
Large-Venue
PICK UP
Features for Medical Education and Training/
Superb Eco Performance
option*4
4,500 lm
XGA
DICOM Simulation Mode
WIRED
LAN
17.8 mm (0.7 inches) DLP™ chip x 1
4:3
300 W (max 310 W) UHM
This imaging mode is similar to DICOM Part 14, which is a
medical imaging standard. It reproduces X-ray images with
remarkable clarity.
* This product is not a medical instrument. Do not use it for actual medical diagnosis.
F 2.0−3.4, f 21.5−43.0 mm (1.51–3.05:1)
Advantages
• Allows information to be shared by many viewers on a large
2,000:1
screen, such as during medical conferences or training courses.
4,500 lm
XGA (1,024 × 768)/WUXGA(1,920 × 1,200)
Installation
Installation
1-Chip DLP™ Projector
Normal Mode
1.02–7.62 m (40–300 inches)
Vertical: +60%, horizontal: ±10% (manual)
100–240 V AC, 5.0–1.9 A, 50/60 Hz
415 W
332 × 168*5 × 484.5 mm*6
(13-1/16 × 6-5/8*5 × 19-1/16 inches)*6
Approx. 8.5 kg/18.7 lbs.
Yes
Yes
Intelligent Lamp Control System
Intelligent Lamp Control system automatically adjusts the lamp
output in accordance with the brightness of the projected image.
It also combines with color shift correction, which corrects the
shift in the color balance that occurs when the lamp output
drops.
Advantages
• Power consumption is effectively reduced while excellent color
reproduction is maintained.
Daylight View Premium
Conventional Lamp System
Detail Clarity Processor 3
100 %
Lamp 80 %
output
Yes
-
Portable
DICOM Simulation Mode
Short Throw
HDMI in [HDMI 19-pin × 1 (HDCP compatible)]
DVI-D in [DVI-D 24-pin × 1 (DVI-D x 1
(HDCP compatible))]
RGB 1 in [BNC x 5 (RGB/YPBPR /YCBCR x 1)]
RGB 2 in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [BNC x 1]
S-Video in [Mini DIN 4-pin x 1]
Audio in 1 [RCA × 2 (L-R × 1)]
Audio in 2 [M3 × 1 (L-R × 1)]
Audio in 3 [M3 × 1 (L-R × 1)]
Audio out [M3 × 1 (L-R × 1)]
Serial in [D-sub 9-pin x 1 (RS-232C)]
Remote in [D-sub 9-pin x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Wireless module input terminal
[for optional ET-WM200 x 1]
Normal mode
Eco mode
Wireless Manager ME 5.5*4, iOS*4
ET-LAD60A
ET-LAD60AW (2 units)
ET-PKD110H (High ceiling mount bracket)
ET-PKD110S (Low ceiling mount bracket)
ET-WM200 (Wireless module)
Power cord, wireless remote control unit,
batteries for remote control unit, safety
wire rope, software CD-ROM (Logo
Transfer Software, Multi Projector
Monitoring and Control Software, Wireless
Manager ME 5.5)
Intelligent Lamp Control System
100 %
Lamp
output
Auto mode
Reduce up to 70 %
30 %
Bright scene
Home Cinema
Yes
Dark scene
* Please refer to the “Features” column for models supporting the above functions.
*4: To operate wireless projection, the optional wireless module ET-WM200 is required.
*5: Height: with legs at shortest position.
*6: Depth:including the lens.
12
PT-EZ570
PT-EZ570L*4
PT-EW630
PT-EW630L*4
NEW
NEW
Installation
LCD Projector
General
Features
Accessory
13
WUXGA
LCD Projector
WIRED
LAN
5,500 lm
WXGA
Panel type
Aspect ratio
Lamp
Brightness
Lens (throw ratio)
Contrast (full on/full off)
Resolution native/maximum*1
Screen size (diagonal)*2
Lens shift
19.2 mm (0.76 inches) LCD x 3
19.0 mm (0.75 inches) LCD x 3
16:10
16:10
330 W UHM
330 W UHM
5,000 lm
5,500 lm
WIRED
LAN
F 1.7−2.3, f 26.9– 45.4 mm (1.7–2.8:1) (PT-EZ570)
F 1.7−2.3, f 26.9– 45.4 mm (1.7–2.8:1) (PT-EW630)
5,000:1
5,000:1
WUXGA (1,920 x 1,200)
WXGA (1,280 x 800)/WUXGA(1,920 x 1,200)
1.02–10.16 m (40–400 inches)
1.02–10.16 m (40–400 inches)
Vertical: ±60%, horizontal: ±10% (powered)
Vertical: ±60%, horizontal: ±10% (powered)
Built-in speaker
10.0 W (monaural)
10.0 W (monaural)
Terminals
DVI-D in [DVI-D 24-pin × 1 (DVI-D x 1
(HDCP compatible))]
HDMI in [HDMI 19-pin x 1 (HDCP compatible)]
RGB in [D-sub HD 15-pin x 1 (RGB x 1)]
RGB in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
Composite/Component Video in [RCA x 3
(Video/YPBPR/YCBCR x 1)]
S-Video in [Mini-DIN 4-pin x 1]
Monitor out [D-sub HD 15-pin x 1 (RGB x 1)]
Audio in 1 [M3 x 1 (L-R x 1)]
Audio in 2 [M3 x 1 (L-R x 1)]
Audio in 3 [RCA x 2 (L-R x 1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1 (RS-232C x 1)]
Remote in [M3 x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
DVI-D in [DVI-D 24-pin × 1 (DVI-D x 1
(HDCP compatible))]
HDMI in [HDMI 19-pin x 1 (HDCP compatible)]
RGB in [D-sub HD 15-pin x 1 (RGB x 1)]
RGB in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
Composite/Component Video in [RCA x 3
(Video/YPBPR/YCBCR x 1)]
S-Video in [Mini-DIN 4-pin x 1]
Monitor out [D-sub HD 15-pin x 1 (RGB x 1)]
Audio in 1 [M3 x 1 (L-R x 1)]
Audio in 2 [M3 x 1 (L-R x 1)]
Audio in 3 [RCA x 2 (L-R x 1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1 (RS-232C x 1)]
Remote in [M3 x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Power supply
Power consumption
100-240 V AC, 50/60 Hz
100-240 V AC, 50/60 Hz
490 W
490 W
Dimensions (W x H x D)
489.5 x 164*5 x 434 mm*6*7
(19-9/32 x 6-15/32*5 x 17-3/32 inches)*6*7
489.5 x 164*5 x 434 mm*6*7
(19-9/32 x 6-15/32*5 x 17-3/32 inches)*6*7
Weight*3
Approx. 10.3 kg/22.7 lbs
(PT-EZ570L: approx. 9.6 kg/21.2 lbs)
Approx. 10.3 kg/22.7 lbs
(PT-EW630L: approx. 9.6 kg/21.2 lbs)
Filter
Intelligent Lamp Control
Emulation
RGB Booster
Daylight View
Side-by-Side/P-in-P
Audio Out During Standby
Eco Filter
Eco Filter
Yes
Yes
-
-
-
-
Daylight View Basic
Daylight View Basic
Interface
Optical
5,000 lm
Yes (Aspect ratio 16:10)
Yes (Aspect ratio 16:10)
Yes
Yes
Replacement lamp
Optional accessories
ET-LAE200
ET-LAE200
ET-PKE200H (High ceiling mount bracket)
ET-PKE200S (Low ceiling mount bracket)
ET-PKE200B (Bracket assembly)
ET-RFE200 (Replacement filter unit)
ET-PKE200H (High ceiling mount bracket)
ET-PKE200S (Low ceiling mount bracket)
ET-PKE200B (Bracket assembly)
ET-RFE200 (Replacement filter unit)
Optional Lens
ET-ELW20 (Zoom lens, 1.3–1.7:1)
ET-ELT20 (Zoom lens, 2.8–4.6:1)
ET-ELT21 (Zoom lens, 4.6–7.2:1)
ET-ELW21 (Fixed-focus lens, 0.8:1)
ET-ELW20 (Zoom lens, 1.3–1.7:1)
ET-ELT20 (Zoom lens, 2.8–4.6:1)
ET-ELT21 (Zoom lens, 4.6–7.2:1)
ET-ELW21 (Fixed-focus lens, 0.8:1)
Standard accessories
Power cord, power cord holder, wireless/
wired remote control unit, batteries for
remote control unit, computer cable,
software CD-ROM (Logo Transfer
Software, Multi Projector Monitoring and
Control Software)
Power cord, power cord holder, wireless/
wired remote control unit, batteries for
remote control unit, computer cable,
software CD-ROM (Logo Transfer
Software, Multi Projector Monitoring and
Control Software)
*1: Input signals that exceed the native resolution will be converted to the native resolution.
*2: The screen size is that of the original aspect ratio. *3: Average value. Each product has an individual variable in weight.
4,500 lm
WXGA
LCD Projector
WIRED
LAN
5,000 lm
XGA
Large-Venue
LAN
WIRED
LAN
20.0 mm (0.8 inches) LCD x 3
19.0 mm (0.75 inches) LCD x 3
20.0 mm (0.8 inches) LCD x 3
4:3
16:10
4:3
330 W UHM
330 W UHM
330 W UHM
6,000 lm
4,500 lm
5,000 lm
F 1.7−2.3, f 26.9– 45.4 mm (1.7–2.8:1) (PT-EX600)
F 1.7−2.3, f 26.9– 45.4 mm (1.7–2.8:1) (PT-EW530)
F 1.7−2.3, f 26.9– 45.4 mm (1.7–2.8:1) (PT-EX500)
5,000:1
2,000:1
2,000:1
XGA (1,024 x 768)/WUXGA(1,920 x 1,200)
WXGA (1,280 x 800)/WUXGA (1,920 x 1,200)
XGA (1,024 x 768)/WUXGA (1,920 x 1,200)
1.02–10.16 m (40–400 inches)
1.02–10.16 m (40–400 inches)
1.02–10.16 m (40–400 inches)
Vertical: ±50%, horizontal: ±10% (powered)
Vertical: ±60%, horizontal: ±10% (powered)
Vertical: ±50%, horizontal: ±10% (powered)
10.0 W (monaural)
10.0 W (monaural)
10.0 W (monaural)
DVI-D in [DVI-D 24-pin × 1 (DVI-D x 1
(HDCP compatible))]
HDMI in [HDMI 19-pin x 1 (HDCP compatible)]
RGB in [D-sub HD 15-pin x 1 (RGB x 1)]
RGB in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
Composite/Component Video in [RCA x 3
(Video/YPBPR/YCBCR x 1)]
S-Video in [Mini-DIN 4-pin x 1]
Monitor out [D-sub HD 15-pin x 1 (RGB x 1)]
Audio in 1 [M3 x 1 (L-R x 1)]
Audio in 2 [M3 x 1 (L-R x 1)]
Audio in 3 [RCA x 2 (L-R x 1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1 (RS-232C x 1)]
Remote in [M3 x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
DVI-D in [DVI-D 24-pin × 1 (DVI-D x 1
(HDCP compatible))]
HDMI in [HDMI 19-pin x 1 (HDCP compatible)]
RGB in [D-sub HD 15-pin x 1 (RGB x 1)]
RGB in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
Composite/Component Video in [RCA x 3
(Video/YPBPR/YCBCR x 1)]
S-Video in [Mini-DIN 4-pin x 1]
Monitor out [D-sub HD 15-pin x 1 (RGB x 1)]
Audio in 1 [M3 x 1 (L-R x 1)]
Audio in 2 [M3 x 1 (L-R x 1)]
Audio in 3 [RCA x 2 (L-R x 1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1 (RS-232C x 1)]
Remote in [M3 x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
DVI-D in [DVI-D 24-pin × 1 (DVI-D x 1
(HDCP compatible))]
HDMI in [HDMI 19-pin x 1 (HDCP compatible)]
RGB in [D-sub HD 15-pin x 1 (RGB x 1)]
RGB in [BNC x 5 (RGB/YPBPR/YCBCR x 1)]
Composite/Component Video in [RCA x 3
(Video/YPBPR/YCBCR x 1)]
S-Video in [Mini-DIN 4-pin x 1]
Monitor out [D-sub HD 15-pin x 1 (RGB x 1)]
Audio in 1 [M3 x 1 (L-R x 1)]
Audio in 2 [M3 x 1 (L-R x 1)]
Audio in 3 [RCA x 2 (L-R x 1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1 (RS-232C x 1)]
Remote in [M3 x 1]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
100-240 V AC, 50/60 Hz
100-240 V AC, 50/60 Hz
100-240 V AC, 50/60 Hz
490 W
490 W
490 W
489.5 x 164*5 x 434 mm*6*7
(19-9/32 x 6-15/32*5 x 17-3/32 inches)*6*7
489.5 x 164*5 x 434 mm*6*7
(19-9/32 x 6-15/32*5 x 17-3/32 inches)*6*7
489.5 x 164*5 x 434 mm*6*7
(19-9/32 x 6-15/32*5 x 17-3/32 inches)*6*7
Approx. 10.3 kg/22.7 lbs
(PT-EX6000L: approx. 9.6 kg/21.2 lbs)
Approx. 10.2 kg/22.5 lbs
(PT-EW530L: approx. 9.5 kg/20.9 lbs)
Approx. 10.2 kg/22.5 lbs
(PT-EX500L: approx. 9.5 kg/20.9 lbs)
Eco Filter
Eco Filter
Eco Filter
Yes
Yes
Yes
-
-
-
-
-
-
Daylight View Basic
Daylight View Basic
Daylight View Basic
-
Yes (Aspect ratio 16:10)
-
Yes
Yes
Yes
ET-LAE200
ET-LAE200
ET-LAE200
ET-PKE200H (High ceiling mount bracket)
ET-PKE200S (Low ceiling mount bracket)
ET-PKE200B (Bracket assembly)
ET-RFE200 (Replacement filter unit)
ET-PKE200H (High ceiling mount bracket)
ET-PKE200S (Low ceiling mount bracket)
ET-PKE200B (Bracket assembly)
ET-RFE200 (Replacement filter unit)
ET-PKE200H (High ceiling mount bracket)
ET-PKE200S (Low ceiling mount bracket)
ET-PKE200B (Bracket assembly)
ET-RFE200 (Replacement filter unit)
ET-ELW20 (Zoom lens, 1.3–1.7:1)
ET-ELT20 (Zoom lens, 2.8–4.6:1)
ET-ELT21 (Zoom lens, 4.6–7.2:1)
ET-ELW21 (Fixed-focus lens, 0.8:1)
ET-ELW20 (Zoom lens, 1.3–1.7:1)
ET-ELT20 (Zoom lens, 2.8–4.6:1)
ET-ELT21 (Zoom lens, 4.6–7.2:1)
ET-ELW21 (Fixed-focus lens, 0.8:1)
ET-ELW20 (Zoom lens, 1.3–1.7:1)
ET-ELT20 (Zoom lens, 2.8–4.6:1)
ET-ELT21 (Zoom lens, 4.6–7.2:1)
ET-ELW21 (Fixed-focus lens, 0.8:1)
Power cord, power cord holder, wireless/
wired remote control unit, batteries for
remote control unit, computer cable,
software CD-ROM (Logo Transfer
Software, Multi Projector Monitoring and
Control Software)
Power cord, power cord holder, wireless/
wired remote control unit, batteries for
remote control unit, computer cable,
software CD-ROM (Logo Transfer
Software, Multi Projector Monitoring and
Control Software)
Power cord, power cord holder, wireless/
wired remote control unit, batteries for
remote control unit, computer cable,
software CD-ROM (Logo Transfer
Software, Multi Projector Monitoring and
Control Software)
*4: Lens-less model. *5: Height: with legs at shortest position. *6: Depth:including the lens. *7: Depth: 370 mm (14-9/16 inches)
for the lens-less models.
Installation
Installation
LCD Projector
WIRED
NEW
Portable
XGA
PT-EX500
PT-EX500L*4
NEW
Short Throw
LCD Projector
6,000 lm
PT-EW530
PT-EW530L*4
NEW
Home Cinema
PT-EX600
PT-EX600L*4
14
PT-FW430
PT-FX400
Installation
option*4
LCD Projector
General
Features
Accessory
15
WXGA
LAN
4,000 lm
XGA
WIRED
LAN
Panel type
Aspect ratio
Lamp
Brightness
Lens (throw ratio)
Contrast (full on/full off)
Resolution native/maximum*1
Screen size (diagonal)*2
Lens shift
Built-in speaker
18.9 mm (0.74 inches) LCD x 3
20.3 mm (0.8 inches) LCD x 3
16:10
4:3
250 W UHM
250 W UHM
3,500 lm
4,000 lm
5.0 W (monaural)
5.0 W (monaural)
Terminals
HDMI in [HDMI 19-pin × 1
(HDCP compatible)]
DVI-I in [DVI-I 29-pin × 1
(Digital:HDCP compatible)
(Analog:RGB/YPBPR/YCBCR x 1)]
Computer in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Audio in 1 [M3 x 1 (L-R x1)]
Audio in 2 [M3 x 1 (L-R x1)]
Audio in 3 [RCA x 2 (L-R x1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Wireless module input terminal
[for optional ET-WM200 x 1]
HDMI in [HDMI 19-pin × 1
(HDCP compatible)]
DVI-I in [DVI-I 29-pin × 1
(Digital:HDCP compatible)
(Analog:RGB/YPBPR/YCBCR x 1)]
Computer in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Audio in 1 [M3 x 1 (L-R x1)]
Audio in 2 [M3 x 1 (L-R x1)]
Audio in 3 [RCA x 2 (L-R x1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Wireless module input terminal
[for optional ET-WM200 x 1]
Power supply
Power consumption
100–240 V AC, 3.9–1.4 A, 50/60 Hz
100–240 V AC, 3.9–1.4 A, 50/60 Hz
330 W
330 W
Dimensions (W x H x D)
430 × 125.5*5 × 323 mm
(16-15/16 × 4-15/16*5 × 12-23/32 inches)
430 × 125.5*5 × 323 mm
(16-15/16 × 4-15/16*5 × 12-23/32 inches)
Weight*3
Filter
Emulation
RGB Booster
Daylight View
Detail Clarity Processor
DICOM Simulation Mode
Side-by-Side
Wireless Ready
Audio Out During Standby
Replacement lamp
Approx.6.0 kg/13.2 lbs
Approx. 6.0 kg/13.2 lbs
Eco Filter
Eco Filter
Yes
Yes
-
-
Daylight View Premium
Daylight View Premium
Interface
Optical
3,500 lm
option*4
LCD Projector
WIRED
F 1.7−2.6, f 21.6−43.0 mm (1.34–2.68:1)
F 1.7–2.6, f 24.0–47.2 mm (1.48–2.96:1)
600:1
600:1
WXGA (1,280 x 800)/WUXGA (1,920 x 1,200)
XGA (1,024 x 768)/WUXGA (1,920 x 1,200)
0.84–7.62 m (33−300 inches)
0.84–7.62 m (33−300 inches)
Vertical ±51%, horizontal ±24% (manual)
Vertical ±50%, horizontal ±27% (manual)
Detail Clarity Processor 3
Detail Clarity Processor 3
-
-
Yes (Aspect ratio 16:10)
-
Wireless Manager ME 5.5*4, iOS*4
Wireless Manager ME 5.5*4, iOS*4
Yes
Yes
ET-LAF100A
ET-LAF100A
Optional accessories
ET-PKF110H (High ceiling mount bracket)
ET-PKF110S (Low ceiling mount bracket)
ET-EMF100 (Replacement filter unit)
ET-WM200 (Wireless module)
ET-PKF110H (High ceiling mount bracket)
ET-PKF110S (Low ceiling mount bracket)
ET-EMF100 (Replacement filter unit)
ET-WM200 (Wireless module)
Standard accessories
Power cord, wireless remote control
unit, batteries for remote control unit,
software CD-ROM (Logo Transfer
Software, Multi Projector Monitoring
& Control Software, Wireless Manager
ME 5.5)
Power cord, wireless remote control
unit, batteries for remote control unit,
software CD-ROM (Logo Transfer
Software, Multi Projector Monitoring
& Control Software, Wireless Manager
ME 5.5)
*1: Input signals that exceed the native resolution will be converted to the native resolution .
*2: The screen size is that of the original aspect ratio.
*3: Average value. Each product has an individual variable in weight.
PT-LZ370
Large-Venue
PICK UP
Features for Flexible Installation/
Maintaining Long-Lasting Image Quality
Lens Shift Function
LCD Projector
3,000 lm
Full HD
WIRED
LAN
Horizontal/vertical lens shift lets you accommodate a wide range
of room sizes and shapes without distorting projected images.
18.7 mm (0.74 inches) LCD x 3
3,000 lm
F 2.0–3.4, f 21.5–43.0 mm (1.33–2.69:1)
10,000:1
Full HD (1,920 x 1,080)/WUXGA (1,920 x 1,200)
1.02 –7.62 m (40−300 inches)
Vertical ±65%, horizontal ±26% (manual)
HDMI in [HDMI 19-pin × 1
(HDCP compatible)]
Computer in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Component in [RCA x 3(YPBPR/YCBCR x 1)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Audio in [M3 x 1 (L-R x1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Advantages
• When lights or ventilation
Horizontal Lens Shift
holes are located in the ceiling
mounting site, you can simply
relocate the projector to avoid
them.
• When replacing existing
projectors, this can reduce
costs by permitting the use of
existing mounting positions and
cables.
Installation
Installation
280 W UHM
Vertical Lens Shift
* The shift range of the lens varies depending
on the model.
* Please refer to the “Optical” column for models supporting the above functions.
Eco Filter
Portable
16:9
Eco Filter efficiently captures dust and requires no replacement
for long periods of time. And, as an environmental consideration,
the filter can be washed with water and reused.*
Advantages
• Reduces maintenance cost
350 W
and time.
470 x 151*5 x 380 mm
(18-17/32 x 5-15/16*5 x 14-31/32 inches)
• Dust resistant design keeps
the air inside the projector
clean for long periods of time
and minimizes brightness
degradation.
Approx. 8.6 kg/19.0 lbs
Micro Cut Filter
Yes
-
* Featured image is for the PT-FW430 Series.
Detail Clarity Processor 3
* When washing with water, please follow the procedures listed in the operating
instructions. Also, we recommend replacing the filter with a new one after it has been
washed and reused twice. If the filter is not sufficiently clean after washing, replace it
with a new one.
Yes
* Please refer to the “Features” column for models supporting the above functions.
Daylight View Premium
Short Throw
100–240 V AC, 50/60 Hz
Yes
ET-LAA110
ET-PKA110H (High ceiling mount bracket)
ET-PKA110S (Low ceiling mount bracket)
Power cord, wireless remote control
unit, batteries for remote control unit,
software CD-ROM (Logo Transfer
Software,Multi Projector Monitoring &
Control Software)
Inorganic Panel
The LCD panels inside the LCD projector's optical block tend to
degrade over time. Their degradation adversely affects image
quality. Inorganic materials are used for the LCD panels to resist
time-related changes in the optical block.
Home Cinema
-
Advantages
• The projector's optical block maintains a high level of performance
and image quality over time.
*4: To operate wireless projection, the optional wireless module ET-WM200 is required.
*5: Height: with legs at shortest position.
16
PT-VW435N
PT-VW430
NEW
NEW
Portable
LCD Projector
General
Features
Accessory
17
WXGA
LCD Projector
WIRED
LAN
4,300 lm
WXGA
WIRED
LAN
Panel type
15.0 mm (0.59 inches) LCD x 3
15.0 mm (0.59 inches) LCD x 3
Aspect ratio
16:10
16:10
Lamp
280 W UHM
280 W UHM
Brightness
4,300 lm
4,300 lm
Lens (throw ratio)
F 1.60–2.12, f 15.28–24.62 mm (1.18–1.90:1)
F 1.60–2.12, f 15.28–24.62 mm (1.18–1.90:1)
Contrast (full on/full off)
3,500:1
3,500:1
Resolution native/maximum*1
WXGA (1,280 x 800)/WUXGA (1,920 x 1,200)
WXGA (1,280 x 800)/WUXGA (1,920 x 1,200)
Screen size (diagonal)*2
0.76–7.62 m (30–300 inches)
0.76–7.62 m (30–300 inches)
Lens shift
Vertical: +48° (manual)
Vertical: +48° (manual)
Built-in speaker
10.0 W (monaural)
10.0 W (monaural)
Terminals
HDMI in [HDMI 19-pin × 1
(HDCP compatible)]
Computer in 1 [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Computer in 2/Monitor out
[D-sub HD 15-pin x 1(RGB x 1)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Computer audio in 1 [M3 x 1 (L-R x1)]
Computer audio in 2/MIC in [M3 x 1 (L-R x1)]
Video audio in [RCA x 2 (L-R x1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
USB A [USB type-A x 1]
USB B [USB type-B x 1]
HDMI in [HDMI 19-pin × 1
(HDCP compatible)]
Computer in 1 [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Computer in 2/Monitor out
[D-sub HD 15-pin x 1(RGB x 1)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Computer audio in 1 [M3 x 1 (L-R x1)]
Computer audio in 2/MIC in [M3 x 1 (L-R x1)]
Video audio in [RCA x 2 (L-R x1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Power supply
Power consumption
100-240 V AC, 50/60 Hz
100-240 V AC, 50/60 Hz
365 W
365 W
Dimensions (W x H x D)
379 x 107*4 x 305 mm*5
(14-29/32 x 4-7/32*4 x 12 inches)*5
379 x 107*4 x 305 mm*5
(14-29/32 x 4-7/32*4 x 12 inches)*5
Weight*3
Filter
Daylight View
Wireless Ready
USB Memory Viewer
USB Display
Audio Out During Standby
Replacement lamp
Approx. 4.8 kg/10.6 lbs
Approx. 4.8 kg/10.6 lbs
Pleated Micro Cut Filter
Pleated Micro Cut Filter
Daylight View Basic
Daylight View Basic
Interface
Optical
4,300 lm
Wireless Manager ME 6.0, iOS
-
Yes
-
Yes
-
Yes
Yes
ET-LAV200
ET-LAV200
Optional accessories
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKV200B (Bracket assembly)
ET-RFV200 (Replacement filter unit)
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKV200B (Bracket assembly)
ET-RFV200 (Replacement filter unit)
Standard accessories
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, carrying bag, computer cable,
software CD-ROM(Logo Transfer Software,
Multi Projector Monitoring & Control
Software, Wireless Manager ME 6.0)
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, carrying bag, computer
cable, software CD-ROM(Logo Transfer
Software, Multi Projector Monitoring &
Control Software)
*1: Input signals that exceed the native resolution will be converted to the native resolution.
*2: The screen size is that of the original aspect ratio.
*3: Average value. Each product has an individual variable in weight.
PT-VX500
NEW
NEW
PICK UP
Large-Venue
PT-VX505N
Wireless Projection
Features
LAN
5,000 lm
XGA
16.0 mm (0.63 inches) LCD x 3
16.0 mm (0.63 inches) LCD x 3
4:3
4:3
280 W UHM
280 W UHM
5,000 lm
5,000 lm
WIRED
LAN
F 1.60–2.12, f 15.28–24.62 mm (1.18–1.90:1)
F 1.60–2.12, f 15.28–24.62 mm (1.18–1.90:1)
4,000:1
4,000:1
XGA (1,024 x 768)/WUXGA (1,920 x 1,200)
XGA (1,024 x 768)/WUXGA (1,920 x 1,200)
0.76–7.62 m (30–300 inches)
0.76–7.62 m (30–300 inches)
Vertical: +40° (manual)
Vertical: +40° (manual)
10.0 W (monaural)
10.0 W (monaural)
HDMI in [HDMI 19-pin × 1
(HDCP compatible)]
Computer in 1 [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Computer in 2/Monitor out
[D-sub HD 15-pin x 1(RGB x 1)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Computer audio in 1 [M3 x 1 (L-R x1)]
Computer audio in 2/MIC in [M3 x 1 (L-R x1)]
Video audio in [RCA x 2 (L-R x1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
USB A [USB type-A x 1]
USB B [USB type-B x 1]
HDMI in [HDMI 19-pin × 1
(HDCP compatible)]
Computer in 1 [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Computer in 2/Monitor out
[D-sub HD 15-pin x 1(RGB x 1)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Computer audio in 1 [M3 x 1 (L-R x1)]
Computer audio in 2/MIC in [M3 x 1 (L-R x1)]
Video audio in [RCA x 2 (L-R x1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
100-240 V AC, 50/60 Hz
100-240 V AC, 50/60 Hz
365 W
365 W
379 x 107*4 x 305 mm*5
379 x 107*4 x 305 mm*5
(14-29/32 x 4-7/32*4 x 12 inches)*5
(14-29/32 x 4-7/32*4 x 12 inches)*5
Approx. 4.8 kg/10.6 lbs
Approx. 4.8 kg/10.6 lbs
Pleated Micro Cut Filter
Pleated Micro Cut Filter
Daylight View Basic
Daylight View Basic
Wireless Manager ME 6.0, iOS
-
Yes
-
Yes
-
Yes
Yes
ET-LAV200
ET-LAV200
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKV200B (Bracket assembly)
ET-RFV200 (Replacement filter unit)
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKV200B (Bracket assembly)
ET-RFV200 (Replacement filter unit)
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, carrying bag, computer cable,
software CD-ROM(Logo Transfer Software,
Multi Projector Monitoring & Control
Software, Wireless Manager ME 6.0)
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, carrying bag, computer
cable, software CD-ROM(Logo Transfer
Software, Multi Projector Monitoring &
Control Software)
The Wireless Manager ME5.5/
6.0* application provided with
the projector allows easy
transfer of data from the
screen of a personal computer
through a wired or wireless
LAN connection.
Installation
WIRED
* The Wireless Manager ME6.0 supports the
PT-VW435N/VX505N only.
Advantages
• No need to pass around cables.
• Allows easy and speedy setup,
and a flexible system layout.
Four-Window
Multi Style
displays up to four
computer screens at
a time.
Four-Window
Index Style
displays thumbnails
of four computer
screens.
Portable
XGA
Wireless Projection
from Multiple PCs
16-Window
Index Style
displays thumbnails
of 16 computer
screens.
Wireless Projection from
iPad/iPhone/iPod touch
The "Panasonic Wireless
Projector for iOS" application,
which is free and available
on the App Store, allows
wireless projection from an
iPad, iPhone or iPod touch.
Short Throw
5,000 lm
LCD Projector
Projectable Content:
JPG/PDF/WEB/Photos*
* Photos taken with the built-in camera on
an iPad, iPhone or iPod touch.
Marker Function:
Draw lines on JPEG images, PDF
files, or web pages on iOS with
g
your finger.
Home Cinema
LCD Projector
* Please refer to the “Features” column for
models supporting the above functions.
*4: Height: with legs at shortest position.
*5: Depth: protruding parts not included.
18
PT-VW330
PT-VX400NT
Portable
LCD Projector
General
Features
Accessory
19
WXGA
LCD Projector
WIRED
LAN
4,000 lm
XGA
WIRED
LAN
Panel type
Aspect ratio
Lamp
Brightness
Lens (throw ratio)
Contrast (full on/full off)
Resolution native/maximum*1
Screen size (diagonal)*2
Lens shift
Built-in speaker
15.0 mm (0.59 inches) LCD x 3
16:10
245 W UHM
3,000 lm
F 1.65–2.33, f 15.47–24.53 mm (1.2–1.9:1)
2,000:1
WXGA (1,280 x 800)/WUXGA (1,920 x 1,200)
0.76–7.62 m (30–300 inches)
49:1 (fixed)
10.0 W (monaural)
16.0 mm (0.63 inches) LCD x 3
4:3
245 W UHM
4,000 lm
F 1.65–2.33, f 15.47–24.53 mm (1.2–1.9:1)
2,000:1
XGA (1,024 x 768)/WUXGA (1,920 x 1,200)
0.76–7.62 m (30–300 inches)
9:1 (fixed)
10.0 W (monaural)
Terminals
HDMI in [HDMI 19-pin × 1
(HDCP compatible)]
Computer in 1 [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Computer in 2/Monitor out
[D-sub HD 15-pin x 1(RGB x 1)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Computer audio in 1 [M3 x 1 (L-R x1)]
Computer audio in 2/MIC in [M3 x 1 (L-R x1)]
Video audio in [RCA x 2 (L-R x1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
HDMI in [HDMI 19-pin × 1
(HDCP compatible)]
Computer in 1 [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Computer in 2/Monitor out
[D-sub HD 15-pin x 1(RGB x 1)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Computer audio in 1 [M3 x 1 (L-R x1)]
Computer audio in 2/MIC in [M3 x 1 (L-R x1)]
Video audio in [RCA x 2 (L-R x1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
USB A [USB type-A x 1]
USB B [USB type-B x 1]
Power supply
Power consumption
100-240 V AC, 50/60 Hz
322 W
100-240 V AC, 50/60 Hz
322 W
Dimensions (W x H x D)
350 x 97*4 x 277 mm*5
(13-3/4 x 3-7/8*4 x 10-7/8 inches)*5
Approx. 3.5 kg/7.7 lbs
350 x 97*4 x 277 mm*5
(13-3/4 x 3-7/8*4 x 10-7/8 inches)*5
Approx. 3.6 kg/7.9 lbs
Three-Layered Air Filter
Yes
Yes (Aspect ratio 16:10)
Yes
ET-LAV100
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKV100B (Bracket assembly)
ET-RFV100 (Replacement filter unit)
Three-Layered Air Filter
Yes
Yes
Wireless Manager ME 5.5, iOS
Yes
Yes
Yes
ET-LAV100
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKV100B (Bracket assembly)
ET-RFV100 (Replacement filter unit)
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, carrying bag, computer
cable, filter cover, software CD-ROM
(Logo Transfer Software, Multi Projector
Monitoring & Control Software)
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, carrying bag, computer cable,
filter cover, software CD-ROM (Logo Transfer
Software, Multi Projector Monitoring &
Control Software, Wireless Manager ME 5.5)
Interface
Optical
3,000 lm
Weight*3
Filter
Intelligent Lamp Control
Emulation
Daylight View
Easy Setting
Side-by-Side/P-in-P
Wireless Ready
USB Memory Viewer
USB Display
Audio Out During Standby
Replacement lamp
Optional accessories
Standard accessories
*1: Input signals that exceed the native resolution will be converted to the native resolution.
*2: The screen size is that of the original aspect ratio.
*3: Average value. Each product has an individual variable in weight.
XGA
LAN
LCD Projector
4,000 lm
XGA
WIRED
LAN
LCD Projector
3,200 lm
XGA
Large-Venue
WIRED
PT-LB3
WIRED
LAN
16.0 mm (0.63 inches) LCD x 3
4:3
245 W UHM
4,000 lm
F 1.60–1.76, f 22.33–26.80 mm (1.7-2.1:1)
2,000:1
XGA (1,024 x 768)/WUXGA (1,920 x 1,200)
1.02–7.62 m (40–300 inches)
9:1 (fixed)
10.0 W (monaural)
16.0 mm (0.63 inches) LCD x 3
4:3
220 W UHM
3,200 lm
F 1.64–1.87, f 18.80–22.56 mm (1.4-1.7:1)
600:1
XGA (1,024 × 768)/WUXGA (1,920 x 1,200)
0.84–7.62 m (33−300 inches)
5:1 (fixed)
1.0 W (monaural)
HDMI in [HDMI 19-pin × 1
(HDCP compatible)]
Computer in 1 [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Computer in 2/Monitor out
[D-sub HD 15-pin x 1(RGB x 1)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Computer audio in 1 [M3 x 1 (L-R x1)]
Computer audio in 2/MIC in [M3 x 1 (L-R x1)]
Video audio in [RCA x 2 (L-R x1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
HDMI in [HDMI 19-pin × 1
(HDCP compatible)]
Computer in 1 [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Computer in 2/Monitor out
[D-sub HD 15-pin x 1(RGB x 1)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Computer audio in 1 [M3 x 1 (L-R x1)]
Computer audio in 2/MIC in [M3 x 1 (L-R x1)]
Video audio in [RCA x 2 (L-R x1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Computer in [D-sub HD 15-pin x 2
(RGB/YPBPR/YCBCR x 2)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Audio in [M3 x 2(L-R x2)]
Audio out [M3 x 1 (L-R x1)]
Serial [D-sub 9-pin x 1 (RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
100-240 V AC, 50/60 Hz
322 W
100-240 V AC, 50/60 Hz
322 W
100–240 V AC, 50/60 Hz
300 W
350 x 97*4 x 277 mm*5
(13-3/4 x 3-7/8*4 x 10-7/8 inches)*5
Approx. 3.5 kg/7.7 lbs
350 x 97*4 x 254 mm*5
(13-3/4 x 3-7/8*4 x 10 inches)*5
Approx. 3.4 kg/7.5 lbs
307 × 69 × 210 mm*5
(12-3/32 × 2-23/32 × 8-9/32 inches)*5
Approx. 2.3 kg/5.07 lbs
Three-Layered Air Filter
Yes
Yes
ET-LAV100
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKV100B (Bracket assembly)
ET-RFV100 (Replacement filter unit)
Three-Layered Air Filter
Yes
Yes
ET-LAV100
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKV100B (Bracket assembly)
ET-RFV100 (Replacement filter unit)
Micro Cut Filter
Yes
Daylight View Basic
Yes
ET-LAB2
ET-PKB2 (Ceiling mount bracket)
ET-KFB2 (Highly durable filter unit)
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, carrying bag, computer
cable, filter cover, software CD-ROM
(Logo Transfer Software, Multi Projector
Monitoring & Control Software)
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, carrying bag, computer
cable, filter cover, software CD-ROM
(Logo Transfer Software, Multi Projector
Monitoring & Control Software)
Power cord, power cord secure lock,
wireless remote control unit, batteries
for remote control unit, carrying bag,
computer cable, software CD-ROM
(Logo Transfer Software, Multi Projector
Monitoring and Control Software)
Portable
16.0 mm (0.63 inches) LCD x 3
4:3
245 W UHM
4,000 lm
F 1.65–2.33, f 15.47–24.53 mm (1.2–1.9:1)
2,000:1
XGA (1,024 x 768)/WUXGA (1,920 x 1,200)
0.76–7.62 m (30–300 inches)
9:1 (fixed)
10.0 W (monaural)
Installation
LCD Projector
4,000 lm
NEW
Short Throw
PT-VX41
ET-RFB2 (Replacement air filter for ET-KFB2)
Home Cinema
PT-VX400
*4: Height: with legs at shortest position.
*5: Depth: protruding parts not included.
20
PT-LW25H
PT-LX30H
Portable
LCD Projector
General
Features
Accessory
21
WXGA
LCD Projector
WIRED
LAN
3,000 lm
XGA
WIRED
LAN
Panel type
15.0 mm (0.59 inches) LCD x 3
16.0 mm (0.63 inches) LCD x 3
Aspect ratio
16:10
4:3
Lamp
230 W UHM
230 W UHM
Brightness
2,500 lm*4
3,000 lm*4
Lens (throw ratio)
F 2.10–2.25, f 19.11-22.94 mm (1.5–1.8:1)
F 2.10–2.25, f 19.11-22.94 mm (1.5–1.8:1)
Contrast (full on/full off)
3,000:1*5
2,500:1*5
Resolution native/maximum*1
WXGA (1,280 x 800)/WUXGA (1,920 x 1,200)
XGA (1,024 × 768)/WUXGA (1,920 x 1,200)
Screen size (diagonal)*2
0.76–7.62 m (30–300 inches)
0.76–7.62 m (30–300 inches)
Lens shift
13:1 (fixed)
6:1 (fixed)
Built-in speaker
1.0 W (monaural)
1.0 W (monaural)
Terminals
Computer in 1 [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR/S-VIDEO x 1)]
Computer in 2/Monitor out
[D-sub HD 15-pin x 1(RGB x 1)]
Composite video in [RCA x 1]
Computer audio in 1 [M3 x 1 (L-R x1)]
Video audio in [RCA x 2 (L-R x1)
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Computer in 1 [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR/S-VIDEO x 1)]
Computer in 2/Monitor out
[D-sub HD 15-pin x 1(RGB x 1)]
Composite video in [RCA x 1]
Computer audio in 1 [M3 x 1 (L-R x1)]
Video audio in [RCA x 2 (L-R x1)
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Power supply
100–240 V AC, 50/60 Hz
100–240 V AC, 50/60 Hz
Power consumption
297 W
297 W
Dimensions (W x H x D)
349 x 105*6 x 247 mm*7
(13-3/14 x 4-1/8*6 x 9-3/4 inches)*7
349 x 105*6 x 247 mm*7
(13-3/14 x 4-1/8*6 x 9-3/4 inches)*7
Weight*3
Approx. 2.99 kg/6.59 lbs
Approx. 2.99 kg/6.59 lbs
Filter
Three-Layered Air Filter
Three-Layered Air Filter
Daylight View
-
-
Easy Setting
-
-
Side-by-Side
-
-
Audio Out During Standby
-
-
Replacement lamp
ET-LAL100
ET-LAL100
Optional accessories
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKL100B (Bracket assembly)
ET-RFL100 (Replacement filter unit)
ET-ADSV (D-Sub/S-VIDEO conversion cable)
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKL100B (Bracket assembly)
ET-RFL100 (Replacement filter unit)
ET-ADSV (D-Sub/S-VIDEO conversion cable)
Standard accessories
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, computer cable, filter cover,
software CD-ROM (Logo Transfer Software,
Multi Projector Monitoring & Control Software)
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, computer cable, filter cover,
software CD-ROM (Logo Transfer Software,
Multi Projector Monitoring & Control Software)
Interface
Optical
2,500 lm
*1: Input signals that exceed the native resolution will be converted to the native resolution.
*2: The screen size is that of the original aspect ratio.
*3: Average value. Each product has an individual variable in weight.
LCD Projector
WIRED
LAN
14.0 mm (0.55 inches) LCD x 3
2,600 lm
LCD Projector
XGA
14.0 mm (0.55 inches) LCD x 3
2,200 lm
XGA
14.0 mm (0.55 inches) LCD x 3
4:3
4:3
4:3
230 W UHM
230 W UHM
230 W UHM
2,600 lm*4
2,600 lm*4
2,200 lm*4
F 2.10–2.25, f 19.11-22.94 mm (1.7–2.0:1)
F 2.10–2.25, f 19.11-22.94 mm (1.7–2.0:1)
F 2.10–2.25, f 19.11-22.94 mm (1.7–2.0:1)
2,500:1*5
500:1*4
500:1*4
XGA (1,024 × 768)/WUXGA (1,920 x 1,200)
XGA (1,024 × 768)/WUXGA (1,920 x 1,200)
XGA (1,024 × 768)/WUXGA (1,920 x 1,200)
0.76–7.62 m (30–300 inches)
0.76–7.62 m (30–300 inches)
6:1 (fixed)
6:1 (fixed)
6:1 (fixed)
1.0 W (monaural)
-
-
Computer in 1 [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR/S-VIDEO x 1)]
Computer in 2/Monitor out
[D-sub HD 15-pin x 1(RGB x 1)]
Composite video in [RCA x 1]
Audio in [RCA x 2 (L-R x1)
Computer audio in 1 [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Computer in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR/S-VIDEO x 1)]
Composite video in [RCA x 1]
Serial in [D-sub 9-pin x 1(RS-232C)]
Computer in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR/S-VIDEO x 1)]
Composite video in [RCA x 1]
Serial in [D-sub 9-pin x 1(RS-232C)]
100–240 V AC, 50/60 Hz
100–240 V AC, 50/60 Hz
100–240 V AC, 50/60 Hz
297 W
297 W
287 W
349 x 105*6 x 247 mm*7
(13-3/14 x 4-1/8*6 x 9-3/4 inches)*7
349 x 105*6 x 247 mm*7
(13-3/14 x 4-1/8*6 x 9-3/4 inches)*7
349 x 105*6 x 247 mm*7
(13-3/14 x 4-1/8*6 x 9-3/4 inches)*7
Approx. 2.99 kg/6.59 lbs
Approx. 2.90 kg/6.39 lbs
Approx. 2.90 kg/6.39 lbs
Three-Layered Air Filter
Three-Layered Air Filter
Three-Layered Air Filter
-
-
-
-
-
-
-
-
-
-
-
-
Portable
0.76–7.62 m (30–300 inches)
ET-LAL100
ET-LAL100
ET-LAL100
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKL100B (Bracket assembly)
ET-RFL100 (Replacement filter unit)
ET-ADSV (D-Sub/S-VIDEO conversion cable)
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKL100B (Bracket assembly)
ET-RFL100 (Replacement filter unit)
ET-ADSV (D-Sub/S-VIDEO conversion cable)
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKL100B (Bracket assembly)
ET-RFL100 (Replacement filter unit)
ET-ADSV (D-Sub/S-VIDEO conversion cable)
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, computer cable, filter cover,
software CD-ROM (Logo Transfer Software,
Multi Projector Monitoring & Control Software)
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, computer cable, filter
cover, software CD-ROM (Logo Transfer
Software)
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, computer cable, filter
cover, software CD-ROM (Logo Transfer
Software)
*4: With lamp power high. *5: With lamp power high and iris on.
*6: Height: with legs at shortest position.
*7: Depth: protruding parts not included.
Short Throw
XGA
Home Cinema
LCD Projector
2,600 lm
PT-LX22
Large-Venue
PT-LX26
Installation
PT-LX26H
22
PT-CW230
PT-CX200
NEW
NEW
Short Throw
1-Chip DLP™ Projector
General
Features
Accessory
23
WXGA
1-Chip DLP™ Projector
WIRED
LAN
2,000 lm
XGA
WIRED
LAN
Panel type
16.5 mm (0.65 inches) DLP™ chip x 1
14 mm (0.55 inches) DLP™ chip x 1
Aspect ratio
16:10
4:3
Lamp
275 W UHM
275 W UHM
Brightness
2,500 lm
2,000 lm
Lens (throw ratio)
F 2.5, f 4.83 mm (0.19:1)
F 2.5, f 4.83 mm (0.24:1)
Contrast (full on/full off)
2,000:1
2,000:1
Resolution native/maximum*1
WXGA (1,280 x 800)/WSXGA+ (1,680 x 1,050)
XGA (1,024 x 768)/WSXGA+ (1,680 x 1,050)
Screen size (diagonal)*2
1.52-2.79 m (60–110 inches)
1.40-2.29 m (55–90 inches)
Lens shift
-
-
Built-in speaker
10.0 W (monaural)
10.0 W (monaural)
Terminals
HDMI in [HDMI 19-pin × 1
(HDCP compatible)]
Computer in 1 [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Computer in 2/Monitor out
[D-sub HD 15-pin x 1(RGB x 1)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Computer audio in [M3 x 2 (L-R x1)]
Video audio in [RCA x 2 (L-R x1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
3D SYNC out [Mini-DIN 3-pin x 1
(3D transmitter connection)]
HDMI in [HDMI 19-pin × 1
(HDCP compatible)]
Computer in 1 [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Computer in 2/Monitor out
[D-sub HD 15-pin x 1(RGB x 1)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Computer audio in [M3 x 2 (L-R x1)]
Video audio in [RCA x 2 (L-R x1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
3D SYNC out [Mini-DIN 3-pin x 1
(3D transmitter connection)]
Power supply
100–240 V AC, 50/60 Hz
100–240 V AC, 50/60 Hz
Power consumption
Dimensions (W x H x D)
350 W
350 W
Weight*3
321 x 178*4 x 386 mm
(12-5/8 x 7*4 x 15-3/16 inches)
Approx. 6.2 kg/13.7 lbs
321 x 178*4 x 386 mm
(12-5/8 x 7*4 x 15-3/16 inches)
Approx. 6.2 kg/13.7 lbs
Daylight View
-
-
3D Ready
Yes
Yes
Interactive Function
Audio Out During Standby
-
-
-
-
Replacement lamp
ET-LAC100
ET-LAC100
Optional accessories
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKC100B (Bracket assembly)
ET-PKC100W (Wall mount bracket)
ET-RFC100 (Replacement filter unit)
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKC100B (Bracket assembly)
ET-PKC100W (Wall mount bracket)
ET-RFC100 (Replacement filter unit)
Standard accessories
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, computer cable
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, computer cable
Interface
Optical
2,500 lm
*1: Input signals that exceed the native resolution will be converted to the native resolution.
*2: The screen size is that of the original aspect ratio.
*3: Average value. Each product has an individual variable in weight.
L A N active
2,500 lm
WXGA
LCD Projector
WIRED
LAN
2,800 lm
XGA
15.0 mm (0.59 inches) LCD x 3
15.0 mm (0.59 inches) LCD x 3
16.0 mm (0.63 inches) LCD x 3
16:10
16:10
4:3
WIRED
LAN
230 W UHM
230 W UHM
220 W UHM
2,500 lm
2,500 lm
2,800 lm
F 1.80, f 6.68 mm (0.5:1)
F 1.80, f 6.68 mm (0.5:1)
F 1.80, f 6.74 mm (0.5:1)
500:1
500:1
500:1
XGA (1,024 × 768)/WUXGA (1,920 x 1,200)
WXGA (1,280 x 800)/WUXGA (1,920 x 1,200)
WXGA (1,280 x 800)/WUXGA (1,920 x 1,200)
1.52-2.79 m (60–110 inches)
1.52-2.79 m (60–110 inches)
1.52–2.79 m (60–110 inches)
10:-1.44 (fixed)
10:-1.44 (fixed)
10:-0.5 (fixed)
10.0 W (monaural)
1.0 W (monaural)
HDMI in [HDMI 19-pin × 1
(HDCP compatible)]
HDMI in [HDMI 19-pin × 1
(HDCP compatible)]
Computer in 1 [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Computer in 2/Monitor out
[D-sub HD 15-pin x 1(RGB x 1)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Computer audio in 1 [M3 x 1 (L-R x1)]
Video audio in [RCA x 2 (L-R x1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Computer in [D-sub HD 15-pin x 2
(RGB/YPBPR/YCBCR x 2)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Audio in [M3 x 2(L-R x2)]
Audio out [M3 x 1 (L-R x1)]
Serial [D-sub 9-pin x 1 (RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
Portable
10.0 W (monaural)
Computer in 1 [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Computer in 2/Monitor out
[D-sub HD 15-pin x 1(RGB x 1)]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Computer audio in 1 [M3 x 1 (L-R x1)]
Video audio in [RCA x 2 (L-R x1)]
Audio out [M3 x 1 (L-R x1)]
Serial in [D-sub 9-pin x 1(RS-232C)]
LAN [RJ-45 x 1 (10Base-T/100Base-TX)]
USB [USB x 1, for interactive function]
Large-Venue
LCD Projector
WIRED Inter-
Installation
WXGA
PT-ST10
NEW
100–240 V AC, 50/60 Hz
100–240 V AC, 50/60 Hz
100–240 V AC, 50/60 Hz
310 W
310 W
350 x 143*4 x 389 mm
(13-25/32 x 5-5/8*4 x 15-5/16 inches)
Approx. 4.7 kg/10.4 lbs
350 x 143*4 x 382 mm
(13-25/32 x 5-5/8*4 x 15-1/32 inches)
Approx. 4.7 kg/10.4 lbs
300 W
327 x 135 x 307 mm*5
(12-7/8 x 5-5/16 x 12-3/32 inches)*5
-
-
Approx. 3.1 kg/6.8 lbs
Daylight View Basic
-
-
-
Yes
-
-
-
-
Yes
ET-LAT100
ET-LAT100
ET-LAB2
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKT100B (Bracket assembly)
ET-RFT100 (Replacement filter unit)
ET-PEN100 (Interactive pen)
ET-PNT100 (Interactive pointer)
ET-PKV100H (High ceiling mount bracket)
ET-PKV100S (Low ceiling mount bracket)
ET-PKT100B (Bracket assembly)
ET-RFT100 (Replacement filter unit)
ET-PKB2 (Ceiling mount bracket)
ET-KFB2 (Highly durable filter unit)
ET-RFB2 (Replacement air filter for ET-KFB2)
Power cord, power cord holder, wireless
remote control unit, batteries for
remote control unit, computer cable,
interactive pen, interactive pointer, USB
cable, software CD-ROM (Logo Transfer
Software, Multi Projector Monitoring &
Control Software, LightPen II)
Power cord, power cord holder, wireless
remote control unit, batteries for remote
control unit, computer cable, software
CD-ROM (Logo Transfer Software, Multi
Projector Monitoring & Control Software)
Power cord, power cord secure lock,
wireless remote control unit, batteries
for remote control unit, computer cable,
safety wire rope, software CD-ROM
(Logo Transfer Software, Multi Projector
Monitoring and Control Software)
Short-Throw
Short Throw
LCD Projector
2,500 lm
PT-TW230
NEW
Home Cinema
PT-TW231R
*4: Height: with legs at shortest position.
*5: Depth: protruding parts not included.
24
PT-AE7000
PT-AT5000
PT-AR100
PT-AH1000
Home Cinema
LCD Projector
LCD Projector
General
Features
Accessory
25
2,800 lm
Panel type
18.7 mm (0.74 inches) LCD x 3
18.7 mm (0.74 inches) LCD x 3
Aspect ratio
16:9
16:9
Lamp
200 W UHM
280 W UHM
Brightness
2,000 lm*4
2,800 lm*4
Lens (throw ratio)
F 1.9–3.2, f 22.4–44.8 mm (1.35–2.70:1)
F 2.0–3.4, f 21.5–43.0 mm (1.33–2.69:1)
Contrast (full on/full off)
300,000:1*5
50,000:1*5
Resolution native/maximum*1
Full HD (1,920 × 1,080)/WUXGA (1,920 x 1,200)
Full HD (1,920 × 1,080)/WUXGA (1,920 x 1,200)
Screen size (diagonal)*2
2D projection: 1.02–7.62 m (40–300 inches)
3D projection: 1.02–5.08 m (40–200 inches)
1.02–7.62 m (40–300 inches)
Lens shift
Vertical: ±100%, horizontal: ±26%*6
Vertical: ±65%, horizontal: ±26%*6
Built-in speaker
-
-
Terminals
HDMI in [HDMI 19-pin × 3
(HDCP/HDAVI Control Version 5 compliant)]
Computer in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Component in [RCA x 3 (YPBPR/YCBCR x 3)]
Trigger in/Trigger out/3D shutter out [M3 x 2]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Serial [D-sub 9-pin x 1 (RS-232C)]
HDMI in [HDMI 19-pin × 2
(HDCP/HDAVI Control Version 5 compliant)]
Computer in [D-sub HD 15-pin x 1
(RGB/YPBPR/YCBCR x 1)]
Component in [RCA x 3 (YPBPR/YCBCR x 3)]
Trigger in/Trigger out [M3 x 2]
Composite video in [RCA x 1]
S-Video in [Mini-DIN 4-pin x 1]
Serial [D-sub 9-pin x 1 (RS-232C)]
Power supply
100–240 V AC, 50/60 Hz
100–240 V AC, 50/60 Hz
Power consumption
285 W
350 W
Dimensions (W x H x D)
470 × 151*7 × 364 mm
(18-17/32 × 5-15/16*7 × 14-11/32 inches)
470 × 151*7 × 380 mm
(18-17/32 × 5-15/16*7 × 14-31/32 inches)
Weight*3
Approx. 8.7 kg/19.2 lbs
Approx. 8.6 kg/19.0 lbs
3D Ready
Yes
-
Frame Creation
Yes
-
Detail Clarity Processor
Detail Clarity Processor 3
Detail Clarity Processor 3
Intelligent Lens Memory
Yes
-
Light Harmonizer
-
Light Harmonizer 3
Replacement lamp
ET-LAA310
ET-LAA110
Optional accessories
ET-PKA110H (High ceiling mount bracket)
ET-PKA110S (Low ceiling mount bracket)
ET-TRM110 (3D IR transmitter )
TY-EW3D3M (3D eyewear)
ET-PKA110H (High ceiling mount bracket)
ET-PKA110S (Low ceiling mount bracket)
Standard accessories
Power cord, wireless remote control unit,
batteries for remote control unit
Power cord, wireless remote control unit,
batteries for remote control unit
Interface
Optical
2,000 lm
*1: Input signals that exceed the native resolution will be converted to the native resolution.*2: The screen size is that of the original aspect ratio.
*3: Average value. Each product has an individual variable in weight. *4: In Dynamic mode, with dynamic iris on. *5: In Cinema 1 mode, with
dynamic iris on. *6: Shift range is limited during simultaneous horizontal and vertical shifting. *7: Height: with legs at shortest position.
PT-DZ21K
20,000 lm
WUXGA
PT-DS20K
20,000 lm
Compatible Projectors
Recommended Applications
SXGA+
PT-CW230
WXGA
2,500 lm
PT-CX200
Large-Venue
3D Projection System for Wide Range of Applications
PT-AE7000
PT-AT5000
Full HD
2,000 lm
XGA
2,000 lm
Auditoriums
Museums
Museums
Amusement Facilities
E-cinemas
Meeting Rooms
Home Cinemas
Installation
PICK UP
Classrooms
Frame Sequential
Images for each of the left and right
eyes are transmitted alternately at the
rate of 60 frames per second,
making a total of 120 fps for both eyes.
R
RL
L
Yes
Yes
Yes
Yes
-
Yes
Yes
-
Yes
L
R
Yes
-
Yes
L
R
L
R
L
R
Yes
-
-
Yes
-
-
Frame Packing
L
R
Images for the left and right eyes
are transmitted in one frame while
horizontal resolution is reduced by half.
L
R
Portable
Side by Side
Top and Bottom
Images for the left and right eyes
are transmitted in one frame while
the vertical resolution is reduced by half.
Line by Line
Images for the left and right eyes
are allocated to odd numbered
lines and even numbered lines.
Simultaneous
Images for the left and right eyes
are transmitted by using two cables.
L
Short Throw
3D Image Transmission Format*
Images for the left and right eyes
are transmitted in one frame while
the resolution for each remains as it is.
R
PT-CW230/PT-CX200
PT-AE7000/AT5000
Active shutter eyewear
supporting the
following systems:
- IR transmitter system
- DLP™ Link™
- NVIDIA® 3D Vision™
Panasonic 3D Eyewear*
Home Cinema
Recommended Types of 3D Eyewear
* With the optional ET-TRM110
3D IR transmitter.
* Not all resolution levels and signals are compatible even when “Yes” is indicated in the list. Please check the compatibility
beforehand.
26
Large-Venue
Recommended Applications:
• Rental/Staging
• Auditoriums
• Digital Signage
• Houses of Worship/Churches
Installation
Recommended Applications:
• Seminar Rooms/Lecture Rooms
• Museums/Exhibition
• Corporate Uses
• Digital Signage
• Boardrooms
Portable
Recommended Applications:
• Medium to Small Classrooms
• Meeting Rooms
Short Throw
Recommended Applications:
• Small Classrooms
• Meeting Rooms
Home Cinema
Recommended Applications:
• Home Theater Rooms
• Living Rooms
For more information about Panasonic projectors
panasonic.net/avc/projector
Weights and dimensions shown are approximate. Specifications and
appearance are subject to change without notice. DLP is a trademark
or registered trademark of Texas Instruments. All other trademarks
are the property of their respective trademark owners.
© 2012 Panasonic Corporation. All rights reserved.
Panasonic projectors: facebook page
www.facebook.com/panasonicprojector
Panasonic projectors: YouTube channel
www.youtube.com/user/Panasonic Projector
All information included here is valid as of June 2012.
LINEUP-G32 Printed in Japan.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
