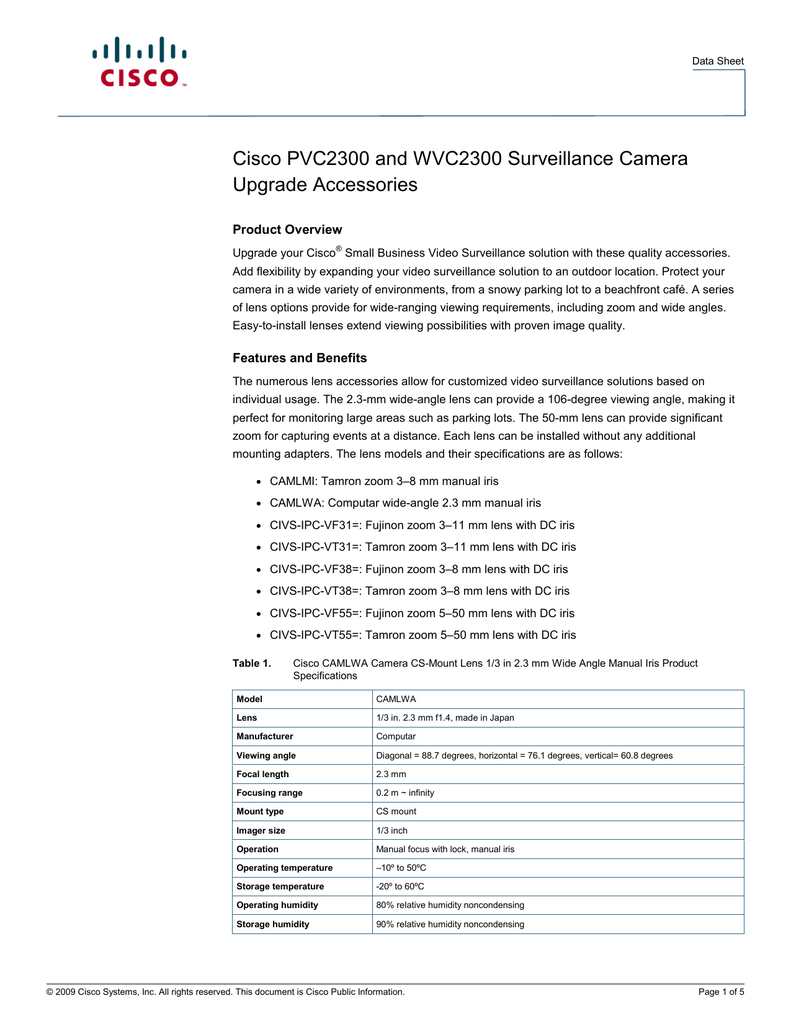

Cisco PVC2300 and WVC2300 Surveillance Camera

Data Sheet
Cisco PVC2300 and WVC2300 Surveillance Camera
Upgrade Accessories
Product Overview
®
Upgrade your Cisco Small Business Video Surveillance solution with these quality accessories.
Add flexibility by expanding your video surveillance solution to an outdoor location. Protect your
camera in a wide variety of environments, from a snowy parking lot to a beachfront café. A series
of lens options provide for wide-ranging viewing requirements, including zoom and wide angles.
Easy-to-install lenses extend viewing possibilities with proven image quality.
Features and Benefits
The numerous lens accessories allow for customized video surveillance solutions based on
individual usage. The 2.3-mm wide-angle lens can provide a 106-degree viewing angle, making it
perfect for monitoring large areas such as parking lots. The 50-mm lens can provide significant
zoom for capturing events at a distance. Each lens can be installed without any additional
mounting adapters. The lens models and their specifications are as follows:
●
CAMLMI: Tamron zoom 3–8 mm manual iris
●
CAMLWA: Computar wide-angle 2.3 mm manual iris
●
CIVS-IPC-VF31=: Fujinon zoom 3–11 mm lens with DC iris
●
CIVS-IPC-VT31=: Tamron zoom 3–11 mm lens with DC iris
●
CIVS-IPC-VF38=: Fujinon zoom 3–8 mm lens with DC iris
●
CIVS-IPC-VT38=: Tamron zoom 3–8 mm lens with DC iris
●
CIVS-IPC-VF55=: Fujinon zoom 5–50 mm lens with DC iris
●
CIVS-IPC-VT55=: Tamron zoom 5–50 mm lens with DC iris
Table 1.
Cisco CAMLWA Camera CS-Mount Lens 1/3 in 2.3 mm Wide Angle Manual Iris Product
Specifications
Model
CAMLWA
Lens
1/3 in. 2.3 mm f1.4, made in Japan
Manufacturer
Computar
Viewing angle
Diagonal = 88.7 degrees, horizontal = 76.1 degrees, vertical= 60.8 degrees
Focal length
2.3 mm
Focusing range
0.2 m ~ infinity
Mount type
CS mount
Imager size
1/3 inch
Operation
Manual focus with lock, manual iris
Operating temperature
–10º to 50ºC
Storage temperature
-20º to 60ºC
Operating humidity
80% relative humidity noncondensing
Storage humidity
90% relative humidity noncondensing
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 1 of 5
Data Sheet
Table 2.
Cisco CAMLMI Camera CS-Mount Lens 1/3 in. 3–8 mm Zoom Manual Iris Product Specifications
Model
CAMLMI
Lens
1/3 in. 3–8 mm f1.4, made in Japan
Manufacturer
Tamron
Viewing angle
Diagonal = 31.4–73.7 degrees, horizontal = 25.4–61.9 degrees, vertical= 19.2–48.5 degrees
Focal length
3-8 mm (2.7x zoom)
Focusing range
0.2 m ~ infinity
Mount type
CS mount
Imager size
1/3 inch
Operation
Manual focus with lock, manual iris
Operating temperature
–20º to 60ºC
Storage temperature
-20º to 60ºC
Operating humidity
80% relative humidity noncondensing
Storage humidity
80% relative humidity noncondensing
Table 3.
Cisco CIVS-IPC-VF38= IP Camera Fujinon 3–8 mm Varifocal Lens Product Specifications
Model
CIVS-IPC-VF38=
Lens
1/3 in. 3–8 mm f0.95, made in Japan
Manufacturer
Fujinon
¼-in. angle of view
Wide: 69.29 x 51.29 degrees
Telephoto: 26.22 x 19.46 degrees
Focal length
2.9–8 mm (2.7x zoom)
Focusing range
0.3 m ~ infinity
Mount type
CS mount
Imager size
1/3 in.
Operation
Manual focus with lock, auto DC iris
Table 4.
Cisco CIVS-IPC-VT38= Tamron Zoom 3–8 mm Lens with DC Iris Product Specifications
Model
CIVS-IPC-VT38=
Lens
1/3 in. 3–8 mm f1.0, made in Japan
Manufacturer
Tamron
¼-in. angle of view
(wide/telephoto)
67 degrees x 49/27 degrees x 20 degrees
Focal length
3–8 mm (2.7x zoom)
Focusing range
0.2 m ~ infinity
Mount type
CS mount
Imager size
1/3 inch
Operation
Manual focus with lock, auto DC iris
Operating temperature
–20º to 60ºC
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 2 of 5
Data Sheet
Table 5.
Cisco CIVS-IPC-VF31= Fujinon Zoom 3–11 mm Lens with DC Iris Product Specifications
Model
CIVS-IPC-VF31=
Lens
1/3 in. 3–11 mm f1.3, made in Japan
Manufacturer
Fujinon
¼-in. angle of view
● Wide: 74 x 55
● Telephoto: 15 x 11
Focal length
2.7 ~ 13.5 mm
Focusing range
0.3 m ~ infinity
Mount type
CS mount
Imager size
1/3 inch
Operation
Manual focus with lock, auto DC iris
Table 6.
Cisco CIVS-IPC-VT31= Tamron Zoom 3–11 mm Lens with DC Iris Product Specifications
Model
CIVS-IPC-VT31=
Lens
1/3 in. 3–8 mm f1.4, made in Japan
Manufacturer
Tamron
¼-in. angle of view
(wide/telephoto)
72.5 degrees x 54.1/18.1 degrees x 13.6 degrees
Focal length
2.8–12 mm
Focusing range
0.2 m ~ infinity
Mount type
CS mount
Imager size
1/3 inch
Operation
Manual focus with lock, auto DC iris
Operating temperature
–20º to 60ºC
Table 7.
Cisco CIVS-IPC-VF55= Fujinon Zoom 5–50 mm Lens with DC Iris Product Specifications
Model
CIVS-IPC-VF55=
Lens
1/3 in. 3–8 mm f1.6, made in Japan
Manufacturer
Fujinon
¼-in. angle of view
Wide: 39.26 x 30.13 degrees
Telephoto: 4.07 x 3.06 degrees
Focal length
5–50 mm (10x zoom)
Focusing range
0.3 m ~ infinity
Mount type
CS mount
Imager size
1/3 inch
Operation
Manual focus with lock, auto DC iris
Operating temperature
–20º to 60ºC
Storage temperature
–20º to 60ºC
Operating humidity
80% relative humidity, noncondensing
Storage humidity
80% relative humidity, noncondensing
© 2009 Cisco Systems, Inc. All rights reserved. This document is Cisco Public Information.
Page 3 of 5
Data Sheet
Table 8.
Cisco Tamron CIVS-IPC-VT55= Zoom 5–50 mm Lens with DC Iris Product Specifications
Model
CIVS-IPC-VT55=
Lens
1/3 in. 5–50 mm f1.4, made in Japan
Manufacturer
Tamron
¼-in angle of view
(wide/telephoto)
40.3 degrees x 30.1/4.2 degrees x 3.1 degrees
Focal length
5–50 mm (10x zoom)
Focusing range
0.3 m ~ infinity (wide), 1.0 m ~ infinity (telephoto)
Mount type
CS mount
Imager size
1/3 inch
Operation
Manual focus with lock, auto DC iris
Operating temperature
–20º to 60ºC
Cisco Limited Warranty for Cisco Small Business Series Products
These Cisco Small Business products come with a 1-year limited hardware warranty with return to
factory replacement. Product warranty terms and other information applicable to Cisco products
are available at http://www.cisco.com/go/warranty.
Ordering Information
To order, find a Cisco partner near you: http://www.cisco.com/go/partnerlocator.
Table 9.
Ordering Information
Product Name
Part Number
Cisco Camera CS-Mount Lens 1/3 in. 3–8 mm Zoom Manual Iris
CAMLMI
Cisco Camera CS-Mount Lens 1/3 in. 2.3 mm Wide-Angle Manual Iris
CAMLWA
Cisco IP Camera Fujinon 3–11 mm Varifocal Lens
CIVS-IPC-VF31=
Cisco IP Camera Tamron 3–11 mm Varifocal Lens
CIVS-IPC-VT31=
Cisco IP Camera Fujinon 3–8 mm Varifocal Lens
CIVS-IPC-VF38=
Cisco IP Camera Tamron 3–8 mm Varifocal Lens
CIVS-IPC-VT38=
Cisco IP Camera Fujinon 5–50 mm Varifocal Lens
CIVS-IPC-VF55=
Cisco IP Camera Tamron 5–50 mm Varifocal Lens
CIVS-IPC-VT55=
For More Information
For more information about the Cisco Small Business Video Surveillance solution, visit
http://www.cisco.com/go/surveillance.
