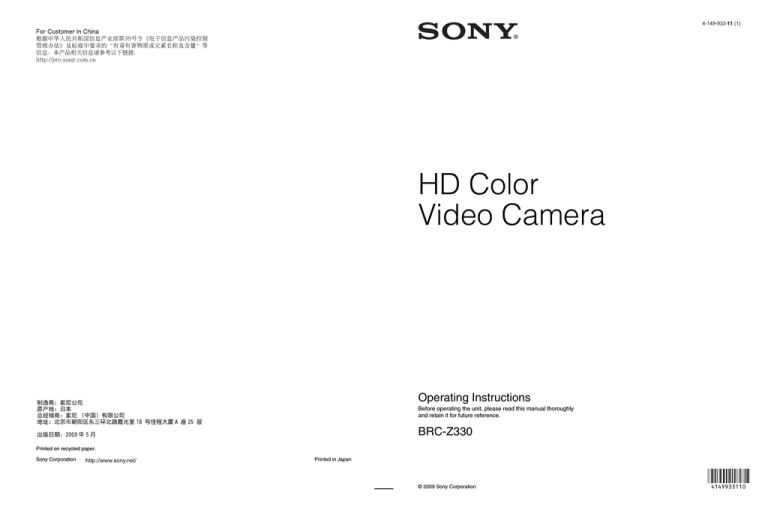

4-149-933-11 (1)
HD Color
Video Camera
Operating Instructions
Before operating the unit, please read this manual thoroughly
and retain it for future reference.
BRC-Z330
Printed on recycled paper.
Sony Corporation
Printed in Japan
© 2009 Sony Corporation
Owner’s Record
The model and serial numbers are located on the bottom.
Record these numbers in the spaces provided below.
Refer to these numbers whenever you call upon your
Sony dealer regarding this product.
Model No. BRC-Z330
Serial No.
WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified
personnel only.
WARNING
Use the Sony MPA-AC1 AC power adapter provided
with this equipment as a power supply source. Any other
power sources may result in hazards such as a fire.
This product has no power switch.
Disconnect device of this equipment is the mains plug of
the AC adapter.
The mains plug on this equipment must be used to
disconnect mains power.
Please ensure that the socket outlet is installed near the
equipment and shall be easily accessible.
In the event of abnormal operations, disconnect the
mains plug.
WARNING (For Installers only)
Instruction for installing the equipment on the ceiling:
After the installation, ensure the connection is capable
of supporting four times the weight of the equipment
downwards.
WARNING
This unit has no power switch.
When installing the unit, incorporate a readily
accessible disconnect device in the fixed wiring, or
connect the power plug to an easily accessible socketoutlet near the unit.
If a fault should occur during operation of the unit,
operate the disconnect device to switch the power
supply off, or disconnect the power plug.
IMPORTANT
The nameplate is located on the bottom.
For the customers in the U.S.A.
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful
interference when the equipment is operated in a
2
commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
All interface cables used to connect peripherals must be
shielded in order to comply with the limits for a digital
device pursuant to Subpart B of Part 15 of FCC Rules.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
For the customers in Canada
This Class A digital apparatus complies with Canadian
ICES-003.
For the customers in Europe, Australia and
New Zealand
WARNING
This is a Class A product. In a domestic environment,
this product may cause radio interference in which case
the user may be required to take adequate measures.
In the case that interference should occur, consult your
nearest authorized Sony service facility.
For the customers in Europe
The manufacturer of this product is Sony Corporation,
1-7-1 Konan, Minato-ku, Tokyo, Japan.
The Authorized Representative for EMC and product
safety is Sony Deutschland GmbH, Hedelfinger Strasse
61, 70327 Stuttgart, Germany.
This apparatus shall not be used in the residential area.
Table of Contents
Getting Started
Precautions ............................................................. 5
Phenomena Specific to CMOS Image Sensors .... 6
Overview
Features .................................................................. 7
System Components .............................................. 8
Supplied Components and Accessories .............. 8
Optional Products ............................................... 9
System Configuration .......................................... 10
Operating a BRC-Z330 Camera Using the
Supplied Remote Commander ....................... 10
Operating a BRC-Z330 Camera Using the RMBR300 Remote Control Unit .......................... 10
Operating Multiple BRC-Z330 Cameras Using the
RM-BR300 Remote Control Unit .................. 11
Operating Multiple BRC-Z330 Cameras Using the
BRS-200 Remote Camera Operating
Switcher .......................................................... 12
Location and Function of Parts .......................... 13
Camera ............................................................. 13
Remote Commander (supplied) ....................... 15
RM-BR300 Remote Control Unit (not
supplied) ......................................................... 16
BRBK-HD2 HD-SDI Output Card (not
supplied) ......................................................... 19
Operation Using the Supplied
Remote Commander
Turning on the Power ..........................................31
Pan/Tilt and Zoom Operation .............................32
Panning and Tilting ...........................................32
Zooming ............................................................33
Operating Multiple Cameras with the Remote
Commander .....................................................33
Adjusting the Camera ..........................................33
Focusing on a Subject .......................................33
Shooting with Back Lighting ............................34
Storing the Camera Settings in Memory
– Presetting Feature .............................................34
Operation Using the RM-BR300
Remote Control Unit
Turning on the Power ..........................................36
Operating Multiple Cameras .............................36
Pan/Tilt and Zoom Operation .............................37
Panning and Tilting ...........................................37
Zooming ............................................................39
Adjusting the Camera ..........................................39
Focusing on a Subject .......................................39
Shooting with Back Lighting ............................40
Adjusting the White Balance ............................40
Adjusting the Brightness ...................................40
Storing the Camera Settings in Memory
– Presetting Feature .............................................41
Storing Camera Settings ...................................41
Setting the Speed of the Camera Moving to a
Preset Position ................................................42
Adjusting and Setting With Menus
About On-Screen Menus ..................................... 20
Main Menu ....................................................... 20
Setting Menus ................................................... 20
Operation Through Menus ................................. 21
Menu Operation Using the Supplied Remote
Commander .................................................... 21
Menu Operation Using the RM-BR300 Remote
Control Unit ................................................... 22
EXPOSURE Menu .............................................. 23
COLOR Menu ..................................................... 24
PICTURE Menu .................................................. 25
FOCUS Menu ...................................................... 26
PAN TILT ZOOM Menu .................................... 27
SYSTEM Menu .................................................... 28
VIDEO OUT Menu ............................................. 29
STATUS Menu ..................................................... 30
Installation and Connections
Installation ............................................................43
Attaching an Output Card .................................43
Installing the Camera ........................................43
Installing the Camera in a High Position ..........44
Connections ..........................................................51
Connecting to an AC Outlet ..............................51
Connecting the RM-BR300 Remote Control
Unit .................................................................51
Connecting a Monitor, etc. Equipped with the
Analog Component (YPbPr) Input
Connector ........................................................52
Connecting a Device Equipped with VISCA RS232C Connector ..............................................53
Connecting a Device Equipped with VISCA RS422 Connector .................................................53
Table of Contents
3
Connecting a Video Monitor, VTR, etc. Equipped
with Composite Video or S Video Input
Connector ....................................................... 54
Connecting a VTR Equipped with HD-SDI Input
Connectors ..................................................... 55
Connecting a Sync Signal Generator ............... 55
Appendix
List of Messages ................................................... 57
Troubleshooting ................................................... 58
Menu Configuration ............................................ 60
Presetting Items ................................................... 64
Specifications ....................................................... 66
Dimensions ....................................................... 68
Pin Assignments ............................................... 70
Wiring Diagram of VISCA RS-422
Connection ..................................................... 72
Using the VISCA RS-422 Connector Plug ...... 73
4
Table of Contents
Getting Started
Operating or storage location
• Operating or storing the camera in the following
locations may cause damage to the camera:
– Extremely hot or cold places (Operating
temperature: 0°C to 40°C [32°F to 104°F])
– Exposed in direct sunlight for a long time, or close
to heating equipment (e.g., near heaters)
– Close to sources of strong magnetism
– Close to sources of powerful electromagnetic
radiation, such as radios or TV transmitters
– Locations subject to strong vibration or shock
• Use of a mobile phone close to this camera may cause
a malfunction of the camera or affect the quality of
images. You are cautioned to turn off any mobile
phone near the camera.
• Never expose the lens to the sun or other strong
light source.
Exposing the lens to the sun or other strong light
source may cause damage to internal parts from
concentrated light. When the camera is not be used,
keep it out of direct sunlight and other strong light or
protect it with a lens cover.
Getting Started
Precautions
Maintenance
The camera mechanism may cause abnormal noise due
to wear and lubrication loss after a long period of use. To
maintain optimum performance, we recommend
periodical maintenance. If abnormal noise occurs,
consult with your Sony dealer.
Note on laser beams
Laser beams may damage a CMOS image sensor. You are
cautioned that the surface of a CMOS image sensor should
not be exposed to laser beam radiation in an environment
where a laser beam device is used.
Ventilation
To prevent heat buildup, do not block air circulation
around the camera.
Transportation
When transporting the camera, repack it as originally
packed at the factory or in materials equal in quality.
Cleaning
• Use a blower to remove dust from the lens or optical
filter.
• Use a soft, dry cloth to clean the external surfaces of
the camera. Stubborn stains can be removed using a
soft cloth dampened with a small quantity of detergent
solution, then wipe dry.
• Do not use volatile solvents such as alcohol, benzene
or thinners as they may damage the surface finishes.
The pan/tilt mechanism
Do not disturb pan/tilt movement while power is
supplied to the camera. Doing so may cause damage or
malfunction.
Precautions
5
Phenomena Specific to
CMOS Image Sensors
Getting Started
The following phenomena that may appear in images are
specific to CMOS (Complementary Metal Oxide
Semiconductor) image sensors. They do not indicate
malfunctions.
White flecks
Although the CMOS image sensors are produced with
high-precision technologies, fine white flecks may be
generated on the screen in rare cases, caused by cosmic
rays, etc. This is related to the principle of CMOS image
sensors and is not a malfunction.
The white flecks especially tend to be seen in the
following cases:
• when operating at a high environmental temperature
• when you have raised the gain (sensitivity)
This symptom may be improved by turning the camera
off and then on again.
Aliasing
When fine patterns, stripes, or lines are shot, they may
appear jagged or flicker.
Focal plane
Owing to the characteristics of the pickup elements
(CMOS image sensors) for reading video signals,
subjects that quickly move across the screen may appear
slightly skewed.
Flicker
If recording is made under lighting produced by
discharge tubes, such as fluorescent, sodium, or
mercury-vapor lamps, the screen may flicker, colors
may vary, or horizontal stripes may appear distorted. In
such cases, turn the FLICKER CANCEL function on
(see page 26).
In some cases, such phenomena may not be improved
with the FLICKER CANCEL function.
It is recommend to set the shutter speed to 1/100 sec. in
the areas of 50 Hz power supply frequency and to 1/60
in the areas of 60 Hz.
6
Phenomena Specific to CMOS Image Sensors
Overview
An analog component signal output connector for HD
output, a composite signal output connector, and an S
video signal output connector for SD output standard
equipment.
1)
Features
Compact, HD video camera with built-in
pan/tilt/zoom functions
HD CMOS camera with high image quality
and high-resolution remote shooting
• The newly developed camera system that incorporates
1/3-type CMOS image sensors with a total of
2,250,000 picture elements allows shooting of highdefinition images, providing superior picture quality
with high sensitivity and lower smear level.
• Shooting an image using the 1080i (effective
interlaced scanning: 1080 lines) high-definition
format, which is equivalent to the HDTV broadcast, is
enabled. The HD format can be switched (1080/59.94i
or 1080/50i) with the switch at the bottom of the
camera.
• A volume of information of four times the capacity of
a normal TV broadcast and camera image shot in 16:9
aspect ratio provides a theater-like wide screen
picture.
Multi-format HD outputs
The camera supports output in 720P format (progressive
scanning format with 720 effective scan lines) as well as
in 1080i format. These formats can be selected with a
switch at the bottom of the camera, which also allows
switching between the 720/59.94P and 720/50P formats.
Built-in interface card slot
Overview
• This HD video camera is equipped with an HD camera
block, pan/tilt mechanism, and 18-magnification
optical/4-magnification digital zoom lens in a
compact body. The compactness and integration allow
the camera versatile usage.
• The camera is provided with a wide-angle pan/tilt
mechanism of ±175º horizontally, 90º upward and 30º
downward, which enables wide-range remote
shooting.
• The pan/tilt mechanism is designed to be quiet so as to
minimize troublesome noise.
• The supplied ceiling brackets allow installation of the
camera on a ceiling or a shelf, etc. in a high position.
“HD” indicates high-definition broadcast with 1,080
effective scanning lines.
2) “SD” indicates standard-definition broadcast
(conventional television).
The camera is equipped with an interface card slot for
the optional BRBK-HD2 HD-SDI Output Card. Use of
the BRBK-HD2 HD-SDI Output Card provides support
for additional image output formats.
VISCA camera protocol supported
• The camera is equipped with both RS-232C and RS422 communication interfaces. As the camera
supports the industry-standard VISCA camera
protocol, up to 7 cameras can be connected and
remotely controlled at a high communication speed of
38,400 bps.
• The optional RM-BR300 Remote Control Unit allows
easy camera operations.
External video sync function
The camera is equipped with an external video sync
function to synchronize the camera images on multiple
cameras.
Tally lamp
The tally lamp of the camera allows you to make sure it
is selected at a glance.
COLOR AE function
The COLOR AE function enables automatic exposure
adjustment for a specific color.
Built-in ND filter
The ND (Neutral Density) filter allows control of
amount of light. The ND filter can be set to 1/4 or 1/16,
using the menu or Remote Commander.
Built-in down-converted output
The camera is equipped with video output connectors,
allowing HD1) or SD2) output without inserting an
Interface Board. You can use the connectors for SD
output at the moment and use them for HD output in the
future.
Features
7
European model
System Components
In order to support multiple system configurations, a
variety of optional products are available for the BRCZ330 HD Color Video Camera. This section introduces
these optional products as well as the accessories
supplied with the camera.
Overview
Supplied Components and
Accessories
Remote commander (1)
Before using the camera, make sure you have the
following components and accessories supplied.
Camera (1)
Two R6 (size AA) batteries
are not supplied.
Ceiling bracket (A) (1)
MPA-AC1 AC power adaptor (Sony) (1)
Ceiling bracket (B) (1)
Wire rope (1)
AC power cord (1)
USA and Canadian model
8
System Components
Screw 3M3 × 8 (7)/Stainless screw 3M4 × 8 (1)
Video Switcher (commercially available)
RS-422 Connector plug (1)
Overview
It switches the video signal input of multiple cameras.
BRS-200 Remote Camera Operating Switcher
Operating Instructions (1)
Optional Products
RM-BR300 Remote Control Unit
The joystick of the Remote Control Unit allows you
comfortable pan/tilt and zoom operations. The Remote
Control Unit also allows remote operation of up to seven
cameras.
Supplied accessories: AC power adaptor (1), AC power
cord (1), RS-232C connecting cable (3 m) (1), RS-422
connector plug (2)
BRBK-HD2 HD-SDI Output Card
This switcher can be used as a camera control, allowing
camera operation such as pan/tilt and zoom operations.
The switcher also allows switching of video signals
input from multiple cameras.
Supplied accessories: AC power cord (1), AC power
adaptor (1), AC power cord for AC power adaptor (1),
Control cable (for connection between the Processor
Unit and Control Panel) (1), Rack mounting bracket (1
set), RS-422 connector plug (1), Power cord stopper (1),
DC IN connector retainer (1)
For details, consult with your Sony dealer.
Insert the card into the camera to allow output of an HDSDI signal conforming to SMPTE292M serial digital
interface standardss. No audio signal is output from the
card.
System Components
9
System Configuration
The BRC-Z330 HD Color Video Camera has various system configuration capabilities using optional products. This
section describes system examples with the required components and the main usage of each system.
Operating a BRC-Z330 Camera Using the Supplied Remote Commander
Overview
This system allows you:
To operate the camera readily from a short distance
System configuration
BRC-Z330
HD video monitor, VTR, etc.
Video signal
Remote Commander
(supplied)
Signal flow
Operating a BRC-Z330 Camera Using the RM-BR300 Remote Control Unit
This system allows you:
To perform pan/tilt and zoom operations using the joystick of the Remote Control Unit
System configuration
HD video monitor, VTR, etc.
BRC-Z330
RM-BR300 Remote Control Unit
Video signal
Remote Control (VISCA) signal
,
10
System Configuration
Signal flow
Operating Multiple BRC-Z330 Cameras Using the RM-BR300 Remote
Control Unit
This system allows you:
• To operate up to seven cameras remotely using a single Remote Control Unit
• To perform pan/tilt and zoom operations using the joystick
System configuration
Overview
BRC-Z330
HD video monitor, VTR, etc.
BRC-Z330
Video switcher
BRC-Z330
RM-BR300 Remote Control Unit
Video signal
Remote control (VISCA) signal
Tally/contact signal
,
Signal flow
System Configuration
11
Operating Multiple BRC-Z330 Cameras Using the BRS-200 Remote Camera
Operating Switcher
This system allows you:
• Operate up to seven cameras remotely and perform switching, using a single Remote Camera Operating Switcher
• To perform pan/tilt and zoom operations using the joystick
System configuration
BRC-Z330
Overview
HD video monitor, VTR, etc.
BRBK-HD2
BRC-Z330
BRBK-HD2
BRS-200 Processor
BRC-Z330
Control cable
(supplied with the
BRS-200)
BRS-200
REMOTE CAMERA OPERATING SWITCHER
BRBK-HD2
BRS-200 Control Panel
Video signal
Remote control (VISCA) signal
,
Signal flow
Note
To operate a BRC-Z330 with the BRS-200 Remote Camera Operating Switcher, install an optional BRBK-HD2 HDSDI Output Card in the BRC-Z330, which cannot be controlled this way without a BRBK-HD2 HD-SDI Output Card
installed.
12
System Configuration
Location and Function
of Parts
F STANDBY lamp
Lights when the camera is turned off using the
Remote Commander.
Rear
7 890qaqsqd
Camera
Front
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
VISCA RS-422
2
3
DC IN 12V
OFF
ON
DATA MIX
OFF
IN VISCA
RS-232C OUT
S VIDEO
ON
VIDEO
EXT SYNC IN
Overview
1
R
75
!
RGB/COMPONENT
qfqg qhqj qk ql
G DC IN 12V connector
Connect the supplied AC power adaptor.
H VISCA RS-422 connector
Used for VISCA control.
For connection to the VISCA RS-422 connector,
see “Using the VISCA RS-422 Connector Plug” on
page 73.
4 5 6
A Lens
This is a 18-magnification optical zoom lens.
B Tally lamp
Lights in red when a VISCA tally command is
received or the camera is selected by the RMBR300 Remote Control Unit (not supplied).
Flashes at intervals of about 0.5 seconds if the
rotating speed of the cooling fan motor is lowered
or the motor has stopped regardless of on/off of the
tally lamp.
C Remote sensor
This is the sensor for the supplied Remote
Commander.
When you use the upper remote sensor, set IMGFLIP to ON in the SYSTEM menu (page 28). With
this setting the remote sensor at the rear of the
camera does not function.
D SONY and HD nameplates
Pull them out to turn them over and attach upside
down if necessary.
E POWER lamp
Lights when the camera is connected to an AC
outlet using the supplied AC power adaptor and AC
power cord.
Flashes in green when the camera receives an
operation command from the supplied Remote
Commander.
I IR SELECT switch
Select the camera number when you operate
multiple cameras with the same Remote
Commander (page 33).
J Remote sensor
This is the sensor for the supplied Remote
Commander.
This remote sensor does not function when IMGFLIP is set to ON in the SYSTEM menu (page 28).
K DATA MIX switch
Set the switch to ON to overlap the menu with the
video signal output from the installed Output Card.
Set it to OFF not to overlap the menu.
L 75-ohm termination switch
This switch is used when an external sync signal is
used. Set it to OFF when this camera is in the
middle of a daisy chain connection of multiple
cameras. Set it to ON when the camera is at the end
of a daisy chain connection or when nothing is
connected to the EXT SYNC IN connector on the
camera.
M EXT SYNC IN connector
Accepts external video sync signals.
N VISCA RS-232C IN connector
Connect to the RM-BR300 Remote Control Unit
(not supplied). When you connect multiple
cameras, connect it to the VISCA RS-232C OUT
Location and Function of Parts
13
connector of the previous camera in the daisy chain
connection.
O VISCA RS-232C OUT connector
When you connect multiple cameras, connect it to
the VISCA RS-232C IN connector of the next
camera in the daisy chain connection.
P
S VIDEO connector
Outputs the camera images as S video signal.
V BOTTOM switches
Used for the output signal format selection, RS232C/RS-422 selection, baud rate selection, remote
control signal output on/off and camera address
setting.
For details, see “Setting of the BOTTOM switches”
on page 14.
Setting of the BOTTOM switches
Overview
Q T VIDEO connector
Outputs the camera images as composite video
signal.
1
2
3
4
5
6
7
8
9
10
R Card slot
Insert the optional BRBK-HD2 Output Card.
The slot cover is attached to the camera at the
factory.
S
RGB/COMPONENT connector
Supplies the images as analog component (YPbPr
or RGB) signal.
1
2
3
4
5
6
7
O
N
1
B
1 Switch 1 (59.94/50 signal format selector)
Set to ON for output in 1080/50i (720/50P) signal
format, OFF for output in 1080/59.94i (720/
59.94P) signal format.
Bottom
w;
wa
ws
2 Switch 2 (1080i/720p signal format selector)
Set to ON for output in 720p signal format, OFF for
output in 1080i signal format.
3 Switch 3 (RS-232C/RS-422 selector)
Set to ON for RS-422, or OFF for RS-232C.
4 Switch 4 (Communication baud rate selector)
Set to ON for 38400 bps, or OFF for 9600 bps.
T Ceiling bracket mounting screw holes
When you install the camera to the ceiling or on a
shelf, etc. in a high position, secure the supplied
ceiling bracket to these holes using the supplied
four screws. The four feet are attached to the holes
at the factory.
For installation, see “Installing the Camera in a
High Position” on page 44.
U Tripod screw holes (1/4-20UNC)
When you install the camera to a tripod, secure the
tripod to these holes.
14
Location and Function of Parts
5 Switches 5-7 (Camera address selector)
Set the address of the camera.
Normally set to “0”. With this setting, addresses are
assigned to the cameras automatically in the
connected order by pressing the POWER button
while holding down the RESET button on the RMBR300 Remote Control Unit.
You can assign the camera address “1” to “7”
manually by setting these selectors as follows:
Camera
address
0
1
2
3
4
Switch 5
OFF ON
Switch 6
OFF OFF ON
Switch 7
OFF OFF OFF OFF ON
OFF ON
ON
5
OFF ON
6
OFF ON
OFF OFF ON
ON
7
ON
ON
ON
6 Switch 8 (Infrared signal output switch)
Set to ON to enable an infrared signal output, or
OFF to disable the output.
7 Switches 9, 10
These switches are not used.
the MANUAL button, and adjust it with the FAR
and NEAR buttons.
Notes
• Set the switches before you turn on the power of the
camera.
• You cannot use a camera with its camera address set to
“0” together with cameras with their camera address
set to “1” to “7.”
Remote Commander (supplied)
C DATA SCREEN button
Press this button to display the main menu. Press it
again to turn off the menu. If you press the button
when a lower-level menu is selected, the display
returns to the next menu one level higher.
Note
POWER
6
CAMERA SELECT
1
2
1
3
FOCUS
2
AUTO
MANUAL
FAR
NEAR
BACK LIGHT
DATA SCREEN
7
3
STD
REV
1
2
4
5
8
6
RESET
POSITION
PAN-TILT
HOME
PAN-TILT
RESET
SLOW
5
ZOOM
D PAN-TILT buttons
Press the arrow buttons to perform panning and
tilting. Press the HOME button to face the camera
back to the front.
When the menu is displayed, use V or v to select
the menu items and B or b to change the set values.
3
PRESET
4
Overview
Pan/tilt and zoom operations are disabled when the
menu is displayed.
9
FAST
T
T
W
W
q;
L/R
DIRECTION SET
E L/R DIRECTION SET button
Hold down this button and press the REV button to
change the direction of the camera movement
opposite to that indicated by the arrow of the B/b
buttons.
To reset the direction of the camera movement,
press the STD button while holding down this
button.
RM-EV100
F POWER switch
Press this button to turn on/off the camera when the
camera is connected to an AC outlet.
A CAMERA SELECT buttons
Press the button corresponding to the camera you
want to operate with the Remote Commander.
The camera number can be set using the IR
SELECT switch on the rear of the camera.
Note
If two or more cameras are adjacent and have the
same camera number, they are operated
simultaneously with the same Remote Commander.
When you install the cameras close to each other,
set different camera numbers.
For the camera number setting, see “Operating
Multiple Cameras with the Remote Commander”
on page 33.
B FOCUS buttons
Used for focus adjustment.
Press the AUTO button to adjust the focus
automatically. To adjust the focus manually, press
G BACK LIGHT button
Press this button to enable the backlight
compensation. Press it again to disable the
backlight compensation.
H POSITION buttons
Hold down the PRESET button and press button 1
to 6 to store the current camera direction, zooming,
focus adjustment and backlight compensation in
the memory of the pressed number button.
To erase the memory contents, hold down the
RESET button and press button 1 to 6.
I PAN-TILT RESET button
Press this button to reset the pan/tilt position.
J ZOOM buttons
Use the SLOW button to zoom slowly, and the
FAST button to zoom quickly.
Press the T (telephoto) side of the button to zoom
in, and the W (wide angle) side to zoom out.
Location and Function of Parts
15
Installing batteries
are turned off.) The AUTO/MANUAL button is
also disabled.
Press the LOCK button for more than one second
again to unlock the controls and buttons.
Two R6 (size AA)
batteries (not supplied)
Overview
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer.
When you dispose of the battery, you must obey the law
in the relative area or country.
Note
To avoid risk of explosion, use R6 (size AA) manganese
or alkaline batteries.
RM-BR300 Remote Control Unit
(not supplied)
This manual explains the operations of the RM-BR300
Remote Control Unit when it is used with BRC-Z330
cameras.
For operations with other cameras, refer to the
Operating Instructions supplied with the RM-BR300.
Front
890qaqsqd
1
2
VALUE
LOCK
PANEL
LIGHT
BLACK
LIGHT
PAN-TILT
RESET
qf
ONE PUSH
AWB
qg
MENU
RESET
–
+
R
POSITION
PRESET
MODE
BRIGHT
3
4
5
6
7
SHIFT
–
+
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
STD
REV
1
2
5
6
7
L/R
DIRECTION
B
CAMERA
AUTO
FOCUS
NEAR
FAR
AUTO
MANUAL
POWER
3
4
ONE PUSH
AF
qhqjqk ql
w;
A LOCK button and indicator
Press the LOCK button for more than one second,
and the LOCK indicator lights and the values set by
the VALUE/R, BRIGHT/B and FOCUS controls
are locked. (The indicators of the locked controls
16
Location and Function of Parts
B VALUE/R control
When the brightness adjustment mode is
selected with the MODE button (with the
VALUE indicator lit):
Adjusts the value of the item (SHUTTER, IRIS or
GAIN) selected with the menu of the camera.
When the VALUE indicator is lit, the function of
the control varies according to the MODE setting in
the EXPOSURE menu of the camera. For details,
see “Functions of the VALUE and BRIGHT
controls” on page 41.
When the white balance adjustment mode is
selected with the MODE button (with the R
indicator lit):
The function of the control with the R indicator lit
varies according to the white balance mode selected
on the camera. For details, see “Functions of the R
and B controls” on page 40.
C BRIGHT/B control
When the brightness adjustment mode is
selected with the MODE button (with the
BRIGHT indicator lit):
Adjusts the value of the brightness of the camera,
etc.
When the BRIGHT indicator is lit, the function of
the control varies according to the MODE setting in
the EXPOSURE menu of the camera. For details,
see “Functions of the VALUE and BRIGHT
controls” on page 41.
When the white balance adjustment mode is
selected with the MODE button (with the B
indicator lit):
The function of the control with the B indicator lit
varies according to the white balance mode selected
on the camera. For details, see “Functions of the R
and B controls” on page 40.
D MODE button
Press this button to select the function of the
VALUE/R control and BRIGHT/B control.
When the brightness adjustment mode is selected,
the VALUE and BRIGHT indicators are lit.
When the white balance adjustment mode is
selected, the R and B indicators are lit.
E FOCUS control
Turn this control counterclockwise (toward NEAR)
to focus on a near subject, and clockwise (toward
FAR) to focus on a far subject.
G ONE PUSH AF button
Press this button to perform the one-push auto focus
function.
H RESET button
Hold down this button and press one of the
POSITION buttons, and the memory of the camera
corresponding to the pressed POSITION button is
cleared to the factory-preset conditions.
When multiple cameras are connected, hold down
this button and press the POWER button to set the
camera addresses automatically.
I PRESET button
Hold down this button and press one of the
POSITION buttons, and the current camera settings
are stored in the memory of the camera
corresponding to the pressed POSITION button.
J PANEL LIGHT button
Press this button to illuminate all the POSITION
buttons and CAMERA buttons. Press the button
again to turn off the illumination.
K BACK LIGHT button
When FULL AUTO, SHUTTER Pri, IRIS Pri or
GAIN Pri is selected with MODE of the
EXPOSURE menu, press this button to enable the
backlight compensation function of the camera.
Press it again to disable the function.
Hold down the SHIFT button and press this button
to enable the spotlight compensation function of the
camera. This function adjusts the exposure to a
darker level if a portion of the shooting object is
illuminated.
To disable the spotlight compensation, hold down
the SHIFT button and press this button again.
L PAN-TILT RESET button
Press this button to reset the pan/tilt position of the
camera to the initial conditions.
M ONE PUSH AWB button
When ONE PUSH is selected with the WHITE
BALANCE menu of the camera, press this button
to perform the one-push white balance adjustment.
N MENU button
Press this button for about one second to display or
turn off the menu of the camera, or return to the
main menu.
O Joystick
When the menu of the camera is not
displayed
The joystick is used for pan/tilt and zoom
operations.
When you incline the joystick right and left, the
camera pans. When you incline it forward or
backward, the camera tilts. The pan/tilt speed
changes according to the angle of the inclination.
When you release the joystick, the camera
movement stops.
When you turn the dial on the upper part of the
joystick clockwise, the subject becomes larger
(zoom in). When you turn it counterclockwise, the
subject becomes smaller (zoom out).
When you press the button on the top of the joystick
for one or two seconds regardless of the PAN TILT
ZOOM menu setting, the pan/tilt/zoom are reset
and the camera returns to the front.
Overview
F AUTO/MANUAL button and AUTO indicator
Press this button to select focus mode, AUTO or
MANUAL.
When AUTO is selected, the AUTO indicator lights
and the FOCUS control and the ONE PUSH AF
button are disabled.
If you set AF ASSIST to ON in the FOCUS menu,
you can focus on another object with the FOCUS
control.
When MANUAL is selected, the FOCUS control
and the ONE PUSH AF button are enabled (with
the FOCUS indicator lit).
When the menu of the camera is displayed
The joystick is used for menu operations.
Inclining the joystick right, left, forward and
backward has the same function as pressing the
arrow buttons of the supplied Remote Commander.
Pressing the button on the top of the joystick has the
same function as pressing the HOME button on the
Remote Commander.
P SHIFT button and indicators
Hold down this button and press one of the
POSITION buttons. The lower indicator lights and
you can use the POSITION buttons for positions 9
to 16. If you release the SHIFT button, the upper
indicator lights and the POSITION buttons can be
used for positions 1 to 8.
Q L/R DIRECTION button
Hold down this button and press POSITION button
2 (REV) to reverse the pan direction to the direction
in which you incline the joystick. To reset the
direction, hold down this button and press
POSITION button 1 (STD).
R POWER button
Press this button to light the CAMERA button(s)
corresponding to the status of the connected
camera(s).
Location and Function of Parts
17
Blue: The power of the camera is on.
Yellow green: The camera is in standby mode.
Off: No camera is connected.
Hold down this button and press CAMERA button
1 to 7 to turn on/off the power of the camera
corresponding to the pressed button.
Overview
S CAMERA buttons
Press one of the buttons to select the camera from
among those connected. The selected CAMERA
button lights in blue.
T POSITION buttons
You can store the various camera settings such as
the pan, tilt and zoom positions to the memory of
the camera corresponding to each POSITION
button, and load the settings in the memory.
Rear/Bottom
MODE
RS-232C
VISCA
1
RS-422
9
TALLY/CONTACT
1
9
CONTACT(TALLY)
TALLY
CONTACT
!
ON/OFF
DC IN 12V
wa ws wd wf wg wh wj wk
W VISCA RS-422 connector
Connect to the VISCA RS-422 connector of the
camera.
An RS-422 connector plug is attached at the
factory.
X TALLY/CONTACT connector
This connector is used for the tally lamp input or the
contact output.
Select the function of the connector using the
TALLY/CONTACT selector.
An RS-422 connector plug is attached at the
factory.
Y TALLY/CONTACT selector
Select the function of the TALLY/CONTACT
connector.
TALLY: The tally lamp of the camera selected
with the connected switcher lights.
CONTACT: The contact output corresponding to
the camera address selected with the Remote
Control Unit is short-circuited against the
connected switcher.
CONTACT (TALLY): The contact output
corresponding to the camera address selected with
the Remote Control Unit is short-circuited against
the connected switcher and the tally lamp of the
camera selected with the Remote Control Unit
lights.
Notes
U MODE selector
Select the position corresponding to the VISCAcontrollable camera to be connected.
Switch position
Camera mode
0
Automatically selected (default)
1
BRC-300/300P
2
EVI-D70/D70P
3
EVI-D100/D100P
4
EVI-D30/D30P
5
SNC-RZ30N
6
BRC-H700
7
BRC-Z700
8
BRC-Z330
Note
Set the selector to position 8 when all the connected
cameras are BRC-Z330s. For other connections, set
the selector to position 0.
V VISCA RS-232C connector
Connect to the VISCA RS-232C IN connector of
the camera.
18
Location and Function of Parts
• Change the setting of the selector before you turn
on the power for the Remote Control Unit.
Otherwise, the setting is not effective.
• For more details on the functions of the TALLY/
CONTACT selector, refer to the Operating
Instructions of the RM-BR300.
wh DC IN 12V connector
Connect the supplied AC power adaptor.
wj DIP switches (bottom)
Switch 1 (RS-232C/RS-422 selector)
Set to ON for RS-422, or OFF for RS-232C.
Switch 2 (Communication baud rate selector)
Set to ON for 38400bps, or OFF for 9600bps.
Switch 3 (BRIGHT control function selector)
Set to ON for IRIS and GAIN adjustments, or OFF
for IRIS adjustment only.
Note
Set the DIP switches before you turn on the power
of the Remote Control Unit. Otherwise, the setting
is not effective.
wk ON/OFF switch
Press this switch to turn on/off the Remote Control
Unit.
BRBK-HD2 HD-SDI Output Card
(not supplied)
1
Overview
BRBK-HD2
SDI OUTPUT
A SDI OUTPUT connectors (BNC type)
The Card allows output of an HD-SDI signal
conforming to SMPTE292M serial digital interface
standards. No audio signal is output from the card.
Location and Function of Parts
19
Adjusting and Setting With Menus
Setting Menus
The setting menu selected on the main menu is
displayed.
About On-Screen Menus
You can change various settings, such as shooting
conditions and system setup of the camera, while
observing menus displayed on a connected monitor.
This section explains how to read the on-screen menus
before starting menu operations.
For the overall menu configurations, see page 60.
<SYSTEM>
>IR-RECEIVE
IMG-FLIP
PAN REVERSE
TILT REVERSE
DISPLAY INFO
SYNC MASTER
H PHASE
ON
OFF
OFF
OFF
ON
HD
10
Adjusting and Setting With Menus
Note
You cannot perform pan/tilt and zoom operations while
the menu is displayed.
Main Menu
To display the main menu, press the DATA SCREEN
button on the supplied Remote Commander or the
MENU button on the RM-BR300 Remote Control Unit.
<MENU>
>EXPOSURE
COLOR
FOCUS
PAN TILT ZOOM
SYSTEM
VIDEO OUT
STATUS
2 Menu items
To display a setting menu, select one using the V or
v button on the Remote Commander or the joystick
of the RM-BR300 Remote Control Unit, and press
the HOME button on the Remote Commander or
the top button of the joystick on the RM-BR300.
3 Option Card indicator
Displays the name of the output card inserted into
the card slot of the camera.
(The illustration above shows an example when the
BRBK-HD2 HD-SDI Output Card is inserted.)
About On-Screen Menus
2 Cursor
Selects a setting item.
Move the cursor up or down by pressing the V or v
button on the Remote Commander or inclining the
joystick of the RM-BR300 Remote Control Unit
forward or backward.
HD-SDI
1 Cursor
Selects a setting menu.
Move the cursor up or down by pressing the V or v
button on the Remote Commander or by inclining
the joystick of the RM-BR300 Remote Control
Unit forward or backward.
20
1 Setting menu
The name of the setting menu currently selected is
displayed here.
3 Setting items
The setting items for this setting menu are
displayed.
To change a set value, select the setting item using
the V or v button on the Remote Commander or the
joystick of the RM-BR300 Remote Control Unit,
and press the B or b button on the Remote
Commander or incline the joystick on the RMBR300 right or left.
4 Set value
The currently set values are displayed.
To change a set value, use the B or b button on the
Remote Commander or the joystick of the RMBR300 Remote Control Unit.
For the default value of each setting item, see
“Menu Configuration” on page 60.
3
Operation Through
Menus
Press the HOME button.
The selected setting menu appears.
<SYSTEM>
>IR-RECEIVE
IMG-FLIP
PAN REVERSE
TILT REVERSE
DISPLAY INFO
SYNC MASTER
H PHASE
This section explains how to operate the menu using the
supplied Remote Commander, or using the RM-BR300
Remote Control Unit (not supplied).
For details on each menu, see pages 23 through 30.
Move the cursor to the setting item to be changed by
pressing the V or v button.
5
Change the value by pressing the B or b button.
Adjusting and Setting With Menus
4
<SYSTEM>
IR-RECEIVE
IMG-FLIP
PAN REVERSE
TILT REVERSE
>DISPLAY INFO
SYNC MASTER
H PHASE
M
AN
UA
L
2
R
LIG
EA
CK
ET
6
D
5
R
ST
SIT
T
P
RE AN
SE -TIL
T T
IL
ZO
T
O
M
FA
ST
HO
M
E
PA
N
-T
ET
ES
PR
PO
4
IO
N
1
1
3
ES
2
DA
TA
R
SC
EV
RE
3
EN
AU
TO
FA
R
BA
N
FO
C
1
U
S
HT
C
AM
ER
A
SE
3
LE
C
T
PO
W
ER
Menu Operation Using the Supplied
Remote Commander
ON
OFF
OFF
OFF
ON
HD
10
EC L/R
TIO
N
DIR
5
SE
T
W
R
M
-E
V1
T
00
W
SL
O
W
2,4
ON
OFF
OFF
OFF
OFF
HD
10
Note
1
Press the DATA SCREEN button.
The main menu appears.
<MENU>
>EXPOSURE
COLOR
FOCUS
PAN TILT ZOOM
SYSTEM
VIDEO OUT
STATUS
2
HD-SDI
Move the cursor to the setting menu item to be set
by pressing the V or v button.
When you are operating the menu using the supplied
Remote Commander, you cannot set IR-RECEIVE in
the SYSTEM menu to OFF. To set IR-RECEIVE to
OFF, use the RM-BR300 Remote Control Unit or the
VISCA command.
To return to the main menu
Press the DATA SCREEN button.
To return to the normal display
When the main menu is displayed, press the DATA
SCREEN button once. If a lower-level menu is
displayed, press it twice.
Operation Through Menus
21
Menu Operation Using the RMBR300 Remote Control Unit
VALUE
LOCK
PANEL
LIGHT
BLACK
LIGHT
PAN-TILT
RESET
ONE PUSH
AWB
MENU
RESET
+
R
POSITION
PRESET
MODE
BRIGHT
SHIFT
–
+
1
2
3
9
10
11
STD
REV
4
5
6
7
8
12
13
14
15
16
5
6
7
L/R
DIRECTION
B
Change the value by inclining the joystick right or
left.
<SYSTEM>
IR-RECEIVE
IMG-FLIP
PAN REVERSE
TILT REVERSE
>DISPLAY INFO
SYNC MASTER
H PHASE
1 2,4,5
–
5
ON
OFF
OFF
OFF
OFF
HD
10
CAMERA
AUTO
FOCUS
NEAR
FAR
AUTO
MANUAL
POWER
1
2
3
4
ONE PUSH
AF
3
Adjusting and Setting With Menus
1
Press the MENU button for about one second.
The main menu appears.
<MENU>
>EXPOSURE
COLOR
FOCUS
PAN TILT ZOOM
SYSTEM
VIDEO OUT
STATUS
2
Move the cursor to the setting menu item to be set
by inclining the joystick forward or backward.
3
Press the button on the top of the joystick.
The selected setting menu appears.
<SYSTEM>
>IR-RECEIVE
IMG-FLIP
PAN REVERSE
TILT REVERSE
DISPLAY INFO
SYNC MASTER
H PHASE
4
22
HD-SDI
ON
OFF
OFF
OFF
ON
HD
10
Move the cursor to the setting item to be changed by
inclining the joystick forward or backward.
Operation Through Menus
To return to the main menu
Press the MENU button for about one second.
To return to the normal display
When the main menu is displayed, press the MENU
button once. If a lower-level menu is displayed, press it
twice.
When pressing the MENU button, hold it pressed for
about one second.
EXPOSURE Menu
The EXPOSURE menu is used to set the items regarding
the exposure.
<EXPOSURE>
>MODE
AE
SPEED
AGC LIMIT
IRIS LIMIT
EX-COMP
FULL AUTO
MID
1 2 dB
F11
OFF
BACK LIGHT
SPOT LIGHT
COLOR AE
OFF
OFF
OFF
ND FILTER
OFF
For the 1080/59.94i or 720/59.94P signal
format
1/10000, 1/6000, 1/4000, 1/3000, 1/2000, 1/1500,
1/1000, 1/725, 1/500, 1/350, 1/250, 1/180, 1/125,
1/100, 1/90, 1/60
For the 1080/50i or 720/50P signal format
1/10000, 1/6000, 1/3500, 1/2500, 1/1750, 1/1250,
1/1000, 1/600, 1/425, 1/300, 1/215, 1/150, 1/120,
1/100, 1/75, 1/50
IRIS: Select the iris from among the following:
CLOSE, F16, F15, F14, F12, F11, F10, F9.6, F8.7,
F8.0, F7.3, F6.8, F6.2, F5.6, F5.2, F4.8, F4.4, F4.0,
F3.7, F3.4, F3.1, F2.8, F2.6, F2.4, F2.2, F2.0, F1.8,
F1.7, F1.6
EX-COMP (exposure compensation)
FULL AUTO: The exposure is adjusted automatically
using the sensitivity, electronic shutter speed and
iris.
MANUAL: The sensitivity (GAIN), electronic shutter
speed (SPEED) and iris (IRIS) are adjusted
manually.
SHUTTER Pri: Shutter Priority mode. The exposure is
adjusted automatically using the sensitivity and iris.
Adjust the electronic shutter speed (SPEED)
manually.
IRIS Pri: Iris Priority mode. The exposure is adjusted
automatically using the sensitivity and electronic
shutter speed. Adjust the iris (IRIS) manually.
GAIN Pri: Sensitivity Priority mode. The exposure is
adjusted automatically using the iris and electronic
shutter speed. Adjust the sensitivity (GAIN)
manually.
When MODE is set this item to FULL AUTO,
SHUTTER Pri, IRIS Pri or GAIN Pri, set this item to
ON to enable exposure compensation.
When you set EX-COMP to ON, LEVEL appears and
you can select the exposure compensation level from
among the following:
–7, –6, –5, –4, –3, –2, –1, 0, +1, +2, +3, +4, +5, +6, +7
If you set the level to 0, exposure compensation will be
disabled. Level +7 is the brightest and –7 is the darkest
compensation values.
When EX-COMP is set to OFF, exposure compensation
does not function.
When you select MODE, some of the following setting
items that are required for the selected mode appear.
AE SPEED: Select the exposure adjustment speed at
which an optimum exposure value is obtained
automatically. You can select LOW (slow speed),
MID (normal speed) or HIGH (fast speed). Select
when the brightness of the object is changed
momentarily.
AGC LIMIT: Select the maximum gain level to be
adjusted in automatic exposure mode. Select a
value from among –3, 0, 6 and 12 dB. If you set the
item to OFF, the gain is adjusted without limitation.
IRIS LIMIT: Select the maximum iris to be adjusted in
automatic exposure mode. Select a value from
among F11, F6.8, F4.0 and F3.4.
GAIN: Select the gain from among –3 dB, 0 to 24 dB by
the unit of 1 dB and HYPER
SPEED: Select the electric shutter speed from among
the following:
Adjusting and Setting With Menus
MODE (exposure mode)
BACK LIGHT
Setting the item to ON enables the BACK LIGHT
function. Setting it to OFF disables the function.
The BACK LIGHT feature is available only when
MODE (exposure mode) is set to any item other than
MANUAL.
SPOT LIGHT
The SPOT LIGHT function allows exposure adjustment
at darker levels if a portion of the object to be shot is
illuminated.
Setting the item to ON enables the SPOT LIGHT
function. Setting it to OFF disables the function.
The SPOT LIGHT feature is available only when
MODE (exposure mode) is set to any other than
MANUAL.
Note
You cannot use both the BACK LIGHT and SPOT
LIGHT functions at the same time.
COLOR AE
The exposure is adjusted automatically for specific
color.
EXPOSURE Menu
23
The COLOR AE feature is available only when MODE
(exposure mode) is set to any item other than
MANUAL.
OFF: COLOR AE does not function.
CHECK: The region of the color specified with PHASE
is displayed in white. The region is set to STD when
CHECK is selected.
WIDE: The region of the color specified with PHASE
becomes wide.
STD: The region of the color specified with PHASE is
that between NARROW and WIDE.
NARROW: The region of the color specified with
PHASE becomes narrow.
Adjusting and Setting With Menus
When an item other than OFF is selected, PHASE is
displayed, and you can specify the color for which the
exposure is automatically adjusted. The adjustable range
is from 0 to 71.
To set the COLOR AE
1
Set COLOR AE to CHECK.
2
Select PHASE to adjust so that the color region in
which the exposure is automatically adjusted is
displayed in white.
3
Set COLOR AE to NARROW, STD, or WIDE.
Note
You cannot store the status when CHECK is selected in
the preset memory of the camera.
ND FILTER
Select the filtering level of the camera’s built-in ND
FILTER.
Select from among OFF, 1/4, and 1/16.
OFF: ND FILTER does not function.
1/4: Decrease the amount of light by 1/4.
1/16: Decrease the amount of light by 1/16.
Note
If you switch the ND FILTER during shooting, camera
image may be distorted.
24
COLOR Menu
COLOR Menu
The COLOR menu is used to adjust the white balance
and the color.
<COLOR>
>WHITE BALANCE
WB SENS
WB R.SHIFT
WB B.SHIFT
COLOR GAIN
COLOR HUE
COLOR MATRIX
R.ENHANCE
G.ENHANCE
B.ENHANCE
YL.ENHANCE
CY.ENHANCE
MG.ENHANCE
AUTO1
MID
0
0
0
0
ON
0
0
0
0
0
0
WHITE BALANCE (white balance mode)
Select the white balance mode from among the
following:
AUTO1, AUTO2, INDOOR, OUTDOOR, ONE PUSH,
MANUAL
AUTO1: Adjusts the white balance automatically while
leaving natural colors.
AUTO2: Adjusts the white balance automatically.
INDOOR: The R.GAIN and B.GAIN values are fixed
to those for a color temperature of 3200K.
OUTDOOR: The R.GAIN and B.GAIN values are
fixed to those for a color temperature of 5800K.
ONE PUSH: The white balance adjustment is activated
when you zoom in on a white object in the center of
the screen and press the HOME button on the
supplied Remote Commander, or press the button
on the top of the joystick or the ONE PUSH AWB
button on the RM-BR300 Remote Control Unit.
MANUAL: Adjusts the white balance manually.
When you select any mode of WHITE BALANCE,
some of the following setting items that are required for
the selected mode appear.
WB SENS: You can adjust the speed with which the
color of an object is put close to white balance
focusing point in AUTO1 or AUTO2 mode. Set to
HIGH to do so at higher speed and to LOW to do so
at lower speed.
You can also adjust the red or blue tint when
shooting an object under reddish light sources such
as an incandescent light and candle, or under bluish
light sources such as the shade. Selecting HIGH
decreases red or blue tint, and selecting LOW
increases red or blue tint.
WB R.SHIFT, WB B.SHIFT: You can shift the white
balance focusing point in automatic white balance
mode to your favorite red tint (WB R.SHIFT) or
blue tint (WB B.SHIFT) individually. The
adjustable range of each item is from –7 to +7.
R.GAIN, B.GAIN: When you select MANUAL,
R.GAIN (red gain) and B.GAIN (blue gain) appear.
You can adjust the white balance manually within
the range between –128 and +127.
PICTURE Menu
The PICTURE menu is used to adjust the picture quality.
COLOR GAIN
<PICTURE>
>DETAIL
COLOR DETAIL
For adjusting the color intensity of the picture. The
adjustable range is from –7 to +7. The color intensity
increases in the + direction, and decreases in the –
direction.
GAMMA
KNEE POINT
FLICKER CANCEL
B&W
COLOR BAR
COLOR HUE
7
OFF
NORMAL
AUTO
OFF
OFF
OFF
For adjusting the color hue of the picture. The adjustable
range is from –7 to +7.
When COLOR MATRIX is set to OFF, COLOR HUE
cannot be set.
COLOR MATRIX
Enhances or reduces a specific color region without
changing the white balance focusing point.
ON: You can adjust the R.ENHANCE (red),
G.ENHANCE (green), B.ENHANCE (blue),
YL.ENHANCE (yellow), CY.ENHANCE (cyan),
and MG.ENHANCE (magenta) color regions with
each item within the range of –10 to +10.
OFF: COLOR MATRIX does not function.
DETAIL
Adjusting and Setting With Menus
Note
Select the image enhancer level.
The adjustable level is in the range of 0 to 15. The larger
the setting level, the sharper the image outline. You can
obtain the softest image outline by selecting level 0.
COLOR DETAIL
Reduces the image enhancer of a specific color.
OFF: COLOR DETAIL does not function.
CHECK: The region of the color specified with PHASE
is displayed in white. The region is set to STD when
CHECK is selected.
NARROW: The region of the color specified with
PHASE becomes narrow.
STD: The region of the color specified with PHASE is
that between NARROW and WIDE.
WIDE: The region of the color specified with PHASE
becomes wide.
When an item other than OFF is selected, PHASE is
displayed and you can specify the color whose image
enhancer you want to reduce. The adjustable range is
from 0 to 71.
To set the COLOR DETAIL
1
Set COLOR DETAIL to CHECK.
2
Select PHASE to adjust so that the color region in
which you want to reduce the image enhancer is
displayed in white.
3
Set COLOR DETAIL to NARROW, STD or
WIDE.
Note
You cannot store the status when CHECK is selected in
the preset memory of the camera.
PICTURE Menu
25
GAMMA
Select the gamma curve of the camera.
NORMAL: The object is shot using normal gamma
curve.
CINEMA: The object is shot using a gamma curve to
reproduce a film-like picture with a natural tone.
FOCUS Menu
The FOCUS menu is used to select the focus mode.
<FOCUS>
>MODE
NEAR LIMIT
AF ASSIST
KNEE POINT
AUTO
ON
ON
The KNEE function minimizes washout of picture that
may occur with a bright portion of a picture or when
shooting a white object.
Adjusting and Setting With Menus
AUTO: The KNEE POINT is adjusted automatically.
LOW: Set the KNEE POINT to lower level than MID.
MID: Set the KNEE POINT midway between LOW and
HIGH.
HIGH: Set the KNEE POINT to higher level than MID.
OFF: KNEE does not function.
Note
When GAMMA is set to CINEMA, KNEE POINT
cannot be set.
MODE (focus mode)
Select the focus adjustment mode.
AUTO: The focus is adjusted automatically.
MANUAL: Adjust the focus manually. Use the FAR/
NEAR buttons on the supplied Remote
Commander to adjust the focus.
Note
FLICKER CANCEL
When this item is set to ON, picture blurs (flicker) can
be reduced even when shooting under a 50Hz
fluorescent light. Set it to OFF to disable this feature.
Note
The FLICKER CANCEL feature may have no effect
depending on the type of light source.
B&W (black and white mode)
When this item is set to ON, an image is shot in black
and white.
COLOR BAR
When this item is set to ON, the built-in color bar of the
camera is displayed on the monitor screen.
Set MODE to MANUAL when you shoot
• a flat subject with low contrast such as a white wall.
• a subject through glass.
• a lateral-striped subject.
• a subject exposed to strong light with an illumination,
reflecting light, etc.
• a subject in a dark background with flashing lights
such as a night view.
NEAR LIMIT
Focusing on a subject located near the camera is limited.
ON: A subject closer to the camera than about 50 cm
(19 3/4 inches) is not focused.
OFF: The camera-subject distance is focused for about
10 cm (4 inches) to infinity.
AF ASSIST (auto focus assist)
You can temporarily adjust the focus manually even
when MODE is set to AUTO.
The AF ASSIST feature is available only when MODE
is set to AUTO.
ON: You can adjust to focus another subject in a forward
or backward location with the NEAR/FAR buttons
on the supplied Remote Commander or the FOCUS
control on the optional RM-BR300 Remote Control
Unit.
OFF: The focus of the subject is adjusted automatically.
Manual focus adjustment is deactivated.
26
FOCUS Menu
Setting range of TILT DOWN/TILT UP
PAN TILT ZOOM Menu
END (90°)
The PAN TILT ZOOM menu is used to select the pan/
tilt/zoom mode.
<PAN TILT ZOOM>
PAN-TILT LIMIT
> PAN
LEFT
RIGHT
TILT
DOWN
UP
RAMP CURVE
D-ZOOM
OFF
END
END
OFF
END
END
MODE2
OFF
±0°
–29°
Adjusting and Setting With Menus
PAN-TILT LIMIT
89°
END (–30°)
When you set PAN to ON, you can select the limit of pan
operation with the LEFT and RIGHT setting items.
When you set TILT to ON, you can select the limit of tilt
operation with the UP and DOWN setting items.
You can select the following values:
PAN LEFT: END, 174° to –174°, selectable with an
interval of 1°
PAN RIGHT: 174° to –174°, END, selectable with an
interval of 1°
TILT DOWN: END, –29° to 89°, selectable with an
interval of 1°
TILT UP: –29° to –89°, END, selectable with an
interval of 1°
Setting range of PAN LEFT/PAN RIGHT
CENTER (±0°)
Notes
• Before storing the camera position in the preset
memory, perform the PAN-TILT LIMIT setting. If the
camera position is not within the range of the PANTILT LIMIT setting, you cannot store the camera
position in the preset memory.
• The PAN-TILT LIMIT setting is reset to the factory
setting when you change IMG-FLIP of the SYSTEM
menu.
RAMP CURVE
Select the speed acceleration or reduction mode when
the preset operation is recalled.
MODE1: Speed accelerates or reduces most sharply.
MODE2: Speed accelerates or reduces moderately.
MODE3: Speed accelerates or reduces most gently.
D-ZOOM (digital zoom)
When you select digital zoom magnification (4×, 2× or
1.5×), the selected electronic zoom operates after the
optical zoom (18×). You can zoom up to 72× at
maximum.
When this item is set to OFF, the digital zoom function
is disabled.
Note
174°
END
(175°)
–174°
END
(–175°)
Regardless of the D-ZOOM setting, images shot with
the camera are accumulated for the vertical
synchronization period and output from the
RGB/
COMPONENT connector,
S VIDEO connector,
PAN TILT ZOOM Menu
27
VIDEO connector of the camera, and the SDI
OUTPUT connector of an optional BRBK-HD2 Output
Card, if one is installed in a card slot.
SYSTEM Menu
<SYSTEM>
>IR-RECEIVE
IMG-FLIP
PAN REVERSE
TILT REVERSE
DISPLAY INFO
SYNC MASTER
H PHASE
ON
OFF
OFF
OFF
ON
HD
10
IR-RECEIVE (infrared signal reception)
Adjusting and Setting With Menus
When it is set to OFF, the camera does not receive the
signal from the supplied Remote Commander.
Be sure to keep it ON when you use the supplied Remote
Commander.
Note
You cannot set IR-RECEIVE to OFF when you operate
the menu using the supplied Remote Commander. To set
it to OFF, use the RM-BR300 Remote Control Unit (not
supplied) or the VISCA command.
IMG-FLIP (image flip)
Set IMG-FLIP to ON to rotate the camera image
supplied from the
RGB/COMPONENT connector,
S VIDEO connector,
VIDEO connector, and
the SDI OUTPUT connector on an optional BRBK-HD2
Output Card if one is installed in a card slot, upside/
down and to reverse the direction of the camera
movement with pan/tilt operations.
PAN REVERSE: Set to ON to reverse the horizontal
movement of the camera image.
TILT REVERSE: Set to ON to reverse the vertical
movement of the camera image.
When you set IMG-FLIP to ON, “Please restart
system!” appears. Turn off the power of the camera and
turn it on again.
Notes
• Regardless of the IMG-FLIP to ON/OFF setting,
images shot with the camera are accumulated for the
vertical synchronization period and output from the
RGB/COMPONENT connector,
S VIDEO
connector,
VIDEO connector of the camera, and
the SDI OUTPUT connector on an optional BRBKHD2 Output Card, if one is installed in a card slot.
• When you set IMG-FLIP to ON, then turn off the
camera and turn it on again, PAN REVERSE and
TILT REVERSE will be set to ON. When you set
28
SYSTEM Menu
IMG-FLIP to OFF, then turn the power off and on
again, PAN REVERSE and TILT REVERSE will be
set to OFF.
• If you set IMG-FLIP to ON, the remote sensor at the
rear of the camera does not function.
VIDEO OUT Menu
<VIDEO OUT>
HD-RGB/COMPONENT
>FORMAT
DISPLAY INFO (information display)
SYNC
SYNC TYPE
SD-VIDEO/S VIDEO
IMG SIZE 16:9[LETTER]
OFF
SETUP
When the camera settings are stored in POSITION 1 to
16 using the supplied Remote Commander or the RMBR300 Remote Control Unit, the message “PRESET
No. xx” automatically appears for 2 seconds on the
monitor screen. If you want to display the message each
time the camera is operated, set DISPLAY INFO to ON.
Set it to OFF to cancel the display.
Note
SYNC MASTER
When you connect a sync signal generator, you can
select an output video signal that is synchronized with
the external video sync signal input to the EXT SYNC
IN connector on the camera from among the following
output signals:
HD: Selects the output signal from the
RGB/
COMPONENT connector on the camera.
SD: Selects the output signal from the
VIDEO or
S VIDEO connector on the camera.
H PHASE
When you connect a sync signal generator, adjust the
horizontal phase so that the output signal is
synchronized with the external sync signal input to the
camera. The adjustable range is from 0 to 140.
When you select H PHASE on the menu, the message
“PUSH ENTER BUTTON” appears on the screen. Press
the HOME button on the Remote Commander or the
button on the top of the joystick on the Remote Control
Unit to make the color bars appear.
After completing the adjustment, press the HOME
button on the Remote Commander or the button on the
top of the joystick on the Remote Control Unit to make
the color bar disappear.
HD-RGB/COMPONENT
Adjusting and Setting With Menus
The message will appear if the built-in cooling fan of the
camera has accidentally stopped. When DISPLAY
INFO is set to OFF, the display of this message is also
canceled.
Y P BP R
FORMAT
Select the signal output from the
RGB/
COMPONENT connector on the camera.
YPBPR: Outputs analog component signals.
RGB: Outputs RGB signals.
When you select a mode for FORMAT, some of the
following setting items that are required for selected
mode appear.
ADD SYNC: Specifies whether to add a sync signal.
Setting the item to RGB specifies output of each R,
G, and B signal with a sync signal added. Setting
the item to OFF specifies output of each R, G, and
B signal with no sync signal added.
SYNC TYPE: Specifies the type of sync signal. Setting
the item to
SYNC specifies output of tri-level
sync. Setting the item to VD specifies output of bilevel sync.
SD-VIDEO/S VIDEO
IMG SIZE
Select the aspect ratio of the signal output from the
VIDEO or
S VIDEO connector on the camera.
16:9[LETTER]: The image is displayed in 16:9
letterbox.
4:3[CROP]: The image is displayed in 4:3 edge crop.
4:3[SQUEEZE]: The image is displayed in 4:3
squeeze.
SETUP
Select whether 7.5IRE setup is added to output signals.
ON: Outputs signals with 7.5IRE setup added.
OFF: Outputs signals with no 7.5IRE setup added.
VIDEO OUT Menu
29
Note
The SETUP item does not appear when an HD signal of
1080/50i or 720/50P format is output.
STATUS Menu
The STATUS menu is used to display the settings
selected with the menus.
<STATUS>
EXPOSURE
AE
SPEED
AGC LIMIT
IRIS LIMIT
EX-COMP
BACK LIGHT
SPOT LIGHT
COLOR AE
ND FILTER
PAGE1
FULL AUTO
MID
1 2 dB
F11
OFF O
OFF
OFF
OFF O
OFF
Adjusting and Setting With Menus
The STATUS menu consists of PAGE1 to PAGE6.
You can switch the pages with the B or b button.
This menu only displays the current menu settings, and
you cannot change them with the menu.
PAGE1: Shows the settings selected with the
EXPOSURE menu.
PAGE2: Shows the settings selected with the COLOR
menu.
PAGE3: Shows the settings selected with the PICTURE
menu.
PAGE4: Shows the settings selected with the FOCUS
and SYSTEM menus.
PAGE5: Shows the settings selected with the PAN TILT
ZOOM menu.
PAGE6: Shows the settings selected with the VIDEO
OUT menu, status of the fan motors, the firmware
versions of the BRC-Z330.
30
STATUS Menu
Operation Using the Supplied
Remote Commander
POWER
CAMERA SELECT
Before operating, check that the camera and peripheral
devices are properly installed and connected.
2
1
3
FOCUS
AUTO
MANUAL
FAR
DATA SCREEN
For details, see “Installation” (page 43) and
“Connections” (page 51).
NEAR
BACK LIGHT
POWER
STANDBY lights
Note
Turning on the Power
VISCA RS-422
IR SELECT
1
2
3
R
OFF
ON
DATA MIX
OFF
ON
75
IN VISCA
RS-232C OUT
Operation Using the Supplied Remote Commander
1 2 3 4 5 6 7 8 9
!
DC IN 12V
When you turn off the camera using the Remote
Commander, the camera tilts downward to protect the
lens from dust before entering Standby mode. When
IMG-FLIP is set to ON in the SYSTEM menu, however,
the camera tilts the opposite way so that the lens faces
downward when the camera is installed suspended from
a ceiling.
S VIDEO
VIDEO
EXT SYNC IN
RGB/COMPONENT
to AC outlet
POWER lights
1
Connect the camera to an AC outlet using the
supplied AC power adaptor and power cord.
The power is turned on and the POWER lamp
lights.
The camera will automatically pan and tilt and be
reset to the position stored in POSITION 1 (Pan/tilt
reset action).
2
Turn on the peripheral devices.
To turn on/off the camera using the
Remote Commander
As long as the camera is connected to an AC outlet, you
can turn the camera on or off with the POWER switch
on the Remote Commander.
When you turn the power off using the Remote
Commander, the POWER lamp turns off and the
STANDBY lamp lights on the camera.
Turning on the Power
31
Pan/Tilt and Zoom
Operation
direction of the camera while checking the picture on the
screen. In such a case, press the 2 (REV) button while
holding down the L/R DIRECTION SET button.
To reset the setting, press the 1 (STD) button while
holding down the L/R DIRECTION SET button.
Arrow button
Panning and Tilting
PO
W
ER
Setting
L/R
DIRECTION SET
1
While holding down
T
CAMERA SELECT
C
M
AN
UA
L
2
R
EA
CK
N
R
BA
1
U
C
FO
STD
LIG
S
HT
C
AM
ER
A
SE
3
LE
Movement of the
camera
D
ET
5
R
ST
SIT
PAN-TILT
RESET
T
P
RE AN
SE -TIL
T T
IL
-T
N
ET
PO
ES
ST
HO
M
E
PR
PA
4
IO
N
1
Press.
2
ES
2
6
R
EV
3
SC
RE
E
DA
TA
STD
1
N
AU
TO
FA
REV
O
ZO
M
-E
V1
0
0
W
T
SL
While holding down
DIR
EC L/R
TIO
N
SE
T
W
R
HOME
O
W
T
M
FA
L/R
DIRECTION SET
L/R DIRECTION
SET
REV
Operation Using the Supplied Remote Commander
2
Press.
1
2
Press the POWER switch.
The camera will turn on and perform the pan/tilt
reset action automatically.
Press the arrow button to pan or tilt the camera.
While checking the picture on the screen, press the
desired arrow button.
To move the camera little by little, press the
button just for a moment.
To move the camera in a wide range, press and
hold the button.
To move the camera diagonally, press the B or b
button while holding down the V or v button.
When you perform a pan/tilt operation while the
camera is in Telephoto mode, the movement speed
will be decreased. If in Wide mode, the movement
speed will be increased.
Note
The setting above only changes the signal emitted from
the Remote Commander, and does not change the setting
of the camera itself. Therefore, repeat the setting for
each Remote Commander if you are using more than
one Remote Commander.
If the STANDBY lamp of the camera
flashes
When the camera is moved or turned by hand or by
external shock, the microcomputer inside the camera
may not be able to memorize the pan/tilt position
properly and the camera may stop.
To reset the pan/tilt position, press the PAN-TILT
RESET button or turn the power of the camera off and
turn it on again.
To face the camera back to the front
Press the HOME button.
If you accidentally move the camera with
your hand
Press the PAN-TILT RESET button to perform the pan/
tilt reset action.
If the camera moves in a different
direction from that you intended
The camera is preset to face toward the right whenever
the b button is pressed. You might wish to face the
camera toward the opposite direction from that of the
button you pressed, for example, when you change the
32
Pan/Tilt and Zoom Operation
STANDBY flashes
Zooming
Adjusting the Camera
Press either of the ZOOM buttons.
M
AN
UA
L
2
MANUAL
R
LIG
S
HT
C
AM
ER
A
SE
3
LE
C
T
NEAR
BA
N
CK
EA
U
BACK LIGHT
3
EV
ET
ES
2
6
R
5
R
ST
D
T
P
R E AN
SE -TIL
T T
IL
-T
E
M
00
DIR
EC L/R
TIO
N
SE
T
W
R
M
-E
V1
T
SL
W
O
W
ZO
O
M
FA
ST
HO
ET
PO
N
PR
FAR
PA
ES
SIT
IO
N
1
AUTO
4
Zooms in or
out fast
(FAST side)
SC
RE
E
RM-EV100
N
AU
TO
FA
L/R
DIRECTION SET
T
W
1
W
Subject appears
closer.
(Telephoto)
C
T
R
T
FO
FAST
DA
TA
Subject appears
farther away.
(Wide angle)
Zooms in or out
slowly
(SLOW side)
ZOOM
PO
W
ER
PAN-TILT
RESET
SLOW
Note
When you perform pan/tilt operation while the camera is
in the telephoto mode, the moving speed of the image on
the screen may be a little jerky.
Focusing on a Subject
To focus the camera on a subject
automatically
1
Press the AUTO button.
The camera focuses on the subject at the center of the
screen automatically.
Set the IR SELECT switch on the rear of the camera
you want to operate to 1, 2 or 3.
To focus the camera on a subject
manually
IR SELECT
1
2
3
2
Operation Using the Supplied Remote Commander
Operating Multiple Cameras with
the Remote Commander
After pressing the MANUAL button, press either the
FAR or the NEAR button to have the camera focus on
the subject.
Press the CAMERA SELECT button on the
Remote Commander that corresponds to the
number set in step 1.
CAMERA SELECT
1
Focusing on a far subject
2
MANUAL
FAR
Focusing on a near subject
3
FOCUS
AUTO
DATA SCREEN
NEAR
BACK LIGHT
POWER
CAMERA SELECT
2
1
3
FOCUS
AUTO
MANUAL
FAR
DATA SCREEN
CAMERA
SELECT
NEAR
BACK LIGHT
Then, you can operate the camera(s) specified by
number. Every time you operate the camera(s) using the
Remote Commander, the CAMERA SELECT button
pressed in step 2 lights.
Adjusting the Camera
33
Shooting with Back Lighting
When you shoot a subject with a light source behind it,
the subject becomes dark. In such a case, press the
BACK LIGHT button.
To cancel the function, press the BACK LIGHT button
again.
MANUAL
FAR
NEAR
DATA SCREEN
BACK LIGHT
STD
REV
1
2
– Presetting Feature
Up to six combinations of settings (six positions)
including camera position, zooming, focusing, and
backlighting, can be preset.
FOCUS
AUTO
Storing the Camera
Settings in Memory
Subject appears brighter.
3
Note
The BACK LIGHT function is not effective if MODE is
set to MANUAL in the EXPOSURE menu of the
camera.
Note
The camera can store up to sixteen combinations of
settings (sixteen positions) in the memory, but the
supplied Remote Commander supports preset of six
positions only (POSITION 1 to 6). Use the RM-BR300
Remote Control Unit (not supplied) to store the settings
in POSITION 7 to 16.
2
3 POSITION 1-6
M
AN
UA
L
2
R
LIG
EA
CK
6
ET
RESET
SIT
T
-T
P
RE AN
SE -TIL
T T
IL
ET
ES
N
PR
1
00
-E
DIR
EC L/R
TIO
N
SE
T
W
R
M
2
V1
T
SL
W
O
W
ZO
T
O
M
FA
S
T
HO
M
E
PA
3 PRESET
PO
4
IO
N
1
5
R
ST
D
ES
2
DA
TA
R
SC
EV
RE
3
EN
AU
TO
FA
R
BA
N
FO
C
1
U
S
HT
C
AM
ER
A
SE
3
LE
C
T
PO
W
ER
Operation Using the Supplied Remote Commander
For details of the camera settings to be preset, see
“Presetting Items” on page 64.
1
Press the PAN-TILT RESET button to reset the pan/
tilt position.
2
Adjust the position, zooming, focusing and
backlighting of the camera (pages 32 to 33).
3
While holding down the PRESET button, press any
of the POSITION buttons, 1 to 6, in which you want
to store the settings.
DATA SCREEN
While holding down
BACK LIGHT
STD
REV
1
2
4
5
PRESET
3
6
RESET
Press a POSITION
button.
POSITION
The message “PRESET No.xx” (selected
POSITION number) is displayed for about 2
seconds.
34
Storing the Camera Settings in Memory – Presetting Feature
To recall the stored settings
Press any of the POSITION buttons, 1 to 6, in which you
have stored the settings.
To cancel the preset memory
While holding down the RESET button, press the
POSITION button from which you want to cancel the
settings.
DATA SCREEN
BACK LIGHT
STD
REV
1
2
4
5
PRESET
3
6
RESET
Press a POSITION
button.
POSITION
While holding down
Notes
Operation Using the Supplied Remote Commander
• When the power is turned on, the camera starts with
the settings stored in POSITION 1.
• If you want to retain the previous pan and tilt
positions, etc. when the power is turned off and turned
on again, store those positions in POSITION 1.
• Storing or canceling the settings in POSITION 1 takes
about 2 seconds longer than those of other positions.
• When you are storing or canceling the settings in one
POSITION, you cannot call up, store or cancel the
settings in another POSITION.
Storing the Camera Settings in Memory – Presetting Feature
35
Operation Using the RM-BR300
Remote Control Unit
Remote Control Unit may not recognize the connected
camera.
To turn on/off the camera using the RMBR300 Remote Control Unit
Before operating, check that the camera, the RM-BR300
Remote Control Unit and peripheral devices are
properly installed and connected.
For details, see “Installation” (page 43) and
“Connections” (page 51).
As long as the camera is connected to an AC outlet, you
can turn the camera on or off with the POWER button on
the Remote Control Unit.
While holding down the POWER button, press the
CAMERA button corresponding to the camera whose
power you want to turn on/off.
When you turn the power off using the Remote Control
Unit, the POWER lamp turns off and the STANDBY
lamp lights on the camera.
Turning on the Power
STANDBY lights.
Operation Using the RM-BR300 Remote Control Unit
1 2 RESET
VALUE
LOCK
PANEL LIGHT
Note
PANEL
LIGHT
BLACK
LIGHT
PAN-TILT
RESET
ONE PUSH
AWB
MENU
RESET
–
+
R
POSITION
PRESET
MODE
BRIGHT
SHIFT
–
+
1
2
3
9
10
11
STD
REV
4
5
6
7
8
12
13
14
15
16
5
6
7
L/R
DIRECTION
B
CAMERA
AUTO
FOCUS
NEAR
FAR
AUTO
MANUAL
POWER
POWER
1
1
2
3
4
ONE PUSH
AF
CAMERA
Connect the camera to an AC outlet using the
supplied AC power adaptor and power cord.
The power is turned on and the POWER lamp
lights.
The camera will automatically pan and tilt and be
reset to the position stored in POSITION 1 (Pan/tilt
reset action).
2
Press the ON/OFF switch on the RM-BR300
Remote Control Unit to turn it on.
The CAMERA button representing the camera
whose power was turned off last lights. (The
CAMERA 1 button lights by default.)
3
Turn on the peripheral devices.
Note
Be sure to turn on the power for the camera before the
power for the Remote Control Unit. Otherwise, the
36
Turning on the Power
When you turn off the camera using the Remote
Commander, the camera tilts downward to protect the
lens from dust before entering Standby mode. When
IMG-FLIP is set to ON in the SYSTEM menu, however,
the camera tilts the opposite way so that the lens faces
downward when the camera is installed suspended from
a ceiling.
To illuminate the panel of the Remote
Control Unit
Press the PANEL LIGHT button. All the POSITION
buttons and CAMERA buttons light.
To turn off the illumination, press the PANEL LIGHT
button again.
PANEL
LIGHT
Operating Multiple Cameras
Before operating, you must assign the camera addresses
to the connected cameras as follows. Then you can
switch the camera to be controlled simply by pressing
the corresponding CAMERA button.
To assign camera addresses
automatically
1
Make sure that the camera address selector on the
bottom of each camera is set to “0.”
For setting the camera address selector, see
page 14.
2
3
4
Turn on the power of all the connected cameras and
the RM-BR300 Remote Control Unit.
Pan/Tilt and Zoom
Operation
Panning and Tilting
L/R DIRECTION
1 STD
Hold down the RESET button and press the
POWER button on the Remote Control Unit.
The Remote Control Unit recognizes the connected
cameras and assigns them camera addresses 1 to 7
automatically in the connected order.
Press the POWER button on the Remote Control
Unit and check that the CAMERA buttons light.
The number of the lit CAMERA buttons indicates
how many cameras have the addresses assigned.
Now you can switch the camera you want to control
with the Remote Control Unit by pressing the
CAMERA button.
REV
VALUE
LOCK
PAN-TILT RESET
PANEL
LIGHT
BLACK
LIGHT
PAN-TILT
RESET
ONE PUSH
AWB
MENU
RESET
–
+
R
POSITION
PRESET
MODE
BRIGHT
SHIFT
–
+
1
2
3
9
10
11
STD
REV
4
5
6
7
8
12
13
14
15
16
5
6
7
L/R
DIRECTION
B
CAMERA
AUTO
FOCUS
NEAR
FAR
AUTO
MANUAL
POWER
1
2
3
4
ONE PUSH
AF
POWER
SHIFT
2
3
Turn on the power of the camera and the RMBR300 Remote Control Unit.
The camera will turn on, performing the pan/tilt
reset action automatically.
To assign camera addresses manually
2
Set one of the camera addresses, 1 to 7, using the camera
address selectors on the bottom of each camera.
Press the CAMERA button corresponding to the
camera you want to operate.
3
Operate the joystick to pan or tilt the camera.
While checking the picture on the screen, incline
the joystick in the desired direction.
The panning/tilting speed changes according to the
angle at which you incline the joystick.
Release the joystick to stop panning/tilting.
For setting the camera address selectors, see page 14.
Operation Using the RM-BR300 Remote Control Unit
1
To set a limit on the maximum panning/
tilting speed
You can limit the panning/tilting speed obtained when
you incline the joystick at the maximum angle.
1
Hold the PAN-TILT RESET button for more than a
second while pressing the SHIFT button.
All of the CAMERA buttons 1 to 7 flash.
2
Press the CAMERA button corresponding to the
speed you want to set, as shown in the table below.
CAMERA button Maximum panning/tilting
speed
1
4.4 degrees/sec.
2
6.7 degrees/sec.
3
11.6 degrees/sec.
4
18.6 degrees/sec.
5
29.2 degrees/sec.
Pan/Tilt and Zoom Operation
37
CAMERA button Maximum panning/tilting
speed
6
43.4 degrees/sec.
7
60 degrees/sec.
Joystick
Movement of the
camera
Setting
While holding down
Incline to the right.
L/R
DIRECTION
Only the CAMERA button you pressed flashes, and
the corresponding maximum panning/tilting speed
is set.
1
9
STD
Press.
Note
The maximum panning/tilting speed setting is stored in
the memory of the optional RM-BR300 Remote Control
Unit. If you use another RM-BR300 Remote Control
Unit or you connect another camera to the RM-BR300,
set a limit on the maximum panning/tilting speed again.
While holding down
Incline to the right.
L/R
DIRECTION
2
10
REV
Press.
To face the camera back to the front
Press the button on the top of the joystick for one or two
seconds.
Press for 1 or 2 seconds.
Note
The setting above only changes the signal emitted from
the RM-BR300 Remote Control Unit, and does not
change the setting of the camera itself.
Operation Using the RM-BR300 Remote Control Unit
If the STANDBY lamp of the camera
flashes
If you accidentally move the camera with
your hand
Press the PAN-TILT RESET button to perform the pan/
tilt reset action.
When the camera is moved or turned by hand or by
external shock, the microcomputer inside the camera
may not be able to memorize the pan/tilt position
properly and the camera may stop.
To reset the pan/tilt position, press the PAN-TILT
RESET button or turn the power of the camera off and
turn it on again.
If the camera moves in a different
direction from that you intended
The camera is preset to face toward the right whenever
the joystick is inclined to the right. You might wish to
face the camera toward the opposite direction from that
in which you inclined the joystick, for example, when
you change the direction of the camera while checking
the picture on the screen. In such a case, press the
POSITION 2 (REV) button while holding down the L/R
DIRECTION button.
To reset the setting, press the POSITION 1 (STD) button
while holding down the L/R DIRECTION button.
38
Pan/Tilt and Zoom Operation
STANDBY flashes.
Zooming
Turn the dial on the upper part of the joystick.
Subject appears farther
away. (Wide angle)
Subject appears closer.
(Telephoto)
Adjusting the Camera
MODE
ONE PUSH AWB
SHIFT
BACK LIGHT
VALUE/R
VALUE
LOCK
PANEL
LIGHT
BLACK
LIGHT
PAN-TILT
RESET
ONE PUSH
AWB
MENU
RESET
–
+
R
POSITION
PRESET
MODE
BRIGHT
SHIFT
–
+
2
3
9
10
11
STD
REV
1
4
5
6
7
8
12
13
14
15
16
5
6
7
L/R
DIRECTION
B
CAMERA
AUTO
FOCUS
NEAR
FAR
AUTO
MANUAL
POWER
1
2
3
4
ONE PUSH
AF
Note
When you perform pan/tilt operation while the camera is
in the telephoto mode, the moving speed of the image on
the screen may be a little jerky.
FOCUS
BRIGHT/B
AUTO/MANUAL
ONE PUSH AF
Focusing on a Subject
To focus the camera on a subject
automatically
Operation Using the RM-BR300 Remote Control Unit
Press the AUTO/MANUAL button so that the AUTO
indicator lights.
The camera focuses on the subject in the center of the
screen automatically.
AUTO
AUTO
MANUAL
To focus the camera on a subject
manually
Press the AUTO/MANUAL button so that the AUTO
indicator turns off.
Then turn the FOCUS control clockwise or
counterclockwise to have the camera focus on the
subject.
FOCUS
Focusing on a near
subject
Focusing on a far
subject
NEAR
FAR
One-push auto focusing during manual
focus adjustment
Press the ONE PUSH AF button.
The camera focuses on the subject in the center of the
screen automatically.
ONE PUSH
AF
Adjusting the Camera
39
Shooting with Back Lighting
When you shoot a subject with a light source behind it,
the subject becomes dark. In such a case, press the
BACK LIGHT button.
To cancel the function, press the BACK LIGHT button
again.
2
Press the MODE button so that the R and B
indicators on the VALUE/R and BRIGHT/B
controls light (White balance adjustment mode).
3
Adjust the red gain with the R control and the blue
gain with the B control.
VALUE
BACK
LIGHT
Turn toward – for
weakening red.
Turn toward + for
emphasizing red.
–
Note
+
R
MODE
The BACK LIGHT function is not effective if MODE is
set to MANUAL in the EXPOSURE menu of the
camera.
BRIGHT
–
Shooting with spotlight compensation
If a portion of the shooting object is illuminated, the
spotlight compensation function adjusts the exposure to
a darker level. Hold down the SHIFT button and press
the BACK LIGHT button.
To cancel the function, hold down the SHIFT button and
press the BACK LIGHT button again.
Turn toward + for
emphasizing
blue.
Turn toward – for
weakening blue.
+
B
Functions of the R and B controls
When the white balance adjustment mode is selected
with the MODE button on the Remote Control Unit, the
functions of the R control and B control change
according to the WHITE BALANCE setting in the
COLOR menu of the camera.
Note
Operation Using the RM-BR300 Remote Control Unit
The backlighting and spotlight compensation functions
cannot be used simultaneously.
WHITE
BALANCE
setting
R control
B control
MANUAL
Red gain
control
Blue gain control
AUTO 1/2,
ONE PUSH
WB R.SHIFT
control
WB B.SHIFT
control
Adjusting the White Balance
Before adjusting the white balance, shoot a white object
that fills the entire screen under the same lighting
conditions as for the object you will be zooming in on.
(You can use a white wall, etc., instead of the object.)
To adjust the white balance automatically
1
Set WHITE BALANCE to ONE PUSH in the
COLOR menu of the camera.
For setting, see “COLOR Menu” on page 24.
2
To adjust the white balance manually
Set WHITE BALANCE to MANUAL in the
COLOR menu of the camera.
For setting, see “COLOR Menu” on page 24.
40
Adjusting the Brightness
1
Press the ONE PUSH AWB button.
The white balance is adjusted automatically.
ONE PUSH
AWB
1
For details on the WB R./B. SHIFT (white balance red/
blue shift) control, see “WHITE BALANCE” on
page 24.
Adjusting the Camera
Set MODE to SHUTTER Pri, IRIS Pri, GAIN Pri
or MANUAL in the EXPOSURE menu of the
camera.
For setting, see “EXPOSURE Menu” on page 23.
2
Press the MODE button so that the VALUE and
BRIGHT indicators on the VALUE/R and
BRIGHT/B controls light (Brightness adjustment
mode).
3
Adjust the brightness with the VALUE or BRIGHT
control.
Turn toward – for
darkening the
picture by changing
shutter speed, gain
level or F-number.
Turn toward + for
brightening the picture
by changing shutter
speed, gain level or Fnumber.
VALUE
–
+
R
MODE
BRIGHT
Turn toward – for
darkening the picture
by changing exposure
compensation level,
F-number or gain
level.
–
+
B
Turn toward + for
brightening the picture
by changing exposure
compensation level, Fnumber or gain level.
Functions of the VALUE and BRIGHT controls
The functions of the VALUE control and the BRIGHT
control change according to the MODE setting in the
EXPOSURE menu, as follows:
Storing the Camera
Settings in Memory
– Presetting Feature
Up to sixteen combinations of settings (sixteen
positions), including camera position, zooming,
focusing, and backlighting, can be stored in the memory
of the camera using the RM-BR300 Remote Control
Unit.
For details of the camera settings to be preset, see
“Presetting Items” on page 64.
Storing Camera Settings
To select positions 9 to 16
MODE
setting
Function of
VALUE control
Function of BRIGHT
control
Exposure compensation
level control*
SHUTTER
Pri
Shutter speed
control
Exposure compensation
level control*
IRIS Pri
F-number control
Exposure compensation
level control*
GAIN Pri
Gain control
Exposure compensation
level control*
MANUAL
Shutter speed
control
• F-number and gain
controls (when the
DIP switch 3 at the
bottom of the Remote
Control Unit is set to
ON)
• F-number control
(when the DIP switch
3 at the bottom of the
Remote Control Unit
is set to OFF)
Operation Using the RM-BR300 Remote Control Unit
FULL AUTO Not used
While holding down the SHIFT button, press the
PRESET button (to store the settings) or the RESET
button (to cancel the settings). The lower indicator on
the SHIFT button will light and the POSITION 1 to 8
buttons can be used for positions 9 to 16.
When you release the SHIFT button, the upper indicator
lights and the POSITION 1 to 8 buttons can be used for
positions 1 to 8.
Lights for positions 1 to 8.
SHIFT
Lights for positions 9 to 16.
To store camera settings
4 1
RESET
VALUE
LOCK
PANEL
LIGHT
BLACK
LIGHT
PAN-TILT
RESET
ONE PUSH
AWB
MENU
RESET
–
+
R
POSITION
PRESET
MODE
BRIGHT
SHIFT
* When EX-COMP is ON in the EXPOSURE menu
–
+
1
2
3
9
10
11
STD
REV
4
5
6
7
8
12
13
14
15
16
5
6
7
L/R
DIRECTION
B
CAMERA
AUTO
FOCUS
NEAR
FAR
AUTO
MANUAL
POWER
1
2
3
4
ONE PUSH
AF
4
2
1
Press the PAN-TILT RESET button to reset the pan/
tilt position.
2
Press the CAMERA button to select the camera
whose settings you want to preset.
3
Adjust the position, zooming, focusing and
backlighting of the camera. (See page 37 to 39.)
Storing the Camera Settings in Memory – Presetting Feature
41
4
While holding down the PRESET button (for
POSITION 1 to 8) or the SHIFT and PRESET
buttons (for POSITION 9 to 16), press any of the
POSITION buttons in which you want to store the
settings.
While holding down (for POSITION 1 to 8)
PRESET
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
While holding down (for POSITION 9 to 16)
The settings are stored in the memory of the
camera.
The pressed button flashes during storing. Flashing
stops when storing is completed.
1
Press the CAMERA button to select the camera
whose speed you want to set.
2
Press the POSITION button for which you want to
set the speed for more than one second.
All the CAMERA buttons, 1 to 7, flash.
3
Press one of the CAMERA buttons to select the
speed.
CAMERA button
Panning/tilting speed
1
1.3 degree/sec.
2
3.4 degrees/sec.
To recall the stored settings
3
5.4 degrees/sec.
Press any of the POSITION buttons in which you have
stored the settings.
For POSITION 9 to 16, hold down the SHIFT button
and press any of the POSITION buttons.
4
11.6 degrees/sec.
5
23.9 degrees/sec.
6
43.4 degrees/sec.
7
60 degrees/sec. (default)
Operation Using the RM-BR300 Remote Control Unit
To cancel the preset memory
While holding down the RESET button (for POSITION
1 to 8) or the SHIFT and RESET buttons (for
POSITION 9 to 16), press the POSITION button from
which you want to cancel the settings.
While holding down (for POSITION 1 to 8)
Press a POSITION button.
RESET
PRESET
SHIFT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
While holding down (for POSITION 9 to 16)
The pressed button flashes during canceling of the
settings. Flashing stops when the settings have been
canceled.
Notes
• When the power is turned on, the camera starts with
the settings stored in POSITION 1.
• If you want to retain the previous pan and tilt positions
when the power is turned off and turned on again, store
those positions in POSITION 1.
• When you are storing or canceling the settings in one
POSITION, you cannot call up, store or cancel the
settings in another POSITION.
42
You can select the panning/tilting speed when the
camera moves to a preset position.
Press a POSITION button.
RESET
SHIFT
Setting the Speed of the Camera
Moving to a Preset Position
Storing the Camera Settings in Memory – Presetting Feature
Now the camera will move to the position preset to
the pressed POSITION button with the selected
speed.
To set the speed with which the camera
moves to a preset position between 9 and
16
Hold down the SHIFT button and press the
corresponding POSITION button for more than one
second. The POSITION 1 to 8 buttons can be used for
positions 9 to 16.
Installation and Connections
2
Insert an optional Output Card into the card slot.
Align both ends of the Output Card with the sliders
inside the slot, then insert the board securely as far
as it will go.
Installation
Attaching an Output Card
Attach an Output Card (not supplied) to the card slot on
the rear of the camera.
1
Loosen the two screws to remove the card slot
cover.
BRBK-HD2
(not supplied)
3
Tighten the two screws on the Output Card.
Installation and Connections
To remove the Output Card
Loosen the two screws on the Output Card and pull the
board out straight and slowly.
Installing the Camera
To install the camera on a desk
Place the camera on a flat surface.
Installation
43
If you have to place the camera on an inclined surface,
make sure that the inclination is less than ±15 degrees,
so that the pan/tilt performance is guaranteed.
Caution
Installation of the camera using the tripod screws and
screw holes should not be done for installation on a
ceiling or a shelf, etc. in a high position.
Installing the Camera in a High
Position
Notes
• You should take an appropriate countermeasure to
prevent the camera from falling.
• Do not grasp the camera head when carrying the
camera.
• Do not turn the camera head by hand. Doing so may
result in the camera malfunctioning.
Using the supplied ceiling brackets, wire rope, and
screws, you can attach the camera to a ceiling or on a
shelf, etc. in a high position. You can also utilize an
existing junction box, etc. to attach the camera to a
ceiling.
When you install the camera, always install it on a level
ceiling or shelf, etc. If you have to install it on an incline,
make sure that the inclination is within ± 15 degrees, so
that the pan/tilt performance is guaranteed.
Installation and Connections
Caution
• When you attach the camera to a ceiling or shelf, etc.
in a high position, entrust the installation to an
experienced contractor or installer.
• Attach the camera to the ceiling or shelf, etc. firmly,
after making sure the ceiling, shelf, etc. and the
attachment materials (not including the supplied
accessories) are strong enough to bear a weight of 40
kg (88 lb 2 oz). If the ceiling or shelf, etc. is not
strong enough, the camera may fall and cause
serious injury.
• Be sure to attach the supplied wire rope to prevent
the camera from falling.
• Check periodically, at least once a year, to ensure
that the connection has not loosened. If conditions
warrant, make this periodic check more frequently.
Before installation
To attach the camera to a tripod
Attach a tripod to the screw hole used for attaching a
tripod on the bottom of the camera.
The tripod must be set up on a flat surface and tightened
firmly by hand.
Use a tripod with screws of the following specifications.
1 /4
-20UNC
= 4.5 – 7 mm
= 0.18 – 0.27 inches
44
Installation
The connecting cables cannot be passed through the
ceiling bracket (A). A hole for the wiring is required in
the ceiling or shelf, etc. behind where the camera is to be
installed. When installing the camera on a ceiling, make
the required hole for the junction box in the ceiling.
When installing it on a shelf, etc. in a high position, a
hole with a diameter of 70 mm (2 7/8 inches) is required
for the protrusions of the ceiling bracket.
Make these holes after deciding the shooting direction.
Installation on a ceiling (example)
1
Set IMG-FLIP to ON in the SYSTEM menu.
2
Remove the four screws on the bottom of the
camera to remove the four feet.
Note
For attaching the camera to the ceiling bracket, use
only the supplied screws. Using other screws may
damage the camera.
4
Attach the wire rope to the junction box on the
ceiling.
Use an M4 or larger outside diameter screw (not
supplied) to attach the wire rope to the junction box.
Ceiling
M4 or larger
diameter screw
3
Wire rope
(supplied)
Ceiling bracket (A)
3M3 × 8 (supplied)
5
Attach the ceiling bracket (B) to the junction box on
the ceiling.
Align the holes in the bracket with those in the
junction box, and use appropriate screws (not
supplied).
There are three screw holes along the edges of the
ceiling bracket (B). Later, the front of the camera
will be positioned at one of the screw holes. Adjust
the direction of the ceiling bracket (B) so that the
camera will face the front and attach the bracket
securely.
Installation and Connections
Attach the ceiling bracket (A) to the bottom of the
camera using the supplied four screws (3M3 × 8).
Position the a hole for screwing on the ceiling
bracket (A) to the front of the camera as illustrated,
align the screw holes on the ceiling bracket with
those on the bottom of the camera, then attach the
bracket to the camera.
Hole for connecting cables
Ceiling
Front of
camera
f hole
Ceiling bracket (B)
Front of Camera
Installation
45
6
Attach the wire rope to the ceiling bracket (A).
Pass the wire rope through the fixing hole and
attach its end to the attachment hole on the bracket
using the supplied one screw (3M4 × 8).
7
Wire rope (supplied)
Insert the protrusions on the ceiling bracket (A) into
the spaces prepared in the ceiling bracket (B) with
the a hole in the front of the ceiling bracket (A)
aligned with the f hole on the ceiling bracket (B),
and temporarily attach them by turning the ceiling
bracket (A) with the camera clockwise.
Ceiling
Ceiling bracket (B)
3M4 × 8 (supplied)
Fixing hole for wire
rope
Ceiling bracket (A)
Ceiling bracket (A)
Caution
For attaching the wire rope to the bracket, use
only the supplied screw. Using another screw may
disable the function of the wire rope.
8
Secure the ceiling brackets (A) and (B) using the
supplied three screws (3M3 × 8).
Ceiling
Installation and Connections
3M3 × 8
(supplied)
46
Installation
9
Connect the cables to the connectors on the rear of
the camera.
Ceiling
Installation on a shelf, etc. in a high
position (example)
1
Remove the four screws on the bottom of the
camera to remove the four feet.
2
Attach the ceiling bracket (A) to the bottom of the
camera using the supplied four screws (3M3 × 8).
Position the a hole for screwing on the ceiling
bracket (A) to the front of the camera as illustrated,
align the screw holes on the ceiling bracket with
those on the bottom of the camera, then attach the
bracket to the camera.
Note
Take the proper steps to ensure that the load of the
cables connected does not cause problems.
10 The SONY and/or HD nameplates can be turned
upside down, if necessary.
To remove the camera
Remove the three screws used to attach the camera
in step 8 of “Installation on a ceiling (example).”
2
Turn the camera with the bracket counterclockwise
to remove.
Installation and Connections
1
Ceiling bracket (A)
3M3 × 8 (supplied)
Front of camera
Installation
47
4
Note
For attaching the camera to the ceiling bracket, use
only the supplied screws. Using other screws may
damage the camera.
3
Attach the supplied wire rope to the ceiling bracket
(A).
Pass the wire rope through the fixing hole and
attach its end to the attachment hole on the bracket
using the supplied one screw (3M4 × 8).
Attach the ceiling bracket (B) to a shelf, etc. on
which the camera is to be installed.
Use four screws (not supplied) appropriate for the
materials of the shelf, etc.
Align the f hole on the ceiling bracket (B) in the
direction where the front of the camera will be
positioned later.
Wall
Screws (4)
Ceiling
bracket (B)
Wire rope (supplied)
3M4 × 8 (supplied)
Fixing hole for wire
rope
f Screw hole
(front of the
camera)
Shelf, etc.
Ceiling bracket (A)
Installation and Connections
Caution
For attaching the wire rope to the bracket, use
only the supplied screw. Using another screw may
disable the function of the wire rope.
48
Installation
About 70 mm (2 7/8 in.)
diameter hole for
protrusions of the ceiling
bracket
Hole for
connecting
cables
5
Attach the other end of the wire rope to the material
near the shelf, etc.
Use an M4 or larger outside diameter screw (not
supplied). Attach the wire rope to the material
independent of the shelf, etc. where the ceiling
bracket (B) is attached.
6
Insert the protrusions on the ceiling bracket (A) into
the spaces prepared in the ceiling bracket (B) with
the a hole in the front of the ceiling bracket (A)
aligned with the f hole on the ceiling bracket (B),
and temporarily attach them by turning the ceiling
bracket (A) with the camera clockwise.
Ceiling
bracket (A)
Align.
Wire rope
(supplied)
Ceiling bracket
(B)
M4 or larger diameter screw
Installation and Connections
Installation
49
7
Secure the ceiling brackets (A) and (B) using the
supplied three screws (3M3 × 8).
8
Connect the cables to the connectors on the rear of
the camera.
3M3 × 8
(supplied)
Installation and Connections
Note
Take the proper steps to ensure that the load of the
cables connected does not cause problems.
To remove the camera
50
Installation
1
Remove the three screws used to attach the camera
in step 7 of “Installation on a shelf, etc. in a high
position (example).”
2
Turn the camera with the bracket counterclockwise
to remove.
Connections
Connecting the RM-BR300 Remote
Control Unit
Connecting to an AC Outlet
Use the RS-232C connecting cable supplied with the
Remote Control Unit.
Use the supplied AC power adaptor and AC power cord
to connect the camera to an AC outlet.
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
VISCA RS-422
DC IN 12V
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
VISCA RS-422
DC IN 12V
IN VISCA
RS-232C OUT
S VIDEO
OFF
ON
DATA MIX
OFF
ON
IN VISCA
RS-232C OUT
S VIDEO
VIDEO
EXT SYNC IN
RGB/COMPONENT
R
OFF
ON
DATA MIX
OFF
ON
75
!
R
75
!
VIDEO
EXT SYNC IN
DC IN 12V
RGB/COMPONENT
VISCA RS-232C IN
DC IN 12V
AC power adaptor MPA-AC1 (supplied)
to AC outlet
RS-232C cable*
AC power cord (supplied)
VISCA RS-232C
RM-BR300 Remote
Control Unit
DC IN 12V
Installation and Connections
AC power cord*
to AC outlet
AC power adaptor*
* supplied with the RM-BR300
Note
When using the VISCA RS-232C connectors, check that
the BOTTOM switch on the bottom of the camera
(page 14) and the DIP switch on the bottom of the
Remote Control Unit (page 18) are set to RS-232C.
Connections
51
To connect the Remote Control Unit
using the VISCA RS-422 connectors
You can use the VISCA RS-422 connectors to connect
the RM-BR300 Remote Control Unit to the camera
instead of the VISCA RS-232C connectors. Use of the
VISCA RS-422 connectors allows the connection up to
1,200 m (3,937 feet) away.
Connecting a Monitor, etc.
Equipped with the Analog
Component (YPbPr) Input
Connector
Prepare the connecting cable using the RS-422
connector plugs that come with the camera and the
Remote Control Unit.
For making the cable, refer to the pin assignments of the
VISCA RS-422 connector (pages 70 and 71) and the
wiring diagram of VISCA RS-422 connection
(page 72).
For the use of the RS-422 connector plugs, see page 73.
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
VISCA RS-422
DC IN 12V
R
OFF
ON
DATA MIX
OFF
ON
75
!
IN VISCA
RS-232C OUT
S VIDEO
VIDEO
EXT SYNC IN
RGB/COMPONENT
DC IN 12V
RGB/COMPONENT
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
VISCA RS-422
DC IN 12V
OFF
ON
DATA MIX
OFF
ON
75
!
IN VISCA
RS-232C OUT
S VIDEO
Connecting cable with
D-sub 15-pin connectors
(commercially available)
R
VIDEO
EXT SYNC IN
RGB/COMPONENT
DC IN 12V
Installation and Connections
VISCA RS-422
to component video input
VISCA RS-422 cable
HD video monitor, etc.
VISCA RS-422
RM-BR300 Remote
Control Unit
DC IN 12V
Notes
• When using the VISCA RS-422 connectors, check
that the BOTTOM switch on the bottom of the camera
(page 14) and the DIP switch on the bottom of the
Remote Control Unit (page 18) are set to RS-422.
• When the connections using the VISCA RS-422
connectors are made, the VISCA RS-232C connection
is not available.
52
Connections
Connecting a Device Equipped with
VISCA RS-232C Connector
Connections with the VISCA RS-232C cables (cross
type) enable control of multiple cameras with a single
RM-BR300 Remote Control Unit.
RM-BR300 Remote Control Unit
VISCA RS-232C
DC IN 12V
RS-232C cable
(supplied with the
RM-BR300)
You can connect the camera to a computer equipped
with the VISCA RS-232C connector instead of the
connection to the RM-BR300 Remote Control Unit.
Note
When using the VISCA RS-232C connectors, check that
the BOTTOM switch on the bottom of the camera
(page 14) and the DIP switch on the bottom of the
Remote Control Unit (page 18) are set to RS-232C.
Connecting a Device Equipped with
VISCA RS-422 Connector
Connection via the VISCA RS-422 connectors enables
control of multiple cameras. This allows the connection
up to 1,200 m (3,937 feet) away.
Prepare the connecting cable using the RS-422
connector plugs that come with the camera and the
Remote Control Unit.
For making the cable, refer to the pin assignments of the
VISCA RS-422 connector (pages 70 and 71) and the
wiring diagram of VISCA RS-422 connection
(page 72).
For the use of the RS-422 connector plugs, see page 73.
VISCA RS232C IN
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
R
OFF
DC IN 12V
ON
DATA MIX
VISCA RS-422
OFF
ON
75
!
IN VISCA
RS-232C OUT
DC IN 12V
VIDEO
S VIDEO
EXT SYNC IN
First BRC-Z330
RS-232C cable
VISCA RS-232C IN
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
R
OFF
DC IN 12V
ON
DATA MIX
VISCA RS-422
OFF
ON
75
IN VISCA
RS-232C OUT
DC IN 12V
VIDEO
S VIDEO
EXT SYNC IN
• When using the VISCA RS-422 connectors, check
that the BOTTOM switch on the bottom of the camera
(page 14) and the DIP switch on the bottom of the
Remote Control Unit (page 18) are set to RS-422.
• When the connections using the VISCA RS-422
connectors are made, the VISCA RS-232C connection
is not available.
• Do not make the VISCA RS-422 connection and the
VISCA RS-232C connection simultaneously. If both
cables are connected simultaneously, the camera may
malfunction.
Installation and Connections
VISCA RS-232C OUT
!
Notes
RGB/COMPONENT
RGB/COMPONENT
Second BRC-Z330
VISCA RS-232C OUT
RS-232C cable
VISCA RS-232C IN
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
VISCA RS-422
DC IN 12V
DC IN 12V
R
OFF
ON
DATA MIX
OFF
ON
75
!
IN VISCA
RS-232C OUT
S VIDEO
VIDEO
EXT SYNC IN
RGB/COMPONENT
Third to Seventh
BRC-Z330
Connections
53
Connecting a Video Monitor, VTR,
etc. Equipped with Composite
Video or S Video Input Connector
RM-BR300 Remote Control Unit
DC IN 12V
VISCA RS-422
VISCA RS-422
cable
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
VISCA RS-422
DC IN 12V
R
OFF
ON
DATA MIX
OFF
ON
75
!
IN VISCA
RS-232C OUT
S VIDEO
VIDEO
EXT SYNC IN
RGB/COMPONENT
VISCA RS-422
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
DC IN 12V
OFF
ON
DATA MIX
OFF
ON
75
IN VISCA
RS-232C OUT
DC IN 12V
DC IN 12V
R
VISCA RS-422
!
VIDEO
S VIDEO
EXT SYNC IN
RGB/COMPONENT
First BRCZ330
S VIDEO
S video connecting
cable
VISCA RS-422
VIDEO
75-ohm coaxial
cable
VISCA RS-422 cable
to S video input
VISCA RS-422
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
R
OFF
ON
DATA MIX
VISCA RS-422
OFF
ON
75
!
Installation and Connections
DC IN 12V
IN VISCA
RS-232C OUT
DC IN 12V
VIDEO
S VIDEO
EXT SYNC IN
RGB/COMPONENT
Second
BRC-Z330
Video monitor, VTR, etc.
VISCA RS-422
VISCA RS-422 cable
VISCA RS-422
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
VISCA RS-422
DC IN 12V
DC IN 12V
54
Connections
R
OFF
ON
DATA MIX
OFF
ON
75
!
IN VISCA
RS-232C OUT
S VIDEO
to composite
video input
VIDEO
EXT SYNC IN
RGB/COMPONENT
Third to
Seventh
BRC-Z330
Connecting a VTR Equipped with
HD-SDI Input Connectors
Attach the optional BRBK-HD2 HD-SDI Output Card
to the camera, and turn on the camera. You can output
the signal from the camera by converting it into a signal
compliant with HD-SDI standards (SMPTE292M serial
digital interface).
Connecting a Sync Signal
Generator
To connect a single camera
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
VISCA RS-422
DC IN 12V
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
OFF
IN VISCA
RS-232C OUT
S VIDEO
ON
VIDEO
EXT SYNC IN
RGB/COMPONENT
ON
OFF
ON
75
RS-232C OUT
DATA MIX
OFF
DATA MIX
VISCA RS-422
IN VISCA
ON
R
!
DC IN 12V
OFF
75
!
75-ohm
termination switch:
ON
R
S VIDEO
VIDEO
EXT SYNC IN
RGB/COMPONENT
DC IN 12V
EXT SYNC IN
DC IN 12V
SDI OUTPUT
BRBK-HD2 HD-SDI
Output Card
75-ohm coaxial cable
Connecting cable
with BNC connectors
to SYNC OUT
Installation and Connections
to HD-SDI input
Sync signal generator
HDCAM, etc. equipped with an
HD-SDI input connectors
Connections
55
To connect multiple cameras to the HD
sync signal generator
To connect multiple cameras to the SD
sync signal generator
You can connect up to seven cameras.
You can connect up to seven cameras.
Third to Seventh (last)
BRC-Z330
Third to Seventh (last)
BRC-Z330
75-ohm
termination
switch: ON
75-ohm
termination
switch: ON
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
DC IN 12V
OFF
ON
DATA MIX
OFF
ON
75
IN VISCA
RS-232C OUT
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
R
VISCA RS-422
!
VIDEO
S VIDEO
R
OFF
DC IN 12V
EXT SYNC IN
DC IN 12V
OFF
ON
75
!
RGB/COMPONENT
ON
DATA MIX
VISCA RS-422
EXT SYNC IN
IN VISCA
RS-232C OUT
VIDEO
S VIDEO
EXT SYNC IN
RGB/COMPONENT
VIDEO
DC IN 12V
EXT SYNC IN
Video monitor, etc.
to video input
Second BRC-Z330
75-ohm
termination
switch: OFF
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
75-ohm
termination
switch: OFF
R
OFF
ON
75
IN VISCA
RS-232C OUT
DC IN 12V
VIDEO
S VIDEO
R
OFF
RGB/COMPONENT
EXT SYNC IN
Installation and Connections
First BRC-Z330
OFF
ON
75
!
DC IN 12V
ON
DATA MIX
VISCA RS-422
EXT SYNC IN
IN VISCA
RS-232C OUT
Second BRCZ330
DC IN 12V
VIDEO
S VIDEO
EXT SYNC IN
RGB/COMPONENT
EXT SYNC IN
75-ohm
termination
switch: OFF
75-ohm
termination
switch: OFF
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
VISCA RS-422
DC IN 12V
IN VISCA
RS-232C OUT
S VIDEO
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
R
OFF
ON
DATA MIX
OFF
ON
75
!
VIDEO
VISCA RS-422
EXT SYNC IN
DC IN 12V
RGB/COMPONENT
R
OFF
ON
DATA MIX
OFF
ON
75
!
IN VISCA
RS-232C OUT
S VIDEO
VIDEO
EXT SYNC IN
RGB/COMPONENT
First BRCZ330
DC IN 12V
EXT SYNC IN
Connections
EXT SYNC IN
75-ohm coaxial cable
75-ohm coaxial cable
to SYNC OUT
to SYNC OUT
HD sync signal generator
56
DC IN 12V
SD sync signal generator
Commercially available
T-type signal separator
OFF
Commercially available
T-type signal separator
DC IN 12V
1 2 3 4 5 6 7 8 9 IR SELECT
1
2
3
ON
DATA MIX
VISCA RS-422
!
Appendix
List of Messages
The following messages may appear on the screen. Take
the necessary measures shown below.
Message
Meaning/remedies
PRESET (xx) OUT
OF RANGE (xx =
preset position
numbers 01 to 16)
This message appears when you preset
the camera position when the pan/tilt
position of the camera is out of range of
the current PAN-TILT LIMIT setting.
This camera position presetting will fail
to be performed. Perform the presetting
again after moving the camera within the
range of the PAN-TILT LIMIT setting.
Indicators on the BRC-Z330 camera
Indicator
Meaning/remedies
STANDBY lamp
flashes.
The camera stopped moving due to an
error in the pan/tilt mechanism. Reset
the pan/tilt position or turn off the power
of the camera and turn it on again.
The tally lamp
flashes.
Turn off the power of the camera, and
consult with your Sony dealer.
Messages for the BRC-Z330 camera
Message
Meaning/remedies
Please restart system You are prompted to restart the power of
the camera after you changed the setting
of “IMG-FLIP” in the SYSTEM menu.
Use the POWER switch on the supplied
Remote Commander or the POWER
button on the RM-BR300 Remote
Control Unit to turn the power off, then
on. The changed setting becomes
effective.
PRESET xx OK
When you store the camera settings into
(xx = preset position the memory (POSITION 1-16), the
numbers 01 to 16)
message will appear for 2 seconds.
One Push WB...OK
(NG)
Appendix
While the white balance is automatically
adjusted, the message will appear. Wait
for a while. When the adjustment is
complete, it will disappear.
STOP
Turn off the power of the camera, and
(The message will
consult with your Sony dealer.
flash in FAN
MOTOR on PAGE6
in the STATUS
menu.)
CAUTION
COOLING FAN
STOPPED!
Turn off the power of the camera, and
consult with your Sony dealer.
*[ENTER]: EXIT
This message appears while you adjust H
PHASE in the SYSTEM menu. To exit
from the adjustment, press the HOME
button on the Remote Commander or the
button on the top of the joystick on the
Remote Control Unit.
*PUSH ENTER
BUTTON
This message appears when you move
the cursor to H PHASE in the SYSTEM
menu. To start the H PHASE adjustment,
press the HOME button on the Remote
Commander or the button on the top of
the joystick on the Remote Control Unit.
List of Messages
57
Troubleshooting
Before bringing in your camera for service, check the
following as a guide to troubleshoot the problem. If the
problem cannot be corrected, consult with your Sony
dealer.
Symptom
Cause
Remedy
The power of the camera is not turned
on.
The supplied AC power adaptor is not
connected to the DC IN 12V jack firmly.
Insert the power cord firmly as far as it will
go.
The AC power cord is not inserted firmly into Insert the power cord firmly as far as it will
the AC power adaptor or the AC outlet.
go.
The camera cannot be turned on with the IR-RECEIVE in the SYSTEM menu is set to
supplied Remote Commander.
OFF.
Use the RM-BR300 Remote Control Unit to
open the menu and set IR-RECEIVE to ON.
(page 28)
The picture is not displayed on the video The video cable is not connected properly.
monitor connected to the camera.
Check the connection between the camera and
video monitor.
The exposure is not set correctly on the
camera.
Pan, tilt or zoom cannot be operated.
Set the exposure correctly in the EXPOSURE
menu.
Any menu is displayed on the monitor screen. Press the DATA SCREEN button on the
supplied Remote Commander or the MENU
button on the RM-BR300 Remote Control
Unit to turn off the menu from the monitor
screen.
The panning or tilting range is limited.
Change the PAN-TILT LIMIT setting in the
PAN TILT ZOOM menu (page 27).
Press the CAMERA SELECT button
corresponding to the IR SELECT switch
setting on the camera (page 33).
The camera cannot be operated with the
RM-BR300 Remote Control Unit.
The connection using the VISCA RS-422
connectors is not correctly made.
Check that the connection to the VISCA RS422 connectors is correctly made, and the RS422 cable is properly connected.
The BOTTOM switch on the bottom of the
camera is set to any other address than “0
(AUTO).”
Identify the address of the camera (page 14),
then set the MODE selector on the rear of the
Remote Control Unit to the same address
(page 18).
VISCA control setting is not correct.
Select the proper setting (RS-232C or RS422) with the BOTTOM switch on the bottom
of the camera (page 14) and the DIP switch on
the Remote Control Unit (page 18).
The communication baud rate setting of the
camera and the RM-BR300 differ.
Select the same communication baud rate
(9600 bps or 38,400 bps) with the BOTTOM
switch on the bottom of the camera (page 14)
and the DIP switch on the Remote Control
Unit (page 18).
Appendix
The Remote Commander does not work. The CAMERA SELECT button you pressed
on the Remote Commander does not match
the number set with the IR SELECT switch
on the camera.
The NC (No Connection) switch is set to ON. Set camera address selector switch 9, 10 of
the BOTTOM switches on the bottom of the
camera to OFF (page 14).
58
Troubleshooting
Symptom
Cause
The VISCA control is not available with The computer is not correctly connected to
a computer connected to the camera.
the camera.
Remedy
Make sure the connection between the
computer and camera is made correctly.
Check that the VISCA control setting (RS232C or RS-422) and the baud rate setting
(9600 bps or 38,400 bps) are properly made
with the BOTTOM switch on the bottom of
the camera (page 14) and the DIP switch on
the Remote Control Unit (page 18).
Try to connect the camera to the RM-BR300
Remote Control Unit to check that the camera
works properly.
The picture quality obtained from the
Depending on your computer or video capture Consult with your computer manufacturer or
camera connected to a computer differs board, you may not be able to obtain the
dealer for details.
from that from the camera connected to a expected picture quality.
video monitor.
The camera cannot be operated at all.
—
Pull out the plug of the power cord from the
AC outlet, then reinsert it into the AC outlet
after a while.
Appendix
Troubleshooting
59
Menu Configuration
The menus of the camera are configured as described
below.
The initial settings of each item are in bold.
EXPOSURE
MODE
FULL AUTO
(page 23)
MANUAL
AE SPEED
AGC LIMIT
IRIS LIMIT
GAIN
SPEED
IRIS
EX-COMP
BACK LIGHT
SPOT LIGHT
COLOR AE
Appendix
ND FILTER
60
Menu Configuration
SHUTTER Pri
SPEED
IRIS Pri
IRIS
GAIN Pri
GAIN
ON
OFF
ON
OFF
ON
OFF
OFF
NARROW
STD
WIDE
CHECK
LEVEL
PHASE
PHASE
PHASE
PHASE
OFF, 1/4, 1/16
LOW, MID, HIGH
-3dB, 0dB, 6dB, 12dB, OFF
F11, F6.8, F4.0, F3.4
-3dB, 0dB, 1dB, 2dB, 3dB, 4dB, 5dB, 6dB, 7dB, 8dB,
9dB, 10dB, 11dB, 12dB, 13dB, 14dB, 15dB, 16dB, 17dB,
18dB, 19dB, 20dB, 21dB, 22dB, 23dB, 24dB, HYPER
1/10000, 1/6000, 1/4000, 1/3000, 1/2000, 1/1500,
1/1000, 1/725, 1/500, 1/350, 1/250, 1/180, 1/125, 1/100,
1/90, 1/60 (1080/59.94i, 720/59.94P, NTSC)
1/10000, 1/6000, 1/3500, 1/2500, 1/1750, 1/1250,
1/1000, 1/600, 1/425, 1/300, 1/215, 1/150, 1/120, 1/100,
1/75, 1/50 (1080/50i, 720/50P, PAL)
CLOSE, F16, F15, F14, F12, F11, F10, F9.6, F8.7, F8.0,
F7.3, F6.8, F6.2, F5.6, F5.2, F4.8, F4.4, F4.0, F3.7, F3.4,
F3.1, F2.8, F2.6, F2.4, F2.2, F2.0, F1.8, F1.7, F1.6
1/10000, 1/6000, 1/4000, 1/3000, 1/2000, 1/1500,
1/1000, 1/725, 1/500, 1/350, 1/250, 1/180, 1/125, 1/100,
1/90, 1/60 (1080/59.94i, 720/59.94P, NTSC)
1/10000, 1/6000, 1/3500, 1/2500, 1/1750, 1/1250,
1/1000, 1/600, 1/425, 1/300, 1/215, 1/150, 1/120, 1/100,
1/75, 1/50 (1080/50i, 720/50P, PAL)
F16, F15, F14, F12, F11, F10, F9.6, F8.7, F8.0, F7.3,
F6.8, F6.2, F5.6, F5.2, F4.8, F4.4, F4.0, F3.7, F3.4, F3.1,
F2.8, F2.6, F2.4, F2.2, F2.0, F1.8, F1.7, F1.6
-3dB, 0dB, 1dB, 2dB, 3dB, 4dB, 5dB, 6dB, 7dB, 8dB,
9dB, 10dB, 11dB, 12dB, 13dB, 14dB, 15dB, 16dB, 17dB,
18dB, 19dB, 20dB, 21dB, 22dB, 23dB, 24dB
-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6, +7
0 – 71
0 – 71
0 – 71
0 – 71
COLOR
WHITE BALANCE
AUTO1
WB SENS
WB R.SHIFT
(page 24)
WB B.SHIFT
AUTO2
WB SENS
WB R.SHIFT
WB B.SHIFT
INDOOR
OUTDOOR
ONE PUSH
WB R.SHIFT
WB B.SHIFT
MANUAL
COLOR GAIN
COLOR HUE
COLOR MATRIX
(page 25)
DETAIL
COLOR DETAIL
B&W
COLOR BAR
MODE
NEAR LIMIT
AF ASSIST
Appendix
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15
OFF
CHECK
PHASE
0 – 71
NARROW
PHASE
0 – 71
STD
PHASE
0 – 71
WIDE
PHASE
0 – 71
NORMAL
CINEMA
AUTO, LOW, MID, HIGH, OFF
ON
OFF
ON
OFF
ON
OFF
KNEE POINT
FLICKER CANCEL
(page 26)
-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5,
+6, +7
-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5,
+6, +7
-128 – 000 – +127
-128 – 000 – +127
R.GAIN
B.GAIN
-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6, +7
-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6, +7
ON
R.ENHANCE
-10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, +1, +2,
+3, +4, +5, +6, +7, +8, +9, +10
G.ENHANCE
-10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, +1, +2,
+3, +4, +5, +6, +7, +8, +9, +10
B.ENHANCE
-10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, +1, +2,
+3, +4, +5, +6, +7, +8, +9, +10
YL.ENHANCE
-10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, +1, +2,
+3, +4, +5, +6, +7 ,+8, +9, +10
CY.ENHANCE
-10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, +1, +2,
+3, +4, +5, +6, +7, +8, +9, +10
MG.ENHANCE
-10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, +1, +2,
+3, +4, +5, +6, +7, +8, +9, +10
OFF
GAMMA
FOCUS
LOW, MID, HIGH
-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5,
+6, +7
-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5,
+6, +7
LOW, MID, HIGH
-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5,
+6, +7
-7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5,
+6, +7
AUTO
MANUAL
ON
OFF
ON
OFF
Menu Configuration
61
PAN TILT ZOOM
PAN-TILT LIMIT
PAN
(page 27)
ON
OFF
END, 174˚ – -174˚
174˚ – -174˚, END
ON
OFF
END, -29˚ – 89˚
-29˚ – 89˚, END
MODE1, MODE2, MODE3
OFF, ×1.5, ×2.0, ×4.0
LEFT
RIGHT
TILT
DOWN
UP
RAMP CURVE
D-ZOOM
SYSTEM
(page 28)
IR RECEIVE
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
HD
SD
0 – 10 – 330
IMG-FLIP
PAN-REVERSE
TILT REVERSE
DISPLAY INFO
SYNC MASTER
H PHASE
VIDEO OUT
(page 29)
HD-RGB/COMPONENT
FORMAT
SD-VIDEO/S VIDEO
IMG SIZE
SETUP*
YPBPR
RGB
SYNC TYPE
ADD SYNC
SYNC TYPE
SYNC, VD
RGB, OFF
SYNC, VD
16:9 [LETTER]
4:3 [CROP]
4:3 [SQUEEZE]
ON
OFF
Appendix
* Does not appear when an output signal is 1080/50i or 720/50P format.
62
Menu Configuration
STATUS
PAGE 1
EXPOSURE
(page 30)
AE SPEED
AGC LIMIT
IRIS LIMIT
EX-COMP
BACK LIGHT
SPOT LIGHT
COLOR AE
ND FILTER
PAGE 2
WHITE BALANCE
WB SENS
WB SHIFT
M. GAIN
R:, B:
R:, B:
ENHANCE
R:, G:, B:, YL:, CY:, MG:
COLOR GAIN
COLOR HUE
COLOR MATRIX
PAGE 3
DETAIL
COLOR DETAIL
PHASE
GAMMA
KNEE POINT
FLICKER CANCEL
B&W
COLOR BAR
PAGE 4
PAGE 5
FOCUS MODE
NEAR LIMIT
AF ASSIST
IR-RECEIVE
IMG-FLIP
REVERSE
DISPLAY INFO
SYNC MASTER
H PHASE
PAN-TILT LIMIT
PAN, TILT
PAN
TILT
LEFT
RIGHT
DOWN
UP
PAGE 6
Appendix
RAMP CURVE
D-ZOOM
HD FORMAT
RGB SYNC
SYNC TYPE
SD IMG SIZE
SETUP
FAN MOTOR
BRC VERSION
Menu Configuration
63
Presetting Items
The following setting items can be stored in the memory of the camera.
General presetting items
Presetting item
Presetting position number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Pan/tilt position
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
Zoom position
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
Focus position
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
EXPOSURE MODE
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
AE SPEED
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
AGC LIMIT
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
IRIS LIMIT
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
MANUAL GAIN
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
MANUAL SHUTTER
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
MANUAL IRIS
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
IRIS Pri VAL
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
SHUTTER Pri VAL
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
GAIN Pri VAL
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
EX-COMP MODE
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
EX-COMP VAL
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
BACK LIGHT
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
SPOT LIGHT
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
COLOR AE1)
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
PHASE
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
ND FILTER
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
WHITE BALANCE
MODE
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
WB SENS
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
WB R.SHIFT (AUTO)
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
WB B.SHIFT (AUTO)
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
WB R.SHIFT (ONE
PUSH)
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
WB B.SHIFT (ONE
PUSH)
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
MANUAL R.GAIN
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
MANUAL B.GAIN
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
COLOR GAIN
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
COLOR HUE
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
COLOR MATRIX
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
R.ENHANCE
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
G.ENHANCE
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
B.ENHANCE
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
YL.ENHANCE
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
Presetting menu items
Menu item
Appendix
64
Presetting Items
Presetting position number
Menu item
Presetting position number
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
CY.ENHANCE
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
MG.ENHANCE
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
DETAIL
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
COLOR DETAIL1)
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
PHASE
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
GAMMA
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
KNEE POINT
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
FLICKER CANCEL
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
B&W
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
FOCUS MODE
z
a
a
a
a
a
a
a
a
a
a
a
a
a
a
a
NEAR LIMIT
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
AF ASSIST
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
PAN LIMIT MODE
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
TILT LIMIT MODE
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
PAN LIMIT AREA
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
TILT LIMIT AREA
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
RAMP CURVE
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
D-ZOOM
z
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
IR-RECEIVE
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
IMG-FLIP2)
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
PAN REVERSE
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
TILT REVERSE
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
DISPLAY INFO
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
SYNC MASTER
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
H PHASE
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
FORMAT (HD OUTPUT)
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
ADD SYNC
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
SYNC TYPE
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
IMG SIZE (SD OUTPUT)
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
SETUP (not available for
1080/50i output signal)
f
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
1)
2)
Appendix
COLOR BAR
When CHECK is selected with COLOR AE and COLOR DETAIL, the setting is stored as STD.
The current setting of IMG-FLIP is recalled regardless of presetting operations.
: Setting items retained in memory when the power is turned off and on again. The camera starts with these settings.
: Setting items retained in memory when the power is turned off and on again.
: Setting items retained in memory only when the power is turned on.
– : Setting items cleared from the memory when the power is turned off and on.
z
a
f
Presetting Items
65
Specifications
System
Video signal
1080/59.94i, 1080/50i 720/59.94P,
720/50P (switched with the
BOTTOM switch)
Synchronization
Appendix
Internal/external synchronization,
automatically switched
Image device 1/3 type (6 mm), CMOS pickup
element
Total picture elements: Approx.
2,250,000 pixels
Effective picture elements: Approx.
2,160,000 pixels
Lens
18× (optical), 4× (digital)
f = 4.6 to 82.8 mm, F1.6 to F2.2
f = 36.2 to 651.0 mm (equivalent to
the focal length of a 35-mm camera)
Minimum object distance
100 mm (4 inches) (WIDE end:
LIMIT OFF) / 500 mm (19 3/4
inches) (WIDE end: LIMIT OFF) /
1500 mm (59 1/8 inches) (TELE
end)
Minimum illumination
6 lux (F1.6) with 50 IRE (WIDE end)
Shutter speed 1/59.94 (1/50) to 1/10,000 sec.
Video S/N
50 dB (component Y signal output)
Pan/tilt action Horizontal: ±175 degrees
Maximum panning speed: 60
degrees/sec.
Minimum panning speed: 0.25
degrees/sec.
Vertical: +90 degrees, –30 degrees
Maximum tilting speed: 60 degrees/
sec.
Minimum tilting speed: 0.25
degrees/sec.
Input/output connectors
Video output
66
Specifications
RGB/COMPONENT (D-sub 15-pin)
RGB: 0.7 Vp-p (no sync, at 75-ohm
termination)
1 Vp-p (±0.3 V, tri-level sync,
at 75-ohm termination)
Component :
Y: 1 Vp-p (±0.3 V, tri-level sync,
at 75-ohm termination)
Pb/Pr: ±350 mVp-p, 75-ohm
terminated
HD/VD Sync: 1 Vp-p, 75-ohm
terminated
Tri-level Sync: ±300 mVp-p, 75ohm terminated
VIDEO (BNC type)
Composite: 1 Vp-p (sync negative,
at 75-ohm termination)
S VIDEO (mini DIN 4-pin)
S video output:
Y: 1 Vp-p (sync negative, at 75-ohm
termination)
C: Same as chroma level of
composite signal (at 75-ohm
termination)
External sync input
EXT SYNC IN: BNC type
Control input/output
VISCA RS-232C IN: Mini DIN 8-pin
type
VISCA RS-232C OUT: Mini DIN 8pin type
VISCA RS-422: 9-pin type
Control signal format
9600 bps/38400 bps
Data: 8 bit
Stop bit: 1
Power connector
JEITA type4 (DC IN 12V)
General
Input voltage 12 V DC (10.8 V to 13.2 V DC)
Current consumption
1.5 A max. (at 12 V DC), 18 W without
optional Output Card
Operating temperature
0 ºC to 40 ºC (32 ºF to 104 ºF)
Storage temperature
–20 ºC to +60 ºC (–4 ºF to +140 ºF)
Dimensions
Video camera: Approx. 160.8 × 186 ×
193.4 mm (6 3/8 × 7 3/8 × 7 5/8
inches) (w/h/d) (excluding
protruding parts)
Remote Commander: Approx. 56 × 26
× 210 mm (2 1/4 × 1 1/16 × 8 3/8
inches) (w/h/d)
Mass
Video camera: Approx. 1.9 kg (4 lb
4 oz)
Remote Commander: 110 g (3.9 oz)
Installation angle
Less than ±15 degrees to the horizontal
surface
Supplied accessories
AC power adaptor MPA-AC1 (100 to 240 V AC, 50/60
Hz) (1)
AC power cord (1)
Remote Commander (1)
Ceiling bracket (A) (1)
Ceiling bracket (B) (1)
Wire rope (1)
Screws (3M3 × 8) (7)
Screw (3M4 × 8) (1)
RS-422 connector plug (1)
Operating Instructions (1)
Design and specifications are subject to change without
notice.
Note
Always verify that the unit is operating properly before use.
SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY
KIND INCLUDING, BUT NOT LIMITED TO,
COMPENSATION OR REIMBURSEMENT ON
ACCOUNT OF THE LOSS OF PRESENT OR
PROSPECTIVE PROFITS DUE TO FAILURE OF THIS
UNIT, EITHER DURING THE WARRANTY PERIOD OR
AFTER EXPIRATION OF THE WARRANTY, OR FOR
ANY OTHER REASON WHATSOEVER.
Appendix
Specifications
67
Dimensions
BRC-Z330 Video Camera
Top
5 (7/32)
186 (7 3/8)
Front
Side
160.8 (6 3/8)
Bottom
102 (4 1/8)
ø5 Depth 5 (7/32)
19
Appendix
(3/4)
3
93 (3 /4)
14
131 (5 1/4)
(9/16)
1/4 Tripod screw hole
Depth 7.5 (5/16)
88 (3 1/2)
113 (4 1/2)
1.1 (1/16)
11 (7/16)
193.4 (7 5/8)
152.8 (6 1/8)
Ceiling Bracket (B)
Top
83.5 (3 3/8)
46 (1 13/16)
140˚
120˚
60˚
40˚
ø 12 1. 2
ø1
ø 8 80 7 .3
ø83 .9
.5
4-ø4.5 hole
Slot widths 4.5 (3/16)
68
Specifications
Unit: mm (inches)
RM-BR300 Remote Control Unit
Top
VALUE
LOCK
PANEL
LIGHT
BLACK
LIGHT
PAN-TILT
RESET
ONE PUSH
AWB
MENU
+
R
POSITION
PRESET
MODE
BRIGHT
SHIFT
–
+
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
STD
REV
1
2
5
6
7
L/R
DIRECTION
B
CAMERA
AUTO
FOCUS
NEAR
FAR
AUTO
MANUAL
POWER
3
4
145.9 (5 3/4)
137.2 (5 1/2)
RESET
–
ONE PUSH
AF
391.3 (15 1/2)
Side
Front
30
45.9 (1 13/16)
185 (7 3/8)
30
Bottom
Appendix
Unit: mm (inches)
DIP switches
Specifications
69
Pin Assignments
VISCA RS-232C OUT connector (mini DIN 8-pin,
female)
BRC-Z330 Video Camera
VISCA RS-422 connector (connector plug
9-pin)
VISCA RS-232C OUT
VISCA RS-422
1 2 3 4 5 6 7 8 9
Pin No.
Function
1
DTR OUT
2
DSR OUT
3
TXD OUT
Pin No.
Function
4
GND
1
RXD OUT –
5
RXD OUT
2
RXD OUT+
6
GND
3
TXD OUT –
7
No Connection
4
TXD OUT+
8
No Connection
5
GND
6
RXD IN –
7
RXD IN+
8
TXD IN –
9
TXD IN+
Analog RGB/COMPONENT (D-sub 15-pin)
VISCA RS-232C IN connector (mini-DIN 8-pin,
female)
RGB/COMPONENT
Pin
No.
IN VISCA RS-232C
Appendix
At YPbPr
At YPbPr
At RGB
COMPONENT COMPONENT setting (at
setting
setting (at VD)
SYNC)
At RGB
setting (at
VD)
1
Pr-OUT
Pr-OUT
R-OUT
R-OUT
2
Y-OUT
Y-OUT
G-OUT
G-OUT
3
Pb-OUT
Pb-OUT
B-OUT
B-OUT
Pin No.
Function
4
GND
GND
GND
GND
1
DTR IN
5
GND
GND
GND
GND
2
DSR IN
6
GND
GND
GND
GND
3
TXD IN
7
GND
GND
GND
GND
4
GND
8
GND
GND
GND
GND
5
RXD IN
9
NC
NC
NC
NC
6
GND
7
SIRCS OUT *
10
GND
GND
GND
GND
8
No Connection
11
GND
GND
GND
GND
12
NC
NC
NC
NC
13
HD-OUT
HD-OUT
HD-OUT
HD-OUT
14
Tri-level
SYNC-OUT
Bi-level VDOUT
Tri-level
SYNCOUT
Bi-level
VD-OUT
15
NC
NC
NC
NC
* The SIRCS OUT function is selectable with the BOTTOM
switch on the bottom of the camera.
70
Function
Specifications
RM-BR300 Remote Control Unit
(optional)
TALLY/CONTACT connector (connector plug,
9-pin)
VISCA RS-232C output connector (mini DIN 8pin, female)
TALLY/CONTACT
RS-232C
1
9
Pin No.
Function
1
CAMERA1
Pin No.
Function
2
CAMERA2
1
No Connection
3
CAMERA3
2
No Connection
4
CAMERA4
3
TXD IN
5
CAMERA5
4
GND
6
CAMERA6
5
RXD IN
7
CAMERA7
6
GND
8
GND
7
No Connection
9
GND
8
No Connection
VISCA RS-422 connector (connector plug,
9-pin)
VISCA
RS-422
1
9
Function
1
No Connection
2
No Connection
3
No Connection
4
No Connection
5
GND
6
RXD IN –
7
RXD IN+
8
TXD IN –
9
TXD IN+
Appendix
Pin No.
Specifications
71
Wiring Diagram of VISCA RS-422 Connection
Third to Seventh BRC-Z330
VISCA RS-422 connector
1
2
3
4
5
6
7
8
9
RXD OUT –
RXD OUT +
TXD OUT –
TXD OUT +
GND
RXD IN –
RXD IN +
TXD IN –
TXD IN +
Second BRC-Z330
VISCA RS-422 connector
Appendix
1
2
3
4
5
6
7
8
9
RM-BR300 Remote Control Unit
VISCA RS-422 connector
1
2
3
4
5
6
7
8
9
NC
NC
NC
NC
GND
RXD IN –
RXD IN +
TXD IN –
TXD IN +
NC = No Connection
72
Specifications
RXD OUT –
RXD OUT +
TXD OUT –
TXD OUT +
GND
RXD IN –
RXD IN +
TXD IN –
TXD IN +
First BRC-Z330 camera
VISCA RS-422 connector
1
2
3
4
5
6
7
8
9
RXD OUT –
RXD OUT +
TXD OUT –
TXD OUT +
GND
RXD IN –
RXD IN +
TXD IN –
TXD IN +
Using the VISCA RS-422 Connector
Plug
1
To remove the connector plug
Grasp both ends of the VISCA RS-422 connector plug
and pull it out as shown in the illustration.
Insert a wire (AWG Nos. 28 to 18) into the desired
wire opening on the VISCA RS-422 connector
plug, and tighten the screw for that wire using a flathead screwdriver.
1
2
3
4
5
6
7 8
9
Flat-head screwdriver
Notes
Wire
2
Insert the VISCA RS-422 connector plug into the
VISCA RS-422 connector.
1
2
3
4
5
6
7 8
• In order to stabilize the voltage level of the signal,
connect both ends to GND.
• When the connections using the VISCA RS-422
connectors are made, the VISCA RS-232C connection
is not available.
• The maximum connection distance with the VISCA
RS-422 connection is approximately 1,200 m (3,937
feet).
9
Appendix
Specifications
73
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
