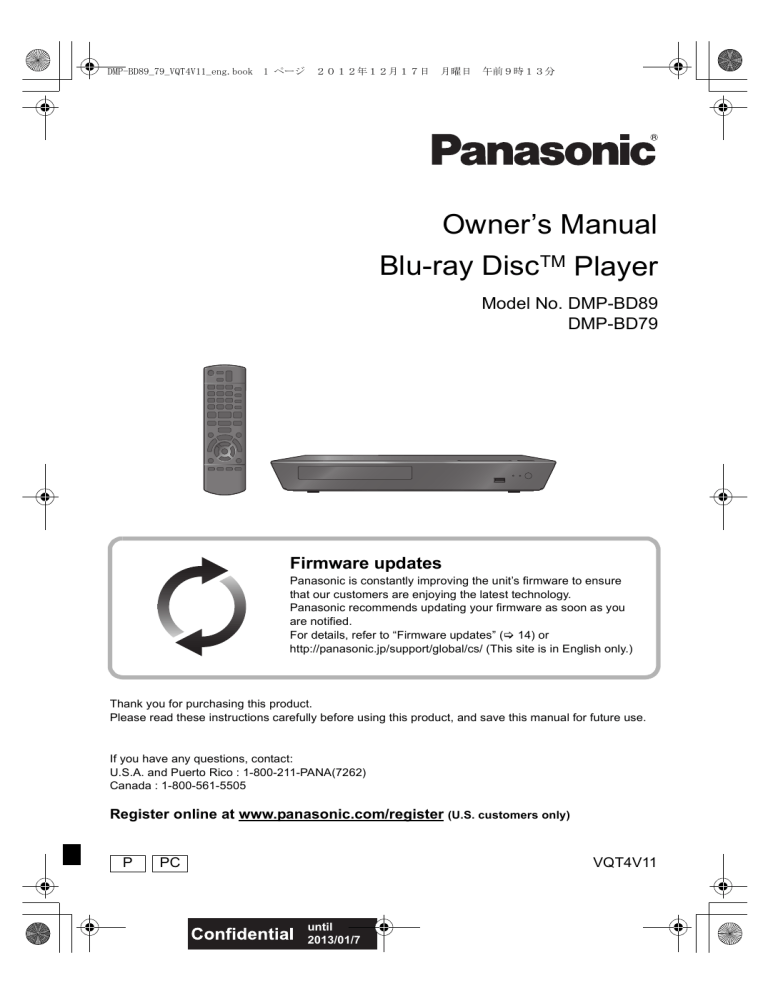

Owner’s Manual

Blu-ray Disc

TM

Player

Model No. DMP-BD89

DMP-BD79

Firmware updates

Panasonic is constantly improving the unit’s firmware to ensure that our customers are enjoying the latest technology.

Panasonic recommends updating your firmware as soon as you are notified.

For details, refer to “Firmware updates” (

>

14) or http://panasonic.jp/support/global/cs/ (This site is in English only.)

Thank you for purchasing this product.

Please read these instructions carefully before using this product, and save this manual for future use.

If you have any questions, contact:

U.S.A. and Puerto Rico : 1-800-211-PANA(7262)

Canada : 1-800-561-5505

Register online at www.panasonic.com/register

(U.S. customers only)

P PC VQT4V11

until

2013/01/7

DMP-BD89_79_VQT4V11_eng.book 2 ページ 2012年12月17日 月曜日 午前9時13分

Getting started

IMPORTANT SAFETY

INSTRUCTIONS

Read these operating instructions carefully before using the unit.

Follow the safety instructions on the unit and the applicable safety instructions listed below. Keep these operating instructions handy for future reference.

1 Read these instructions.

2 Keep these instructions.

3 Heed all warnings.

4 Follow all instructions.

5 Do not use this apparatus near water.

6 Clean only with dry cloth.

7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the manufacturer.

12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when unused for long periods of time.

14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT

CAUTION : TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE SCREWS.

NO USER-SERVICEABLE PARTS

INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

2

VQT4V11

THE FOLLOWING APPLIES IN THE U.S.A.

AND CANADA

[BD89]

This device complies with Part 15 of FCC Rules and RSS-Gen of

IC Rules.

Operation is subject to the following two conditions:

(1) This device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.

Contains FCC ID: MCLT77H330

Contains IC:2878D-T77H330

This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines in Supplement C to

OET65 and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment has very low levels of RF energy that is deemed to comply without maximum permissive exposure evaluation (MPE). But it is desirable that it should be installed and operated keeping the radiator at least 20cm (7 7 /

8 q ) or more away from person’s body (excluding extremities: hands, wrists, feet and ankles).

THE FOLLOWING APPLIES ONLY IN THE U.S.A.

FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, follow the attached installation instructions and use only shielded interface cables when connecting to peripheral devices.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Declaration of Conformity

Trade Name: Panasonic

Model No.: DMP-BD89

DMP-BD79

Responsible Party:

Panasonic Corporation of North America

One Panasonic Way, Secaucus, NJ 07094

Support Contact:

Panasonic Consumer Marketing Company of North America

Telephone No.: 1-800-211-PANA (7262)

DMP-BD89_79_VQT4V11_eng.book 3 ページ 2012年12月17日 月曜日 午前9時13分

Precautions

WARNING

Unit

To reduce the risk of fire, electric shock or product damage,

≥ Do not expose this unit to rain, moisture, dripping or splashing.

Do not place objects filled with liquids, such as vases, on this unit.

≥ Use only the recommended accessories.

≥ Do not remove covers.

Do not repair this unit by yourself. Refer servicing to qualified service personnel.

AC power supply cord

The power plug is the disconnecting device. Install this unit so that the power plug can be unplugged from the socket outlet immediately.

Wireless LAN connection

The following limits are in place regarding the usage of this unit or

Wireless LAN Adaptor. You must be aware of these limits before using these devices.

Panasonic will in no way be responsible for any incidental damage which may arise due to a failure to obey these limits, or to any condition of use or disuse of these devices.

Data transmitted and received over radio waves may be intercepted and monitored.

This unit and Wireless LAN Adaptor contain delicate electronic components.

Please use these devices in the manner in which they were intended and follow the following points:

– Do not expose these devices to high temperatures or direct sunlight.

– Do not bend, or subject these devices to strong impacts.

– Keep these devices away from moisture.

– Do not disassemble or alter these devices in any way.

CAUTION

Unit

This unit utilizes a laser. Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Do not place sources of naked flames, such as lighted candles, on this unit.

Placement

To reduce the risk of fire, electric shock or product damage,

Do not install or place this unit in a bookcase, built-in cabinet or in another confined space. Ensure this unit is well ventilated.

Do not obstruct this unit’s ventilation openings with newspapers, tablecloths, curtains, and similar items.

Do not place the unit on amplifiers/receivers or equipment that may become hot. The heat can damage the unit.

Batteries

Mishandling of batteries can cause electrolyte leakage, which can damage items the fluid contacts and may cause a fire.

Danger of explosion if battery is incorrectly replaced. Replace only with the type recommended by the manufacturer.

When disposing the batteries, please contact your local authorities or dealer and ask for the correct method of disposal.

Do not mix old and new batteries or different types at the same time.

Do not heat or expose to flame.

Do not leave the battery(ies) in a car exposed to direct sunlight for a long period of time with doors and windows closed.

Do not take apart or short circuit.

Do not attempt to recharge alkaline or manganese batteries.

Do not use batteries if the covering has been peeled off.

Remove batteries if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

Restriction on use of unauthorized copied content

This unit adopts the following technology for copyright protection.

Cinavia Notice

This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.

More information about Cinavia technology is provided at the Cinavia

Online Consumer Information Center at http://www.cinavia.com. To request additional information about Cinavia by mail, send a postcard with your mailing address to:

Cinavia Consumer Information Center, P.O. Box 86851, San Diego,

CA, 92138, USA.

To dispose or transfer this unit

The unit may keep the user settings information in the unit. If you discard this unit either by disposal or transfer, then follow the procedure to return all the settings to the factory presets to delete the user settings. ( > 30, “To return all settings to the factory preset.”)

The operation history may be recorded in the memory of this unit.

Information on Disposal in other Countries outside the European Union

This symbol is only valid in the European

Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

(Inside of product)

VQT4V11

3

DMP-BD89_79_VQT4V11_eng.book 4 ページ 2012年12月17日 月曜日 午前9時13分

Table of contents

Settings

IMPORTANT SAFETY

INSTRUCTIONS. . . . . . . . . . . 2

Precautions . . . . . . . . . . . . . . . 3

Option menu . . . . . . . . . . . . . . 22

Setup menu. . . . . . . . . . . . . . . 24

Getting started

Reference

Accessories . . . . . . . . . . . . . . . 5

Unit and media care . . . . . . . . . 5

Playable media. . . . . . . . . . . . . 6

Control reference guide . . . . . . 8

Connections & Settings

Connecting to a TV. . . . . . . . . . 9

Connecting to an amplifier/receiver . . . . . . . 10

Connecting to the network . . . 11

Settings . . . . . . . . . . . . . . . . . 12

LED indicators. . . . . . . . . . . . . 28

Messages . . . . . . . . . . . . . . . . 29

Troubleshooting guide . . . . . . 30

Specifications . . . . . . . . . . . . . 33

Limited Warranty . . . . . . . 37, 38

Referencia rápida en español

(Spanish Quick Reference)

. . . . 39

Index . . . . . . . . . . . . . Back cover

Playback

Inserting or removing media . . . . . . . . . . 15

HOME menu. . . . . . . . . . . . . . 15

Multi User Mode . . . . . . . . . . . 16

Playback. . . . . . . . . . . . . . . . . 17

Network Service

(Enjoying Netflix, etc.). . . . . . 19

Home Network feature . . . . . . 20

“HDMI CEC” . . . . . . . . . . . . . . 21

4

VQT4V11

DMP-BD89_79_VQT4V11_eng.book 5 ページ 2012年12月17日 月曜日 午前9時13分

Accessories

Check the supplied accessories before using this unit.

1 Remote control

(N2QAYB000867)

2 Batteries for remote control

1 AC power supply cord

(K2CB2CB00022)

[For_Canada]

The enclosed Canadian French label sheet corresponds to the English display on the unit.

Product numbers provided in this Owner’s Manual correct as of December 2012. These may be subject to change.

Do not use AC power supply cord with other equipment.

Unit and media care

Clean this unit with a soft, dry cloth

Never use alcohol, paint thinner or benzine to clean this unit.

Before using chemically treated cloth, carefully read the instructions that came with the cloth.

This unit’s lens

Use the lens cleaner (not supplied) to clean the unit’s lens.

Clean discs

DO

DO NOT

Using the remote control

Insert so the poles ( i

and j

) match those in the remote control.

R6/LR6, AA

(Alkaline or manganese batteries)

Point it at the remote control signal sensor on this unit. (

>

8)

Wipe with a damp cloth and then wipe dry.

Disc handling precautions

Handle discs by the edges to avoid inadvertent scratches or fingerprints on the disc.

Do not attach labels or stickers to discs.

Do not use disc cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.

Do not use the following discs:

– Discs with exposed adhesive from removed stickers or labels (rented discs, etc.).

– Discs that are badly warped or cracked.

– Irregularly shaped discs, such as heart shapes.

VQT4V11

5

DMP-BD89_79_VQT4V11_eng.book 6 ページ 2012年12月17日 月曜日 午前9時13分

Playable media

Device

Media markings

BD

Device types

BD-Video

BD-RE

BD-R

DVD-Video

Contents format

Video

Video, JPEG

Video, MKV

Video

DVD-R

DVD

Video, AVCHD,

MKV, JPEG, AAC,

FLAC, MP3, WAV, WMA

DVD-R DL

DVD-RW

Video, AVCHD

— +R/+RW/+R DL

Music CD Music [CD-DA]

CD

USB

CD-R

CD-RW

USB devices

(up to 2 TB)

MKV, JPEG,

AAC, FLAC, MP3,

Music [CD-DA], WAV,

WMA

MKV, MP4, MPEG2,

JPEG, AAC, FLAC,

MP3, WAV, WMA

See pages 7 and 33 for more information on the types of content that can be played.

6

VQT4V11

DMP-BD89_79_VQT4V11_eng.book 7 ページ 2012年12月17日 月曜日 午前9時13分

Discs that cannot be played in this unit

Any other disc that is not specifically supported or previously described.

DVD-RAM

Super Audio CD

Photo CD

DVD-Audio

Video CD and Super Video CD

HD DVD

Region management information

BD-Video

This unit can play BD-Video discs supporting the region code

“A”

.

Example:

DVD-Video

This unit can play DVD-Video discs supporting the region number

“1”

or

“ALL”

.

Example:

1

ALL

1

2

4

Finalize

DVD-R/RW/R DL, +R/+RW/+R DL and CD-R/RW recorded by a recorder needs to be finalized by the recorder to play on this unit. Please refer to the recorder’s instructions.

BD-Video

This unit supports high bit rate audio (Dolby ®

Digital Plus, Dolby ® TrueHD, DTS-HD High

Resolution Audio and DTS-HD Master Audio) adopted in BD-Video.

If “Dolby D/Dolby D +/Dolby TrueHD” is set to

“PCM”, the maximum possible number of

Dolby ® sound is 2ch PCM.

(

>

24)

Music CD

Operation and sound quality of CDs that do not conform to CD-DA specifications (copy control

CDs, etc.) cannot be guaranteed.

The digital audio content side of a DualDisc does not meet the technical specifications of the Compact Disc Digital Audio (CD-DA) format so playback may not be possible.

USB device

This unit does not guarantee connection with all

USB devices.

This unit does not support USB device charging.

FAT12, FAT16, FAT32, and NTFS file systems are supported.

This unit supports USB2.0 High Speed.

This unit supports an HDD formatted in FAT32 and NTFS. If the HDD is not recognized, the power to the HDD may not be supplied. Supply power from an external source.

It may not be possible to play the above media in some cases due to the type of media, the condition of the recording, the recording method, and how the files were created.

The producers of the disc can control how discs are played, so you may not always be able to control play as described in this Owner’s Manual. Read the disc’s instructions carefully.

VQT4V11

7

DMP-BD89_79_VQT4V11_eng.book 8 ページ 2012年12月17日 月曜日 午前9時13分

Control reference guide

11

3

4

5

6

7

8

9

10

1

2

16

17

18

19

20

12

13

14

15

1 Turn the unit on and off

2 TV operation buttons

You can operate the Panasonic TV using the unit's remote control. Some buttons may not work depending on the TV.

[

Í

TV] : Turn the TV on and off

[AV] : Change input

[ i j

VOL] : Adjust the volume

3 Select title numbers, etc./Enter numbers

4 Cancel

5 Select audio (

>

17)

6 Basic playback control buttons (

>

17)

7 Show status messages (

>

18)

8 Show Pop-up menu/Top menu (

>

18)

9 Show Option menu (

>

22)

10 Colored buttons (red, green, blue, yellow)

Used for various purposes depending on the display.

11 Transmit the remote control signal

12 Open or close the disc tray (

>

15)

13 Show Setup menu (

>

24)

14 Switch Secondary Video on/off

(Picture-in-picture) (

>

23)

15 Show the Home screen of Network Service

(

>

19)

16 Exit the menu screen

17 Show Netflix screen (

>

19)

18 Show HOME menu (

>

15)

19 [

3

,

4

,

2

,

1

] : Move the highlight for selection

[OK] : Confirm the selection

(

;1

) : Frame-by-frame (

>

17)

20 Return to previous screen

4 3 2 1

5

1

Standby/on switch (

Í

/I

)

(

>

12)

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit still consumes a small amount of power.

2 Start play (

>

17)

3 Stop (

>

17)

4 Open or close the disc tray (

>

15)

5 Disc tray (

>

15)

6 USB port (

>

15)

7 INFO LED (

>

28, “LED indicators”)

Displays the various states of this unit.

8

VQT4V11

6 7 8 9

8 POWER LED

Blinks when the power is turned on.

Wait for the LED to turn solid green before using this unit.

9 Remote control signal sensor

Distance: Within approx. 7 m (23 feet)

Angle: Approx. 20 e

up and down, 30 e

left and right

Rear panel terminals (

>

9–11)

DMP-BD89_79_VQT4V11_eng.book 9 ページ 2012年12月17日 月曜日 午前9時13分

Connecting to a TV

Connect the power supply cord after making all connections.

Before making any connections, we recommend that you temporarily disconnect all the units from AC power.

Use the High Speed HDMI cables. Non-HDMI-compliant cables cannot be utilized. It is recommended that you use Panasonic’s HDMI cable. When outputting 1080p signal, please use HDMI cables 5.0 meters (16.4 ft.) or less.

HDMI cable

HDMI IN

To a household AC outlet

AC power supply cord (supplied)

This unit consumes a small amount of AC power (

>

33) even when turned off. For the purpose of power conservation, the unit can be disconnected if you will not be using it for extended period of time.

VQT4V11

9

DMP-BD89_79_VQT4V11_eng.book 10 ページ 2012年12月17日 月曜日 午前9時13分

Connecting to an amplifier/receiver

HDMI cable HDMI cable

HDMI IN

HDMI OUT

(ARC)

HDMI IN

(ARC)

Amplifier/receiver

Set “Digital Audio Output” (

>

24).

When using the TV or amplifier/receiver that does not have the indication of “(ARC)”

(non-ARC-compatible) on the HDMI terminal, the amplifier/receiver and TV must also be connected using an optical digital cable in order to enjoy the TV’s sound through the amplifier/receiver.

10

VQT4V11

DMP-BD89_79_VQT4V11_eng.book 11 ページ 2012年12月17日 月曜日 午前9時13分

Connecting to the network

The following services can be used when this unit is connected to broadband.

Firmware can be updated (

>

14)

You can enjoy BD-Live (

>

18)

You can enjoy Network Service (

>

19)

You can access other devices (Home Network) (

>

20)

For details about connection method, refer to the instructions supplied with the connected equipment.

Wireless LAN connection

[BD89]

: This unit has built-in Wi-Fi

®

and can be connected to a wireless router.

[BD79]

: For wireless capability, connect the Wireless LAN Adaptor DY-WL5 (optional).

Only DY-WL5 can be used.

Read the operating instructions for DY-WL5 thoroughly when using it.

[BD89]

[BD79]

Wireless router, etc.

Internet

For up-to-date compatibility information on your wireless router, refer to http://panasonic.jp/support/global/cs/

(This site is in English only.)

For additional information about this unit refer to http://www.panasonic.com/help (For U.S.A.)

The unit is not compatible with public wireless LAN services provided in airports, stations, cafes, etc.

See page 3 for the precautions for wireless LAN connection.

LAN cable connection

LAN Cable

Broadband router, etc.

Internet

Use category 5 or above straight LAN cables (STP) when connecting to peripheral devices.

Inserting any cable other than a LAN cable in the LAN port can damage the unit.

VQT4V11

11

DMP-BD89_79_VQT4V11_eng.book 12 ページ 2012年12月17日 月曜日 午前9時13分

Settings

Easy Settings

After connecting your new player for the first time and pressing [

Í

], the basic settings screen will appear.

Preparation

Turn on the TV and select the appropriate video input.

1

Press [

Í

].

Setup screen appears.

2

Follow the on-screen instructions and apply the settings.

Wireless connection

1

Select “Wireless” and press [OK].

[BD79]

: If “Wireless LAN Adaptor is not connected.” is displayed, check that the

Wireless LAN Adaptor is fully inserted.

Alternatively, disconnect and reconnect it. If there is still no change in the display, consult your dealer for advice.

2

Select “Search for wireless network” or

“WPS (PUSH button method)” and press

[OK], then follow the on-screen instructions to continue with the settings.

Wireless Settings

Select a connection method.

Please refer to the operating instructions of your wireless access point about connection methods.

You can perform this setup anytime by selecting “Easy

Settings” in the Setup menu. (

>

26)

Search for wireless network

WPS (PUSH button method)

Easy Network Setting

After completing “Easy Settings”, you can perform

“Easy Network Setting”.

Wired connection

Select “Wired” and press [OK].

Easy Network Setting

Select a connection mode.

Wired

Wireless

OK

RETURN

Follow the on-screen instructions to establish your connection settings.

“WPS (PUSH button method)”

If you are using a wireless router that supports

WPS (Wi-Fi Protected Setup TM ), you can easily perform the settings.

“Search for wireless network”

The available wireless networks will be displayed.

To obtain your network name (SSID*) and encryption key (password).

The default settings may be printed on the router. If the e.g.

SSID and password have been changed, consult the person

SSID XXXXXXXXXXXX

KEY XXXXXXXXXXXX

PIN XXXXXXXXX responsible for setting up your network.

For more details, refer to the manual supplied with the wireless broadband router, or contact your Internet provider.

For more information or assistance, refer to http://www.panasonic.com/help

(U.S. customers only)

12

VQT4V11

DMP-BD89_79_VQT4V11_eng.book 13 ページ 2012年12月17日 月曜日 午前9時13分

1

Select your network name and press [OK].

If your network name is not displayed, search again by pressing the red button on the remote control. Stealth SSID will not be displayed; in this case, enter manually.

Connection Setting

Select a wireless network for connection.

SSID

XXXXXXXXXX

XXXXXXXXXX

XXXXXXXXXX

XXXXXXXXXX

XXXXXXXXXX

XXXXXXXXXX

XXXXXXXXXX

Reception

OPTION

OK

RETURN

Search again

To enter your network name (SSID) manually

If your network name (SSID) is not displayed in step

1

, follow these steps.

1 To display the network name (SSID) input screen :

While displaying the HOME menu, press the

[SETTINGS] button on the remote control

>

select “Network” and press [OK]

>

select “Network Settings” and press [OK]

>

select “Wireless Settings” and press [OK]

>

select “Connection Setting” and press [OK]

>

select “Manual setting” and press [OK]

2 Press [OK] to select “SSID” and enter your

SSID.

Wireless Settings

Enter your network name (SSID) to connect.

When your wireless network is encrypted

2 Press [OK] to select “Encryption Key”.

Wireless Settings

Enter the encryption key (password) of the wireless network.

SSID

Set

Encryption Key

Set

3 Enter your encryption key (password).

You can switch between capital and lower case letters by pressing the “Shift” key.

Encryption Key (Password) l

Shift h o v

Space p w

/ b i

Symbols q x

: c j r y

~ d k s z

_ e l t

.

f m

Alphanumeric u

@

, g n

8

0

2

5

7

*

;

1

4

9

#

3

6

Other Characters

Delete

Finish

OK

RETURN

If your wireless network is encrypted, go to step

2

.

Refer to the operating instructions of the hub or router.

WPS (Wi-Fi Protected Setup) is a standard that facilitates settings relating to the connection and security of wireless

LAN devices. To see whether your wireless router supports

WPS, check the wireless router operating instructions.

You can perform this setup anytime by selecting “Easy

Network Setting” in the Setup menu. (

>

25)

You can redo these settings individually using “Network

Settings”. (

>

25)

Do not use this unit to connect to any wireless network for which you do not have usage rights.

During automatic searches in a wireless network environment, wireless networks (SSID) for which you do not have usage rights may be displayed; however, using these networks may be regarded as illegal access.

After performing network settings on this unit, the settings

(encryption level, etc.) of the wireless router might change.

When you have trouble getting online on your PC, perform the network settings on your PC in accordance with the settings of wireless router.

Please be aware that connecting to a network without encryption may result in the content of the communication being illegitimately viewed by a third party, or the leaking of data such as personal or secret information.

* SSID:

An SSID (Service Set IDentification) is a name used by wireless LAN to identify a particular network.

Transmission is possible if the SSID matches for both devices.

VQT4V11

13

DMP-BD89_79_VQT4V11_eng.book 14 ページ 2012年12月17日 月曜日 午前9時13分

Reprogramming the remote control

If you have more than one Panasonic player/ recorder and the remote control operates both products at once, you will need to change the remote control code to prevent this occurrence.

(

>

27, “Remote Control Code”)

Firmware updates

Occasionally, Panasonic may release updated firmware for this unit that may add or improve the way a feature operates. These updates are available free of charge.

This unit is capable of checking the firmware automatically when connected to the Internet via a broadband connection.

When a new firmware version is available, the following message is displayed.

New firmware is available.

Please update firmware in Setup.

To update the firmware

Press [HOME]

>

press the [SETTINGS] button on the remote control

>

select “System” and press [OK]

>

select “Firmware Update” and press [OK]

>

select “Update Now” and press [OK]

DO NOT DISCONNECT the unit from the AC power or perform any operation while the update takes place.

After the firmware is installed, INFO LED and

POWER LED flash 3 times (

>

8, “Control reference guide”), and “FIN” will be displayed on the screen. Unit will restart and the following screen will be displayed.

The firmware was updated.

Current Version

: x.xx

OK

RETURN

If downloading on this unit fails or this unit is not connected to the Internet, then you can download the latest firmware from the following website and burn it to a CD-R to update the firmware.

http://panasonic.jp/support/global/cs/

(This site is in English only.)

To show the firmware version on this unit.

(

>

27, “Firmware Version Information”)

Downloading will require several minutes. It may take longer or may not work properly depending on the connection environment.

If you do not want to check for the latest firmware version, set “Automatic Update Check” to “Off”. (

>

27)

14

VQT4V11

DMP-BD89_79_VQT4V11_eng.book 15 ページ 2012年12月17日 月曜日 午前9時13分

Inserting or removing media

Notes

When inserting a media item, ensure that it is facing the right way up.

If you connect a Panasonic product with a USB connection cable, the setup screen may be displayed on the connected equipment. For details, refer to the instructions for the connected equipment.

HOME menu

Major functions of this unit can be operated from the HOME menu.

Preparation

Turn on the TV and select the appropriate video input on the TV.

1

Press [

Í

] to turn on the unit.

After network service introduction banner is shown, the HOME menu is displayed.

–When connected to the network, the banner content may be changed.

–You can disable the “Start-up Banner”

(

>

27).

2

Press [OK] or [

3

,

4

,

2

,

1

] to select the item.

If there are any other items, repeat this step.

HOME

Blu-ray Disc Player

Network

CAUTION

Do not place objects in front of the unit. The disc tray may collide with objects when it is opened, and this may cause malfunction.

Photos Setup Music

Videos

Personalize

1st user

Videos/Photos/Music

Disc

USB

Play back the contents. (

>

17)

When multiple contents are recorded, select the types of contents or the title.

Network

Network

Service

Home Network

Displays the Home screen of

Network Service. (

>

19)

DLNA Client

(

>

20)

Media Renderer

(

>

20)

Setup

Player Settings

(

>

24)

USB Management

(

>

18)

Wallpaper

Changes the background of

HOME menu.

To show the HOME menu

Press [HOME].

Items to be displayed may vary with the media.

Where necessary, set “Mixed Data Disc Option” when using a disc with both data files (MP3, JPEG, MKV, etc.) and Video (BDAV and AVCHD). (

>

27)

VQT4V11

15

DMP-BD89_79_VQT4V11_eng.book 16 ページ 2012年12月17日 月曜日 午前9時13分

Multi User Mode

Multi User Mode allows individuals to customize settings and switch to their saved settings easily.

Up to 4 people can use the unit with their own settings.

The following settings can be personalized:

The user icon

The wallpaper of HOME menu

The audio and picture settings (

>

22, 24)

A

HOME

User 1

Blu-ray Disc Player

Network

Photos Setup Music

User 1

Videos

Personalize

2nd user

B

A

The user name and icon currently selected

B

Personalize a new user and switch between users with colored buttons.

Personalizing a new user

1

Press [HOME].

2

Press the colored button that indicates new user personalization.

3

Select an item and change the settings according to the indications.

The following items can be set.

Input

Nickname

Personalize a user name.

Personalize a user icon.

Select Icon

Select from Illustrations

The image can be selected from prepared illustrations.

Select

Wallpaper

Create from Photos

You can select a photo in recording media as an icon.

(

>

22, “Icon Personalization”)

Personalize a background of the

HOME menu.

In addition to default wallpapers, you can select a photo in recording media as a wallpaper.

(

>

22, “Wallpaper”)

4

Select “Confirm” and press [OK].

To change the personalized user information

Select “Edit User Information” from Setup menu.

(

>

27)

Switching the user

Press the colored buttons in the HOME menu to switch to the user corresponding to the button.

16

VQT4V11

DMP-BD89_79_VQT4V11_eng.book 17 ページ 2012年12月17日 月曜日 午前9時13分

Playback

1

Insert the media.

Playback starts depending on the media.

2

Select the item to play and press [OK].

Repeat this procedure if necessary.

DISCS CONTINUE TO ROTATE WHILE MENUS ARE

DISPLAYED. Press [

STOP] when you have finished playback to protect the unit’s motor, your TV screen and so on.

MKV: Successive play is not possible.

It is not possible to play back AVCHD and MPEG2 videos which have been dragged and dropped or copied and pasted to the media.

To save on electricity, this unit is turned off automatically if there is no button operation for about 30 minutes when not playing back (such as when paused or displaying the menu, displaying still pictures, etc.). (Compatible with

ENERGY STAR)

Operations during playback

The following functions may not work depending on the media and contents.

Stop

Press [

STOP].

The stopping point is memorized.

Resume play function

Press [

1

PLAY] to restart from this point.

The point is cleared if the media is removed.

On BD-Video discs including BD-J, the resume play function does not work.

Pause

Press [

;

PAUSE].

Press [

;

PAUSE] again or [

1

PLAY] to restart play.

Search/Slow motion

Search

While playing, press [SEARCH

6

] or

[SEARCH

5

].

Slow motion

While paused, press [SEARCH

5

].

The speed increases up to 5 steps.

Music, MP3, etc.: The speed is fixed to a single step.

Press [

1

PLAY] to revert to normal playback speed.

Skip

While playing or paused, press [

:

] or

[

9

].

Skip to the title, chapter or track.

Frame-by-frame

While paused, press [

1

] (

;1

).

Press and hold to change in succession forward.

Press [

1

PLAY] to revert to normal playback speed.

Changing audio

Press [AUDIO].

You can change the audio channel number or soundtrack language, etc.

VQT4V11

17

DMP-BD89_79_VQT4V11_eng.book 18 ページ 2012年12月17日 月曜日 午前9時13分

Displaying menus and playback information

Show top menu/pop-up menu

Press [POP-UP MENU/TOP MENU].

Select the item and press [OK].

Show the status messages

While playing, press [STATUS].

The status messages give you information about what is currently being played. Each time you press [STATUS], the display information may change or will disappear from the screen.

Depending on media and contents, the display may change or may not appear.

e.g., BD-Video

A B

T1 C1 0:05.14

0:20.52

C D

A T: Title, C: Chapter, PL: Playlist

B Elapsed time in the title

C Current position

D Total time e.g., JPEG

Date 11/12/2007

Size 500 x 375

Manufacturer

Equipment

1 / 26

BD-Video

Play

Enjoying BD-Live

With “BD-Live” discs, you can enjoy bonus contents that use Internet access.

For this BD-Live function, connection of a USB device is necessary along with Internet connection.

1

Perform network connection and settings.

(

>

11, 12)

≥ [BD79]

: Use a LAN cable for a network connection.

2

Connect a USB device with 1 GB or more free space.

The USB device is used as the local storage.

3

Insert the disc.

Deleting data on the USB device

Select “USB Management” in the HOME menu

(

>

15), then select “BD-Video Data Erase” and press [OK].

The usable functions and the operating method may vary with each disc, please refer to the instructions on the disc and/or visit their website.

“BD-Live Internet Access” may need to be changed for certain discs (

>

26).

Slideshow

Play a slideshow of photos and adjust various settings during the playback.

1

Insert the media.

2

Select “Photos”.

3

Select an item and press the green button.

The following items can be set.

Start

Slideshow

Start the slideshow.

You can display still pictures in the selected folder one by one at a constant interval.

Display

Interval

Change the display interval.

Transition

Effect

Select the effect when sliding pictures.

Repeat Play

Set whether to repeat the slideshow.

Still pictures displayed as “ with this unit.

” cannot be played back

18

VQT4V11

DMP-BD89_79_VQT4V11_eng.book 19 ページ 2012年12月17日 月曜日 午前9時13分

Network Service

(Enjoying Netflix, etc.)

Network Service allows you to access some specific websites supported by Panasonic, and enjoy Internet contents such as photos, videos, etc. from Network Service Home screen. This unit has no full browser function and some features of websites may not be available.

Some services such as Netflix require a registered account.

For details of your Netflix account, refer to

Netflix.

Network Service provides a variety of selected Internet services such as the following.

Online movie rental service

Video browsing service

In the following cases, settings are possible using the

Setup menu items.

– When restricting the use of Network Service

(

>

26, “Network Service Lock”)

– When correcting the displayed time

(

>

25, “Time Zone”, “DST”)

If using slow Internet connection, the video may not be displayed correctly. A high speed Internet service with a speed of at least 6 Mbps is recommended.

Be sure to update the firmware when a firmware update notice is displayed on the screen. If the firmware is not updated, you may not be able to use Network Service function properly. (

>

14)

Network Service Home screen is subject to change without notice.

The services through Network Service are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.

Some features of websites or content of the service may not be available.

Some content may be inappropriate for some viewers.

Some content may only be available for specific countries and may be presented in specific languages.

Network Service

*

Settings

Internet

* Images are for illustration purposes, contents may change without notice.

Preparation

Network connection (

>

11)

Network setting (

>

12)

1

Press [INTERNET].

Netflix can be accessed directly by pressing

[NETFLIX] button.

2

Select the item and press [OK].

To exit from Network Service

Press [HOME].

VQT4V11

19

DMP-BD89_79_VQT4V11_eng.book 20 ページ 2012年12月17日 月曜日 午前9時13分

Home Network feature

Playing back contents on the DLNA server

You can share photos, videos and music stored in the DLNA Certified media server (PC with

Windows 7 installed, smartphone, etc.) connected to your home network, and enjoy the contents with this player.

About support format of DLNA client (

>

34).

Before using the DLNA feature, be sure to configure the DLNA server on your Home

Network.

Using the Digital Media

Controller

You can use a smartphone or tablet as the Digital

Media Controller (DMC) to play back contents from DLNA server on the Renderer (this unit).

Possible applications:

Renderer

Server

Controller

*

*

Player

Server

Preparation

1

Perform network connection (

>

11) and network settings (

>

12) of this unit.

2

Perform Home Network settings of the connected equipment.

3

Add the contents and folder to the libraries of the

Windows Media ® Player or the smartphone, etc.

Playlist of Windows Media ® Player can play back only the contents that are stored in the libraries.

1

Press [HOME].

2

Select “Network”.

3

Select “Home Network”.

4

Select “DLNA Client”.

The list can be updated by pressing the red button on the remote control.

5

Select the equipment and press [OK].

6

Select the item to play and press [OK].

You may be able to use convenient functions depending on the content by pressing [OPTION].

Control Panel is displayed once the playback starts.

Press [OK] if the e.g.,

Control Panel is not displayed, and press

[RETURN] to hide the Control Panel.

EXIT

To exit from Home Network

Press [HOME].

20

VQT4V11

Renderer

Server

+

Controller

*

* DMC compatible software should be installed.

Preparation

Perform steps 1 to 3 . (

> left)

4 Perform the “Remote Device Settings”. (

>

26)

You can register up to 16 devices.

1

Press [HOME].

2

Select “Network”.

3

Select “Home Network”.

4

Select “Media Renderer”.

5

Operate the DMC compatible devices.

To exit from Media Renderer screen

Press [HOME].

For more details, refer to the following website and the operating instructions for each of the equipment.

http://panasonic.jp/support/global/cs/

(This site is in English only.)

Depending on the contents and the connected equipment, playback may not be possible.

Items displayed in gray on the display cannot be played back by this unit.

This unit can be played back via connected equipment only when controlled using DMC.

DMP-BD89_79_VQT4V11_eng.book 21 ページ 2012年12月17日 月曜日 午前9時13分

“HDMI CEC”

This unit supports “HDMI CEC” (Consumer

Electronics Control) function.

See the operating instructions for connected equipment for operational details.

Power off link

All connected equipment compatible with “HDMI

CEC”, including this unit, automatically turns off when you switch the TV off.

Preparation

1 Set “HDMI CEC” to “On” (

>

27). (The default setting is “On”.)

2 Set the “HDMI CEC” operations on the connected equipment (e.g., TV).

3 Turn on all “HDMI CEC” compatible equipment and select this unit’s input channel on the connected TV so that the “HDMI CEC” function works properly.

Repeat this procedure when the connections or settings are changed.

Operation cannot be guaranteed on all HDMI CEC devices.

Automatic input switching

Power on link

When play starts on the unit, the TV will automatically switch the input channel and the screen of this unit will be displayed.

Additionally when the TV is off, the TV will automatically turn on.

VQT4V11

21

DMP-BD89_79_VQT4V11_eng.book 22 ページ 2012年12月17日 月曜日 午前9時13分

A variety of playback operations and settings can be performed from this menu.

Available options differ depending on the playing contents and the condition of the unit.

About Multi User Mode

: Settings of the items with this indication are saved by the respective users registered in the

HOME menu.

Please refer to page 16 for details about user registration and switching.

1

Press [OPTION].

When playing music, select “Playback

Settings” and press [OK].

e.g., BD-Video

2

Operation Menu

Soundtrack

Subtitle

Angle

Repeat Play

Status

Primary Video

Secondary Video

Top Menu

Pop-up Menu

Select an item and change the settings.

To exit the screen

Press [OPTION].

1 ENG Dolby TrueHD ...

1

Off

MPEG-4 AVC

Regarding Language : (

>

34)

Operation Menu

Soundtrack

Show or change the soundtrack.

Audio channel

Select the audio channel number.

Subtitle

Change the subtitle settings.

Angle

Select the number of the angle.

Repeat Play

Select the item that you want to repeat.

The items displayed differ depending on the type of media.

Select “Off” to cancel.

Shuffle

Select whether or not to play random.

Start Slideshow

Start the slideshow.

Status

Show the status messages.

Rotate Right

Rotate Left

Rotate the still picture.

Wallpaper

Set the still picture to the wallpaper of HOME menu.

(

>

15)

Icon Personalization

Set the still picture as your user icon.

(

>

16)

22

VQT4V11

DMP-BD89_79_VQT4V11_eng.book 23 ページ 2012年12月17日 月曜日 午前9時13分

Video

The recording method of original video appears.

Primary Video

The recording method of original primary video appears.

Secondary Video

Video

Soundtrack

Select on/off for images. The recording method of original video appears.

During search/slow motion or frame-by-frame, only the primary video is displayed.

Select on/off for audio and the language.

Top Menu

Display Top Menu.

Pop-up Menu

Display Pop-up Menu.

Menu

Display Menu.

Video Settings

Picture Mode

Select the picture quality mode during play.

If you select “User”, you can change settings in

“Picture Adjustment”.

Picture Adjustment

Specific picture quality settings can be changed.

Progressive

Select the method of conversion for progressive output to suit the type of material being played.

When the content is distorted, change the settings from “Auto” to “Video”.

24p

Movies and other material recorded on

DVD-Video at 24p are output at 24p.

Only when you have selected “On” in “24p

Output” (

>

24).

Reset to Default Video Settings

Return video settings to the factory preset.

Audio Settings

Dialog Enhancer

The volume of the center channel is raised to make dialog easier to hear.

This function is effective only when “Digital

Audio Output” is set to “PCM” (

>

24).

VQT4V11

23

DMP-BD89_79_VQT4V11_eng.book 24 ページ 2012年12月17日 月曜日 午前9時13分

Setup menu

Change the unit’s settings if necessary. The settings remain intact even if you switch the unit to standby.

Some items in the Setup menu are common to the Option menu. You can get the same effect with both menus.

About Multi User Mode

: Settings of the items with this indication are saved by the respective users registered in the HOME menu.

Please refer to page 16 for details about user registration and switching.

1

While displaying the HOME menu, press

[SETTINGS].

Player Settings

Video

Audio

Language

Network

Ratings

System

Picture Mode

Picture Adjustment

HDMI Output

Normal

¾

24p Output

When this unit is connected to a TV supporting

1080/24p output, movies and other material recorded at 24p* are output at 24p.

When playing DVD-Video, set to “On” and then set

“24p” in “Video Settings” (

>

23) to “On”.

When BD-Video/DVD-Video images other than 24p are played, images are output at

60p.

¾

Deep Color Output

This setting is for selecting whether to use Deep

Color output when a TV that supports Deep

Color is connected.

¾

Contents Type Flag

Depending on the playback content, the TV will output adjusting to the optimal method when a

TV that supports this function is connected.

* A progressive image recorded at a rate of 24 frames per second (motion-picture film). Many BD-Video movie contents are recorded in 24 frames/second in accordance with the film materials.

2

OK

RETURN

Select an item and change the settings.

To exit the screen

Press [HOME].

Video

Picture Mode (

>

23)

Picture Adjustment (

>

23)

HDMI Output

Press [OK] to show the following settings:

¾

HDMI Resolution

The items supported by the connected devices are indicated on the screen as “

¢

”. When any item without “

¢

” is selected, the images may be distorted.

If “Auto” is selected, the best suited output resolution to the connected TV is automatically selected.

To enjoy high-definition video up-converted to

1080p, you need to connect the unit directly to 1080p compatible HDTV (High Definition

TV). If this unit is connected to an HDTV through other equipment, the other equipment must also be 1080p compatible.

Audio

Dialog Enhancer (

>

23)

Dynamic Range Compression

You can listen at low volumes but still hear dialog clearly.

(Dolby Digital, Dolby Digital Plus and Dolby TrueHD only)

“Auto” is effective only when playing Dolby

TrueHD.

Digital Audio Output

Press [OK] to show the following settings:

¾

Dolby D/Dolby D +/Dolby TrueHD

¾

DTS/DTS-HD

Select the audio signal to output.

Select “PCM”, when the connected equipment cannot decode the respective audio format. This unit decodes the audio format and transmits to the connected equipment.

Not making the proper settings may result in noise.

¾

BD-Video Secondary Audio

Select whether or not to mix the primary and secondary audio (including the button click sound).

If “Off” is selected, the unit outputs the primary audio only.

24

VQT4V11

DMP-BD89_79_VQT4V11_eng.book 25 ページ 2012年12月17日 月曜日 午前9時13分

Downmix

Select the downmix system of multi-channel to

2-channel sound.

Select “Surround encoded”, when the connected equipment supports the virtual surround function.

The downmix effect is not available when

“Digital Audio Output“ is set to “Bitstream”.

The audio will be output in “Stereo” in the following cases:

– AVCHD playback

– Playback of secondary audio (including the button click sound).

DTS Neo:6

2ch (2.1ch) audio is expanded to 7ch (7.1ch) before it is output.

Audio expansion is enabled when you have selected “PCM” in “Digital Audio Output”.

This does not function on Dolby sound.

Language

Audio Language

Choose the language for audio.

If “Original” is selected, the original language of each disc will be selected.

Enter a code (

>

34) when you select “Other

¢¢¢¢

”.

Subtitle Language

Choose the language for the subtitle.

If “Auto” is selected and the language selected for “Audio Language” is not available, subtitles of that language will automatically appear if available on that disc.

Enter a code (

>

34) when you select “Other

¢¢¢¢

”.

Menu Language

Choose the language for the disc menus.

Enter a code (

>

34) when you select “Other

¢¢¢¢

”.

Subtitle Text

Select a suitable item according to the language used for MKV subtitles text.

This item is displayed only after playing back a file.

On-screen Language

Choose the language for menus and on-screen messages.

Network

Easy Network Setting (

>

12)

Network Settings

Perform network-related settings individually.

Press [OK] to show the following settings:

¾

LAN Connection Mode

Select the LAN connection method.

¾

Wireless Settings

This allows the wireless router and connection settings to be set. Current connection settings and connection state can be checked.

Connection Setting

The wireless router connection wizard will be displayed.

Double Speed Mode Setting (2.4GHz)

Set the connection speed for a 2.4 GHz wireless format.

If you connect using the “Double Speed

Mode (40MHz)”, 2 channels use the same frequency band, and there is consequently a greater risk of reception interference. This can cause the connection speed to drop or become unstable.

¾

IP Address/DNS Settings

This is for checking the state of the network connection and setting the IP address and

DNS-related.

Press [OK] to show the respective setting.

¾

Proxy Server Settings

This is for checking the state of connection with the Proxy server and performing settings.

Press [OK] to show the respective setting.

¾

Network Service Settings (

>

19)

Press [OK] to show the following settings:

Time Zone

Set the unit’s time to match your location.

Some Network Service contents require the time zone to be set. Set the time zone if necessary.

DST

Select “On” when using Daylight Saving time.

VQT4V11

25

DMP-BD89_79_VQT4V11_eng.book 26 ページ 2012年12月17日 月曜日 午前9時13分

¾

Network Drive Connection

It is possible to access the shared folder of equipment not compatible with DLNA, such as the Windows XP operating system, and play back video, still pictures, and music on this unit.

For the setting and operation method of connected equipment, refer to the following website.

http://panasonic.jp/support/global/cs/

(This site is in English only.)

¾

Remote Device Settings (

>

20)

Press [OK] to show the following settings:

Ratings

The following items use the same password.

Don’t forget your password.

DVD-Video Ratings

Set a ratings level to limit DVD-Video play.

BD-Video Ratings

Set an age limit of BD-Video play.

Network Service Lock

You can restrict the usage of Network Service.

Remote Device Operation

Enable to operate by DMC.

If “On” is selected, “Quick Start” will be activated.

Setting Unit Name

Set the name of this unit to be displayed on the connected equipment.

Registration Type

Auto

Manual

Allow connection to all the equipment accessing this unit.

Set the permission for individual equipment connections accessing this unit.

Remote Device List

Registering/deregistering of the displayed equipment can be performed when “Manual” in “Registration Type” is selected.

¾

BD-Live Internet Access (

>

18)

You can restrict Internet access when BD-Live functions are used.

If “Allow ( Limited )” is selected, Internet access is permitted only for BD-Live contents which have content owner certificates.

System

Easy Settings

You can execute basic settings.

Display Settings

Press [OK] to show the following settings:

¾

TV Aspect

Set to match the type of TV connected.

When connected to a 4:3 aspect TV and playing

16:9 ratio image:

4:3 Pan &

Scan

The sides are cut off so the picture fills the screen.

When playing

BD-Video, video is output as “4:3

Letterbox”.

4:3

Letterbox

Black bands appear at the top and bottom of the picture.

When connected to a 16:9 widescreen TV and playing 4:3 ratio image:

16:9

16:9 Full

Video is displayed as a 4:3 ratio image in the center of the screen.

Video is displayed as a horizontally stretched 16:9 image.

26

VQT4V11

DMP-BD89_79_VQT4V11_eng.book 27 ページ 2012年12月17日 月曜日 午前9時13分

¾

Screen Saver Function

This is to prevent image retention on the screen.

When this is set to “On”:

If a list of playback content is displayed and there is no operation for 10 minutes or more, the screen switches to HOME menu automatically.

While playing and pausing, etc., this function is not available.

¾

Status Messages

Choose whether to show status messages automatically.

¾

HDMI CEC

Set to use “HDMI CEC” function when connected to a device that supports “HDMI

CEC”.

Select “Off” when you do not want to use

“HDMI CEC”.

Unit Settings

Press [OK] to show the following settings:

¾

Mixed Data Disc Option

Select the playback contents on discs with both data files and Video.

If “MP3/JPEG/MKV” is selected, the video menu function (except MKV) cannot be played back.

If “BDAV/AVCHD” is selected, data file cannot be played back.

¾

Edit User Information

Change the user information registered in the

HOME menu.

Remote Control Code

Change the remote control code if other

Panasonic products react to this remote control.

Firmware Update (

>

14)

Press [OK] to show the following settings:

¾

Automatic Update Check

When this equipment remains connected to the

Internet, it will check for the latest firmware version when it is turned on and you can update it if necessary.

¾

Update Now

You can update the firmware manually if a firmware update is available.

System Information

Press [OK] to show the following settings:

¾

License

Information about the software used by this unit is displayed.

¾

Firmware Version Information

Display firmware version of this unit and wireless LAN module.

Restore Default Settings

This returns all values in the Setup menu and the

Option menu to the default settings, except for some settings of network, ratings, remote control code, language, etc.

Start-up Banner

Select whether to display the banner after turning on this unit. (

>

15)

Quick Start

Speed of start-up from standby mode is increased.

When set to “On”, the internal control unit will be powered and the idle power consumption will increase compared to when set to “Off”. (About the power consumption

>

33)

VQT4V11

27

DMP-BD89_79_VQT4V11_eng.book 28 ページ 2012年12月17日 月曜日 午前9時13分

LED indicators

Error states are indicated by the INFO LED.

Confirm the following items in correspondence to the state of INFO LED on the front panel of this unit.

If the state of the INFO LED does not change after performing the operations in the table below, contact your local Panasonic dealer.

INFO LED

INFO LED state

Flashes 6 times

Lights up

Flashes

Flashes 3 times

Description

The remote control and this unit are using different codes.

“Remote control

” is displayed on the screen.

Press and hold [OK] and the displayed number (“

”) for at least 5 seconds.

The USB device is drawing too much power. Please disconnect or remove the USB device from the unit.

The USB device may be incompatible.

The following conditions are possible:

The copyright protected disc cannot be played back.

One of the devices connected to this unit (TV, amplifier, etc.) does not support copyright protection.

Temperature of this unit is hot and the unit switches to standby for safety reasons.

Wait for about 30 minutes.

Select a position with good ventilation when installing the unit.

The disc in use cannot be played back since the copyright information is invalid.

28

VQT4V11

DMP-BD89_79_VQT4V11_eng.book 29 ページ 2012年12月17日 月曜日 午前9時13分

Messages

Check the following when messages are displayed on the screen.

Cannot play.

¾

You inserted an incompatible disc (Discs recorded in PAL video, etc.).

Cannot display on this unit.

¾

You tried to play a non-compatible image.

No disc inserted.

¾

The disc may be upside down.

$

This operation is not available.

¾

Some operations are unsupported by the unit.

(For example, reverse slow motion, etc.)

IP address is not set.

¾

The “IP Address” in “IP Address/DNS

Settings” is “---. ---. ---. ---”. Set the “IP

Address”, “Subnet Mask”, and “Default

Gateway”. (Select the automatic address acquisition if necessary.)

The current wireless network security setting is weak. It is recommended to change to a stronger security setting.

¾

Set a stronger network security level referring to the wireless router operating instructions.

VQT4V11

29

DMP-BD89_79_VQT4V11_eng.book 30 ページ 2012年12月17日 月曜日 午前9時13分

Troubleshooting guide

Before requesting service, please perform the following steps.

General operation

To return to the factory preset.

¾

Select “Yes” in “Restore Default Settings” in the Setup menu. (

>

27)

Do you have the latest firmware installed?

Panasonic is constantly improving the unit’s firmware to ensure that our customers are enjoying the latest technology. (

>

14)

4

Make the following checks and visit our website for more information.

For U.S.A.

: www.panasonic.com/help

Enter the model number.

For Canada

: http://www.panasonic.ca

4

Or visit our website to find a service center.

You can find a service center near you easily on our website.

Other support information

:

“Customer Services Directory (United States and Puerto Rico)” (

>

37) or “Limited Warranty

(Only for CANADA)” (

>

38).

To return all settings to the factory preset.

¾

Reset the unit as follows:

1

Turn the unit on.

2

Press and hold [OK], the blue button and the yellow button on the remote control at the same time for more than 5 seconds.

– INFO LED and POWER LED start to flash, and “00RET” is displayed on the screen.

3

Press [

1

] (right) repeatedly on the remote control until “08FIN” is displayed on the screen.

4

Press and hold [OK] for more than 5 seconds.

The remote control does not work properly.

¾

Change the batteries in the remote control.

(

>

5)

¾

The remote control and this unit are using different codes. If “Remote control

” is displayed on the screen when a button is pressed on the remote control, change the code on the remote control. (

>

27, 28)

The following do not indicate a problem with this unit:

– Regular disc rotating sounds.

– Image disturbance during search.

Unit does not respond to remote control or front panel buttons.

Disconnect AC power supply cord, wait 1 minute, then reconnect AC power supply cord.

Cannot eject disc.

1

Turn the unit on.

2

Press and hold [OK], the blue button and the yellow button on the remote control at the same time for more than 5 seconds.

– INFO LED and POWER LED start to flash, and “00RET” is displayed on the screen.

3

Press [

1

] (right) repeatedly on the remote control until “06FTO” is displayed on the screen.

4

Press [OK].

The TV tuner mode is not displayed when the

TV is switched on.

¾

This phenomenon may occur, depending on the TV setting, when “Quick Start” is set to

“On”.

¾

Depending on the TV, this phenomenon may be prevented by reconnecting the HDMI cable to a different HDMI input terminal or by changing the HDMI auto connection setting.

You have forgotten your ratings password.

You want to cancel the ratings level.

¾

The ratings level returns to the factory preset.

1

Turn the unit on.

2

Press and hold [OK], the blue button and the yellow button on the remote control at the same time for more than 5 seconds.

– INFO LED and POWER LED start to flash, and “00RET” is displayed on the screen.

3

Press [

1

] (right) repeatedly on the remote control until “03 VL” is displayed on the screen.

4

Press [OK].

30

VQT4V11

DMP-BD89_79_VQT4V11_eng.book 31 ページ 2012年12月17日 月曜日 午前9時13分

This unit does not recognize the USB connection correctly.

¾

Disconnect and reconnect the USB cable. If it still does not recognize the connection, turn this unit off and on again.

¾

USB devices may not be recognized by this unit when connected using the following :

– a USB hub

– a USB extension cable other than the supplied with the Wireless LAN Adaptor

DY-WL5 (optional)

¾

If you connect USB HDD to this unit, use the

USB cable that is supplied with the HDD.


The images from this unit do not appear on the TV.

Picture is distorted.

¾

An incorrect resolution is selected in “HDMI

Resolution”. Reset the setting as follows:

1

Turn the unit on.

2

Press and hold [OK], the blue button and the yellow button on the remote control at the same time for more than 5 seconds.

– INFO LED and POWER LED start to flash.

3

Press and hold [8] and the blue button on the remote control at the same time for more than

5 seconds.

Set the item again. (

>

24)

– When Dolby Digital Plus, Dolby TrueHD, and DTS-HD audio are not output properly, select “Yes” in “Restore Default Settings” and make proper settings. (

>

27)

Video is not output in high-definition.

¾

Confirm that “HDMI Resolution” in the Setup menu is set properly. (

>

24)

No subtitles.

¾

When progressive output is on, closed captions/subtitles cannot be displayed.

The subtitles overlap closed captions recorded on discs.

¾

Turn off the subtitles or the closed caption setting on the TV.

(

>

22)

A black band is displayed around the edge of the screen.

The aspect ratio of the screen is abnormal.

¾

Confirm the “TV Aspect” is set properly.

(

>

26)

¾

Adjust the aspect setting on the TV.

VQT4V11

31

DMP-BD89_79_VQT4V11_eng.book 32 ページ 2012年12月17日 月曜日 午前9時13分

Audio

Cannot hear the desired audio type.

¾

Check the connections and the “Digital Audio

Output” settings. (

>

10, 24)

Playback

Disc cannot be played.

¾

The disc is dirty. (

>

5)

¾

The disc is not finalized. (

>

7)

Network

I can’t connect to the network.

¾

Confirm the network connection and settings.

(

>

11, 12, 25)

¾

There may be obstacles that prevent the unit from detecting your home network. Bring the unit and the wireless router closer to each other. This unit may be able to detect your network name (

>

13, “SSID”).

¾

Check the operating instructions for each device and connect accordingly.

Still pictures (JPEG) do not play back normally.

¾

The images that were edited on the PC, such as Progressive JPEG, etc., may not be played back.

Cannot play current title.

¾

Confirm the network connection and settings.

(

>

11, 12, 25)

I can’t play back BD-Live.

¾

Confirm that this unit is connected to the broadband Internet. (

>

11)

¾

Connect this unit to the network by a wired connection.

¾

Confirm the “BD-Live Internet Access” settings. (

>

26)

¾

Confirm a USB device is connected to the

USB port. (

>

15)

When using wireless LAN connection, video from the DLNA Certified media server is not played back or video frames are dropped during playback.

¾

Higher transfer rate router such as 802.11n

(2.4 GHz) wireless router may solve the problem. If you use 802.11n (2.4 GHz) wireless router, it is necessary to set the encryption type to “AES”.

Simultaneous use with a microwave, cordless telephone etc. at 2.4 GHz may result in connection interruptions or other problems.

¾

On the “Wireless Settings” screen (

>

25), the continuous lighting of at least 4 “Reception” indicators is the target for a stable connection.

If 3 or fewer indicators are lit or the connection is being interrupted, change the position or angle of your wireless router and see if the connection state improves. If there is no improvement, connect to a wired network and perform the “Easy Network

Setting” (

>

12) again.

32

VQT4V11

DMP-BD89_79_VQT4V11_eng.book 33 ページ 2012年12月17日 月曜日 午前9時13分

Specifications

General

Signal system

Operating temperature range

Operating humidity range

HDMI AV output

USB slot

Ethernet

NTSC i

5 o

C to i

35 o

C

( i

41 o

F to i

95 o

F)

10 % to 80 % RH

(no condensation)

Output connector:

Type A (19 pin) 1 system

USB2.0: 1 system

10BASE-T/100BASE-TX

1 system

Standard Compliance:

IEEE802.11 b/g/n

Frequency range:

2.4 GHz band

[BD89]

Wireless LAN

Power consumption

Security:

WPA

TM

/WPA2

TM

(Encryption Type: TKIP/AES,

Authentication Type: PSK),

WEP (64 bit/128 bit)

LASER Specification

Class I LASER Product

Wave length:

785 nm (CDs)/

660 nm (DVDs)/405 nm (BDs)

Laser power:

No hazardous radiation is emitted with the safety protection

Power supply AC 120 V, 60 Hz

Approx. 11 W

Power consumption in standby mode

Approx. 0.5 W

Power consumption in quick start standby mode

Approx. 3.5 W

Dimensions

(W

k

H

k

D)

Approx. 330 mm k

38 mm k

179 mm

(Approx. 13 zk

1

1/2 zk

7

1/16 z

)

Mass (Weight)

Approx. 1.0 k g

(2.2 lbs)

Specifications are subject to change without notice.

File format

File format

MP3

JPEG

MKV

Extension Reference

“.MP3”, “.mp3”

“.JPG”, “.jpg”

This unit supports ID3 tags, but only titles, artist names and album names can be displayed.

MOTION JPEG and

Progressive JPEG are not supported.

You may not be able to play back the file if you have edited the folder structure or the file name on a PC or other device.

“.MKV”, “.mkv”

The video file and subtitles text file are inside the same folder, and the file names are

Subtitles text file

“.SRT”, “.srt”,

“.SSA”, “.ssa”,

“.ASS”, “.ass” the same except for the file extensions.

Some MKV files may not play back, depending on the video resolution and frame rate condition.

FLAC

WAV

AAC

WMA

“.FLAC”, “.flac”

“.WAV”, “.wav”

“.M4A”, “.m4a”,

“.AAC”, “.aac”

“.WMA”, “.wma”

Maximum sampling rate:

192 kHz/24 bit

Maximum sampling rate:

192 kHz/24 bit

This unit supports ID3 tags.

Maximum sampling rate:

48 kHz/320 kbps

This unit supports ID3 tags.

Maximum sampling rate:

48 kHz/355 kbps

With certain recording states and folder structures, the play order may differ or playback may not be possible.

VQT4V11

33

DMP-BD89_79_VQT4V11_eng.book 34 ページ 2012年12月17日 月曜日 午前9時13分

Audio information

The audio output differs depending on the settings on the unit. (

>

24, “Digital Audio Output”)

The number of channels listed is the maximum possible number of output channels when connected to amplifier/receiver compatible with the respective audio format.

Output channel

“Digital Audio Output”

“Bitstream” “PCM”

*2*3

Outputs using original audio

*1

BD-Video :

7.1ch PCM *1

DVD-Video :

5.1ch PCM

*1

*2

*3

When “BD-Video Secondary Audio” is set to “On”, the audio will be output as Dolby Digital, DTS Digital Surround or 5.1ch PCM.

The maximum possible number of Dolby sound is 2ch PCM.

When “DTS Neo:6” is set to “Cinema” or “Music”, 2ch

(2.1ch) audio other than Dolby sound can be expanded to

7ch (7.1ch) and output.

Display languages list

Display Language Display Language Display Language

ENG

FRA

DEU

ITA

ESP

NLD

SVE

NOR

DAN

POR

RUS

English

French

German

Italian

Spanish

Dutch

Swedish

Norwegian

Danish

Portuguese

Russian

JPN

CHI

KOR

MAL

VIE

THA

POL

CES

SLK

HUN

FIN

Japanese

Chinese

Korean

Malay

Vietnamese

Thai

Polish

Czech

Slovak

Hungarian

Finnish

ARA

HIN

PER

IND

MRI

BUL

RUM

GRE

TUR

Arabic

Hindi

Persian

Indonesian

Maori

Bulgarian

Romanian

Greek

Turkish

Others

Supported format for DLNA

File formats that are not supported by your

DLNA server cannot be played.

Video

Container

AVCHD

MP4

PS

TS


Format

JPEG

Audio

Audio codec

MP3

FLAC

AAC

WMA

Linear PCM

Video codec

Audio codec

H.264

Dolby Digital

H.264

AAC

Example of file extension

.mts

.mp4

MPEG2

MPEG2,

H.264

Dolby Digital

Linear PCM

AAC

Dolby Digital

.mpg,

.mpeg

.m2ts

.ts

Example of file extension

.jpg

Example of file extension

.mp3

.flac

.m4a

.wma

Language code list

Language Code Language Code Language Code

Abkhazian: 6566

Afar: 6565

Afrikaans: 6570

Albanian: 8381

Amharic: 6577

Arabic: 6582

Armenian: 7289

Assamese: 6583

Aymara: 6589

Azerbaijani: 6590

Bashkir: 6665

Basque: 6985

Bengali; Bangla:

6678

Bhutani: 6890

Bihari: 6672

Breton: 6682

Bulgarian: 6671

Burmese: 7789

Byelorussian: 6669

Cambodian: 7577

Catalan: 6765

Chinese: 9072

Corsican: 6779

Croatian: 7282

Czech: 6783

Danish: 6865

Dutch: 7876

English: 6978

Esperanto: 6979

Estonian: 6984

Faroese: 7079

Fiji: 7074

Finnish: 7073

French: 7082

Frisian: 7089

Galician: 7176

Georgian: 7565

German: 6869

Greek: 6976

Greenlandic: 7576

Guarani: 7178

Gujarati: 7185

Hausa: 7265

Hebrew: 7387

Hindi: 7273

Hungarian: 7285

Icelandic: 7383

Indonesian: 7378

Interlingua: 7365

Irish: 7165

Italian: 7384

Japanese: 7465

Javanese: 7487

Kannada: 7578

Kashmiri: 7583

Kazakh: 7575

Kirghiz: 7589

Korean: 7579

Kurdish: 7585

Laotian: 7679

Latin: 7665

Latvian, Lettish: 7686

Lingala: 7678

Lithuanian: 7684

Macedonian: 7775

Malagasy: 7771

Malay: 7783

Malayalam: 7776

Maltese: 7784

Maori: 7773

Marathi: 7782

Moldavian: 7779

Mongolian: 7778

Nauru: 7865

Nepali: 7869

Norwegian: 7879

Oriya: 7982

Pashto, Pushto: 8083

Persian: 7065

Polish: 8076

Portuguese: 8084

Punjabi: 8065

Quechua: 8185

Rhaeto-Romance:

8277

Romanian: 8279

Russian: 8285

Samoan: 8377

Sanskrit: 8365

Scots Gaelic: 7168

Serbian: 8382

Serbo-Croatian: 8372

Shona: 8378

Sindhi: 8368

Singhalese: 8373

Slovak: 8375

Slovenian: 8376

Somali: 8379

Spanish: 6983

Sundanese: 8385

Swahili: 8387

Swedish: 8386

Tagalog: 8476

Tajik: 8471

Tamil: 8465

Tatar: 8484

Telugu: 8469

Thai: 8472

Tibetan: 6679

Tigrinya: 8473

Tonga: 8479

Turkish: 8482

Turkmen: 8475

Twi: 8487

Ukrainian: 8575

Urdu: 8582

Uzbek: 8590

Vietnamese: 8673

Volapük: 8679

Welsh: 6789

Wolof: 8779

Xhosa: 8872

Yiddish: 7473

Yoruba: 8979

Zulu: 9085
