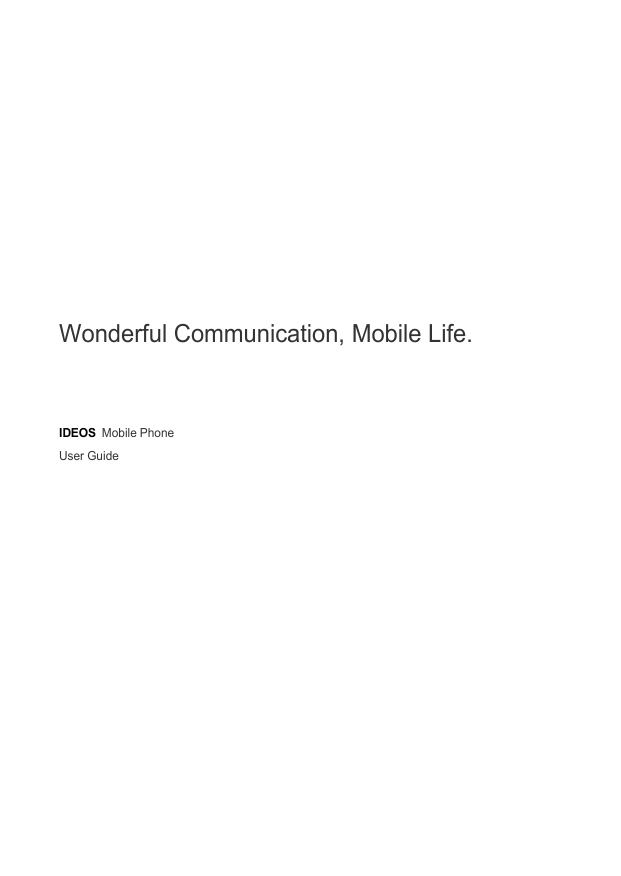

IDEOS Mobile Phone
User Guide
Contents
1 Reading Before Proceeding ................................................................................. 1
1.1 Safety Precautions .......................................................................................................... 1
1.2 Legal Notice .................................................................................................................... 2
2 Getting to Know Your Mobile Phone .................................................................... 4
2.1
2.2
2.3
2.4
2.5
2.6
2.7
Mobile Phone View.......................................................................................................... 4
Installing Your Mobile Phone........................................................................................... 5
Power On or Off Your Mobile Phone............................................................................... 7
Using the Touchscreen ................................................................................................... 8
Locking and Unlocking the Screen.................................................................................. 8
Home Screen .................................................................................................................. 9
Using a microSD Card................................................................................................... 11
3 Calling ................................................................................................................ 12
3.1
3.2
3.3
3.4
3.5
Making a Call................................................................................................................. 12
Answering or Rejecting a Call ....................................................................................... 13
Other Operations During a Call ..................................................................................... 14
Using Call log ................................................................................................................ 14
Using Airplane Mode ..................................................................................................... 14
4 Contacts ............................................................................................................. 16
4.1
4.2
4.3
4.4
4.5
4.6
4.7
Opening the Contacts Application ................................................................................. 16
Importing Contacts from a UIM Card............................................................................. 16
Adding a Contact........................................................................................................... 16
Searching for a Contact................................................................................................. 16
Editing a Contact ........................................................................................................... 16
Communicating with Your Contacts .............................................................................. 17
Deleting a Contact......................................................................................................... 17
5 Using the Onscreen Keyboard ........................................................................... 18
5.1 Displaying the Keyboard Panel ..................................................................................... 18
5.2 Customizing Keyboard Settings .................................................................................... 19
6 Messaging.......................................................................................................... 20
6.1 SMS and MMS .............................................................................................................. 20
6.2 Email ............................................................................................................................. 21
7 Getting Connected ............................................................................................. 23
7.1 Turning on the Data Service.......................................................................................... 23
7.2 Wi-Fi .............................................................................................................................. 23
i
7.3 Sharing Your Phone’s Data Connection........................................................................ 23
7.4 Browser ......................................................................................................................... 24
7.5 Bluetooth ....................................................................................................................... 25
8 Entertainment..................................................................................................... 27
8.1
8.2
8.3
8.4
Taking Photos and Recording Videos ........................................................................... 27
Using the Gallery........................................................................................................... 28
Enjoying Music .............................................................................................................. 29
Listening to FM Radio ................................................................................................... 30
9 Google Services................................................................................................. 32
9.1
9.2
9.3
9.4
9.5
9.6
Creating a Google Account ........................................................................................... 32
Using Gmail................................................................................................................... 32
Using Talk ..................................................................................................................... 33
Using Maps ................................................................................................................... 34
Using YouTube.............................................................................................................. 35
Using Market ................................................................................................................. 36
10 Synchronizing Information................................................................................ 38
10.1 Managing Your Accounts ............................................................................................ 38
10.2 Customizing Your Account Synchronization ............................................................... 39
11 Using Other Applications.................................................................................. 40
11.1
11.2
11.3
11.4
Using the Calendar...................................................................................................... 40
Using the Clock ........................................................................................................... 41
Using the Calculator .................................................................................................... 41
Using the Note pad...................................................................................................... 42
12 Managing Your Mobile Phone.......................................................................... 43
12.1
12.2
12.3
12.4
12.5
12.6
12.7
12.8
Setting the Date and Time........................................................................................... 43
Setting the Display ...................................................................................................... 43
Setting Ringers............................................................................................................ 43
Setting Phone Services ............................................................................................... 44
Setting Text-to-Speech................................................................................................ 44
Protecting Your Mobile Phone with a Screen Lock ..................................................... 45
Managing Applications ................................................................................................ 45
Resetting Your Mobile Phone...................................................................................... 46
13 Appendix .......................................................................................................... 47
13.1 FAQ ............................................................................................................................. 47
ii
1 Reading Before Proceeding
1.1 Safety Precautions
Please read the safety precautions carefully to ensure the correct use of your mobile phone.
Do not crash, throw, or puncture your mobile phone. Avoid the falling, squeezing,
and bending of your mobile phone.
Do not use your mobile phone in a moist environment, such as the bathroom.
Prevent your mobile phone from being soaked or washed in liquid.
Do not switch on your mobile phone when it is prohibited to use phones or when
the phone may cause interference or danger.
Do not use your mobile phone while driving.
Follow any rules or regulations in hospitals and health care facilities. Switch off
your mobile phone near medical apparatus.
Switch off your mobile phone in aircraft. The phone may cause interference to
control equipment of the aircraft.
Switch off your mobile phone near high-precision electronic devices. The phone
may affect the performance of these devices.
Do not attempt to disassemble your mobile phone or its accessories. Only
qualified personnel are allowed to service or repair the phone.
Do not place your mobile phone or its accessories in containers with a strong
electromagnetic field.
Do not place magnetic storage media near your mobile phone. Radiation from the
phone may erase the information stored on them.
Do not put your mobile phone in a high-temperature place or use it in a place with
flammable gas such as a gas station.
1
Keep your mobile phone and its accessories away from children. Do not allow
children to use your mobile phone without guidance.
Use only approved batteries and chargers to avoid the risk of explosions.
Observe any laws or regulations on the use of wireless devices. Respect others’
privacy and legal rights when using your wireless device.
Strictly follow the relevant instructions of this manual while using the USB cable.
Otherwise your mobile phone or PC may be damaged.
1.2 Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2010. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without
prior written consent of Huawei Technologies Co., Ltd.
The product described in this manual may include copyrighted software of Huawei Technologies
Co., Ltd. and possible licensors. Customers shall not in any manner reproduce, distribute, modify,
decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said
software, unless such restrictions are prohibited by applicable laws or such actions are approved
by respective copyright holders under licenses.
Trademarks and Permissions
,
, and
are trademarks or registered trademarks of Huawei Technologies Co.,
Ltd.
Other trademarks and product, service and company names mentioned are the property of their
respective owners.
Notice
Some features of the product and its accessories described herein rely on the software installed,
capacities and settings of local network, and may not be activated or may be limited by local
network operators or network service providers. Thus the descriptions herein may not exactly
match the product or its accessories you purchase.
Huawei Technologies Co., Ltd. reserves the right to change or modify any information or
specifications contained in this manual without prior notice or obligation.
Huawei Technologies Co., Ltd. is not responsible for the legitimacy and quality of any products that
you upload or download through this mobile phone, including but not limited to the text, pictures,
music, movies, and non-built-in software with copyright protection. Any consequences arising from
the installation or usage of the preceding products on this mobile phone shall be borne by yourself.
2
NO WARRANTY
THE CONTENTS OF THIS MANUAL ARE PROVIDED “AS IS”. EXCEPT AS REQUIRED BY
APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE
ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO CASE SHALL HUAWEI
TECHNOLOGIES CO., LTD. BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOST PROFITS, BUSINESS, REVENUE, DATA,
GOODWILL OR ANTICIPATED SAVINGS.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and will obtain all
necessary governmental permits and licenses in order to export, re-export or import the product
mentioned in this manual including the software and technical data therein.
3
2 Getting to Know Your Mobile Phone
2.1 Mobile Phone View
2.1.1 Phone at a Glance
■ Note:
All the pictures in this guide are for your reference only. The actual appearance and display
features depend on the mobile phone you purchase.
Earpiece
Headset jack
Power
Status indicator
Touch
screen Camera
Menu
Back
Send
Navigation
Charge/Data port
Volume keys
Speaker
Home
Search
OK
End
Microphone
Wrist strap hole
2.1.2 Key Functions at Your Fingertips
• Press to power on your mobile phone.
• Press and hold to open the Phone options menu.
• Press to lock the screen when your mobile phone is active.
• Touch to return to the previous screen.
• Touch to exit any application you are running.
• Touch to hide the keyboard.
Touch to open the menu on an active screen.
• Touch to return to the Home screen.
• Touch and hold to show the most recently used applications.
• Touch to open Google search for searching your mobile phone and the web.
• Touch and hold to open Google search by voice.
4
• Press to make or answer a call.
• Press to go to the Call log screen.
• Press to hang up a call.
• Press to return to the Home screen.
Press to navigate selectable items on the screen.
Press to select a highlighted item.
2.2 Installing Your Mobile Phone
2.2.1 Installing the UIM Card
There are two steps to install the UIM card:
1
1.
Remove the battery cover.
2.
Insert the UIM card.
2
2.2.2 Installing the microSD card* and the battery
1
2
★ Tip:
*microSD card is optional.
2.2.3 Charging the Battery
Before charging the battery, ensure that it has been properly inserted into your phone.
5
1.
Connect the USB cable that came with your mobile phone to the charger.
2.
Connect the USB cable to your mobile phone. Then, plug in the connector of the charger to an
electrical outlet. The phone begins charging.
If your mobile phone is charged when it is powered on, the battery icon on the Notification bar
shows the charging status. When the battery icon changes to
phone is fully charged.
, it indicates that your mobile
Status Indicator
The color of the status indicator tells the battery status of your mobile phone.
Status indicator
Green: Fully charged (when connected to charger).
Orange: Charging in progress (when connected to charger).
Red: Battery low.
2.2.4 Important Information About the Battery
6
•
If the battery has not been used for a long period of time, you may not be able to power on
your mobile phone immediately after you begin charging the battery. Allow the battery to
charge for a few minutes with the phone powered off before attempting to power on the phone.
•
The battery will not hold a charge for the way it did when it was new. When the battery life
becomes noticeably shorter than usual after being charged properly, replace the battery with
a new one of the same type.
•
Using data services increases demand on the battery and will reduce the length of time it can
hold a charge.
•
The time required to charge the battery depends on the ambient temperature and the age of
the battery.
•
When the battery is low on power, the phone plays an alert and displays a prompt. When
battery power is almost exhausted, your phone will power off automatically.
2.2.5 Battery Saving Tips
The longevity of battery power depends on the network that you connect to, and how you use your
mobile phone.
Try the following to conserve battery power:
•
When your mobile phone is not in use, switch off the screen.
•
Reset the time it takes for your screen light to switch off when you leave your phone idle.
•
Lower the screen brightness.
•
Use the AC adapter to plug your phone into an external power source whenever possible.
•
Turn Bluetooth off when you are not using it. Only make your phone visible to other Bluetooth
devices when you need to establish a Bluetooth connection.
•
Switch off Wi-Fi when you are not using it.
•
Turn off your phone connection to GPS satellites when you are not using it.
•
Lower the volume.
•
Close power-draining programs, when you do not need them.
•
Turn off the data service.
2.3 Power On or Off Your Mobile Phone
2.3.1 Powering On Your Mobile Phone
Press
. The first time you power on your phone, you will be asked to sign in to your account
and set up your mobile phone.
2.3.2 Setting Up Your Mobile Phone
The first time you power on your mobile phone, the phone displays a setup wizard to help you set
up the phone.
The setup wizard helps you:
• Learn about your mobile phone
• Create or sign into your account
• Make some initial decisions about how you want to use your mobile phone
2.3.3 Powering Off Your Mobile Phone
1.
Press and hold
2.
Touch Power off.
3.
Touch OK.
to open the Phone options menu.
7
2.4 Using the Touchscreen
2.4.1 Touchscreen Actions
•
•
•
•
Touch: Use the touch of your finger to select an item, confirm a selection, or start an
application.
Touch and hold: Touch an item with your finger and continue to press down until your mobile
phone responds. For example, to open the options menu for the active screen, touch the screen
and hold down until the menu appears.
Flick: Move your finger either vertically or horizontally across the screen.
Drag: Touch and hold the desired item with your finger. To move an item, Drag the item to any
part of the screen. You can drag an icon to move or delete it.
2.4.2 Rotating Your Mobile Phone Screen
The orientation of most screens will rotate with the phone as you turn it from upright to sideways
and back again.
2.5 Locking and Unlocking the Screen
2.5.1 Locking the Screen
•
When your phone is on, press
receive messages and calls.
to lock the screen. When the screen is locked, you can still
•
If your phone is idle for a while, the screen will lock automatically.
2.5.2 Unlocking the Screen
1.
Press
2.
Drag the lock icon from left to right to unlock the screen.
to wake up the screen.
■ Note:
If you have set up a screen unlock pattern, you will be prompted to draw the pattern on the screen
to unlock it.
8
2.6 Home Screen
10:23
Notifications bar:
Displays the reminders and status icons of
your phone. Flick down to open the
notifications panel.
Display area:
Shows the operation and display areas of
your phone.
Screen switching dots:
Indicate the number of the screens on the
left or right. Touch the left or right dots to
switch between the screen.
Touch to open the Browser.
Touch to view all your applications.
Touch to open the Phone application.
2.6.1 Notification and Status Icons
Call in progress
Call in progress using a Bluetooth
device
Missed call
Connected to a PC
Error
Memory is full
Preparing mircoSD card
Music is playing
Downloading data
Uploading data
No signal
Airplane mode
Synchronizing data
Synchronization failed
Bluetooth is on
Connected to another Bluetooth device
GPS connected
Connected to a Wi-Fi network
Sound off
Speaker on
Vibrate mode
Microphone off
9
Battery is full
Battery is very low
Battery is charging
Alarm is set
New calendar reminder
New instant message
New voicemail
New message
2.6.2 Notification Panel
Your mobile phone will notify you when you receive a new message or there is an incoming event.
The notification panel also informs you about alarms and settings, for example, when Call
forwarding is activated. Open the notification panel to see who the wireless network operator is or
to view a message, reminder, or event notification.
Opening the Notification Panel
1.
2.
When a new notification icon appears on the notification bar, touch and hold the notification
bar, and then flick down to open the notification panel.
On the notification panel, you can do the following:
• Touch a notification to open the related application.
• Touch Clear to clear all notifications.
Closing the Notification Panel
Touch and hold the bottom of the panel. Then flick up to close it.
2.6.3 Viewing Other Parts of the Home Screen
10:23
Flick your finger left or
right across the Home
screen.
Touch a thumbnail to
open the Home screen
or its extensions.
Touch and hold the small dots to view thumbnails
of the Home screen and its extensions.
10
2.6.4 Customizing the Home Screen
Adding a New Screen Item
1.
Touch and hold a blank area on the Home screen until the Add to Home screen menu is
displayed.
2.
Select an item to add it to the Home screen.
Moving a Screen Item
1.
Touch and hold an item on the Home screen until the item expands in size and the mobile
phone vibrates.
2.
Without lifting your finger, drag the item to the desired position on the screen, and then release
it.
Removing a Screen Item
1.
Touch and hold an item on the Home screen until the item expands and the mobile phone
vibrates.
2.
Without lifting your finger, drag the item to the trash can. When the item and the trash can turn
red, the item is ready to be removed.
3.
Release the item to remove it from the Home screen.
2.6.5 Changing the Wallpaper
1.
On the Home screen, touch
2.
Do any of the following:
> Wallpaper.
• Touch Live wallpapers to select a picture and set it as the wallpaper.
• Touch Pictures to select a picture and set it as the wallpaper.
• Touch Wallpapers to select a picture and set it as the wallpaper.
2.7 Using a microSD Card
2.7.1 Using the microSD Card as USB Mass Storage
To transfer all your favorite music and pictures from your PC to your mobile phone’s microSD card,
set the microSD card as USB mass storage.
1. Connect your mobile phone to your PC with the USB cable. Your PC will detect the microSD
card as a removable disk.
2.
Open the notification bar, and then touch USB connected.
3.
Touch Turn on USB storage in the dialog box that opens to confirm that you want to transfer
files.
You can now transfer files from your PC to your mobile phone’s microSD card.
■ Note:
When your microSD card acts as USB mass storage, your mobile phone will not use this memory
space. Your PC will tell you how to safely disconnect the USB mass storage device (your mobile
phone) when you have finished transferring files.
11
2.7.2 Removing the microSD Card
12
1.
Touch
2.
Scroll down the screen, and then touch SD card & phone storage > Unmount SD card.
> Settings.
3.
Carefully remove the microSD card.
3 Calling
To make a phone call, you can dial a number or touch a number from your contact list, on a Web
page, or in a document. When you are on a call, you can answer other incoming calls or send them
to your voicemail box. You can also set up conference calls with several participants.
3.1 Making a Call
To make a call, you can use the Phone application, or select a number from Contacts or Call log.
When you are on a call, you can touch
to return to the Home screen and use other functions.
To return to the calling screen, flick the notification bar down and touch Current call.
■ Note:
Do not block the microphone at the bottom of your phone if you want your voice heard.
3.1.1 Making a Call with the Phone Application
1.
Touch
> Phone to display the dialer.
If you are already working with Contacts or Call log, touch the Phone tab.
2.
Touch the appropriate numeric keys to enter the phone number.
3.
Touch
to initiate the call.
During a call, flick up the Dialpad tab to enter other numbers on the dialpad.
4.
Press
to end the call.
3.1.2 Making a Call from Contacts
1.
Touch
> Contacts to display the contact list.
If you are already working with Phone or Call log, touch the Contacts tab.
2.
In the list, touch the contact you want to call.
3.
Touch
to dial the phone number.
3.1.3 Making a Call from Call log
1.
If you are already working with Contacts or Phone, touch the Call log tab.
13
2.
Touch
to the right of the log entry to dial.
★ Tip: If you touch and hold a log entry, the options menu will open.
3.2 Answering or Rejecting a Call
3.2.1 Answering an Incoming Call
When you receive a phone call, the incoming call screen opens with the caller's name and number
that you have entered in Contacts.
Drag the
to the right to answer the call.
3.2.2 Ending a Call
During a call, press
or touch
> End call to hang up.
3.2.3 Rejecting an Incoming Call
Drag the
14
to the left to reject the call.
3.3 Other Operations During a Call
3.3.1 Making a Conference Call
If you receive a new call while you are already on a call, you can connect the second call to the call
you are on. This feature is known as conference calling. You can also set up a conference call with
multiple callers.
■ Note:
Contact your network operator to learn if conference calls are supported and, if yes, how many can
participate.
1.
To initiate a conference call, dial the number of the first participant. After you have connected
to the first participant, keep the connection open, touch
> Add call.
2.
Enter the phone number of the next person you want to join the conversation and touch
,
or select someone from your Call log or Contacts. The first participant is automatically placed
on hold while you do this.
3.
Once you have connected to the second person, touch
conference call.
4.
To add more people, touch
5.
To end the conference call and disconnect everyone, press
> Merge calls to begin the
> Add call, and then repeat steps 2 and 3.
or touch
> End call.
3.3.2 Switching Between Calls
If you receive a new call while you are already on a call, you can switch between the two calls.
1. While you are on the first call and the second call comes in, answer the incoming call, and then
touch
2.
> Swap calls.
The current call is placed on hold and you are connected to the new call.
3.4 Using Call log
The Call log contains a list of calls that you have dialed, received, or missed. You can use the call
log to reference a recently called number quickly or add an incoming number to your contact list.
3.4.1 Adding an entry to Contacts
1.
If you are already working with Phone or Contacts, touch the Call log tab.
2.
Touch and hold the entry you want to add.
3.
Touch Add to contacts in the options menu.
4.
Touch Create new contact or scroll through the contact list and touch an existing contact
name.
3.5 Using Airplane Mode
Some locations may require you to turn off your phone’s wireless connections. Rather than
powering off your phone, you can place it in Airplane mode.
1.
Press and hold
.
15
2.
16
Touch Airplane mode in the options menu.
4 Contacts
The Contacts application enables you to save and manage information such as phone numbers
and addresses of your contacts. After you save contact information on your mobile phone, you
have easy access to the people with whom you want to communicate.
4.1 Opening the Contacts Application
If you have a new mobile phone and have not yet added any contacts, Contacts displays a
message with hints on how to start adding contacts to your mobile phone.
Touch
> Contacts to open the Contacts application.
All of your contacts are displayed alphabetically in a list that you can scroll through.
4.2 Importing Contacts from a UIM Card
1.
In the contact list, touch
2.
Touch Import from UIM card.
> Import/Export.
3.
If you have more than one account on your phone, touch the account into which you want to
import the contacts.
4.
Wait for the UIM card contents to be loaded. Select the contacts you want to import or touch
> Import all to import all contacts.
4.3 Adding a Contact
1.
In the contact list, touch
2.
If you have more than one account with contacts, touch the account to which you want to add
the contact.
> New contact.
3.
Enter the contact's name, and then add detailed information such as phone number or
address.
4.
When you are finished, touch Done to save the contact information.
4.3.1 Adding a Contact to Your Favorites
•
Touch and hold the contact you want to add to Favorites. Then touch Add to favorites.
•
Touch a contact, and then touch the star to the right of the contact’s name. The star turns gold.
4.4 Searching for a Contact
1.
In the contact list, touch
2.
Enter the name of the contact you wish to search for. As you type, contacts with matching
names appear below the search box.
> Search.
4.5 Editing a Contact
You can make changes to the information you have stored for a contact at any time.
17
1.
In the contacts list, touch and hold the contact whose details you want to edit, and then touch
Edit contact in the options menu.
2.
Touch the category of contact information you wish to change: name, phone number, email
address, or any other information you recorded earlier.
3.
Make the desired changes to the contact information, and then touch Done. To cancel all of
your changes, touch Revert.
4.6 Communicating with Your Contacts
From the Contacts or Favorites tab, you can quickly call or send a text (SMS) or multimedia
message (MMS) to a contact’s default phone number. You can also open details to view a list of
all the ways you can communicate with that contact. This section describes how to communicate
with a contact when you view your contacts list.
4.6.1 Connecting Through Quick Contact for Android
1.
Touch the contact's picture or picture frame (if you have not assigned a picture to the contact)
to open Quick Contact for Android.
2.
Touch the icon for the way you want to communicate with the contact.
■ Note: The icons available depend on the information you have entered for the contact,
the applications on your phone, and the accounts you have.
4.6.2 Communicating with a Contact
1.
In the contacts list, touch the contact that you want to communicate with.
2.
On the contact’s details screen, touch the icon to the right of the number to call or send
messages.
4.7 Deleting a Contact
18
1.
In the contacts list, touch and hold the contact that you want to delete, and then touch Delete
contact in the options menu.
2.
Touch OK to confirm that you want to delete the contact.
5 Using the Onscreen Keyboard
5.1 Displaying the Keyboard Panel
To enter text, use the onscreen keyboard. Some applications open the keyboard automatically. In
others, touch a text field to open the keyboard.
Touch the space where you want to write text to display the keyboard.
Touch
to hide the keyboard.
★ Tip:
Touch and hold the space where you usually write your text to open the options menu.
5.1.1 Choosing an Input Method
1.
Touch and hold the space where you enter your text until the Edit text menu is displayed.
2.
Touch Input method.
3.
Select the input method.
The keyboard panel will be displayed automatically.
5.1.2 Using the Android Keyboard
q w e r
t y u i
a s d f g h j
o p
k l
DEL
z x c v b n m
?123
.
Next
Touch to delete a character
to the left of the cursor.
Touch and hold to delete all
characters to the left of the
cursor.
Touch to insert a space.
Touch to enter text by voice.
Touch to change from text mode to symbol/number mode.
Touch once to capitalize the next letter you type.
Touch and hold for all caps.
★ Tip:
Touch
> Settings > Language & keyboard > Android keyboard > Voice input to turn on
or turn off voice input.
5.1.3 Using the Landscape Keyboard
If you find the keyboard inconvenient or difficult to use, turn your mobile phone sideways. The
screen will display the keyboard in landscape orientation, providing you with a wider keyboard
layout.
19
5.2 Customizing Keyboard Settings
20
1.
Touch
2.
Select an input method to customize the keyboard settings.
> Settings > Language & keyboard.
6 Messaging
The Messaging application allows you to exchange text messages (SMS) and multimedia
messages (MMS) with anyone using an SMS-or-MMS-capable phone. With the Email application
you can read and send emails.
6.1 SMS and MMS
6.1.1 Opening Messaging
Touch
> Messaging.
6.1.2 Creating and Sending a Text Message
1.
Touch
2.
Enter a phone number in the To field.
> Messaging > New message.
As you enter the phone number, matching contacts appear. You can touch a suggested
recipient or continue entering the phone number.
3.
Touch the composition text box to start entering your message.
4.
Once you are done, touch Send.
The message list opens, and your name appears in the list, followed by the message you just sent.
Responses appear in the window. As you view and send additional messages, a message thread
is created.
6.1.3 Creating and Sending a Multimedia Message
You can use multimedia messages to make everyday communications very special. You can
record a message and send it as an audio file, sing 'Happy Birthday' and send it to friend, or send
a slideshow of photographs of a special event. The possibilities are endless.
1.
Touch
2.
Enter a phone number in the To field.
3.
> Messaging > New message.
Touch the composition text box to start entering your message.
★ Tip: If you want to enter a smiley face, touch
4.
Touch
, and then touch Insert smiley.
to display the options panel.
• Touch Add subject to add the message subject. Your mobile phone is now in multimedia
message mode.
• Touch Attach to add a picture, music, or video file.
5.
When the message is ready to be sent, touch Send.
Adding a Slideshow
If you want to attach more than one file to your message, use the Slideshow option.
1.
On the message editing screen, touch
2.
Touch Attach > Slideshow, and then select a slide to start editing it.
to display the options panel.
3.
Touch
and touch More > Add slide to add more slides.
21
4.
Touch Done to finish composing your message and return to the multimedia message screen.
5.
To alter your multimedia message, touch Edit on the multimedia message screen. When the
message is ready to be sent, touch Send.
6.1.4 Opening and Viewing a Multimedia Message
1.
In the message list, touch the message thread you wish to view.
2.
Touch the multimedia message to view the message.
6.1.5 Replying to a Message
1.
In the message list, touch a text or multimedia message thread to open it.
2.
Touch the text box to compose your message, and then touch Send.
6.1.6 Customizing the Message Settings
In the message list, touch
, and then touch Settings to customize the message settings.
6.2 Email
Your mobile phone also puts email at your fingertips. With your phone’s Email application, you can
use your email account with Yahoo!, AOL, or other popular email services on your phone.
6.2.1 Adding an Email Account
When using the Email application for the first time, you must configure an email account. The
Email setup wizard helps you set up your account. A number of popular email systems are
supported. You can work with the same email service that you use on your PC or you can select
another email service.
1.
Touch
2.
To customize your email settings, answer the onscreen prompts, and then touch Next. Or
touch Manual setup if you want to set the mail server yourself.
■ Note: If you choose to set up your account manually, you will need the correct parameters
for the account. Contact your email service provider for this information.
> Email.
3.
Enter the account name and the name you want other people to see when they receive an
email from you.
4.
Touch Done.
After the initial setup, your Email opens to the screen you were viewing the last time the application
was opened. If, however, the Email application has not been used for a period of time, it displays
the contents of your Inbox or the accounts screen (if you have more than one account).
Adding Other Email Accounts
22
1.
After creating your initial email account, touch
Accounts to access the accounts screen.
2.
Touch
account.
on the Inbox screen, and then touch
on the accounts screen, and then touch Add account to create another email
★ Tip:
When adding an additional email account, you have the option to use the new account to send all
outgoing messages.
6.2.2 Viewing an Email Message
1.
On the accounts screen, touch the email account you want to use.
2.
Access a folder, and then touch the message that you want to view.
6.2.3 Creating and Sending an Email Message
1.
On the accounts screen, touch the email account you want to use.
2.
On the Inbox screen, touch
3.
In the To field, enter the name or the email address.
4.
, and then touch Compose in the options panel.
Enter the subject of your message and compose the message.
To send an attachment with the message, touch
5.
, and then touch Add attachment.
When you are finished, touch Send.
If you are not ready to send the message, touch Save as draft or touch
message as a draft.
to save the
6.2.4 Replying to an Email Message
1.
On the accounts screen, touch the email account you want to use.
2.
Touch the email message you want to reply to.
3.
Touch Reply or Reply all to reply to the email message.
6.2.5 Deleting an Email Account
1.
On the accounts screen, touch and hold the email account you want to delete.
2.
Touch Remove account.
3.
Touch OK.
6.2.6 Changing Email Account Settings
You can change a number of settings for an account, including how often you check for emails,
how you are notified of a new mail, and details about the servers the account uses to send and
receive mails.
■ Note:
Your account’s incoming and outgoing settings depend on the kind of email service you are using.
You can enter the necessary details manually, although you may need to contact your email
service provider to obtain the correct information for the account.
1.
Touch
2.
On the accounts screen, touch and hold the email account you want to change.
> Email.
3.
Touch Account settings.
4.
Change General settings, Notification settings, or Server settings.
23
7 Getting Connected
7.1 Turning on the Data Service
1.
Touch
2.
Touch Wireless & networks > Mobile networks.
> Settings.
3.
Select the Data enabled check box to turn on the data connection.
★ Tip:
If you do not need a wireless network, you can uncheck the Data enabled check box to save data
traffic costs.
7.2 Wi-Fi
Wi-Fi gives you wireless access to broadband Internet access. To use Wi-Fi on your mobile phone,
you need to have an access to wireless access points (hotspots). Obstacles that block the Wi-Fi
signal will reduce its strength.
7.2.1 Turning On Wi-Fi
1.
Touch
2.
Touch Wireless & networks, and then select the Wi-Fi check box to turn on Wi-Fi.
> Settings.
7.2.2 Connecting to a Wireless Network
1.
After turning on Wi-Fi, touch
2.
Touch Wireless & networks > Wi-Fi settings. You will see a list of detected Wi-Fi networks in
the Wi-Fi networks section.
3.
> Settings.
Touch a Wi-Fi network to connect to it.
• If you select an open network, you will be automatically connected to the network.
• If you select a network that is secured with Wired Equivalent Privacy (WEP) and connect to
it for the first time, enter the password, and then touch Connect. If you connect to a secured
wireless network that you have already used, you will not be prompted to enter the
password again unless you reset your mobile phone to its default settings.
★ Tip:
On the Wi-Fi settings screen, touch Add Wi-Fi network to add a new Wi-Fi network.
7.3 Sharing Your Phone’s Data Connection
You can share your mobile phone's data connection with a single computer via a USB cable: USB
tethering. You can share your mobile phone's data connection with devices at the same time, by
turning your phone into a portable Wi-Fi hotspot.
7.3.1 Sharing Your Phone’s Data Connection via USB
To use USB tethering in different operating systems, you may need to prepare your computer to
establish a network connection via USB.
24
■ Note:
You can not share your mobile phone’s data connection and SD card via USB at the same time.
1.
Touch
2.
Touch Wireless & networks > Tethering & portable hotspot.
> Settings.
3.
Select the USB tethering check box to share your data connection.
7.3.2 Sharing Your Phone’s Data Connection as a Portable Wi-Fi Hotspot
1.
Touch
2.
Touch Wireless & networks > Tethering & portable hotspot.
3.
> Settings.
Select the Portable Wi-Fi hotspot check box to share your data connection.
★ Tip: When Portable Wi-Fi hotspot is selected, you can touch Portable Wi-Fi hotspot
settings to change its network name or secure it.
7.4 Browser
Your mobile phone comes with a browser. You can use Browser to access and browse the
Internet.
7.4.1 Opening the Browser
Touch
> Browser to open the home page.
★ Tip:
When the known or open Wi-Fi networks and the mobile networks are present at the same time,
your phone will preferably select a Wi-Fi network for internet access.
Open the browser options menu and perform one of the following operations, touch
:
• New window: Touch to open a new window.
• Bookmarks: Touch to display bookmarks.
• Windows: Touch to go to the web preview screen. You can switch to another web page or open
a new web page on this screen.
• Refresh: Touch to refresh the current page.
• Forward: Touch to browse the next web page.
• More: Touch to open other menus and perform operations such as searching, selecting text,
downloading, or setting options.
7.4.2 Opening a Web Page
1.
In a browser window, touch the URL field at the top of the screen.
2.
Use the keyboard to enter the web page address. You can touch
address by voice.
3.
As you enter the address, matching web page addresses will appear on the screen. If you see
the address you want, touch it and go directly to that web page or complete entering the
address of the web page you want.
to enter the web page
25
7.4.3 Setting a Home Page
1.
In a browser window, touch
2.
Touch More > Settings > Set home page.
.
3.
Enter the address of the desired home page, and then touch OK.
7.4.4 Managing Bookmarks
You can store as many bookmarks as you want on your mobile phone.
Adding a Bookmark
1.
In a browser screen, go to the web page you want to save as a bookmark.
2.
Touch
3.
Edit the bookmark name as needed and then touch OK.
, and then touch Bookmarks > Add. The add bookmark screen opens.
Opening a Bookmark
1.
In a browser window, touch
, and then touch Bookmarks.
On the Bookmarks screen, touch the History tab to view the pages you have visited. Or
touch the Most visited tab to view the pages you have visited most frequently.
2.
Touch the bookmark of the website you want to open.
7.4.5 Customizing the Browser Settings
Customize the browser to suit your browsing style. Use Browser to set page content, privacy, and
security preferences. In the browser screen, touch
, and then touch More > Settings.
7.5 Bluetooth
Your mobile phone has Bluetooth, which allows you to create a wireless connection with other
Bluetooth devices so you can share files with your friends, talk hands-free with a Bluetooth
headset, or even transfer photos on your phone to your PC.
If you are using Bluetooth, remember to stay within 10 meters (33 feet) of other Bluetooth devices.
Be aware that obstacles like walls or other electronic equipment may interfere with your Bluetooth
connection.
7.5.1 Turning On Bluetooth
1.
Touch
2.
Touch Wireless & networks, and then select the Bluetooth check box to turn on Bluetooth.
When Bluetooth is turned on, the Bluetooth icon appears in the notification bar.
> Settings.
3.
Touch Bluetooth settings, and then select the Discoverable to make your mobile phone
visible to other Bluetooth devices.
7.5.2 Pairing and Connecting a Bluetooth Device
Your mobile Bluetooth lets you do the following:
• Hands Free Profile (HFP): allows you to use a hands-free Bluetooth device.
• Headset Profile (HSP): allows you to use a mono Bluetooth headset.
26
•
•
•
Object Push Profile (OPP): allows you to transfer files through Bluetooth.
Advanced Audio Distribution Profile (A2DP): allows you to use a stereo Bluetooth headset.
A/V Remote Control Profile (AVRCP): allows you to control what plays through the Bluetooth
headset remotely.
Before you use Bluetooth, you need to pair your mobile phone with another Bluetooth device as
follows:
1. Ensure that the Bluetooth function on your mobile phone is enabled.
2.
Touch
> Settings > Wireless & networks > Bluetooth settings. Your mobile phone will
then scan for Bluetooth devices in range.
3.
Touch the device you want to pair with your mobile phone.
4.
Enter the pairing password to complete the connection.
7.5.3 Sending Files via Bluetooth
With Bluetooth, you can share pictures, videos, or music files with your family and friends. To send
files via Bluetooth, do as follows:
1. Touch and hold the file to be sent. The active options menu is displayed.
2.
Touch Share, and then touch Bluetooth to select a paired device.
7.5.4 Disconnecting or Unpairing a Bluetooth Device
1.
Touch
2.
Navigate to the Bluetooth devices section, and then touch and hold the connected device.
> Settings > Wireless & networks > Bluetooth settings.
3.
Touch Unpair to disconnect the device.
You can also just touch a connected device to disconnect it.
27
8 Entertainment
In addition to being a communication device and personal assistant, your mobile phone also
provides you with a multitude of entertainment possibilities. You can take photos, create videos
and audio clips, and download and listen to music.
8.1 Taking Photos and Recording Videos
The camera is a combination of camera and camcorder that you can use to shoot and share
pictures and videos.
8.1.1 Opening Your Camera
•
Touch
> Camera to open the camera. The camera opens in landscape mode, ready to
take a picture or record a video.
•
Touch
to close the camera.
Capture Screen
Thumbnail of last
photo. Touch to
preview the photos
or videos.
Drag up to record
videos, drag down
to take photos.
Touch to take a
photo.
Touch to customize the camera settings.
On the capture screen, touch
to show the capture panel.
8.1.2 Taking a Photo
1.
Open your camera and switch to the camera mode.
2.
If necessary, change the camera settings. The preview changes as you change the settings.
3.
Compose your photo within the photo capture screen.
4.
Touch and hold
5.
Release
. When the frame turns green, the image is in focus.
to take your photo.
The photo you just took is displayed for a moment. You can take another photo or preview your
photos.
8.1.3 Viewing Your Photos
1.
28
After taking a photo, a thumbnail of the photo you have just taken is shown in the upper right
corner of the capture screen. Touch the thumbnail to view it.
2.
Touch the onscreen button to do any of the following:
• Touch Share to send the photo in a message or post it online.
• Touch Delete to delete the photo.
• Touch Set as to set a picture as contact icon or wallpaper.
8.1.4 Recording a Video
1.
Open the camera, and then switch to camcorder mode.
2.
If necessary, change the camcorder settings.
3.
Frame the scene which you want to start your video.
4.
Touch
to start recording a video.
5.
Touch
to stop recording.
8.2 Using the Gallery
Your Gallery application can automatically search for pictures and videos on your microSD card.
Use Gallery to sort photos and videos into folders, view and edit pictures, watch videos, and set a
picture as wallpaper or as a photo for a contact.
8.2.1 Opening the Gallery
Touch
> Gallery to open the viewer.
The Gallery application categorizes your pictures and videos by storage location and stores these
files in folders. Touch a folder to view the pictures or videos inside.
Touch
to display the gallery panel. On the panel, you can do the following:
• Touch Capture picture to open the camera and switch to the picture capture mode.
• Touch Capture video to open the camera and switch to the video capture mode.
• Touch Settings to go to the gallery settings screen. There, you can set the size of a picture,
arrange pictures, play a slideshow, and specify whether to prompt for confirmation when you
delete a picture.
8.2.2 Viewing a Picture
1.
In the Gallery, touch the folder that contains the pictures you want to view.
2.
Touch the picture to view it in full-screen mode.
3.
Touch the screen. Then the zoom panel appears. You can zoom in or zoom out on the picture.
★ Tip: The picture viewer supports the automatic rotation function. When you rotate your
mobile phone, the picture adjusts itself to the rotation.
8.2.3 Rotating a Picture
1.
When viewing a picture, touch
2.
Touch Rotate.
to display the operations panel.
3.
Select either Rotate left or Rotate right. The picture is saved with the new orientation.
29
8.2.4 Cropping a Picture
1.
2.
When viewing a picture, touch
Crop.
to display the more operations panel, and then touch
Use the cropping tool to select the portion of the picture to crop.
• Drag from the inside of the cropping tool to move it.
• Drag an edge of the cropping tool to resize the image.
• Drag a corner of the cropping tool to resize the image without changing the length to width
ratio.
3.
Touch Save to save the cropped picture. Touch Discard to discard the changes.
8.3 Enjoying Music
Before you using music player, you must copy music files from your computer to the microSD card.
Once you have done this, the player will search for music on the microSD card. After the search is
complete, you will be able to view all available music files in the music library.
8.3.1 Copying Music to the microSD Card
1.
Connect the phone to your computer with a USB cable and mount the microSD card.
2.
On the PC, navigate to the USB drive and open it.
3.
Create a folder in the root directory of the microSD card (for example, Music).
4.
Copy the music from your computer to the folder you have created.
5.
After copying music, unmount or eject the drive as required by your PC’s operating system to
safely remove the mobile phone.
6.
Disconnect the mobile phone from the PC.
8.3.2 Opening the Media Library
Touch
> Music to display the media library.
The Music application organizes your music files by storage location. It contains four tabs: Artists,
Albums, Songs and Playlists.
8.3.3 Playing Music
30
1.
Touch a category on the music library screen.
2.
Touch the song you want to play.
★ Tip:
When you are listening to music, touch
, to use another application. Your music continues to
play. To return to the music controls, open the notification panel and then touch the song.
8.3.4 Adding Music to a Playlist
1.
Touch a category on the music library screen.
2.
In the list that appears, select the song you want to add to the playlist.
3.
Touch and hold the song, and then touch Add to playlist in the options menu.
• Touch Current playlist to add the song to an existing playlist.
• Touch New to create a playlist and add the song to it.
8.3.5 Playing a Playlist
1.
Touch the Playlists tab on the music library screen.
2.
Touch and hold the playlist you want to play.
3.
Touch Play to play the playlist.
8.4 Listening to FM Radio
FM Radio lets you listen to FM radio stations on your mobile phone. Since FM Radio uses the
provided wired stereo headset as the antenna, connect the headset first to the audio jack of your
phone before you open the application.
8.4.1 Opening the FM Radio
1.
Touch
2.
The first time you open FM Radio, touch Auto tuning, which automatically scans for available
FM channels, saves them as presets, and plays the first FM channel found.
> FM Radio to open the application.
8.4.2 Tuning the FM Radio
Open the FM Radio application, and then touch
to do the following:
31
•
Touch Inching tuning, then touch
or
to fine tune the frequency at -0.05 MHz or
+0.05 MHz intervals. Touch OK when you are satisfied. After tuning, touch
touch Save channel.
•
32
Touch Auto tuning to scan automatically for available FM channels.
, and then
9 Google Services
■ Note:
Availability of Google applications, services, and features may vary according to your country or
carrier. Please follow the local laws and regulations to use them.
When you turn on your mobile phone for the first time, touch a Google services such as Talk,
Gmail, or Market, and you will be prompted to sign in to your Google account.
■ Note:
Ensure that your mobile phone has an active data connection (3G/GPRS) before you sign in to
your Google account.
If you already have a Google account, touch Sign in and enter your username and password.
9.1 Creating a Google Account
If you do not have a Google account, you can create one:
1. After reading the setup information, touch Next.
2.
Touch Create.
3.
Enter a first name, last name, and user name for your Google account, and then touch Next.
The mobile phone will connect to the Google server to check whether the username is
available. If the username you entered is already in use, you will be prompted to choose
another one or select one from a list.
4.
Enter and confirm your Google account password.
5.
Select a security question from the drop down menu, and then enter the answer.
6.
Touch Create.
7.
When the Google Terms of Service screen appears, touch I agree, Next.
8.
Enter the characters that appear on the screen, and then touch Next.
★ Tip:
To use another Google account, go to the Accounts & sync settings screen, and touch Add
account to select which type of accounts you want to add.
9.2 Using Gmail
Gmail is Google’s web-based email service. When you first set up your phone, you may have
configured it to use an existing Gmail account or create a new account. The first time you open the
Gmail application on your phone, your Inbox will contain the messages from your Gmail account
on the web.
9.2.1 Opening Gmail
Touch
> Gmail. The Inbox mail list appears. Any emails you decide to keep on your mobile
phone will go to your Inbox folder.
9.2.2 Switching Between Accounts
1.
In the mail list, touch
, and then touch Accounts.
33
2.
Touch the account that contains the email you want to read.
9.2.3 Creating and Sending an Email
1.
In the mail list, touch
2.
Enter the message recipient’s email address in the To field. If you are sending the email to
several recipients, separate the email addresses with commas. You can add as many
message recipients as you want.
, and then touch Compose.
If you want to send a copy (Cc) or a blind copy (Bcc) of the email to other recipients, touch
, and then touch Add Cc/Bcc.
3.
Enter the email subject and write your message.
If you want to add a picture attachment, touch
you want to attach.
4.
, and then touch Attach to select the picture
After composing your email, touch Send.
9.2.4 Replying To or Forwarding an Email
1.
In the mail list, touch the email that you want to reply to or forward.
2.
Touch Reply, Reply to all, or Forward.
3.
Do one of the following:
• If you selected Reply or Reply to all, enter your message.
• If you selected Forward, specify the message recipients and add any additional text you
want to include with the forwarded message.
4.
Touch Send.
9.2.5 Searching for an Email
1.
In the mail list, touch
2.
Enter the search keywords in the box, and then touch
, and then touch Search.
.
9.2.6 Customizing Your Gmail Settings
In the mail list, touch
, and then touch More > Settings to customizing your Gmail.
9.3 Using Talk
Talk is Google’s instant messaging service. You can use it to communicate in real time with other
people using Talk on a phone or on the web.
9.3.1 Opening Talk
Touch
> Talk to open the application.
■ Note:
Your Talk account is based on the Google account you set up with your mobile phone.
34
9.3.2 Adding a Friend
1.
In the friends list, touch
2.
Enter the Talk instant messaging ID or Google email address of the friend you want to add.
, and then touch Add friend.
3.
Touch Send invitation.
9.3.3 Accepting an Invitation
1.
If you have invited anyone to chat or if someone else has invited you to chat, this information
will appear in the friends list.
2.
Touch a pending invitation, and then touch Accept.
9.3.4 Starting a Chat
1.
In the friends list, touch a friend's name in the friends list.
2.
Use the onscreen keyboard to enter text and chat with your friend.
3.
After entering your message, touch Send.
9.3.5 Setting Notifications for New Instant Messages
Whenever you receive an instant message, your mobile phone can play a sound, vibrate, or
display an icon. To set up one of these handy notifications, start in the friends list, and then touch
. Then touch Settings. Now choose from one of the following:
IM
notifications
Select the check box to receive a notification on the notification bar when
you receive an instant message.
Select
ringtone
Touch to choose the ringtone used for a new instant message. You will
hear a short sample of the ringtone when you select it. To turn the ringtone
off, select Silent.
Vibrate
Select the check box to make your mobile phone vibrate when you receive
a new instant message.
9.3.6 Signing Out of Talk
In the friends list screen, touch
, and then touch Sign out to quit Talk.
9.4 Using Maps
Maps lets you find your current location, view real-time traffic conditions (depending on availability
in your locale), and get detailed directions to various destinations on a satellite, traffic, or other kind
of map.
9.4.1 Enabling Location Source
Before you open Maps to find your location or search for places of interest, you must enable
"location source".
35
1.
Touch
2.
Touch Location & security.
> Settings.
3.
In the My Location section, select the Use wireless networks check box, Use GPS
satellites check box, or both.
9.4.2 Opening Maps
Touch
> Maps to open the application.
9.4.3 Searching for Places of Interest
1.
On the map, touch
2.
Enter the place you want to search for in the search box, and then touch the Search icon.
, and then touch Search.
3.
Your search results will then be displayed. Touch a place you are interested in and the
application will show where it is on the map.
9.4.4 Getting Directions
1.
While viewing a map, touch
2.
Enter the starting point in the first text box, and then enter your destination in the second text
box.
, and then touch Directions.
3.
Touch the icon for car, public transit, or walking directions.
4.
Touch Go. Your directions will appear in a list.
5.
Touch a direction item on the list to show it on the map.
6.
When you finish viewing or following the directions, touch
reset the map.
and touch More > Clear map to
9.5 Using YouTube
YouTube is Google’s free online video streaming service for viewing, searching for, and uploading
videos.
9.5.1 Opening YouTube
Touch
> YouTube. You will then see the YouTube screen. The videos will be grouped into
categories, such as Most viewed, Most discussed, Top rated, and more.
9.5.2 Searching for a Video
1.
On the YouTube screen, touch
2.
Enter a search keyword, and then touch the Search icon.
, and then touch Search.
3.
You will see a number of search results displayed below the notification bar. Scroll through the
results and touch a video to watch it.
9.5.3 Sharing a Video
1.
36
On the YouTube screen, do one of the following:
• While viewing a list of videos, touch and hold a video entry, and then touch Share on the
options menu.
• While watching a video, touch
2.
, and then touch Share.
Compose a message if you like, address the email, and send it.
9.6 Using Market
Android Market provides direct access to applications and games which you can download and
install on your phone.
9.6.1 Opening Market
1.
Touch
2.
When you open Market for the first time, the Android Market Terms of Service window will
appear. Touch Accept to continue.
> Market.
9.6.2 Searching for Applications
There are a few different ways to find applications on the Market home screen, including:
•
Featured applications.
•
List of applications by category: Includes subcategories, which you can sort by popularity
(most to least) or by date (newest to oldest).
•
List of games.
•
Search function.
•
Your downloads.
9.6.3 Installing an Application
■ Note:
If you want to install a non-Market application, touch
> Settings > Applications, and then
select the Unknown sources check box to allow installation of the non-Market application.
1.
In the Market, touch Apps.
2.
Touch a category, and then touch the item you want to download.
3.
On the item details screen, read more about the application, including its cost, overall rating,
and user comments. If you scroll down to the About the developer section, you can see other
applications from the same developer, link to the developer's website, or send the developer
an email.
4.
To install the item, touch Install (if the item is free) or Buy, whichever is displayed.
5.
To check the progress of a download, open the notification panel. Most applications are
installed within seconds. To stop an item from downloading, touch Cancel download.
6.
After the application has been downloaded and installed on your mobile phone, the content
download icon appears in the notification bar.
9.6.4 Uninstalling an Application
1.
On the Market screen, touch Downloads.
37
38
2.
Touch the application you want to uninstall, and then touch Uninstall.
3.
When prompted, touch OK to remove the application from your mobile phone.
4.
Choose the reason for removing the application, and then touch OK.
10 Synchronizing Information
Some applications on your mobile phone give you access to the same personal information that
you can add, view, and edit on your computer. If you add, change, or delete your information in any
of these applications on the web, the updated information also appears on your mobile phone.
This is made possible through over-the-air data synchronization. The process occurs in the
background and does not interfere with use of your mobile phone. When your phone is
synchronizing, a data synchronization icon will be shown in the notification bar.
10.1 Managing Your Accounts
You can synchronize contacts, email, and other information on your mobile phone with multiple
Google accounts or other kinds of accounts, depending on the applications installed on your
mobile phone.
For example, you can start by adding your personal Google account, so your personal email,
contacts, and calendar are always available. You could then add a work account, so your workrelated emails and work contacts are handy. If you like, you may add multiple Google accounts or
other accounts.
10.1.1 Adding an Account
When you add an account, Contacts compares contacts from the newly synchronized account
with contacts from your existing mobile phone accounts and attempts to merge duplicates into a
single entry in Contacts. While it is presented as a single contact entry, the contact data itself is
not merged.
1.
Touch
> Settings > Accounts & sync. The screen displays your current synchronization
settings and a list of your current accounts.
■ Note: In some cases, you may need to obtain account details from an IT support. For
example, you may need to know the account’s domain or server address.
2.
Touch Add account.
3.
Touch the kind of account to add.
4.
Follow the onscreen steps to enter the required and optional information about the account.
Most accounts require a username and password, but the details depend on the kind of
account and the configuration of the service to which you are connecting.
5.
Configure the account. Depending on the kind of account, you may be asked to configure what
kind of data you want to sync to the mobile phone, to name the account, and for other details.
When you are finished, the account is added to the list in the Accounts & sync settings
screen.
10.1.2 Removing an Account
You can remove an account, deleting it and all information associated with it from your mobile
phone, including email, contacts, settings, and so on. You cannot, however, remove some
accounts, such as the first account you signed into on the mobile phone. If you attempt to remove
certain accounts, all personal information associated with it will be deleted.
1. On the Accounts & sync settings screen, touch the account to delete.
39
2.
Touch Remove account.
3.
Confirm that you want to remove the account.
10.2 Customizing Your Account Synchronization
You can configure background data use and synchronization options for all the applications on
your phone. You can also configure what kind of data you synchronize for each account.
For some accounts, synchronizing is two-directional; changes that you make to the information on
your mobile phone are made to the copy of that information on the web. Some accounts support
only one-way synchronize; the information on your mobile phone is read-only.
10.2.1 Configuring General Sync Settings
On the Accounts & sync settings screen, do the following:
•
Select or clear the Background data check box to control whether applications and services
can transmit data when you are not working with them directly (that is, when they are running
in the background).
If you clear this option, Gmail stops receiving new mail, Calendar stops synchronizing events,
and so on, until you touch the Refresh menu item or send an email.
•
Select or clear the Auto-sync check box to control whether changes you make to information
on the phone or on the web are automatically synchronized with each other.
For example, when this option is selected, changes that you make in Contacts on the phone
are automatically made in Google Contacts on the web.
10.2.2 Changing an Account’s Synchronization Settings
40
1.
On the Accounts & sync settings screen, touch the account whose synchronization settings
you want to change. The data and synchronization screen opens, displaying a list of the kinds
of information the account can synchronize.
2.
Selected items are configured to synchronize to your mobile phone.
3.
Select or clear the check box of information you want to synchronize to the mobile phone.
11 Using Other Applications
11.1 Using the Calendar
Use Calendar to create and manage events, meetings, and appointments. Depending on your
synchronization settings, the calendar on your phone can be synchronized with the internet-based
calendar you use.
11.1.1 Opening the Calendar
Touch
> Calendar to open the application.
★ Tip:
To access Google calendar, touch
, and then touch More > Calendars.
11.1.2 Creating an Event
1.
2.
On any calendar view, touch
screen.
. Then touch More > New event to open the Event details
Enter the event name.
• If there is a time frame for the event, touch From and To to set the beginning and end times
of the event.
• If the event is a special occasion such as a birthday or a day-long activity, set the date for
From and To, and then select the All day check box.
3.
Enter the location of the event and a description.
4.
If you have more than one calendar, select the calendar where you want to save the event.
5.
Enter email addresses to invite guests to the event.
6.
Set the time of your event reminder in Reminders, and then specify in Repetition whether the
event recurs and, if it does, how frequently.
7.
Touch Done.
★ Tip:
To quickly create an event in the Day, Week, or Month view, touch and hold an empty time slot,
and then touch New event. A new event details screen will appear with the selected time slot and
date in the From and To fields.
11.1.3 Setting an Event Reminder
1.
On any calendar view, touch an event to view its details or an event summary.
2.
Touch the Add reminder button to add a reminder. Or touch the reminder’s “-” button to delete
an existing reminder.
3.
Touch the reminder time, and then touch the length of time before the event when you want to
be reminded. When the time comes, you will receive a notification about the event.
11.1.4 Customizing the Calendar Settings
On any calendar view, touch
. Then touch More > Settings.
41
•
Hide declined events: Select to hide events for which you have declined invitations.
•
Set alerts & notifications: Touch to set event reminders to alert you, send you a notification,
or to turn off event notifications on your mobile phone.
•
Select ringtone: Touch to select the ringtone to sound when you receive an event reminder.
•
Vibrate: Select to vibrate the mobile phone when you receive an event notification.
•
Default reminder time: Touch to select the default time before an event for event reminders
to occur.
11.2 Using the Clock
In addition to displaying the date and time, the Clock application displays information about the
weather and your phone. You can also use Clock to turn your mobile phone into an alarm clock.
11.2.1 Opening the Clock
Touch
> Clock to open the application.
Clock opens with the date and time displayed on your Home screen wallpaper, along with your
local weather and other useful information.
11.2.2 Opening the Alarms
On the Clock screen, touch
to open the Alarms.
Adding an Alarm
1.
On the alarm list screen, touch Add alarm.
2.
Set the alarm, and then touch Done.
Setting an Alarm
1.
On the alarm list screen, touch one of the alarms on the screen.
2.
Touch Time to set the time of the alarm.
3.
Touch Repeat to set the days when you want the alarm to sound.
4.
Touch Ringtone to select a ringtone for the alarm.
5.
Select the Vibrate check box to have the phone vibrate, in addition to playing the ringtone.
6.
Touch Label to enter a name for the alarm.
7.
Touch Done.
Customizing Alarm Settings
On the alarm list screen, touch
, and then touch Settings.
11.3 Using the Calculator
Use the calculator to solve simple arithmetic problems or use its advanced operators to solve more
complex equations.
11.3.1 Opening the Calculator
Touch
42
> Calculator to open the application.
11.3.2 Switching to the Advanced panel
On the Calculator screen, flick the screen to the right or left to switch between Advanced panel
and Basic panel.
11.4 Using the Note pad
Note pad features a simple text processor and lists all notes in a linear structure. You can add, edit,
and delete notes.
1.
Touch
> Note pad to open the application.
2.
Touch
, and then touch Add note to create a note.
3.
Touch
to save the note.
43
12 Managing Your Mobile Phone
To configure your mobile phone, touch
> Settings.
12.1 Setting the Date and Time
By default, your mobile phone automatically uses the date, time zone, and time provided by the
network.
■ Note:
When your mobile phone is using date and time settings provided automatically by the network,
you cannot manually set the date, time, and time zone.
1.
On the Settings screen, touch Date & time.
2.
Clear the Automatic check box.
3.
Touch Set date. On the set date screen, touch
or
to adjust the date, month, and
year, and then touch Set when the configuration is complete.
4.
Touch Select time zone, and then select the desired time zone from the list. Scroll the list to
view more time zones.
5.
Touch Set time. On the set time screen, touch
Touch Set when the configuration is complete.
6.
Select or clear the Use 24-hour format check box to switch between 24-hour format and 12hour format.
7.
Touch Select date format to select how you want the date to display on your mobile phone.
or
to adjust the hour and minute.
12.2 Setting the Display
12.2.1 Adjusting the Screen Brightness
1.
On the Settings screen, touch Display > Brightness.
2.
Drag the slider left to make the screen darker, or right to make it brighter.
3.
Touch OK to save the adjustment.
12.2.2 Adjusting the Time Before the Screen Turns Off
If your mobile phone is idle for several minutes, it will turn off the screen to save battery power. To
set a longer or shorter idle time, do the following:
1. On the Settings screen, touch Display > Screen timeout.
2.
Select the duration you want the screen to be illuminated.
12.3 Setting Ringers
12.3.1 Turning On Silent Mode
44
1.
On the Settings screen, touch Sound.
2.
Select the Silent mode check box to silence all sounds except alarms, and music and video
media sound.
12.3.2 Adjusting the Volume
You can adjust the volume from the Home screen or any application screen (except during a call
or when playing music or videos). Press the Volume keys to adjust volume to the level you desire.
You can also adjust the volume from the settings screen.
1. On the Settings screen, touch Sound > Volume.
2.
Drag the slider left to make the volume lower, or right to make it higher.
3.
Touch OK to save the adjustment.
12.3.3 Changing the Phone Ringtone
1.
On the Settings screen, touch Sound > Phone ringtone.
2.
Touch the ringtone you want to use, and then touch OK. The ringtone plays when selected.
12.3.4 Changing the Message Ringtone
1.
On the Home screen, touch
2.
In the message list, touch
> Messaging.
3.
Touch the ringtone you want to use, and then touch OK. The ringtone plays when selected.
> Settings > Select ringtone.
12.4 Setting Phone Services
12.4.1 Customizing Call Settings
You mobile phone service provider offers different services such as call forwarding, call waiting,
fixed dialing numbers, and voicemail. You can customize many of these services if they are part of
your calling plan.
On the Settings screen, touch Call settings to customize your call functions.
12.4.2 Turning on Data Roaming
1.
On the Settings screen, touch Wireless & networks > Mobile networks.
2. Select the Data roaming check box.
■ Note:
Accessing data services while roaming may incur additional charges. Ask your wireless service
provider about data roaming fees.
12.4.3 Switching off the Data Service
1.
On the Settings screen, touch Wireless & networks > Mobile networks.
2.
Clear the Data enabled check box.
12.5 Setting Text-to-Speech
Use the Text-to-Speech settings to configure the Android text-to-speech synthesizer, for
applications that can take advantage of this feature.
45
12.5.1 Installing Voice Data
1.
On the Settings screen, touch Voice input & output > Text-to-speech settings > Install
voice data.
2.
If your mobile phone does not have speech synthesizer data installed, connect to Android
Market and let it guide you through the process of downloading and installing the data.
3.
Follow the instructions to install the voice data.
12.5.2 Adjusting the Speech Rate
1.
On the Settings screen, touch Voice input & output > Text-to-speech settings > Speech
rate.
2.
Select a speed at which the text is to be spoken.
12.6 Protecting Your Mobile Phone with a Screen Lock
To keep your data more secure, lock the screen and/or require a screen unlock pattern every time
your mobile phone is turned on or wakes up from sleep mode.
1. On the Settings screen, touch Location & security > Set up screen lock > Pattern.
2.
Flicking your finger vertically, horizontally or diagonally, connect at least four dots in any order
you choose. Lift your finger from the screen when you are finished.
You must flick your finger on the screen to create the pattern, not simply touch individual dots.
3.
Your mobile phone will record the pattern. Touch Continue.
4.
When prompted, draw the screen unlock pattern again, and then touch Confirm.
To change your unlock screen pattern, touch Location & security > Change screen lock.
12.7 Managing Applications
12.7.1 Viewing an Installed Application
1.
2.
On the Settings screen, touch Applications > Manage applications.
In the applications list, do any of the following:
• Touch
, and then touch Sort by size. Then touch an application to view its details.
• Touch an application directly to view its details.
12.7.2 Removing an Installed Application
1.
On the Settings screen, touch Applications > Manage applications.
2.
Touch an application, and then touch Uninstall to remove the application from your mobile
phone.
12.7.3 Ways to Free Up Your Mobile Phone Memory
•
•
•
•
46
Move files and email attachments to the microSD card.
In Browser, clear all temporary Internet files and Browser history information.
Uninstall any downloaded programs that you no longer use.
Reset your mobile phone.
12.8 Resetting Your Mobile Phone
12.8.1 Backing Up My Data
You can use your Google account to back up your mobile phone’s settings to Google servers. If
you replace your mobile phone, the settings you have backed up will be transferred to the new
mobile phone the first time you sign in to your Google account.
1. On the Settings screen, touch Privacy.
2.
Select the Back up my data check box.
12.8.2 Restoring Factory Data
If you reset your phone to the settings that were configured at the factory, all of your personal data
stored on the phone, including information about your Google Account, any other accounts, your
system and application settings, and any applications you have downloaded will be erased.
Resetting the phone does not erase any system software updates you have downloaded or any
files on your microSD card, such as music clips or photos.
1. On the Settings screen, touch Privacy > Factory data reset.
2.
When prompted, touch Reset phone, and then touch Erase everything. The mobile phone
resets the settings to the original factory settings, and then restarts.
47
13 Appendix
13.1 FAQ
How do I set a song as phone ringtone?
Touch and hold the song to be set as ringtone, and then touch Use as phone ringtone.
How do I prevent automatic switching of orientation when rotating phone?
Touch
> Settings > Display > Auto-rotate screen to disable the function.
How do I set the unlock pattern?
Touch
> Settings > Location & security > Set up screen lock > Pattern.
How can I change the keyboard mode?
Touch and hold the area where you write text and then select the input method you prefer.
How do I stop the song playing in the background?
Touch the notification bar, flick downwards to open the notifications panel, and then touch the
music playing notification to go to the music playing screen.
How do I return to the calling screen?
While on a call, if you’re on another screen, you can touch the notification bar, and drag downwards
to open the notifications panel. Then touch the current call notification to return to the calling
screen.
How do I create an application shortcut on the Home screen?
Touch and hold an application icon on the main menu screen until the Home screen is displayed.
Then drag the icon where you want it to go and release your finger.
How do I hide the keyboard?
Touch
to hide the keyboard.
How do I forward a message?
Touch and hold a message, and then touch Forward in the menu that opens.
Why am I unable to use Navigation?
Navigation is unavailable in some countries or regions.
48
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
