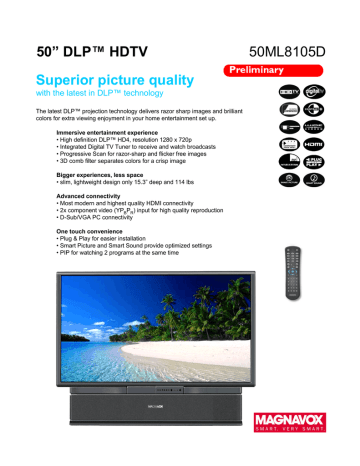

50” DLP™ HDTV
50ML8105D
Superior picture quality
with the latest in DLP™ technology
The latest DLP™ projection technology delivers razor sharp images and brilliant
colors for extra viewing enjoyment in your home entertainment set up.
Immersive entertainment experience
• High definition DLP™ HD4, resolution 1280 x 720p
• Integrated Digital TV Tuner to receive and watch broadcasts
• Progressive Scan for razor-sharp and flicker free images
• 3D comb filter separates colors for a crisp image
Bigger experiences, less space
• slim, lightweight design only 15.3” deep and 114 lbs
Advanced connectivity
• Most modern and highest quality HDMI connectivity
• 2x component video (YPBPR) input for high quality reproduction
• D-Sub/VGA PC connectivity
One touch convenience
• Plug & Play for easier installation
• Smart Picture and Smart Sound provide optimized settings
• PIP for watching 2 programs at the same time
MAGN
AV
OX
PIP
50” DLP™ HDTV
50ML8105D/17
Technical specifications
Product highlights
Picture/Display
• Aspect ratio: wide screen 16:9
• Diagonal screen size: 50”
• Display technology: Digital Light
Processing DLP™ HD4 with
Smooth Picture
• contrast ratio: 1200:1
• Picture enhancement: Progressive
Scan, 3D comb filter, 3:2 pull down
film-mode detection, Smart Picture
• Viewing angle (vertical): 120 degree
• Viewing angle (horizontal): 160 degree
Sound
• Output power (RMS): 2x 15W
• Sound enhancement: Smart
Sound
Tuner/Reception/Transmission
• TV system: NTSC, ATSC
• Aerial input: 75 Ohm F-type
• Video playback: NTSC
• Closed Caption function
Supported Display Resolution
• Computer formats: 640 x 480
60Hz, 800 x 600 60Hz, 1024 x
768 60Hz, 1280 x 720 60Hz
• Video formats: 720p 60Hz,
1080i 60Hz, 480p 60Hz,
480i 60Hz
Connectivity
• Input 1: S-Video & Composite video
+ L/R audio
• Input 2: S-Video & Composite video
+ L/R audio
• Input 3: YPBPR & Composite video
+ L/R audio
• Input 4: YPBPR & Composite video
+ L/R audio
• Input 5: HDMI
• Input 6: PC/VGA (D-Sub 15p + audio)
• Input 7 (front): S-Video & Composite
video + L/R audio
• Output (front): earphones
• RF input: ATSC/NTSC combo tuner
• SPDIF coaxial digital audio output
(ATSC only)
• Analog audio out (L/R)
Power
• Hot re-strike time: < 45s
• Power consumption: < 300W
• Standby power consumption:
< 5W
•Mains power: AC 100-240V
50-60Hz
Dimensions
• Product dimensions (WxDxH):
46.7” x 15.3” x 36.1”
• Product weight: 114 lbs
Convenience
• Local controls: front panel keypad
• Long lamp life: > 4,000 hours
• manual and OSD/menu in 2 languages:
US English and Spanish
• Picture In Picture (PIP)
• Ease of Use: Smart Sound control,
Smart Picture control
• Ease of Installation: PLL Digital Tuning
• Child Protection: Parental Control,
Child Lock
• Remote control type: RC-47SLO (RC-6)
Date of issue 2005-05-24
Preliminary
Product Owner: Pim Rosendaal
12 NC: 8670 000 22637
