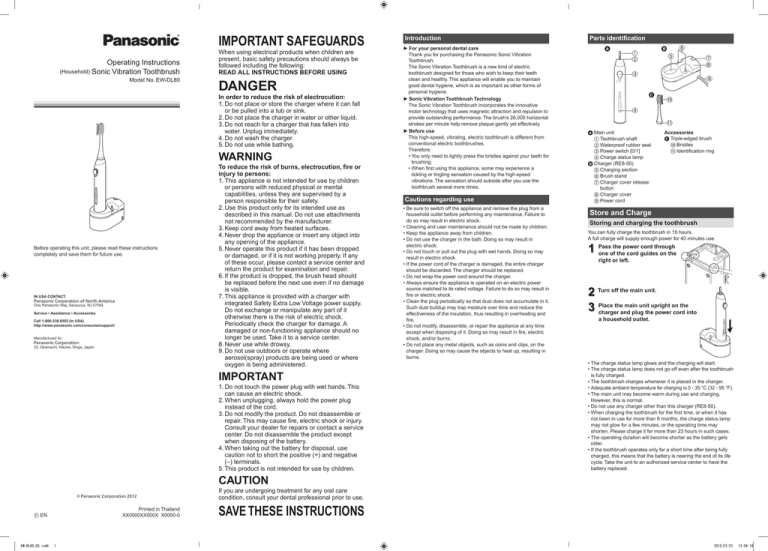

IMPORTANT SAFEGUARDS
Operating Instructions
(Household) Sonic Vibration Toothbrush
Model No. EW‑DL80
When using electrical products when children are
present, basic safety precautions should always be
followed including the following:
READ ALL INSTRUCTIONS BEFORE USING
DANGER
In order to reduce the risk of electrocution:
1.Do not place or store the charger where it can fall
or be pulled into a tub or sink.
2.Do not place the charger in water or other liquid.
3.Do not reach for a charger that has fallen into
water. Unplug immediately.
4.Do not wash the charger.
5.Do not use while bathing.
WARNING
Before operating this unit, please read these instructions
completely and save them for future use.
IN USA CONTACT:
Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
Service • Assistance • Accessories
Call 1-800-338-0552 (In USA)
http://www.panasonic.com/consumersupport/
Manufactured for
Panasonic Corporation
33, Okamachi, Hikone, Shiga, Japan
To reduce the risk of burns, electrocution, fire or
injury to persons:
1.This appliance is not intended for use by children
or persons with reduced physical or mental
capabilities, unless they are supervised by a
person responsible for their safety.
2.Use this product only for its intended use as
described in this manual. Do not use attachments
not recommended by the manufacturer.
3.Keep cord away from heated surfaces.
4.Never drop the appliance or insert any object into
any opening of the appliance.
5.Never operate this product if it has been dropped
or damaged, or if it is not working properly. If any
of these occur, please contact a service center and
return the product for examination and repair.
6.If the product is dropped, the brush head should
be replaced before the next use even if no damage
is visible.
7.This appliance is provided with a charger with
integrated Safety Extra Low Voltage power supply.
Do not exchange or manipulate any part of it
otherwise there is the risk of electric shock.
Periodically check the charger for damage. A
damaged or non-functioning appliance should no
longer be used. Take it to a service center.
8.Never use while drowsy.
9.Do not use outdoors or operate where
aerosol(spray) products are being used or where
oxygen is being administered.
IMPORTANT
1.Do not touch the power plug with wet hands. This
can cause an electric shock.
2.When unplugging, always hold the power plug
instead of the cord.
3.Do not modify the product. Do not disassemble or
repair. This may cause fire, electric shock or injury.
Consult your dealer for repairs or contact a service
center. Do not disassemble the product except
when disposing of the battery.
4.When taking out the battery for disposal, use
caution not to short the positive (+) and negative
(–) terminals.
5.This product is not intended for use by children.
Introduction
►For your personal dental care
Thank you for purchasing the Panasonic Sonic Vibration
Toothbrush.
The Sonic Vibration Toothbrush is a new kind of electric
toothbrush designed for those who wish to keep their teeth
clean and healthy. This appliance will enable you to maintain
good dental hygiene, which is as important as other forms of
personal hygiene.
►Sonic Vibration Toothbrush Technology
The Sonic Vibration Toothbrush incorporates the innovative
motor technology that uses magnetic attraction and repulsion to
provide outstanding performance. The brush’s 26,000 horizontal
strokes per minute help remove plaque gently yet effectively.
►Before use
This high‑speed, vibrating, electric toothbrush is different from
conventional electric toothbrushes.
Therefore:
•You only need to lightly press the bristles against your teeth for
brushing.
•When first using this appliance, some may experience a
tickling or tingling sensation caused by the high‑speed
vibrations. The sensation should subside after you use the
toothbrush several more times.
Cautions regarding use
•Be sure to switch off the appliance and remove the plug from a
household outlet before performing any maintenance. Failure to
do so may result in electric shock.
•Cleaning and user maintenance should not be made by children.
•Keep the appliance away from children.
•Do not use the charger in the bath. Doing so may result in
electric shock.
•Do not touch or pull out the plug with wet hands. Doing so may
result in electric shock.
•If the power cord of the charger is damaged, the entire charger
should be discarded. The charger should be replaced.
•Do not wrap the power cord around the charger.
•Always ensure the appliance is operated on an electric power
source matched to its rated voltage. Failure to do so may result in
fire or electric shock.
•Clean the plug periodically so that dust does not accumulate in it.
Such dust buildup may trap moisture over time and reduce the
effectiveness of the insulation, thus resulting in overheating and
fire.
•Do not modify, disassemble, or repair the appliance at any time
except when disposing of it. Doing so may result in fire, electric
shock, and/or burns.
•Do not place any metal objects, such as coins and clips, on the
charger. Doing so may cause the objects to heat up, resulting in
burns.
Parts identification














AMain unit
1Toothbrush shaft
2Waterproof rubber seal
3Power switch [0/1]
4Charge status lamp
BCharger (RE8‑50)
5Charging section
6Brush stand
7Charger cover release
button
8Charger cover
9Power cord
Accessories
CTriple‑edged brush
:Bristles
;Identification ring
Store and Charge
Storing and charging the toothbrush
You can fully charge the toothbrush in 15 hours.
A full charge will supply enough power for 40 minutes use.
the power cord through
1 Pass
one of the cord guides on the
right or left.
2 Turn off the main unit.
the main unit upright on the
3 Place
charger and plug the power cord into
a household outlet.
•The charge status lamp glows and the charging will start.
•The charge status lamp does not go off even after the toothbrush
is fully charged.
•The toothbrush charges whenever it is placed in the charger.
•Adequate ambient temperature for charging is 0 ‑ 35 °C (32 ‑ 95 °F).
•The main unit may become warm during use and charging.
However, this is normal.
•Do not use any charger other than this charger (RE8‑50).
•When charging the toothbrush for the first time, or when it has
not been in use for more than 6 months, the charge status lamp
may not glow for a few minutes, or the operating time may
shorten. Please charge it for more than 23 hours in such cases.
•The operating duration will become shorter as the battery gets
older.
•If the toothbrush operates only for a short time after being fully
charged, this means that the battery is nearing the end of its life
cycle. Take the unit to an authorized service center to have the
battery replaced.
CAUTION
© Panasonic Corporation 2012
Printed in Thailand
XX0000XX000X X0000-0
F EN
EW-DL80_US.indb
1
If you are undergoing treatment for any oral care
condition, consult your dental professional prior to use.
SAVE THESE INSTRUCTIONS
2012/07/23
13:04:18
►Mounting the charger to the wall
1.Attach two screws to
the wall as illustrated.
2.5mm
•Please be careful as
28mm
to not drill a cable or
water pipe in the wall.
►Brush the back of teeth or where teeth are not straight
Brush vertically.
Move the toothbrush to match the angle of teeth.
After use
•Screws and anchors are sold separately. Use no. 6 by 1 in.
round head screws when fixing to wood; or no. 4‑6 Molly or
Anchor bolts when fixing to Sheet rock.
2.Hook the charger onto these screws.
3.Plug the power cord into a household outlet.
Cleaning the main unit and the brush head
►Main unit
1.Turn off the main unit.
2.Remove the brush head from the main unit.
3.Wash the main unit under running water.
•Do not rub or damage the waterproof rubber
seal.
•Do not immerse the main unit under water.
•Do not wash with water hotter than 40 ˚C
(104 ˚F).
Use
Using the toothbrush
the brush head firmly
1 Place
onto the toothbrush shaft.
►Brush head
1.Turn off the main unit.
2.Remove the brush head from the main unit.
•There will be a small gap between
the brush head and the main unit.
the toothbrush in your
2 Place
mouth before turning it on.
•Apply a small amount of toothpaste
to the brush head, if desired, before
turning the power on to prevent the
toothpaste from spattering.
Removing the Ni‑MH battery before disposing of the product
WARNING
Do not disassemble the product at any time other than when
disposing of it. Failure to observe this point may result in short
circuit, fire, or injury.
For repair or maintenance (such as battery replacement), take
the product to an authorized service center.
ATTENTION:
A nickel metal hydride battery that is recyclable powers the
product you have purchased. Please call 1-800-8-BATTERY for
information on how to recycle this battery.
•Before removing the battery, be sure to completely drain the unit
of power.
•Use a screwdriver to loosen the screw on the bottom of the
product.
•Perform steps 1 to 7, and then remove the battery.
•Be careful not to short-circuit the negative and positive poles of
the battery.


the power switch to “1” position to
3 Turn
turn on the main unit.
3.Wash the brush head under running water.
•Shake well to remove water after washing.
•Do not pull the bristles of the brush head.
•Do not wash with water hotter than 80 ˚C
(176 ˚F).
•Do not shake the main unit strongly with the
brush head attached.
off the main unit when you have finished
4 Turn
brushing.
•Turn off the main unit before removing it from your mouth to
prevent foam from spattering.
►Precaution
•When you first begin using the toothbrush, you may
experience slight bleeding of the gums even though your gums
may be healthy. This is because your gums are receiving
stimulation by the toothbrush for the first time. The bleeding
should stop after one or two weeks of use. Bleeding that
persists for more than two weeks may be indication of an
abnormal condition of your gums, such as pyorrhea. In this
case, stop using the toothbrush and consult your dentist.
•Recommended ambient temperature for using is 0 ‑ 35 °C
(32 ‑ 95 °F).
•Do not allow hair products (e.g., gel or oil) or hand lotion to
come in contact with the unit as they may damage its surface.
Tips on usage
►Triple‑edged brush
Brush carefully between teeth or around teeth that
are not straight.
Place the bristles of the brush gently against your
teeth.
►Front teeth, and between teeth and gums
Place the bristles at 45˚.
►Brush the chewing surface of teeth
Brush at a 90˚ angle.
►After washing with water
1.Wipe dry with a cloth.
•Do not charge while it is wet.
2.Return the main unit and the brush head to the
charger.
•It is recommended to place the brush head
facing toward the back of the charger when
placing the brush head on the charger.


Specifications
Changing the brush head (Sold separately)
Replacing the brush head every 3 months is recommended.
If the bristles are bent to one side or worn, the toothbrush is not
effective for brushing. Replace the brush head with a new one.
WEW0927
After use

Related voltage:
See the name plate on the product.
(Automatic voltage conversion)
Battery: 1 Ni‑MH battery (1.2 V ; 1100 mAh)
Charging time: approx. 15 hours
Part number
►If the identification ring comes off
Put the identification ring back on.
•Do not forcibly pull the identification ring
since it can break easily.
•Using the toothbrush without the
identification ring has no effect on its
performance. The ring is simply for user
identification purposes.


Replacement Brush for EW‑DL80
Quantity
Triple‑edged
brush
3
Silicon brush *1
1
Point brush *2
1
V‑shaped brush
3
WEW0933
WEW0911
*1 Silicon rubber provides gums with gentle and comfortable
stimulation.
*2 The conical brush-end easily reaches between teeth and
cleans the misaligned-tooth area.
Maintenance
45˚
►Charger
1.Pull the charger cover while pressing
the charger cover release button.
2.Wipe off any dirt on the charger and
the charger cover using a soft cloth.
3.Wipe the prongs of the plug with a dry
cloth about once every 6 months.
FOR YOUR CONVENIENCE, WE HAVE ESTABLISHED A
TOLL‑FREE (IN USA ONLY) NATIONAL ACCESSORY
PURCHASE HOT LINE AT 1-800-332-5368.
EW-DL80_US.indb
2
2012/07/23
13:04:21
Download PDF

advertising
