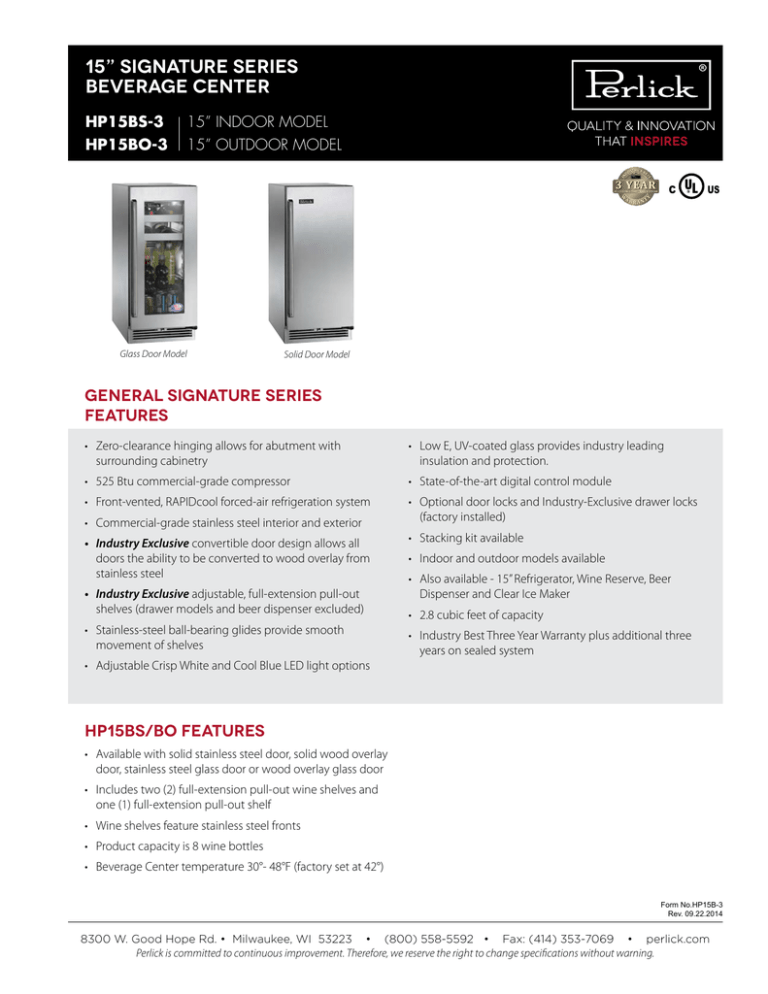

15” signature series
beverage center
HP15BS-3
HP15BO-3
15” Indoor Model
15” Outdoor model
C
Glass Door Model
US
Solid Door Model
general signature series
features
• Zero-clearance hinging allows for abutment with
surrounding cabinetry
• Low E, UV-coated glass provides industry leading
insulation and protection.
• 525 Btu commercial-grade compressor
• State-of-the-art digital control module
• Front-vented, RAPIDcool forced-air refrigeration system
• Optional door locks and Industry-Exclusive drawer locks
(factory installed)
• Commercial-grade stainless steel interior and exterior
• Industry Exclusive convertible door design allows all
doors the ability to be converted to wood overlay from
stainless steel
• Industry Exclusive adjustable, full-extension pull-out
shelves (drawer models and beer dispenser excluded)
• Stainless-steel ball-bearing glides provide smooth
movement of shelves
• Stacking kit available
• Indoor and outdoor models available
• Also available - 15” Refrigerator, Wine Reserve, Beer
Dispenser and Clear Ice Maker
• 2.8 cubic feet of capacity
• Industry Best Three Year Warranty plus additional three
years on sealed system
• Adjustable Crisp White and Cool Blue LED light options
HP15BS/BO features
• Available with solid stainless steel door, solid wood overlay
door, stainless steel glass door or wood overlay glass door
• Includes two (2) full-extension pull-out wine shelves and
one (1) full-extension pull-out shelf
• Wine shelves feature stainless steel fronts
• Product capacity is 8 wine bottles
• Beverage Center temperature 30°- 48°F (factory set at 42°)
Form No.HP15B-3
Rev. 09.22.2014
8300 W. Good Hope Rd. • Milwaukee, WI 53223 • (800) 558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without warning.
product specifications
indoor models
Overall Width
14-7/8” (37.78 cm)
HP15BS-3-1L*
Solid stainless steel door, hinge left
Overall Height
34-1/4” (86.96 cm)
HP15BS-3-2L*
Solid wood overlay door, hinge left
Overall Depth
24” (60.96 cm.)
HP15BS-3-3L*
Stainless steel glass door, hinge left
Opening Width
15” (38.1 cm.)
HP15BS-3-4L*
Wood overlay glass door, hinge left
Opening Height
34-3/8” (87.31 cm.)
Opening Depth
24” (60.96 cm.)
Refrigerated Volume
2.8 cu. ft.
HP15BO-3-1L*
Solid stainless steel door, hinge left
Door Swing Clearance
16” (40.64 cm) minimum
HP15BO-3-2L*
Solid wood overlay door, hinge left
Electrical
115V, 60Hz., 1 Phase, 2.3 amps
HP15BO-3-3L*
Stainless steel glass door, hinge left
Plumbing
None Required
HP15BO-3-4L*
Wood overlay glass door, hinge left
Shipping Weight
150 lbs (68.04 kg)
Annual Energy Usage
280 kWh/yr
outdoor models
* Also available hinge right
Signature Series HP15 Models
50" Area in which
electrical outlet must be located
1
5 16"
Power cord 65/8" off floor.*
1
6 4"
1
*  Leg leveler can add
3/4" to these dimensions
when fully extended.
3
11"
1 4" Min.
clearance from
a corner to
acheive 90
door swing.
7
18 16"
11 8"
90° Swing
required for
pullout shelf
clearance.
15
15 16"
Min clearance
for door swing
7
25 16" Values may change
due to custom pull
with a wood overlay door.
24"
(with 1/16" tolerance)
7
14 8"
5
1 8"
3
21 8"
3
15
1 16"
11"
9
26 16"
1
1
*34 4"
9
26 16"
15
18 16"
5
1 8"
1 16"
3
21 8"
2" Shelf
adjustability.
1
3 2"
3 2"
4 1/4" Lowest
shelf location.
*3 7/8"
PERLICK CORPORATION
MILWAUKEE, WI 53223
7
11 8"
1
6 4"
PRIN
PROPERTY OF THE PERLICK CORP.
NOT TO BE COPIED OR USED DETRIMENTAL TO OUR INTERESTS
000\95004.slddrw
4/12/2012
Form No.HP15B-3
Rev. 09.22.2014
8300 W. Good Hope Rd. • Milwaukee, WI 53223 • (800) 558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without warning.
