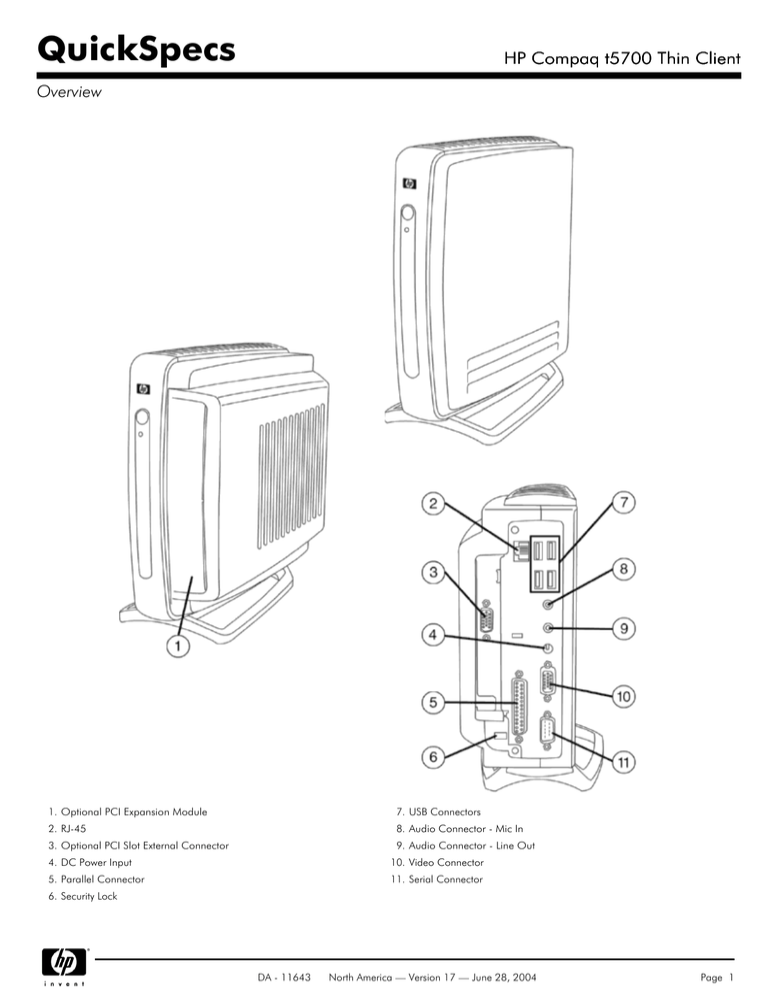

QuickSpecs
HP Compaq t5700 Thin Client
Overview
1. Optional PCI Expansion Module
7. USB Connectors
2. RJ-45
8. Audio Connector - Mic In
3. Optional PCI Slot External Connector
9. Audio Connector - Line Out
4. DC Power Input
10. Video Connector
5. Parallel Connector
11. Serial Connector
6. Security Lock
DA - 11643
North America — Version 17 — June 28, 2004
Page 1
QuickSpecs
HP Compaq t5700 Thin Client
Overview
At A Glance
Simplified IT management for the enterprise.
Desktop-like features at compelling prices
Lower ownership costs and increased resource efficiency for each end-user.
Legacy support
Up to 1 GHz processor
Powerful, discrete graphics
Support for up to 512 MB of DDR memory
Optional PCI Expansion Module
Broad range of support for options and peripherals
Microsoft® Windows® XP Embedded operating system
Protected by Hewlett-Packard Services, including a limited three-year mail-in warranty – certain restrictions and exclusions apply.
DA - 11643
North America — Version 17 — June 28, 2004
Page 2
QuickSpecs
HP Compaq t5700 Thin Client
Standard Features - Models
DC640A#ABA
DC639A#ABA
DS435A#ABA
Processor
Transmeta Crusoe TM5800 1.0 GHz
Flash (ROM)
192 MB
Memory
256 MB (NOTE:
NOTE: 16 MB of system RAM is reserved for processor usage.)
PCI Expansion
Optional
Operating System
Windows XP Embedded Service Pack 1
Browser
Internet Explorer 6.0
Client Management
Software
Altiris Deployment Solution 5.6
Terminal Personalities
Standard
Yes
Processor
Transmeta Crusoe TM5800 1.0 GHz
Flash (ROM)
256 MB
Memory
256 MB (NOTE:
NOTE: 16 MB of system RAM is reserved for processor usage.)
PCI Expansion
Optional
Operating System
Windows XP Embedded Service Pack 1
Browser
Internet Explorer 6.0
Client Management
Software
Altiris Deployment Solution 5.6
Terminal Personalities
Standard
Yes
Processor
Transmeta Crusoe TM5800 733 MHz
Flash (ROM)
192 MB
Memory
256 MB (NOTE:
NOTE: 16 MB of system RAM is reserved for processor usage.)
PCI Expansion
Optional
Operating System
Windows XP Embedded Service Pack 1
Browser
Internet Explorer 6.0
Client Management
Software
Altiris Deployment Solution 5.6
Terminal Personalities
Standard
Yes
DA - 11643
North America — Version 17 — June 28, 2004
Page 3
QuickSpecs
HP Compaq t5700 Thin Client
Options
Monitors
Memory
HP L1502 15-inch TFT Flat Panel Monitor – Analog only
P9617D#ABA
HP L1702 17-inch TFT Flat Panel Monitor – Analog only
P9621D#ABA
HP L1530 15-inch TFT Flat Panel Monitor – Analog/Digital & Multimedia
P9624A#ABA
HP L1730 17-inch TFT Flat Panel Display – Analog/Digital & Multimedia
P9625A#ABA
HP L1925 19-inch TFT Flat Panel Display – Analog/Digital
P9626A#ABA
HP L2035 20-inch TFT Flat Panel Display
P9614A#ABA
HP v7550 17-inch (16.0-inch vis) Flat-face CRT Monitor
P9013A#ABA
HP s9500 19-inch (18.0-inch vis) CRT Monitor
P9010A#ABA
HP s7500 17-inch (16.0-inch vis) CRT Monitor
P9008A#ABA
HP s5500 15-inch (13.8-inch vis) CRT Monitor
P9006A#ABA
HP p930 19-inch (18.0-inch vis) Performance Natural-flat CRT Monitor
P9009D#ABA
3000 Series Elo Entuitive 1725C 17-inch CRT Touchmonitor (USB) (http://www.elotouch.com)**
ET1725C-4UWE-3
3000 Series Elo Entuitive 1525L 15-inch LCD Desktop Touchmonitor (USB)
(http://www.elotouch.com)**
ET1525L-BUWC-1
HP 512-MB DDR SDRAM Memory Module
512-MB Flash Module from Apacer (http://www.apacer.com/private/orderform/region.htm)**
Security
Compaq Security Lock
Reflex USB V2 Smart Card Reader from Schlumberger
(http://www.scmegastore.com/home.html)**
Communications
BTU-200-ML5-300
301036
HP 128-MB Disk on Key
DC190B
HP 256-MB Disk on Key
DL973B
Compaq External MultiBay
217388-001;
DC373A
Compaq MultiBay 1.44-MB Diskette Drive (requires External MultiBay)
226935-B25;
DC362A
Compaq MultiBay 60-GB Hard Drive (requires External MultiBay)
278420-B25;
DC894A
Compaq MultiBay 24X CD-ROM Drive (requires External MultiBay)
298452-B25;
DC351A
HP PCI Expansion Module with Riser Card (supports single PCI device, sold separately)
DE961A
HP WL220 Wireless PCI Adapter (requires PCI Expansion Module)
DC756B
Lucent V.90 56k PCI Win Modem from HP (requires PCI Expansion Module)
Zoom 2985 USB V.90 External Modem from Zoom (http://www.zoom.com)**
Zoom 2920 56K PCI Modem from Zoom (http://www.zoom.com)**
Zoom 3049 External Serial High Speed 56K modem from Zoom (http://www.zoom.com)**
Graphics
AP-FM512-MM002-A
294316-B21;
DC368A
Identix BioTouch USB 200 Fingerprint Scanner (http://www.identix.com)**
Storage
DG961A
239137-xxx
2985-00-00L
2920-00-00
3049-00-00C
High-speed 100/16/4 Token-Ring PCI Management Adapter from IBM
(http://www.networking.ibm.com)** (requires PCI Expansion Module)
34L5201
NVIDIA Quadro4 100 NVS from HP (requires PCI Expansion Module)
DC664A
DA - 11643
North America — Version 17 — June 28, 2004
Page 4
QuickSpecs
HP Compaq t5700 Thin Client
Options
Connectivity
HP Wireless USB Mouse and Keyboard
301-1001-11
Edgeport/2 USB to 2 port Serial Cable from Inside Out Networks (http://www.ionetworks.com)**
301-1000-02
Edgeport/4 USB to 4 port Serial Cable from Inside Out Networks (http://www.ionetworks.com)**
301-1000-04
Targus Ultra Mini 4-port USB Hub from Targus (http://www.targus.com)**
USB to Parallel Printer Cable (6 ft/1.8 m) from Inside Out Networks (http://www.ionetworks.com)**
Printers
Miscellaneous
300403-008
Edgeport/1 USB to 1 port Serial Cable from Inside Out Networks (http://www.ionetworks.com)**
HP DeskJet 5550 (USB and parallel)
PA055U
301-9006-01
C6487C
HP DeskJet 6122 (USB and parallel)
C8954B
HP LaserJet 1200SE (USB and parallel)
C7047A
HP DeskJet 3820 (USB and parallel)
C8952A
HP 1394 FireWire PCI Card (requires PCI Expansion Module)
DE471A
Mounting Bracket
DY928A
Care Packs (not available in 9x5 Next-Business-Day Advanced Exchange - 3 Years
all countries)
331653-001;
U4847E
9x5 Next-Business-Day On-Site Coverage - 3 Years
331655-001;
U4849E
Hardware Installation
331686-001;
U4865E
Hardware Installation (2 or more)
331687-001;
U4866E
**The warranties for HP or Compaq branded products are set forth in the express limited warranty
statements accompanying such products. Although these third-party products may work effectively on
HP or Compaq thin clients, HP does not support or warrant third-party products, including the
interoperability of such products with HP or Compaq thin clients. However, third-party manufacturers
and vendors may provide their own warranties and support directly to you. Please contact the
manufacturers and vendors listed previously for support on their products.
DA - 11643
North America — Version 17 — June 28, 2004
Page 5
QuickSpecs
HP Compaq t5700 Thin Client
Memory
DDR SDRAM DIMM Non-ECC Memory
Possible Memory Configurations
Flash ROM
192 MB
192 MB
256 MB
256 MB
512 MB
512 MB
Memory Slot (DDR SDRAM)
256 MB
512 MB
256 MB
512 MB
256 MB
512 MB
512-MB Flash Module from Apacer (http://www.apacer.com/private/orderform/region.htm)
HP 512-MB DDR Memory Module
AP-FM512-MM002-A
DG961A
NOTE: 16 MB of system RAM is reserved for processor usage.
DA - 11643
North America — Version 17 — June 28, 2004
Page 6
QuickSpecs
HP Compaq t5700 Thin Client
TechSpecs
Processor
Transmeta Crusoe TM5800 1.0 GHz or 733 MHz
Memory
Flash ROM
192 MB or 256 MB standard, 512 MB optional
Memory Slot
256-MB DDR SDRAM standard, optional 512-MB DDR SDRAM maximum (NOTE:
NOTE: 16
MB of system RAM is reserved for processor usage.)
Graphics
Input/Output/
Peripheral Support
Audio
ATI Rage XC with 8-MB SDRAM discrete graphics memory, VESA monitor support; scalable video up to 1280 x 1024 with 8,
16, or 32-bit color or 1600 x 1200 with 8, 16, or 24-bit color; refresh rates of 60 Hz, 75 Hz, and 85 Hz
Mode
Refresh Rates
Color Depth
640 x 480
60, 72, 75, 90, or 100 Hz
8, 16, 24, or 32-bit
800 x 600
60, 70, 75, 90, or 100 Hz
8, 16, 24, or 32-bit
1024 x 768
60, 72, 75, 90, or 100 Hz
8, 16, 24, or 32-bit
1280 x 1024
43, 60, or 70 Hz
8, 16, 24, or 32-bit
1600 x 1200
60, 66, 76, or 85 Hz
8 or 16-bit
Keyboard
Enhanced USB with Windows keys (104 keys) included
Mouse
Scroll USB mouse included
Printer
Local and/or network printers
Video
VGA-type video output (DB-15)
Output
1/8-inch mini, full 16-bit stereo, 44-kHz sample rate
Input
1/8-inch mini microphone
Security
Security lock slot (cable lock sold separately)
Communications
Integrated Microsoft RDP 5.2 and Citrix ICA 7.0 (for local device configuration, such as printers). Terminal personalities
standard
Remote dial-up via optional external modem or PCI modem
Networking
TCP/IP with DNS and DHCP for easier addressing
10/100 BaseT Fast Ethernet, twisted pair (RJ-45)
Point-to-Point Protocol (PPP), Direct Connection through RS-232, Point-to-Point over Ethernet (PPPoE), Point-to-Point
Tunneling Protocol (PPTP), Layer-2 Tunneling Protocol (L2TP), Wake on LAN (WOL), PXE
Multiple master browser support on ICA
Supports Citrix load balancing on ICA
SNMP support allows configuration of terminal settings, reporting of terminal configuration and attached devices, and
traps
I/O ports and connectors Four USB 1.1 ports, 1 serial, 1 parallel, RJ-45, 1 optional PCI
Resident Operating
System
Microsoft Windows XP Embedded Service Pack 1
Server OS
Compatibility/Support
Microsoft Windows NT Server 4.0, Windows NT Server 4.0 Terminal Services, Windows 2000 Server, Windows 2000 Server
Terminal Services, Windows 2000 Advance Server, Windows 2000 Advance Server Terminal Services, and Citrix MetaFrame
(thin-client/server solution, built for Microsoft Windows NT 4.0, Windows 2000 Server, and Windows 2000 Advanced Server
Terminal Services)
Software Included
Microsoft Windows XP Embedded preinstalled
Microsoft Internet Explorer 6.0 preinstalled
Altiris Deployment Solution 5.6 (client agent) preinstalled. Altiris Deployment Solution 5.6 (management console) available
as free download from Altiris at: http://www.altiris.com/hptc
Languages
English
Dimensions H x W x D
(approximate)
Without stand
2.2 x 8.2 x 7.8 in (55 x 205 x 195 mm)
With stand
9.2 x 4 x 7.8 in (230 x 100 x 195 mm)
With optional PCI
Expansion Module and
without stand
3.2 x 8.2 x 8.28 in (80 x 205 x 207 mm)
With optional PCI
Expansion Module and
stand
9.2 x 4.2 x 8.28 in (230 x 105 x 207 mm)
With stand
3.07 lb (1.39 kg)
With optional PCI
Expansion Module and
stand
3.29 lb (1.49 kg)
Weight (approximate)
DA - 11643
North America — Version 17 — June 28, 2004
Page 7
QuickSpecs
HP Compaq t5700 Thin Client
TechSpecs
Environmental
Regulatory Compliance
Warranty
Temperature range on
32° to 104° F (0° to 40° C)
Temperature range off
-40° to 140° F (-40° to 60° C)
Humidity
20% to 80% condensing/10% to 95% non-condensing
Power
Worldwide auto-sensing 100-240 VAC, 50-60 Hz energy-saving automatic power-down
Ergonomics
German ZH1/618; EN29241-3, approved
Safety
UL 1950, CSA 950; TÜV-GS (EN60 950) approved
RF Interference
FCC Class B; CE Mark; EN55022B; VCCI
Three-year limited warranty through mail-in
NOTE: Certain restrictions apply. Consult the HP Customer Support Center for details.
Emulations and Terminal Emulation
IDs Supported
ADDS A2
Terminal ID
AIXTerm
ANSI BBS
AT 386
DG 410/412
HP 700-92/96
70092, 70094, 70096, 2392A, 2622A
HZ1500
IBM3151
Mod11, Mod31
IBM3270
3278-2 (24x80), 3278-3 (32x80), 3278-4 (43x80), 3278-5 (27x132),
3278-2-E (24x80), 3278-3-E (32x80), 3278-4-E (43x80), 3278-5-E (27x132), 3279-2
(24x80), 3279-3 (32x80), 3279-4 (43x80), 3279-5 (27x132), 3287-1
IBM5250
5291-1, 5292-2, 5251-11, 3179-2, 3196-A1, 3180-2, 3477-FC (27x132), 3477-FG
(24x80), 3486-BA, 3487-HA, 3487-HC, 3812-1
SCO Console
TA6530
TVI910
TVI920
TVI925
TVI950
TVI955
VT52
VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240, VT320, VT340,
VT420, VT510, VT520, VT525
VT100
VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240, VT320, VT340,
VT420, VT510, VT520, VT525
VT500 7-bit
VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240, VT320, VT340,
VT420, VT510, VT520, VT525
VT500 8-bit
VT100, VT101, VT102, VT125, VT131, VT132, M2200, VT220, VT240, VT320, VT340,
VT420, VT510, VT520, VT525
VT PCTerm
Wyse PCTerm
WY50
WY50+
WY60
©Copyright 2004 Hewlett-Packard Development Company, L.P.
Microsoft, Windows, and Windows NT are trademarks and/or registered trademarks of Microsoft Corporation in the United States and other countries.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind. The warranties for HP products and
services are set forth in the express limited warranty statements accompanying such products and services. Nothing herein should be construed as constituting
an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
DA - 11643
North America — Version 17 — June 28, 2004
Page 8

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
