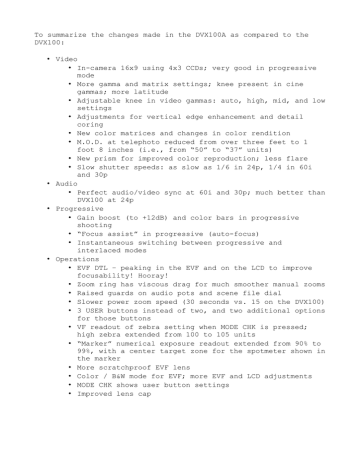

To summarize the changes made in the DVX100A as compared to

To summarize the changes made in the DVX100A as compared to
To summarize the changes made in the DVX100A as compared to the
• Video
• In-camera 16x9 using 4x3 CCDs; very good in progressive
• More gamma and matrix settings; knee present in cine
gammas; more latitude
• Adjustable knee in video gammas: auto, high, mid, and low
• Adjustments for vertical edge enhancement and detail
• New color matrices and changes in color rendition
• M.O.D. at telephoto reduced from over three feet to 1
foot 8 inches (i.e., from “50” to “37” units)
• New prism for improved color reproduction; less flare
• Slow shutter speeds: as slow as 1/6 in 24p, 1/4 in 60i
and 30p
• Audio
• Perfect audio/video sync at 60i and 30p; much better than
DVX100 at 24p
• Progressive
• Gain boost (to +12dB) and color bars in progressive
• “Focus assist” in progressive (auto-focus)
• Instantaneous switching between progressive and
interlaced modes
• Operations
• EVF DTL – peaking in the EVF and on the LCD to improve
focusability! Hooray!
• Zoom ring has viscous drag for much smoother manual zooms
• Raised guards on audio pots and scene file dial
• Slower power zoom speed (30 seconds vs. 15 on the DVX100)
• 3 USER buttons instead of two, and two additional options
for those buttons
• VF readout of zebra setting when MODE CHK is pressed;
high zebra extended from 100 to 105 units
• “Marker” numerical exposure readout extended from 90% to
99%, with a center target zone for the spotmeter shown in
the marker
• More scratchproof EVF lens
• Color / B&W mode for EVF; more EVF and LCD adjustments
• MODE CHK shows user button settings
• Improved lens cap
