-L
TDK
m
o
r
ew F
N
da
b
m
a
in
40 0W
1U
2

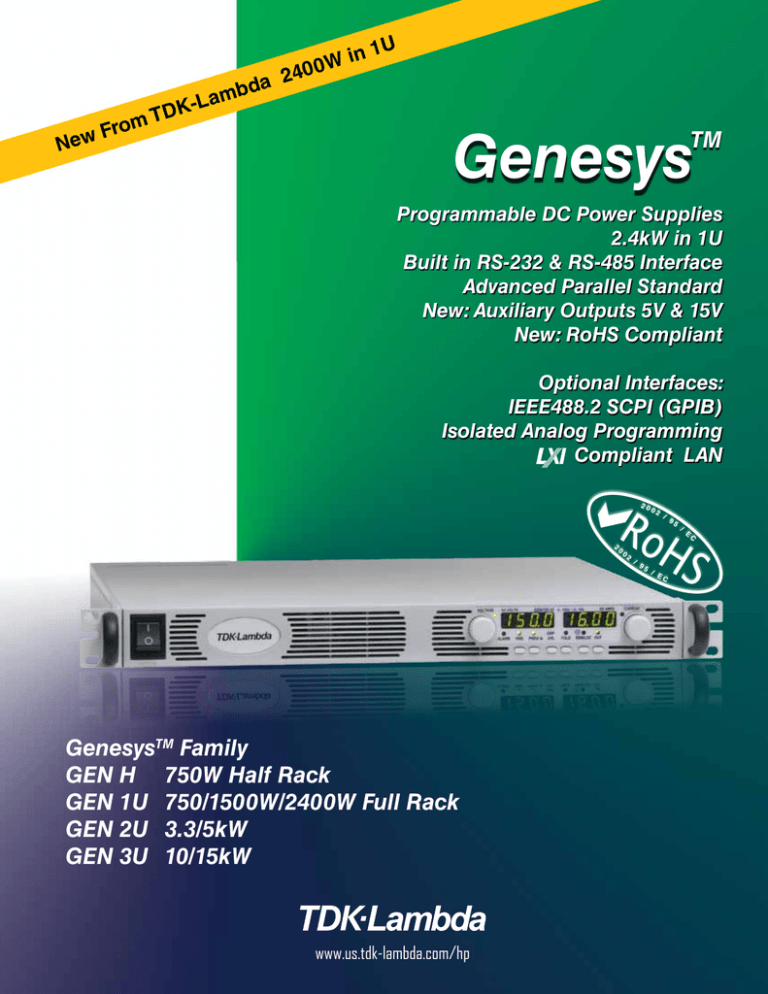

Genesys
TM
Programmable DC Power Supplies
2.4kW in 1U
Built in RS-232 & RS-485 Interface
Advanced Parallel Standard
New: Auxiliary Outputs 5V & 15V
New: RoHS Compliant
Optional Interfaces:
IEEE488.2 SCPI (GPIB)
Isolated Analog Programming
Compliant LAN
Ro
20
2
GenesysTM Family
GEN H 750W Half Rack
GEN 1U 750/1500W/2400W Full Rack
GEN 2U 3.3/5kW
GEN 3U 10/15kW
www.us.tdk-lambda.com/hp
0
02
/
95
02
/
HS
/ E
C
95
/
E
C
The GenesysTM family of programmable power supplies sets a new standard for flexible, reliable, AC/DC
power systems in OEM, Industrial and Laboratory applications.
Features include:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
New: Auxiliary Outputs, 5V, 0.2A; 15V, 0.2A For Increased System Control Functionality
New: RoHS Compliant
High Power Density 2.4kW in 1U
Wide Range of popular worldwide AC inputs, 1Ø (230VAC) & 3Ø (208VAC)
Active Power Factor Correction (Single-Phase & Three-Phase AC Input)
Output Voltage up to 600V, Current up to 300A
Built-in RS-232/RS-485 Interface Standard
Global Commands for Serial RS-232/RS-485 Interface
Auto-Re-Start / Safe-Start: user selectable
Last-Setting Memory
High Resolution 16 bit ADCs & DACs
Low Ripple & Noise
Front Panel Lock selectable from Front Panel or Software
Reliable Encoders for Voltage and Current Adjustment
Constant Voltage/Constant Current auto-crossover
Parallel Operation with Active Current Sharing; up to four identical units.
Advanced Parallel Master / Slave. Total Current is Programmed and Measured via the Master.
Independent Remote ON/OFF and Remote Enable/Disable
External Analog Programming and Monitoring (user selectable 0-5V & 0-10V)
Reliable Modular and SMT Design
19” Rack Mount capability for ATE and OEM applications
Optional Interfaces
Isolated Analog Programming and Monitoring Interface (0-5V/0-10V & 4-20mA)
IEEE 488.2 SCPI (GPIB) Multi-Drop
Compliant LAN
USB Interface
• LabView and LabWindowsTM drivers
• Five Year Warranty
Applications
GenesysTM power supplies have been designed to meet the demands of a wide variety of applications. System Designers will appreciate new, standard, remote programming features such as Global commands. Also, new high-speed
status monitoring is available for the RS-485 bus.
Test Systems using the IEEE-488 bus may achieve significant cost savings by incorporating the Optional IEEE MultiDrop Interface for a Master and up to 30 RS-485 Multi-Drop Slaves. Then up to 30 Slaves may be equipped with the less
expensive Optional RS-485 Multi-Drop (MD) interface.
Higher power systems can be configured with up to four 2.4kW modules. Each module is 1U with zero space
between them (zero stack).
Flexible configuration is provided by the complete GenesysTM Family: 1U 750W Half-Rack,
1U 750W/1500W/2400W 2U 3.3kW/5kW, 3U 10/15kW Full-Rack. All are identical in Front Panel, Rear Panel Analog, and
all Digital Interface Commands.
OEM Designers have a wide variety of Inputs and Outputs from which to select depending on application and
location.
1 GenesysTM 2.4kW 1U
Front Panel Description
1
4
3
6
5
2
7
8
1. ON/OFF Switch
2. Air Intake allows zero stacking for maximum system flexibility and power density.
3. Reliable encoder controls Output Voltage, Address, OVP and UVL settings.
4. Volt Display shows Output Voltage and directly displays OVP, UVL and Address settings.
5. Reliable encoder controls Output Current, sets Baud rate and Advanced Parallel mode.
6. Current Display shows Output Current and displays Baud rate. Displays total current in Parallel Master/Slave Mode
7. Function/Status LEDs:
• Alarm
• Fine Control
• Preview Settings
• Foldback Mode
• Remote Mode
• Output On
8. Pushbuttons allow flexible user configuration
• Coarse and Fine adjustment of Output Voltage/Current and Advanced Parallel Master or Slave
• Preview settings and set Voltage/Current with Output OFF, Front Panel Lock
• Parallel Master/Slave
• Set OVP and UVL Limits
• Set Current Foldback Protection
• Go to Local Mode and select Address and Baud rate
• Output ON/OFF and Auto/Safe Re-Start Mode
Rear Panel Description
9
1
2
3
4,5
6
10
7
8
1. Remote/Local Output Voltage Sense Connections.
2. DIP Switches select 0-5V or 0-10V Programming and other functions.
3. DB25 (Female) connector allows (Non-isolated) Analog Program and Monitor and other functions.
4. RS-485 OUT to other Genesys™ Power Supplies.
5. RS-232/RS-485 IN Remote Serial Programming.
6. Output Connections: Rugged busbars (shown) for up to 100V Output; wire clamp connector for Outputs >100V.
7. Exit air assures reliable operation when zero stacked.
8. Input: 230VAC Single Phase, 208 VAC Three Phase, 50/60 Hz
AC Input Connector: Phoenix P/N: FRONT-4-H-7.62.
9. Optional Interface Position for IEEE 488.2 SCPI (shown) or Isolated Analog, LAN or USB Interface.
10. Auxiliary Output Voltage Connector. Phoenix P/N IMC1.5/7-ST-3.81
2
GenesysTM 2.4kW Specifications
1.0 MODEL
1.Rated Output voltage(*1)
2.Rated Output Current(*2)
3.Rated Output Power
1.1 CONSTANT VOLTAGE MODE
1.Max.line regulation (0.01% of rated Vo+2mV)(*6)
2.Max load regulation (0.015% of rated Vo+5mV)(*7)
3.Ripple and noise p-p 20MHz (*8)
4.Ripple r.m.s 5Hz~1MHz
5.Remote sense compensation/wire
6.Temperature coefficient
7.Temperature stability
8.Warm-up drift
9.Up-prog. response time, 0~Vo Rated (*9)
10.Down-prog response time
Full-load (*9)
No-load (*10)
11.Transient response time
1.2 CONSTANT CURRENT MODE
1.Max.line regulation (0.01% of Io rated+2mA)(*6)
2.Max.load regulation (0.02% of Io rated+5mA)(*11)
3.Ripple r.m.s 5Hz~1MHz. (*12)
4.Temperature coefficient
5.Temperature stability
6.Warm-up drift
GEN
V
A
W
8-300
8
300
2400
10-240
10
240
2400
16-150
16
150
2400
20-120
20
120
2400
30-80
30
80
2400
40-60
40
60
2400
60-40
60
40
2400
80-30
80
30
2400
100-24
100
24
2400
150-16
150
16
2400
300-8
300
8
2400
600-4
600
4
2400
mV
2.8
3
3.6
4
5
6
8
10
12
17
32
62
mV
6.2
6.5
7.4
8
9.5
11
14
17
20
27.5
50
95
mV
60
60
60
60
60
60
60
80
80
100
200
300
mV
8
8
8
8
8
8
8
8
8
25
50
75
V
2
2
2
2
5
5
5
5
5
5
5
5
PPM/°C 100PPM/°C of rated output voltage, following 30 minutes warm-up
0.05% of rated Vout over 8hrs interval following 30 minutes warm-up. Constant line, load & temp.
Less than 0.05% of rated output voltage+2mV over 30 minutes following power On.
mS
30
50
70
80
100
150
200
mS
20
50
80
120
200
250
300
mS
500
600
900
1000
1100
1200
1500
2500
3500
4000
mS
Time for output voltage to recover within 0.5% of its rated output for a load change 10-90% of rated output current. Output set-point:
10-100%, local sense. Less than 1mSec for models up to and including 100V. 2msec for models above 100V
mA
32
26
17
14
10
8
6
5
4.4
mA
65
53
35
29
21
17
13
11
9.8
mA
1200
960
600
480
220
120
70
50
40
PPM/°C 100PPM/ºC from rated output current, following 30 minutes warm-up.
0.05% of rated Iout over 8hrs. interval following 30minutes warm-up. Constant line, load & temperature.
8V~20V models: Less than ±0.5% of rated output current over 30 minutes following power On.
30V~600V models: Less than ±0.25% of rated output current over 30 minutes following power On.
3.6
8.2
30
1.3 PROTECTIVE FUNCTIONS
1. OCP
2. OCP Foldback
3. OVP type
4. OVP trip point
5. Output Under Voltage Limit
6. Over Temperature Protection
0~105% Constant Current
Output shut down when power supply changes from CV to CC. User selectable.
Inverter shut-down, manual reset by AC input recycle or by OUT button or by communication port command.
0.5~10V 0.5~12V
1~19V
1~24V
2~36V
2~44V
5~66V
5~88V
5~110V
5~165V
Preset by front panel or communication port. Prevents from adjusting Vout below limit.
User selectable , latched or non-latched.
1.4 ANALOG PROGRAMMING AND MONITORING
1.Vout Voltage Programming
2.Iout Voltage Programming (*13)
3.Vout Resistor Programming
4.Iout Resistor Programming (*13)
5.On/Off control (rear panel)
6.Output Current monitor (*13)
7.Output Voltage monitor
8.Power Supply OK signal
9. CV/CC Indicator
10. Enable/Disable
11. Local/Remote analog control
12. Local/Remote analog control Indicator
0~100%, 0~5V or 0~10V, user select. Accuracy and linearity:±0.5% of rated Vout.
0~100%, 0~5V or 0~10V, user select. Accuracy and linearity:±1% of rated Iout.
0~100%, 0~5/10kohm full scale,user select.,Accuracy and linearity: ±1% of rated Vout.
0~100%, 0~5/10kohm full scale,user select. Accuracy and linearity:±1.5% of rated Iout.
By electrical. Voltage: 0~0.6V/2~15V, or dry contact, user selectable logic.
0~5V or 0~10V, Accuracy:±1%, user selectable.
0~5V or 0~10V, Accuracy:±1%, user selectable.
TTL high (4~5V) -OK, 0V-Fail 500ohm series resistance.
Open Collector. CC Mode: ON, CV Mode: OFF. Maximum Voltage: 30V, Maximum sink current: 10mA.
Dry contact. Open:off , Short: on. Max. voltage at Enable/Disable in: 6V.
By electrical signal or Open/Short: 0~0.6V or short: Remote, 4~5V or open: Local.
Open collector, Local: Off, Remote: On. Maximum voltage: 30V, maximum sink current: 10mA.
1.5 FRONT PANEL
1.Control functions
2.8
6.6
15
2.4
5.8
7
5~330V
5~660V
Vout/ Iout manual adjust by separate encoders (coarse and fine adjustment selectable).
OVP/UVL manual adjust by Voltage Adjust encoder.
On/Off, Output ON/OFF, Re-start modes (auto, safe), Foldback control (CV to CC), Go to local control.
Address selection by Voltage (or current) adjust encoder. Number of addresses:31.
Re-start modes (automatic restart, safe mode).
Baud rate selection: 1200,2400,4800,9600 and 19,200.
Voltage: 4 digits , Accuracy: 0.5% of rated output Voltage ±1 count.
Current: 4 digits, Accuracy: 0.5% of rated output current ±1 count.
Voltage, Current, Alarm, Fine, Preview, Foldback, Local, Output On, Front Panel Lock, CV/CC.
2.Display
3.Indications
1.6 Interface RS-232&RS-485 or Optional GPIB / LAN Interface
Model
V
1. Remote Voltage Programming (16 bit)
Resolution (0.012% of Vo Rated)
mV
Accuracy (0.05%Vo Rated+0.05% of Vo Actual Output)
mV
8
10
16
20
30
40
60
80
100
150
300
600
0.96
8
1.2
10
1.92
16
2.4
20
3.6
30
4.8
40
7.2
60
9.6
80
12
100
18
150
36
300
72
600
2. Remote Current Programming (16 bit)
Resolution (0.012% of Io Rated)
Accuracy (0.2%Io Rated+0.1% of Io Actual Output) (*13)
mA
mA
36
900
28.8
720
18
450
14.4
360
9.6
240
7.2
180
4.8
120
3.6
90
2.88
72
1.92
48
0.96
24
0.48
12
3. Readback Voltage
Resolution (0.012% of Vo Rated)
Accuracy (0.1%Vo Rated+0.1% of Vo Actual Output)
mV
mV
0.96
16
1.2
20
1.92
32
2.4
40
3.6
60
4.8
80
7.2
120
9.6
160
12
200
18
300
36
600
72
1200
4. Readback Current
Resolution (0.012% of Io Rated )
Accuracy (0.3% Io Rated+0.1% of Io Actual Output) (*13)
mA
mA
36
1200
28.8
960
18
600
14.4
480
9.6
320
7.2
240
4.8
160
3.6
120
2.88
96
1.92
64
0.96
32
0.48
16
5. OVP/UVL Programming
Resolution (0.1% of Vo Rated)
Accuracy (1% of Vo Rated)
mV
mV
8
80
10
100
16
160
20
200
30
300
40
400
60
600
80
800
100
1000
150
1500
300
3000
600
6000
*1:
*2:
*3:
*4:
*5:
*6:
*7:
*8:
Minimum voltage is guaranteed to maximum 0.2% of rated output voltage.
Minimum current is guaranteed to maximum 0.4% of rated output current.
For cases where conformance to various safety standards (UL, IEC, etc) is required, to be described as 190-240Vac (50/60Hz) for 3-Phase 208V models.
3-Phase 208V models: At 208Vac input voltage, With rated output power.
Not including EMI filter inrush current, less than 0.2mSec.
3-Phase 208V models: 170~265Vac, constant load.
From No-Load to Full-Load, constant input voltage. Maximum drop in Remote Sense.
For 8V~300V models: Measured with JEITA RC-9131A (1:1) probe. For 600V model: Measured with 10:1 probe.
3 GenesysTM 2.4kW 1U
*9: From 10% to 90% or 90% to 10% of Rated Output Voltage, with rated, resistive load.
*10: From 90% to 10% of Rated Output Voltage.
*11: For load voltage change, equal to the unit voltage rating, constant input voltage.
*12: For 8V~16V models the ripple is measured from 2V to rated output voltage and rated output current. For other models, the ripple is measured at 10~100% of rated output voltage and rated output current.
*13: The Constant Current programming readback and monitoring accuracy does not include the warm-up and Load regulation thermal drift.
GenesysTM 2.4kW Specifications
2.1 INPUT CHARACTERISTICS
1. Input voltage/freq. (*3)
2. Maximum Input
current at 100% load
3.Power Factor (Typ)
4. Efficiency (*4)
5. Inrush Current (5)
6. Hold up time (CV Mode)
1-Phase,230V models:
3-Phase, 208V models:
2.2 AUXILIARY OUTPUT
1. 15V output
2. 5V output
2.3 POWER SUPPLY CONFIGURATION
1. Parallel Operation
2. Series Operation
2.4 ENVIRONMENTAL CONDITIONS
1. Operating temperature
2. Storage temperature
3. Operating humidity
4. Storage humidity
5. Vibration
6. Shock
GEN
VAC
Arms
%
A
mS
8-300
10-240
16-150
20-120
30-80
40-60
60-40
80-30
100-24
150-16
Single Phase,230V models: 170~265Vac, 47~63Hz
3-Phase, 208Vac models: 170~265Vrms , 47~63Hz
17
17
17
16.3
16.3
16.3
16.3
16.3
16.3
16.3
10.5
10.5
10.5
9.8
9.8
9.8
9.8
9.8
9.8
9.8
Single Phase models: 0.99@230Vac, rated output power. 3-Phase models: 0.94@208 Vac, rated output power.
84
84
86
86
88
88
88
88
88
88
Single-Phase and 3-Phase 208V models: Less than 50A
10mSec for Single-Phase and 3-phase 208V models, at rated output power.
2.5 EMC
1. Applicable Standards:
2. ESD
3. Fast transients
4. Surge immunity
5. Conducted immunity
6. Radiated immunity
7. Magnetic field immunity
8. Voltage dips
9. Conducted emission
10. Radiated emission
IEC1000-4-2. Air-disch.-8kV, contact disch.-4kV
IEC1000-4-4. 2kV
IEC1000-4-5. 1kV line to line, 2kV line to ground
IEC1000-4-6, 3V
IEC1000-4-3, 3V/m
EN61000-4-8, 1A/m
EN61000-4-11
EN55022A, FCC part 15-A, VCCI-A.
EN55022A, FCC part 15-A, VCCI-A.
2.Withstand voltage
3.Insulation resistance
2.7 MECHANICAL CONSTRUCTION
1. Cooling
2. Dimensions (WxHxD)
3. Weight
4. AC Input connector (with Protective Cover)
5.Output connectors
2.7 Warranty
1. Warranty
16.3
9.8
16.3
9.8
88
87
Up to Four (4) identical units may be connected in Master/Slave Mode with two wire connection. In Advanced parallel feature, the
current of Master Unit, multiplied by number of units connected in parallel, is made available on digital interface and displayed on front
panel of Master unit. Remote analog current monitor of the Master is scaled to output current of the Master unit (only).
Possible (with external diodes), up to identical 2 units with total output not to exceed +/-600V from chassis ground.
8. RoHS Compliance
2.6 SAFETY
1.Applicable standards:
600-4
15V±5%, 0.2A Max load, Ripple & Noise 100mVp-p. Referenced internally to the negative output potential.
5V±5%, 0.2A Max load, Ripple & Noise 100mVp-p. Referenced internally to IF_com potential.
0~50°C, 100% load.
-20~85°C
20~90% RH (non-condensing).
10~95% RH (non-condensing).
MIL-810F, method 514.5 , The EUT is fixed to the vibrating surface.
Less than 20G , half sine , 11mSec. Unit is unpacked.
Operating: 10000ft (3000m), Derate output current by 2%/100m above 2000m, Alternatively, derate maximum ambient temp.
by 1ºC/100m above 2000m. Non operating: 40000ft (12000m).
Complies with the requirements of RoHS directive.
7. Altitude
300-8
CE Mark, UL60950,EN60950 listed. Vout≤40V:Output is SELV, IEEE/Isolated analog are SELV.
40<Vout≤400V: Output is hazardous, IEEE/Isolated analog are SELV.
400<Vout≤600V:Output is hazardous, IEEE/Isolated analog are not SELV.
Vout≤40V models :Input-Outputs (SELV): 4242VDC 1min, Input-Ground: 2828VDC 1min.
40<Vout≤100V models: Input-Haz. Output: 2600VDC 1min, Input-SELV: 4242VDC 1min.
Hazardous Output.-SELV: 1900VDC 1min, Hazardous Output-Ground:1200VDC 1min. Input-Ground: 2828VDC 1min.
100<Vout≤600V models: Input-Haz. Output: 4000VDC 1min, Input-SELV: 4242VDC 1min.
Hazardous Output.-SELV: 3550VDC 1min. Hazardous Output-Ground:2670VDC 1min. Input-Ground: 2828VDC 1min.
More than 100Mohm at 25°C , 70% RH.
Forced air flow: from front to rear. No ventilation holes at the top or bottom of the chassis; Variable fan speed.
W: 423mm / 16.65” H: 43.6mm / 1.72”, D: 432.8mm / 17” (excluding connectors, encoders, handles, etc.)
10 kg. / 22lbs
Single Phase,230V models, wire clamp connector, Phoenix P/N: FRONT-4-H-7.62, with Strain relief.
3-Phase, 208V models, wire clamp connector, Phoenix P/N: FRONT-4-H-7.62, with Strain relief.
8V to 100V models: Bus-bars (hole Ø 8.5mm/0.33"). 150V to 600V models: wire clamp connector, Phoenix P/N: FRONT-4-H-7.62
Auxiliary output Header: IMC 1.5/7-G-3.81, Plug: IMC 1.5/7-ST-3.81 (Phoenix Contact).
5 years.
All specifications subject to change without notice.
Outline Drawing GenesysTM 2.4kW Units
NOTE
1.
2. 3.
Mating plug supplied with power supply
Bus bars for 8V to 100V models (shown)
Wire clamp connector for 150V to 600V models
Chassis slides mounting holes #10-32 marked “A”
GENERAL DEVICES P/N: CC3001-00-S160 or equivalent
4
GenesysTM Power Parallel and Series Configurations
Parallel operation - Master/Slave:
Active current sharing allows up to four identical units to be connected in an auto-parallel configuration for four times the output power.
In Advanced Parallel Master/Slave Mode, total current is programmed and reported by the Master, Up to four supplies act
as one.
Series operation
Up to two units may be connected in series to increase the output
voltage or to provide bipolar output. (Max 600V to Chassis Ground).
Remote Programming via RS-232 & RS-485 Interface
Standard Serial Interface allows daisy-chain control of up to 31
power supplies on the same communication bus with built-in
RS-232 & RS-485 Interface with or without Multi-Drop option.
Programming Options (Factory installed)
New IEEE Multi-Drop Interface P/N: IEMD
•
•
•
•
•
•
•
Allows IEEE Master to control up to 30 (Multi-Drop equipped) slaves over RS-485 daisy-chain
Only the Master needs be equipped with IEEE Interface
IEEE 488.2 SCPI Compliant
Program Voltage • Program Current
Measure Voltage • Measure Current
Over Voltage setting and shutdown • Current Foldback shutdown
Error and Status Messages
New Multi-Drop Slave OptionP/N: MD
•
Slaves need to be equipped with the MD Slave (RS-485) option
Isolated Analog Programming
•
•
•
•
•
Four Channels to Program and Monitor Voltage and Current.
Isolation allows operation with floating references in harsh electrical environments.
Choose between programming with Voltage or Current.
Connection via removable terminal block: Phoenix MC1,5/8-ST-3.81.
Voltage Programming, user-selectable 0-5V or 0-10V signal. •
Power supply Voltage and Current Programming Accuracy ±1%
Power supply Voltage and Current Monitoring Accuracy ±1.5%
Current Programming with 4-20mA signal. P/N: IS420
Power supply Voltage and Current Programming Accuracy ±1%
Power supply Voltage and Current Monitoring Accuracy ±1.5%
LAN Interface
•
•
•
•
P/N: IS510
Compliant to Class C
Meets all LXI-C Requirements
Address Viewable on Front Panel
Fixed and Dynamic Addressing
Fast Startup
•
•
•
•
P/N: LAN
VISA & SCPI Compatible
LAN Fault Indicators
Auto-detects LAN Cross-over Cable
Compatible with most standard Networks
USB InterfaceP/N: USB
•
•
Allows Serial Connection to USB Port on Computer
Serial commands same as (standard) RS-232/RS-485 Interface
5 GenesysTM 2.4kW 1U
Power Supply Identification / Accessories
How to order
GEN
Series
Name
8
- 300
Output
Voltage
(0~8V)
-
Output
Current
(0~300A)
Option: IEMD
MD
IS510
IS420
LAN
USB
Models 2.4kW
Model
Factory Options
Output
Output
Output
Voltage
Current
Power
VDC
(A)
(W)
AC Input Options
1P230 (Single Phase 170~265VAC)
3P208 (Three Phase 170~265VAC)
Model
Output
Output
Output
Voltage
Current
Power
VDC
(A)
(W)
GEN 8-300
0~8V
0~300
2400
GEN 60-40
0~60V
0~40
2400
GEN 10-240
0~10V
0~240
2400
GEN 80-30
0~80V
0~30
2400
GEN 16-150
0~16V
0~150
2400
GEN 100-24
0~100V
0~24
2400
GEN 20-120
0~20V
0~120
2400
GEN 150-16
0~150V
0~16
2400
GEN 30-80
0~30V
0~80
2400
GEN 300-8
0~300V
0~8
2400
GEN 40-60
0~40V
0~60
2400
GEN 600-4
0~600V
0~4
2400
Factory optionsP/N
RS-232/RS-485 Interface built-in Standard
GPIB (Multi-Drop Master) Interface*
IEMD
Multi-Drop Slave Interface*MD
Voltage Programming Isolated Analog Interface*
IS510
Current Programming Isolated Analog Interface*
IS420
LAN Interface (Complies with
Class C)* LAN
USB Interface*USB
* Limit of one interface option per supply
Accessories
1. Serial Communication cable
RS-232/RS-485 cable is used to connect the power supply to the Host PC.
Mode
RS-485
RS-232
RS-232
PC Connector
DB-9F
DB-9F
DB-25F
Communication Cable
Shield Ground L=2m
Shield Ground L=2m
Shield Ground L=2m
Power Supply Connector
EIA/TIA-568A (RJ-45)
EIA/TIA-568A (RJ-45)
EIA/TIA-568A (RJ-45)
GEN/485-9
GEN/232-9
GEN/232-25
P/N
2. Serial link cable*
Daisy-chain up to 31 Genesys™ power supplies.
Mode
Power Supply Connector
Communication Cable
P/N
RS-485
EIA/TIA-568A (RJ-45)
Shield Ground L=50cm
GEN/RJ45
* Included with power supply
Also available, GenesysTM
1U Half Rack 750W
1U Full Rack 750W/1500W/2400W
2U Full Rack 3300W
3U Full Rack 10/15kW
6
GLOBAL NETWORK
USA
TDK-Lambda Americas Inc.
405 Essex Rd. Neptune, NJ 07753
Tel: +1-732-922-9300 Fax: +1-732-922-1441
E-mail: sales@us.tdk-lambda.com
www.us.tdk-lambda.com/hp
JAPAN
TDK-Lambda Corporation
International Sales Division,
3-9-1, Shibaura, Minato-ku,
Tokyo 108-0023
Tel: +81 3-6852-7136 Fax: +81 3-6852-7148
E-mail: t.morimoto@jp.tdk-lambda.com
www.jp.tdk-lambda.com
CANADA
ACA TMetrix
5805 Kennedy Road, Mississauga, Ontario, L4Z 2G3
Tel: +1-800-665-7301 Fax: +1-905-890-1959
Email: lambda@aca.ca
tmetrix.com
MEXICO
AcMax de Mexico
39 Poniente 3515 Piso 5 Col. Las Animas
Puebla, Pue. C.P. 72400
Tel: 01-800-211-0060 / (222) 891-8484 Fax: 222-264-1445
Email: info@acmax.mx, Web: www.acmax.mx
BRAZIL
Supplitec
Rua Sena Madureira 455, Belo Hte - 31340-000
Tel: +55-31-3498 1177 Fax: +55-31-3441 0841
www.suplitec.com.br
ITALY
TDK-Lambda Italy
Via dei Lavoratori 128/130
IT 20092 Cinisello Balsamo (MI)
Tel: +39-02-6129-3863 Fax: +39-02-6129-0900
E-mail: info.italia@it.tdk-lambda.com
www.it.tdk-lambda.com
SCANDINAVIA
BALTICS
TDK-Lambda Germany
Karl-Bold-Str.40, D-77855 Achern
Tel: +49-7841-666-0 Fax: +49-7841-500-0
E-mail: info.germany@de.tdk-lambda.com
www.de.tdk-lambda.com
KOREA
TDK-Lambda Corporation
6F Songok Bldg. 4-1 Soonae-Dong
Pundang-Gu, Songnam-Shi Kyonggi-Do, 463-020
Tel: +82-2-556-1171 Fax: +82-2-555-2706
www.tdk-lambda.co.kr
SPAIN
SWITZERLAND
MALAYSIA
TDK-Lambda Malaysia
Lot 709, Nilai Industrial Estate
71800 Nilai, Negeri Sembilan
Tel: +60-6-799-1130 Fax: +60-6-799-3277
www.my.tdk-lambda.com
SINGAPORE
PHILIPPINES
TDK-Lambda Singapore
1008 Toa Payoh North # 06-01/08
Singapore 318996
Tel: +65-6251-7211 Fax: +65-6250-9171
www.sg.tdk-lambda.com
INDIA
TDK-Lambda India
#526, Ground Floor, 10th Main, 7th Cross,
Jeevanbhimanagar, Bangalore 560 075,
Karnataka, India
Tel : +91-80-43550500 Fax :+91-80-43550501
www.in.tdk-lambda.com
ISRAEL
RUSSIA
TDK-Lambda Ltd. Israel
Kibbutz Givat Hashlosha Tel-Aviv 48800
Tel: +972-3-9024-333 Fax: +972-3-9024-777
E-mail: info@tdk-lambda.co.il
www.tdk-lambda.co.il
TDK-Lambda Americas Inc. 405 Essex Road, Neptune, NJ 07753 USA
Tel: +1 732 922 9300 Fax: +1 732 922 1441
www.us.tdk-lambda.com/hp
TDK Logo is a trademark or registered trademark of TDK Corporation
© Copyright 2013 TDK-Lambda Americas Inc.
THAILAND
Part No. 93-517-001 Rev C
GERMANY
AUSTRIA
TDK-Lambda Germany
Karl-Bold-Str.40, D-77855 Achern
Tel: +49-7841-666-0 Fax: +49-7841-500-0
E-mail: info.germany@de.tdk-lambda.com
www.de.tdk-lambda.com
TDK-Lambda Beijing Office
Room 12B11-12B12, Unit 7 DACHENG SQUARE,
No.28 Xuanwumenxi Street, Xuanwu District Beijing,
100053, P.R. CHINA
Tel: +86-10-6310-4872 Fax: +86-10-6310-4874
www.cn.tdk-lambda.com
TDK-Lambda Hong Kong Office
1 / F. SAE Technology Centre, 6 science Park East Avenue,
HongKong Science Park, Shatin, NT.,
Tel: +852-23766658 Fax: +852-23172150
www.cn.tdk-lambda.com
UK
IRELAND
TDK-Lambda UK
Kingsley Avenue
Ilfracombe, Devon EX 34 8ES
Tel: +44-1271-856666 Fax: +44-1271-864894
E-mail: powersolutions@uk.tdk-lambda.com
www.uk.tdk-lambda.com
FRANCE
NETHERLANDS
TDK-Lambda France
ZAC des Delaches, CS 41077
9 rue Thuillere, 91978 Villebon Courtaboeuf
Tel: +33 1 60 12 71 65 Fax: +33 1 60 12 71 66
www.fr.tdk-lambda.com
CHINA
TDK-Lambda Shanghai Office
28F, Xingyuan Technology Building No.418, Guiping Road,
Shanghai, 200233 P.R. CHINA
Tel: +86-21-6485-0777 Fax: +86-21-6485-0666
www.cn.tdk-lambda.com
Mouser Electronics
Authorized Distributor
Click to View Pricing, Inventory, Delivery & Lifecycle Information:
TDK-Lambda:
GEN16-150-3P208
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
