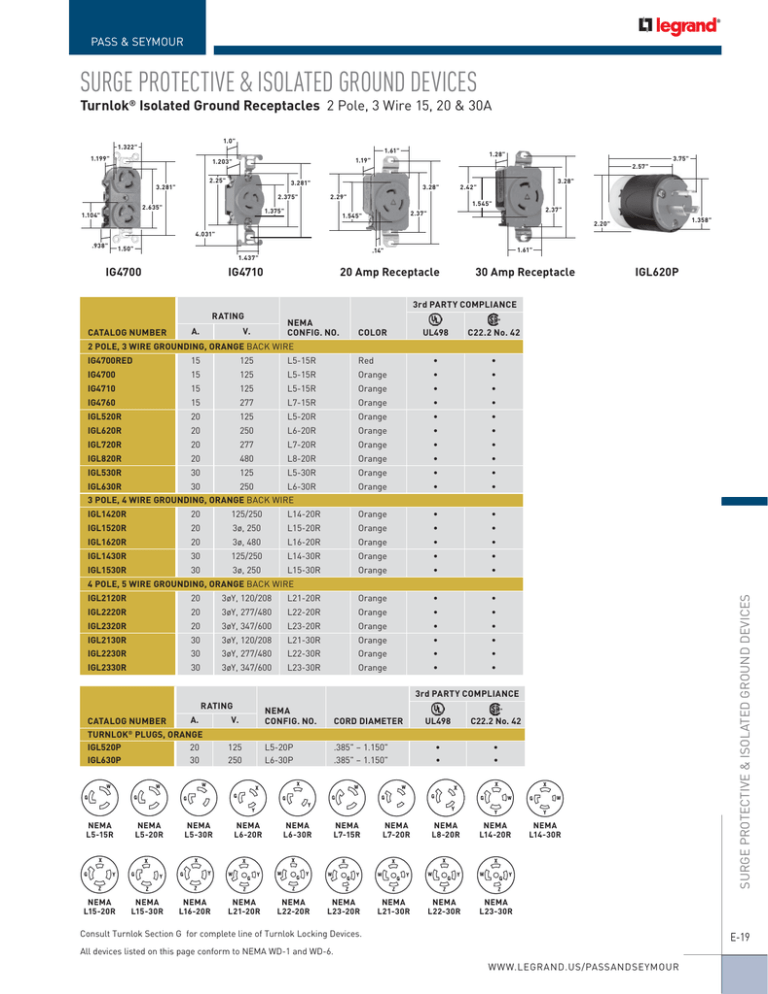

PASS & SEYMOUR
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
Turnlok® Isolated Ground Receptacles 2 Pole, 3 Wire 15, 20 & 30A
1.0"
1.322"
1.61"
1.199"
2.25"
3.281"
2.57"
3.281"
2.375"
2.635"
1.104"
1.28"
1.19"
1.203"
3.28"
1.375"
3.28"
2.42"
2.29"
1.545"
2.37"
2.37"
1.545"
3.75"
1.358"
2.20"
4.031"
.938"
1.50"
IG4700
1.61"
.14"
1.437"
IG4710
20 Amp Receptacle
30 Amp Receptacle
IGL620P
3rd PARTY COMPLIANCE
RATING
CATALOG NUMBER
A.
NEMA
CONFIG. NO.
V.
COLOR
UL498
C22.2 No. 42
2 POLE, 3 WIRE GROUNDING, ORANGE BACKWIRE
IG4700RED
15
125
L5-15R
Red
•
•
IG4700
15
125
L5-15R
Orange
•
•
IG4710
15
125
L5-15R
Orange
•
•
IG4760
15
277
L7-15R
Orange
•
•
IGL520R
20
125
L5-20R
Orange
•
•
IGL620R
20
250
L6-20R
Orange
•
•
IGL720R
20
277
L7-20R
Orange
•
•
IGL820R
20
480
L8-20R
Orange
•
•
IGL530R
30
125
L5-30R
Orange
•
•
IGL630R
30
250
L6-30R
Orange
•
•
3 POLE, 4 WIRE GROUNDING, ORANGE BACKWIRE
IGL1420R
20
125/250
L14-20R
Orange
•
•
IGL1520R
20
3ø, 250
L15-20R
Orange
•
•
IGL1620R
20
3ø, 480
L16-20R
Orange
•
•
IGL1430R
30
125/250
L14-30R
Orange
•
•
IGL1530R
30
3ø, 250
L15-30R
Orange
•
•
IGL2120R
20
3øY, 120/208
L21-20R
Orange
•
•
IGL2220R
20
3øY, 277/480
L22-20R
Orange
•
•
IGL2320R
20
3øY, 347/600
L23-20R
Orange
•
•
IGL2130R
30
3øY, 120/208
L21-30R
Orange
•
•
IGL2230R
30
3øY, 277/480
L22-30R
Orange
•
•
IGL2330R
30
3øY, 347/600
L23-30R
Orange
•
•
3rd PARTY COMPLIANCE
RATING
CATALOG NUMBER
A.
TURNLOK® PLUGS, ORANGE
IGL520P
20
IGL630P
30
V.
125
250
NEMA
CONFIG. NO.
CORD DIAMETER
L5-20P
L6-30P
.385" – 1.150"
.385" – 1.150"
UL498
C22.2 No. 42
•
•
•
•
NEMA
L5-15R
NEMA
L5-20R
NEMA
L5-30R
NEMA
L6-20R
NEMA
L6-30R
NEMA
L7-15R
NEMA
L7-20R
NEMA
L8-20R
NEMA
L14-20R
NEMA
L15-20R
NEMA
L15-30R
NEMA
L16-20R
NEMA
L21-20R
NEMA
L22-20R
NEMA
L23-20R
NEMA
L21-30R
NEMA
L22-30R
NEMA
L23-30R
NEMA
L14-30R
Consult Turnlok Section G for complete line of Turnlok Locking Devices.
SURGE PROTECTIVE & ISOLATED GROUND DEVICES
4 POLE, 5 WIRE GROUNDING, ORANGE BACKWIRE
E-19
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
PASS & SEYMOUR
industrial spec grade turnlok® locking devices
30 Amp NEMA L530 2 Pole, 3 Wire 30A, 125v
1.28"
1.61"
3.75"
2.57"
3.33"
1.545"
1.750"
1.765"
2.37"
2.42"
3.28"
2.20"
2.26"
2.20"
3.12"
.23"
2.26"
ø.187"
3.12"
ø.187"
3 HOLES ON ø2.72" C/L @ 120°
30A Receptacle
CATALOG
NUMBER
30A Connector
RATING
30A Flanged Inlet & Outlet
30A Plug
CORD
DIAMETER
3rd PARTY COMPLIANCE
NEMA
CONFIG.
NO.
UL498
FSUL
WC596
CSA
•
•
A.
V.
L530R
30
125
Single Receptacle
L5-30R
•
IGL530R
30
125
Single Receptacle, Orange,
Isolated Ground
L5-30R
•
CRL530R
30
125
Single Receptacle, Yellow
corrosion-Resistant
L5-30R
•
•
•
DESCRIPTION/COLOR
RECEPTACLES
•
CONNECTORS IP20 SUITABILITY
L530C
30
125
Black Back, White Front Body
.225"-.750"
L5-30R
•
•
•
CRL530C
30
125
Yellow Back, White Front Body,
corrosion-Resistant
.225"-.750"
L5-30R
•
•
•
Industrial Spec Grade Turnlok® Locking Devices
PLUGS IP20 SUITABILITY
L530P
30
125
Black Back, White Front Body
.225"-.750"
L5-30P
•
•
•
CRL530P
30
125
Yellow Back, White Front Body,
corrosion-Resistant
.225"-.750"
L5-30P
•
•
•
FLANGED INLETS & OUTLETS
L530FI
30
125
Gray Inlet
L5-30P
•
•
L530FO
30
125
Gray Outlet
L5-30R
•
•
NEMA
L5-30P
NEMA
L5-30R
Reference Pages G-35 and G-36 for Accessories.
.19"
(4 HOLES)
CATALOG NUMBER
DESCRIPTION
COLOR
3.25"
WEATHERPROOF COVER
WPG2
cover for 20 and 30A turnlok Flanged Inlets and Outlets
Gray
4.57"
3.57"
STAINLESS STEEL WALL PLATE
SS720
Wall Plate for Locking Receptacles
302 S/S
1.88"
2.85"
WPG2
G-16
All devices listed on this page conform to NEMA WD-1 and WD-6.
WWW.LEGRAND.US/PASSANDSEYMOUR
