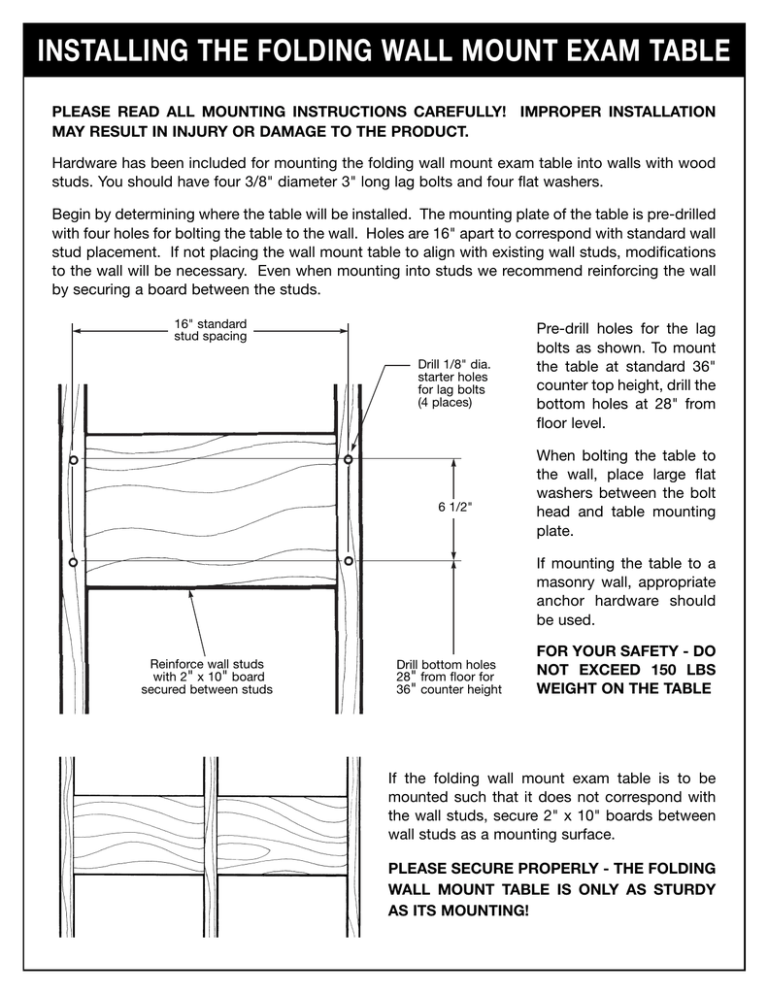

INSTALLING THE FOLDING WALL MOUNT EXAM TABLE
PLEASE READ ALL MOUNTING INSTRUCTIONS CAREFULLY! IMPROPER INSTALLATION
MAY RESULT IN INJURY OR DAMAGE TO THE PRODUCT.
Hardware has been included for mounting the folding wall mount exam table into walls with wood
studs. You should have four 3/8" diameter 3" long lag bolts and four flat washers.
Begin by determining where the table will be installed. The mounting plate of the table is pre-drilled
with four holes for bolting the table to the wall. Holes are 16" apart to correspond with standard wall
stud placement. If not placing the wall mount table to align with existing wall studs, modifications
to the wall will be necessary. Even when mounting into studs we recommend reinforcing the wall
by securing a board between the studs.
16" standard
stud spacing
Drill 1/8" dia.
starter holes
for lag bolts
(4 places)
6 1/2"
Pre-drill holes for the lag
bolts as shown. To mount
the table at standard 36"
counter top height, drill the
bottom holes at 28" from
floor level.
When bolting the table to
the wall, place large flat
washers between the bolt
head and table mounting
plate.
If mounting the table to a
masonry wall, appropriate
anchor hardware should
be used.
Reinforce wall studs
with 2" x 10" board
secured between studs
Drill bottom holes
28" from floor for
36" counter height
FOR YOUR SAFETY - DO
NOT EXCEED 150 LBS
WEIGHT ON THE TABLE
If the folding wall mount exam table is to be
mounted such that it does not correspond with
the wall studs, secure 2" x 10" boards between
wall studs as a mounting surface.
PLEASE SECURE PROPERLY - THE FOLDING
WALL MOUNT TABLE IS ONLY AS STURDY
AS ITS MOUNTING!
LEVELING THE FOLDING WALL MOUNT EXAM TABLE
When bolting the table to the wall, place
large flat washers between the bolt
head and the table mounting plate.
DRILL AND INSERT SCREW AS SHOWN TO INSURE THAT THE TABLE REMAINS LEVEL
TOLL FREE 1-800-299-9525
fax 417-358-4716
www.vssi.com
e-mail [email protected]
1.
2.
If top is not level
after mounting Loosen screws at
each end of the
slide bracket.
Reposition the
slide bracket as
necessary until
the table top
is level, then
tighten screws.
3.
4.
Drill a pilot hole
1/8" diameter,
1/2" deep in the
wood through
the center hole
of the bracket.
Install the 1/2"
screw (included)
into the pilot
hole to hold the
bracket in place.
#1 Civil War Road - Area 5
P.O. Box 431
Carthage, MO 64836
, INC.
