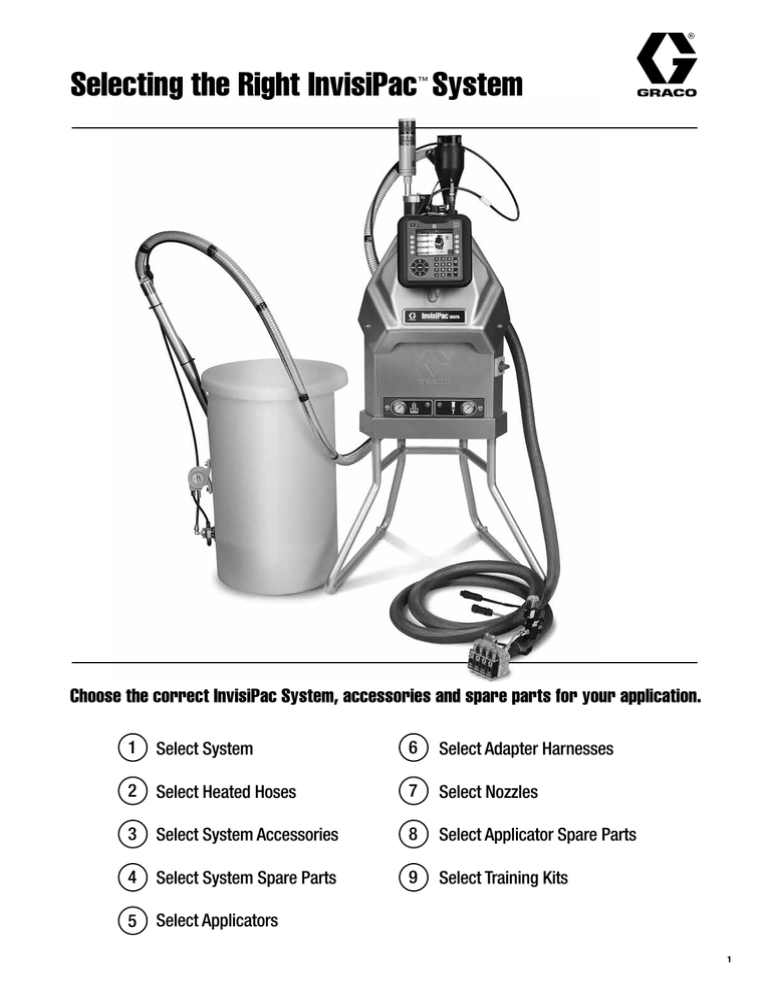

Selecting the Right InvisiPac System
™
Choose the correct InvisiPac System, accessories and spare parts for your application.
1
Select System
6
Select Adapter Harnesses
2
Select Heated Hoses
7
Select Nozzles
3
Select System Accessories
8
Select Applicator Spare Parts
4
Select System Spare Parts
9
Select Training Kits
5
Select Applicators
1
Ordering Information
1
Select System
4
Select InvisiPac HM25 Tank-Free Hot Melt Delivery Systems
based upon channel and power input requirements.
™
™
Select System Spare Parts
Select InvisiPac HM25 Tank-Free Hot Melt Delivery System
spare and repair parts as required for the application.
Part No.
2
Description
24P260
1-ph, 200-240V, 50/60Hz, 2-channel
24P855
Pump outlet filter
24P261
1-ph, 200-240V, 50/60Hz, 4-channel
24R369
Pump inlet filter
24P262
3-ph, W/ neutral, 400/230, 50/60Hz, 2-channel
24P859
Spare fuse kit for one temperature control board
24P263
3-ph, W/ neutral, 400/230, 50/60Hz, 4-channel
24R234
Temperature control board replacement kit with fuses
24P264
3-ph, W/O neutral, 200-240, 50/60Hz, 2-channel
24R042
Daughter board replacement
24P265
3-ph, W/O neutral, 200-240, 50/60Hz, 4-channel
24P860
Advanced Display Module replacement
24R324
Software token
24R041
Level sensor
126809
SPDT relay
24R034
500W heat rod kit
24R036
1000W heat rod kit
24R037
1500W heat rod kit
24R039
1250W band heater kit
24R040
RTD harness
24P861
Vacuum feed shaker assembly
262907
Funnel screen
24R028
Feed inlet housing
24R031
Melter replacement
24P856
Discharge valve replacement
24P857
Discharge valve repair kit
24R026
Air motor valve kit
Select System Accessories
24R027
Poppet kit
24P852
Pump assembly repair kit
Select InvisiPac HM25 Tank-Free Hot Melt Delivery System
accessories and kits as required for the application. 24P853
Pump cylinder repair kit
24P854
Pump rod assembly repair kit
24R227
Cylinder rebuild tool
24R228
Piston rebuild tool
24R709
Pump manifold assembly kit
24R375
Melter/pump assembly
24R738
Funnel assembly kit
Select Heated Hoses
Part No.
Description
--------------------------------------------------------------------------------------------------------------------------------------------------------126385
5 ft (1.5 m) heated hose
126389
10 ft (3.0 m) heated hose
126480
15 ft (4.6 m) heated hose
126483
20 ft (6.1 m) heated hose
126534
25 ft (7.6 m) heated hose
Part No.
Description
--------------------------------------------------------------------------------------------------------------------------------------------------------126961
45° manifold exit fitting
116793
90° manifold exit fitting
24R088Cart
2
Description
-------------------------------------------------------------------------------------------------------------------------------------------------------
Select InvisiPac HM25 Tank-Free Hot Melt Delivery System heated
hoses based upon length.
3
Part No.
-----------------------------------------------------------------------------------------------------------------------------------------------------------
24R083
System mounting adapter plate
24R136
Feed container kit with pneumatic shaker
24R043
30 ft (9.1 m) vacuum feed hose
24R084
Air control lock
24R226
Light tower
24R237
2-channel to 4-channel upgrade kit
24R710
CAN communication cable extension, 16 ft (5 m)
24R711
CAN communication cable extension, 49 ft (15 m)
24R712
CAN communication cable extension, 164 ft (50 m)
Ordering Information
5
Select Applicators
6
Select Adapter Harnesses
If running the InvisiPac HM25 Tank-Free Hot Melt Delivery
System with a non-Graco applicator, select the appropriate
adapter harness(es). Otherwise continue to Step 7. Select InvisiPac GS35 Plug-Free Adhesive Applicator(s) based on
module count, center-line spacing, solenoid requirements and electrical
interface. If the configuration required is not listed below, please use
the InvisiPac GS35 Plug-Free Configurator to complete this step.
™
Part No.
Part No.
Description
Description
-------------------------------------------------------------------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------------------------------------------------------------------
16T916
NDSN Adapter harness
24P073
Applicator, GS35, single module, 24VDC solenoid
16T917
ITW Adapter harness
24P074
Applicator, GS35, single module, 110VAC solenoid
24P075
Applicator, GS35, dual module, 24VDC solenoid
24P076
Applicator, GS35, dual module, 110VAC solenoid
24P077
Applicator, GS35, quad module, 24VDC solenoid,
0.88 in (22 mm) spacing
24P078
Applicator, GS35, quad module, 110VAC solenoid,
0.88 in (22 mm) spacing
24P079
Applicator, GS35, quad module, 24VDC solenoid,
1.5 in (38 mm) center spacing (0.88 in /22 mm outer)
24P080
Applicator, GS35, quad module, 110VAC solenoid,
1.5 in (38 mm) center spacing (0.88 in /22 mm outer)
24P246
Applicator, GS35, single module, no solenoid
24P247
Applicator, GS35, dual module, no solenoid
24P250
Applicator, GS35, quad module, no solenoid, 0.88 in (22 mm) spacing
24P254
Applicator, GS35, quad module, no solenoid,
1.5 in (38 mm) center spacing (0.88 in /22 mm outer)
24P299
Applicator, GS35, single module, 24VDC solenoid,
NI120 RTD (rectangular connector)
24P300
Applicator, GS35, single module, 110VAC solenoid,
NI120 RTD (rectangular connector)
24P301
Applicator, GS35, dual module, 24VDC solenoid,
NI120 RTD (rectangular connector)
24P302
Applicator, GS35, dual module, 110VAC solenoid,
NI120 RTD (rectangular connector)
24P303
Applicator, GS35, quad module, 24VDC solenoid,
0.88 in (22 mm) spacing, NI120 RTD (rectangular connector)
24P304
Applicator, GS35, quad module, 110VAC solenoid,
0.88 in (22 mm) spacing, NI120 RTD (rectangular connector)
24P305
Applicator, GS35, quad module, 24VDC solenoid, 1.5 in (38 mm) center spacing (0.88 in /22 mm outer), NI120 RTD (rectangular connector)
24P306
Applicator, GS35, quad module, 110VAC solenoid, 1.5 in (38 mm) center
spacing (0.88 in (22 mm) Outer), NI120 RTD (rectangular connector)
24P307
Applicator, GS35, single module, no solenoid,
NI120 RTD (rectangular connector)
24P308
Applicator, GS35, dual module, no solenoid,
NI120 RTD (rectangular connector)
24P309
Applicator, GS35, quad module, no solenoid,
0.88 in (22 mm) spacing, NI120 RTD (rectangular connector)
24P310
Applicator, GS35, quad module, no solenoid, 1.5 in (38 mm) center
spacing (0.88 in /22 mm outer), NI120 RTD (rectangular connector)
7
Select Nozzles
Select InvisiPac GS35 Plug-Free Adhesive Applicator
nozzle(s) as required for the application. Part No.
Description
------------------------------------------------------------------------------------------------------------------------------------------------------24P636
STR, .008 nozzle
24P637
STR, .010 nozzle
24P638
STR, .012 nozzle
24P639
STR, .016 nozzle
24P640
STR, .018 nozzle
24P641
STR, .020 nozzle
24P642
STR, .024 nozzle
24P794
STR, .008 nozzle, qty 5
24P795
STR, .010 nozzle, qty 5
24P796
STR, .012 nozzle, qty 5
24P797
STR, .016 nozzle, qty 5
24P798
STR, .018 nozzle, qty 5
24P799
STR, .020 nozzle, qty 5
24P800
STR, .024 nozzle, qty 5
24P643
RA, .008 nozzle
24P644
RA, .010 nozzle
24P645
RA, .012 nozzle
24P646
RA, .016 nozzle
24P647
RA, .018 nozzle
24P648
RA, .020 nozzle
24P649
RA, .024 nozzle
24P803
RA, .008 nozzle, qty 5
24P804
RA, .010 nozzle, qty 5
24P805
RA, .012 nozzle, qty 5
24P806
RA, .016 nozzle, qty 5
24P807
RA, .018 nozzle, qty 5
24P808
RA, .020 nozzle, qty 5
24P809
RA, .024 nozzle, qty 5
3
Ordering Information
8
Select Applicator Spare Parts
Select InvisiPac GS35 Plug-Free Adhesive Applicator spare
and repair parts as required for the application. Part No.
Description
------------------------------------------------------------------------------------------------------------------------------------------------------------------
9
24P241
Air-open/Spring-close GS35 module
24P810
Module blanking plate
24P275
80 mesh gun filter
24P802
80 mesh gun filter, qty 3
24P239
24VDC 3-way solenoid valve
24P240
110 VAC 3-way solenoid valve
24P282
1/8 npt solenoid mufflers kit
24P280
PT 100 RTD cordset
24P283
NI 120 RTD cordset
24P278
1.5 in (38 mm), 200W heat rod kit
24P279
2.75 in (70 mm) 200W heat rod kit
Select Training Kits
Select InvisiPac Hot Melt Delivery System training aids. Part No.
Description
-----------------------------------------------------------------------------------------------------------------------------------------------------------------24R323
InvisiPac Advanced Display Module simulation kit
24R322
InvisiPac simulation key token (use with 24P860)
See instruction manuals (3A2347 and 3A2805) for additional repair part numbers. ©2013 Graco Inc. 348905 Rev. A 2/13 All written and visual data contained in this document are based on the latest product information available at the time of publication. Graco reserves the right to make changes at any
time without notice. All other brand names or marks are used for identification purposes and are trademarks of their respective owners.
