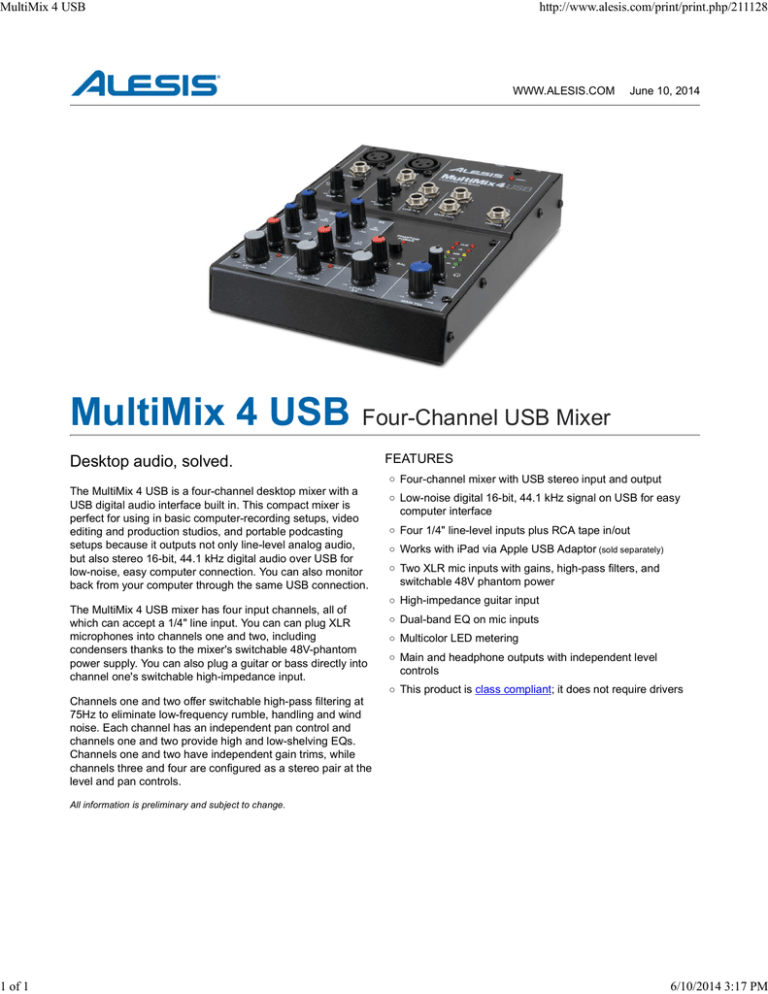

MultiMix 4 USB
MultiMix 4 USB
1 of 1
http://www.alesis.com/print/print.php/211128
WWW.ALESIS.COM
June 10, 2014
MultiMix 4 USB Four-Channel USB Mixer
Desktop audio, solved.
FEATURES
Four-channel mixer with USB stereo input and output
The MultiMix 4 USB is a four-channel desktop mixer with a
USB digital audio interface built in. This compact mixer is
perfect for using in basic computer-recording setups, video
editing and production studios, and portable podcasting
setups because it outputs not only line-level analog audio,
but also stereo 16-bit, 44.1 kHz digital audio over USB for
low-noise, easy computer connection. You can also monitor
back from your computer through the same USB connection.
The MultiMix 4 USB mixer has four input channels, all of
which can accept a 1/4" line input. You can can plug XLR
microphones into channels one and two, including
condensers thanks to the mixer's switchable 48V-phantom
power supply. You can also plug a guitar or bass directly into
channel one's switchable high-impedance input.
Low-noise digital 16-bit, 44.1 kHz signal on USB for easy
computer interface
Four 1/4" line-level inputs plus RCA tape in/out
Works with iPad via Apple USB Adaptor (sold separately)
Two XLR mic inputs with gains, high-pass filters, and
switchable 48V phantom power
High-impedance guitar input
Dual-band EQ on mic inputs
Multicolor LED metering
Main and headphone outputs with independent level
controls
This product is class compliant; it does not require drivers
Channels one and two offer switchable high-pass filtering at
75Hz to eliminate low-frequency rumble, handling and wind
noise. Each channel has an independent pan control and
channels one and two provide high and low-shelving EQs.
Channels one and two have independent gain trims, while
channels three and four are configured as a stereo pair at the
level and pan controls.
All information is preliminary and subject to change.
