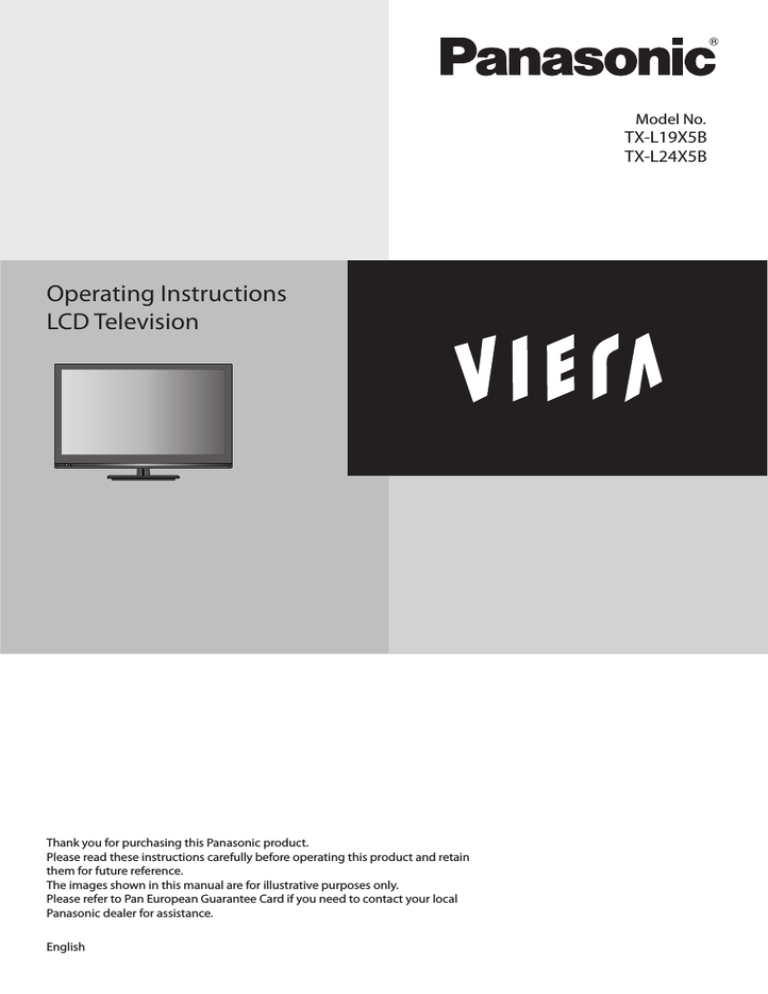

Model No.
TX-L19X5B
TX-L24X5B
Operating Instructions
LCD Television
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain
them for future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local
Panasonic dealer for assistance.
English
Contents
SAFETY PRECAUTIONS..................................................................................................... 3
Warning��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 3
Caution.............................................................................................................................. 5
Maintenance..................................................................................................................... 6
Display panel, Cabinet, Pedestal����������������������������������������������������������������������������������������������������������������������������������������������������� 6
Mains plug���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 6
Standard Accessories....................................................................................................... 6
Attaching the Pedestal..................................................................................................... 7
Installing Pedestal�������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7
Uninstalling Pedestal�������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 7
Wall-hanging (Not supplied)������������������������������������������������������������������������������������������������������������������������������������������������������������ 8
PART NAMES AND FUNCTIONS....................................................................................... 9
TV Controls/ Indicators����������������������������������������������������������������������������������������������������������������������������������������������������������������������� 9
TV (Side / Back)�������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������� 9
Connections.................................................................................................................... 10
Computer Connection���������������������������������������������������������������������������������������������������������������������������������������������������������������������  10
Video Equipment Connection������������������������������������������������������������������������������������������������������������������������������������������������������  10
AC Power Cord Connection�����������������������������������������������������������������������������������������������������������������������������������������������������������  11
Aerial or Cable Connection������������������������������������������������������������������������������������������������������������������������������������������������������������  11
Remote Control Batteries Installation.......................................................................... 11
Remote Control............................................................................................................... 12
Turning On/Off LCD TV................................................................................................... 13
Selecting Input Source................................................................................................... 13
ASPECT............................................................................................................................ 13
Initial Setup..................................................................................................................... 14
On-Screen Display.......................................................................................................... 16
Picture���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������  16
Sound����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������  17
Timer������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������  18
Setup������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������  18
Media Player����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������  20
TROUBLESHOOTING....................................................................................................... 22
SPECIFICATIONS............................................................................................................. 23
Input Signal Compatibility Chart.................................................................................. 24
COMPONENT (Y, PB, PR), HDMI�����������������������������������������������������������������������������������������������������������������������������������������������������  24
PC (from D-sub terminal/ HDMI terminal)��������������������������������������������������������������������������������������������������������������������������������  24
Multi-media Supported Specification.......................................................................... 25
Photo�����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������  25
Music������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������  25
Movie�����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������  25
LICENSE........................................................................................................................... 26
2
SAFETY PRECAUTIONS
Warning
Mains plug and lead
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
This TV is designed to operate on AC 220-240 V, 50 Hz.
Insert the mains plug fully into the socket outlet.
Ensure that the mains plug is easily accessible.
Remove the mains plug when cleaning the TV.
•
•
•
•
o not touch the mains plug
•Dwith
a wet hand.
not damage the mains lead.
•D−o− Do
not place a heavy object
If you detect anything unusual,
immediately switch off the mains supply
switch and remove the mains plug.
AC 220-240 V
50 Hz
on the lead.
−− Do not place the lead near a
high temperature object.
−− Do not pull on the lead.
Hold onto the mains plug
body when disconnecting
the plug.
−− Do not move the TV with the lead plugged into a socket outlet.
−− Do not twist the lead, bend it excessively or stretch it.
−− Do not use a damaged mains plug or socket outlet.
−− Ensure the TV does not crush the mains lead.
Do not use any mains lead other than that provided with this TV.
Do not place foreign objects inside the TV
−− Do not allow any objects to drop into the TV through the air vents as fire or electrical shock may result.
•
•
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience.
A 5 amp fuse is fitted in this mains plug. Shall the fuse need to be replaced, please ensure that the replacement
fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.
Check for the ASTA mark
or the BSI mark
on the body of the fuse.
If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.
A replacement fuse cover may be purchased from your local dealer.
Do not cut off the mains plug.
Example 1
Do not use any other type of mains lead except the one supplied with this TV.
The supplied mains lead and moulded plug are designed to be used with this TV to avoid
interference and for your safety.
If the socket outlet in your home is not suitable, get it changed by a qualified electrician.
If the plug or mains lead becomes damaged, purchase a replacement from an authorized
dealer.
How to replace the fuse
For plug type shown in example 1:
Lift out the removable fuse compartment with a screwdriver and replace the fuse, then refit
securely into the mains plug (see example 1).
Example 2
For plug type shown in example 2:
Lift open the fuse compartment, in the mains plug, with a screwdriver, and replace the fuse,
then press the fuse cover down securely (see example 2).
3
Warning
Take care
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
Do not remove covers and never modify the TV yourself as live parts are
accessible when they are removed. There are no user serviceable parts inside.
•
o not expose the TV to rain or excessive moisture. This TV must not be
•Dexposed
to dripping or splashing water and objects filled with liquid, such as
vases, must not be placed on top of or above the TV.
expose the TV to direct sunlight and other sources of heat. To prevent
•Dfireo not
never place any type of candle or naked flame on top or near the TV.
o not place the TV on sloped or unstable surfaces, and ensure that the TV
•Ddoes
not hang over the edge of the base.
insert foreign objects into the TV through the air vents.
•DDoo not
not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the setup
•or installation
of approved wall-hanging brackets.
strong force or impact to the display panel.
•DThiso notTV apply
• is designed for Table-top use.
To prevent the spread of fire, keep candles or other open
flames away from this product at all times
Small object
This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.
Keep the dangerous parts out of reach of young children.
•
Radio waves
o not use the TV in any medical institutions or locations with medical equipment. Radio waves from the TV may interfere
•Dwith
the medical equipment and cause accidents due to the malfunction.
o not use the TV near any automatic control equipment such as automatic doors or fire alarms. Radio waves from the TV
•Dmay
interfere with the automatic control equipment and cause accidents due to the malfunction.
4
Caution
Ventilation
Allow sufficient space around the TV in order to help prevent excessive heat, which could lead to early failure of some
electronic components.
Minimum distance
entilation should not be impeded by covering the
•Vventilation
openings with items such as newspapers,
tablecloths and curtains.
10 cm
10 cm
10 cm
10 cm
hether you are using the pedestal or not, always ensure the vents in the bottom of the TV are not blocked and there is
•Wsufficient
space to enable adequate ventilation.
Moving the TV
Before moving the TV, disconnect all cables.
When not in use for a long time
This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket outlet.
Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.
•
Excessive volume
Do not expose your ears to excessive volume from the headphones.
Irreversible damage can be caused.
Notice for DVB functions
This TV is designed to meet the standards (as of August, 2010) of DVB-T (MPEG2 and MPEG4‑AVC(H.264)) digital terrestrial
services and DVB-C (MPEG2 and MPEG4-AVC(H.264)) digital cable services.
Consult your local dealer for availability of DVB-T services in your area.
Consult your cable service provider for availability of DVB-C services with this TV.
This TV may not work correctly with the signal which does not meet the standards of DVB-T or DVB-C.
Not all the features are available depending on the country, area, broadcaster and service provider.
Not all CI modules work properly with this TV. Consult your service provider about the available CI module.
This TV may not work correctly with CI module that is not approved by the service provider.
Additional fees may be charged depending on the service provider.
The compatibility with future DVB services is not guaranteed.
Check the latest information on the available services at the following website. (English only)
http://panasonic.jp/support/global/cs/tv/
•
•
•
•
•
•
•
Panasonic does not guarantee operation and performance of peripheral devices made by other manufacturers; and we
disclaim any liability or damage arising from operation and/or performance from usage of such other maker’s peripheral
devices.
5
Maintenance
First, remove the mains plug from the socket
outlet.
Display panel, Cabinet, Pedestal
Standard Accessories
Check you have all the items shown.

Remote Control
(TZZ00000007A)

Batteries (R03  AAA)
x2
Regular care :
Gently wipe the surface of the display panel, cabinet, or
pedestal by using a soft cloth to clean the dirt or fingerprints.
For stubborn dirt :
Dampen a soft cloth with clean water or diluted neutral
detergent (1 part detergent to 100 parts water). Then wring
the cloth and wipe the surface. Finally, wipe away all the
moisture.
Caution
o not use a hard cloth or rub the surface too hard. This
•Dmay
cause scratches on the surface.
ake care not to subject the TV’s surfaces to water or
•Tdetergent.
Liquid inside the TV could lead to product failure.
ake care not to subject the surfaces to insect repellent,
•Tsolvent,
thinner or other volatile substances. This may

Neck and Base
degrade surface quality or cause peeling of the paint.
he surface of the display panel is specially treated and
•Tmay
be easily damaged. Take care not to tap or scratch the
surface with your fingernail or other hard objects.
not allow the cabinet and pedestal to make contact with
•Da orubber
or PVC substance for a long time. This may degrade
surface quality.
Mains plug
Wipe the mains plug with a dry cloth at regular intervals.
Moisture and dust may lead to fire or electrical shock.
6

Power Cord

Screws x 3
(Assembly screws for neck and
base)
Attaching the Pedestal
Warning
Do not disassemble or modify the pedestal.
therwise the TV may fall over and become damaged, and
•Opersonal
injury may result.
Installing Pedestal
1. Place the LCD TV screen facing down on a flat surface place
where maintained with soft materials (such as a blanket)
for protecting the display screen.
2. Use the assembly screw to fasten the neck to the base
securely.
Caution
Do not use any pedestal other than that
provided with this TV.
therwise the TV may fall over and become damaged, and
•Opersonal
injury may result.
Do not use the pedestal if it becomes warped or physically
damaged.
If you use the pedestal while it is physically damaged, personal
injury may result. Contact your nearest Panasonic dealer
immediately.
•
During assembly, use only screws supplied and make sure
that all screws are securely tightened.
If sufficient care is not taken to ensure screws are properly
tightened during assembly, the pedestal will not be strong
enough to support the TV. It might fall over and become
damaged and personal injury may result.
3. Use only the supplied assembly screws to fasten the
pedestal securely to the TV.
•
Ensure that the TV does not fall over.
If the TV is knocked or children climb onto the pedestal with
the TV installed, the TV may fall over and personal injury may
result.
•
Two or more people are required to install and remove
the TV.
If two or more people are not present, the TV may be
dropped, and personal injury may result.
•
Caution
Small object
This product contains possibly dangerous parts that
can be breathed in or swallowed by young children
accidentally
Keep the dangerous parts out of reach of young children.
Uninstalling Pedestal
1. Place the LCD TV screen facing down on a flat surface place
where maintained with soft materials (such as a blanket)
for protecting the display screen.
2. Remove screws in two holes with screw driver.
•
7
Wall-hanging (Not supplied)
Wall-hanging Insets
Depth of screw : minmum 6 mm
maximum 7 mm
Diameter : M4
Screw for fixing the TV onto the
wall-hanging bracket
(not supplied with the TV)
(View from the side)
TV Size
24 inch
19 inch
VESA standard interface
75 x 75 mm
75 x 75 mm
Wall-hanging bracket (Optional)
Please contact your nearest Panasonic dealer to purchase the
recommended optional accessories.
For additional details, please refer to the manual of the
optional accessories.
Warning
sing other wall-hanging brackets, or installing a wall
•Uhanging
bracket by yourself have the risk of personal
injury and product damage. In order to maintain the unit’s
performance and safety, be absolutely sure to ask your
dealer or a licenced contractor to secure the wall-hanging
brackets. Any damage caused by installing without a
qualified installer will void your warranty.
Do not mount the unit directly below ceiling lights (such
as spotlights, floodlights or halogen lights) which typically
give off high heat. Doing so may warp or damage plastic
cabinet parts.
Take care when fixing wall brackets to the wall. Always
ensure that there are no electrical cables or pipes in the wall
before hanging bracket.
To prevent fall and injury, remove the TV from its fixed wall
position when it is no longer in use.
•
•
•
8
PART NAMES AND FUNCTIONS
TV Controls/ Indicators
1 Remote Control Signal Receiver
o not place any objects between the TV remote
•Dcontrol
signal receiver and remote control.
3
4
5
6
7
1
2
2 Power Indicator
Red: Standby
Green: On
Green blink: Receiving a command from the
remote control
3 VOL +/-
to change volume.
•UUsed
sed to adjust the value of the selected item on On•Screen
Menu.
4 CH a/b
to change channels.
•UUsed
• sed to select item on On-Screen Menu.
5 MENU
•Open or close the On-Screen Menu.
6 INPUT/OK
se to select an input source.
•UConfirm
• and enter a selection.
7
(POWER)
•Use to turn the TV On or Off.
TV (Side / Back)
1 HDMI 1/HDMI 2
all kinds of HDMI output equipment.
•CWonnect
hen connecting a DVI device using an HDMI-DVI
•adapter,
connect the device to the HDMI1 jack.
2 AV 2
onnect video and audio output from video
•Cequipment.
3 DIGITAL AUDIO OUT
7
•Connect an audio amplifier to this jack.
4 PC
computer outputs to this terminal.
•CConnect
an audio cable to L/R jacks of AV2 and audio
•outonnect
jack on the computer.
5 AV 1
8
ST3
PC AUDIO
via AV 2
6 Aerial Jack
•Connects to TV RF signals (aerial/CATV).
7 Common Interface
10 The Common Interface Module menu provides access
•to software contained on Common Interface (CI)
9
Manufactured under license
from Dolby Laboratories.
Dolby and the double-D
symbol are trademarks of
Dolby Laboratories.
AV IN
ST3
Modules.
>PC<
>PC<
1
ull SCART, which transmits RGB, S-Video and CVBS in,
•Fand
audio/video out (Analogue only).
2
34 5
6
8 ETHERNET
his terminal is for access to the MHEG interactive
•Tservices
and features through an internet.
•Please contact broadcasters for availability of services.
9 Headphone
onnect a headphone (stereo) to this jack and the TV
•Cspeaker
out will be muted.
10USB
onnect USB memory stick to this terminal to play
•CMultimedia.
9
Connections
Computer Connection
Cable used for connection (This cable is not supplied with this LCD
TV.)
PC/VGA Cable (D-SUB 15pin)
HDMI Cable
Audio Cable [L/R]
•
•
•
Note:
When connecting the cable, AC Power Cords of both
LCD TV and external equipment should be disconnected
from AC outlet. Turn LCD TV and peripheral equipment
on before your computer is switched on.
Note:
You can connect the DVI source to HDMI1 input terminal by using the DVI to HDMI converter then connect audio input to PC
audio input terminal (L/R jacks of AV2 INPUT).
Video Equipment Connection
Cables used for connection (These cables are not supplied with this
LCD TV.)
Component/Video, Audio Cable
HDMI Cable: HDMI Input
•
•
HDMI Input
Note:
When connecting the cable, AC Power Cords of both
LCD TV and external equipment should be disconnected
from AC outlet.
Digital Audio Output
ST3
PC AUDIO
via AV 2
Manufactured under license
from Dolby Laboratories.
Dolby and the double-D
symbol are trademarks of
Dolby Laboratories.
AV IN
ST3
>PC<
Component/Video Source
AV2 IN can accept Component
or Video cable.
DVD video equipment
(such as DVD player or
high-definition TV source)
Note:
DIGITAL AUDIO OUT: Connect an audio amplifier to this jack.
•
10
AC Power Cord Connection
This LCD TV uses nominal input voltages of 220-240V AC.
It is designed to work with single-phase power systems. To
reduce risk of electrical shock, do not plug into any other type
of power system. Consult your authorised dealer or service
station if you are not sure the type of power being supplied.
Connect the LCD TV with all peripheral equipment before
turning the LCD TV on.
Remote Control Batteries Installation
1. Remove the battery compartment cover.
Caution
safety, unplug AC power cord when the LCD TV is not
•Finoruse.
2. Insert two size R03  AAA batteries (1.5V) according to “+”
and “-” polarity markings inside the battery compartment.
3. Close the battery compartment cover.
Aerial or Cable Connection
Cable used for connection (This Outdoor Aerial cable is not
supplied with this LCD TV.)
Aerial Cable
•
Caution
ST3
PC AUDIO
via AV 2
Manufactured under license
from Dolby Laboratories.
Dolby and the double-D
symbol are trademarks of
Dolby Laboratories.
AV IN
ST3
>PC<
Note:
For all aerial circuit problems, please consult your local dealer.
To insure safe operation, please observe the following
precautions:
Replace two batteries at the same time.
Do not use a new battery with a used battery.
Avoid contacting with water or liquid.
Do not expose the Remote Control or Batteries to moisture,
or heat such as sunshine, fire or the like.
Do not drop the Remote Control.
If a battery has leaked on the Remote Control, carefully wipe
case clean and install new batteries.
Risk of explosion if battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Remote control contains R03  AAA battery and must be
kept out of reach of small children to avoid accidental
ingestion.
Replace only with same or equivalent type. Do not mix
different battery types (such as alkaline and manganese
batteries).
Do not use rechargeable (Ni-Cd) batteries.
•
•
•
•
•
•
•
•
•
•
•
11
Remote Control
1
16
2
3
17
4
5
18
19
6
20
7
8
9
21
22
23
24
10
25
11
12
13
14
15
26
27
28
29
1 Standby On / Off switch
Switches TV On or Off standby.
2 Numeric buttons
Changes channel and teletext pages.
3 FAVORITE
Open the favourite channel list.
Note:
Add a channel into the favourite channel list:
−− When you enter a channel, press FAVORITE button to
open the favourite channel list, then press OK to add
the selected channel into the favourite channel list.
View a favourite channel:
−− Press FAVORITE button to open the favourite channel
list, selects a channel, then press OK to enter.
Remove a favourite channel from the favourite channel list:
−− Press FAVORITE button to open the favourite channel
list, selects the channel, then press OK to enter.
−− Press FAVORITE button again to open the favourite
channel list, selects the current channel, then press OK
to remove the channel from the favourite channel list.
4 AUDIO
Selects multi audio in DVB mode or MPX selection in
analogue mode.
5
OFF TIMER
Sets the time settings of off timer.
6 VOL +/Press to adjust the volume.
•
•
•
•
•
•
•
•
•
12
7 INPUT (TV)
Switches to TV input source.
8
MUTE
Press to mute or restore the sound.
9
TEXT
Switches to teletext mode.
Actives FreeView contents when MHEG source inputs.
10 MENU
Open or close the On-Screen Menu.
11 R/G/Y/B (COLOUR BUTTON)
Used for the selection, navigation and operation of various
functions.
Red button: Actives FreeView contents when MHEG source
inputs.
12 F.P. (Favourite Page)
Opens the favourite page list in teletext mode.
Note:
Add a teletext page into the favourite page list:
−− When you enter a teletext page, press F.P. button to
open the favourite page list, then press OK to add the
selected teletext page into the favourite page list.
View a favourite page:
−− Press F.P. button to open the favourite page list, selects
a teletext page, then press OK to enter the content.
Remove a favourite page from the favourite page list:
−− Press F.P. button to open the favourite page list, selects
the teletext page, then press OK to enter the content.
−− Press F.P. button again to open the favourite page list,
selects the current teletext page, then press OK to
remove the teletext page from the favourite page list.
13 REVEAL
Reveal hidden information such as answers to a quiz.
14
Fast reverse for multi-media playback. (See page 20-21)
15
Play or pause for multi-media playback. (See page 20-21)
16 (Information)
Displays channel and programme information.
17
LAST VIEW
Switches to previously viewed channel or input mode.
18 GUIDE
Displays TV Guide.
Switches to teletext mode.
19 ASPECT
Changes aspect ratio.
20 CH /
Selects channel in sequence.
21 INPUT (AV)
Opens input source list and switches to video input source.
22 EXIT
Returns to the normal viewing screen.
23 STTL
Displays subtitles.
24 a/b/c/d/ OK
Confirms selections and choices.
25 BACK/RETURN
Returns to the previous menu/page.
26 SUBPAGE
To select the subpage when the current page contains
subpages.
27 SIZE
Teletext size function key.
28
Stop for multi-media playback. (See page 20-21)
29
Fast forward for multi-media playback. (See page 20-21)
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Turning On/Off LCD TV
1. Complete the peripheral connections before turning on
LCD TV.
2. Connect LCD TV’s AC Power Cord into an AC outlet.
3. Press POWER button on Side Control of LCD TV or use
Remote Control to turn it ON.
The POWER indicator will light up (green).
4. Press POWER button again to enter stand-by status, the
POWER indicator will become red.
Note:
If there is no reaction when you press (POWER) on the
remote control, press
(POWER) button on Side Control
again to active the TV.
Selecting Input Source
Select mode AV 1, AV 2, HDMI 1, HDMI 2, PC, USB, or TV by
pressing INPUT(AV) button of Remote Control or INPUT/OK
button of Side Control.
Input Selection
AV 1
AV 2
HDMI 1
HDMI 2
PC
USB
ASPECT
Select screen size among “Auto”, “4:3“, “Zoom 1”,
“Zoom 2”, “16:9” by pressing
ASPECT button on Remote
Control.
[Auto]
The optimum size and aspect can be
chosen automatically, and you can
enjoy finer images.
[4:3]
Displays the image at the standard 4:3
without distortion.
[Zoom 1]
Scales the classic 4:3 format to 14:9.
[Zoom 2]
Scales the classic 4:3 format to 16:9.
[16:9]
Directly displays the image at 16:9
without distortion (anamorphic).
Note:
[Auto] mode determines the best aspect ratio to fill the
screen. It does this using a three step process (WSS, Control
signal through SCART / HDMI terminal) to determine.
TV
13
Initial Setup
1 Initial Setup <On-Screen>
<Remote / Operation>
Initial Setup
Welcome to use the Wizard for Initial Setup !!
Please press [OK] to start the wizard.
2 Mode Select (TV location setting)
<On-Screen>
Initial Setup
<Remote / Operation>
Mode select
EXIT
Please select your mode
Home
Back
Shop
Select
Next
Back
Select
Next
Exit
Exit
Note:
If you selected Shop, a message appears
“Are you sure ?”. Select Yes to continue, or select No to change your selection.
Select Home viewing environment to use in your home environment.
Shop viewing environment is the demonstration mode to explain main features of this TV.
To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.
•
•
3 Country Setting <On-Screen>
Initial Setup
<Remote / Operation>
Country
EXIT
Please select your country:
United Kingdom
Back
Ireland
Next
Back
14
Select
Next
Exit
Exit
Select
Initial Setup
4 Channel Scan <On-Screen>
<Remote / Operation>
Initial Setup
Channel Scan
EXIT
First, please connect aerial.
Start channel scan now ?
If you skip this step, the channel scan could be performed in Menu.
Back
Scan
Skip Scan
Back
Select
Select
Next
Next
Exit
Exit
5 Search for channels <On-Screen>
Initial Setup
<Remote / Operation>
Channel Scan
Cancel
The channel scan may take a while to complete.
Status: Scanning...
Analogue Channels: 2
Digital Channels: 0
15%
Exit
Cancel
6 Initial setup completed <On-Screen>
Initial Setup
<Remote / Operation>
Complete
Congratulations !!
Completed Initial Setup.
Back
Please press [OK] to exit the wizard.
Back
15
On-Screen Display
Colour
ncreases or decreases the levels of colour according to your
•Ipersonal
preference. (0~100)
Main Menu
Viewing Mode
90
50
50
50
0
Brightness
Colour
Sharpness
Tint
Colour Balance
Access
Select
•
Normal
Contrast
Normal
P-NR
On
3D-COMB
On
Screen Display
On
EXIT
RETURN
1. Press MENU button and ab buttons to select “Picture”, the
Picture menu will be displayed.
2. Press OK button to enter Picture menu.
3. Press ab buttons to select item desired.
4. Press cd buttons to adjust value.
5. Press BACK/RETURN button to return the previous
menu.
6. Press EXIT button to exit menu operation.
Viewing Mode
•
Dynamic
rovides enhanced picture contrast and sharpness when
•Pviewing
in a bright room.
or indoor lighting conditions, change Colour Balance
•Fsetting
to Normal or Warm for best picture viewing.
Basic picture mode Dynamic/Normal/Cinema/User/Game.
Normal
ecommended for viewing under normal ambient room
•Rlighting
conditions.
Cinema
•
For watching movies in a darkened room with the improved
performance of contrast, black and colour reproduction.
User
Sharpness
Increases or decreases the levels of sharpness according to
your personal preference. (0~100)
Tint
an NTSC signal source connected to the TV, the picture
•Whueithcan
be adjusted to suit your taste. (-50~50)
•For NTSC signal reception only.
•
•
Colour Balance
Allows you to set the overall colour tone of the picture
Cool/Normal/Warm.
For indoor lighting conditions, change Colour Balance
setting to Normal or Warm for best picture viewing.
•
•
P-NR
Enables or disables P-NR (Picture Noise Reduction)
Automatically reduces unwanted picture noise and flicker
noise in the contoured parts of a picture.
3D-COMB
still or slow moving pictures look more vivid.
•MForakes
• CVBS signal reception only.
•
•
•
•
Screen Display
Turns the screen On or Off.
Press any buttons (except Standby) to turn the screen on.
The sound is active even if the screen turns off.
This function is effective in reducing power consumption
when listening to the sound without watching the TV
screen.
•
Advanced Settings
Provides various advanced settings for improving the
picture quality.
16:9 Overscan
the screen area displaying the image.
•S−elects
− On: Enlarges the image to hide the edge of the image.
−− Off: Displays the image in the original size.
•Sets the settings for your preferred.
Game
Adaptive Brightness
response signal specifically to provide suitable images
utomatically adjusts the brightness and contrast after
•Fforastplaying
•Aanalysing
games.
the input signal. This function enriches the
Contrast
ncreases or decreases the levels of contrast according to
•Iyour
personal preference. (0~100)
Brightness
ncreases or decreases the levels of brightness according to
•Iyour
personal preference. (0~100)
16
colours and the depth of the picture.
Dynamic Back Light
•Automatically optimises the backlight levels for dark scenes.
DVI Input Settings
hanges the black level in the image for HDMI input mode
•Cwith
DVI input signal manually.
•For HDMI terminal with DVI input signal only.
3:2 Pulldown
utomatically detects a film-based source (originally
•Aencoded
at 24 frames/second), analyses it then recreates
each file frame for high-definition picture quality.
3:2 pulldown function is selectable when channel display
shows an input resolution of 576i, 480i, or 1080i.
•
Main Menu
SPDIF Selection
•
•
Auto
Mode
Music
0
0
0
30
Bass
Treble
Balance
Headphone Volume
Surround
MPX
SPDIF Selection
SPDIF Delay
Access
multiplex sound mode (if available).
•SForelects
• analogue mode only.
SPDIF: A standard audio transfer file format.
Selects the initial setting for digital audio output signal from
DIGITAL AUDIO OUT terminal.
Sound
Select
MPX
Off
Stereo
Auto
No
Dolby Digital (if available) or default audio source
•Otoutputs
DIGITAL AUDIO OUT terminal.
f the audio is recorded in Dolby Digital, the output from
•IDIGITAL
AUDIO OUT terminal will be Dolby Digital.
PCM
•Outputs PCM format to DIGITAL AUDIO OUT terminal.
SPDIF Delay
djusts the delay time of the sound output from DIGITAL
•AAUDIO
OUT terminal if the sound does not synchronise the
EXIT
RETURN
1. Press MENU button and ab buttons to select “Sound”, the
Sound menu will be displayed.
2. Press OK button to enter Sound menu.
3. Press ab buttons to select item desired.
4. Press cd buttons to adjust value.
5. Press BACK/RETURN button to return the previous
menu.
6. Press EXIT button to exit menu operation.
Mode
•Selects the basic sound mode Music/Speech.
Music
•Optimise sound quality for watching music videos, etc.
Speech
•Optimise sound quality for watching news, drama, etc.
Bass
image.
HDMI1 input
•
•
Digital
•Selects Digital to input audio signal from HDMI terminal.
Analogue
elects Analogue to input audio signal from L/R jack of AV2
•SINPUT.
Selects an input way of audio signal.
For HDMI1 terminal only.
Audio Description
Audio Description
−− Normal: Sets regular audio only.
−− Hard of Hearing: Sets the mix of hearing impaired
audio with regular audio.
−− Visually Impaired: Sets the mix of visually impaired
audio with regular audio.
Volume
•Adjusts the volume for Audio Description. (0~100)
ncreases or decreases level to enhance or minimise lower,
•Ideeper
sound output. (-14~14)
•
Treble
Increases or decreases level to enhance or minimise sharper,
higher sound output. (-14~14)
Balance
•Adjusts volume level of right and left speakers. (-50~50)
•
Headphone Volume
Adjusts the volume of the headphones. (0~100)
Surround
•Enriches (expanding and deepening) the sound quality.
17
Timer
Setup
Main Menu
Main Menu
Off Timer
Auto Standby
Off
Tuning Menu
Language
4 hours
Display Settings
Common Interface
HDMI Control
On
System Menu
Child Lock
Other Settings
Access
Select
EXIT
Access
Select
RETURN
1. Press MENU button and ab buttons to select “Timer”, the
Timer menu will be displayed.
2. Press OK button to enter Timer menu.
3. Press ab buttons to select item desired.
4. Press cd buttons to adjust value.
5. Press BACK/RETURN button to return the previous
menu.
6. Press EXIT button to exit menu operation.
Off Timer
ets the time until the TV automatically goes to Standby
•Smode.
Auto Standby
non-watched or non-used connected equipment go
•MintoakesStandby
mode to reduce the power consumption.
EXIT
RETURN
1. Press MENU button and ab buttons to select “Setup”, the
Setup menu will be displayed.
2. Press OK button to enter Setup menu.
3. Press ab buttons to select item desired.
4. Press cd buttons to adjust value.
5. Press BACK/RETURN button to return the previous
menu.
6. Press EXIT button to exit menu operation.
PC Setup
•For PC input source only.
Input Resolution
•Options change depending on signals.
Clock
•Sets to the minimum level if noise occurs.
H-pos
•Adjusts horizontal position.
V-pos
•Adjusts vertical position.
Clock Phase
•Eliminates flicker and distortion.
Auto Adjustment
adjusts the image settings such as position
•Aandutomatically
phase.
Tuning Menu
Auto Setup
•Automatically sets the channels.
Update Channel List
pdates channel list without erasing the original
•Uinformation.
•Only available when Tuner Mode is set to Aerial.
Single RF Scan
•Scans single RF channels and checks the signal condition.
18
Analogue Manual Scan
and stores analogue TV channels manually.
•SForearches
• TV mode only.
Note:
TV will store scanned channels, even if the scanning for
channels have not completed.
Channel Skip
kips one or more channels when using remote control to
•Sswitch
between channels.
Channel Sort
Network
•Sets network settings for your TV.
Configuration
−− Internet Connection: Selects On to enable network
settings.
−− Information: Displays information of network
connection.
−− IP Setting: Detects IP automatically or sets IP manually.
−− Connection Test: Displays the network signal strength.
Interaction channel
•Reorders the channels in the programme list.
nteraction channel provides an extension of broadcast
•Iinteractive
Channel Edit
services via broadcast transmission or IP
E
dits
the
channel
number
or
the
channel
name.
•
connection.
Fine Tuning
•Selects On to enable Interaction channel function.
analogue channels manually when the reception MHEG5 PIN protection
•Fisine-tunes
poor.
•Asks the viewer to enter the PIN to allow presentation.
Clean Channel List
SCART
•Cleans all the current TV channels.
•For AV1 (SCART) input source only.
Language
Auto
Preferred Audio 1 / Preferred Audio 2
•Detects CVBS, RGB or S-Video automatically.
elects the first and second preferred language for DVB
Mix
•Smulti
audio (depending on the broadcaster).
•Mix CVBS and RGB signals.
Preferred Subtitle 1 / Preferred Subtitle 2
RGB
elects the first and second preferred language for DVB
•Ssubtitles
•RGB signal is displayed.
(depending on the broadcaster).
Composite
Display Settings
•Composite signal is displayed.
S-Video
Teletext Character Set
•S-video input is displayed.
S
elects
teletext
language.
•Only for Ireland region.
•
System Menu
Banner Display Timeout
Shipping Condition
•Sets how long the Information banner stays on screen.
•Resets all settings, for example, when moving house.
•
Common Interface
Uses include to watch encrypted channels.
HDMI Control
First, please connect your TV to a HDMI compliant device.
T V will be turned on and display the previous viewed input
source, when the connected HDMI compliant device is
switched on.
Connected HDMI compliant device will be switched to
standby when TV turns to standby mode.
•
•
OAD
•Turns OAD function On or Off.
Auto Download
•Downloads new software by air automatically.
Auto Install
•Installs new software automatically
Manual OAD
•Upgrades software by air manually.
System Information
•Displays the system information of this TV.
Software License
•Displays the software license information of this TV.
19
Child Lock
Media Player
a channel / AV input to prevent access to it.
•LWocks
hen the locked channel / input is selected, a message
•appears;
you need to enter the PIN number to watch the
Media Player
restricted content.
PIN
need to enter the PIN when you access locked channel
•Yorouinputs.
•The default PIN is 0000.
Channel Block
•Prevents children from watching certain channels.
Parental Rating
revents children from watching certain TV programmes
•Paccording
to the age rating.
Input Block
•Disables the specific external input signals.
Change PIN
•Change the 4-digit parental control PIN.
Clear All
•Cleans child lock settings.
Other Settings
Power Save
educes brightness of picture to economise on power
•Rconsumption.
Contents Select
Select
ACCESS
Movie
1. Insets the USB storage device to the USB port on the TV.
2. Press INPUT(AV) button, and the input source list will be
displayed.
3. Press a/b to select USB, and press OK button to enter
multi-media content.
Note:
Partition: FAT32, Not support NTFS format.
(FAT32—Max Partition Size: 32GB, Max File Size: 4GB)
Some of the USB storage devices may not be compatible
with this TV, please try another USB storage devices.
See page 25 for USB storage device compatibility.
•
•
•
•Thumbnail Index/Single View
Buttons
Red
Green
Yellow
Blue
(Information)
a/b/c/d
•Playing Slideshow
Buttons
Blue
20
Music
Storage Media
Description
lay slideshow.
•PSelects
type.
•Selects viewing
Photo, Music, or Movie
•Opens option
menu.
•
•Display file information.
•Selects photos.
•Go to the previous photo.
•Play slideshow.
eturn to the thumbnail photo
•Rindex.
•Go to the next photo.
Description
option menu.
•OGopens
• to the previous photo.
ause slideshow and display
•Psingle
view of the photo.
top slideshow and return to the
•Sthumbnail
photo index.
•Go to the next photo.
Music
Buttons
Blue
Yellow
(Information)
a/b/c/d
Description
pens option menu.
•OSelects
• Photo, Music, or Movie.
•Display file information.
•Selects musics.
•Rewind the selected music.
•Play or pause the selected music.
top the selected music and
•Sreturn
to the thumbnail music
index.
•Fast forward the selected music.
Movie
Buttons
Blue
Yellow
(Information)
a/b/c/d
Description
pens option menu.
•OSelects
• Photo, Music, or Movie.
•Display file information.
•Selects videos.
•Rewind the selected movie
•Play or pause the selected movie.
top the selected movie and
•Sreturn
to the thumbnail movie
index.
•Fast forward the selected movie.
•
Option List
In multi- media menu, you can press Blue colour key to
select one of following options.
Viewing photos
Effect
•TPransition
hoto Size
•Interval
•Repeat
•
Playing music
•Repeat
Playing movies
ulti Audio
•MSubtitle
•Aspect Change
•Repeat
•Viewing Mode
•
21
TROUBLESHOOTING
Before calling your dealer or service centre for assistance,
check the matters below once again.
1. Make sure you have connected LCD TV to your equipment.
2. Check cable connection. Verify that all external equipment
and power cords are properly connected.
3. Verify that all power is switched on.
4. If LCD TV still does not produce an image, re-start the
external equipment.
5. If the image still does not appear, unplug LCD TV from the
external equipment and check the external equipment.
The problem may be with your graphics controller rather
than with LCD TV. (When you reconnect LCD TV, remember
to turn the external equipment and TV off before you
power up LCD TV. Power the equipment back on in order
of LCD TV and external equipment.)
6. If the problem still exists, check the following chart.
Problem
NO POWER
Problem
No sound
There are tiny black
points and/ or bright
point on the TV
•
Try these Solutions
lug this LCD TV into the AC
•Poutlet.
ress POWER button on side
•Pcontrol
or on Remote Control to
turn on LCD TV.
•
getting trouble.
the batteries.
•CMheck
sure nothing is between
•theakeRemote
Receiver and the
Remote Control.
ake sure you are not too far
•Mfrom
LCD TV when using Remote
Control.
operating range is
•M(7maximum
and a 30 degree angle of the
front of the TV).
s direct sunlight or strong
•Iartificial
light shining on LCD
TV‘s Infrared Remote Receiver?
Eliminate the light by closing
curtains, pointing the light in a
different direction, etc.
A dedicated remote control is
required for this model. Basically,
the remote control of other
brands (including Panasonic
other models) cannot be used.
Check the connection between
the external equipment and
LCD TV.
When turning LCD TV on, it takes
a few seconds to display the
image.
Check the system that you
select is corresponding with the
external equipment or the video
equipment.
Make sure the temperature
is not out of the Operating
Temperature (0°C ~ 35°C).
Turn off power, then turn on
again, re-start LCD TV.
•
No image
•
•
•
•
•
22
the screen. This is a characteristic
of the LCD panel, not a
malfunction of the LCD TV.
LCD panel is produced with very
high accuracy technology. There
is 99.99% or more dot pixel, but
there is also 0.01 % or less of
dot pixel lack or dot pixel that
is constantly lighted. This is not
defect.
Regarding LCD panel
characteristic, it may occur
picture remain (look like a mirror)
when the screen is changed if it
displays same screen for a long
time. Changing the picture or
turn-off the power supply may
recover.
Stripe pattern (more, interference
stripes) may show up on the
screen depends on the reflected
picture.
Adjust the value of colour.
•
heck POWER Indicator. If this
•Cindicator
no light, this TV has
Remote Control does
not work
Try these Solutions
heck Audio cable connection
•Cfrom
Audio input source.
djust the Sound System.
•APress
(+) button.
•Press VOLUME
button.
•Dark orMUTE
points of light (red,
•green, orbright
blue) may appear on
Abnormal colour of
•
Warning
High voltages are used to operate this LCD TV.
Do not attempt to open the cabinet.
If the problem still persists after following all operating
instructions, contact the sales dealer where you purchased
LCD TV or the service centre. Give the model number and
explain the difficulty. We will advise you how to obtain
service.
SPECIFICATIONS
TX-L19X5B
TX-L24X5B
Power Source
AC 220-240 V, 50Hz
Energy efficiency class
A
A
17 W
24 W
25 kWh
35 kWh
25 W
40 W
0.3 W
0.3 W
Dimensions (W × H × D)
With Pedestal:
454 mm × 343 mm × 170 mm
Without Pedestal (TV only):
454 mm × 303 mm × 46 mm
With Pedestal:
567 mm × 406 mm × 170 mm
Without Pedestal (TV only):
567 mm × 367 mm × 46 mm
Mass
With Pedestal:
3.5 kg
Without Pedestal (TV only):
3.0 kg
With Pedestal:
4.5 kg
Without Pedestal (TV only):
4.0 kg
On mode average
power consumption
Annual energy
consumption*1
Rated Power
Consumption
Standby Power
Consumption*2
Display panel
Sound
Aspect Ratio
16:9
Visible screen size
409.8 mm (W) × 230.4 mm (H)
18.5 inches (diagonal)
521.3 mm (W) × 293.2 mm (H)
23.5 inches (diagonal)
Number of pixels
1,049,088 (1,366 (W) × 768 (H))
2,073,600 (1,920 (W) × 1,080 (H))
Speaker
(100 mm × 27 mm × 27 mm) × 2, 16 Ω
(100 mm × 27 mm × 27 mm) × 2, 16 Ω
Audio Output
6 W (3 W + 3 W), 10% THD
6 W (3 W + 3 W), 10% THD
Headphones
3.5mm stereo mini Jack × 1
3.5mm stereo mini Jack × 1
Broadcast System
Analogue: PAL-I
Digital: DVB-T/T2
Aerial input
VHF / UHF
Operating Conditions
Temperature : 0 °C - 35 °C
Humidity : 20 % - 80 % RH (non-condensing)
*1: Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for
365 days. The actual energy consumption will depend on how the television is used.
*2: When the TV is turned off with the remote control and no function is active.
23
Input Signal Compatibility Chart
COMPONENT (Y, PB, PR), HDMI
Signal name
525 (480) / 60i, 60p
625 (576) / 50i, 50p
750 (720) / 60p, 50p
1,125 (1,080) / 60i, 50i
1,125 (1,080) / 60p, 50p, 24p
COMPONENT
HDMI
Mark : Applicable input signal
PC (from D-sub terminal/ HDMI terminal)
Signal name
640 × 400 @70 Hz
640 × 480 @60 Hz
640 × 480 @75 Hz
800 × 600 @60 Hz
800 × 600 @75 Hz
800 × 600 @85 Hz
1,024 × 768 @60 Hz
1,024 × 768 @70 Hz
1,024 × 768 @75 Hz
1,024 × 768 @85 Hz
1,280 × 768 @60 Hz
1,280 × 1,024 @60 Hz
1,366 × 768 @60 Hz
Macintosh13” (640 × 480)
Macintosh16” (832 × 624)
Macintosh21” (1,152 × 870)
Horizontal frequency (kHz)
Vertical frequency (Hz)
31.47
31.47
37.50
37.88
46.88
53.67
48.36
56.48
60.02
68.68
47.78
63.98
48.39
35.00
49.73
68.68
70.08
59.94
75.00
60.32
75.00
85.08
60.00
70.07
75.03
85.00
59.87
60.02
60.04
66.67
74.55
75.06
Applicable input signal for PC is basically compatible to VESA standard timing
Applicable input signal for PC is basically compatible to HDMI standard timing
Note:
Signals other than above may not be displayed properly.
The above signals are reformatted for optimal viewing on your display.
PC signal is magnified or compressed for display, so that it may not be possible to show fine detail with sufficient clarity.
Only HDMI 1 supports PC/DVI (co-use R/L of YPbPr RCA jack for DVI mode audio input).
•
•
•
•
24
Multi-media Supported Specification
Format
JPEG
File extension
Image resolution
(pixel)
.jpeg
Baseline jpeg:
4 x 4 to 17,000 x10,000 DCF*1 and EXIF∗2 standards
Progressive jpeg:
Sub-sampling : 4:4:4, 4:2:2, 4:2:0
4 x 4 to 4,000 x 4,000
Details / Restrictions
∗1 : Design rule for Camera File system - unified standard established by Japan Electronics and Information Technology
Industries Association (JEITA)
∗2 : Exchangeable Image File - image file format used by digital cameras
Music
Codec
File extension
Restrictions
MP3
.mp3
–
AAC
.m4a
–
WMA
.wma
WMA lossless/WMA Pro are not supported.
Movie
Container
File extension
AVCHD
.mts
H.264 BP/MP/HP
Video codec
Dolby Digital
Audio codec
AVI
.avi
H.264 BP/MP/HP
MPEG 4
MP3, MPEG1 Layer1/2, Dolby Digital, AAC,
HE-AAC
ASF
.asf
.wmv
Windows Media Video v9/VC-1
Windows Media Audio v8, MP3
MKV
.mkv
H.264 BP/MP/HP
MP3, MPEG1 Layer1/2, Dolby Digital, AAC,
HE-AAC
MP4
.mp4
.m4v
H.264 BP/MP/HP
MP3, AAC, HE-ACC
TS
.ts
.tp
H.264 BP/MP/HP
MPEG 2
Dolby Digital, Dolby Digital Plus, MP3,
AAC, HE-AAC
PS
.mpg
.mpeg
MPEG 1/MPEG 2
Dolby Digital, MPEG1 Layer1/2, AAC, DVD
LPCM
FLV
.flv
.f4v
H.264 BP/MP/HP
MP3, AAC, HE-AAC
3GPP
.3gp
H.264 BP/MP/HP
MPEG 4
AAC, HE-AAC
Note:
Some files may not be played back even if they fulfill these conditions.
Do not use two-byte characters or other special codes for data.
The card may become unusable with this TV if the file or folder names are changed.
•
•
•
25
LICENSE
This product incorporates the following software or technology:
(1) the software based in part on the work of the Independent JPEG Group,
(2) the software developed by the Free Type Project.
Dolby
anufactured under license from Dolby Laboratories. Dolby and the double-D symbol are
•Mtrademarks
of Dolby Laboratories.
HDMI
DMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered
•Htrademarks
of HDMI Licensing LLC in United States and other countries.
HD TV
•The “HD TV” Logo is a trademark of DIGITALEUROPE.
FreeView HD
he Freeview HD words and logos are trade marks of DTV Services Ltd and are used
•Tunder
licence. © DTV Services Ltd.
26
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used electrical and
electronic products and batteries should not be mixed with general household waste. For proper treatment,
recovery and recycling of old products and used batteries, please take them to applicable collection points,
in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and prevent
any potential negative effects on human health and the environment which could otherwise arise from
inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your local
municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further
information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please contact your
local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples) :
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.
Sales and Support Information
Customer Communications Centre
• For customers within the UK: 0844 844 3899
• For customers within Ireland: 01 289 8333
• For further support on your product, please visit our website: www.panasonic.co.uk
Direct Sales at Panasonic UK
• Order accessory and consumable items for your product with ease and confidence by phoning our Customer
Communications Centre.
Monday − Thursday 9:00am − 5:30pm, Friday 9:30am − 5:30pm (Excluding public holidays)
• Or go on line through our Internet Accessory ordering application at www.pas-europe.com.
• Most major credit and debit cards accepted.
• All enquiries transactions and distribution facilities are provided directly by Panasonic UK.
• It couldn’t be simpler!
• Also available through our Internet is direct shopping for a wide range of finished products. Take a browse on
our website for further details.
Declaration of Conformity (DoC)
Authorised Representative :
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial number in
the space provided below and retain this book, plus your purchase receipt, as a permanent record of your purchase to aid
in identification in the event of theft or loss, and for Warranty Service purposes.
Model Number
Serial Number
Willoughby Road, Bracknell, Berkshire, RG12 8FP
Web Site: http://panasonic.net
T012-
© Panasonic Corporation 2012
Printed in China
Q41G24MV03701&
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
