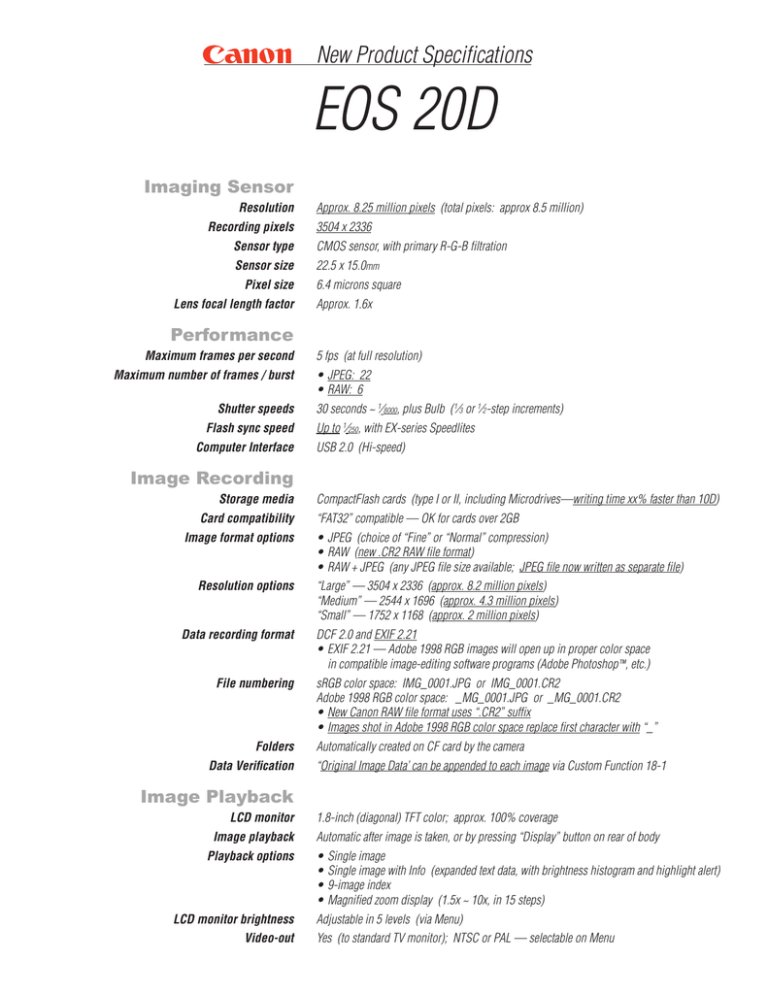

New Product Specifications
EOS 20D
Imaging Sensor
Resolution
Recording pixels
Approx. 8.25 million pixels (total pixels: approx 8.5 million)
3504 x 2336
Sensor type
CMOS sensor, with primary R-G-B filtration
Sensor size
22.5 x 15.0mm
Pixel size
Lens focal length factor
6.4 microns square
Approx. 1.6x
Performance
Maximum frames per second
Maximum number of frames / burst
Shutter speeds
Flash sync speed
Computer Interface
5 fps (at full resolution)
• JPEG: 22
• RAW: 6
30 seconds ~ 1⁄ 8000, plus Bulb ( 1⁄3 or 1⁄2-step increments)
Up to 1⁄250, with EX-series Speedlites
USB 2.0 (Hi-speed)
Image Recording
Storage media
Card compatibility
Image format options
Resolution options
Data recording format
File numbering
Folders
Data Verification
CompactFlash cards (type I or II, including Microdrives—writing time xx% faster than 10D)
“FAT32” compatible — OK for cards over 2GB
• JPEG (choice of “Fine” or “Normal” compression)
• RAW (new .CR2 RAW file format)
• RAW + JPEG (any JPEG file size available; JPEG file now written as separate file)
“Large” — 3504 x 2336 (approx. 8.2 million pixels)
“Medium” — 2544 x 1696 (approx. 4.3 million pixels)
“Small” — 1752 x 1168 (approx. 2 million pixels)
DCF 2.0 and EXIF 2.21
• EXIF 2.21 — Adobe 1998 RGB images will open up in proper color space
in compatible image-editing software programs (Adobe Photoshop™, etc.)
sRGB color space: IMG_0001.JPG or IMG_0001.CR2
Adobe 1998 RGB color space: _MG_0001.JPG or _MG_0001.CR2
• New Canon RAW file format uses “.CR2” suffix
• Images shot in Adobe 1998 RGB color space replace first character with “_”
Automatically created on CF card by the camera
“Original Image Data’ can be appended to each image via Custom Function 18-1
Image Playback
LCD monitor
Image playback
Playback options
LCD monitor brightness
Video-out
1.8-inch (diagonal) TFT color; approx. 100% coverage
Automatic after image is taken, or by pressing “Display” button on rear of body
• Single image
• Single image with Info (expanded text data, with brightness histogram and highlight alert)
• 9-image index
• Magnified zoom display (1.5x ~ 10x, in 15 steps)
Adjustable in 5 levels (via Menu)
Yes (to standard TV monitor); NTSC or PAL — selectable on Menu
EOS 20D specifications (continued)
Page 2
Autofocus
Number of AF points
Nine
• Arrangement of AF points approximate “golden section” composition
Cross-type sensor
Center AF point is high-precision cross-type, when used with lenses ƒ2.8 or faster
• All AF points provide single-line coverage with lenses as slow as ƒ5.6
AF point selection
1. Manual AF point selection
via new 9-way multi-controller on back of camera
2. Automatic AF point selection
AF modes
• One-Shot AF (for stationary subjects)
• AI Servo AF (for tracking moving subjects)
• AI Focus AF (auto selection of One-Shot or AI Servo AF)
AF sensor
Canon-produced CMOS
AF sensitivity range
AF speed
EV 0.5 ~ 18 (one stop greater low-light performance than EOS 10D)
Superior to EOS 10D with stationary subjects
• Predictive AF performance in AI Servo AF about the same as EOS 10D
Exposure Control
Shutter speeds
ISO range
Exposure modes
Metering
Metering range
Exposure compensation
Auto Exposure Bracketing
30 seconds ~ 1⁄ 8000, plus Bulb ( 1⁄3 or 1⁄2-step increments); x-sync at 1⁄250
100 ~ 1600, in full-step increments (ISO 3200 available via Custom Function 8-1)
• Automatic ISO setting in “Green Zone” and picture icon exposure modes;
base ISO for Auto ISO setting is now 400
Manual, Aperture-priority (Av), Shutter-priority (Tv), Program AE, Depth-of-field AE (A-DEP)
• Full-auto mode (“green zone”)
• P.I.C. modes — portrait, landscape, close-up, sports, night portrait, flash off
35-zone metering sensor
• Evaluative metering (linked to all AF points)
• Center-weighted metering
• Partial metering
EV 1 ~ 20 (all patterns, at normal temperatures)
Possible in P, Tv, Av and A-DEP exposure modes
• +⁄- up to two stops, in 1⁄2 or 1⁄3-stop increments (via Quick Control Dial)
Possible in P, Tv, Av and A-DEP exposure modes
• +⁄- up to two stops, in 1⁄2 or 1⁄3-stop increments
Flash
Compatible flashes
E-TTL II flash metering
All Canon EX-series Speedlites, including new Speedlite 580EX
• Flash metering not linked to active AF point
• Distance from compatible EF lenses now used
• Entire metering area can be averaged using Custom Function 14-1
Modeling flash
1-sec. burst of flash possible at 70Hz when depth-of-field preview button is pressed
(580EX, 550EX, 420EX, MR-14EX, MT-24EX and Speedlite Transmitter only)
Wireless E-TTL
Fully compatible, including ratio setting over six-stop range
Up to +⁄- 2 stops can be set on camera body (can also be set on compatible speedlites)
Flash Exposure Compensation
Built-in flash
• Covers lenses as wide as 17mm
• Guide Number 42 (feet, at ISO 100); approximate distance range 3~10 feet (ISO 100)
• Pops up 3⁄4-inch higher than EOS 10D’s flash, to minimize red-eye
EOS 20D specifications (continued)
Page 3
Viewfinder
Focus screen
Viewfinder display
Dioptric adjustment
Mirror lock-up
Eyepiece shutter
New Precision Matte screen; non-interchangeable
• Superior focusing contrast and “snap” compared to New Laser Matte type used in EOS 10D
Virtually identical to EOS 10D
• White Balance correction icon added along bottom display
User-set from -3.0 ~ +1.0
(range can be extended using optional Canon Dioptric Lens E, plus Rubber Frame EB)
Possible via Custom Function 12-1
None (cover is provided on included strap)
Color control
Color space
White Balance
Standard sRGB, or Adobe 1998 RGB
• Auto
• Pre-set (Daylight, Shade, Cloudy, Tungsten, Fluorescent, Flash)
• Color Temperature (set by user from 2800K ~ 10,000K in 100K increments)
• Custom (shoot white object or 18% gray card, base WB on that neutral object)
White Balance correction
Fine-tuning of overall color, after white balance has been set
• Amber–Blue correction, in 9 steps
• Magenta–Green correction, in 9 steps
• Set on graph on LCD monitor, using 9-way controller
• Both types of correction can be combined
White Balance bracketing
Three separate files written with a single click of the shutter
• Can be varied in the Amber–Blue direction, or the Magenta–Green direction
• Can be adjusted up to +⁄- 15 mireds for amber–blue bracketing
• Can be combined with standard auto exposure bracketing (9 files written to CF card)
Parameter adjustments
Black & White recording
Black & White parameters
Vary default levels of Contrast, Sharpness, Color Saturation, and Color Tone
• Set 1: increased levels of contrast, sharpness and color saturation; suited for inkjet prints
• Set 2: standard levels; suited for manipulation with image-editing software
• Contrast, Sharpness, Color Saturation and Color Tone can be adjusted over 5-step range
and applied to any of 3 user-created parameter sets
Set via Parameters in camera’s menu
Adjust Contrast and Sharpness
Black & White Filter effects
Gives effects similar to using traditional colored filters with black & white film
• None (continuous-tone B&W image)
• Yellow (darker blue skies, lighter skin tones and blemishes)
• Orange (stronger dark skies; lightens reddish objects)
• Red (stormy dark blue skies, dark grass, red and orange objects very light)
• Green (significant lightening of foliage, darkening of reddish objects)
Black & White Tone effects
Black & White images with a single color added — similar to traditional print toning
• None (continuous-tone grayscale B&W image)
• Sepia (warm brownish overall tone)
• Blue (cool blue overall tone)
• Purple (overall purple tone)
• Green (overall greenish tone)
EOS 20D specifications (continued)
Page 4
Interface
Computer connection
Remote Control
Video-out
USB 2.0 Hi-speed, via small “B”-type USB connection
N3-type push-in terminal (same as EOS 10D, EOS-1D, etc.)
Single-pin mini-jack
Direct Printing
Compatibility
Compatible images
Connection to printer
Image Optimization
DPOF image marking
• Canon Direct Printing to compact CP-type card photo printers
• Bubblejet Direct printing to compatible Canon letter-size printers
• PictBridge printing to compatible Canon and other brand printers
(PictBridge requires PTP protocol; set under “communications” in camera’s menu)
JPEG files only (JPEGs shot in RAW + JPEG mode are OK)
via USB cable included with camera
Possible when connected to compatible Canon printers
• EXIF print
• Vivid Print
• Noise reduction
Compatible — images can be “tagged” while reviewing on LCD monitor
Power Supply
Battery
Shooting capacity
Charger unit
AC Adapter
Battery Grip
Date/Time back-up battery
BP-511, BP-511A, or BP-512 (rechargeable Lithium-Ion — same as EOS 10D)
(BP-511/BP-512: 1100mAh; BP-511A: 1390mAh)
TBA
TBA (also can be charged with Compact Power Adapter CA-PS400)
AC Adapter ACK-E2 (consists of Adapter AC-E2, and “dummy battery” DR-400)
TBA
CR2016 lithium battery — coin-type; user-replaceable (estimated life 5 years)
Body
Exterior material
Magnesium alloy top, front and rear covers
Chassis material
Polycarbonate and stainless steel
Lens mount
Compatible with EF-S lenses
“Best match” lens
Operating temperature range
Dimensions (W x H x D)
Weight (without battery or CF card)
EF lens mount; Metal
Yes
New EF-S 17-85mm ƒ4~5.6 IS USM (equivalent to 28-135mm with image stabilization)
32° ~ 104°F, at 85% or lower humidity (0° ~ 40°C)
5.7 x 4.2 x 2.8 in. (114 x 105.5 x 71.5mm) — smaller in all dimensions than EOS 10D
24.3 oz. (690g) — 3.5 oz. (100g) lighter than EOS 10D
Note: Underlined items are new features, or specs superior to EOS 10D
