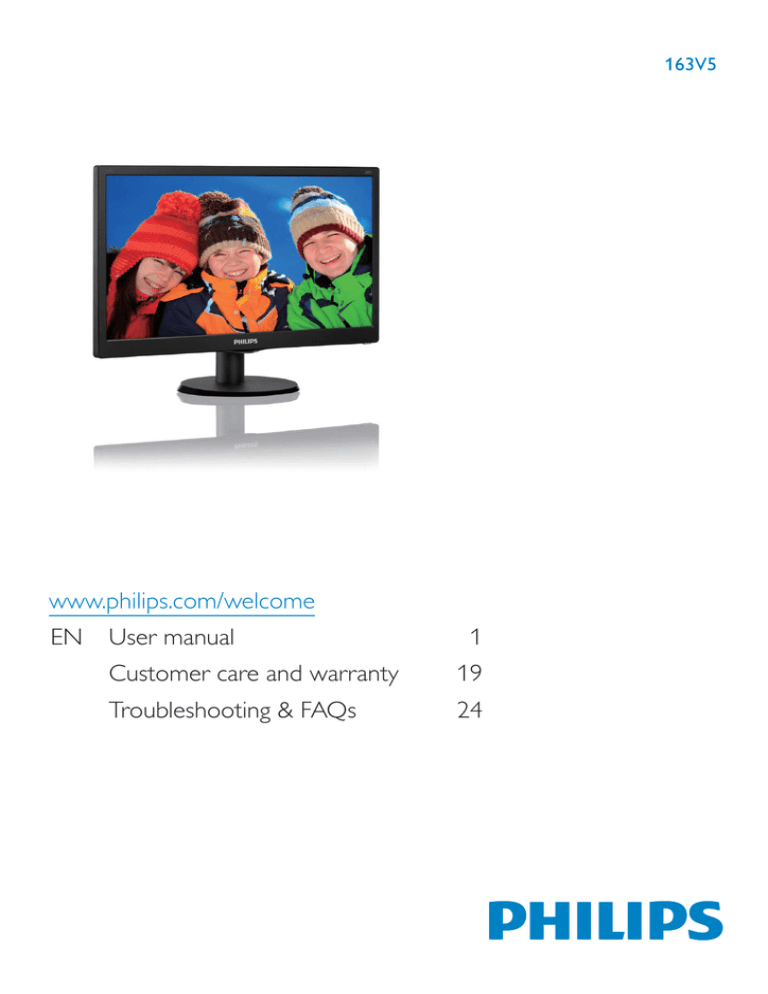

163V5
www.philips.com/welcome
EN
User manual
1
Customer care and warranty
19
Troubleshooting & FAQs
24
Table of Contents
1. Important ................................................1
1.1 Safety precautions and maintenance...1
1.2 Notational Descriptions .............................2
1.3 Disposal of product and packing
material ................................................................3
2. Setting up the monitor .........................4
2.1 Installation ...........................................................4
2.2 Operating the monitor ...............................5
2.3 Remove Base Stand .....................................7
3. Image Optimization...............................8
3.1 SmartContrast .................................................8
3.2 Philips SmartControl Lite ..........................8
4. Technical Specifications ......................15
4.1 Resolution & Preset Modes...................17
5. Power Management ............................18
6. Customer care and warranty ...........19
6.1 Philips’ Flat Panel Monitors Pixel
Defect Policy ..................................................19
6.2 Customer Care & Warranty .................21
7. Troubleshooting & FAQs ...................24
7.1 Troubleshooting ...........................................24
7.2 General FAQs ...............................................25
1. Important
‡ Please use approved power cord provided
by Philips all the time. If your power cord
is missing, please contact with your local
service center. (Please refer to Customer
Care Consumer Information Center)
1. Important
This electronic user’s guide is intended for
anyone who uses the Philips monitor. Take time
to read this user manual before you use your
monitor. It contains important information and
notes regarding operating your monitor.
‡ Do not subject the monitor to severe
vibration or high impact conditions during
operation.
The Philips guarantee applies provided the
product is handled properly for its intended use,
in accordance with its operating instructions and
upon presentation of the original invoice or cash
receipt, indicating the date of purchase, dealer’s
name and model and production number of the
product.
‡ Do not knock or drop the monitor during
operation or transportation.
Maintenance
‡ To protect your monitor from possible
damage, do not put excessive pressure on
the LCD panel. When moving your monitor, grasp the frame to lift; do not lift the
monitor by placing your hand or fingers on
the LCD panel.
1.1 Safety precautions and maintenance
‡ Unplug the monitor if you are not going to
use it for an extensive period of time.
Warnings
Use of controls, adjustments or procedures
other than those specified in this documentation
may result in exposure to shock, electrical
hazards and/or mechanical hazards.
‡ Unplug the monitor if you need to clean it
with a slightly damp cloth. The screen may
be wiped with a dry cloth when the power
is off. However, never use organic solvent,
such as, alcohol, or ammonia-based liquids
to clean your monitor.
Read and follow these instructions when
connecting and using your computer monitor.
‡ To avoid the risk of shock or permanent
damage to the set, do not expose the
monitor to dust, rain, water, or excessive
moisture environment.
Operation
‡ Please Keep the monitor out of direct
sunlight, very strong bright lights and
away from any other heat source. Lengthy
exposure to this type of environment may
result in discoloration and damage to the
monitor.
‡ If your monitor gets wet, wipe it with dry
cloth as soon as possible.
‡ If foreign substance or water gets in your
monitor, please turn the power off immediately and disconnect the power cord. Then,
remove the foreign substance or water, and
send it to the maintenance center.
‡ Remove any object that could fall into
ventilation holes or prevent proper cooling
of the monitor’s electronics.
‡ Do not block the ventilation holes on the
cabinet.
‡ Do not store or use the monitor in locations exposed to heat, direct sunlight or
extreme cold.
‡ When positioning the monitor, make sure
the power plug and outlet are easily accessible.
‡ In order to maintain the best performance
of your monitor and use it for a longer lifetime, please use the monitor in a location
that falls within the following temperature
and humidity ranges.
‡ If turning off the monitor by detaching the
power cable or DC power cord, wait for 6
seconds before attaching the power cable
or DC power cord for normal operation.
1
1. Important
‡ Temperature: 0-40°C 32-95°F
1.2 Notational Descriptions
‡ Humidity: 20-80% RH
The following subsections describe notational
conventions used in this document.
Important information for Burn-in/Ghost
image.
Notes, Cautions and Warnings
‡ Always activate a moving screen saver
program when you leave your monitor
unattended. Always activate a periodic
screen refresh application if your monitor will display unchanging static content.
Uninterrupted display of still or static images over an extended period may cause
“burn in”, also known as “after-imaging” or
“ghost imaging”, on your screen.
"Burn-in", "after-imaging", or "ghost imaging" is a well-known phenomenon in LCD
panel technology. In most cases, the
“burned in” or “after-imaging” or “ghost
imaging” will disappear gradually over a
period of time after the power has been
switched off.
Throughout this guide, blocks of text may be
accompanied by an icon and printed in bold or
italic type. These blocks contain notes, cautions
or warnings. They are used as follows:
Note
This icon indicates important information and
tips that help you make better use of your
computer system.
Caution
This icon indicates information that tells you
how to avoid either potential damage to
hardware or loss of data.
Warning
This icon indicates the potential for bodily harm
and tells you how to avoid the problem.
Warning
Failure to activate a screen saver, or a periodic
screen refresh application may result in severe”
burn-in” or “after-image” or “ghost image”
symptoms will not disappear and cannot be
repaired. The damage mentioned above is not
covered under your warranty.
Some warnings may appear in alternate formats
and may not be accompanied by an icon. In such
cases, the specific presentation of the warning is
mandated by the relevant regulatory authority.
Service
‡ The casing cover should be opened only
by qualified service personnel.
‡ If there is any need for any document for
repair or integration, please contact with
your local service center. (please refer to
the chapter of "Consumer Information
Center")
‡ For transportation information, please
refer to "Technical Specifications".
‡ Do not leave your monitor in a car/trunk
under direct sun light.
Note
Consult a service technician if the monitor
does not operate normally, or you are not sure
what procedure to take when the operating
instructions given in this manual have been
followed.
2
1. Important
Taking back/Recycling Information for
Customers
1.3 Disposal of product and packing
material
Philips establishes technically and economically
viable objectives to optimize the environmental
performance of the organization's product,
service and activities.
Waste Electrical and Electronic EquipmentWEEE
From the planning, design and production
stages, Philips emphasizes the important of
making products that can easily be recycled. At
Philips, end-of-life management primarily entails
participation innational take-back initiatives
and recycling programs whenever possible,
preferably in cooperation with competitors,
which recycle all materials (products and
related packaging material) in accordance with
all Environmental Laws and taking back program
with the contractor company.
This marking on the product or on its
packaging illustrates that, under European
Directive 2002/96/EC governing used electrical
and electronic appliances, this product may
not be disposed of with normal household
waste. You are responsible for disposal of
this equipment through a designated waste
electrical and electronic equipment collection.
To determine the locations for dropping off
such waste electrical and electronic, contact
your local government office, the waste disposal
organization that serves your household or the
store at which you purchased the product.
Your display is manufactured with high quality
materials and components which can be
recycled and reused.
To learn more about our recycling program
please visit
http://www.philips.com/sites/philipsglobal/
about/sustainability/ourenvironment/
productrecyclingservices.page
Your new monitor contains materials that can
be recycled and reused. Specialized companies
can recycle your product to increase the
amount of reusable materials and to minimize
the amount to be disposed of.
All redundant packing material has been
omitted. We have done our utmost to make the
packaging easily separable into mono materials.
Please find out about the local regulations on
how to dispose of your old monitor and packing
from your sales representative.
3
2. Setting up the monitor
Install base stand
2. Setting up the monitor
1. Place the monitor face down on soft
and smooth surface taking care to avoid
scratching or damaging the screen.
2.1 Installation
2. Attach/slide the base column with the
monitor until it clicks into position.
Package contents
Register your product and get support at
www.philips.com/welcome
163V5
Quick
Start
3. Hold the monitor base stand with both
hands and firmly insert the base stand into
the base column.
Power Cable
VGA Cable
4
2. Setting up the monitor
Connecting to your PC
2.2 Operating the monitor
Front view product description
D-SUB
3
AC IN
AC power input
VGA input
Kensington anti-theft lock
Connect to PC
1. Connect the power cord to the back of
the monitor firmly.
Description of the On Screen Display
What is On-Screen Display (OSD)?
2. Turn off your computer and unplug its
power cable.
On-Screen Display (OSD) is a feature in all
Philips LCD monitors. It allows an end user to
adjust screen performance or select functions
of the monitors directly through an on-screen
instruction window. A user friendly on screen
display interface is shown as below:
3. Connect the monitor signal cable to the
video connector on the back of your
computer.
4. Plug the power cord of your computer and
your monitor into a nearby outlet.
5. Turn on your computer and monitor. If the
monitor displays an image, installation is
complete.
Switch monitor’s power ON and
OFF.
Adjust the brightness level.
Adjust the contrast level.
Automatically adjust the monitor.
Adjust language
i
Show the imformation
Exit OSD
5
2. Setting up the monitor
How to adjust OSD with a single key?
The OSD Menu
1. The key on the bottom of the front bezel
provides dual functions to control power on/ off
and OSD menu setting.
Below is an overall view of the structure of
the On-Screen Display. You can use this as a
reference when you want to work your way
around the different adjustments later on.
Main menu
Power off
Brightness
0~100
2. Turn on the monitor by pressing the
bottom key once.
Contrast
0~100
3. Now press the bottom key of front bezel
again, to enter the OSD menu.
Auto
Language
4. You can now select any one of the functions
by quickly repeat-pressing the bottom key. The
blue box will navigate towards the right as you
press the key. You can release the bottom key
once the blue box highlights the option you
want to choose. Note that the selection is one
way loop always moving one direction and then
returning at beginning of the menu.
English,German,Spanish,Greek,
French,Italian,Hungarian,Dutch,
Portuguese,Português do Brazil,
Russian,Polish,Swedish,Finnish,
Türkçe,Czech,Ukrainian,S. Chinese,
T.Chinese,Japaness,Korean
Information
Exit
Resolution notification
5. The blue box will remain on the selected
function for about 3 seconds and the function
icon will flash three times to confirm the choice
visible on the 1st layer of the OSD and activate
it.
This monitor is designed for optimal
performance at its native resolution, 1366 ×
768 @ 60 Hz. When the monitor is powered
on at a different resolution, an alert is displayed
on screen: Use 1366 × 768 @ 60 Hz for best
results.
6. To select language of your choice please
press the bottom key, choose the “Globe”
symbol on the OSD menu and let it activate.
Multiple options of language will appear on the
menu. Repeat press the bottom key again and
scroll through the languages. Leaving the blue
box on the language of your choice will select
and activate it.
Physical Function
Tilt
7. To adjust brightness or contrast please press
the bottom key, choose and activate it. Press
the bottom key again to adjust. Note that the
selection is one way loop always moving one
direction and then returning at beginning of the
menu.
6
2. Setting up the monitor
2.3 Remove Base Stand
Remove the Base Stand
Before you start disassembling the monitor
base, please follow the instructions below to
avoid any possible damage or injury.
1. Place the monitor face down on a smooth
surface, taking care to avoid scratching or
damaging the screen.
2. Press the locking clips to detach the base
stand away from the base column.
1
3. Detach the base column.
2
7
3. Image Optimization
Icon based software is ready to enhance your
experience with Philips monitors!
3. Image Optimization
Installation
3.1 SmartContrast
v Follow the instruction and complete the
installation.
What is it?
v You can launch after installation is
completed.
A unique technology that dynamically analyzes
displayed content and automatically optimizes
an LCD monitor's contrast ratio for maximum
visual clarity and viewing enjoyment, stepping
up backlighting for clearer, crisper and brighter
images or dimming backlighting for clear display
of images on dark backgrounds.
v If you want to launch later, you can either
click the shortcut on desktop or toolbar.
Why do I need it?
You want the very best visual clarity and
viewing comfort for every type of content.
SmartContrast dynamically controls contrast
and adjusts backlighting for clear, crisp, bright
gaming and video images or displays clear,
readable text for office work. By reducing your
monitor's power consumption, you save on
energy costs and extend the lifetime of your
monitor.
First launch -Wizard
How does it work?
v The first time after installation of
SmartControl Lite, it will automatically go
to Wizard for first time launch.
When you activate SmartContrast, it will analyse
the content you are displaying in real time to
adjust colors and control backlight intensity. This
function will dynamically enhance contrast for a
great entertainment experience when viewing
videos or playing games.
v The wizard will guide you through adjusting
your monitor performance step by step.
v You can go to Plug-in menu to launch
wizard later on as well.
v You can adjust more options without
wizard by Standard pane.
3.2 Philips SmartControl Lite
The new SmartControl Lite software by Phillips
allows you to control your monitor via an easy
to use on-screen graphic interface. Complicated
adjustments are a thing of the past as this user
friendly software guides you through finetuning resolution, Color calibration, Clock/Phase
adjustments, RGB White point adjustment, etc.
Equipped with latest technology in core
algorithm for fast processing and response, this
Windows 7 compliant eye catching animated
8
3. Image Optimization
Start with Standard pane:
Adjust menu:
v Adjust Menu allow you to adjust Brightness,
Contrast, Focus, Position and Resolution.
v You can follow the instruction and do the
adjustment.
v Cancel prompts user if you want to cancel
installation.
9
3. Image Optimization
Color menu:
v Color Menu allow you to adjust RGB, Black
Level, White Point, and Color Calibration.
v You can follow the instruction and do the
adjustment.
v Refer to below table for sub-menu item
base on your input.
v Example for Color Calibration:
10
3. Image Optimization
1. "Show Me" starts color calibration tutorial.
2. Start - starts the 6-step color calibration
sequence.
3. Quick View loads the before/after images.
4. To return to Color home pane, click the
Cancel button.
5. Enable color calibration - by default is on.
If unchecked, does not allow for color
calibration to happen, dimes out start and
quick view buttons.
6. Must have patent info in calibration screen.
First color Calibration Screen:
v Displays current preference settings.
v A checked box enables the feature. The
check box is a toggle.
v Enable Context Menu on desktop is
checked (On) by default. Enable Context
menu displays SmartControl Lite selections
for Select Preset and Tune Display in the
desktop right-click context menu. Disabled
removes SmartControl Lite from the right
click context menu.
v Previous button is disabled until the second
color screen.
v Next goes to the succeeding target
(6-targets).
v Enable Task Tray icon is checked (On) by
default. Enable context menu shows the
task tray menu for SmartControl Lite. A
right click on the task tray icon displays the
menu options for Help, Technical Support,
Check for Upgrade, About, and Exit. When
Enable task tray menu is disabled, the task
tray icon will only display EXIT.
v Final next goes File>Presets pane.
v Cancel closes the UI and returns to the
plug in page.
Options>Preferences - Will only be active
when selecting Preferences from the dropdown Options menu. On a non-supported
display capable of DDC/CI, only the Help and
Options tabs are available.
v Run at Startup is checked (On) by default.
When disabled, SmartControl Lite will not
launch at start or be in the task tray. The
only way to launch SmartControl Lite is
either from the desktop short cut or from
the program file. Any preset set to run
at startup will not load when this box is
unchecked (Disabled).
v Enable transparency mode (Windows 7,
Vista, XP). Default is 0% Opaque.
11
3. Image Optimization
On a non-supported display capable of DDC/
CI, only the Help and Options tabs are available.
Options>Input - Will only be active when
selecting Input from the drop-down Options
menu. On a non-supported display capable of
DDC/CI, only the Help and Options tabs are
available. All other SmartControl Lite tabs are
not available.
Help>User Manual - Will only be active when
selecting User Manual from the drop-down
Help menu. On a non-supported display
capable of DDC/CI, only the Help and Options
tabs are available.
v Display the Source instruction pane and
current input source setting.
v On single input displays, this pane will not
be visible.
Options>Audio - Will only be active when
selecting Audio from the drop-down Options
menu.
Help>Version - Will only be active when
selecting Version from the drop- down Help
menu. On a non-supported display capable of
DDC/CI, only the Help and Options tabs are
available.
12
3. Image Optimization
The task tray has five entries:
v Help - Access to User Manual file: Open
User Manual file using the default browser
window.
v Technical Support - displays the tech
support page.
Context Sensitive menu
v Check for Update - takes the user to PDI
Landing and checks the user’s version
against the most current available.
The Context Sensitive menu is Enabled by
default. If Enable Context Menu has been
checked in the Options>Preferences pane, then
the menu will be visible.
v About - Displays detailed reference
information: product version, release
information, and product name.
v Exit - Close SmartControl Lite.
To run SmartControl Lite again either select
SmartControl Lite from Program menu, doubleclick the desktop PC icon or restart the system.
The Context Menu has three entries:
v SmartControl Lite - When selected the
About Screen is displayed.
v Select Preset - Provides a hierarchical
menu of saved presets for immediate use.
A check mark shows the currently selected
preset. Factory Preset can also be called
from the drop down menu.
v Tune Display - Opens the SmartControl
Lite control panel.
Task Tray Menu Disabled
When the Task Tray is disabled in the preference
folder, only the EXIT selection is available.
To completely remove SmartControl Lite
Task Tray Menu Enabled
The task tray menu can be displayed by rightclicking on the SmartControl Lite icon from the
task tray. Left Click will launch the application.
13
3. Image Optimization
from the task tray, disable Run at Startup in
Options>Preferences.
Note
All the illustrations in this section are for
reference only. SmartControl software version
might be changed without notification. Please
always check official Portrait website
www.portrait.com/dtune/phl/enu/index
to download the latest version of SmartControl
software.
14
7HFKQLFDO6SHFLÀFDWLRQV
4. Technical Specifications
Picture/Display
Monitor Panel Type
Backlight
Panel Size
Aspect Ratio
Pixel Pitch
Brightness
SmartContrast
Contrast Ratio (typ.)
Response Time (typ.)
Optimum Resolution
Viewing Angle
Display Colors
Vertical Refresh Rate
Horizontal Frequency
sRGB
Connectivity
Signal Input
Input Signal
Convenience
TFT-LCD
LED
15.6" W (39.6cm)
16:9
0.252 x 0.252 mm
220 cd/m²
10,000,000:1
500:1
11ms
1366 x 768 @ 60Hz
90° (H) / 50° (V) @ C/R > 10
262K
56Hz - 75Hz
30kHz - 83kHz
YES
VGA (Analog)
Separate Sync, Sync on Green
163V5LSB23 :
User Convenience
OSD Languages
Other Convenience
Plug & Play Compatibility
English,German,Spanish,Greek,French,Italian,Hungarian,Dutch,Po
rtuguese,Português do Brazil,Russian,Polish,Swedish,Finnish,
Türkçe,Czech,Ukrainian,S. Chinese,T.Chinese,Japaness,Korean
Kensington Lock
DDC/CI, sRGB, Windows 8/ Windows 7/ Vista / XP, Mac OSX,
Linux
Stand
Tilt
-3 / +10
Power
On Mode
Sleep (Standby)
Off
Power LED indicator
Power Supply
6.97W (typ.),7.62W (max.)
0.5W
0.5W
On mode: White, Standby/Sleep mode: White (blinking)
Built-in, 100-240VAC, 50-60Hz
15
7HFKQLFDO6SHFLÀFDWLRQV
Dimension
Product with stand (WxHxD)
Product without stand
(WxHxD)
Weight
Product with stand
Product without stand
Product with packaging
Operating Condition
Temperature range (operation)
Temperature range
(Non-operation)
Relative humidity
MTBF
Environmental
ROHS
Packaging
Cabinet
Color
Finish
370x298x140 mm
370x237x48 mm
0.94kg
0.79kg
1.766kg
0°C to 40 °C
-20°C to 60°C
20% to 80%
30,000hrs
YES
100% recyclable
Black
Texture
Note
1.This data is subject to change without notice. Go to www.philips.com/support to download the latest
version of leaflet.
16
7HFKQLFDO6SHFLÀFDWLRQV
4.1 Resolution & Preset Modes
Maximum Resolution
1366 x 768 @ 60 Hz
H. freq (kHz)
Resolution
V. freq (Hz)
31.47
720 x 400
70.09
31.47
640 x 480
59.94
35
640 x 480
66.67
37.86
640 x 480
72.81
37.5
640 x 480
75
37.88
800 x 600
60.32
46.88
800 x 600
75
48.36
1024 x 768
60
60.02
1024 x 768
75.03
44.77
1280 x 720
59.86
63.89
1280 x 1024
60.02
79.98
1280 x 1024
75.03
47.71
1366 x 768
59.79
Note
Please notice that your display works best at
native resolution of 1366 x 768 @ 60Hz. For
best display quality,please follow this resolution
recommendation.
17
5. Power Management
5. Power Management
If you have VESA DPM compliance display card
or software installed in your PC, the monitor
can automatically reduce its power consumption
when not in use. If an input from a keyboard,
mouse or other input device is detected,
the monitor will 'wake up' automatically. The
following table shows the power consumption
and signaling of this automatic power saving
feature:
163V5LSB23:
Power Management Definition
VESA
Mode
Video H-sync V-sync
Power Used
LED Color
Active
ON
Yes
Yes
6.97W (typ.)
White
Sleep
(Standby)
OFF
No
No
0.5W (typ.)
White
(blink)
Switch Off
OFF
-
-
0.5W (typ.)
OFF
The following setup is used to measure power
consumption on this monitor.
v Native resolution: 1366 x 768
v Contrast: 50%
v Brightness: 220 nits
v Color temperature: 6500k with full white
pattern
Note
This data is subject to change without notice.
18
6. Customer care and warranty
black pixel. Other combinations of lit and dark
sub pixels appear as single pixels of other colors.
6. Customer care and
warranty
Types of Pixel Defects
Pixel and sub pixel defects appear on the screen
in different ways. There are two categories of
pixel defects and several types of sub pixel
defects within each category.
6.1 Philips’ Flat Panel Monitors Pixel
Defect Policy
Philips strives to deliver the highest quality
products. We use some of the industry's most
advanced manufacturing processes and practice
stringent quality control. However, pixel or
sub pixel defects on the TFT Monitor panels
used in flat panel monitors are sometimes
unavoidable. No manufacturer can guarantee
that all panels will be free from pixel defects,
but Philips guarantees that any monitor with an
unacceptable number of defects will be repaired
or replaced under warranty. This notice explains
the different types of pixel defects and defines
acceptable defect levels for each type. In order
to qualify for repair or replacement under
warranty, the number of pixel defects on a TFT
Monitor panel must exceed these acceptable
levels. For example, no more than 0.0004% of
the sub pixels on a monitor may be defective.
Furthermore, Philips sets even higher quality
standards for certain types or combinations
of pixel defects that are more noticeable than
others. This policy is valid worldwide.
Bright Dot Defects
Bright dot defects appear as pixels or sub pixels
that are always lit or 'on'. That is, a bright dot is
a sub-pixel that stands out on the screen when
the monitor displays a dark pattern. There are
the types of bright dot defects.
One lit red, green or blue sub pixel.
Two adjacent lit sub pixels:
- Red + Blue = Purple
- Red + Green = Yellow
- Green + Blue = Cyan (Light Blue)
Pixels and Sub pixels
A pixel, or picture element, is composed of
three sub pixels in the primary colors of red,
green and blue. Many pixels together form an
image. When all sub pixels of a pixel are lit, the
three colored sub pixels together appear as a
single white pixel. When all are dark, the three
colored sub pixels together appear as a single
Three adjacent lit sub pixels (one white pixel).
19
6. Customer care and warranty
Proximity of Pixel Defects
Note
A red or blue bright dot must be more than 50
percent brighter than neighboring dots while
a green bright dot is 30 percent brighter than
neighboring dots.
Because pixel and sub pixels defects of the
same type that are near to one another may be
more noticeable, Philips also specifies tolerances
for the proximity of pixel defects.
Black Dot Defects
Black dot defects appear as pixels or sub pixels
that are always dark or 'off'. That is, a dark dot is
a sub-pixel that stands out on the screen when
the monitor displays a light pattern. These are
the types of black dot defects.
Pixel Defect Tolerances
In order to qualify for repair or replacement
due to pixel defects during the warranty period,
a TFT Monitor panel in a Philips flat panel
monitor must have pixel or sub pixel defects
exceeding the tolerances listed in the following
tables.
BRIGHT DOT DEFECTS
1 lit subpixel
2 adjacent lit subpixels
3 adjacent lit subpixels (one white pixel)
Distance between two bright dot defects*
Total bright dot defects of all types
ACCEPTABLE LEVEL
3
1
0
≥ 15mm
3
BLACK DOT DEFECTS
1 dark subpixel
2 adjacent dark subpixels
3 adjacent dark subpixels
Distance between two black dot defects*
Total black dot defects of all types
ACCEPTABLE LEVEL
5 or fewer
1 or fewer
0
≥ 15mm
5 or fewer
TOTAL DOT DEFECTS
Total bright or black dot defects of all types
ACCEPTABLE LEVEL
5 or fewer
Note
1. 1 or 2 adjacent sub pixel defects = 1 dot defect
20
6. Customer care and warranty
6.2 Customer Care & Warranty
For warranty coverage information and additional support requirement valid for your region, please visit
www.philips.com/support website for details. You may also contact your local Philips Customer Care
Center number listed below.
Contact Information for WESTERN EUROPE region:
Country
CSP
Hotline Number
Price
Opening hours
Austria
RTS
+43 0810 000206
€ 0.07
Mon to Fri : 9am - 6pm
Belgium
Ecare
+32 078 250851
€ 0.06
Mon to Fri : 9am - 6pm
Cyprus
Alman
800 92 256
Free of charge
Mon to Fri : 9am - 6pm
Denmark
Infocare
+45 3525 8761
Local call tariff
Mon to Fri : 9am - 6pm
Finland
Infocare
+358 09 2290 1908
Local call tariff
Mon to Fri : 9am - 6pm
France
Mainteq
+33 082161 1658
€ 0.09
Mon to Fri : 9am - 6pm
Germany
RTS
+49 01803 386 853
€ 0.09
Mon to Fri : 9am - 6pm
Greece
Alman
+30 00800 3122 1223
Free of charge
Mon to Fri : 9am - 6pm
Ireland
Celestica
+353 01 601 1161
Local call tariff
Mon to Fri : 8am - 5pm
Italy
Anovo Italy
+39 840 320 041 € 0.08 € 0.08
Mon to Fri : 9am - 6pm
Luxembourg
Ecare
+352 26 84 30 00
Local call tariff
Mon to Fri : 9am - 6pm
Netherlands
Ecare
+31 0900 0400 063
€ 0.10
Mon to Fri : 9am - 6pm
Norway
Infocare
+47 2270 8250
Local call tariff
Mon to Fri : 9am - 6pm
Poland
MSI
+48 0223491505
Local call tariff
Mon to Fri : 9am - 6pm
Portugal
Mainteq
800 780 902
Free of charge
Mon to Fri : 8am - 5pm
Spain
Mainteq
+34 902 888 785
€ 0.10
Mon to Fri : 9am - 6pm
Sweden
Infocare
+46 08 632 0016
Local call tariff
Mon to Fri : 9am - 6pm
Switzerland
ANOVO CH
+41 02 2310 2116
Local call tariff
Mon to Fri : 9am - 6pm
+44 0207 949 0069
Local call tariff
Mon to Fri : 8am - 5pm
United Kingdom Celestica
21
6. Customer care and warranty
Contact Information for CENTRAL AND EASTERN EUROPE region:
Country
Call center CSP
Consumer care number
Belarus
N/A
IBA
+375 17 217 3386
+375 17 217 3389
Bulgaria
N/A
LAN Service
+359 2 960 2360
Croatia
N/A
MR Service Ltd
+385 (01) 640 1111
Czech Rep.
N/A
Asupport
420 272 188 300
Estonia
N/A
FUJITSU
+372 6519900(General)
+372 6519972(workshop)
Georgia
N/A
Esabi
+995 322 91 34 71
Hungary
N/A
Profi Service
+36 1 814 8080(General)
+36 1814 8565(For AOC&Philips only)
Kazakhstan
N/A
Classic Service I.I.c.
+7 727 3097515
Latvia
N/A
ServiceNet LV
+371 67460399
+371 27260399
Lithuania
N/A
UAB Servicenet
+370 37 400160(general)
+370 7400088 (for Philips)
Macedonia
N/A
AMC
+389 2 3125097
Moldova
N/A
Comel
+37322224035
Romania
N/A
Skin
+40 21 2101969
Russia
N/A
CPS
+7 (495) 645 6746
Serbia&Montenegro
N/A
Kim Tec d.o.o.
+381 11 20 70 684
Slovakia
N/A
Datalan Service
+421 2 49207155
Slovenia
N/A
PC H.and
+386 1 530 08 24
the republic of Belarus
N/A
ServiceBy
+ 375 17 284 0203
Turkey
N/A
Tecpro
+90 212 444 4 832
N/A
Topaz
+38044 525 64 95
N/A
Comel
+380 5627444225
Ukraine
Contact Information for China:
Country
Call center
Consumer care number
China
PCCW Limited
4008 800 008
Contact Information for NORTH AMERICA :
Country
Call center
Consumer care number
U.S.A.
EPI-e-center
(877) 835-1838
Canada
EPI-e-center
(800)479-6696
22
6. Customer care and warranty
Contact Information for APMEA region:
Country
Australia
ASP
Consumer care number
AGOS NETWORK PTY
1300 360 386
LTD
Opening hours
Mon.~Fri. 9:00am-5:30pm
New Zealand Visual Group Ltd.
0800 657447
Mon.~Fri. 8:30am-5:30pm
Hong Kong
Macau
Company: Smart Pixels
Technology Ltd.
Hong Kong:
Tel: +852 2619 9639
Macau:
Tel: (853)-0800-987
Mon.~Fri. 9:00am-6:00pm
Sat. 9:00am-1:00pm
India
REDINGTON INDIA
LTD
Tel: 1 800 425 6396
SMS: PHILIPS to 56677
Mon.~Fri. 9:00am-5:30pm
Indonesia
PT. CORMIC
SERVISINDO PERKASA
Mon.~Thu. 08:30-12:00;
+62-21-4080-9086 (Customer Hotline) 13:00-17:30
+62-8888-01-9086 (Customer Hotline) Fri. 08:30-11:30; 13:0017:30
Korea
Alphascan Displays, Inc
1661-5003
Mon.~Fri. 9:00am-5:30pm
Sat. 9:00am-1:00pm
Malaysia
R-Logic Sdn Bhd
+603 5102 3336
Mon.~Fri. 8:15am-5:00pm
Sat. 8:30am-12:30am
Pakistan
TVONICS Pakistan
+92-213-6030100
Sun.~Thu. 10:00am6:00pm
Singapore
Philips Electronics
Singapore Pte Ltd (Philips (65) 6882 3966
Consumer Care Center)
Mon.~Fri. 9:00am-6:00pm
Sat. 9:00am-1:00pm
Taiwan
FETEC.CO
0800-231-099
Mon.~Fri. 09:00 - 18:00
Thailand
Axis Computer System
Co., Ltd.
(662) 934-5498
Mon.~Fri.
08:30am~05:30pm
South Africa
Computer Repair
Technologies
011 262 3586
Mon.~ Fri.
08:00am~05:00pm
Israel
Eastronics LTD
1-800-567000
Sun.~Thu. 08:00-18:00
Vietnam
FPT Service Informatic
Company Ltd. - Ho Chi
Minh City Branch
+84 8 38248007 Ho Chi Minh City
+84 5113.562666 Danang City
+84 5113.562666 Can tho Province
Mon.~Fri. 8:00-12:00,
13:30-17:30
Sat. 8:00-12:00
Philippines
EA Global Supply Chain
Solutions ,Inc.
(02) 655-7777; 6359456
Mon.~Fri.
8:30am~5:30pm
Armenia
Azerbaijan
Georgia
Kyrgyzstan
Tajikistan
Firebird service centre
+97 14 8837911
Sun.~Thu. 09:00 - 18:00
Uzbekistan
Soniko Plus Private
Enterprise Ltd
+99871 2784650
Mon.~Fri. 09:00 - 18:00
Turkmenistan
Technostar Service
Centre
+(99312) 460733, 460957
Mon.~Fri. 09:00 - 18:00
23
7. Troubleshooting & FAQs
7. Troubleshooting & FAQs
Note
The Auto Function is not applicable in DVIDigital mode as it is not necessary.
7.1 Troubleshooting
Visible signs of smoke or sparks
This page deals with problems that can be
corrected by a user. If the problem still persists
after you have tried these solutions, contact
Philips customer service representative.
v Do not perform any troubleshooting steps
v Disconnect the monitor from mains power
source immediately for safety
v Contact with Philips customer service
representative immediately.
Common Problems
Imaging Problems
No Picture (Power LED not lit)
Image is not centered
v Make sure the power cord is plugged into
the power outlet and into the back of the
monitor.
v Adjust the image position using the “Auto”
function in OSD Main Controls.
v First, ensure that the power button on the
front of the monitor is in the OFF position,
then press it to the ON position.
v Adjust the image position using the Phase/
Clock of Setup in OSD Main Controls. It is
valid only in VGA mode.
No Picture (Power LED is White)
Image vibrates on the screen
v Make sure the computer is turned on.
v Check that the signal cable is properly
securely connected to the graphics board
or PC.
v Make sure the signal cable is properly
connected to your computer.
v Make sure the monitor cable has no bent
pins on the connect side. If yes, repair or
replace the cable.
Vertical flicker appears
v The Energy Saving feature may be activated
Screen says
v Adjust the image using the “Auto” function
in OSD Main Controls.
Attention
v Eliminate the vertical bars using the Phase/
Clock of Setup in OSD Main Controls. It is
valid only in VGA mode.
Check cable connection
Horizontal flicker appears
v Make sure the monitor cable is properly
connected to your computer. (Also refer to
the Quick Start Guide).
v Check to see if the monitor cable has bent
pins.
v Adjust the image using the “Auto” function
in OSD Main Controls.
v Make sure the computer is turned on.
v Eliminate the vertical bars using the Phase/
Clock of Setup in OSD Main Controls. It is
valid only in VGA mode.
AUTO button doesn't function
v The auto function is applicable only in
VGA-Analog mode. If the result is not
satisfactory, you can do manual adjustments
via the OSD menu.
Image appears blurred, indistinct or too dark
24
7 Troubleshooting & FAQs
v Adjust the contrast and brightness on
On-Screen Display.
7.2 General FAQs
Q1: When I install my monitor what should
I do if the screen shows 'Cannot display
this video mode'?
Ans.: Recommended resolution for this
monitor: 1366 x 768 @ 60 Hz.
An "after-image", "burn-in" or "ghost image"
remains after the power has been turned off.
v Uninterrupted display of still or static
images over an extended period may cause
"burn in", also known as "after-imaging "
or "ghost imaging", on your screen. "Burnin", "after-imaging", or "ghost imaging" is a
well-known phenomenon in LCD panel
technology. In most cases, the "burned in"
or "after-imaging" or "ghost imaging" will
disappear gradually over a period of time
after the power has been switched off.
v Unplug all cables, then connect your PC to
the monitor that you used previously.
v In the Windows Start Menu, select Settings/
Control Panel. In the Control Panel
Window, select the Display icon. Inside the
Display Control Panel, select the 'Settings'
tab. Under the setting tab, in box labelled
'desktop area', move the sidebar to 1366 x
768 pixels.
v Always activate a moving screen saver
program when you leave your monitor
unattended.
v Open 'Advanced Properties' and set the
Refresh Rate to 60 Hz, then click OK.
v Always activate a periodic screen refresh
application if your LCD monitor will display
unchanging static content.
v Restart your computer and repeat step 2
and 3 to verify that your PC is set at 1366
x 768 @ 60 Hz.
v Severe” burn-in” or “after-image” or “ghost
image” symptoms will not disappear and
cannot be repaired. The damage mentioned
above is not covered under your warranty.
v Shut down your computer, disconnect your
old monitor and reconnect your Philips
LCD monitor.
Image appears distorted. Text is fuzzy or
blurred.
v Turn on your monitor and then turn on
your PC.
v Set the PC’s display resolution to the same
mode as monitor’s recommended screen
native resolution.
Q2: What is the recommended refresh rate
for LCD monitor?
Ans.: Recommended refresh rate in LCD
monitors is 60 Hz, In case of any
disturbance on screen, you can set it
up to 75 Hz to see if that removes the
disturbance.
Green, red, blue, dark, and white dots appears
on the screen
v The remaining dots are normal
characteristic of the liquid crystal used in
today’s technology, Please refer the pixel
policy for more detail.
Q3: What are the .inf and .icm files on the
CD-ROM? How do I install the drivers
(.inf and .icm)?
Ans.: These are the driver files for your
monitor. Follow the instructions in your
user manual to install the drivers. Your
computer may ask you for monitor
drivers (.inf and .icm files) or a driver disk
when you first install your monitor. Follow
the instructions to insert the ( companion
CD-ROM) included in this package.
The "power on" light is too strong and is
disturbing
v You can adjust “power on” light using the
power LED Setup in OSD main Controls.
For further assistance, refer to the Consumer
Information Centers list and contact Philips
customer service representative.
25
7. Troubleshooting & FAQs
Monitor drivers (.inf and .icm files) will be
installed automatically.
2. sRGB; this is a standard setting for
ensuring correct exchange of colors
between different device (e.g. digital
cameras, monitors, printers, scanners,
etc)
Q4: How do I adjust the resolution?
Ans.: Your video card/graphic driver and
monitor together determine the available
resolutions. You can select the desired
resolution under Windows® Control
Panel with the "Display properties".
3. User Define; the user can choose his/
her preference color setting by adjusting
red, green blue color.
Q5: What if I get lost when I am making
monitor adjustments via OSD?
Ans.: Simply press the OK button, then select
'Reset' to recall all of the original factory
settings.
Note
A measurement of the color of light radiated
by an object while it is being heated. This
measurement is expressed in terms of
absolute scale, (degrees Kelvin). Lower Kevin
temperatures such as 2004K are red; higher
temperatures such as 9300K are blue. Neutral
temperature is white, at 6504K.
Q6: Is the LCD screen resistant to scratches?
Ans.: In general it is recommended that the
panel surface is not subjected to excessive
shocks and is protected from sharp or
blunt objects. When handling the monitor,
make sure that there is no pressure or
force applied to the panel surface side.
This may affect your warranty conditions.
Q9: Can I connect my LCD monitor to any
PC, workstation or Mac?
Ans.: Yes. All Philips LCD monitors are fully
compatible with standard PCs, Macs
and workstations. You may need a cable
adapter to connect the monitor to your
Mac system. Please contact your Philips
sales representative for more information.
Q7: How should I clean the LCD surface?
Ans.: For normal cleaning, use a clean, soft
cloth. For extensive cleaning, please use
isopropyl alcohol. Do not use other
solvents such as ethyl alcohol, ethanol,
acetone, hexane, etc.
Q8: Can I change the color setting of my
monitor?
Ans.: Yes, you can change your color setting
through OSD control as the following
procedures,
Q10: Are Philips LCD monitors Plug-andPlay?
Ans.: Yes, the monitors are Plug-and-Play
compatible with Windows 8/ Windows 7/
Vista/XP/NT, Mac OSX, Linux
Q11: What is Image Sticking, or Image Burn-in,
or After Image, or Ghost Image in LCD
panels?
Ans.: Uninterrupted display of still or static
images over an extended period may
cause "burn in", also known as "afterimaging" or "ghost imaging", on your
screen. "Burn-in", "after-imaging", or "ghost
imaging" is a well-known phenomenon in
LCD panel technology. In most cases, the
"burned in" or "atter-imaging" or "ghost
imaging" will disappear gradually over a
period of time after the power has been
switched off.
Always activate a moving screen saver
v Press "OK" to show the OSD (On Screen
Display) menu
v Press "Down Arrow" to select the option
"Color" then press "OK" to enter color
setting, there are three settings as below.
1. Color Temperature; The two settings
are 6500K and 9300K. With settings
in the 6500K range the panel appears
"warm, with a red-white color tone",
while a 9300K temperature yields "cool,
bluewhite toning".
26
7 Troubleshooting & FAQs
program when you leave your monitor
unattended.
Always activate a periodic screen refresh
application if your LCD monitor will
display unchanging static content.
Warning
Failure to activate a screen saver, or a periodic
screen refresh application may result in
severe"burn-in" or "after-image" or "ghost image"
symptoms will not disappear and cannot be
repaired. The damage mentioned above is not
covered under your warranty.
Q12: Why is my Display not showing sharp
text, and is displaying jagged characters?
Ans.: Your LCD monitor works best at its
native resolution of 1366 x 768 @ 60 Hz.
For best display, please use this resolution.
27
© 2013 Koninklijke Philips Electronics N.V. All rights reserved.
Philips and the Philips Shield Emblem are registered trademarks of
Koninklijke Philips Electronics N.V. and are used under license from
Koninklijke Philips Electronics N.V.
Specifications are subject to change without notice.
Version: M5163V1T
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
