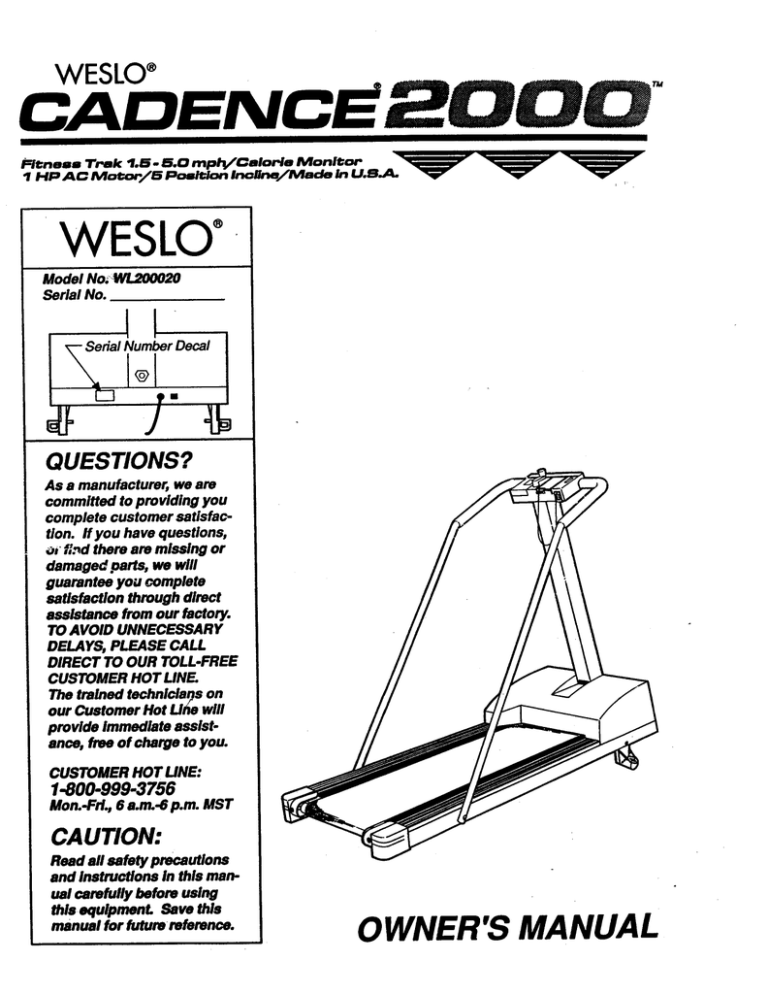

WESLO® que A
CAD E N CE |
Ma» >
WESLO"
Model No: WL200020
Serial No.
Serial Number Decal
©
o -
de 7 %
QUESTIONS?
As a manufacturer, we are
committed to providing you
complete customer satisfac-
tion. If you have questions,
dr find there are missing or
damaged parts, we will
guarantee you complete
satisfaction through direct
assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL
DIRECT TO OUR TOLL-FREE
CUSTOMER HOT LINE.
The trained technicians on
our Customer Hot Line will
provide immediate assist-
ance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.-Fri., 6 a.m.-6 p.m. MST
CAUTION:
Read all safety precautions
and Instructions In this man-
ual carefully before using
this equipment. Save this
manual for future reference. 1 O WN E R 'S MA N UA L
IMPORTANT SAFETY PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock or Injury to persons, read the
following important safety precautions and information before operating the treadmill.
1.
Position the treadmill on a level surface, with at least 8 feet of clearance behind the
treadmill. Do not place the treadmill near water, outdoors or on a surface that may block
any air opening. Do not operate where aerosol products are used or where oxygen is being
administered.
Plug the power cord directly into a grounded circuit carrying 12 or more amps. No other
appliances should be on the same circuit. (See the OPERATION AND ADJUSTMENT
section of this manual for proper grounding instructions.) Keep the power cord away from
heated surfaces. If an extension cord is required, use only a 14-gauge general-purpose
cord of approximately five feet in length with a three-wire conductor.
. Never move the walking belt while the power is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the treadmill is not working properly. (See the
BEFORE YOU BEGIN section of this manual if the treadmill is not working properly.)
. The roller guards must be 1/8 inch from the rear roller. Turn the power off and adjust the
roller guards, if necessary.
- Wear appropriate exercise attire when using the treadmill. Do not wear loose clothing that
could become caught in the treadmill. Always wear running shoes. Never use the treadmill
with bare feet, wearing only stockings or in sandals. Athletic support clothes are
recommended for both men and women.
- Never start the treadmill while you are standing on the walking belt. Always hold the
handrail when exercising on the treadmill.
. Use the treadmill only as described in this manual.
- Keep small children away from the treadmill at all times. Never leave the treadmill
unattended while it is running. Always turn the power off when the treadmill is not in use.
. Never drop or insert any object into any opening.
10.
Always unplug the power cord before performing the maintenance and adjustment
procedures described in this manual. Never remove the motor hood unless instructed to
do so by an authorized service representative. Servicing other than the procedures in this
manual should be performed by an authorized service representative only.
11. To prevent overheating, do not operate the treadmill continuously for longer than 1 hour.
12.
Never allow more than one person on the treadmill at a time. The treadmill should be used
only by persons weighing 250 pounds or less.
WARNING: Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health
problems. Read all instructions before using. WESLO assumes no responsibility for personal
injury or property damage sustained by or through the use of this product. — |
E INSTRUCTIONS
. © 1992 Weslo, Inc. a Subsidiary of Weider Health and Fitness, Inc.
TABLE OF CONTENTS
Before You Begin ..............eeeeonmerrcccoceeo 3
Assembly ..........ñoceeoeocooeccscrcecoococeecccooo 4
Operation and Adjustment ........................ 5
Trouble-Shooting and Storage ...............ieeec. 7
Conditioning Guidelines ................... PS 9
Part List....... auacarcarerdaocanoaracararervacarnao 10
Exploded Drawing .............e.eecceeccevoccoooa 11
Ordering Replacement Parts .................._..c. Back Cover
Warranty .......e..e.eeocreoocscocrccrecccaceoresas. DaCk Cover
BEFORE YOU BEGIN
Thank you for selecting the WESLO CADENCE® 2000 treadmill. The CADENCE 2000 combines state- ..
of-the-art technology with innovative design to let you enjoy an effective form of cardiovascular exer-
cise in the convenience of your home. For your safety and benefit, read this manual carefully
before using the treadmill. If you have additional questions, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time
(excluding holidays). To help us assist you, please note the product model number and serial number
before calling. The model number can be found on the front cover of this manual. The serial number
can be found on a decal attached to the treadmill (see the drawing on the front cover for the location).
Before reading further, please review the drawing below and familiarize yourself with the parts that are
labeled.
Electronic Monitor Speed Crank
EEG Incline Indicator
y
Safety Key/Clip
Console
, Front
Handrails
Lock Knob
Circuit Breaker
Walking Platform
Walking Belt
Roller Guards
A Power Cord
Front Leg Hitch Pin
Back
| Right Side
Rear Roller |
Adjustment Bolts Foot Rail
ASSEMBLY
Set the treadmill in a cleared area and remove all packing materials. Be sure that all parts are
included before disposing of the packing materials.
1. Raise the Upright Post (13) to a vertical position. Insert
the Lock Knob (32), with the Lock Knob Washer (31),
into the Upright Post, and turn the Knob clockwise until it
is almost tight. Leave a little play in the Upright Post for
the following steps.
2. Slide the upper end of the Left Handrail (1) into the
opening in the left side of the Console (8). Insert a Short
Handrail Bolt (11) up through the metal plate under the
Console, and tighten the Bolt into the Handrail. If the
Handrail cannot be inserted into the Console far enough
to attach the Bolt, roll back the Foam Grip (3) slightly.
Attach the Right Handrail (2) in the same manner.
3. Align the hole in the lower end of the Left Handrail (1) DN
«with the hole in the Frame (42). Insert the Long Handrail x ON
Bolt (61) through the Left Handrail and Frame. Reach A
under the Frame and thread the Handrail Nut (60) onto
the end of the Bolt. Attach the Right Handrail (not 1 > IN
shown) in the same manner. Tighten the Lock Knob > |
(see step 1). :
42 WC
Make sure that all parts are tightened securely before using 61 a
the treadmill. 60
OPERATION AND ADJUSTMENT
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or break down, grounding provides a path
. of least resistance for electric current to reduce the risk of electric shock. This product is equipped with
a cord having an equipment-grounding conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and grounded in accordance with all local
codes and ordinances. |
DANG ER: Improper connection of the equipment-grounding conductor can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the
product is properly grounded. Do not modify the plug provided with the product—if it will not fit the out-
let, have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug
illustrated in Drawing 1. A temporary adapter that looks like the adapter illustrated in Drawing 2 may
be used to connect this plug to a 2-pole receptacle as shown in Drawing 2 if a properly grounded outlet
is not available. The temporary adapter should be used only until a properly grounded outlet (Drawing
1) can be installed by a qualified electrician. The green colored rigid ear, lug, or the like extending from
the adapter must be connected to a permanent ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle
outlet box covers are not grounded. Contact a qualified electrician to determine if the outlet
box cover is grounded before using an adapter.
Grounded Outlet Box Grounded Outlet Box
í 0 Grounding Plug Adapter
Grounding Pin
Grounding Plug
Grounding Pin
Grounded Outlet
SILICONE APPLICATION
To reduce the friction of the walking belt and prevent exces-
sive wear on the treadmill, a non-oil-, non-petroleum-base ;
silicone lubricant should be applied to the walking platform. 7 pe.
Apply lubricant before Initial use of the treadmill. >
UNPLUG THE POWER CORD, lift each side of the walking 2 NEGA ~~
belt and spray lubricant generously onto the area indicated. > >
Lubricant should also be applied after every 10 hours of use = A ||
and whenever treadmill performance decreases. (Uni-Sport |
silicone spray is recommended. Lubricant is sold at most
hardware and automotive stores.)
TREADMILL OPERATION
Read the instructions below before starting the treadmill.
1.
5.
Step onto the foot rails and hold the handrail firmly. CAUTION: Do not stand on the walking belt
when turning the power on.
Attach the clip on the safety key to the waistband of your clothing. Insert the key into the console.
To turn the power on, move the key to the right. CAUTION: Always wear the clip when operating
the treadmill. If you fall, the key will be pulled from the console, turning the power off.
. Hold the handrail and step carefully onto the walking belt.
. To increase the speed of the walking belt, turn the speed crank counterclockwise. To decrease the
speed, turn the crank clockwise. Turn the crank only when the walking belt is moving. Stop
turning the crank when it becomes difficult, or the cable attached to the crank may be»
damaged.
To turn the power off, move the safety key to the left, and remove the key from the console.
INCLINE ADJUSTMENT
To vary the level of exercise intensity, the incline of the treadmill can be adjusted in the following man-
ner:
1.
. Remove the hitch pin from the right leg and adjust the leg
UNPLUG THE POWER CORD. Lay the treadmiil on its
left side. Do not drop the treadmill. Hitch Pin
Right Leg
to the desired height. Replace the hitch pin and carefully
tip the treadmill up.
Lay the treadmill on its right side and adjust the left leg in
the same manner. Make sure that both legs are at the
same height.
ELECTRONIC MONITOR OPERATION
Refer to the Electronic Monitor Operation Guide accompanying this manual.
TROUBLE-SHOOTING AND STORAGE
Most treadmill problems can be solved by following the simple steps below. If further assistance
is needed, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through
Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays).
1. SYMPTOM: THE POWER DOES NOT TURN ON
a.
. Check the circuit breaker located on the front of the
Make sure the power cord is plugged into a properly grounded outlet. (See OPERATION AND
ADJUSTMENT in this manual.) If an extension cord is necessary, use only a 14-gauge general-
purpose cord of approximately five feet in length.
. Make sure the safety key is fully inserted into the console and moved to the right. (See OPERA-
TION AND ADJUSTMENT in this manual.)
frame near the power cord. The circuit breaker is 1
designed to protect the electrical system. If the circuit
breaker has tripped, the switch will protrude as shown. i 0
To reset the circuit breaker, allow the treadmil! to cool
for five minutes, MOVE THE SAFETY KEY TO THE ; Tripped Reset
LEFT and push the switch back in.
2. SYMPTOM: THE POWER TURNS OFF DURING USE
a.
Check the circuit breaker located on the treadmill frame near the power cord. If the switch pro-
trudes, the circuit breaker has tripped. To reset the circuit breaker, allow the treadmill to cool for
five minutes, MOVE THE SAFETY KEY TO THE LEFT and push the switch back in. (See the
drawing above.) |
Make sure the power cord is plugged in.
Remove the safety key from the console. Reinsert the safety key fully into the console and move
it to the right. |
3. SYMPTOM: THE INCLINE INDICATOR NEEDS TO BE ADJUSTED
a. Lower the treadmill fully. (See OPERATION AND ADJUSTMENT in this manual.) Using the
eraser of a pencil, press the ends of the indicator very gently until the bubble is at level 1.
CAUTION: The indicator Is made of glass, and can break if pressed too hard. Wear safety
goggles for eye protection.
4. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON
a. Silicone lubricant should be applied to the walking platform before use. Lubricant should be
reapplied after every 10 hours of use, and whenever a decrease in performance is noticed.
(UnieSport silicone spray is recommended.) CAUTION: ALWAYS TURN THE POWER OFF
WHEN APPLYING LUBRICANT. (See OPERATION AND ADJUSTMENT in this manual for
application instructions.)
b. If an extension cord is necessary, use only a 14-gauge general-purpose cord of approximately
five feet in length.
c. If the walking belt is overtightened, treadmill perfor-
mance may be reduced and the walking belt permanently =
damaged. TURN THE POWER OFF. Turn both rear =7/ ong"
roller adjustment bolts counterclockwise, 1/4 of a turn. f= |
Repeat until the tension of the walking belt is correct. =
(
eZ
When the tension is correct, you should be able to lift a
each side of the walking belt 2-3 inches off the walking
platform. The center of the walking belt should remain
just at the surface of the walking platform. Be careful to
keep the walking belt centered on the walking platform.
5. SYMPTOM: THE WALKING BELT IS OFF-CENTER OR SLIPS WHEN WALKED ON
a. If the walking belt has shifted to the left, first TURN THE
POWER OFF. Turn the left rear roller adjustment bolt
clockwise, and the right bolt counterclockwise, 1/4 of a
turn each. Repeat as necessary until the walking belt is
centered. В
b. If the walking belt has shifted to the right, first TURN.
THE POWER OFF. Turn the left rear roller adjustment
bolt counterclockwise, and the right bolt clockwise, 1/4 of
a turn each. Repeat as necessary until the walking belt
is centered.
c. If the walking belt slips when walked on, first TURN THE
POWER OFF. Turn both rear roller adjustment bolts
clockwise, 1/4 of a turn. Repeat as necessary until the
tension of the walking belt is correct. When the tension is
correct, you should be able to lift each side of the walking
belt 2-3 inches off the walking platform. The center of the
walking belt should remain just at the surface of the walk-
>
NI y Е
€
ing platform. Be careful to keep the walking belt centered
on the walking platform.
STORAGE
Unplug the power cord when the treadmill is not in use. Remove the bolts and nuts from the lower and
upper ends of the handrail. Keep the bolts and nuts in a secure location. Loosen the lock knob and
lower the upright post onto the walking belt. Lay the handrail on the treadmill.
CONDITIONING GUIDELINES
The following guidelines will help you to plan your exercise program. Remember that proper nutrition
and adequate rest are essential for successful results. WARNING: Before beginning this or any
exercise program, consult your physician. This is especially important for persons over the
age of 35 or persons with pre-existing health problems.
EXERCISE INTENSITY
To maximize the benefits of exercising, it is important to exercise with the proper intensity. The proper
intensity can be found by using your heart rate as a guide. For effective aerobic exercise, your heart
rate should be maintained at a level between 70% and 85% of your maximum heart rate as you
exercise. This is known as your training zone. You can find your training zone in the table below.
Training zones are listed for both unconditioned and conditioned persons according to age.
UNCONDITIONED | CONDITIONED UNCONDITIONED | CONDITIONED
TRAINING ZONE | TRAINING ZONE TRAINING ZONE | TRAINING ZONE
AGE (BEATS/MIN) (BEATS/MIN) AGE (BEATS/MIN) (BEATS/MIN)
20 138-167 133-162 55 127-155 122-149
25 136-166 132-160 60 126-153 121-147
30 135-164 130-158 65 125-151 119-145
35 134-162 129-156 70 123-150 118-144
40 132-161 127-155 75 122-147 117-142
45 131-159 125-153 80 120-146 115-140
50 129-156 124-150 85 118-144 114-139
During the first few months of your exercise program, keep your
heart rate near the low end of your training zone as you exercise.
After a few months, your heart rate can be increased gradually
until it is near the middle of your training zone as you exercise. To
measure your heart rate, stop exercising and place two fingers on
your wrist. Take a six-second heartbeat count, and multiply the
result by 10 to find your heart rate. For example, if your six-
second heartbeat count is 14, your heart rate is 140 beats per
minute. (A six-second count is used because your heart rate will
drop rapidly when you stop exercising.) Adjust the intensity of your
exercise until your heart rate is at the proper level.
WORKOUT GUIDELINES
Each workout should consist of three basic parts: a warm-up, 20 to 30 minutes of training zone exer-
cise, and a cool-down. Warming up prepares the body for exercise by increasing circulation, deliver-
ing more oxygen to the muscles and raising the body temperature. Begin each workout with 5 to 10
minutes of stretching and light exercise to warm up. Then, increase the intensity of your exercise to
raise your heart rate to your training zone for 20 to 30 minutes. Breathe regularly and deeply as you
exercise—never hold your breath. Finish each workout with 5 to 10 minutes of stretching to cool down.
This will increase the flexibility of the muscles, and reduce soreness and other post-exercise problems.
To maintain or improve your condition, complete three workouts each week, with at least one day of
rest between workouts. After a few months of regular exercise, you may complete up to five workouts
each week, if desired. The key to success is CONSISTENCY.
PART LIST—Model No. WL200020
Key
No.
OONDANDdRBUON-
Qty.
A Aa A m N) DI Y dd Nh dk dd ONAL ALLO
Description
Left Handrail w/Foam Grip
Right Handrail w/Foam Grip
Foam Grip
Roller Guard
Roller Guard Screw
Electronic Monitor
Speed Crank
Console
Speed Adjustment Screw
Spacer
Short Handrail Bolt
Small Screw
Upright Post
Incline Indicator
Safety Key/Clip
Speed Adjustment Assembly
Motor Clamp Assembly
Motor
Pulley
Clamp
Left Incline Leg
Motor Mount Swivel Shaft
Tension Swivel
Swivel Nut
Pivot Nut
Pivot Washer
Circuit Breaker
Motor Ground Wire
Ground Washer
On/Off Switch Wire
Lock Knob Washer
Lock Knob
Pivot Bolt
- Power Cord
Key
No.
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
#
#
Qty.
dh
Arde
Rev. 8/92
Description
Grommet
Plastic Pin
Swivel Shaft Bolt
Hitch Pin
Right Incline Leg
Right Foot Rail
Hood Anchor
Frame
Walking Platform
Safety Cover
Adjustment Washer
Front Roller Adjustment Bolt
Wire Clip
Front Roller Pulley
Walking Belt
Platform Screw | |
Bumper Screw/Switch Screw
Rubber Bumper
Right Roller Bracket
Rear Roller Adjustment Bolt
Allen Wrench
Wrench Clip
Rear Roller
Left Roller Bracket
Left Foot Rail
Handrail Nut
Long Handrail Bolt
Motor Hood w/Decal |
Sensor Wire/Reed Switch
Magnet
Belt
Monitor Operation Guide
Owner's Manual
Note: "#" indicates a non-illustrated part. Specifications are subject to change without notice. See the
back cover for information about ordering replacement parts.
Rev. 8/92
11
- ORDERING REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toli-free at 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). When ordering parts,
please be prepared to give the following information:
—
. The MODEL NUMBER of the product (WL200020).
2. The NAME of the product (WESLO CADENCE® 2000 treadmill).
3. The SERIAL NUMBER of the product (see the front cover of this manual).
4. The KEY NUMBER of the part(s) from page 10 of this manual.
5. The DESCRIPTION of the part(s) from page 10 of this manual.
LIMITED WARRANTY
Weslo, Inc. ("WESLO"), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the
date of purchase. This warranty extends only to the original purchaser. WESLO's obligation
under this warranty is limited to replacing or repairing, at WESLO's option, the product at one
of its authorized service centers. All products for which warranty claim is made must be
received by WESLO at one of its authorized service centers with all freight and other trans-
portation charges prepaid, accompanied by sufficient proof of purchase. All returns must be
pre-authorized by WESLO. This warranty does not extend to any product or damage to a
product caused by or attributable to freight damage, abuse, misuse, improper or abnormal
~ usage or repairs not provided by a WESLO authorized service center or for products used for
commercial or rental purposes. No other warranty beyond that specifically set forth above is
authorized by WESLO. |
WESLO iS NOT RESPONSIBLE OR LIABLE FOR INDIRECT, SPECIAL OR CONSEQUEN-
TIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFOR-
MANCE OF THE PRODUCT OR OTHER DAMAGES WITH RESPECT TO ANY ECONOMIC
LOSS, LOSS OF PROPERTY, LOSS OF REVENUES OR PROFITS, LOSS OF ENJOYMENT
OR USE, COSTS OF REMOVAL, INSTALLATION OR OTHER CONSEQUENTIAL DAMAGES
OF WHATSOEVER NATURE. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMI-
“TATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES. ACCORDINGLY, THE ABOVE
LIMITATION MAY NOT APPLY TO YOU.
THE WARRANTY EXTENDED HEREUNDER 1S IN LIEU OF ANY AND ALL OTHER WAR-
RANTIES AND ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE IS LIMITED IN ITS SCOPE AND DURATION TO THE TERMS SET
FORTH HEREIN. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS. ACCORDINGLY, THE ABOVE LIMITATION MAY NOT APPLY
TO YOU.
This warranty gives you specific legal rights. You may also have other rights which vary from
state to state.
WESLOINC., 1 500S.1000 W., LOGAN, UT-84321-9813
Part No. 109523 8/92 Printed in U.S.A.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
