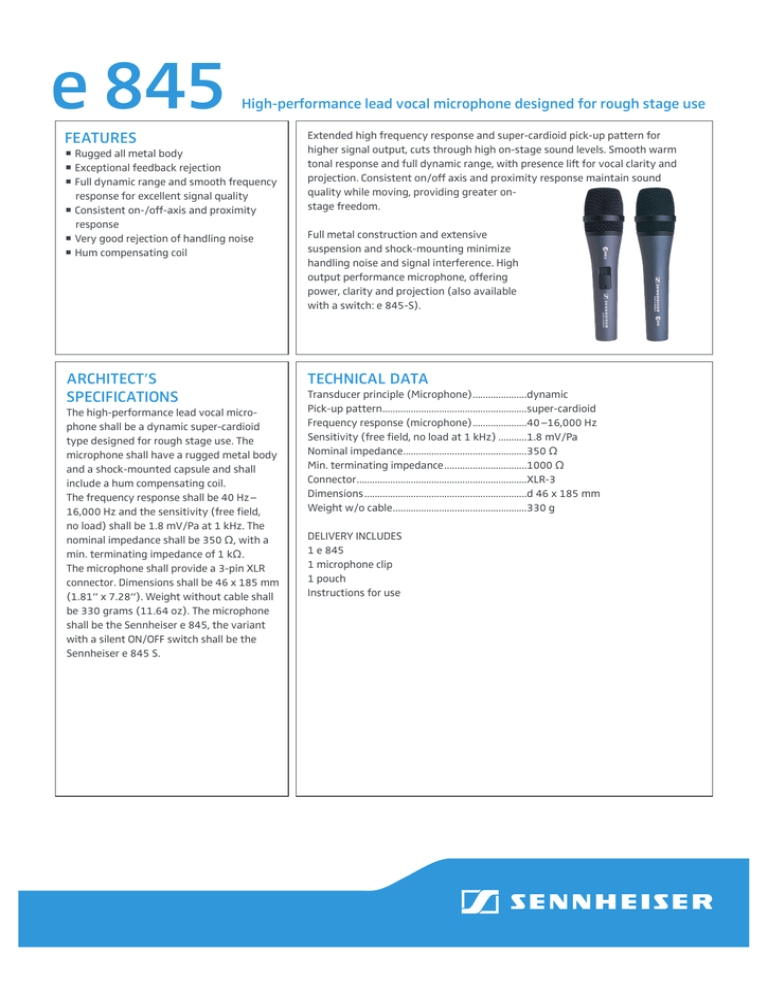

e 845
High-performance lead vocal microphone designed for rough stage use
FEATURES
Rugged
all metal body
feedback rejection
Full dynamic range and smooth frequency
response for excellent signal quality
Consistent on-/off-axis and proximity
response
Very good rejection of handling noise
Hum compensating coil
Exceptional
ARCHITECT’S
SPECIFICATIONS
The high-performance lead vocal micro­
phone shall be a dynamic super-cardioid
type designed for rough stage use. The
microphone shall have a rugged metal body
and a shock-mounted capsule and shall
include a hum compensating coil.
The frequency response shall be 40 Hz –
16,000 Hz and the sensitivity (free field,
no load) shall be 1.8 mV/Pa at 1 kHz. The
nominal impedance shall be 350 O, with a
min. terminating impedance of 1 kO.
The microphone shall provide a 3-pin XLR
connector. Dimensions shall be 46 x 185 mm
(1.81“ x 7.28“). Weight without cable shall
be 330 grams (11.64 oz). The microphone
shall be the Sennheiser e 845, the variant
with a silent ON/OFF switch shall be the
Sennheiser e 845 S.
Extended high frequency response and super-cardioid pick-up pattern for
higher signal output, cuts through high on-stage sound levels. Smooth warm
tonal response and full dynamic range, with presence lift for vocal clarity and
projection. Consistent on/off axis and proximity response maintain sound
quality while moving, providing greater onstage freedom.
Full metal construction and extensive
suspension and shock-mounting minimize
handling noise and signal interference. High
output performance microphone, offering
power, clarity and projection (also available
with a switch: e 845-S).
TECHNICAL DATA
Transducer principle (Microphone)......................dynamic
Pick-up pattern.........................................................super-cardioid
Frequency response (microphone)......................40 –16,000 Hz
Sensitivity (free field, no load at 1 kHz)............1.8 mV/Pa
Nominal impedance.................................................350 O
Min. terminating impedance.................................1000 O
Connector...................................................................XLR-3
Dimensions................................................................d 46 x 185 mm
Weight w/o cable.....................................................330 g
Delivery includes
1 e 845
1 microphone clip
1 pouch
Instructions for use
e 845 High-performance lead vocal microphone designed for rough stage use
POLAR PATTERN
FREQUENCY RESPONSE
PRODUCT VARIANTS
e 845 S – High Performance Lead Vocal Microphone with
noiseless on/off switch
Cat. No. 04516
RECOMMENDED ACCESSORIES
MZQ 800 universal stand adapter clip for most Evolution
handheld wired microphones
Cat. No. 004711
MZW 4032-A anthracite foam windscreen
MZW 4032-C blue foam windscreen
Sennheiser electronic GmbH & Co. KG
Am Labor 1, 30900 Wedemark, Germany
www.sennheiser.com
Cat. No. 002978
Cat. No. 002980
11/12 Sennheiser is a registered trademark of Sennheiser electronic GmbH & Co. KG. www.sennheiser.com. Copyright © 11/2012. All rights reserved. Errors and omissions excepted.
DIMENSIONS
