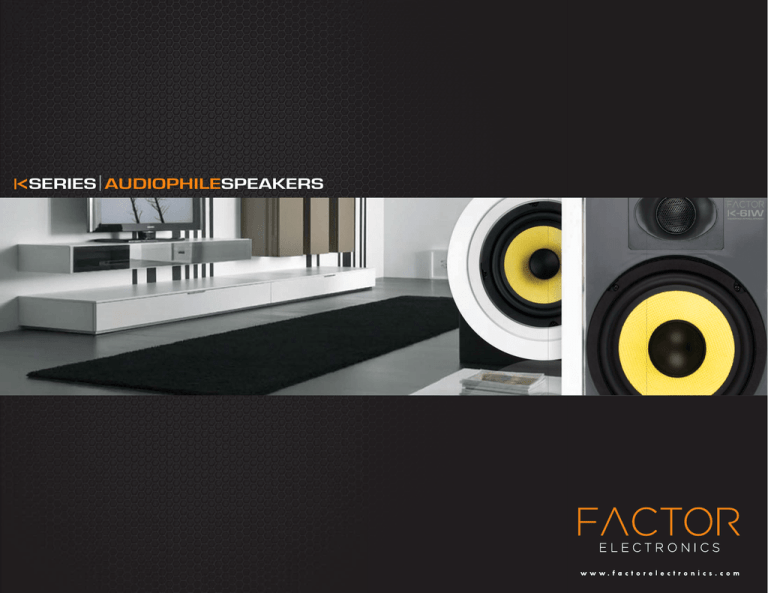

K Series Kevlar Speakers
SERIES AUDIOPHILESPEAKERS
EASY INSTALLATION!
All K Series speakers include a
pre-construction
bracket in
the box
SIL Y SMOOTH
Add one inch silk dome aim-able
tweeters with neodymium high power
magnets for crystal clear high frequencies
SCIENCE MEETS ART!
K Series crossovers feature air core inductors, ultra low
tolerance capacitors, auto-resetting poly-switch tweeter
protection, glass fiber circuit boards, gold plated wire
terminals and a whole lotta love! That's right, did we
mention that we love high-end audio! The Factor team
has over 30 years of combined speaker building
experience and the latest computer modeling software!
STRONG & LIGHT!
All K Series speakers feature
woven Kevlar woofer cones which
produce deep clean bass and mid
bass frequencies
-6
>> 125 watts peak power handling
>> 6.5” woven Kevlar cone
>> 20 oz magnet structure
>> 1” silk dome neodymium aim-able tweeter
>> 40Hz-22kHz frequency response
>> 92dB 1w 1m sensitivity
>> 9 7/8” (250.82mm) Overall diameter
>> 8.18” (208mm) Cutout Dimensions Speaker
>> 8.26” (210mm) Cutout Dimensions RI Bracket
>> Includes pre-construction bracket
>> 10 year warranty
-6ST
>> 125 watts peak power handling
>> 6.5” Dual voice coil woven Kevlar cone
>> 20 oz magnet structure
>> 1” Dual silk dome neodymium aim-able tweeters
>> 40Hz-22kHz frequency response
>> 92dB 1w 1m sensitivity
>> 9 7/8” (250.82mm) Overall diameter
>> 8.18” (208mm) Cutout Dimensions Speaker
>> 8.26” (210mm) Cutout Dimensions RI Bracket
>> Includes pre-construction bracket
>> 10 year warranty
SERIES AUDIOPHILESPEAKERS
S P E C I F I C A T I O N S :
-8
150 watts peak power handling
8” woven Kevlar cone
30 oz magnet structure
1” silk dome neodymium aim-able tweeter
40Hz-22kHz frequency response
92dB 1w 1m sensitivity
11.5” (292.10mm) Overall diameter
9.8” (249mm) Cutout Dimensions Speaker
>> 9.88” (251mm) Cutout Dimensions RI Bracket
>> Includes pre-construction bracket
>> 10 year warranty
>>
>>
>>
>>
>>
>>
>>
>>
*Specifications are subject to change without notice
-6IW
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
>>
125 watts peak power handling
6.5” woven Kevlar cone
20 oz magnet structure
1” silk dome neodymium aim-able tweeter
40Hz-22kHz frequency response
92dB 1w 1m sensitivity
Overall dimensions
8.25”W x 11.5”H (209.55mm x 292.1)
Cutout Dimensions Speaker
6.92”W x 10.19”H (176mm x 259mm)
Cutout Dimensions RI Bracket
7.04”W x 10.27”H (179mm x 261mm)
Includes pre-construction bracket 10 year warranty
SERIES AUDIOPHILESPEAKERS
