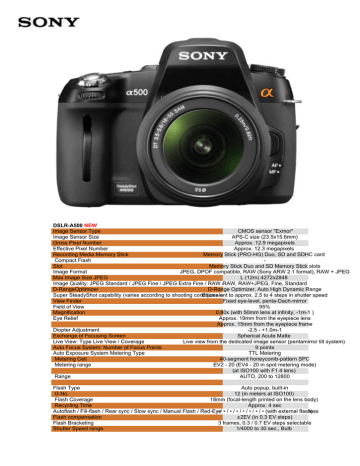

DSLR-A500 NEW Image Sensor Type CMOS sensor "Exmor" Image

DSLR-A500 NEW Image Sensor Type CMOS sensor "Exmor" Image
Image Sensor Type
CMOS sensor "Exmor"
Image Sensor Size
APS-C size (23.5x15.6mm)
Gross Pixel Number
Approx. 12.9 megapixels
Effective Pixel Number
Approx. 12.3 megapixels
Recording Media Memory Stick
Memory Stick (PRO-HG) Duo, SD and SDHC card
Compact Flash
Memory Stick Duo and SD Memory Stick slots
Image Format
JPEG, DPOF compatible, RAW (Sony ARW 2.1 format), RAW + JPEG
Max Image Size JPEG
L (12m) 4272x2848
Image Quality: JPEG Standard / JPEG Fine / JPEG Extra Fine / RAW /RAW,
Fine, Standard
D-Range Optimizer, Auto High Dynamic Range
Super SteadyShot capability (varies according to shooting conditions
used)2.5 to 4 steps in shutter speed
View Finder
Fixed eye-level, penta-Dach-mirror
Field of View
0.80x (with 50mm lens at infinity, -1m-1 )
Eye Relief
Approx. 19mm from the eyepiece lens
Approx. 15mm from the eyepiece frame
Diopter Adjustment
-2.5 - +1.0m-1
Exchange of Focusing Screen
Spherical Acute Matte
Live View: Type Live View / Coverage
Live view from the dedicated image sensor (pentamirror tilt system)
Auto Focus System: Number of Focus Points
9 points
Auto Exposure System Metering Type
TTL Metering
Metering Cell
40-segment honeycomb-pattern SPC
Metering range
EV2 - 20 (EV4 - 20 in spot metering mode)
(at ISO100 with F1.4 lens)
AUTO, 200 to 12800
Flash Type
Auto popup, built-in
12 (in meters at ISO100)
Flash Coverage
18mm (focal-length printed on the lens body)
Recycling Time
Approx. 4 sec
Autoflash / Fill-flash / Rear sync / Slow sync / Manual Flash / Red-Eye
• / Reduction
• / • / • / • / /• High
/ • / • Speed
(with external
sync / Wireless
Flash compensation
±2EV (in 0.3 EV steps)
Flash Bracketing
3 frames, 0.3 / 0.7 EV steps selectable
Shutter Speed range
1/4000 to 30 sec., Bulb
Flash Sync Speed
Drive: Continuous-advance rate
1/160 sec.
Max. 5fps with viewfinder, max. 4 fps in live view mode
Number of continuous advance JPEG (Standard/Fine)
Standard: 58 images
JPEG (Extra fine)
Fine: 12 images
6 images
cRAW (compressed)
3 images
Depth-of-field preview
LCD monitor
3.0-inch Xtra Fine Tilting LCD
Total number of dots
230,400 dots
Field of View
Index Playback
Single, 4/9-frame index view and enlarged display mode
USB2.0 (Hi-Speed)
Mass Storage / PTP / Multi Config / Multi LUN
Sync. Terminal
Video Out
HDMI mini connector (Type C), BRAVIA Sync (Sync menu), PhotoTV HD
Power: Battery Life
Approx. 1000 images (viewfinder), approx. 520 images (live view, CIPA standard
Dimensions (W x H x D) excluding protrusionsApprox. 137 x 104 x 84mm (5-1/2 x 4 1/8 x 3 3/8 in.) (W/H/D, excluding protrusion
Weight Body only (without batteries, memory card and
body accessories)
597g (1 lb 5.1 oz) (without battery, memory card, accessories)
Operating Temperature
0 - 40 degrees C
