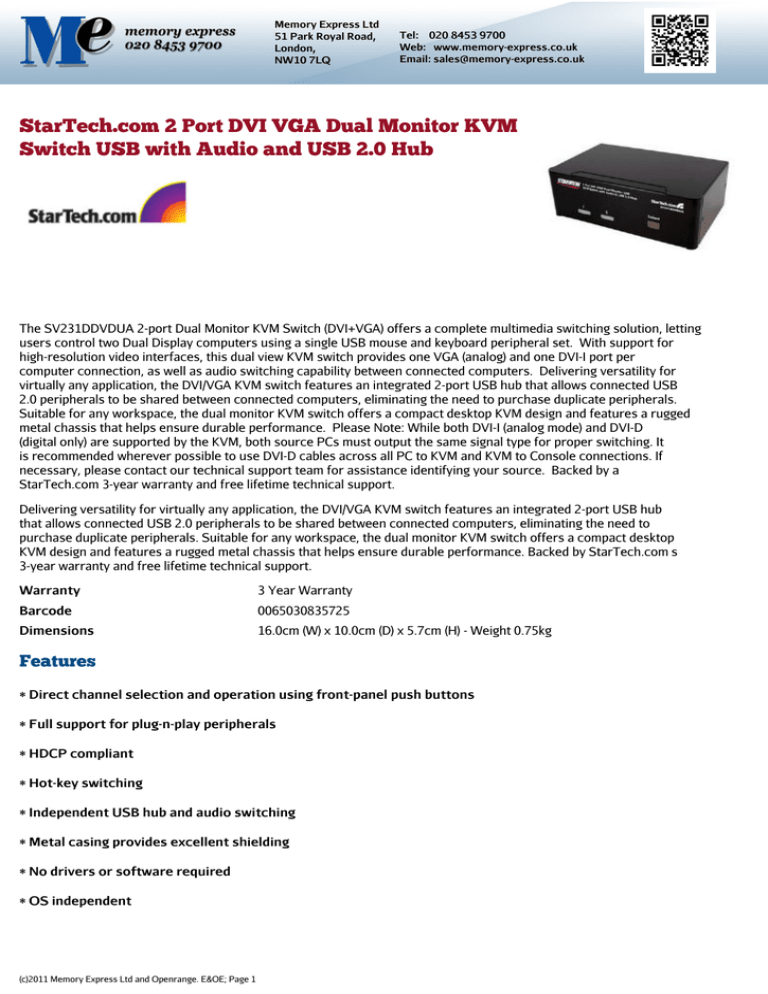

StarTech.com 2 Port DVI VGA Dual Monitor KVM
Switch USB with Audio and USB 2.0 Hub
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting
users control two Dual Display computers using a single USB mouse and keyboard peripheral set. With support for
high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per
computer connection, as well as audio switching capability between connected computers. Delivering versatility for
virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB
2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged
metal chassis that helps ensure durable performance. Please Note: While both DVI-I (analog mode) and DVI-D
(digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It
is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If
necessary, please contact our technical support team for assistance identifying your source. Backed by a
StarTech.com 3-year warranty and free lifetime technical support.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub
that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to
purchase duplicate peripherals. Suitable for any workspace, the dual monitor KVM switch offers a compact desktop
KVM design and features a rugged metal chassis that helps ensure durable performance. Backed by StarTech.com's
3-year warranty and free lifetime technical support.
Warranty
3 Year Warranty
Barcode
0065030835725
Dimensions
16.0cm (W) x 10.0cm (D) x 5.7cm (H) - Weight 0.75kg
Features
* Direct channel selection and operation using front-panel push buttons
* Full support for plug-n-play peripherals
* HDCP compliant
* Hot-key switching
* Independent USB hub and audio switching
* Metal casing provides excellent shielding
* No drivers or software required
* OS independent
(c)2011 Memory Express Ltd and Openrange. E&OE; Page 1
Memory Express Ltd
51 Park Royal Road,
London,
NW10 7LQ
Tel: 020 8453 9700
Web: www.memory-express.co.uk
Email: [email protected]
StarTech.com 2 Port DVI VGA Dual Monitor KVM
Switch USB with Audio and USB 2.0 Hub
* Rear function key to adjust video strength
* Selectable time intervals for auto scan
* Status LED display for easy port status monitoring
* Support audio switching (Speaker + MIC)
* Support DDC2B emulation and EDID pass through, which allows the display adaptor to recognize
and auto configure the display resolution to match the display capabilities
* Supports a maximum digital resolution of 1920 x 1200 and analog of 1920 x 1440; Recommended
resolution is 1920 x 1200
* Supports Dual Monitor/Flat Panel Displays [1 x DVI + 1 x VGA]
* Tone indicator for computer switching
* USB style keyboard and mouse, plus two other USB peripherals can be shared between up to two
computers
Specification
General
The SV231DDVDUA 2-port Dual Monitor KVM Switch (DVI+VGA) offers a complete multimedia switching solution, letting
users control two Dual Display computers using a single USB mouse and keyboard peripheral set. With support for
high-resolution video interfaces, this dual view KVM switch provides one VGA (analog) and one DVI-I port per
computer connection, as well as audio switching capability between connected computers. Delivering versatility for
virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub that allows connected USB
2.0 peripherals to be shared between connected computers, eliminating the need to purchase duplicate peripherals.
Suitable for any workspace, the dual monitor KVM switch offers a compact desktop KVM design and features a rugged
metal chassis that helps ensure durable performance. Please Note: While both DVI-I (analog mode) and DVI-D
(digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It
is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If
necessary, please contact our technical support team for assistance identifying your source. Backed by a
StarTech.com 3-year warranty and free lifetime technical support.
Delivering versatility for virtually any application, the DVI/VGA KVM switch features an integrated 2-port USB hub
that allows connected USB 2.0 peripherals to be shared between connected computers, eliminating the need to
purchase duplicate peripherals. Suitable for any workspace, the dual monitor KVM switch offers a compact desktop
KVM design and features a rugged metal chassis that helps ensure durable performance. Backed by StarTech.com's
3-year warranty and free lifetime technical support.
(c)2011 Memory Express Ltd and Openrange. E&OE; Page 2
Memory Express Ltd
51 Park Royal Road,
London,
NW10 7LQ
Tel: 020 8453 9700
Web: www.memory-express.co.uk
Email: [email protected]
StarTech.com 2 Port DVI VGA Dual Monitor KVM
Switch USB with Audio and USB 2.0 Hub
Warranty
3 Year Warranty
Barcode
0065030835725
Display
Resolution (Maximum)
1920 x 1440dpi
Physical
Case Colour
Black
Dimensions
16.0cm (W) x 10.0cm (D) x 5.7cm (H) - Weight 0.75kg
(c)2011 Memory Express Ltd and Openrange. E&OE; Page 3
Memory Express Ltd
51 Park Royal Road,
London,
NW10 7LQ
Tel: 020 8453 9700
Web: www.memory-express.co.uk
Email: [email protected]
StarTech.com 2 Port DVI VGA Dual Monitor KVM
Switch USB with Audio and USB 2.0 Hub
Options
StarTech
USB2HAB15
StarTech.com USB 2.0 A to B Cable USB cable 4 PIN USB Type A
(M) 4 PIN USB Type B (M) 4.6 m (USB / Hi-Speed USB) molded
(Black)
£7.85
VIEW>
StarTech
USB2HAB6
StarTech.com High Speed Certified USB 2.0 Cable (1.8m)
£6.40
VIEW>
StarTech
USB2HAB10
StarTech.com High Speed Certified USB 2.0 Cable (3m)
£7.21
VIEW>
Interconnect Cables
StarTech
DVIIDMM10
StarTech.com DVI-I Dual Link Digital Analog Monitor Cable
M/M
Call us
VIEW>
StarTech
USBVGA4N1A10
StarTech.com 4-in-1 USB VGA KVM Cable with Audio and
Microphone (3m)
£22.28
VIEW>
StarTech
USBDVI4N1A6
StarTech.com 4-in-1 USB DVI Audio and Microphone KVM Switch
Cable (1.8m)
£21.56
VIEW>
StarTech
USBDVI4N1A10
StarTech.com 4-in-1 USB DVI KVM Cable with Audio and
Microphone (3m)
£26.79
VIEW>
