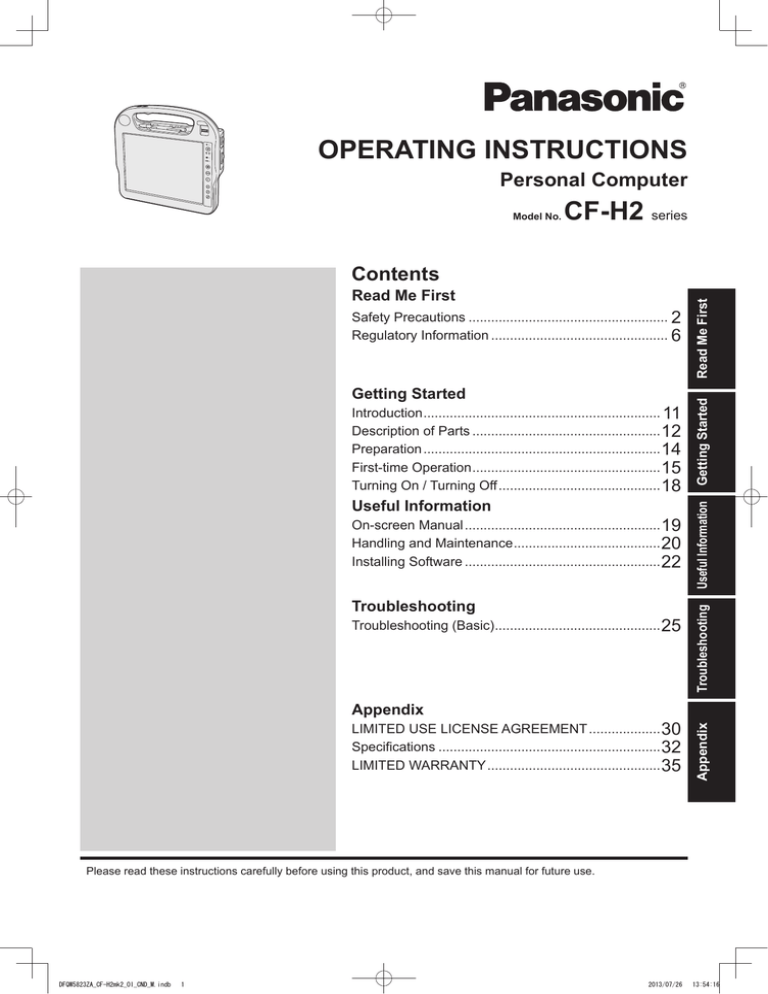

OPERATING INSTRUCTIONS
Personal Computer
Model No.
CF-H2 series
Introduction................................................................ 11
Description of Parts................................................... 12
Preparation................................................................ 14
First-time Operation................................................... 15
Turning On / Turning Off............................................ 18
Useful Information
On-screen Manual..................................................... 19
Handling and Maintenance........................................ 20
Installing Software..................................................... 22
Troubleshooting
Troubleshooting (Basic)............................................. 25
Getting Started
Getting Started
Useful Information
Safety Precautions...................................................... 2
Regulatory Information................................................ 6
Troubleshooting
Read Me First
Read Me First
Contents
LIMITED USE LICENSE AGREEMENT.................... 30
Specifications............................................................ 32
LIMITED WARRANTY............................................... 35
Appendix
Appendix
Please read these instructions carefully before using this product, and save this manual for future use.
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
1
2013/07/26
13:54:16
Safety Precautions
To reduce the risk of injury, loss of life, electric shock, fire,
malfunction, and damage to equipment or property, always observe the following safety precautions.
Explanation of symbol word panels
The following symbol word panels are used to classify
and describe the level of hazard, injury, and property
damage caused when the denotation is disregarded and
improper use is performed.
DANGER
Read Me First
Denotes a potential hazard that will result in serious
injury or death.
WARNING
Denotes a potential hazard that could result in serious injury or death.
CAUTION
Denotes a hazard that could result in minor injury.
NOTICE
Denotes a hazard that could result in property damage.
The following symbols are used to classify and describe
the type of instructions to be observed.
These symbols are used to alert users to a
specific operating procedure that must not be
performed.
This symbol is used to alert users to a specific
operating procedure that must be followed in
order to operate the unit safety.
DANGER
Electrolyte leakage, generation of heat, ignition or
rupture of the Battery Pack may result.
„„Do Not Throw the Battery Pack into a Fire
or Expose It to Excessive Heat
„„Do Not Insert Sharp Objects Into the Battery Pack, Disassemble, or Modify It
„„Do Not Short the Positive (+) and Negative
(-) Contacts
ÖÖDo not place the battery pack together with
articles such as necklaces or hairpins when
carrying or storing.
„„Do Not Apply Shocks to the Product by
Dropping It, Applying Strong Pressure to It,
etc.
ÖÖIf this product is subjected to a strong impact, damaged or deformed, stop using it
immediately.
„„Do Not Charge the Battery Using Methods
Other Than Those Specified
„„Do Not Use the Battery Pack with Any Other
Product
• The battery pack is rechargeable and was
intended for the specified product.
„„Do Not Use This Product with a Battery
Pack Other Than the One Specified
ÖÖUse only the specified battery pack with
your product.
„„When the Battery Pack Has Deteriorated,
Replace It With a New One
ÖÖDo not continue to use a damaged battery
pack.
„„Avoid Extreme Heat (Near the Fire, in Direct
Sunlight, for Example)
2
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
2
2013/07/26
13:54:17
Fire or electric shock may result.
„„Do Not Do Anything That May Damage the
AC Cord, the AC Plug, or the AC Adaptor
Do not damage or modify the cord, place it
near hot tools, bend, twist, or pull it forcefully, place heavy objects on it, or bundle it
tightly.
ÖÖDo not continue to use a damaged AC cord,
AC plug and AC adaptor.
• Contact your technical support office for
repair.
„„Do Not Connect the AC Adaptor to a Power
Source Other Than a Standard Household
AC Outlet
ÖÖConnecting to a DC/AC converter (inverter)
may damage the AC adaptor. On an airplane, only connect the AC adaptor/charger
to an AC outlet specifically approved for
such use.
„„Do Not Pull or Insert the AC Plug If Your
Hands Are Wet
„„Do Not Disassemble This Product
„„Do Not Touch This Product In a Thunderstorm If Connected with the AC Cable or
Any Other Cables
„„If a Malfunction or Trouble Occurs, Immediately Stop Use
If the Following Malfunction Occurs, Immediately Unplug the AC Plug (and the Battery Pack)
• This product is damaged
• Foreign object inside this product
• Smoke emitted
• Unusual smell emitted
• Unusually hot
ÖÖAfter the above procedure, contact your
technical support office for repair.
„„Clean Dust and Other Debris of the AC
Plug Regularly
• If dust or other debris accumulates on the
plug, humidity, etc. may cause a defect in the
insulation.
„„Insert the AC Plug Completely
ÖÖDo not use a damaged plug or loose AC
outlet.
„„Close the Connector Cover Tightly When
Using This Product Where Is a Lot of
Water, Moisture, Steam, Dust, Oily Vapors,
etc.
ÖÖIf foreign matter has found its way inside,
immediately turn the power off and unplug
the AC cord, and then remove the battery
pack. Then contact your technical support
office.
Burns, or low-temperature burns may result.
„„Do Not Use This Product in Close Contact
With Your Body For a Long Period of Time
ÖÖDo not use this product with its heat-emitting parts in close contact with your body for
long periods of time.
• Low-temperature burns may result.
„„Do Not Touch The Surface of The AC Adaptor Continuously While Using/Charging
• Burns may result.
Detrimental health effects on your body may result.
Read Me First
WARNING
„„Do Not Turn the Volume Up To Loud When
Using Headphones
• Listening at high volumes that overstimulate
the ear for long periods of time may result in
loss of hearing.
CAUTION
Fire or electric shock may result.
„„Do Not Move This Product While the AC
Plug Is Connected
ÖÖIf the AC cord is damaged, unplug the AC
plug immediately.
<Only for model with LAN>
„„Do Not Connect a Telephone Line, or a Network Cable Other Than the One Specified,
Into the LAN Port
ÖÖDo not connect to a network such as the
ones listed below.
• Networks other than 1000BASE-T,
100BASE-TX or 10BASE-T
• Phone lines (IP phone (Internet Protocol
Telephone), Telephone lines, internal phone
lines (on-premise switches), digital public
phones, etc.)
„„Do Not Subject the AC Adaptor To Any
Strong Impact
ÖÖDo not continue to use the AC adaptor after
a strong impact such as being dropped.
ÖÖContact your technical support office for
repair.
„„Do Not Leave This Product in High Temperature Environment for a Long Period of
Time
• Leaving this product where it will be exposed
to extremely high temperatures such as near
fire or in direct sunlight may deform the cabinet and/or cause trouble in the internal parts.
3
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
3
2013/07/26
13:54:17
Safety Precautions
CAUTION
Fire or electric shock may result.
„„Hold the Plug When Unplugging the AC
Plug
„„Use Only the Specified AC Adaptor With
This Product
ÖÖDo not use an AC adaptor other than the
one supplied (supplied with the unit or one
sold separately as an accessory).
Read Me First
This product may fall over or drop, resulting in an
injury.
„„Do Not Place This Product on Unstable
Surfaces
„
Avoid
Stacking
„
Detrimental health effects on your body may result.
„„Take a Break Of 10-15 Minutes Every Hour
• Using this product for long periods of time
may have detrimental health effects on the
eyes or hands.
<Only for Field model>
Burns, low-temperature burns, or frostbite may result.
„„Do Not Expose the Skin To This Product
When Using the Product In A Hot Or Cold
Environment
ÖÖWhen it is necessary to expose the skin to
this product such as to scan a fingerprint,
perform the operation in the shortest time
possible.
NOTICE
l Do not place the computer near a television or radio
receiver.
l Keep the computer away from magnets. Data stored
on the hard disk may be lost.
l Do not touch the terminals on the battery pack. The
battery pack may no longer function properly if the
contacts are dirty or damaged.
l Do not expose the battery pack to water, or allow it to
become wet.
l If the battery pack will not be used for a long period of
time (a month or more), charge or discharge (use) the
battery pack until the remaining battery level becomes
30% to 40% and store it in a cool, dry place.
l This computer prevents overcharging of the battery by
recharging only when the remaining power is less than
approx. 95% of capacity.
l The battery pack is not charged when the computer
is first purchased. Be sure to charge it before using it
for the first time. When the AC adaptor is connected to
the computer, charging begins automatically.
l Should the battery leak and the fluid get into your
eyes, do not rub your eyes. Immediately flush your
eyes with clear water and see a doctor for medical
treatment as soon as possible.
THIS PRODUCT IS NOT INTENDED FOR USE AS, OR
AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR
TRAFFIC CONTROL EQUIPMENT/SYSTEMS, AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*1, MEDICAL
DEVICES OR ACCESSORIES*2, LIFE SUPPORT SYSTEMS OR OTHER EQUIPMENTS/DEVICES/SYSTEMS
THAT ARE INVOLVED WITH ENSURING HUMAN
LIFE OR SAFETY. PANASONIC WILL NOT BE RESPONSIBLE FOR ANY LIABILITY RESULTING FROM
THE USE OF THIS PRODUCT ARISING OUT OF THE
FOREGOING USES.
*1
AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2
Electrical Flight Bag (EFB) Systems and Class1 EFB Systems
when used during critical phases of flight (e.g., during takeoff and landing) and/or mounted on to the aircraft. Class1 EFB
Systems and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance
Leaflets) No.36.
*2
As defined by the European Medical Device Directive (MDD)
93/42/EEC.
Panasonic cannot guarantee any specifications, technologies, reliability, safety (e.g. Flammability/Smoke/Toxicity/Radio
Frequency Emission, etc) requirements related to aviation
standards and medical equipment standards that differ from
the specifications of our COTS (Commercial-Off-The-Shelf)
products.
Panasonic cannot guarantee any specifications, technologies, reliability, safety (e.g. Flammability/Smoke/
Toxicity/Radio Frequency Emission, etc) requirements
related to aviation standards that exceed the specifications of our COTS (Commercial-Off-The-Shelf) products.
4
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
4
2013/07/26
13:54:17
The CF-H2 was developed based on extensive research
into the real-world portable computing environments. Pursuit of usability and reliability under harsh conditions led
to innovations such as the use of magnesium alloy, vibration damped hard disk drive, flexible internal connections.
The CF-H2’s outstanding engineering has been tested
using the strict MIL-STD- 810F (for vibration and shock)
and IP (for dust and water) based procedures.
As with any portable computer device precautions should
be taken to avoid any damage. The following usage and
handling procedures are recommended.
Read Me First
Before putting the computer away, be sure to wipe off
any moisture.
NOTE
l The battery pack may become warm during recharging or normal use. This is completely normal.
l Recharging will not commence if internal temperature
of the battery pack is outside of the allowable temperature range (0 °C to 50 °C {32 °F to 122 °F}).
(è
Reference Manual “Battery Power”) Once the
allowable range requirement is satisfied, charging
begins automatically. Note that the recharging time
varies based on the usage conditions. (Recharging
takes longer than usual when the temperature is 10 °C
{50 °F} or below.)
l If the temperature is low, the operating time is shortened. Only use the computer within the allowable
temperature range.
l This computer has a high temperature mode function
that prevents the degradation of the battery in high
Reference Manual
temperature environments. (è
“Battery Power”) A level corresponding to a 100%
charge for high temperature mode is approximately
equivalent to an 80% charge level for normal temperature mode.
l The battery pack is a consumable item. If the amount
of time the computer can be run by using a particular
battery pack becomes dramatically shorter and repeated recharging does not restore its performance,
the battery pack should be replaced with a new one.
l When transporting a spare battery inside a package,
briefcase, etc., it is recommended that it be placed in
a plastic bag so that its contacts are protected.
l Always power off the computer when it is not in use.
Leaving the computer on when the AC adaptor is not
connected will exhaust the remaining battery capacity.
5
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
5
2013/07/26
13:54:17
Regulatory Information
Read Me First
Information to the User
<Only for model with wireless LAN/Bluetooth>
This product and your Health
This product, like other radio devices, emits radio
frequency electromagnetic energy. The level of energy
emitted by this product however is far much less than the
electromagnetic energy emitted by wireless devices like
for example mobile phones.
Because this product operates within the guidelines
found in radio frequency safety standards and
recommendations, we believe this product is safe for use
by consumers. These standards and recommendations
reflect the consensus of the scientific community and
result from deliberations of panels and committees
of scientists who continually review and interpret the
extensive research literature.
In some situations or environments, the use of this
product may be restricted by the proprietor of the building
or responsible representatives of the organization. These
situations may for example include:
●●Using this product on board of airplanes, or
●●In any other environment where the risk of interference
to other devices or services is perceived or identified
as harmful.
If you are uncertain of the policy that applies on the
use of wireless devices in a specific organization or
environment (e.g. airports), you are encouraged to ask
for authorization to use this product prior to turning on the
product.
<Pour modèles LAN sans fil/Bluetooth uniquement>
Ce produit et votre santé
Ce produit, comme tout autre appareil radio, émet de
l’énergie radioélectrique. Toutefois, la quantité d’énergie
émise par ce produit est beaucoup moins importante que
l’énergie radioélectrique émise par des appareils sans l tels
que les téléphones portables. L’utilisation de ce produit ne
comporte aucun risque pour le consommateur du fait que
cet appareil opère dans les limites des directives concernant
les normes et les recommandations de sécurité sur les
fréquences radio. Ces normes et recommandations reètent
le consensus de la communauté scientique et résultent
de délibérations de jurys et comités de scientiques qui
examinent et interprètent continuellement les nouveautés
de la vaste littérature sur les recherches effectuées. Dans
certaines situations ou environnements, l’utilisation de ce
produit peut être restreinte par le propriétaire du bâtiment ou
par les représentants responsables de l’organisation. Ces
situations peuvent être les suivantes par exemple :
●●A bord d’un avion, ou
●●Dans tout autre environnement où les risques
d’interférence sur d’autres appareils ou services sont
perçus ou identiables comme dangereux.
Si vous n’êtes pas sûr de la réglementation applicable
à l’utilisation d’appareils sans l dans une organisation
ou un environnement spécique, (par exemple dans un
aéroport) nous vous invitons à demander l’autorisation
d’utiliser ce produit avant sa mise en marche.
Regulatory Information
We are not responsible for any radio or television
interference caused by unauthorized modification of this
product. The correction of interference caused by such
unauthorized modification will be the responsibility of
the user. We and its authorized resellers or distributors
are not liable for damage or violation of government
regulations that may arise from failing to comply with
these guidelines.
Informations concernant la réglementation
Nous déclinons toute responsabilité pour toute
interférence radio ou télévision causée par des
modications non autorisées apportées à ce produit.
La correction d’interférences causées par de telles
modications non autorisées sera la seule responsabilité
de son utilisateur. Nousmêmes, les revendeurs ofciels
et les distributeurs ne sommes pas responsable de tout
dégât ou de toute violation des règlements de l’État
pouvant découler du non-respect de ces directives.
26-M-1
26-F-1
Lithium Battery / Pile au lithium
Lithium Battery!
This computer contains a lithium battery to enable the
date, time, and other data to be stored. The battery should
only be exchanged by authorized service personnel.
Warning!
A risk of explosion from incorrect installation or
misapplication may possibly occur.
Pile au lithium!
Le micro-ordinateur renferme une pile au lithium qui permet de
sauvegarder certaines données, notamment la date et l’heure.
La pile ne doit être remplacée que par un technicien qualié.
Danger!
Risque d’explosion en cas de non respect de cette mise
en garde!
15-E-1
15-F-1
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols are only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask
for the correct method of disposal.
53-M-1
6
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
6
2013/07/26
13:54:17
Safety Precautions
<Only for model with wireless WAN>
The following safety precautions must be observed during all phases of the operation, usage, service or repair of
any Personal Computer or Handheld Computer incorporating wireless WAN modem. Manufacturers of the cellular
terminal are advised to convey the following safety information to users and operating personnel and to incorporate
these guidelines into all manuals supplied with the product. Failure to comply with these precautions violates safety
standards of design, manufacture and intended use of the product. Panasonic assumes no liability for customer failure
to comply with these precautions.
Read Me First
When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch
Personal Computer or Handheld Computer incorporating wireless WAN modem off, if instructed to do so by
the guidelines posted in sensitive areas. Medical equipment may be sensitive to RF energy.
The operation of cardiac pacemakers, other implanted medical equipment and hearing aids can be affected
by interference from Personal Computer or Handheld Computer incorporating wireless WAN modem
placed close to the device. If in doubt about potential danger, contact the physician or the manufacturer of
the device to verify that the equipment is properly shielded. Pacemaker patients are advised to keep their
Personal Computer or Handheld Computer incorporating wireless WAN modem away from the pacemaker,
while it is on.
Switch off Personal Computer or Handheld Computer incorporating wireless WAN modem before boarding
an aircraft. Make sure it cannot be switched on inadvertently. The operation of wireless appliances in
an aircraft is forbidden to prevent interference with communications systems. Failure to observe these
instructions may lead to the suspension or denial of cellular services to the offender, legal action, or both.
For details on usage of this unit in aircrafts please consult and follow instruction provided by the airline.
Do not operate Personal Computer or Handheld Computer incorporating wireless WAN modem in the
presence of flammable gases or fumes. Switch off the cellular terminal when you are near petrol stations,
fuel depots, chemical plants or where blasting operations are in progress. Operation of any electrical
equipment in potentially explosive atmospheres can constitute a safety hazard.
Your Personal Computer or Handheld Computer incorporating wireless WAN modem receives and transmits
radio frequency energy while switched on. Remember that interference can occur if it is used close to TV
sets, radios, computers or inadequately shielded equipment. Follow any special regulations and always
switch off Personal Computer or Handheld Computer incorporating wireless WAN modem wherever
forbidden, or when you suspect that it may cause interference or danger.
Road safety comes first! Do not use a Personal Computer or Handheld Computer incorporating wireless
WAN modem while driving a vehicle. Do not place the computer with wireless WAN modem in an area
where it could cause personal injury to the driver or passengers. It is recommended to stow the unit in the
boot or secure stowage area while driving.
Do not place the computer with wireless WAN modem in an area over an air bag or in the vicinity where an
air bag may deploy.
Air bags inflate with great force and if the computer with wireless WAN modem is placed in the air bag
deployment area may be propelled with great force and cause serious injury to occupants of the vehicle.
IMPORTANT!
Personal Computer or Handheld Computer incorporating wireless WAN modem operate using radio signals
and cellular networks cannot be guaranteed to connect in all conditions. Therefore, you should never rely
solely upon any wireless device for essential communications, for example emergency calls.
Remember, in order to make or receive calls, Personal Computer or Handheld Computer incorporating
wireless WAN modem must be switched on and in a coverage area with adequate cellular signal strength.
Some networks do not allow for emergency calls if certain network services or phone features are in use
(e.g. lock functions, fixed dialing etc.). You may need to deactivate those features before you can make an
emergency call.
Some networks require that a valid SIM card be properly inserted in Personal Computer or Handheld
Computer incorporating wireless WAN modem.
7
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
7
2013/07/26
13:54:18
Regulatory Information
Laser Devices Caution / Précautions pour le Dispositifs Laser
<Only for model with the following label on the computer>
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
Read Me First
<Uniquement pour les modèles avec l’étiquette suivante placée sur l’ordinateur>
AVERTISSEMENT!
CET APPAREIL UTILISE UN LASER.
L’UTILISATION DE COMMANDES OU DE RÉGLAGES OU L’EXÉCUTION DE PROCÉDURES AUTRES QUE
CELLES SPÉCIFIÉES ICI PEUVENT PROVOQUER UNE EXPOSITION À DES RADIATIONS DANGEREUSES.
NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE RÉPARER SOI-MÊME.
CONFIER TOUT TRAVAIL D’ENTRETIEN À UN PERSONNEL QUALIFIÉ.
12-E-1
12-F-1
The following label is put on the computer.
L’étiquette suivant est mis sur de l’ordinateur.
<Only for model with 1D Barcode Reader and the below label on the bottom of the computer>
This equipment is using lasers that comply with US21CFR1040.10, 1040.11, EN60825-1:2007 and IEC60825-1:2007
regulations.
The laser is a “Class 2” laser which is indicated on the label for this product.
Class 2 laser readers use a low power, visible light diode. As with any very brightlight source, such as the sun, the user
should avoid staring directly into the lightbeam. Momentary exposure to a Class 2 laser is not known to be harmful.
Caution-Procedures other than those specified herein may result in hazardousradiation exposure.
Beam divergence
Scan Angle: 47 ± 3° Default / 35 ± 3° Reduced
<Uniquement pour le modèle avec le lecteur de codes barres 1D et l’étiquette ci-dessous, placée au bas de l’ordinateur>
Cet appareil utilise des systèmes lasers conformes aux normes US21CFR1040.10, 1040.11, EN 60825-1:2007 et
IEC60825- 1:2007.
Le laser est de “Class 2 (classe 2)” comme indiqué sur l’étiquette de ce produit.
Les lecteurs lasers de classe 2 utilisent une diode lumineuse visible de puissance faible. Comme pour toutes les
sources lumineuses, tel que le soleil, par exemple, l’utilisateur doit éviter de fixer directement le rayon lumineux.
Une exposition brève à un rayon laser de classe 2 n’est pas dangereuse.
Des mesures de sécurité autres que celles indiquées ici pourraient provoquer une exposition aux radiations dangereuse.
Divergence du faisceau
Angle de balayage : 47 ± 3° par défaut / 35 ± 3° réduit
■■Labeling/Marking and Devices Location / Emplacement de l’étiquetage/du marquage et
des appareils
Rear / Arrière
Barcode Reader / Lecteur de code à barres
8
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
8
13-E-1
2013/07/26
13:54:18
Models for U.S.A.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions.
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received,
including interference that may cause undesired
operation.
CAUTION:
Risk of Explosion if Battery is replaced by an Incorrect Type.
Dispose of Used Batteries According to the Instructions.
58-E-1
FCC RF Exposure Warning:
<Only for model with wireless LAN/wireless WAN/Bluetooth>
●●This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment.
●●This equipment has been approved for portable
operation, and does not require any minimum spacing be
provided between antennas and all person’s body.
●●This equipment may not be co-located or operated with
any other antenna or transmitter.
25-M-4
<Only for model with wireless LAN>
This product is restricted to indoor use due to its operation in
the 5.15 to 5.25 GHz frequency range.
FCC requires this product to be used indoors for the frequency
range 5.15 to 5.25 GHz to reduce the potential for harmful
interference to co-channel Mobile Satellite systems. High
power radars are allocated as primary users of the 5.25 to
5.35 GHz and 5.65 to 5.85 GHz bands. These radar stations
can cause interference with and /or damage this product.
Read Me First
Federal Communications Commission Radio Frequency
Interference Statement
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
●●Reorient or relocate the receiving antenna.
●●Increase the separation between the equipment and
receiver.
●●Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
●●Consult the Panasonic Service Center or an experienced
radio/TV technician for help.
Warning
To assure continued compliance, use only shielded interface
cables when connecting to a computer or peripheral. Also,
any changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate this equipment.
25-M-W-4
Responsible Party: Panasonic Corporation of North America
Two Riverfront Plaza
Newark, NJ 07102
Tel No:1-800-LAPTOP5 (1-800-527-8675)
6-M-1
USA Only: Disposal may be regulated in your community
due to environmental considerations. For disposal or
recycling information, please visit Panasonic website:
http://www.panasonic.com/environmental or call 1-888-769-0149
65-M-2
<For USA-California Only>
This product contains a CR Coin Cell Lithium Battery which
contains Perchlorate Material - special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate/
38-M-1
ATTENTION:
Il y a risque d’explosion si la batterie est remplacée par
une batterie de type incorrect.
Mettre au rebut les batteries usagées conformément aux
instructions.
58-F-1
<For U.S.A. and Canada>
A lithium ion battery that is recyclable powers the product you have purchased.
Please call 1-800-8-BATTERY for information on how to recycle this battery.
L’appareil que vous vous êtes procuré est alimenté par une batterie au lithium-ion.
Pour des renseignements sur le recyclage de la batterie, veuillez composer le 1-800-8-BATTERY.
48-M-1
9
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
9
2013/07/26
13:54:18
Regulatory Information
Models for Canada
Canadian ICES-003
CAN ICES-3(B) / NMB-3(B)
7-M-2
Read Me First
<Only for model with wireless LAN/Bluetooth/GPS>
Industry Canada
This product complies with RSS210 Industry Canada.
Operation is subject to the following two conditions;
(1)this device may not cause interference, and
(2)this device must accept any interference, including
interference that may cause undesired operation of the
device.
<Ne s’applique qu’aux modèles avec technologie Bluetooth/
LAN sans fil/GPS>
Industrie Canada
Cet équipement est conforme à la norme CNR-210
d’Industrie Canada. Son fonctionnement est soumis aux
deux conditions suivantes :
(1)ce dispositif ne peut produire de brouillage, et
(2)ce dispositif doit accepter le brouillage, y compris le brouillage
pouvant entraîner le fonctionnement non déiré de l’appareil.
30-Ca-1
<Only for model with wireless LAN>
This product (local network devices) for the band 51505250 MHz is only indoor usage to reduce potential for
harmful interference to co-channel Mobile Satellite systems.
High power radars are allocated as primary users (meaning
they have priority) of 5250-5350 MHz and 5650-5850 MHz
and these radars could cause interference and/or damage to
LELAN devices.
<Ne s’applique qu’aux modèles avec technologie LAN sans
fil>
Cet appareil (pour réseaux locaux radioélectriques) dans les
bandes de fréquences 5150-5250 MHz est réservé à une
utilisation à l’intérieur afin de réduire le risque d’interférence
avec les systèmes satellites mobiles bicanaux.
Les radars forte puissance sont désignés comme étant les
premiers utilisateurs (c’est-à-dire qu’ils ont la priorité) des
bandes de fréquences 5250-5350 MHz et 5650-5850 MHz.
Ces stations radars peuvent provoquer des interférences et/
ou des dommages à ce périphérique.
30-Ca-2-1
<Only for model with wireless LAN/wireless WAN/Bluetooth>
•This computer complies with Industry Canada radiation
exposure limits set forth for an uncontrolled environment.
•This PC with WLAN and/or Bluetooth transmitters
installed, has been approved for portable operation and
does not require any minimum spacing be provided
between antennas and all person’s body.
<Ne s’applique qu’aux modèles avec technologie
Bluetooth/LAN sans fil/WAN sans fil>
•Cet équipement est conforme aux limites d’exposition
aux rayonnements d’Industrie Canada établies pour un
environnement non contrôlé.
•Ce PC avec émetteurs WLAN et/ou Bluetooth a été
approuvé à des fins d’opération mobile; aucun espace
minimum entre les antennes et le corps de l’utilisateur
n’est requis.
25-Ca-1
FOR USE WITH MODEL NO. : CF-AA6373A
POUR UTILISER AVEC MODÈLE : CF-AA6373A
20-Ca-1
Models for Europe
<Only for model with a “CE” mark on the bottom of the computer>
Declaration of Conformity (DoC)
“Hereby, Panasonic declares that this Personal Computer is in compliance with the essential
requirements and other relevant provisions of the Directive 1999/5/EC.”
int:
H
If you want to get a copy of the original DoC of our above mentioned products, please contact our web
address: http://www.ptc.panasonic.eu
Authorised Representative:
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
18-E-0
Models for India
For the purpose of recycling to facilitate effective utilization of resources, please return this product to a
nearby authorized collection center, registered dismantler or recycler, or Panasonic service center when
disposing of this product.
Please see the Panasonic website for further information on collection centers, etc.
http://www.panasonic.co.in/wps/portal/home
68-M-1
10
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
10
2013/07/26
13:54:19
Introduction
Thank you for purchasing this Panasonic product. For optimum performance and safety, please read these instructions
carefully.
In these instructions, the names are referred as follows.
indicates Windows® 8 Operating System.
indicates Windows® 7 Operating System.
■ Terms and illustrations in these instructions
è:
Page in these Operating Instructions or in the Reference Manual.
:
Reference to the on-screen manuals.
CAUTION :
Conditions that may result in minor or moderate injury.
Useful and helpful information.
NOTE :
Display “Charm” :
-
Flick toward the center of the screen from the right edge. Alternatively, press and hold
(A5) button.
Click
(Settings) and then click
(Power).
:
Getting Started
(Start) - [All Programs] : Click
(Start), and then click [All Programs].
<Only when connected to the external keyboard>
:
Press [ ] (Enter) key.
Press and hold Ctrl key, and then press F7 key.
Ctrl + F7 :
● The display of the key may be different from this manual according to the keyboard used. (e.g. “Delete” instead
of “Del”)
<For flash memory model>
Read the term “hard disk” as “flash memory” whenever it appears in this manual.
● Some illustrations are simplified to help your understanding and may look different from the actual unit.
● If you do not log on as an administrator, you cannot use some functions or cannot display some screens.
● Refer for the latest information about optional products to the catalogs, etc.
● In these instructions, the names and terms are referred as follows.
• “Windows 8 Pro 64-bit” as “Windows” or “Windows 8”
• “Windows 7 Professional 32-bit Service Pack 1” and “Windows 7 Professional 64-bit Service Pack 1” as
®
®
®
“Windows” or “Windows 7”
●
• The computer screen supporting touching methods (using digitizer pen / stylus / your fingers) as the “screen”.
• The digitizer pen and the stylus as the “pen (included)”.
Screen messages are explained in [English (United States)].
(Depending on the language preference, some screen messages in these instructions are different from the actual
screen messages. For example, [Flight mode] may be displayed instead of [Airplane mode] in some language
preference.)
■ Disclaimer
Computer specifications and manuals are subject to change without notice. Panasonic Corporation assumes no
liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and
the manuals.
■ Trademarks
Microsoft®, Windows® and the Windows logo are registered trademarks of Microsoft Corporation of the United States
and/or other countries.
Intel, Core, and PROSet are either registered trademarks or trademarks of Intel Corporation.
Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems
Incorporated in the United States and/or other countries.
Bluetooth® is a registered trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Panasonic Corporation.
Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective
own companies.
11
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
11
2013/07/26
13:54:19
Description of Parts
Top
F
G
A
B
H
I
J
K
C
D
L
J
E
M
N
P
Q
O
Getting Started
A:B1 Button
<Only for model with RFID Reader>
è Reference Manual “RFID Reader”, “Hardware
Buttons”
<Only for model without RFID Reader>
è Reference Manual “Hardware Buttons”
B:Barcode Reader Button*1 / B2 Button*2
*1 Only for model with Barcode Reader
*2 Only for model without Barcode Reader
è Reference Manual “Barcode Reader”, “Setup
Utility”
C:Speaker
D:Wireless WAN Antenna
<Only for model with wireless WAN>
Reference Manual “Wireless WAN”
è
E:LCD
Reference Manual “Screen Input Operation”
è
F:Pen Holder
G:Smart Card Slot
<Only for model with Smart Card Slot>
Reference Manual “Smart Card”
è
H:Fingerprint Reader
<Only for model with Fingerprint Reader>
Reference Manual “Fingerprint Reader”
è
I :Ambient Light Sensor
Backlight will be turned off with a bright environment
so the battery operation time becomes long.
Reference Manual “Setup Utility”
è
J:LED Indicator
:Power status
•Off: Power off/Hibernation
•Green: Power on
•Blinking green: Sleep
1 :Battery 1 status
Reference Manual “Battery Power”
è
2 :Battery 2 status
Reference Manual “Battery Power”
è
:Drive status
RFID:
<Only for model with RFID Reader>
RFID Reader status
Reference Manual “RFID Reader”
è
NOTE
•When you do not use the RFID Reader, you can
turn it off by using the Panasonic Dashboard.
Reference Manual “Panasonic Dashboard”
è
K:DC-IN Jack
L:Power Switch
M:Battery 2 Case
N:Application Buttons 1-5
è Reference Manual “Hardware Buttons”
O:Security Button
P:LAN Port*3 / 2nd USB 2.0 Port *4
*3 Only for model with LAN
*4 Only for model with 2nd USB 2.0 Port
Q:Serial Port
è Reference Manual “Serial Port”
12
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
12
2013/07/26
13:54:21
Rear
A
F
G
B
C
H
I
J
D
E
F:Strap
G:Camera
<Only for model with Camera>
Reference Manual “Camera”
è
H:USB 3.0 Port
Reference Manual “USB Devices”
è
I :Battery 1 Case
<Only for model with wireless WAN>
The SIM Card Slot is inside the Battery Case.
Reference Manual “Wireless WAN”
è
J:Wireless LAN Antenna / Bluetooth Antenna
<Only for model with wireless LAN/Bluetooth>
Reference Manual “Wireless LAN” “Bluetooth”
è
Getting Started
A:GPS Antenna
<Only for model with GPS>
B:Wireless LAN Antenna
<Only for model with wireless LAN>
Reference Manual “Wireless LAN”
è
C:RFID Reader
<Only for model with RFID Reader>
Reference Manual “RFID Reader”
è
D:Expansion Bus Connector
Reference Manual “Cradle”
è
E:Barcode Reader
<Only for model with Barcode Reader>
Reference Manual “Barcode Reader”
è
NOTE
•This computer contains a magnet and magnetic
products at the battery cover.
Avoid leaving metallic object or magnetic media in
contact with these areas.
1
2
<Only for model with wireless WAN>
•IMEI (International Mobile Equipment Identity) is listed
on the label in the Battery 1 case. MEID number is
listed on the label in the Battery 2 case.
13
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
13
2013/07/26
13:54:22
Preparation
■■Confirmation
A Check and identify the supplied accessories.
If you do not find the described accessories, contact Panasonic Technical Support (è pages 35-39).
•AC Adaptor. . . . . . . . . . . . . 1
•AC Cord. . . . . . . . . . . . . . . . 1
•Battery Packs. . . . . . . . . . . 2
Model No: CF-AA6373A
Model No: CF-VZSU53AW
•Digitizer Pen. . . . . . . . . . . .
1
•Tether. . . . . . . . . . . . . . . . . .
1
•Soft Cloth . . . . . . . . . . . . . .
1
<Only for Field model>
Model No: CF-VNP011AU
<Only for Healthcare model>
Model No: CF-VNP016AU
Getting Started
•OPERATING INSTRUCTIONS (This book) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
B Read the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer’s packaging
(è page 30).
■■Inserting the Battery Packs
Insert the battery pack to 2 battery cases.
A Slide the battery cover and open it.
B Insert the battery pack until it securely fits the
connector.
C Close the battery cover.
D Slide the battery cover until it clicks.
A
CAUTION
●●The computer does not operate without the battery
cover locked.
●●Make sure the battery cover is securely locked.
B
Otherwise the battery pack may fall when you carry the
computer.
●●Do not touch the terminals of the battery pack and the
computer. Doing so can make the terminals dirty or
damaged, and may cause malfunction of the battery
pack and the computer.
NOTE
●●Note that the computer consumes electricity even
D
C
when the computer power is off. If the battery pack
is fully charged, the battery will fully discharge in the
following period of time:
•When power is off: Approx. 8 weeks
•In sleep: Approx. 4 days
•In hibernation: Approx. 9 days
●●When the DC plug is not connected to the computer,
disconnect the AC cord from your AC wall outlet.
Power is consumed simply by having the AC adaptor
plugged into an electrical outlet.
14
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
14
2013/07/26
13:54:23
First-time Operation
■■About the battery for this computer
This computer uses 2 battery packs. Power is consumed only on either battery pack. Charging is made for the two
battery packs at the same time.
●●When the computer is connected to the Cradle (optional: CF-VEBH21U, CF-VEBH21KU), the battery pack is
charged when the AC adaptor is connected to the Cradle.
●●With the battery charger (optional: CF-VCBU11U) or the Cradle (optional: CF-VEBH21U, CF-VEBH21KU), you
can remove the empty battery pack from the computer and charge it while using the computer.
●●You can insert or remove the battery pack while the computer is ON. Be sure not to remove the battery pack
being used by mistake. (è
Reference Manual “Battery Power” )
●●Charge the battery earlier when the battery indicator lights in red.
■■Using the digitizer pen
<Only for model with digitizer>
You can use Windows by touching screen in the same way as the mouse. Touch
the screen surface with the digitizer pen (included).
To right-click
Touch and hold with the digitizer pen, or press and hold the right button, and then
touch the object.
right button
■■Attaching the pen (included) to the computer
B
A
C
longer loop
Getting Started
Pass the shorter
loop through the
hole.
CAUTION
●●Do not pull the tether with excessive force. The pen (included) may hit the computer, person’s body or other
objects when released.
■■Setting up the computer
1
Set your computer to the Cradle.
●●Set the computer to the cradle, and connect the external keyboard and mouse to the
cradle.
●●Connect the AC adaptor to the Cradle and a power outlet.
The battery charging starts automatically.
CAUTION
●●Do not remove the computer from the Cradle until the “First-time Operation” procedure is
completed.
●●When using the computer for the first time, do not connect any peripheral device except
the battery pack, Cradle, keyboard, mouse and AC adaptor.
●●Handling the AC adaptor
•Problems such as sudden voltage drops may arise during periods of thunder and
lightning. Since this could adversely affect your computer, an uninterruptible power
source (UPS) is highly recommended unless running from the battery pack alone.
NOTE
●●After Windows setup, alternatively you can use without Cradle.
In that case, connect your computer to a power outlet.
The battery charging starts automatically.
15
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
15
2013/07/26
13:54:24
First-time Operation
2
Turn on the computer.
Press the power switch (A). The power indicator
lights.
CAUTION
A
●●Do not press the power switch repeatedly.
●●The computer will be forcibly turned off if you press and hold the power switch for 4
seconds or longer.
●●Once you turn off the computer, wait for 10 seconds or more before you turn on the
computer again.
●●Do not perform the following operation until the drive indicator turns off.
•Connecting or disconnecting the AC adaptor
•Pressing the power switch
•Touching the screen, external keyboard or external mouse
●●When the CPU temperature is high, the computer may not start up to prevent overheating
of the CPU. Wait until the computer cools down, and then turn the power on again. If the
computer does not power on even after cooling down, contact Panasonic Technical Support
(è pages 35-39).
●●Any changes from the default setting of the Setup Utility must not be made until the
“First‑time Operation” procedure is completed.
Getting Started
3
Setup Windows.
Follow the on-screen instructions.
●●The computer restarts several times. Do not touch the keyboard or mouse, and wait
until the drive indicator has turned off.
●●After the computer is turned on, the screen remains black or unchanged for a while,
but this is not a malfunction. Wait for a moment until the Windows setup screen
appears.
●●During setup of Windows, use the mouse and clicking to move the cursor and to
click an item.
5 minutes /
20
●●Setup of Windows will take approximately
minutes. Go to the next step, confirming each message on the display.
●●You can set the Wireless Network after the setup of Windows is complete.
If “Choose a network” is displayed, you can select “Connect to a
wireless network later”.
“Join a wireless network” screen may not appear.
CAUTION
●●You can change the user name, password, image, and security setting after setup of
Windows.
●●Remember your password. If you forget the password, you cannot use the Windows.
Creating a password reset disk beforehand is recommended.
●●Do not use the following words for user name : CON, PRN, AUX, CLOCK$, NUL, COM1 to
COM9, LPT1 to LPT9, @, &, space. In particular, if you create a user name (account name)
that includes the “@” mark, a password will be requested at the log-on screen, even if no
password has been set. If you try to log on without entering a password, “The user name
or password is incorrect.” may be displayed and you will not be able to
sign in /
log on to Windows (è page 25).
4
Restart the computer.
A Display “Charm” and click
B Click [Power] - [Restart].
A Click
(Start) -
.
- [Restart].
16
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
16
2013/07/26
13:54:25
5
Create the recovery disc.
If the recovery partition of the hard disk is damaged or have some problems, you
can use a recovery disc to install the OS and restore its factory default condition. We
recommend creating a recovery disc before you begin using the computer.
Refer to è
Reference Manual “Recovery Disc Creation Utility” about creating the
disc.
NOTE
●●PC Information Viewer
This computer periodically records the management information of the hard disk, etc. The maximum data volume
for each record is 1024 bytes. This information is only used for estimating the cause when the hard disk goes down
by any possibility. They are never sent to outside via network nor used for any other purpose except for the purpose
described the above.
To disable the function, add the check mark for [Disable the automatic save function for management information
history] in [Hard Disk Status] of PC Information Viewer, and click [OK].
(è
Reference Manual “Checking the Computer’s Usage Status”)
Getting Started
■■Before using wireless function
ADisplay “Charm” and click
- [Change PC Settings] - [Wireless].
Set [Airplane mode] to [Off], and then;
set [Wi-Fi] to [On] (for wireless LAN).
set [Mobile broadband] to [On] (for wireless WAN).
set [GPS] to [On] (for wireless WAN).
set [Bluetooth] to [On] (for Bluetooth).
AClick the Wireless Switch Utility icon to show the pop-up menu.
BSelect ON for the device you want to enable.
■■To change the partition structure
You can shrink a part of an existing partition to create unallocated disk space, from which you can create a new
partition.
A
Open “Computer”. Right-click [Computer], then click [Manage].
To open “Computer”, proceed as follows on the Start screen.
1. On the Start screen, flick from bottom side to inside of the screen.
2. Click [All apps] on the app bar.
3. Click [Computer] under “Windows System”.
Click
(Start) and right-click [Computer], then click [Manage].
●●A standard user needs to enter an administrator password.
B Click [Disk Management].
C Right-click the partition for Windows (“c” drive in the default setting), and click [Shrink Volume].
●●The partition size depends on the computer specifications.
D Input the size in [Enter the amount of space to shrink in MB] and click [Shrink].
●●You cannot input a larger number than the displayed size.
70 GB /
●●To select [Reinstall to the System and OS partitions.] in installing the software (è page 24),
60 GB or more is necessary for [Total size after shrink in MB].
E Right-click [Unallocated] (the shrunk space in the step D) and click [New Simple Volume].
F Follow the on-screen instructions to make the settings, and click [Finish].
Wait until formatting is completed.
NOTE
●●You can create an additional partition using remaining unallocated space or newly creating unallocated space.
●●To delete a partition, right-click the partition and click [Delete Volume] in the step C.
17
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
17
2013/07/26
13:54:25
Turning On / Turning Off
Turning On
Press and hold the power switch
(è page 12) until the power indicator
(è page 12) lights.
NOTE
l
l
l
l
Do not press the power switch repeatedly.
The computer will forcibly be turned off if you press and hold the power switch for four seconds or longer.
Once you turn off the computer, wait for ten seconds or more before you turn on the computer again.
Do not perform the following operation until the drive indicator
turns off.
• Connecting or disconnecting the AC adaptor
• Pressing the power switch
• Touching the tablet buttons, screen or external mouse/keyboard
Turning Off
A Shut down the computer.
1. Display “Charm” and click .
2. Click [Power] - [Shut down].
Click
(Start) - [Shutdown].
Getting Started
NOTE
l
To turn off the computer, proceed as follows.
- [Change PC settings] - [General].
A Display “Charm” and click
B Click [Restart now] under “Advanced startup”
C Click [Turn off your PC].
Precautions against Starting Up/Shutting Down
l Do not do the following
• Connecting or disconnecting the AC adaptor
• Pressing the power switch
• Touching the screen or external mouse/keyboard
NOTE
l To conserve power, the following power saving methods are set at the time of purchase.
• The screen automatically turns off after :
10 minutes (when AC adaptor is connected) of inactivity
5 minutes (when operating on battery power) of inactivity
*1
• The computer automatically enters sleep after :
30 minutes /
20 minutes (when AC adaptor is connected) of inactivity
15 minutes (when operating on battery power) of inactivity
*1
Refer to
Reference Manual “Sleep or Hibernation Functions” about resuming from sleep.
18
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
18
2013/07/26
13:54:25
On-screen Manual
You can access the following manuals on the computer screen.
■■Reference Manual
The Reference Manual contains the practical information to help you fully enjoy the computer’s performance.
■■Important Battery Tips
The Important Battery Tips will provide you with the battery information so that you can use the battery pack in the
optimum condition to obtain longer operation time.
■■To access the on-screen manuals
Follow the steps below.
On the Start screen, touch the [Manual Selector] tile, and select the on-screen manual.
Double-click [Manual Selector] on the desktop screen, and select the on-screen manual.
To access the Reference Manual:
on the desktop.
(Start) - [All Programs] - [Panasonic] - [On-Line Manuals] - [Reference Manual].
Double-click
●●Alternatively click
To access the Important Battery Tips:
on the desktop.
(Start) - [All Programs] - [Panasonic] - [On-Line Manuals] - [Important Tips].
Double-click
Useful Information
●●Alternatively click
19
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
19
2013/07/26
13:54:26
Handling and Maintenance
Operation environment
●●Temperature:Operation :<Only for Field model> –10 °C to 50 °C {14 °F to 122 °F} (IEC60068-2-1, 2)*
1
<Only for Healthcare model> 5 °C to 35 °C {41 °F to 95 °F}
Storage : –20 °C to 60 °C {–4 °F to 140 °F}
Humidity:Operation : 30% to 80% RH (No condensation)
Storage : 30% to 90% RH (No condensation)
Even within the above temperature/humidity ranges, operation for a long time in extreme environments, smoking
nearby, or operation in places where oil is used or where there is a lot of dust will result in the product deterioration
and will shorten the product life.
*1 Do not expose the skin to this product when using the product in a hot or cold environment. (è page 4) If the computer is wet
in temperatures of 0 °C {32 °F} or below, freeze damage may occur. Make sure to dry off the computer in such temperatures.
●●Do not place the computer in the following areas, otherwise the computer may be damaged.
•Near electronic equipment. Image distortion or noise may occur.
•In extremely high or low temperature.
●●As the computer can become hot during operation, keep it away from items that are sensitive to heat.
Handling cautions
Useful Information
This computer is designed to minimize shock to parts such as the LCD and the hard disk drive, but no warranty is
provided against any trouble caused by shock. Be extremely careful when handling the computer.
●●When carrying the computer:
•Turn off the computer.
•Do not drop or hit the computer against solid objects.
•Do not grip the display part.
●●When you board an airplane, take the computer with you and never put it in your checked luggage. When using the
computer on airplane, follow the airline’s instructions.
●●When carrying a spare battery, put it in a plastic bag to protect its terminals.
●●Be careful of computer drop resulting from the hand strap damage.
●●Use only the pen (included) to touch the screen. Do not place any object on its surface and do not press down
strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).
●●Do not use the pen (included) when dust or dirt (e.g., oil) is on the screen. Otherwise foreign particles on the screen
or pen (included) can scratch the screen surface or obstruct the operation.
●●Use the pen (included) only for touching the screen. Using it for any other purpose may damage the pen (included)
and result in scratches on the screen.
<Only for model with digitizer>
●●The dual touch uses electromagnetic induction and may not work properly near strong electrical field or magnetic field such as:
•Near AM radio base station or relay station antennas
•Near CRT displays that generate strong electromagnetic field noise
Move the dual touch away from such locations so it will work properly.
■■When using peripheral devices
Follow these instructions and the Reference Manual to avoid any damage to the devices. Carefully read the
instruction manuals of the peripheral devices.
•Use the peripheral devices conforming to the computer’s specifications.
•Connect to the connectors in the correct direction.
•If it is hard to insert, do not try forcibly but check the connector’s shape, direction, alignment of pins, etc.
•If screws are included, fasten them securely.
•Remove the cables when you carry the computer. Do not pull the cables forcibly.
■■Preventing your computer from unauthorized use via wireless LAN/Bluetooth/Wireless WAN
<Only for model with wireless LAN/Bluetooth/Wireless WAN>
●●Before using wireless LAN/Bluetooth/Wireless WAN, make the appropriate security settings such as data encryption.
■■Battery Recalibration
The battery recalibration may take a long time due to the large battery capacity. This is not a malfunction.
<When performing “Battery Recalibration” after shutting down Windows>
•Full charge: Approximately 3 hours with 2 batteries
•Complete discharge: Approximately 4 hours with 2 batteries
When performing “Battery Recalibration” without shutting down Windows, it may take more time to charge / discharge.
20
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
20
2013/07/26
13:54:26
■■How to close the battery cover
A Confirm the battery cover looks as shown in the
figures below.
B While pressing the battery cover, slide and
close.
●●Do the same for the other one.
NOTE
●●If the battery cover is not securely closed as shown in the figures below, do the same procedure from step A.
Rear
Useful Information
Correct
Incorrect
Side
Maintenance
To clean the LCD panel
If drops of water or other stains get on the surface of the LCD panel, wipe them off immediately. Failure to do so may
result in staining.
Use the soft cloth included with the computer. (For further information, refer to “Suggestions About Cleaning the LCD
Surface”. (è
Reference Manual “Screen Input Operation”)
To clean areas other than the LCD panel
<Only for Field model>
Wipe with a soft dry cloth such as gauze. When using detergent, dip a soft cloth in water-diluted detergent and wring it
thoroughly. Do not use rubbing alcohol.
<Only for Healthcare model>
Wipe with a soft dry cloth such as gauze. If needed, use alcohol cleaning agent to clean the computer. When using
detergent, dip a soft cloth in water-diluted detergent and wring it thoroughly.
CAUTION
●●Do not use ester contained agent, strong alkaline agent, benzene or thinner since it may adversely affect the
surface causing discoloration, etc. Do not use commercially-available household cleaners and cosmetics, as they
may contain components harmful to the surface.
●●Do not apply water or detergent directly to the computer, since liquid may enter inside of the computer and cause
malfunction or damage.
21
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
21
2013/07/26
13:54:26
Installing Software
Installing software will return the computer to the default condition. When you install the software, the hard disk data
will be erased.
Back up important data to other media or an external hard disk before installation.
CAUTION
●●Do not delete the recovery partition on the hard disk. The disk space in the partition is not available to store data.
To check the Recovery Partition, perform the following methods.
A
Open “Computer”. Right-click [Computer], then click [Manage].
To open “Computer”, proceed as follows on the Start screen.
1. On the Start screen, flick from bottom side to inside of the screen.
2. Click [All apps] on the app bar.
3. Click [Computer] under “Windows System”.
Click
(Start) and right-click [Computer], then click [Manage].
•A standard user needs to enter an administrator password.
B Click [Disk Management].
■■Hard Disk Recovery
You can reinstall the OS that was pre-installed at the time of purchase (Windows 8 or Windows 7).
Preparation
●●Prepare the following items:
•External keyboard
•Mouse
Cradle (optional: CF-VEBH21U, CF-VEBH21KU)
•
●●Remove all peripherals (except for the external keyboard and mouse).
●●Connect the AC adaptor to the Cradle and do not remove it until installation is complete.
Useful Information
1
2
Perform “Remove everything and reinstall Windows”.
ADisplay “Charm” and click
- [Change PC settings] - [General].
BClick [Get Started] under “Remove everything and reinstall Windows”.
CSelect the option.
●●Just remove my files
Perform the reinstallation of the Windows in a few moments (Approximately 20 minutes).
●●Fully clean the drive
By fully cleaning, the deleted files can not be recovered easily and the security level will be increased.
The processing time will be longer (Approximately 140 minutes).
Follow the on-screen instructions.
After the reinstallation, the computer will restart.
●●Do not interrupt installation, for example by turning off the computer or performing other operation.
Otherwise installation may become unavailable as Windows may not start up or the data may be corrupted.
Perform the “First-time Operation” (è page 16).
NOTE
●●The date and time, and the time zone may not be correct. Be sure to set them correctly.
3
4
1
2
Perform Windows Update.
<Only for model with TPM> Clear TPM.
AOn the Start screen, flick from bottom side to inside of the screen, and click [All apps] on the app bar.
BClick [Run] under “Windows System” input [tpm.msc] and click [OK].
CClick [Clear TPM…] under “Actions” on the right of the “TPM Manager on Local Computer” screen.
DClick [Restart] of the “Manage the TPM security hardware” screen.
The computer will restart.
EWhen “TPM configuration change was requested to ...” is displayed, press F12.
The desktop screen appears.
FClick the Desktop tile, and when “TPM is ready” appears, click [Close].
Turn off the computer and set the computer to the Cradle.
Connect an external keyboard and mouse to the USB port.
22
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
22
2013/07/26
13:54:27
3
Turn on the computer, and press F2 or Del while [Panasonic] boot screen is displayed.
The Setup Utility starts up.
●●If the [Panasonic] boot screen is not displayed, turn on the computer while holding down F2 or Del.
●●If the password is requested, enter the Supervisor Password.
Write down all of the contents of the Setup Utility and press F9.
At the confirmation message, select [Yes] and press
(Enter).
Press F10.
At the confirmation message, select [Yes] and press
(Enter).
The computer will restart.
Press F2 or Del while [Panasonic] boot screen is displayed.
The Setup Utility starts up.
●●If the password is requested, enter the Supervisor Password.
4
5
6
7
8
Select the [Exit] menu, then select [Recovery Partition] and press
Click [Reinstall Windows] and click [Next].
(Enter).
The License Agreement screen appears.
9 Click [Yes, I agree to the provisions above and wish to continue!] and click [Next].
10 Select the settings and click [Next].
●●[Reinstall Windows to the whole Hard Disk to factory default.]
Select this option when you want to install Windows to the factory default. After installation, you can create a
new partition. For how to create a new partition, refer to “To change the partition structure” (è page 17)
●●[Reinstall to the System and OS partitions.]*1
Select this option when the hard disk has already been divided into several partitions. For how to create a new
partition, refer to “To change the partition structure” (è page 17).
You can keep the partition structure.
*1 This does not appear if Windows cannot be installed to the recovery partition and the area usable by Windows.
11 At the confirmation message, click [YES].
12 Select OS (32bit or 64bit) and click [OK].
13 At the confirmation message, click [YES].
Useful Information
Installation starts according to the instructions on the screen. (It will take approximately 20 minutes.)
●●Do not interrupt installation, for example by turning off the computer or performing other operation. Otherwise
installation may become unavailable as Windows may not start up or the data may be corrupted.
14 When ending screen is displayed, click [OK] to turn off the computer.
15 Turn on the computer.
●●If the password is requested, enter the Supervisor Password.
16 Perform the “First-time Operation” (è page 16).
17 Start the Setup Utility and change the settings as necessary.
18 Perform Windows Update.
■■Using Recovery Disc
Use the Recovery Disc in the following conditions.
•You have forgotten the administrator password.
•Installation is not complete. The recovery partition in the hard disk may be broken.
<Only for Windows 7 downgrade model> To change OS from Windows 7 to Windows 8, or vice versa.
•
NOTE
●●
To change OS from 32 bit to 64 bit, or vice versa, install OS using the recovery partition in the hard disk.
Preparation
●●Prepare the following items:
•Recovery disc(s) (è Reference Manual “Recovery Disc Creation Utility”)
Operation using DVD is explained below.
•DVD drive (optional) (refer to recent catalogs and other sources for information about the products available)
•Cradle (optional: CF-VEBH21U, CF-VEBH21KU)
•External keyboard
•Mouse
●●Remove all peripherals except the ones described above.
●●Connect the AC adaptor and do not remove it until installation is complete.
23
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
23
2013/07/26
13:54:27
Installing Software
1
2
3
Turn off the computer and set the computer to the Cradle.
Connect the DVD drive and an external keyboard and mouse to the USB port.
Start the Setup Utility.
ADisplay “Charm” and click
- [Change PC settings] - [General].
BClick [Restart now] under “Advanced startup”.
CClick [Troubleshoot] - [Advanced options] - [UEFI Firmware Settings] - [Restart].
4
5
6
7
8
Turn on the computer, and press F2 or Del while [Panasonic] boot screen is displayed.
●●If the [Panasonic] boot screen is not displayed, turn on the computer while holding down F2 or Del.
●●If the password is requested, enter the Supervisor Password.
Write down all of the contents of the Setup Utility and press F9.
At the confirmation message, select [Yes] and press
(Enter).
Check the [UEFI Boot] setting of the Setup Utility.
[UEFI Boot] should be set to as follows.
When the recovery disc for Windows 8 is used: [Enabled]
When the recovery disc for Windows 7 is used: [Disabled]
Set the Recovery Disc into the DVD drive.
Press F10.
At the confirmation message, select [Yes] and press
(Enter).
The computer will restart.
Press F2 or Del while [Panasonic] boot screen is displayed.
The Setup Utility starts up.
●●If the password is requested, enter the Supervisor Password.
9 Select the [Exit] menu, then select your DVD drive in [Boot Override].
10 Press
(Enter).
The computer will restart.
Useful Information
11 Click [Reinstall Windows] and click [Next].
At the confirmation message, click [YES].
12
13 At the License Agreement screen, click [Yes, I agree to the provisions above and wish
to continue!] and click [Next].
14 When the recovery disc for Windows 8 is used, click [Next].
When the recovery disc for Windows 7 is used, select the setting and click [Next].
●●[Reinstall Windows to the whole Hard Disk to factory default.]
Select this option when you want to install Windows to the factory default. After installation, you can create a
new partition. For how to create a new partition, refer to “To change the partition structure” (è page 17).
●●[Reinstall to the System and OS partitions.]*2
Select this option when the hard disk has already been divided into several partitions. For how to create a new
partition, refer to “To change the partition structure” (è page 17).
You can keep the partition structure.
*2
This does not appear if Windows cannot be installed to the recovery partition and the area usable by Windows.
15 At the confirmation message, click [YES].
Installation starts according to the instructions on the screen. (It will take approximately 30 - 45 minutes.)
●●Do not interrupt installation, for example by turning off the computer. Otherwise installation may become
unavailable as Windows may not start up or the data may be corrupted.
16 When ending screen is displayed, remove the Recovery Disc.
Follow the on-screen instructions.
Some models may take approximately 40 minutes.
17 Perform the “First-time Operation” (è page 16).
18 Start the Setup Utility and change the settings as necessary.
19 Perform Windows Update.
20
<Only for model with TPM> Clear TPM (è page 22).
24
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
24
2013/07/26
13:54:27
Troubleshooting (Basic)
Follow the instructions below when a problem has occurred. There is also an advanced troubleshooting guide in the
“Reference Manual”. For a software problem, refer to the software’s instruction manual. If the problem persists, contact
Panasonic Technical Support (è pages 35-39). You can also check the computer’s status in the PC Information Viewer
(è
Reference Manual “Checking the Computer’s Usage Status”).
●●When operating the computer with the keyboard, you need to set the computer to the Cradle and connect the
external keyboard and AC adaptor to the Cradle.
■■Starting Up
Cannot start up.
The power indicator or
battery indicator is not lit.
●●Connect the AC adaptor.
●●Insert a fully charged battery.
●●Remove the battery pack and the AC adaptor, then connect them again.
●●If a device is connected to the USB port, disconnect the device, or set [Legacy USB
Reference
Support] to [Disabled] in the [Advanced] menu of the Setup Utility. (è
Manual “Setup Utility”)
●●Check the [UEFI Boot] setting of the Setup Utility. [UEFI Boot] should be set to
[Enabled] /
[Disabled].
The power is turned on but
“Warming up the system (up
to 30 minutes)” appears.
●●The computer is warming up before start up. Wait for the computer to start up (takes
Cannot turn on the
computer.
The computer does not
resume from sleep
(<Model without HDD
heater>The power indicator
blinks rapidly in green /
<Model with HDD heater>
The battery indicator blinks
alternately in green and
orange.)
●●Leave it in an environment of 5 °C {41 °F} or higher temperature for about an hour, then
You have forgotten the
password.
●●Supervisor Password or User Password: Contact Panasonic Technical Support
up to 30 minutes). If, “Cannot warm up the system” is displayed, the computer failed to
warm up and does not start. In this case, turn off the computer, leave it in an environment
of 5 °C {41 °F} or higher temperature for about an hour, and then turn on the power
again.
turn on the power again.
(è pages 35-39).
●●Administrator password:
•If you have another account with Administrator authority, log-on with it, then delete the
password for the problem account.
Troubleshooting
•If you have a password reset disk, you can reset the administrator password. Set the
disk and enter any wrong password, then follow the on-screen instructions and set a
new password.
If you do not have a password reset disk, reinstall (è page 22) and set up Windows, and
then set a new password.
Cannot log on to Windows.
(“The user name or
password is incorrect” is
displayed.)
●●The user name (account name) includes an “@”.
•If another user account exists:
“Remove disks or other
media. Press any key to
restart” or a similar message
appears.
●●If a device is connected to the USB port, disconnect the device, or set [Legacy USB
Log on to Windows using another user account, and delete the account that includes
“@”. Then create a new account.
•If no other account exists:
You need to reinstall Windows (è page 22).
Reference
Support] to [Disabled] in the [Advanced] menu of the Setup Utility. (è
Manual “Setup Utility”)
●●If the problem persists after having tried the above solutions, it may be a hard disk
failure. Contact Panasonic Technical Support (è pages 35-39).
●●Set [UEFI Boot] to [Disabled] in the [Boot] menu of the Setup Utility.
25
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
25
2013/07/26
13:54:28
Troubleshooting (Basic)
■ Starting Up
The date and time are
incorrect.
● Make the correct settings.
A Open the Control Panel.
1. On the Start screen, flick from bottom side to inside of the screen.
2. Click [All apps] on the app bar.
3. Click [Control Panel] under “Windows System”.
●
Windows startup and
operation is slow.
[Executing Battery
Recalibration] screen
appears.
[Enter Password] does not
appear when resuming
) or
from sleep (
hibernation.
Click
(Start) - [Control Panel].
B Click [Clock, Language, and Region] - [Date and Time].
If the problem persists, the internal clock battery may need to be replaced. Contact
Panasonic Technical Support (è pages 35-39).
When the computer is connected to LAN, check the date and time of the server.
The 2100 A.D. or later year will not be correctly recognized on this computer.
●
●
● Press F9 in the Setup Utility (è
Reference Manual “Setup Utility”) to return the
Setup Utility settings (excluding the passwords) to the default values. Start the Setup
Utility and make the settings again. (Note that the processing speed depends on the
application software, so this procedure may not make Windows faster.)
If you installed a resident software after purchase, turn off the residence.
●
● The Battery Recalibration was canceled before Windows was shut down last time. To
start up Windows, turn off the computer by the power switch, and then turn on.
● Select [Enabled] in [Password On Resume] in the [Security] menu of the Setup Utility
(è
Reference Manual “Setup Utility”).
● The Windows password can be used instead of the password set in the Setup Utility.
• To set a password
A Display "Charm" and click
- [Change PC settings] - [Users].
B Click [Create a password] under "Sign-in options".
Troubleshooting
A Click
(Start) - [Control Panel] - [User Accounts and Family Safety] - [Add or
remove user accounts].
Follow the on-screen instructions.
• Perform the following steps, and the password will be requested when the
computer resumes from sleep (
) / hibernation.
A Open the Control Panel.
1. On the Start screen, flick from bottom side to inside of the screen.
2. Click [All apps] on the app bar.
3. Click [Control Panel] under “Windows System”.
Click
(Start) - [Control Panel].
B Click [System and Security] - [Require a password when the computer wakes]
and add a check mark for [Require a password].
● One of the following operations may have been carried out. Press the power switch to turn on
Cannot resume.
●
the computer. Data not saved will be lost.
• In sleep mode, the AC adaptor or battery pack was disconnected, or a peripheral was
connected or disconnected.
• The power switch was pressed for four seconds or longer to forcibly turn off the
computer.
An error may occur when the computer automatically enters the sleep or hibernation mode
while the screensaver is active. In this case, turn off the screensaver or change the pattern of
the screensaver.
26
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
26
2013/07/26
13:54:28
■■Starting Up
The error message “Debug
Assertion Failed!” appears.
●●This error message may appear in the following cases.
•When you log on to Windows for the first time after setting up Windows with First-time
Operation.
•When you create a user account, and log on to Windows for the first time using that
account.
•When you log on to Windows for the first time after changing [Trigger Mode] in
[Advanced] - [Serial Port Settings] of the Setup Utility.
In such case, click [Retry], and then click [Retry] on the next error message. The same
error will not occur again after performing this operation.
Other startup problems.
●●Press F9 in the Setup Utility (è
Reference Manual “Setup Utility”) to return the
Setup Utility settings (excluding the passwords) to the default values. Start the Setup
Utility and make the settings again.
●●Remove all peripheral devices.
●●Check to see if there was a disk error.
A Remove all peripheral devices including an external display.
B Open “Computer”.
1. On the Start screen, flick from bottom side to inside of the screen.
2. Click [All apps] on the app bar.
3. Click [Computer] under “Windows System”.
Click
(Start) - [Computer].
C Right-click [Local Disk (C:)], and click [Properties].
D Click [Tools] - [Check Now].
•A standard user needs to enter an administrator password.
E Select the option in [Check disk options] and click [Start].
F Click [Schedule disk check] and restart the computer.
Start the computer in Safe Mode and check the error details. When the
●●
[Panasonic] boot screen disappears*1 at startup, press and hold F8 until the Windows
Advanced Options Menu is displayed.
*1 When [Password on boot] is set to [Enabled] in the [Security] menu of the Setup Utility,
[Enter Password] appears after the [Panasonic] boot screen disappears. As soon as you
(Enter), press and hold F8.
enter the password and press
Windows does not shut
down.
■■Display
●●Remove the computer from the Cradle.
●●Wait one or two minutes. It is not a malfunction.
Troubleshooting
■■Shutting down
●●When using an external display,
•Check the cable connection.
•Turn on the display.
•Check the settings of external display.
●●The display is turned off by the power-saving function. To resume, do not press the direct
No display.
selection keys, but press any other key like Ctrl.
●●The computer entered sleep or hibernation by the power-saving function. To resume,
press the power switch.
The screen is dark.
●●The screen might be darker when the AC adaptor is not connected. Adjust the brightness
The screen is disordered.
●●Changing the number of display colors and resolution may affect the screen. Restart the
by using Panasonic Dashboard. As you increase the brightness, battery consumption
increases.
You can separately set the brightness for when the AC adaptor is connected and when
not connected.
computer.
●●Connecting/disconnecting an external display may affect the screen. Restart the
computer.
●●
Resuming from sleep or hibernation may affect the screen of the external
display.
Restart the computer.
27
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
27
2013/07/26
13:54:28
Troubleshooting (Basic)
■ Display
During Simultaneous
display, one of the screens
becomes disordered.
● When using the Extended Desktop, use the same display colors for the external display
●
as those used by the LCD.
If you continue to experience problems, try changing the display.
Right-click on the desktop, and click [Graphics Properties].
Simultaneous display cannot be used until Windows startup is complete (during Setup
Utility, etc.).
The external display does
not work normally.
● If the external display does not support the power saving function, it may not work
<Only for model with GPS>
The cursor cannot be
controlled properly.
● Operate the following steps.
■ Screen Operation
The cursor does not work.
normally when the computer enters the power saving mode. Turn off the external display.
A Set [GPS] to [Disabled] in the [Advanced] - [Serial Port Settings] of the Setup Utility.
B Press F10 and select [Yes] at the confirmation message, and press
(Enter).
The computer will restart.
C Log on to Windows as an administrator.
D
1. On the Start screen, flick from bottom side to inside of the screen, and click [All
apps] on the app bar.
2. Click [Run] under “Windows System”, input [c:\util\drivers\gps\GPS.reg] and click
[OK].
Click
(Start) and input “c:\util\drivers\gps\GPS.reg” in [Search programs and files],
and press
(Enter).
E Click [Yes], click [Yes] and click [OK].
Then restart the computer.
F Press F2 or Del while [Panasonic] boot screen is displayed.
G Set [GPS] to [Enabled] in the [Advanced] - [Serial Port Settings].
H Press F10 and select [Yes] at the confirmation message, and press
(Enter).
● When using the external mouse, connect it correctly.
● Restart the computer using the external keyboard.
● If the computer does not respond to keyboard commands, read “No response.”
(è below).
Troubleshooting
Cannot point the correct
position.
● Perform the screen calibration (è Reference Manual “Screen Input Operation”).
● Use the included pen.
● On the Windows logon screen or the Welcome screen, you may not be able to point
the correct position using the included pen. Use the keyboard or the touch pad to
sign in /
log on.
“Charm” does not always
appear by finger operation.
■ On-screen Document
The document of PDF
format is not displayed.
● Flick toward the center of the screen from the right edge or press and hold
●
button.
Use the included pen.
(A5)
● Install Adobe Reader.
A Log on to Windows as an administrator.
(Start) and input “c:\util\reader\en\Pinstall.bat” in [Search programs and files]
B Click
(Enter).
then press
C Update Adobe Reader to its latest version.
If your computer is connected to the internet, start up Adobe Reader and click [Help] [Check for Updates].
28
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
28
2013/07/26
13:54:29
■■Others
●●Press [
No response.
] (Security) button to open Task Manager and close the software application
that is not responding.
●●An input screen (e.g., password input screen at startup) may be hidden behind another
window. Press Alt + Tab to check.
●●Press the power switch for 4 seconds or longer to shut down the computer, and then
press the power switch to turn it on. If the application program does not work normally,
uninstall and reinstall the program. To uninstall,
A Open the Control Panel.
1. On the Start screen, flick from bottom side to inside of the screen.
2. Click [All apps] on the app bar.
3. Click [Control Panel] under “Windows System”.
Click
(Start) - [Control Panel].
B Click [Program] - [Uninstall a program].
The battery indicator lights
in red.
●●Connect the AC adaptor to charge the battery. The computer may not enter hibernation,
The recovery disc
for Windows 8 is not
functioning.
●●Perform recovery using the recovery disc for Windows 7 first, and then perform recovery
The computer operation is
not stable.
●●Restart the computer.
Try performing the following steps.
●●
even if [Hibernate] is selected as the action when the battery level becomes low.
using the recovery disc for Windows 8.
Troubleshooting
A Display “Charm” and click
- [Change PC settings] - [General].
B Click [Get Started] under “Refresh your PC without affecting your files”.
Follow the on-screen instructions.
29
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
29
2013/07/26
13:54:29
LIMITED USE LICENSE AGREEMENT
THE SOFTWARE PROGRAM(S), INCLUDING, BUT NOT LIMITED TO INTEL SOFTWARE PRODUCT,
(“PROGRAMS”) FURNISHED WITH THIS PANASONIC PRODUCT (“PRODUCT”) ARE LICENSED ONLY TO
THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH THE LICENSE TERMS
DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY DEEMED TO CONSTITUTE
YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
Panasonic Corporation has developed or otherwise obtained the Programs and hereby licenses their use to you.
You assume sole responsibility for the selection of the Product (including the associated Programs) to achieve your
intended results, and for the installation, use and results obtained therefrom.
LICENSE
A. Panasonic Corporation hereby grants you a personal, non-transferable and non-exclusive right and license to use
the Programs in accordance with the terms and conditions stated in this Agreement. You acknowledge that you are
receiving only a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain
no title, ownership nor any other rights in or to the Programs and related documentation nor in or to the algorithms,
concepts, designs and ideas represented by or incorporated in the Programs and related documentation, all of
which title, ownership and rights shall remain with Panasonic Corporation or its suppliers. You acknowledge that the
Programs are protected by copyright laws and international treaties.
B. You may use the Programs only on the single Product which was accompanied by the Programs.
C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not
distribute or otherwise make the Programs or related documentation available to any third party, by time-sharing or
otherwise, without the prior written consent of Panasonic Corporation.
D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation
for any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of
your use of the Programs on the single Product which was accompanied by the Programs. You shall not modify, or
attempt to modify, the Programs.
E. You may transfer the Programs and license them to another party only in connection with your transfer of the single
Product which was accompanied by the Programs to such other party. At the time of such a transfer, you must also
transfer all copies, whether in printed or machine readable form, of every Program, and the related documentation,
to the same party or destroy any such copies not so transferred.
F. You may not remove any copyright, trademark or other notice or product identification from the Programs and you
must reproduce and include any such notice or product identification on any copy of any Program.
YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE
THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.
YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN
WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.
IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS
PERMITTED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.
TERM
This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate
this license at any time by destroying, at your expense, the Programs and related documentation together with all copies
thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions thereof set forth
elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon any such termination,
you agree to destroy, at your expense, the Programs and related documentation together with all copies thereof in any form.
Appendix
YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND
BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE
STATEMENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR
AGREEMENT, ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE
SUBJECT MATTER OF THIS AGREEMENT.
GOVERNMENT RESTRICTED RIGHTS.
The Software is provided with “RESTRICTED RIGHTS.” Use duplication or disclosure by the government is subject to
restrictions as set forth in FAR52.227-14 and DFAR252. 227-7013 et seq. or their successors.
Use of the Software by the government constitutes acknowledgement of Intel’s proprietary rights therein.
Contractor or Manufacturer is Intel Corporation, 2200 Mission College Blvd., Santa Clara, CA 95052.
U.S. GOVERNMENT RESTRICTED RIGHTS:
The software and documentation are “commercial items” as that terms is defined at 48 C.F.R. 2.101, consisting of
“commercial computer software” and “commercial computer software documentation” as such terms are used in 48 C.F.R.
12.212 Consistent with 48 C.F.R. 12.212 and 48 C.F.R. 227.7202-I through 227. 7202-4, all U.S. Government and users
acquire the software and documentation with only those rights set forth herein.
Manufacture is identified in the copyright statement on the software.
30
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
30
2013/07/26
13:54:29
Contrat de licence d’usage limité
Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic (le “Produit”) sont exclusivement concédés en
licence à l’utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles
cidessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et
conditions des présentes.
Panasonic Corporation a mis au point ou obtenu les Logiciels et vous en concède l’utilisation par les présentes. Vous
assumez l’entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour obtenir les résultats
escomptés, ainsi que de l’installation, de l’utilisation et des résultats obtenus.
Licence
A. Panasonic Corporation vous octroie par les présentes le droit et la licence personnels, non cessibles et non
exclusifs d’utiliser les Logiciels conformément aux termes, clauses et conditions de ce contrat. Vous reconnaissez
ne recevoir qu’un droit limité d’utiliser les Logiciels et la documentation les accompagnant et vous vous engagez
à n’obtenir aucun droit de titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation
les accompagnant ni vis-à-vis des algorithmes, concepts, dessins, configurations et idées représentés par ou
incorporés dans les Logiciels et la documentation les accompagnant, dont les titres, propriété et droits resteront
tous à Panasonic Corporation ou à leurs propriétaires.
B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.
C. Vous et vos employés ou agents êtes requis de protéger la confidentialité des Logiciels. Vous ne pouvez ni
distribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d’un tiers, par partage de
temps ou de quelque autre manière que ce soit, sans l’autorisation écrite préalable de Panasonic Corporation.
D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la documentation
les accompagnant pour quelque fin que ce soit, à l’exception d’une (1) copie des Logiciels à des fins de
sauvegarde uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est accompagné par
les Logiciels. Vous ne pouvez ni modifier ni tenter de modifier les Logiciels.
E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu’en rapport avec votre cession du
Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette cession, vous devez
céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la machine, de tous les Logiciels
ainsi que de la documentation les accompagnant, à la même partie ou détruire les copies non cédées.
F. Vous ne pouvez retirer aucune marque de droits d’auteur, marque de commerce ou autre ni aucune identification
de produit des Logiciels et vous devez reproduire et inclure toutes ces notices ou identifications de produit sur
toutes les copies des Logiciels.
Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs
copies, de façon électronique ou mécanique, en tout ou en partie.
Vous ne pouvez utiliser, copier, modifier, altérer ni céder les Logiciels ni aucune de leurs copies, en tout ou en partie, à
l’exception de ce qui est expressément stipulé dans ce contrat.
Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l’exception de ce qui est autorisé
au paragraphe E ci-dessus, votre licence est automatiquement résiliée.
Appendix
Termes, clauses et conditions
Cette licence n’est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d’une
résiliation antérieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et
la documentation les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera
également résiliée, avec application immédiate, si les conditions de résiliation définies ailleurs dans ce contrat se
sont réalisées ou si vous ne respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la
résiliation, vous acceptez de détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes
leurs copies, sous quelque forme que ce soit.
Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes,
clauses et conditions. Vous reconnaissez en outre qu’ils sont la description complète et exclusive du contrat conclu
entre nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre
communication entre nous, relativement à l’objet du présent contrat.
31
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
31
2013/07/26
13:54:29
Specifications
This page provides the specifications for the basic model.
The model number is different according to the unit configuration.
●●To check the model number:
Check the bottom of the computer or the box the computer came in at the time of purchase.
●●To check CPU speed, memory size and the hard disk drive (HDD) size:
Run the Setup Utility (è
Reference Manual “Setup Utility”) and select [Information] menu.
[Processor Speed]: CPU speed, [Memory Size]: Memory size, [Hard Disk]: Hard disk drive size
■■Main Specifications
Model No.
CF-H2PPCAXBM
Intel Core™ i5-3437U Processor (3 MB*1 cache, up to 2.90 GHz) with Intel® Turbo Boost
Technology
Mobile Intel® 7 QM77 Express Chipset
Intel® HD Graphics 4000 (Built-in CPU)
4 GB*1 DDR3L SDRAM
CPU
®
Chipset
Video Controller
Main Memory
Video Memory
UMA 1792 MB*1 Max.*2
UMA <32-bit> 1545 MB*1 Max.*2 <64-bit> 1696 MB*1 Max.*2
Hard disk drive: 500 GB
Storage*3
Approx. 14 GB is used as a partition with HDD recovery tools. (Users cannot use this partition.)
Approx. 1 GB is used as a partition with system tools. (Users cannot use this partition.)
Approx. 25 GB is used as a partition with HDD recovery tools. (Users cannot use this partition.)
Approx. 300 MB is used as a partition with system tools. (Users cannot use this partition.)
10.1” XGA type (TFT) (1024 × 768 dots)
65,536/16,777,216 colors*4
Display Method
Wireless LAN*5
Intel® Centrino® Advanced-N 6235 (a/b/g/n) (è page 33)
Bluetooth*6
è page 33
Chip: SiRF starIII
Accuracy: 10 m (2DRMS), <5 m (2DRMS, SBAS)
Protocol message: GGA, GSA, GSV, RMC, VTG
Sierra Wireless™ High-speed module
IEEE 802.3 10BASE-T / IEEE 802.3u 100BASE-TX / IEEE 802.3ab 1000BASE-T
WAVE and MIDI playback, Monaural speaker,
Intel® High Definition Audio subsystem support
TPM (TCG V1.2 compliant)*10
Array Size: 192 × 4 pixels, Image Size: 192 × 512 pixels, Image Resolution: 508 DPI
1280x720 dots, 30 fps (Video) 2048x1536 dots (still)
RF frequency: 13.56 MHz, compatible with ISO14443 TYPE-A, ISO14443 TYPE-B, ISO15693
Read Pattern: CMOS Reading, Light Source: LED, Minimum Optical Resolution: 1D - 0.127
mm {5 mil}, 2D - PDF417 0.17 mm {67 mil}, Angular Orientation Tolerances: Skew - ± 60°
(“front to back”), Pitch - ± 60° from plane parallel to symbol (“side-to-side”), Ambient Light
Immunity Artificial Lighting Sunlight: 100,000lx {9290 ft. candles}
1 slot
USB ports (USB 3.0 × 1, USB 2.0 × 1*16)*17 / LAN Port (RJ-45)*9 / Serial Port (Dsub 9-pin male)
/ Expansion Bus Connector (Dedicated 19-pin female)
Touchscreen/Digitizer
Handle × 2*13*14, Application × 5, Security
AC adaptor or Battery pack
Input: 100 V to 240 V AC, 50 Hz/60 Hz,
Output: 16 V DC, 3.75 A
Li-ion 7.2 V, 3400 mAh (typ.), 3200 mAh (min) x 2 packs
Approx. 7 hours
Approx. 3 hours
Approx. 3 hours
Approx. 30 W*22 / Approx. 50 W (Maximum when recharging in the ON state)
GPS*7
Wireless WAN*8
LAN*9
Sound
Security Chip
Fingerprint Reader*11
Camera*12
RFID Reader*13
Barcode Reader*14
Smart Card Slot*15
Interface
Appendix
Pointing Device
Button
Power Supply
AC Adaptor*18
Battery Pack
Operating Time*19
Power on
Charging
Time*20
Power off
Power Consumption*21
Physical Dimensions (W × D × H)
274 mm × 58 mm × 268 mm {10.8” × 2.3” × 10.6”}
(excluding the hand strap)
Weight*23
Approx. 1.61 kg {Approx. 3.5 lb.}
(including the hand strap)
32
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
32
2013/07/26
13:54:29
■■Main Specifications
Operation Environment
Storage Environment
Temperature: –10 °C to 50 °C {14 °F to 122 °F} (IEC60068-2-1, 2)*24
Humidity: 30% to 80% RH (No condensation)
Temperature: –20 °C to 60 °C {–4 °F to 140 °F}
Humidity: 30% to 90% RH (No condensation)
■■Software
Base OS
Windows® 8 Pro 64-bit
Windows® 7 Professional 32-bit Service Pack 1 / Windows® 7 Professional 64-bit Service Pack 1
Installed OS*25
Windows® 8 Pro 64-bit
Windows® 7 Professional 32-bit Service Pack 1 (downgraded to Windows® 7)*26 /
Windows® 7 Professional 64-bit Service Pack 1 (downgraded to Windows® 7)*26
Pre-installed Software*25
Adobe Reader, PC Information Viewer, Intel® PROSet/Wireless Software Utility*5, Bluetooth
Stack for Windows by TOSHIBA*6, Hand Writing Utility, Panasonic Dashboard, Application
Button Setting Utility, Cleaning Utility, Display Switch Utility, Battery Recalibration Utility,
Infineon TPM Professional Package*10*27, Camera Utility*12*27, Right Click Utility, Camera Light
Switch Utility*12*27, Recovery Disc Creation Utility, Calibration Utility, Manual Selector, Microsoft
Office Trial*28
Wireless Toolbox
Wireless Switch Utility, Wireless Connection Disable Utility*27, Quick Boot Manager, Software
Keyboard, Protector Suite*11*27
Aptio Setup Utility, PC-Diagnostic Utility, Hard Disk Data Erase Utility*29
5
Data Transfer Rates
IEEE802.11a: 54/48/36/24/18/12/9/6 Mbps (automatically switched)*30
IEEE802.11b: 11/5.5/2/1 Mbps (automatically switched)*30
IEEE802.11g: 54/48/36/24/18/12/9/6 Mbps (automatically switched)*30
IEEE802.11n*31:
(HT20) GI*32 = 400ns: 150/130/115/86/72/65/57/43/28/21/14/7 Mbps (automatically switched)*30
GI*32 = 800ns: 130/117/104/78/65/58/52/39/26/19/13/6 Mbps (automatically switched)*30
(HT40) GI*32 = 400ns: 300/270/240/180/150/135/120/90/60/45/30/15 Mbps (automatically
switched)*30
GI*32 = 800ns: 270/243/216/162/135/121/108/81/54/40/27/13 Mbps (automatically
switched)*30
Standards Supported
IEEE802.11a/IEEE802.11b/IEEE802.11g/IEEE802.11n
Transmission Method
OFDM system, DS-SS system
Wireless Channels Used
IEEE802.11a: Channels 36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/136/
140/149/153/157/161/165
IEEE802.11b/IEEE802.11g: Channels 1-11
IEEE802.11n: Channels 1-11 /36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/
136/140/149/153/157/161/165
RF Frequency Band
IEEE802.11a: 5.18 GHz - 5.32 GHz, 5.5 GHz - 5.7 GHz, 5.745 GHz - 5.825 GHz
IEEE802.11b/IEEE802.11g: 2.412 GHz - 2.462 GHz
IEEE802.11n: 2.412 GHz - 2.462 GHz, 5.18 GHz - 5.32 GHz, 5.5 GHz - 5.7 GHz, 5.745 GHz 5.825 GHz
■■Bluetooth*
Appendix
■■Wireless LAN*
6
Bluetooth Version
4.0
Classic mode / Low Energy mode
Transmission Method
FHSS system
Wireless Channels Used
Channel 1 to 79 / Channel 0 to 39
RF Frequency Band
2.402 GHz - 2.480 GHz
33
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
33
2013/07/26
13:54:29
Specifications
*1 1 KB = 1,024 bytes / 1 MB = 1,048,576 bytes / 1 GB = 1,073,741,824 bytes
*2 A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video
Memory cannot be set by the user. The size of Video memory is allotted depending on the operating system.
*3 1 MB = 1,000,000 bytes / 1 GB = 1,000,000,000 bytes. Your operating system or some application software will report as fewer
GB.
*4 A 16,777,216 color display is achieved by using the dithering function.
*5 Only for model with Wireless LAN.
*6 Only for model with Bluetooth.
Continua Certified, compliant design guideline version 1.5, with Blood Pressure Monitor, Cardiovascular, Weighing Scale,
Thermometer, Pulse Oximeter and Glucose Meter device.
*7 Only for model with GPS.
*8 Only for model with wireless WAN. The specification may differ depending on the models.
*9 Only for model with LAN. Some devices cannot be used depending on the port type.
*10 Only for model with that supports TPM.
For information on TPM,
on the Start screen, click the [Manual Selector] tile, and select “Installation Manual for
Trusted Platform Module (TPM)” /
Double-click [Manual Selector] on the desktop, and select “Installation Manual
for Trusted Platform(TPM)”.
*11 Only for model with Fingerprint Reader.
*12 Only for model with Camera. The specification may differ depending on the models.
*13 Only for model with RFID Reader.
*14 Only for model with Barcode reader.
*15 Only for model with Smart Card Slot.
*16 Only for model with 2nd USB 2.0 port.
*17 Does not guarantee operation of all USB-compatible peripherals.
*18 <Only for North America>
The AC adaptor is compatible with power sources up to 240 V AC adaptor.
This computer is supplied with a 125 V AC compatible AC cord.
20-M-1
Appendix
*19 Measured at LCD brightness: 60 cd/m2.
Varies depending on the usage conditions, or when an external device is attached.
*20 Varies depending on the usage conditions, CPU speed, etc..
*21 Approx. 0.3 W when the battery pack is fully charged (or not being charged) and the computer is OFF.
<When using with 115 V AC>
Even when the AC adaptor is not connected to the computer, power is consumed (Max. 0.2 W) simply by having the AC
adaptor plugged into an AC outlet.
*22 Rated power consumption.
23-E-1
*23 Average value. May differ depending on models.
*24 <Only for Field model>
Do not expose the skin to this product when using the product in a hot or cold environment. (è page 4)
When using in hot or cold environment, some peripherals may fail to work properly. Check the operation environment of the
peripherals.
Using this product continuously in a hot environment will shorten the product life. Avoid use in these types of environments.
When using in low temperature environment, startup may become slow or battery operation time may become short.
The computer consumes power when the hard disk is warming up during startup. Therefore, if you are using battery power and
the remaining power is low, the computer may not start up.
<Only for Healthcare model>
Temperature: 5 °C to 35 °C {41 °F to 95 °F}
*25 Operations of this computer are not guaranteed except for the pre-installed OS and the OS which is installed by using the hard
disk recovery and the recovery disc.
26
* This system is preinstalled with Windows® 7 Professional software and also comes with a license for Windows 8 Pro software.
You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one
version and install the other version.
*27 Must be installed before use.
*28 To continue using this software after the end of the trial, purchase a license by following the on-screen instructions.
*29 Perform on the recovery disc.
Alternatively perform on the hard disk recovery partition.
*30 These are speeds specified in IEEE802.11a/b/g/n standards. Actual speeds may differ.
*31 Available when set to “WPA-PSK”, “WPA2-PSK” or “none”.
*32 Only available when HT40 enabled by the computer and access point which associated supports HT40.
34
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
34
2013/07/26
13:54:29
LIMITED WARRANTY
For U.S.A.
Panasonic System Communications Company of North America (PSCNA)
Computer Products - Worldwide Warranties
Section 1: Limited Warranty - Hardware
PSCNA, referred hereafter as “Panasonic” will repair the products listed below with new or rebuilt parts, free of charge in a Global
Panasonic designated service location for the period specified below from the date of original purchase in the event of a defect in
materials or workmanship. These warranties are extended solely to the original purchaser. A purchase receipt or other proof of date
of original purchase will be required before warranty performance is rendered.
• Laptop PC (CF-##) – 3 Years
• Tablet PC (FZ-##) – 3 Years
• Ultra-Mobile (CF-U#/CF-H# Series) – 3 Years
• PDRC - LCD & Keyboard Assembly – 3 Years
Battery Warranty
Batteries supplied with the product are covered under the warranty for one (1) year from date of purchase, except as excluded
in Section 3. Batteries purchased separately are covered under the warranty for one (1) year from the date of purchase. A
replacement battery furnished under the product warranty is covered for the remaining period of the one year warranty on the
original or purchased battery.
Optional: Panasonic “Protection Plus” Warranty
Any unit for which the Panasonic “Protection Plus” warranty has been purchased will receive additional coverage for any failure
that occurs due to accidental damage. All other terms and conditions of the standard warranty apply and this additional coverage
will exist for the duration of the standard warranty period of the unit. If an extended Protection Plus warranty program is purchased,
coverage is extended to the end of the last year of extended coverage purchased.
This warranty does not cover failures or defects that are caused by fire, intentional acts, loss, theft, improper maintenance,
modification or service by anyone other than the Panasonic National Service Center or a Panasonic Authorized Service Provider,
or damage that is attributable to acts of God. Cosmetic damage that does not affect functionality is not covered. Cosmetic damage
on units with hardware failures will be repaired in accordance with the warranty terms. This warranty is extended solely to the
original purchaser on the unit serial number for which it was purchased. Complete unit replacement fulfills the full obligation and is
at the discretion of Panasonic and is limited to once during the coverage term. Maximum benefit is limited to one replacement per
coverage year of the Motherboard, LCD, Storage Drive, and Keyboard.
Wireless Module Warranty
Panasonic approved wireless modems installed in Panasonic brand computers and integrated by Panasonic or an Authorized
Panasonic Wireless Integrator are covered under the warranty for the remaining warranty period of the device in which the modem
is installed. For devices with less than three (3) months remaining on the unit warranty, the wireless modem will be covered for a
period of three (3) months from the date of installation of the modem, covering only modem replacement or modem installation
related issues.
All modems must be approved by the wireless carrier prior to use. Any use or attempted use of a wireless modem not approved
and activated by the carrier for use on their network is strictly prohibited and is not sanctioned or warranted by Panasonic and
may result in legal action. In addition, all modems must be approved by Panasonic as compatible with the device hardware before
installation or use.
Panasonic’s sole responsibility for the warranty or technical support of the software required to install or operate the modem is
defined in Section 2 (Limited Software Warranty). Any attempted software installation by anyone other than a Panasonic Authorized
Wireless Integrator is not covered under warranty and may result in service charges to re-image or replace the hard drive.
Installation or attempted installation by any party other than Panasonic or an Authorized Panasonic Wireless Integrator is strictly not
covered under the warranty and may void the computer warranty if damage results.
•
•
•
•
•
•
•
•
•
•
•
•
•
Appendix
Options and Accessories Warranties
The below listed Panasonic brand or supplied options and accessories are covered under this limited warranty for the period
specified from the date of purchase or as specifically stated:
AC Adaptor / Power Cord – 3 Years
Memory Expansion Card (Panasonic Brand) – 3 Years
Car Mount - Docking Station PCB or Vehicle Docking Station – 3 Years
Desktop Port Replicator, I-O Box, Docking Cradle (like CF-U1) – 3 Years
Antenna Pass-through Cable – 3 Years
Backlit or Full-sized keyboard - 3 Years or assumes warranty of the unit in which it is installed
Integrated Panasonic supplied options and kits including, but not limited to Wireless Modems, Media Bay Drives (Floppy,
CD, DVD, Combo), Camera, GPS, Bluetooth, Smartcard Reader, Magnetic Card Reader, Barcode Scanner, and Fingerprint
Reader - 3 Years or assumes warranty period of the unit in which it is installed provided the integration was performed by
Panasonic or an Authorized Integrator.
Hard Drive / Solid State Drive (Internal) - 3 Years
Separately purchased 2nd Hard Drive – 1 Year
External USB Drives (CD / DVD / Floppy / Hard Drive) – 1 Year
Optional Battery – 1 Year
Battery Charger / Multi-Bay Battery Charger – 1 Year
Stylus Pens, Digitizer & Standard - 90 Days (physical damage excluded)
35
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
35
2013/07/26
13:54:29
LIMITED WARRANTY
Section 2 - Limited Warranty - Software
Panasonic warrants to you only that the disk(s) or other media on which the Programs are furnished will be free from defects in
material and workmanship under normal use for a period of sixty (60) days from the date of delivery thereof to you, as evidenced by
your purchase receipt.
This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will
meet your requirements or that the operation of the Programs will be uninterrupted or error free. Panasonic shall have no obligation
for any defects in the disk(s) or other media on which the Programs are furnished resulting from your storage thereof, or for defects
that have been caused by operation of the disk(s) or other media
Panasonic’s entire liability and your exclusive remedy under this warranty shall be limited to the replacement, in the United States
or other Panasonic designated location, of any defective disk or other media which is returned to Panasonic’s Authorized Service
Center, together with a copy of the purchase receipt, within the aforesaid warranty period.
Section 3 - Limited Warranty Exclusions - Specifically excluded from the warranty are:
• All consumable items; such as screen protection films, logo badges, labels, cleaning cloths, carry cases, manuals, cables,
straps, belts, holsters, tethers, and harnesses and any other options and accessories not listed above or covered under a
separate warranty.
• Failures related to the product operating system, hard drive or solid state drive image, software setup, software program,
virus, other program(s) or file(s) on any drive or in any computer memory location.
• Failures due to BIOS settings or changes, as well as any cosmetic or physical damage to the unit.
• Any unit or device with a missing or altered model number or serial number label
• Cosmetic damage or any damage which occurs in shipment
• Failures which are caused by products not supplied by Panasonic
• Failures which result from alteration, accident, misuse, introduction of liquid or other foreign matter into the unit, abuse,
neglect, installation, maladjustment of consumer controls, improper maintenance or modification, use not in accordance with
product use instructions
• Failures due to service by anyone other than a Panasonic Authorized Service Provider
• Failures caused by improper installation of options or accessories or due to integration by any company other than Panasonic
or a Panasonic Authorized Integrator
• Damage, failure, or loss due to the unit being stolen, lost, misplaced, or used by anyone other than the original purchaser
• Damage that is attributable to acts of God
This limited warranty only covers failures due to defects in materials or workmanship which occur during normal use. If a unit is
sent to a Panasonic Authorized Service Center and no hardware failure is found, the customer will be billed for labor to correct a
software issue or reimage the hard drive plus shipping and applicable administrative fees at the current rates set by the service
provider.
THIS PRODUCT IS NOT INTENDED FOR USE AS OR PART OF NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CONTROL
EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*1. PANASONIC WILL NOT BE RESPONSIBLE FOR
ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.
*1 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include class 2 Electronic Flight Bag (EFB) Systems and Class 1 EFB Systems
when used during critical phases of flight (e.g., during take-off and landing) and/or mounted onto the aircraft. Class 1 EFB
Systems and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance
Leaflets) No. 36.
Other Limits and Exclusions: There are no other express warranties except as listed above.
Appendix
PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS
AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the
exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above
limitations or exclusions may not apply to you.
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
For technical support or to arrange for service on your Panasonic computer product, call our toll-free hotline at 1-855-PSC-TECH
(855-772-8324).
DIAL TOLL FREE: 1-855-PSC-TECH (855-772-8324)
Web Site : www.panasonic.com/toughbook
36
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
36
2013/07/26
13:54:30
For Canada
PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY
Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, this computer product (excluding software
media), when purchased from PCI or from a PCI authorized reseller, to be free from defects in materials and workmanship under
normal use, subject to the terms set forth below, during the period of warranty coverage specified.
Scope of Coverage
• Laptop Computers (except Battery) and AC Adaptor
• Factory/PCI installed options including Wireless WAN, GPS,
Bluetooth, Finger print reader, Backlit keyboard, Memory
Card and Media Bay Drives (Floppy, CD/DVD)
• Mobile Wireless Display
• PDRC – LCD and Keyboard Assemblies
• Port Replicator
• Hand-held Computers
• Battery
• Battery charger
• Auto Adaptor
• External USB Drives
• Digitizer pen or stylus
Period of Coverage
Type of Failure Coverage
One (1) Year from Date of
Original End User Customer
Purchase
Defective Materials or
Workmanship
Three (3) Years from Date of
Original End User Customer
Purchase
Defective Materials or
Workmanship
Ninety (90) Days from Date of Defective Materials or
Original End User Customer
Workmanship
Purchase
• All consumable items including protection film, cleaning cloth, No Coverage
carry case, tether and harness
Remedy – In the event of a warranty claim, contact PCI’s representatives within the applicable warranty period, identifying the
nature of the defect claimed, at 1-800-668-8386 between 9:00 A.M. and 5:00 P.M., Eastern Time Zone, Mon. – Fri. (excluding
holidays) for instructions on how to obtain service. A purchase receipt or other proof of date of original purchase is required before
warranty service is performed. Defective parts covered by this Limited Warranty will be repaired or replaced with new or comparable
rebuilt parts on an exchange basis. Warranty replacement or repair is subject to the terms of this Limited Warranty for the balance
of the original period of warranty coverage.
No Coverage – This Limited Warranty does not cover products purchased outside Canada. Neither does it cover damage to,
failure of, or defects in a product or accessory through mishandling, improper installation, abnormal use, misuse, neglect, accident,
introduction of liquid or other foreign matter into the product, alteration or servicing by anyone not authorized by PCI, or act of God.
THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CONTROL
EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*2. PANASONIC WILL NOT BE RESPONSIBLE FOR
ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.
*2 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electronic Flight Bag (EFB) Systems and Class1 EFB Systems
when used during critical phases of flight (e.g., during take-off and landing) and/or mounted on to the aircraft. Class1 EFB Systems
and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leaflets) No.36
IF YOU SHIP THE PRODUCT FOR WARRANTY SERVICE
Carefully pack the product, preferably in the original carton. Include details of defect claimed and proof of date of original
purchase. No liability is assumed for loss or damage to the product while in transit, if you chose your own transportation carrier.
SOFTWARE MEDIA LIMITED WARRANTY
Appendix
Coverage – PCI warrants to you, the first end user customer, that the disk(s) or other media on which software program(s) is/are
supplied will be free from defects in materials and workmanship under normal use in Canada for a period of sixty (60) days from
date of receipt as evidenced by your purchase receipt for your Panasonic Computer product.
THIS IS THE ONLY WARRANTY THAT PCI MAKES RESPECTING THE SOFTWARE MEDIA. PCI does not warrant the software.
Please refer to the software licensor’s written warranty (accompanying the copy of the software) for any software warranty claim.
Claim Procedure – In the event of a defect in material or workmanship in the media during the sixty (60) days warranty period,
and you return it, transportation costs prepaid, to Panasonic Canada Inc., Computer Products Marketing, 5770 Ambler Drive,
Mississauga, Ontario L4W 2T3, within the warranty period, together with a copy of your purchase receipt, and an explanation of the
suspected defect, PCI will replace in Canada the defective disk(s) or other media.
Remedy – PCI’s entire liability, and your only remedy for any breach of this software media warranty is limited to replacement of
the media only. It does not cover any other damages, including, but not limited to, loss of use or profit loss, or special, indirect or
consequential damages, or other claims, whether or not of similar character.
No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic
product, or in environmental conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect,
mishandling, modification or attempted modification of the program, or if damaged by accident or act of God. PCI is not responsible
for damage to or loss of any program, data or removable storage media.
GENERAL
NO OTHER WARRANTIES – PCI DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH
RESPECT TO THE SOFTWARE, SOFTWARE MEDIA, COMPUTER PRODUCT, OPTIONS AND ACCESSORIES.
NO LIABILITY FOR CONSEQUENTIAL DAMAGES – IN NO EVENT SHALL PCI BE LIABLE FOR ANY SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES ARISING FROM ANY BREACH OF THE LIMITED WARRANTIES SET OUT IN THIS DOCUMENT,
OR FROM THE USE OF THE COMPUTER PRODUCT, INCLUDING, WITHOUT LIMITATION, LOSS OF DATA, BUSINESS,
PROFIT OR GOODWILL.
IN ANY EVENT, PCI’S MAXIMUM LIABILITY FOR ANY BREACH SHALL NOT EXCEED THE AMOUNT ACTUALLY PAID BY YOU
FOR THE COMPUTER PRODUCT.
NO ACTION, REGARDLESS OF ITS BASIS, MAY BE BEGUN AGAINST PCI MORE THAN TWO (2) YEARS AFTER THE CAUSE
OF ACTION AROSE.
Statutory Warranties – Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.
37
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
37
2013/07/26
13:54:30
LIMITED WARRANTY
Pour le Canada
GARANTIE LIMITÉE – ORDINATEURS ET PÉRIPHÉRIQUES PANASONIC
Couverture – Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que ce produit informatique (à l’exclusion des supports des
logiciels) est, au moment de sa vente par PCI ou d’un revendeur agréé par PCI, exempt de défauts de pièces et de fabrication dans les
conditions normales d’utilisation, et ce, pendant la période de couverture de la garantie, sous réserve des modalités décrites ci-dessous.
Éléments couverts
• Ordinateurs blocs-notes (sauf batteries) et adaptateur secteur
• Options installées en usine/par PCI incluant : WAN sans
fil, GPS, Bluetooth, lecteur d’empreintes digitales, clavier
rétroéclairé, carte mémoire et lecteurs (disquettes, CD/DVD)
• Écran mobile sans fil
• Ensembles PDRC – ACL et clavier
• Duplicateur de port
• Ordinateurs de poche
• Batterie
• Chargeur de batterie
• Adaptateur pour voiture
• Périphériques USB
• Stylo pointeur standard ou pour numériseur graphique
Durée de couverture
Type de couverture
Trois (3) ans à partir de la
date d’achat original.
Défauts de pièces et de
fabrication
Un (1) an à partir de la date
d’achat original.
Défauts de pièces et de
fabrication
Quatre-vingt-dix (90) jours à
Défauts de pièces et de
partir de la date d’achat original. fabrication
• Tous les articles consommables incluant les pellicules protectrices, Aucune couverture
chiffons de nettoyage, étuis de transport, longes et sangles
Recours – Pour obtenir des informations sur la marche à suivre dans le cas où une réclamation en vertu de la garantie deviendrait
nécessaire, communiquez par téléphone avec un représentant de PCI au 1-800-668-8386, entre 9h00 et 17h00 (heure de l’Est) du lundi
au vendredi (sauf les jours fériés), avant l’échéance de la garantie applicable, en prenant soin d’identifier la nature de la défaillance.
Un reçu ou toute autre pièce justificative de la date d’achat original sera exigé avant toute réparation. Toute pièce défectueuse couverte
par la présente garantie limitée sera réparée ou remplacée par une pièce neuve ou remise à neuf. Le remplacement ou la réparation
sera fait conformément aux modalités de la présente garantie limitée pendant la durée restante de la période originale de la garantie.
Produits non couverts – La présente garantie limitée ne couvre pas les produits achetés à l’extérieur du Canada. Elle ne couvre
pas non plus les dommages, la défaillance ou les défauts attribuables à une manutention inadéquate, une mauvaise installation,
une utilisation anormale ou abusive, de la négligence, un accident, un déversement ou la pénétration d’un objet étranger, une
modification, un cas fortuit ou une réparation effectuée par une personne non agréée par PCI.
CE PRODUIT N’EST PAS DESTINÉ À ÊTRE UTILISÉ, EN TOUT OU EN PARTIE, COMME SYSTÈME/ÉQUIPEMENT NUCLÉAIRE,
SYSTÈME/ÉQUIPEMENT DE CONTRÔLE DU TRAFFIC AÉRIEN OU SYSTÈME/ÉQUIPEMENT DE POSTE DE PILOTAGE D’AVION*3.
PANASONIC DÉCLINE TOUTE RESPONSABILITÉ CONCERNANT L’UTILISATION DE CE PRODUIT DANS LES CAS SUSMENTIONNÉS.
*3 Les SYSTÈMES/ÉQUIPEMENTS DE POSTE DE PILOTAGE D’AVION sont dotés de systèmes OEPP (organiseur électronique
de poste de pilotage) de classe 2 et de classe 1 utilisés pendant des phases critiques de vol (par exemple, pendant le décollage
et l’atterrissage) et(ou) montés sur l’avion. Les systèmes OEPP de classe 1 et de classe 2 sont définis par le circulaire
d’information FAA: AC (Advisory Circular) 120-76A ou le feuilet n° 36 JAA: JAA TGL (Temporary Guidance Leaflets) No 36.
EXPÉDITION DU PRODUIT POUR SERVICE SOUS GARANTIE
Emballez soigneusement le produit, de préférence dans son emballage d’origine. Joignez une description de la défaillance de
même qu’une pièce justificative de la date d’achat. Panasonic Canada Inc. ne peut être tenue responsable pour tout dommage ou
perte subi pendant le transport si vous avez choisi le transporteur.
GARANTIE LIMITÉE – SUPPORTS DES LOGICIELS
Appendix
Couverture – Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que la ou les disquettes ou tout autre support sur
lequel le ou les programmes sont fournis sont exempts de défauts de pièces et de fabrication dans des conditions normales
d’utilisation au Canada, et ce, pour une période de soixante (60) jours suivant la date de réception indiquée sur la preuve d’achat.
LA PRÉSENTE GARANTIE EST LA SEULE OFFERTE PAR PCI COUVRANT LES SUPPORTS DE LOGICIELS. PCI ne garantit pas les logiciels. Reportezvous à la garantie écrite du concédant de licence d’utilisation du logiciel (qui accompagne la copie du logiciel) pour toute réclamation en vertu de la garantie.
Réclamation – marche à suivre – Panasonic Canada Inc. remplacera toute disquette ou support défectueux si l’article en question
est retourné, port payé, à son service de Marketing – produits informatiques, 5770 Ambler Drive, Mississauga (Ontario) L4W 2T3, dans les
soixante (60) jours suivant la date d’achat original. Joignez à votre envoi une pièce justificative de votre achat et une description du problème.
Recours – La responsabilité de PCI - et votre seul recours - dans le cas de toute défaillance couverte par la garantie sur ce support
de logiciel est limitée au seul remplacement du support. Elle ne couvre aucun autre dommage, y compris, mais non exclusivement, la
perte d’usage ou de profits, ni aucun dommage spécial, indirect ou consécutif, ni aucune autre réclamation de nature similaire ou autre.
Produits non couverts – La présente garantie limitée ne s’applique pas si la ou les disquettes ou autre support ont été utilisés dans
un produit d’une marque autre que Panasonic ou dans des conditions environnementales autres que celles spécifiées par PCI ou
le fabricant, ou soumis à une mauvaise utilisation, à la négligence, à une manutention inadéquate ou encore si le programme a été
modifié ou subi une tentative de modification ou des dommages attribuables à un accident ou à un cas fortuit. De plus, PCI n’assume
aucune responsabilité pour toute perte de, ou tout dommage à, un programme, des données ou un support de sauvegarde amovible.
GÉNÉRALITÉS
PCI NE RECONNAÎT AUCUNE AUTRE GARANTIE, EXPLICITE OU IMPLICITE, Y COMPRIS, MAIS NON EXCLUSIVEMENT, LES
GARANTIES IMPLICITES DE VALEUR COMMERCIALE ET D’UTILITÉ À UNE FIN QUELCONQUE, À L’ÉGARD DU LOGICIEL,
SUPPORTS DE LOGICIELS, PRODUITS INFORMATIQUES, PÉRIPHÉRIQUES ET ACCESSOIRES.
SOUS AUCUNE CIRCONSTANCE PCI NE POURRA ÊTRE TENUE RESPONSABLE DES DOMMAGES SPÉCIAUX, INDIRECTS OU CONSÉCUTIFS
ATTRIBUABLES À UN MANQUEMENT AUX GARANTIES LIMITÉES DÉCRITES DANS LE PRÉSENT DOCUMENT OU À L’UTILISATION DU
PRODUIT INFORMATIQUE, Y COMPRIS, SANS RESTRICTION, LA PERTE DE DONNÉES, D’AFFAIRES, D’ACHALANDAGE OU DE PROFIT.
DANS TOUS LES CAS, LA RESPONSABILITÉ MAXIMALE DE PCI POUR TOUT MANQUEMENT NE POURRA EXCÉDER LE PRIX DE
VENTE DU PRODUIT INFORMATIQUE.
AUCUNE RÉCLAMATION, SANS ÉGARD À SES MOTIFS, NE POURRA ÊTRE FAITE AUPRÈS DE PCI PLUS DE DEUX (2) ANS
APRÈS LES FAITS INVOQUÉS À LA BASE D’UNE TELLE RÉCLAMATION.
Garantie statutaires – Certaines juridictions interdisent de telles limitations ou exclusions; aussi, pourraient-elles ne pas s’appliquer.
38
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
38
2013/07/26
13:54:30
For Australia
Personal / Notebook Computers - 36 Month Warranty from Date of Purchase
1. Subject to the conditions of this warranty Panasonic or it’s Authorised Service Centre will perform necessary service on the product
without charge for parts or labour, if in the opinion of Panasonic, the product is found to be faulty within the warranty period.
2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised
Distributors or Dealers and only where the products are used and serviced within Australia or it’s territories. Warranty cover only
applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when
warranty service is requested.
3. This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations
(as noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty
covers normal domestic use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages,
incorrect installation, accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains
supply problems, thunderstorm activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including
unauthorised alterations), exposure to abnormally corrosive conditions or any foreign object or matter having entered the product.
4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase: Software
5. Warranty on Toughbook accessories (stylus, pens, AC charger, combo drive, etc) is 12 Months from the date of purchase & 3
months for batteries.
6. To claim warranty service, when required, you should:
Check the Panasonic web site for latest warranty contact http://www.panasonic.com.au/toughbook, use the Service Centre
Locator and call the National Service Centre number indicated.
Prepare purchase receipt as proof of purchase date and system serial number which will be required by the Authorised Service
Centre.
7. The Warranty excludes 3 or less faulty pixels on screen.
8. The Warranty includes the repair or exchange of faulty parts within the product with items that are functionally equivalent to that
as originally supplied or better – including new or refurbished parts or units – solely at Panasonic’s discretion.
9. It is the customer’s responsibility to backup all data from the hard disk drive before sending equipment for repair. If a problem
is related to the hard disk drive, or the hard disk drive has to be replaced, Panasonic will only reload the factory pre-installed
software for the product onto the replacement drive.
10.Panasonic will arrange free pick up and return for approved warranty repairs within 50km of capital city locations. Please ensure
your unit is properly packed for return to the service location.
11.The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or
re-installation of a product, including costs related to the mounting, demounting or remounting of any screen, (and any other
ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement
of and do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such
installation, de-installation, re-installation or transit.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under
the Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to
have the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods.
You are also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not
amount to a major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by
contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to
repair or replace the product and will do so in a reasonable period of time from receiving notice from you.
Appendix
THIS PRODUCT IS NOT INTENDED FOR USE AS OR AS PART OF NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CONTROL
EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*4. PANASONIC WILL NOT BE RESPONSIBLE FOR
ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.
*4 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class 2 Electronic Flight Bag (EFB) Systems and Class 1 EFB Systems
when used during critical phases of flight (e.g., during take-off and landing) and/or mounted onto the aircraft. Class 1 EFB
Systems and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance
Leaflets) No.36.
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE)
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
If you require assistance regarding warranty conditions or any other enquiries, please visit the
Panasonic Australia website www.panasonic.com.au/toughbook or
contact by phone on 1300 132 463
Panasonic Australia Pty. Limited
PRO-031-F05 Issue: 4.0
ACN 001 592 187 ABN 83 001 592 187
1 Innovation Road, Macquarie Park NSW 2113
www.panasonic.com.au
11-11-2011
39
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
39
2013/07/26
13:54:30
Panasonic Corporation
Osaka, Japan
Panasonic System Communications Company of North America
Two Riverfront Plaza
Newark, NJ 07102
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga,
Ontario L4W 2T3
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
1 Innovation Road, Macquarie Park NSW 2113
Importer’s name & address pursuant to the EU legislation
Panasonic System Communications Company Europe, Panasonic Marketing Europe GmbH
Hagenauer Straße 43
65203 Wiesbaden
Germany
Web Site : http://panasonic.net/
© Panasonic Corporation 2013
Printed in Japan
DFQW5823ZA_CF-H2mk2_OI_CND_M.indb
40
SS0713-0
DFQW5823ZA
2013/07/26
13:54:30
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Languages
