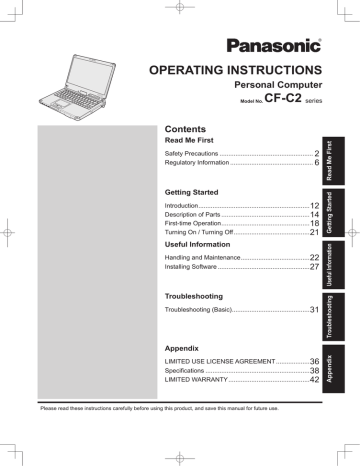

OPERATING INSTRUCTIONS
Personal Computer
Model No.
CF-C2 series
Introduction................................................................ 12
Description of Parts................................................... 14
First-time Operation................................................... 18
Turning On / Turning Off............................................ 21
Useful Information
Handling and Maintenance........................................ 22
Installing Software..................................................... 27
Troubleshooting
Troubleshooting (Basic)............................................. 31
Getting Started
Getting Started
Useful Information
Safety Precautions...................................................... 2
Regulatory Information................................................ 6
Troubleshooting
Read Me First
Read Me First
Contents
LIMITED USE LICENSE AGREEMENT.................... 36
Specifications............................................................ 38
LIMITED WARRANTY............................................... 42
Please read these instructions carefully before using this product, and save this manual for future use.
Appendix
Appendix
Safety Precautions
To reduce the risk of injury, loss of life, electric shock, fire,
malfunction, and damage to equipment or property, always observe the following safety precautions.
Explanation of symbol word panels
The following symbol word panels are used to classify
and describe the level of hazard, injury, and property
damage caused when the denotation is disregarded and
improper use is performed.
DANGER
Read Me First
Denotes a potential hazard that will result in serious
injury or death.
WARNING
Denotes a potential hazard that could result in serious
injury or death.
CAUTION
Denotes a hazard that could result in minor injury.
NOTICE
Denotes a hazard that could result in property damage.
The following symbols are used to classify and describe
the type of instructions to be observed.
This symbol is used to alert users to a specific
operating procedure that must not be performed.
This symbol is used to alert users to a specific
operating procedure that must be followed in
order to operate the unit safety.
2
DANGER
Precautions on the Battery Pack
Electrolyte leakage, generation of heat, ignition or
rupture of the Battery Pack may result.
„„Do Not Throw the Battery Pack into a Fire
or Expose It to Excessive Heat
„„Do Not Insert Sharp Objects Into the Battery Pack, Disassemble, or Modify It
„„Do Not Short the Positive (+) and Negative
(-) Contacts
ÖÖDo not place the battery pack together with
articles such as necklaces or hairpins when
carrying or storing.
„„Do Not Apply Shocks to the Product by
Dropping It, Applying Strong Pressure to It,
etc.
ÖÖIf this product is subjected to a strong impact, damaged or deformed, stop using it
immediately.
„„Do Not Charge the Battery Using Methods
Other Than Those Specified
„„Do Not Use the Battery Pack with Any Other
Product
• The battery pack is rechargeable and was
intended for the specified product.
„„Do Not Use This Product with a Battery
Pack Other Than the One Specified
ÖÖUse only the specified battery pack with
your product.
„„When the Battery Pack Has Deteriorated,
Replace It With a New One
ÖÖDo not continue to use a damaged battery
pack.
„„Avoid Extreme Heat (Near the Fire, in Direct
Sunlight, for Example)
Precautions on the Built-in Bridge Battery
(for disposal)
When disposing the battery, generation of heat,
ignition or rupture of the Built-in Bridge Battery may
result.
Handling This Computer
„„Do Not Disassemble the Computer Except
When Disposing
Handling the Built-in Bridge Battery
„„Do Not Short the Positive (+) and Negative
(-) Contacts
„„Do Not Throw the Battery into a Fire or Expose It to Excessive Heat
„„Do Not Apply Shocks to the Built-in Bridge
Battery by Dropping It, Applying Strong
Pressure to It, etc.
„„Do Not Charge
„„Do Not Use with Any Other Product
„„Do Not Insert Charp Objects Into the Battery, Disassemble, or Modify It
„„Avoid Extreme Heat (Near the Fire, in Direct
Sunlight, for Example)
WARNING
Generation of heat, ignition or rupture of the Built-in
Bridge Battery may result.
„„Do Not Throw This Product Into a Fire or
Expose It to Excessive Heat
„„Do Not Insert Sharp Objects Into This Product, Disassemble, or Modify It
„„Do Not Apply Shocks to the Product by
Dropping It, Applying Strong Pressure to It,
etc.
„„Do Not Charge the Battery Using Methods
Other Than Those Specified
„„Avoid Extreme Heat (Near the Fire, In Direct
Sunlight, for Example)
„„When the Battery Has Deteriorated, Contact
Your Technical Support Office to Replace
the Battery
WARNING
Fire or electric shock may result.
„„Do Not Do Anything That May Damage the
AC Cord, the AC Plug, or the AC Adaptor
Do not damage or modify the cord, place it
near hot tools, bend, twist, or pull it forcefully, place heavy objects on it, or bundle it
tightly.
ÖÖDo not continue to use a damaged AC cord,
AC plug and AC adaptor.
• Contact your technical support office for
repair.
„„Do Not Connect the AC Adaptor to a Power
Source Other Than a Standard Household
AC Outlet
ÖÖConnecting to a DC/AC converter (inverter)
may damage the AC adaptor. On an airplane, only connect the AC adaptor/charger
to an AC outlet specifically approved for
such use.
„„Do Not Pull or Insert the AC Plug If Your
Hands Are Wet
„„Do Not Disassemble This Product
„„Do Not Touch This Product In a Thunderstorm If Connected with the AC Cable or
Any Other Cables
Read Me First
DANGER
„„If a Malfunction or Trouble Occurs, Immediately Stop Use
If the Following Malfunction Occurs, Immediately Unplug the AC Plug and the Battery
Pack
• This product is damaged
• Foreign object inside this product
• Smoke emitted
• Unusual smell emitted
• Unusually hot
ÖÖAfter the above procedure, contact your
technical support office for repair.
„„Clean Dust and Other Debris of the AC
Plug Regularly
• If dust or other debris accumulates on the
plug, humidity, etc. may cause a defect in the
insulation.
„„Insert the AC Plug Completely
ÖÖDo not use a damaged plug or loose AC
outlet.
„„Do Not Keep This Product Wherever There
is a Lot of Water, Moisture, Steam, Dust,
Oily Vapors, etc.
3
Safety Precautions
WARNING
Burns or low-temperature burns may result.
„„Do Not Use This Product in Close Contact
With Your Body For a Long Period of Time
ÖÖDo not use this product with its heat-emitting parts in close contact with your body for
long periods of time.
• Low-temperature burns may result.
Read Me First
„„Do Not Keep Touching The Surface of The
AC Adaptor While Using/Charging
• Burns may result.
Detrimental health effects on your body may result.
„„Do Not Turn the Volume Up To Loud When
Using Headphones
• Listening at high volumes that overstimulate
the ear for long periods of time may result in
loss of hearing.
CAUTION
Fire or electric shock may result.
„„Do Not Move This Product While the AC
Plug Is Connected
ÖÖIf the AC cord is damaged, unplug the AC
plug immediately.
„„Do Not Connect a Telephone Line, or a Network Cable Other Than the One Specified,
Into the LAN Port
ÖÖDo not connect to a network such as the
ones listed below.
• Networks other than 1000BASE-T,
100BASE-TX or 10BASE-T
• Phone lines (IP phone (Internet Protocol
Telephone), Telephone lines, internal phone
lines (on-premise switches), digital public
phones, etc.)
„„Do Not Subject the AC Adaptor To Any
Strong Impact
ÖÖDo not continue to use the AC adaptor after
a strong impact such as being dropped.
ÖÖContact your technical support office for
repair.
„„Do Not Leave This Product in High Temperature Environment for a Long Period of
Time
• Leaving this product where it will be exposed
to extremely high temperatures such as near
fire or in direct sunlight may deform the cabinet and/or cause trouble in the internal parts.
4
Fire or electric shock may result.
„„Hold the Plug When Unplugging the AC
Plug
„„Use Only the Specified AC Adaptor With
This Product
ÖÖDo not use an AC adaptor other than the
one supplied (supplied with the unit or one
sold separately as an accessory).
„„Use the Modem With a Regular Telephone
Line
ÖÖDo not connect to the following lines.
• An internal phone line (on-premise switches)
of a company or business office
• A digital public phone
• Line in a country or area not upported by this
product
This product may fall over or drop, resulting in an
injury.
„„Do Not Place This Product on Unstable
Surfaces
„„Avoid Stacking
Detrimental health effects on your body may result.
„„Take a Break Of 10-15 Minutes Every Hour
• Using this product for long periods of time
may have detrimental health effects on the
eyes or hands.
Burns, low-temperature burns, or frostbite may result.
„„Do Not Expose the Skin To This Product
When Using the Product In A Hot Or Cold
Environment
ÖÖWhen it is necessary to expose the skin to
this product such as to scan a fingerprint,
perform the operation in the shortest time
possible.
l Do not place the computer near a television or radio
receiver.
l Keep the computer away from magnets. Data stored
on the hard disk may be lost.
l This computer is not intended for the display of images for use in medical diagnosis.
l This computer is not intended for a use with connection of medical equipment for the purpose of medical
diagnosis.
l Panasonic shall not be liable for loss of data or other
incidental or consequential damages resulting from
the use of this product.
l Do not touch the terminals on the battery pack. The
battery pack may no longer function properly if the
contacts are dirty or damaged.
l Do not expose the battery pack to water, or allow it to
become wet.
l If the battery pack will not be used for a long period of
time (a month or more), charge or discharge (use) the
battery pack until the remaining battery level becomes
30% to 40% and store it in a cool, dry place.
l This computer prevents overcharging of the battery by
recharging only when the remaining power is less than
approx. 95% of capacity.
l The battery pack is not charged when the computer
is first purchased. Be sure to charge it before using it
for the first time. When the AC adaptor is connected to
the computer, charging begins automatically.
l Should the battery leak and the fluid get into your
eyes, do not rub your eyes. Immediately flush your
eyes with clear water and see a doctor for medical
treatment as soon as possible.
NOTE
l The battery pack may become warm during recharging or normal use. This is completely normal.
l Recharging will not commence if internal temperature of the battery pack is outside of the allowable
temperature range (0 °C to 50 °C {32 °F to 122 °F}).
( Reference Manual “Battery Power”) Once the
allowable range requirement is satisfied, charging
begins automatically. Note that the recharging time
varies based on the usage conditions. (Recharging
takes longer than usual when the temperature is 10 °C
{50 °F} or below.)
l If the temperature is low, the operating time is shortened. Only use the computer within the allowable
temperature range.
l This computer has a high temperature mode function
that prevents the degradation of the battery in high
temperature environments. ( Reference Manual
“Battery Power”) A level corresponding to a 100%
charge for high temperature mode is approximately
equivalent to an 80% charge level for normal temperature mode.
Read Me First
NOTICE
l The battery pack is a consumable item. If the amount
of time the computer can be run by using a particular
battery pack becomes dramatically shorter and repeated recharging does not restore its performance,
the battery pack should be replaced with a new one.
l When transporting a spare battery inside a package,
briefcase, etc., it is recommended that it be placed in
a plastic bag so that its contacts are protected.
l Always power off the computer when it is not in use.
Leaving the computer on when the AC adaptor is not
connected will exhaust the remaining battery capacity.
l To minimize deterioration of the built-in bridge battery,
connect the computer to the AC adaptor and recharge
it for approximately 2 hours about once every year.
THIS PRODUCT IS NOT INTENDED FOR USE AS, OR
AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR
TRAFFIC CONTROL EQUIPMENT/SYSTEMS, AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*1, MEDICAL
DEVICES OR ACCESSORIES*2, LIFE SUPPORT SYSTEMS OR OTHER EQUIPMENTS/DEVICES/SYSTEMS
THAT ARE INVOLVED WITH ENSURING HUMAN LIFE
OR SAFETY. PANASONIC WILL NOT BE RESPONSIBLE FOR ANY LIABILITY RESULTING FROM THE USE
OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.
*1
AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include
Class2 Electronic Flight Bag (EFB) Systems and Class1 EFB
Systems when used during critical phases of flight (e.g., during take-off and landing) and/or mounted on to the aircraft.
Class1 EFB Systems and 2 EFB Systems are defined by
FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leaflets) No.36.
*2
As defined by the European Medical Device Directive (MDD)
93/42/EEC.
Panasonic cannot guarantee any specifications, technologies, reliability, safety (e.g. Flammability/Smoke/Toxicity/Radio Frequency Emission, etc) requirements related
to aviation standards that exceed the specifications of
our COTS (Commercial-Off-The-Shelf) products.
This computer is not intended for use in medical equipment including life-support systems, air traffic control
systems, or other equipment, devices or systems that are
involved with ensuring human life or safety. Panasonic
cannot be held responsible in any way for any damages
or loss resulting from the use of this unit in these types of
equipment, devices or systems, etc.
This computer has been designed so as to minimize
shock to the LCD and hard disk drive, etc., but no warranty is provided against such trouble. Therefore, as a
precision instrument, be extremely careful in the handling.
5
Regulatory Information
Important Safety Instructions / Importantes Mesures De Sécurité
Read Me First
<Only for model with modem>
When using your telephone equipment, basic safety
precautions should always be followed to reduce the risk
of fire, electric shock and injury to persons, including the
following:
1. Do not use this product near water, for example, near
a bath tub, wash bowl, kitchen sink or laundry tub, in a
wet basement or near a swimming pool.
2. Avoid using a telephone (other than a cordless type)
during an electrical storm. There may be a remote risk
of electric shock from lightning.
3. Do not use the telephone to report a gas leak in the
vicinity of the leak.
4. Use only the power cord and batteries indicated in this
manual. Do not dispose of batteries in a fire. They may
explode. Check with local codes for possible special
disposal instructions.
SAVE THESE INSTRUCTIONS
19-E-1
<Uniquement pour les modèles avec modem>
Certaines mesures de sécurité doivent être prises pendant l’utilisation de matérial téléphonique afin de réduire
les risques d’incendie, de choc électrique et de blessures.
En voici quelquesunes:
1. Ne pas utiliser l’appareil près de l’eau, p.ex., près d’une
baignoire, d’un lavabo, d’un évier de cuisine, d’un bac à
laver, dans un sous-sol humide ou près d’une piscine.
2. Éviter d’utiliser le téléphone (sauf s’il s’agit d’un appareil
sans fil) pendant un orage électrique. Ceci peut présenter un risque de choc électrique causé par la foudre.
3. Ne pas utiliser l’appareil téléphonique pour signaler
une fuite de gaz s’il est situé près de la fuite.
4. Utiliser seulement le cordon d’alimentation et le type de
piles indiqués dans ce manual. Ne pas jeter les piles
dans le feu: elles peuvent exploser. Se conformer aux
règlements pertinents quant à l’élimination des piles.
CONSERVER CES INSTRUCTIONS
19-F-1
Information to the User / Informations destinées aux utilisateurs
<Only for model with wireless LAN/Bluetooth/wireless WAN>
This product and your Health
This product, like other radio devices, emits radio frequency electromagnetic energy. The level of energy
emitted by this product however is far much less than the
electromagnetic energy emitted by wireless devices like
for example mobile phones.
Because this product operates within the guidelines found
in radio frequency safety standards and recommendations, we believe this product is safe for use by consumers. These standards and recommendations reflect the
consensus of the scientific community and result from
deliberations of panels and committees of scientists who
continually review and interpret the extensive research
literature.
In some situations or environments, the use of this product may be restricted by the proprietor of the building or
responsible representatives of the organization. These
situations may for example include:
l Using this product on board of airplanes, or
l In any other environment where the risk of interference
to other devices or services is perceived or identified
as harmful.
If you are uncertain of the policy that applies on the use
of wireless devices in a specific organization or environment (e.g. airports), you are encouraged to ask for authorization to use this product prior to turning on the product.
Regulatory Information
We are not responsible for any radio or television interference caused by unauthorized modification of this product.
The correction of interference caused by such unauthorized modification will be the responsibility of the user. We
and its authorized resellers or distributors are not liable
for damage or violation of government regulations that
may arise from failing to comply with these guidelines.
26-M-1
<Uniquement pour les modèles avec réseau local sans fil
et/ou Bluetooth>
Ce produit et votre santé
Ce produit, comme tout autre appareil radio, émet de .
l’énergie radioélectrique. Toutefois, la quantité d’énergie
émise par ce produit est beaucoup moins importante que
l’énergie radioélectrique émise par des appareils sans
fil tels que les téléphones portables. L’utilisation de ce
produit ne comporte aucun risque pour le consommateur
du fait que cet appareil opère dans les limites des directives concernant les normes et les recommendations de
sécurité sur les fréquences radio. Ces normes et recommandations reflètent le consensus de la communauté
scientifique et résultent de délibérations de jurys et comités de scientifiques qui examinent et interprètent continuellement les nouveautés de la vaste littérature sur les
recherches effectuées. Dans certaines situations ou environnements, l’utilisation de ce produit peut être restreinte
par le propriétaire du bâtiment ou par les représentants
responsables de l’organisation. Ces situations peuvent
être les suivantes par exemple :
l A bord d’un avion, ou
l Dans tout autre environnement où les risques d’interférence sur d’autres appareils ou services sont perçus
ou identifiables comme dangereux.
Si vous n’êtes pas sûr de la réglementation applicable à .
l’utilisation d’appareils sans fil dans une organization ou
un environnement spécifique, (par exemple dans un aéroport) nous vous invitons à demander l’autorisation .
d’utiliser ce produit avant sa mise en marche.
Informations concernant la réglementation
Nous déclinons toute responsabilité pour toute interférence radio ou télévision causée par des modifications
non autorisées apportées à ce produit. La correction .
d’interférences causées par de telles modifications non
autorisées sera la seule responsabilité de son utilisateur.
Nousmêmes, les revendeurs officiels et les distributeurs
ne sommes pas responsable de tout dégât ou de toute
violation des règlements de l’État pouvant découler du
non-respect de ces directives.
26-F-1
6
Lithium Battery / Pile au lithium
Lithium Battery!
This computer contains a lithium battery to enable the
date, time, and other data to be stored. The battery should
only be exchanged by authorized service personnel.
Warning!
A risk of explosion from incorrect installation or misapplication may possibly occur.
15-E-1
Pile au lithium!
Le micro-ordinateur renferme une pile au lithium qui
permet de sauvegarder certaines données, notamment la
date et l’heure. La pile ne doit être remplacée que par un
technicien qualifié.
Danger ! Risque d’explosion en cas de non respect de
cette mise en garde!
15-F-1
Read Me First
Information for Users on Collection and Disposal of Old Equipment and used
Batteries
These symbols are only valid in the European Union.
If you wish to discard this product, please contact your local authorities or dealer and ask
for the correct method of disposal.
53-M-1
Safety Precautions
<Only for model with wireless WAN>
The following safety precautions must be observed during all phases of the operation, usage, service or repair of any
Personal Computer or Handheld Computer incorporating wireless WAN modem. Manufacturers of the cellular terminal are advised to convey the following safety information to users and operating personnel and to incorporate these
guidelines into all manuals supplied with the product. Failure to comply with these precautions violates safety standards of design, manufacture and intended use of the product. Panasonic assumes no liability for customer failure to
comply with these precautions.
When in a hospital or other health care facility, observe the restrictions on the use of mobiles. Switch Personal Computer or Handheld Computer incorporating wireless WAN modem off, if instructed to do so by the
guidelines posted in sensitive areas. Medical equipment may be sensitive to RF energy.
The operation of cardiac pacemakers, other implanted medical equipment and hearing aids can be affected
by interference from Personal Computer or Handheld Computer incorporating wireless WAN modem placed
close to the device. If in doubt about potential danger, contact the physician or the manufacturer of the device
to verify that the equipment is properly shielded. Pacemaker patients are advised to keep their Personal Computer or Handheld Computer incorporating wireless WAN modem away from the pacemaker, while it is on.
Switch off Personal Computer or Handheld Computer incorporating wireless WAN modem before boarding
an aircraft. Make sure it cannot be switched on inadvertently. The operation of wireless appliances in an aircraft is forbidden to prevent interference with communications systems. Failure to observe these instructions
may lead to the suspension or denial of cellular services to the offender, legal action, or both..
For details on usage of this unit in aircrafts please consult and follow instruction provided by the airline.
Do not operate Personal Computer or Handheld Computer incorporating wireless WAN modem in the presence of flammable gases or fumes. Switch off the cellular terminal when you are near petrol stations, fuel
depots, chemical plants or where blasting operations are in progress. Operation of any electrical equipment
in potentially explosive atmospheres can constitute a safety hazard.
Your Personal Computer or Handheld Computer incorporating wireless WAN modem receives and transmits radio frequency energy while switched on. Remember that interference can occur if it is used close to
TV sets, radios, computers or inadequately shielded equipment. Follow any special regulations and always
switch off Personal Computer or Handheld Computer incorporating wireless WAN modem wherever forbidden, or when you suspect that it may cause interference or danger.
Road safety comes first! Do not use a Personal Computer or Handheld Computer incorporating wireless
WAN modem while driving a vehicle. Do not place the computer with wireless WAN modem in an area where
it could cause personal injury to the driver or passengers. It is recommended to stow the unit in the boot or
secure stowage area while driving.
Do not place the computer with wireless WAN modem in an area over an air bag or in the vicinity where an
air bag may deploy.
Air bags inflate with great force and if the computer with wireless WAN modem is placed in the air bag deployment area may be propelled with great force and cause serious injury to occupants of the vehicle.
7
Regulatory Information
IMPORTANT!
Personal Computer or Handheld Computer incorporating wireless WAN modem operate using radio signals
and cellular networks cannot be guaranteed to connect in all conditions. Therefore, you should never rely
solely upon any wireless device for essential communications, for example emergency calls.
Remember, in order to make or receive calls, Personal Computer or Handheld Computer incorporating wireless WAN modem must be switched on and in a service area with adequate cellular signal strength.
Some networks do not allow for emergency calls if certain network services or phone features are in use (e.g.
lock functions, fixed dialing etc.). You may need to deactivate those features before you can make an emergency call.
Some networks require that a valid SIM card be properly inserted in Personal Computer or Handheld Computer incorporating wireless WAN modem.
CAUTION:
Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the Instructions.
Read Me First
ATTENTION:
Il y a risque d’explosion si la batterie est remplacée par une batterie de type incorrect.
Mettre au rebut les batteries usagées conformément aux instructions.
58-E-1
58-F-1
For U.S.A.
Federal Communications Commission Radio Frequency Interference Statement
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
l Reorient or relocate the receiving antenna.
l Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
l Consult the Panasonic Service Center or an experienced radio/TV technician for help.
Warning
To assure continued compliance, use only shielded interface cables when connecting to a computer or peripheral.
Also, any changes or modifications not expressly approved by the party responsible for compliance could void
the user’s authority to operate this equipment.
FCC RF Exposure Warning:
l This equipment is provided with PC Card slot that could
be used with wireless transmitters, which will be specifically recommended when they become available.
Other third-party wireless transmitters have not been
RF exposure evaluated for use with this computer and
may not comply with FCC RF exposure requirements.
<Only for model with wireless LAN/wireless WAN/Bluetooth>
l This equipment complies with FCC radiation exposure
limits set forth for an uncontrolled environment.
l This equipment may not be co-located or operated
with any other antenna or transmitter.
l This device meets the government’s requirements for
exposure to radio waves..
This device is designed and manufactured not to
exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.
l The exposure standard for wireless device employs a
unit of measurement known as the Specific Absorption
Rate, or SAR. The SAR limit set by the FCC is .
1.6 W/kg.
*Tests for SAR are conducted using standard operating positions accepted by the FCC with the device
transmitting at its highest certified power level in all
tested frequency bands.
Although the SAR is determined at the highest certified power level, the actual SAR level of the device
while operating can be well below the maximum
value. This is because the device is designed to operate at multiple power levels so as to use only the
poser required to reach the network. In general, the
closer you are to a wireless base station antenna,
the lower the power output.
<Only for model with wireless LAN>
This product is restricted to indoor use due to its operation
in the 5.15 to 5.25 GHz frequency range. FCC requires this
product to be used indoors for the frequency range 5.15 to
5.25 GHz to reduce the potential for harmful interference
to co-channel Mobile Satellite systems. High power radars
are allocated as primary users of the 5.25 to 5.35 GHz and
5.65 to 5.85 GHz bands. These radar stations can cause
interference with and/or damage this product.
25-M-W-1
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may cause undesired operation.
Responsible Party: Panasonic Corporation of North America
Two Riverfront Plaza
Newark, NJ 07102
Tel No:1-800-LAPTOP5 (1-800-5278675)
6-M-1
8
1. This equipment complies with CFR47 Part 68 rules. On
the computer is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. If required, this
information must be provided to the telephone company.
2. An FCC compliant telephone cord and modular plug is
provided with this equipment. This equipment is designed
to be connected to the telephone network or premises
wiring using a compatible modular jack which is Part 68
compliant. See Installation Instructions for details.
3. The REN is used to determine the quantity of devices
which may be connected to the telephone line. Excessive RENs on the telephone line may result in the
devices not ringing in response to an incoming call. In
most, but not all area, the sum of RENs should not exceed five (5.0). To be certain of the number of devices
that may be connected to a line, as determined by the
total RENs, contact the local telephone company.
4.If your telephone equipment cause harm to the telephone network, the telephone company will notify you
in advice that temporary discontinuance of service
may be required. But if advice notice isn’t practical, the
telephone company will notify the customer as soon as
possible. Also, you will be advised of your right to file a
complaint with the FCC if you believe it is necessary.
5. The telephone company may take changes in its facilities, equipment, operations or procedures that could
affect the operation of the equipment. If this happens
the telephone company will provide advance notice
in order for you to make necessary modifications to
maintain uninterrupted service.
6. If trouble is experienced with this equipment, for repair
or warranty information, please contact Panasonic
Corporation of North America at DIAL TOLL FREE
1-800-LAPTOP5 (1-800-527-8675). If the equipment is
causing harm to the telephone network, the telephone
company may request that you disconnect the equipment until the problem is resolved.
7. There are no user serviceable parts contained in this
equipment.
8. This equipment may not be used on coin service provided by the telephone company. Connection to party
lines is subject to state tariffs.
9. The Telephone Consumer Protection Act of 1991 makes
it unlawful for any person to use a computer or other
electronic device to send any message via a telephone
fax machine unless such message clearly contains in a
margin at the top or bottom of each transmitted page or
on the first page of the transmission, the date and time
it is sent and an identification of the business or other
entry, or other individual sending the message and
the telephone number of the sending machine or such
business, other entity, or individual. In order to program
this information into your fax software, you should refer
to the manual of the Fax software being used.
10.According to the FCC’s electrical safety advisory, we
recommend that you may install an AC surge arrestor
in the AC outlet to which this equipment is connected.
Telephone companies report that electrical surges,
typically lightning transients, are very destructive to
customer terminal equipment connected to AC power
sources and that this is a major nationwide problem.
“Caution : To reduce the risk of fire, use only No.26 AWG or
larger (e.g., 24 AWG) UL listed or CSA certified telecommunication line cord.”
“ATTENTION : Pour réduire le risque d’incendie, utiliser
uniquement des conducteurs de télécommunications 26
AWG ou de section supérieure (p.ex. 24 AWG) UL énumérés
ou CSA certifié.”
16-M-1
USA Only: Disposal may be regulated in your community
due to environmental considerations. For disposal or recycling information, please visit Panasonic website: http://
www.panasonic.com/environmental or call 1-888-769-0149
Read Me First
<Only for model with modem>
FCC Regulation Notice for modem
This equipment contains a FCC approved modem.
65-M-2
<For USA-California Only>
This product contains a CR Coin Cell Lithium Battery which
contains Perchlorate Material - special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate/
38-M-1
<For USA and Canada>
A lithium ion battery that is recyclable powers the product you
have purchased.
Please call 1-800-8-BATTERY for
information on how to recycle this
battery.
L’appareil que vous vous êtes procuré est alimenté par une batterie
au lithium-ion.
Pour des renseignements sur le
recyclage de la batterie, veuillez
composer le
1-800-8-BATTERY.
48-M-1
9
Regulatory Information
Read Me First
For Canada / Pour le Canada
<Only for model with modem>
Industry Canada (IC) Notice for modem
This equipment contains an Industry Canada approved
modem unit.
The Industry Canada label is affixed on the modem unit.
EQUIPMENT ATTACHEMENT LIMITATIONS
“NOTICE: The Industry Canada label identifies certified
equipment. This certification means that the equipment
meets telecommunications network protective, operational and safety requirements as prescribed in the appropriate Terminal Equipment Technical Requirements
document(s). The Department does not guarantee the
equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that
it is permissible to be connected to the facilities of the
local telecommunications company. The equipment must
also be installed using an acceptable method of connection. The customer should be aware that compliance with
the above conditions may not prevent degradation of
service in some situations.
Repairs to certified equipment should be coordinated by a
representative designated by the supplier. Any repairs or
alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications
company cause to request the user to disconnect the
equipment.
Users should ensure for their own protection that the electrical ground connections of the power utility, telephone
lines and internal metallic water pipe system, if present,
are connected together. This precaution may be particularly important in rural areas. Caution: Users should
not attempt to make such connections themselves, but
should contact the appropriate electric inspection authority, or electrician, as appropriate.”
“NOTICE: The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of
the maximum number of terminals allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject
only to the requirement that the sum of the Ringer Equivalence Numbers of all the devices does not exceed 5.”
REN: See bottom of the computer
RESTRICTIONS CONCERNANT LE RACCORDEMENT
DE MATÉRIEL
“AVIS: L’étiquette d’Industrie Canada identifie le matériel
homologué. Cette étiquette certifie que le matériel est
conforme aux normes de protection, d’exploitation et de
sécurité des réseaux de télécommunications, comme
le prescrivent les documents concernant les exigences
techniques relatives au matériel terminal. Le Ministère
n’assure toutefois pas que le matériel fonctionnera à la
satisfaction de l’utilisateur.
Avant d’installer ce matériel, l’utilisateur doit s’assurer
qu’il est permis de le raccorder aux installations de l’entreprise locale de télécommunication. Le matériel doit
également être installé en suivant une méthode acceptée
de raccordement.
L’abonné ne doit pas oublier qu’il est possible que la
conformité aux conditions énoncées ci-dessus n’empêche
pas la dégradation du service dans certaines situations.
Les réparations de matériel homologué doivent être coordonnées par un représentant désigné par le fournisseur.
L’entreprise de télécommunications peut demander à .
l’utilisateur de débrancher un appareil à la suite de réparations ou de modifications effectuées par l’utilisateur ou
à cause de mauvais fonctionnement.
Pour sa propre protection, l’utilisateur doit s’assurer que
tous les fils de mise à la terre de la source d’énergie électrique, des lignes téléphoniques et des canalisations d’eau
métalliques, s’il y en a, sont raccordés ensemble.
10
Cette précaution est particulièrement importante dans les
régions rurales. Avertissement: L’utilisateur ne doit pas
tenter de faire ces raccordements lui-même; il doit avoir
recours à un service d’inspection des installations électriques, ou à un électricien, selon le cas.”
“AVIS: L’indice d’équivalence de la sonnerie (IES) assigné à chaque dispositif terminal indique le nombre maximal de terminaux qui peuvent être raccordés à une interface. La terminaison d’une interface téléphonique peut
consister en une combinaison de quelques dispositifs, à
la seule condition que la somme d’indices d’équivalence
de la sonnerie de touts les dispositifs n’excède pas 5.”
IES: Voir sous le fond de l’ordinateur
Canadian ICES-003
CAN ICES-003(B) / NMB-003(B)
17-Ca-1
7-M-3
<Only for model with wireless LAN/Bluetooth>
Industry Canada
This product complies with RSS210 Industry Canada.
Operation is subject to the following two conditions;
(1)this device may not cause interference, and
(2)this device must accept any interference, including interference that may cause undesired operation of the
device.
<Ne s’applique qu’aux modèles avec technologie Bluetooth/LAN sans fil>
Industrie Canada
Cet équipement est conforme à la norme CNR-210 .
d’Industrie Canada. Son fonctionnement est soumis aux
deux conditions suivantes :
(1)ce dispositif ne peut produire de brouillage, et
(2)ce dispositif doit accepter le brouillage, y compris le
brouillage pouvant entraîner le fonctionnement non
désiré de l’appareil.
30-Ca-1-1
<Only for model with wireless LAN>
This product (local network devices) for the band 5150-.
5250 MHz is only indoor usage to reduce potential for
harmful interference to co-channel Mobile Satellite systems.
High power radars are allocated as primary users (meaning they have priority) of 5250-5350 MHz and 56505850 MHz and these radars could cause interference
and/or damage to LELAN devices.
<Ne s’applique qu’aux modèles avec technologie LAN
sans fil>
Cet appareil (pour réseaux locaux radioélectriques) dans
les bandes de fréquences 5150-5250 MHz est réservé à
une utilization à l’intérieur afin de réduire le risque d’interférence avec les systèmes satellites mobiles bicanaux.
Les radars forte puissance sont désignés comme étant
les premiers utilisateurs (c’est-à-dire qu’ils ont la priorité)
des bandes de fréquences 5250-5350 MHz et 56505850 MHz. Ces stations radars peuvent provoquer des
interférences et/ou des dommages à ce périphérique.
30-Ca-2-1
<Only for model with wireless LAN/wireless WAN/Bluetooth>
l This computer complies with Industry Canada radiation exposure limits set forth for an uncontrolled environment.
l This PC with WLAN and/or Bluetooth transmitters installed, has been approved for portable operation and
does not require any minimum spacing be provided
between antennas and all person’s body.
<Ne s’applique qu’aux modèles avec technologie Bluetooth/LAN sans fil/WAN sans fil>
l Cet équipement est conforme aux limites d’exposition
aux rayonnements d’Industrie Canada établies pour
un environnement non contrôlé.
l Ce PC avec émetteurs WLAN et/ou Bluetooth a été
approuvé à des fins d’opération mobile; aucun espace
minimum entre les antennes et le corps de l’utilisateur
n’est requis.
FOR USE WITH MODEL NO. : CF-AA64B3C
POUR UTILISER AVEC MODÈLE : CF-AA64B3C
20-Ca-1
For the purpose of recycling to facilitate effective utilization of resources, please return this product to a
nearby authorized collection center, registered dismantler or recycler, or Panasonic service center when disposing of this product.
Please see the Panasonic website for further information on collection centers, etc.
http://www.panasonic.co.in/wps/portal/home
68-M-1
Laser Devices Caution / Précautions pour le Dispositifs Laser
<Only for model with the following label on the computer>
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS, ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL.
AVERTISSEMENT!
CET APPAREIL UTILISE UN LASER.
L’UTILISATION DE COMMANDES OU DE RÉGLAGES OU L’EXÉCUTION DE PROCÉDURES AUTRES QUE
CELLES SPÉCIFIÉES ICI PEUVENT PROVOQUER UNE EXPOSITION À DES RADIATIONS DANGEREUSES.
NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE RÉPARER SOI-MÊME.
CONFIER TOUT TRAVAIL D’ENTRETIEN À UN PERSONNEL QUALIFIÉ.
The following label is put on the computer.
L’étiquette suivant est mis sur de l’ordinateur.
Read Me First
For India
12-E-1
12-F-1
11
Introduction
Thank you for purchasing this Panasonic product. For optimum performance and safety, please read these instructions
carefully.
In these instructions, the names are referred as follows.
indicates Windows® 8.1 Operating System.
indicates Windows® 7 Operating System.
n Terms and illustrations in these instructions
CAUTION :
NOTE :
Enter :
Fn + F5 :
Conditions that may result in minor or moderate injury.
Useful and helpful information.
Press [Enter] key.
Press and hold [Fn] key, and then press [F5] key.
Getting Started
Display “Charm”:Align the cursor to the top right (or bottom right) corner of the screen to display
Charm menu.
Alternatively:
Flick toward the center of the screen from the right edge.
:
Click
(Settings) and then click
(Power).
(Start) - [All Programs] :
è :
:
l
l
l
l
Click
(Start), and then click [All Programs].
Page in these Operating Instructions or in the Reference Manual.
Reference to the on-screen manuals.
Some illustrations are simplified to help your understanding and may look different from the actual unit.
If you do not log on as an administrator, you cannot use some functions or cannot display some screens.
Refer for the latest information about optional products to the catalogs, etc.
In these instructions, the names and terms are referred as follows.
®
Ÿ “Windows 8.1 Pro 64-bit” as “Windows” or “Windows 8.1”
®
®
Ÿ “Windows 7 Professional 32-bit Service Pack 1” and “Windows 7 Professional 64-bit Service Pack 1” as “Windows” or “Windows 7”
Ÿ DVD MULTI drive as “DVD drive”
Ÿ The Digitizer + Multi Touch Screen (Capacitive) as the “digitizer”, and the Multi Touch Screen (Capacitive) as the
“touchscreen”.
Ÿ The digitizer pen and the stylus as the “pen (included)”.
l
Screen messages are explained in [English (United States)].
(Depending on the language preference, some screen messages in these instructions are different from the actual
screen messages. For example, [Flight mode] may be displayed instead of [Airplane mode] in some language preference.)
n Disclaimer
Computer specifications and manuals are subject to change without notice. Panasonic Corporation assumes no liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the
manuals.
n Trademarks
Microsoft®, Windows®, and the Windows logo are registered trademarks of Microsoft Corporation of the United States
and/or other countries.
Intel, Core, Centrino and PROSet are either registered trademarks or trademarks of Intel Corporation.
SDXC Logo is a trademark of SD-3C, LLC. Adobe, the Adobe logo and Adobe Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries.
Bluetooth® is a registered trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to Panasonic Corporation.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
Names of products, brands, etc., appearing in this manual are trademarks or registered trademarks of their respective
own companies.
12
n On-screen Manual
For further information about the computer, you can refer to the on-screen manual.
l Reference Manual
The Reference Manual contains the practical information to help you fully enjoy the computer’s performance.
l Important Battery Tips
The Important Battery Tips will provide you with the battery information so that you can use the battery in the optimum condition to obtain longer operation time.
To access the on-screen manuals, follow the steps below.
On the Start screen, click the [Manual Selector] tile, and select the on-screen manual.
Getting Started
Double-click [Manual Selector] on the desktop screen, and select the on-screen manual.
13
Description of Parts
A
B
C
This computer contains a
magnet and magnetic products at the locations circled
in the illustration at right.
Avoid leaving metallic object
or magnetic media in contact
with these areas.
O
D
E
F
G
H
P
Q
I
J
K
L
M
N
R
S
Getting Started
A: Microphone
Reference Manual “Camera”
è
B: Camera Lens
Reference Manual “Camera”
è
C: Camera Indicator
Reference Manual “Camera”
è
D:Wireless LAN Antenna
<Only for model with wireless LAN>
Reference Manual “Wireless LAN”
è
The wireless LAN communication may turn off depending on the reception.
E: LCD
Reference Manual “Screen Input Operation”
è
F: Wireless WAN Antenna
<Only for model with Wireless WAN>
Reference Manual “Wireless WAN”
è
G:Keyboard
H:Touch Pad
I: Power Switch
Power Indicator
Off: Power off/Hibernation, Green: Power on, Blinking
green: Sleep, Blinking green rapidly*1 / Blinking alternately in green and orange*2: Cannot power on*1 or
resume due to low temperature.
*1
*2
Model without HDD heater
Model with HDD heater
J: Headphone Jack
You can connect headphones or amplified speakers.
When they are connected, audio from the internal
speakers is not heard.
K:Microphone Jack
A condenser microphone can be used. If other types
of microphones are used, audio input may not be possible, or malfunctions may occur as a result.
L: Wireless Switch
è
Reference Manual “Disabling/Enabling Wireless
Communication”
14
M:SD Memory Card Slot
Keep SD Memory Cards away from infants and small
children.
Reference Manual “SD Memory Card”
è
N:LED Indicator
: SD Memory Card Indicator
(Blinking: During access)
Reference Manual “SD Memory Card”
è
:Wireless ready
This indicator lights when Wireless LAN, Bluetooth, and/or Wireless WAN are connected and
ready. It does not necessarily indicate the On/Off
condition of the wireless connection.
Reference Manual “Disabling/Enabling
è
Wireless Communication” “Wireless LAN”
“Bluetooth” “Wireless WAN”
:Caps lock
:Numeric key (NumLk)
:Scroll lock (ScrLk)
: Drive status
: Battery status
Reference Manual “Battery Power”
è
è page 22 “When the battery indicator does not
light on”
O:Ambient Light Sensor
The ambient light sensor is equipped with an automatic brightness adjustment function that adjusts the
display screen. (è page 23)
P: Display Rotation Lock
è page 16 “Changing the Display Mode”
Q: Wireless LAN Antenna / Bluetooth Antenna
<Only for model with wireless LAN>
<Only for model with wireless Bluetooth>
Reference Manual “Wireless LAN” “Bluetooth”
è
R:Tablet Buttons
Reference Manual “Tablet Buttons”
è
The Windows button does not function when pressed
together with a specific key on the keyboard.
S: Function Key
Reference Manual “Key Combinations”
è
Bottom
F
G
A
B
H
I
C
J
D
E
Left side
Rear side
L
M
N
T *9
O*6
O*7
O*8
A:Hand Strap
B:NFC Sensor*3/Rear Camera*4/Half Size Smart Card
Slot*5
*3
<Only for model with NFC Sensor>
Reference Manual “NFC Devices”
è
*4
<Only for model with Rear Camera>
Reference Manual “Camera”
è
*5
<Only for model with Half Size Smart Card Slot>
Reference Manual “Smart Card”
è
C:Pen Holder
D:Battery Pack
E: Hard Disk Drive
Reference Manual “Hard Disk Drive”
è
F: Battery Indicator
Reference Manual “Battery Power”
è
G:Battery Latch
Reference Manual “Battery Power”
è
H:RAM Module Slot
Reference Manual “RAM Module”
è
I: Expansion Bus Connector
Reference Manual “Port Replicator”
è
J: Hard Disk Drive Latch
Reference Manual “Hard Disk Drive”
è
K:LAN Port
Reference Manual “LAN”
è
L: USB2.0 Port
Reference Manual “USB Devices”
è
M:Security Lock
A Kensington cable can be connected.
For further information, read the manual that comes
with the cable.
N:SIM Card Slot
<Only for model with wireless WAN>
Reference Manual “Wireless WAN”
è
P Q
R
T *10
S
O:Serial Port*6 / VGA Port*7 / Modem Port*8
*6
<Only for model with Serial Port>
Reference Manual “Serial Port”
è
*7
<Only for model with VGA port>
Reference Manual “External Display”
è
*8
<Only for model with Modem>
Reference Manual “Modem”
è
P: Speaker
Reference Manual “Key Combinations”
è
Q:DC-IN Jack
R:USB3.0 Ports
Reference Manual “USB Devices”
è
S: HDMI Port
Reference Manual “External Display”
è
T: ExpressCard Slot*9 / Smart Card Slot*10
*9
<Only for model with ExpressCard Slot>
Reference Manual “ExpressCard”
è
*10
<Only for model with Smart Card Slot>
Reference Manual “Smart Card”
è
Getting Started
K
15
Description of Parts
Changing the Display Mode
NOTE
l Do not press the tablet buttons, and do not change the display mode by holding the upper part of the display.
l Do not allow your fingers to get caught between the display and the base when changing the display mode.
l Do not allow the tether for the pen (included) or other cables to get caught between the display and the base when
changing the display mode.
l If peripheral devices connected to the computer make it hard to change the display mode, disconnect the devices
and then change the display mode.
n Switching to the Tablet Mode
A
ALift up the display so it stands perpendicular to the body.
BSlide the Display Rotation Lock (A) to the unlocked position ( ).
CHold the bottom left and bottom right of the display, and rotate the
display in the direction of the arrow until it clicks.
NOTE
Getting Started
l The display cannot be rotated more than 180 degrees in the direction of the arrow, or in the opposite direction of the arrow. Do not
attempt to rotate the display more than 180 degrees or in the opposite direction using force.
DClose as the display faces up.
NOTE
l Close the display completely and make sure there is no space
between the keyboard and the display; otherwise the computer will
remain in Laptop Mode.
n Switching to the Laptop Mode
ALift up the display so it stands perpendicular to the body.
BHold the bottom left and bottom right of the display, and rotate the
display in the direction of the arrow until it clicks.
NOTE
l The display cannot be rotated more than 180 degrees in the direction of the arrow, or in the opposite direction of the arrow. Do not
attempt to rotate the display more than 180 degrees or in the opposite direction using force.
CSlide the Display Rotation Lock (A) to the locked position ( ).
16
Before Using the Pen (Included)
The tether prevents the pen (included) from falling accidentally.
Attaching the pen (included) to the computer using the tether
In this section, illustrations of the digitizer pen are used as examples.
A
B
Pass one of the loops
through the hole.
C Thread the second loop on the tether through the hole D
as illustrated.
Getting Started
second loop
Using the Hand Strap
The hand strap is convenient for computing while standing.
To carry the computer, put your hand between the computer and the hand strap
to prevent if from falling, and firmly hold the computer when using it.
NOTE
l Be careful of computer drop resulting from the hand strap damage.
17
First-time Operation
n Preparation
ACheck and identify the supplied accessories.
If you do not find the described accessories, contact Panasonic Technical Support (è page 42).
• AC Cord. . . . . . . 1
• Battery Pack . . . 1
<Only for model with digitizer>
• AC Adaptor. . . . . 1
• Digitizer pen. . . . . . . . . . . . . . . 1
Model No: CF-AA64B3C
<Only for model with
touchscreen>
• Stylus. . . . . . . . . . 1
• Tether. . . . . . . . . 1
Model No:CF-VZSU80U or. è Reference Manual “Screen
CF-VZSU82U or. Input Operation”
CF-VZSU83U
• Soft Cloth. . . . . . 1
è
Reference Manual “Screen Input Operation”
• OPERATING INSTRUCTIONS (This book). . . . . . . . . . . . . . . . . . . . 1
Getting Started
BRead the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer’s packaging
(è page 36).
1
1
Inserting the Battery Pack.
Turn over the computer.
l Make sure no foreign objects are under the computer.
ASlide the battery pack in parallel with the arrow direction until it clicks to the
secured position.
CAUTION
l Make sure the latch is securely locked. Otherwise the battery pack may fall
when you carry the computer.
l Do not touch the terminals of the battery pack and the computer. Doing so can
make the terminals dirty or damaged, and may cause malfunction of the battery
pack and the computer.
NOTE
l Note that the computer consumes electricity even when the computer power is
off. If the battery pack is fully charged, the battery will fully discharge in the following period of time:
Status
CF-VZSU80U
CF-VZSU82U
CF-VZSU83U
*1
When power is off
Approx. 6 weeks Approx. 3 weeks Approx. 9 weeks
In sleep
Approx. 6 days
Approx. 3 days
Approx. 9 days
In hibernation
Approx. 2 weeks Approx. 1 week
Approx. 3 weeks
2
*1
The period of time is the value when the built-in bridge battery is fully charged.
Attaching the pen (included) to the computer.
Attach the pen (included) to the computer. To attach the pen, refer to ”Before
Using the Pen (Included)” (è page 17).
3
3
Opening the Display.
Hold the side of the computer with either of your hands and then hold and lift the
(A) part to open the display.
CAUTION
A
18
l Do not open the display wider than necessary (180° or more), and do not apply
excessive pressure to the LCD. Do not open or close the computer holding the
edge of the LCD segment.
4
Connect your computer to a power outlet.
The battery charging starts automatically.
CAUTION
l Do not disconnect the AC adaptor and do not switch the wireless switch to on
until the first-time operation procedure is completed.
l When using the computer for the first time, do not connect any peripheral device (including wired LAN cable) except the battery pack and AC adaptor.
l Handling the AC adaptor
Ÿ Problems such as sudden voltage drops may arise during periods of thunder and
lightning. Since this could adversely affect your computer, an uninterruptible power
source (UPS) is highly recommended unless running from the battery pack alone.
5
Turn on the computer.
Slide and hold the power switch
(è page 14) lights. (è page 21)
(è page 14) until the power indicator
l Do not slide the power switch repeatedly or do not hold the power switch for four
seconds or longer.
l Any changes from the default setting of the Setup Utility must not be made until
the First-time Operation is completed.
6
Setup Windows.
Follow the on-screen instructions.
lThe computer restarts several times. Do not touch the keyboard or touch
pad, and wait until the drive indicator
has turned off.
lAfter the computer is turned on, the screen remains black or unchanged for
a while, but this is not a malfunction. Wait for a moment until the Windows
setup screen appears.
lDuring setup of Windows, use the touch pad and clicking to move the pointer
and to click an item.
5 minutes /
lSetup of Windows will take approximately
20 minutes.
Go to the next step, confirming each message on the display.
Follow the steps below.
l
A When “Enable sensors” is displayed, click [Enable this sensor].
B When the [User Account Control] screen is displayed, click [Yes].
C At the [Display Rotation Tool] confirmation screen, click [Yes].
The computer restarts automatically, and the setting is enabled.
lYou can set the Wireless Network after the setup of Windows is complete.
If “Get online” is displayed, you can select “Skip this step”.
“Join a wireless network” screen may not appear.
Getting Started
CAUTION
CAUTION
l You can change the user name, password, image and security setting after
setup of Windows.
l Remember your password. If you forget the password, you cannot use Windows. Creating a password reset disk beforehand is recommended.
l Do not use the following words for user name: CON, PRN, AUX, CLOCK$, NUL,
COM1 to COM9, LPT1 to LPT9, @, &, space. In particular, if you create a user
name (account name) that includes the “@” mark, a password will be requested
at the log-on screen, even if no password has been set. If you try to log on
without entering a password, “The user name or password is incorrect.” may be
displayed and you will not be able to
sign in /
log on
to Windows (è page 33).
19
First-time Operation
7
Create the recovery disc.
A recovery disc allows you to install OS and restore its factory default condition, in case, for example, the recovery partition of the HDD is damaged. We
recommend creating a recovery disc before you begin using the computer.
Refer to è
Reference Manual “Recovery Disc Creation Utility” about creating the disc.
NOTE
l PC Information Viewer
This computer periodically records the management information of the hard disk, etc. The maximum data volume
for each record is 1024 bytes. .
This information is only used for estimating the cause when the hard disk goes down by any possibility. They are
never sent to outside via network nor used for any other purpose except for the purpose described the above.
To disable the function, add the check mark for [Disable the automatic save function for management information
history] in [Hard Disk Status] of PC Information Viewer, and click [OK]. Then follow the on-screen instructions. .
(è
Reference Manual “Checking the Computer’s Usage Status”)
Getting Started
n Before using wireless function
A Slide the wireless switch to ON.
- [Change PC Settings] - [Network] - [Airplane mode].
B Display “Charm”, and click
Set [Airplane mode] to [Off], and then;
set [Wi-Fi] to [On] (for wireless LAN).
set [Mobile broadband] to [On] (for wireless WAN).
set [GPS] to [On] (for wireless WAN).
set [Bluetooth] to [On] (for Bluetooth).
n To change the partition structure
You can shrink a part of an existing partition to create unallocated disk space, from which you can create a new partition. In the default setting, you can use a single partition.
A
1. Click
on the Start screen, and then right-click [This PC] under “Windows System”.
2. Click [Manage] on app bar.
(Start) and right-click [Computer], then click [Manage].
Click
l A standard user needs to enter an administrator password.
B Click [Disk Management].
C Right-click the partition for Windows (“c” drive in the default setting), and click [Shrink Volume].
l The partition size depends on the computer specifications.
D Input the size in [Enter the amount of space to shrink in MB] and click [Shrink].
l You cannot input a larger number than the displayed size.
70 GB /
l To select [Reinstall to the OS related partitions.] in installing OS (è page 28),
60 GB or more is necessary for [Total size after shrink in MB].
E Right-click [Unallocated] (the shrunk space in the step D) and click [New Simple Volume].
F Follow the on-screen instructions to make the settings, and click [Finish].
Wait until formatting is completed.
NOTE
l You can create an additional partition using remaining unallocated space or newly creating unallocated space.
l To delete a partition, right-click the partition and click [Delete Volume] in the step C.
20
Turning On / Turning Off
Turning On
Slide and hold the power switch
(è page 14) until the power indicator
(è page 14) lights.
NOTE
l
l
l
l
Do not slide the power switch repeatedly.
The computer will forcibly be turned off if you slide and hold the power switch for four seconds or longer.
Once you turn off the computer, wait for ten seconds or more before you turn on the computer again.
Do not perform the following operation until the drive indicator
turns off.
Ÿ Connecting or disconnecting the AC adaptor
Ÿ Sliding the power switch
Ÿ Touching the keyboard, touch pad, tablet buttons, screen or external mouse
Ÿ Closing the display
Ÿ Turn on/off the wireless switch
A Shut down the computer.
1. Display “Charm”, and click .
2. Click [Power] - [Shut down].
Click
(Start) - [Shutdown].
B When the computer is in the laptop mode, close the display after the power indicator goes off completely.
NOTE
l
To turn off the computer completely, proceed as follows.
- [Change PC settings] - [Update and recovery] - [Recovery].
A Display “Charm”, and click
B Click [Restart now] under “Advanced startup”.
C Click [Turn off your PC].
Getting Started
Turning Off
Precaution against Starting Up/Shutting Down
l Do not do the following
Ÿ Connecting or disconnecting the AC adaptor
Ÿ Sliding the power switch
Ÿ Touching the keyboard, touch pad, screen or external mouse
Ÿ Closing the display
Ÿ Turn on/off the wireless switch
NOTE
l To conserve power, the following power saving methods are set at the time of purchase.
Ÿ The screen automatically turns off after :
10 minutes (when AC adaptor is connected) of inactivity
5 minutes (when operating on battery power) of inactivity
*1
Ÿ The computer automatically enters sleep after :
20 minutes (when AC adaptor is connected) of inactivity
15 minutes (when operating on battery power) of inactivity
*1
Refer to
Reference Manual “Sleep or Hibernation Functions” about resuming from sleep.
21
Handling and Maintenance
Operation environment
l Place the computer on a flat stable surface not subject to shock, vibration, and danger of dropping. Do not place the
computer upright or turn it over. If the computer is exposed to an extremely strong impact, it may become damaged.
l Operating environment
Temperature: Operation :<Model without HDD heater> 0 °C to 50 °C {32 °F to 122 °F} (IEC60068-2-1, 2)*1
<Model with HDD heater> -10 °C to 50 °C {14 °F to 122 °F} (IEC60068-2-1, 2)*1
Storage : -20 °C to 60 °C {-4 °F to 140 °F}
Humidity:
Operation : 30% to 80% RH (No condensation)
Storage : 30% to 90% RH (No condensation)
Even within the above temperature/humidity ranges, operation for a long time in extreme environments, smoking
nearby, or operation in places where oil is used or where there is a lot of dust will result in the product deterioration
and will shorten the product life.
*1
Do not expose the skin to this product when using the product in a hot or cold environment. (è page 4)
If the computer is wet in temperatures of 0 °C {32 °F} or below, freeze damage may occur. Make sure to dry off the
computer in such temperatures.
l Do not place the computer in the following areas, otherwise the computer may be damaged.
Ÿ Near electronic equipment. Image distortion or noise may occur.
Ÿ In extremely high or low temperature.
l As the computer can become hot during operation, keep it away from items that are sensitive to heat.
Useful Information
Handling cautions
This computer is designed to minimize shock to parts such as the LCD and the hard disk drive and equipped with a
drip-proof keyboard, but no warranty is provided against any trouble caused by shock. Be extremely careful when handling the computer.
l When carrying the computer:
Ÿ Turn off the computer.
Ÿ Remove all external devices, cables, Smart Cards and other protruding objects.
Ÿ Do not drop or hit the computer against solid objects.
Ÿ Do not leave the display open.
Ÿ Do not grip the display part.
l Do not put anything (e.g., a piece of paper) between the display and keyboard.
l When you board an airplane, take the computer with you and never put it in your checked luggage. When using the
computer on airplane, follow the airline’s instructions.
l When carrying a spare battery, put it in a plastic bag to protect its terminals.
l The touch pad is designed to be used by a finger tip. Do not place any object on its surface and do not press down
strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).
l Avoid any harmful substances such as oil from getting into the touch pad. The pointer may not work correctly.
l Be careful not to get injured by dropping or getting hit when carrying the computer.
l Use only the pen (included) to touch the screen. Do not place any object on its surface and do not press down
strongly with sharp-pointed or hard objects that may leave marks (e.g., nails, pencils and ball point pens).
l Do not use the screen when dust or dirt (e.g., oil) is on the screen. Otherwise foreign particles on the screen/pen
(included) can scratch the screen surface or obstruct the pen (included) operation.
l Use the pen (included) only for touching the screen. Using it for any other purpose may damage the pen (included)
and result in scratches on the screen.
<Only for model with digitizer>
l The digitizer uses electromagnetic induction and may not work properly near strong electrical field or magnetic field
such as:
Ÿ Near AM radio base station or relay station antennas
Ÿ Near CRT displays that generate strong electromagnetic field noise
Move the digitizer away from such locations so it will work properly.
l The pointer cannot follow the pen (included) movement if you move the pen (included) too quickly.
n When the battery indicator does not light on
The battery indicator may not light on even if the AC adaptor and the battery pack are correctly connected to the computer, due to the following reasons.
l The AC adaptor’s protection function may be working. In this case, pull out the AC cord and wait for more than
1 minute before reconnecting the AC cord.
l When the battery is fully charged and the computer is not operating (i.e., it is turned off or in sleep mode), the power supply from the AC adaptor stops and power consumption is inhibited (except when the Wake Up from LAN or
the Power On by LAN function is enabled). In this case, the indicator will light green upon connecting the AC adaptor, but only for a moment.
22
n When using peripheral devices
Follow these instructions and the Reference Manual to avoid any damage to the devices. Carefully read the instruction
manuals of the peripheral devices.
l Use the peripheral devices conforming to the computer’s specifications.
l Connect to the connectors in the correct direction.
l If it is hard to insert, do not try forcibly but check the connector’s shape, direction, alignment of pins, etc.
l If screws are included, fasten them securely.
l Remove the cables when you carry the computer. Do not pull the cables forcibly.
n Preventing your computer from unauthorized use via wireless LAN/Bluetooth/Wireless WAN
<Only for model with wireless LAN/Bluetooth/Wireless WAN>
l Before using wireless LAN/Bluetooth/Wireless WAN, make the appropriate security settings such as data encryption.
n Sensors
This computer is equipped with four sensors (acceleration sensor, gyro sensor, magnetic sensor, ambient light sensor),
and you can use these sensors with any software that is compatible.
As the accuracy of each sensor output is dependent on the operating environment and other conditions, the results
should only be used as a reference.
The acceleration sensor, gyro sensor, and magnetic sensor are located at the bottom left of the LCD. The detection
results of each sensor may vary depending on the display mode, how you are holding the computer, the application
software you are using, and other factors.
l Automatic brightness adjustment
The computer is equipped with an automatic brightness adjustment function that adjusts the display screen based
on the ambient light sensor. You can configure the automatic adjustment function as follows.
- [Change PC Settings] - [PC and devices] - [Power and sleep], then set [Adjust
ADisplay “Charm”, and click
my screen brightness automatically] to [On].
(Start) - [Control Panel] - [Hardware and Sound] - [Power Option].
AClick
BClick [Change plan settings] for the power plan currently used.
CClick [Change advanced power settings] and double-click [Display].
DDouble-click [Enable adaptive brightness], make necessary settings, and click [OK].
Set each item to ON, and the brightness of the screen display will adjust automatically.
The ambient light sensor is located at the top of LCD.
The ambient light cannot be detected properly if this area is obstructed or dirty.
Useful Information
n Battery Recalibration
l The battery recalibration may take a long time due to the large battery capacity. This is not a malfunction.
<When performing “Battery Recalibration” after shutting down Windows>
Ÿ Full charge: Approximately 2.5 hours (with CF-VZSU80U) / Approximately 2.0 hours (with CF-VZSU82U) /
Approximately 3.5 hours (with CF-VZSU83U)
Ÿ Complete discharge: Approximately 4.5 hours (with CF-VZSU80U) / Approximately 2.5 hours (with CF-VZSU82U) /
Approximately 6.0 hours (with CF-VZSU83U)
When performing “Battery Recalibration” without shutting down Windows, it may take more time to charge / discharge.
l Magnetic sensor
The magnetic sensor on the computer operates by detecting geomagnetism. Therefore, the magnetic sensor may
not function properly and it readings may be inaccurate, especially in the following environments.
Ÿ Inside or near steel structures such as buildings or bridges
Ÿ Inside or near automobiles, or near train power lines
Ÿ Near metallic furniture or appliances
Ÿ When the AC adaptor or other peripheral devices are brought closer to the computer
Ÿ Near magnets, speakers, or other objects with strong magnetic fields
The magnetic directions indicated by the magnetic sensor may not be accurate immediately after purchase or in
environments with poor magnetic fields.
23
Handling and Maintenance
In such cases, turn on the computer and move it as follows.
A Hold the computer so that its keyboard side is facing the ground and level.
B While keeping the computer level, rotate it 90 degrees or more clockwise.
C Return the computer to position A, and rotate it 90 degrees or more counterclockwise.
D Return the computer to position A.
E Tilt the computer 90 degrees or more to the left so that the left side of the computer tilts down.
FReturn the computer to position A, and tilt it 90 degrees or more to the right so that the right side of the computer tilts down.
● Hold the computer firmly when moving it. Strong shocks from dropping the computer may result in damage.
CAUTION
Maintenance
If drops of water or other stains get on the surface of the LCD panel, wipe them off immediately. Failure to do so may
result in staining.
To clean the LCD panel
Use the soft cloth included with the computer. (For further information, refer to “Suggestions About Cleaning the LCD
Reference Manual “Screen Input Operation”.)
Surface” è
To clean areas other than the LCD panel
Wipe with a soft dry cloth such as gauze. When using detergent, dip a soft cloth in water-diluted detergent and wring it
thoroughly.
Useful Information
CAUTION
l Do not use benzene, thinner, or rubbing alcohol since it may adversely affect the surface causing discoloration, etc.
Do not use commercially-available household cleaners and cosmetics, as they may contain components harmful to
the surface.
l Do not apply water or detergent directly to the computer, since liquid may enter inside of the computer and cause
malfunction or damage.
Dispose of Computer
n Preparation
l Remove all peripherals (SD memory card etc.).
Reference Manual “Hard Disk Data Erase Utility”)
l Erase the stored data. (è
CAUTION
l Never disassemble the computer except before disposal.
l Refer to page 3 for precautions when disposing of the computer.
1. Turn off the computer, and disconnect the AC adaptor.
2. Turn over the computer, remove the battery pack, and wait for about 3 minutes.
3.
Remove the RAM module cover and the module on the side.
A Remove the screw (1), and then remove the cover.
<For model with Smart Card slot>
B Remove the label, and then remove the screw (1).
C Pull out the connector in the direction of the arrow.
D Remove the screws (2), and remove the board if one is installed.
①
②
③
④
24
4.Remove the screws (10), and then remove the hand strap and covers
(2).
5. Remove the rear screws and cover.
ARemove the screws (16).
BFor models equipped with an NFC sensor, rear camera, or half size smart card slot, remove the screw (1)
as shown in B in the diagram.
CRemove the screws on the side (2), and remove the
cover.
DSlide the metal part as shown in the diagram, and remove the screw (1)..
The shape of the metal part differs depending on the
model. For some models, no metal part comes with the
computer.
④
③
②
①
Useful Information
6. Turn over the computer, and open the display. Rotate the display as
shown, and remove the screws (5).
7.ARotate the display to its original position, and then open the
display so that it is flat.
BRemove the black covers (4) on the four corners of the computer.
C Remove the front cover (1).
D Remove the top case (i.e., the section with the keyboard).
①
④
②
②
②
③
②
25
Handling and Maintenance
8. <For model with ExpressCard Slot>
A Remove the cushion, and pull out the connector in the direction of
the arrow.
B Remove the screws (2), and remove the cover.
①
②
C Pull back the sheet.
D Pull back the black tape.
E Remove the screws (3).
F Remove the ExpressCard Slot.
⑤
Useful Information
9. Remove the screw (1), and remove the resin portion.
10.Remove the connectors on the built-in bridge battery.
Insulate the connectors on the built-in bridge battery by covering them with
plastic tape, for example.
26
③
⑥
④
Installing Software
Installing software will return the computer to the default condition. When you install the software, the hard disk data
will be erased.
Back up important data to other media or an external hard disk before installation.
CAUTION
l
Do not delete the Recovery Partition on the hard disk. The disk space in the partition is not available to store data.
To check the Recovery Partition, perform the following methods.
A
1. Click
on the Start screen, and then right-click [This PC] under “Windows System”.
2. Click [Manage] on app bar.
Click
(Start) and right-click [Computer], then click [Manage].
l A standard user needs to enter an administrator password.
B Click [Disk Management].
1
Perform “Remove everything and reinstall Windows”.
2
Perform the “First-time Operation” ( page 19).
- [Change PC settings] - [Update and recovery] - [Recovery].
A Display “Charm”, and click
B Click [Get Started] under “Remove everything and reinstall Windows”.
C Click [Next].
D Select the option.
 Just remove my files
Perform the reinstallation of the Windows in a few moments (Approximately 20 minutes).
 Fully clean the drive
By fully cleaning, the deleted files can not be recovered easily and the security level will be increased. The
processing time will be longer (Approximately 140 minutes).
Follow the on-screen instructions.
After the reinstallation, the computer will restart.
l Do not interrupt installation, for example by turning off the computer or performing other operation.
Otherwise installation may become unavailable as Windows may not start up or the data may be corrupted.
Useful Information
n Remove everything and reinstall Windows
You can reinstall the OS that was pre-installed at the time of purchase (Windows 8.1 or Windows 7).
Preparation
l Change to the laptop mode.
l Remove all peripherals.
l Connect the AC adaptor and do not remove it until installation is complete.
NOTE
lThe date and time, and the time zone may not be correct. Be sure to set them correctly.
3
4
Perform Windows Update.
<Only for model with TPM> Clear TPM.
on the Start screen.
A Click
B Click [Run] under “Windows System”, input [tpm.msc] and click [OK].
C Click [Clear TPM…] under “Actions” on the right of the “TPM Manager on Local Computer” screen.
D Click [Restart] of the “Manage the TPM security hardware” screen.
The computer will restart.
E When “TPM configuration change was requested to ...” is displayed, press F12.
F Click the Desktop tile, and when “TPM is ready” appears, click [Close].
27
Installing Software
n Hard disk (Flash memory) recovery
Preparation
l Change to the laptop mode.
l Remove all peripherals.
l Connect the AC adaptor and do not remove it until installation is complete.
If reinstallation using the method described in “Remove everything and reinstall Windows” above is not
successful, follow the steps below.
1
Start the Setup Utility.
- [Change PC settings] - [Update and recovery] - [Recovery].
A Display “Charm”, and click
B Click [Restart now] under “Advanced startup”.
C Click [Troubleshoot] - [Advanced options] - [UEFI Firmware Settings] - [Restart].
2
3
4
Useful Information
5
6
7
8
9
Turn on the computer, and press F2 or Del while [Panasonic] boot screen is displayed.
l If the [Panasonic] boot screen is not displayed, turn on the computer while holding down F2 or Del.
l If the password is requested, enter the Supervisor Password.
Write down all of the contents of the Setup Utility and press F9.
At the confirmation message, select [Yes] and press Enter.
Check the [UEFI Boot] setting of the Setup Utility.
[UEFI Boot] should be set to as follows.
When installing Windows 8.1: [Enabled]
When installing Windows 7 : [Disabled]
Press F10.
At the confirmation message, select [Yes] and press Enter.
Computer will restart.
Press F2 or Del while [Panasonic] boot screen is displayed.
The Setup Utility starts up.
l If the password is requested, enter the Supervisor Password.
Select the [Exit] menu, then select [Recovery Partition] and press Enter .
Click [Next] and click [YES].
Click [Reinstall Windows] and click [Next].
At the License Agreement screen, click [Yes, I agree to the provisions above and wish
to continue!] and click [Next].
Click [Next].
If the option is displayed, select the setting and click [Next].
l [Reinstall Windows to the System Disk to factory default.]
Select this option when you want to install Windows to the factory default. After installation, you can create a
new partition. For how to create a new partition, refer to “To change the partition structure” ( page 20).
l [Reinstall to the OS related partitions.]*1
Select this option when the hard disk has already been divided into several partitions and you want to keep
the partition structure. For how to create a new partition, refer to “To change the partition structure” ( page 20).
*1
This does not appear if Windows cannot be installed to the recovery partition and the area usable by Windows.
10
At the confirmation message, click [YES].
11
Select OS (32bit or 64bit) and click [OK].
12 At the confirmation message, click [YES].
Installation starts according to the instructions on the screen. (It will take approximately 20 minutes.)
l Do not interrupt installation, for example by turning off the computer or performing other operation.
Otherwise installation may become unavailable as Windows may not start up or the data may be corrupted.
13 When Ending process screen is displayed, click [OK] to turn off the computer.
14 Turn on the computer.
l If the password is requested, enter the Supervisor Password.
15 Perform the “First-time Operation” ( page 19).
NOTE
l
The date and time, and the time zone may not be correct. Be sure to set them correctly.
16 Start the Setup Utility and change the settings as necessary.
17 Perform Windows Update.
<Only for model with TPM> Clear TPM ( page 27).
18
28
n Using Recovery Disc
Use the Recovery Disc in the following conditions.
Ÿ You have forgotten the administrator password.
Ÿ Installation is not complete. The recovery partition in the hard disk may be broken.
<Only for Windows 7 downgrade model>
Ÿ
To change OS from Windows 7 to Windows 8.1, or vice versa.
NOTE
l
disk.
To change OS from 32 bit to 64 bit, or vice versa, install OS using the recovery partition in the hard
Preparation
l Change to the laptop mode.
l Prepare the following items:
Reference Manual “Recovery Disc Creation Utility”)
• Recovery Disc (
• USB DVD drive (optional) (refer to recent catalogs and other sources for information about the products
available)
l Remove all peripherals (except for the USB DVD drive).
l Connect the AC adaptor and do not remove it until installation is complete.
1
2
Connect the DVD drive to the USB port.
Start the Setup Utility.
- [Change PC settings] - [Update and recovery] - [Recovery].
A Display “Charm”, and click
B Click [Restart now] under “Advanced startup”.
C Click [Troubleshoot] - [Advanced options] - [UEFI Firmware Settings] - [Restart].
3
Write down all of the contents of the Setup Utility and press F9.
4
Check the [UEFI Boot] setting of the Setup Utility.
5
6
Set the Recovery Disc into the DVD drive.
Press F10.
7
Press F2 or Del while [Panasonic] boot screen is displayed.
8
Select the [Exit] menu, then select your DVD drive in [Boot Override] and press Enter .
At the confirmation message, select [Yes] and press Enter.
[UEFI Boot] should be set to as follows.
When the recovery disc for Windows 8.1 is used: [Enabled]
When the recovery disc for Windows 7 is used: [Disabled]
Useful Information
Turn on the computer, and press F2 or Del while [Panasonic] boot screen is displayed.
l If the [Panasonic] boot screen is not displayed, turn on the computer while holding down F2 or Del.
l If the password is requested, enter the Supervisor Password.
At the confirmation message, select [Yes] and press Enter.
Computer will restart.
The Setup Utility starts up.
l If the password is requested, enter the Supervisor Password.
The computer will restart.
9
Click [Reinstall Windows] and click [Next].
At the confirmation message, click [YES].
10
11 At the License Agreement screen, click [Yes, I agree to the provisions above and wish
to continue!] and click [Next].
29
Installing Software
12 Click [Next].
If the option is displayed, select the setting and click [Next].
l [Reinstall Windows to the System Disk to factory default.]
Select this option when you want to install Windows to the factory default. After installation, you can create a
new partition. For how to create a new partition, refer to “To change the partition structure” ( page 20).
l [Reinstall to the OS related partitions.]*2
Select this option when the hard disk has already been divided into several partitions and you want to keep
the partition structure. For how to create a new partition, refer to “To change the partition structure” ( page 20).
*2
This does not appear if Windows cannot be installed to the recovery partition and the area usable by Windows.
13 At the confirmation message, click [YES].
Installation starts according to the instructions on the screen. (It will take approximately 30 - 45 minutes.)
l Do not interrupt installation, for example by turning off the computer or pressing Ctrl + Alt + Del.
Otherwise installation may become unavailable as Windows may not start up or the data may be corrupted.
14 When Ending process screen is displayed, remove the Recovery Disc and DVD Drive
and then click [OK].
Follow the on-screen instructions.
Some models may take approximately 40 minutes.
15 Perform the “First-time Operation” ( page 19).
16 Start the Setup Utility and change the settings as necessary.
17 Perform Windows Update.
Useful Information
18
30
<Only for model with TPM> Clear TPM ( page 27).
Troubleshooting (Basic)
Follow the instructions below when a problem has occurred. There is also an advanced troubleshooting guide in the
“Reference Manual”. For a software problem, refer to the software’s instruction manual. If the problem persists, contact
Panasonic Technical Support (è page 42). You can also check the computer’s status in the PC Information Viewer
(è
Reference Manual “Troubleshooting (Advanced)”).
n Starting Up
Cannot start up.
The power indicator or battery indicator is not lit.
l Connect the AC adaptor.
l Insert a fully charged battery.
l Remove the battery pack and the AC adaptor, then connect them again.
The power is turned on but
“Warming up the system”
appears.
l The computer is warming up before start up. Wait for the computer to start up (the maximum waiting time will be displayed on the screen). If, “Cannot warm up the system” is
displayed, the computer failed to warm up and does not start. In this case, turn off the
computer, leave it in an environment of 5 °C {41 °F} or higher temperature for about an
hour, and then turn on the power again.
l If a device is connected to the USB port, disconnect the device, or set [USB Port] or
[Legacy USB Support] to [Disabled] in the [Advanced] menu of the Setup Utility.
l If a device is connected to the ExpressCard slot, disconnect the device, or set
[ExpressCard Slot] to [Disabled] in the [Advanced] menu of the Setup Utility.
Reference Manual “Key Coml Press Fn + F8 to turn off the concealed mode (è
bination”).
l Check the [UEFI Boot] setting of the Setup Utility. [UEFI Boot] should be set to
[Enabled] /
[Disabled].
Cannot turn on the computer. l Leave it in an environment of 5 °C {41 °F} or higher temperature for about an hour, then
turn on the power again.
The computer does not resume from sleep.
(The power indicator blinks
<Model without HDD heater> rapidly in green / <Model
with HDD heater> alternately
in green and orange.)
You have forgotten the pass- l Supervisor Password or User Password: Contact Panasonic Technical Support
(è page 42).
word.
l A floppy disk is in the drive and it does not contain system startup information. Remove
“Remove disks or other
the floppy disk and press any key.
media. Press any key to
restart” or a similar message l If a device is connected to the USB port, disconnect the device, or set [USB Port] or
[Legacy USB Support] to [Disabled] in the [Advanced] menu of the Setup Utility.
appears.
l If a device is connected to the ExpressCard slot, disconnect the device, or set
[ExpressCard Slot] to [Disabled] in the [Advanced] menu of the Setup Utility.
l If the problem persists after removing the disk, it may be a hard disk failure. Contact
Panasonic Technical Support (è page 42).
Windows startup and opera- l Press F9 in the Setup Utility (è
Reference Manual “Setup Utility”) to return the
Setup Utility settings (excluding the passwords) to the default values. Start the Setup
tion is slow.
Troubleshooting
l Administrator password:
Ÿ If you have a password reset disk, you can reset the administrator password. Set the
disk and enter any wrong password, then follow the on-screen instructions and set a
new password.
Ÿ If you do not have a password reset disk, reinstall (è page 27) and set up Windows,
and then set a new password.
Utility and make the settings again. (Note that the processing speed depends on the application software, so this procedure may not make Windows faster.)
l If you installed a resident software after purchase, turn off the residence.
31
Troubleshooting (Basic)
n Starting Up
The date and time are incor- l Make the correct settings.
A Open the Control Panel.
rect.
on the Start screen and click [Control Panel] under “Windows System”.
Click
(Start) - [Control Panel].
Click
B Click [Clock, Language, and Region] - [Date and Time].
l If the problem persists, the internal clock battery may need to be replaced. Contact
Panasonic Technical Support (è page 42).
l When the computer is connected to LAN, check the date and time of the server.
l The 2100 A.D. or later year will not be correctly recognized on this computer.
[Executing Battery Recalibration] screen appears.
l The Battery Recalibration was canceled before Windows was shut down last time. To
start up Windows, turn off the computer by the power switch, and then turn on.
l Select [Enabled] in [Password On Resume] in the [Security] menu of the Setup Utility
[Enter Password] does not
appear when resuming from
Reference Manual “Setup Utility”).
(è 
l The Windows password can be used instead of the password set in the Setup Utility.
sleep/hibernation.
A Add a password.
- [Change PC settings] - [Accounts].
1. Display “Charm” and click
2. Click [Sign-in options], and click [Add] under “Password”.
(Start) - [Control Panel].
1. Click
2. Click [User Accounts and Family Safety] - [Add or remove user accounts].
B Set up the following.
1. Open the Control Panel, click [System and Security] - [Power Options] - [Require
a password on wakeup].
2. Add a check mark for [Require a password].
1. Click [Control Panel] - [System and Security] - [Power Option] - [Require a password when the computer wakes] and add a check mark for [Require a password].
Troubleshooting
Cannot resume.
32
l One of the following operations may have been carried out. Slide the power switch to
turn on the computer. Data not saved will be lost.
Ÿ In sleep mode, the AC adaptor or battery pack was disconnected, or a peripheral was
connected or disconnected.
Ÿ The power switch was slid for four seconds or longer to forcibly turn off the computer.
l An error may occur when the computer automatically enters the sleep or hibernation
mode while the screensaver is active. In this case, turn off the screensaver or change
the pattern of the screensaver.
n Starting Up
Other startup problems.
Reference Manual “Setup Utility”) to return the
l Press F9 in the Setup Utility (è
Setup Utility settings (excluding the passwords) to the default values. Start the Setup
Utility and make the settings again.
l Remove all peripheral devices.
l Check to see if there was a disk error.
A Remove all peripheral devices including an external display.
B
on the Start screen, and then right-click [This PC] under “Windows System”.
1. Click
(Start) - [Computer].
1. Click
C
Right-click [Windows (C:)], and click [Properties].
Right-click [Local Disk (C:)], and click [Properties].
D
Click [Tools] - [Check].
Click [Tools] - [Check Now...].
Ÿ A standard user needs to enter an administrator password.
E Follow the on-screen instructions.
l
Start the computer in Safe Mode and check the error details. When the [Panasonic] boot
screen disappears*1 at startup, press and hold F8 until the Windows Advanced Options
Menu is displayed. Select the Safe Mode and press Enter .
*1
When [Password on boot] is set to [Enabled] in the [Security] menu of the Setup Utility,
[Enter Password] appears after the [Panasonic] boot screen disappears. As soon as you
enter the password and press Enter , press and hold F8.
n Entering Password
Even after entering the pass- l The computer may be in ten-key mode.
If the NumLk indicator
lights, press NumLk to disable the ten-key mode, and then
word, password input screen
input.
is displayed again.
Cannot log on to Windows.
(“The user name or password is incorrect.” is displayed.)
l The user name (account name) includes an “@” mark.
- If another user account name exists:.
Log on to Windows using another user account name, and delete the account name
that includes “@”. Then create a new account name.
- If no other account name exists:.
You need to reinstall Windows (è page 27).
n Shutting down
Windows does not shut
down.
l Remove the USB device and the ExpressCard.
l Wait one or two minutes. It is not a malfunction.
n Display
No display.
Troubleshooting
l The computer may be in Caps Lock mode.
If the Caps Lock indicator
lights, press Caps Lock to disable the Caps Lock
mode, and then input.
key + P to switch the display.
l The external display is selected. Press Fn + F3 or
Wait until the display has been switched completely before pressing Fn + F3 or
key
+ P again.
Then click the display mode.
l When using an external display,
Ÿ Check the cable connection.
Ÿ Turn on the display.
Ÿ Check the settings of external display.
l The display is turned off by the power-saving function. The screen returns to the original
state when you operate the touch pad, keyboard, or the screen. When operating the
keyboard, press a key that does not affect the computer operation, such as Ctrl .
l The computer entered sleep or hibernation by the power-saving function. To resume,
slide the power switch.
33
Troubleshooting (Basic)
n Display
The screen is dark.
l The screen is darker when the AC adaptor is not connected. Press Fn + F2 and adjust
the brightness. As you increase the brightness, battery consumption increases.
You can separately set the brightness for when the AC adaptor is connected and when
not connected.
Reference Manual “Key Coml Press Fn + F8 to turn off the concealed mode (è
bination”).
The screen is disordered.
l Changing the number of display colors and resolution may affect the screen. Restart the
computer.
l Connecting/disconnecting an external display may affect the screen. Restart the computer. Under factory default settings, the brightness of the display screen will adjust
automatically based on the ambient light detected by the ambient light sensor. You can
adjust the settings for this sensor (è page 23).
During Simultaneous display, l When using the Extended Desktop, use the same display colors for the external display
as those used by the LCD. If you continue to experience problems, try changing the
one of the screens becomes
display.
disordered.
Right-click on the desktop, and click [Graphics Properties...] - [Display].
l Simultaneous display cannot be used until Windows startup is complete (during Setup
Utility, etc.).
The external display does
not work normally.
l If the external display does not support the power saving function, it may not work normally when the computer enters the power saving mode. Turn off the external display.
Cannot rotate the display.
l The application program currently running may not support the image rotation. Quit the
program, and then try to rotate the image. This can ameliorate the status.
l Under the factory default settings, the image display will not rotate automatically in Laptop Mode. Even if in the Tablet Mode, when the automatic rotation is off, screen display
does not rotate automatically.
n Touch Pad / Screen
l When using the external mouse, connect it correctly.
l Restart the computer using the keyboard.
l If the computer does not respond to keyboard commands, read “No response”
(è page 35).
Cannot point the correct
position using the pen (included).
Reference Manual “Screen Input Operation” ).
l Perform the screen calibration (è
l Use the included pen.
l On the Windows logon screen or the Welcome screen, you may not be able to point the
correct position using the pen (included). Use the keyboard or the touch pad to log on.
l You may not be able to point the correct position using your finger after resuming from
sleep or hibernation while the display is rotated.
If this is the case, proceed as follows.
A
on the Start screen, and then click [Run] under “Windows System”.
1. Click
2. input [c:\util\resset\resset.exe] and click [OK].
Click (Start) and input “c:\util\resset\resset.exe” in [Search programs and files],
then press Enter .
B Click [Yes] on the [User Account Control] screen.
C Select [Disabled] and click [OK].
D Click [Yes] when you are prompted to restart the computer.
Troubleshooting
The pointer does not work.
n On-screen Document
The document of PDF format is not displayed.
34
l Install Adobe Reader.
A Log on to Windows as an administrator.
(Start) and input “c:\util\reader\Pinstall.bat” in [Search Programs and files]
B Click
then press Enter .
C Update Adobe Reader to its latest version.
If your computer is connected to the internet, start up Adobe Reader and click [Help]
- [Check for Updates...].
n Others
No response.
l Press Ctrl + Shift +Esc to open Task Manager and close the software application
that is not responding.
l An input screen (e.g., password input screen at startup) may be hidden behind another
window. Press Alt + Tab to check.
l Slide the power switch for four seconds or longer to shut down the computer, and then
slide the power switch to turn it on. If the application program does not work normally,
uninstall and reinstall the program. To uninstall,
A Open the Control Panel.
on the Start screen and click [Control Panel] under “Windows System”.
Click
(Start) - [Control Panel].
Click
B Click [Program] - [Uninstall a program].
The battery status indicator l When the battery is fully charged and the computer is not operating (i.e., it is turned off
or in sleep mode), the power supply from the AC adaptor stops and power consumption
lights green and then turns
is inhibited. In such cases, the indicator will light green upon connecting the AC adaptor,
off immediately.
but only for a moment.
l Perform recovery using the recovery disc for Windows 7 first, and then perform recovery
The recovery disc for
using the recovery disc for Windows 8.1.
Windows 8.1 in not functioning.
l Slide the wireless switch to turn on the wireless devices.
l Set the device ([Wireless LAN] / [Bluetooth] / [Wireless WAN] of [Wireless Configuration]) to [Enabled] in the [Advanced] menu of the Setup Utility (Wireless Configuration).
- [Change PC Settings] - [Network]. Set [Airplane mode] to
l Display “Charm”, and click
[Off], and then; .
set [Wi-Fi] to [On] (for wireless LAN)..
set [Mobile broadband] to [On] (for wireless WAN)..
set [GPS] to [On] (for wireless WAN).
set [Bluetooth] to [On] (for Bluetooth).
Troubleshooting
Cannot connect to a network.
35
LIMITED USE LICENSE AGREEMENT
THE SOFTWARE PROGRAM(S) (“PROGRAMS”) FURNISHED WITH THIS PANASONIC PRODUCT (“PRODUCT”)
ARE LICENSED ONLY TO THE END-USER (“YOU”), AND MAY BE USED BY YOU ONLY IN ACCORDANCE WITH
THE LICENSE TERMS DESCRIBED BELOW. YOUR USE OF THE PROGRAMS SHALL BE CONCLUSIVELY
DEEMED TO CONSTITUTE YOUR ACCEPTANCE OF THE TERMS OF THIS LICENSE.
Panasonic Corporation has developed or otherwise obtained the Programs and hereby licenses their use to you. You
assume sole responsibility for the selection of the Product (including the associated Programs) to achieve your intended results, and for the installation, use and results obtained therefrom.
LICENSE
A. Panasonic Corporation hereby grants you a personal, non-transferable and non-exclusive right and license to use
the Programs in accordance with the terms and conditions stated in this Agreement. You acknowledge that you are
receiving only a LIMITED LICENSE TO USE the Programs and related documentation and that you shall obtain
no title, ownership nor any other rights in or to the Programs and related documentation nor in or to the algorithms,
concepts, designs and ideas represented by or incorporated in the Programs and related documentation, all of
which title, ownership and rights shall remain with Panasonic Corporation or its suppliers.
B. You may use the Programs only on the single Product which was accompanied by the Programs.
C. You and your employees and agents are required to protect the confidentiality of the Programs. You may not distribute or otherwise make the Programs or related documentation available to any third party, by time-sharing or otherwise, without the prior written consent of Panasonic Corporation.
D. You may not copy or reproduce, or permit to be copied or reproduced, the Programs or related documentation for
any purpose, except that you may make one (1) copy of the Programs for backup purposes only in support of your
use of the Programs on the single Product which was accompanied by the Programs. You shall not modify, or attempt to modify, the Programs.
E. You may transfer the Programs and license them to another party only in connection with your transfer of the single
Product which was accompanied by the Programs to such other party. At the time of such a transfer, you must also
transfer all copies, whether in printed or machine readable form, of every Program, and the related documentation,
to the same party or destroy any such copies not so transferred.
F. You may not remove any copyright, trademark or other notice or product identification from the Programs and you
must reproduce and include any such notice or product identification on any copy of any Program.
YOU MAY NOT REVERSE ASSEMBLE, REVERSE COMPILE, OR MECHANICALLY OR ELECTRONICALLY TRACE
THE PROGRAMS, OR ANY COPY THEREOF, IN WHOLE OR IN PART.
YOU MAY NOT USE, COPY, MODIFY, ALTER, OR TRANSFER THE PROGRAMS OR ANY COPY THEREOF, IN
WHOLE OR IN PART, EXCEPT AS EXPRESSLY PROVIDED IN THE LICENSE.
Appendix
IF YOU TRANSFER POSSESSION OF ANY COPY OF ANY PROGRAM TO ANOTHER PARTY, EXCEPT AS PERMITTED IN PARAGRAPH E ABOVE, YOUR LICENSE IS AUTOMATICALLY TERMINATED.
TERM
This license is effective only for so long as you own or lease the Product, unless earlier terminated. You may terminate this license at any time by destroying, at your expense, the Programs and related documentation together with
all copies thereof in any form. This license will also terminate effective immediately upon occurrence of the conditions
thereof set forth elsewhere in this Agreement, or if you fail to comply with any term or condition contained herein. Upon
any such termination, you agree to destroy, at your expense, the Programs and related documentation together with all
copies thereof in any form.
YOU ACKNOWLEDGE THAT YOU HAVE READ THIS AGREEMENT, UNDERSTAND IT AND AGREE TO BE BOUND
BY ITS TERMS AND CONDITIONS. YOU FURTHER AGREE THAT IT IS THE COMPLETE AND EXCLUSIVE STATEMENT OF THE AGREEMENT BETWEEN US, WHICH SUPERSEDES ANY PROPOSAL OR PRIOR AGREEMENT,
ORAL OR WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN US, RELATING TO THE SUBJECT MATTER OF THIS AGREEMENT.
GOVERNMENT RESTRICTED RIGHTS.
The Software is provided with “RESTRICTED RIGHTS.” Use duplication or disclosure by the government is subject
to restrictions as set forth in FAR52.227-14 and DFAR252. 227-7013 et seq. or their successors.
Use of the Software by the government constitutes acknowledgement of Intel’s proprietary rights therein.
Contractor or Manufacturer is Intel Corporation, 2200 Mission College Blvd., Santa Clara, CA 95052.
36
Contrat de licence d’usage limité
Le(s) logiciel(s) (les “Logiciels”) fournis avec ce produit Panasonic (le “Produit”) sont exclusivement concédés en
licence à l’utilisateur ultime (“vous”), et ils ne peuvent être utilisés que conformément aux clauses contractuelles cidessous. En utilisant les logiciels, vous vous engagez de manière définitive à respecter les termes, clauses et conditions
des présentes.
Panasonic Corporation a mis au point ou obtenu les Logiciels et vous en concède l’utilisation par les présentes. Vous
assumez l’entière responsabilité du choix de ce Produit (y compris des Logiciels associés) pour obtenir les résultats
escomptés, ainsi que de l’installation, de l’utilisation et des résultats obtenus.
Licence
A. Panasonic Corporation vous octroie par les présentes le droit et la licence personnels, non cessibles et non exclusifs d’utiliser les Logiciels conformément aux termes, clauses et conditions de ce contrat. Vous reconnaissez ne
recevoir qu’un droit limité d’utiliser les Logiciels et la documentation les accompagnant et vous vous engagez à .
n’obtenir aucun droit de titre, propriété ni aucun autre droit vis-à-vis des Logiciels et de la documentation les accompagnant ni vis-à-vis des algorithmes, concepts, dessins, configurations et idées représentés par ou incorporés
dans les Logiciels et la documentation les accompagnant, dont les titres, propriété et droits resteront tous à .
Panasonic Corporation ou à leurs propriétaires.
B. Vous ne pouvez utiliser les Logiciels que sur le Produit unique qui est accompagné par les Logiciels.
C. Vous et vos employés ou agents êtes requis de protéger la confidentialité des Logiciels. Vous ne pouvez ni distribuer ni mettre les Logiciels et la documentation les accompagnant à la disposition d’un tiers, par partage de
temps ou de quelque autre manière que ce soit, sans l’autorisation écrite préalable de Panasonic Corporation.
D. Vous ne pouvez ni copier ni reproduire ni permettre la copie ni la reproduction des Logiciels ni de la documentation les accompagnant pour quelque fin que ce soit, à l’exception d’une (1) copie des Logiciels à des fins de sauvegarde uniquement pour soutenir votre utilisation des Logiciels sur le Produit unique qui est accompagné par les
Logiciels. Vous ne pouvez ni modifier ni tenter de modifier les Logiciels.
E. Vous ne pouvez céder les Logiciels et en octroyer la licence à une autre partie qu’en rapport avec votre cession du
Produit unique qui est accompagné par les Logiciels à cette autre partie. Au moment de cette cession, vous devez
céder également toutes les copies, que ce soit sous forme imprimée ou lisible par la machine, de tous les Logiciels
ainsi que de la documentation les accompagnant, à la même partie ou détruire les copies non cédées.
F. Vous ne pouvez retirer aucune marque de droits d’auteur, marque de commerce ou autre ni aucune identification
de produit des Logiciels et vous devez reproduire et inclure toutes ces notices ou identifications de produit sur
toutes les copies des Logiciels.
Vous ne pouvez assembler en sens inverse, compiler en sens inverse ni retracer les Logiciels ni aucune de leurs copies, de façon électronique ou mécanique, en tout ou en partie.
Vous ne pouvez utiliser, copier, modifier, altérer ni céder les Logiciels ni aucune de leurs copies, en tout ou en partie, à
l’exception de ce qui est expressément stipulé dans ce contrat.
Termes, clauses et conditions
Cette licence n’est effective que pour la durée de possession ou de crédit-bail du Produit, à moins d’une résiliation antérieure. Vous pouvez résilier cette licence à tout moment en détruisant, à vos frais, les Logiciels et la documentation
les accompagnant avec toutes leurs copies, sous quelque forme que ce soit. Cette licence sera également résiliée,
avec application immédiate, si les conditions de résiliation définies ailleurs dans ce contrat se sont réalisées ou si vous
ne respectez pas les termes, clauses et conditions qui y sont contenues. Au moment de la résiliation, vous acceptez
de détruire, à vos frais, les Logiciels et la documentation les accompagnant avec toutes leurs copies, sous quelque
forme que ce soit.
Appendix
Si vous cédez la possession de toute copie ou de tout Logiciel à une autre partie, à l’exception de ce qui est autorisé
au paragraphe E ci-dessus, votre licence est automatiquement résiliée.
Vous reconnaissez avoir lu ce contrat, en avoir compris toute la substance et avoir accepté de respecter ses termes,
clauses et conditions. Vous reconnaissez en outre qu’ils sont la description complète et exclusive du contrat conclu
entre nous, contrat qui remplace et annule toute proposition ou contrat précédent, écrit ou oral, et toute autre communication entre nous, relativement à l’objet du présent contrat.
37
Specifications
This page provides the specifications for the basic model.
The model number is different according to the unit configuration.
l To check the model number:
Check the bottom of the computer or the box the computer came in at the time of purchase.
l To check CPU speed, memory size and the hard disk drive (HDD) size:
Reference Manual “Setup Utility”) and select [Information] menu.
Run the Setup Utility (è
[Processor Speed]: CPU speed, [Memory Size]: Memory size, [Hard Disk]: Hard disk drive size
n Main Specifications
Model No.
CF-C2CCAZXBM
CPU
Intel Core™ i5-4300U Processor (3 MB cache, up to 2.90 GHz) with Intel® Turbo Boost
Technology
Chipset
Built-in CPU
Video controller
Intel® HD Graphics 4400 (Built-in CPU)
Memory*1*2
4 GB (8 GB Max.)
®
Video Memory
CF-C2CQAZXBM
*1
*1*3
UMA 1792 MB Max. (When memory is either 4 GB or 8 GB)
UMA <32-bit> 1554 MB Max. <64-bit> 1696 MB Max. (When memory is either 4 GB or 8 GB)
Hard Disk Drive
*4
500 GB
Approx. 10 GB is used as a partition with HDD recovery tools. (Users cannot use this partition.)
Approx. 1 GB is used as a partition with system tools. (Users cannot use this partition.)
<Only for Windows 7 downgrade model>
Approx. 30 GB is used as a partition with HDD recovery tools. (Users cannot use this partition.)
Approx. 300 MB is used as a partition with system tools. (Users cannot use this partition.)
Display Method
Internal LCD
12.5 HD type (IPS) (1366 × 768 dots)
*5
65,536/16,777,216 colors (1366 × 768 dots)
External Display (HDMI)*6
65,536/16,777,216 colors (1920 × 1200 dots Max.)
Wireless LAN
Intel® Dual Band Wireless-N 7260 (è page 40)
Bluetooth*7
è page 40
Wireless WAN*8
Sierra™ Wireless High-speed module
LAN
IEEE 802.3 10Base-T/IEEE 802.3u 100Base-TX/IEEE 802.3ab 1000Base-T
Modem
*9
Data: 56 kbps (V.92) FAX: 14.4 kbps
Sound
WAVE and MIDI playback, Intel® High Definition Audio subsystem support, Monaural speaker
Security Chip
TPM (TCG V 1.2 compliant)*10
Camera
Front
Rear
Sensor
*11
1280 × 960 dots, 30 fps (Video), Monaural Microphone
1280 × 720 dots, 30 fps (Video) / 2592 x 1944 dots (Still)
Ambient light
sensor
Magnetic sensor
Equipped
Gyro sensor
Appendix
Acceleration
sensor
Card Slot
ExpressCard*12
ExpressCard/34
Smart Card
x 1*13, Half Size Smart Card slot x 1*14
SD Memory
Card*15
x1
RAM Module Slot
DDR3L SDRAM, 204-pin, 1.35 V, SO-DIMM PC3L-12800 Compliant*3
Interface
USB port 2.0 x 1, 3.0 x 2*16, Serial Port (Dsub 9-pin male)*17, Modem port (RJ-11)*9, LAN port
(RJ-45), VGA port (Mini Dsub 15-pin female)*18, HDMI Port (Type A)*19, NFC (Near Field Communication) Sensor*20, Expansion Bus Connector (Dedicated 100-pin female), Microphone
Jack (Miniature jack, 3.5 DIA, Stereo), Headphone Jack (Miniature jack, 3.5 DIA, Impedance
32 W, Output Power 4 mW x 2)
38
05Appendix.indd
38
2013/10/24
11:25:39
n Main Specifications
Model No.
CF-C2CCAZXBM
CF-C2CQAZXBM
Keyboard / Pointing Device
84 keys / Touch Pad / Digitizer + Multi touch
(Capacitive) (Anti-Reflection, Digitizer pen
(included) touch capable)
84 keys / Touch Pad / Multi touch (Capacitive)
(Stylus pen (included) touch capable)
Power Supply
AC adaptor or Battery pack
AC Adaptor
*21
Input: 100 V to 240 V AC, 50 Hz/60 Hz, Output: 16 V DC, 4.06 A
Li-ion 10.8 V, 6800 mAh (typ.), 6400 mAh (min.) (with CF-VZSU80U)
Li-ion 10.8 V, 3400 mAh (typ.), 3200 mAh (min.) (with CF-VZSU82U)
Li-ion 10.8 V, 9300 mAh (typ.), 8700 mAh (min.) (with CF-VZSU83U)
Battery Pack
Operating Time*22
Charging
Time*23
Approx. 14.0 hours (with CF-VZSU80U)
Approx. 7.0 hours (with CF-VZSU82U)
Approx. 19.0 hours (with CF-VZSU83U)
Power on
Approx. 3.0 hours (with CF-VZSU80U)
Approx. 2.5 hours (with CF-VZSU82U)
Approx. 3.5 hours (with CF-VZSU83U)
Power off
Approx. 2.5 hours (with CF-VZSU80U)
Approx. 2.0 hours (with CF-VZSU82U)
Approx. 3.0 hours (with CF-VZSU83U)
Built-in bridge battery
(not replaceable)
Li-Polymer 7.4 V, 500 mAh (typ.), 490 mAh (min.)
Power Consumption*24
Approx. 30 W*25 / Approx. 60 W (maximum when recharging in the ON state)
Physical Dimensions (W × D × H)
(including the hand strap)
299 mm × 217.3 mm × 25 mm (at the front)/42 mm (at the rear) {11.8 " × 8.6 " × 1.0 "/1.7 "}
Weight*26
(including the hand strap)
Approx. 1.81 kg {Approx. 3.99 lb.}
(with CF-VZSU80U)
Approx. 1.68 kg {Approx. 3.70 lb.}
(with CF-VZSU82U)
Approx. 1.94 kg {Approx. 4.28 lb.}
(with CF-VZSU83U)
Approx. 1.85 kg {Approx. 4.01 lb.}
(with CF-VZSU80U)
Approx. 1.72 kg {Approx. 3.79 lb.}
(with CF-VZSU82U)
Approx. 1.98 kg {Approx. 4.37 lb.}
(with CF-VZSU83U)
Operating Temperature <Model without HDD heater> 0 °C to 50 °C {32 °F to 122 °F} (IEC60068-2-1, 2)*27
<Model with HDD heater> -10 °C to 50 °C {14 °F to 122 °F} (IEC60068-2-1, 2)*27
Environment
Humidity
30% to 80% RH (No condensation)
Temperature -20 °C to 60 °C {-4 °F to 140 °F}
Storage
Humidity
30% to 90% RH (No condensation)
n Software
Model No.
CF-C2CCAZXBM
Base OS
CF-C2CQAZXBM
Windows® 8.1 Pro 64-bit
Windows® 7 Professional 32-bit Service Pack 1 / Windows® 7 Professional 64-bit Service Pack 1
Windows® 8.1 Pro 64-bit
<Only for Windows 7 downgrade model>
Windows® 7 Professional 32-bit Service Pack 1 (downgraded to Windows® 7)*29 / Windows® 7
Professional 64-bit Service Pack 1 (downgraded to Windows® 7)*29
Pre-installed Software*28
Adobe Reader, PC Information Viewer, Hotkey Settings, Battery Recalibration Utility, Hand
Writing Utility, Infineon TPM Professional Package *10 *30, Dashboard for Panasonic PC,
Recovery Disc Creation Utility, Power Plan Extension Utility, Camera Utility, Manual Selector,
Intel® PROSet/Wireless Software, Microsoft Office Trial*31, Fast resume setting utility*30, Hold
mode setting utility*30, Wireless Manager 6.0*30 *32
Appendix
Installed OS
*28
Wireless Toolbox, Camera for Panasonic PC
Wireless Switch Utility, Wireless Connection Disable Utility*30, Quick Boot Manager, Software
Keyboard
Aptio Setup Utility, PC-Diagnostic Utility, Hard Disk Data Erase Utility*33
39
CF-C2mk2(DFQW5867ZAT)_OI_US.indb
39
2013/10/08
17:53:37
Specifications
n Wireless LAN
Model No.
CF-C2CCAZXBM
CF-C2CQAZXBM
Data Transfer Rates
IEEE802.11a : 54/48/36/24/18/12/9/6 Mbps (automatically switched)*34
IEEE802.11b : 11/5.5/2/1 Mbps (automatically switched)*34
IEEE802.11g : 54/48/36/24/18/12/9/6 Mbps (automatically switched)*34
IEEE802.11n*35 :(HT20)GI*36 = 400ns: 150/130/115/86/72/65/57/43/28/21/14/7 Mbps (automatically switched)*34
GI*36 = 800ns: 130/117/104/78/65/58/52/39/26/19/13/6 Mbps (automatically switched)*34
*36
(HT40)GI = 400ns: 300/270/240/180/150/135/120/90/60/45/30/15 Mbps
(automatically switched)*34
*36
GI = 800ns: 270/243/216/162/135/121/108/81/54/40/27/13 Mbps
(automatically switched)*34
Standards Supported
IEEE802.11a / IEEE802.11b / IEEE802.11g / IEEE802.11n
Transmission method
OFDM system, DSSS system
Wireless Channels Used
IEEE802.11a : Channels 36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/136/.
140/149/153/157/161/165
IEEE802.11b / IEEE802.11g : Channels 1 to 11
IEEE802.11n : Channels 1-11/36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/132/
136/140/149/153/157/161/165
RF Frequency Band
IEEE802.11a : 5.18 GHz - 5.32 GHz, 5.5 GHz - 5.7 GHz, 5.745 GHz - 5.825 GHz
IEEE802.11b / IEEE802.11g : 2.412 GHz - 2.462 GHz
IEEE802.11n :2.412 GHz - 2.462 GHz, 5.18 GHz - 5.32 GHz, 5.5 GHz - 5.7 GHz, 5.745 GHz 5.825 GHz
*7
n Bluetooth
Model No.
CF-C2CCAZXBM
Bluetooth Version
4.0
CF-C2CQAZXBM
Classic mode / Low Energy mode
Transmission method
FHSS system
Wireless Channels Used
Channels 1 to 79 / Channels 0 to 39
RF Frequency Band
2.402 GHz - 2.480 GHz
1 MB = 1,048,576 bytes/1 GB = 1,073,741,824 bytes
Memory size of the factory default depends on the model.
You can physically expand the memory up to 8 GB, but the total amount of usable memory available will be less depending on
the actual system configuration.
*3
A segment of the main memory is allotted automatically depending on the computer’s operating status. The size of the Video
Memory cannot be set by the user.
*4
1 MB = 1,000,000 bytes / 1 GB = 1,000,000,000 bytes. Your operating system or some application software will report as fewer
GB.
*5
A 16,777,216 color display is achieved by using the dithering function.
*6
Selectable resolution depends on the specifications of the external display. Display may be impossible using some connected
external displays.
*7
Continua Certified, compliant design guideline version 1.5, with Blood Pressure Monitor, Cardiovascular, Weighing Scale, Thermometer, Pulse Oximeter and Glucose Meter device.
Does not guarantee operation of all Bluetooth peripherals.
*8
Only for model with wireless WAN.
The specifications may differ depending on the models.
*9
Only for model with modem.
*10
For information on TPM,
on the Start screen, click the [Manual Selector] tile, and select “Installation Manual for
Double-click [Manual Selector] on the desktop, and select “Installation Manual
Trusted Platform Module (TPM)” /
for Trusted Platform Module (TPM)”.
*11
Only for model with rear camera. Depending on the specification of application software, the following cases may occur. In these
cases, select a smaller resolution.
 Cannot select a large resolution.
 When selecting a large resolution, an error occurs.
*12
Only for model with ExpressCard slot.
*13
Only for model with Smart Card slot.
*14
Only for model with Half Size Smart Card slot.
*15
Operation has been tested and confirmed using Panasonic SD Memory Card with a capacity of up to 2 GB, Panasonic SDHC
Memory Card with a capacity of up to 32 GB, and Panasonic SDXC Memory Card with a capacity of up to 64 GB.
Operation on other SD equipment is not guaranteed.
*16
Does not guarantee operation of all USB-compatible peripherals.
*17
Only for model with serial port.
*18
Only for model with VGA port.
*1
Appendix
*2
40
*19
Does not guarantee operation of all HDMI-compatible peripherals.
Only for model with NFC sensor.
*21
<Only for North America>
The AC adaptor is compatible with power sources up to 240 V AC adaptor.
This computer is supplied with a 125 V AC compatible AC cord.
20-M-1-1
2
*22
Measured at LCD brightness: 60 cd/m
Varies depending on the usage conditions, or when an optional device is attached.
*23
Varies depending on the usage conditions.
*24
Approx. 0.5 W when the battery pack is fully charged (or not being charged) and the computer is OFF.
<When using with 115 V AC>
Even when the AC adaptor is not connected to the computer, power is consumed (Max. 0.3 W) simply by having the AC adaptor
plugged into an AC outlet.
*25
Rated power consumption 23-E-1
*26
Average value. May differ depending on models.
*27
Do not expose the skin to this product when using the product in a hot or cold environment. (è page 4)
When using in hot or cold environment, some peripherals and battery pack may fail to work properly. Check the operation environment of the peripherals.
Using this product continuously in a hot environment will shorten the product life. Avoid use in these types of environments.
When using in low temperature environment, startup may become slow or battery operation time may become short. The computer consumes power when the hard disk is warming up during startup. Therefore, if you are using battery power and the
remaining power is low, the computer may not start up. .
This product was also tested in accordance with UL60950-1 for ambient temperature up to 35 °C.
*28
Operations of this computer are not guaranteed except for the pre-installed OS and the OS which is installed by using the hard
disk recovery and the recovery disc.
*29
This system is preinstalled with Windows® 7 Professional software and also comes with a license for Windows 8.1 Pro software.
You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one
version and install the other version.
*30
Must be installed before use.
*31
To continue using this software after the end of the trial, purchase a license by following the on-screen instructions.
*32
For information on Wireless Manager, refer to the supplementary instructions by the following procedure.
*20
*34
*35
*36
.
Appendix
*33
on the Start screen.
A Click
B Click [Run] under “Windows System”, input “c:\util\wlprjct\Supplementary Instructions.pdf” then click [OK].
Click
(Start) and input “c:\util\wlprjct\Supplementary Instructions.pdf” in [Search programs and files] and press
Enter .
Perform on the recovery disc.
Alternatively perform on the Hard disk recovery.
It does not correspond to IEEE802.11a+b+g+n standards.
Actual speeds may differ.
Available when set to “WPA-PSK”, “WPA2-PSK” or “none”.
Only available when HT40 enabled by the computer and access point which associated supports HT40.
41
LIMITED WARRANTY
For U.S.A.
Panasonic System Communications Company of North America (PSCNA)
Computer Products - Worldwide Warranties
Section 1: Limited Warranty - Hardware
PSCNA, referred hereafter as “Panasonic” will repair the products listed below with new or rebuilt parts, free of charge in a Global
Panasonic designated service location for the period specified below from the date of original purchase in the event of a defect in
materials or workmanship. These warranties are extended solely to the original purchaser. A purchase receipt or other proof of date
of original purchase will be required before warranty performance is rendered.
• Laptop PC (CF-##) – 3 Years
• Tablet PC (FZ-##) – 3 Years
• Ultra-Mobile (CF-U#/CF-H# Series) – 3 Years
• PDRC - LCD & Keyboard Assembly – 3 Years
Battery Warranty
Batteries supplied with the product are covered under the warranty for one (1) year from date of purchase, except as excluded
in Section 3. Batteries purchased separately are covered under the warranty for one (1) year from the date of purchase. A
replacement battery furnished under the product warranty is covered for the remaining period of the one year warranty on the
original or purchased battery.
Optional: Panasonic “Protection Plus” Warranty
Any unit for which the Panasonic “Protection Plus” warranty has been purchased will receive additional coverage for any failure
that occurs due to accidental damage. All other terms and conditions of the standard warranty apply and this additional coverage
will exist for the duration of the standard warranty period of the unit. If an extended Protection Plus warranty program is purchased,
coverage is extended to the end of the last year of extended coverage purchased.
This warranty does not cover failures or defects that are caused by fire, intentional acts, loss, theft, improper maintenance,
modification or service by anyone other than the Panasonic National Service Center or a Panasonic Authorized Service Provider,
or damage that is attributable to acts of God. Cosmetic damage that does not affect functionality is not covered. Cosmetic damage
on units with hardware failures will be repaired in accordance with the warranty terms. This warranty is extended solely to the
original purchaser on the unit serial number for which it was purchased. Complete unit replacement fulfills the full obligation and is
at the discretion of Panasonic and is limited to once during the coverage term. Maximum benefit is limited to one replacement per
coverage year of the Motherboard, LCD, Storage Drive, and Keyboard.
Wireless Module Warranty
Panasonic approved wireless modems installed in Panasonic brand computers and integrated by Panasonic or an Authorized
Panasonic Wireless Integrator are covered under the warranty for the remaining warranty period of the device in which the modem is
installed. For devices with less than three (3) months remaining on the unit warranty, the wireless modem will be covered for a period
of three (3) months from the date of installation of the modem, covering only modem replacement or modem installation related issues.
All modems must be approved by the wireless carrier prior to use. Any use or attempted use of a wireless modem not approved and
activated by the carrier for use on their network is strictly prohibited and is not sanctioned or warranted by Panasonic and may result in
legal action. In addition, all modems must be approved by Panasonic as compatible with the device hardware before installation or use.
Panasonic’s sole responsibility for the warranty or technical support of the software required to install or operate the modem is
defined in Section 2 (Limited Software Warranty). Any attempted software installation by anyone other than a Panasonic Authorized
Wireless Integrator is not covered under warranty and may result in service charges to re-image or replace the hard drive.
Installation or attempted installation by any party other than Panasonic or an Authorized Panasonic Wireless Integrator is strictly not
covered under the warranty and may void the computer warranty if damage results.
Options and Accessories Warranties
The below listed Panasonic brand or supplied options and accessories are covered under this limited warranty for the period
specified from the date of purchase or as specifically stated:
Appendix
•
•
•
•
•
•
•
•
•
•
•
•
•
42
AC Adaptor / Power Cord – 3 Years
Memory Expansion Card (Panasonic Brand) – 3 Years
Car Mount - Docking Station PCB or Vehicle Docking Station – 3 Years
Desktop Port Replicator, I-O Box, Docking Cradle (like CF-U1) – 3 Years
Antenna Pass-through Cable – 3 Years
Backlit or Full-sized keyboard - 3 Years or assumes warranty of the unit in which it is installed
Integrated Panasonic supplied options and kits including, but not limited to Wireless Modems, Media Bay Drives (Floppy,
CD, DVD, Combo), Camera, GPS, Bluetooth, Smartcard Reader, Magnetic Card Reader, Barcode Scanner, and Fingerprint
Reader - 3 Years or assumes warranty period of the unit in which it is installed provided the integration was performed by
Panasonic or an Authorized Integrator.
Hard Drive / Solid State Drive (Internal) - 3 Years
Separately purchased 2nd Hard Drive – 1 Year
External USB Drives (CD / DVD / Floppy / Hard Drive) – 1 Year
Optional Battery – 1 Year
Battery Charger / Multi-Bay Battery Charger – 1 Year
Stylus Pens, Digitizer & Standard - 90 Days (physical damage excluded)
Section 2 - Limited Warranty - Software
Panasonic warrants to you only that the disk(s) or other media on which the Programs are furnished will be free from defects in
material and workmanship under normal use for a period of sixty (60) days from the date of delivery thereof to you, as evidenced by
your purchase receipt.
This is the only warranty Panasonic makes to you. Panasonic does not warrant that the functions contained in the Programs will
meet your requirements or that the operation of the Programs will be uninterrupted or error free. Panasonic shall have no obligation
for any defects in the disk(s) or other media on which the Programs are furnished resulting from your storage thereof, or for defects
that have been caused by operation of the disk(s) or other media
Panasonic’s entire liability and your exclusive remedy under this warranty shall be limited to the replacement, in the United States
or other Panasonic designated location, of any defective disk or other media which is returned to Panasonic’s Authorized Service
Center, together with a copy of the purchase receipt, within the aforesaid warranty period.
Section 3 - Limited Warranty Exclusions - Specifically excluded from the warranty are:
• All consumable items; such as screen protection films, logo badges, labels, cleaning cloths, carry cases, manuals, cables,
straps, belts, holsters, tethers, and harnesses and any other options and accessories not listed above or covered under a
separate warranty.
• Failures related to the product operating system, hard drive or solid state drive image, software setup, software program,
virus, other program(s) or file(s) on any drive or in any computer memory location.
• Failures due to BIOS settings or changes, as well as any cosmetic or physical damage to the unit.
• Any unit or device with a missing or altered model number or serial number label
• Cosmetic damage or any damage which occurs in shipment
• Failures which are caused by products not supplied by Panasonic
• Failures which result from alteration, accident, misuse, introduction of liquid or other foreign matter into the unit, abuse,
neglect, installation, maladjustment of consumer controls, improper maintenance or modification, use not in accordance with
product use instructions
• Failures due to service by anyone other than a Panasonic Authorized Service Provider
• Failures caused by improper installation of options or accessories or due to integration by any company other than Panasonic
or a Panasonic Authorized Integrator
• Damage, failure, or loss due to the unit being stolen, lost, misplaced, or used by anyone other than the original purchaser
• Damage that is attributable to acts of God
This limited warranty only covers failures due to defects in materials or workmanship which occur during normal use. If a unit is
sent to a Panasonic Authorized Service Center and no hardware failure is found, the customer will be billed for labor to correct a
software issue or reimage the hard drive plus shipping and applicable administrative fees at the current rates set by the service
provider.
THIS PRODUCT IS NOT INTENDED FOR USE AS OR PART OF NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CONTROL
EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*1. PANASONIC WILL NOT BE RESPONSIBLE FOR
ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.
*1 AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include class 2 Electronic Flight Bag (EFB) Systems and Class 1 EFB Systems
when used during critical phases of flight (e.g., during take-off and landing) and/or mounted onto the aircraft. Class 1 EFB
Systems and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance
Leaflets) No. 36.
Other Limits and Exclusions: There are no other express warranties except as listed above.
PANASONIC SHALL NOT BE LIABLE FOR LOSS OF DATA OR OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY. ALL EXPRESS
AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the
exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above
limitations or exclusions may not apply to you.
For technical support or to arrange for service on your Panasonic computer product, call our toll-free hotline at 1-855-PSC-TECH
(855-772-8324).
DIAL TOLL FREE: 1-855-PSC-TECH (855-772-8324)
Web Site : www.panasonic.com/toughbook
Appendix
This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
43
LIMITED WARRANTY (GARANTIE LIMITÉE)
For Canada
PANASONIC COMPUTER AND PERIPHERALS LIMITED WARRANTY
Coverage – Panasonic Canada Inc. (“PCI”) warrants to you, the first end user customer, this computer product (excluding software
media), when purchased from PCI or from a PCI authorized reseller, to be free from defects in materials and workmanship under
normal use, subject to the terms set forth below, during the period of warranty coverage specified.
Scope of Coverage
Period of Coverage
• Laptop Computers (except Battery) and AC Adaptor
Three (3) Years from Date of
• Factory/PCI installed options including Wireless WAN, GPS, Original End User Customer
Bluetooth, Finger print reader, Backlit keyboard, Memory Card Purchase
and Media Bay Drives (Floppy, CD/DVD)
• Mobile Wireless Display
• PDRC – LCD and Keyboard Assemblies
• Port Replicator
•
•
•
•
•
Hand-held Computers
Battery
Battery charger
Auto Adaptor
External USB Drives
• Digitizer pen or stylus
One (1) Year from Date of
Original End User Customer
Purchase
Type of Failure Coverage
Defective Materials or Workmanship
Defective Materials or Workmanship
Ninety (90) Days from Date of Defective Materials or WorkOriginal End User Customer
manship
Purchase
• All consumable items including protection film, cleaning cloth, No Coverage
carry case, tether and harness
Remedy – In the event of a warranty claim, contact PCI’s representatives within the applicable warranty period, identifying the
nature of the defect claimed, at 1-800-668-8386 between 9:00 A.M. and 5:00 P.M., Eastern Time Zone, Mon. – Fri. (excluding
holidays) for instructions on how to obtain service. A purchase receipt or other proof of date of original purchase is required before
warranty service is performed. Defective parts covered by this Limited Warranty will be repaired or replaced with new or comparable
rebuilt parts on an exchange basis. Warranty replacement or repair is subject to the terms of this Limited Warranty for the balance
of the original period of warranty coverage.
No Coverage – This Limited Warranty does not cover products purchased outside Canada. Neither does it cover damage to, failure
of, or defects in a product or accessory through mishandling, improper installation, abnormal use, misuse, neglect, accident, introduction of liquid or other foreign matter into the product, alteration or servicing by anyone not authorized by PCI, or act of God.
THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CONTROL EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*2. PANASONIC WILL NOT BE RESPONSIBLE
FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.
*2
AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class2 Electrical Flight Bag (EFB) Systems and Class1 EFB Systems
when used during critical phases of flight (e.g., during take-off and landing) and/or mounted on to the aircraft. Class1 EFB Systems and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leaflets)
No.36
IF YOU SHIP THE PRODUCT FOR WARRANTY SERVICE
Carefully pack the product, preferably in the original carton. Include details of defect claimed and proof of date of original purchase. No liability is assumed for loss or damage to the product while in transit, if you chose your own transportation carrier.
Appendix
SOFTWARE MEDIA LIMITED WARRANTY
Coverage – PCI warrants to you, the first end user customer, that the disk(s) or other media on which software program(s) is/are
supplied will be free from defects in materials and workmanship under normal use in Canada for a period of sixty (60) days from
date of receipt as evidenced by your purchase receipt for your Panasonic Computer product.
THIS IS THE ONLY WARRANTY THAT PCI MAKES RESPECTING THE SOFTWARE MEDIA. PCI does not warrant the software.
Please refer to the software licensor’s written warranty (accompanying the copy of the software) for any software warranty claim.
Claim Procedure – In the event of a defect in material or workmanship in the media during the sixty (60) day warranty period, and
you return it, transportation costs prepaid, to Panasonic Canada Inc., Computer Products Marketing, 5770 Ambler Drive, Mississauga, Ontario L4W 2T3, within the warranty period, together with a copy of your purchase receipt, and an explanation of the suspected
defect, PCI will replace in Canada the defective disk(s) or other media.
Remedy – PCI’s entire liability, and your only remedy for any breach of this software media warranty is limited to replacement of the
media only. It does not cover any other damages, including, but not limited to, loss of use or profit loss, or special, indirect or consequential damages, or other claims, whether or not of similar character.
No Coverage – This limited warranty does not apply if the disk(s) or other media has been used in other than a Panasonic product,
or in environmental conditions other than those specified by PCI or the manufacturer, or if subjected to misuse, neglect, mishandling, modification or attempted modification of the program, or if damaged by accident or act of God. PCI is not responsible for
damage to or loss of any program, data or removable storage media.
GENERAL
NO OTHER WARRANTIES – PCI DISCLAIMS ALL OTHER WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT
NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, WITH RESPECT TO THE SOFTWARE, SOFTWARE MEDIA, COMPUTER PRODUCT, OPTIONS AND ACCESSORIES.
NO LIABILITY FOR CONSEQUENTIAL DAMAGES – IN NO EVENT SHALL PCI BE LIABLE FOR ANY SPECIAL, INDIRECT OR
CONSEQUENTIAL DAMAGES ARISING FROM ANY BREACH OF THE LIMITED WARRANTIES SET OUT IN THIS DOCUMENT,
OR FROM THE USE OF THE COMPUTER PRODUCT, INCLUDING, WITHOUT LIMITATION, LOSS OF DATA, BUSINESS, PROFIT OR GOODWILL.
IN ANY EVENT, PCI’S MAXIMUM LIABILITY FOR ANY BREACH SHALL NOT EXCEED THE AMOUNT ACTUALLY PAID BY YOU
FOR THE COMPUTER PRODUCT.
NO ACTION, REGARDLESS OF ITS BASIS, MAY BE BEGUN AGAINST PCI MORE THAN TWO (2) YEARS AFTER THE CAUSE
OF ACTION AROSE.
Statutory Warranties – Some jurisdictions do not allow these limitations or exclusions, so they may not apply to you.
44
Pour le Canada
GARANTIE LIMITÉE – ORDINATEURS ET PÉRIPHÉRIQUES PANASONIC
Couverture – Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que ce produit informatique (à l’exclusion des supports des
logiciels) est, au moment de sa vente par PCI ou d’un revendeur agréé par PCI, exempt de défauts de pièces et de fabrication dans les
conditions normales d’utilisation, et ce, pendant la période de couverture de la garantie, sous réserve des modalités décrites ci-dessous.
Éléments couverts
Durée de couverture
• Ordinateurs blocs-notes (sauf batteries) et adaptateur secteur Trois (3) ans à partir de la
• Options installées en usine/par PCI incluant : WAN sans fil,
date d’achat original.
GPS, Bluetooth, lecteur d’empreintes digitales, clavier rétroéclairé, carte mémoire et lecteurs (disquettes, CD/DVD)
• Écran mobile sans fil
• Ensembles PDRC – ACL et clavier
• Duplicateur de port
•
•
•
•
•
Ordinateurs de poche
Batterie
Chargeur de batterie
Adaptateur pour voiture
Périphériques USB
Un (1) an à partir de la date .
d’achat original.
• Stylo pointeur standard ou pour numériseur graphique
Type de couverture
Défauts de pièces et de fabrication
Défauts de pièces et de fabrication
Quatre-vingt-dix (90) jours à
Défauts de pièces et de fabricapartir de la date d’achat original. tion
• Tous les articles consommables incluant les pellicules protectrices, Aucune couverture
chiffons de nettoyage, étuis de transport, longes et sangles
Recours – Pour obtenir des informations sur la marche à suivre dans le cas où une réclamation en vertu de la garantie deviendrait
nécessaire, communiquez par téléphone avec un représentant de PCI au 1-800-668-8386, entre 9h00 et 17h00 (heure de l’Est) du lundi
au vendredi (sauf les jours fériés), avant l’échéance de la garantie applicable, en prenant soin d’identifier la nature de la défaillance. .
Un reçu ou toute autre pièce justificative de la date d’achat original sera exigé avant toute réparation. Toute pièce défectueuse couverte
par la présente garantie limitée sera réparée ou remplacée par une pièce neuve ou remise à neuf. Le remplacement ou la réparation
sera fait conformément aux modalités de la présente garantie limitée pendant la durée restante de la période originale de la garantie.
Produits non couverts – La présente garantie limitée ne couvre pas les produits achetés à l’extérieur du Canada. Elle ne couvre
pas non plus les dommages, la défaillance ou les défauts attribuables à une manutention inadéquate, une mauvaise installation,
une utilisation anormale ou abusive, de la négligence, un accident, un déversement ou la pénétration d’un objet étranger, une modification, un cas fortuit ou une réparation effectuée par une personne non agréée par PCI.
CE PRODUIT N’EST PAS DESTINÉ À ÊTRE UTILISÉ, EN TOUT OU EN PARTIE, COMME SYSTÈME/ÉQUIPEMENT NUCLÉAIRE, SYSTÈME/
ÉQUIPEMENT DE CONTRÔLE DU TRAFFIC AÉRIEN OU SYSTÈME/ÉQUIPEMENT DE POSTE DE PILOTAGE D’AVION*3. PANASONIC
DÉCLINE TOUTE RESPONSABILITÉ CONCERNANT L’UTILISATION DE CE PRODUIT DANS LES CAS SUSMENTIONNÉS.
*3
Les SYSTÈMES/ÉQUIPEMENTS DE POSTE DE PILOTAGE D’AVION sont dotés de systèmes OEPP (organiseur électronique
de poste de pilotage) de classe 2 et de classe 1 utilisés pendant des phases critiques de vol (par exemple, pendant le décollage et l’atterrissage) et(ou) montés sur l’avion. Les systèmes OEPP de classe 1 et de classe 2 sont définis par le circulaire
d’information FAA: AC (Advisory Circular) 120-76A ou le feuilet n° 36 JAA: JAA TGL (Temporary Guidance Leaflets) No 36.
EXPÉDITION DU PRODUIT POUR SERVICE SOUS GARANTIE
Emballez soigneusement le produit, de préférence dans son emballage d’origine. Joignez une description de la défaillance de
même qu’une pièce justificative de la date d’achat. Panasonic Canada Inc. ne peut être tenue responsable pour tout dommage ou
perte subi pendant le transport si vous avez choisi le transporteur.
GÉNÉRALITÉS
PCI NE RECONNAÎT AUCUNE AUTRE GARANTIE, EXPLICITE OU IMPLICITE, Y COMPRIS, MAIS NON EXCLUSIVEMENT, LES
GARANTIES IMPLICITES DE VALEUR COMMERCIALE ET D’UTILITÉ À UNE FIN QUELCONQUE, À L’ÉGARD DU LOGICIEL,
SUPPORTS DE LOGICIELS, PRODUITS INFORMATIQUES, PÉRIPHÉRIQUES ET ACCESSOIRES.
SOUS AUCUNE CIRCONSTANCE PCI NE POURRA ÊTRE TENUE RESPONSABLE DES DOMMAGES SPÉCIAUX, INDIRECTS
OU CONSÉCUTIFS ATTRIBUABLES À UN MANQUEMENT AUX GARANTIES LIMITÉES DÉCRITES DANS LE PRÉSENT DOCUMENT OU À L’UTILISATION DU PRODUIT INFORMATIQUE, Y COMPRIS, SANS RESTRICTION, LA PERTE DE DONNÉES, .
D’AFFAIRES, D’ACHALANDAGE OU DE PROFIT.
DANS TOUS LES CAS, LA RESPONSABILITÉ MAXIMALE DE PCI POUR TOUT MANQUEMENT NE POURRA EXCÉDER LE
PRIX DE VENTE DU PRODUIT INFORMATIQUE.
AUCUNE RÉCLAMATION, SANS ÉGARD À SES MOTIFS, NE POURRA ÊTRE FAITE AUPRÈS DE PCI PLUS DE DEUX (2) ANS
APRÈS LES FAITS INVOQUÉS À LA BASE D’UNE TELLE RÉCLAMATION.
Garantie statutaires – Certaines juridictions interdisent de telles limitations ou exclusions; aussi, pourraient-elles ne pas s’appliquer.
Appendix
GARANTIE LIMITÉE – SUPPORTS DES LOGICIELS
Couverture – Panasonic Canada Inc. (« PCI ») garantit à l’acheteur original que la ou les disquettes ou tout autre support sur
lequel le ou les programmes sont fournis sont exempts de défauts de pièces et de fabrication dans des conditions normales
d’utilisation au Canada, et ce, pour une période de soixante (60) jours suivant la date de réception indiquée sur la preuve d’achat.
LA PRÉSENTE GARANTIE EST LA SEULE OFFERTE PAR PCI COUVRANT LES SUPPORTS DE LOGICIELS. PCI ne garantit
pas les logiciels. Reportez-vous à la garantie écrite du concédant de licence d’utilisation du logiciel (qui accompagne la copie du
logiciel) pour toute réclamation en vertu de la garantie.
Réclamation – marche à suivre – Panasonic Canada Inc. remplacera toute disquette ou support défectueux si l’article en question est
retourné, port payé, à son service de Marketing – produits informatiques, 5770 Ambler Drive, Mississauga (Ontario) L4W 2T3, dans les soixante (60) jours suivant la date d’achat original. Joignez à votre envoi une pièce justificative de votre achat et une description du problème.
Recours – La responsabilité de PCI - et votre seul recours - dans le cas de toute défaillance couverte par la garantie sur ce support de
logiciel est limitée au seul remplacement du support. Elle ne couvre aucun autre dommage, y compris, mais non exclusivement, la perte.
d’usage ou de profits, ni aucun dommage spécial, indirect ou consécutif, ni aucune autre réclamation de nature similaire ou autre.
Produits non couverts – La présente garantie limitée ne s’applique pas si la ou les disquettes ou autre support ont été utilisés dans un
produit d’une marque autre que Panasonic ou dans des conditions environnementales autres que celles spécifiées par PCI ou le fabricant,
ou soumis à une mauvaise utilisation, à la négligence, à une manutention inadéquate ou encore si le programme a été modifié ou subi une
tentative de modification ou des dommages attribuables à un accident ou à un cas fortuit. De plus, PCI n’assume aucune responsabilité
pour toute perte de, ou tout dommage à, un programme, des données ou un support de sauvegarde amovible.
45
LIMITED WARRANTY
For Australia
Personal / Notebook Computers - 36 Month Warranty from Date of Purchase
1.Subject to the conditions of this warranty Panasonic or it’s Authorised Service Centre will perform necessary service on the product
without charge for parts or labour, if in the opinion of Panasonic, the product is found to be faulty within the warranty period. 2.This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia or its Authorised
Distributors or Dealers and only where the products are used and serviced within Australia or it's territories. Warranty cover only
applies to service carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when
warranty service is requested.
3.This warranty only applies if the product has been installed and used in accordance with the manufacturer’s recommendations
(as noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty covers
normal domestic use only and does not cover damage, malfunction or failure resulting from use of incorrect voltages, incorrect
installation, accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems,
thunderstorm activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised
alterations), exposure to abnormally corrosive conditions or any foreign object or matter having entered the product.
4.This warranty does not cover the following items unless the fault or defect existed at the time of purchase: Software
5.Warranty on Toughbook accessories (stylus, pens, AC charger, combo drive, etc) is 12 Months from the date of purchase &
3 months for batteries.
6.To claim warranty service, when required, you should:.
Check the Panasonic web site for latest warranty contact http://www.panasonic.com.au/toughbook, use the Service Centre
Locator and call the National Service Centre number indicated..
Prepare purchase receipt as proof of purchase date and system serial number which will be required by the Authorised Service
Centre.
7.The Warranty excludes 3 or less faulty pixels on screen.
8.The Warranty includes the repair or exchange of faulty parts within the product with items that are functionally equivalent to that
as originally supplied or better – including new or refurbished parts or units – solely at Panasonic’s discretion.
9.It is the customer’s responsibility to backup all data from the hard disk drive before sending equipment for repair. If a problem
is related to the hard disk drive, or the hard disk drive has to be replaced, Panasonic will only reload the factory pre-installed
software for the product onto the replacement drive.
10.Panasonic will arrange free pick up and return for approved warranty repairs within 50 km of capital city locations. Please
ensure your unit is properly packed for return to the service location.
11.The warranties hereby conferred do not extend to, and exclude, any costs associated with the installation, de-installation or
re-installation of a product, including costs related to the mounting, demounting or remounting of any screen, (and any other
ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement
of and do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such
installation, de-installation, re-installation or transit.
In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under
the Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to
have the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods.
You are also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not
amount to a major failure.
If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by
contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to
repair or replace the product and will do so in a reasonable period of time from receiving notice from you.
THIS PRODUCT IS NOT INTENDED FOR USE AS OR AS PART OF NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CONTROL
EQUIPMENT/SYSTEMS, OR AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS*4. PANASONIC WILL NOT BE RESPONSIBLE FOR
ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.
*4
AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS include Class 2 Electronic Flight Bag (EFB) Systems and Class 1 EFB Systems
when used during critical phases of flight (e.g., during take-off and landing) and/or mounted onto the aircraft. Class 1 EFB Systems
and 2 EFB Systems are defined by FAA: AC (Advisory Circular) 120-76A or JAA: JAA TGL (Temporary Guidance Leaflets) No.36.
Appendix
THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE).
SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES
If you require assistance regarding warranty conditions or any other enquiries, please visit the
Panasonic Australia website www.panasonic.com.au/toughbook or
contact by phone on 1300 132 463
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
PRO-031-F05 Issue: 4.0
46
1 Innovation Road, Macquarie Park NSW 2113
www.panasonic.com.au
11-11-2011
MEMO
47
As an ENERGY STAR® Partner, Panasonic Corporation has determined that this
product meets the ENERGY STAR® guidelines for energy efficiency. By enabling
available power management settings, Panasonic computers enter a low-power sleep
mode after a period of inactivity, saving the user energy.
<For U.S.A.>
To learn more about power management, please visit the web site:
www.energystar.gov/index.cfm?c=power_mgt.pr_power_management
Outline of the International ENERGY STAR® Office Equipment Program
The international ENERGY STAR® Office Equipment Program is an international program that promotes energy
saving through the use of computers and other office equipment. The program backs the development and dissemination of products with functions that effectively reduce energy consumption. It is an open system in which
business proprietors can participate voluntarily. The targeted products are office equipment such as computers,
displays, printers, facsimiles, and copiers. Their standards and logos are uniform among participating nations.
<For U.S.A.>
For information about ENERGY STAR®, refer to the following web site:
Web Site: www.energystar.gov
22-E-1
Panasonic Corporation
Osaka, Japan
Panasonic System Communications Company of North America
Two Riverfront Plaza,
Newark NJ 07102
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga,
Ontario L4W 2T3
Panasonic Australia Pty. Limited
ACN 001 592 187 ABN 83 001 592 187
1 Innovation Road, Macquarie Park NSW 2113
Importer’s name & address pursuant to the EU legislation
Panasonic System Communications Company Europe, Panasonic Marketing Europe GmbH
Hagenauer Straße 43
65203 Wiesbaden
Germany
Web Site : http://panasonic.net/
© Panasonic Corporation 2013
Printed in Taiwan
05Appendix.indd
48
TA1013-1103
DFQW5867ZBT
2013/10/24
11:56:23
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
