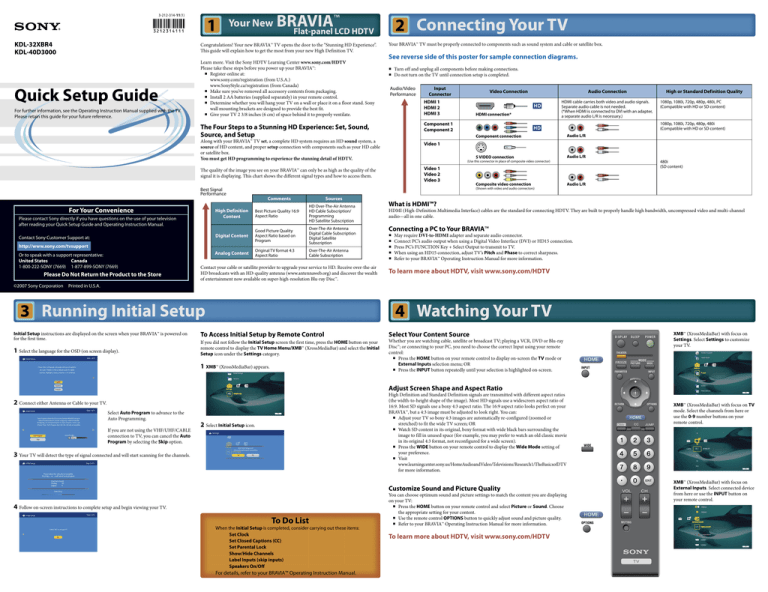

Quick Setup Guide

Quick Setup Guide
3-212-314-11(1)
KDL-32XBR4
KDL-40D3000
1
Your New
™
BRAVIA
Flat-panel LCD HDTV
Congratulations! Your new BRAVIA™ TV opens the door to the “Stunning HD Experience”.
This guide will explain how to get the most from your new High Definition TV.
Quick Setup Guide
For further information, see the Operating Instruction Manual supplied with the TV.
Please retain this guide for your future reference.
Learn more. Visit the Sony HDTV Learning Center www.sony.com/HDTV
Please take these steps before you power up your BRAVIA™:
■ Register online at:
www.sony.com/registration (from U.S.A.)
www.SonyStyle.ca/registration (from Canada)
■ Make sure you’ve removed all accessory contents from packaging.
■ Install 2 AA batteries (supplied separately) in your remote control.
■ Determine whether you will hang your TV on a wall or place it on a floor stand. Sony
wall mounting brackets are designed to provide the best fit.
■ Give your TV 2 3/8 inches (6 cm) of space behind it to properly ventilate.
The Four Steps to a Stunning HD Experience: Set, Sound,
Source, and Setup
Along with your BRAVIA™ TV set, a complete HD system requires an HD sound system, a
source of HD content, and proper setup connection with components such as your HD cable
or satellite box.
You must get HD programming to experience the stunning detail of HDTV.
The quality of the image you see on your BRAVIA™ can only be as high as the quality of the
signal it is displaying. This chart shows the different signal types and how to access them.
Please contact Sony directly if you have questions on the use of your television
after reading your Quick Setup Guide and Operating Instruction Manual.
Contact Sony Customer Support at:
Comments
Please Do Not Return the Product to the Store
©2007 Sony Corporation
Sources
High Definition
Content
Best Picture Quality 16:9
Aspect Ratio
HD Over-The-Air Antenna
HD Cable Subscription/
Programming
HD Satellite Subscription
Digital Content
Good Picture Quality
Aspect Ratio based on
Program
Over-The-Air Antenna
Digital Cable Subscription
Digital Satellite
Subscription
Analog Content
Original TV format 4:3
Aspect Ratio
Over-The-Air Antenna
Cable Subscription
http://www.sony.com/tvsupport
Or to speak with a support representative:
United States
Canada
1-800-222-SONY (7669) 1-877-899-SONY (7669)
Contact your cable or satellite provider to upgrade your service to HD. Receive over-the-air
HD broadcasts with an HD-quality antenna (www.antennaweb.org) and discover the wealth
of entertainment now available on super-high-resolution Blu-ray Disc™.
See reverse side of this poster for sample connection diagrams.
■
■
Turn off and unplug all components before making connections.
Do not turn on the TV until connection setup is completed.
Audio/Video
Performance
Input
Connector
Video Connection
HDMI 1
HDMI 2
HDMI 3
HDMI connection*
Audio Connection
HDMI cable carries both video and audio signals.
Separate audio cable is not needed.
(*When HDMI is connected to DVI with an adapter,
a separate audio L/R is necessary.)
Component 1
Component 2
High or Standard Definition Quality
1080p, 1080i, 720p, 480p, 480i, PC
(Compatible with HD or SD content)
1080p, 1080i, 720p, 480p, 480i
(Compatible with HD or SD content)
Component connection
Audio L/R
S VIDEO connection
Audio L/R
Composite video connection
Audio L/R
Video 1
480i
(SD content)
(Use this connector in place of composite video connector)
Video 1
Video 2
Video 3
What is HDMI™?
HDMI (High-Definition Multimedia Interface) cables are the standard for connecting HDTV. They are built to properly handle high bandwidth, uncompressed video and multi-channel
audio—all in one cable.
Connecting a PC to Your BRAVIA™
■ May require DVI-to-HDMI adapter and separate audio connector.
■ Connect PC’s audio output when using a Digital Video Interface (DVI) or HD15 connection.
■ Press PC’s FUNCTION Key + Select Output to transmit to TV.
■ When using an HD15 connection, adjust TV’s Pitch and Phase to correct sharpness.
■ Refer to your BRAVIA™ Operating Instruction Manual for more information.
To learn more about HDTV, visit www.sony.com/HDTV
Printed in U.S.A.
4 Watching Your TV
3 Running Initial Setup
Initial Setup instructions are displayed on the screen when your BRAVIA™ is powered on
for the first time.
1 Select the language for the OSD (on screen display).
To Access Initial Setup by Remote Control
If you did not follow the Initial Setup screen the first time, press the HOME button on your
remote control to display the TV Home Menu/XMB™ (XrossMediaBar) and select the Initial
Setup icon under the Settings category.
Step 1 of 5
Initial Setup
1 XMB™ (XrossMediaBar) appears.
Please select a language. Language settings will apply to
on screen display as well as default audio for digital
channels. Highlight a choice and press
Your BRAVIA™ TV must be properly connected to components such as sound system and cable or satellite box.
(Shown with video and audio connectors)
Best Signal
Performance
For Your Convenience
2 Connecting Your TV
to continue.
HDMI Settings
Select Your Content Source
Whether you are watching cable, satellite or broadcast TV; playing a VCR, DVD or Blu-ray
Disc™; or connecting to your PC, you need to choose the correct Input using your remote
control:
■ Press the HOME button on your remote control to display on-screen the TV mode or
External Inputs selection menu; OR
■ Press the INPUT button repeatedly until your selection is highlighted on-screen.
XMB™ (XrossMediaBar) with focus on
Settings. Select Settings to customize
your TV.
Product Support
Clock/Timers
General
Sound
English
Adjust Screen Shape and Aspect Ratio
Español
Français
1.2.3
2 Connect either Antenna or Cable to your TV.
Step 2 of 5
Initial Setup
Auto Program allows the TV to tune channels directly from your
cable or antenna feed. If you are using only a cable or satellite
set top box, it is not necessary to run Auto Program. In this case,
choose “Skip”. Auto Program may take 30+ minutes to complete.
If you are not using the VHF/UHF/CABLE
connection to TV, you can cancel the Auto
Program by selecting the Skip option.
VHF/UHF/CABLE
Auto Program
Select Auto Program to advance to the
Auto Programming.
Skip
3 Your TV will detect the type of signal connected and will start scanning for the channels.
Initial Setup
TV
2 Select Initial Setup icon.
Settings
Start Initial Setup now?
Some channels may be overwritten.
1.2.3
Yes
No
Step 3 of 5
Please allow 30+ minutes to complete.
Pressing
or will cancel auto program.
Channels Found
Analog:
58
Digital:
0
Customize Sound and Picture Quality
Searching...
4 Follow on-screen instructions to complete setup and begin viewing your TV.
Step 5 of 5
Initial Setup
Select “OK” to use your TV
OK
High Definition and Standard Definition signals are transmitted with different aspect ratios
(the width-to-height shape of the image). Most HD signals use a widescreen aspect ratio of
16:9. Most SD signals use a boxy 4:3 aspect ratio. The 16:9 aspect ratio looks perfect on your
BRAVIA™, but a 4:3 image must be adjusted to look right. You can:
■ Adjust your TV so boxy 4:3 images are automatically re-configured (zoomed or
stretched) to fit the wide TV screen; OR
■ Watch SD content in its original, boxy format with wide black bars surrounding the
image to fill in unused space (for example, you may prefer to watch an old classic movie
in its original 4:3 format, not reconfigured for a wide screen).
■ Press the WIDE button on your remote control to display the Wide Mode setting of
your preference.
■ Visit
www.learningcenter.sony.us/HomeAudioandVideo/Televisions/Research1/TheBasicsofDTV
for more information.
To Do List
When the Initial Setup is completed, consider carrying out these items:
Set Clock
Set Closed Captions (CC)
Set Parental Lock
Show/Hide Channels
Label Inputs (skip inputs)
Speakers On/Off
For details, refer to your BRAVIA™ Operating Instruction Manual.
You can choose optimum sound and picture settings to match the content you are displaying
on your TV:
■ Press the HOME button on your remote control and select Picture or Sound. Choose
the appropriate setting for your content.
■ Use the remote control OPTIONS button to quickly adjust sound and picture quality.
■ Refer to your BRAVIA™ Operating Instruction Manual for more information.
To learn more about HDTV, visit www.sony.com/HDTV
Screen
Video Options
TV
XMB™ (XrossMediaBar) with focus on TV
mode. Select the channels from here or
use the 0-9 number buttons on your
remote control.
7
8
Cable
8.1
KFMB-DT
9
10
10.1
TV
11
XMB™ (XrossMediaBar) with focus on
External Inputs. Select connected device
from here or use the INPUT button on
your remote control.
Video2
Video3
Component2
HDMI1
HDMI2
TV
HD Basic Connection
HD Basic Connection with A/V Receiver
Cable/Antenna
HD Basic Connection with Home Theater System
HD Antenna
Cable/Antenna
Splitter
Splitter
Rear of TV
Rear of TV
Rear of TV
Blu-ray Disc™/DVD
Blu-ray Disc™/DVD
Blu-ray Disc™/DVD
Cable/SAT (dish)
HD Cable Box
or HD Satellite
Receiver
SAT
(dish)
SD Cable Box or
SD Satellite Receiver
HD Cable Box
or HD Satellite
Receiver
SAT
(dish)
A/V Receiver
Home Theater System
Required Cable Types for Connection
■
Mini-Pin Audio
Coaxial
DVI-to-HDMI
■
Composite
HDMI
■
■
■
Audio (L/R) with Mini-Pin
HD15
Or
Component
Audio (L/R)
Digital Optical Audio
Notes on Connection:
Your TV is equipped with three HDMI inputs, connect your incoming signal source (HD Cable Box, HD Satellite Receiver, or DVD) with an HDMI or component video for the best
possible picture quality.
If your connecting equipment has DVI output instead of the HDMI output, you must use DVI-to-HDMI cable for the video and also connect an audio cable for the sound. If this is the
case, connect the cable to HDMI IN 3 (input) of your TV.
P&P/PIP functions require VHF/UHF/CABLE connection.
When receiving High-Definition content signal by over-the-air antenna, it is best to use the HD antenna.
When using a DVI-to-HDMI cable, make sure to connect the DVI side first.
Notebook PC Connection
Basic Connection with SD VCR/DVD
Cable/Antenna
Desktop PC Connection
Cable/Antenna
Cable/Antenna
Splitter
Splitter
Splitter
Rear of TV
Rear of TV
Rear of TV
SAT
(dish)
Notebook PC
SAT
(dish)
PC
HD Cable Box or
HD Satellite Receiver
VCR
VCR/DVD Combo
DVD
HD Cable Box or
HD Satellite Receiver
