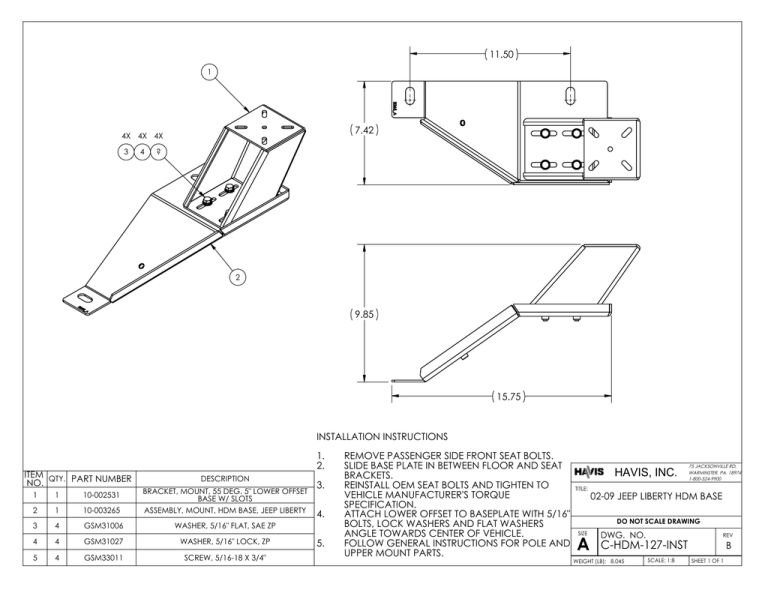

Panasonic C-HDM-127 Installation Instructions

Panasonic C-HDM-127 Installation Instructions
11.50
1
7.42
4X 4X 4X
3
4
?
2
9.85
15.75
INSTALLATION INSTRUCTIONS
ITEM QTY. PART NUMBER
NO.
1.
2.
DESCRIPTION
1
1
10-002531
2
1
10-003265
BRACKET, MOUNT, 55 DEG. 5" LOWER OFFSET
BASE W/ SLOTS
ASSEMBLY, MOUNT, HDM BASE, JEEP LIBERTY
3
4
GSM31006
WASHER, 5/16" FLAT, SAE ZP
4
4
GSM31027
WASHER, 5/16" LOCK, ZP
5
4
GSM33011
SCREW, 5/16-18 X 3/4"
3.
4.
5.
REMOVE PASSENGER SIDE FRONT SEAT BOLTS.
SLIDE BASE PLATE IN BETWEEN FLOOR AND SEAT
BRACKETS.
REINSTALL OEM SEAT BOLTS AND TIGHTEN TO
VEHICLE MANUFACTURER'S TORQUE
SPECIFICATION.
ATTACH LOWER OFFSET TO BASEPLATE WITH 5/16"
BOLTS, LOCK WASHERS AND FLAT WASHERS
ANGLE TOWARDS CENTER OF VEHICLE.
FOLLOW GENERAL INSTRUCTIONS FOR POLE AND
UPPER MOUNT PARTS.
HAVIS, INC.
TITLE:
75 JACKSONVILLE RD,
WARMINSTER, PA. 18974
1-800-524-9900
02-09 JEEP LIBERTY HDM BASE
DO NOT SCALE DRAWING
SIZE
A
DWG. NO.
C-HDM-127-INST
WEIGHT (LB): 8.045
SCALE: 1:8
REV
B
SHEET 1 OF 1
