FRONT LOAD WASHER

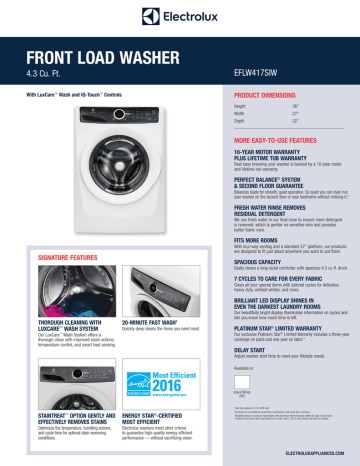

FRONT LOAD WASHER 4.3 Cu. Ft. EFLW417SIW With LuxCare™ Wash and IQ-Touch™ Controls PRODUCT DIMENSIONS Height38" Width27" Depth32" MORE EASY-TO-USE FEATURES 10-YEAR MOTOR WARRANTY PLUS LIFETIME TUB WARRANTY Rest easy knowing your washer is backed by a 10-year motor and lifetime tub warranty. PERFECT BALANCE® SYSTEM & SECOND FLOOR GUARANTEE Balances loads for smooth, quiet operation. So quiet you can even run your washer on the second floor or near bedrooms without noticing it.2 FRESH WATER RINSE REMOVES RESIDUAL DETERGENT We use fresh water in our final rinse to ensure more detergent is removed, which is gentler on sensitive skin and provides better fabric care. FITS MORE ROOMS With four-way venting and a standard 27" platform, our products are designed to fit just about anywhere you want to put them. SIGNATURE FEATURES SPACIOUS CAPACITY Easily cleans a king-sized comforter with spacious 4.3 cu. ft. drum. 7 CYCLES TO CARE FOR EVERY FABRIC Clean all your special items with tailored cycles for delicates, heavy duty, whitest whites, and more. BRILLIANT LED DISPLAY SHINES IN EVEN THE DARKEST LAUNDRY ROOMS THOROUGH CLEANING WITH LUXCARE™ WASH SYSTEM 20-MINUTE FAST WASH1 Quickly deep cleans the items you need most. Our beautifully bright display illuminates information on cycles and lets you know how much time is left. PLATINUM STAR® LIMITED WARRANTY Our exclusive Platinum Star® Limited Warranty includes a three-year coverage on parts and one year on labor.3 Our LuxCare Wash System offers a thorough clean with improved wash actions, temperature control, and smart load sensing. ™ DELAY START Adjust washer start time to meet your lifestyle needs. Available in: Island White ( IW ) 1 STAINTREAT OPTION GENTLY AND EFFECTIVELY REMOVES STAINS ™ Optimizes the temperature, tumbling actions, and cycle time for optimal stain-removing conditions. ENERGY STAR -CERTIFIED MOST EFFICIENT ® 2 3 F ast time based on 3 lb. DOE load. As tested on conventional wood floor construction with vinyl floor covering. Eligibility based on product registration with Electrolux North America within 60 days of purchase. Products must have been purchased on or after July 1, 2013. See limited warranty for details. Electrolux washers meet strict criteria to guarantee high-quality energy efficient performance — without sacrificing clean. ELECTROLUXAPPLIANCES.COM FRONT LOAD WASHER EFLW417SIW 27" FRONT LOAD WASHER Capacity D.O.E. 4.3 Cu. Ft. FEATURES Pull-to-Open Door IQ-Touch™ Controls Perfect Steam™ Wash System Balance System Sound System Lighting Pull-to-Open Dispenser Drawer Wash System Integral Water Heater Wash Drum Automatic Temperature Control Automatic Water Level Adjustment Auto Prewash Detergent Dispenser (Liquid / Powder) Auto Bleach Dispenser (Liquid Only) Auto Detergent Dispenser (Liquid / Powder) Auto Fabric Softener Dispenser (Liquid Only) Tumble Speed (RPM) Spin Speed (RPM) Reversible Door Adjustable Leveling Legs ENERGY STAR® NSF® Certified Yes Yes Perfect Balance® Luxury-Quiet™ Yes LuxCare™ Stainless Steel Yes Yes Yes Yes Yes Yes Variable 1,300 Yes Most Efficient CYCLES Heavy Duty, Whitest Whites, Normal, 20-Min. Fast Wash, Delicates, Rinse & Spin, Clean Washer 7 OPTIONS Wash / Rinse Temperature Combinations Temperature Selections Add Steam Spin Speed Selections Soil Level Selections Delay Start End-of-Cycle Chime 5 4 4 4 Yes On / Off INSTALLATION OPTIONS Freestanding, Under Counter *, Stacked (Under Dryer), Pedestal, Hidden (In Closet), Second Floor Yes ACCESSORIES Luxury-Glide® Pedestal with Spacious Storage Drawer– Island White – PN # EPWD157SIW Dryer Stacking Kit – PN # STACKIT7X Drain Hose Extension Kit – PN # 137098000 Optional Optional Optional SPECIFICATIONS Color – Island White Power Supply Location Water Inlet Location Voltage Rating ‡ Connected Load (kW Rating) @ 120 Volts Watts @ 120 Volts Amps @ 120 Volts Shipping Weight (Approx.) IW Top Right Rear Top Left Rear 120V / 60 Hz 1.2 1,200 12 229 Lbs. * Side-by-Side units in under-counter installation require custom-built countertop and/or cabinetry. ‡ An electrical supply with grounded three-prong receptacle is required. The power supply circuit must be installed in accordance with current edition of National Electrical Code (NFPA 70) and local codes & ordinances. NOTE: Always consult local and national electric and plumbing codes. Refer to Product Installation Guide for detailed installation instructions on the web at electroluxappliances.com. Specifications subject to change. PRODUCT DIMENSIONS Height (without 15" Pedestal) (with 15" Pedestal) Width Depth (to Center of Arc Not Including Hose) (with Door 90° Open) 38" 53-1/4" 27" 32" 53-1/2" Electrolux Major Appliances, N.A. USA • 10200 David Taylor Drive • Charlotte, NC 28262• 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca EFLW417S 03/16 © 2016 Electrolux Home Products, Inc. High standards of quality at Electrolux Home Products, Inc. mean we are constantly working to improve our products. We reserve the right to change specifications or discontinue models without notice. Electrolux FRONT LOAD WASHER EFLW417SIW Left Front 27" Rear 53 1/2" 32" 7 1/2" 7" 3" 2 1/2" 3" 38" (75 3/4" min. for stacked units) 35" 120V H/C Drain Power Water hose cord inlets (approx. (approx. 59") 60") 351/2" 321/2" 22" Built-In Installations 15" Pedestal Drawer Installation 0"min. Elevates washer height to 53 1/4". For detailed pedestal installation, refer to instructions included with pedestal or on web. Pedestal Installation may require modified utility hookup locations. For details, refer to Product Installation Guide on web. 0"min. 0"min.* 1"min. Vented door Front Side 3" 60" sq. in. min. 27" Front 26 1/2" Side Overall depth with drawer fully extended – 42 1/2" 60" sq. in. min. 3" 15" *Installation with steam dryer requires additional 3/4" hose clearance. Closet Installation: If washer and dryer are installed in same closet, door(s) 15 1/4" MUST be vented with 120 sq. in. minimum louvered opening, equally divided, located 3" from top and bottom of door. Louvered door(s) with equivalent air openings for full-length of door is acceptable. Air openings MUST remain unobstructed with door(s) installed. Installation Clearances: Washer can be built in alone or with dryer (side by side or stacked) in closet, recess or under counter installation with 0" minimum clearance required around sides and back of unit(s). To achieve 0" minimum rear clearance when installed with dryer, dryer MUST be vented straight back or with quick-turn 90° elbow. Steam dryer requires additional 3/4" steam hose clearance at back of unit(s). Installation of closet door(s) requires additional 1" minimum clearance between front of unit(s) and door(s). Location of plumbing, exhaust and utility hookups MUST be considered when planning any built-in installation. For additional installation details, refer to Product Installation Guides on web. Under Counter Installation: Installation of washer alone or side by side with dryer under counter, requires custom-built countertop and/or cabinetry to accommodate unit(s) height. Stacking Units: Stacking dryer above washer requires use of optional Stacking Kit (PN# STACKIT7X) with modified utility hookup locations for dryer. For complete installation details, refer to instructions included with Stacking Kit or on web. Front Load Washer Specifications •Product Weight – 212 Lbs. / Shipping Weight – 229 Lbs. electrical supply with grounded three-prong receptacle is required. The power supply circuit must be installed in accordance with current edition of National Electrical Code (ANSI / NFPA 70) and local codes & ordinances. (Do not use same circuit as dryer.) •Voltage Rating – 120V / 60Hz •Connected Load (kW Rating) @ 120 Volts = 1.2 kW •Amps @ 120V = 12A •Equipped with 120V 3-wire power supply cord, approx. 60" long. •Always consult local and national electric & plumbing codes. •To maximize detergent effectiveness, ambient temperature should never be below 60°F. •Can be installed alone, with or without optional 15" pedestal drawer, or stacked beneath matching Electrolux Dryer, which requires installation of optional dryer stacking kit. (For installation details, refer to instructions included with optional pedestal or stacking kit or on web.) •Can be built in alone or with matching Electrolux Dryer (side by side or stacked) in closet, recess or under counter installation with 0" minimum clearance required around sides and back of unit(s). To achieve 0" minimum rear clearance when installed with dryer, dryer MUST be vented straight back or with quick-turn 90° elbow. Steam dryer requires additional 3/4" steam hose clearance at back of unit(s). Installation of closet door(s) requires additional 1" minimum clearance between front of unit(s) and door(s). Location of plumbing, exhaust and utility hookups MUST be considered when planning any built-in installation. •Under-counter installation requires custom-built countertop and/or cabinetry to accommodate unit(s) height. •An •Do NOT install in area exposed to dripping water or outdoor weather conditions, or where gasoline or other flammables, including automobiles, are kept or stored. •For garage installation, washer MUST be located minimum 18" above floor. •Floor MUST be solid with 1" maximum slope. To ensure vibration or movement does not occur, reinforcement of floor may be necessary. Do NOT install on carpeted surface. •Leveling legs supplied to level washer properly and reduce excessive noise and vibration. •H / C water faucets MUST be installed within 42" of washer’s water inlet and MUST be 3/4" garden hose type, to connect to 48-1/2" inlet hoses. •Water pressure MUST be between 30 and 120 psi with NOT more than 10 psi pressure difference between hot and cold. •Drain required with standpipe diameter of 1-1/4" min. and height of 24" min. / 96" max. above floor, capable of eliminating 17 gallons per minute. Attached 59" drain hose can reach 79"-high standpipe. Note: F or planning purposes only. Refer to Product Installation Guide on the web at electroluxappliances.com for detailed instructions. Optional Accessories •Pedestal Drawers – Titanium (PN # EPWD157STT), Island White (PN # EPWD157SIW). Stacking Kit – (PN # STACKIT7X). •Drain Hose Extension Kit – (PN # 137098000). •Dryer Electrolux Major Appliances, N.A. USA • 10200 David Taylor Drive • Charlotte, NC 28262• 1-877-4electrolux (1-877-435-3287) • electroluxappliances.com CANADA • 5855 Terry Fox Way • Mississauga, ON L5V 3E4 • 1-800-265-8352 • electroluxappliances.ca EFLW417S 03/16 © 2016 Electrolux Home Products, Inc. High standards of quality at Electrolux Home Products, Inc. mean we are constantly working to improve our products. We reserve the right to change specifications or discontinue models without notice.
