T630 - SOUL

T630 - SOUL

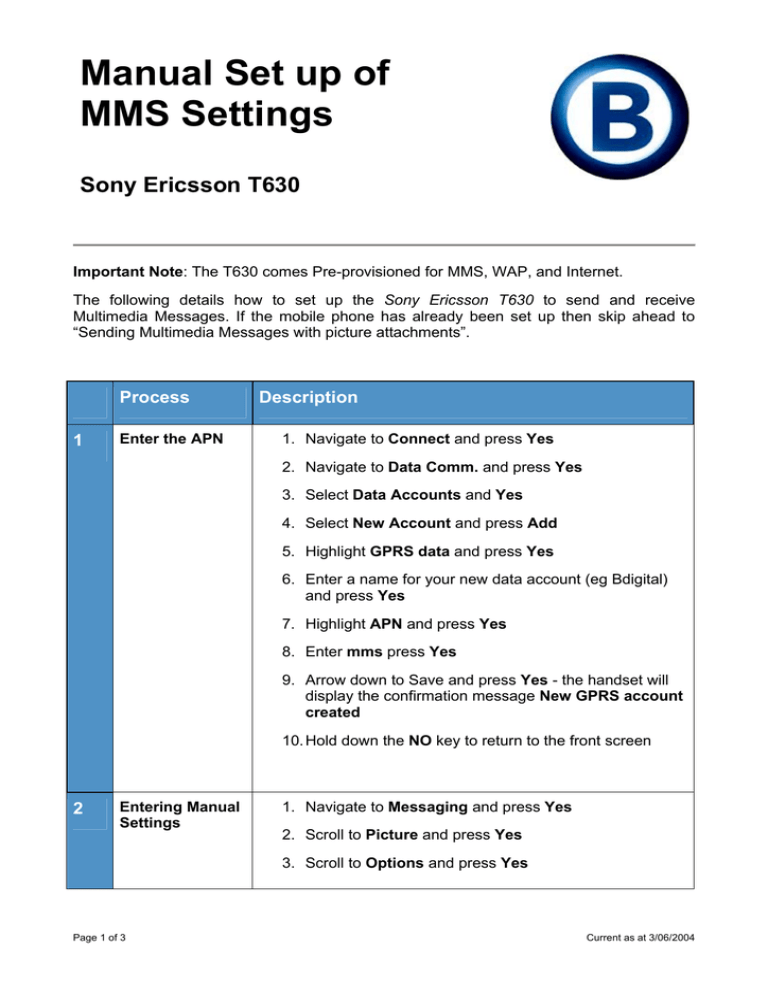

Manual Set up of
MMS Settings
Sony Ericsson T630
Important Note: The T630 comes Pre-provisioned for MMS, WAP, and Internet.
The following details how to set up the Sony Ericsson T630 to send and receive
Multimedia Messages. If the mobile phone has already been set up then skip ahead to
“Sending Multimedia Messages with picture attachments”.
Process
1
Enter the APN
Description
1. Navigate to Connect and press Yes
2. Navigate to Data Comm. and press Yes
3. Select Data Accounts and Yes
4. Select New Account and press Add
5. Highlight GPRS data and press Yes
6. Enter a name for your new data account (eg Bdigital)
and press Yes
7. Highlight APN and press Yes
8. Enter mms press Yes
9. Arrow down to Save and press Yes - the handset will
display the confirmation message New GPRS account
created
10. Hold down the NO key to return to the front screen
2
Entering Manual
Settings
1. Navigate to Messaging and press Yes
2. Scroll to Picture and press Yes
3. Scroll to Options and press Yes
Page 1 of 3
Current as at 3/06/2004
Manual Set up of MMS Settings - Sony Ericsson T630
4. Scroll to Message Server and press Yes
5. Enter http://mmsc.optus.com.au:8002/ as the
Message Server and press Yes
6. Scroll to WAP Profile and press Yes
7. Scroll to Create New and press Yes
8. Enter a name for the WAP profile eg. Optus MMS and
press Yes
9. Scroll to Connect Using and press Yes
10. Select Optusmms and press Yes
11. Scroll to IP address and press Yes
12. Enter 061.088.190.010 and press Yes
13. Scroll to Save? and press Yes - the handset will
display the confirmation message New Profile created
14. Hold down the NO key to return to the front screen
The customer should now be able to send and receive
Multimedia messages.
3
Sending
Multimedia
Messages with
attachments
1. Navigate to Messaging and press Yes
2. Scroll to Picture and press Yes
3. Scroll to Create New and press Yes
4. Handset displays Add menu
5. To insert a picture, highlight Picture and Press Yes
6. Select the picture you want to send by pressing Yes
7. The handset will display message Accept? Press Yes
8. Scroll More, highlight Send & press Select
9. Phone displays Number: Enter a number or scroll right
with the joystick for more options
10. Select Phone book, SIM entries or Unsaved
Numbers
11. Note:
Press More for Symbol Menu
Page 2 of 3
Current as at 3/06/2004
Manual Set up of MMS Settings - Sony Ericsson T630
12. Press Send after entering a number or email address
13. Scroll to Send message and press Yes
14. Handset will display Sending
The Multimedia Message will now be sent.
Visit us 365 days a year at
www.Bdigital.com.au
Or call
13 30 20
Page 3 of 3
Current as at 3/06/2004
This Factsheet is provided as a guide only to our Customers and is subject to the terms and conditions specified within our Terms of Use policy.
These terms can be viewed on our website or may be obtained by calling our Customer Care number. B Digital Limited ABN 99 085 089 970 trading as B.
