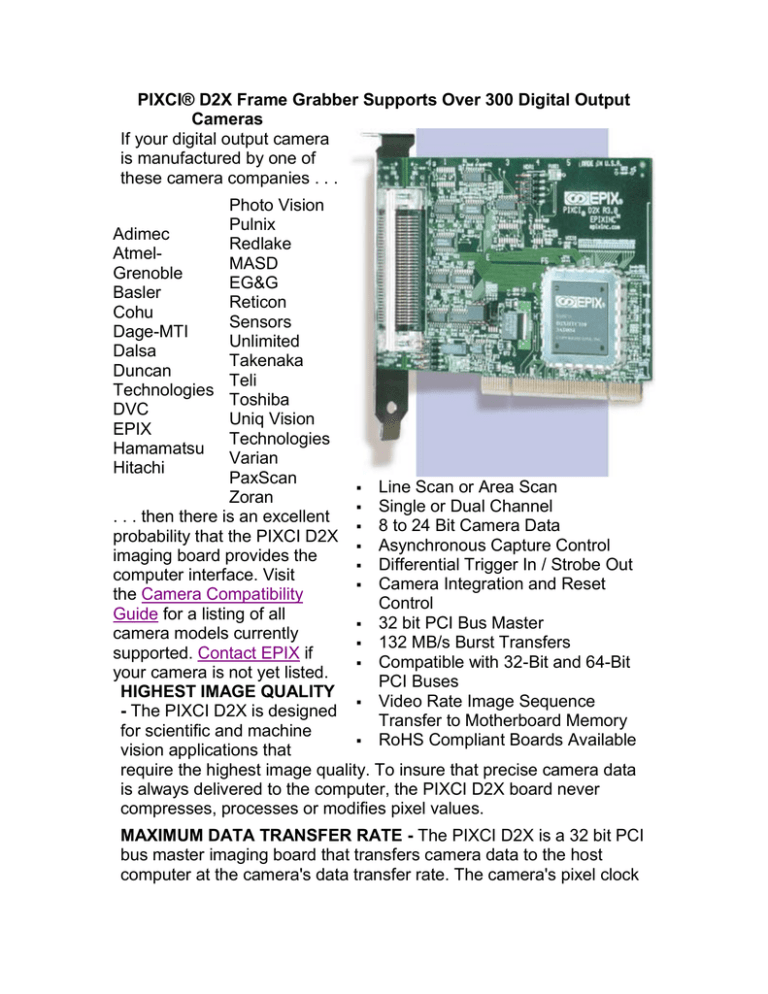

PIXCI® D2X Frame Grabber Supports Over 300 Digital Output
Cameras
If your digital output camera
is manufactured by one of
these camera companies . . .
Photo Vision
Pulnix
Adimec
Redlake
AtmelMASD
Grenoble
EG&G
Basler
Reticon
Cohu
Sensors
Dage-MTI
Unlimited
Dalsa
Takenaka
Duncan
Teli
Technologies
Toshiba
DVC
Uniq Vision
EPIX
Technologies
Hamamatsu
Varian
Hitachi
PaxScan
 Line Scan or Area Scan
Zoran
 Single or Dual Channel
. . . then there is an excellent
 8 to 24 Bit Camera Data
probability that the PIXCI D2X
 Asynchronous Capture Control
imaging board provides the
 Differential Trigger In / Strobe Out
computer interface. Visit
 Camera Integration and Reset
the Camera Compatibility
Control
Guide for a listing of all
 32 bit PCI Bus Master
camera models currently
 132 MB/s Burst Transfers
supported. Contact EPIX if
 Compatible with 32-Bit and 64-Bit
your camera is not yet listed.
PCI Buses
HIGHEST IMAGE QUALITY
 Video Rate Image Sequence
- The PIXCI D2X is designed
Transfer to Motherboard Memory
for scientific and machine
 RoHS Compliant Boards Available
vision applications that
require the highest image quality. To insure that precise camera data
is always delivered to the computer, the PIXCI D2X board never
compresses, processes or modifies pixel values.
MAXIMUM DATA TRANSFER RATE - The PIXCI D2X is a 32 bit PCI
bus master imaging board that transfers camera data to the host
computer at the camera's data transfer rate. The camera's pixel clock
controls the data flow from the camera into the PIXCI D2X; the
computer's PCI bus chip set controls the data flow from the PIXCI
D2X, through the PCI bus, to the computer's memory (or other PCI
bus target).
COMPATIBILITY GUARANTEED - The product designation "PIXCI
D2X" refers to a series of 300+ custom-configured imaging boards;
each optimized to support one of 300+ specialized digital cameras.
Before a camera is added to the Camera Compatibility Guide, EPIX
tests the camera and designs a camera-specific interface. Engineers
custom program a PIXCI D2X board to exactly support the camera's
video timing specifications and electronically tag the board with the
camera's identification code. An "Adjust Dialog" menu, optimized to
match the camera's capabilities, is added to the XCAP imaging
program.
OPTIMIZED IMAGING SYSTEMS - EPIX, Inc. offers complete
imaging systems including cameras, imaging boards, software, cables,
computers, lenses, and lighting. All components of an EPIX imaging
system are configured and tested together, as a system, so we can
guarantee that everything will work properly, the first time, right out of
the box.
FEATURES
Example of Adjust Dialog for camera with
direct software control (actual size).
Example of Adjust Dialog for camera without
direct software control (actual size).
CAMERA CONTROL
FROM SOFTWARE
CAMERA ADJUST
DIALOG:
Most cameras
supported by PIXCI
D2X imaging boards
allow software control
of exposure, gain,
shutter speed, line
rate, and more.
The XCAP imaging
program provides a
dedicated camera
Adjust Dialog for
convenient control.
A camera's Adjust
Dialog is
automatically
displayed when the
PIXCI D2X board is "Opened" from the Lite, Ltd, Std, or Plus versions
of the XCAP program. XCAP knows which menu to load by reading
the camera identification code from the PIXCI D2X board.
The Adjust Dialog uses camera control names designated by the
camera manufacturer. As a result, the camera's user manual provides
all the information required to control the camera from XCAP.
If a camera does not allow software control, then the camera is
equipped with physical controls and switches — XCAP's camera
Adjust Dialog is designed to appear like the camera's control panel
using the camera's control labels. Camera control simply requires the
operator to set XCAP control parameters to match the actual camera's
control positions.
PIXCI D2X VERSATILITY
MULTIPLE BOARDS / MULTIPLE CAMERAS:
All versions of the XCAP program (except Demo) recognize all PIXCI
PCI imaging boards, regardless of model or order code, and offer
dedicated control for as many as 8 PIXCI boards / cameras in one
computer.1 The Multiple Devices menu in XCAP displays each board
by the model name of the camera it supports. Check Boxes provide
quick and convenient camera selection.
Synchronized operation of multiple cameras is available (camera
dependent).
SOFTWARE COMPATIBILITY:
Supported by XCAP-Lite (no charge with board purchase), XCAPLtd, XCAP-Std, XCLIB, and XCLIBIPL.
Compatible with 32-bit & 64-bit Windows 10, 8, 7, Vista, XP, 2000,
LINUX, and 32-bit DOS. Also TWAIN and Image-Pro Compatible.
TTL MODULE
The optional TTL Module minimizes false triggers when
using a TTL trigger with a cable longer than one foot. The
TTL MODULE converts the TTL trigger into a differential
signal for reliable triggering with up to 200 feet of cable.
The TTL MODULE also can generate a TTL strobe from
the attached PIXCI® board. Compatible with PIXCI® CL1, CL2,
CL3SD, D2X, D3X, SI, and SI4.
SPECIFICATIONS
RESOLUTION:
8 to 4,096 pixels per line
1 to 4,096 lines per image
(area scan)
1 to 65,534 lines per image
(line scan)
SIGNALS:
Differential RS-644 or RS-422
camera / board signaling
(camera dependent).
Differential Trigger IN / Strobe
OUT 2
MAXIMUM FRAME RATE:
Camera Dependent
CONNECTIONS:
1 68-pin (SCSI II) cable
receptacle
2 10-pin headers
CE / FCC CERTIFICATION:
PIXCI D2X was tested per EMC
directive 89/336/EEC and
performed to class B.
BUS REQUIREMENTS:
32 bit, 33 MHz PCI bus master, or
64 bit 66 MHz PCI bus master
3.3V or 5V PCI Signaling
DIMENSIONS:
12.48 cm long by 10.67 cm high
(4.913" x 4.20") [short slot]
