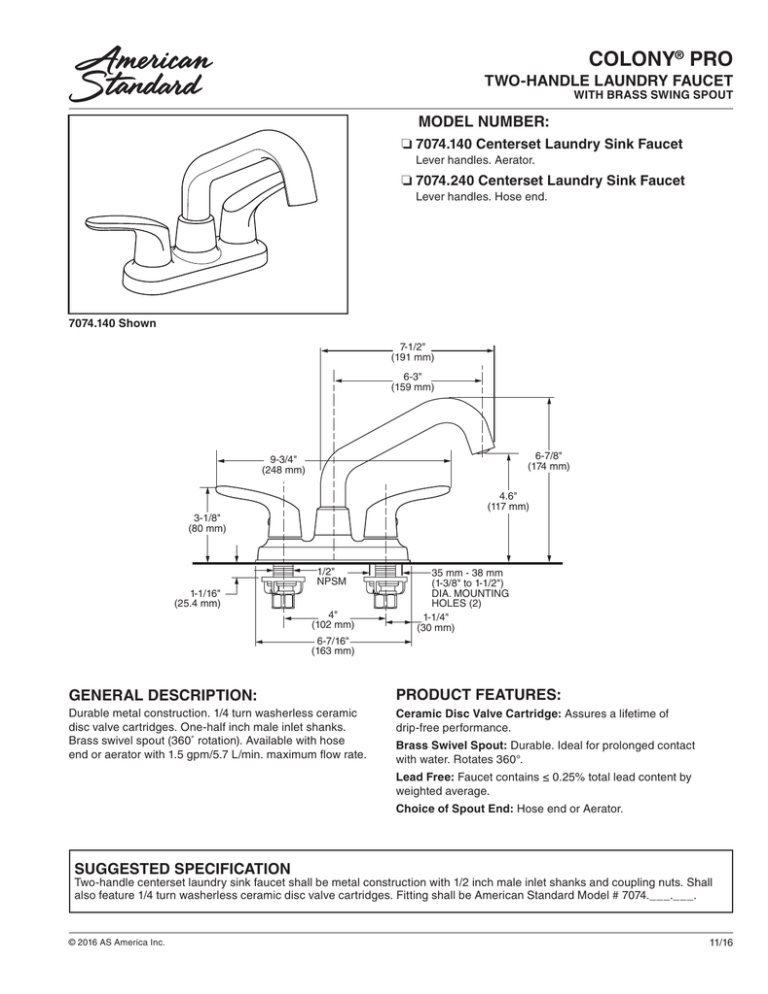

COLONY® PRO
TWO-HANDLE LAUNDRY FAUCET
WITH BRASS SWING SPOUT
MODEL NUMBER:
❏ 7074.140 Centerset Laundry Sink Faucet
Lever handles. Aerator.
❏ 7074.240 Centerset Laundry Sink Faucet
Lever handles. Hose end.
7074.140 Shown
7-1/2"
(191 mm)
6-3"
(159 mm)
6-7/8"
(174 mm)
9-3/4"
(248 mm)
4.6"
(117 mm)
3-1/8"
(80 mm)
1/2"
NPSM
1-1/16"
(25.4 mm)
4"
(102 mm)
35 mm - 38 mm
(1-3/8" to 1-1/2")
DIA. MOUNTING
HOLES (2)
1-1/4"
(30 mm)
6-7/16"
(163 mm)
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Durable metal construction. 1/4 turn washerless ceramic
disc valve cartridges. One-half inch male inlet shanks.
Brass swivel spout (360˚ rotation). Available with hose
end or aerator with 1.5 gpm/5.7 L/min. maximum flow rate.
Ceramic Disc Valve Cartridge: Assures a lifetime of
drip-free performance.
Brass Swivel Spout: Durable. Ideal for prolonged contact
with water. Rotates 360°.
Lead Free: Faucet contains ≤ 0.25% total lead content by
weighted average.
Choice of Spout End: Hose end or Aerator.
SUGGESTED SPECIFICATION
Two-handle centerset laundry sink faucet shall be metal construction with 1/2 inch male inlet shanks and coupling nuts. Shall
also feature 1/4 turn washerless ceramic disc valve cartridges. Fitting shall be American Standard Model # 7074.___.___.
© 2016 AS America Inc.
11/16
GALLO
1.0
0.5
0.0
COLONY® PRO
TWO-HANDLE LAUNDRY FAUCET
*Flow r
WITH BRASS SWING SPOUT
FLOW
RATE*
(2475.550)
FLOW
RATE*
CODES AND STANDARDS
ANSI A117.1
ASME A112.18.1
CSA B125.1
NSF 61/Section 9
NSF 372
3.02.0
30
GALLONS PER MINUTE
GALLONS PER MINUTE
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
2.5
1.5
2.0
1.51.0
1.0
0.5
0.5
0.00.0
2020
4040
6060
8080
25
20
15
0
100
100
I N ILNELTE T
P RPERSESSUSRUER E
( P (SPI S
) I)
*Flow
*Flow rates
rates shown
shown are
are for
for mixed
mixed hot
hot and
and cold.
cold.
*Flow r
2.2gpm/8.3L/min.
1.5gpm/5.7 L/min. FLOW
FLOW RATE
RATE
FLOW RATE* (2475.540)
FLOW RATE*
30
GALLONS PER MINUTE
GALLONS PER MINUTE
2.0
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
25
20
15
0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
1.5gpm/5.7 L/min. FLOW RATE
Finish
Polished
Chrome
Product
Number
Description
7074.140
Laundry Sink faucet. Lever handles. Aerator - 1.5 gpm/5.7 L/min. maximum flow rate
7074.240
Laundry Sink faucet. Lever handles. Hose end.
002
Meets the American Disabilities Act Guidelines and ANSI A117.1
Requirements for the physically challenged.
© 2016 AS America Inc.
11/16
