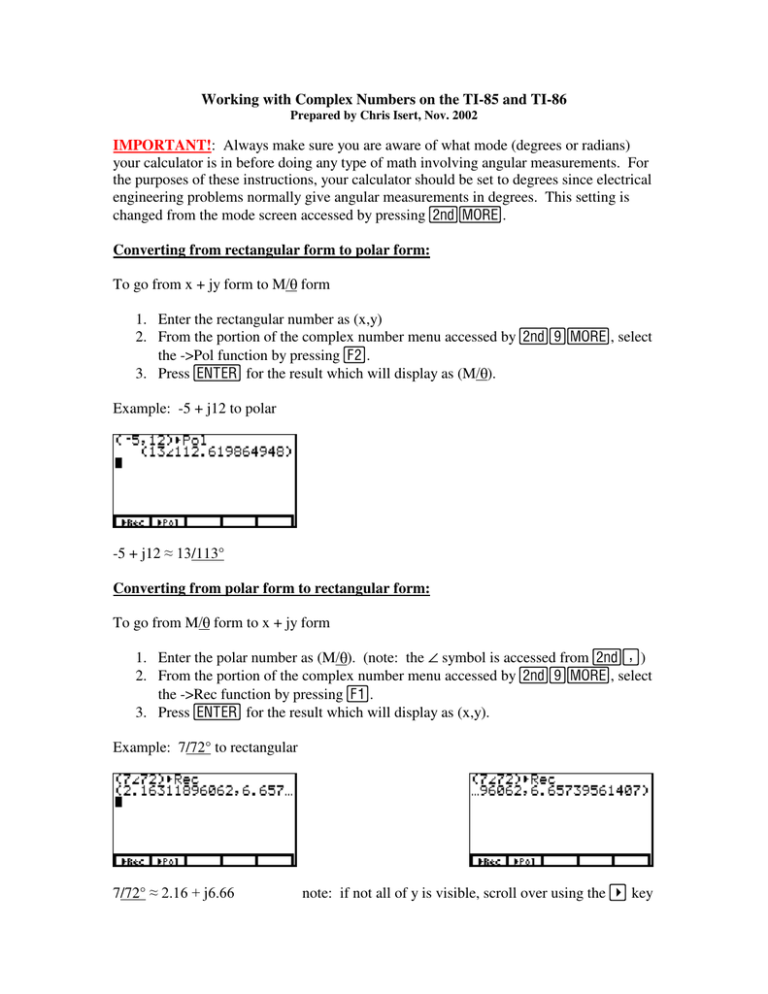

Working with Complex Numbers on the TI-85 and TI-86
Prepared by Chris Isert, Nov. 2002
IMPORTANT!: Always make sure you are aware of what mode (degrees or radians)
your calculator is in before doing any type of math involving angular measurements. For
the purposes of these instructions, your calculator should be set to degrees since electrical
engineering problems normally give angular measurements in degrees. This setting is
changed from the mode screen accessed by pressing .
Converting from rectangular form to polar form:
To go from x + jy form to M form
1. Enter the rectangular number as (x,y)
2. From the portion of the complex number menu accessed by /, select
the ->Pol function by pressing .
3. Press E for the result which will display as (M ).
Example: -5 + j12 to polar
-5 + j12 §/113°
Converting from polar form to rectangular form:
To go from M form to x + jy form
1. Enter the polar number as (M ). (note: the Õ symbol is accessed from 3)
2. From the portion of the complex number menu accessed by /, select
the ->Rec function by pressing .
3. Press E for the result which will display as (x,y).
Example: 7/72° to rectangular
7/72° §M note: if not all of y is visible, scroll over using the key
Complex math operations:
The TI-85 and TI-86 can simplify complex math expressions directly. The form in which
it outputs the result can be determined by changing the appropriate setting on the mode
screen.
The mode screen is accessed by pressing .
Here you can change many useful settings including whether angles are specified in
radians or degrees and whether rectangular or polar coordinates are being used. To make
the calculator simplify complex expressions to rectangular coordinates, highlight RectC
and press E. To make the calculator simplify complex expressions to polar
coordinates, highlight PolarC and press E. To return to the home screen press
.
To simplify a complex math expression, simply type it directly into the calculator making
sure to use parentheses appropriately to separate operations. Remember, graphing
calculators follow order of operations on any expression that you type into them. Make
sure that the operations you want done first are enclosed in the deepest parentheses.
To simplify an expression such as (6/19°)(40 + j51)/[(2 – j7)(5/-147°)] simply enter it as
shown below and press E for the result.
The result is approximately 3.99 – j9.91 in rectangular coordinates. If the calculator was
set in polar coordinates the display would look like the one below and the answer would
be approximately 10.68/-68°.
